Panasonic SH-TR70, SE-FX70, SH-FX70 User Manual

Operating Instructions

Wireless System

Model No. SH-FX70

Designed for Panasonic DVD Home Theater Sound Systems that are compatible with the SH-FX70.

If you have any questions contact

In the U.S.A. and Puerto Rico: 1-800-211-PANA (7262)

In Canada: 1-800-561-5505

	Panasonic Consumer Electronics	Panasonic Canada Inc.		p
			PP
	Company, Division of Panasonic	5770 Ambler Drive
	Corporation of North America	Mississauga, Ontario
	One Panasonic Way, Secaucus,	L4W 2T3
	New Jersey 07094	www.panasonic.ca
	http://www.panasonic.com

	C Panasonic Corporation 2008	RQTX0170-1Y
	Printed in Malaysia	F1208ZA1039

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

≥DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

≥USE ONLY THE RECOMMENDED ACCESSORIES. ≥DO NOT REMOVE THE COVER (OR BACK);

THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

The socket outlet shall be installed near the equipment and easily accessible.

The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

RQTX0170

2

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna.

≥Increase the separation between the equipment and receiver.

≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for help.

FCC caution: To maintain compliance with FCC regulations, shielded interface cables must be used with this equipment. Operation with non-approved equipment or unshielded cables may result in interference to radio and TV reception. Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

WARNING:

To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with dry cloth.

7)Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Product Identification Marking is located on the bottom of unit.

THE FOLLOWING APPLIES ONLY IN CANADA.

This Class B digital apparatus complies with Canadian ICES-003.

THE FOLLOWING APPLIES ONLY IN CANADA.

This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference,

(2)This device must accept any interference received, including interference that may cause undesired operation of the device.

The following mark and symbols are located on bottom of the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

RQTX0170

3

Dear customer

	Thank you for purchasing this product. For optimum performance and
Accessories	safety, please read these instructions carefully.
	Before connecting, operating or adjusting this product, please read
	the instructions completely.
	Please keep this manual for future reference.
	System		SH-FX70
	Digital transmitter		SH-TR70
	Wireless system		SE-FX70

User memo:

DATE OF PURCHASE___________________________________

DEALER NAME________________________________________

DEALER ADDRESS ____________________________________

___________________________________________________________________

TELEPHONE NUMBER__________________________________

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER	SH-FX70
SERIAL NUMBER

-If you see this symbol-

Information on Disposal in other Countries outside the

European Union

RQTX0170				This symbol is only valid in the European Union.
				for the correct method of disposal.
				If you wish to discard this product, please
				contact your local authorities or dealer and ask

4

Accessories

Please check and identify the supplied accessories. Use numbers indicated in

parentheses when asking for replacement parts.

(Product numbers correct as of November 2008. This may be subject to change.)

For U.S.A. and Puerto Rico:

To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 14.

For Canada:

To order accessories, call the dealer from whom you made your purchase.

∏ AC power supply cord (K2CB2CB00021)

For use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit.

∏ 2 Speaker cables

[REEX0992 (Blue), REEX0993 (Grey)]

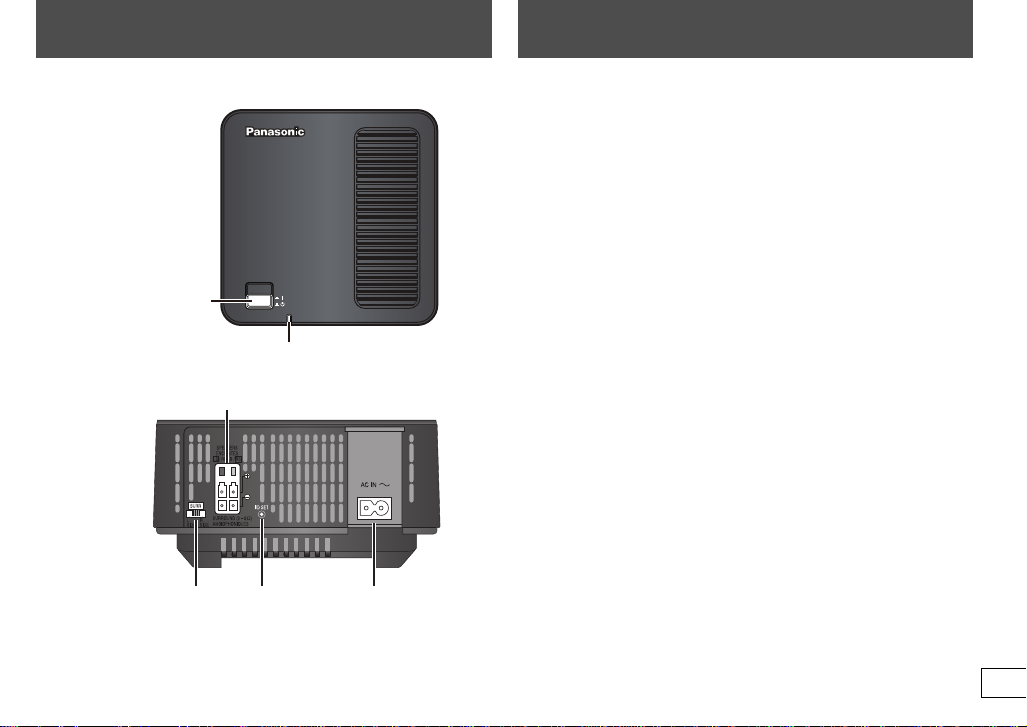

Control reference guide

∫ Top of the main unit

Unit on/off button
(B 9)	POWER	WIRELESS LINK

WIRELESS LINK indicator (B 9)

∫ Rear of the main unit

Speaker terminals (B 8)

Table of contents

Introduction

	IMPORTANT SAFETY INSTRUCTIONS...............................................	3	contents
	Accessories ...........................................................................................	4
	Control reference guide	5
	Use
	Setup .....................................................................................................	6	of
	Connections	7
			Table/
	Making the wireless link	9
	Using the surround back speakers...................................................	10
	Reference		guide
	Product service	11
	Maintenance.........................................................................................	11
	Troubleshooting guide..........................................................................	11	referenceControl
	Specifications	12
	Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) ..............	13
	Limited Warranty (ONLY FOR CANADA)............................................	15

Surround selector (B 8)

I/D SET button (B 10)

AC IN (B 8)

[Note]

≥Place the main unit in a horizontal position with the top panel faced upward.

≥To allow for proper ventilation and to maintain good airflow around the main unit, position it with at least 5 cm (2z) of space on all sides.

RQTX0170

5

Setup

Preparation

≥Turn off all equipment before connection and read the appropriate

Setup

operating instructions.

≥Connect the AC power supply cord after all other connections are

complete.

[Note]

≥Do not use the wireless system and digital transmitter in a metal cabinet

or bookshelf.

≥Do not attempt to connect any extra surround speakers to the home

theater unit.

≥Place the wireless system within approximately 15 m (47 ft) from the

home theater unit.

To avoid interference, maintain the following distances between

the wireless system and other electronic devices that use the

same radio frequency (2.4 GHz band).

e.g.

Wireless LAN: approx.

2 m (6-1/2 ft)

Cordless phone and other

Wireless

electronic devices:

system

approx. 2 m (6-1/2 ft)

The wireless system will automatically seek a clear channel if any of

these other devices interfere with its communication.

When this happens, the wireless link indicator (“ [W1] ” or an indicator)

flashes on the home theater unit, and there is a brief interruption in

audio coming from the surround speakers.

RQTX0170

This is the normal operation of the product working to assure the best

possible performance of your home theater unit.

If the interference persists, try moving the other devices to another

location outside the range of the wireless system, or move the wireless

system nearer to your home theater unit.

6

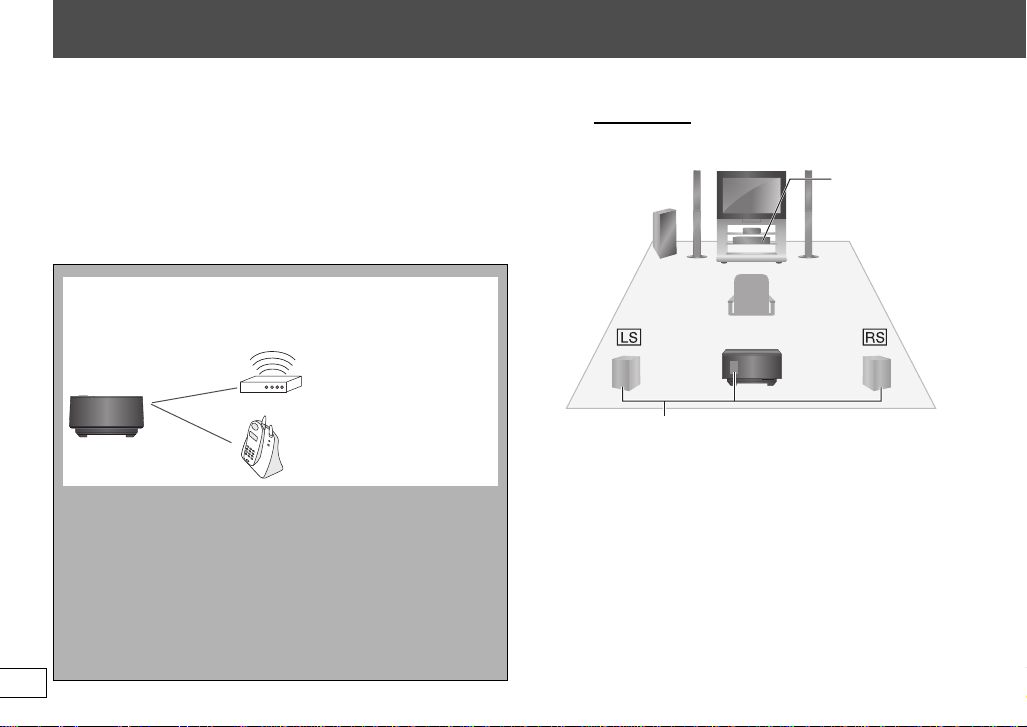

∫ Wireless setup diagram

e.g. 5.1ch

[Compatible model: e.g. SC-PT670]

Home theater unit

(with the digital transmitter)

Seating

position

Wireless system

Surround speaker cables (included)

Surround speakers are not included.

LS: Surround (left), RS: Surround (right)

≥Place on the side of or slightly behind the seating position.

e.g. 7.1ch (Using two units of the wireless system)

Home theater unit

(with the digital transmitter)

			Seating position
Wireless system				Wireless system
LS					RS
	LB			RB

Surround speaker cables (included)

Surround speakers and surround back speakers are not included.

This placement offers 7.1-channel playback. Your home theater unit must be capable of 7.1-channel playback.

LS: Surround (left), RS: Surround (right) ≥Place on the side of the seating position.

LB§: Surround back (left), RB§: Surround back (right)

≥Place behind the seating position, about 1 m (3 ft) higher than ear level.

§LB or SBL RB or SBR

Connections

∫ Digital transmitter

Refer also to the operating instructions for your home theater unit.

Do not insert or remove while the home theater unit is on.

SH-TR70 digital transmitter

Insert fully until you hear a click.

DIGITAL
TRANSMITTER	e.g.
	Rear of the home theater unit

Setup

RQTX0170

(Continued on next page) 7

Setup

Setup

Connections

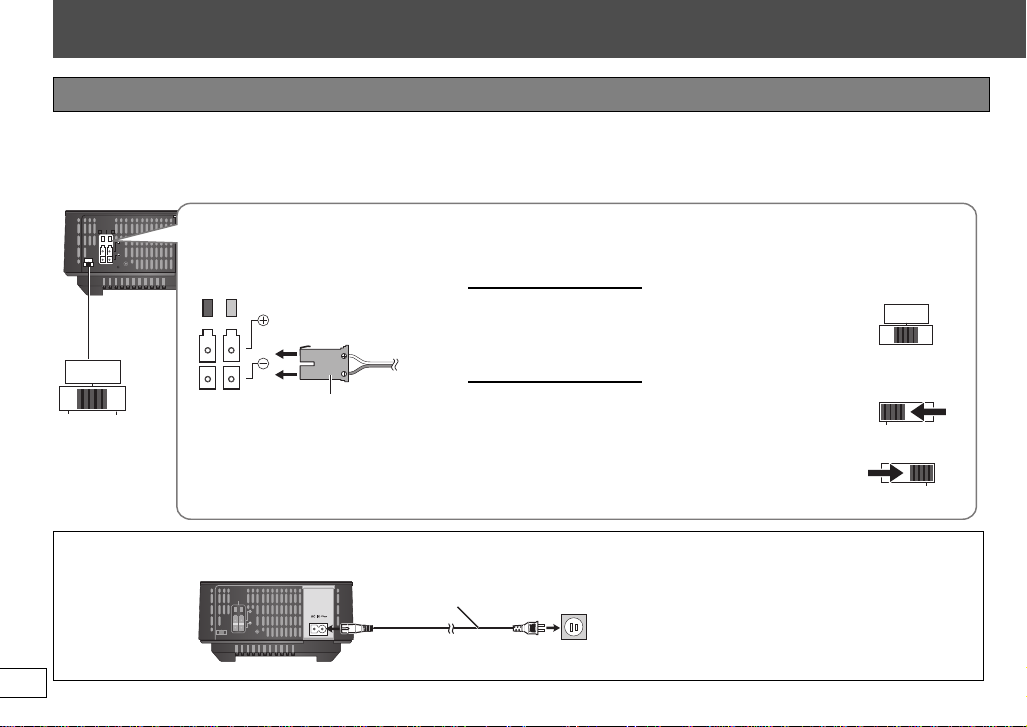

∫ Wireless system

Preparation

If the surround speaker cables (with a blue connector and a grey connector) have already been connected, disconnect the surround speaker cables from your home theater unit.

ENCEINTES		Connecting the speakers to the wireless system
SPEAKERS	Connect to terminals of the same color.
LS / RB LB /

SURR
L R SURROUND	For 5.1ch connection
SIDE SIDE AMBIOPHONIQUES
Speaker cable	SURROUND (LS): Blue	Selector setting for the	SURR
	SURROUND (RS): Grey	left and right speakers

SURR

For 7.1ch connection

SURROUND (LS): Blue

Selector setting for the

Insert fully.

SURROUND BACK (LB): Grey

left speakers

L

R

L

SIDE

SIDE

Impedance: 3 ≠ to 6 ≠

SIDE

Surround

Speaker input power: 100 W (Min)

SURROUND (RS): Grey

Selector setting for the

selector

SURROUND BACK (RB): Blue

right speakers

R

SIDE

∫ AC power supply cord

RQTX0170

8

AC power supply cord (included)

To household AC outlet (AC 120 V, 60 Hz)

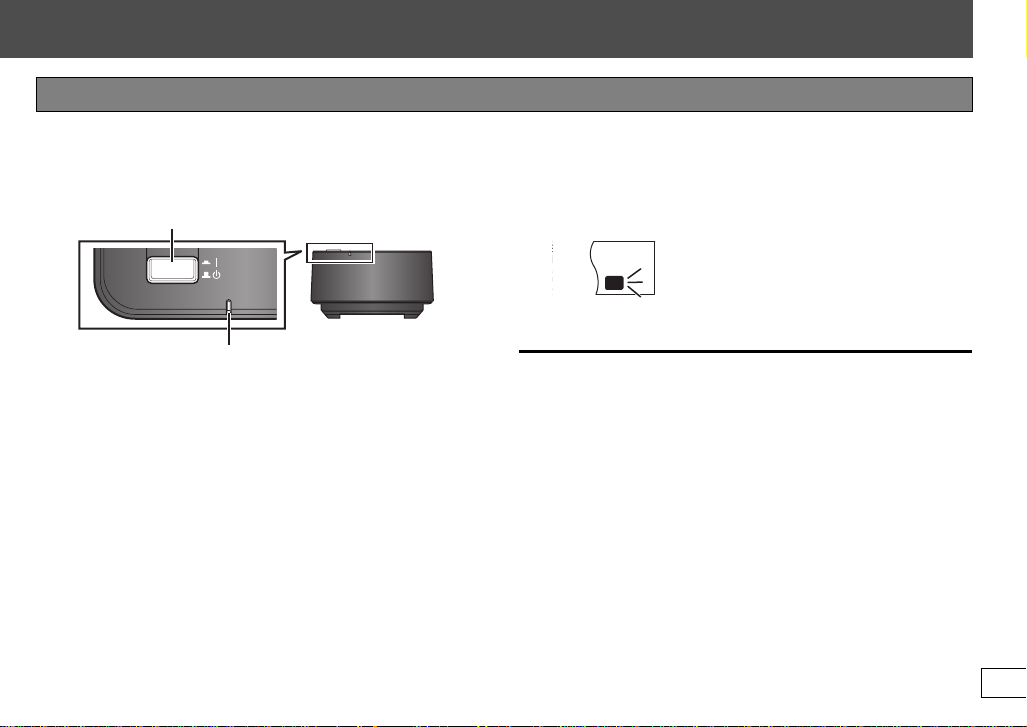

Making the wireless link

≥Refer also to the operating instructions for your home theater unit.

≥When you enjoy 7.1-channel playback, refer also to “Using the surround back speakers” (B 10).

1 Turn on the wireless system.

Unit on/off button [POWER C I, B Í]

Use this button to turn the unit on and off.

C I: The unit is on.	B Í: The unit is off.
POWER	WIRELESS LINK

2	Turn on your home theater unit.
	The wireless link indicator on your home theater unit will be turned
	on.
	≥The type of the indicator varies according to the home theater unit.
		e.g. Display on the home theater unit
			≥If the indicator is flashing, refer to
		DDTS PL
		SRDE. PRG	Troubleshooting guide (B 11).
		PGMRNDRDS
		W1W2 WS

Setup

WIRELESS LINK indicator

Red: The unit is on and the wireless link is deactivated. Green: The unit is on and the wireless link is activated.

3 Start play on the home theater unit.

Conserving power

The wireless system consumes a small amount of power, even when it is off (approx. 0.2 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.

RQTX0170

9
