DVD Player/
Video Cassette Recorder
Operating Instructions
Model No. NV-VP31 Series
VP-31GN
Before attempting to connect, operate or adjust this product, please read these instructions completely.
VQT0F31
Contents |
|
Before Use |
|
Warning and Important Information .............................. |
3 |
Accessories .................................................................................. |
3 |
VHS Deck and Cassette Tape Information.................... |
4 |
The Remote Control ..................................................................... |
4 |
Disc Information.............................................................. |
5 |
Control Reference Guide................................................ |
6 |
Main Unit....................................................................................... |
6 |
The Unit’s Display......................................................................... |
6 |
Remote Control............................................................................. |
7 |
Getting Started |
|
Connections .................................................................... |
8 |
Basic Connections ........................................................................ |
8 |
Audio/Video Output Sockets......................................................... |
8 |
For better video from DVD............................................................ |
8 |
To enjoy sound through other audio equipment ........................... |
9 |
Operating the TV ........................................................... |
10 |
TV Maker Setting ........................................................................ |
10 |
Tuning the TV to Your Unit........................................... |
11 |
To change the RF output channel .............................................. |
11 |
Setting Up for VHS ........................................................ |
12 |
CLOCK SET ............................................................................... |
12 |
DVD Quick Setup........................................................... |
13 |
VHS Operations |
|
Playback......................................................................... |
14 |
Picture Mode............................................................................... |
15 |
Adjusting the playback picture .................................................... |
15 |
NTSC Playback .......................................................................... |
15 |
Recording ...................................................................... |
16 |
One-Touch Recording (OTR) ..................................................... |
17 |
Recording from an external source............................................. |
17 |

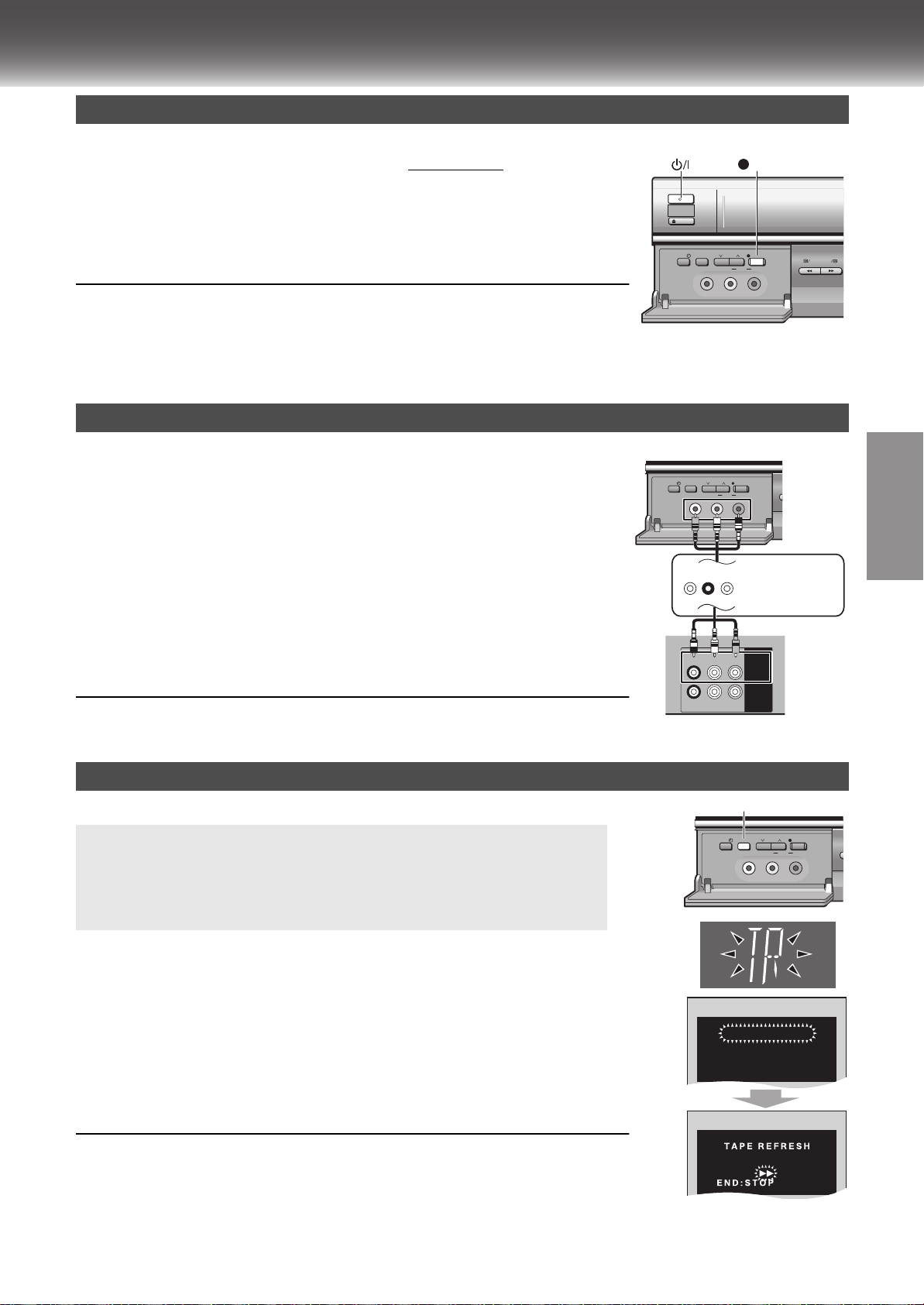

Tape Refresh Function ............................................................... |
17 |
Timer Recording............................................................ |
18 |
To check and cancel a Timer Programme.................................. |
19 |
Search Functions .......................................................... |
20 |
Jet Navigator............................................................................... |
20 |
VHS Index Search System (VISS).............................................. |
21 |
Easy Programme Playback ........................................................ |
21 |
Settings Using the On-Screen Display........................ |
22 |
TUNER PRESET ........................................................................ |
22 |
SYSTEM ..................................................................................... |
23 |
OPTION ...................................................................................... |
24 |
Various indications in on-screen display..................................... |
25 |
Changing audio........................................................................... |
25 |
DVD Operations |
|
Playing Discs-basic play............................................... |
26 |
Position Memory function............................................................ |
27 |
Chapter Review........................................................................... |
27 |
Convenient Functions................................................... |
28 |
Starting play from a selected item............................................... |
28 |
Selecting groups to play.............................................................. |
28 |
QUICK REPLAY.......................................................................... |
28 |
Rotating Pictures......................................................................... |
29 |

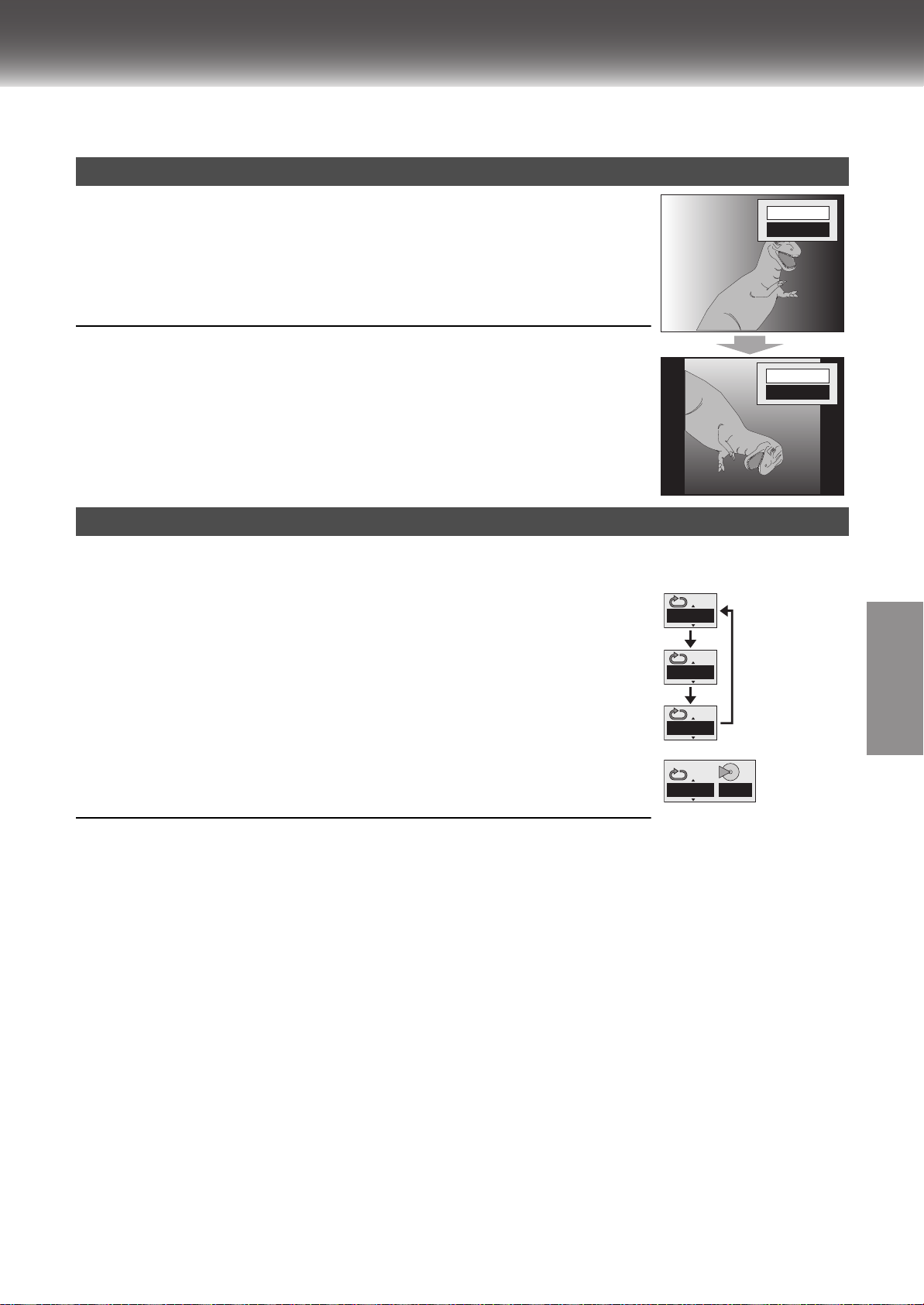

Repeat Play................................................................................. |
29 |
Changing Play Sequence.............................................. |
30 |
Program Play .............................................................................. |
30 |
Random Play............................................................................... |
30 |
Playing the Programmes or Play Lists on DVD-RAM.... |
31 |
Direct Navigator .......................................................................... |
31 |
Playing a play list ........................................................................ |
31 |
MP3/WMA, CD text and JPEG Navigating Menus....... |
32 |
Playing HighMAT discs ............................................................... |
33 |
To Enjoy Movies and Music More ................................ |
34 |
Changing soundtracks, subtitles and angles............................... |
34 |
ADVANCED SURROUND .......................................................... |
35 |
CINEMA ...................................................................................... |
35 |
Variable Zoom function ............................................................... |
35 |
Digital output ............................................................................... |
36 |
Using On-Screen Menu Icons....................................... |
37 |
Disc information .......................................................................... |
37 |
Progress indicator ....................................................................... |
38 |
Unit information ........................................................................... |
38 |
Changing Settings......................................................... |
40 |
Entering a password (Ratings).................................................... |
40 |
SETUP menu .............................................................................. |
41 |
Editing |
|
Recording from DVD to VHS......................................... |
42 |
Manual Dubbing .......................................................................... |
42 |
One-Touch Dubbing.................................................................... |
42 |
Adding Music to Video.................................................. |
43 |
MUSIC WITH PICTURE.............................................................. |
43 |
Helpful Hints |
|
Before Requesting Service........................................... |
44 |
Error Messages........................................................................... |
46 |
Glossary ......................................................................... |
47 |
Specifications ................................................................ |
48 |
Index ............................................................................... |
49 |
2
Warning and Important Information
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE EQUIPMENT.
TO REDUCE THE RISK OF FIRE, SHOCK HAZARD AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
Important
Your attention is drawn to the fact that the recording of pre-recorded tapes or discs or other published or broadcast material may infringe copyright laws.
For your safety
Do not remove outer cover.
Touching internal parts of the unit is dangerous, and may seriously damage it.
To prevent electric shock, do not remove cover. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
Cautions before you operate this unit
Avoid:
≥Humidity and dust.
≥Covering the ventilation holes with soft materials such as cloth or paper.
≥Extreme heat such as direct sunlight. ≥Magnets or electromagnetic objects. ≥Touching internal parts of the unit.
≥Water or some other liquid.
≥Lightning. (Disconnect the aerial plug from the unit during a lightning storm.)
≥Anything heavy on the unit.
≥Connecting or handling the equipment with wet hands. ≥Using a cell phone near the unit because doing so may cause
noise to adversely affect the picture and sound.
Do:
≥Wipe the unit with a clean and dry cloth. ≥Install the unit in a horizontal position.
≥Keep the unit, TV and other equipment switched off until you have finished all connections.
Condensation may form in the following cases:
≥The unit is brought from cold surroundings into a well-heated room.
≥The unit is suddenly brought from cool surroundings, such as an air-conditioned room or car, to a place which is hot and humid.
Note:
≥In any of the above-mentioned conditions, do not operate the unit for at least 1 hour. This unit is not equipped with a dew sensor.
NV-VP31GL: Australia model
NV-VP31GN: New Zealand model
THIS UNIT IS INTENDED FOR USE IN
MODERATE CLIMATES.
(Inside of product)
Accessories
Please check and identify the supplied accessories. |
|
∏1 pc. Remote Control |
∏1 pc. AC Main Lead |
∏1 pc. RF Coaxial cable |
∏1 pc. Audio/Video cable |
∏2 pcs. “R6” size batteries |
|
Before Use
3
VHS Deck and Cassette Tape Information
ªSurge Absorber
For further protection for this product, these models are equipped with new surge absorbing circuits which prevents damage due to power surges caused by lightning.
≥This function may not be effective for surges by direct lightning.
ªCrystal View Control
The crystal view control function ensures the optimum picture quality so that you get the best picture automatically.
ªTapes
≥You can use tapes with the VHS and S-VHS marks, but this unit is unable to make full use of the characteristics of S-VHS tapes.
≥Break the tape’s tab to prevent accidental erasure. Cover the hole with a
double layer of adhesive tape when you want to use the tape for recording again.
Tab
ªS-VHS Quasi Playback (SQPB)
It is possible to play back tapes recorded in the S-VHS system. ≥Some picture noise may occur depending on the type of tape
used.
≥It is not possible to fully obtain the high resolution that S-VHS is capable of.
It is not possible to record in the S-VHS system with this unit.
ªDirt on the video heads
If the video heads get dirty, pictures will not be recorded or played back clearly. (See the following conditions.)
Normal picture |
Small amount of dirt |
Large amount of dirt |
||||
|
|
|
|
|
|
|
If this happens, insert and eject a cassette 5–10 times successively to remove the dirt from the video heads.
If the problem still persists after performing above, contact a service personnel.
Head cleaning by service agents is not covered by warranty.
Heads mainly become dirty because of scratched or dirty tapes, use of the unit under high temperature and humidity or under the dust and other reasons.
Never use tapes on which liquids have been spilt or those that are extremely damaged since these will cause not only the heads to become dirty, but also the unit malfunction.
The Remote Control
ªInstalling the batteries
Insert the batteries with the polarity (+ and -) correctly aligned.
Notes:
The service life of the batteries is approximately 1 year. However, it varies considerably depending on the frequency of use.
≥When the batteries are exhausted, remove them immediately and dispose them correctly.
≥Do not mix old battery with new battery.
≥Do not mix different battery types, i.e. Alkaline and Manganese. ≥Do not use rechargeable (Ni-Cd) batteries.
≥Do not heat or short-circuit the batteries.
≥When you do not use the remote control for a long time, take out the batteries and store them in a cool, dry place.
ªUse
Aim at the receiver window (lpage 6), avoiding obstacles, at a maximum range of 7 m directly in front of the unit.
≥Keep the transmission window and the unit’s sensor free from dust.
≥Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.
How to open the remote control
Hold both sides of the remote control’s cover to open it (You can also open it by pressing on the centre of it and sliding it down).
4
Disc Information
ªDiscs that can be played
DVD-RAM |
DVD-Video |
|
DVD-R |
SVCD |
|
Video CD |
|
|
|
CD |
CD-R/RW |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
— |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shown as “DVD- |
|
|
|
|
Conforming to |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC62107 |
|
|
|
|
|
|
|
|
|
|
|
|
||
VR” on the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
display |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[RAM] |
|
|
[DVD-V] |
|
|
[VCD] |
[CD] [CDtext] |
[MP3] [WMA] |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[JPEG] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Use discs with the above logos and that conform to specifications. The unit cannot play other discs correctly. Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.
It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.
ªDiscs that cannot be played
DVD-ROM, DVD-Audio, CD-ROM, CDV, CD-G, iRW, DVD-RW, CVD, SACD, Divx Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and 5.2-GB DVDRAM, and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107, etc.
ªRegion number supported by this player
Region numbers are allocated to DVD players and software according to where they are sold.
The region number of the unit is “4”. The unit will play DVD-Video marked with labels containing “4” or “ALL”.
Examples:
4 ALL 246 , etc.
ªDVDs that can be played
You can play discs with these symbols.
ªVideo systems
≥This unit can play PAL and NTSC, but your TV must match the system used on the disc.
≥PAL discs cannot be correctly viewed on an NTSC television. ≥This unit can convert NTSC signals to PAL 60 for viewing on a
PAL television (Video—NTSC Disc Output lpage 41). ≥Output is interlace (576I), when playing PAL discs.
ªDisc structure
Disc structure and the labels given to the items on discs depend on the disc type.
Track: |
the smallest division on CDs and Video CDs, or a single |
|
MP3/WMA file. |
Chapter: |
the smallest division on DVD-Video. |
Group: |
equivalent to folders or albums on data discs. |
Title: |
the largest division on DVD-Video, usually an entire |
|
movie. |
Programme:the division on DVD-RAM equivalent to a single |
|
|
recording. |
Picture: |
a single JPEG file. |
Play list: |
the largest grouping on a HighMAT disc, or a group of |
|
scenes on DVD-RAM. |
Scene: |
DVD-RAM programme sections specified and grouped |
|
into play lists on a DVD video recorder. |
Content: |
covers tracks and pictures on HighMAT discs. |
ªDVD-RAM discs
The DVD-RAM you can play on this unit are those recorded with DVD video recorders, DVD video cameras, personal computers, etc. using Version 1.1 of the Video Recording Format (a unified video recording standard).
≥Remove discs from their cartridges
before use and return them when you are finished, making sure that the
labels of the disc and cartridge face the same way.
≥Some parts of the disc, for example where one programme ends and another begins, may not play smoothly.
ªDVD-R discs
Panasonic DVD-R discs recorded and finalized (a process that allows play on compatible equipment) on a Panasonic DVD video recorder or DVD video camera are played as DVD-Video on this unit.
ªPlaying DVDs and Video CDs
The producer of these discs can control how they are played so you may not always be able to control play as described in these operating instructions (for example if the play time is not displayed or if a Video CD has menus). Read the disc’s instructions carefully.
ªCD-R and CD-RW discs
This unit can play CD-R/RW (audio recording disc) recorded with CD-DA, Video CD, SVCD (conforming to IEC62107), MP3, WMA, or JPEG. Finalize (a process that allows play on compatible equipment) the disc after recording.
ªHighMATTM discs
This unit is compatible with HighMATTM discs containing MP3, WMA and/or JPEG files.
ªTo clean discs
DVD-Video, Video CD, CD
Wipe with a damp cloth and then wipe dry.
DVD-RAM, DVD-R
≥Clean with an optional DVD-RAM/PD disc cleaner (LFK200DCA1, where available).
≥Never use cloths or cleaners for CDs etc.
ªHandling precautions
≥Do not write on the label side with a ball-point pen or other writing instrument.
≥Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
≥Do not attach labels or stickers to discs (Do not use discs with exposed adhesive from tape or left over peeled-off stickers).
≥Do not use scratch-proof protectors or covers.
≥Do not use discs printed with label printers available on the market.
Before Use
5
Control Reference Guide
Operations in these instructions are described mainly for the remote control, but you can do the operations on the main unit if the controls are the same.
Main Unit
|
(1) |
(3) |
|
|
|
|
||
[A] |
[B] |
(2) |
(4) |
(5) |
(6) (7) |
(1) |
(2) |
|
|
/I |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPEN / CLOSE |
|
EJECT |
|
|
|
|
|
|
|
|
|
|
|
|
JET REW |
PROG PLAY |
MUSIC WITH PICTURE PROGRESSIVE |
QUICK REPLAY |
PULL-OPEN |
|
|
|
|
|
|
|
|
TIMER REC TAPE REFRESH |
CH |
REC/OTR |
STOP |
PLAY |
STOP |
PLAY |
|
|
|
|
REW FF |
|
|
||||
VIDEO |
L |
AUDIO R |
|
|
|
|
|
|
AV2 IN |
|
|
|
|
|
|
|
|
(8) |
(9) |
(11) |
[C] |
(3)(4) [D] (5) (6) |
|
(10) |
(12) |
|
|
ªCommon section
[A]Infra-red remote control receiver window
[B]Power button (Í/I)
Press [Í/I] to switch this unit from on to standby mode or vice versa. In standby mode, the unit is still connected to the main AC power.
[C]Display
[D] MUSIC WITH PICTURE button ......................... |
(lpage 43) |
(6) |
Jet Rewind button (6JET REW) .................. |
(lpage 14) |
(7) |
Easy Programme Playback button (PROG PLAY).... |
(lpage 21) |
(8) |
Timer recording button (TIMER REC )........ |
(lpage 18) |
(9) |
AV2 IN (AUDIO/VIDEO) sockets ...................... |
(lpage 17) |
(10) |
Fast-forward/rewind buttons |
|
|
(6/REW FF/5, 6 5)............................... |
(lpage 14) |
(11) |
STOP∫ button .................................................. |
(lpage 14) |
(12) |
PLAY1 button .................................................. |
(lpage 14) |
ªVHS section |
|
ªDVD section |
|
||
(1) |
Tape eject button (<EJECT)............................ |
(lpage 14) |
(1) |
Disc tray |
|
(2) |
TAPE REFRESH button.................................... |
(lpage 17) |
(2) |
Disc tray open/close button (OPEN/CLOSE<) |
......(lpage 26) |
(3) |
Channel up/down buttons (CHIJ).......... |
(lpage 15,16) |
(3) |
STOP∫ button .................................................. |
(lpage 26) |
(4) |
Recording/One-Touch Recording button |
|
(4) |
PLAY1 button .................................................. |
(lpage 26) |
|
(¥REC/OTR) ................................................. |
(lpage 16,17) |
(5) |
PROGRESSIVE button ..................................... |
(lpage 13) |
(5) |
Cassette compartment |
|
(6) |
QUICK REPLAY button .................................... |
(lpage 28) |
The Unit’s Display
(1)(2) (3)
R
(5) (6) (7) |
[A] |
ªCommon section
[A]Main display
≥Current time/VHS recording and play counter/Timer recording start time/Miscellaneous messages, etc.
[B]Main display
≥Disc play counter/Timer recording end time/Disc type (lpage 5)/Miscellaneous messages, etc.
ªVHS section
(1)VHS selector indicator
≥Lights up when the VHS section is active. It flashes for about 5 seconds immediately after selection is made.
(2)Operation status of VHS section
≥Lights up when a cassette is inserted.
≥Flashes when recording or timer recording is attempted with no cassette inserted.
≥Displays play status graphically.
|
Rotating: playing |
|
|
Stopped: paused |
|
(3) |
Timer programme recording indicator............ |
(lpage 18) |
(4) |
Tape speed indicator........................................ |
(lpage 16) |
(5) |
Recording indicator .......................................... |
(lpage 16) |
(6) |
Channel display ................................................ |
(lpage 16) |
(7) |
Repeat playback indicator ............................... |
(lpage 14) |
(4)(1) (2)
SP
LP
EP
(3)[B]
ªDVD section
(1)DVD selector indicator
≥Lights up when the DVD section is active. It flashes for about 5 seconds immediately after selection is made.
(2)Operation status of DVD section
≥Lights up when a disc is inserted.
≥Displays play status graphically. Rotating: playing
Stopped: paused
(3) The display mode of the main display section
GRP: group number |
TRK: track number |
TTL: title number |
CHP: chapter number |
PL: play list number |
PG: programme number |
C:contents number (HighMAT discs lpage 33)
G:group number (HighMAT discs lpage 33)
6
Control Reference Guide
Remote Control |
|
|
|
|
|
||||
|
|
|
|
|
(15) |
VHS OPERATION |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
When you operate the VHS, always select “VHS” with the [VHS/TV/DVD] (16) switch. |
|||
|
|
VHS/DVD/TV |
|
|
(1) |
VHS power button (VHSÍ) ........................................................... |
|
(lpage 11, 14) |
|
|
VHS/DVD |
TV |
VHS |
TV |
|
|
Press [VHSÍ] to switch this unit from on to standby mode or vice versa. |
||
(1) |
|
|
DVD |
(16) |
|
||||
|
|
|
|
|
In standby mode, the unit is still consuming a small amount of power. |
||||
(2) |
VHS/DVD QUICK REPLAY DUBBING |
REC |
(17) |
(2) |
VHS/DVD output switch button (VHS/DVD OUTPUT) ....................... |
(lpage 12) |
|||
OUTPUT |
|
|
|
(3) |
Numeric buttons (0–9, – /– –) .............................................................. |
|
(lpage 16) |
||
|
|
|
TRACKING/V-LOCK |
(18) |
(4) |
Index search buttons (: 9, INDEX) |
(lpage 21) |
||
|
1 |
2 |
3 |
|
|
||||
|
|
(19) |
(5) |
Stop button (∫) |
|
(lpage 14) |
|||
|
|
|
|
CH |
|
||||
(3) |
4 |
5 |
6 |
(6) |
Pause/slow button (;/D) |
|
(lpage 14) |
||
|
|
||||||||
VOLUME |
|
(7) |
Jet Navigator button (NAVI) |
|
(lpage 20) |
||||
|
7 |
8 |
9 |
|
|
||||
|
|
|
(8) |
Cursor buttons (342 1)/ENTER button................................... |
(lpage 12, 22) |
||||
|
AV |
0 |
-/ |
|
|
(9) |
Display button (DISPLAY) ................................................................... |
|
(lpage 25) |
|
|
|
(10) |
Timer recording button (TIMER |
) |
(lpage 18) |
|||
(4) |
INDEX/SKIP |
SLOW/SEARCH |
(20) |
||||||
|
|
|
|
||||||
|
|
|
|
(11) |
Timer programming and check button (PROG/CHECK) ............ |
(lpage 18, 19) |
|||
(5) |
|
|
|
|
(21) |
(12) |
CANCEL/RESET button................................................................. |
|
(lpage 19, 25) |
|
|
|
|
(13) |
MUSIC WITH PICTURE button (MUSIC w/ PICTURE)........................ |
(lpage 43) |
|||
(6) |
NAVI |
|
|
MENU |
|
(14) |
Picture mode button (PICTURE) |
|
(lpage 15) |
(7) |
TOP MENU |
|
|
(22) |
|
||||
|
|
|
|
|
|||||
DIRECT |
|
|
PLAY |
(15) |
Infra-red Transmitter |
|
|
||
|
|
|
|
(16) |
VHS/TV/DVD switch (VHS/TV/DVD) |
|
|||
|
NAVIGATOR |
|
|
LIST |
|
|
|||
(8) |
|
ENTER |
|
|
(17) |
Recording button (REC¥) ................................................................... |
|
(lpage 16) |
|
|
|
|
|
|
(18) |
DUBBING button |
|
(lpage 42) |
|
|
|
|
|
|
|
|
|||
(9) |
|
|
|
|
|
(19) |
Tracking/V-Lock and Channel up/down buttons |
|
|
|
|
|
|
|
|
(TRACKING/V-LOCK, CHIJ) |
|
(lpage 15, 16) |
|
(10) |
DISPLAY |
|
|
RETURN |
(23) |
(20) |
|
||
PROG/CHECK |
TIMER |
PROG PLAY |
JET REW |
Fast-forward/rewind buttons (6 5)............................................. |
(lpage 14) |
||||
(11) |
(24) |
(21) |
Play button (1) |
|
(lpage 14) |
||||
|
|
|
|
|
|||||
|
CANCEL/RESET |
SUBTITLE |
AUDIO |
ANGLE/PAGE |
(25) |
(22) |
MENU button .................................................................................. |
|
(lpage 12, 22) |
(12) |
|
|
|
|
|
(23) |
Easy Programme Playback button (PROG PLAY) ............................ |
(lpage 21) |
|
|
|
|
|
|
(24) |
Jet Rewind button (JET REW6) |
|
(lpage 14) |
|
|
MUSIC w/ PICTURE A.SRD |
CINEMA |
POSITION MEMORY |
|
|
||||
(13) |
|
(25) |
AUDIO button |
|
(lpage 25) |
||||
|
|
|
|
|
|
||||
|
|
PICTURE |
SPEED |
INPUT SELECT |
(26) |
(26) |
INPUT SELECT button |
|
(lpage 17, 42) |
|
|
|
|
|
|
||||
(14) |
PLAY MODE |
REPEAT |
ZOOM |
SETUP |
(27) |
(27) |
Tape speed button (SPEED) ............................................................... |
|
(lpage 16) |
|
|
|
|
|
|
|
|
||
Before Use
VHS/DVD/TV
|
VHS/DVD |
TV |
|
TV |
|
(1) |
|
|
VHS |
DVD |
(16) |
|
|
|
|
||
(2)(3) |
VHS/DVD |
QUICK REPLAY DUBBING |
REC |
|
|
OUTPUT |
|
|
|
|
|
|
1 |
2 |
3 |
TRACKING/V-LOCK |
|
|
|
|
|||
(4) |
4 |
5 |
6 |
CH |
|
|
|
||||
|
7 |
8 |
9 |
VOLUME |
|
|
|
|
|||
|
AV |
0 |
-/-- |
|
|
(5) |
INDEX/SKIP |
SLOW/SEARCH |
(17) |
||
|
|
|
|
||
(6)(7) |
NAVI |
|
|
MENU |
(18) |
(8) |
TOP MENU |
|
|
(19) |
|
|
|
|
|
||
|
DIRECT |
|
|
PLAY |
|
|
NAVIGATOR |
|
|
LIST |
|
(9) |
|
|
ENTER |
|
|
(10)
(20)
|
DISPLAY |
|
|
RETURN |
|
|
|
PROG/CHECK |
TIMER |
PROG PLAY |
JET REW |
|
|
(11) |
CANCEL/RESET |
SUBTITLE |
AUDIO |
ANGLE/PAGE |
(21) |
|
(12) |
MUSIC w/ PICTURE A.SRD |
CINEMA POSITION MEMORY |
(23)(22) |
|||
(13) |
|
PICTURE |
SPEED |
INPUT SELECT |
(24) |
|
(14) |
|
(25) |
||||
PLAY MODE |
REPEAT |
ZOOM |
SETUP |
|||
(15) |
(26) |
|||||
DVD OPERATION
When you operate the DVD, always select “DVD” with the [VHS/TV/DVD] (16) switch.
(1) |
DVD power button (DVDÍ)................................................................. |
(lpage 26) |
|
Press [DVDÍ] to switch this unit from on to standby mode or vice versa. |
|
|
In standby mode, the unit is still consuming a small amount of power. |
|
(2) |
VHS/DVD output switch button (VHS/DVD OUTPUT) ....................... |
(lpage 12) |
(3) |
QUICK REPLAY button........................................................................ |
(lpage 28) |
(4) |
Numeric buttons (0–9, S10) .......................................................... |
(lpage 27, 28) |
(5) |
Skip buttons (: 9, SKIP)............................................................ |
(lpage 26) |
(6) |
Stop button (∫) .................................................................................... |
(lpage 26) |
(7) |
Still button (;/D) ................................................................................. |
(lpage 26) |
(8) |
TOP MENU and DIRECT NAVIGATOR button ............................. |
(lpage 31, 32) |
(9) |
Cursor buttons (342 1)/ENTER button................................... |
(lpage 37, 40) |
(10) |
On-screen menu icon button (DISPLAY)............................................... |
(lpage 37) |
(11) |
SUBTITLE button ................................................................................. |
(lpage 34) |
(12) |
Advanced Surround button (A.SRD).................................................. |
(lpage 35) |
(13) |
MUSIC WITH PICTURE button (MUSIC w/ PICTURE)........................ |
(lpage 43) |
(14) |
PLAY MODE button ............................................................................. |
(lpage 30) |
(15) |
REPEAT button .................................................................................... |
(lpage 29) |
(16) |
VHS/TV/DVD switch (VHS/TV/DVD) |
|
(17) |
Slow/search buttons (6 5, SLOW/SEARCH) ............................. |
(lpage 26) |
(18) |
Play button (1) .................................................................................... |
(lpage 26) |
(19) |
PLAY LIST button ................................................................................ |
(lpage 31) |
(20) |
RETURN button.................................................................. |
(lpage 33, 34, 37, 40) |
(21) |
AUDIO button ....................................................................................... |
(lpage 34) |
(22) |
ANGLE/PAGE button ..................................................................... |
(lpage 29, 34) |
(23) |
CINEMA button..................................................................................... |
(lpage 35) |
(24) |
POSITION MEMORY button ................................................................ |
(lpage 27) |
(25) |
DVD SETUP menu button (SETUP) .................................................... |
(lpage 40) |
(26) |
ZOOM button ........................................................................................ |
(lpage 35) |
7
Connections
When the unit is turned on after connecting the aerial cable and the mains lead, Plug in Auto Tuning starts automatically. (NV-VP31GN only)
Basic Connections
The following connections are required to record the video cassette and play back the video cassette/discs through the TV.
≥Refer to the TV’s operating instructions.
≥Turn the TV off and disconnect its AC mains lead.
TV Set (Not supplied)
Aerial
(Not supplied)
To mains supply |
|
|
|
Aerial Connector |
||
|
|
|
|
|||
|
COMPONENT VIDEO |
|
|
|
IN |
|
AC IN ~ |
(NTSC 480P/480I PAL 576I) |
R-AUDIO-L |
VIDEO |
|
|
|
Y PB |
PR |
|
|
AV1 IN |
|
|
DIGITAL AUDIO |
|
|
|
|
|
|
(PCM/BITSTREAM) |
|
|
|
|
|
|
DVD OUT |
|
|
|
|
|
|
|
|
|
|
|
VHS/DVD |
OUT |
|
|
|
|
|
|
|
OPTICAL |
R-AUDIO-L |
VIDEO S VIDEO |
R-AUDIO-L |
VIDEO |
OUT |
RF |
|
||||||
Audio/Video Output Sockets
≥Set the RF output channel of the unit to “ss” (RF OFF) (lpage 11).
≥Connect audio/video cables directly to your TV. The video signals on DVDs and video tapes have copyright protection. The video may not be shown correctly if you connect through an A/V selector or other equipment.
|
AUDIO VIDEO |
|
|
IN |
IN |
|
L |
R |
Audio/video cable |
Television |
|
(Supplied)
|
COMPONENT VIDEO |
|
|
|
|
AC IN ~ |
(NTSC 480P/480I PAL 576I) |
|
R-AUDIO-L |
VIDEO |
|
PB |
PR |
|
|||
|
|
AV1 IN |
|||
|
|
|
|
||
DIGITAL AUDIO |
|
|
|
|
|
(PCM/BITSTREAM) |
|
|
|
|
|
DVD OUT |
|
|
|
|
|
|
|
|
|
|
VHS/DVD |
|
|
|
|
|
OUT |
OPTICAL |
R-AUDIO-L |
VIDEO |
S VIDEO |
R-AUDIO-L |
VIDEO |
For better video from DVD
Y PB PR
COMPONENT |
Video cable (Not supplied) |
|
VIDEO IN |
||
|
||
Television |
|
COMPONENT VIDEO terminal (progressive out)
These terminals can be used for either interlace or progressive output and provide a clearer picture than the S VIDEO terminal. Connection using these terminals outputs the colour difference signals (PB/PR) and luminance signal (Y) separately in order to achieve high fidelity in reproducing colours.
≥The description of the component video input terminals depends on the TV or monitor (e.g. Y/PB/PR, Y/B-Y/R-Y, Y/CB/CR). Connect to terminals of the same colour.
¬ To enjoy progressive video lpage 13
S video cable (Not supplied) S VIDEO IN
Television
S VIDEO terminal
The S VIDEO terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance
(Y) signals (Actual results depend on the TV). ≥Connect to a different terminal group (e.g.,
“VIDEO 2”) than that you used for the connection through this unit’s VHS/DVD OUT terminal. Picture from the VHS section will not appear when you use the same group input terminal connections because the S video terminal input takes precedence.
≥These connections are for the DVD section only.
Carry out the Basic Connections described above to view video from the VHS section.
≥When making this connection, ensure that you connect the audio cables (not supplied) to the corresponding audio input terminals on the TV.
≥You may need to change the video-input mode on the TV to view video from the VHS and DVD sections. Read your TV’s operating instructions for details.
Audio cable
( 80 / 80 ) (Not supplied) Television
|
|
L |
R |
R-AUDIO-L |
VIDEO S VIDEO |
AUDIO IN |
|
|
|
||
8
Connections
The output terminal common to VHS and DVD, and the one exclusively for DVD
|
|
COMPONENT VIDEO |
|
|
|
|
|
(NTSC 480P/480I PAL 576I) |
|
R-AUDIO-L |
VIDEO |
||
|
Y |
PB |
PR |
|
|
AV1 IN |
DIGITAL AUDIO |
|
|
|
|
|
|
(PCM/BITSTREAM) |
|
|
|
|
|
|
DVD OUT |
|
|
|
|
|
|
|
|
|
|
|
|
VHS/DVD |
|
|
|
|
|
|
OUT |
OPTICAL |
R-AUDIO-L |
VIDEO |
S VIDEO |
R-AUDIO-L |
VIDEO |
|
DVD-only terminal |
Output common to |
DVD OUT |
VHS and DVD |
|
VHS/DVD OUT |
For the VHS/DVD OUT terminal, VHS and DVD outputs can be switched or it can be assigned for VHS output only (lpage 12).
The DVD OUT terminal can only output the DVD signal.
Note:
≥When Video is switched to DVD or vice versa, the audio volume may suddenly increase or decrease. This is because when the audio output of this unit is connected to the TV, etc., the audio output of the DVD is generally lower.
When you increase the volume level to play back DVD audio, reduce it when playback is finished.
To enjoy sound through other audio equipment
You can enjoy the powerful movie theater and hall-like sound available with multiple channel audio found on DVDs by connecting an amplifier and speakers.
Digital connection
Amplifier (Not supplied)
|
|
Insert fully with |
Connect 3 or more speakers |
this side facing up. |
|
|
||
for surround sound. |
(DVD) IN |
|
|
|
|
|
Optical digital cable |
|
|
(Not supplied) |
|
|
Do not bend sharply |
|
|
when connecting. |
OPTICAL |
¬To enjoy multi-channel surround sound
Connect an amplifier with a built-in decoder or a decoder-amplifier combination.
Change the settings in the SETUP menu (lpage 36, 41).
You can only use DTS Digital Surround decoders that are compatible with DVD.
≥Turn the ADVANCED SURROUND function “OFF” (lpage 35).
¬To enjoy stereo or Dolby Pro Logic
Connect a digital amplifier or system component.
Change the settings in the SETUP menu (lpage 36, 41).
|
|
COMPONENT VIDEO |
|
|
|
IN |
|
AC IN ~ |
(NTSC 480P/480I PAL 576I) |
|
R-AUDIO-L |
VIDEO |
|
||
Y |
PB |
PR |
|
|
|||
|
|
|
AV1 IN |
||||
|
|
|
|
|
|
||
DIGITAL AUDIO |
|
|
|
|
|
|
|
(PCM/BITSTREAM) |
|
|
|
|
|
|
|
DVD OUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OUT |
|
|
|
|
|
|
|
VHS/DVD |
|
|
|
|
|
|
|
OUT |
OPTICAL |
R-AUDIO-L |
VIDEO |
S VIDEO |
R-AUDIO-L |
VIDEO |
RF |
|
Analog connection
Amplifier (Not supplied) or system component (Not supplied)
AUX IN
L
R |
R - AUDIO - L |
Audio cable (Not supplied)
¬ To enjoy stereo or Dolby Pro Logic
Connect an analog amplifier or system component.
Change the settings in the SETUP menu (lpage 36, 41).
The audio terminal of VHS/DVD OUT can also be connected.
Notes:
≥To purchase an optical digital cable (not supplied), check the terminal shape of the equipment to be connected beforehand.
≥The OPTICAL DIGITAL AUDIO terminal is provided with a cap to prevent dust from entering. Simply plug into it, and the cap will be encapsulated in the unit.
Getting Started
9
Operating the TV |
|
||||||
≥Turn on the TV. |
|
|
|
|
|
|
|
≥Switch [VHS/TV/DVD] to “TV”. |
|
|
|
||||
|
|
|
|
|
|
TV OPERATION |
|
|
|
VHS/DVD/TV |
(3) |
When you operate the TV, always select “TV” with the [VHS/TV/DVD] switch. |
|||
|
|
(1) |
Numeric buttons (0–9, – /– –) |
||||
|
VHS/DVD |
TV |
|
TV |
|||
|
|
|
VHS |
DVD |
(4) |
|
≥Selects the TV channel. |
|
|
|
|
|
|
||
|
|
|
|
|
(2) Television input mode selector (AV) |
||
|
|
|
|
REC |
|
||
|
VHS/DVD |
QUICK REPLAY |
DUBBING |
|
|
≥Selects desired AV input on the TV. |
|
|
OUTPUT |
|
|
|
|
|
|
|
|
|
|
|
(3) TV power button (TVÍ) |
||
|
|
|
|
TRACKING/V-LOCK |
|
||
|
1 |
2 |
3 |
|
|
Press to switch the TV from on to standby mode or vice versa. |
|
|
|
|
|
||||
|
|
(5) |
|
≥With some TV models, it may only be possible to switch the TV to the standby mode |
|||
|
|
|
|
CH |
|
||
(1) |
4 |
5 |
6 |
|
using this button. In this case, use [AV], [CH]IJor the numeric buttons to switch |
||
|
|
|
|||||
|
7 |
8 |
9 |
VOLUME |
|
|
the TV on. |
|
|
(6) |
(4) |
VHS/TV/DVD switch (VHS/TV/DVD) |
|||
|
|
|
|
|
|||
(2) |
AV |
0 |
-/-- |
|
(5) Channel up/down buttons (CHIJ) |
||
|
|
||||||
|
INDEX/SKIP |
SLOW/SEARCH |
|
|
≥Selects the required TV channel. |
||
|
|
|
|
|
|
(6) TV volume up/down buttons (VOLUME, rNs) |
|
≥Adjusts the volume of the TV.
NAVI |
|
MENU |
TOP MENU |
|
|
DIRECT |
|
PLAY |
NAVIGATOR |
|
LIST |
ENTER |
|
|
DISPLAY |
|
RETURN |
PROG/CHECK TIMER |
PROG PLAY |
JET REW |
TV Maker Setting
You can operate the TVs of the manufacturers listed below with the remote control after setting it.
[1]Refer to the chart below for the code of your TV.
[2]Aim the remote control at the TV and
While holding down [TVÍ], use the numeric buttons to enter the two-digit code.
Example: “1”; [0]l[1]
≥The remote control outputs the on/off signal. If the code is correct, the TV turns on or off.
[3]Check whether the TV can be operated properly.
≥When a manufacturer has multiple codes in the following chart, try entering other codes if the TV operations cannot be performed properly, and then select the optimal code.
Notes:
≥If you are using a Panasonic TV, this setting has already been made, you do not need to perform the above procedure. However, this remote control may not work on some Panasonic TVs.
≥Some TV models cannot be operated by this remote control (including all TVs nonremote compatible).
Brand |
Code |
Panasonic/National |
01-04 |
|
|
SONY |
05 |
|
|
TOSHIBA |
06 |
|
|
JVC |
07 |
|
|
HITACHI |
08 |
|
|
MITSUBISHI |
09, 10 |
|
|
SHARP |
11 |
|
|
PHILIPS, SAMSUNG |
12 |
|
|
NEC |
13 |
|
|
SANYO |
14 |
|
|
GOLDSTAR/LG |
15, 16 |
|
|
SAMSUNG |
17, 18 |
|
|
SANYO |
19 |
|
|
10
Tuning the TV to Your Unit
The unit supplies a signal to the TV via the RF coaxial cable on channel AU28s 69 or NZ21s 69. It is possible to view the unit’s picture on your TV in the same way that you watch TV broadcasts. The unit is fitted with its own tuner (just like a normal TV) and can be preset to receive up to 99 TV broadcast stations. ≥Switch [VHS/TV/DVD] to “VHS”.
¬ If you have connected the unit to the TV through the audio/video output sockets
You do not need to follow the procedure below. To view the pictures from the unit, set to the AV mode on the TV with [AV].
Pre-programmed TV Channels (for NV-VP31GL/Australia)
VHS/DVD/TV
VHS |
VHS/DVD |
TV |
|
TV |
VHS/ |
|
|
VHS |
DVD |
||
|
|
|
|
TV/ |
|
|
|
|
|
|
|
|
VHS/DVD |
QUICK REPLAY |
DUBBING |
REC |
DVD |
|
OUTPUT |
|
|
|
|
|
1 |
2 |
3 |
TRACKING/V-LOCK |
|
|
|
CH |
|||
Numeric |
4 |
5 |
6 |
CH |
|
|
|
||||
buttons |
|
|
|||
|
|
|
VOLUME |
|
|
|
7 |
8 |
9 |
|
|
|
|
|
AV |
AV 0 |
-/-- |
|
INDEX/SKIP |
SLOW/SEARCH |
The local TV broadcast channels 2, 7, 9, 10 and 28 are factory-preset in the unit.
That is, if you can receive TV broadcasts on VHF channels 2, 7, 9, 10 and UHF channel 28, these are already tuned on the programme positions with the matching numbers.
[1]Press [VHSÍ] to turn on this unit.
[2]Hold down [MENU] for 5 seconds or more.
[3]Set the TV to an unused position for the unit
viewing channel.
≥Tune the TV until the display shown on the right appears. Refer also to the TV’s instructions regarding tuning.
Panasonic
END: MENU
NAVI |
|
MENU |
TOP MENU |
|
|
DIRECT |
|
PLAY |
NAVIGATOR |
|
LIST |
ENTER |
|
|
DISPLAY |
|
RETURN |
PROG/CHECK TIMER |
PROG PLAY |
JET REW |
[4] Press [MENU].
MENU
Plug in Auto Tuning (for NV-HV60GN/New Zealand)
When the unit is turned on after connecting the aerial cable and the mains lead for the first time, tuning starts automatically.
≥If the unit is turned on with the aerial not connected, all channels are skipped.
|
|
|
AUTO TUNING |
|
[1] Press [VHSÍ] to turn on this unit. |
|
IN PROGRESS, |
|
|
|
PLEASE WAIT. |
|
||
|
|
|
|
|
[2] |
Set the TV to an unused position for the unit |
CH 22 |
SEARCH |
21 |
|
END: MENU |
|||
|
viewing channel. |
|
|
|
|
|
|
|
|
|
|
|
|
|
≥Tune the TV until the display shown on the right appears. Refer also to |
|
|
|
|
|
|
|
the TV’s instructions regarding tuning. |
|
AUTO TUNING IS |
|
|
|
|
|
[3] Press [MENU]. |
|
|
|
|
|
|
|
|
COMPLETED. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
END: MENU |
|
|
|
|
|
¬ To cancel Auto Tuning partway through |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CH |
Press [MENU]. Auto Tuning will stop halfway by turning the unit off, pressing [MENU], playback or a |
||||
|
|
power failure. |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
¬ If Auto Tuning stops halfway by turning the unit off, playback or a power failure |
||
|
/I |
|
|
|
|||
|
|
|
|
|
≥Disconnect the mains lead and then reconnect it. |
|
|
|
EJECT |
|
|
|
≥Turn on the unit. Plug in Auto Tuning restarts. |
|
|
|
|
|
|
|
|
|
|
TIMER REC |
TAPE REFRESH |
CH |
REC/OTR |
¬ To set the channels manually (lpage 23) |
|
|
|
REW |
FF |
|
VIDEO |
L |
AUDIO R |
ªTo restart Plug in Auto Tuning |
AV2 IN |
|
|
|
|
|
|
|
|
≥Turn the unit on. |
|
|
|
|
≥Make sure there is no video cassette in the unit. |
1) |
Keep both [CH] I and Jon the unit pressed simultaneously for 3 |
|
|
|
|
|
seconds or more until the channel on the unit’s display changes to 1. |
|
|
|
|
|
|
|
|
|
|
2) |
Disconnect the mains lead and then reconnect it. |
|
|
|
1 |
3) |
Turn on the unit. Plug in Auto Tuning restarts. |
Disappears |
|
||
|
|||||
To change the RF output channel
NV-VP31GL
28 … 69
(RF OFF)
NV-VP31GN
21 69
(RF OFF)
You can change the RF output channel, for example, when interference occurs on the picture after tuning.
1)Hold down [MENU] for 5 seconds or more.
2)Press [CH]IJ to select the channel (AU28s69, NZ21s69).
≥Each time you press [CH]IJ(l left)
≥Set to “ss” (RF OFF) when you use the audio/video cable for the connection.
≥You can also use the numeric buttons. Example: “28”; [2]l[8]
3)Retune your TV to the new RF channel for the unit.
4)Press [MENU] to exit the setting mode.
Note:
≥Even if the RF output channel has been changed, it is not necessary to perform Auto Tuning.
NV-VP31GL
NV-VP31GN
Panasonic
END: MENU
Getting Started
11
Setting Up for VHS
Make basic settings for VHS. These settings are retained in memory until they are changed, even if the unit is turned off. ≥Select the unit viewing channel (or the AV input) on the TV.
≥Turn on the unit.
≥Switch [VHS/TV/DVD] to “VHS”.
Common procedures
VHS/DVD/TV
|
VHS/DVD |
TV |
TV |
VHS/ |
|
|
VHS |
DVD |
TV/ |
|
|
|
|
|
VHS/DVD |
VHS/DVD |
QUICK REPLAY DUBBING |
REC |
DVD |
OUTPUT |
OUTPUT |
|
|
|
|
|
|
|
|
|
|
|
TRACKING/V-LOCK |
|
1 2 3
|
|
CH |
4 |
5 |
6 |
|
|
VOLUME |
7 |
8 |
9 |
AV |
0 |
-/-- |
INDEX/SKIP |
SLOW/SEARCH |
|
NAVI |
|
MENU |
TOP MENU |
|
|
|
|
MENU |
DIRECT |
|
PLAY |
NAVIGATOR |
|
LIST |
ENTER |
ENTER |
|
|
|
|
DISPLAY |
|
RETURN |
PROG/CHECK |
TIMER |
PROG PLAY JET REW |
[1]Press [MENU].
[2]Press [34] to select the menu.
[3]Press [ENTER].
CLOCK SET
VHS MENU
CLOCK SET TUNER PRESET SYSTEM OPTION
SELECT :
, ENTER END :MENU
The clock operates for at least 3 years on its backup system in the event of a power failure. After 3 years, clock back up can only be guaranteed for maximum of 1 hour.
................................................................................................................................................................................................................
[1] Set each item with [34 1].
Press [2] to return to the previous item.
At the set time (H:M) point:
≥When it is kept pressed, the indication changes in 30 minute steps.
≥There is no need to press [1].
................................................................................................................................................................................................................
[2]Press [MENU] to start the clock and exit the setting screen.
CLOCK SET
Y |
M |
|
D |
H:M |
|||
2003 |
1 |
1 |
0:00 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Time Reset Function
If the clock is less than 2 minutes early or late, it can easily be reset to the proper time.
Example: Resetting the clock to 12:00.00
1)Display the “CLOCK SET” screen.
2)When the current clock display on the unit is between 11:58.00 and 12:01.59, press [MENU] as soon as you hear the 12:00.00 time tone. This resets the time to 12:00.00.
ªTo switch to the desired video
You can set the unit so that the VHS/DVD output is automatically switched to the device which starts playback.
1) |
In the OPTION menu, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
select “OUT [VHS/DVD]” with [34]. |
|
|
OPTION |
1/2 |
|||
|
TAPE SELECT |
[AUTO] |
||||||
2) |
Press [2 1] to change the setting. |
NTSC INPUT SELECT [AUTO] |
||||||
NTSC PB SELECT |
[onPALTV] |
|||||||
|
|
JET NAVIGATOR |
[OFF] |
|||||
3) |
Press [MENU] twice to make the on- |
DELETE NAVIDATA |
[NO] |
|||||
OSD REC |
[OFF] |
|||||||
|
screen display disappear. |
OSD |
[AUTO] |
|||||
|
OUT[VHS/DVD] |
[AUTO] |
||||||
|
|
SELECT: |
|
|
|
|
|
END :MENU |
|
|
|
|
|
|
|
|
|
VHS: The output is only for VHS, even if you press [VHS/DVD OUTPUT], the DVD video is not shown.
MANUAL: Press [VHS/DVD OUTPUT] to switch to the desired video source. They are not switched automatically.
AUTO (Initial setting):
VHS and DVD are automatically switched depending on the manipulation or the unit operation. You may also switch them with [VHS/DVD OUTPUT].
Note:
≥You can switch to the desired video with the above operation only when the video from this unit is viewed through the VHS/DVD OUT terminal.
≥Depending on the operation, the output may not be switched automatically even if “AUTO” is selected. In this case, press [VHS/ DVD OUTPUT] to switch it manually.
≥When setting timer recording, the output is automatically switched to DVD even if “MANUAL” is selected.
12
DVD Quick Setup
Answer questions in the QUICK SETUP screen to make basic settings for DVD. ≥Select the unit viewing channel (or the AV input) on the TV.
≥Switch [VHS/TV/DVD] to “DVD”. ≥Turn on the unit.
VHS/DVD/TV
VHS/DVD |
VHS |
DVD |
VHS/ |
TV |
TV |
|
|
|
|
|
TV/ |
VHS/DVD |
QUICK REPLAY DUBBING |
REC |
DVD |
OUTPUT |
|
|
|
TRACKING/V-LOCK
1 2 3
CH
4 5 6
[1]Press [SETUP].
[2]Select “Others” tab with [2 1].
[3]Select “QUICK SETUP” with [34] and press [ENTER].
[4]Select “Yes” with [34] and press
[ENTER].
SETUP |
QUICK SETUP |
|
||
|
Select the menu language. |
|||
|
English |
|
|
|
|
Deutsch |
Italiano |
|
|
SELECT |
|
Port |
s |
|
Svenska |
Nederlands |
|||
|
||||
ENTER RETURN |
|
|
|
|
7 |
8 |
9 |
VOLUME |
[5] Press [34] to select the item and press [ENTER]. |
||
|
||||||
|
0 |
-/-- |
|
|||
AV |
|
Menu Language (lpage 41) |
Audio Language (lpage 41) Subtitle Language (lpage 41) |
|||
INDEX/SKIP |
SLOW/SEARCH |
TV Aspect (lbelow) |
Progressive out (lbelow) |
|||
|
|
|
|
|||
|
|
|
|
[6] Press [ENTER] and then [SETUP] to end the settings. |
||
NAVI |
|
|
MENU |
|
|
|
TOP MENU |
|
|
|
|
||
NAVIGATOR |
|
|
LIST |
¬ To return to the previous screen |
||
DIRECT |
|
|
PLAY |
|
|
|
ENTER |
ENTER |
|
Press [RETURN]. |
|
||
|
|
|
||||
|
|
|
|
|
||
|
|
|
RETURN |
TV Aspect |
|
|
DISPLAY |
|
|
RETURN |
Select “4:3” (regular) or “16:9” (widescreen) to suit your TV. |
||
PROG/CHECK TIMER |
PROG PLAY |
JET REW |
||||
If you have a regular 4:3 TV, you can also select how video on some discs is shown. |
||||||
|
|
|
|
|||
CANCEL/RESET SUBTITLE |
AUDIO |
ANGLE/PAGE |
≥4:3 Pan & Scan (Initial Setting) |
|
||
MUSIC w/ PICTURE A.SRD |
CINEMA POSITION MEMORY |
Widescreen software is expanded to fill the screen of a 4:3 aspect TV (unless |
||||
|
PICTURE |
SPEED |
INPUT SELECT |
prohibited by the producer of the disc). |
||
|
|
|
||||
PLAY MODE |
REPEAT |
ZOOM |
SETUP SETUP |
≥4:3 Letterbox |
|
|
Widescreen software is shown in the letterbox style on a 4:3 aspect TV.
≥If you have a wide-screen TV (16:9), you can select the style with the TV's screen mode function.
Progressive out (Component)
|
PROGRESSIVE |
|
|
|
OPEN / CLOSE |
PROG PLAY |
MUSIC WITH PICTURE PROGRESSIVE |
QUICK REPLAY |
PLAY |
|
|
You can enjoy higher image quality than that output from the conventional video out terminal or S video terminal (Interlace and progressive output lpage 47).
≥Connect to the component video input terminals on a 480P compatible TV (lpage 8). Video will not be displayed correctly if connected to an incompatible TV.
1)Select “Enable (NTSC Disc Only)” in “Progressive Out (Component)” (lpage 41).
2)Change “Video output mode” to “480P” in the on-screen menu (lpage 39).
3) Press [PROGRESSIVE] on the unit before or during play.
≥All Panasonic TVs that have 480P input terminals are compatible. Consult the manufacturer if you have another brand of TV.
¬ To check whether progressive output is on or off
Press [PROGRESSIVE]. “PR ON” (on) or “PR OFF” (off) appears on the unit’s display.
Notes:
≥The VHS video may not be progressive-output.
≥The TV will be disrupted for a moment but this is normal.
≥Output from this unit is interlaced scanning if you have connected to the TV through VIDEO OUT or S VIDEO OUT terminals, regardless of the settings.
≥When progressive output is on, closed captions will not be displayed.
Getting Started
13
Playback
≥Select the unit viewing channel (or the AV input) on the TV. ≥Switch [VHS/TV/DVD] to “VHS”.
≥Press [VHS Í] to turn on the unit.
[1] Insert a recorded video cassette tape.
VHS/DVD/TV
VHS/DVD |
TV |
|
TV |
VHS/ |
|
VHS |
|
VHS |
DVD |
TV/ |
|
|
|
|
|
||
VHS/DVD |
QUICK REPLAY |
DUBBING |
REC |
DVD |
|
OUTPUT |
|
|
|
|
|
1 |
2 |
3 |
TRACKING/V-LOCK |
|
|
|
TRACKING/ |
||||
|
|
|
CH |
||
4 |
5 |
6 |
V-LOCK |
||
|
|||||
7 |
8 |
9 |
VOLUME |
|
|
|
|
AV |
0 |
-/-- |
|
INDEX/SKIP |
SLOW/SEARCH |
||
NAVI |
|
|
MENU |
TOP MENU |
|
|
|
DIRECT |
|
|
PLAY |
NAVIGATOR |
|
|
LIST |
|
ENTER |
|
|
DISPLAY |
|
|
RETURN |
PROG/CHECK |
TIMER |
PROG PLAY |
JET REW |
CANCEL/RESET |
SUBTITLE |
AUDIO |
ANGLE/PAGE |
MUSIC w/ PICTURE |
A.SRD |
CINEMA POSITION MEMORY |
|
|
PICTURE |
SPEED |
INPUT SELECT |
PICTURE |
|
|
|
PLAY MODE |
REPEAT |
ZOOM |
SETUP |
[2] Press [1](PLAY).
≥Play starts automatically if you insert a tape that has had its tab (Tapes lpage 4) removed.
[∫] |
Stop |
|
Press this button to stop playback. |
|
|
[6] (backward)/ |
Cue / Review |
[ 5] (forward) |
During playback, tap or keep pressing these buttons. |
|
If you keep pressing these buttons, playback restarts by releasing them. |
|
Jet Search |
|
During playback, tap these buttons twice. You can increase Cue/Review |
|
search speed. |
|
Fast-forward / Rewind |
|
Press these buttons in the stop mode. Press [∫] to cancel. |
|
|
[JET REW6] |
Jet Rewind |
|
Press this button to obtain a Higher Speed Rewind. |
|
The “J . REW” indication appears on the TV screen (except when the |
|
remaining tape time indication appears). |
|
|
[;/D] |
Pause |
|
Press this button during playback. Press [ 1](PLAY) or [;/D] to restart. |
|
Slow |
|
Press and hold for 2 seconds or more. |
|
|
[<EJECT] |
Eject |
|
Press this button to remove the video cassette. |
|
Or, keep pressing [∫] on the remote control for at least 3 seconds. |
|
|
[1](PLAY) |
Repeat Playback (lpage 15) |
|
If you press and hold [ 1](PLAY) for 5 seconds or more, you can play |
|
back the recorded part on the tape repeatedly. |
|
The “R 1” indication appears on the TV screen. |
|
Press [∫] to cancel (It also cancels if you play, pause, cue, or review). |
|
|
¬ To change back to normal playback
Press [ 1](PLAY).
EJECT
/I
EJECT
PULL-OPEN
¬ To adjust tracking control manually lpage 15
Other convenient functions
≥When the unit is off, an inserted video cassette can be played back by pressing [ 1](PLAY).
REW FF
≥You can eject tapes when the unit is in standby mode. It switches back to standby once it ejects the tape.
≥When the tape reaches its end, this unit automatically rewinds it to the beginning. During timer recording, OTR and fast-forwarding, this function does not work.
Notes:
≥Jet Search, cue, review or slow playback will be automatically released after 10 minutes, and for still playback, it will be released after 5 minutes.
≥The tape counter does not appear during Jet rewind.
≥Depending on a cassette or the operating condition, Jet rewind may not work or change the rewind speed somewhat.
≥During playback function other than normal playback, horizontal noise bars may appear in the picture, the colour of the picture may be unstable, or the picture may be otherwise distorted.
≥When you play back a tape recorded in the LP mode, the picture may be turned into monochrome. ≥When you play back a tape recorded in the EP mode, the picture and the sound may be unstable.
However, these are not malfunctions.
14
|
|
Playback |
|||
|
|
|
|
|
|
Repeat Playback |
Beginning of Tape |
End of Recorded Part |
|
||
At the end of the programme, the tape rewinds to the beginning of the programme and plays it |
|
|
|
|
|
again (It only works if there is at least 5 seconds blank at the end of the programme). This |
Repeat Playback |
|
|
|
|
PLAY |
|
|
|
|
|
repeats until you cancel it. |
Control signal |
|
|||
|
|
||||
|
|
Interruption |
|
||
|
REW |
(at least 5 sec.) |
|
||
|
|
|
|
|
|
Picture Mode
This function reproduces optimum playback picture from various kind of recorded tapes and contents.
..............................................................................................................................................................................................................................................................................................................................
Press [PICTURE].
≥Each time you press the button, the indication changes in the following order:
[# |
STANDARD: |
Normal mode for recorded TV programmes (Initial Setting) |
l |
; |
|
l |
DYNAMIC: |
Clear & vivid images (e.g. for scenery and sports) |
l |
; |
|
l |
SOFT: |
Mild images (e.g. for rental software) |
l |
; |
STANDARD |
|
||
{= CARTOON: |
Delicate images for cartoon |
|
Adjusting the playback picture
Manual tracking
The unit usually makes tracking adjustments, but you may need to do it manually, if noise appears on a tape recorded on other equipment.
..............................................................................................................................................................................................................................................................................................................................
During play, press [TRACKING/V-LOCK] I or J.
Repeat until the noise disappears.
Vertical locking adjustment
Adjust the vertical to stop the picture jiggling while paused.
..............................................................................................................................................................................................................................................................................................................................
While paused, press [TRACKING/V-LOCK] I or J.
Repeat until the jiggling stops.
¬ To return to auto tracking
Press both [TRACKING/V-LOCK] I and J simultaneously.
¬ To remove the noise from a paused picture
Start slow play, then adjust the tracking.
Notes:
≥This may not work with some TV models and tapes.
≥You can also adjust the tracking and vertical with [CH]IJon the unit.
NTSC Playback
Tapes recorded in the NTSC system can be played back via a PAL system TV. ≥To record in the NTSC system, set “NTSC INPUT SELECT” (OPTION lpage 24).
≥Select “on PAL TV” in “NTSC PB SELECT” to view the NTSC recording in colour (OPTION lpage 24). ≥On some TVs, the playback picture may roll up or down. If your TV has V-HOLD control or
equivalent function, use it to adjust the picture.
Note for only NTSC Playback on PAL system TV
This function is designed to allow only the playback of tapes recorded by NTSC signals on a PAL system TV. The NTSC signal is not completely converted to a PAL signal. For this reason, images play back by this function cannot be recorded correctly on other VHS.
VHS Operations
15
Recording
≥Select the unit viewing channel (or the AV input) on the TV. ≥Switch [VHS/TV/DVD] to “VHS”.
≥Check that the clock is set to the correct time. If it has not been set, refer to page 12.
|
|
VHS/DVD/TV |
|
|
|
VHS/DVD |
TV |
|
TV |
|
|
|
VHS |
DVD |
|
VHS/DVD QUICK REPLAY |
DUBBING |
REC |
|
|
OUTPUT |
|
|
|
Numeric |
|
|
TRACKING/V-LOCK |
|
1 |
2 |
3 |
|
|
buttons |
4 |
5 |
6 |
CH |
|
|
|||
|
7 |
8 |
9 |
VOLUME |
|
|
|||
|
AV |
0 |
-/-- |
|
|
INDEX/SKIP |
SLOW/SEARCH |
||
|
NAVI |
|
|
MENU |
|
TOP MENU |
|
|
|
|
DIRECT |
|
|
PLAY |
|
NAVIGATOR |
|
|
LIST |
|
|
ENTER |
|
|
|
DISPLAY |
|
|
RETURN |
|
PROG/CHECK |
TIMER |
PROG PLAY |
JET REW |
|
CANCEL/RESET |
SUBTITLE |
AUDIO |
ANGLE/PAGE |
|
MUSIC w/ PICTURE A.SRD |
CINEMA POSITION MEMORY |
||
|
|
PICTURE |
SPEED |
INPUT SELECT |
SPEED |
|
|
|
|
|
PLAY MODE |
REPEAT |
ZOOM |
SETUP |
[1] Insert a video cassette tape with an intact erasure prevention tab.
VHS/ |
[2] Press [CH]IJ buttons to select the TV station. |
|
|
TV/ |
≥If you keep pressing these buttons, the channels changes quickly. |
|
|
DVD |
≥You can also select the channels with the numeric buttons. |
|
|
|
|||
REC |
|
||
Example: “5”; |
[5] |
|
|
|
|
||
CH |
“15”; |
[– /– –]l[1]l[5] |
|
[3] Press [SPEED] to select the tape speed. |
|
||
|
SP |
||
Each time you press the button:
SP>LP>EP>SP
[4] Press [REC¥] to start recording.
¬ To stop recording
Press [∫].
¬ To Interrupt Recording
Press [;/D] during recording. Press it again to continue recording.
Tape Speeds
SP: Provides standard recording time, optimum picture and sound quality.
LP: Provides double recording time with slightly reduced picture and sound quality. EP: Provides triple recording time with slightly reduced picture and sound quality.
≥When you play back a tape recorded in the EP mode, the monaural sound may be unstable.
INPUT ≥When you start the recording in the EP mode, “EP” indication on the unit’s display flashes for about 8 SELECT seconds.
Notes:
≥Even if the tape you use is labeled “S-VHS”, it is not possible to record in the S-VHS system with this unit. It records in normal VHS system.
≥You cannot change channels while recording. You can change channels while in the pause mode. ≥When the recording is paused for more than 5 minutes, the unit returns to the stop mode.
Using another device while recording
You can watch another TV programme or play discs while recording. The recording will not be affected.
ªTV
1)While recording, switch [VHS/TV/DVD] to “TV”.
2)Press [CH]IJ or the numeric buttons to select the desired TV programme.
ªDVD
1)While recording, switch [VHS/TV/DVD] to “DVD”.
2)If “OUT [VHS/DVD]” is set to “MANUAL” (lpage 12), press [VHS/DVD OUTPUT] to switch to
DVD.
3)Insert the disc and press [ 1](PLAY) to start play. (lpage 26)
OSD Recording
You can record the present date and time on the same screen as the picture.
Set “OSD REC” to “ON” (OPTION lpage 24) and start recording.
≥This function is also activated for OTR recording (lpage 17) and Timer recording (lpage 18).
≥This function is not activated during MUSIC WITH PICTURE (lpage 43).
1 5 : 1 0 . 5 4
1 9 . O C T . 2 0 0 5
16
Loading...
