Universal WiFi Range Extender WN2000RPTv2
Installation Guide
CONNECT WIRED
DEVICES WIRELESSLY
WIRELE
EXTENS

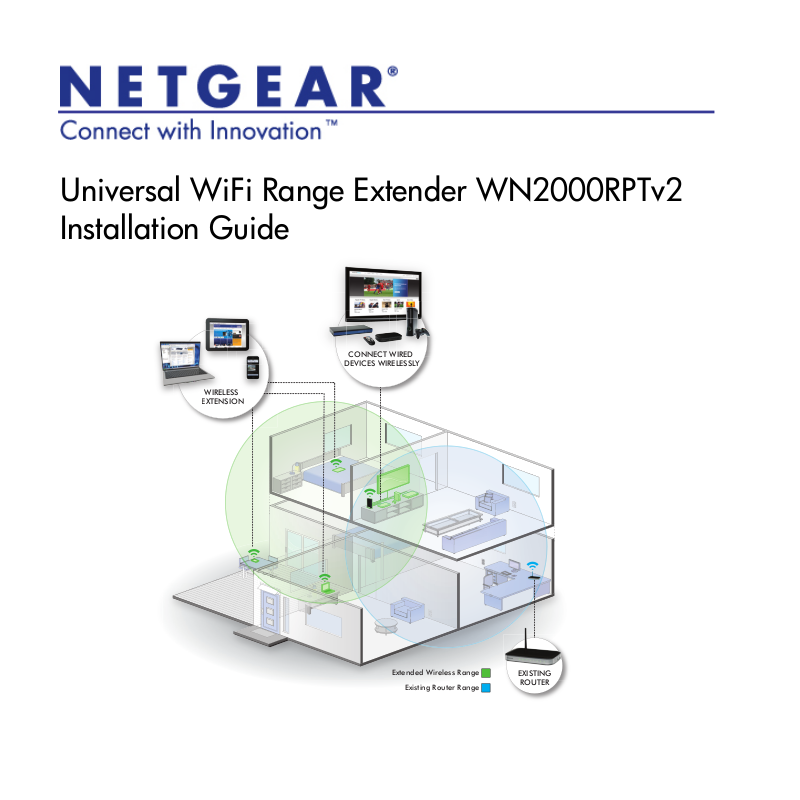

Extended Wireless Range |
|
EXISTING |
Existing Router Range |
|
ROUTER |
© 2011 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc.
DO NOT stack equipment, or place equipment in tight spaces or in drawers. Be sure your equipment is surrounded by at least 2 inches of air space.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online, visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries):
See http://support.netgear.com/app/answers/detail/a_id/984.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are trademarks or registered trademarks of their respective holders. © 2011 NETGEAR, Inc. All rights reserved.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Hardware Features
The LEDs on the front show how the Extender is working.
Link Rate. The LED indicates a wireless connection between the Extender and the router.
-
Green is best.
-
Amber is good.
-
Red is poor.
Status. The LED is lit when the
Extender is powered on.
PC to Extender. The LED is lit when the Extender is connected to a PC.
WPS button. This LED indicates a WPS wireless connection.
-Solid green. There is wireless security (WPA or WPA2).
-Blinking green. A WPS connection is in progress.
Link Rate
Status
PC to
Extender
WPS button
3
The back panel has the following features: |
|
Factory Reset button. To use this |
|
button, stick a paper clip into the reset |
|
hole and hold it until the Status LED |
|
flashes. |
|
Ethernet ports. You can use the |
Factory |
Ethernet ports on the Extender |
Reset |
to connect up to four Ethernet-enabled |
button |
devices wirelessly to your network. |
|
On/Off button. Turns the device on |
|
and off. |
Ethernet |
|
|
|
ports |
On/Off
button
4
Getting Started
The WiFi Range Extender extends the wireless network to include the area outside the range of your existing Wi-Fi network. Follow these steps to correctly set up the Extender.
Placing the Extender and Applying Power
1.Place the Extender an equal distance between your router and the wireless device located outside the range of your router.
DO |
DON’T |
Tip: If you have to use a different location, move the Extender closer to the device, but still within the wireless range of the router.
2.Plug the Extender into an electrical outlet, and wait 1 minute until the Extender starts. The Status LED
turns green.
5
