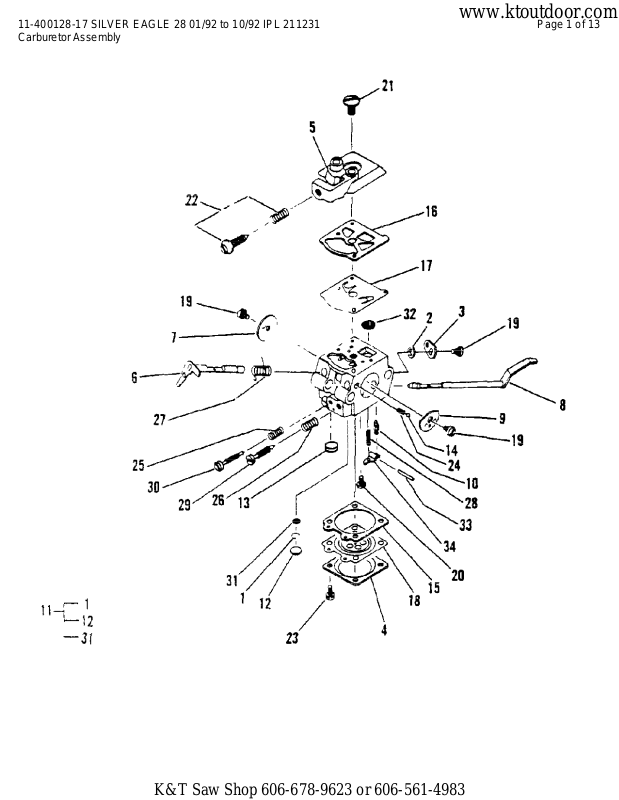

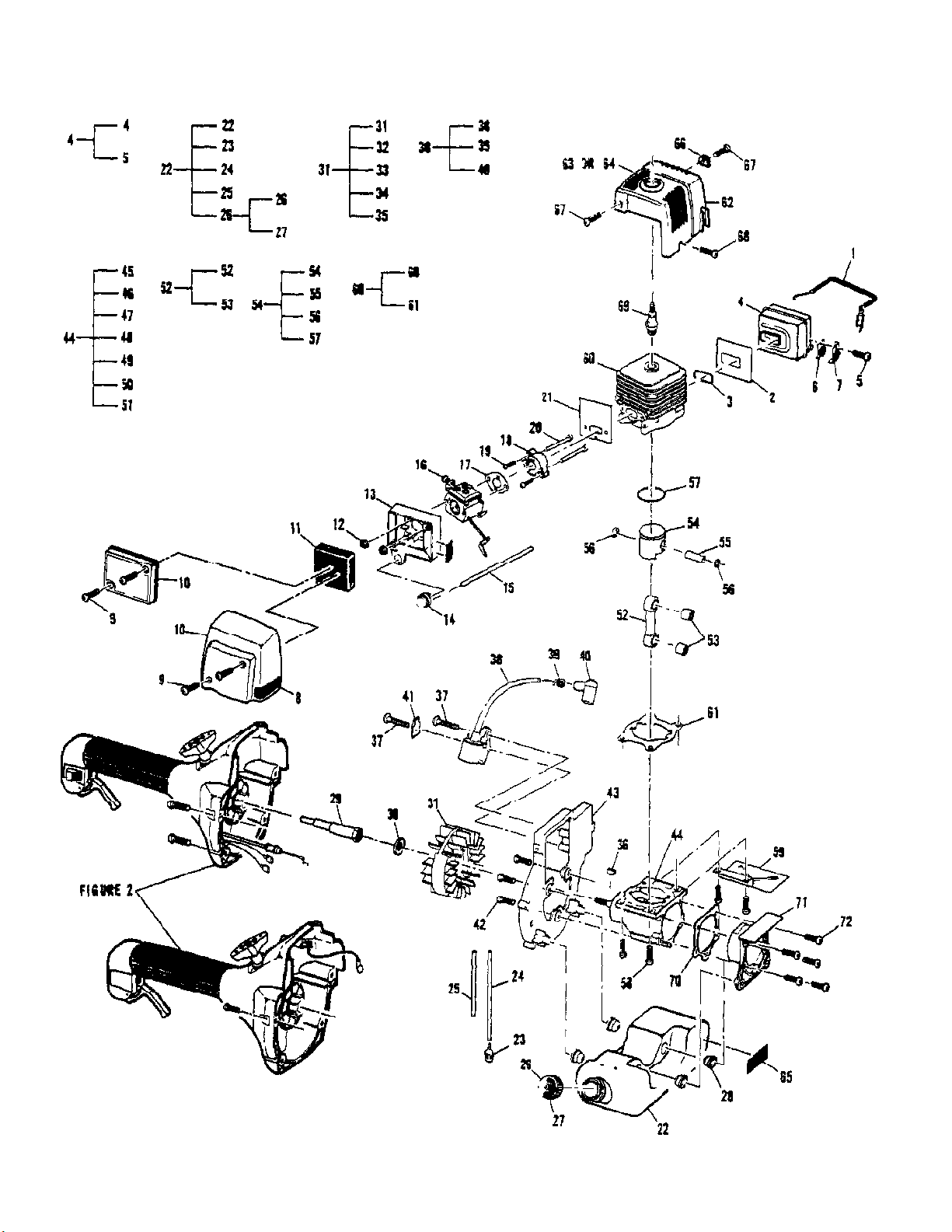

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400128-17 SILVER EAGLE 28 01/92 to 10/92 IPL 211231 Page 2 of 13
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
224033-02 Carburetor w/Choke Walbro WT-231A Distributor
stocked. Medium to slow moving part.
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair Distributor stocked. Medium to
slow moving part.
224460 Kit, Gasket/Diaphragm Distributor stocked. Medium to
slow moving part.
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400128-17 SILVER EAGLE 28 01/92 to 10/92 IPL 211231 Page 3 of 13
www.ktoutdoor.com

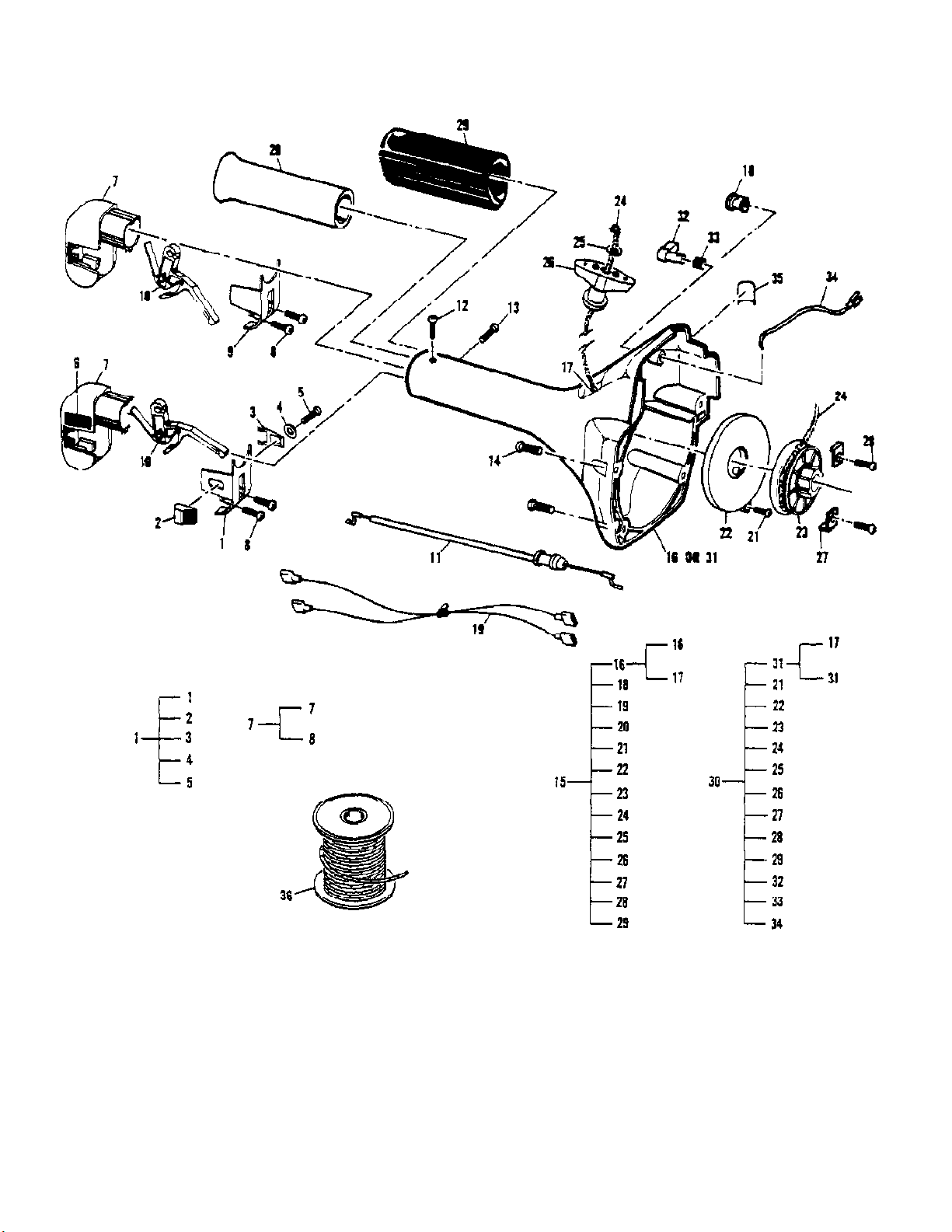

Shaft/Handle and Cutter Assemblies
