Lexus RX300 2006, RX330 2006, RX350 2006, RX400H 2006 Owner Manual

Page 1

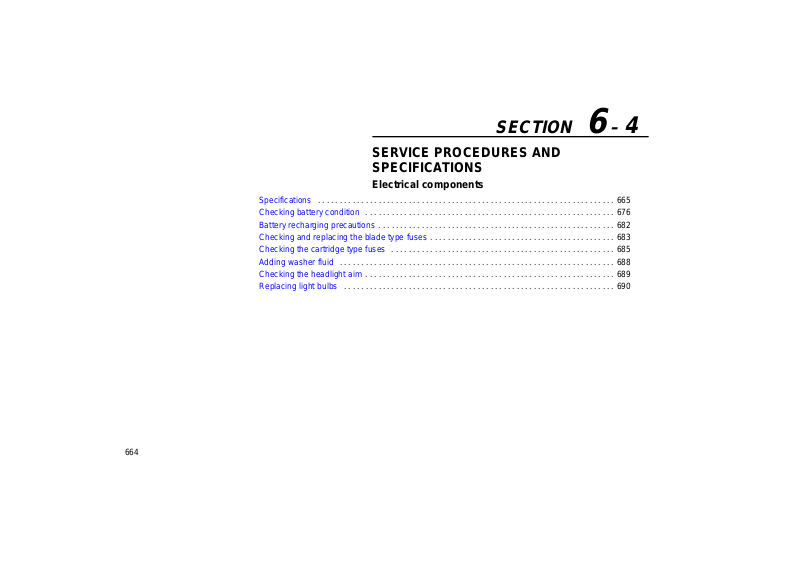

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Electrical components

Specifications 665. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking battery condition 676. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery recharging precautions 682. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing the blade type fuses 683. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the cartridge type fuses 685. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adding washer fluid 688. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the headlight aim 689. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing light bulbs 690. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

664

Page 2

ELECTRICAL COMPONENTS

SPECIFICATIONS

— FUSE LOCATIONS



Engine compartment

2 3

Driver’s side instrument panel

— FUSES



Engine compartment (with electronically modulated air suspension)

665

Page 3

ELECTRICAL COMPONENTS



Engine compartment (without electronically modulated air suspension)

64RY043



Driver’s side instrument panel

666

Page 4

No. FUSE AMPERE CIRCUIT

1 AIRSUS 60

2 INP-J/B 100

Electronically modulated air suspension

All components in “HEATER”, “H-LP CLN”, “TAIL”, “PANEL”, “FR FOG”, “CIG”, “RADIO NO. 2”, “ECU-ACC”, “PWR OUTLET NO. 1”, “GAUGE NO. 1”, “ECU-IG NO. 1”,“ FR WIP”, “RR WIP”, “WASHER”, “SEAT HTR”, “ECU-IG NO. 2”, “P/SEAT”, “PWR”, “TI&TE”, “RR DOOR LH”, “RR DOOR RH”, “MPX-B”, “AM1”, “DOOR NO. 2”, “STOP”, “OBD”, “FUEL OPN”, “AIRSUS” (7.5 A), “S/ROOF”, “FR DEF” and “RR FOG” fuses

ELECTRICAL COMPONENTS

667

Page 5

ELECTRICAL COMPONENTS

No. FUSE AMPERE CIRCUIT

All components in “INP-J/B”, “AIRSUS” (60 A), “ABS NO. 1”, “ABS NO. 2”, “RDI FAN”, “RR DEF”, “HEATER”, “PBD”, “H-LP CLN/MSB”, “H-LP CLN”, “PWR OUTLET NO. 2”, “TOWING”, “TAIL”, “PANEL”, “FR FOG”, “CIG”, “RADIO NO. 2”, “ECU-ACC”, “PWR OUTLET

3 ALT 140

4 PBD 30 Power back door

H-LP

CLN/MSB

6 H-LP CLN 30 Headlight cleaner

30 Headlight cleaner

NO. 1”, “GAUGE NO. 1”, “ECU-IG NO. 1”, “FR WIP”, “RR WIP”, “WASHER”, “HEATER”, “SEAT HTR”, “ECU-IG NO. 2”, “P/SEAT”, “PWR”, “TI&TE”, “RR DOOR LH”, “RR DOOR RH”, “MPX-B”, “AM1”, “DOOR NO. 2”, “STOP”, “OBD”, “FUEL OPN”, “AIRSUS” (7.5 A), “S/ROOF”, “FR DEF” and “RR FOG” fuses

668

Page 6

No. FUSE AMPERE CIRCUIT

Anti-lock brake system, vehicle

7 ABS NO. 1 30

8 RR DEF 40 Rear window defogger 9 HEATER 50

10 DRL 7.5 Daytime running light system

H-LP L

15 TOWING 30 Trailer lights

16 ABS NO. 2 50

LWR

H-LP L

UPR

H-LP R

UPR PWR

OUTLET

NO. 2

15 Left-hand headlight (low beam)

15 Left-hand headlight (high beam)

20 Power outlet

stability control system, traction control system, brake assist system

Air conditioning system, rear window defogger

Right-hand headlight (high beam)

Anti-lock brake system, vehicle stability control system, traction control system, brake assist system

ELECTRICAL COMPONENTS

No. FUSE AMPERE CIRCUIT

17 RDI FAN 50 Electric cooling fan 18 HAZ 15 Turn signal lights 19 CRT 7.5 Audio system

669

Page 7

ELECTRICAL COMPONENTS

20 ALT-S 7.5 Charging system

21 ETCS 10

22 HORN 10 Horns

23 MAIN 40

24 AM2 30

RADIO

No. FUSE AMPERE CIRCUIT

26 ECU-B 7.5

NO. 1

15 Audio system, navigation system

Multiport fuel injection system/sequential multiport fuel injection system

Daytime running light system, left-hand headlight, right-hand headlight, all components in “H-LP R LWR”, “H-LP R UPR”, “H-LP L UPR”, “H-LP L LWR” and “DRL” fuses

Starting system, all components in “GAUGE NO. 2”, “IGN” and “INJ” fuses

Power window, multiplex communication system, gauge and meters, instrument cluster lights, instrument panel lights, air conditioning system, garage door opener, illuminated entry system, wireless remote control system, power back door, driving position memory system, navigation system display, moon roof, tilt and telescopic steering, power seats, outside rear view mirror, windshield wipers

670

Page 8

Gauge and meters, personal lights, vanity lights, door courtesy lights, inside door

27 DOME 7.5

28 TEL 7.5 No circuit 29 AMP 30 Audio system

DOOR

No. FUSE AMPERE CIRCUIT

31 A/F 25

32 EFI NO. 1 25

34 EFI NO. 2 10

NO. 1

H-LP R

LWR

RR DOOR

FUEL

OPN

25 Multiplex communication system

7.5

handle lights, ignition switch light, foot lights, scuff plate lights, luggage compartment light, interior light

Multiport fuel injection system/sequential multiport fuel injection system

Multiport fuel injection system/sequential multiport fuel injection system and all components in “EFI NO. 2” fuse

Right-hand headlight (low beam)

Multiport fuel injection system/sequential multiport fuel injection system

Rear right side power window

Rear left side power window

Fuel filler door opener

ELECTRICAL COMPONENTS

671

Page 9

ELECTRICAL COMPONENTS

38 FR FOG 15 Front fog lights 39 OBD 7.5 On-board diagnosis system

40 FR DEF 25

No. FUSE AMPERE CIRCUIT

41 STOP 10

42 TI&TE 30 Tilt and telescopic steering 43 MPX-B 7.5 No circuit 44 AM1 7.5 Starter system 45 RR FOG 7.5 No circuit

46 AIR SUS 7.5

DOOR

47 48 S/ROOF 30 Moon roof

No. FUSE AMPERE CIRCUIT

NO. 2

Windshield wiper de-icer and all components in “MIR HTR” fuse

Tail lights, high mounted stoplight, rear light failure warning light, anti-lock brake system, vehicle stability control system, traction control system, brake assist system, electronically modulated air suspension, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system

Electronically modulated air suspension

Multiplex communication system

672

Page 10

Front fog lights, instrument

49 TAIL 10

50 PANEL 7.5

No. FUSE AMPERE CIRCUIT

ECU-IG

NO. 1

7.5

cluster lights, instrument panel lights, front side marker lights, tail lights, license plate lights, towing converter

Glove box light, instrument cluster lights, instrument panel lights, console box light, audio system, power outlet, garage door opener switch, electronically controlled automatic transmission system, headlight cleaner, electronically modulated air suspension, seat heaters, steering switches, power back door

Power rear view mirror control, moon roof, multiplex communication system, navigation system display, shift lock control system, multiplex communication system (power door lock system, wireless remote control system), driving position memory system, vehicle stability control system, traction control system, windshield wipers, electronically controlled automatic transmission, seat heaters, power seats, tilt and telescopic steering, power back door, electronically modulated air suspension

ELECTRICAL COMPONENTS

673

Page 11

ELECTRICAL COMPONENTS

Automatic headlight leveling

ECU-IG

53 HEATER 7.5

No. FUSE AMPERE CIRCUIT

54 WASHER 20 Windshield washer 55 SEAT HTR 20 Seat heaters

57 FR WIP 30 Windshield wipers 58 RR WIP 15 Rear window wiper

59 INJ 20

60 IGN 10

NO. 2

GAUGE

NO. 1

GAUGE

NO. 2

7.5

system, vehicle stability control system, dynamic laser cruise control, headlight cleaner, adaptive front-lighting system

Electric cooling fan, air conditioning system, rear window defogger, ignition switch, windshield wiper de-icer

Instrument cluster lights, instrument panel lights, emergency flashers, seat belt, power outlet, rear light failure warning light, multiport fuel injection system/sequential multiport fuel injection system, back-up lights

Multiport fuel injection system/sequential multiport fuel injection system

SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, front passenger occupant classification system, stop lights

Gauge and meters

674

Page 12

No. FUSE AMPERE CIRCUIT

Navigation system display,

62 ECU-ACC 7.5

63 CIG 15 Cigarette lighter, power outlet

66 MIR HTR 10 67 P/SEAT 30 Power seats

68 PWR 30

PWR

OUTLET

NO. 1

RADIO

NO. 2

7.5

power rear view mirror control, shift lock control system, multiplex communication system

Power outlet

Instrument cluster lights, instrument panel lights, navigation system, audio system

Outside rear view mirror defogger

Power window, multiplex communication system (power door lock system, wireless remote control system), outside rear view mirror

ELECTRICAL COMPONENTS

675

Page 13

ELECTRICAL COMPONENTS

CHECKING BATTERY CONDITION

Precautions

CAUTION

BATTERY PRECAUTIONS The battery produces flammable and explosive

hydrogen gas.  Do not cause a spark by contacting the battery

terminals with tools.  Do not smoke or light a match near the battery. The electrolyte contains poisonous and corrosive

sulfuric acid.

 Avoid contact with eyes, skin or clothes.  Never inhale or swallow electrolyte.  Wear protective safety glasses when working near

the battery.  Keep children away from the battery. EMERGENCY MEASURES  If electrolyte gets in your eyes, flush your eyes with

clean water immediately and get immediate medical

attention. If possible, continue to apply water with a

sponge or cloth while traveling to the medical office.

676

Page 14

 If electrolyte gets on your skin, thoroughly wash the

contacted area. If you feel a pain or burn, get medical attention immediately.

 If electrolyte gets on your clothes, there is a

possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary.

 If you accidentally swallow electrolyte, drink a large

quantity of water or milk. Follow with milk of magnesia, beaten raw egg or vegetable oil. Then go immediately for emergency help.

ELECTRICAL COMPONENTS

677

Page 15

ELECTRICAL COMPONENTS

Checking battery exterior



Terminals

Hold-down clamp

Check the battery for corroded or loose connections, cracks, or loose hold-down clamps.

1. If the battery is corroded, wash it off with a solution of warm water and baking soda. Coat the terminals with grease to prevent further corrosion.

2. If the connections are loose, tighten the clamp bolts — but do not overtighten.

3. Tighten the hold-down clamp only enough to keep the battery firml y i n p l ace. Overtightening may damage the battery case.

678

Page 16

NOTICE



Make sure the engine and all accessories are turned off before performing maintenance.



When checking the battery, remove the ground cable first and reinstall it last.



Be careful not to cause a short circuit with tools.



Take care no solution gets into the battery when washing it.

ELECTRICAL COMPONENTS

If the battery is disconnected or run down

The following functions may not operate correctly and the jam protection function will not function correctly when you reconnect or replace the battery. In these cases, you should do the each instructions referring on the following pages.

 Power back door (See page 46.)  Power windows (See page 74.)  Moon roof (See page 147 or 151.)

Checking battery condition

679

Page 17

ELECTRICAL COMPONENTS

Checking by indicator



Type A



Type B

Check the battery condition by the indicator color.

Type A —

BLUE — Good condition

WHITE — Charging necessary. Have the battery checked by your Lexus dealer.

RED — Have the battery checked by your Lexus dealer.

Type B —

GREEN — Good condition

DARK — Charging necessary . Have the battery checked by your Lexus dealer.

CLEAR or LIGHT YELLOW — Have the battery checked by your Lexus dealer.

680

Page 18

NOTICE

Do not refill the battery with water.

ELECTRICAL COMPONENTS

681

Page 19

ELECTRICAL COMPONENTS

BATTERY RECHARGING

PRECAUTIONS

During recharging, the battery is producing hydrogen gas.

Therefore, before recharging:

1. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable.

2. Make sure the power switch on the recharger is off when connecting the charger cables to the battery and when disconnecting them.

NOTICE

Never recharge the battery while the engine is running. Also, be sure all accessories are turned off.

CAUTION

 Always charge the battery in an unconfined area. Do

not charge the battery in a garage or closed room

where there is not sufficient ventilation.  Only do a slow charge (5 A or less). Charging at a

quicker rate is dangerous. The battery may explode

causing personal injuries.

682

Page 20

CHECKING AND REPLACING THE

BLADE TYPE FUSES



Engine compartment

Pull-out too l 2 Spare fuses

ELECTRICAL COMPONENTS



Driver’s side instrument panel

1. Turn the ignition switch off and remove the fuse box lid.

Determine which fuse may be causing the problem. The lid of the fuse box shows the name of the circuit for each fuse.

683

Page 21

ELECTRICAL COMPONENTS

2. Make sure the inoperative component is turned off. Pull the suspected fuse straight out with the pull-out tool and check it. If it has blown, push a new fuse into the clips.

684



Good

1. Look carefully at the fuse. If the thin wire is broken, the fuse has blown. If you are not sure or if it is too dark to see, try replacing the suspected fuse with one of the same value that you know is good.

2. Only install a fuse with the amperage rating designated on the fuse box lid.

If you do not have a spare fuse, in an emergency you can pull out the “RADIO NO.1”, “RADIO NO.2” or “PWR OUTLET NO.1” fuse, which may be dispensable for normal driving, and use it if its amperage rating is the same.

If you cannot use one of the same amperage, use one lower than, but as close to the amperage as possible. If the amperage is lower than that specified, the fuse might blow out again but this does not indicate anything wrong. Be sure to get the correct fuse as soon as possible and return the substitute to its original clips.



Blown

Page 22

ELECTRICAL COMPONENTS

It is a good idea to purchase a set of spare fuses and keep them in your vehicle for emergencies.

If the new fuse immediately blows out, there is a problem with the electrical system. Have your Lexus dealer correct it as soon as possible.

You should normalize the power back door, power windows and moon roof if they do not work or the jam protection function does not operate correctly after replacing blown fuses. In these cases, you should do the each instructions referring on the following pages.

 Power back door (See page 46.)  Power windows (See page 74.)  Moon roof (See page 147 or 151.)

CAUTION

Never use a fuse with a higher amperage rating, or any other object, in place of a fuse. This may cause extensive damage and possibly a fire.

CHECKING THE CARTRIDGE TYPE

FUSES



Engine compartment



Driver’s side instrument panel

685

Page 23

ELECTRICAL COMPONENTS

If the headlights or other electrical components do not work and the blade type fuses are O.K., check the cartridge type fuses. If any of the cartridge type fuses are blown, they must be replaced.

If there is an overload in the circuits from the battery, the fuses are designed to blow before the entire wiring harness is damaged.

CAUTION

686



Type A

Type B

Good

Blown

Always use a genuine Lexus fuse or equivalent for replacement. Never install an ordinary wire — even for a temporary fix. This may cause extensive damage and possibly a fire.

Page 24

NOTICE

Before replacing the fuses, have the cause of electrical overload determined and repaired by your Lexus dealer .

ELECTRICAL COMPONENTS

687

Page 25

ELECTRICAL COMPONENTS

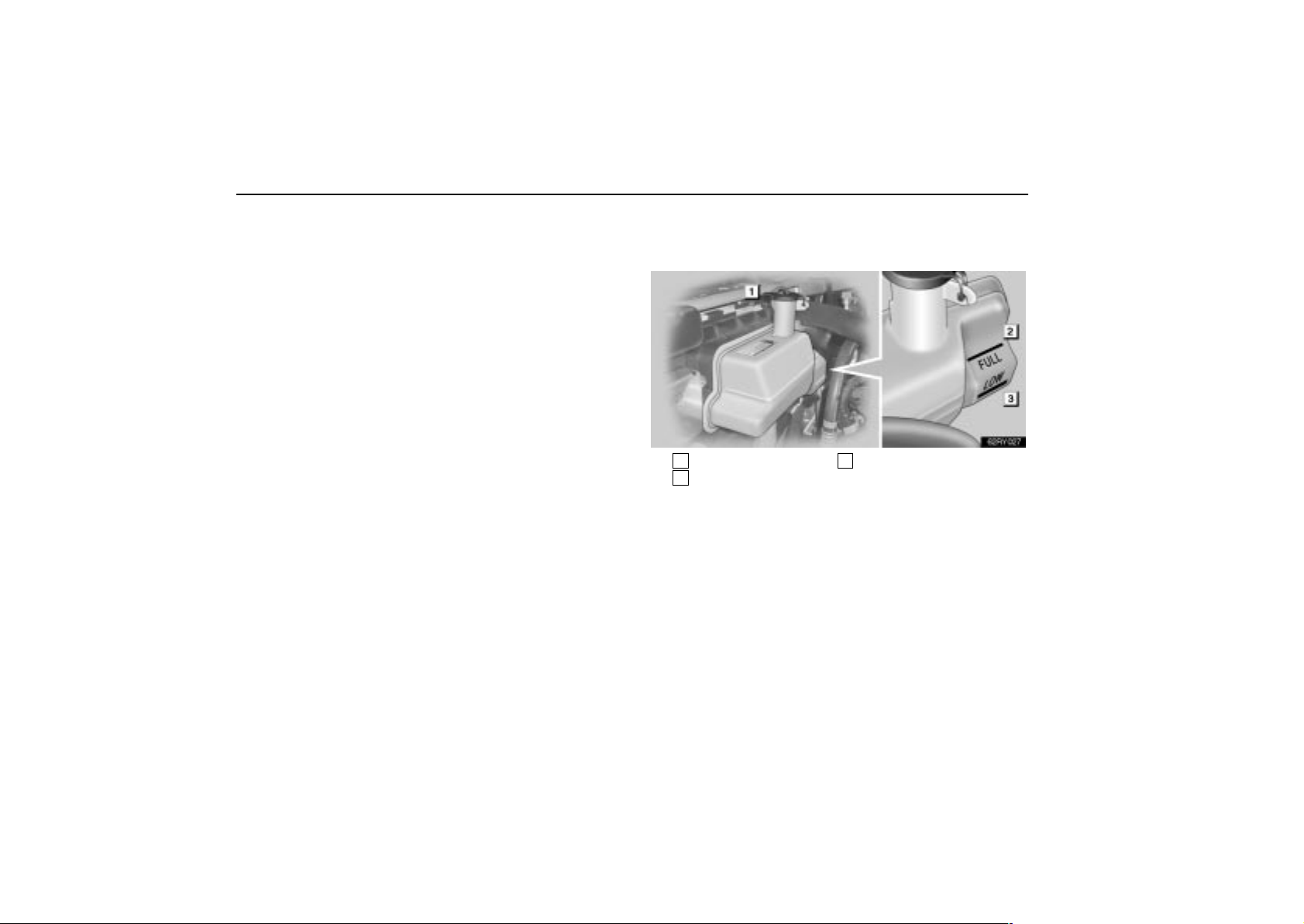

ADDING WASHER FLUID

If the washer tank becomes nearly empty, add washer fluid.

NOTICE

Do not use engine antifreeze or any other substitute because it may damage your vehicle’s paint.

You may use plain water as washer fluid. However, in cold areas where temperatures range below the freezing point, use washer fluid containing antifreeze. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water.

688

Page 26

ELECTRICAL COMPONENTS

CHECKING THE HEADLIGHT AIM

(vehicles with discharge headlight)



Vertical movement adjusting

Vertical movement adjusting bolt

Before checking the headlight aim:

1. Be sure that the body around the headlight is not deformed.

2. Park the vehicle on a level spot.

3. The driver gets into the driver’s seat and puts the vehicle in a state readying for a driving (with a full tank).

4. Bounce the vehicle several times.

screw

Adjusting the vertical aiming

1. Turn the Phillips-head screwdriver to either direction in order to turn the vertical movement adjusting screw ( Remember the number of times you turn the screwdriver and the turning direction.

689

Page 27

ELECTRICAL COMPONENTS

2. When turning the vertical movement adjusting bolt ( turn the Phillips-head screwdriver to the same direction as step 1. To calculate the correct number of turns, multiply the number of times you turned the screwdriver in step 1 by 1.25. Turn the screwdriver by this amount.

REPLACING LIGHT BULBS

The illustration on the following pages show the locations of light bulbs. If it is necessary to replace a bulb, take your vehicle to your Lexus dealer as soon as possible. Use bulbs with the bulb numbers and wattage ratings given in the table.

The stop lights consist of a number of LEDs. If two or more LEDs burn out, your vehicle may not conform to local laws (SAE). If this occurs, take your vehicle to your Lexus dealer to have the light replaced.

 To prevent burning yourself, do not replace the light

bulbs while they are hot.  Halogen bulbs have pressurized gas inside and

require special handling. They can burst or shatter if

scratched or dropped. Hold a bulb only by its plastic

or metal case. Do not touch the glass part of a bulb

with bare hands. Vehicles with power back door system —  When replacing the rear light bulbs, turn off the

power back door system.

CAUTION

690

Page 28

Vehicles with discharge headlights —  Do not touch the high voltage socket when the low

beam headlight turns on. 20000 V is momentarily generated and may cause severe injury by electric shock.

 Do not disassemble, repair or take apart the low beam

headlight bulbs, connector, power supply circuits and rotated components. Or you may be injured by electric shocks. Call your dealer when the headlights fail to work or have to be replaced or disposed of.

NOTICE

Only use a bulb of the listed type.

ELECTRICAL COMPONENTS

The inside of the lens of exterior lights such as headlights may temporarily fog up when the lens becomes wet in the rain or in a car wash. This is not a problem because the fogging is caused by the temperature difference between the outside and inside of the lens, just like the windshield fogs up in the rain. However, if there is a large drop of water on the inside of the lens, or if there is water pooled inside the light, contact your Lexus dealer.

Light Bulbs Bulb No. W Type

Parking lights 168 5 F

Front turn signal lights --- 21 H

Front side marker lights 168 5 F

Headlights (low beam)

Discharge bulb Halogen bulb

---

35 55

B C

LIGHT LOCATION

691

Page 29

ELECTRICAL COMPONENTS

Headlights (high beam) 9005 60 A

Fog lights 9006 51 D

692

Page 30

Light Bulbs Bulb No. W Type

Rear turn signal lights --- 21 H

Tail lights 168 5 F

License plate lights 168 5 F

Back-up lights 921 18 F

Rear side marker lights 194 3.8 F

ELECTRICAL COMPONENTS

693

Page 31

ELECTRICAL COMPONENTS

Light Bulbs Bulb No. W Type

Vanity lights --- 2.8 G

Personal lights --- 8 E

Interior lights --- 8 G

Luggage compartment lights

Door courtesy lights --- 5 E

--- 5 G

694

Page 32

A: HB3 halogen bulbs B: D2S discharge bulbs C: H11 halogen bulbs D: HB4 halogen bulbs E: Single end bulbs F: Wedge base bulbs (clear) G: Double end bulbs H: Wedge base bulbs (amber)

ELECTRICAL COMPONENTS

695

Page 33

ELECTRICAL COMPONENTS

696

Page 34

SECTION 7

REPORTING SAFETY DEFECTS FOR U.S. OWNERS

Reporting safety defects for U.S. owners

Reporting safety defects for U.S. owners 712. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

711

Page 35

REPORTING SAFETY DEFECTS

FOR U.S. OWNERS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-25-LEXUS).

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll- free at 1- 800- 424- 9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

712

Page 36

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Body

Specifications 698. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protecting your vehicle from corrosion 700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Washing and waxing 701. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning the interior 704. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

697

Page 37

BODY

SPECIFICATIONS

— DIMENSIONS AND WEIGHTS

Overall length

4730 mm (186.2 in.) Overall width 1845 mm (72.6 in.) Overall height*

Two-wheel drive models

1670 mm (65.7 in.)*

1710 mm (67.3 in.)*

1725 mm (67.9 in.)*

Four-wheel drive models

— With electronically modulated air

suspension

1670 mm (65.7 in.)*

1710 mm (67.3 in.)*

1725 mm (67.9 in.)*

— Without electronically modulated

air suspension

1680 mm (66.1 in.)*

1720 mm (67.7 in.)*

1735 mm (68.3 in.)*

*1: Unladen vehicle

: Without roof rails

*3: With roof rails

: With roof rails and cross rails

2 3 4

2 3 4 2 3 4

698

Page 38

— DIMENSIONS AND WEIGHTS

BODY

Wheelbase Tread

Two-wheel drive models

— Front — Rear

Four-wheel drive models

— Front — Rear (with electronically

modulated air suspension)

— Rear (without electronically

modulated air suspension)

Vehicle capacity weight (occupants + cargo)

Towing capacity (trailer weight + cargo weight)

— Without towing package — With towing package

— FUEL TANK

Capacity

2715 mm (107 in.)

1580 mm (62.2 in.) 1565 mm (61.6 in.)

1575 mm (62.0 in.) 1560 mm (61.4 in.)

1555 mm (61.2 in.)

420 kg (925 lb.)

907 kg (2000 lb.) 1588 kg (3500 lb.)

72.5 L (19.2 gal., 15.9 Imp. gal.)

699

Page 39

BODY

PROTECTING YOUR VEHICLE

FROM CORROSION

Proper care of your Lexus can help ensure long-term corrosion prevention.

The most common causes of corrosion to your vehicle are:

 The accumulation of road salt, dirt and moisture in

hard-to-reach areas under the vehicle.

 Chipping of paint or undercoating caused by minor

accidents or by stones and gravel.

The following conditions will cause or accelerate corrosion of your vehicle, so it is important to keep your vehicle, particularly the underside, as clean as possible and to repair any damage to paint or protective coatings as soon as possible.

 The presence of road salt or dust control chemicals, salt in

the air near the sea coast, industrial air pollution.

 High humidity, especially at temperatures just above

freezing point.

 Certain parts of your vehicle are wet or damp for an

extended period of time, even though other parts of the vehicle are dry.

 Components of the vehicle which are prevented from

quick-drying due to lack of proper ventilation are exposed to high ambient temperature.

To help prevent corrosion on your Lexus, follow these guidelines:

Keep your vehicle clean by regular washing. In addition,

observe the following points.  If you drive on salted roads in the winter or if you live near

the ocean, you should hose off the undercarriage at least once a month to minimize corrosion.

 High pressure water or steam is effective for cleaning the

vehicle’s underside and wheel housings. Pay particular attention to these areas as it is dif ficult to see all the mud and dirt. It will do more harm than good to simply wet the mud and debris without removing. The lower edge of doors, rocker panels and frame members have drain holes which should not be allowed to clog with dirt as trapped water in these areas can cause corrosion.

 Wash the underside of the vehicle thoroughly when winter

is over. See “Washing and waxing” on page 701 for more tips. Check the condition of your vehicle’s paint and trim. If you

find any chips or scratches in the paint, touch them up immediately to prevent corrosion from starting. If the chips or scratches have gone through the bare metal, have a qualified body shop make the repair.

700

Page 40

BODY

Check the interior of your vehicle. Water and dirt can

accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc. These should be transported in proper containers. If a spill or leak should occur, immediately clean and dry the area.

Use mud shields on your wheels. If you drive on salted or gravel roads, mud shields help protect your vehicle. Full-size shields, which come as near to the ground as possible, are the best. We recommend that the fittings and the area where the shields are installed be treated to resist corrosion. Your Lexus dealer will be happy to assist in supplying and installing the shields if they are recommended for your area.

Keep your vehicle in a well ventilated garage or a roofed place. Do not park your vehicle in a damp, poorly ventilated garage. If you wash your vehicle in the garage, or

if you drive it covered with water or snow, your garage may be so damp as to cause corrosion. Even if your garage is heated, a wet vehicle can corrode if the ventilation is poor.

WASHING AND WAXING

Washing your Lexus

Keep your vehicle clean by regular washing.

The following cases may cause weakness to the paint or corrosion to the body and parts. W ash your vehicle as soon as possible.

 When driving in a coastal area  When driving on a road sprinkled with antifreeze  When exposed to coal tar, tree sap, bird droppings and

carcass of an insect

 When driving in areas where there is a lot of smoke, soot,

dust, iron dust or chemical substances

 When the vehicle becomes remarkably dirty with dust and

mud

Hand-washing your Lexus

Work in the shade and wait until the vehicle body is not warm to the touch.

1. Rinse off loose dirt with a hose. Remove any mud or road salt from the underside of the vehicle or the wheel wells.

2. Wash with a mild car-wash soap, mixed according to the manufacturer’s instructions. Use a soft cotton mitt and keep it wet by dipping it frequently into the wash water. Do not rub hard — let the soap and water remove the dirt.

701

Page 41

BODY

Fuel filler door: Do not apply water (high-pressure car wash,

for example) at or near the fuel tank inlet with the fuel filler door opened. If the water enters the air vent, you may experience trouble with refueling or rough engine idling.

Electronically modulated air suspension: Do not spray a jet of high-pressure water at the air suspension unit, especially the air spring, at an extremely close range. This may damage the air suspension.

Plastic wheel ornaments: The plastic wheel ornaments are damaged easily by organic substances. If any organic substance splash an ornament, be sure to wash them off with water and check if the ornament is damaged.

Aluminum wheels: Use only a mild soap or neutral detergent.

Plastic bumpers and side moldings: Wash carefully. Do not

scrub with abrasive cleaners. The bumper and side molding faces are soft.

Exterior lights: Wash carefully. Do not use organic substances or scrub them with a hard brush. This may damage the surfaces of the lights.

Road tar: Remove with turpentine or cleaners that are marked safe for painted surfaces.

3. Rinse thoroughly — dried soap can cause streaking. In hot weather you may need to rinse each section right after you wash it.

4. To prevent water spots, dry the vehicle using a clean soft cotton towel. Do not rub or press hard — you might scratch the paint.

702

Page 42

NOTICE



Do not use organic substances (gasoline, kerosene, benzine or strong solvents), which may be toxic or cause damage.



Do not scrub any part of the vehicle with a hard brush, which may cause damage.

Automatic car wash

NOTICE



To prevent damage to the antenna, make sure it is removed before driving your vehicle through an automatic car wash.



When your vehicle goes through an automatic car wash, make sure the power back door system is off.

BODY

Your vehicle may be washed in an automatic car wash, but remember that the paint can be scratched by some types of brushes, unfiltered washing water, or the washing process itself. Scratching reduces paint durability and gloss, especially on darker colors. The manager of the car wash should be able to advise you whether the process is safe for the paint on your vehicle.

Waxing your Lexus

Polishing and waxing is recommended to maintain the original beauty of your Lexus’ finish.

Apply may once a month or if the vehicle surface does not repel water well.

1. Always wash and dry the vehicle before you begin waxing, even if you are using a combined cleaner and wax.

703

Page 43

BODY

2. Use a good quality polish and wax. If the finish has become extremely weathered, use a car-cleaning polish, followed by a separate wax. Carefully follow the manufacturer’s instructions and precautions. Be sure to polish and wax the chrome trim as well as the paint.

NOTICE

If a nozzle becomes blocked, do not try to clear it with a pin or other object. The nozzle will be damaged.

Exterior lights: Do not apply wax on the surfaces of the lights.

Wax may cause damage to the lenses. If you accidentally put wax on the light surfaces, wipe or wash it off.

3. Wax the vehicle again when water does not bead but remains on the surface in large patches.

Windshield washer nozzles: Make sure that the nozzles do not become blocked when waxing. If a nozzle becomes blocked, contact your Lexus dealer to have the vehicle serviced.

CLEANING THE INTERIOR

CAUTION

 Be careful not to splash water or spill liquid on the

floor. This may prevent the side airbags from activating correctly, resulting in serious injury.

 Do not wash the vehicle floor with water, or allow

water to get onto the floor when cleaning the vehicle interior or exterior. Water may get into audio system components or other electrical components above or under the floor carpet (or mat) and cause a malfunction; and it may cause body corrosion.

704

Page 44

BODY

Leather-trimmed Interior

The selected leather is used in your Lexus. Due to characteristics of leather products, some parts of leather may be rough, uneven or scratched originally.

To keep good appearance, we recommend you to clean it periodically twice a year.

Remove dirt on the leather in the following ways:

1. Wipe it off lightly using a soft cloth (e.g. gauze) dampened with 5% solution of neutral detergent for wool.

2. Wring water from a clean cloth and thoroughly wipe off all traces of detergent with it.

3. Wipe of f th e surface of the leather with a dry soft cloth. Allow the leather to dry in a ventilated shaded area. Excess of wet may cause the hardening or shrinking of the leather.

705

Page 45

BODY

NOTICE



Dirt or sand adhered to the leather may damage the treated surface and cause it to wear earlier. Remove dirt or sand using a vacuum cleaner.



If a stain should fail to come out with a neutral detergent, apply a cleaner that does not contain an organic solvent.



Never use organic substances such as benzine, alcohol or gasoline, or alkaline or acid solutions for cleaning the leather as these could cause discoloring.



Use of a nylon brush or synthetic fiber cloth, etc. may scratch the fine grained surface of the leather.



Mildew may develop on soiled leather upholstery. Be especially careful to avoid oil spots. T ry to keep your upholstery always clean.



Long exposure to direct sunlight may cause the leather surface to harden and shrink. Keep your vehicle in a shaded area, especially in the summer.



The interior of your vehicle is apt to heat up on hot summer days, so avoid placing on the upholstery items made of vinyl or plastic or containing wax as these tend to stick to leather when warm.



Improper cleaning of the leather upholstery could result in discoloration or staining.

706

Page 46

BODY

Non-leather Trim

The non-leather trim may be easily cleaned with a mild soap or detergent and water.

NOTICE

Do not use solvent, thinner, gasoline or window cleaner on the interior.

First vacuum over the upholstery to remove loose dirt. Then, using a sponge or soft cloth, apply the soap solution to the synthetic leather. After allowing it to soak in for a few minutes to loosen the dirt, remove the dirt and wipe off the soap with a clean damp cloth. If all the dirt does not come off, repeat the procedure. Commercial foaming-type cleaners are also available which work well. Follow the manufacturer’s instructions.

707

Page 47

BODY

Carpets, Windows and Seat Belts

Begin by vacuuming thoroughly to remove as much dirt as possible. Several types of foam cleaners are available; some are in aerosol cans and others are powders or liquids which you mix with water to produce a foam. To shampoo the carpets, use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply water — the best results are obtained by keeping the carpet as dry as possible. Read the shampoo instructions and follow them closely.

The seat belts may be cleaned with mild soap and water or with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the belts for excessive wear, fraying or cuts.

708

Page 48

NOTICE



Use a good foam-type shampoo to clean the carpets.



Do not use dye or bleach on the belts — it may weaken them.



Do not use the belts until they become dry.



The windows may be cleaned with any household window cleaner.



Do not apply detergent to or wet the automatic wiper control sensor when cleaning the inside of the windshield.



When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors.

BODY

709

Page 49

BODY

Air Conditioning Control Panel, Audio Panel, Instrument Panel, Console Panel, and Switches

NOTICE



Do not use organic substances (solvents, kerosene, alcohol, gasoline, etc.) or alkaline or acidic solutions. These chemicals can cause discoloring, staining or peeling of the surface.



If you use cleaners or polishing agents, make sure their ingredients do not include the substances mentioned above.



If you use a liquid car freshener, do not spill the liquid onto the vehicle’s interior surfaces. It may contain the ingredients mentioned above. Immediately clean any spill using the method mentioned above.

If you have any questions about the cleaning of your Lexus, your local Lexus dealer will be pleased to answer them.

Use a soft damp cloth for cleaning. Soak a clean soft cloth in water or lukewarm water then lightly

wipe off any dirt.

710

Page 50

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Chassis

Specifications 632. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking brake fluid 637. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking power steering fluid 639. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking tire inflation pressure 641. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire information 644. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Types of tires 654. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rotating tires 655. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing tires 656. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing snow tires and chains 658. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing wheels 661. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Aluminum wheel precautions 662. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suspension and chassis 662. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

631

Page 51

CHASSIS

SPECIFICATIONS

— REAR DIFFERENTIAL

Oil capacity Oil type Hypoid gear oil API GL-5 Recommended oil viscosity Above -18C (0F) SAE 90

NOTE: “Toyota Genuine Differential Gear Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Differential Gear Oil” or equivalent to satisfy the following grade and viscosity. Please contact your Lexus dealer for further details.

— AUTOMATIC TRANSAXLE

Fluid capacity

Drain and refill

Fluid type Toyota Genuine ATF Type T-IV*

* Change automatic transmission fluid only as necessary. Generally, it is necessary to change automatic transmission fluid only if your vehicle is driven under one of the Special Operating Conditions listed in your “Owner’s Manual Supplement / Scheduled Maintenance”. When changing the automatic transmission fluid, use only “Toyota Genuine ATF Type T-IV” (ATF JWS3309 or NWS6500) to aid in assuring optimum transaxle performance.

0.9 L (1.0 qt., 0.8 Imp. qt.)

Below -18C (0F) SAE 80W or 80W-90

3.5 L (3.7 qt., 3.1 Imp. qt.)

632

Page 52

NOTICE

Using automatic transmission fluid other than “Toyota Genuine ATF Type T-IV” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the automatic transmission of your vehicle.

Please contact your Lexus dealer for further details.

CHASSIS

633

Page 53

CHASSIS

— TRANSFER

Oil capacity Oil type Hypoid gear oil API GL-5 Recommended oil viscosity Above -18C (0F) SAE 90

— BRAKES

Pedal clearance Pedal free play 2 — 3 mm (0.079 — 0.118 in.) Brake pad wear limit 1.0 mm (0.04 in.) Parking brake lining wear limit 1.0 mm (0.04 in.) Parking brake adjustment 5 — 7 clicks * Fluid type SAE J1703 or FMVSS No.116 DOT 3

*1: Minimum pedal clearance when depressed with the pressure of 490 N (50 kgf, 110 lbf) with the engine running

: Parking brake adjustment when depressed with the pressure of 300 N (31 kgf, 67 lbf)

— STEERING

Wheel free play Power steering fluid type Automatic transmission fluid DEXRONII or III

0.9 L (1.0 qt., 0.8 Imp. qt.)

Below -18C (0F) SAE 80W or 80W-90

80 mm (3.1 in.) Min. *

Less than 30 mm (1.2 in.)

634

Page 54

— TIRES AND WHEELS (type A)

CHASSIS

Tire size

225/65R17 101S

Tire inflation pressure

Recommended cold tire inflation pressure

Front 210 kPa (2.1 kgf/cm2 or bar, 30 psi) Rear 210 kPa (2.1 kgf/cm Spare 210 kPa (2.1 kgf/cm

or bar, 30 psi)

For sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by law, add 10 kPa (0.1 kgf/cm2 or bar, 1.5 psi) to the front tires and rear tires, but never exceed the maximum cold tire pressure

molded on the tire sidewall. Wheel size 17  6 1/2 J Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum wheel precautions” on pages 641 through 662.

635

Page 55

CHASSIS

— TIRES AND WHEELS (type B)

Tire size

P235/55R18 99V

Tire inflation pressure

Recommended cold tire inflation pressure

Front 210 kPa (2.1 kgf/cm2 or bar, 30 psi) Rear 210 kPa (2.1 kgf/cm Spare 210 kPa (2.1 kgf/cm

or bar, 30 psi)

or bar, 30 psi) Wheel size 18 x 7 JJ Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum wheel precautions” on pages 641 through 662.

636

Page 56

CHASSIS

CHECKING BRAKE FLUID

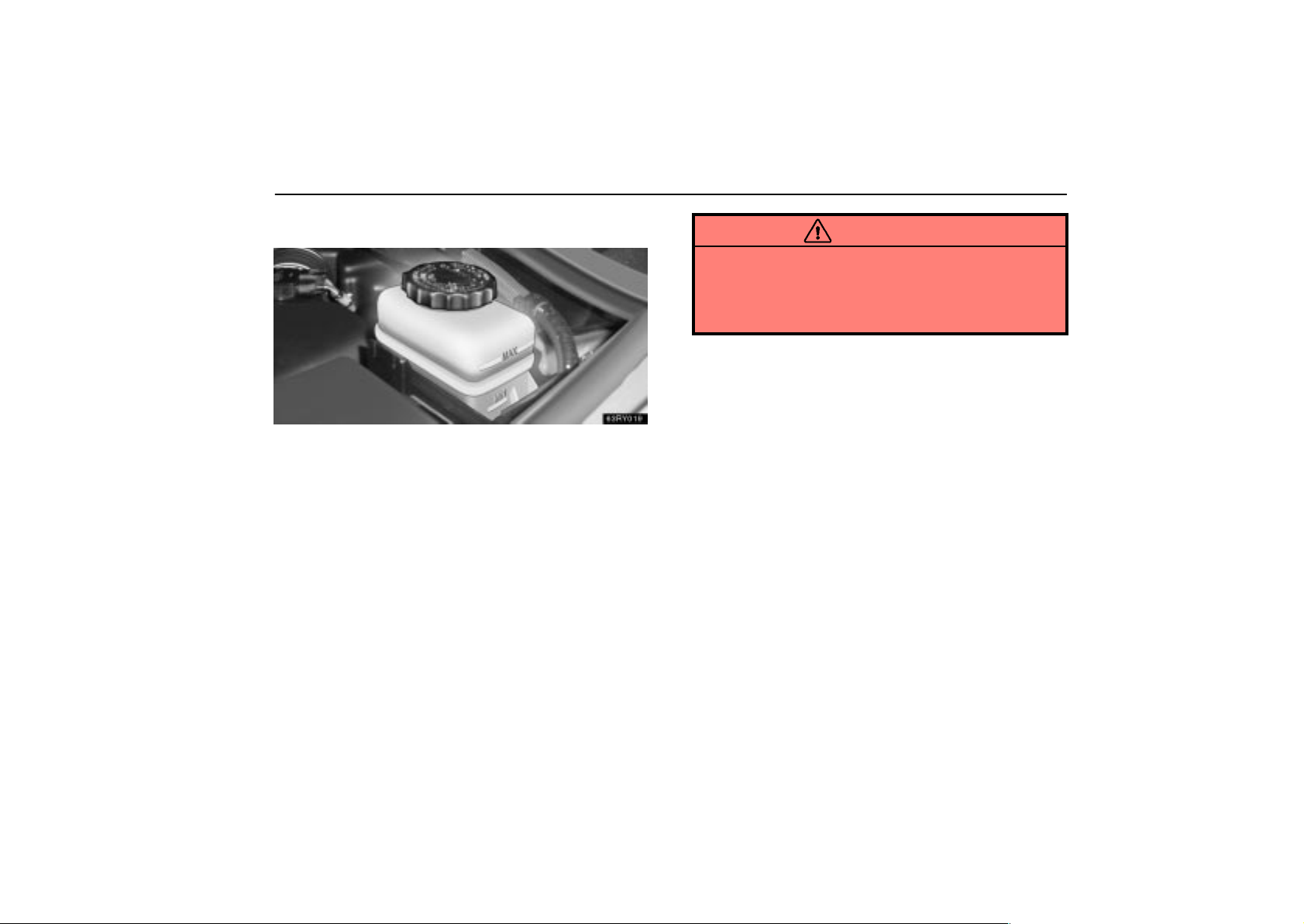

To check the fluid level, simply look at the see-through reservoir. The level should be between the “MAX” and “MIN” lines on the tank.

It is normal for the brake fluid level to go down slightly as the brake pads wear. So be sure to keep the reservoir filled.

If the reservoir needs frequent refilling, it may indicate a serious mechanical problem.

If the level is low, add FMVSS No.116 DOT 3 or SAE J1703 brake fluid to the brake reservoir.

Remove and replace the reservoir cap by hand. Add brake fluid up to the “MAX” line.

Use only newly opened brake fluid. Once opened, brake fluid absorbs moisture from the air, and excess moisture can cause a dangerous loss of braking efficiency.

CAUTION

Take care when filling the reservoir because brake fluid can harm your hands or eyes. If fluid gets on your hands or in your eyes, flush the affected area with clean water immediately. If you still feel uncomfortable with your hands or eyes, go to the doctor.

637

Page 57

CHASSIS

NOTICE

If you spill some of the fluid, be sure to wipe it off to prevent it from damaging the parts or paintwork.

638

Page 58

CHECKING POWER STEERING

FLUID

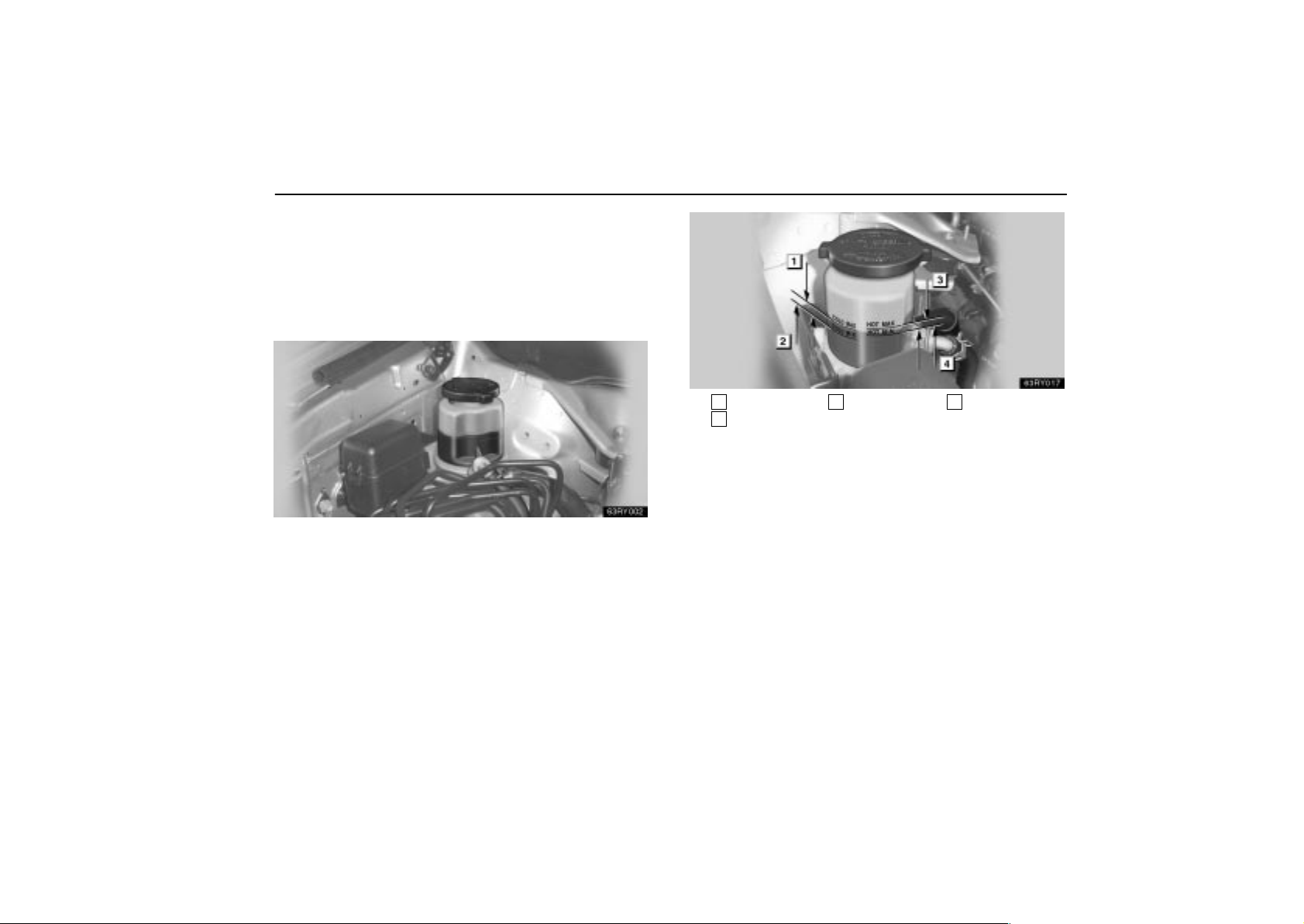

The power steering fluid reservoir is located under the engine compartment cover. Before checking the power steering fluid, remove the cover. (For details, see “Removing the engine compartment cover” on page 603.)

CHASSIS

Check the fluid level through the reservoir. If necessary, add automatic transmission fluid DEXRON

If the vehicle has been driven around 80 km/h (50 mph) for 20 minutes (a little more in frigid temperatures), the fluid is hot (60C — 80C or 140F — 175F). You may also check the level when the fluid is cold (about room temperature, 10C — 30C or 50F — 85F) if the engine has not been run for about five hours.



II or III.



If cold O.K.

If hot add

Clean all dirt off the reservoir and look at the fluid level. If the fluid is cold, the level should be in the “COLD” range. Similarly, if it is hot, the fluid level should be in the “HOT” range. If the level is at the l o w s i d e o f t h e appropriate range, add automatic transmission fluid DEXRON the range.

To remove the reservoir cap, turn it counterclockwise and lift up. To reinstall it, turn it clockwise. After replacing the reservoir cap, visually check the steering box case, vane pump and hose connections for leaks or damage.

If cold add



II or III to bring the level within

If hot O.K.

639

Page 59

CHASSIS

CAUTION

The reservoir may be hot so be careful not to burn yourself.

NOTICE

Avoid overfilling, or the power steering could be damaged.

640

Page 60

CHASSIS

CHECKING TIRE INFLATION

PRESSURE

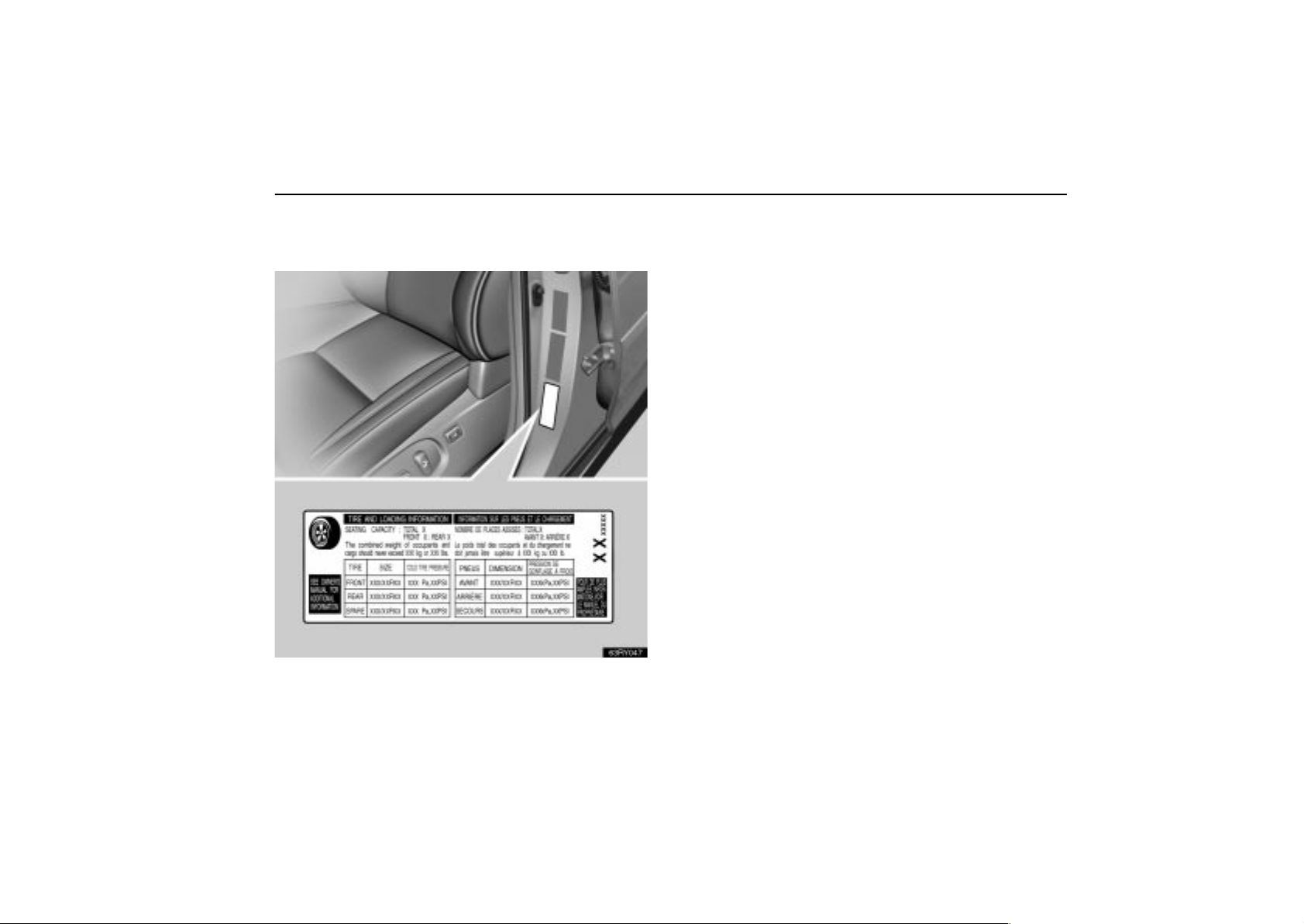

The recommended cold tire inflation pressures, tire sizes and the combined weight of occupants and cargo (vehicle capacity weight) are described on pages 635 and 698. They are also described on the tire and loading information label as shown.

You should check the tire inflation pressure every two weeks, or at least once a month. And do not forget the spare!

The following instructions for checking tire inflation pressure should be observed:

 The pressure should be checked only when the

tires are cold. If your vehicle has been parked

for at least 3 hours and has not been driven for more than 1.5 km or 1 mile since, you will get an accurate cold tire inflation pressure reading.

 Always use a tire pressure gauge. The

appearance of a tire can be misleading. Besides, tire inflation pressures that are even just a few pounds off can degrade handling and ride.

 Do not bleed or reduce tire inflation pressure

after driving. It is normal for the tire inflation

pressure to be higher after driving.

641

Page 61

CHASSIS

 Never exceed the vehicle capacity weight.

Passengers and luggage weight should be located so that the vehicle is balanced.

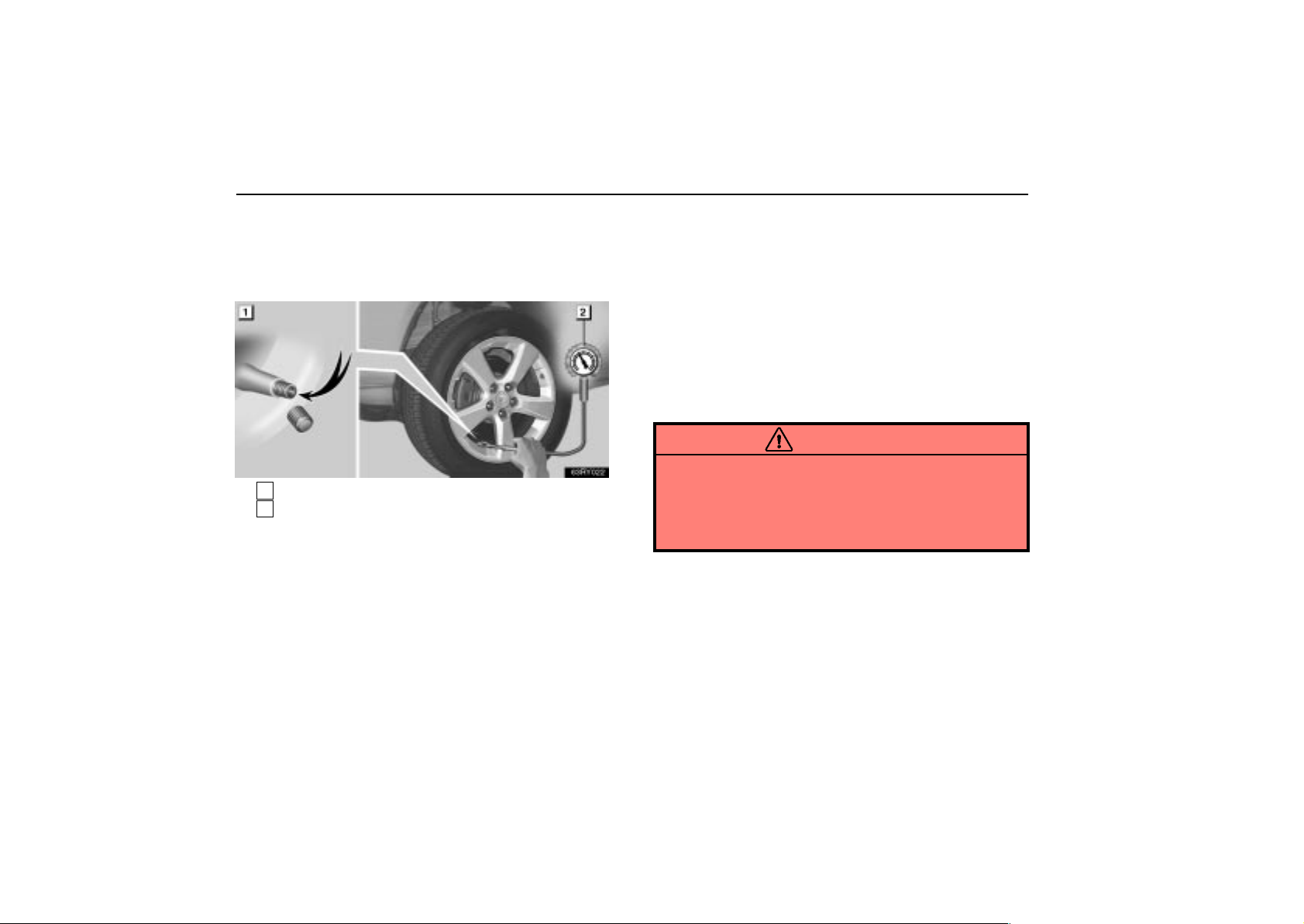

Inspection and adjustment procedure



Tire valve

Tire pressure gauge

1. Remove the tire valve cap.

2. Press the tip of the tire pressure gauge to the tire valve.

3. Read the pressure using the graduations of the gauge.

4. In case the tire inflation pressure is not within the prescribed range, insert the compressed air from the valve. In case of applying too much air, press the center of the valve and release the air to adjust.

5.After completing the tire inflation pressure measurement and adjustment, apply soapy water to the valve and check for leakage.

6. Install the tire valve cap. If a gauge and air pump are not available, have your

vehicle checked by your Lexus dealer.

CAUTION

Be sure to reinstall the tire valve caps. Without the valve caps, dirt or moisture could get into the valve core and cause air leakage. If the caps have been lost, have new ones put on as soon as possible.

Incorrect tire inflation pressure may waste fuel, reduce the comfort of driving, reduce tire life and make your vehicle less safe to drive.

If a tire frequently needs refilling, have it checked by your Lexus dealer.

642

Page 62

CAUTION

Keep your tires properly inflated. Otherwise, the following conditions may occur and cause an accident resulting in death or serious injuries.

Low tire pressure (underinflation) —

 Excessive wear  Uneven wear  Poor handling  Possibility of blowouts from an overheated

tire

 Poor sealing of the tire bead  Wheel deformation and/or tire separation  A greater possibility of tire damage from road

hazards

High tire pressure (overinflation) —

 Poor handling  Excessive wear  Uneven wear  A greater possibility of tire damage from road

hazards

CHASSIS

643

Page 63

CHASSIS

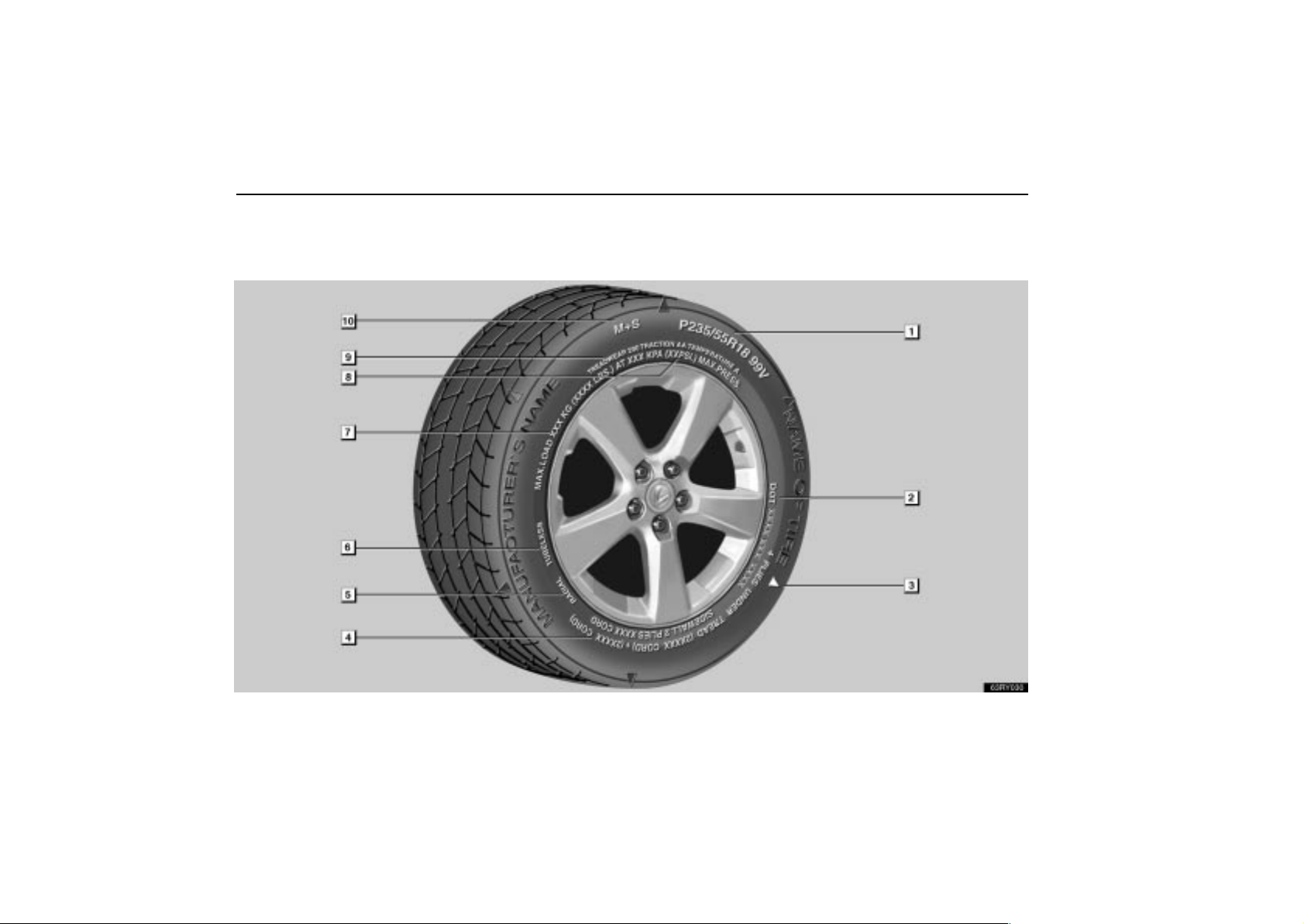

Tire symbols

TIRE INFORMATION

ill-full

644



The illustration indicates typical tire symbols.

Page 64

CHASSIS

Tire size: For details, see “Tire size” on page

646.

DOT and Tire Identification Number (TIN): For

details, see “DOT and Tire Identification Number (TIN)” on page 646.

Location of the tread wear indicators: For

details, see “Checking and replacing tires” on page 656.

Tire ply composition and materials: Plies mean

a layer of rubber-coated parallel cords. Cords mean the strands forming the plies in the tire.

Radial tires or bias-ply tires — A radial tire has

“RADIAL” on the sidewall. A tire not marked with “RADIAL” is a bias-ply tire.

“TUBELESS” or “TUBE TYPE”: A tubeless tire

does not have a tube inside the tire and air is directly filled in the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure: For details, see “Checking and

replacing tires” on page 656.

Maximum cold tire inflation pressure: This

means the pressure to which a tire may be inflated. For details about recommended cold tire inflation pressure, see “Specifications” on page

632.

Uniform tire quality grading — For details, see

“Uniform tire quality grading” that follows.

Summer tire or all season tire: An all season

tire has “M+S” on the sidewall. The tire not marked with “M+S” is a summer tire. For details, see “Types of tires” on page 654.

645

Page 65

CHASSIS

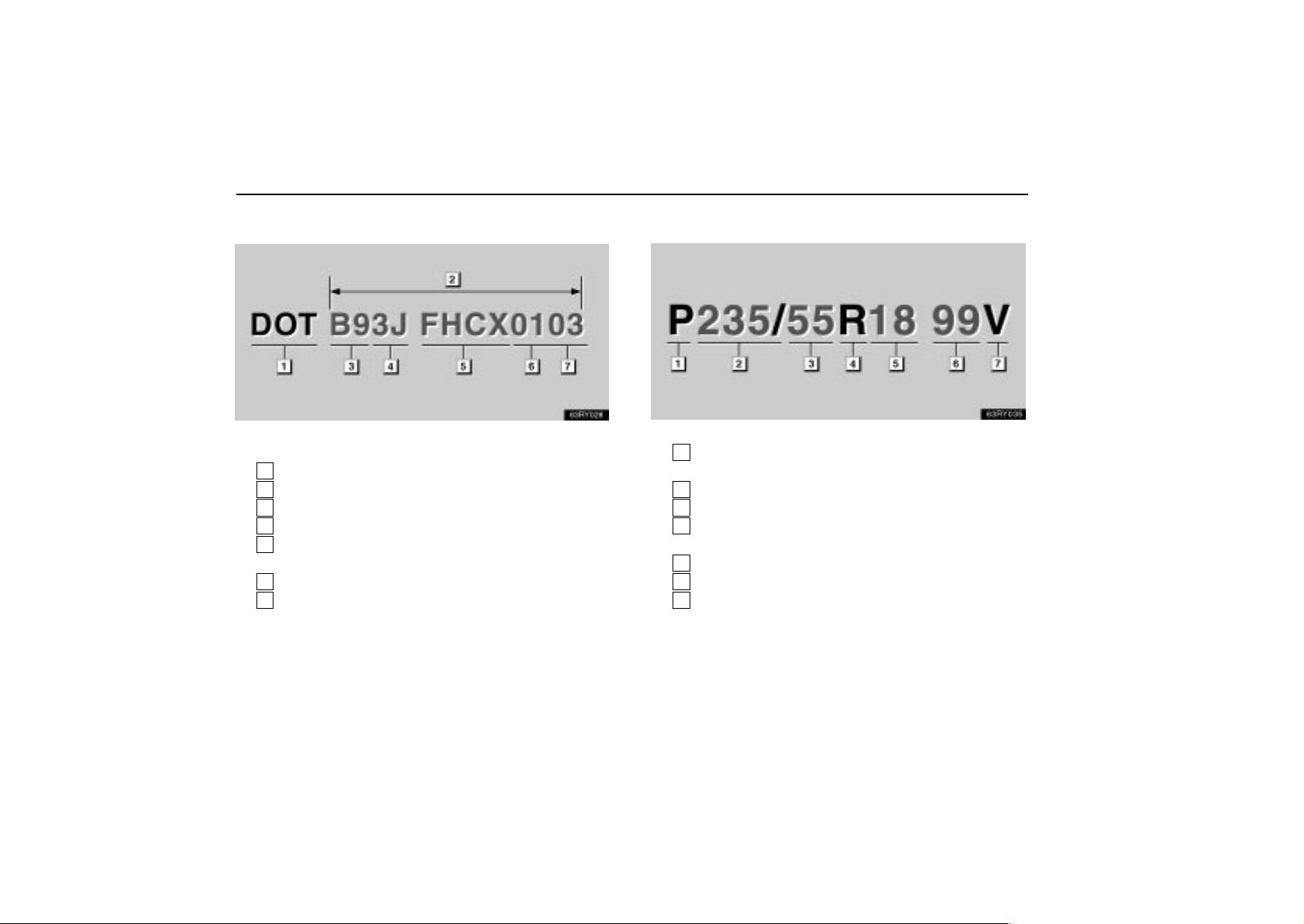

DOT and Tire Identification Number (TIN)



The illustration indicates typical DOT and Tire Identification Number (TIN).

“DOT” symbol

Tire Identification Number (TIN)

Tire manufacturer’s identification mark

Tire size code

Manufacturer’s optional tire type code (3 or 4 letters)

Manufacturing week

Manufacturing year

The “DOT” symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.

Tire size



The illustration indicates typical tire size.

Tire use (P=Passenger car, T=Temporary use)

Section width (in millimeters)

Aspect ratio (tire height to section width)

Tire construction code (R=Radial, D=Diagonal)

Wheel diameter (in inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one letter)

646

Page 66



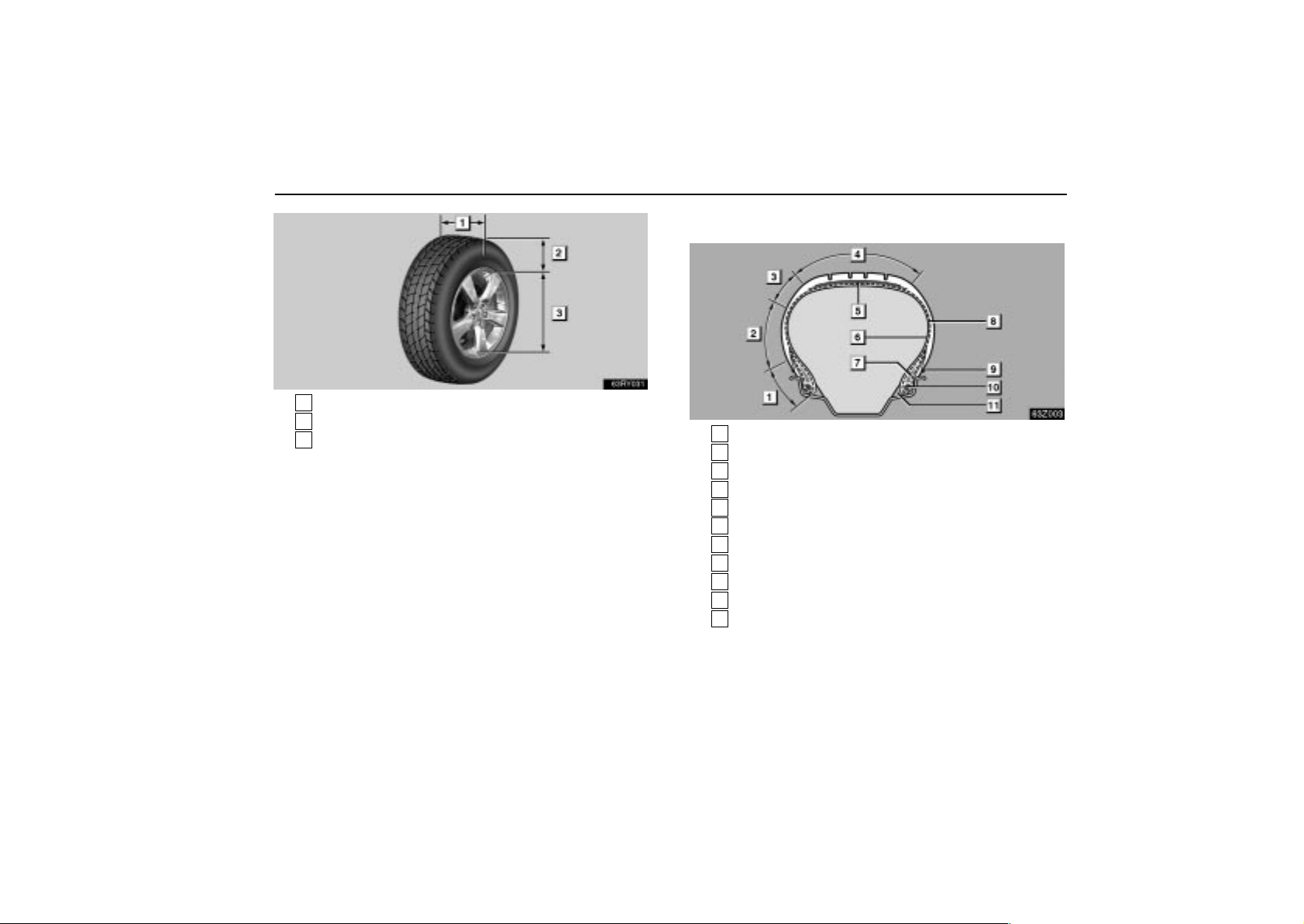

Section width

Tire height

Wheel diameter

Name of each section of tire



Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

CHASSIS

647

Page 67

CHASSIS

Uniform tire quality grading

This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehicles with information on uniform tire quality grading.

Your Lexus dealer will help answer any questions you may have as you read this information.

DOT quality grades — All passenger vehicle tires must conform to Federal Safety Requirements in addition to these grades. Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A

Treadwear — The treadwear grade is a comparative

rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 — 1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

Traction AA, A, B, C — The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking (straight ahead) traction tests and does not include cornering (turning) traction.

648

Page 68

Temperature A, B, C — The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

CHASSIS

649

Page 69

CHASSIS

Glossary of tire terminology

Tire related term Meaning

Accessory weight the combined weight (in excess of those standard items which may be replaced)

of automatic transmission, power steering, power brakes, power windows, power seats, radio, and heater, to the extent that these items are available as factory-installed equipment (whether installed or not)

Cold tire inflation pressure

Curb weight the weight of a motor vehicle with standard equipment including the maximum

Intended outboard sidewall

Maximum inflation pressure

tire inflation pressure when the vehicle has been parked for at least 3 hours or more, or it has not been driven more than 1.5 km or 1 mile under that condition

capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and additional weight optional engine

(a) the sidewall that contains a whitewall, bears white lettering or bears

manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on the other sidewall of the tire, or

(b) the outward facing sidewall of an asymmetrical tire that has a particular side

that must always face outward when mounted on a vehicle

the maximum cold inflation pressure to which a tire may be inflated and it is shown on the sidewall of the tire

650

Maximum loaded vehicle weight

the sum of — (a) curb weight; (b) accessory weight; (c) vehicle capacity weight; and (d) production options weight

Page 70

CHASSIS

Tire related term Meaning

Normal occupant weight

68 kg (150 lb.) times the number of occupants specified in the second column of Table 1 that follows

Occupant distribution distribution of occupants in a vehicle as specified in the third column of Table 1

that follows

Production options weight

the combined weight of those installed regular production options weighing over

2.3 kg (5 lb.) in excess of those standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim

Recommended

cold tire inflation pressure recommended by a manufacturer

inflation pressure Rim a metal support for a tire or a tire and tube assembly upon which the tire beads

are seated

Rim diameter (Wheel

nominal diameter of the bead seat

diameter) Rim size designation rim diameter and width Rim type designation the industry of manufacturer’s designation for a rim by style or code Rim width nominal distance between rim flanges

651

Page 71

CHASSIS

Tire related term Meaning

Vehicle capacity weight

the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s designated seating capacity

(Total load capacity) Vehicle maximum

load on the tire

the load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight and dividing by two

652

Vehicle normal load on the tire

the load on an individual tire that is determined by distributing to each axle its share of the curb weight, accessory weight, and normal occupant weight (distributed in accordance with Table 1 that follows) and dividing by two

Weather side the surface area of the rim not covered by the inflated tire

Page 72

CHASSIS

Table 1 — Occupant loading and distribution for vehicle normal load for various designated seating capacities

Designated seating capacity,

number of occupants

2 through 4 2 2 in front

5 through 10 3 2 in front, 1 in second seat

Vehicle normal load, number of

occupants

Occupant distribution in a

normally loaded vehicle

653

Page 73

CHASSIS

TYPES OF TIRES

Determine what kind of tires your vehicle is originally equipped with.

1. Summer tires

Summer tires are high-speed capability tires best suited to highway driving under dry conditions.

Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads. For driving on snow-covered or icy roads, we recommend using snow tires. If installing snow tires, be sure to replace all four tires.

2. All season tires

All season tires are designed to provide better traction in snow and to be adequate for driving in most winter conditions, as well as for use all year round.

All season tires, however, do not have adequate traction performance compared with snow tires in heavy or loose snow. Also, all season tires fall short in acceleration and handling performance compared with summer tires in highway driving.

The details about how to distinguish summer tires from all season tires are described on page 644.

CAUTION

 Do not mix summer and all season tires on

your vehicle as this can cause dangerous handling characteristics, resulting in loss of control.

 Do not use tires other than the manufacturer’s

designated tires, and never mix tires or wheels of the sizes different from the originals.

654

Page 74

CHASSIS

ROTATING TIRES

To equalize the wear and help extend tire life, Lexus recommends that you rotate your tires according to the maintenance schedule. (For scheduled maintenance information, please refer to the “Owner’s Manual Supplement / Scheduled Maintenance”.) However, the most appropriate timing for tire rotation may vary according to your driving habits and road surface conditions.

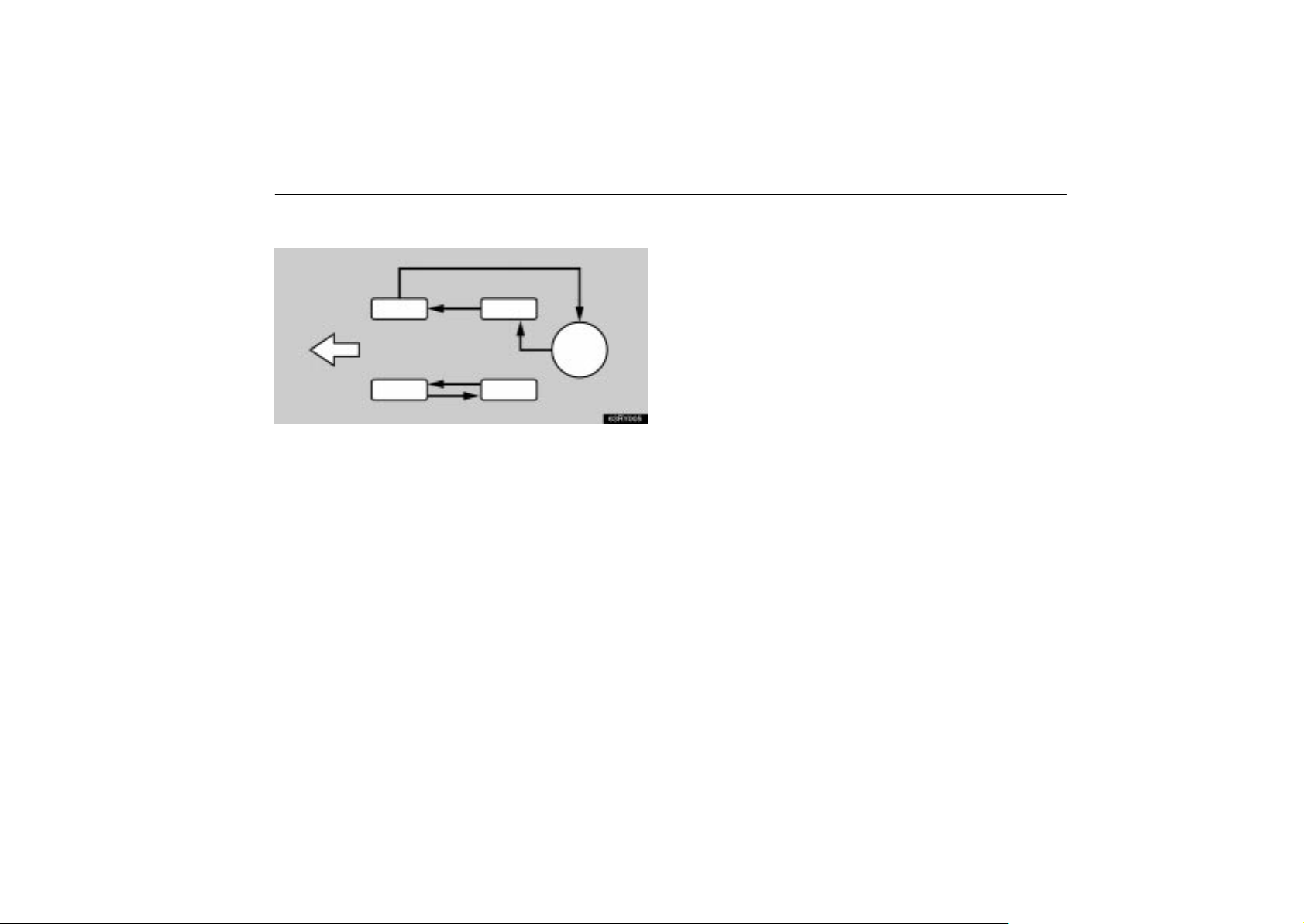

The wheel assemblies must be rotated as illustrated above.

When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, out-of balance wheels, or severe braking.

Before storing radial, snow or studded tires, mark the direction of rotation and be sure to install them in the same direction when using them again. Tires should be stored in a cool dry place.

Initial adjustment of the tire pressure warning system is necessary after you have rotated your tires. See “Tire pressure warning system” on page

513.

655

Page 75

CHASSIS

CHECKING AND REPLACING TIRES

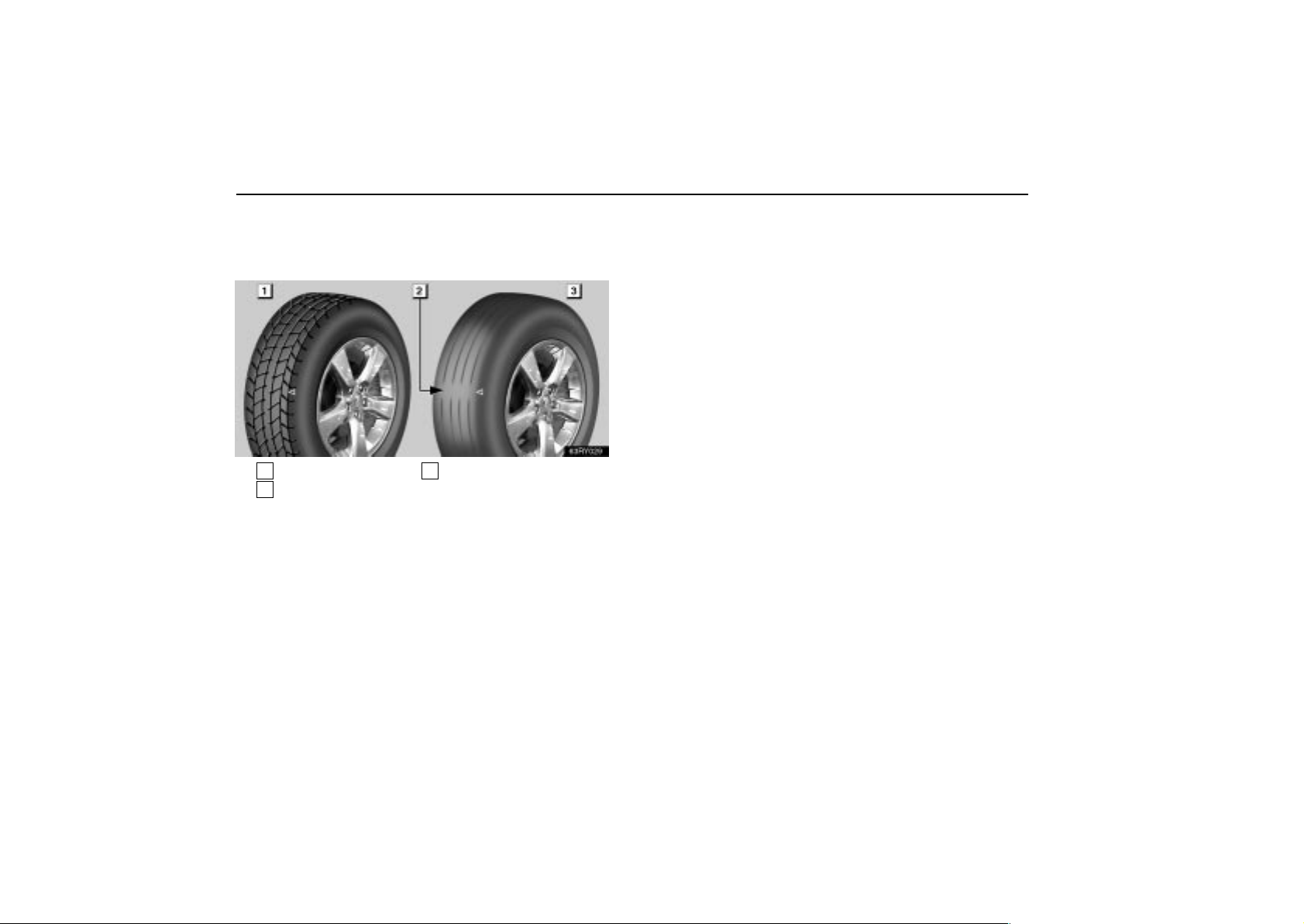

When to replace your tires



New tread

Worn tread

Replace the tires when the tread wear indicators show. The location of tread wear indicators is shown by the marks such as “TWI” or “ etc., molded on the sidewall of each tire.

Tread wear indicator

∆” marks,

The tires on your Lexus have built-in tread wear indicators to help you know when the tires need replacement. When the tread depth wears to 1.6 mm (0.06 in.) or less, the indicators will appear. If you can see the indicators in two or more adjacent grooves, the tire should be replaced.

The effectiveness of snow tires is lost if the tread wears down below 4 mm (0.16 in.).

If you have tire damage such as cuts, splits, cracks deep enough to expose the fabric, or bulges indicating internal damage, the tire should be replaced.

If a tire often goes flat or cannot be properly repaired due to the size or location of a cut or other damage, it should be replaced. If you are not sure, consult with your Lexus dealer.

If air loss occurs while driving, do not continue driving. Driving even a short distance can damage a tire beyond repair.

Any tires which are over 6 years old must be checked by a qualified technician even if damage is not obvious.

Tires deteriorate with age even if they have never or seldom been used.

656

Page 76

CHASSIS

This applies also to the spare tire and tires stored for future use.

Tire selection

When replacing a tire, use a tire of the same size and construction, and the same or greater maximum load as the originally installed tires. Also, on four-wheel drive models, all the tires must be the same brand and have the same tread patterns.

Using any other size or type of tire may seriously affect handling, ride, speedometer/odometer calibration, ground clearance, and clearance between the body and tires or snow chains.

Check that the maximum load of the replaced tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater. As for the maximum load of the tire, see the load limit at maximum cold tire inflation pressure mentioned on the sidewall of the tire, and as for the Gross Axle Weight Ratings (GAWR), see the Certification Label. For details about Certification Label and sidewall of the tire, see pages 598 and 644.

CAUTION

Observe the following instructions. Otherwise, an accident may occur resulting in death or serious injuries.

 Do not mix radial, bias belted, or bias-ply tires

on your vehicle, as this may cause dangerous handling characteristics resulting in loss of control.

 Do not use tires other than the manufacturer’s

recommended size, as this may cause dangerous handling characteristics resulting in loss of control.

 Four-wheel drive models:

Do not use tires of different brands, sizes, construction or tread patterns, as this may cause dangerous handling characteristics resulting in loss of control.

657

Page 77

CHASSIS

INSTALLING SNOW TIRES AND

CHAINS

When to use snow tires or chains

Snow tires or chains are recommended when driving on snow or ice.

On wet or dry roads, conventional or radial tires provide better traction than snow or studded tires.

Snow tire selection

If you need snow tires, select tires of the same size, construction and load capacity as the originally installed tires. Also, on four-wheel drive models, all the tires must be the same brand and have the same tread patterns.

Do not use tires other than stated above. Since your vehicle has radial tires as original equipment, make sure your snow tires also have radial construction. Do not install studded tires without first checking local regulations for possible restrictions.

CAUTION

Observe the following instructions. Otherwise, an accident may occur resulting in death or serious injuries.

 Do not use snow tires other than the manufacturer’s

recommended size, as this may cause dangerous handling characteristics resulting in loss of control.

 Four-wheel drive models:

Do not use snow tires of different brands, sizes, construction or tread patterns, as this may cause dangerous handling characteristics resulting in loss of control.

658

Page 78

CHASSIS

Snow tire installation

Snow tires should be installed on all wheels.

Installing snow tires on the front wheels only can lead to an excessive difference in road grip capability between the front and rear tires which could cause loss of vehicle control.

CAUTION

 Snow tires should be inflated to the same pressure as

the original tires.

 Never drive over 120 km/h (75 mph) with any type of

snow tires.

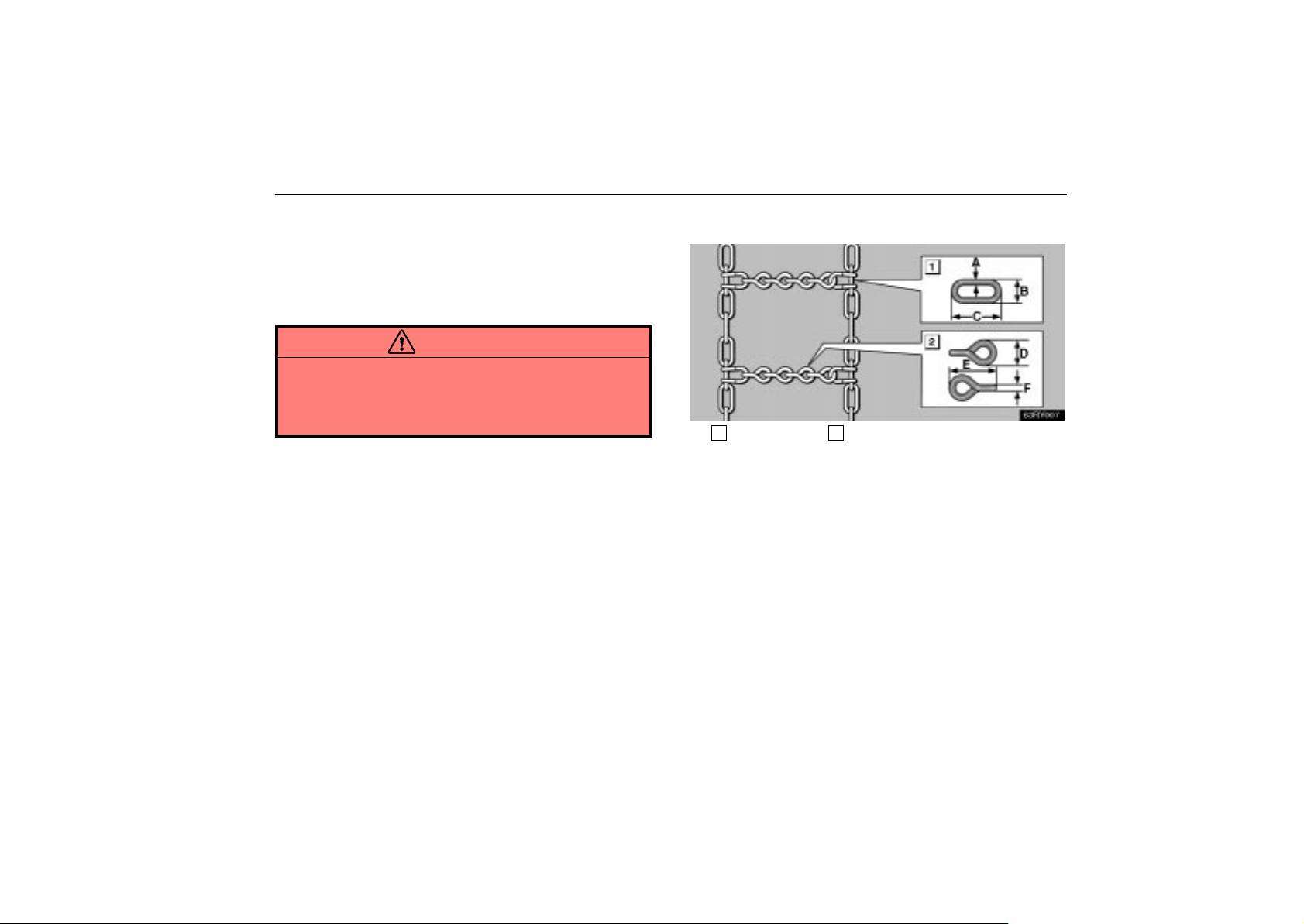

Tire chain selection



Side chain

Use the tire chains of correct size.

For 225/65R17 101S or P235/55R18 99V tires, use the following type chains.

A: Diameter of side chain 3.0 (0.12) B: Width of side chain 10.0 (0.39) C: Length of side chain 30.0 (1.18) D: Width of cross chain 14.0 (0.55) E: Length of cross chain 25.0 (0.98) F: Diameter of cross chain 4.0 (0.16)

Cross chain

mm (in.)

659

Page 79

CHASSIS

Regulations regarding the use of tire chains vary according to location or type of road. Always check local regulations before installing chains.

NOTICE

If the wrong combination of tire and chain is used, the chains could damage the vehicle body.

Chain installation

Install the chains on the front tires as tightly as possible. Do not use tire chains on the rear tires. Retighten chains after driving 0.5 — 1.0 km (1/4 — 1/2 mile).

When installing chains on your tires, carefully follow the instructions of the chain manufacturer.

CAUTION

 Do not exceed 50 km/h (30 mph) or the chain

manufacturer’s recommended speed limit, whichever is lower.

 Drive carefully avoiding bumps, holes, and sharp

turns, which may cause the vehicle to bounce.

 Avoid sharp turns or locked-wheel braking, as use of

chains may adversely affect vehicle handling.

660

 When driving with chains installed, be sure to drive

carefully . Slow down before entering curves to avoid losing control of the vehicle. Otherwise an accident may occur.

 Vehicles with electronically modulated air

suspension: When installing the tire chains, be sure to turn off the height control and stop the engine. Otherwise, the vehicle height may change in the automatic leveling function, resulting in an unexpected accident. For details, see page 497.

If the chains are installed, the tire pressure warning system may not operate properly. See “Tire pressure warning system” on page 513.

Page 80

CHASSIS

REPLACING WHEELS

When to replace your wheels

If you have wheel damage such as bending, cracks or heavy corrosion, the wheel should be replaced.

If you fail to replace a damaged wheel, the tire may slip off the wheel or cause loss of handling control.

Replacement with used wheels is not recommended as they may have been subjected to rough treatment or high mileage and could fail without warning. Also, bent wheels which have been straightened may have hidden structural damage and therefore should not be used. Never use an inner tube in a leaking wheel which is designed for a tubeless tire.

Wheel selection

When replacing wheels, care should be taken to ensure that they are equivalent to those removed in load capacity, diameter, rim width, and offset.

Correct replacement wheels are available at your Lexus dealer.

A wheel of a different size or type may adversely affect handling, wheel and bearing life, brake cooling, speedometer/odometer calibration, stopping ability, headlight aim, bumper height, vehicle ground clearance, and tire or snow chain clearance to the body and chassis.

CAUTION

Observe the following instructions. Otherwise, an accident may occur resulting in death or serious injuries.

 Do not use wheels other than the manufacturer’s

recommended size, as this may cause dangerous handling characteristics resulting in loss of control.

 Four-wheel drive models:

Do not use wheels of different brands, sizes and types, as this may cause dangerous handling characteristics resulting in loss of control.

Initial adjustment of the tire pressure warning system is necessary after you have replaced your wheels. See “T ire pressure warning system” on page 513.

661

Page 81

CHASSIS

ALUMINUM WHEEL PRECAUTIONS

 When installing aluminum wheels, check that the wheel nuts

are tight after driving your vehicle the first 1600 km (1000 miles).

 If you have rotated, repaired, or changed your tires, check

that the wheel nuts are still tight after driving 1600 km (1000 miles).

 When using tire chains, be careful not to damage the

aluminum wheels.

 Use only Lexus wheel nuts and wrench designed for your

aluminum wheels.

 When balancing your wheels, use only Lexus balance

weights or equivalent and a plastic or rubber hammer.

 As with any wheel, periodically check your aluminum

wheels for damage. If damaged, replace immediately.

SUSPENSION AND CHASSIS

CAUTION

Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous handling characteristics, resulting in loss of control.

662

Page 82

CHASSIS

663

Page 83

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Engine

Specifications 613. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 616. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel pump shut off system 619. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Facts about engine oil consumption 619. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Used engine oil 620. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine oil level 621. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine coolant level 626. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the radiator and condenser 629. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Spark plugs 630. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

612

Page 84

SPECIFICATIONS

— GENERAL

Model Type 6 cylinder V type, 4 cycle, gasoline Bore and stroke 92  83 mm (3.62  3.27 in.) Displacement 3311 cm3 (202.1 cu. in.) V alve clearance (engine cold)

Intake Exhaust

Drive belt tension (with Borroughs drive belt tension gauge No. BT-33-73F)

— FUEL

Fuel type Octane Rating 91 (Research Octane Number 96) or higher

3.3 L V6 (3MZ-FE)

0.15 — 0.25 mm (0.006 — 0.010 in.)

0.25 — 0.35 mm (0.010 — 0.014 in.) 125  10 lb.

Unleaded gasoline only

ENGINE

613

Page 85

ENGINE

— LUBRICATION SYSTEM

Oil capacity

Drain and refill

With filter Without filter

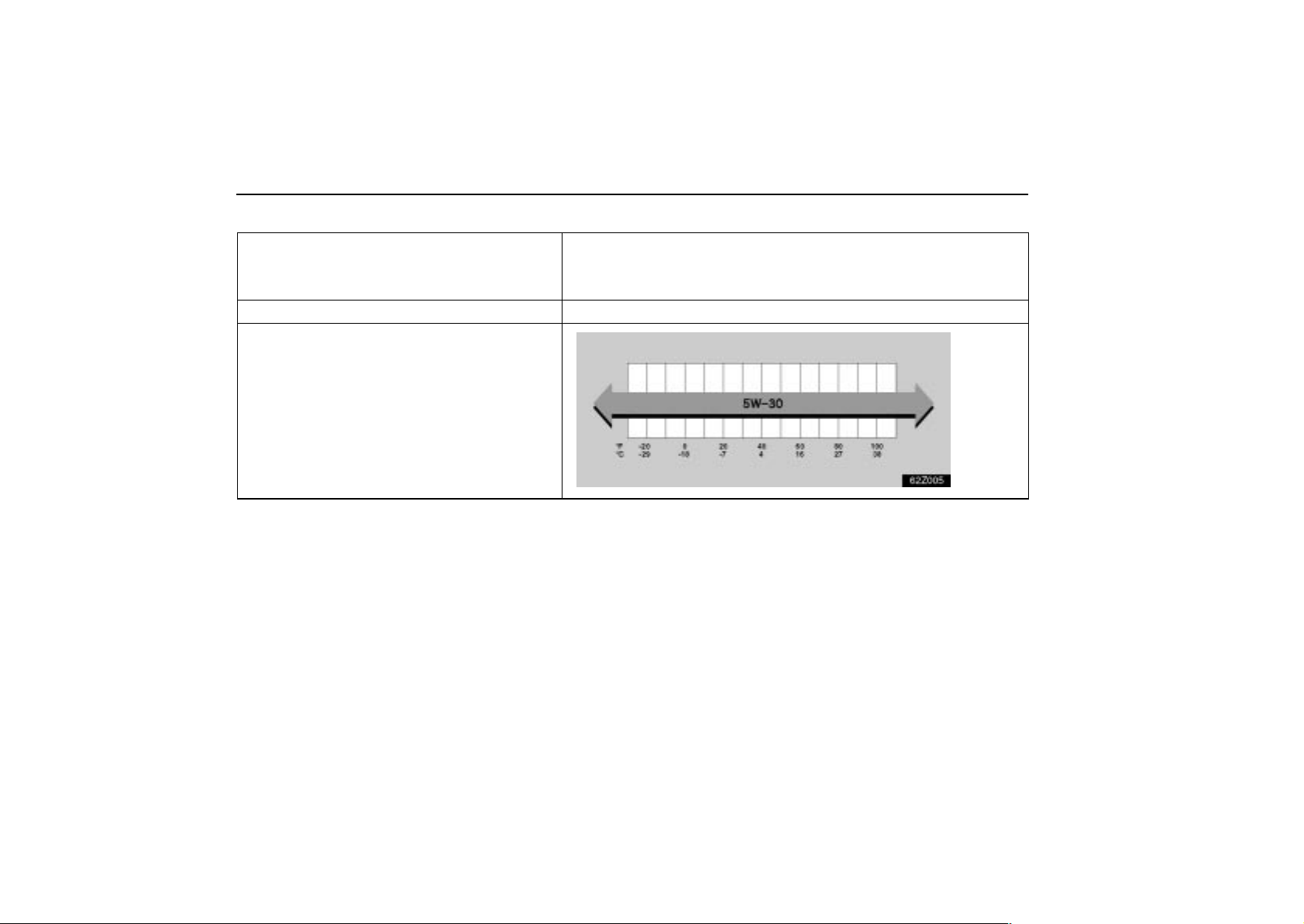

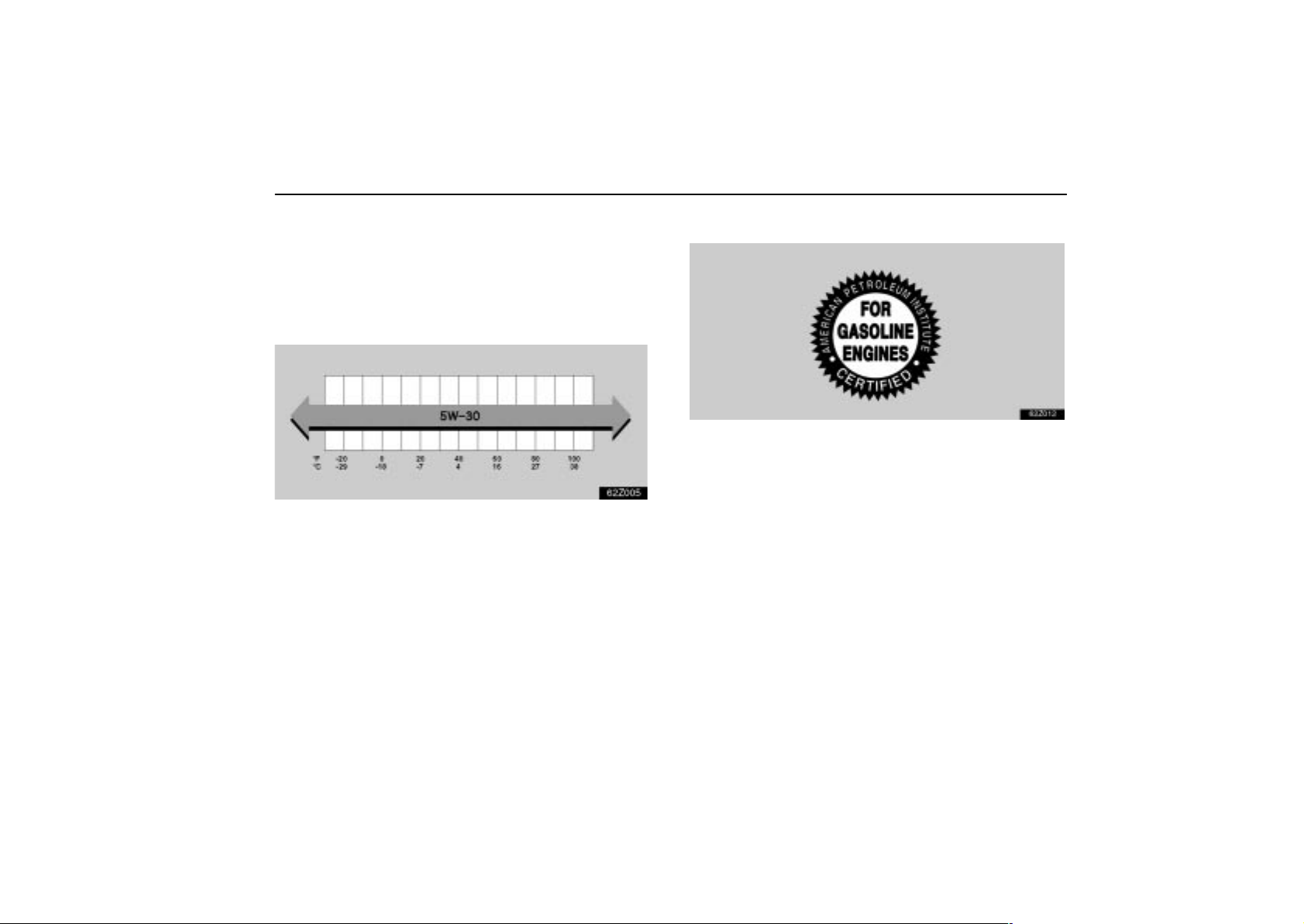

Oil grade ILSAC multigrade engine oil Recommended oil viscosity (SAE):

4.7 L (5.0 qt., 4.1 Imp. qt.)

4.5 L (4.8 qt., 4.0 Imp. qt.)

62Z005

Outside temperature

NOTE: “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the above grade and viscosity. Please contact your Lexus dealer for further details.

614

Page 86

ENGINE

— COOLING SYSTEM

Capacity Coolant type “Toyota Super Long Life Coolant” or similar high quality ethylene glycol

NOTE: “Toyota Super Long Life Coolant” is used in your Lexus vehicle at factory fill. In order to avoid technical problems, only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology. (Coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids.) Please contact your Lexus dealer for further details.

— IGNITION SYSTEM

Spark plug — Make DENSO

NGK

— Gap

— ELECTRICAL SYSTEM

Battery Open voltage at 20C (68F):

Charging rates

9.5 L (10.0 qt., 8.4 Imp. qt.)

based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology (Coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids.)

Do not use plain water alone.

SK20R11 IFR6A11

1.1 mm (0.043 in.)

12.6 — 12.8 V Fully charged

12.2 — 12.4 V Half charged

11.8 — 12.0 V Discharged [Voltage that is checked 20 minutes after the key is removed with all the lights turned off]

5 A max.

615

Page 87

ENGINE

FUEL

Fuel type

Y our vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Lexus has a smaller fuel tank opening. The special nozzle on pumps with unleaded fuel will fit it, but the larger standard nozzle on pumps with leaded gas will not.

NOTICE

Do not use leaded gasoline. Use of leaded gasoline will cause the three-way catalytic converter to lose its effectiveness and the emission control system to function improperly. Also, this can increase maintenance costs.

At a minimum, the gasoline you use should meet the specifications of ASTM D4814 in the U.S.A. and CGSB

3.5-M93 in Canada.

616

Page 88

ENGINE

Octane rating

Premium unleaded gasoline with an Octane Rating of 91 (Research Octane Number 96) or higher required for optimum engine performance. However, i f such premium type cannot be obtained, you may use unleaded gasoline with an Octane Rating as low as 87 (Research Octane Number 91).

Use of unleaded fuel with an Octane Rating or Research Octane Number lower than stated above will cause persistent heavy knocking. If it is severe, this will lead to engine damage.

If your engine knocks...

If you detect heavy knocking even when using the recommended fuel, or if you hear steady knocking while holding a steady speed on level roads, consult your Lexus dealer.

However, occasionally, you may notice light knocking for a short time while accelerating or driving up hills. This is normal and there is no need for concern.

Gasoline containing detergent additives

Lexus recommends the use of gasoline that contains detergent additives to avoid build-up of engine deposits.

However, all gasoline sold in the U.S. contains detergent additives to keep clean and/or clean intake systems.

Quality gasoline

Automotive manufacturers in the U.S., Europe and Japan have developed a specification for quality fuel named World-W ide Fuel Charter (WWFC) that is expected to be applied world wide. The WWFC consists of four categories that depend on required emission levels. In the U.S., category 4 has been adopted. The WWFC improves air quality by providing for better emissions in vehicle fleets, and customer satisfaction through better vehicle performance.

Cleaner burning gasoline

Cleaner burning gasoline, including reformulated gasoline that contains oxygenates such as ethanol or MTBE is available in many areas.

Lexus recommends the use of cleaner burning gasoline and appropriately blended reformulated gasoline. These types of gasoline provide excellent vehicle performance, reduce vehicle emissions, and improve air quality.

617

Page 89

ENGINE

Oxygenates in gasoline

Lexus allows the use of oxygenate blended gasoline where the oxygenate content is up to 10% ethanol or 15% MTBE. If y o u use gasohol in your Lexus, be sure that it has an octane rating no lower than 91.

Lexus does not recommend the use of gasoline containing methanol.

Gasoline containing MMT

Some gasoline contain an octane enhancing additive called MMT (Methylcyclopentadienyl Manganese Tricarbonyl).

Lexus does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected. The Malfunction Indicator Lamp on the instrument cluster may come on. If this happens, contact your Lexus dealer for service.

NOTICE



Do not use gasohol other than stated above. It will cause fuel system damage or vehicle performance problems.



If drivability problems are encountered (poor hot starting, vaporizing, engine knock, etc.), discontinue its use.



Take care not to spill gasohol during refueling. Gasohol may cause paint damage.

Gasoline quality

In a very few cases, you may experience driveability problems caused by the particular gasoline that you are using. If you continue to have unacceptable driveability, try changing gasoline brands. If this does not rectify your problem, then consult your Lexus dealer.

Fuel tank capacity

618

72.5 L (19.2 gal., 15.9 Imp. gal.)

Page 90

ENGINE

FUEL PUMP SHUT OFF SYSTEM

The fuel pump shut off system stops supplying fuel to the engine to minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision. To restart the engine after the fuel pump shut off system activates, turn the ignition switch to “ACC” or “LOCK” once and start it.

CAUTION

Inspect the ground under the vehicle before restarting the engine. If you find that liquid has leaked onto the ground, it is the fuel system has been damaged and it is in need of repair. I n this case, do not restart the engine.

FACTS ABOUT ENGINE OIL

CONSUMPTION

Functions of engine oil

Engine oil has the primary function of lubricating and cooling the inside of the engine, and plays a major role in maintaining the engine in proper working order.

Engine oil consumption

It is normal that an engine should consume some engine oil during normal engine operation. The causes of oil consumption in a normal engine are as follows.

 Oil is used to lubricate pistons, piston rings and cylinders.

A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated when the vehicle is decelerating sucks some of this oil into the combustion chamber. This oil as well as some part of the oil film left on the cylinder wall is burned by the high temperature combustion gases during the combustion process.

 Oil is also used to lubricate the stems of the intake valves.

Some of this oil is sucked into the combustion chamber together with the intake air and is burned along with the fuel. High temperature exhaust gases also burn the oil used to lubricate the exhaust valve stems.

619

Page 91

ENGINE

The amount of engine oil consumed depends on the viscosity of the oil, the quality of the oil and the way the vehicle is driven.

More oil is consumed under driving conditions such as high speeds and frequent acceleration and deceleration.

A new engine consumes more oil, since its pistons, piston rings and cylinder walls have not become conditioned.

Oil consumption: Max. 1.0 L per 1000 km (1.1 qt./600 miles,

0.9 Imp. qt./600 miles)

When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.

For example, if a vehicle is used for repeated short trips and consumes a normal amount of oil, the dipstick may not show any drop in the oil level at all, even after 1000 km (600 miles) or more. This is because the oil is gradually becoming diluted with fuel or moisture, making it appear that the oil level has not changed.

The diluting ingredients evaporate out when the vehicle is then driven at high speeds, as on an expressway , making it appear that oil is excessively consumed after driving at high speeds.

NOTICE

Failure to check the oil level regularly could lead to serious engine trouble due to insufficient oil.

Importance of engine oil level check

One of the most important points in proper vehicle maintenance is to keep the engine oil at the optimum level so that oil function will not be impaired. Therefore, it is essential that the oil level be checked regularly. Lexus recommends that the oil level be checked every time you refuel the vehicle.

For detailed information on oil level check, see “Checking the engine oil level” on page 621.

620

USED ENGINE OIL

Page 92

ENGINE

CAUTION

 Used engine oil contains potentially harmful

contaminants which may cause skin disorders such as inflammation or skin cancer, so care should be taken to avoid prolonged and repeated contact with it. To remove used engine oil from your skin, wash thoroughly with soap and water.

 Do not leave used oil within the reach of children.  Dispose of used oil and used oil filters only in a safe

and acceptable manner. Do not dispose of used oil and used oil filters in household trash, in sewers or onto the ground. Call your Lexus dealer or a service station for information concerning recycling or disposal.

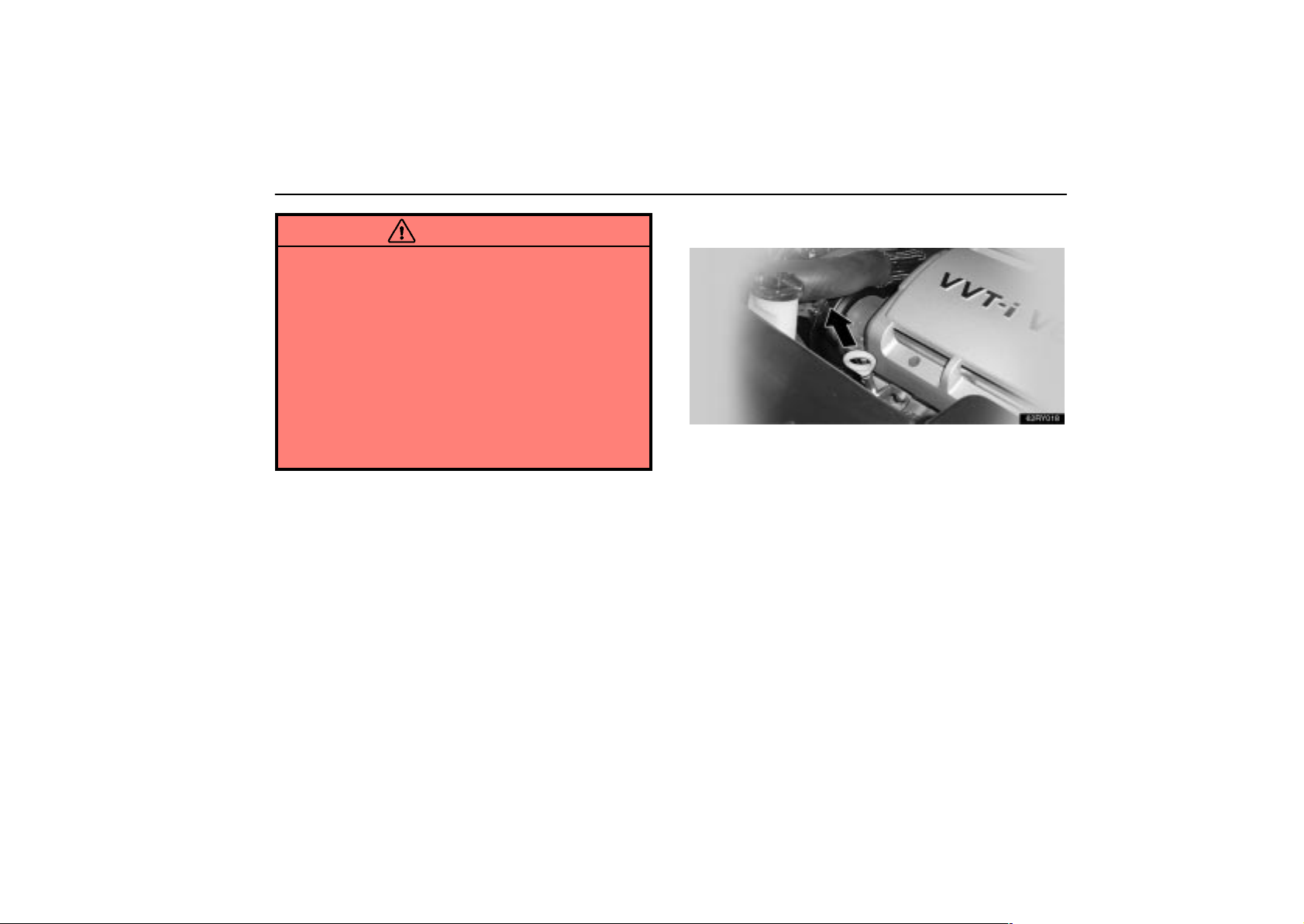

CHECKING THE ENGINE OIL LEVEL

With the engine at operating temperature and turned off, check the oil level on the dipstick.

1. To get a correct reading, the vehicle should be on level ground. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine.

2. Pull the dipstick out, hold a rag under the end and wipe it clean.

3. Reinsert the dipstick and push it in as far as it will go, or the reading will not be correct.

621

Page 93

ENGINE



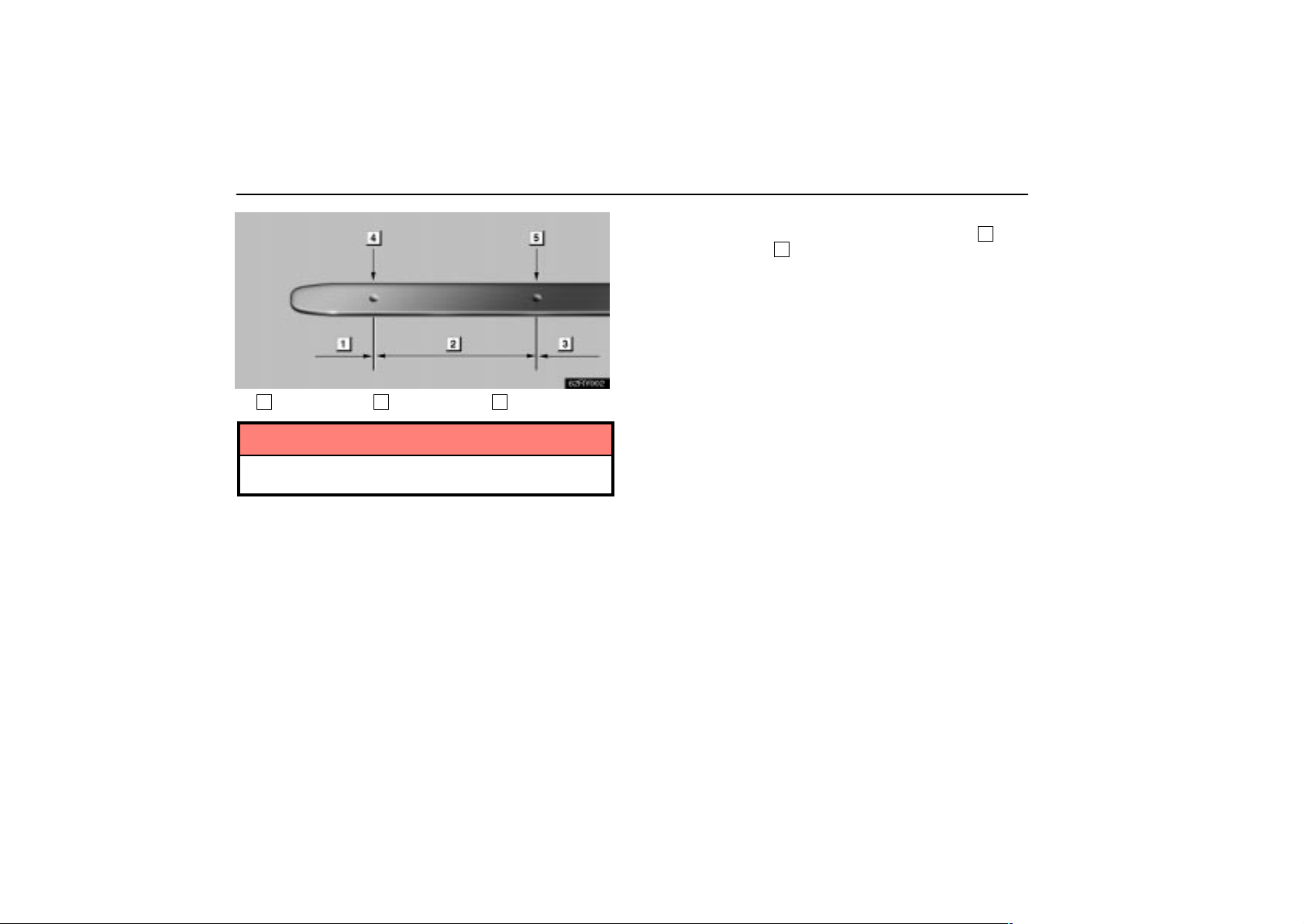

Add oil

O.K.

Too full

NOTICE

Be careful not to drop engine oil on the vehicle components.

4. Pull the dipstick out and look at the oil level while holding a

rag under the end. If it is between the low level mark (

the full level mark (

), it is O.K.

) and

622

Page 94

If the oil level is below or only slightly above the low mark, add engine oil of the same type as already in the engine.

ENGINE

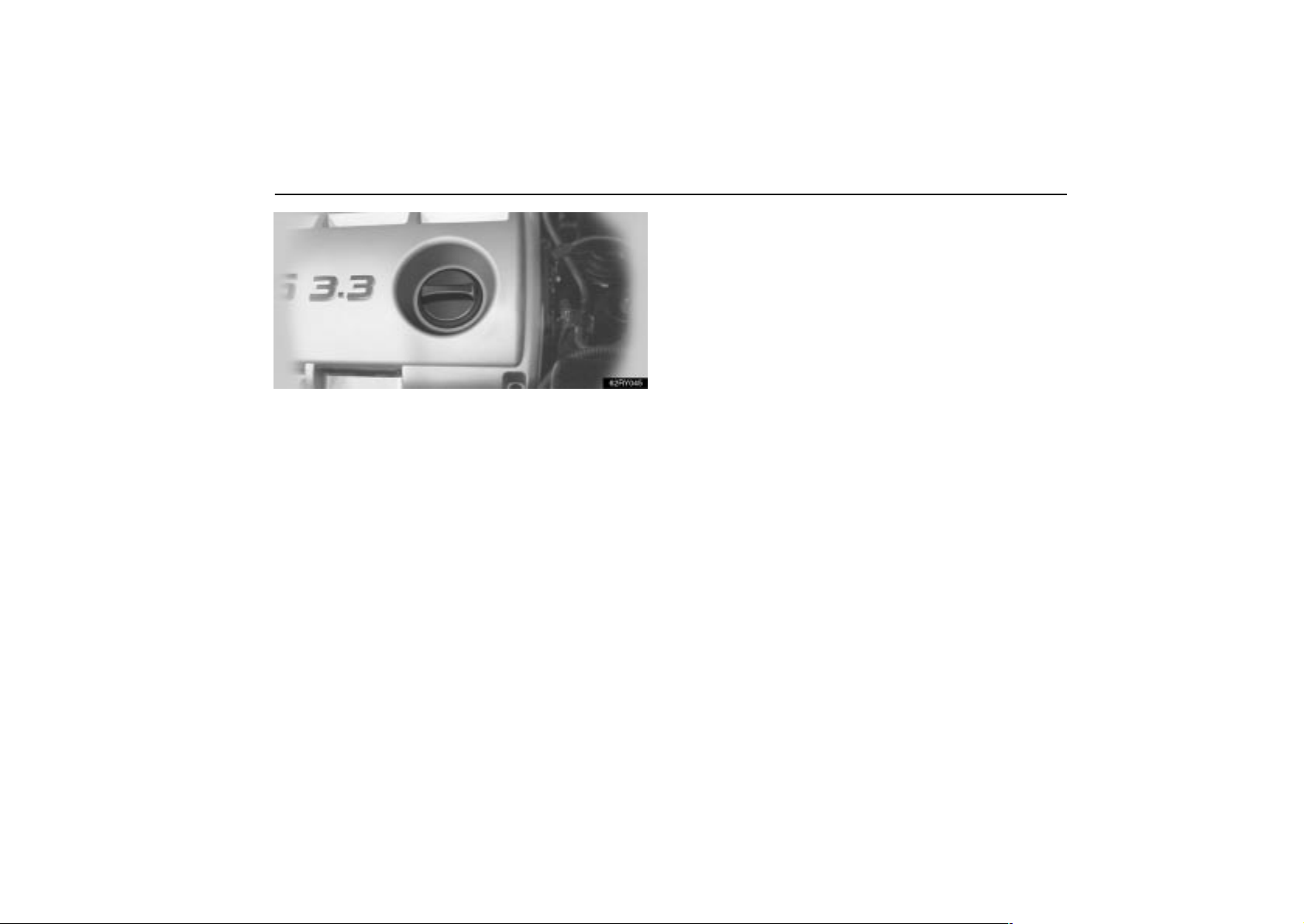

Remove the oil filler cap and add engine oil a little at a time, checking the dipstick. We recommend that you use a funnel when adding oil. The approximate quantity of oil needed to raise the level between low mark and full mark on the dipstick is indicated as follows:

1.5 L (1.6 qt., 1.3 Imp. qt.) For the engine oil capacity , see “Specifications” on page 613. When the level reaches within the correct range, return the filler

cap and turn the cap clockwise until you hear a click.

623

Page 95

ENGINE

NOTICE



Be careful not to spill engine oil on the vehicle components.



Avoid overfilling, or the engine could be damaged. Check the oil level on the dipstick once again after adding the oil.

624

Page 96

ENGINE

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC multigrade engine oil Recommended viscosity: SAE 5W-30

Outside temperature

SAE 5W-30 is the best choice for good fuel economy and good starting in cold weather.

If SAE 5W-30 is not available, SAE 10W-30 may be used. However, it should be replaced with SAE 5W-30 at the next oil change.

Oil identification marks

The ILSAC (International Lubricant Standardization and Approval Committee) Certification Mark is added to some oil containers to help you select the oil you should use.

625

Page 97

ENGINE

To ensure excellent lubrication performance for your engine, “Toyota Genuine Motor Oil” is available, which has been specifically tested and approved for all Lexus engines.

Please contact your Lexus dealer for further details about “Toyota Genuine Motor Oil”.

CHECKING THE ENGINE COOLANT

LEVEL



Reservoir cap

“LOW” (lower) line

Look at the see-through coolant reservoir when the engine is cold. The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir. I f the level is low, add the coolant. (For the coolant type, see “Coolant type selection” described below.)

The coolant level in the reservoir will vary with engine temperature. However, if the level is on or below the “LOW” line, add coolant. Bring the level up to the “FULL” line.

“FULL” (upper) line

626

Page 98

ENGINE

If the coolant level drops within a short time after replenishing, there may be a leak in the system. Visually check the radiator, hoses, engine coolant filler cap, radiator cap and drain cock and water pump.

If you can find no leak, have your Lexus dealer test the radiator cap pressure and check for leaks in the cooling system.

CAUTION

To prevent burning yourself, do not remove the radiator cap when the engine is hot.

Coolant type selection

Use of improper coolants may damage your engine cooling system.

Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non- silicate, non- amine, non- nitrite, and non- borate coolant with long- life hybrid organic acid technology. (Coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids.)

For the U.S.A. — “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. This coolant provides protection down to about -35C (-31F).

627

Page 99

ENGINE

For Canada — “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. This coolant provides protection down to about -42C (-44F).

NOTICE

Do not use plain water alone.

628

Page 100

ENGINE

Lexus recommends “Toyota Super Long Life Coolant”, which has been tested to ensure that it will not cause corrosion nor result in malfunction of your engine coolant system with proper usage. “Toyota Super Long Life Coolant” is formulated with long- life hybrid organic acid technology and has been specifically designed to avoid engine cooling system malfunction on Lexus vehicles.

Please contact your Lexus dealer for further details.

NOTICE

To prevent damage to the radiator and condenser, do not perform the work by yourself.

CHECKING THE RADIATOR AND

CONDENSER

If any of the above parts are extremely dirty or you are not sure of their condition, take your vehicle to a Lexus dealer.

CAUTION

To prevent burning yourself, be careful not to touch the radiator or condenser when the engine is hot.

629
