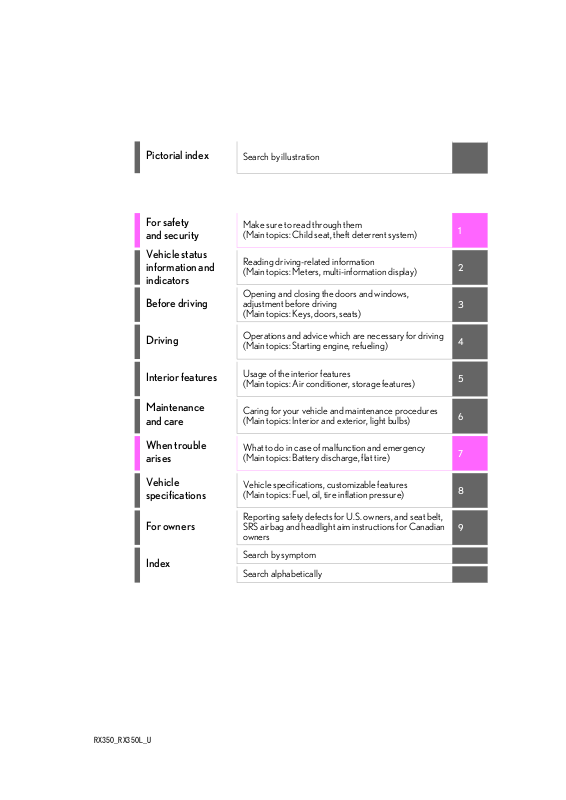

Page 1
Pictorial index
Search by illustration
For safety
and security
Vehicle status
information and
indicators
Before driving
Driving
Interior features
Maintenance
and care
When trouble
arises
Vehicle
specifications
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Reading driving-related information
(Main topics: Meters, multi-information display)
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats)
Operations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Usage of the interior features
(Main topics: Air conditioner, storage features)
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
1
2
3
4
5
6
7
8
RX350_RX350L_U
For owners
Index
Reporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for Canadian
owners
Search by symptom
Search alphabetically
9
Page 2
2
TABLE OF CONTENTS
For your information ......................................6
Reading this manual.................................... 10
How to search .................................................11
Pictorial index .................................................12
1
For safety and security
1-1. For safe use
Before driving....................................24
For safe driving..................................25
Seat belts .............................................26

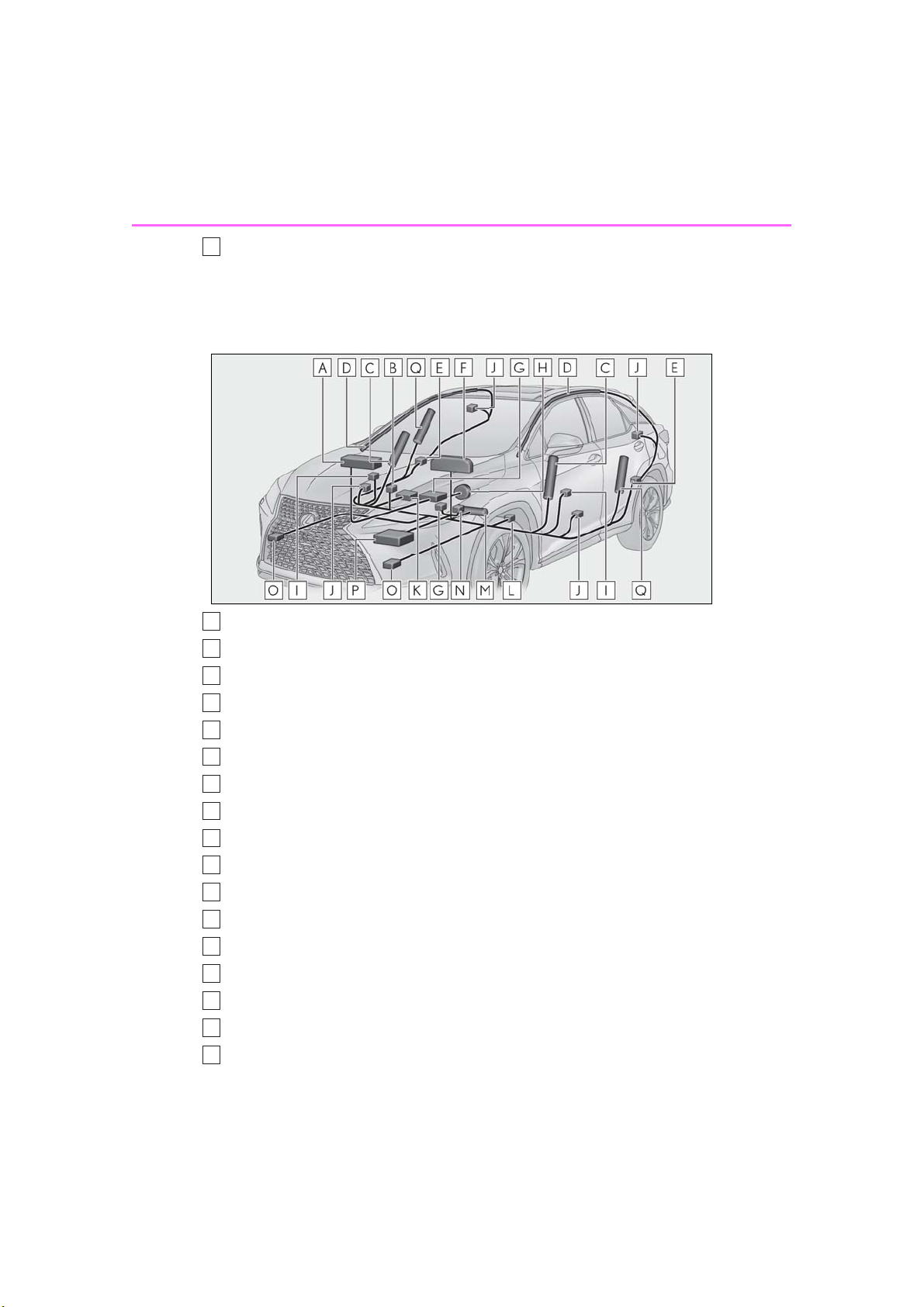

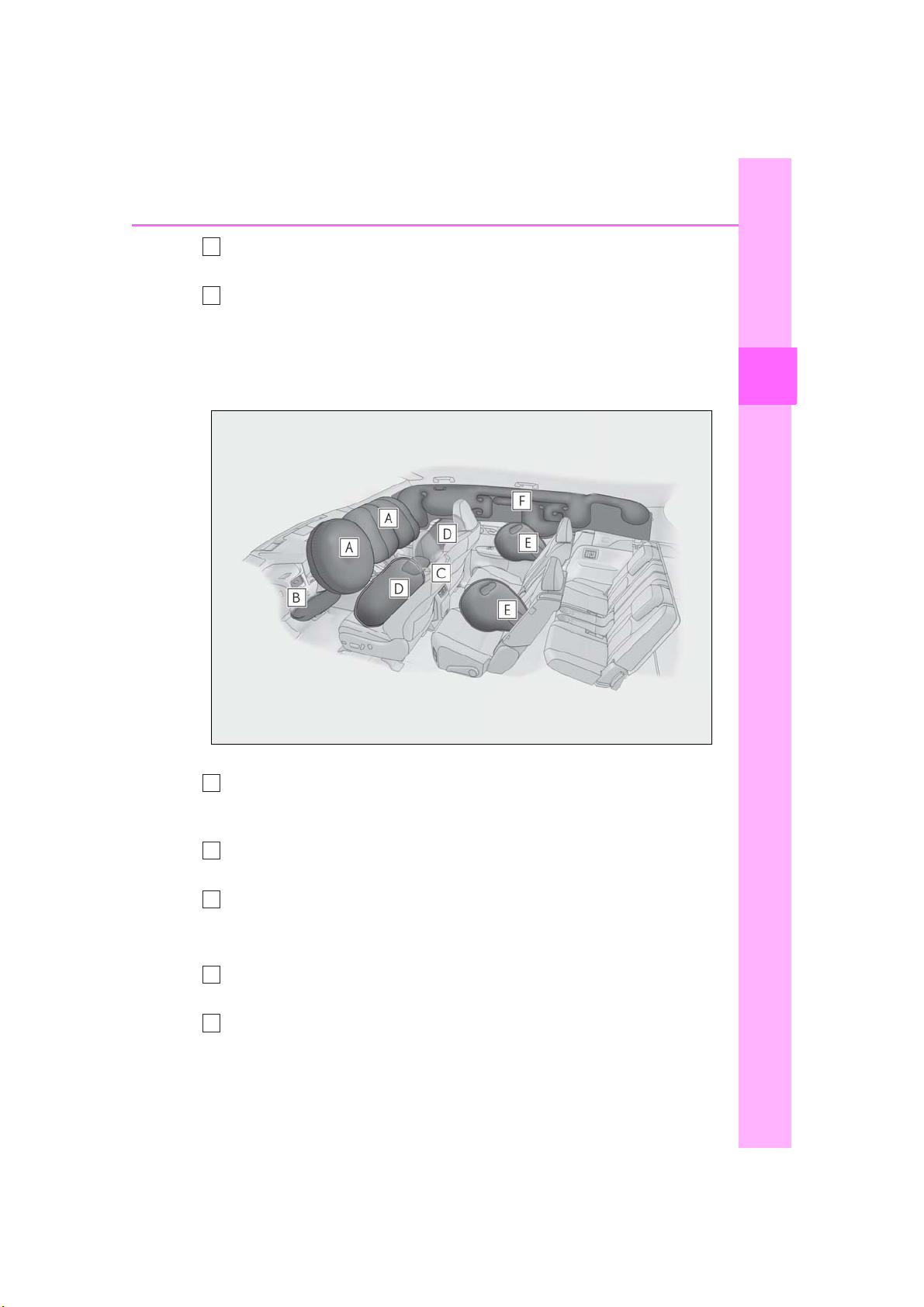

SRS airbags ....................................... 30
Front passenger occupant classifi-
cation system ................................. 39
Exhaust gas precautions .............. 44
1-2. Child safety
Riding with children........................ 45

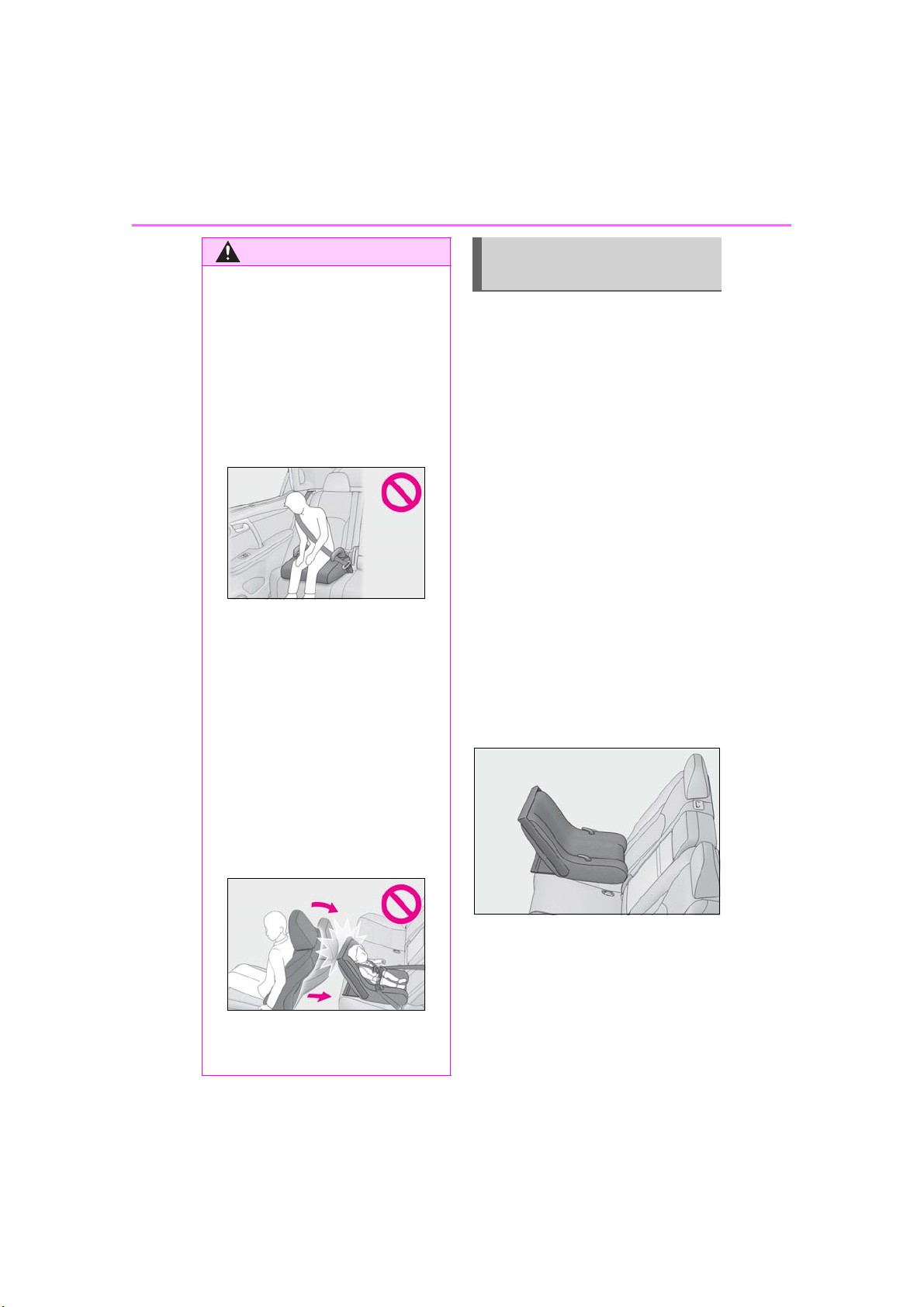

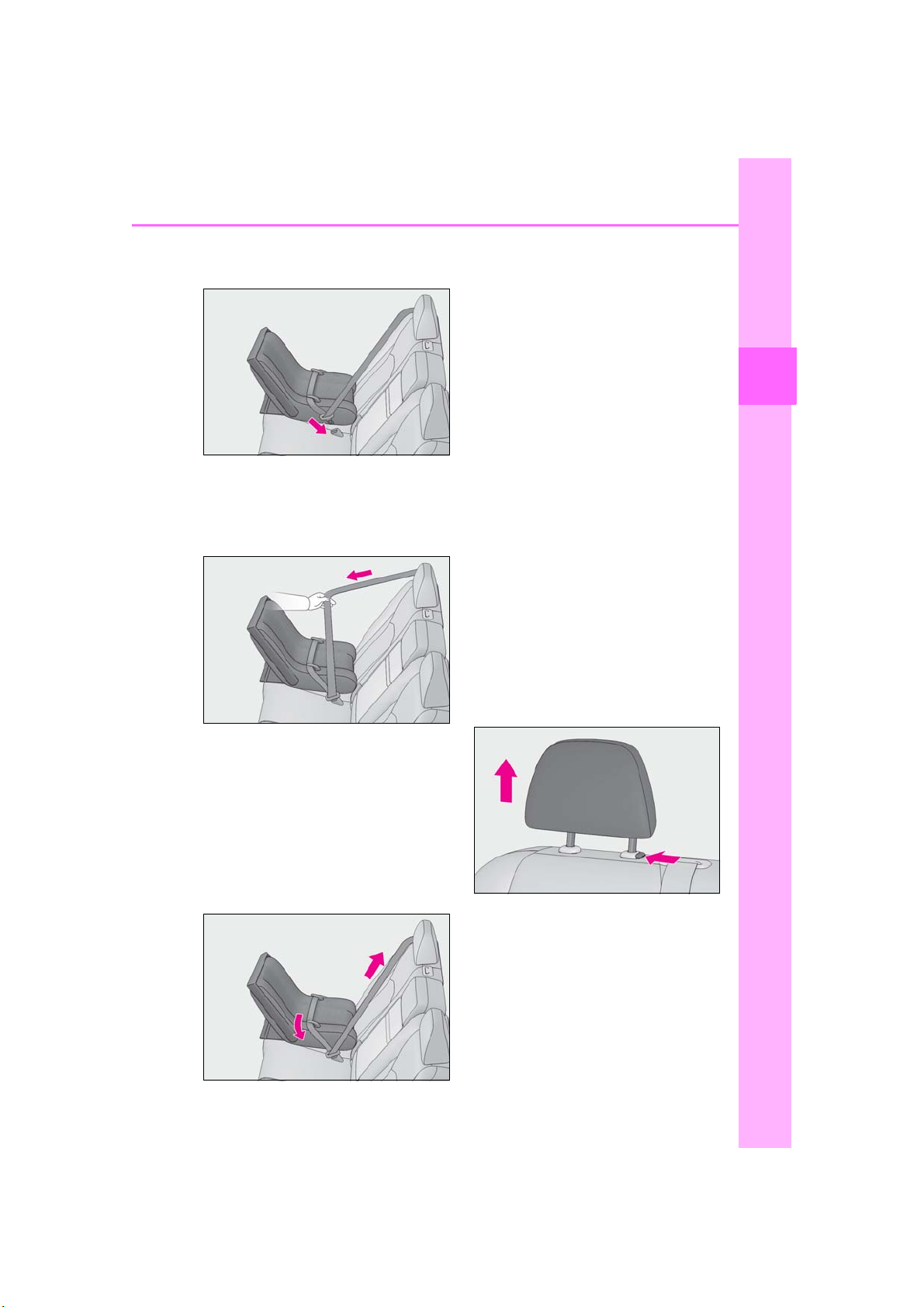

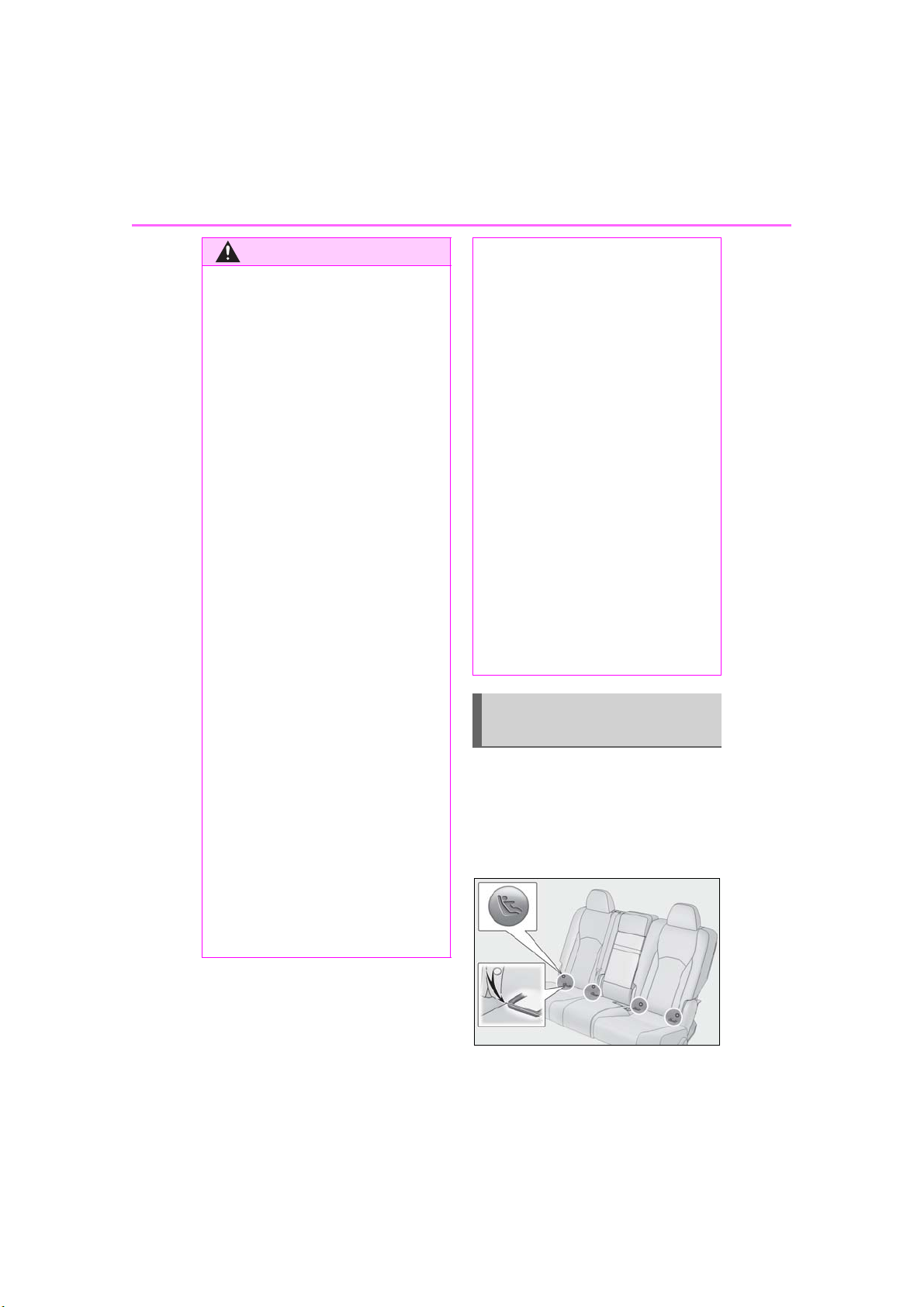

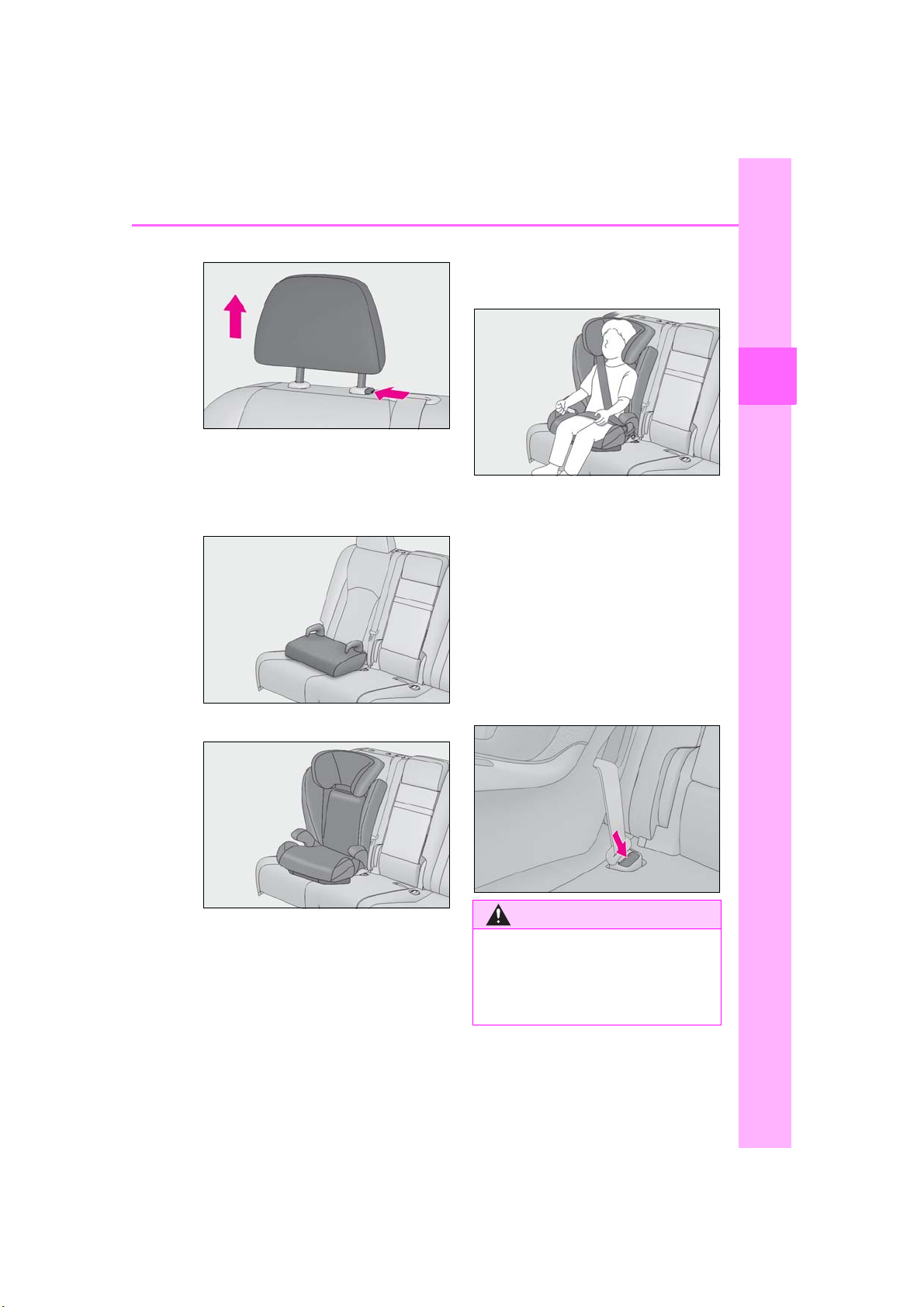

Child restraint systems ................. 45
1-3. Lexus Enform
Lexus Enform Safety Connect .. 60
1-4. Theft deterrent system

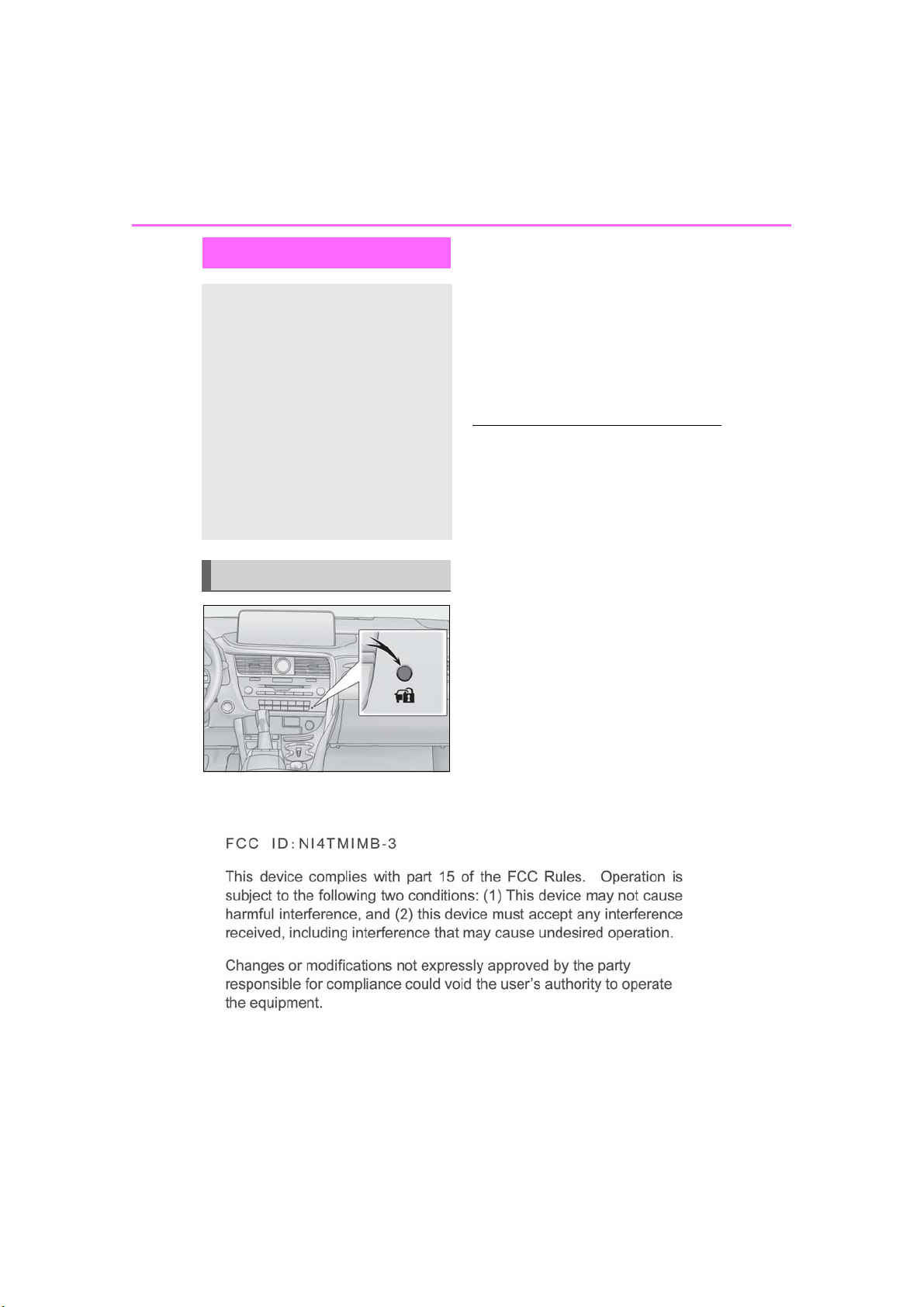

Engine immobilizer system......... 64
Alarm.................................................... 67
Vehicle status information and
2
indicators

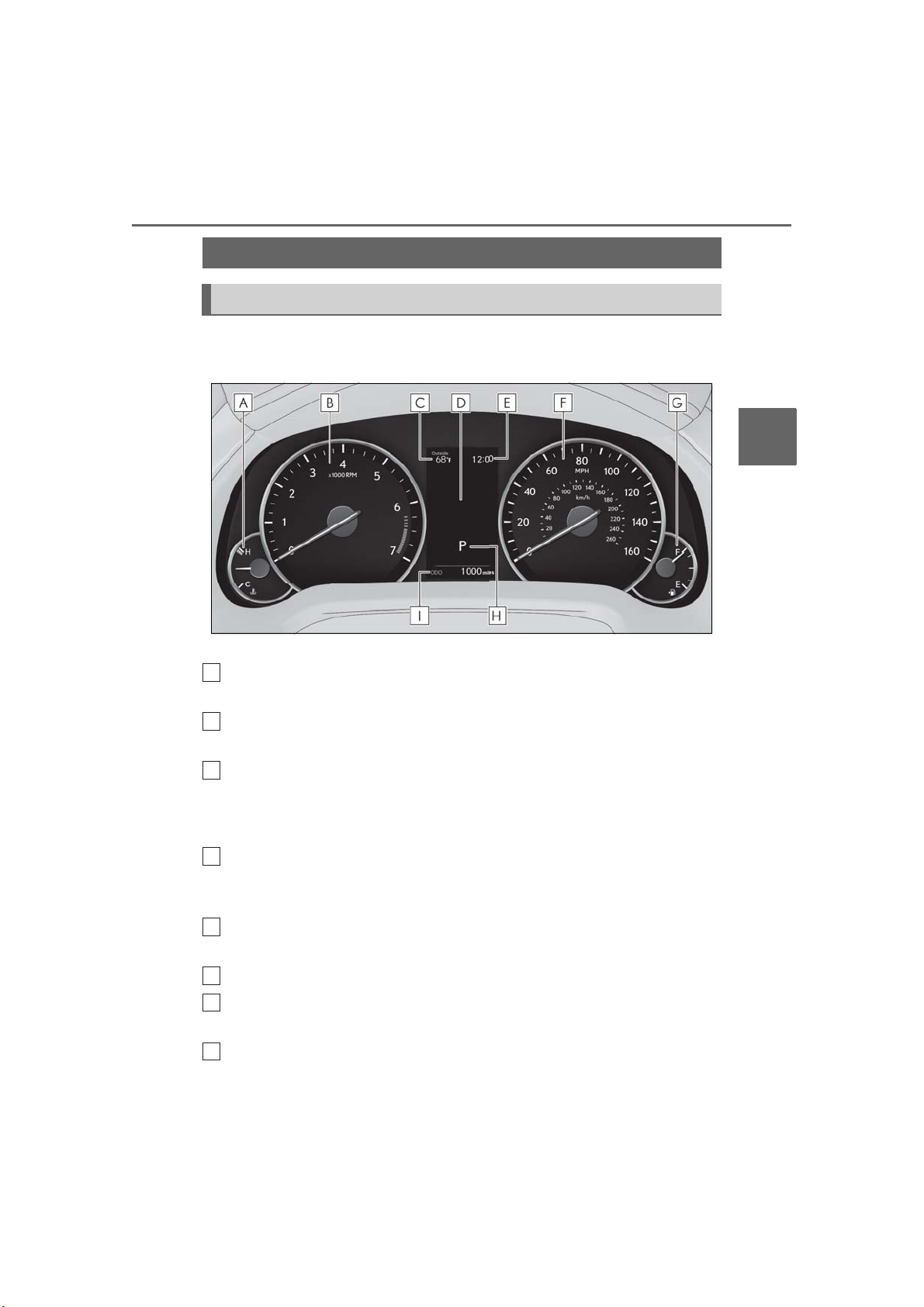

2-1. Instrument cluster

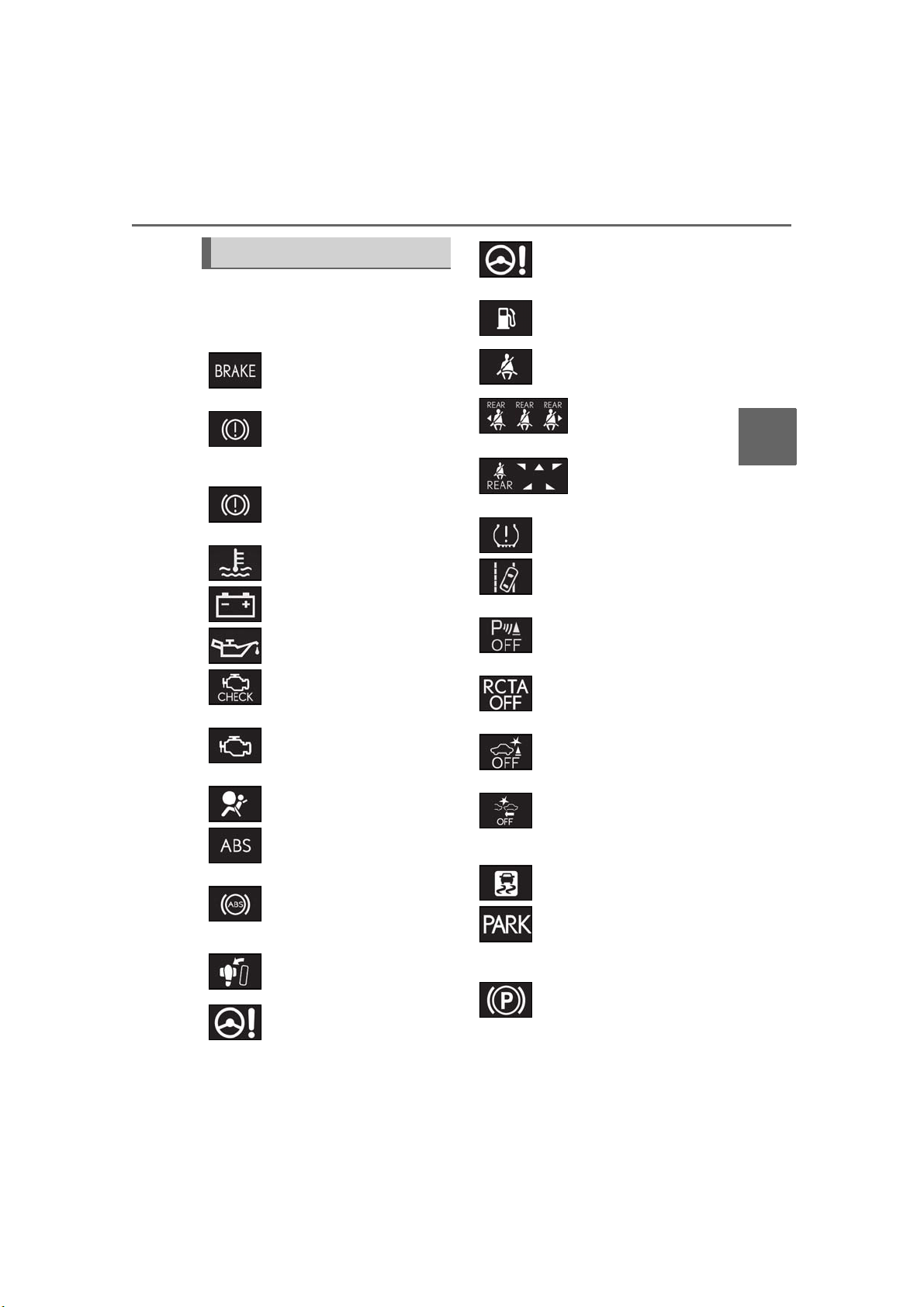

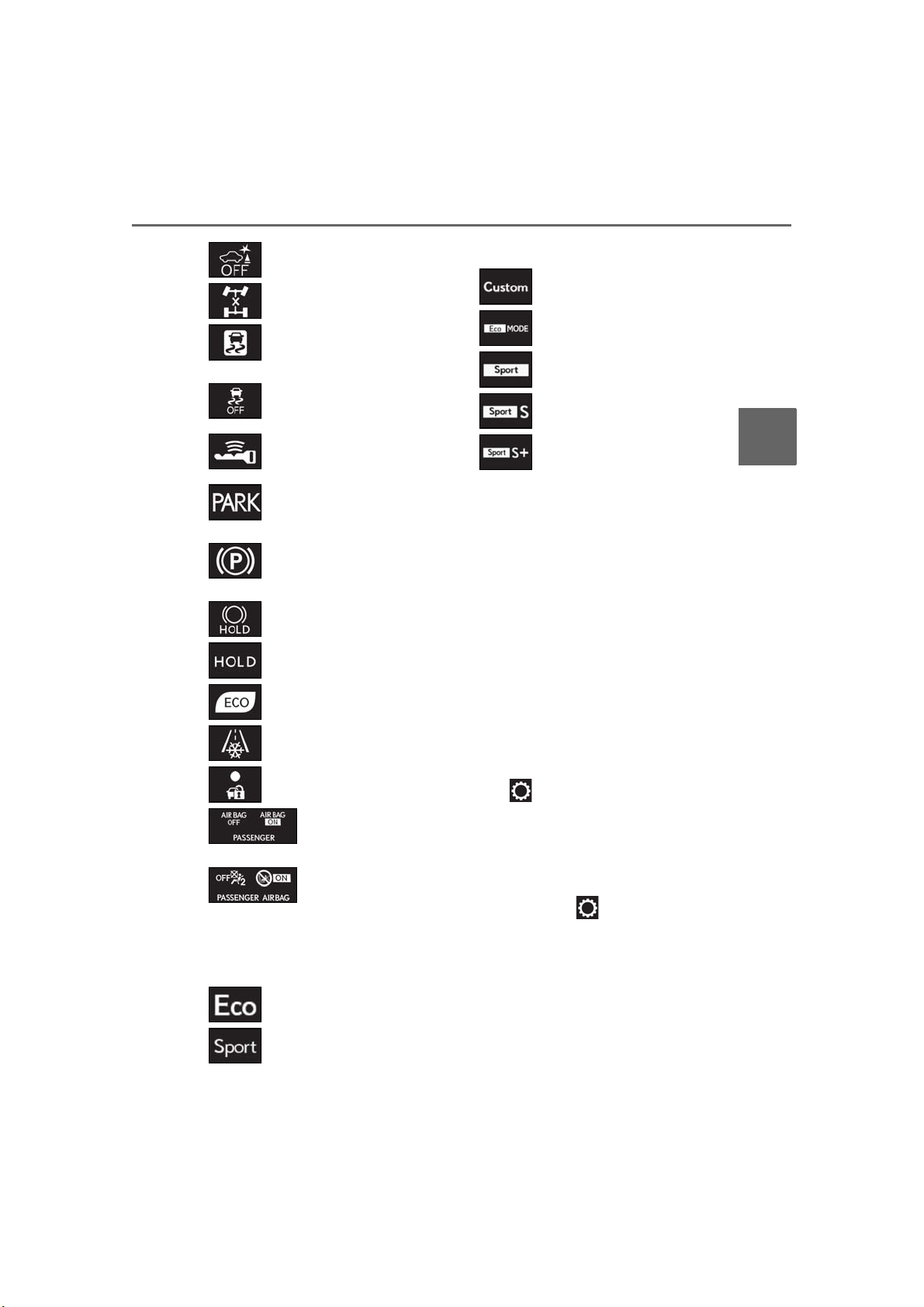

Warning lights and indicators.... 70

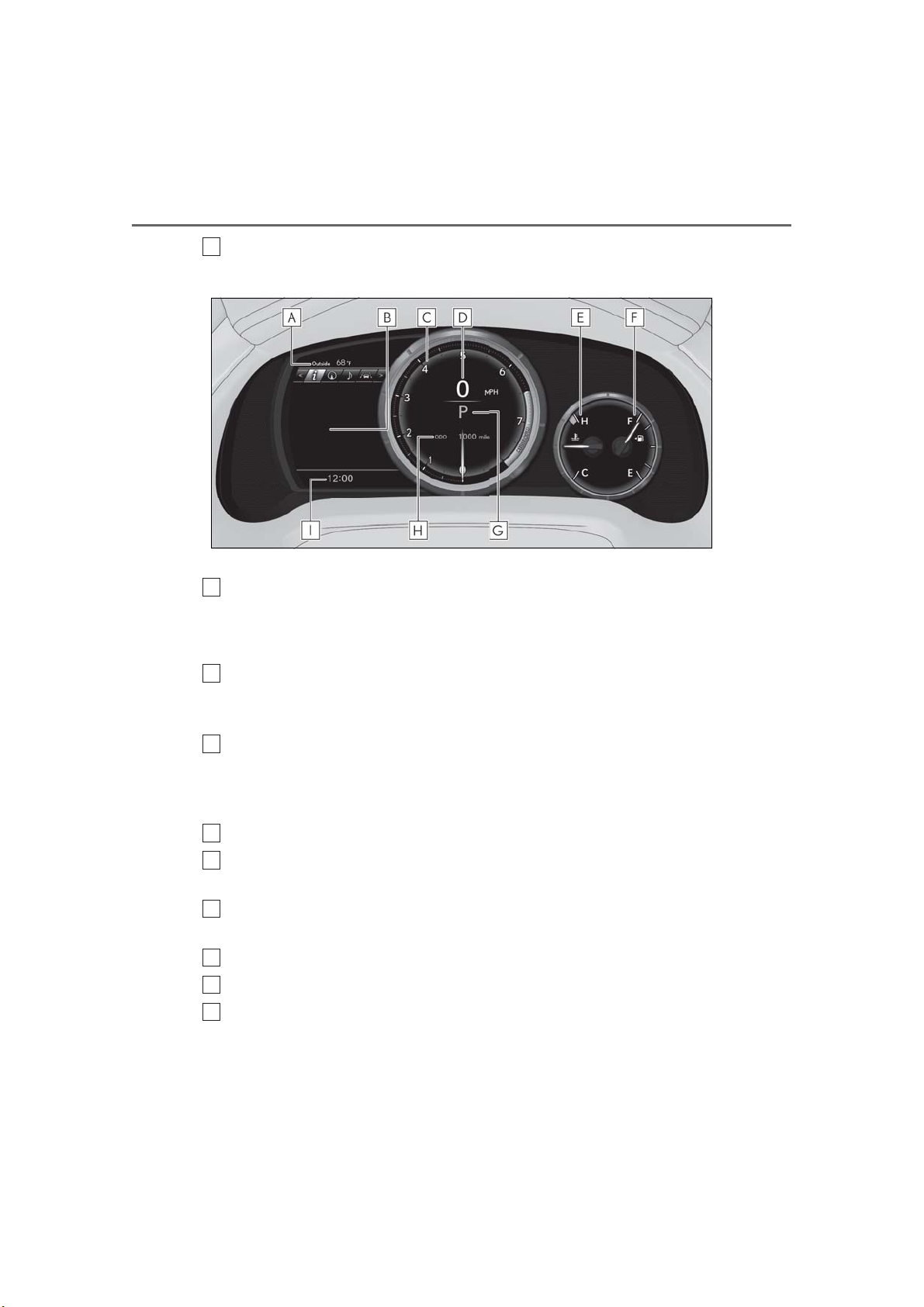

Gauges and meters ....................... 75

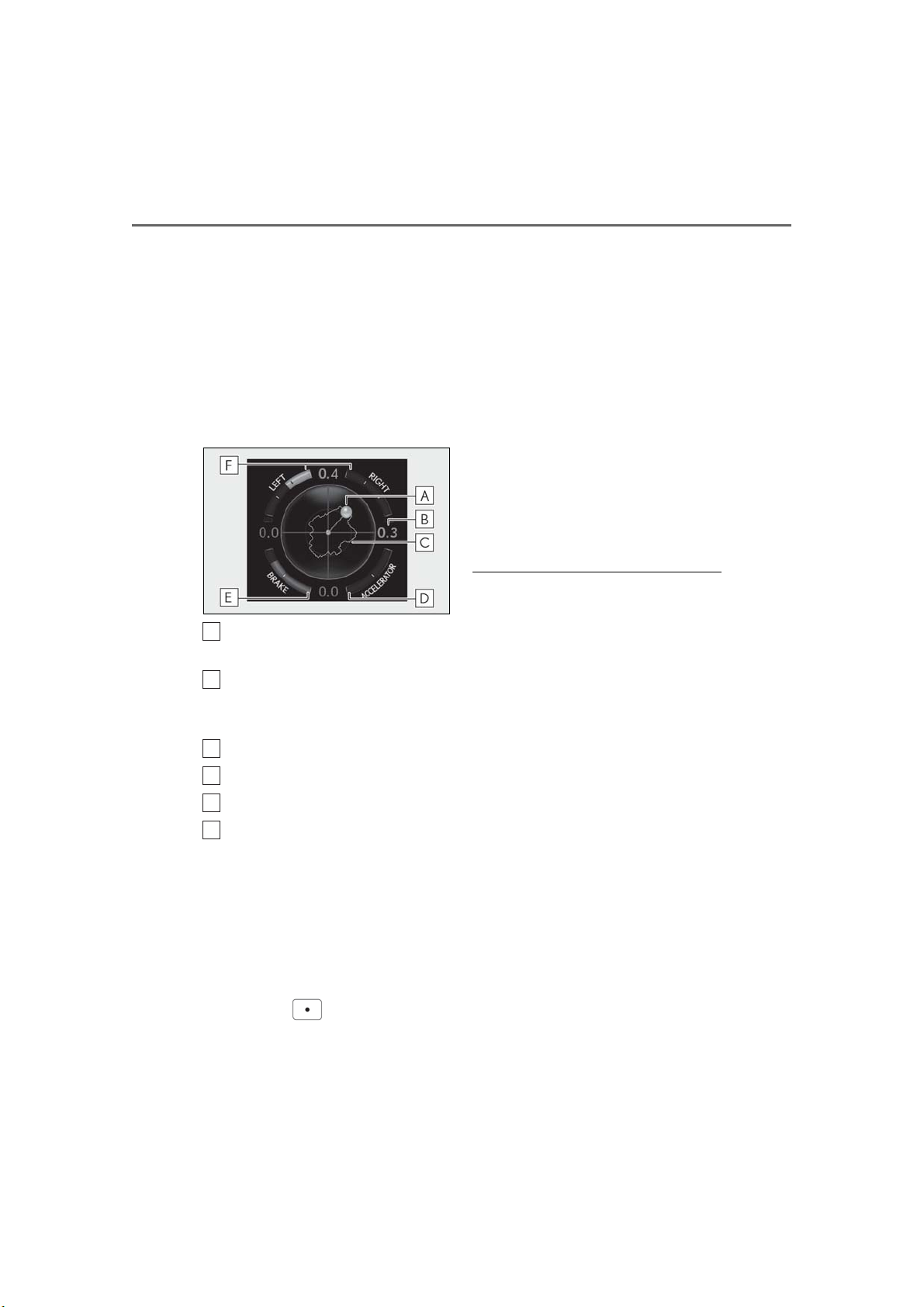

Multi-information display............. 79

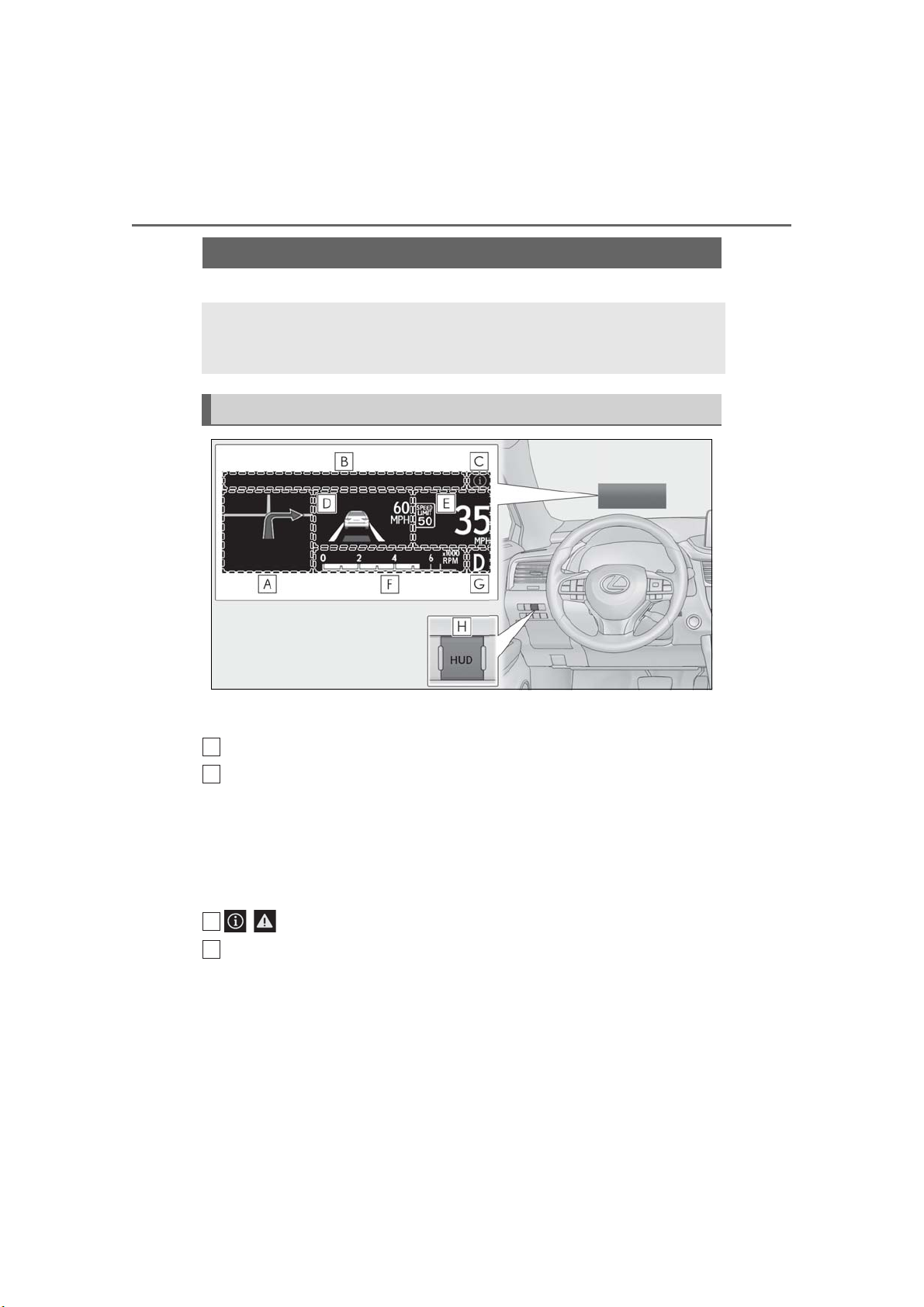

Head-up display .............................. 86

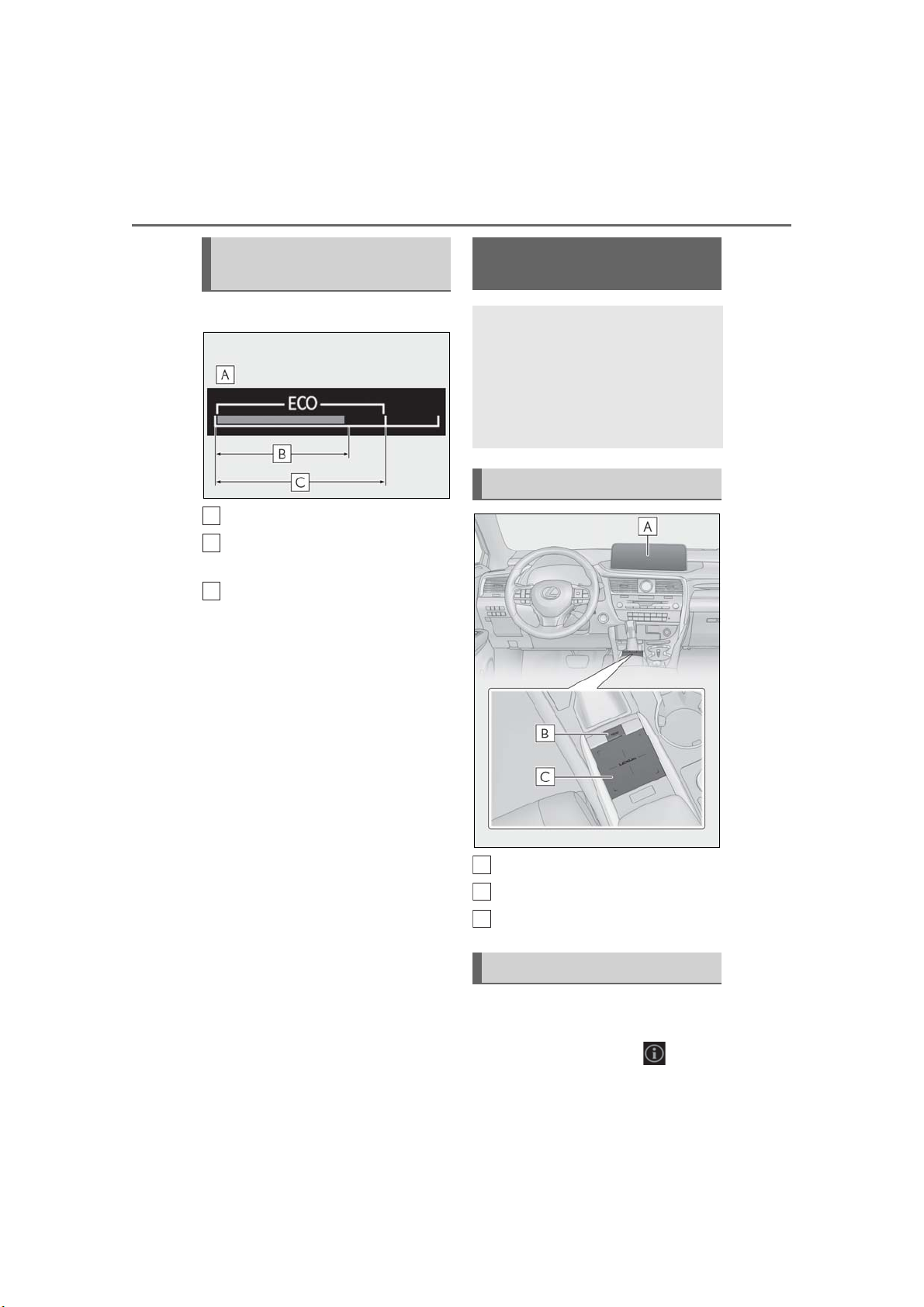

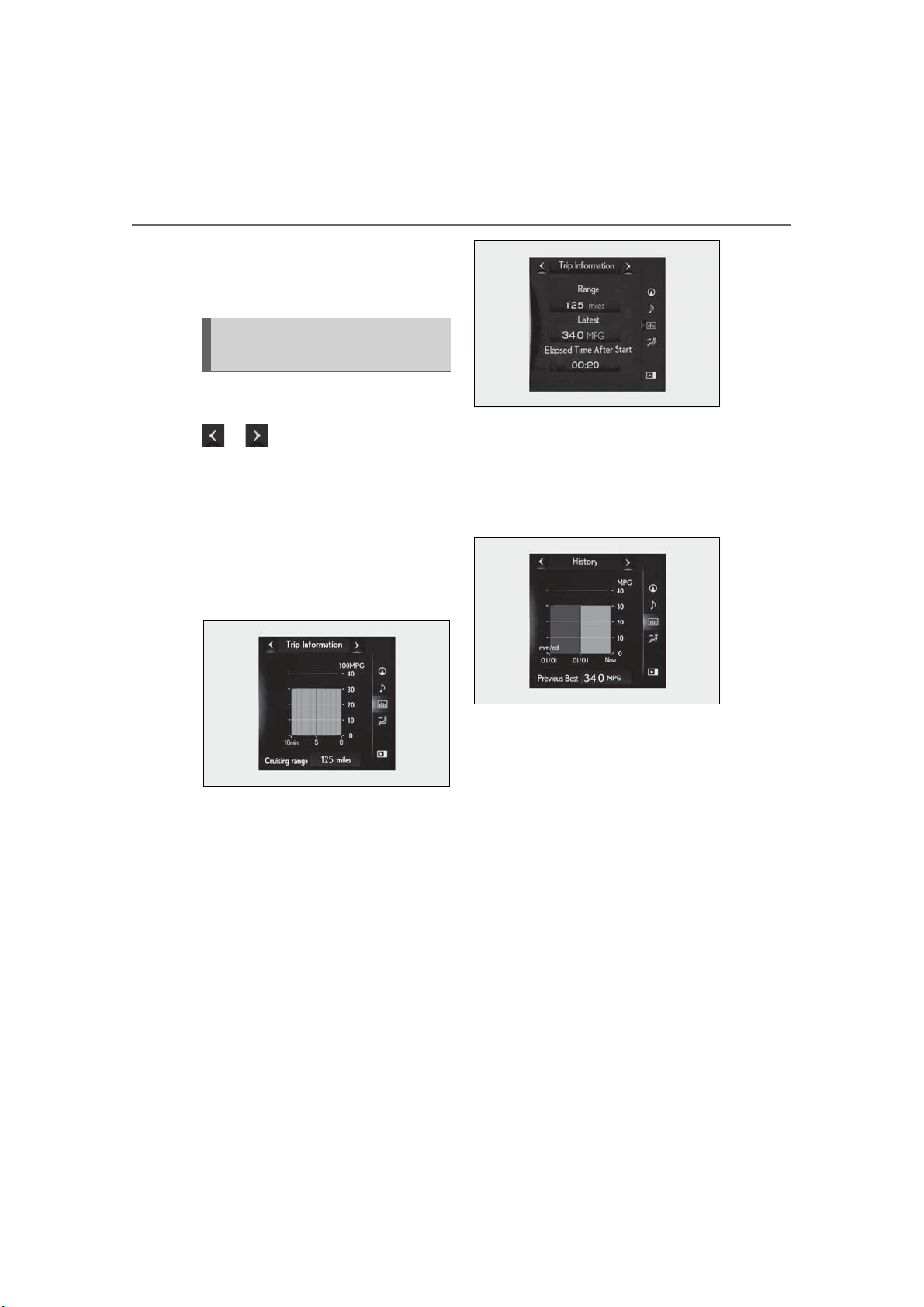

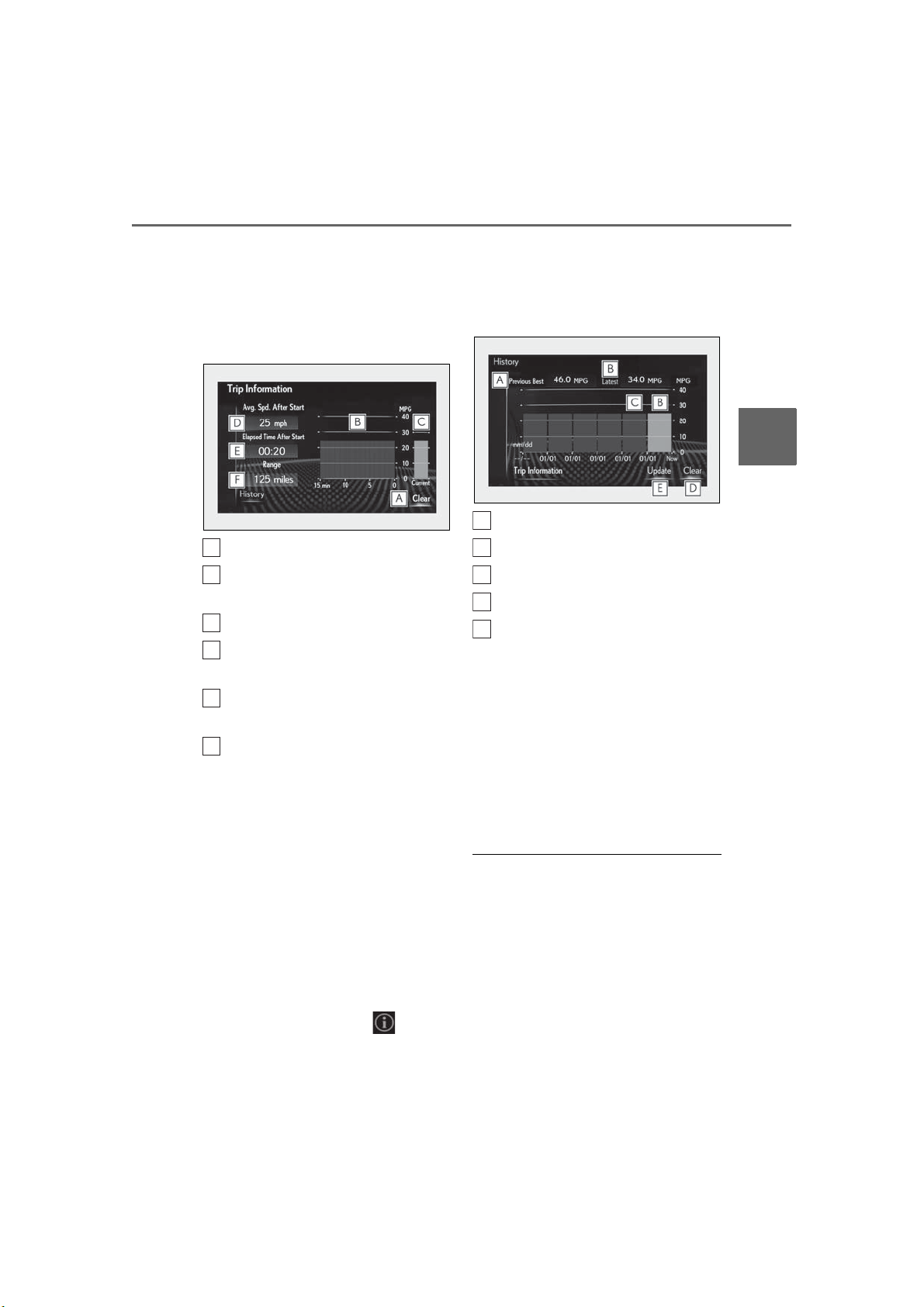

Fuel consumption information... 90
3
Before driving
3-1. Key information

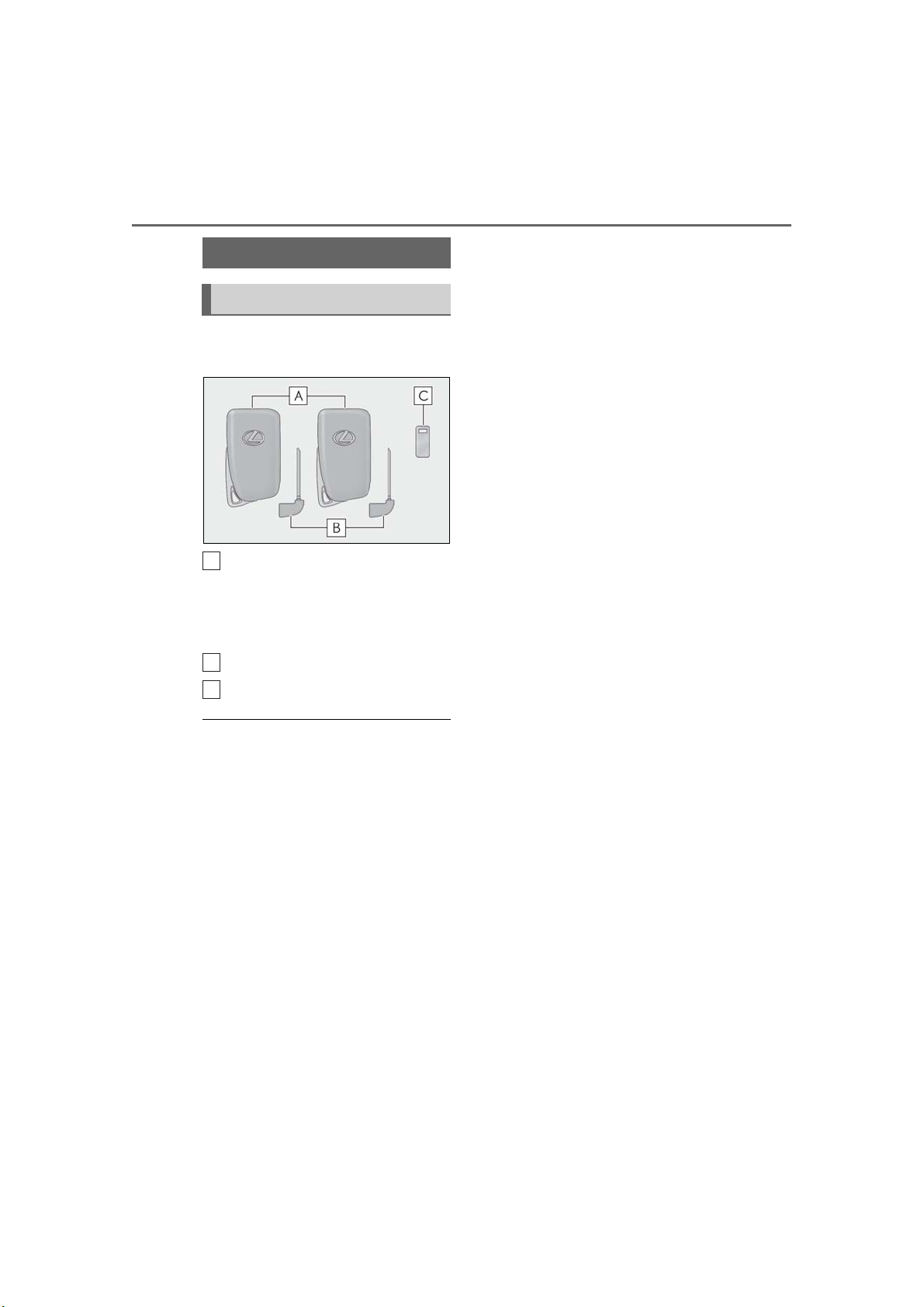

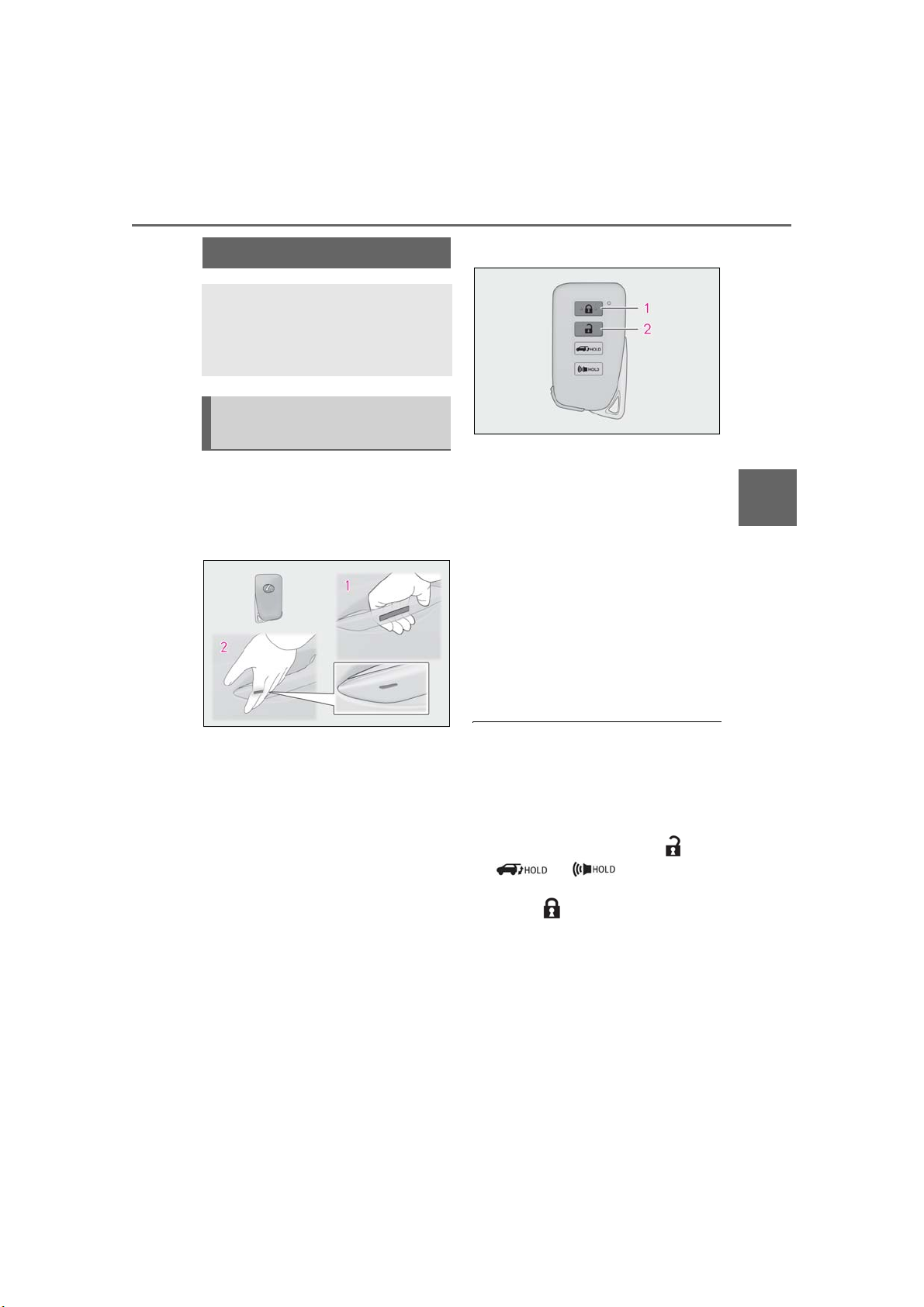

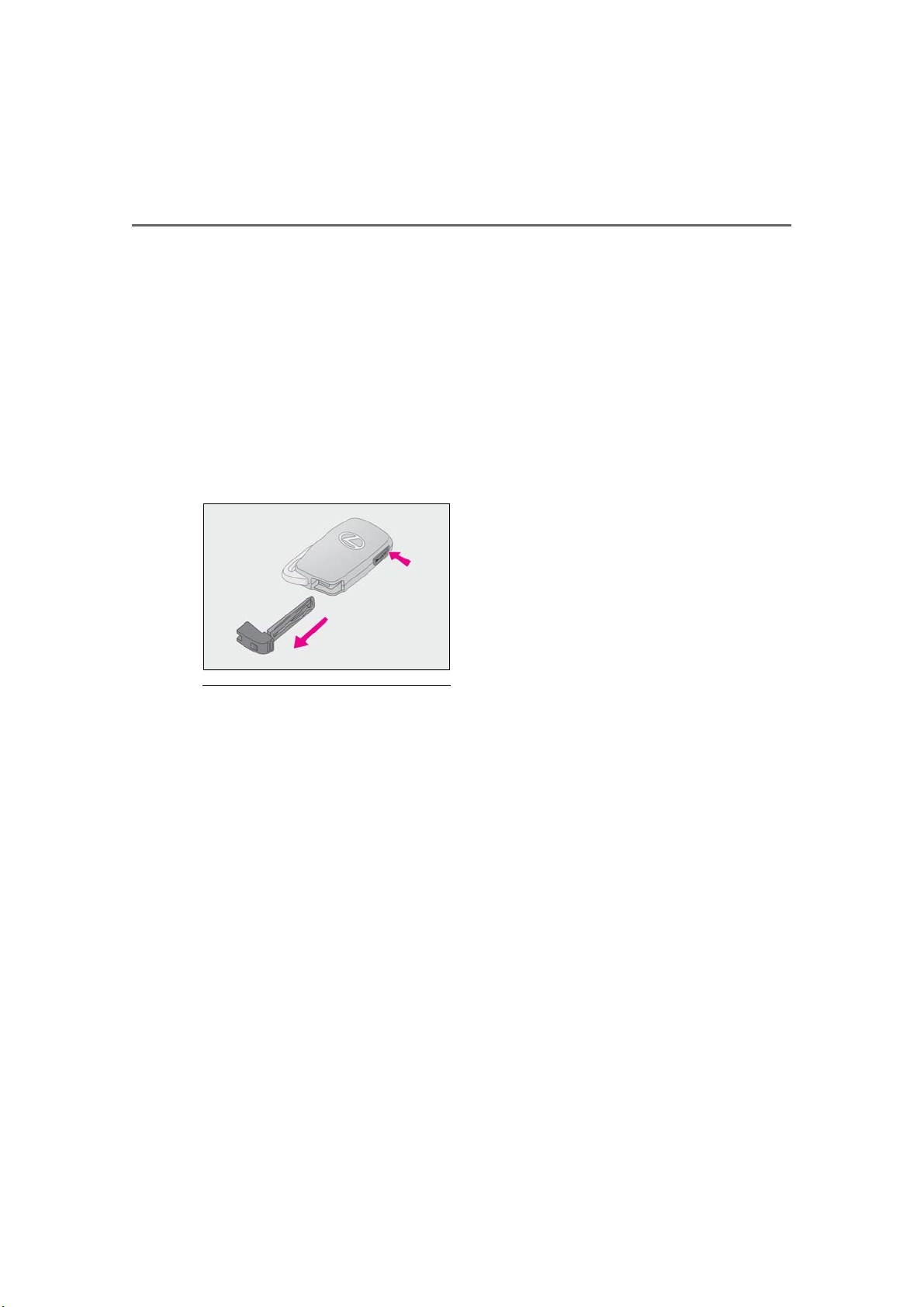

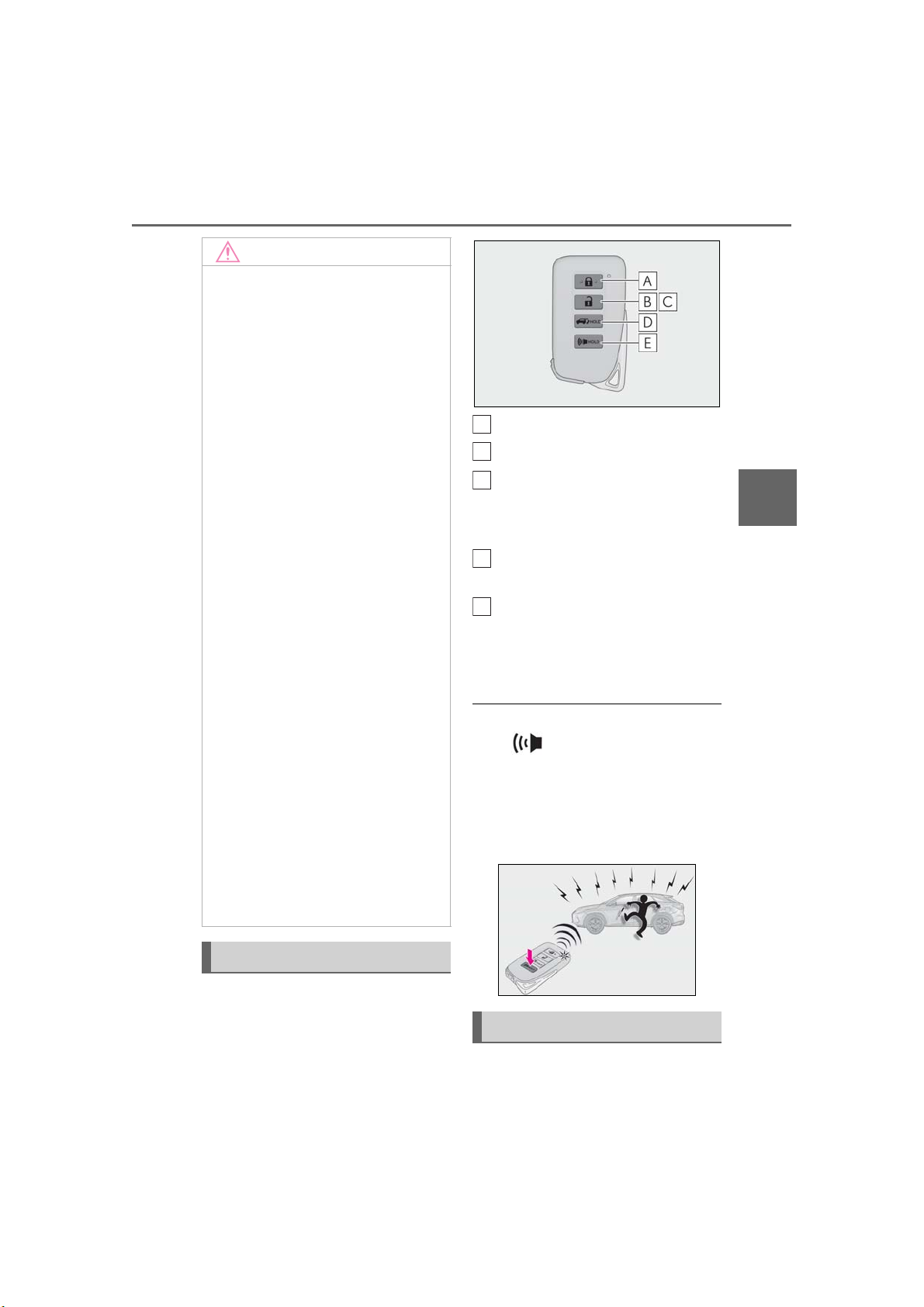

Keys.......................................................94
3-2. Opening, closing and locking the
doors

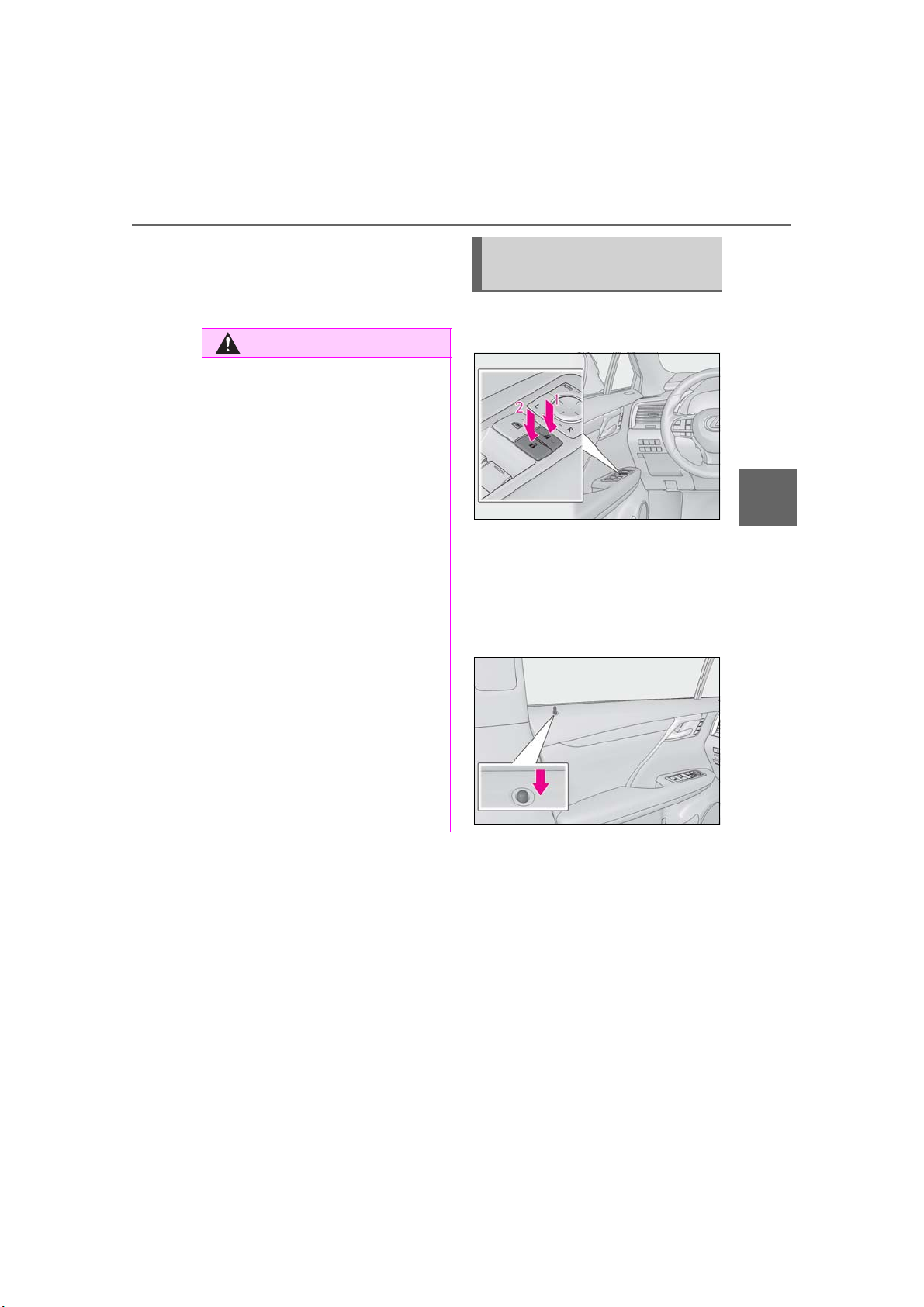

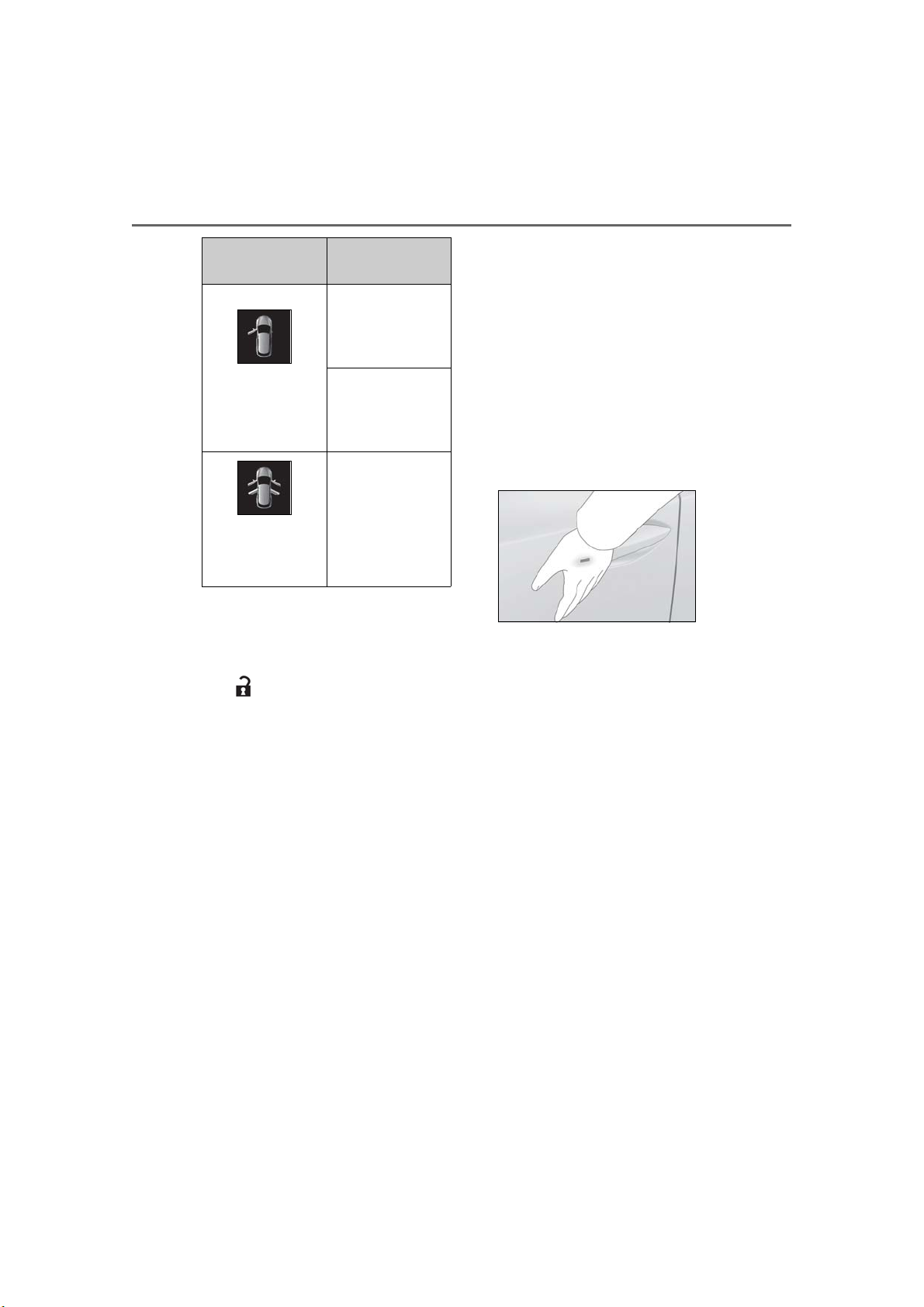

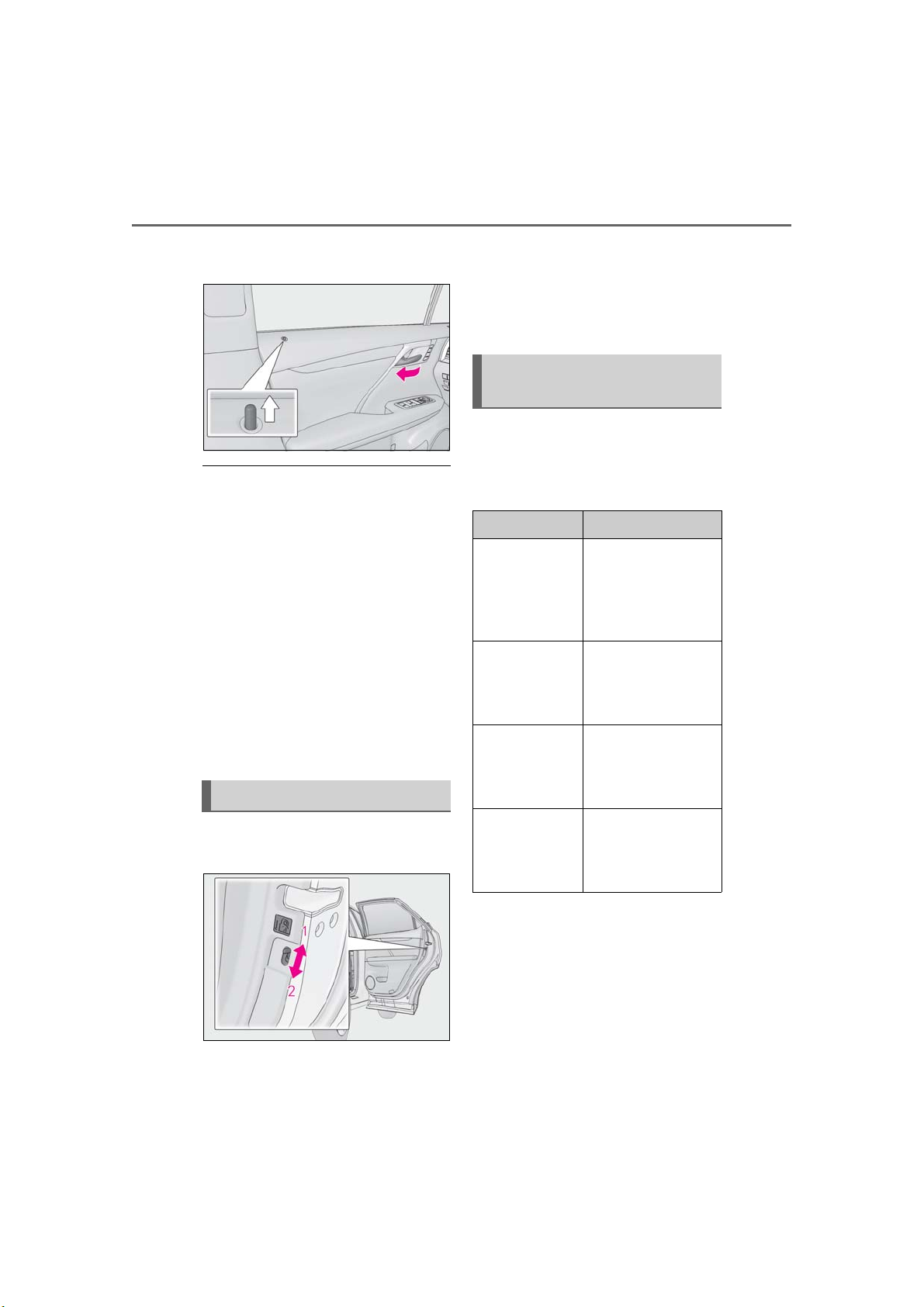

Side doors...........................................97
Power back door ........................... 101
Smart access system with push-but-
ton start ............................................113
3-3. Adjusting the seats
Front seats.........................................122
Rear seats..........................................123
Driving position memory............134

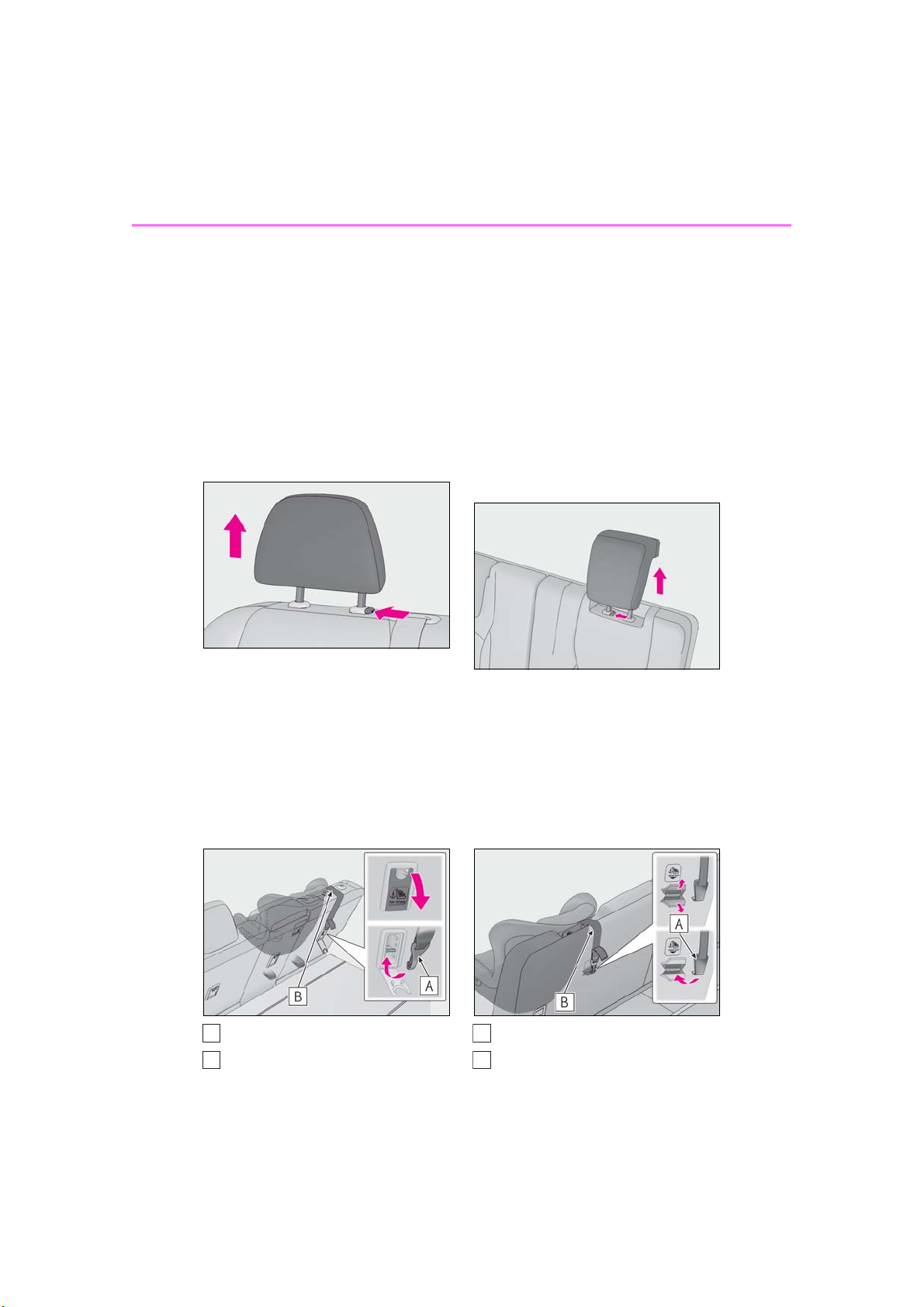

Head restraints ...............................137
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ...............................140
Inside rear view mirror .................141
Outside rear view mirrors..........142
3-5. Opening, closing the windows and
moon roof
Power windows ............................. 145
Moon roof.........................................147
Panoramic moon roof................. 150
4
Driving
4-1. Before driving
Driving the vehicle........................ 156
Cargo and luggage........................161
Vehicle load limits......................... 164
Trailer towing (vehicles without
towing package)......................... 165
Page 3
TABLE OF CONTENTS
3
Trailer towing (vehicles with towing
package)........................................ 165
Dinghy towing ................................ 175
4-2. Driving procedures
Engine (ignition) switch ..............176
Automatic transmission..............180
Turn signal lever............................. 184
Parking brake .................................185
Brake Hold.......................................188
4-3. Operating the lights and wipers
Headlight switch............................190
Automatic High Beam................ 193
Fog light switch .............................. 195
Windshield wipers and washer
............................................................ 196
Rear window wiper and washer
...........................................................200
4-4. Refueling
Opening the fuel tank cap........ 202
4-5. Using the driving support systems
Lexus Safety System + 2.0.......205
PCS (Pre-Collision System)...... 211
LTA (Lane Tracing Assist)......... 218
RSA (Road Sign Assist)............. 227
Dynamic radar cruise control with
full-speed range.........................230
BSM (Blind Spot Monitor) .......239
PKSA (Parking Support Alert)
........................................................... 245
Intuitive parking assist ................247
RCTA (Rear cross traffic alert)
function.......................................... 253
PKSB (Parking Support Brake)
........................................................... 258
Parking Support Brake function
(static objects) ............................264
Parking Support Brake function
(rear-crossing vehicles) .........270
Driving mode select switch ......274
All-wheel drive lock switch...... 276
Driving assist systems .................277
4-6. Driving tips
Winter driving tips....................... 283
Utility vehicle precautions........ 285
5
Interior features
5-1. Remote Touch/Display
Remote Touch............................... 290
Center Display...............................292
5-2. Lexus Climate Concierge
Lexus Climate Concierge........ 295
5-3. Using the air conditioning system
and defogger
Front automatic air conditioning
system............................................ 296
Rear automatic air conditioning
system............................................ 307
Heated steering wheel/seat heat-
ers/seat ventilators.................... 310
5-4. Using the interior lights
Interior lights list ............................ 313
5-5. Using the storage features
List of storage features ............... 316
Luggage compartment features
...
.................................................322
.......
5-6. Using the other interior features
Other interior features .............. 327
Garage door opener ................. 339
Compass ......................................... 346
1
2
3
4
5
6
7
8
9
Page 4
4
TABLE OF CONTENTS
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior...................................350
Cleaning and protecting the vehi-
cle interior ....................................353
6-2. Maintenance
Maintenance requirements .....356
General maintenance................ 357
Emission inspection and mainte-
nance (I/M) programs ............360
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
............................................................ 361
Hood.................................................. 363
Positioning a floor jack............... 363
Engine compartment.................. 365
Tires .................................................... 371
Tire inflation pressure.................383
Wheels..............................................384
Air conditioning filter.................. 386
Windshield wiper inserts...........388
Electronic key battery................389
Checking and replacing fuses
............................................................ 391
Headlight aim................................. 392
Light bulbs....................................... 394
7
When trouble arises
7-1. Essential information
Emergency flashers.....................404
If your vehicle has to be stopped in
an emergency.............................404
If the vehicle is trapped in rising
water .............................................. 405
7-2. Steps to take in an emergency
If your vehicle needs to be towed
.......................................................... 407
If you think something is wrong
.............................................................411
Fuel pump shut off system..........412
If a warning light turns on or a warn-
ing buzzer sounds.......................413
If a warning message is displayed
...........................................................422
If you have a flat tire .................... 426
If the engine will not start.......... 438
If you lose your keys.................... 440
If the fuel filler door cannot be
opened ..........................................440
If the electronic key does not oper-
ate properly...................................441
If the vehicle battery is discharged
.......................................................... 443
If your vehicle overheats........... 447
If the vehicle becomes stuck ... 449
8
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil level,
etc.) ................................................. 452
Fuel information............................ 459
Tire information ............................. 461
8-2. Customization
Customizable features ..............470
8-3. Initialization
Items to initialize........................... 483
Page 5
9
For owners
9-1. For owners
Reporting safety defects for U.S.
owners ...........................................486
Seat belt instructions for Canadian
owners (in French)....................486
SRS airbag instructions for Cana-
dian owners (in French)..........488
Headlight aim instructions for
Canadian owners (in French)
........................................................... 496
Index
What to do if... (Troubleshooting)
...........................................................500
Alphabetical Index.......................503
TABLE OF CONTENTS
5
1
2
3
4
5
6
7
8
9
Page 6
6
For your information
Main Owner’s Manual
Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.
Noise from under vehicle after
turning off the engine
Approximately five hours after the
engine is turned off, you may hear
sound coming from under the vehicle
for several minutes. This is the sound of
a fuel evaporation leakage check and,
it does not indicate a malfunction.
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus
vehicle.
This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even violate governmental regulations. In addition, damage or performance
problems resulting from the modification may not be covered under warranty.
Installation of a mobile two-way
radio system
The installation of a mobile two-way
radio system in your vehicle could
affect electronic systems such as:
Multiport fuel injection sys-
tem/sequential multiport fuel injection system
Lexus Safety System + 2.0
Anti-lock brake system
Vehicle dynamics integrated man-
agement
SRS airbag system
Accessories, spare parts and
modification of your Lexus
A wide variety of non-genuine spare
parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does
not warrant these products and is not
responsible for their performance,
Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installation of a mobile two-way radio system.
Vehicle data recording
The vehicle is equipped with sophisti-
Page 7
7
cated computers that will record certain data, such as:
The recorded data varies according to
the vehicle grade level and options
with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain
situations.
• Engine speed/Electric motor speed
(traction motor speed)
• Accelerator status
•Brake status
• Vehicle speed
• Operation status of the driving
assist systems, such as the ABS and
pre-collision system
• Images from the front camera (available only when certain safety systems are activated, which varies
depending on the vehicle specifications).
Data Transmission
Your vehicle may transmit the data
recorded in these computers to Lexus
without notification to you.
Data usage
Lexus may use the data recorded in this
computer to diagnose malfunctions, conduct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehicle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Recorded image information can be
erased by your Lexus dealer.
The image recording function can be disabled. However, if the function is disabled,
data from when the pre-collision system
operates will not be available.
To learn more about the vehicle data
collected, used and shared by
Lexus, please visit
www.lexus.com/privacyvts/
.
Usage of data collected through
Lexus Enform (U.S. mainland only)
If your Lexus has Lexus Enform and if
you have subscribed to those services,
please refer to the Lexus Enform
Telematics Subscription Service
Agreement for information on data
collected and its usage.
To learn more about the vehicle data
collected, used and shared by Lexus,
please visit
www.lexus.com/privacyvts/
.
Event data recorder
This vehicle is equipped with an event
data recorder (EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such
as an air bag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
Page 8
8
performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to
record such data as:
• How various systems in your vehicle
were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.
Disclosure of the EDR data
Lexus will not disclose the data recorded in
an EDR to a third party except when:
• An agreement from the vehicle’s owner
(or the lessee for a leased vehicle) is
obtained
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle
safety performance
• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain
explosive chemicals. If the vehicle is
scrapped with the airbags and seat belt
pretensioners left as they are, this may
cause an accident such as fire. Be sure
to have the systems of the SRS airbag
and seat belt pretensioner removed
and disposed of by a qualified service
shop or by your Lexus dealer before
you scrap your vehicle.
Perchlorate Material
Special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may
contain perchlorate. These components may include the airbags, seat belt
pretensioners, wireless remote control
Page 9
batteries, and the batteries in the tire
WARNING
pressure warning valve and transmitters.
■ General precautions while driving
Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordination, which could lead to an accident that
could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.
Driver distraction: Always give your full
attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.
9
■ General precaution regarding chil-
dren’s safety
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof or panoramic moon roof,
or other features of the vehicle. In addition, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.
Page 10
10
Reading this manual
Explains symbols used in this manual.
Symbols in this manual
Symbols Meanings
WARNING:
Explains something that,
if not obeyed, could
cause death or serious
injury to people.
NOTICE:
Explains something that,
if not obeyed, could
cause damage to or a
malfunction in the vehicle or its equipment.
Indicates operating or
working procedures. Follow the steps in numerical order.
Symbols in illustrations
Symbols Meanings
Indicates the action
(pushing, turning, etc.)
used to operate switches
and other devices.
Indicates the outcome of
an operation (e.g. a lid
opens).
Symbols Meanings
Indicates the component
or position being
explained.
Means Do not, Do not do
this, or Do not let this
happen.
Page 11
How to search
■ Searching by name
Alphabetical index: P.503
■ Searching by installation position
Pictorial index: P.12
11
■ Searching by symptom or sound
What to do if... (Troubleshooting):
P.500
■ Searching by title
Table of contents: P.2
Page 12
12
Pictorial index
Pictorial index
■Exterior
The shape of the lights may differ depending on the grade, etc.
Side doors.................................................................................................................... P.97
A
Locking/unlocking..............................................................................................................P.97
Opening/closing the side windows........................................................................... P.145
Locking/unlocking by using the mechanical key..................................................P.441
Warning lights/warning messages .................................................................P.413, 422
Back door ................................................................................................................... P.101
B
Opening from inside the cabin ....................................................................................P.103
Opening from outside .....................................................................................................P.103
Warning lights/warning messages .................................................................P.413, 422
Outside rear view mirrors .................................................................................... P.142
C
Adjusting the mirror angle..............................................................................................P.142
Folding the mirrors.................................................................................................. P.143, 143
Driving position memory
Defogging the mirrors....................................................................................................P.298
Windshield wipers .................................................................................................. P.196
D
*
..............................................................................................P.134
Page 13
Pictorial index
E
K
L
Precautions for winter season.....................................................................................P.283
To prevent freezing (windshield wiper de-icer)
*
.................................................P.303
Precautions for car wash................................................................................................ P.351
Fuel filler door ........................................................................................................ P.202
Refueling method .............................................................................................................P.202
Fuel type/fuel tank capacity .........................................................................................P.454
Tires............................................................................................................................. P.371
F
Tire size/inflation pressure .................................................................................P.371, 457
Winter tires/tire chains ..................................................................................................P.283
Checking/rotation/tire pressure warning system................................................P.371
Coping with flat tires........................................................................................................P.426
Hood ..........................................................................................................................P.363
G
Opening ...............................................................................................................................P.363
Engine oil..............................................................................................................................P.454
Coping with overheating............................................................................................... P.447
Warning messages ..........................................................................................................P.422
13
Light bulbs of the exterior lights for driving
(Replacing method: P.394, Watts: P.458)
Headlights/front turn signal lights/front side marker lights............ P.184, 190
H
Side turn signal lights .............................................................................................P.184
I
Parking lights/daytime running lights...............................................................P.190
J
Fog lights/cornering lights
*
....................................................................... P.190, 195
Rear side marker lights ......................................................................................... P.190
Stop/tail lights .......................................................................................................... P.190
M
Back-up lights/rear turn signal lights ...................................................... P.184, 190
N
Shifting the shift lever to R..............................................................................................P.180
License plate lights .................................................................................................P.190
O
*
:If equipped
Page 14
14
Pictorial index
■Instrument panel
Engine switch ........................................................................................................... P.176
A
Starting the engine/changing the modes.................................................................P.176
Emergency stop of the engine ....................................................................................P.404
When the engine will not start.....................................................................................P.438
Warning messages ..........................................................................................................P.422
Shift lever.................................................................................................................. P.180
B
Changing the shift position..............................................................................................P.181
Precautions for towing ...................................................................................................P.407
When the shift lever does not move ............................................................................P.181

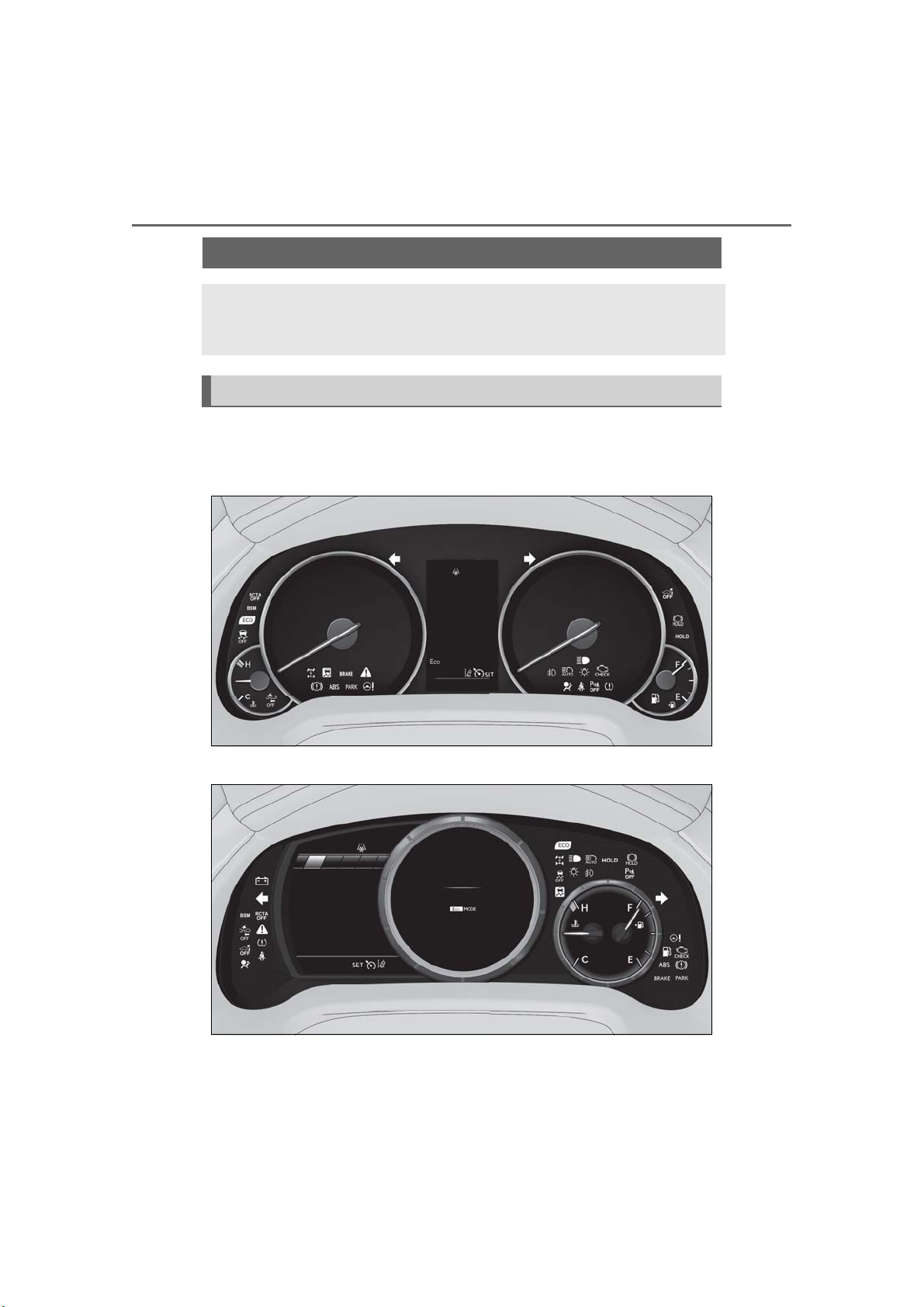

Meters ..........................................................................................................................P.75
C
Reading the meters/adjusting the instrument panel light...........................P.75, 78
Warning lights/indicator lights ......................................................................................P.70
When a warning light turns on ..................................................................................... P.413
Multi-information display ....................................................................................... P.79
D
Display......................................................................................................................................P.79
When the warning messages are displayed..........................................................P.422
Page 15
Pictorial index
L
Parking brake switch .............................................................................................P.185
E
Applying/releasing ...........................................................................................................P.185
Precautions for winter season.....................................................................................P.284
Warning buzzer/messages..........................................................................................P.422
Turn signal lever ...................................................................................................... P.184
F
Headlight switch......................................................................................................P.190
Headlights/side marker lights/parking lights/tail lights/license plate lights/daytime
running lights .......................................................................................................................P.190
Fog lights
Windshield wiper and washer switch ..................................................... P.196, 200
G
*1
............................................................................................................................P.195
Usage...........................................................................................................................P.196, 200
Adding washer fluid.........................................................................................................P.370
Warning messages ..........................................................................................................P.422
Emergency flasher switch ...................................................................................P.404
H
Hood lock release lever .......................................................................................P.363
I
Tilt and telescopic steering control switch......................................................P.140
J
Adjustment ...........................................................................................................................P.140
Driving position memory
*1
............................................................................................. P.134
15
Air conditioning system .......................................................................................P.296
K
Usage.....................................................................................................................................P.296
Rear window defogger...................................................................................................P.296
Audio system
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2
Page 16
16
■Switches
A
B
C
D
E
F
Pictorial index
Automatic High Beam switch.............................................................................. P.193
Power back door switch........................................................................................P.103

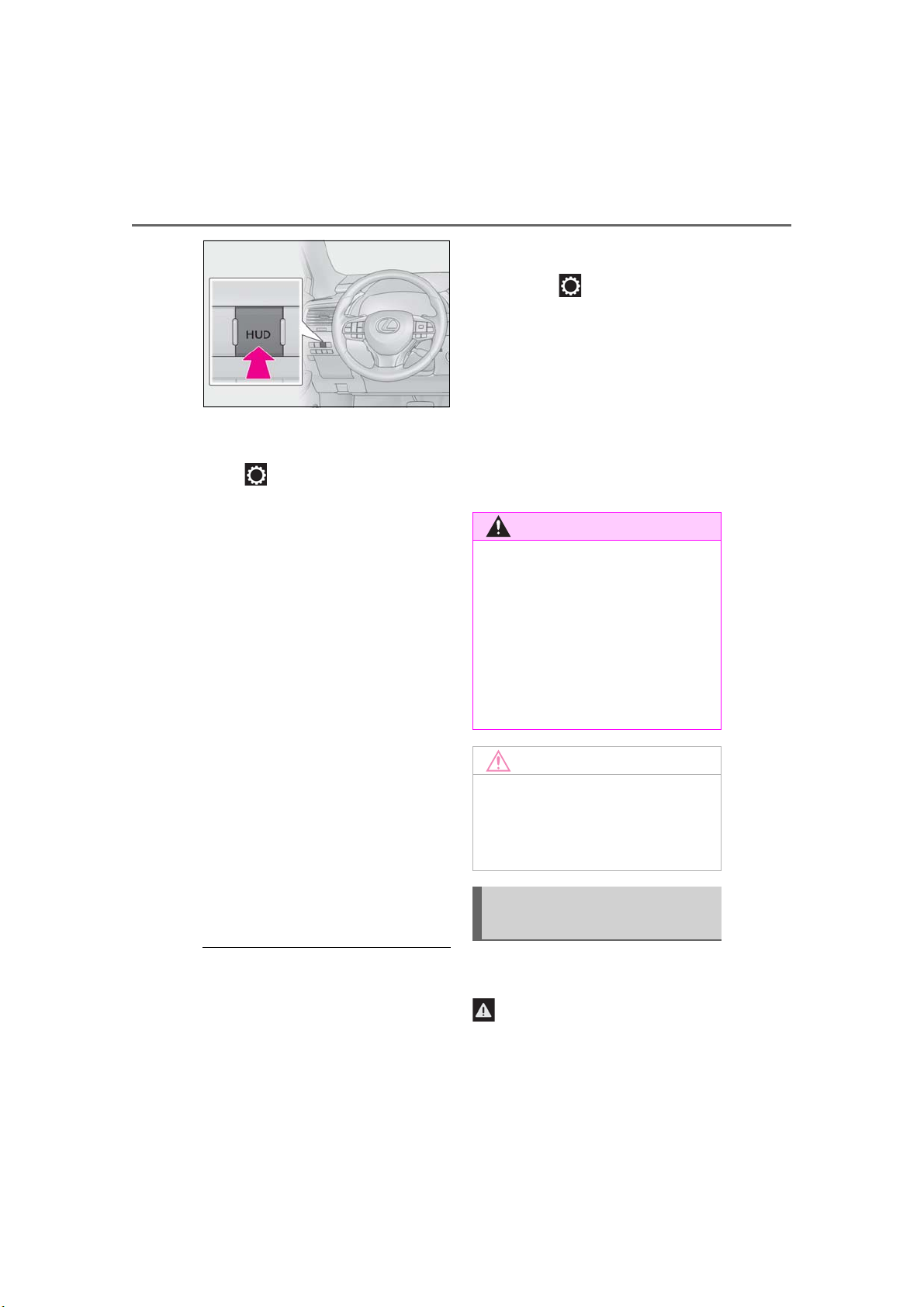

HUD (Head-up display) switch
*1
..........................................................................P.87
Instrument panel light control switches .............................................................P.78

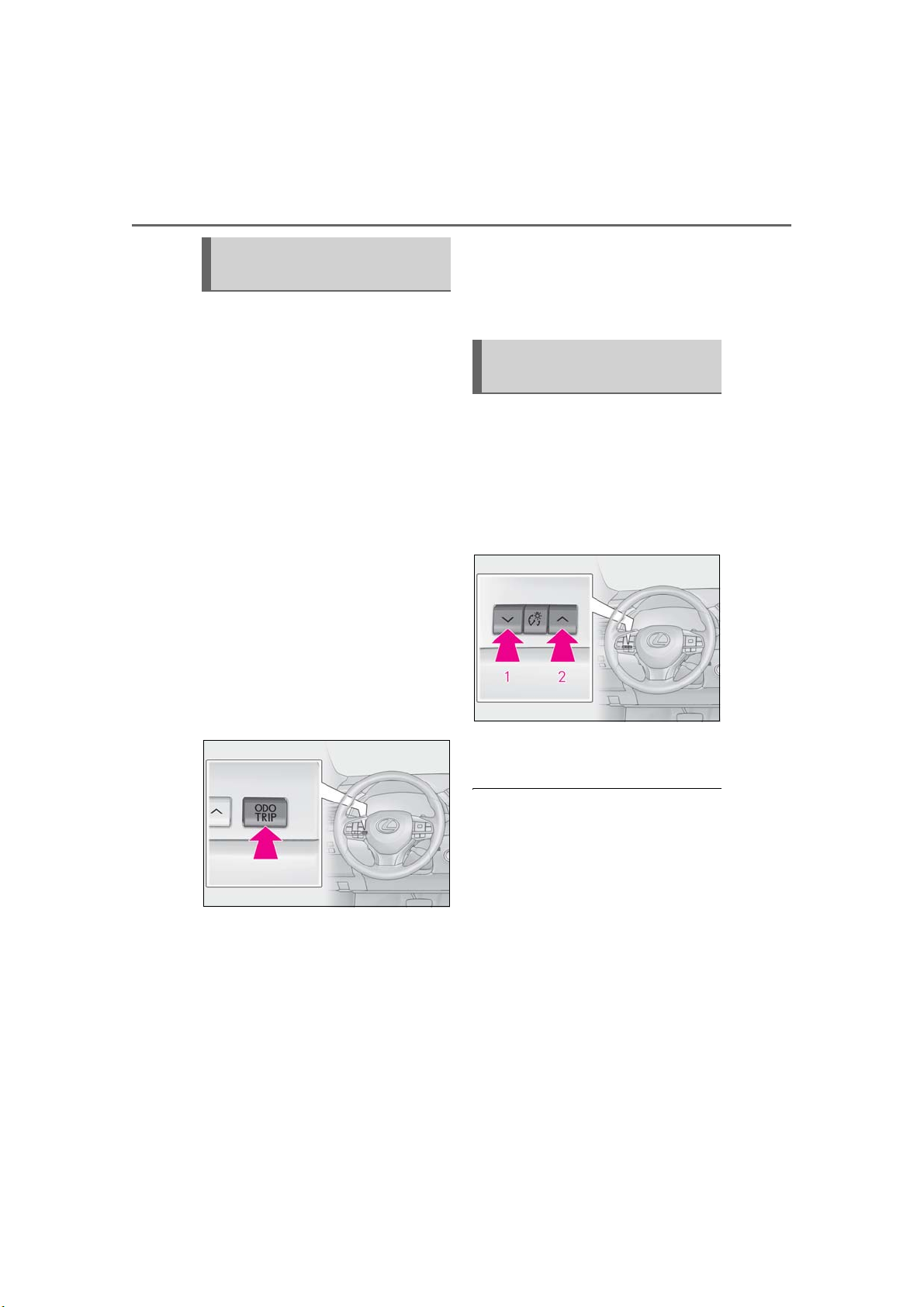

“ODO TRIP” switch ................................................................................................. P.78
Camera switch
*1, 2
Heated steering wheel switch*1........................................................................... P.311
G
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Page 17
Driving position memory switches*................................................................... P.134
A
Outside rear view mirror switches .................................................................... P.142
B
Door lock switches ...................................................................................................P.99
C
Power window switches ........................................................................................ P.145
D
Window lock switch ............................................................................................... P.147
E
*
:If equipped
Pictorial index
17
Audio remote control switches
A
Paddle shift switches ..............................................................................................P.182
B
Meter control switches .......................................................................................... P.80
C
Vehicle-to-vehicle distance switch ..................................................................P.234
D
Cruise control switch........................................................................................... P.230
E
LTA (Lane Tracing Assist) switch ..................................................................... P.223
F
Talk switch
G
Phone switch
H
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*
*
*
Page 18
18
B
Pictorial index
Remote Touch*1..................................................................................................... P.290
A
Driving mode select switch ................................................................................. P.274
VSC OFF switch..................................................................................................... P.279
C
All-wheel drive lock switch
D
Wireless charger switch
E
Front seat heater switches
F
Seat ventilator switches
G
Brake hold switch ................................................................................................... P.188
H
*1
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2
: If equipped
*2
............................................................................. P.276
*2
................................................................................. P.328
*2
................................................................................ P.311
*2
.................................................................................... P.312
Page 19
■Interior
I
J
RX350
Pictorial index
19
SRS airbags................................................................................................................ P.30
A
Floor mats .................................................................................................................... P.24
B
Front seats .................................................................................................................P.122
C
Rear seats ..................................................................................................................P.123
D

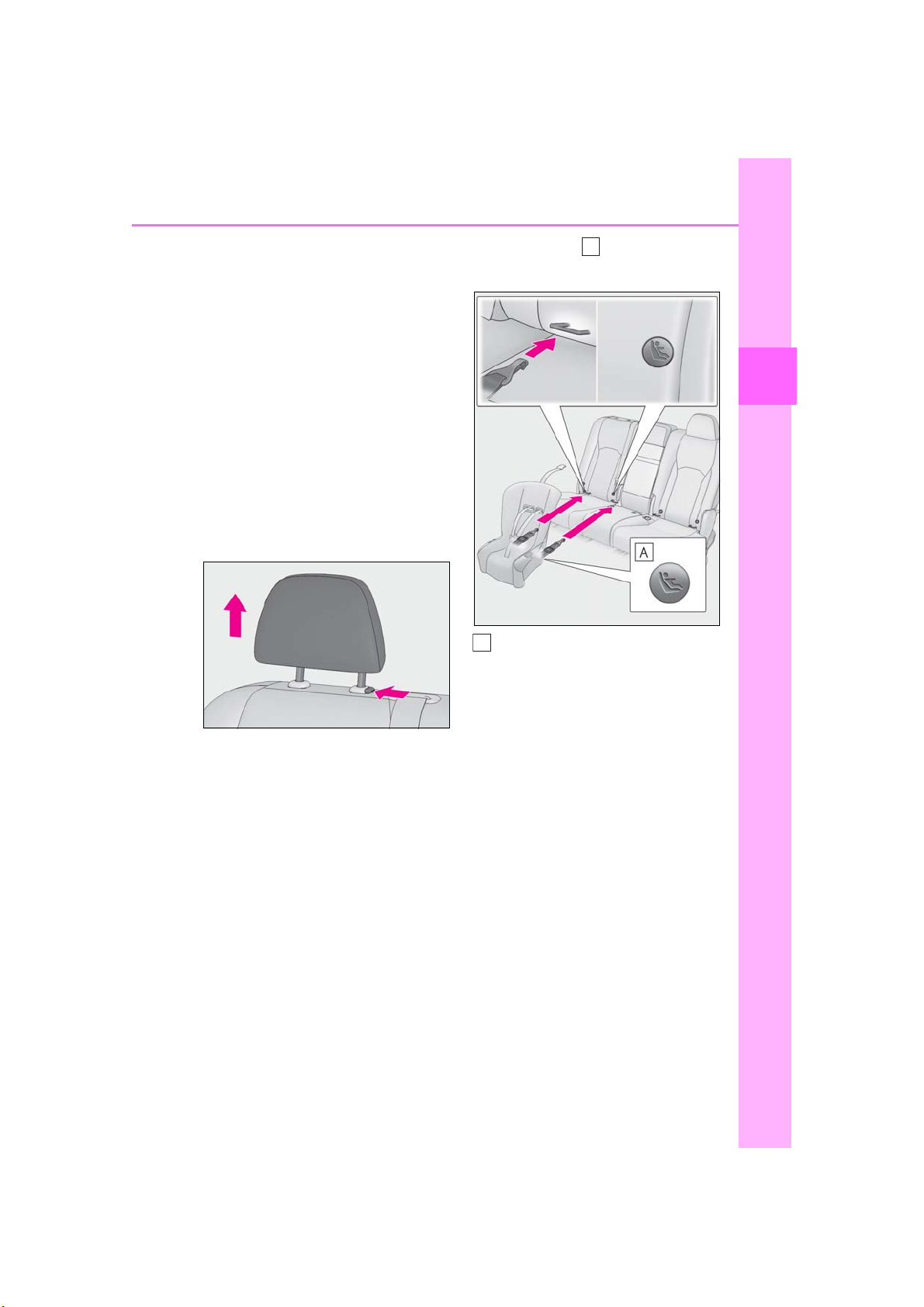

Head restraints ........................................................................................................ P.137
E
Seat belts .....................................................................................................................P.26
F
Console box..............................................................................................................P.318
G
Inside lock buttons .................................................................................................... P.99
H
Cup holders .............................................................................................................. P.319
Assist grips .............................................................................................................. P.335
Page 20
20
C
L
RX350L (vehicles with separate-type second-row seats)
Pictorial index
SRS airbags................................................................................................................ P.30
A
Floor mats .................................................................................................................... P.24
B
Front seats .................................................................................................................P.122
Second-row seats ................................................................................................... P.123
D
Third-row seats ........................................................................................................P.123
E
Head restraints ........................................................................................................ P.137
F
Seat belts .....................................................................................................................P.26
G
Console box..............................................................................................................P.318
H
Inside lock buttons .................................................................................................... P.99
I
Cup holders .............................................................................................................. P.319
J
Assist grips .............................................................................................................. P.335
K
Rear automatic air conditioning system .........................................................P.307
Page 21
RX350L (vehicles with bench-type second-row seats)
C
L
Pictorial index
21
SRS airbags................................................................................................................ P.30
A
Floor mats .................................................................................................................... P.24
B
Front seats .................................................................................................................P.122
Second-row seats ................................................................................................... P.123
D
Third-row seats ........................................................................................................P.123
E
Head restraints ........................................................................................................ P.137
F
Seat belts .....................................................................................................................P.26
G
Console box..............................................................................................................P.318
H
Inside lock buttons .................................................................................................... P.99
I
Cup holders .............................................................................................................. P.319
J
Assist grips .............................................................................................................. P.335
K
Rear automatic air conditioning system .........................................................P.307
Page 22
22
E
F
■Ceiling
A
B
C
D
Pictorial index
Auxiliary box............................................................................................................. P.321
Interior light
Personal lights
Moon roof switches
Panoramic moon roof switches
“SOS” button
*1
...........................................................................................................P.313
*1
.......................................................................................................P.314
*2
............................................................................................ P.147
*2
...................................................................... P.150
*2
..........................................................................................................P.60
Vanity mirrors ........................................................................................................ P.338
Sun visors.................................................................................................................. P.337
Inside rear view mirror ........................................................................................... P.141
G
Garage door opener switches .......................................................................... P.339
H
*1
: The illustration shows the front, but they are also equipped in the rear.
*2
: If equipped
Page 23
23
For safety and security
.
1-1. For safe use
Before driving.................................24
For safe driving.............................. 25
Seat belts ......................................... 26
SRS airbags .................................... 30
Front passenger occupant classifi-
cation system .............................. 39
Exhaust gas precautions ........... 44
1-2. Child safety
Riding with children..................... 45

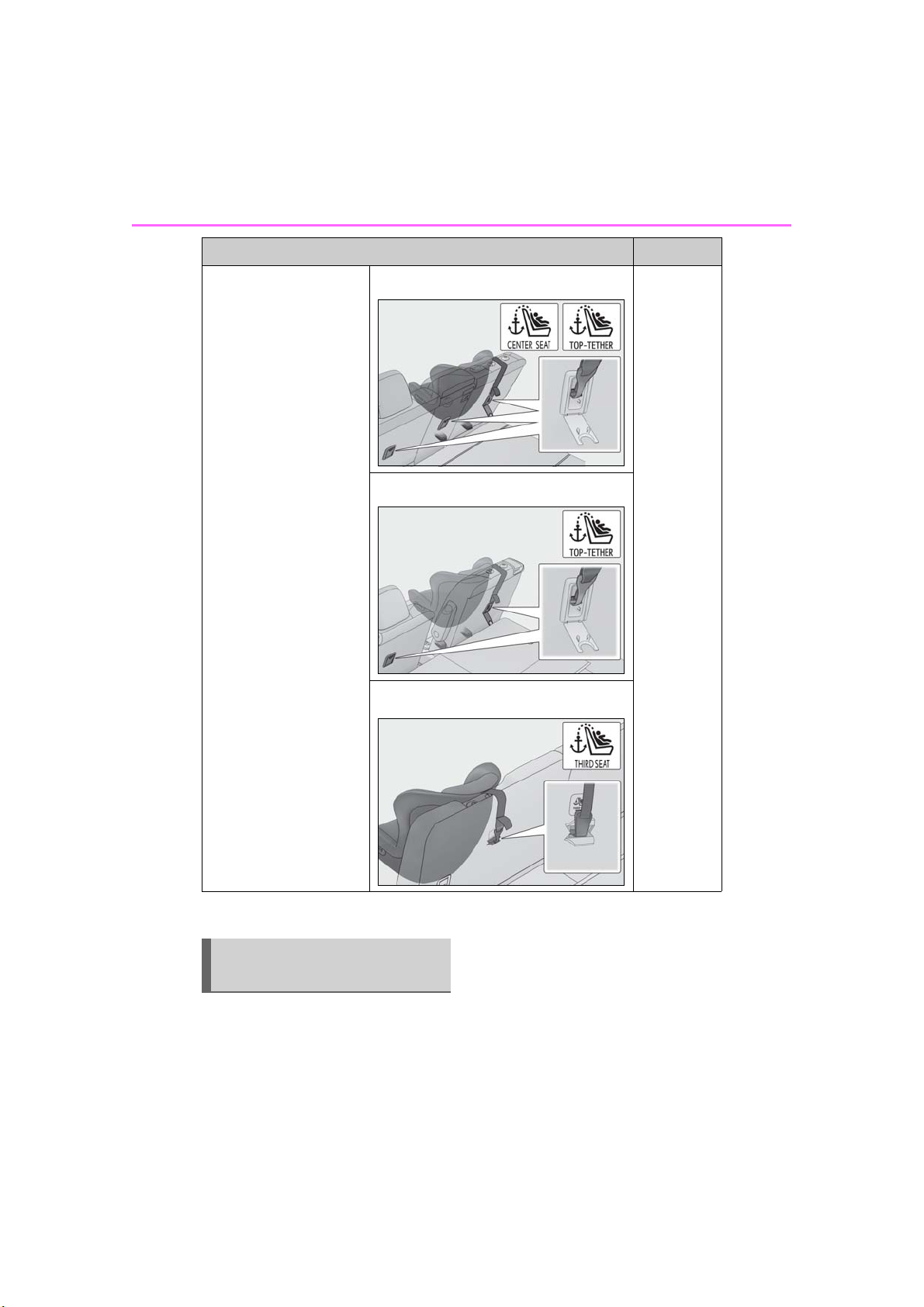

Child restraint systems .............. 45
1-3. Lexus Enform
Lexus Enform Safety Connect
........................................................... 60
1-4. Theft deterrent system
Engine immobilizer system...... 64
Alarm................................................. 67
1
1
For safety and security
Page 24
24
A
WARNING
1-1.For safe use
1-1. For safe use
Before driving
Observe the following before starting off in the vehicle to ensure
safety of driving.
Installing floor mats
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the
driver’s seat.
● Always install the floor mat securely
using the retaining hooks (clips) provided.
● Do not use two or more floor mats on
top of each other.
● Do not place the floor mat bot-
tom-side up or upside-down.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illustration.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
Page 25
1-1. For safe use
WARNING
A
B
C
D
25
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean forward to steer. (P.122)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.122)
Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
(P.137)
Wear the seat belt correctly.
(P.26)

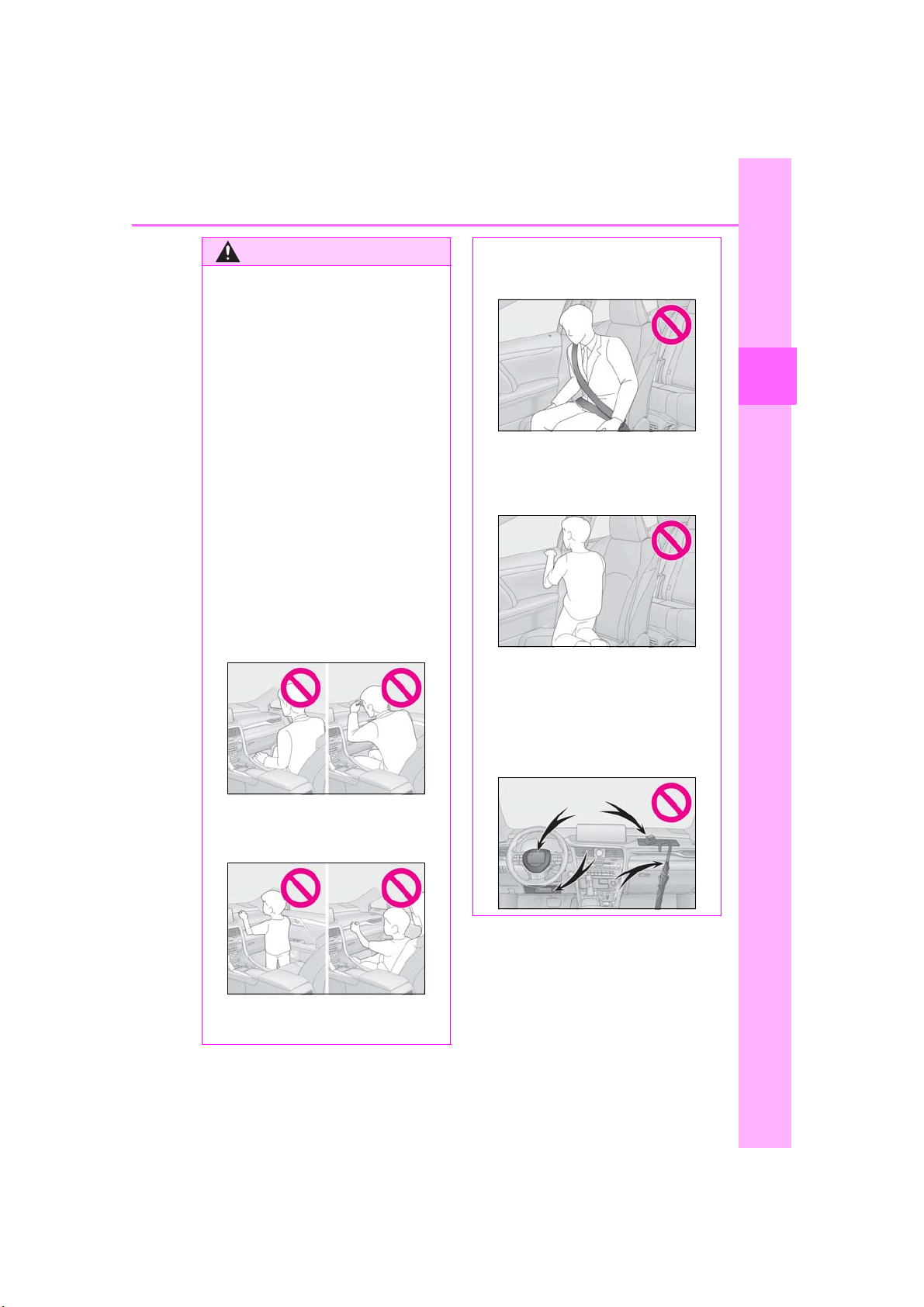

● Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
● Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
● Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
● Always observe the legal speed limit
when driving on public roads.
● When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to continue driving and take a break immediately.
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle. (P.26)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.45)
1
For safety and security
■ For safe driving
Observe the following precautions.
Failure to do so may result in death or
serious injury.
Adjusting the mirrors
Make sure that you can see backward
clearly by adjusting the inside and outside rear view mirrors properly.
(P.141, 142)
Page 26
26
WARNING
1-1. For safe use
Seat belts
Make sure that all occupants are
wearing their seat belts before driving the vehicle.
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat
belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, including children.
● Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
● To achieve a proper seating position,
do not recline the seat more than necessary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
● Do not wear the shoulder belt under
your arm.
● Always wear your seat belt low and
snug across your hips.
● RX350L: Do not let third-row seat
passengers to use second-row seat
seat belts.

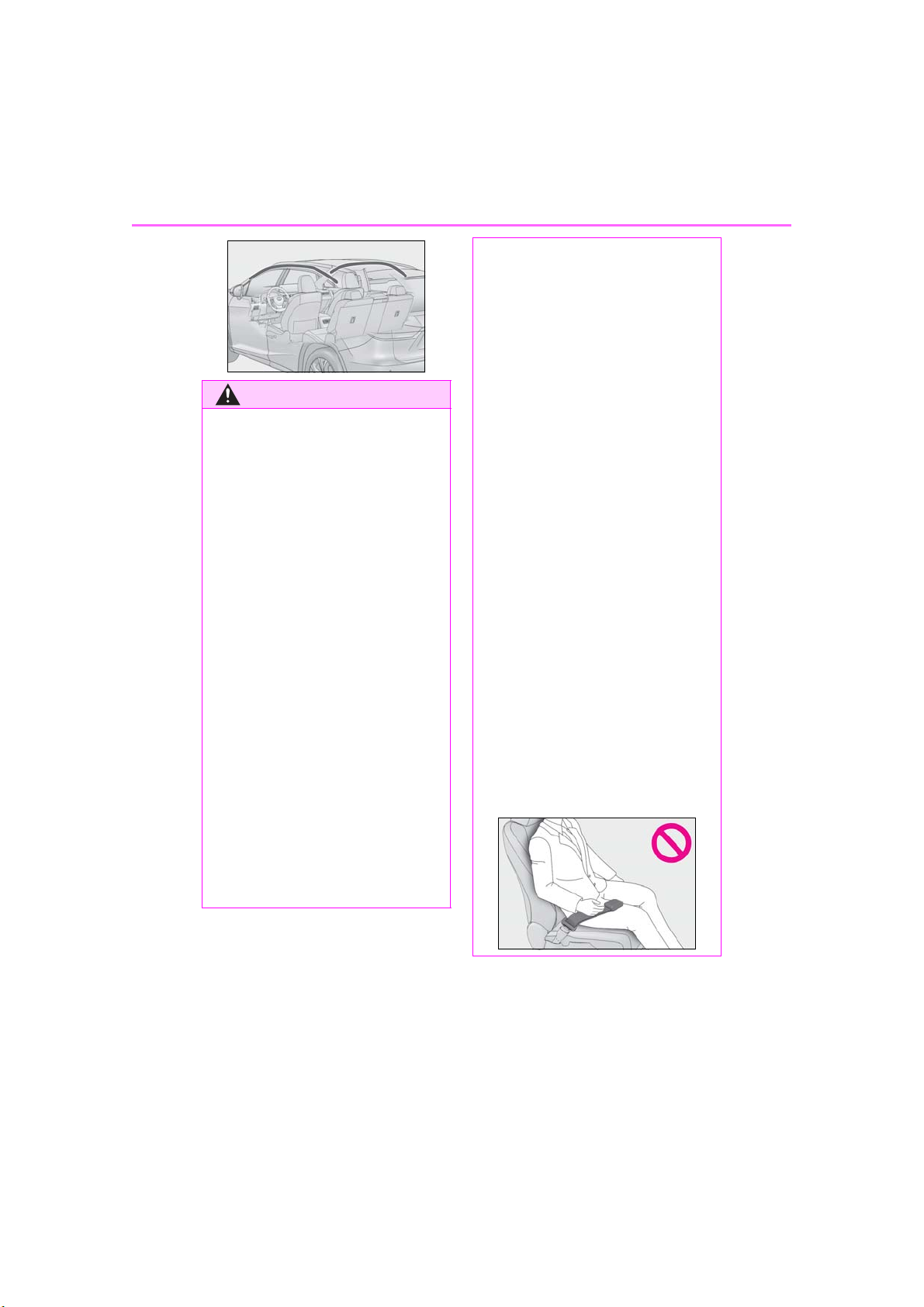

■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
P.27)
■ People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (
■ When children are in the vehicle
P.54
P.27)
Page 27
1-1. For safe use
WARNING
WARNING
ble over the hips.
27
■ Seat belt damage and wear
● Do not damage the seat belts by allow-
ing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodi-
cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.
● Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
● Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there is no obvious damage.
● Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
Adjust the position of the seatback.
Sit up straight and well back in the
seat.
Do not twist the seat belt.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.45)
● When the child becomes large enough to
properly wear the vehicle’s seat belt, follow the instructions regarding seat belt
usage. (P.26)
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long enough,
a personalized seat belt extender is available from your Lexus dealer free of charge.
1
For safety and security
Correct use of the seat belts
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
Position the lap belt as low as possi-
■ Using a seat belt extender
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
● Do not wear the seat belt extender if
you can fasten the seat belt without the
extender.
Page 28
28
WARNING
NOTICE
WARNING
● Do not use the seat belt extender
● The personalized extender may not be
■ When using a seat belt extender
When releasing the seat belt, press on
the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle
interior and the extender itself.
1-1. For safe use
when installing a child restraint system
because the belt will not securely hold
the child restraint system, increasing
the risk of death or serious injury in the
event of an accident.
safe on another vehicle, when used by
another person, or at a different seating position other than the one originally intended.
Fastening and releasing the seat
belt
motion will allow the belt to extend so that
you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and
cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt
and then pull the belt out once more.
(P.45)
Adjusting the seat belt shoulder
anchor height (front seats)
1 Push the seat belt shoulder anchor
down while pressing the release
button .
2 Push the seat belt shoulder anchor
up.
Move the height adjuster up and down as
needed until you hear a click.
A
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop o r on impa ct. It ma y also lock if y ou
lean forward too quickly. A slow, easy
A
■ Adjustable shoulder anchor
Always make sure the shoulder belt is
positioned across the center of your
shoulder. The belt should be kept away
from your neck, but not falling off your
shoulder. Failure to do so could reduce
the amount of protection in an accident
and cause death or serious injuries in the
event of a sudden stop, sudden swerve or
accident.
Page 29
1-1. For safe use
WARNING
29
Seat belt pretensioners (front
seats and outboard second-row
seats)
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal or side collision or a
vehicle rollover.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact or a rear impact.
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the seat belt pretensioner for the front passenger’s seat
may not activate in the event of a collision.
● If the pretensioner has activated, the
SRS warning light will come on. In that
case, the seat belt cannot be used
again and must be replaced at your
Lexus dealer.
1
For safety and security
■ Replacing the belt after the preten-
sioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
■ Seat belt pretensioners
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
Page 30
30
A
B
C
D
1-1. For safe use

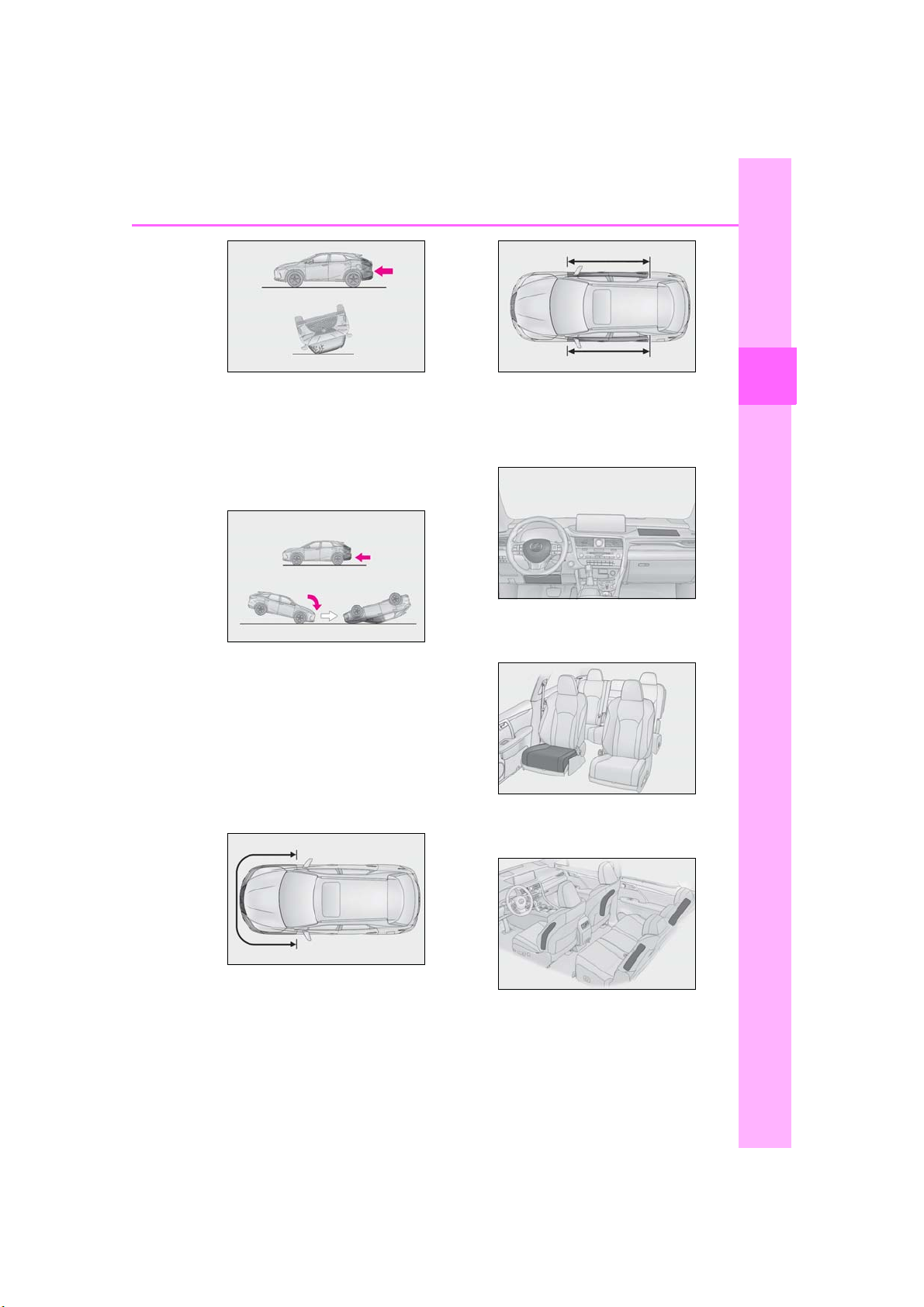

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of severe
impacts that may cause significant injury to the occupants. They work together
with the seat belts to help reduce the risk of death or serious injury.
SRS airbag system
■ Location of the SRS airbags
RX350
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbag
Can help provide driver protection
SRS seat cushion airbag
Can help restrain the front passenger
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
Page 31
1-1. For safe use
E
F
A
B
C
D
E
SRS rear side airbags
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the event of vehicle rollover
RX350L
31
1
For safety and security
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbag
Can help provide driver protection
SRS seat cushion airbag
Can help restrain the front passenger
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the outboard second-row seats
Page 32
32
FAB
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
1-1. For safe use
SRS curtain shield airbags
• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the event of vehicle rollover
■ SRS airbag system components
Front passenger airbag

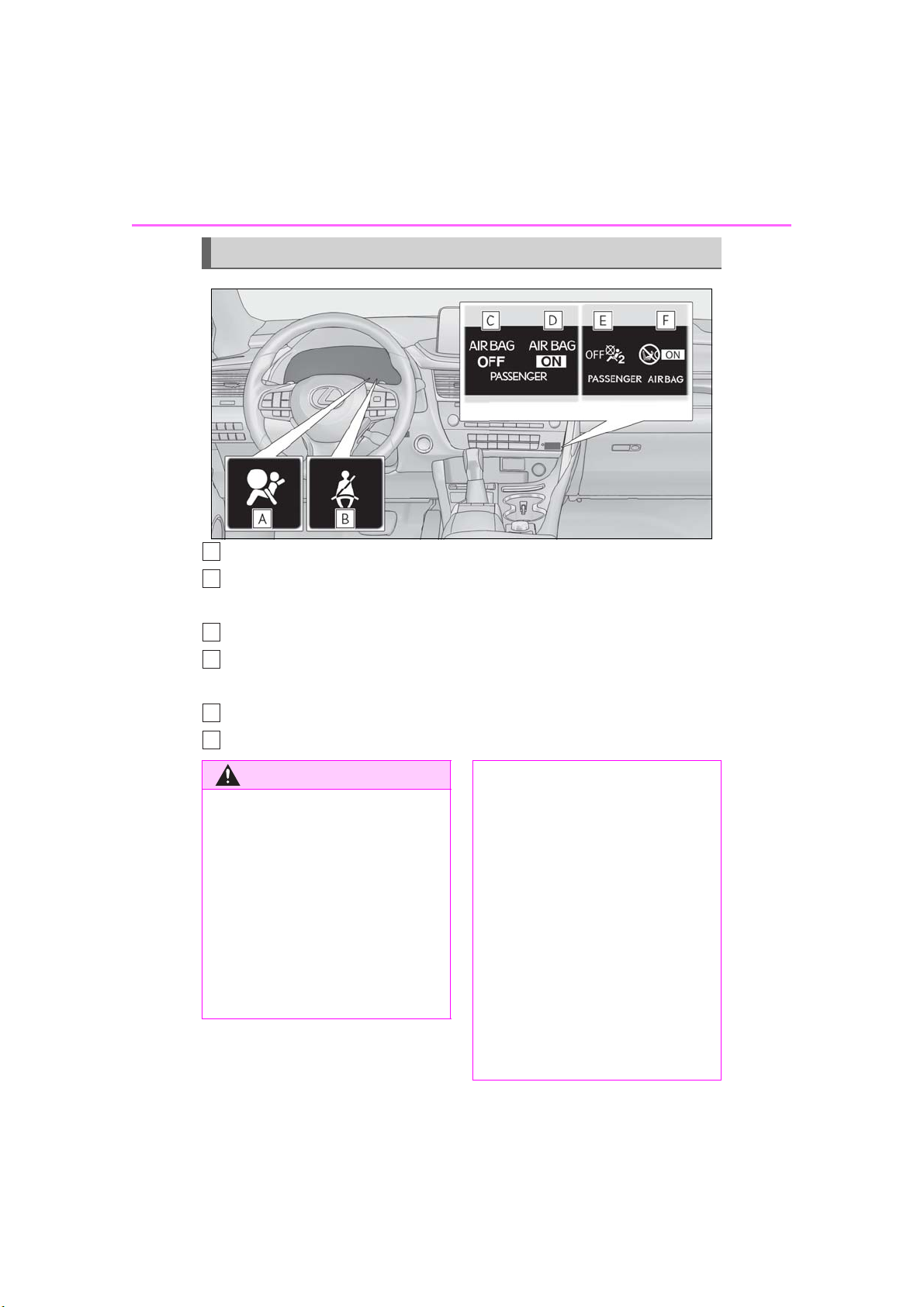

“AIR BAG ON” and “AIR BAG OFF” indicator lights
Front side airbags
Curtain shield airbags
Side impact sensors (rear)
SRS warning light
Front passenger occupant classification system (ECU and sensors)
Driver airbag
Side impact sensors (front door)
Seat belt pretensioners and force limiters
Passenger seat cushion airbag
Driver’s seat position sensor
Driver’s knee airbag
Driver’s seat belt buckle switch
Front impact sensors
Airbag sensor assembly
RX350: Rear side airbags
Page 33
1-1. For safe use
RX350L: Rear side airbags (outboard second-row seats)
Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US
motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtained from the sensors etc.
shown in the system components diagram above. This information includes crash
severity and occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of
the occupants.
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be
emitted.
● Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
● The windshield may crack.
● All of the doors will be unlocked.
(P.98)
● The brakes and stop lights will be con-
trolled automatically. (P.278)
● The interior lights will turn on automati-
cally. (P.314)
● The emergency flashers will turn on auto-
matically. (P.404)
● Fuel supply to the engine will be stopped.
(P.412)
● For Lexus Enform Safety Connect sub-
scribers, if any of the following situations
occur, the system is designed to send an
emergency call to the response center,
notifying them of the vehicle’s location
(without needing to push the “SOS” button) and an agent will attempt to speak
with the occupants to ascertain the level
of emergency and assistance required. If
the occupants are unable to communicate, the agent automatically treats the
call as an emergency and helps to dispatch the necessary emergency services.
(P.60)
• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe
rear-end collision.
■ SRS airbag deployment conditions (SRS
front airbags)
● The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 12 - 18
mph [20 - 30 km/h] frontal collision with
a fixed wall that does not move or
deform).
However, this threshold velocity will be
considerably higher in the following situations:
• If the vehicle strikes an object, such as a
parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle “underrides”, or goes
under, the bed of a truck
● Depending on the type of collision, it is
possible that only the seat belt pretensioners will activate.
● The SRS seat cushion airbag on the front
passenger seat will not operate if the
occupant is not wearing a seat belt.
■ SRS airbag deployment conditions (SRS
side and curtain shield airbags)
● The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
3300 lb. [1500 kg] vehicle colliding with
the vehicle cabin from a direction per-
33
1
For safety and security
Page 34
34
1-1. For safe use
pendicular to the vehicle orientation at an
approximate speed of 12 - 18 mph [20 30 km/h]).
● Both SRS curtain shield airbags will
deploy in the event of vehicle rollover.
● All SRS side and curtain shield airbags
will deploy in the event of a severe frontal
collision.

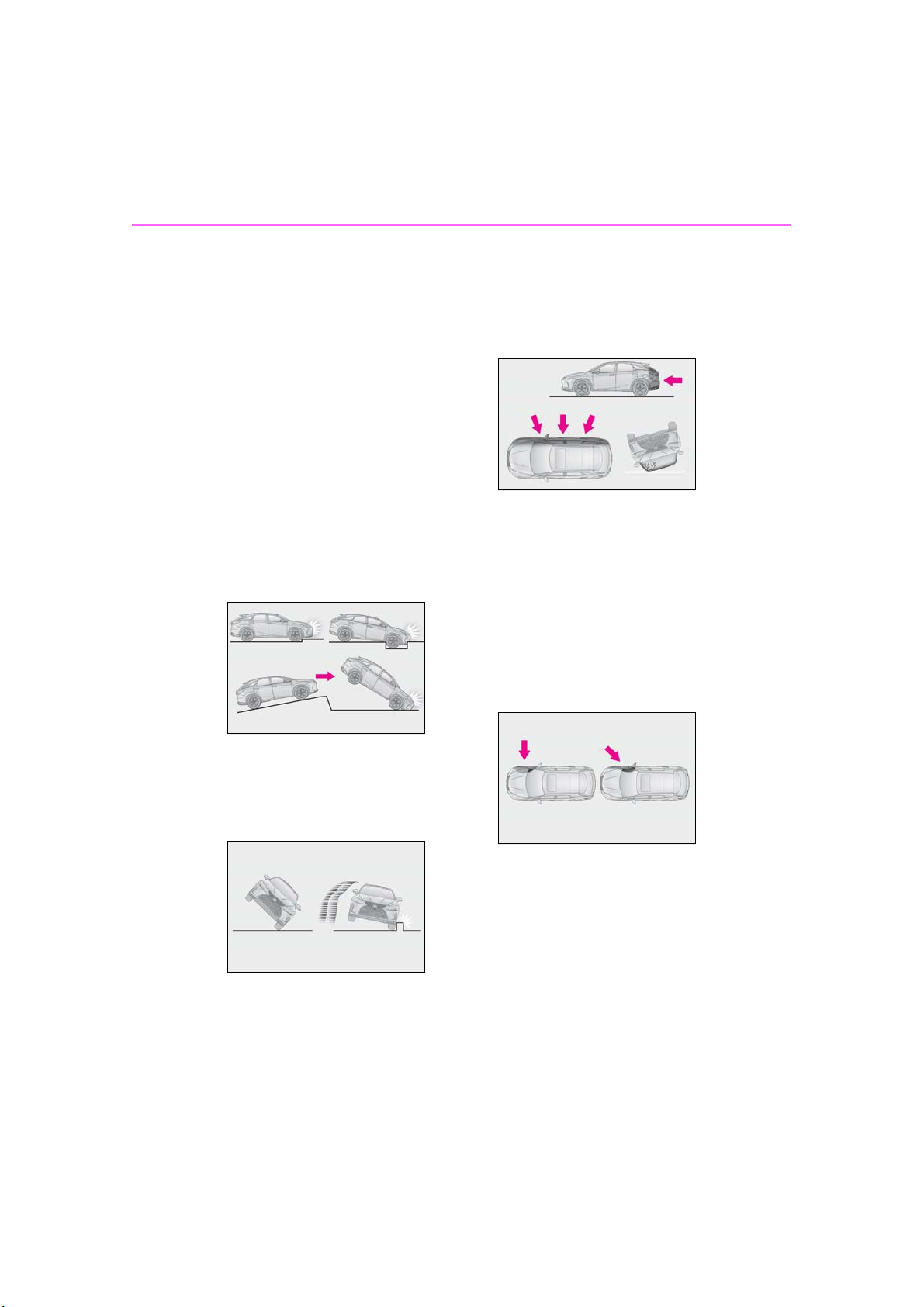

■ Conditions under which the SRS air-
bags may deploy (inflate), other than a
collision
The SRS front airbags and SRS side and
curtain shield airbags may also deploy if a
serious impact occurs to the underside of
your vehicle. Some examples are shown in
the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
ever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
■ Types of collisions that may not deploy
the SRS airbags (SRS side and curtain
shield airbags)
The SRS side and curtain shield airbags
may not activate if the vehicle is subjected
to a collision from the side at certain angles,
or a collision to the side of the vehicle body
other than the passenger compartment.
● Collision from the side to the vehicle
body other than the passenger compartment
● Collision from the side at an angle
The SRS curtain shield airbags may also
deploy under the situations shown in the
illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
■ Types of collisions that may not deploy
the SRS airbags (SRS front airbags)
The SRS front airbags do not generally
inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved
in a low-speed frontal collision. But, when-
The SRS side airbags do not generally
inflate if the vehicle is involved in a frontal or
rear collision, if it rolls over, or if it is involved
in a low-speed side or low-speed frontal
collision.
● Collision from the rear
● Vehicle rollover
Page 35
1-1. For safe use
35
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it pitches end over end, or if
it is involved in a low-speed side or
low-speed frontal collision.
● Collision from the rear
● Pitching end over end
■ When to contact your Lexus dealer
In the following cases, the vehicle will
require inspection and/or repair. Contact
your Lexus dealer as soon as possible.
● Any of the SRS airbags have been
inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise
damaged.
● The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
damaged.
● The surface of the seats with the SRS side
airbag is scratched, cracked, or otherwise damaged.
1
For safety and security
● A portion of a door or its surrounding
area is damaged, deformed or has had a
hole made in it, or the vehicle was
involved in an accident that was not
severe enough to cause the SRS side and
curtain shield airbags to inflate.
● The portion of the front pillars, rear pillars
or roof side rail garnishes (padding) containing the SRS curtain shield airbags
inside is scratched, cracked, or otherwise
damaged.
Page 36
36
WARNING
■ SRS airbag precautions
Observe the following precautions
regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the
● The SRS driver airbag deploys with
• Move your seat to the rear as far as
1-1. For safe use
vehicle must wear their seat belts
properly.
The SRS airbags are supplemental
devices to be used with the seat belts.
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag.
The National Highway Traffic Safety
Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250
mm) from your driver airbag provides
you with a clear margin of safety. This
distance is measured from the center
of the steering wheel to your breastbone. If you sit less than 10 in. (250
mm) away now, you can change your
driving position in several ways:
you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many
drivers can achieve the 10 in. (250
mm) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
• If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals,
steering wheel, and your view of the
instrument panel controls.
● If the seat belt extender has been con-
nected to the front seat belt buckles
but the seat belt extender has not also
been fastened to the latch plate of the
seat belt, the SRS front airbags will
judge that the driver and front passenger are wearing the seat belt even
though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a
collision, resulting in death or serious
injury in the event of a collision. Be
sure to wear the seat belt with the seat
belt extender.
Page 37
WARNING
● The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front passenger seat. (
● Do not sit on the edge of the seat or
lean against the dashboard.
P.45)
1-1. For safe use
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the
passenger seats toward the door or
put their head or hands outside the
vehicle.

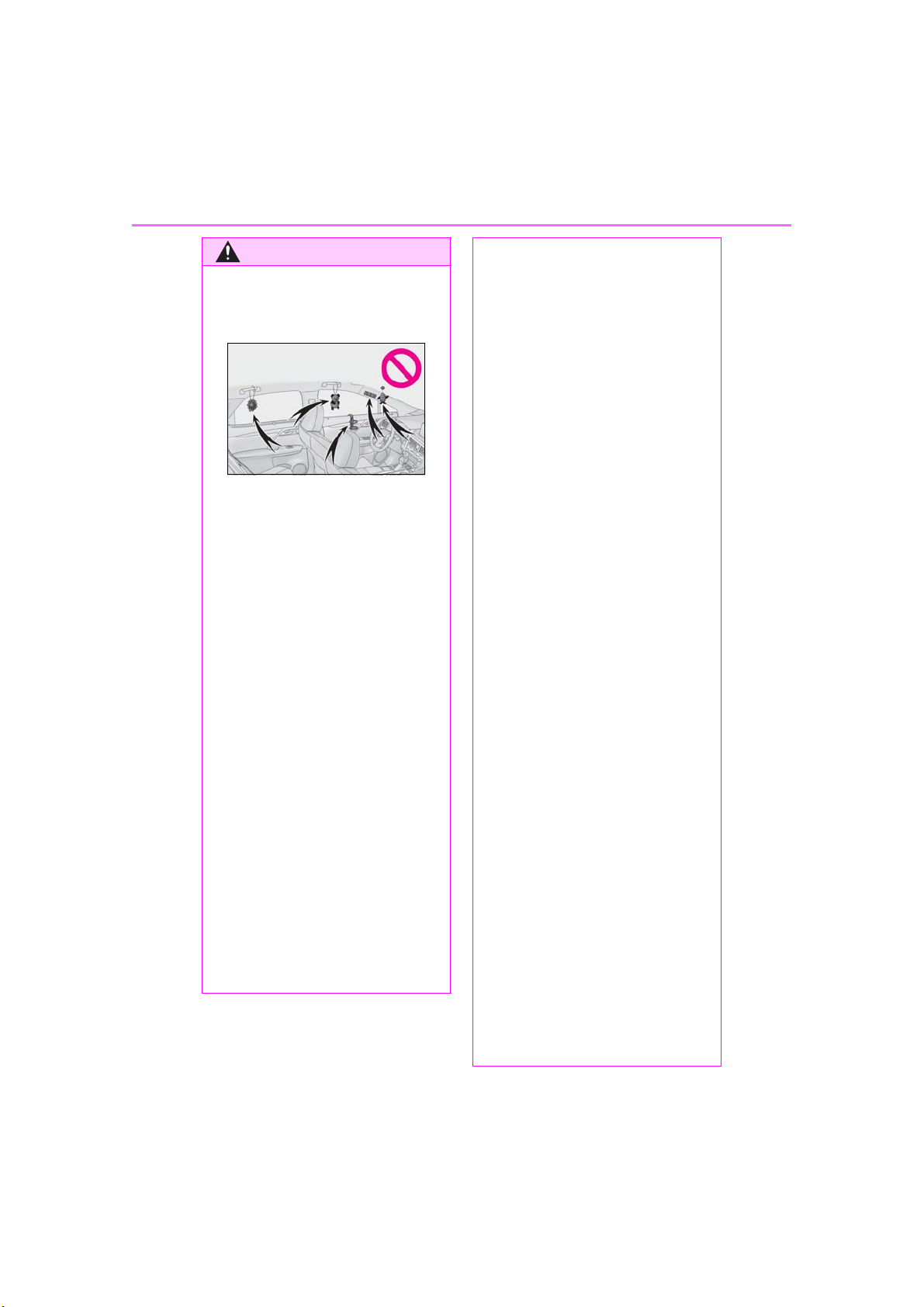

● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
37
1
For safety and security
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants
to hold items on their knees.
Page 38
38
WARNING
● Do not attach anything to areas such
1-1. For safe use
as a door, windshield, side windows,
front or rear pillar, roof side rail and
assist grip.
● Do not hang coat hangers or other
hard objects on the coat hooks. All of
these items could become projectiles
and may cause death or serious injury,
should the SRS curtain shield airbags
deploy.
● If a vinyl cover is put on the area where
the SRS knee airbag will deploy, be
sure to remove it.
● Do not use seat accessories which
cover the parts where the SRS side airbags and SRS seat cushion airbag
inflate as they may interfere with inflation of the SRS airbags. Such accessories may prevent the side airbags and
SRS seat cushion airbag from activating correctly, disable the system or
cause the side airbags and SRS seat
cushion airbag to inflate accidentally,
resulting in death or serious injury.
● Do not strike or apply significant levels
of force to the area of the SRS airbag
components or the front doors. Doing
so can cause the SRS airbags to malfunction.
● Do not touch any of the component
parts immediately after the SRS airbags have deployed (inflated) as they
may be hot.
● If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are
stored, such as the steering wheel pad
and front and rear pillar garnishes, are
damaged or cracked, have them
replaced by your Lexus dealer.
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the SRS front airbags for the front passenger may not
deploy in the event of a collision.
■ Modification and disposal of SRS air-
bag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and
repair of the SRS airbags
● Repairs, modifications, removal or
replacement of the steering wheel,
instrument panel, dashboard, seats or
seat upholstery, front, side and rear pillars, roof side rails, front door panels,
front door trims or front door speakers
● Modifications to the front door panel
(such as making a hole in it)
● Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspen-
sion system
Page 39
WARNING
● Installation of electronic devices such
as mobile two-way radios and CD
players
● Modifications to your vehicle for a per-
son with a physical disability
1-1. For safe use
Front passenger occupant
classification system
Your vehicle is equipped with a
front passenger occupant classification system. This system detects
the conditions of the front passenger seat and activates or deactivates the devices for the front
passenger.
39
1
For safety and security
Page 40
40
A
B
C
D
E
F
WARNING
1-1. For safe use
System components
SRS warning light
Driver’s and front passenger’s seat belt reminder light
For the U.S.A.
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
For Canada
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
■ Front passenger occupant classifica-
tion system precautions
Observe the following precautions
regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat
belt plate has not been left inserted
into the buckle before someone sits in
the front passenger seat.
● Make sure the “AIR BAG OFF” indica-
tor light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat
belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON”
indicator light is illuminated. If you use
the seat belt extender while the “AIR
BAG OFF” indicator light is illuminated, the SRS airbags for the front
passenger will not activate, which
could cause death or serious injury in
the event of a collision.
● Do not apply a heavy load to the front
passenger seat or equipment (e.g.
seatback pocket).
Page 41
WARNING
● Do not put weight on the front passen-
ger seat by putting your hands or feet
on the front passenger seat seatback
from the rear passenger seat.
● Do not let a rear passenger lift the
front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front pas-
senger seat.
● Do not recline the front passenger
seatback so far that it touches a rear
seat. This may cause the “AIR BAG
OFF” indicator light to be illuminated,
which indicates that the SRS airbags
for the front passenger will not activate
in the event of a severe accident. If the
seatback touches the rear seat, return
the seatback to a position where it
does not touch the rear seat. Keep the
front passenger seatback as upright as
possible when the vehicle is moving.
Reclining the seatback excessively
may lessen the effectiveness of the
seat belt system.
1-1. For safe use
● Do not kick the front passenger seat or
subject it to severe impact. Otherwise,
the SRS warning light may come on to
indicate a malfunction of the front passenger occupant classification system.
In this case, contact your Lexus dealer
immediately.
● Child restraint systems installed on the
rear seat should not contact the front
seatbacks.
● Do not use a seat accessory, such as a
cushion and seat cover, that covers the
seat cushion surface.
● Do not modify or replace the uphol-
stery of the front seat.
41
1
For safety and security
● If an adult sits in the front passenger
seat, the “AIR BAG ON” indicator light
is illuminated. If the “AIR BAG OFF”
indicator is illuminated, ask the passenger to sit up straight, well back in the
seat, feet on the floor, and with the seat
belt worn correctly. If the “AIR BAG
OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not
possible, move the front passenger
seat fully rearward.
● When it is unavoidable to install a for-
ward-facing child restraint system on
the front passenger seat, install the
child restraint system on the front passenger seat in the proper order.
(
P.46)
● Do not modify or remove the front
seats.
Page 42
42
1-1. For safe use
Condition and operation in the front passenger occupant classification
system
■ Adult
*1
Indicator/warning light
Devices
■ Child
*4
Indicator/warning light
Devices
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light
Front passenger airbag Activated
Seat cushion airbag in the front passenger
side
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light
Front passenger airbag
Seat cushion airbag in the front passenger
side
“AIR BAG ON”
Off*2 or flashing
*3
Activated*2 or deacti-
*3
vated
“AIR BAG OFF” or
“AIR BAG ON”
Off*2 or flashing
*4
*3
Deactivated or acti-
*4
vated
Deactivated or acti-
*4, 2
vated
■ Child restraint system with infant
“AIR BAG ON” and “AIR BAG OFF” indi-
Indicator/warning light
SRS warning light Off
Driver’s and front passenger’s seat belt
Front passenger airbag
Devices
Seat cushion airbag in the front passenger
*5
cator lights
reminder light
side
“AIR BAG OFF”
Off*2 or flashing
Deactivated
*6
*3
Page 43
■ Unoccupied
1-1. For safe use
43
Indicator/warning light
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light
Driver’s and front passenger’s seat belt
“AIR BAG OFF”
Off
reminder light
Front passenger airbag
Devices
Seat cushion airbag in the front passenger
Deactivated
side
■ There is a malfunction in the system
Indicator/warning light
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light On
Driver’s and front passenger’s seat belt
reminder light
“AIR BAG OFF”
Off
Front passenger airbag
Devices
Seat cushion airbag in the front passenger
Deactivated
side
*1
: The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may not recognize him/her as an adult depending on
his/her physique and posture.
*2
: In the event the front passenger is wearing a seat belt.
*3
: In the event the front passenger does not wear a seat belt.
*4
: For some children, child in seat, child in booster seat or child in convertible seat, the sys-
tem may not recognize him/her as a child. Factors which may affect this can be the physique or posture.
*5
: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint system should only be installed on the front passenger seat
when it is unavoidable. (P.45)
*6
: In case the indicator light is not illuminated, consult this manual on how to install the child
restraint system properly. (P.46)
1
For safety and security
Page 44
44
WARNING
1-1. For safe use
Exhaust gas precautions
Harmful substance to the human
body is included in exhaust gases if
inhaled.
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehi-
cle even when the back door is closed,
open the windows and have the vehicle inspected at your Lexus dealer as
soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
■ Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.
● Do not leave the vehicle with the
engine running for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
● Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
Page 45
1-2.Child safety
WARNING
Riding with children
1-2. Child safety
Child restraint systems
45
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper switch, etc.
Use the rear door child-protector
lock or the window lock switch to
avoid children opening the door
while driving or operating the
power window accidentally.
(P.100, 147)
Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, back door,
seats etc.
Before installing a child restraint
system in the vehicle, there are precautions that need to be observed,
different types of child restraint systems, as well as installation methods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child
restraint system to a second-row
seat. Be sure to follow the installation method that is in the operation
manual enclosed with the restraint
system.
Table of contents
Points to remember: P.45
Child restraint system: P.46
When using a child restraint system:
P.48
1
For safety and security
■ When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof or panoramic moon roof,
or other features of the vehicle. In addition, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.
Child restraint system installation
method
• Fixed with a seat belt: P.50
• Fixed with a child restraint LATCH
anchor: P.54
• Using an anchor bracket (for top
tether strap): P.57
Points to remember
The laws of all 50 states of the U.S.A.
as well as Canada now require the use
of child restraint systems.
Prioritize and observe the warn-
Page 46
46
WARNING
1-2. Child safety
ings, as well as the laws and regulations for child restraint systems.
Use a child restraint system until the
child becomes large enough to
properly wear the vehicle’s seat belt.
Choose a child restraint system that
suits your vehicle and is appropriate
to the age and size of the child.
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation manual enclosed with the child restraint
system. General installation instruction
is provided in this manual.
● Lexus strongly urges the use of a
proper child restraint system that conforms to the weight and size of the
child, installed on the second-row seat.
According to accident statistics, the
child is safer when properly restrained
in the second-row seat than in the front
seat.
● Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the windshield or between the holder and the
interior of the vehicle.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even
killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong
impact from an accident, etc., it is possible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.
● Make sure you have complied with all
installation instructions provided with
the child restraint system manufacturer and that the system is properly
secured.
● Keep the child restraint system prop-
erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
● If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the luggage compartment.
Child restraint system
■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
Page 47
1-2. Child safety

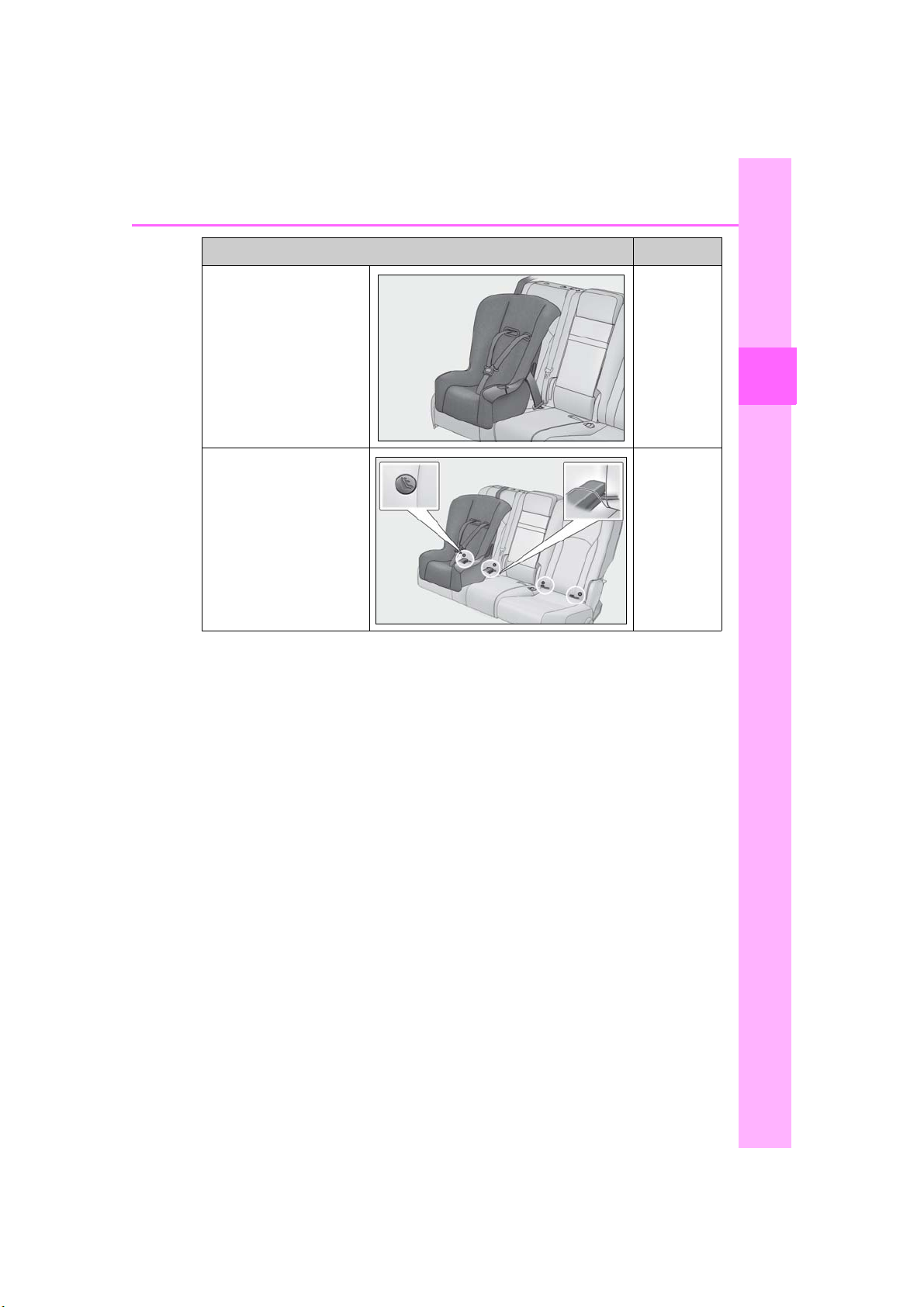

Installation method Page
Seat belt attachment P.50
47
1
For safety and security
Child restraint LATCH
anchors attachment
P.54
Page 48
48
1-2. Child safety
Installation method Page
Bench-type second-row seats:
Separate-type second-row seats:
Anchor brackets (for top
tether strap) attachment
Third-row seats*:
*
: The third-row seats are not equipped with Child restraint LATCH anchors.
When using a child restraint system

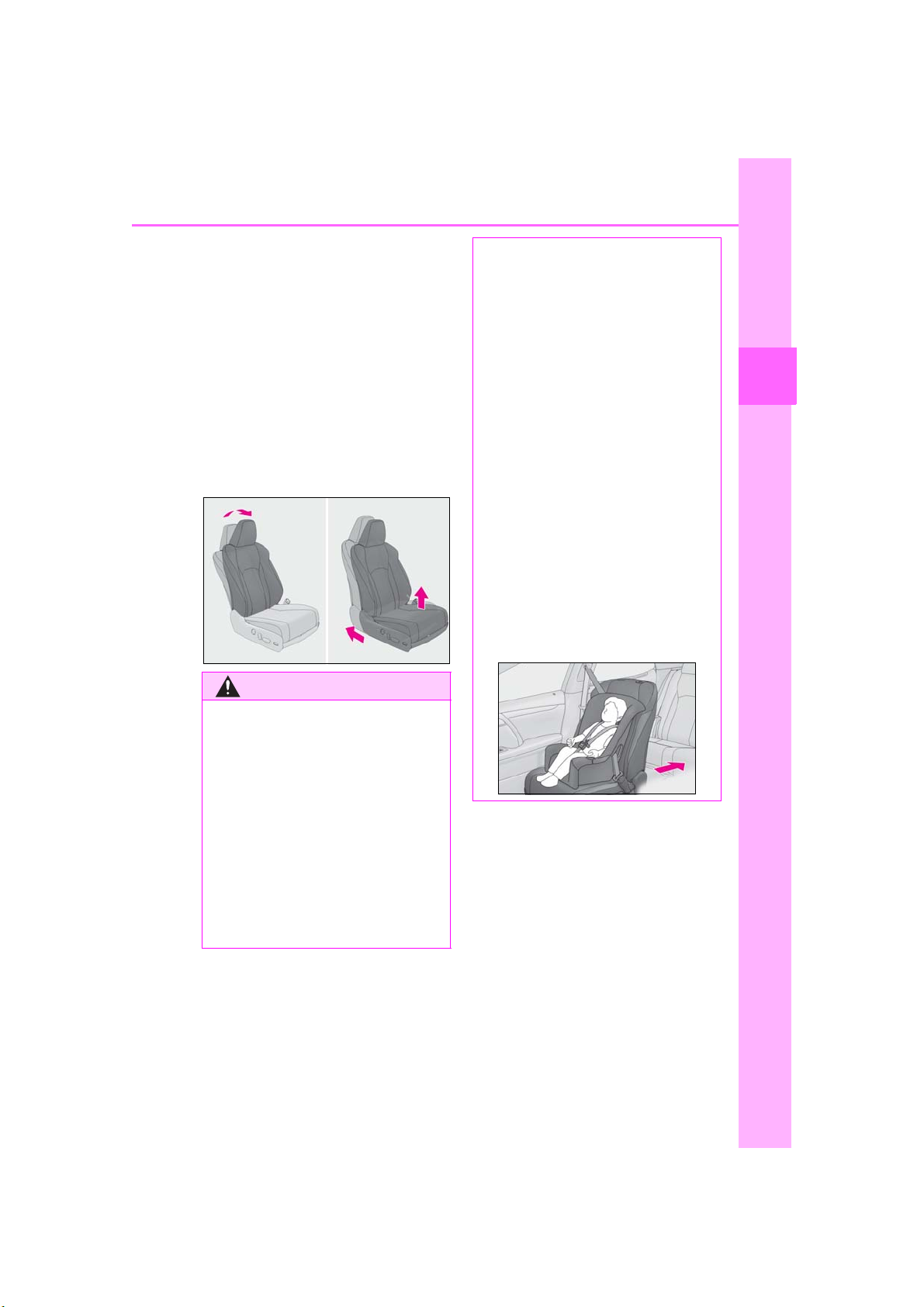

■ When installing a child restraint
system to a front passenger seat
For the safety of a child, install child
restraint systems to second-row seats.
When installing child restraint system
to a front passenger seat is unavoidable, adjust the seat as follows and
install the child restraint system.
Move the seat to the rearmost posi-
P.57
Page 49
1-2. Child safety
WARNING
49
tion
Raise the seatback as much as pos-
sible
Raise the seat to the highest position
If the head restraint interferes with
the installation of the child restraint
system, and the head restraint can
be removed, remove the head
restraint
If the head restraint cannot be removed,
raise it to the uppermost position.
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable. A
child restraint system that requires a
top tether strap should not be used in
the front passenger seat since there is
no top tether strap anchor for the front
passenger seat.
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, raise the seatback as much as
possible, move the seat to the rearmost position, and raise the seat to the
highest position, even if the “AIR BAG
OFF” indicator light is illuminated.
If the head restraint interferes with the
installation of the child restraint system,
and the head restraint can be removed,
remove the head restraint.
If the head restraint cannot be removed,
raise it to the uppermost position.
1
For safety and security
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Never install a rear-facing child
restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of
an accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint
system is installed on the front passenger seat.
Page 50
50
WARNING
● Do not allow the child to lean his/her
● When a booster seat is installed,
● Use child restraint system suitable to
1-2. Child safety
head or any part of his/her body
against the door or the area of the seat,
front or rear pillars, or roof side rails
from which the SRS side airbags or
SRS curtain shield airbags deploy even
if the child is seated in the child
restraint system. It is dangerous if the
SRS side airbags and curtain shield airbags inflate, and the impact could
cause death or serious injury to the
child.
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
the age and size of the child and install
it to the rear seat.
Child restraint system fixed with
a seat belt
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
■ Installing child restraint system
using a seat belt (child restraint
lock function belt)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.

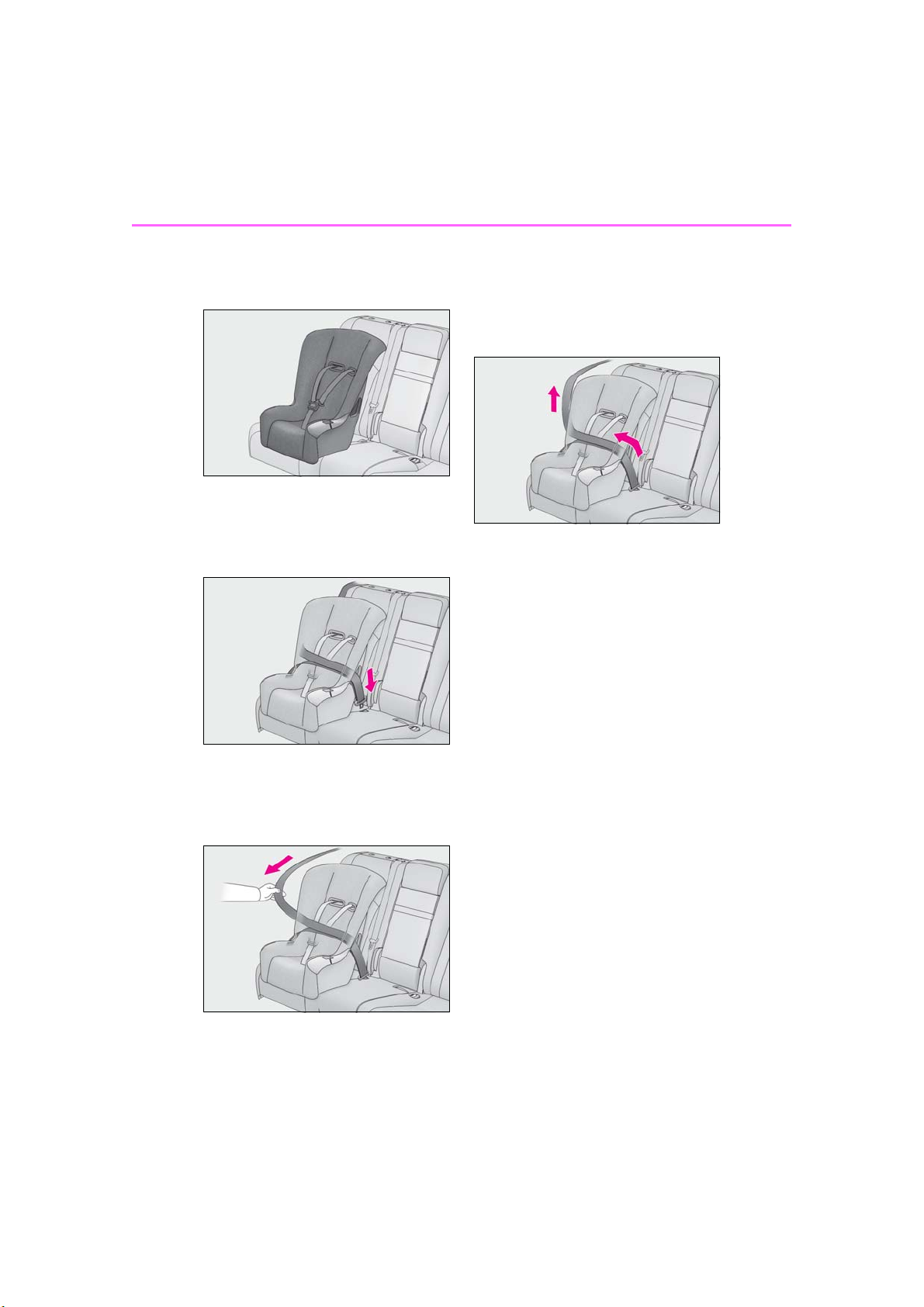

■ Rear-facing Infant seat/con-
vertible seat
1 Adjust the rear seat
If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.
2 Place the child restraint system on
the rear seat facing the rear of the
vehicle.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
right-hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
3 Run the seat belt through the child
restraint system and insert the plate
Page 51
1-2. Child safety
51
into the buckle. Make sure that the
belt is not twisted.
4 Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt cannot
be extended.
6 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.54)
■ Forward-facing Convertible
seat
1 Adjust the seat
When using the front passenger
seat
If installing the child restraint system to the
front passenger seat is unavoidable, refer
to P.48for the front passenger seat adjustment.
When using the rear seat
If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.
2 Remove the head restraint if it inter-
feres with your child restraint system. (P.137)
If the head restraint cannot be removed,
raise it to the uppermost position.
1
For safety and security
5 While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
Page 52
52
1-2. Child safety
3 Place the child restraint system on
the seat facing the front of the vehicle.
4 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
5 Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt cannot
be extended.
child restraint system is securely in
place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
7 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.57)
8 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.54)
■ Booster seat
1 If installing the child restraint sys-
tem to the front passenger seat is
unavoidable, refer to P.48for the
front passenger seat adjustment.
6 While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
2 High back type: Remove the head
restraint if it interferes with your
child restraint system. (P.137)
If the head restraint cannot be removed,
Page 53
1-2. Child safety
WARNING
53
raise it to the uppermost position.
3 Place the child restraint system on
the seat facing the front of the vehicle.
Booster type
High back type
Check that the shoulder belt is correctly
positioned over the child’s shoulder and
that the lap belt is as low as possible.
(P.26)
1
For safety and security
■ Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself,
slowly return it to the stowing position.
4 Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
Page 54
54
WARNING
● Do not allow children to play with the
● Ensure that the belt and plate are
● Shake the child restraint system left
● After securing a child restraint system,
● When a booster seat is installed,
● Follow all installation instructions pro-
● When securing some types of child
1-2. Child safety
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
securely locked and the seat belt is not
twisted.
and right, and forward and backward
to ensure that it has been securely
installed.
never adjust the seat.
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
vided by the child restraint system
manufacturer.
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in positions next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different position. Failure to do so may result in
death or serious injury.
● When installing a child restraint system
in the rear center seat, adjust both seat
cushions to the same position and
align both seatbacks at the same
angle. The seatbacks must be adjusted
to the same angle. Otherwise, the
child restraint system cannot be
securely restrained and this may cause
death or serious injuries in the event of
sudden braking, sudden swerving or
an accident.
■ When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. (
■ Do not use a seat belt extender
If a seat belt extender is used when
installing a child restraint system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
P.28)
Child restraint system fixed with
a child restraint LATCH anchor

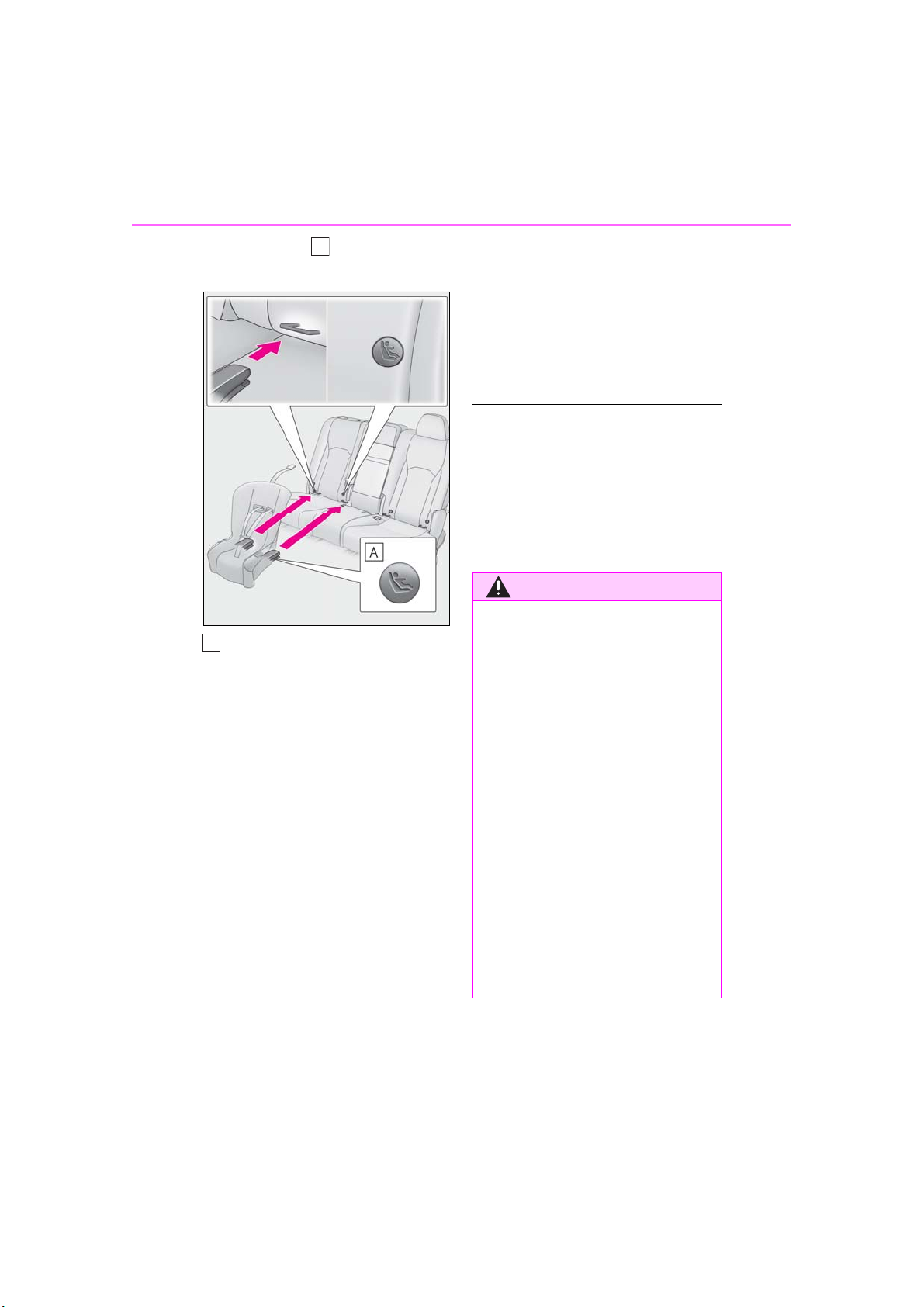

■ Child restraint LATCH anchors
LATCH anchors are provided for the
outboard second-row seats. (Buttons
displaying the location of the anchors
are attached to the seats.)
Page 55
1-2. Child safety
A
55
■ When installing in the rear out-
board seats
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
1 Adjust the seat
If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.
2 Remove the head restraint if it inter-
feres with your child restraint system. (P.137)
If the head restraint cannot be removed,
raise it to the uppermost position.
3 Widen the gap between the seat
cushion and seatback slightly.
tem indicates the presence of a
A
lower connector system.
Canada only
With rigid lower attachments
4 Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
1
For safety and security
With flexible lower attachments
4 Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
Page 56
56
A
A
WARNING
1-2. Child safety
tem indicates the presence of a
lower connector system.
Canada only
5 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.57)
anchors with the anchor spacing
stated.
Child restraint systems with rigid lower
attachments cannot be installed in the
center seat. This type of child restraint
system can only be installed in the outboard seat.
■ Laws and regulations pertaining to
anchors
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to SAE
J1819.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● When using the LATCH anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
6 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.54)
■ When installing in the rear center
seat
There are no LATCH anchors behind
the rear center seat. However, the
inboard LATCH anchors of the outboard seats, which are 18.1 in. (460
mm) apart, can be used if the child
restraint system manufacturer’s
instructions permit use of those
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● Never attach two child restraint system
attachments to the same anchor. In a
collision, one anchor may not be
strong enough to hold two child
restraint system attachments and may
break.
If the LATCH anchors are already in
use, use the seat belt to install a child
restraint system in the center seat.
Page 57
WARNING
● When securing some types of child
A
B
A
B
A
B
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in positions next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different position. Failure to do so may result in
death or serious injury.
● When installing a child restraint system
in the rear center seat, adjust both seat
cushions to the same position and
align both seatbacks at the same
angle. The seatbacks must be adjusted
to the same angle. Otherwise, the
child restraint system cannot be
securely restrained and this may cause
death or serious injuries in the event of
sudden braking, sudden swerving or
an accident.
● If the seat is adjusted, reconfirm the
security of the child restraint system.
1-2. Child safety

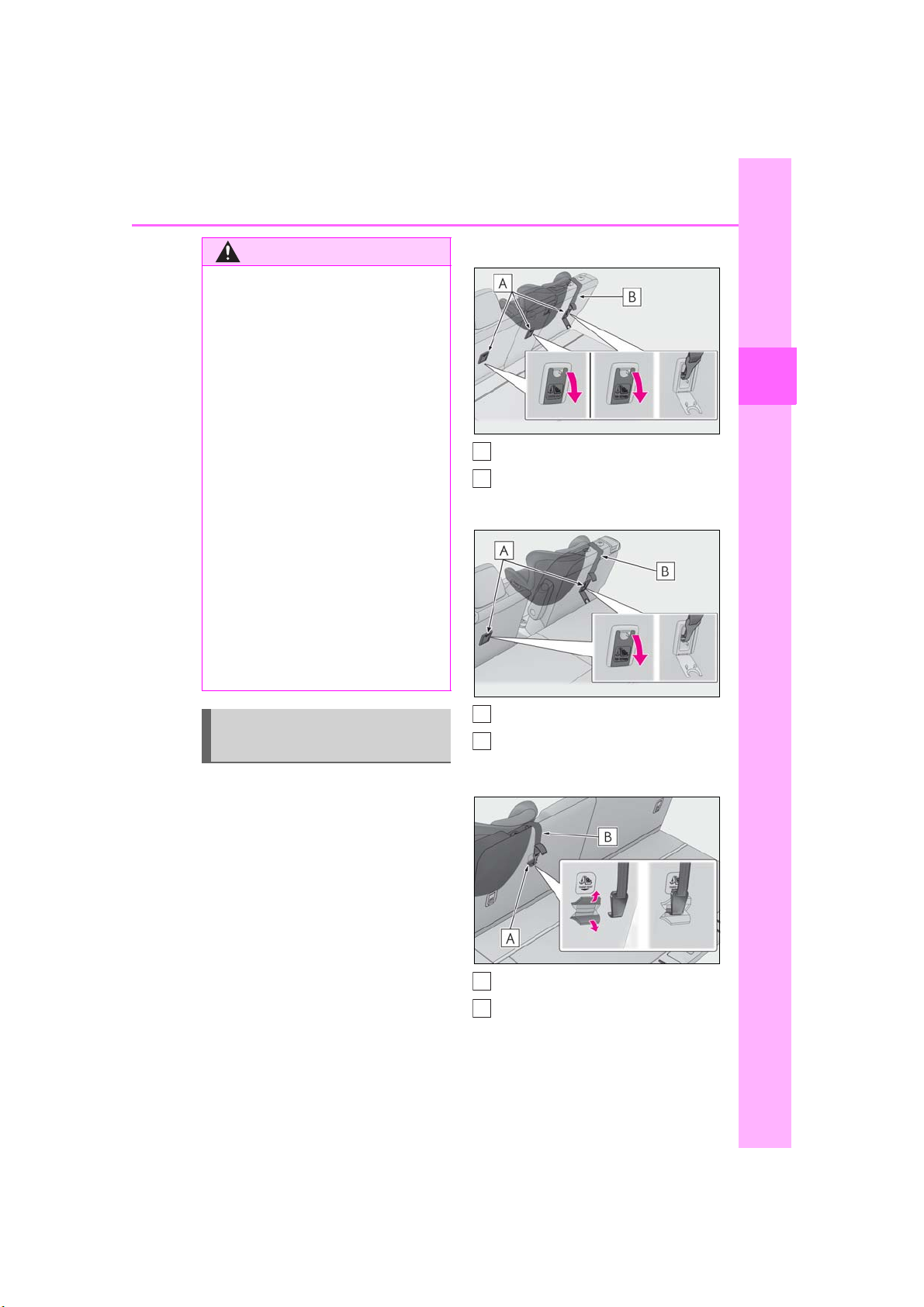

Bench-type second-row seats
Anchor brackets
Top tether strap
Separate-type second-row seats
57
1
For safety and security
Using an anchor bracket (for top
tether strap)
■ Anchor brackets (for top tether
strap)
Anchor brackets are provided for the
following seats:
Use anchor brackets when fixing the
top tether strap.
Anchor brackets
Top tether strap
Third-row left side seat
*
Anchor brackets
Top tether strap
*
: The third-row seats are not equipped
with Child restraint LATCH anchors.
Page 58
58
ABA
B
1-2. Child safety
■ Fixing the top tether strap to the
anchor bracket (second-row seats)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
1 Remove the head restraint if it inter-
feres with your child restraint system. (P.137)
If the head restraint cannot be removed,
raise it to the uppermost position.
2 Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is securely
latched. (P.54)
When installing the child restraint system
with the head restraint being raised, be
sure to have the top tether strap pass
underneath the head restraint.
■ Fixing the top tether strap to the
anchor bracket (third-row left side
seat)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
1 Remove the head restraint if it inter-
feres with your child restraint system. (P.137)
If the head restraint cannot be removed,
raise it to the uppermost position.

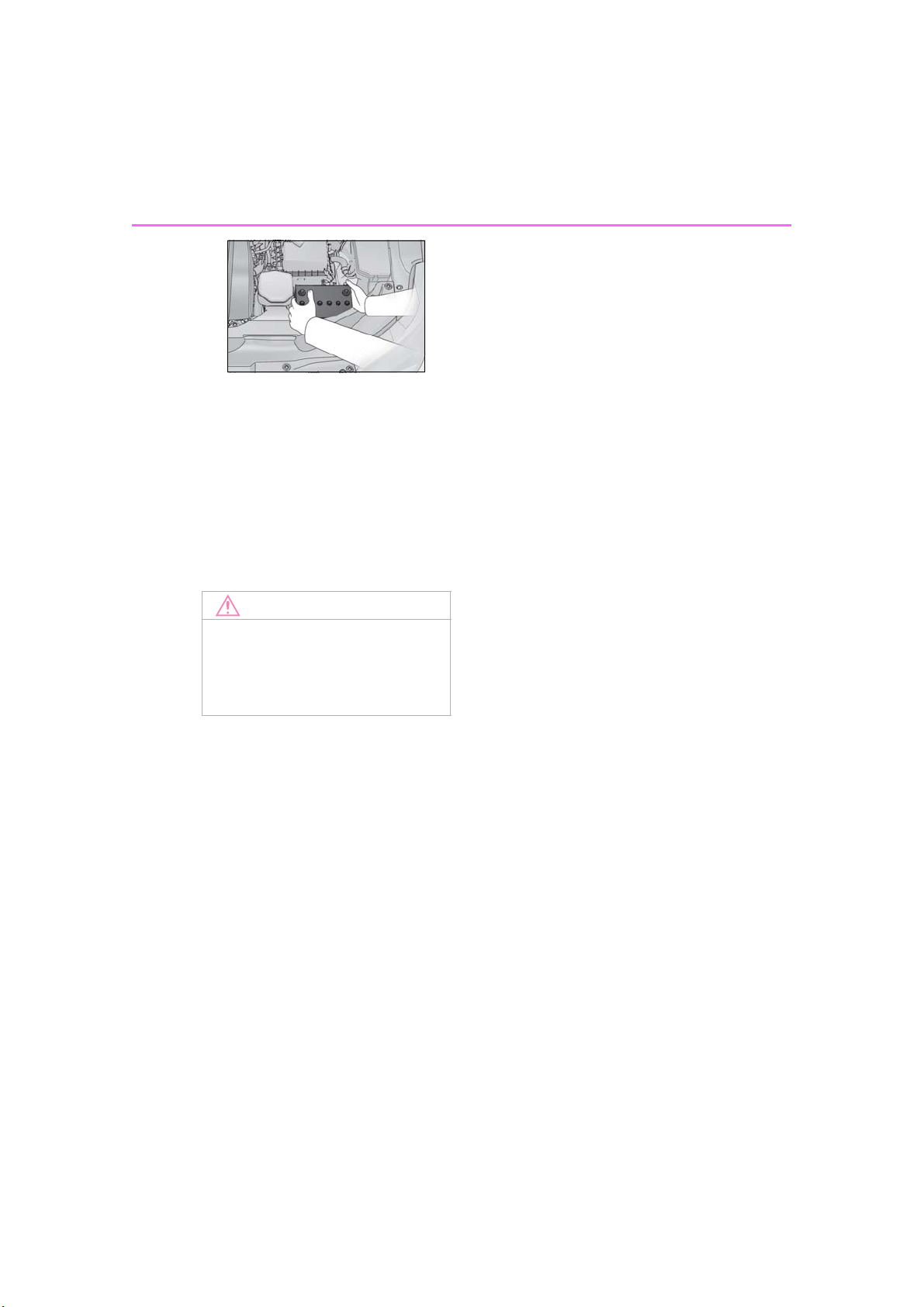

2 Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is securely
latched. (P.54)
When installing the child restraint system
with the head restraint being raised, be
sure to have the top tether strap pass
underneath the head restraint.
Hook
Top tether strap
Hook
Top tether strap
Page 59
■ Laws and regulations pertaining to
WARNING
NOTICE
anchors
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to SAE
J1819.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Firmly attach the top tether strap and
make sure that the belt is not twisted.
● Do not attach the top strap to anything
other than the anchor bracket of the
seat the child restraint system is
installed to.
1-2. Child safety
■ Anchor brackets (for top tether
strap)
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.
59
1
For safety and security
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● When installing the child restraint sys-
tem with the head restraint being
raised, after the head restraint has
been raised and then the anchor
bracket has been fixed, do not lower
the head restraint.
● When installing a child restraint system
in the rear center seat, adjust both seat
cushions to the same position and
align both seatbacks at the same
angle. The seatbacks must be adjusted
to the same angle. Otherwise, the
child restraint system cannot be
securely restrained and this may cause
death or serious injuries in the event of
sudden braking, sudden swerving or
an accident.
● If the seat is adjusted, reconfirm the
security of the child restraint system.
Page 60
60
A
B
C
1-3.Lexus Enform
1-3. Lexus Enform
Lexus Enform Safety Con-
*
nect
*
:If equipped
Safety Connect is a subscription-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.
Safety Connect service is available
by subscription on select, telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound
by the Telematics Subscription Service Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a current copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Conditions.

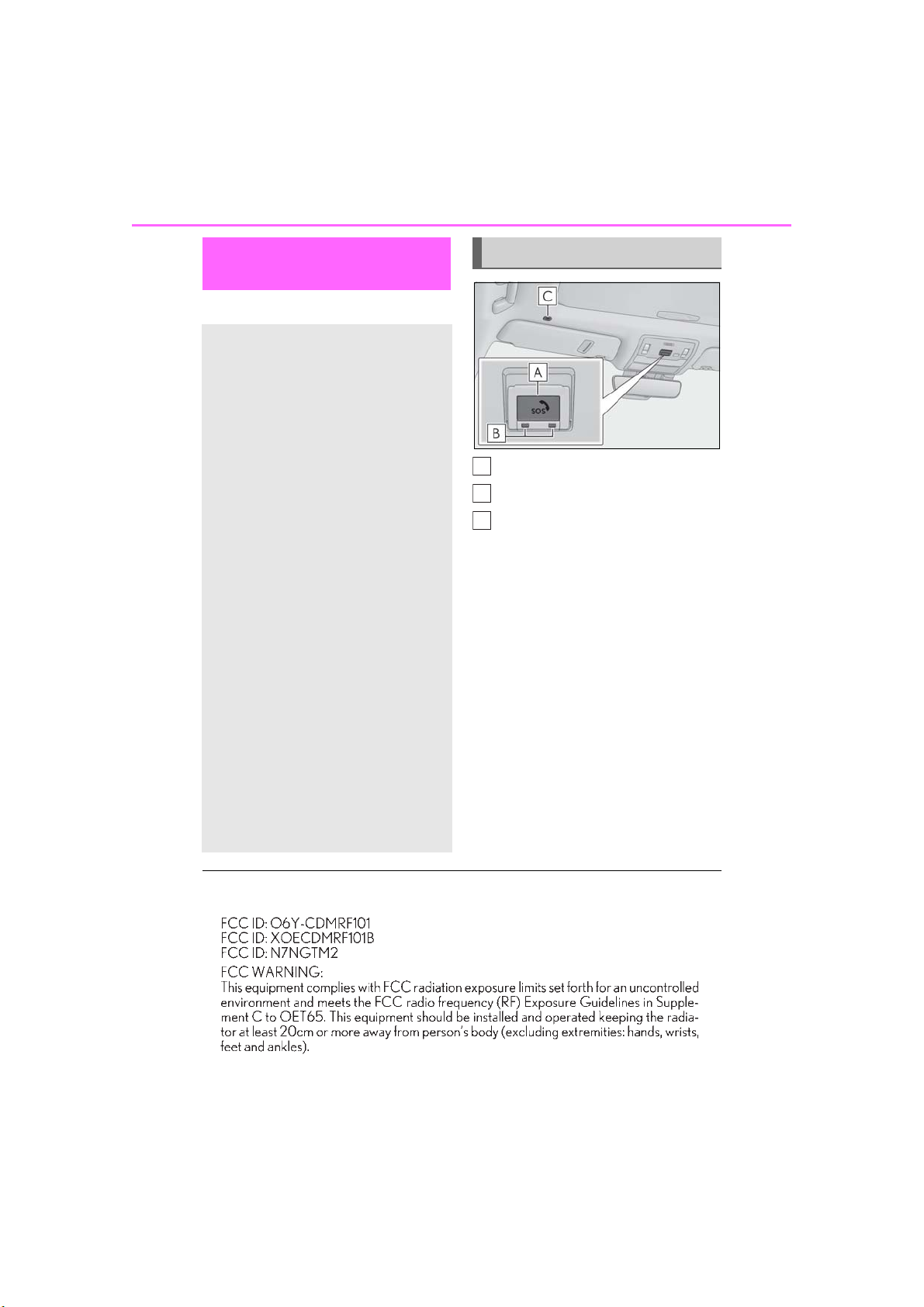

System components
“SOS” button
LED light indicators
Microphone
■ Certification for Lexus Enform
Page 61
1-3. Lexus Enform
61
Services
Subscribers have the following Safety
Connect services available:
Automatic Collision Notification
Helps drivers receive necessary response
from emergency service providers.
(P.62)
*
: U.S. Patent No. 7,508,298 B2
*
Stolen Vehicle Location
Helps drivers in the event of vehicle theft.
(P.62)
Emergency Assistance Button
(“SOS”)
Connects drivers to response-center support. (P.62)
Enhanced Roadside Assistance
Provides drivers various on-road assistance. (P.62)
Subscription
After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is available for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for further subscription details.
The United States
1-800-25-LEXUS (1-800-255-3987)
Canada
1-800-26-LEXUS (1-800-265-3987)
Puerto Rico
1-877-539-8777
■ Safety Connect Services Information
● Phone calls using the vehicles Blue-
®
tooth
technology will not be possible
during Safety Connect.
● Safety Connect is available beginning Fall
2009 on select Lexus models (in the
contiguous United States only). Contact
with the Safety Connect response center
is dependent upon the telematics device
being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to
reach the response center or receive
emergency service support. Enrollment
and Telematics Subscription Service
Agreement required. A variety of subscription terms is available; charges vary
by subscription term selected and location.
● Automatic Collision Notification, Emer-
gency Assistance and Stolen Vehicle
Location will function in the United
States, including Hawaii and Alaska,
Puerto Rico and in Canada, and
Enhanced Roadside Assistance will function in the United States, Puerto Rico and
in Canada.
● Automatic Collision Notification, Emer-
gency Assistance, Stolen Vehicle and
Enhanced Road Assistance will not function in the United States Virgin Islands.
For vehicles first sold in the USVI, no
Safety Connect services will function in
and outside the United States Virgin
Islands.
● Safety Connect services are not subject
to section 255 of the Telecommunications Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will
offer support in multiple languages. The
Safety Connect system will offer voice
prompts in English, Spanish, and French.
Please indicate your language of choice
when enrolling.
■ When contacting the response center
You may be unable to contact the response
center if the network is busy.
1
For safety and security
Page 62
62
1-3. Lexus Enform
Safety Connect LED light Indicators
When the engine switch is turned to
IGNITION ON mode, the red indicator light comes on for 2 seconds then
turns off. Afterward, the green indicator light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage conditions:
Green indicator light on = Active
service
Green indicator light flashing =
Safety Connect call in process
Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)
No indicator light (off) = Safety
Connect service not active
location.
■ Stolen Vehicle Location
If yo ur vehic le is sto len, Saf ety Co nnec t
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain circumstances, be shared with third parties to locate your vehicle. Further
information is available at Lexus.com.
■ Emergency Assistance Button
(“SOS”)
Safety Connect services
■ Automatic Collision Notification
In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emergency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, contacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.
■ Enhanced Roadside Assistance
Enhanced Roadside Assistance adds
GPS data to the already included warranty-based Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
Page 63
1-3. Lexus Enform
63
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.
Safety information for Safety
Connect
Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio transmitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC) adopted
RF exposure guidelines with safety levels for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international standards bodies.
120 scientists, engineers, and physicians from universities, and government health agencies and industries
reviewed the available body of
research to develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in addition to those standards.
1
For safety and security
ANSI (American National Stan-
dards Institute) C95.1 [1992]
NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]
ICNIRP (International Commission
on Non-Ionizing Radiation Protection) [1996]
Those standards were based on comprehensive and periodic evaluations of
the relevant scientific literature. Over
Page 64
64
1-4.Theft deterrent system
1-4. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■ System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
■ Conditions that may cause the system to
malfunction
● If the grip portion of the key is in contact
with a metallic object
● If the key is in close proximity to or touch-
ing a key registered to the security system (key with a built-in transponder chip)
of another vehicle

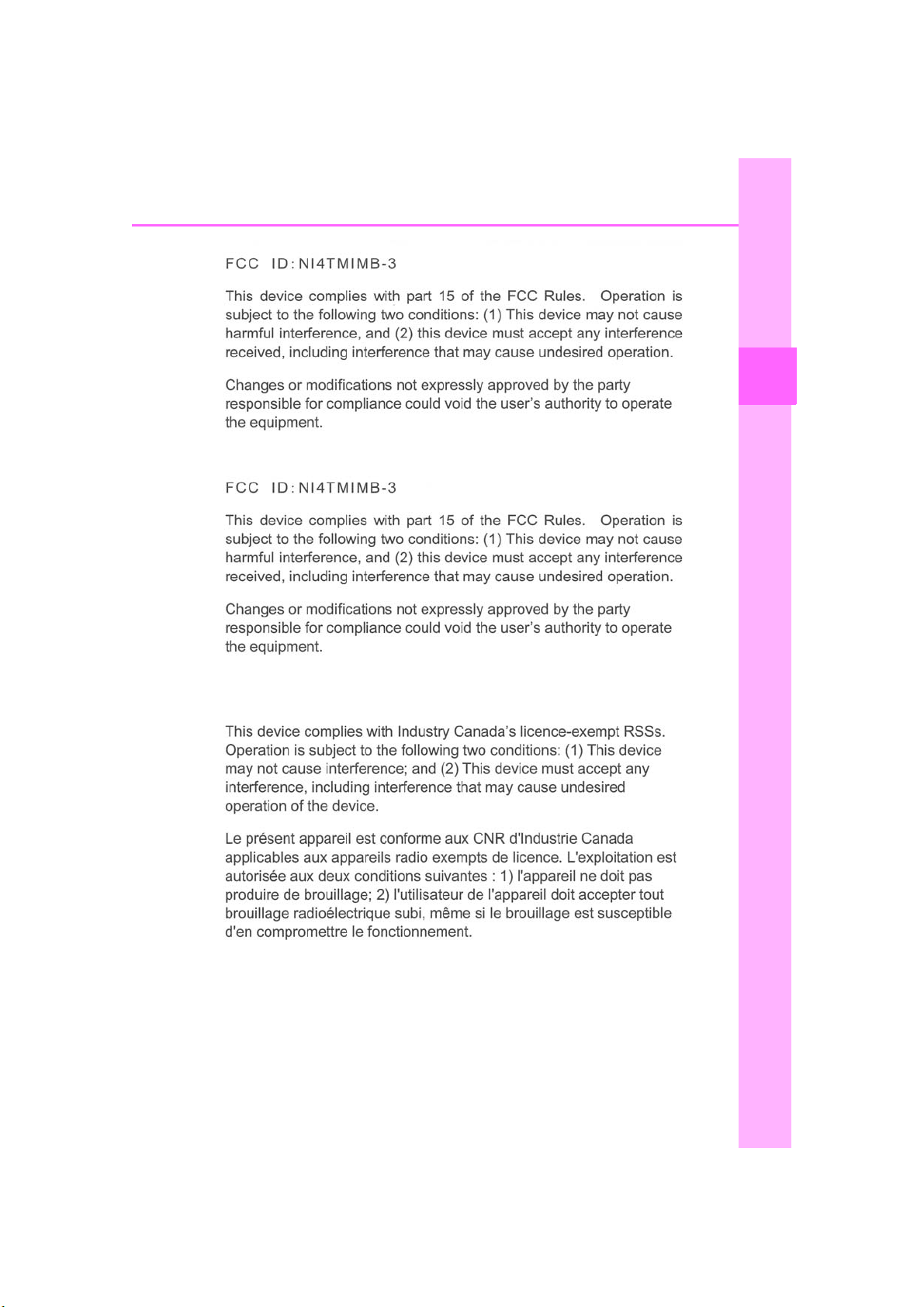

■ Certification for the engine immobilizer system
Except for vehicles sold in Canada
Page 65
1-4. Theft deterrent system
65
1
For safety and security
For vehicles sold in Canada
Page 66
66
WARNING
NOTICE
■ Certifications for the engine immobi-
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
1-4. Theft deterrent system
lizer system
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
Page 67

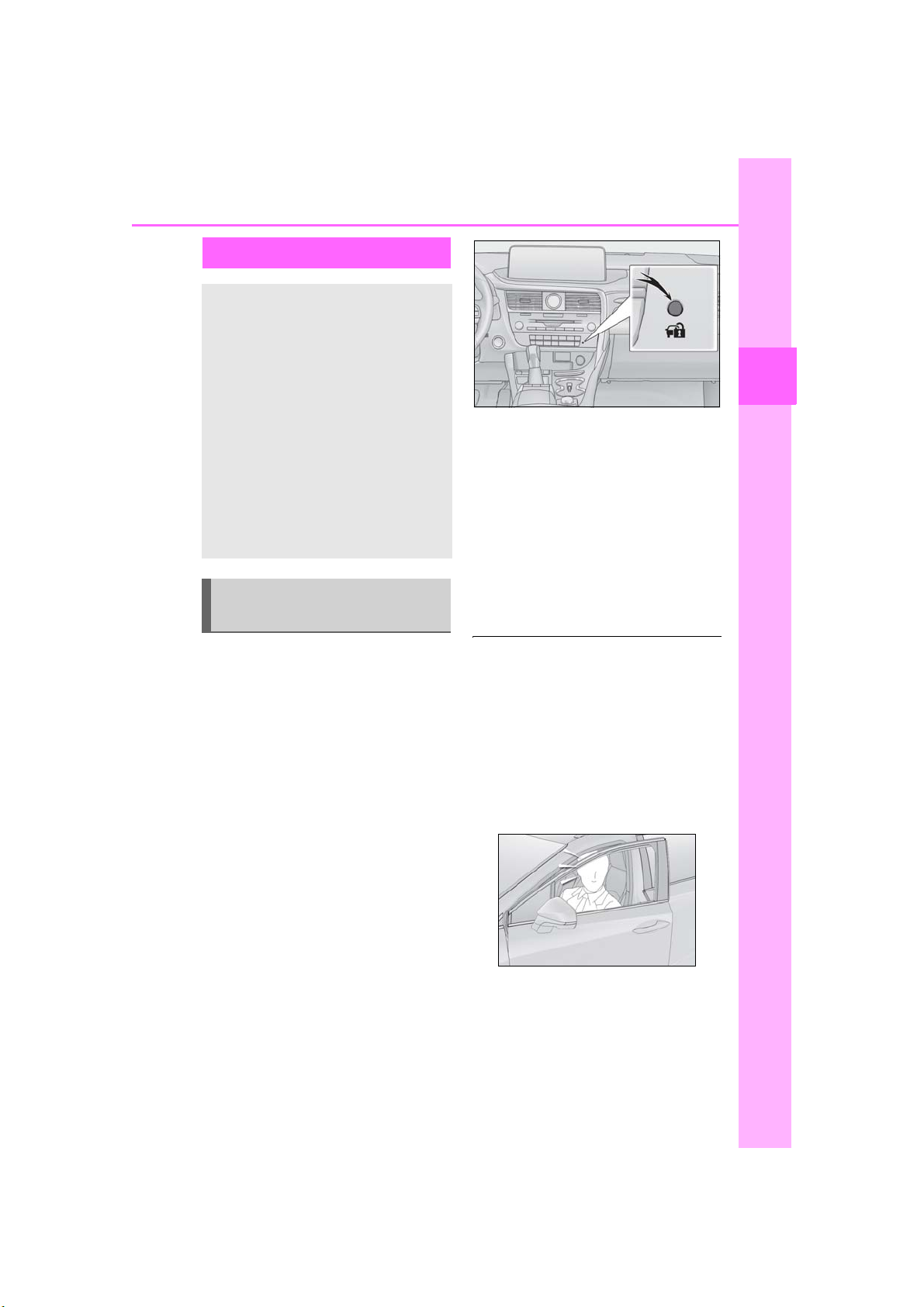

Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
1-4. Theft deterrent system
67
1
A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)
The hood is opened.
Setting/canceling/stopping the
alarm system
■ Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
Nobody is in the vehicle.
The windows, moon roof (if
equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.
■ Canceling or stopping
For safety and security
Do one of the following to deactivate
or stop the alarm:
Unlock the doors.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■ System maintenance
The vehicle has a maintenance-free type
alarm system.
■ Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle.
No valuables or other personal
items are left in the vehicle.
■ Setting
Close the doors and hood, and lock all
the doors. The system will be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
● The battery is recharged or replaced
when the vehicle is locked. (P.445)
Page 68
68
NOTICE
■ Alarm-operated door lock
1-4. Theft deterrent system
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle
unlocks the door and the alarm is activated.
● While the alarm is activated, a person
remaining in the vehicle unlocks the door.
● When recharging or replacing the bat-
tery
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
Page 69
69
Vehicle status information
and indicators
.
2-1. Instrument cluster
Warning lights and indicators
........................................................... 70
Gauges and meters .................... 75
Multi-information display.......... 79
Head-up display ........................... 86
Fuel consumption information
........................................................... 90
2
2
Vehicle status information and indicators
Page 70
70
2-1.Instrument cluster
2-1. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
Except F SPORT models
F SPORT models
Page 71
2-1. Instrument cluster
71
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.
Brake system warning light*1
(U.S.A.)
(Canada)
(yellow)
(U.S.A.)
(Canada)
(U.S.A.)
(P.413)
Brake system warning light*1
(P.413)
(red)
Brake system warning light*1
(P.413)
High coolant temperature
warning light
Charging system warning
*3
(P.414)
light
Low engine oil pressure warn-
*2
ing light
(P.414)
Malfunction indicator lamp*1
(P.414)
Malfunction indicator lamp*1
(P.414)
SRS warning light
ABS warning light*1 (P.415)
*2
(P.413)
*1
(P.414)
(yellow)
(RX350)
(RX350L)
(orange)
(flashes)
(flashes)
(flashes)
(flashes or
illuminates)
Electric power steering system
*1
warning light
(P.415)
Low fuel level warning light
(P.416)
Driver’s and front passenger’s
seat belt reminder light
(P.416)
Rear passengers’ seat
*4
belt reminder light
(P.416)
Rear passengers’ seat
belt reminder
*4
(P.416)
light
*1
Tire pressure warning light
(P.417)
LTA indicator (P.417)
Intuitive parking assist OFF indi-
*1
(if equipped) (P.417)
cator
RCTA OFF indicator*1 (if
equipped) (P.417)
PKSB OFF indicator*1 (if
equipped) (P.418)
PCS warning light*1 (P.418)
*1
Slip indicator
(P.418)
2
Vehicle status information and indicators
(Canada)
(red)
ABS warning light*1 (P.415)
Brake Override System warning light/Drive-Start Control
warning light
*2
(P.415)
Electric power steering system
*1
warning light
(P.415)
(flashes)
(U.S.A.)
(flashes)
(Canada)
Parking brake indicator
(P.419)
Parking brake indicator
(P.419)
Page 72

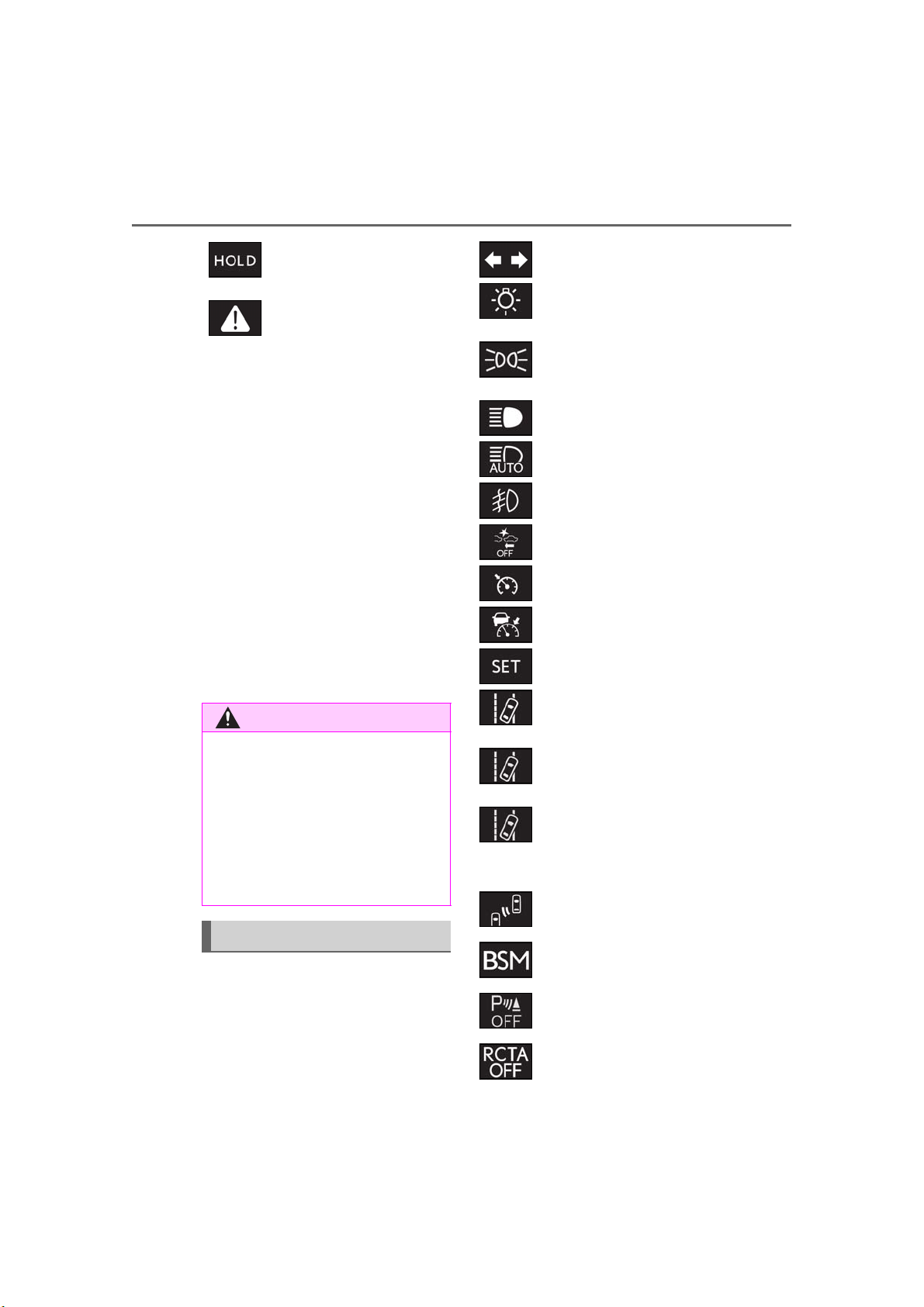

72
WARNING
2-1. Instrument cluster
Brake hold operated indicator*1
(flashes)
(P.419)
Master warning light
*1
(P.419)
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: Except F SPORT models: This light illu-
minates on the multi-information display.
F SPORT models: This light illuminates
on the meter.
*4
: This light illuminates on the center
panel.
(U.S.A.)
(Canada)
Turn signal indicator (P.184)
Headlight indicator (P.190)
Tail light indicator (P.190)
Headlight high beam indicator
(P.192)
Automatic High Beam indica-
*1
(P.193)
tor
Fog light indicator (if equipped)
(P.195)
PCS warning light
*1, 2
(P.213)
Cruise control indicator
(P.236)
Dynamic radar cruise control
indicator (P.230)
Cruise control “SET” indicator
(P.230)
■ If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning lights not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
(white)
(green)
(orange)
(flashes)
LTA indicator (P.223)
LTA indicator (P.223)
LTA indicator (P.223)
BSM outside rear view mirror
indicators
*3, 4
(if equipped)
(P.239, 253)
BSM indicator (if equipped)
(P.239)
Intuitive parking assist OFF indi-
*1, 2
cator
(if equipped)
(P.248)
*1, 2
RCTA OFF indicator
(if
equipped) (P.253)
Page 73
2-1. Instrument cluster
73
PKSB OFF indicator
equipped) (P.259)
All-wheel drive lock indicator
(AWD models only) (P.276)
Slip indicator*1 (P.278)
(flashes)
VSC OFF indicator
(P.279)
Smart access system with
push-button start indicator
(P.176)
Parking brake indicator
(U.S.A.)
(P.185)
Parking brake indicator
(Canada)
(P.185)
Brake hold standby indicator
(P.188)
Brake hold operated indicator
(P.188)

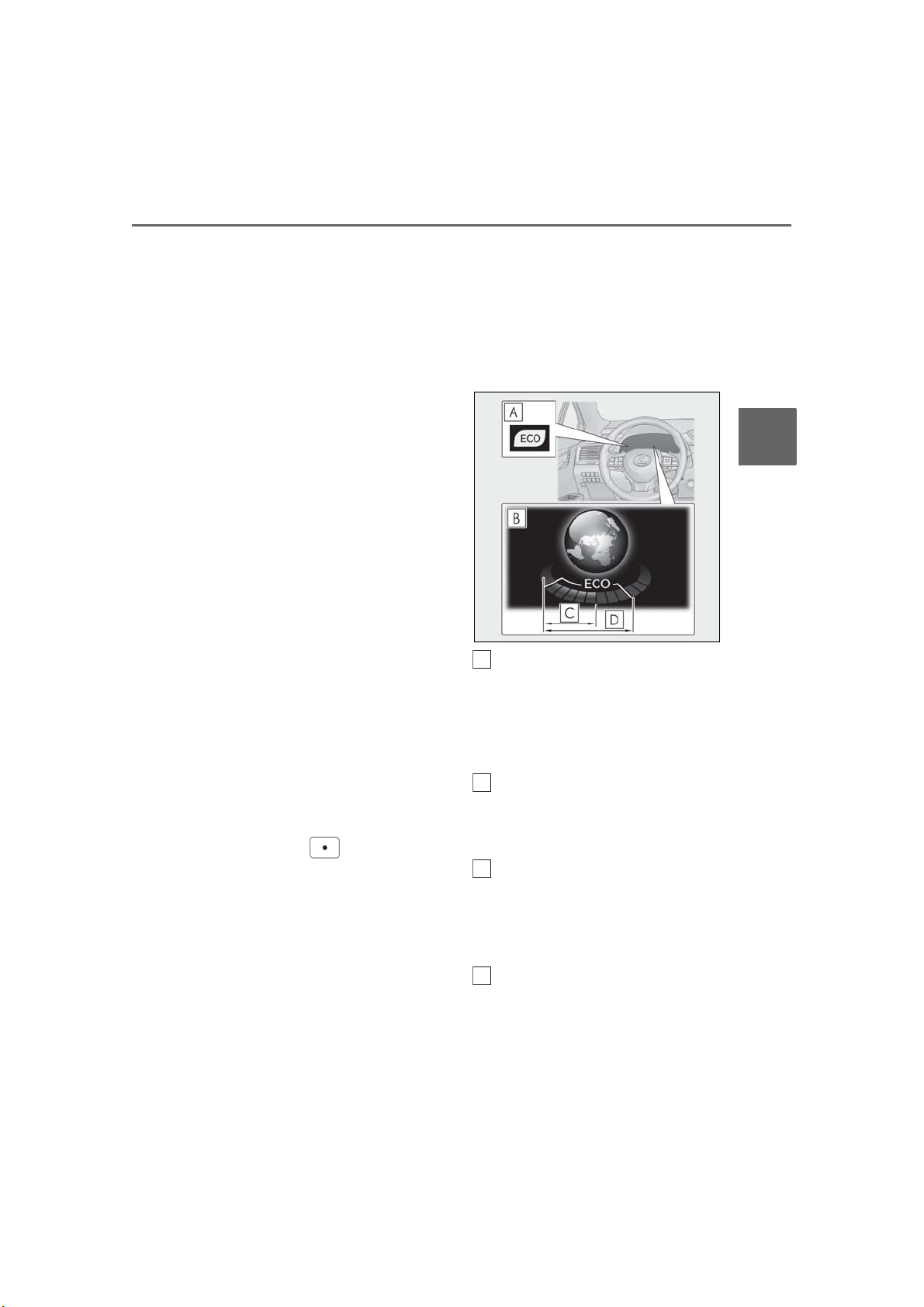

Eco Driving Indicator Light
(P.81)
Low outside temperature indi-
*6
(P.75)
cator
Security indicator
67)
“AIR BAG ON/OFF”
*1, 7
(U.S.A.)
indicator
“AIR BAG ON/OFF”
(Canada)
indicator
*1, 7
Drive mode indicators
Except F SPORT models
Eco drive mode indicator
(P.274)
Sport mode indicator (if
equipped) (P.274)
*1, 2
(if
*1, 2
*7
(P.64,
(P.40)
(P.40)
F SPORT models
*1
Customize mode indicator
(P.274)
Eco drive mode indicator
(P.274)
Sport mode indicator (if
equipped) (P.274)
Sport S mode indicator
(P.274)
*5
*1
: These lights turn on when the engine
Sport S+ mode indicator
(P.274)
2
Vehicle status information and indicators
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
*1
*1
*1
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light comes on when the system is
turned off.
*3
: In order to confirm operation, the BSM
outside rear view mirror indicators illuminate in the following situations:
When the BSM function is enabled
on of the multi-information display, the engine switch is turned to
IGNITION ON mode.
When the engine switch is in IGNI-
TION ON mode, the BSM function
is enabled on of the multi-infor-
mation display.
If the system is functioning correctly,
the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
Page 74
74
2-1. Instrument cluster
the system. If this occurs, have the vehicle inspected by your Lexus dealer.
*4
: This light illuminates on the outside rear
view mirrors.
*5
: This light illuminates on the multi-infor-
mation display.
*6
: When the outside temperature is
approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
*7
: This light illuminates on the center
panel.
Page 75
2-1. Instrument cluster
A
B
C
D
E
F
G
H
Gauges and meters
Meter display
■ Locations of gauges and meters
Except F SPORT models
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Multi-information display
Presents the driver with a variety of vehicle data (P.79)
Displays warning messages in case of a malfunction (P.422)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.336)
Speedometer
75
2
Vehicle status information and indicators
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position display (P.180)
Page 76
76
I
A
B
C
D
E
F
G
H
I
2-1. Instrument cluster
Odometer and trip meter display (P.78)
F SPORT models
The units used on the meters may differ depending on the target region.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Multi-information display
Presents the driver with a variety of vehicle data (P.79)
Displays warning messages in case of a malfunction (P.422)
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Speedometer
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position display (P.180)
Odometer and trip meter display (P.78)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.336)

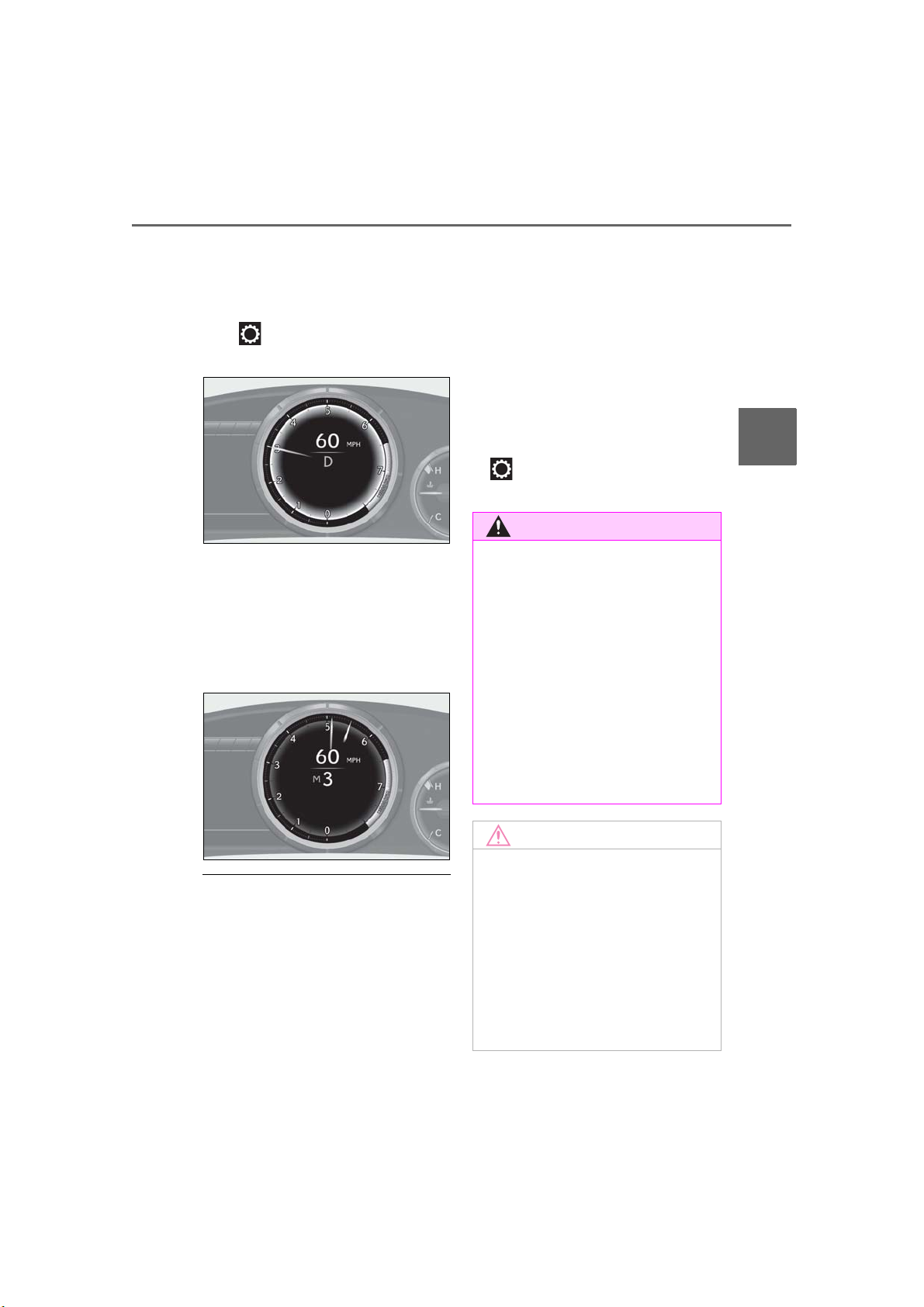

■ Rev indicator (F SPORT models) When the engine speed reaches a set
Page 77
2-1. Instrument cluster
WARNING
NOTICE
77
speed, a ring-shaped indicator will be
displayed on the tachometer.
The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on of the multi-information display.
(P.79)
■ Rev peak (F SPORT models)
The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approximately 1 second.
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.
■ Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■ Customization
The gauges and meters can be customized
on of the multi-information display.
(P.83)
■ The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
death or injury.
2
Vehicle status information and indicators
■ The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■ Outside temperature display
● In the following situations, the correct
outside temperature may not be displayed, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
■ To prevent damage to the engine and
its components
● Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. (P.447)
Page 78
78
2-1. Instrument cluster
Odometer and trip meter display
■ Display items
Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
Distance until next engine oil
change
Displays the distance the vehicle can be
driven until an oil change is necessary.
■ Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is displayed, pressing and holding the switch
will reset the trip meter.
When a warning message indicating
that oil maintenance should be performed soon or is required is displayed.
Changing the instrument panel
light brightness
The brightness of the instrument panel
lights can be adjusted.
If the brightness is adjusted when the surroundings are bright and the tail lights are
on (day mode brightness adjustment), the
brightness level of night mode will be
adjusted at the same time.
1 Darker
2 Brighter
■ Pop-up display
Distance until next engine oil change
Displays the distance until the next engine
oil change. This display will be displayed in
the following situations:
When the engine switch is turned to
IGNITION ON mode.
■ Brightness of the meters (day mode and
night mode)
The brightness of the meters is changed
between day mode and night mode.
● Day mode: When the tail lights are off or
when the tail lights are on but the surrounding area is bright
● Night mode: When the tail lights are on
and the surrounding area is dark
Page 79

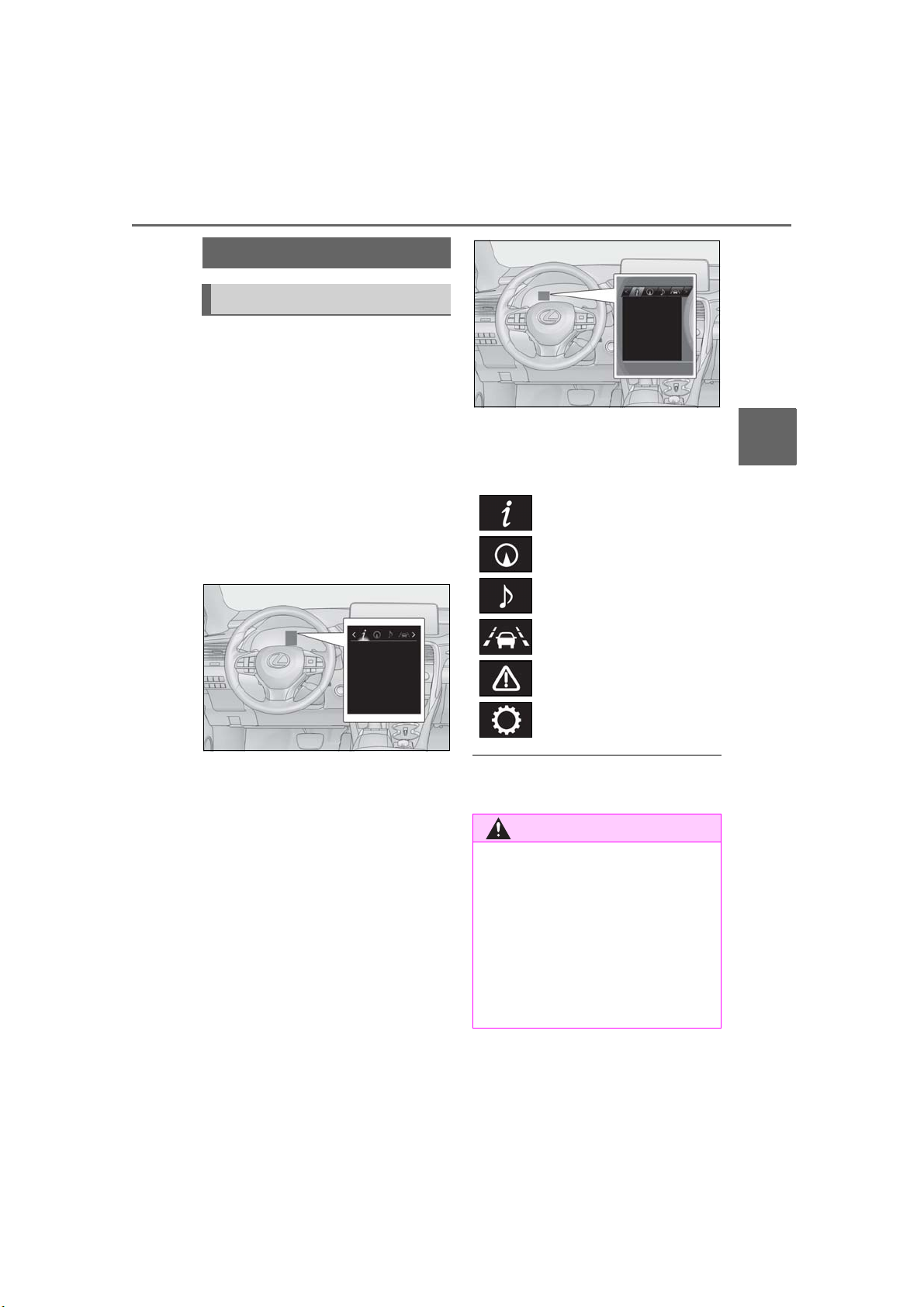

Multi-information display
WARNING
Display and menu icons
■ Display
Except F SPORT models
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be displayed. The multi-information display
can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
2-1. Instrument cluster
■ Menu icons
Select a menu icon to display its content.
Driving information (P.80)
Navigation system-linked display (if equipped) (P.83)
Audio system-linked display
(P.83)
Driving assist system information (P.83)
Warning message display
(P.422)
79
2
Vehicle status information and indicators
F SPORT models
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be displayed. The multi-information display
can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
Settings display (P.83)
■ Liquid crystal display
P.77
■ Caution for use while driving
● When operating the multi-information
display while driving, pay extra attention to the safety of the area around the
vehicle.
● Do not look continuously at the
multi-information display while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.
Page 80
80
WARNING
A
B
C
D
E
2-1. Instrument cluster
■ Registering a top screen
■ The information display at low tem-
peratures
P.77

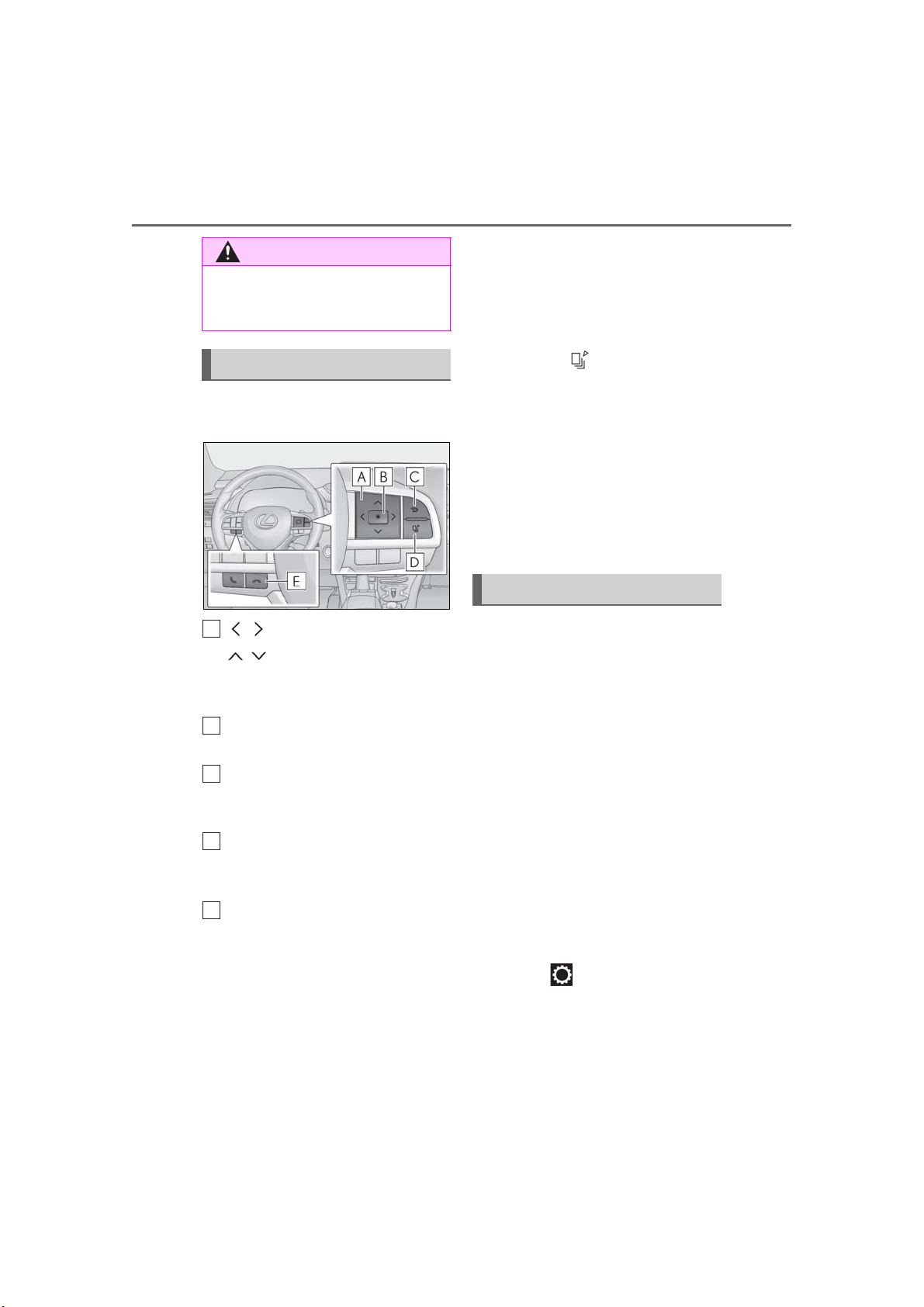

Changing the meter display
The multi-information display is operated using the meter control switches.
: Select menu icons
: Change displayed content,
scroll up/down the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of the selected menu icon.
Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display
Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
The displayed top screen can be
changed to a registered screen of your
choice. To register a screen as the top
screen, display the desired screen and
press and hold .
A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.
When no screen has been regis-
tered, the drive information screen
will be displayed.
Drive information
■ Content displayed as drive infor-
mation
Displays drive information such as the
following:
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be
changed on . (P.83)
Current fuel consumption
Displays instantaneous current fuel consumption
Page 81
2-1. Instrument cluster
A
BCD
81
Average fuel economy
After reset: Displays average fuel consumption since the display was reset
*1, 2
After start: Displays average fuel consumption since engine start
*2
After refuel: Displays average fuel consumption since refuel
*2, 3
Average vehicle speed
After reset: Displays average vehicle
speed since the display was reset
*1
After start: Displays average vehicle speed
since engine start
Elapsed time
After reset: Displays elapsed time since the
display was reset
*1
After start: Displays elapsed time since
engine start
Distance
Driving range: Displays driving range with
remaining fuel
*3, 4
After start: Displays drive distance since
vehicle start
Other
Blank: No item
*1
: To reset, display the desired item and
press and hold of the meter control switch.
If both of the displayed items are resettable, a message will be displayed asking which item(s) to reset.
*2
: Use the displayed fuel consumption as a
reference.
*3
: When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.
*4
: This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
■ Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.
Zone of Eco driving
■ AWD Control (if equipped)
Displays the driving force applied to
each wheel using segments.
2
Vehicle status information and indicators
Page 82
82
A
B
C
D
E
F
2-1. Instrument cluster
The greater the number of segments
displayed, the greater the driving force
applied.
■ G-force (if equipped)
Displays lateral G-forces on the vehicle. Also displays, around the periphery of the G-force display, the left and
right steering amount, accelerator
pedal input, and brake fluid pressure.
Acceleration G-force on the vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
Accelerator pedal input
Brake fluid pressure
Steering amount
This display is intended for use as a guideline. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Resetting the record of maximum
G-forces
Press and hold of the meter control
switch to reset the record.
Peak hold function
If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.
■ Tire pressure
P.373
■ Units (if equipped)
The units of measure used can be
changed while driving.
Unlike the units setting performed on the
settings display, the units setting performed on the drive information display
can be changed while driving.
■ Blank (No items)
Displays no drive information contents.
■ Eco Driving Indicator
Eco Driving Indicator will not operate
under the following conditions:
● The shift lever is in any position other than
D.
● A paddle shift switch is operated.
● Sport mode is selected.
● The driving mode is set to customized
mode and the powertrain control is set to
power (P.274)
● The vehicle speed is approximately 80
mph (130 km/h) or higher.
■ G-force display (if equipped)
● The G-force values may not be zero even
when the vehicle is parked, such as when
it is parked on an incline.
● Depending on the vehicle usage condi-
tions, the brake fluid pressure display may
not reach its maximum reading even
though the brake pedal is fully depressed.
● If a battery terminal is disconnected and
reconnected, the steering amount display
may be disabled temporarily. After driving the vehicle for a while, the display will
be enabled.
■ Tire pressure
• It may take a few minutes to display the
Page 83
2-1. Instrument cluster
83
tire inflation pressure after the engine
sw itc h is tu rne d to I GNI TIO N ON mod e.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
• “---” may be displayed if the tire position
information cannot be determined due to
unfavorable radio wave conditions.
• Tire inflation pressure changes with temperature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
Route guidance
Compass display (heading-up dis-
play)
Audio system-linked display
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Driving assist system information
Select to display the operational status
of the following systems:
LTA (Lane Tracing Assist) (P.218)
RSA (Road Sign Assist) (if
equipped) (P.227)
Dynamic radar cruise control with
full-speed range (P.230)
Settings display
■ Meter display settings that can be
changed
Clock
Select to switch between 12-hour display
and 24-hour display.
Language
Select to change the language displayed.
Units
Select to change the units of measure displayed.
Eco Driving Indicator Light
(P.81)
Select to enable/disable the Eco Driving
Indicator Light.
Switch settings
Select to display how to change the top
screen.
Drive information 1/Drive informa-
tion 2/Drive information 3
Sel ect to se lect u p to 2 ite ms (P.80) that
will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive information 3 screen) respectively.
Pop-up display
Select to enable/disable the pop-up display.
• Intersection guidance (if equipped)
• Incoming calls
• Brightness adjustment
Color (except F SPORT models)
Select to set the color of the cursor on the
multi-information display.
Needle (F SPORT models)
2
Vehicle status information and indicators
Page 84
84
WARNING
NOTICE
Select to set the tachometer needle color.
2-1. Instrument cluster
Rev indicator (F SPORT models)
(P.76)
• Select to enable/disable the Rev indicator.
• Select to set the desired engine speed at
which the Rev indicator will begin to be
displayed.
Selectable engine speed range:
2000 rpm to 6500 rpm
Rev peak (F SPORT models)
(P.77)
Select to enable/disable the Rev peak.
Default setting
Select to reset the meter display settings to
the default setting.
■ Vehicle functions and settings that
can be changed
P.470
■ Background color of the indicator/shift
position display area (except F SPORT
models)
The background color of the indicator/shift
position display area is changed according
to the driving mode as follows (P.274):
● Eco drive mode: Blue
● Sport mode: Red
■ Suspension of the settings display
● Some settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
● If a warning message is displayed, opera-
tion of the settings display will be suspended.
■ Cautions during setting up the dis-
play
As the engine needs to be running
during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as
a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
■ While setting up the display
To prevent battery discharge, ensure that
the engine is running while setting up the
display features.
Suggestion function
Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.
■ Suggestion to enable the power
back door
If the power back door system is disabled (setting on set to off) and the
power back door switch on the instrument panel is operated, a suggestion
message will be displayed asking if you
wish to enable the power back door
system.
To enable the power back door system,
select “Yes”.
After enabling the power back door system, press the power back door switch
again to open or close the power back
door.
Page 85
■ Suggestion to turn off the head-
lights
If the headlights are left on for a certain
amount of time after the engine switch
has been turned off, a suggestion message will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.
If a front door is opened after the engine
switch is turned off, this suggestion message will not be displayed.
■ Customization
Some functions can be customized.
(P.470)
2-1. Instrument cluster
85
2
Vehicle status information and indicators
Page 86
86
A
B
C
D
2-1. Instrument cluster
Head-up display
*
:If equipped
*
The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guidance to a set destination.
System components
Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.
Navigation system-linked display area (if equipped) (P.89)
Message display area (P.89)
Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Displays the following item, which are linked to the navigation system:
•Street name
/ icon (P.88)
Driving assist system status display area (if equipped)
Displays the operational status of the following systems:
• Dynamic radar cruise control with full-speed range (P.230)
• LTA (Lane Tracing Assist) (P.218)
• Intuitive parking assist (P.247)
• Parking Support Brake function (for static objects) (P.264)
Displayed content is the same as that displayed on the multi-information display. For details,
Page 87

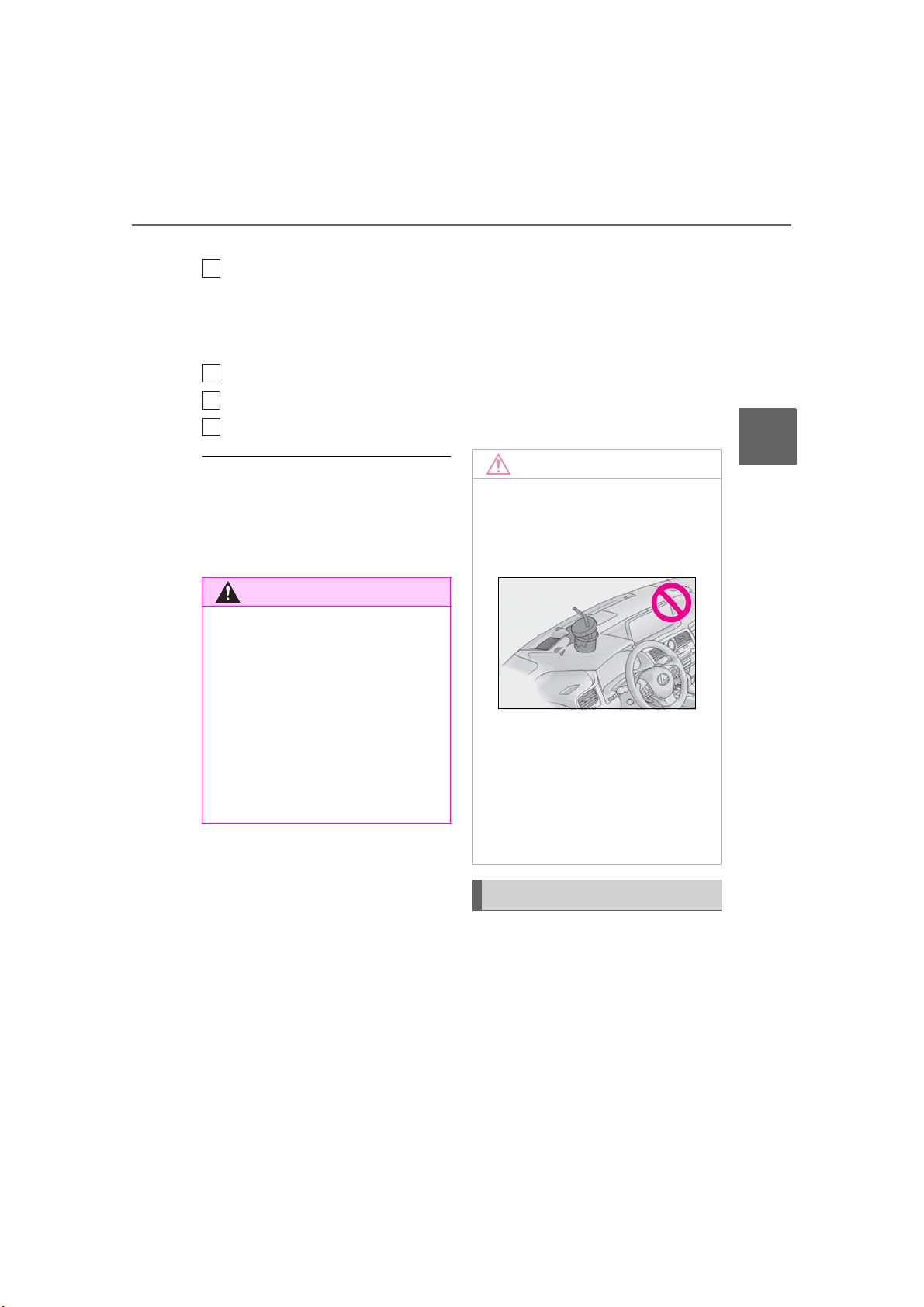

2-1. Instrument cluster
EFG
H
WARNING
NOTICE
refer to the explanations of each system.
Vehicle speed display area
Displays the following items:
• Vehicle speed
• Speed limit (vehicles with a navigation system) (U.S.A. only)
• Road sign icons recognized by the RSA (P.227)
Eco Driving Indicator/Tachometer (P.90)
Shift position display (P.180)
87
HUD (Head-up display) switch (P.87)
■ Head-up display
The head-up display may seem dark or hard
to see when viewed through sunglasses,
especially polarized sunglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.
■ Before using the head-up display
● Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury.
● Do not continuously look at the
head-up display while driving as you
may fail to see pedestrians, objects on
the road, etc. ahead of the vehicle.
2
Vehicle status information and indicators
■ To prevent damage to components
● Do not place any drinks near the
head-up display projector. If the projector gets wet, electrical malfunctions
may result.
● Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up display indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector. Doing so
could cause mechanical malfunctions.
Using the head-up display
■ Enabling/Disabling the head-up
display
Press the HUD (Head-up display)
switch.
Page 88
88
WARNING
NOTICE
■ Changing settings of the head-up
2-1. Instrument cluster
display
Select on the multi-information
display (P.470) to change the following settings:
■ Display brightness
The brightness of the head-up display can
be adjusted on of the multi-information
display. Also, it is automatically adjusted
according to the ambient brightness.
■ Automatic adjustment of the head-up
display position (if equipped)
A desired head-up display position can be
entered to memory and recalled automatically by the driving position memory system. (P.134)
■ When the battery is disconnected
The customize settings of the head-up display will be reset.
Display brightness/position
Select to adjust the brightness and position
of the head-up display.
Display content
Select to enable/disable the following
items:
• Route guidance to destination (if
equipped)
• Driving assist system status (if equipped)
• Compass (if equipped)
• Audio system operation status
Eco Driving Indicator/Tachometer
Select to display Eco Driving Indicator/tachometer/no content.
Display angle
Select to adjust the angle of the head-up
display.
■ Enabling/disabling of the head-up dis-
play
If the head-up display is disabled, it will
remain disabled when the engine switch is
turned off then back to IGNITION ON
mode.
■ Caution for changing settings of the
head-up display
As the engine needs to be running while
changing the settings of the head-up display , ens ure t hat t he ve hicl e is p arke d in a
place with adequate ventilation. In a
closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
■ When changing the settings of the
head-up display
To prevent battery discharge, ensure that
the engine is running while the changing
the settings of the head-up display.
Information icon/Master warning icon
Displays the following multi-information display linked icons:
: Master warning icon
Displayed when a warning message is displayed on the multi-information display.
Page 89
2-1. Instrument cluster
89
(P.422)
: Information icon
Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. (P.84)
Message display area
Displays the following items in the
appropriate situation:
■ Warning/Message (if equipped)
Displays the following system warning/messages:
PCS (Pre-Collision System)
(P.211)
Parking Support Brake function (for
static objects) (P.264)
Dynamic radar cruise control with
full-speed range (P.230)
Brake Override System (P.157)
Drive-Start Control (P.157)
Details of content displayed on the
head-up display may differ from that displayed on the multi-information display. For
details, refer to the explanation of each system.
■ Audio system operation status
Displayed when the audio system is
operated.
■ Outside temperature
Displayed in the following situations:
displayed on the multi-information display. For details, refer to the explanation of the outside temperature display
on the multi-information display.
(P.77)
Displays the following items which are
linked to the navigation system:
■ Street name
The name of the street that the vehicle
is currently driving on is displayed on
the bottom of the display area.
When the navigation system is performing route guidance, the name of
the next street will be displayed on the
top of the display area.
■ Street name display (vehicles with a nav-
igation system)
Only street names which are included in the
map data will be displayed.
Navigation system-linked display area (if equipped)
Displays the following items which are
linked to the navigation system:
■ Route guidance to destination
Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the suggested direction of travel.
■ Compass
2
Vehicle status information and indicators
When the engine switch is turned to
IGNITION ON mode
When the low outside temperature
indicator is flashing
Displayed content is the same as that
Displays the direction of travel.
Page 90
90
A
B
C
A
B
C
2-1. Instrument cluster
Eco Driving Indicator/Tachometer
■ Eco Driving Indicator
Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving
Displayed content is the same as that displayed on the multi-information display
(Eco Driving Indicator). For details, refer to
P.81.
■ Tachometer
Fuel consumption information
Fuel consumption information can
be displayed on the Center Display.
Vehicles with a 12.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.
System components
Displays the engine speed in revolutions per minute.
Center Display
“MENU” button
Touchpad
Consumption
■ Trip information
Press the “MENU” button on the
Remote Touch, then select on the
Page 91
2-1. Instrument cluster
A
B
C
D
E
F
A
B
C
D
E
91
menu screen.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.
This system can also be operated by
the touch screen.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ History
Press the “MENU” button on the
Remote Touch, then select on the
menu screen.
If a screen other than “History” is displayed, select “History”.
This system can also be operated by
the touch screen.
2
Vehicle status information and indicators
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data
The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ Updating the history data
Update the latest fuel consumption by
selecting “Update” to measure the current
fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
Page 92
92
This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
2-1. Instrument cluster
Using the side display (vehicles
with a 12.3-inch display)
Display the vehicle information on the
side display (P.293), and then select
or to display the desired
screen.
The image is an example only, and may
vary slightly from actual conditions.
■ Trip information (type A)
Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.
Use the displayed average fuel consumption as a reference.
■ History
Displays the average fuel consumption
and highest fuel consumption.
Use the displayed average fuel consumption as a reference.
■ Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.
Use the displayed average fuel consumption as a reference.
Page 93
93
Before driving
.
3-1. Key information
Keys ................................................... 94
3-2. Opening, closing and locking the
doors
Side doors ....................................... 97
Power back door......................... 101
Smart access system with
push-button start...................... 113
3-3. Adjusting the seats
Front seats..................................... 122
Rear seats...................................... 123
Driving position memory ........134
Head restraints............................ 137
3-4. Adjusting the steering wheel and
mirrors
Steering wheel............................. 140
Inside rear view mirror.............. 141
Outside rear view mirrors...... 142
3-5. Opening, closing the windows
and moon roof
Power windows........................... 145
Moon roof ..................................... 147
Panoramic moon roof ..............150
3
3
Before driving
Page 94
94
A
B
C
3-1.Key information
3-1. Key information
Keys
The keys
The following keys are provided with
the vehicle.
Electronic keys
• Operating the smart access system with
push-button start (P.113)
• Operating the wireless remote control
function (P.95)
Mechanical keys
Key number plate
■ When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag, etc., ensure that
the buttons are not likely to be pressed accidentally. Pressing a button may cause the
electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will
sound in the cabin when the engine is
stopped.
● To reduce key battery depletion when the
electronic key is to not be used for long
periods of time, set the electronic key to
the battery-saving mode. (P.114)
● As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when necessary.
• The smart access system with push-button start or the wireless remote control
does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface
does not turn on.
● To avoid serious deterioration, do not
leave the electronic key within 3 ft. (1 m)
of the following electrical appliances that
produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and
battery chargers
• Recharging cellular phones or cordless
phones
•Table lamps
• Induction cookers
■ Replacing the battery
P.389
■ Confirmation of the registered key
number
The number of keys already registered to
the vehicle can be confirmed. Ask your
Lexus dealer for details.
■ If “A New Key has been Registered
Contact Your Dealer for Details” is
shown on the multi-information display
This message will be displayed each time
the driver’s door is opened when the doors
are unlocked from the outside for approximately one week after a new electronic key
has been registered.
If this message is displayed but you have not
had a new electronic key registered, ask
your Lexus dealer to check if an unknown
electronic key (other than those in your
possession) has been registered.
Page 95
NOTICE
■ To prevent key damage
A
B
C
D
E
● Do not drop the keys, subject them to
strong shocks or bend them.
● Do not expose the keys to high tem-
peratures for long periods of time.
● Do not get the keys wet or wash them
in an ultrasonic washer, etc.
● Do not attach metallic or magnetic
materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else
to the surface of the electronic key.
3-1. Key information
Locks all the doors (P.97)
Unlocks all the doors (P.97)
Opens the windows
*1, 2
(P.97)
*1, 2
moon roof
roof
*2
and the
or panoramic moon
95
3
Before driving
● Do not place the keys near objects that
produce magnetic fields, such as TVs,
audio systems and induction cookers,
or medical electrical equipment, such
as low-frequency therapy equipment.
■ Carrying the electronic key on your
person
Carry the electronic key 3.9 in. (10 cm)
or more away from electric appliances
that are turned on. Radio waves emitted
from electric appliances within 3.9 in. (10
cm) of the electronic key may interfere
with the key, causing the key to not function properly.
■ In case of a smart access system with
push-button start malfunction or
other key-related problems
P.441
■ When an electronic key is lost
P.440
Wireless remote control
The electronic keys are equipped with
the following wireless remote control:
Opens and closes the power back
door (P.102)
Sounds the alarm
*1
: If equipped
*2
: These settings must be customized at
your Lexus dealer.
■ Theft deterrent panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will flash
to deter any person from trying to break
into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
Using the mechanical key
To take out the mechanical key, push
Page 96
96
3-1. Key information
the release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(P.441)
■ When required to leave the vehicle’s
key with a parking attendant
Lock the glove box as circumstances
demand. (P.318)
Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■ If you lose your mechanical keys
P.440
■ If a wrong key is used
The key cylinder rotates freely, isolated
from the internal mechanism.
Page 97
3-2. Opening, closing and locking the doors
3-2.Opening, closing and locking the doors
Side doors
The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switches.
Unlocking and locking the doors
from the outside
■ Smart access system with
push-button start
Carry the electronic key to enable this
function.
■ Wireless remote control
1 Locks all the doors
Check that the door is securely locked.
2 Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows
*1, 2
the moon roof
*1, 2
roof
*1
: If equipped
*2
: This setting must be customized at your
Lexus dealer.
or panoramic moon
*2
97
3
Before driving
and
1 Grip the driver’s door handle to
unlock the door. Grip any passenger door handle to unlock all the
*
doors.
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*
: The door unlock settings can be
changed.
2 Touch the lock sensor (indentation
on the surface of the door handle)
to lock all the doors.
Check that the door is securely locked.
■ Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 When the indicator light on the key sur-
face is not on, press and hold ,
or for approxi-
mately 5 seconds while pressing and
holding .
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 2.)
Page 98
98
3-2. Opening, closing and locking the doors
Multi-information
display/Beep
Unlocking function
Holding the driver’s
door handle unlocks
only the driver’s
door.
Exterior: Beeps 3
times
Interior: Pings once
Holding any of the
passenger door
handles unlocks all
the doors.
Holding a door han-
Exterior: Beeps
twice
dle unlocks all the
doors.
Interior: Pings once
To prevent unintended triggering of the
alarm, unlock the doors using the wireless
remote control and open and close a door
once after the settings have been changed.
(If a door is not opened within 60 seconds
after is pressed, the doors will be
locked again and the alarm will automati-
cally be set.)
In a case that the alarm is triggered, immediately stop the alarm. (P.67)
■ Impact detection door lock release sys-
tem
In the event that the vehicle is subject to a
strong impact, all the doors are unlocked.
Depending on the force of the impact or the
type of accident, however, the system may
not operate.
■ Operation signals
Doors:
A buzzer sounds and the emergency flash-
ers flash to indicate that the doors have
been locked/unlocked. (Locked: Once;
Unlocked: Twice)
Windows and moon roof or panoramic
moon roof:
A buzzer sounds.
■ Security feature
If a door is not opened within approximately
60 seconds after the vehicle is unlocked,
the security feature automatically locks the
vehicle again.
■ When the door cannot be locked by the
lock sensor on the surface of the door
handle
When the door cannot be locked even if the
lock sensor on the surface of the door handle is touched by a finger, touch the lock
sensor with the palm.
When gloves are being worn, remove the
gloves.
■ Door lock buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehicle once more.
■ Setting the alarm
Locking the doors will set the alarm system.
(P.67)
■ Conditions affecting the operation of
the smart access system with push-button start or wireless remote control
P.114
■ If the smart access system with
push-button start or the wireless remote
control does not operate properly
Use the mechanical key to lock and unlock
the doors. (P.441)
Replace the key battery with a new one if it
is depleted. (P.389)
■ If the battery is discharged
The doors cannot be locked and unlocked
using the smart access system with
push-button start or wireless remote control. Lock or unlock the doors using the
Page 99
3-2. Opening, closing and locking the doors
WARNING
99
mechanical key. (P.441)
■ Customization
Some functions can be customized.
(P.470)
■ To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly
closed and locked.
● Do not pull the inside handle of the
doors while driving.
Be especially careful for the front doors,
as the doors may be opened even if the
inside lock buttons are in locked position.
● Set the rear door child-protector locks
when children are seated in the rear
seats.
■ When opening or closing a door
Check the surroundings of the vehicle
such as whether the vehicle is on an
incline, whether there is enough space
for a door to open and whether a strong
wind is blowing. When opening or closing the door, hold the door handle tightly
to prepare for any unpredictable movement.
Unlocking and locking the doors
from the inside
■ Door lock switches (to
lock/unlock)
1 Locks all the doors
2 Unlocks all the doors
■ Inside lock buttons (to lock)
Push down the inside lock button to
lock the door.
■ Inside door handles (to unlock)
3
Before driving
For the front doors
Pull the handle to unlock and open the
door.
When the door is unlocked, the inside lock
button will pop up.
For the rear doors
Pull the handle to unlock the door. Pull
the handle a second time to open the
door.
Page 100
100
3-2. Opening, closing and locking the doors
When the door is unlocked, the inside lock
button will pop up.
■ Locking the doors from the outside with-
out a key
1 Push down the inside lock button.
2 Close the door.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left
inside the vehicle. However, the key may not
be detected correctly and the door may be
locked.
■ Open door warning buzzer
If the vehicle speed reaches 3 mph (5
km/h), the master warning light flashes and
a buzzer sounds to indicate that door(s) or
the hood in not fully closed.
The open door(s) or hood is displayed on
the multi-information display.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is set.
2 Lock
These locks can be set to prevent children
from opening the rear doors. Push down
on each rear door switch to lock both rear
doors.
Automatic door locking and
unlocking systems
The following functions can be set or
canceled:
For instructions on customizing, refer to
P.470.
Function Operation
All doors are automatiSpeed linked
door locking
function
Shift position
linked door locking function
Shift position
linked door
unlocking function
Driver’s door
linked door
unlocking function
cally locked when vehi-
cle speed is
approximately 12 mph
(20 km/h) or higher.
All doors are automati-
cally locked when shift-
ing the shift lever out of
P.
All doors are automati-
cally unlocked when
shifting the shift lever
to P.
All doors are automati-
cally unlocked when
driver’s door is
opened.
1 Unlock
