Lexus Is250 2008 Owner's Manual

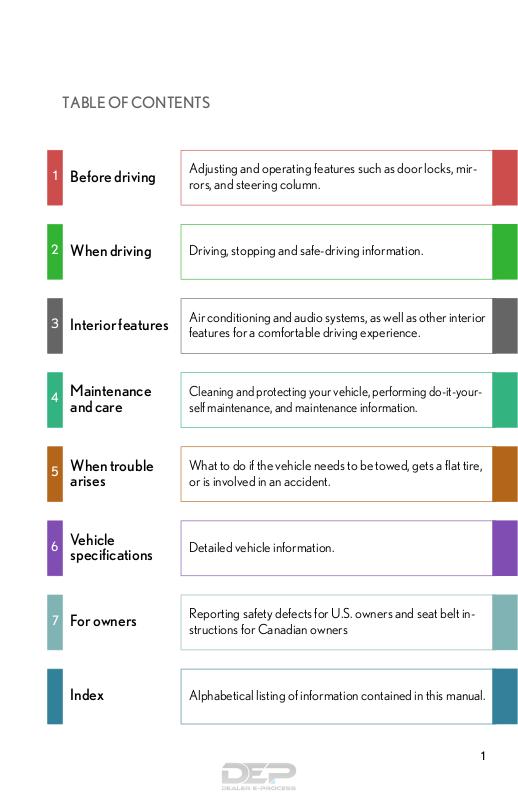

TABLE OF CONTENTS

1

Before driving

2

When driving

3

Interior features

Maintenance

4

and care

When trouble

5

arises

Vehicle

6

specifications

Adjusting and operating features such as door locks, mir­rors, and steering column.

Driving, stopping and safe-driving information.

Air conditioning and audio systems, as well as other interior
features for a comfortable driving experience.

Cleaning and protecting your vehicle, performing do-it-your­self maintenance, and maintenance information.

What to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.

Detailed vehicle information.

7

For owners

Index

Reporting safety defects for U.S. owners and seat belt in­structions for Canadian owners

Alphabetical li

sting of information contained in this manual.

1

TABLE OF CONTENTS Index

1

Before driving

1-1. Key information ........................... 20

Keys ...................................................... 20

1-4. Opening and closing the

windows and moon roof .......... 64

Power windows................................ 64

Moon roof .......................................... 66

1-5. Refueling ........................................ 69

1-2. Opening, closing and locking

the doors and trunk .................. 22

Smart access system with

push-button start .......................... 22

Wireless remote control.............. 34

Doors.................................................... 37

Trunk...................................................... 41

1-3. Adjustable components

(seats, mirrors,

steering wheel).......................... 44

Front seats.......................................... 44

Driving position memory ............. 46

Seat position memory ................... 49

Head restraints.................................. 51

Seat belts ............................................ 52

Steering wheel

(manually adjustable type) ...... 58

Steering wheel

(power-adjustable type)............ 59

Anti-glare inside rear view

mirror ................................................ 60

Outside rear view mirrors............ 61

Opening the fuel tank cap........... 69

1-6. Theft deterrent system............... 72

Engine immobilizer system......... 72

Alarm.................................................... 74

Theft prevention labels

(U.S.A.)............................................. 76

1-7. Safety information ....................... 77

Correct driving posture ............... 77

SRS airbags ....................................... 79

Front passenger occupant

classification system.................... 90

Child restraint systems ................. 95

Installing child restraints............... 98

2

When driving

2-1. Driving procedures................... 108

Driving the vehicle........................ 108

Engine (ignition) switch ................ 117

Automatic Transmission ............ 122

Manual Transmission................... 126

Turn signal lever............................. 128

Parking brake ................................. 129

2

2-2. Instrument clu

ster..................... 130

Gauges and meters ..................... 130

Indicators and warning lights ... 136

Multi-information display........... 139

2-3. Operating the lights and

windshield wipers .................... 143

Headlight switch............................ 143

Fog light switch .............................. 146

Windshield wipers and

washer............................................. 147

Headlight cleaner switch............. 151

2-4. Using other driving systems.... 152

Cruise control ................................ 152

Dynamic radar cruise

control............................................. 155

Intuitive parking assist ................. 164

Driving assist systems.................. 170

PCS (Pre-Collision System)..... 176

3

Interior features

3-1. Using the air conditioning

system and defogger ............. 192

Automatic air

conditioning system .................. 192

Rear window and outside rear

view mirror defoggers ........... 200

3-2. Using the audio system............ 201

Audio system type........................ 201

Using the radio.............................. 204

Using the CD player...................... 211

Playing back MP3 and

WMA discs.................................... 217

Optimal use of the audio

system ............................................ 225

Using the AUX adapter............ 228

Using the steering wheel

audio switches............................ 229

1

2

3

4

5

2-5. Driving information ................... 179

Cargo and luggage...................... 179

Vehicle load limits......................... 182

Winter driving tips ........................ 183

Trailer towing.................................. 187

Dinghy towing

(vehicles with an

automatic transmission) .......... 188

Dinghy towing

(vehicles with a

manual transmission)................ 189

3-3. Using the interior lights........... 231

Interior lights list............................. 231

• Interior lights ............................... 234

• Personal lights ............................ 234

6

7

3

TABLE OF CONTENTS Index

3-4. Using the storage features .... 236

List of storage features............... 236

• Glove box..................................... 236

• Console boxes ........................... 237

• Overhead console................... 238

• Cup holders................................. 239

• Bottle holders/

door pockets................................ 241

3-5. Other interior features........... 242

Sun visors......................................... 242

Vanity mirror.................................. 243

Clock................................................. 244

Satellite switches .......................... 245

Ashtrays .......................................... 248

Cigarette lighter........................... 249

Power outlet.................................. 250

Seat heaters..................................... 251

Seat heaters and ventilators .... 253

Armrest ............................................ 255

Rear sunshade............................... 256

Trunk storage extension........... 258

Coat hooks ..................................... 259

Floor mat......................................... 260

Trunk features................................. 261

Garage door opener.................. 264

Compass.......................................... 269

4

Maintenance and care

4-1. Maintenance and care............ 274

Cleaning and protecting

the vehicle exterior................... 274

Cleaning and protecting

the vehicle interior.................... 277

4-2. Maintenance............................. 280

Maintenance requirements .... 280

General maintenance................ 282

Emission inspection and

maintenance (I/M)

programs ..................................... 285

4-3. Do-it-yourself

maintenance............................ 286

Do-it-yourself service

precautions.................................. 286

Hood................................................. 289

Positioning a floor jack.............. 290

Engine compartment.................. 292

Tires .................................................. 306

Tire inflation pressure.................. 316

Wheels............................................. 320

Air conditioning filter.................. 322

Electronic key battery................ 325

Checking and replacing

fuses................................................ 327

Headlight aim.................................. 341

Light bulbs....................................... 342

4

5

When trouble arises

6

Vehicle specifications

5-1. Essential information

If your vehicle needs to

be towed...................................... 350

If you think something

is wrong......................................... 356

Fuel pump shut off system ........ 357

Event data recorder................... 358

5-2. Steps to take in an

emergency .............................. 360

If a warning light turns on

or a warning buzzer

sounds... ....................................... 360

If a warning message is

displayed....................................... 369

If you have a flat tire.................... 382

If the engine will not start ........... 391

If the shift lever cannot be

shifted from P.............................. 392

If you lose your keys.................... 393

If the electronic key does not

operate properly ....................... 394

If the vehicle battery is

discharged ................................... 397

If your vehicle overheats .......... 400

If the vehicle becomes stuck ... 402

.............. 350

6-1. Specifications ............................ 406

Maintenance data

(fuel, oil level, etc.)..................... 406

Fuel information............................. 421

Tire information ............................ 424

6-2. Customization .......................... 436

Customizable features .............. 436

6-3. Initialization ................................ 441

Items to initialize ............................ 441

7

For owners

Reporting safety defects

for U.S. owners........................... 444

Seat belt instructions

for Canadian owners

(in French).................................... 445

Index

Abbreviation list .................................. 448

Alphabetical index.............................. 450

1

2

3

4

5

6

7

What to do if... ...................................... 462

5

Pictorial index

Exterior

Parking lights

Hood

P. 143

P. 289

Windshield wipers

Moon roof ∗

Outside rear view

mirrors

Side marker lights

P. 147

P. 66

P. 61

P. 143

Headlights (low and high ∗ beam)

P. 143

Fog lights

Turn signal lights

Headlights (high beam)

6

P. 146

P. 128

P. 143

Rear window defogger

P. 200

Doors

Tires

l Rotation
l Replacement
l Inflation pressure
l Information

P. 37

P. 306

P. 382

P. 415

P. 424

Side marker lights

Tail lights

Trunk

Turn signal lights

Fuel filler door

P. 143

P. 143

P. 41

P. 128

P. 69

∗: If equipped

7

Pictorial index

Interior

Seat belts

Head restraints

Power window
switches

P. 64

P. 228

P. 241

P. 260

P. 79

P. 52

P. 51

AUX adapter

Bottle holders/door pockets

Floor mat

SRS driver airbag

SRS knee airbags

A

P. 79

SRS front passenger
airbag

P. 79

Armrest

Console box ∗

Cup holders

Ashtrays

Power outlet

8

P. 255

P. 237

P. 239

P. 248

P. 250

Front seats

Cup holders

SRS side airbags

Console box

P. 44

P. 239

P. 79

P. 237

A

Anti-glare inside rear view mirror

Moon roof switch ∗

Coat hooks

SRS curtain shield airbags

Personal lights

Interior lights

Personal lights

Interior lights

P. 259

P. 79

P. 60

P. 234

P. 66

P. 234

P. 234

P. 234

Vanity mirrors

Sun visors

Garage door opener switches

Compass

P. 243

P. 242

P. 264

P. 269

∗: If equipped

9

Pictorial index

B

Interior

Driving position memory switches ∗
Seat position memory switches ∗

Door lock switch

Outside rear view mirror
switches

P. 61

Window lock switch

Power window switches

P. 46

P. 49

P. 37

P. 64

P. 64

10

C

Automatic transmission

Automatic transmission shift lever

P. 122

Shift lock override button

Cigarette lighter
Ashtrays

P. 248

Manual transmission

Manual transmission shift lever

Cigarette lighter
Ashtrays

P. 248

P. 249

P. 249

Seat heater switches ∗

P. 251

Seat heater/ventilator switches ∗

P. 392

P. 126

Parking brake lever

Seat heater switches ∗

P. 251

Seat heater/ventilator switches ∗

P. 253

P. 129

P. 253

∗: If equipped

11

Pictorial index

Instrument panel

Headlight switch

Turn signal lever

ght switch

Fog li

P. 143

P. 128

P. 146

Shift paddle switches ∗

Gauges and meters

Multi-information display

Windshield wipers and washer switch

Engine (ignition) switch

P. 124

P. 130

P. 139

P. 147

P. 117

12

Trunk opener main switch

Glove box

P. 41

P. 236

Tilt and telescopic steering lock release lever ∗

Tilt and telescopic steering control switch ∗

Parking brake pedal (automatic transmission)

Audio remote control switches

P. 58

P. 59

P. 129

P. 229

A

Without navigation system

Air conditioning
system

P. 192

Audio
system

P. 201

Clock

P. 244

Rear window and out­side rear view mirror
defoggers

P. 200

Security indicator

P. 72, 74

Emergency
flashers

With navigation system

Navigation
system*

Clock

P. 244

Audio system*

Rear window and
outside rear view
mirror defoggers

*

Security indicator

P. 72, 74

Air conditioning
system*

Emergency flashers

∗: If equipped

*: Refer to “Navigation System Owner's Manual”.

13

Pictorial index

B

Instrument panel

With navigation system Without navigation system

Telephone switch*

“DISP” switch

P. 140

Distance switch ∗

P. 155

Cruise control switch

P. 152, 155

Cruise control switch

Talk switch*

C

Automatic transmission Manual transmission

TRAC/VSC OFF
switch ∗

P. 172

TRAC/VSC OFF
switch ∗

“DISP” switch

Distance switch ∗

P. 172

P. 140

P. 155

P. 152, 155

14

ECT switch

P. 123

ETCS switch

P. 126

D

Rear sunshade switch ∗

P. 256

Headlight cleaner switch ∗

Fuel filler door opener

P. 69

P. 151

Instrument panel light

control dial

Satellite switches

Trunk opener

P. 131

P. 245

P. 41

∗: If equipped

*: Refer to “Navigation System Owner's Manual”.

15

For

your information

Main Owners Manual

Please note that this manual applies to all models and explains all equipment, includ­ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.

All specifications provided in this manual are current at the time of printing. How­ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor­mance problems resulting from the modification may not be covered under war­ranty.

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control system, anti-lock brake system, SRS airbag sys­tem and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.

16

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.

n General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or
use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

17

Sy

mbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.

Symbols used in illustrations

Safety symbol

18

The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen.”

Arrows indicating operations

Indicates the action (pushing, turning, etc.)
used to operate switches and other
devices.

Indicates the outcome of an operation (e.g.
a lid opens).

1-1. Key information

Keys

The following keys are provided with the vehicle.

Using the mechanical key

Take out the mechanical key.

Electronic keys

• Operating the smart access
system with push-button start
(→P. 22)

• Operating the wireless
remote control function
(→P. 3 4)

Mechanical keys
Key number plate

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.

20

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.

1-1. Key information

n When required to leave a key to the vehicle with a parking attendant

Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (→P. 41 , 2 36 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.

n Key n umber plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. (→P. 393)

NOTICE

n To prevent key damage

l Do not subject the keys to strong shocks, expose them to high temperatures by

placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any material that

blocks electromagnetic waves to the key surface.

l Do not disassemble the electronic key.

1

Before driving

21

1-2. Opening, closing and locking the doors and trunk

Smart access system with push-button start

The following operations can be performed simply by carrying the elec­tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

Locks and unlocks the doors (→P. 2 3)
Unlocks the trunk (→P. 23 )
Starts the engine (→P. 117)

22

1-2. Opening, closing and locking the doors and trunk

Locking and unlocking the doors (front door handles only)

Press the lock button to lock the
door.

Grip the handle to unlock the
door.

Make sure to touch the sensor on
the back of the handle.

The door cannot be unlocked for 3
seconds after the door is locked.

1

Before driving

Unlocking the trunk

Press the button to unlock the
trunk.

23

1-2. Opening, closing and locking the doors and trunk

Antenna location and effective range

n Antenna location

Antennas outside cabin
Antennas inside cabin
Antenna inside trunk
Antenna outside trunk

24

1-2. Opening, closing and locking the doors and trunk

n Effective range (areas within which the electronic key is detected)

When locking or unlocking
the doors

The system can be operated
when the electronic key is
within about 2.3 ft. (70 cm) of
either of the outside front
door handles. (Only the doors
detecting the key can be
operated.)

When unlocking the trunk

The system can be operated
when the electronic key is
within about 2.3 ft. (70 cm) of
the trunk release button.

When starting the engine
or changing “ENGINE
START STOP” switch
modes

The system can be operated
when the electronic key is
inside the vehicle.

1

Before driving

25

1-2. Opening, closing and locking the doors and trunk

n Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)

n Conditions affecting operation

The smart access system with push-button start uses weak radio waves. In the fol­lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start from
operating properly:
(Ways of coping: →P. 39 4)

l When the electronic key battery is depleted
l Near a TV tower, electric power plant, gas station, radio station, large display,

airport or other facility that generates strong radio waves or electrical noise

l When carrying a portable radio, cellular phone, cordless phone or other wire-

less communication devices

l When the electronic key is in contact with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

•Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

l When multiple electronic keys are in the vicinity
l When another wireless key (that emits radio waves) is being used nearby
l When carrying or using the electronic key together with the following devices

th

at emit radio waves

• Another vehicle's electronic key or a wireless key that emits radio waves

• Personal computer or personal digital assistant (PDA)

• Digital audio player

• Portable game system

l If window tint with a metallic content or metall

ic objects are attached to the rear

window

26

1-2. Opening, closing and locking the doors and trunk

n Switching the door unlock function

It is possible to set which doors the entry function unlocks.

STEP 1

Turn the “ENGINE START STOP” switch OFF.

STEP 2

The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)

When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing

on the key.

Multi-information

display

Unlocking doors Beep

Hold the driver's door handle
to unlock only the driver's
door.

Exterior: Beeps three
times

Hold the front passenger’s

Interior: Pings once

door handle to unlock all

ors

do

STEP 3

Hold either front door handle
to unlock all doors

Unlock the doors using the electronic key and open one of the doors.
If a door is not opened within 60 seconds after is pressed, the doors

will be locked again and the alarm will automatically be set.In case that the
alarm is triggered, immediately stop the alarm. (→P. 74)

Exterior: Beeps twice
Interior: Pings once

1

Before driving

27

1-2. Opening, closing and locking the doors and trunk

n Battery-saving function

In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.

l When the entry function has not been used for a month or more
l When the electronic key has been left within approximately 3 ft. (1 m) of the

vehicle for 10 minutes or more

The system will resume operation when...

l The vehicle is locked using the door handle lock switch.
l The vehicle is locked/unlocked using the wireless remote control function.

(→P. 3 4)

l The vehicle is locked/unlocked using the mechanical key. (→P. 3 94 )

n Electronic key battery depletion

l The standard battery life is 1 to 2 years. (The battery becomes depleted even if

the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec­essary. (→ P. 325)

l To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of

the following electrical appliances that produce a magnetic field.

•TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

•Glass top ranges

• Table lamps

n To operate the system properly

Mak

e sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.

Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)

28

1-2. Opening, closing and locking the doors and trunk

n Note for the entry function

l Even when the electronic key is within the effective range (detection areas), the

system may not operate properly in the following cases.

• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to the
rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the engine is started or “ENGINE START STOP” switch
modes are changed.

l As long as the electronic key is within the effective range, the doors may be

l

ocked or unlocked by anyone.

l Even if the electronic key is not inside the vehicle, it may be possible to start the

engine if the electronic key is near the window.

l The doors may unlock if a large amount of water splashes on the door handle,

such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)

l Gripping the door handle when wearing a glove may not unlock the door.
l If the wireless remote control is used to lock the doors when the electronic key

is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)

l A sudden approach to the effective range or door handle operation may prevent

the doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.

n When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.

n Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

1

Before driving

29

1-2. Opening, closing and locking the doors and trunk

n Alarms and warning indicators

A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. (→P. 36 9)

The following table describes circumstances and correction procedures when only
alarms are sounded.

Alarm Situation Correction procedure

Exterior alarm
sounds once for 2
seconds

Exterior alarm
sounds once for 60
seconds

Exterior alarm
sounds once for 10
seconds

Interior alarm
sounds continu­ously*

Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartment

Closed the trunk while the
electronic key is still inside
and all doors are locked

Tried to exit the vehicle with
the electronic key and lock
the doors without first turning
the “ENGINE START STOP”
switch OFF

Tried to lock the vehicle using
the entry function while a
door is open

Tried to open the door and
exit the vehicle without shift­ing the shift lever to P

Retrieve the electronic
key from the passenger
compartment and lock
the doors again.

Retrieve the electronic
key from the trunk and
close the trunk lid.

Tu rn th e “E NG I NE
START STOP” switch
OFF and lock the doors
again.

Close all of the doors
and lock the doors
again.

Shift the shift lever to P.

30

1-2. Opening, closing and locking the doors and trunk

Alarm Situation Correction procedure

Switched to ACCESSORY

Interior alarm pings
continuously

mode while the driver's door
is open (Opened the driver's
door when the “ENGINE
START STOP” switch is in
ACCESSORY mode.)

Tu rn th e “E NG I NE
START STOP” switch
OFF and close the
driver's door.

Turned the “ENGINE START
STOP” switch OFF while the

Close the driver's door.

driver's door is open

*: Vehicles with an automatic transmission only

n If the smart access system with push-button start does not operate properly

l Locking and unlocking the doors and trunk: Use the mechanical key.

(→P. 3 94 )

l Starting the engine: →P. 117

n When the electronic key battery is fully depleted

→P. 3 25

n Customization that can be configured at Lexus dealer

It is possible to deactivate systems such as the smart access system with push-but­ton start. (Customizable features →P. 4 36)

n Certification for the smart access system with push-button start

For vehicles sold in the U.S.A.

1

Before driving

FCC ID: NI4TMLF-1

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

31

1-2. Opening, closing and locking the doors and trunk

NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter­ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

l Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

32

1-2. Opening, closing and locking the doors and trunk

CAUTION

n Caution regarding interference with electronic devices

l People with implanted pacemakers or cardiac defibrillators should keep away

from the smart access system antennas. (→P. 24 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of emitting the radio waves. Then, consult your doctor
to see if you should disable the entry function.

l User of any electrical medical device other than implanted pacemakers and

implanted cardiac defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.

Ask your Lexus dealer for details for disabling the entry function.

1

Before driving

33

1-2. Opening, closing and locking the doors and trunk

Wireless remote control

The wireless remote control can be used to lock and unlock the vehicle and
the trunk from outside the vehicle.

Locks all doors
Unlocks all doors
Opens the windows and

moon roof (push and hold)
Unlocks the trunk

(push and hold)
Sounds alarm

(push and hold) (→P. 74 )

n 2-step unlocking function

When you push , the driver's door is unlocked. Pushing the button again
within 3 seconds unlocks the other doors.

n Operation signals

Doors

: A buzzer sounds and the emergency flashers flash to indicate that the

doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Trunk: A buzzer sounds to indicate that the trunk has been unlocked.

Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.

n Door lock buzzer

If a door is not fully closed, a buzzer sounds if an attempt to lock the door is made.
Fully close the door to stop the buzzer, and lock the vehicle once more.

n Alarm

Using the wireless remote control to lock the door will set the alarm system.

n Electronic key battery depletion

→P. 2 8

n Security feature

→P. 2

9

34

1-2. Opening, closing and locking the doors and trunk

n When the electronic key battery is fully depleted

→P. 3 25

n Conditions affecting operation

→P. 2 6

n Customization that can be configured at Lexus dealer

Settings (e.g. trunk unlocking function) can be changed. (Customizable features
→P. 4 36 )

n Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF-1

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter­ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

l Consult the dealer or an experienced radio/TV technician for help.

WARNING:

FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

1

Before driving

35

1-2. Opening, closing and locking the doors and trunk

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

36

1-2. Opening, closing and locking the doors and trunk

Doors

The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.

n Entry function

→P. 2 3

1

n Wireless remote control

→P. 3 4

n Door lock switch

n Inside lock button

Before driving

Locks all doors
Unlocks all doors

Locks the door
Unlocks the door

The front doors can be opened
by pulling the inside handle even
if the lock buttons are in the lock
position.

37

1-2. Opening, closing and locking the doors and trunk

Locking the front doors from the outside without a key

The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.

Depending on the position of the electronic key, the key may not be detected
correctly and the door may be locked.

Rear door child-protector lock

The door cannot be opened
from inside the vehicle when the
locks are set.

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

Automatic door locking and unlocking systems

The following functions can be set or cancelled:

Function Operation

Shift position linked door
locking function*

Shift position linked door
unlocking function*

Speed linked door locking
function

Driver's door linked door
unlocking function

Shifting the shift lever out of P locks all doors.

Shifting the shift lever to P unlocks all doors.

All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.

All doors are unlocked when the driver's door is
opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.

*: Vehicles with an automatic transmission only

38

1-2. Opening, closing and locking the doors and trunk

n Setting and canceling the functions

To switch between setting and canceling, follow the procedure below:

STEP 1

Close all the doors and switch the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform the step 2 within 10
seconds.)

STEP 2

Shift the shift lever to P or N, and press and hold the driver's door
lock switch ( or ) for approximately 5 seconds and then
release.

The shift lever and switch positions corresponding to the desired func­tion to be set or canceled are shown as follows.

Function Shift lever position Switch position

Shift position linked door locking
function

Shift position linked door unlock­ing function

1

Before driving

P

Speed linked door locking function

Driver's door linked door unlocking
function

N

When the setting or canceling operation is complete, all doors are locked
and then unlocked.

39

1-2. Opening, closing and locking the doors and trunk

n Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.

n Using the mechanical key

The doors can also be locked and unlocked with the mechanical key. (→P. 3 94)

n Customization that can be configured at Lexus dealer

Settings (e.g. unlocking function using a key) can be changed. (Customizable fea­tures →P. 4 36 )

CAUTION

n To prevent an accident

Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.

l Always use a seat belt.
l Always lock all doors.
l Ensure that all doors are properly closed.
l Do not pull the inside handle of the front door while driving.
l Set the rear door child protector locks when children are seated in the rear seat.

40

1-2. Opening, closing and locking the doors and trunk

Tr u nk

The trunk can be opened using the trunk opener, entry function or wireless
remote control.

n Trunk opener

Release the trunk lid.

n Entry function

→P. 2 3

n Wireless remote control

→P. 3 4

1

Before driving

Locking the trunk opener feature

Turn the main switch in the glove
box off to disable the trunk opener.

On
Off

The trunk lid cannot be opened
even with the wireless remote con­trol or the entry function.

41

1-2. Opening, closing and locking the doors and trunk

n Tr u nk l i g ht

When the trunk light switch is set to on, the trunk light turns on when the trunk is
opened.

On

Off

n Tr u nk h a n dl e

Use the trunk handle when closing the trunk.

n Internal trunk release lever

The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.

The lever will continue to glow for some time
after the trunk lid is closed.

n Using the mechanical key

The trunk can be also opened using the mechanical key. (→P. 3 94 )

42

1-2. Opening, closing and locking the doors and trunk

CAUTION

n Caution while driving

Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.

n When children are in the vehicle

Never leave children unattended in the vehicle as they may lock themselves in the
vehicle or trunk, which could cause the child to overheat or suffocate, resulting in
death or serious injury.

1

Before driving

43

1-3. Adjustable components (seats, mirrors, steering wheel)

Front seats

Manual seat

Seat position lever
Seatback angle lever
Vertical height adjustment lever
Seat cushion (front) angle knob

44

Power seat

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

CAUTION

n Seat adjustment

l Do not recline the seat more than necessary when the vehicle is in motion to

reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.

l Manual seat only: After adjusting the seat, make sure that the seat is locked in

position.

45

1-3. Adjustable components (seats, mirrors, steering wheel)

Driving position memory (if equipped)

Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto­matically when the doors are unlocked.
Three different driving positions can be entered into memory.

n Entering a position to memory

ehicles with an automatic transmission: Check that the shift lever is

V
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.

STEP 1

STEP 2

STEP 3

Switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view

mirrors to the desired positions.

While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.

If the selected button has
already been preset, the previ­ously recorded position will be
overwritten.

46

1-3. Adjustable components (seats, mirrors, steering wheel)

n Recalling the memorized position

Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.

STEP 1

Switch to IGNITION ON mode.

1

Before driving

STEP 2

Push button “1”, “2” or “3” to
recall the memorized position.

Linking driving position memory with door unlock operation

Record your driving position to button “1”, “2” or “3” before performing
the following.

STEP 1

Turn the “ENGINE START STOP” switch OFF and close the
driver's door.

STEP 2

While the desired button (“1”, “2”
or “3”) press on the wireless
remote control until the signal
beeps.

The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.

47

1-3. Adjustable components (seats, mirrors, steering wheel)

STEP 3

Open one of the doors
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.

(→P. 74 )

n Canceling the linked door unlock operation

STEP 1

STEP 2

n Operating the driving position memory after turning the “ENGINE START

STOP” switch OFF

Memorized positions (except for the steering wheel positions) can be activated up
to 30 seconds after the driver's door is opened, even after turning the “ENGINE
START STOP” switch OFF.

n To cancel seat position recall

Perform any of the following operations.

l Push the “SET” button.
l Push button “1”, “2” or “3”.
l Adjust the seat using the switches (only cancels seat position recall).

n If the battery is disconnected

The memorized positions are erased when the battery is disconnected.

Turn the “ENGINE START STOP” switch OFF and close the driver's door.
While pushing the “SET” button, push on the wireless remote con-

trol until the signal beeps.

CAUTION

n Seat adjustment caution

Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.

48

1-3. Adjustable components (seats, mirrors, steering wheel)

Seat position memory (if equipped)

Your preferred front passenger seat position can be memorized and
recalled with the touch of a button.
Three different seat positions can be entered into memory.

n Entering a position to memory

Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.

1

Before driving

STEP 1

STEP 2

STEP 3

Switch to IGNITION ON mode.
Adjust the front passenger seat to the desired position.

While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.

If the selected button has
already been preset, the previ­ously recorded position will be
overwritten.

n Recalling the memorized position

Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.

Push button “1”, “2” or “3” to
recall the memorized position.

49

1-3. Adjustable components (seats, mirrors, steering wheel)

n Operating the seat position memory after turning the “ENGINE START STOP”

switch OFF

Memorized position can be activated up to 30 seconds after the front passenger
door is opened, even after turning the “ENGINE START STOP” switch OFF.

n To cancel seat position recall

Perform any of the following operations.

l Push the “SET” button.
l Push button “1”, “2” or “3”.
l Adjust the seat position using the switches.

n If the battery is disconnected

The memorized positions are erased when the battery is disconnected.

CAUTION

n Seat adjustment caution

Take care during seat adjustment that the seat does not strike the rear passenger.

50

1-3. Adjustable components (seats, mirrors, steering wheel)

Head restraints

Vertical adjustment

Push and hold the lock release
button when lowering the head
restraint.

1

Lock
release
button

n Adjusting the height of the head restraints

Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

n Adjusting the rear seat head restraints

Always raise the head restraint one level from the stowed position when using.

Removal

Pull the head restraint up while
pushing the lock release button.

CAUTION

n Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.

l Use the head restraints designed for each respective seat.
l Adjust the head restraints to the correct position at all times.
l Do not drive with the head restraints removed.

Before driving

51

1-3. Adjustable components (seats, mirrors, steering wheel)

Seat belts

Make sure that all occupants are wearing their seat belts before driving the
vehicle.

n Correct use of the seat belts

l Extend the shoulder belt so

that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.

l Position the lap belt as low as

possible over the hips.

l Adjust the position of the

seatback. Sit up straight and
well back in the seat.

l Do not twist the seat belt.

n Fastening and releasing the seat belt

Release button

52

Fastening the belt

Push the tab into the buckle until
a clicking sound is heard.

Releasing the belt

Press the release button.

1-3. Adjustable components (seats, mirrors, steering wheel)

n Adjusting the height of the belt (front seats)

Down
Up

Move the height adjuster up and
down as needed until you hear a
click.

Seat belt comfort guide (outside rear seats)

If the shoulder belt sits close to a
person’s neck, slide the seat belt
comfort guide forward.

1

Before driving

Seat belt pretensioners (front and outside rear seats)

The pretensioner helps the seat
belt to quickly restrain the occu­pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli­sion.

The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.

53

1-3. Adjustable components (seats, mirrors, steering wheel)

Pre-collision seat belts (front seats of vehicles with pre-collision system)

When the pre-collision sensor detects an obstacle and determines that a
collision is unavoidable, the seat belts lessen collision injury by retracting
the slack in the front seat belts before the collision, thus restraining the
driver and passenger at an earlier stage.
The seat belts will also operate in the event of sudden braking. (→P. 1 76)

n Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.

n Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. (→P. 9 8)

n Pregnant women

54

Obtain medical advice and wear the seat belt
in the proper way. (→P. 52 )

Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul­der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.

If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf­fer death or serious injury as a result of sud­den braking or a collision.

1-3. Adjustable components (seats, mirrors, steering wheel)

n People suffering illness

Obtain medical advice and wear the seat belt in the proper way.

n Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

l Use a child restraint system appropriate for the child, until the child become

large enough to properly wear the vehicle's seat belt. (→P. 9 5)

l When the child becomes large enough to properly wear the vehicle's seat belt,

follow the instructions on P. 52 regarding seat belt usage.

n Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.

n Seat belt extender

If your seat belts cannot be fastened securely
because they are not long enough, a person­alized seat belt extender is available from
your Lexus dealer free of charge.

1

Before driving

55

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Observe the following precautions to reduce the risk of injury in the event of sudden
braking or an accident.
Failing to do so may cause death or severe injury.

n Wearing a seat belt

l Ensure that all passengers wear a seat belt.
l Always wear a seat belt properly.
l Each seat belt should be used by one person only. Do not use a seat belt for more

than one person at once, including children.

l Lexus recommends that children be seated in the rear seat and always use a seat

belt and/or an appropriate child restraint system.

l Do not recline the seat any more than necessary to achieve a proper seating

position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.

l Do not wear the shoulder belt under your arm.
l Always wear your seat belt low and snug across your hips.

n Seat belt pretensioners

l Do not place anything, such as a cushion, on the front passenger’s seat. Doing so

will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.

l If the pretensioner has activated, the seat belt becomes locked: it cannot be fur-

ther extended, nor will it return to the stowed position. The seat belt cannot be
used again and must be replaced at your Lexus dealer.

56

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

n Seat belt damage and wear

l Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed

in the door.

l Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.

Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.

l Ensure that the belt and tab are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Lexus
dealer.

l Replace the seat assembly, including the belts, if your vehicle has been involved in

a serious accident, even if there's no obvious damage.

l Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.

Have any necessary repairs carried out by your Lexus dealer. Inappropriate han­dling of the pretensioner may prevent it from operating properly resulting in
death or serious injury.

n Using a seat belt extender

l Do not wear the seat belt extender if you can fasten the seat belt without the

extender.

l Do not use the seat belt extender when installing a child restraint system because

the belt will not securely hold the child restraint system, increasing the risk of
death or injury in the event of a collision.

l The personalized extender may not be safe on another vehicle, when used by

another person, or at a different seating position other than the one originally
intended.

1

Before driving

NOTICE

n When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

57

1-3. Adjustable components (seats, mirrors, steering wheel)

Steering wheel (manually adjustable type)

The steering wheel can be adjusted to a comfortable position.

STEP 1

Hold the steering wheel
and press the lever
down.

STEP 2

Adjust to the ideal posi­tion by moving the
steering wheel horizon­tally and vertically.

STEP 3

CAUTION

n Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

n After adjusting the steering wheel

Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident.

Pull the lever up.

58

1-3. Adjustable components (seats, mirrors, steering wheel)

Steering wheel (power-adjustable type)

The steering wheel can be adjusted to a comfortable position while the
“ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.

Up
Down
Away from the driver
Toward the driver

Auto tilt away

When the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.

1

Before driving

Switching to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.

CAUTION

n Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

59

1-3. Adjustable components (seats, mirrors, steering wheel)

Anti-glare inside rear view mirror

In “AUTO” mode, sensors are used to detect the headlights of vehicles
behind and automatically reduce the reflected light.

Turns “AUTO” mode on/off

The indicator comes on when
“AUTO” mode is turned on.

The anti-glare mirror default
mode is “AUTO”. The anti-glare
mirror is automatically set to
“AUTO” whenever the
“ENGINE START STOP” switch
is turned on.

n To prevent sensor error

To ensure that the sensors operate properly,
do not touch or cover them.

CAUTION

n Caution while driving

Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.

60

1-3. Adjustable components (seats, mirrors, steering wheel)

Outside rear view mirrors

Mirror angle can be adjusted using the switch when the “ENGINE START
STOP” switch is in ACCESSORY or IGNITION ON mode.

Select a mirror to adjust
(“L”: left or “R”: right)

Adjust the mirror up, down,
in, or out using the switch

n When the mirrors are fogged up

Turn on the mirror defoggers to defog the mirrors. (→P. 2 00 )

n Folding back the mirrors

Push back in the direction of the vehicle's
rear.

1

Before driving

n One-touch adjustment of the mirror angle

(vehicles with driving position memory)

A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→P. 4 6)

61

1-3. Adjustable components (seats, mirrors, steering wheel)

n Linked mirror function when reversing (vehicles with driving position memory)

The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).

n Auto anti-glare function (vehicles with sports or luxury package)

When the anti-glare inside rear view mirror is set to “AUTO” mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. (→P. 6 0)

n Rain clearing mirrors

When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer.In the following cases, the rain clearing
effect will be reduced temporarily, but will return after 1 or 2 days' exposure to
direct sunlight.

l After wiping dirt off the mirrors
l When the mirrors fog up
l After waxing your vehicle in an automatic car wash
l After your vehicle has been parked for a long period in underground parking

lots, etc. where there is no direct sunlight.

62

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

n When driving the vehicle

Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.

l Do not adjust the mirrors while driving.
l Do not drive with the mirrors folded back.
l Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

n When the mirror defoggers are operating

Do not touch the surface of the mirror, as it may be hot.

NOTICE

n If the mirrors become iced up

In order to retain the rain-clearing properties of the mirror, do not attempt to scrape
the ice off. Instead, remove it by turning on the mirror defoggers or by applying
warm water.

1

Before driving

63

1-4. Opening and closing the windows and moon roof

Power windows

The power windows can be opened and closed using the following
switches.

Closing
One-touch closing*
Opening
One-touch opening*

*: Pushing the switch in the oppo-

site direction will stop window
travel partway.

Lock switch

Press the switch down to lock pas­senger window switches.

Use this switch to prevent children
from accidentally opening or clos­ing a passenger window.

n The power windows can be operated when

The “ENGINE START STOP” switch is in IGNITION ON mode.

n Door lock linked window operation

l The power windows can be opened and closed using the mechanical key.

(→P. 3 94 )

l The power windows can be opened using the wireless remote control. (→P.

34)

64

1-4. Opening and closing the windows and moon roof

n Operating the power windows after turning the “ENGINE START STOP” switch

OFF

The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once either front door is opened.

n Jam protection function

If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.

n When the battery is disconnected

The power windows must be initialized in order to ensure proper operation. (Per­form for each window with the switch for each seat.)

STEP 1

STEP 2

Open the window halfway.

Fully close the window by pulling the switch up and continue holding the
switch for one second.

The indicator on the switch changes from a flashing pattern to being on when initial
settings are complete.

n Customization that can be configured at Lexus dealer

ettings (e.g. linked door lock operation) can be changed. (Customizable features

S
→P. 4 36 )

1

Before driving

CAUTION

n Closing the windows

Observe the following precautions.
Failing to do so may result in death or serious injury.

l Check to make sure that all passengers do not have any part of their body in a

position where it could be caught when a window is being operated.

l Do not allow children to operate the power windows.

Closing a power window on someone can cause serious injury, and in some
instances, even death.

n Jam protection function

l Never try jamming any part of your body to activate the jam protection function

ntionally.

inte

l The jam protection function may not work if

something gets caught just before

the window fully closes.

65

1-4. Opening and closing the windows and moon roof

Moon roof (if equipped)

Use the overhead switches to open, close, and tilt the moon roof up and
down.

n Manually opening and closing

Fully open

Fully close

The moon roof can be opened
in 7 steps by changing the posi­tion of the switch.

n One-touch open and close

Open to step 6

While the moon roof is opening,
pushing the switch will stop the
moon roof operation partway.
Any further opening must be
performed manually, using the
switch.

n Tilt up and down

66

After the operation stops, press
the switch again to fully close
the moon roof.

Tilt up

Tilt down

Fully up/fully down.

1-4. Opening and closing the windows and moon roof

n The moon roof can be operated when

The “ENGINE START STOP” switch is in IGNITION ON mode.

n Door lock linked moon roof operation

l The moon roof can be opened and closed using the mechanical key. (→P. 3 94 )
l The moon roof can be opened using the wireless remote control. (→P. 3 4)

n Operating the moon roof after turning the “ENGINE START STOP” switch OFF

The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once either front door is opened.

n Jam protection function

If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.

n If the moon roof can not be closed

Pressing the switch of at for more than 10 seconds closes the moon roof.

n To reduce moon roof wind noise

l Drive with the moon roof switch in when you open and close the moon

roof manually.

l Drive with the moon roof where it has stopped when opening automatically.

n Sunshade

The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.

n Customization that can be configured at Lexus dealer

Settings (e.g. linked door lock operation) can be changed. (Customizable features
→P. 4 36 )

1

Before driving

67

1-4. Opening and closing the windows and moon roof

CAUTION

n Opening the moon roof

Observe the following precautions.
Failing to do so may cause death or serious injury.

l Do not allow any passengers to put their hands or heads outside the vehicle while

it is moving.

l Do not sit on top of the moon roof.

n Closing the moon roof

Observe the following precautions.
Failing to do so may result in death or serious injury.

l Check to make sure that all passengers do not have any part of their bodies in a

position where they could be caught when the moon roof is being operated.

l Do not allow children to operate the moon roof.

Closing the moon roof on someone can cause death or serious injury.

n Jam protection function

l Never try jamming any part of your body to activate the jam protection function

intentionally.

l The jam protection function may not work if something gets caught just before

the moon roof fully closes.

68

1-5. Refueling

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap.

n Before refueling the vehicle

Turn the “ENGINE START STOP” switch OFF and ensure that all
the doors and windows are closed.

1

n Opening the fuel tank cap

STEP 1

STEP 2

STEP 3

Before driving

Open the fuel filler door.

Turn the fuel tank cap slowly to
open.

Hang the fuel tank cap on the
back of the fuel filler door.

69

1-5. Refueling

Closing the fuel tank cap

When replacing the fuel tank cap,
turn it until a clicking sound is
heard.

After releasing your hand, the cap
will turn slightly to the opposite
direction.

n Fuel types

Use unleaded gasoline. (91 Octane rating [Research Octane Number 96] or
higher)

n Fuel tank capacity (reference)

17.2 gal. (65 L, 14.3 Imp.gal.)

n When the fuel filler door opener is inoperable

70

The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch because the battery is
discharged or for any other reason.

1-5. Refueling

CAUTION

n Refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.

l Touch the vehicle or some other metal surface to discharge any static electricity.

Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.

l Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur­ized fuel may spray out the filler neck and cause injury.

l Do not allow anyone that has not discharged static electricity from their bodies to

come close to an open fuel tank.

l Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

l Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

l Do not return to the vehicle or touch any person or object that is statically

charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.

n When replacing the fuel cap

Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri­ous injury.

1

Before driving

NOTICE

n Refueling

Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.

71

1-6. Theft deterrent system

Engine immobilizer system

The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper­ating.

n System maintenance

The vehicle has a maintenance-free type of engine immobilizer system.

n Conditions that may cause the system to malfunction

l If the grip portion of the key is in contact with a metallic object
l If the key is in close proximity to or touching a key to the security system (key

with a built-in transponder chip) of another vehicle

n Certifications for the engine immobilizer system

For vehicles sold in the U.S.A.

FCC ID: NI4TMIMB-1

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

72

1-6. Theft deterrent system

CAUTION

Changes or modifications not expressly approved by the party responsible for com­pliance could void the user’s authority to operate the equipment.

1

NOTICE

n To prevent damage to the key

Do not modify, remove or disable the engine immobilizer system. If any unautho­rized changes or modifications are made, the proper operation of the system can­not be guaranteed.

Before driving

73

1-6. Theft deterrent system

Alarm

The system sounds the alarm and flashes lights when forcible entry is
detected.

n Triggering of the alarm

The alarm is triggered in the following situations.

l A locked door or trunk is unlocked or opened in any way other

than using the entry function, wireless remote door lock function
or mechanical key with the alarm being set.

l The hood is opened with the alarm being set.

n Setting the alarm system

Close the doors, trunk and
hood, and lock all doors using
the entry function, wireless
remote door lock function or
mechanical key.
The system will be set automati­cally after 30 seconds.

The indicator light changes from
being on to flashing when the
system is set.

n Deactivating or stopping the alarm

Do one of the following to deactivate or stop the alarm.

l Unlock the doors or trunk using the entry function, wireless

remote door lock function or mechanical key.

l Turn the “ENGINE START STOP” switch to ACCESSORY or

IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)

74

1-6. Theft deterrent system

n Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following.

l Nobody is in the vehicle.
l The windows and moon roof are closed before the alarm is set.
l No valuables or other personal items are left in the vehicle.

n Pani c m ode

When is pushed for longer than about
one second, an alarm will sound for about 60
seconds and the vehicle lights will flash to
deter any person from trying to break into or
damage your vehicle.

To stop the alarm, push any button on the
wireless remote control.

n Tr ig g er in g of th e al a r m

The alarm may be triggered in the following situations.
Stopping the alarm deactivates the system.

l A person inside the vehicle opens a door, the trunk or hood.
l The battery is recharged or replaced when the vehicle is locked.

n When the battery is disconnected

Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the alarm may
be triggered when the battery is reconnected.

1

Before driving

75

1-6. Theft deterrent system

Theft prevention labels (U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft
by facilitating the tracing and
recovery of parts from stolen
vehicles. Do not remove under
penalty of law.

76

1-7. Safety information

Correct driving posture

Drive in a good posture as follows:

Sit upright and well back in
the seat. (→P. 4 4)

Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (→P. 4 4)

Adjust the seatback so that
the controls are easily opera­ble.

Adjust the tilt and telescopic
positions of the steering
wheel downward so the air­bag is facing your chest.
(→P. 58, 59)

Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (→P. 5 1)

Wear the seat belt correctly.
(→P. 52 )

1

Before driving

CAUTION

n While driving

l Do not adjust the position of the driver’s seat while driving.

Doing so could cause the driver to lose control of the vehicle.

77

1-7. Safety information

CAUTION

n While driving

l Do not place a cushion between the driver or passenger and the seatback.

A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.

l Do not place anything under the front seats.

Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident. The adjustment
mechanism may also be damaged.

n Adjusting the seat position:

l Take care when adjusting the seat position to ensure that other passengers are

not injured by the moving seat.

l Do not put your hands under the seat or near the moving parts to avoid injury.

Fingers or hands may become jammed in the seat mechanism.

78

1-7. Safety information

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They
work together with the seat belts to help reduce the risk of death or serious
injury.

1

Before driving

SRS front airbags
SRS driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front passen­ger from impact with interior components.

Knee airbags
Can help provide driver and front passenger protection.

SRS side and curtain shield airbags
SRS side airbags

Can help protect the torso of the front seat occupants.
SRS curtain shield airbags

Can help protect primarily the head of outside occupants.

79

1-7. Safety information

Airbag system components

Knee airbags
Front passenger airbag
Curtain shield airbags
“AIR BAG ON” and “AIR BAG

OFF” indicator lights
Side airbags
Side and curtain shield airbag

sensors
Curtain shield airbag sensors

SRS warning light
Driver airbag
Driver's seat belt buckle switch
Driver's seat position sensor
Front passenger’s seat belt

buckle switch
Airbag sensor assembly
Occupant detection system

(ECU and sensors)
Front airbag sensors

Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consists of the driver seat’s position sensor etc. The
front passenger’s airbag system consists of the front passenger occupant
classification sensor etc.

The main SRS airbag system components are shown above. The SRS air­bag system is controlled by the airbag sensor assembly. The airbag sen­sor assembly consists of a safing sensor and an airbag sensor.

80

1-7. Safety information

In certain types of severe frontal or side impacts, the SRS airbag system
triggers the airbag inflators. A chemical reaction in the inflators quickly
fills the airbags with non-toxic gas to help restrain the motion of the occu­pants.

1

n SRS warning light

This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensor assemblies, curtain shield airbag sensor
assemblies, driver's seat position sensor, driver's seat belt buckle switch, seat belt
pretensioner assemblies, inflators, interconnecting wiring and power sources.
(→P. 3 61 )

n If the SRS airbags deploy (inflate)

l Bruising and slight abrasions may result from contact with a deploying (inflating)

SRS airbag.

l A loud noise and white powder will be emitted.
l Parts of the airbag module (steering wheel hub, airbag cover and inflator) as

well as the front seats, and parts of the front pillar, rear pillar and roof side rail,
may be hot for several minutes. The airbag itself may also be hot.

l The front windshield may crack.

n Operating conditions (front airbags)

l The SRS front airbags will deploy if the severity of the frontal impact is above the

designed threshold level, comparable to an approximate 15 mph (25 km/h) col­lision when the vehicle impacts straight into a fixed barrier that does not move
or deform.

However, this threshold velocity will be considerably higher if the vehicle strikes
an object, such as a parked vehicle or sign pole, which can move or deform on
impact, or if the vehicle is involved in an underride collision (e.g. a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.).

l It is possible that in some collisions where the forward deceleration of the vehi-

cle is very close to the designed threshold level, the SRS front airbags and the
seat belt pretensioners may not activate together.

l The SRS front passenger airbag will not activate if there is no passenger sitting

e front passenger seat. However, the front passenger airbag may deploy if

in th
luggage is put in the seat, or the seat belt is fastened, even if the seat is unoccu­pied. (→P. 90 )

Before driving

81

1-7. Safety information

n Operating conditions (side and curtain shield airbags)

l The SRS side airbags and curtain shield airbags are designed to inflate when the

passenger compartment is subjected to a severe impact from the side.

l The SRS side airbag on the passenger seat will not activate if there is no passen-

ger sitting in the front passenger seat. However, the side airbag on the passen­ger seat may deploy if luggage is put in the seat, even if the seat is unoccupied.
(→P. 90 )

n Conditions under which the SRS airbags may deploy (inflate), other than a colli-

sion

The SRS front airbags may also deploy if a serious impact occurs to the underside of
your vehicle. Some examples are shown in the illustration.

l Hitting a curb, edge of pavement or hard

surface

l Falling into or jumping over a deep hole
l Landing hard or vehicle falling

n Types of collisions that may not deploy the SRS airbag (front airbags)

The SRS front airbags are generally not designed to inflate if the vehicle is involved
in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli­sion. But, whenever a collision of any type causes sufficient forward deceleration of
the vehicle, deployment of the SRS front airbags may occur.

l Collision from the side
l Collision from the rear
l Vehicle rollover

82

1-7. Safety information

n Types of collisions that may not deploy the SRS airbag

(side and curtain shield airbags)

The SRS side airbag and curtain shield airbag system may not activate if the vehicle
is subjected to a collision from the side at certain angles, or a collision to the side of
the vehicle body other than the passenger compartment.

1

l Collision from the side to the vehicle body

other than the passenger compartment

l Collision from the side at an angle

The SRS side airbags and curtain shield airbags are not generally designed to
inflate if the vehicle is involved in a frontal or rear collision, if it rolls over, or if it is
involved in a low-speed side collision.

l Collision from the front
l Collision from the rear
l Vehicle rollover

Before driving

83

1-7. Safety information

n When to contact your Lexus dealer

In the following cases, contact your Lexus dealer as soon as possible. Do not dis­connect the battery cables before contacting your Lexus dealer.

l Any of the SRS airbags have been inflated.

l The front of the vehicle is damaged or

deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.

l A portion of the doors is damaged or

deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side airbags and curtain
shield airbags to inflate.

84

l The pad section of the steering wheel, front

passenger airbag cover or lower portion of
the instrument panel is scratched, cracked,
or otherwise damaged.

l The surface of the seats with the side air-

bag is scratched, cracked, or otherwise
damaged.

l The portion of the front pillars, rear pillars

or roof side rail garnishes (padding) con­taining the curtain shield airbags inside is
scratched, cracked, or otherwise dam­aged.

1-7. Safety information

CAUTION

n SRS airbag precautions

Observe the following precautions regarding the airbags.
Failure to do so may cause death or serious injury.

l The driver and all passengers in the vehicle must wear their seat belts properly.

The SRS airbags are supplemental devices to be used with the seat belts.

l The SRS driver airbag deploys with considerable force, and can cause death or

serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (“NHTSA”) advises:

Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a
clear margin of safety. This distance is measured from the center of the steering
wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can
change your driving position in several ways:

• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.

• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the airbag
toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while still main­taining control of the foot pedals, steering wheel, and your view of the instrument
panel controls.

1

Before driving

85

1-7. Safety information

CAUTION

n SRS airbag precautions

l If the seat belt extender has been con-

nected to the driver's seat belt buckle but
the seat belt extender has not also been
fastened to the latch plate of the driver's
seat belt, the SRS driver's airbag system
will judge that the driver is wearing the seat
belt even though the seat belt has not been
connected. In this case, the driver's airbag
may not activate correctly in a collision,
resulting in death or serious injury in the
event of collision. Be sure to wear the seat
belt with the seat belt extender.

l The SRS front passenger airbag also deploys with considerable force, and can

cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger seat should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.

l Improperly seated and/or restrained infants and children can be killed or seri-

ously injured by a deploying airbag. An infant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus strongly
recommends that all infants and children be placed in the rear seats of the vehicle
and properly restrained. The rear seats are the safest for infants and children.
(→P. 95 )

86

CAUTION

n SRS airbag precautions

1-7. Safety information

l Do not sit on the edge of the seat or lean

against the dashboard.

l Do not allow a child to stand in front of the

SRS front passenger airbag unit or sit on
the knees of a front passenger.

l Do not drive the vehicle while the driver or

passenger have items resting on their
knees.

l Do not lean against the door, the roof side

rail or the front, side and rear pillars.

l Do not allow anyone to kneel on the pas-

senger seat toward the door or put their
head or hands outside the vehicle.

1

Before driving

87

1-7. Safety information

CAUTION

n SRS airbag precautions

l Do not attach anything to or lean anything

against areas such as the dashboard, steer­ing wheel pad or lower portion of the
instrument panel.
These items can become projectiles when
SRS driver, front passenger and knee air­bags deploy.

l Do not attach anything to areas such as the

door, windshield glass, side door glass,
front and rear pillars, roof side rail or assist
grip.

l Do not hang coat hangers or other hard

objects on the coat hooks. All of these
items could become projectiles and seri­ously injure or kill you, should the SRS cur­tain shield airbag deploy.

l If the vinyl cover is put on the area where the SRS knee airbag will deploys, be

sure to remove it.

l Do not use seat accessories which cover the parts where the SRS side airbags

inflate as they may interfere with inflation of the airbags.

l Do not strike or apply significant levels of force to the area of the SRS airbag

components shown on P. 80.
Doing so can cause the SRS airbags to malfunction.

l Do not touch any of the component parts immediately after the SRS airbags have

deployed (inflated) as they may be hot.

l If breathing becomes difficult after the SRS airbag has deployed, open a door or

window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any
residue as soon as possible to prevent skin irritation.

l If the areas where the SRS airbags are stored, such as the steering wheel pad and

front pillar garnish, are damaged or cracked, have them replaced by your Lexus
dealer.

88

1-7. Safety information

CAUTION

n Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications with­out consulting your Lexus dealer.
The SRS airbag may malfunction or deploy (inflate) accidentally, causing death or
serious injury.

l Installation, removal, disassembly and repair of the SRS airbags
l Repairs, modifications, removal or replacement of the steering wheel, instrument

panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails

l Repairs or modifications of the front fender, front bumper, or side of the occupant

compartment

l Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar

etc.)

l Modifications to the vehicle's suspension system
l Installation of electronic devices such as mobile two-way radios or CD players
l Modifications to your vehicle for a person with a physical disability

1

Before driving

89

1-7. Safety information

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classification sys­tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.

SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light

90

1-7. Safety information

Condition and operation in the front passenger occupant classification system

n Adult

Indicator/

warning light

Devices

n Child

Indicator/

warning light

Devices

*1

“AIR BAG ON” and “AIR BAG OFF” indicator

Front passenger’s seat belt reminder light

Front passenger airbag
Side airbag on the front

Curtain shield airbag in the front passenger side

Front passenger knee airbag

Front passenger’s seat belt pretensioner

*3

or child restraint system

“AIR BAG ON” and “AIR BAG OFF” indicator

Front passenger’s seat belt reminder light

Front passenger airbag
Side airbag on the front

Curtain shield airbag in the front passenger side

Front passenger knee airbag Deactivated

Front passenger’s seat belt pretensioner Activated

“A I R B AG

lights

ON”

SRS warning light Off

Flashing

passenger seat

*4

Activated

“A I R B AG

lights

SRS warning light

OFF”

Off

Flashing

Deactivated

passenger seat

Activated

*5

*2

*2

1

Before driving

91

1-7. Safety information

n Unoccupied

“AIR BAG ON” and “AIR BAG OFF” indicator

Indicator/

warning light

Devices

Front passenger’s seat belt reminder light

Curtain shield airbag in the front passenger side

Front passenger’s seat belt pretensioner

SRS warning light

Front passenger airbag

Side airbag on the front

passenger seat

Front passenger knee airbag

n There is a malfunction in the system

“AIR BAG ON” and “AIR BAG OFF” indicator

Indicator/

warning light

Devices

Front passenger’s seat belt reminder light Off

Curtain shield airbag in the front passenger side

Front passenger’s seat belt pretensioner Activated

SRS warning light On

Front passenger airbag

Side airbag on the front

passenger seat

Front passenger knee airbag Deactivated

lights

lights

Not illuminated

Off

Deactivated

Activated

Deactivated

“A I R B AG

OFF”

Deactivated

Activated

*1: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.

*2: In the event the front passenger does not wear a seat belt.

*3: When a larger child who has outgrown a child restraint system sits in

the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique or posture.

92

1-7. Safety information

*4: Never install a rear-facing child restraint system on the front passen-

ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (→P. 95 )

*5: In case the indicator is not illuminated, consult this manual as for

installing the child restraint system properly. (→P. 98 )

CAUTION

n Front passenger occupant classification system precautions

Observe the following precautions regarding front passenger occupant classifica­tion system.
Failure to do so may cause death or serious injury.

l Wear the seat belt properly.
l Make sure the front passenger’s seat belt tab has not been left inserted into the

buckle before someone sits in the front passenger seat.

l Make sure the “AIR BAG OFF” indicator light is not illuminated when using the

seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the front passenger air­bag, side airbag on the front passenger side and front passenger knee airbag may
not activate correctly, which could cause death or serious injury in the event of
collision.

l Do not put weight on the front passenger seat by putting your hands or feet on

the front passenger seat seatback from the rear passenger seat.

l Do not let a rear passenger lift the front passenger seat with their feet or press on

the seatback with their legs.

l Do not put objects under the front passenger seat.
l Do not recline the front passenger seatback so far that it touches a rear seat. This

may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.

1

Before driving

93

1-7. Safety information

CAUTION

n Front passenger occupant classification system precautions

l If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu-

minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor­rectly. If the “AIR BAG OFF” indicator still remain illuminated, either ask the pas­senger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.

l When it is unavoidable to install the forward-facing child restraint system on the

front passenger seat, install the child restraint system on the front passenger seat
in the proper order. (→P. 98 )

l Do not modify or remove the front seats.
l Do not kick the front passenger seat or subject it to severe impact. Otherwise,

the SRS warning light may come on to indicate a malfunction of the detection sys­tem. In this case, contact your Lexus dealer immediately.

l Child restraint systems installed on the rear seat should not contact the front seat-

backs.

l Do not use a seat accessory, such as a cushion or seat cover, that covers the seat

cushion surface.

l Do not modify or replace the upholstery of the front seat.

94

1-7. Safety information

Child restraint systems

A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.

The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.

Points to remember

Studies have shown that installing a child restraint on a rear seat is much
safer than installing one to the front passenger seat.

l Choose a child restraint system appropriate to the age and size of the

child.

l For installation details, follow the instructions provided with the child

restraint system.
General installation instructions are provided in this manual. (→P. 9 8)

1

Before driving

Types of child restraints

Child restraint systems are classified into the following 3 types according
to the age and size of the child.

Infant seat

95

1-7. Safety information

Convertible seat

Booster seat

n Selecting an appropriate child restraint system

Get an appropriate child restraint system for the child. If a child is too large for a
child restraint system, sit the child on a rear seat and use the vehicle's seat belt.
(→P. 5 2)

CAUTION

n Child restraint precautions

l For effective protection in automobile accidents and sudden stops, a child must

be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind­shield, or between you and the vehicle's interior.

96

1-7. Safety information

CAUTION

n Child restraint precautions

l Lexus strongly urges the use of a proper child restraint system that conforms to

the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.

l Never install a rear-facing child restraint system on the front passenger seat. In

the event of an accident, the force of the rapid inflation of the front passenger air­bag can cause death or serious injury to the child if the rear-facing child restraint
system is installed on the front passenger seat.

l A forward-facing child restraint system should allowed to be installed on the front

passenger seat only when it is unavoidable. Always move the seat as far back as
possible, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.

l Do not use the seat belt extender when installing a child restraint system on the

front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of collision.

l Do not allow the child to lean his/her head or any part of his/her body against the

door or the area of the seat, front pillar, rear pillar or roof side rail from which the
side airbags or curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags and curtain shield airbags
inflate, and the impact could cause death or serious injury to the child.

l Make sure you have complied with all installation instructions provided by the

child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.

n When the child restraint system is not in use

l Keep the child restraint system properly secured on the seat even if it is not in use.

Do not store the restraint unsecured in the passenger compartment.

l If it is necessary to detach the child restraint system, remove it from the vehicle or

store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop or accident.

1

Before driving

97

1-7. Safety information

Installing child restraints

Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the rear seats using a seat belt or a child restraint
lower anchorage. Attach the top strap when installing a child restraint.

Seat belts equipped with a
child restraint locking mecha­nism (ALR/ELR belts except
driver’s seat belt) (→P. 52 )

Child restraint lower anchor­ages

Lower anchorages are pro­vided for the outside rear seats.
(Buttons displaying the location
of the anchorages are attached
to the seats.)

98

Anchor bracket
(for top strap)

Anchor brackets are provided
for all rear seats.

1-7. Safety information

Installing child restraints using a seat belt (child restraint lock function belt)

n Rear facing ⎯ Infant seat/convertible seat

STEP 1

STEP 2

STEP 3

Place the child seat on the rear
seat facing the rear of the vehicle.

Run the seat belt through the child
seat and insert the plate into the
buckle. Make sure that the belt is
not twisted.

Fully extend the shoulder belt and
then allow it to retract slightly in
order to activate the ALR lock
mode.

1

Before driving

Lock mode allows the seat belt to
retract only.

99

1-7. Safety information

STEP 4

n Forward facing ⎯ Convertible seat

STEP 1

STEP 2

While pushing the child seat down
into the rear seat, allow the shoul­der belt to retract until the child
seat is securely in place.

After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.

Place the child seat on the seat
facing the front of the vehicle.

Run the seat belt through the child
seat and insert the plate into the
buckle. Make sure that the belt is
not twisted.

100

STEP 3

Fully extend the shoulder strap and
then allow it to retract slightly into
the ALR lock mode.

Lock mode allows the seat belt to
retract only.

1-7. Safety information

STEP 4

n Booster seat

STEP 1

STEP 2

While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat is
securely in place.

After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.

Place the booster seat on the seat
facing the front of the vehicle.

Sit the child in the booster seat. Fit
the seat belt to the booster seat
according to the manufacturer's
instructions and insert the plate
into the buckle. Make sure that the
belt is not twisted.

1

Before driving

Check that the shoulder belt is cor­rectly positioned over the child's
shoulder, and that the lap belt is as
low as possible. (→P. 52 )

101
