SPARE PARTS CATALOGUE
THERMALINE 80/85/90
DE VOLLFLÄCHENINDUKTION AUF BACKOFEN
EN FULL SURFACE INDUCTION ON OVEN
PNC Factory Model Ref. Description
588663 MBJHGBK8AO a FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, C-BOARD, 1200X850X700H
588664 MBJIGBK8AO a FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, C-BOARD, 1200X850X700H
589585 MCJHEAK8AO b FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, 1200X900X700H
589586 MCJHEBK8AO b FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, C-BOARD, 1200X900X700H
589587 MCJIECK8AO c FULL INDUCTION ON OVEN, TAP LEFT, 2-SIDES, 1200X900X700H
589588 MCJHFAK8AO d FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, 1200X900X800H
589589 MCJHFBK8AO d FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, C-BOARD, 1200X900X800H
589590 MCJIFCK8AO e FULL INDUCTION ON OVEN, TAP LEFT, 2-SIDES, 1200X900X800H
589603 MCJLEAK8AO f FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, 1200X900X700H
589604 MCJLEBK8AO f FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, C-BOARD, 1200X900X700H
589605 MCJMECK8AO g FULL INDUCTION ON OVEN, TAP RIGHT, 2-SIDES, 1200X900X700H
589606 MCJLFAK8AO h FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, 1200X900X800H
589607 MCJLFBK8AO h FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, C-BOARD, 1200X900X800H
589608 MCJMFCK8AO i FULL INDUCTION ON OVEN, TAP RIGHT, 2-SIDES, 1200X900X800H
589860 MCJHEAK8DM k MARINE* FULL INDUCTION ON OVEN, TAP LEFT, 1-SIDE, 1200X900X700H
589861 MCJIECK8DM m MARINE* FULL INDUCTION ON OVEN, TAP LEFT, 2-SIDES, 1200X900X700H
589862 MCJLEAK8DM n MARINE* FULL INDUCTION ON OVEN, TAP RIGHT, 1-SIDE, 1200X900X700H
589863 MCJMECK8DM o MARINE* FULL INDUCTION ON OVEN, TAP RIGHT, 2-SIDES, 1200X900X700H
Page Index
2 Electronical parts (FME)
4 Aeration kit (FML)
6 Mechanical parts (FMM)
8 Mixing tap
10 Base

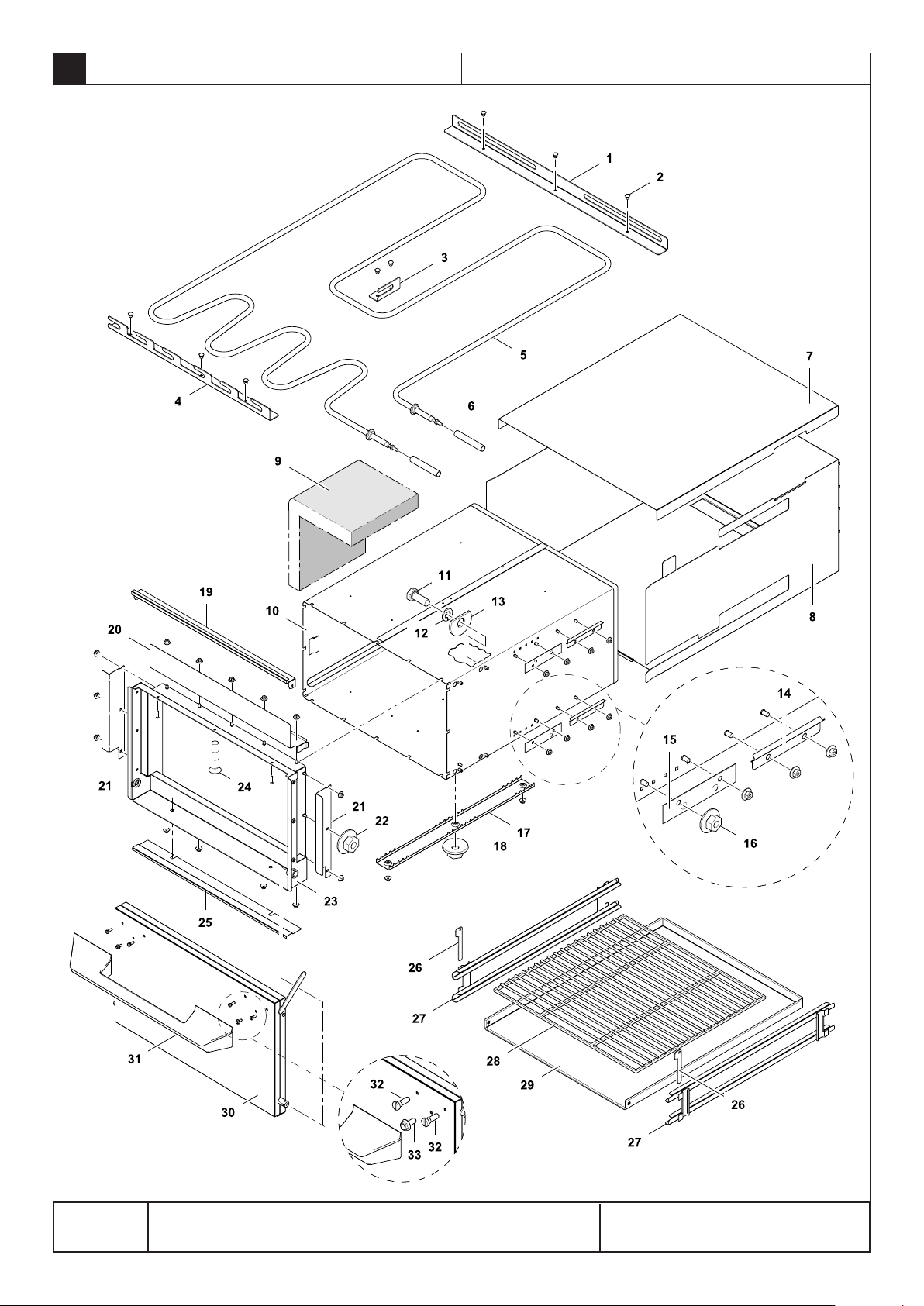

12 Oven
14 Control panel oven
15 Generator cabinet
Last Updates Page
Ed. 01/2015 all
Valid from Ser. № 3101....
Brand: Electrolux
Doc. № 87.8070.03
Elektronische Komponenten (FME)
1
Electronical parts (FME)
Page: 2
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Re f.
1
1 82.9124.01 0G6369 Drehgriff mit Adapter 0°x6.0 Handle with adapter 0°x6.0 all types
2 82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types
3a 82.1027.71
3b 82.1027.26
82.1027.27
82.1049.26
4 82.9115.01 0G6302 Eurotas Display Induktion Eurotas Display Induction D900
72.5938.01 0KX184 Anzeigelampe Indicator light D850
72.5938.08 0KI364 Einsteckfassung grün/gelb Ø10mm Lamp holder, green/yellow, Ø10mm D850
5 76.3011.01 0G3093 Distanzhalter 8mm Spacer 8mm
6 82.9020 0G6314 Schalter Off-9 Stufen + 2x10K Potentiometer Switch off-9 levels + 2x10K potentiometer D900
82.9013 0G624 Schalter Off-9 Stufen + 10K Potentiometer Switch off-9 levels + 10K potentiometer D850
7 82.9030 0G6075 DC Power Supply 12VDC DC Power Supply 12VDC D900
8 712 044961.17 0KT854 Kabeltülle Ø25/Ø31/Ø35x10 Cable sleeve Ø25/Ø31/Ø35x10 all types
9 82.7093 056582 Sicherungshalter Fuse holder all types
10 712 344362.01 0G5814 Sicherung 5x20 1A Fuse 5x20 1A all types
11 82.3004.01
12a 82.3001
12b 82.9002
13 83.3021
14 82.3022
82.3049
15a 82.3004.01
15b 82.3008.04
16 87.9204 0C2228 Sicherungshalter 6.3x32 500V Fuse holder 6.3x32 500V Marine
17 82.9171 0TTR73 Sicherung 6.3x32 0.63A 500V Fuse 6.3x32 0.63A 500V Marine
18 82.9209 006710 Autotransformator 0-240-400-440V 150VA Autotransformer 0-240-400-440V 150VA Marine
19 82.3051 Main terminal Main terminal all types
82.3052
20 75.2011.03 0KX29 Schutzleiterklemme 16mm² Ground conductor terminal 16mm² all types
21 75.2010.40 0KI280 Reihenklemme 16mm² grau Terminal block 16mm² grey all types
22 75.2010.41 0G3488 Nullleiterklemme 16mm² blau Neutral wire terminal 16mm² blue all types
23 75.2010.44 0KT731 Querverbinder Cross connection all types
24 82.9103 0G6424 Kabel Haupterddraht L400 6mm² Main earthing cable L400 6mm² all types
25 82.2908 0C0068 Kabelverschraubung PG21 Cable gland PG21 all types
26 82.9226 0G7024 Gegenmutter Kabelverschraubung PG21 Lock nut PG21 all types
27 1 115 1757 0G4645 Schütz K3 -14x027 Conductor K3 -14x027 Marine
Bedienblende 2 Zonen hinten Control panel 2-zones backside all 2-sides
Bedienblende 2 Zonen vorn Control panel 2-zones frontside all 2-sides
Bedienblende 4 Zonen vorn Control panel 4-zones 1-side D900
Bedienblende INOX 4 Zonen vorn Control panel INOX 4-zones 1-side D850
Halterung Ventilationsbox L100 Support for ventilation box L100 all types
Standard Ventilationsbox links Ventilation box left all types
Standard Ventilationsbox rechts Ventilation box right all types
Rohrstutzen Ø 60.3 Pipe socket Ø 60.3 all types
Elektrobox 800+ Electronical compartment 800+ Standard
Elektrobox 800 Marine Electronical compartment 800 Marine Marine
Halterung Ventilationsbox L400 gegengleich Support for ventilation box L400 mirrored all 2-sides
Halterung Ventilationsbox L400 Support for ventilation box L400 all types
Klemmenträger Terminal support all types
Valid from
Serial N°
82.9002 0G6897 Kabel: Display - Display Cable: Display - Display D900
82.9003 0G6899 Kabel: Potentiometer - Display L200 Cable: Potentiometer - Display L200 D900
82.9110 0G7172 Kabel: Trafo - Display L450 Cable: Transformer - Display L450 D900
82.9241 Kabel: Display - Ventilator Cable: Display - Ventiltor D900
82.9116 Kabel: Trafo - T1 - Trafo - T2 Cable: Trafo - T1 - Trafo - T2 2-Sides
82.9022.01 0G7036 Kabel: Schalter- S1 - Schalter - S2 kurz Cable: Switch - S1 - Switch - S2 short D900/850
82.9022.02 Kabel: Schalter- S2 - Schalter - S3 kurz Cable: Switch- S2/3 - Switch - S4 short D900/850/1-side
82.9022.03 0G7195 Kabel: Schalter- S2/3 - Schalter - S4 kurz Cable: Switch- S2/3 - Switch - S4 short D900/850
82.9022.05 Kabel: Schalter- S2 - Schalter - S3 lang Cable: Switch- S2 - Switch - S3 long 2-Sides
82.9012.02 0G6667 Kabel: 2x Poti - Generator GFI L2500 Cable: 2x Poti - Generator GFI L2500 all types
82.9064.02
82.9059.01 Kabel: X0 - F1 - Schalter - Trafo1 Cable: X0 - F1 - Switch - Transformer 4-Zones D900
82.9059.03 Kabel: X0 - F - Schalter - Trafo (Marine) Cable: X0 - F - Switch - Transformer Marine
72.6287.02 0T2450 Verdrahtung 4x4.00 Sicherung - Generator Wiring 4x4.00 Fuse - Generator all types
82.9104 Kabel: X0 - Schalter - 5+6 Ofen Cable: X0 - Switch - 5+6 Oven all standard
82.9071.01 Kabel: Schalter - STB - E5 H5 (Ofen) Cable: Switch - Limiter - E5 H5 (Oven) all standard
82.9071.02 Kabel: Schalter - STB - E6 H6 (Ofen) Cable: Switch - Limiter - E6 H6 (Oven) all standard
82.9203 Kabel: Ofen Marine Cable: Oven Marine Marine
82.9132.01 0G7278 Kabel: Ofen - Querstromlüfter groß Cable: oven - cross flow blower large
Components on demand
Teile auf Anfrage
Kabel: 2x Anzeigel. - Generator GFI L2500 Cable: 2x indicator - Generator GFI L2500 D850
all types
Doc. № 87.8070.03
Page: 3
2
Lüftungskit
Aeration kit
Page: 4
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
2
1 712 044120.05
2 1 701 7002
3 1 701 2579
4 82.3001
5 83.3021
6 1 201 2105
7 83.9010
8 1 101 8170
9 1 701 1083
10 1 701 3540
11 82.7159
12 82.0133
0G3998 Kepsmutter M5 Hex nut M5
0G2923 Fächerscheibe M5 Fan washer M5
0G4020 Sechskantschraube M5x16 Hex bolt M5x16
Standardventilationsbox links Ventilation box left
Rohrstutzen Ø 60.3 Pipe socket Ø 60.3
0G6754 Schlauchschelle 60-115mm Hose clamp 60-115mm
0G6701 Alu-Flexschlauch Ø60/66 Flexible aluminium hose Ø60/66
0G3250 Innensechskantschraube M4x8 Allen bolt M4x8
0G5755 Zylinderschraube M3x30 Socket cap screw M3x30
2KI478 Unterlegscheibe M3 Washer M3
0G6274 Ventilator 60x60x25 622HH (3.5W) Cooling fan 60x60x25 622HH (3.5W)
0G6755 Verstärkungsrohr Ventilator Cooling fan support
Valid from
Serial N°
D900
D900
D900
D900
D900
D900
D900
D900
D900
D900
D900
D900
Components on demand
Teile auf Anfrage
Doc. № 87.8070.03
Page: 5
3
Mecanische Komponenten (FMM)
Mechanical parts (FMM)
Page: 6
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Re f.
3
1
82.7464 0C2496 Dichtband (Schaumstoff-Silikon, mlebend) Sealing strip
2 83.7011
1 201 1444
1 201 1792
3 82.0712.07
3a 82.0715.05
4 82.0713.06
4a 82.0714.03
5 82.0711.08
6 1 701 3535 0G3588 Unterlegscheibe M5 Washer M5 all types
7 1 701 2623 0T1776 Sechskantschraube M5x6 Hex bolt M5x6 all types
8 712 044120.04 0G4918 Kep-Mutter M4 Keps nut M4 all types
9 82.7316.01 0G6329 Spule 3.5kW GFI 400V Coil 3.5 kW Full induction 400V all types
10 82.2576 ??? Spulenträgerblech 2 Zonen Coil support 2-Zones all types
11 712 044961.16
12 1 701 3502 0G3595 Unterlegscheibe 4,3 x Ø 9 x 0,8 Washer 4,3 x Ø 9 x 0,8 all types
13 1 701 2503 0G5490 Sechskantschraube M4x8 Hex bolt M4x8 all types
0G6336 Glaskeramikplatte 840x740 Ceramic glass plate 840x740
0K5103 Silikonplättchen Silicon plate
0K3948 Novasil Kleber Glue Novasil
Auflage hinten 840 FMM FS Support backside 840 FMM FS
Querträger 840 verstellbar Cross beam 840
Befestigung 740 seitlich Support 740 sides
Längsträger 740 verstellbar Longitudinal beam 740
Aufhängung vorn 840 FMM FS Support fontside 840 FMM FS
Kabeltülle Cable sleeve all types
???
all types
all types
all types
all types
all types
all types
all types
all types
all types
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 87.8070.03
Page: 7
4
Mischbatterie
Mixing tap
A
Page: 8
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
4
A 1 105 1255 0G2973 Kit Mischbatterie 300mm (Pos. 1-6) Kit Mixer tap 300mm (pos. 1-6) all types
1 62.6223.07 0S0959
2 62.6223.01 0S1471 Auslauf ohne Dripstop Spout without drip stop all types
1 105 1265 0G5273 Tropfschutz (nicht in Kit enthalten) Drip stop (not included in kit) all types
3 62.6223.02 0L0736
4 62.6223.03 0L0450 Ventileinsatz Valve insert all types
5 62.6223.04 0L1041 Griff Heißwasser Knob hot water all types
6 62.6223.05 0L1040 Griff Kaltwasser Knob cold water all types
7 1 101 2075 0KX119
8 1 101 3797 0KE129
9 712 044481.21 0G3610 Dichtung Ø18/11 Sealing Ø18/11 all types
10
712 344893.02 0KW734 Panzerschlauch L1700 G1/2" / R1/2" Armored hose L1700 G1/2" / R1/2"
1 201 1813 0G3817 Kleber LOCTIE 577 Glue LOCTITE 577 all types
Schwenkauslauf 3/4", 300x450mm Swivel spout 3/4", 300x450mm
Dichtungsringe Sealing rings
Anschluss G1/2" Connection G1/2"
Stützhülse Ø15 Sleeve Ø15
all types
all types
all types
all types
all types
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 87.8070.03
Page: 9
5
Unterbau
Base
Page: 10
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Re f.
4
1 1 115 1416 0K5059 Querstromlüfter Cross flow blower all types
2 82.5202.012
82.8253.012
3 82.1102.11
82.1102.31
4 82.1046.01
5 82.1046.14
6 82.1140.12
82.1140.32
7 82.7467 0C7307 Dichtung 5mm Sealing sides 5mm all types 51010000
8 82.7334 0G6396 Dichtung Geräte seitwärts (NM) Side-sealing strip all types
9 86.2385 0G6140 Stellfuß 2" 100mm Adjustable feet 2" 100mm H800
10 1 701 5051 0G6753 Fächerscheibe M6 Fan washer M6 H700/800
11 1 701 2600 0KT919 Sechskantschraube M6x12 Hex bolt M6x12 H700/800
12 86.0001 0G5391 Stellfuß 2" 145-252mm rund Adjustable feet 2" 145-252mm, round H700
13 83.3728 0G6886 Stellfuß 2" Marine 145-252mm Adjustable feet 2" Marine 145-252mm H700 Marine
14
82.0114.01 0G7053 Abgrenzungsblech Frischuft links Aeration sheet left H700
82.0114.11 0G7054 Abgrenzungsblech Frischuft links Aeration sheet left H800
15 82.0114.02 0G7055 Abgrenzungsblech Frischuft rechts Aeration sheet right H700
82.0114.12 0G7056 Abgrenzungsblech Frischuft rechts Aeration sheet right H800
16
1 701 7002 0G2923 Fächerscheibe M5
17 1 701 2579 0G4020 Sechskantschraube M5x16 Hex bolt M5x16 H700/800
Luftkanal 1200x850 Air channel 1200x850 D850
Luftkanal 1200x900 Air channel 1200x900 D900
Rückwand 1-seitig 1200X700 Back panel 1-side 1200X700 H700 / 1-side
Rückwand 1-seitig 1200X800 Back panel 1-side 1200X800 H800 / 1-side
Rückwand 2-seitig 201mm links
Rückwand 2-seitig 400mm rechts Back panel 2-sides 400mm right 2-sides
Std. Anschlussdeckel H66 / L1200 Standard bottom front panel H66 / L1200
Std. Anschlussdeckel H166 / L1200 Standard bottom front panel H166 / L1200
Back panel 2-sides 201mm left
Fan washer M5 H700/800
2-sides
H800
H700
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 87.8070.03
Page: 11
Ofen
6
Oven
Page: 12
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
6
1 72.6609 0T2542 Halter Heizung hinten Heating element support backside all types
2 1 701 1102 0G6411 Niete 4x7.3 Rivet 4x7.3 all types
3 72.6610 0T2543 Halter Heizung mittig Heating element support middle all types
4 72.6613 0T2544 Halter heizung vorn Heating element support frontside all types
5 72.5054.03 0KI360 Heizung 2.5kW 400V Heating elemtent 2.5kW 400V all Standard
72.5054.05 0G2987 Heizung 2.5kW 440V Heating elemtent 2.5kW 440V all Marine
6 1 115 1281 0K4567 Isolierschlauch Ø14 Insulation tube Ø14 all types
1 115 1280 0T0571 Isolierschlauch Ø10 Insulation tube Ø10
7 82.1157.01
82.1157.02
8 82.1156.01
82.1156.02
82.1160.02
9 72.0807 0K4265 Isolation Insulation 2-sides
72.0746.01 0K6341 Isolation Insulation 1-side
10 72.9794
11 1 701 2509 0K4598 Sechskantschraube M5x12 Hex bolt M5x12 all types
12 1 701 5004 0H9734 Federring M5 Spring washer M5 all types
13 719 040166 0G3052 Heizkörperscheibe Disc all types
14 82.2520 0G7223 STB Halter Safety thermostat support all types
15 719 040247 0K8882 Fühlerhalter Sensor support all types
16 712 044120.06 0G3997 Keps-Mutter M6 Keps nut M6 all types
17 72.0744
18 712 044120.06 0G3997 Keps-Mutter M6 Keps nut M6 all types
19 83.3048
20 82.2309
21 72.9822.02
22 712 044120.06 0G3997 Keps-Mutter M6 Keps nut M6 all types
23 83.3044
24 GR40 186.1 0G3575 Flachkopfschraube M6x15 Flat head screw M6x15 all types
25 83.3047
26 719 040244 0K5604 Arretierung Rostführung Locking for grill rail all types
27 62.6197 0G6435 Rostführung Backofen 2/1GN Grill rail 2/1GN all types
28 1 110 1300 0K6412 Grillrost 2/1GN Grill 2/1GN all types
29 719 830045 0K8889 Einlegeplatte 2-seitig Bottom plate 2-sides 2-sides
719 830077.01 0K8892 Einlegeplatte 1-seitig Bottom plate 1-sides 1-side
30 83.3450 0G6666 Backofentür komplett Oven door complete all types
31 82.6500 0G7224 Handgriff Backofen oven handle all types
32 82.7352 093923 Schraube M5x12 Screw M5x12 all types
33 82.7355 0C7119 Schraube M5x12 Screw M5x12 all types
Deckel Ofenverkleidung D850 Lid oven cover D850 D850
Deckel Ofenverkleidung D900 Lid oven cover D900 D900
Unterteil Ofenverkleidung 1S/D850 Bottom oven cover 1S/D850 1-side/D850
Unterteil Ofenverkleidung 1S/D900 Bottom oven cover 1S/D900 1-side/D900
Unterteil Ofenverkleidung 2S/D900 Bottom oven cover 2S/D900 2-sides/D900
Mantel Elektrobackofen Mantle electric oven all types
0K4263 Isolationsbefestigung Insulation fixation all types
Abdeckprofil oben Cover profile all types
Klemmblech oben Clamp sheet top all types
Klemmblech links/rechts Clamp sheet left/right all types
Frontrahmen Backofen Frontal frame oven all types
Abdeckprofil unten Cover profile bottom all types
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 87.8070.03
Page: 13
Reglerblende Ofen
7
Control panel oven
Alias Code Bezeichnung Description Ref.
7
1 82.9053 004269 Sicherheitsthermostat 360°C-25K Safety thermostat 360°C-25K all types
2 82.9120 0G6318 Schalter off - lin 3/4 + Regler 280°C Switch off - lin 3/4 + control 280°C all types
3 82.6524 0G7228 Montagewinkel Mounting angle all types
4 82.2665 0G7229 Zwischenblech Spacer plate all types
5 72.5938.03 0KI361 Anzeigelampe klar Indicator light, clear all types
6 82.1120.03
7 72.5938.07 0KI363 Einsteckfassung klar Ø10mm Lamp holder, clear, Ø10mm all types
8 82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types
9 82.9124.01 0G6369 Drehgriff mit Adapter 0°x6.0 Handle with adapter 0°x6.0 all types
Page: 14
Reglerblende Ofen 201mm (°C) Control panel oven 201mm (°C) all types
Doc. № 87.8070.03
Components on demand
Teile auf Anfrage
Valid from
Serial N°
8
Generatorenschrank
Generator cabinet
Alias Code Bezeichnung Description Ref.
8
1 82.2765.02
2 82.7145.01
3 712 044120.04
4 1 701 2590 0G4171 Rändelschraube Knurled screw all types
5 83.3085.03
6 82.2766.02
7 82.7272.01
8 712 044120.05 0G3998
9 82.2311.01
10 83.7029 ??? Hebelschloss
11 83.7063 0G6260 Vierkantschlüssel
12 1 701 2579 0G4020 Sechskantschraube M5x16 Hex bolt M5x16 all types
13 1 701 7002 0G2923 Fächerscheibe M5 Fan washer M5 all types
Components on demand
Teile auf Anfrage
Einschubblech
0G6328 Generator Q+ 4x3.5kW GFI 400V Generator Q+ 4x3.5kW Full induct. 400V
0G4918 Keps-Mutter M4
Blende mit Ausschnitt
Schutzblech Protection sheet all types
??? Filter
Keps-Mutter M5
Tür 400 mit Lamellen Door 400 with openings all types
Slide-in sheet all types
Keps-nut M4
Panel all types
Filter all types
Keps-nut M5
Lever lock
Square key
Doc. № 87.8070.03
all types
all types
all types
all types
all types
Valid from
Serial N°
Page: 15
Loading...
