SPARE PARTS CATALOGUE
THERMALINE 80/85/90
DE MISCHBATTERIEELEMENT
EN MIXER TAP UNIT
PNC Factory Model Ref. Description
588386 MAEAGAB3OO a MIXER TAP, LEVER, 200X800X700
588387 MAEAGBB3OO a MIXER TAP, LEVER, C-BOARD, 200X800X700
588388 MAEBGAB3OO b MIXER TAP, KNOBS, 200X800X700
588389 MAEBGBB3OO b MIXER TAP, KNOBS, C-BOARD, 200X800X700
588390 MAEAHAB3OO c MIXER TAP, LEVER, 200X800X800
588391 MAEAHBB3OO c MIXER TAP, LEVER, C-BOARD, 200X800X800
588392 MAEBHAB3OO d MIXER TAP, KNOBS, 200X800X800
588393 MAEBHBB3OO d MIXER TAP, KNOBS, C-BOARD, 200X800X800
588172 MAMAGAB3BO e MIXER TAP, AUTOM. WATER FILLING, 200X800X700H
588173 MAMAGBB3BO e MIXER TAP, AUTOM. WATER FILLING, C-BOARD, 200X800X700
588266 MAMAHAB3BO f MIXER TAP, AUTOM. WATER FILLING, 200X800X800H
588267 MAMAHBB3BO f MIXER TAP, AUTOM. WATER FILLING, C-BOARD, 200X800X800
588558 MBEAGBB3OO g MIXER TAP, LEVER, C-BOARD, 200X850X700
588559 MBEBGBB3OO h MIXER TAP, KNOBS, C-BOARD, 200X850X700
588597 MBMAGBB3BO i MIXER TAP, AUTOM. WATER FILLING, C-BOARD, 200X850X700
589591 MCEAGAB3OO k MIXER TAP, LEVER, 200X900X700
589592 MCEAGBB3OO k MIXER TAP, LEVER, C-BOARD, 200X900X700
589593 MCEBGAB3OO l MIXER TAP, KNOBS, 200X900X700
589594 MCEBGBB3OO l MIXER TAP, KNOBS, C-BOARD, 200X900X700
589595 MCEAHAB3OO m MIXER TAP, LEVER, 200X900X800
589596 MCEAHBB3OO m MIXER TAP, LEVER, C-BOARD, 200X900X800
589597 MCEBHAB3OO n MIXER TAP, KNOBS, 200X900X800
589598 MCEBHBB3OO n MIXER TAP, KNOBS, C-BOARD, 200X900X800
589221 MCMAGAB3BO o MIXER TAP, AUTOM. WATER FILLING, 200X900X700H
589222 MCMAGBB3BO o MIXER TAP, AUTOM. WATER FILLING, C-BOARD, 200X900X700
589390 MCMAHAB3BO p MIXER TAP, AUTOM. WATER FILLING, 200X900X800H
589391 MCMAHBB3BO p MIXER TAP, AUTOM. WATER FILLING, C-BOARD, 200X900X800
Page Index
2 Full appliance
4 Mixer tap
6 Automatic water filling
Last Updates Page
Ed. 01/2015 all
Brand: Electrolux
Doc. № 82.8170.03
1
Gerät komplett
Full appliance
Page: 2
Doc. № 82.8170.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
1
1 82.1000.11
82.1122
2 82.9065 058613 Klemme FV122 V/V Terminal FV122 V/V e f i o p
3 82.9101 0G7023 Kabel: Klemme - Erdungsbolzen Cable: Terminal - ground bolt e f i o p
82.9103 0G6424 Kabel: Haupterddraht L400 6mm² Cable: main earthing L400 6mm² e f i o p
4 1 701 7002 0G2923 Fächerscheibe M5 Fan washer M5 all types
5 1 701 2579 0G4020 Sechskantschraube M5x16 Hex bolt M5x16 all types
6 82.7334 0G6396 Dichtung Geräte seitwärts (NM) Side-sealing strip all types
7 86.0001 0G5391 Stellfuß 2" 145-252mm rund Adjustable feet 2" 145-252mm, round all H700
8 1 701 5051 0G6753 Fächerscheibe M6 Fan washer M6 all types
9 1 701 2600 0KT919 Sechskantschraube M6x12 Hex bolt M6x12 all types
10 86.2385 0G6140 Stellfuß 2" 100mm Adjustable feet 2" 100mm all H800
11 82.7467 0C7307 Dichtung 5mm Sealing sides 5mm all types 51010000
12 82.1102.01
82.1102.21
Blende Top Panel no WFA
Blende Top für WFA Panel for waterfill automation
Rückwand 200x700 Back panel 200x700 all H700
Rückwand 200x800 Back panel 200x800 all H800
e f i o p
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 82.8170.03
Page: 3
5
Mischbatterie
Mixing tap
Page: 4
Doc. № 82.8170.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
5
1 105 1257 0G2974 Kit Mischbatterie Klarco (Pos. 1-6) Kit Mixer tap Klarco (pos. 1-6) b d e f h i l n o p
1 62.6223.07
2 62.6223.01 Auslauf ohne Dripstop Spout without drip stop
1 105 1265 0G5273 Tropfschutz (nicht in Kit enthalten) Drip stop (not included in kit)
3 62.6223.02
4 62.6223.03 Ventileinsatz Valve insert
5 62.6223.04 Griff Heißwasser Knob hot water b d e f h i l n o p
6 62.6223.05 Griff Kaltwasser Knob cold water b d e f h i l n o p
7 1 101 2075 0KX119
8 1 101 3797 0KE129
9 712 044481.21 0G3610 Dichtung Ø18/11 Sealing Ø18/11 all types
10
712 344893.02 0K5363 Panzerschlauch L1100 G1/2" / R1/2" Armored hose L1100 G1/2" / R1/2"
82.6628 Mischbatterie mit Hebel Klarco Mixer tap with lever Klarco a c g k m
1 201 1813 0G3817 Kleber LOCTIE 577 Glue LOCTITE 577 all types
Schwenkauslauf 3/4", 300x450mm Swivel spout 3/4", 300x450mm
Dichtungsringe Sealing rings
Anschluss G1/2" Connection G1/2"
Stützhülse Ø15 Sleeve Ø15
all types
all types
all types
Valid from
Serial N°
Components on demand
Teile auf Anfrage
Doc. № 82.8170.03
Page: 5
5

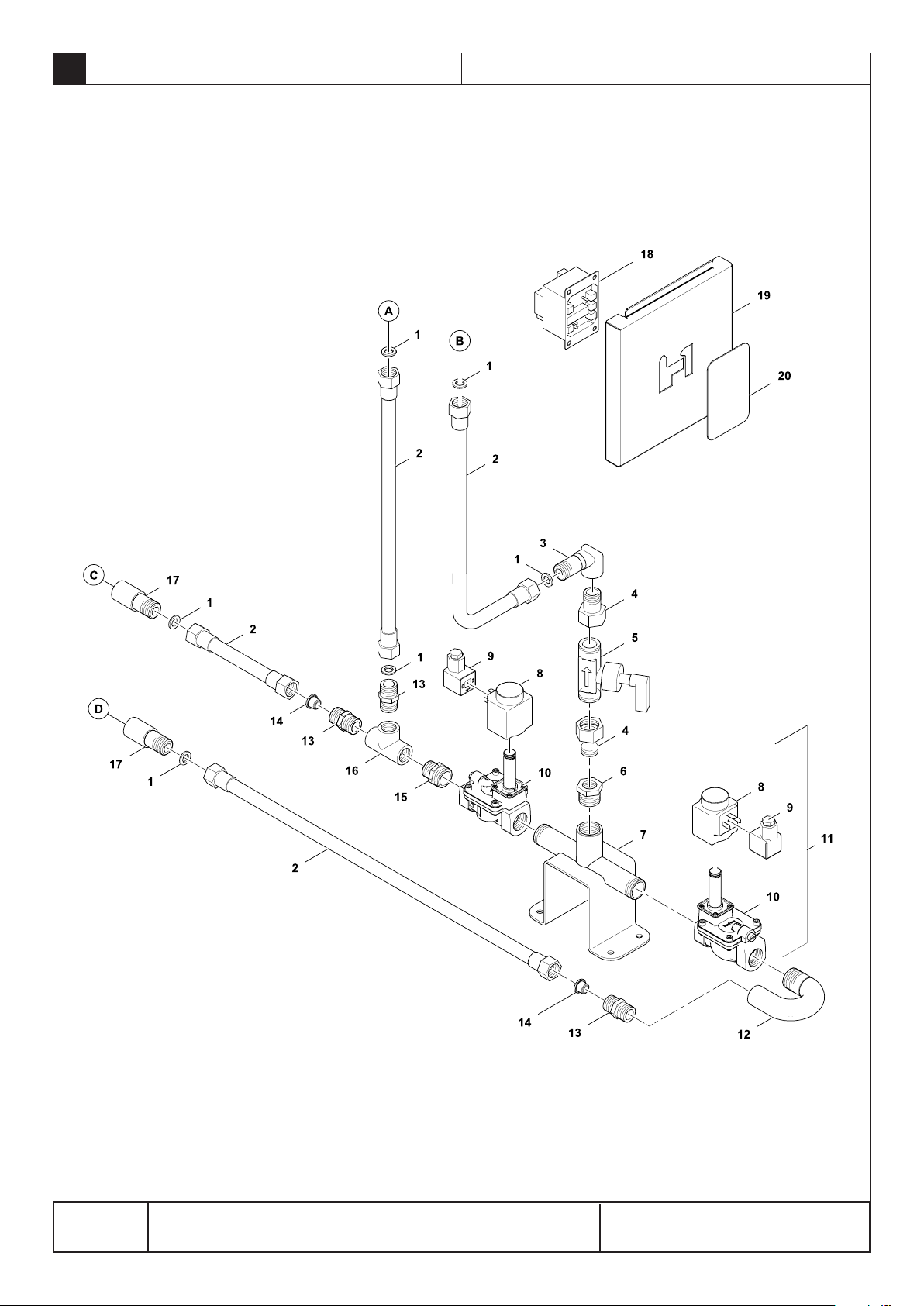

Wasserfüllautomatik
Automatic water filling
Page: 6
Doc. № 82.8170.03
Components on demand
Teile auf Anfrage
Alias Code Bezeichnung Description Ref.
5
1 712 044481.21 0G3610 Flachdichtung Ø18x11x2 Flat seal Ø18x11x2 e f i o p
2 712 344893.04
3 87.5164 Winkel zu WFA Angle connection for WFA e f i o p
4 1 101 3923 Rohrverschraubung 9201 1/2”x3/4” Screw fitting 9201 1/2”x3/4” e f i o p
5 76.9668.97 0G3702
6 75.7004.24 0G4739 Übergangsstück A3/4” - I1/2” Fitting A3/4” - I1/2” e f i o p
7 82.6011 Verteilerrohr-Support Pipe support e f i o p
8 76.3511 0G5598 Spule Coil e f i o p
9 76.4935 0K4978
10 76.3510 0G5597
11 76.3405 0G4526 2/2 Wegeventil 3/4“ komplett Magnetic valve complete e f i o p
12
76.3612 Leitung KW Pipe cold water
13 1 116 1166 0G5518 Sechskantnippel hex nipple e f i o p
14 1 701 2827 0G6842 Hutfilter 1/2-50/20 H12 Filter insert 1/2-50/20 H12 e f i o p
15 1 117 1182 0K4574 Doppelnippel 1/2“ / 3/4“ Double nipple 1/2“ / 3/4“ e f i o p
16 1 102 2435 T-Stück G1/2” Tee connection G1/2” e f i o p
17 87.5168 0G6646 WFA Adapter G1/2“ WFA adapter G1/2“ e f i o p
A Warmwasseranschluss MIBA Hot water connection at mixer tap
B Kaltwasseranschluss MIBA Cold water connection at mixer tap
C Zuleitung Warmwasser Hot water inlet
D Zuleitung Kaltwasser Cold water inlet
Panzerschlauch für WFA L600 G1/2” Armored hose for WFA L600 G1/2”
Durchflussmesser WFA Flow meter WFA
Stecker Magnetventil Plug for magnetic valve 3-pin
2/2 Wegeventil Magnetic valve
e f i o p
e f i o p
e f i o p
e f i o p
e f i o p
Valid from
Serial N°
18 86.9164 0G5039 Steuergerät Control device e f i o p
19 82.1122
20 86.9165 0G6722 Bedienfolie Foil
76.9672.03 Kabel: X2/X2 WFA 2000mm Cable: X2/X2 WFA 2000mm e f i o p
76.9671.03 Kabel: Y1/X2 WFA 2000mm Cable: Y1/X2 WFA 2000mm e f i o p
Blende Top für WFA Panel for waterfill automation
e f i o p
e f i o p
Components on demand
Teile auf Anfrage
Doc. № 82.8170.03
Page: 7
