Electrolux Professional MCDAAADOPO Parts Manual

SPARE PARTS CATALOGUE

THERMALINE 80/85/90

DE GAS CHARGRILL 10.5KW  21KW  31KW
EN GAS CHARGRILL 10.5KW  21KW  31KW

PNC Factory Model Ref. Description

588618 MBDABBDOPO a GAS CHARGRILL, C-BOARD, 400X850X250H

588619 MBDBBBHOPO b GAS CHARGRILL, C-BOARD, 800X850X250H

588620 MBDCBBKOPO c GAS CHARGRILL, C-BOARD, 1200X850X250H

593100 MBDABBDOVO a GAS CHARGRILL, TOWNGAS, C-BOARD, 400X850X250H

593101 MBDBBBHOVO b GAS CHARGRILL, TOWNGAS, C-BOARD, 800X850X250H

589278 MCDAAADOPO d GAS CHARGRILL, 400X900X250H

589279 MCDAABDOPO

589280 MCDBAAHOPO e GAS CHARGRILL, 800X900X250H

589281 MCDBABHOPO e GAS CHARGRILL, C-BOARD, 800X900X250H

589282 MCDCAAKOPO f GAS CHARGRILL, 1200X900X250H

589283 MCDCABKOPO f GAS CHARGRILL, C-BOARD, 1200X900X250H

593300 MCDAAADOVO d GAS CHARGRILL, TOWNGAS, 400X900X250H

593301 MCDAABDOVO d GAS CHARGRILL, TOWNGAS, C-BOARD, 400X900X250H

593302 MCDBAAHOVO e GAS CHARGRILL, TOWNGAS, 800X900X250H

593303 MCDBABHOVO e GAS CHARGRILL, TOWNGAS, C-BOARD, 800X900X250H

d

GAS CHARGRILL, C-BOARD, 400X900X250H

Page Index
2 Chargrill
4 Mechanical module
6 Gas module

Valid from Ser. № 3101....

Brand: Electrolux

Last Updates Page

01/2015 all

Doc. № 82.8051.03

1

Chargrill

Chargrill

Page: 2

Doc. № 82.8051.03

 Components on demand
 Teile auf Anfrage

Alias Code Bezeichnung Description Ref.

1

1 82.4089 Spritzschutz rechts Splash protection right all types

2 82.4091.01 Spritzschutz hinten 400mm Splash protection back 400mm W=400mm

82.4091.02 Spritzschutz hinten 800mm Splash protection back 800mm W=800mm

82.4091.03 Spritzschutz hinten 1200mm Splash protection back 1200mm W=1200mm
3 82.4090 Spritzschutz links Splash protection left all types
4 82.4119 0C6148 Haltegriff Grillrost Handle all types
5 1 701 3008 0G6111 6-kt Mutter M5x0,8D hex nut M5x0,8D all types
6 82.4118 0C7379 Grillrost 672x185 Rost 672x185 all types
7 82.7464 0C2496 Dichtband selbstklebend Sealing strip all types
8 82.1027.66

82.1049.80

82.1000.01

82.1027.82

82.1049.69

82.1000.05

82.1027.67

82.1049.87

82.1000.08
9 1 701 1072 0G6833 Senkschraube M5x25 Screw M5x25 all types

10 82.4323 0C9240 Piezo-Zünder Piezo knob all types

82.7446 Zündkabel Piezo-Zünder Ignition cable piezo knob all types
11 82.4328 0C6886 Gucklochwippe Cover all D850

12 82.4329 026187 Drehachse Gucklochwippe Shaft all D850
13 75.5006.11 Schraube M4x12 USPH Screw M4x12 USPH all D850
14

82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types

15 82.7002 0G6248 Drehgriff Handle all types

82.7004.03 0G6727 Adapter Drehgriff Adapter for handle all types

16 82.4332 Schubladenfutter Drawer all types
17 82.4337 Handgriff Handle all types
18 82.4335 Schubladenkasten Drawer inlet all types
19 1 701 2629 0G5854 Schraube 6kt M4x12 Hex bolt M4x12 all types

20 1 701 3502 0G3595 Unterlegscheibe M4 Washer M4 all types

21 82.4334 Frontblech Front panel drawer all types

22 82.2209 0G7033 Handgriff Schublade Handle drawer all types

82.4330 0G7536 Fettschublade komplett (pos. 16-22) Grease drawer complete (pos. 16-22) all types



Bedienblende 400mm Control panel 400mm d



Bedienblende INOX 400mm Control panel INOX 400mm a



Blende Rückseite 400mm Back panel 400mm d (no C-board)



Bedienblende 800mm Control panel 800mm e



Bedienblende INOX 800mm Control panel INOX 800mm b



Blende Rückseite 800mm Back panel 800mm b (no C-board)



Bedienblende 1200mm Control panel 1200mm f



Bedienblende INOX 1200mm Control panel INOX 1200mm c



Blende Rückseite 1200mm Back panel 1200mm f (no C-board)

Valid from
Serial N°

 Components on demand
 Teile auf Anfrage

Doc. № 82.8051.03

Page: 3

2

Mechanisches Modul

Mechanical module

Page: 4

Doc. № 82.8051.03

 Components on demand
 Teile auf Anfrage

Alias Code Bezeichnung Description Ref.

2

1 82.4104 Spiegelwand Reflectror all types
2 82.4096 Dach Heizkörper Radiator top cover all types
3 82.4121 0C8656 Heizkörper Radiator all types
4 82.4203 Spiegelwand mitte Reflectror middle b c e f
5 82.4100 Seitenwand Side panel all types
6 82.4204 Halter Brenner hinten Burner support backside all types
7 82.4099 Stirnblech hinten Metal sheet backside all types
8 82.4103 Spiegelwand hinten 400mm Reflectror backside 400mm W=400mm

82.4185 Spiegelwand hinten 800mm Reflectror backside 800mm W=800mm

82.4365 Spiegelwand hinten 1200mm Reflectror backside 1200mm W=1200mm

9 82.4101 Halter Heizkörper hinten Radiator support backside all types

10 1 701 7002 0G2923 Fächerscheibe M5 Fan washer M5 all types

11 1 701 1094 Pop Niete 4,8x11 Rivet 4,8x11 all types

12 82.4197 Mittelrichter Middle adjuster all types
13 1 701 2503 0G5490 Schraube 6kt M4x8 Hex bolt M4x8 all types
14 82.4109 Halter Heizkörper vorn Radiator support frontside all types
15 82.4102 Spiegelwand vorn 400mm Reflectror frontside 400mm W=400mm

82.4187 Spiegelwand vorn 800mm Reflectror frontside 800mm W=800mm

82.4366 Spiegelwand vorn 1200mm Reflectror frontside 1200mm W=1200mm
16 82.4098 Stirnblech vorn Metal sheet frontside all types
17 82.4219 Wärmestrahlungsschutz links Thermal shielding panel left all types
18 82.4086 Wärmestrahlungsschutz rechts Thermal shielding panel right b c e f
19 1 701 1093 0G6569 Pop Niete 4,8x7,6 Rivet 4,8x7,6 all types

20 82.4084 Schubladenfach Drawer support all types

21 82.4085 Deckblech Cover sheet all types

22 82.4218
23 1 701 5532 0G7217 Gewindestift M4x12 Bolt M4x12 all types
24 712 044120.04 0G4918 Kepsmutter M4 Keps nut M4 all types

Boden zu Schubladenfach Bottom drawer support all types

Valid from
Serial N°

 Components on demand
 Teile auf Anfrage

Doc. № 82.8051.03

Page: 5

3

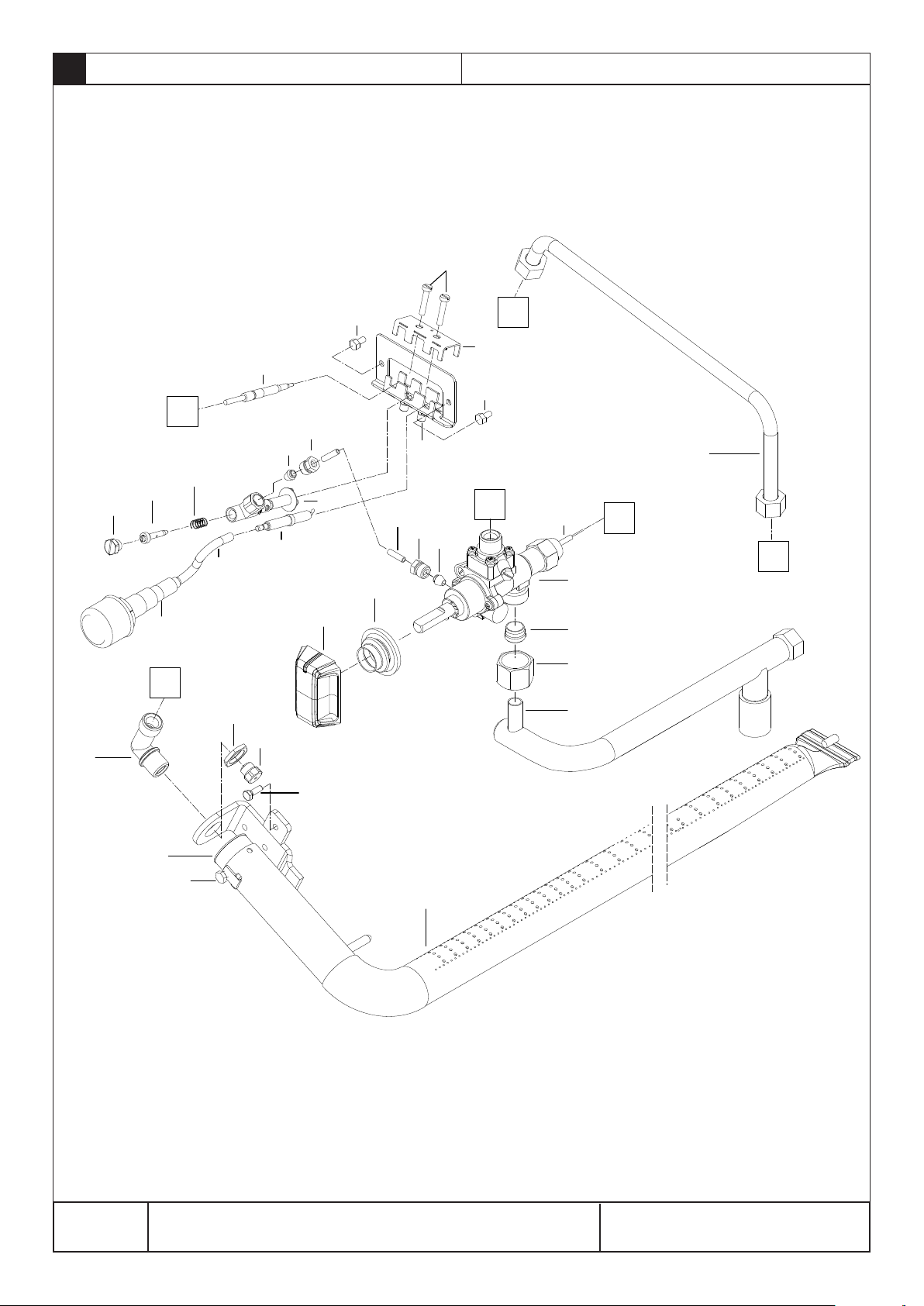

Gasleitung

Gas line

29

17

21

22

20

B

C

23

19

11

24

12

25

18

26

27

10

28

B

30

28

31

1

A

6

7

8

24

C

A

9

2

3

4

5

Page: 6

16

15

13

14

Doc. № 82.8051.03

 Components on demand
 Teile auf Anfrage

Alias Code Bezeichnung Description Ref.

3

1 82.4190 Gaszuleitung komplett rechts Gas line complete right W=800/1200

82.4191 Gaszuleitung komplett links Gas line complete left all types

2 82.7040 0C8647 Gashahn Pintossi Gas valve Pintossi all Standard

712 344996 Gashahn Pintossi Town Gas Gas valve Pintossi for town gas all Towngas
3 712 345053.01 0G3333 Progressivring Clamp ring all types
4 712 345052.03 0KX142 Überwurfmutter Sleeve nut all types
5 82.4344 Gasrampe komplett 400 Gas line complete 400 W=400mm

82.4188 Gasrampe komplett 800 Gas line complete 800 W=800mm

82.4472 Gasrampe komplett 1200 Gas line complete 1200 W=1200mm

6 82.4327

82.4325 ??? Zuleiting Pilotbrenner rechts komplett Pilot burner gas line right complete W=800/1200

82.4326

82.4324 ??? Zuleitung Pilotbrenner links komplett Pilot burner gas line left complete all types
7 1 701 2759
8 1 701 2757
9 82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types

10 82.7002 0G6248 Drehgriff Handle all types

82.7004.03 0G6727 Adapter Drehgriff Adapter for handle all types
11 72.7748 020997 Gegenmutter Counter nut all types

12 See nozzle list - Düse Hauptbrenner Main burner nozzle all types
13 1 701 2503 0G5490 Schraube 6kt M4x8 Hex bolt M4x8 all types
14 82.4117 0C8637 Brenner 10.5kW Burner 10.5kW all types
15
16
17 72.7102 0G3635 Düsenträger Nozzle holder all types
18 82.4220 0C7141 Zündelektrode Ignition electrode all types
19 82.7446 Zündkabel Piezo-Zünder Ignition cable piezo knob all types

20 82.4323 0C9240 Piezo-Zünder Piezo knob all types

21
22 See nozzle list - Düse Pilotbrenner Nozzle pilot burner all types
23
24 82.7064 0G6349 Thermoelement M9x1 Thermocouple m9x1 all types
25 1 701 2757
26 1 701 2759

27 82.4116 0C7140 Pilotbrenner komplett 3-weg Pilot burner complete all types
28 1 701 2503 0G5490 Schraube 6kt M4x8 Hex bolt M4x8 all types
29 75.5006.11 Schraube 6kt M4x12 USPH Hex bolt M4x12 USPH all types
30 82.4108 Klemme Zündeinrichtung Clamp ignition union all types

31 82.4107 Halter Zündeinrichtung Support ignition union all types

 

 

 

 



Zuleitung Pilotbrenner rechts Pilot burner gas line right W=800/1200



Zuleitung Pilotbrenner links Pilot burner gas line left all types



Anschlussnippel Connection all types



Klemmring D4 Clamp ring D4 all types

Stellschraube M5 Adjustng screw all types
Mischrohr Aeration pipe all types

Kappe Pilotbrenner Cap pilot burner all types

Düsenfeder Pilotbrenner Nozzle spring all types



Klemmring D4 Zündbrennerleitung Clamp ring D4 pilot gas line all types



Anschlussnippel Zündbrennerleitung Connection pilot gas line all types

Valid from
Serial N°

 Components on demand
 Teile auf Anfrage

Doc. № 82.8051.03

Page: 7
