SPARE PARTS CATALOGUE
ELECTROLUX PROFESSIONAL
Modular Platform
Viale Treviso, 15
33170 Pordenone - Italy
Fax: +39 0434-380577
PNC Model Ref. Page Notes
178 157 PB/E1 a 1 - 4 Electric bainmarie Top 400 MM
178 158 PB/E2 b 1 - 4 Electric bainmarie Top 800 MM
178 159 PBV/E2 c 1 - 4 Electric bainmarie +Open Base 800MM
178 160 PB/E2E5 d 1 - 4 Electric bainmarie Top 800 MM - 230V
CATALOGO PARTI DI RICAMBIO
BAGNOMARIA ELETTRICI N700
ELECTRIC BAINMARIE N700
Index Indice
Pag. 1 - 3 Frame and components Struttura e componenti
Pag. 4 Spare parts list Lista ricambi
Brand / Marchio : Zanussi
Factory code: 9PDX
From ser. nr. / Da Ser. Nr.: 526...
Ed. 2006 04
Doc. Nr.:
2 -05 195
18
15
17
22
9
10
16
39
5
6
37
14
1
2
24
38
32
20
19
13
40
36
12
11
21

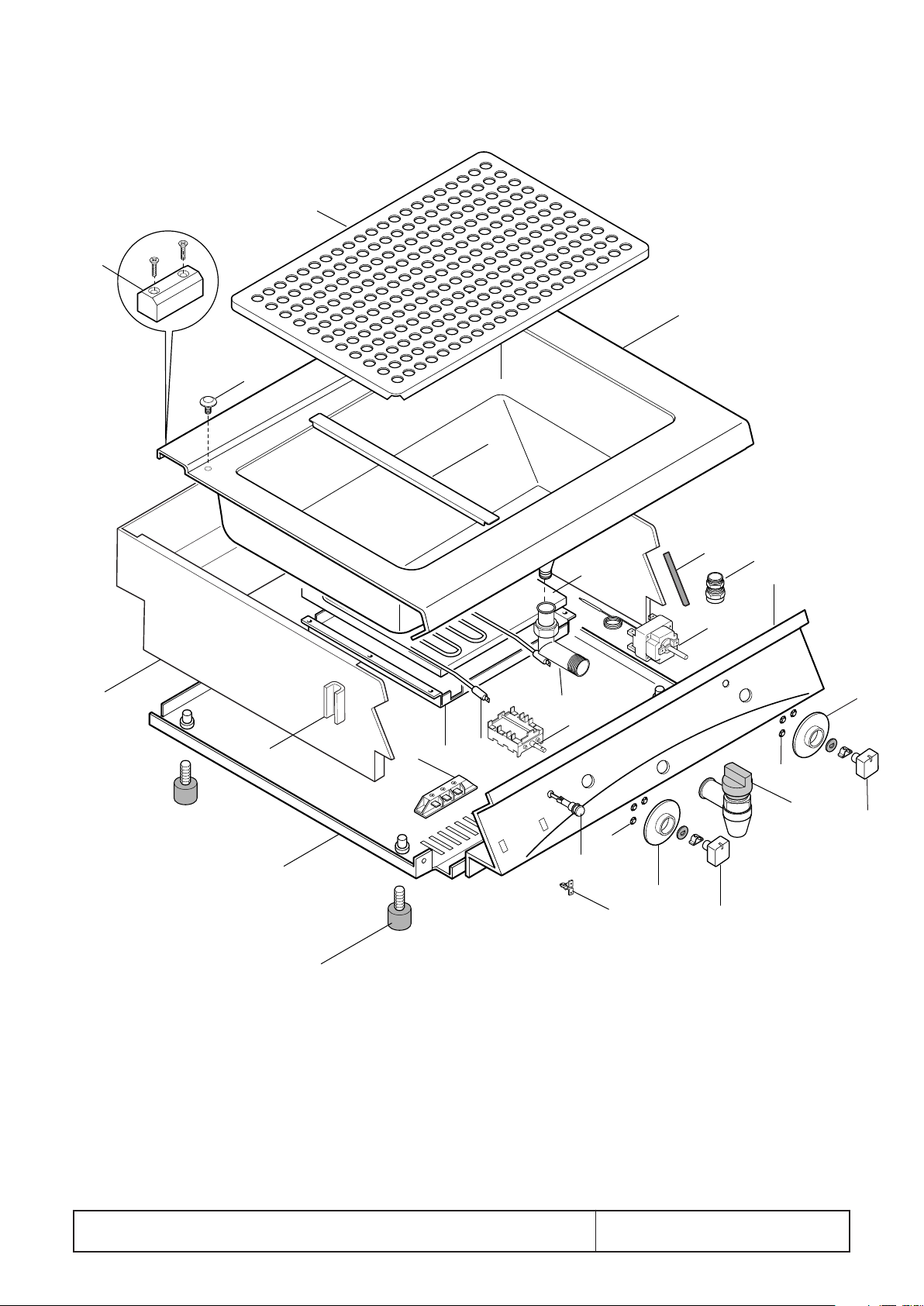

BAGNOMARIA ELETTRICI TOP N700
ELECTRIC BAINMARIE TOPN700
From ser. nr. / Da Ser. Nr.: 526....
Page: 1
Ed. 2005 07
Doc. Nr.:
2 -05 195
17
15
18
9
22
10
16
39
34
5
37
14
24
38
6
35
19
13
18
40
1
BAGNOMARIA ELETTRICI N700
ELECTRIC BAINMARIE N700
From ser. nr. / Da Ser. Nr.: 526...
21
40
36
12
20
2
Page: 2
Ed. 2005 07
Doc. Nr.:
11
2 -05 195
11
25
23
15
28
18
17
14
29
22
10
9
19
39
38
6
37
4
16
35
3
34
26
7
33
8
13
24
5
31
30
From ser. nr. / Da Ser. Nr.: 526.... Page: 3
1
Ed. 2005 07
36
Doc. Nr.:
40
18
11
21
11
12
20
2 -05 195
BAGNOMARIA ELETTRICI N700
ELECTRIC BAINMARIE N700
PNC Model Ref. Notes
178 157 PB/E1 a Electric Bainmarie 400
178 158 PB/E2 b Electric Bainmarie 800
178 159 PBV/E2 c Electric Bainmarie +Open Base 800
178 160 PB/E2E5 d Electric bainmarie Top 800 MM - 230V
Pos
1 0533832200 * FONDO 400 MM BOTTOM 400 MM a
2 0315252601 026806 PIEDINO FOOT a b d
3 0527836002 0C0154 RINFORZO DX RIGHT SIDE REINFORCEMENT c
4 0527836102 0C0155 RINFORZO SX LEFT SIDE REINFORCEMENT
5 0522890101 * RIVESTIMENTO LATERALE TO P 400MM EXTERNAL PANEL 400MM a
6 0831826700 * SCARICO ACQUA WATER DRAIN
7 0548839801 003391 PROLUNGA PER MANOPOLA KNOB EXTENSION c
8 0548857002 0C0465 MANOPOLA ACQUA WATER KNOB c
9 0873859400 0C3919 RIPIANO VASCA 400 MM WELL 400 MM a
9 0873859500 0C3921 RIPIANO VASCA 800 MM WELL 800 MM b c d
10 0525867901 004859 TRAVERSA CRO SSBAR b c d
11 0548856800 0C0257 MANOPOLA KNOB
12 0548858800 0C0518 GHIERA PER COMMUTATORE KNOB RING, SWITCH b c d
13 0870856300 0C3920 CRUSCOTTO 400 MM CONTROL PANEL 400 MM a
13 0870856600 0C3923 CRUSCOTTO 800 MM CONTROL PANEL 800 MM b d
13 0870856400 0C3924 CRUSCOTTO MONOBLOCCO CONTROL PANEL, FREESTANDING c
14 0527850500 0C0156 RINFORZO REINFORCEMENT
15 9F921622 004852 FALSO FONDO 400 MM FALSE BOTTOM 400 MM a
16 0140088006 0L0113 GUARNIZIONE GASKET
17 0516860700 0C0137 PIASTRINA PLATE
18 0548864700 0C0515 GHIERA TERMOSTATO KNOB RING, THERMOSTAT
19 0544802300 0C068 PRESSACAVO FIXING CABLE
20 0518801801 053342 MOLLA PER MARCHIO SPRING FOR BRAND
21 0835868000 0C2670 VALVOLA SCARICO DRAIN VALVE
22 0516831500 004549 TAPPO FORO RIPIANO STOPPER, WELL
23 0517848402 004537 GETTO EROGATORE DISTRIBUTOR PIPE c
24 0639804900 046357 MORSETTIERA 400 MM TERMINAL BOARD 400 MM a
25 0140068008 002707 TUBO CORAZZATO RUBBER PIPE
26 0835848500 005902 VALVOLA CARICO ACQUA WATER VALVE c
28 0517848502 004538 CORPO EROGATORE DISTRIBUTOR FITTING c
29 0806804700 004539 PORTAGOMMA PIPE HOLDER c
30 0835856900 0C0204 PIEDE FOOT c
31 0508898900 0C0122 PIASTRA RINFORZO PIEDE PLATE FOR FOOT c
32 0446574503 051142 INTERRUTTORE CONTERMOSTATO SWITCH WITH THERMOSTAT a
33 0548858701 0C2663 GHIERA MANOPOLA ACQUA KNOB RING, WATER c
34 0446578812 052000 TERMOSTATO TRIP 90° THERMOSTAT TRIP 90°
35 0A05443500 0A2241 INTERRUTTORE SWITCH b c d
36 0876800002 005010 LAMPADA SPIA VERDE PILOT LAMP GREEN
37 0417518523 050933 RESISTENZA HEATING ELEMENT
38 0533834700 * SCATOLA RESISTENZE 400 MM HEATING ELEMENT BOX 400 MM a
39 0533834800 * CONTROSCATOLA 400 MM INNER BOX 400 MM a
40 0533832700 * CIELO VANO TOP OPEN BASE c
Factory
Code
0533832300 * FONDO 800 MM BOTTOM 800 MM b d
0800835100 * FONDO VANO BOTTOM OPEN BASE c
0522889100 * RIVESTIMENTO LATERALE TOP 800MM EXTERNAL PANEL 800MM
0522882400 * RIVEST. LATERALE. MONOBLOCCO EXTERNAL PANEL FREESTANDING
9F921623 004858 FALSO FONDO 800 MM FALSE BOTTOM 800MM b c d
0A05714000 058613 MORSETTIERA 800 MM TERMINAL BOARD 800 MM b c d
0533834400 * SCATOLA RESISTENZE 800 MM HEATING ELEMENT BOX 800 MM b c d
0533834500 * CONTROSCATOLA 800 MM INNER BOX 800 MM b c d
6DGT
Code
Descrizione Description
Page 1
Ref. /
Notes
From ser. nr. / Da Ser. Nr.: 526...
Page: 4 Ed. 2006 04
Doc. Nr.:
2 -05 195
