Electrolux Professional MBJDGBJ4AO PARTS LIST

SPARE PARTS CATALOGUE
THERMALINE 80/85/90
DE VOLLFLÄCHENINDUKTION AUF WÄRMESCHRANK EN FULL SURFACE INDUCTION ON WARMING CABINET
PNC Factory Model Ref. Description
588518 MBJDGBJ4AO a FULL INDUCTION ON WARMING CABINET, H2, 1-SIDE, C-BOARD, 1000X850X700H 588661 MBJJGBJ4AO b FULL INDUCTION ON WARMING CABINET, NHC, 1-SIDE, C-BOARD, 1000X850X700H
589053 MCJDEAJ4AO c FULL INDUCTION ON WARMING CABINET, H2, 1-SIDE, 1000X900X700H 589056 MCJDEBJ4AO c FULL INDUCTION ON WARMING CABINET, H2, 1-SIDE, C-BOARD, 1000X900X700H 589059 MCJDECJ4AO d FULL INDUCTION ON WARMING CABINET, H2, 2-SIDES, 1000X900X700H 589364 MCJDFAJ4AO e FULL INDUCTION ON WARMING CABINET, H2, 1-SIDE, 1000X900X800H 589367 MCJDFBJ4AO e FULL INDUCTION ON WARMING CABINET, H2, 1-SIDE, C-BOARD, 1000X900X800H 589370 MCJDFCJ4AO f FULL INDUCTION ON WARMING CABINET, H2, 2-SIDES, 1000X900X800H
Page Index 2 Electronical parts (FME) 4 Aeration kit (FML) 6 Mechanical parts (FMM) 8 Generator cabinet
10 Warming cabinet 12 Control Panel warming cabinet
Valid from Ser. № 3101....
Brand: Electrolux
Last Updates Page
Ed. 01/2015 all
Doc. № 87.8072.03
Elektronische Komponenten (FME)
1
Electronical parts (FME)
Page: 2
Doc. № 87.8073.02
Components on demandTeile auf Anfrage
Alias
1
1 82.3004.01
2 82.3001
82.9002 3 83.3021 4 82.3022 5 82.3008.02
82.3008.12 6 82.7093 056582 Sicherungshalter Fuse holder D900 7 712 344362.01 0G5814 Sicherung 5x20 1A Fuse 5x20 1A D900 8 712 044961.17 0KT854 Kabeltülle Ø25/Ø31/Ø35x10 Cable: sleeve Ø25/Ø31/Ø35x10 all types 9 82.9030 0G6075 DC Power Supply 12VDC DC Power Supply 12VDC D900
10 82.9020 0G6314 Schalter Off-9 Stufen + 2x10K Potentiometer Switch off-9 levels + 2x10K potentiometer D900
82.9013 0G624 Schalter Off-9 Stufen + 10K Potentiometer Switch off-9 levels + 10K potentiometer D850 11 82.9115.01 0G6302 Eurotas Display Induktion Eurotas Display Induction D900
72.5938.01 0KX184 Anzeigelampe Indicator light D850
72.5938.08 0KI364 Einsteckfassung grün/gelb Ø10mm Lamp holder, green/yellow, Ø10mm D850
12 82.1027.25
82.1027.20
82.1049.25
13 82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types 14 82.9124.01 0G6369 Drehgriff mit Adapter 0°x6.0 Handle with adapter 0°x6.0 all types 15 82.3051 Main terminal Main terminal all types 16 82.3052 17 75.2011.03 0KX29 Schutzleiterklemme 16mm² Ground conductor terminal 16mm² all types 18 75.2010.40 0KI280 Reihenklemme 16mm² grau Terminal block 16mm² grey all types 19 75.2010.41 0G3488 Nullleiterklemme 16mm² blau Neutral wire terminal 16mm² blue all types
20 75.2010.44 0KT731 Querverbinder Cross connection all types
21 82.9103 0G6424 Kabel Haupterddraht L400 6mm² Main earthing cable L400 6mm² all types 22 82.2908 0C0068 Kabelverschraubung PG21 Cable gland PG21 all types 23 82.9226 0G7024 Gegenmutter Kabelverschraubung PG21 Lock nut PG21 all types
Code
Bezeichnung Description Re f.
Halterung Ventilationsbox L100 Support for ventilation box L100 D900
Standard Ventilationsbox links Ventilation box left all types
Standard Ventilationsbox rechts Ventilation box right D900
Rohrstutzen Ø 60.3 Pipe socket Ø 60.3
Elektrobox 800+ Electronical compartment 800+ all types
Halterung Ventilationsbox L200 Support for ventilation box L200 all types
Halterung Ventilationsbox L200 gegengleich Support for ventilation box L200 mirrored all 1-side
Bedienblende Induktion 1000 1-seitig Control panel Induction 1000 1-side D900 / 1-side
Bedienblende Induktion 1000 2-seitig Control panel Induction 1000 2-sides D900 / 2-sides
Bedienblende INOX Induktion 1000 Control panel INOX Induction 1000 D850
Klemmenträger Terminal support all types
D900
Valid from Serial N°
82.9002 0G6897 Kabel: Display - Display Cable: Display - Display D900
82.9003 0G6899 Kabel: Potentiometer - Display L200 Cable: Potentiometer - Display L200 D900
82.9011 Kabel: Trafo - Display - Ventilator Cable: Trafo - Display - Ventilator D900
82.9116 Kabel: Trafo - T1 - Trafo - T2 Cable: Trafo - T1 - Trafo - T2 2-Sides
82.9022.01 0G7036 Kabel: Schalter- S1 - Schalter - S2 kurz Cable: Switch - S1 - Switch - S2 short D900
82.9022.02 Kabel: Schalter- S2 - Schalter - S3 kurz Cable: Switch- S2/3 - Switch - S4 short D900 / 1-side
82.9022.03 Kabel: Schalter- S2/3 - Schalter - S4 kurz Cable: Switch- S2/3 - Switch - S4 short D900
82.9022.05 Kabel: Schalter- S2 - Schalter - S3 lang Cable: Switch- S2 - Switch - S3 long 2-Sides
82.9012.02 0G6667 Kabel: 2x Poti - Generator GFI L2500 Cable: 2x Poti - Generator GFI L2500 all types
82.9059.01 Kabel: X0 - F1 - Schalter - Trafo 1 Cable: X0 - F1 - Switch - Trafo 1 D900
82.9064.02 Kabel: 2x Anzeigel. - Generator GFI L2500 Cable: 2x indicato - Generator GFI L2500 D850
72.6287.02 0T2450 Kabel: 4x 4.0mm² L2800 Cable: 4x 4.0mm² L2800 all types
82.9010.01 Kabel: Generator - Spulen L1800 Cable: Generator - Coils L1800 all types
Components on demandTeile auf Anfrage
Doc. № 87.8072.03
Page: 3
2
Lüftungskit
Aeration kit
Page: 4
Doc. № 87.8073.02
Components on demandTeile auf Anfrage
Alias Code Bezeichnung Description Ref.
2
1 712 044120.05 2 1 701 7002 3 1 701 2579 4 82.3001 5 83.3021 6 1 201 2105 7 83.9010 8 1 101 8170 9 1 701 1083
10 1 701 3540
11 82.7159
12 82.0133
0G3998 Kepsmutter M5 Hex nut M5
0G2923 Fächerscheibe M5 Fan washer M5 0G4020 Sechskantschraube M5x16 Hex bolt M5x16
Standardventilationsbox links Ventilation box left
Rohrstutzen Ø 60.3 Pipe socket Ø 60.3
0G6754 Schlauchschelle 60-115mm Hose clamp 60-115mm
0G6701 Alu-Flexschlauch Ø60/66 Flexible aluminium hose Ø60/66 0G3250 Innensechskantschraube M4x8 Allen bolt M4x8
0G5755 Zylinderschraube M3x30 Socket cap screw M3x30
2KI478 Unterlegscheibe M3 Washer M3
0G6274 Ventilator 60x60x25 622HH (3.5W) Cooling fan 60x60x25 622HH (3.5W) 0G6755 Verstärkungsrohr Ventilator Cooling fan support
Valid from Serial N°
D900 D900 D900 D900 D900 D900 D900 D900 D900 D900 D900 D900
Components on demandTeile auf Anfrage
Doc. № 87.8072.03
Page: 5
3

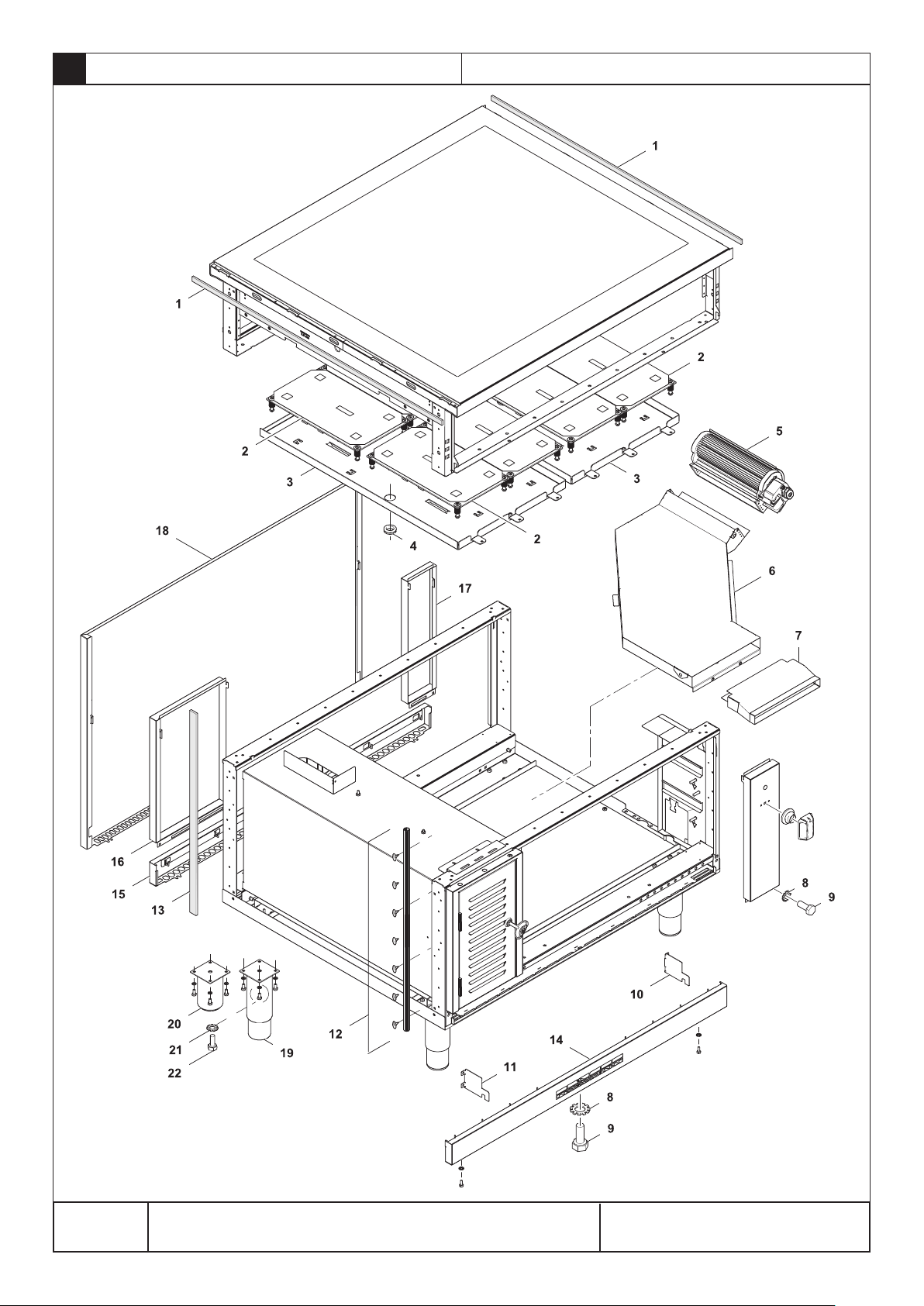

Mechanische Komponenten
Mechanical parts
Page: 6
Doc. № 87.8073.02
Components on demandTeile auf Anfrage
Alias Code Bezeichnung Description Ref.
3
1 82.7464 0C2496 Dichtband (Schaumstoff-Silikon, klebend) Sealing strip all types 2 82.7316.01 3 82.2576 4 712 044961.16 5
1 115 1416 0K5059 Querstromlüfter
6 82.5202.10
82.5203.10 7 82.1184 8 1 701 7002 0G2923 Fächerscheibe M5 Fan washer M5 all types 9 1 701 2579 0G4020 Sechskantschraube M5x16 Hex bolt M5x16 all types
10 82.0114.02 0G7055 Abgrenzungsblech Frischluft rechts H700 Aeration sheet right H700 H700
82.0114.12 0G7056 Abgrenzungsblech Frischluft rechts H800 Aeration sheet right H800 H800 11 82.0114.01 0G7053 Abgrenzungsblech Frischluft links H700 Aeration sheet left H700 H700
82.0114.11 0G7054 Abgrenzungsblech Frischluft links H800 Aeration sheet left H800 H800
12 82.7334 0G6396 Dichtung Geräte seitwärts (NM) Side-sealing strip all types 13 82.7467 0C7307 Dichtung 5mm Sealing sides 5mm all types 51010000 14 82.1178.10
82.1178.30
15 82.1140.10
82.1140.30
16 82.1041.14 17 82.1042.13 18 82.1102.09
82.1007.09
82.1102.29
82.1007.29
19 86.0001 0G5391 Stellfuß 2" 145-252mm rund Adjustable feet 2" 145-252mm, round H700
20 86.2385 0G6140 Stellfuß 2" 100mm Adjustable feet 2" 100mm H800
21 1 701 5051 0G6753 Fächerscheibe M6 Fan washer M6 all types
22 1 701 2600 0KT919 Sechskantschraube M6x12 Hex bolt M6x12 all types
0G6329 Spule 3.5kW GFI 400V Coilö 3.5kW GFI 400V
Spulenträgerblech (2Zonen) Coil support sheet (2Zones) Kabeltülle Kabeltülle
Cross flow blower all types
Luftkanal 1000x850 Air channel 1000x850 D850
Luftkanal 1000x900 Air channel 1000x900 D900
Kanalverlängerung vorn Channel extension frontside all types
Anschlussdeckel (Lüftung) H66/L1000 Bottom front panel (aeration) H66/L1000 all H700
Anschlussdeckel (Lüftung) H166/L1000 Bottom front panel (aeration) H166/L1000 all H800
Anschlussdeckel H66/L1000 Bottom front panel H66/L1000 all H700
Anschlussdeckel H166/L1000 Bottom front panel H166/L1000 all H800
Blende rechts 254.5 Panel right 254.5
Blende links 105.5mm
Rückwand 1000x700 Back panel 1000x700 1-Side/H700
Rückwand 1000x700 C-Board Back panel 1000x700 C-Board 1-S/H700/C-board
Rückwand 1000x800 Back panel 1000x800 1-Side/H800
Rückwand 1000x800 C-Board Back panel 1000x800 C-Board 1-S/H800/C-board
Panel left 105.5mm
all types all types all types
all 2-Sides all 2-Sides
Valid from Serial N°
Components on demandTeile auf Anfrage
Doc. № 87.8072.03
Page: 7
4
Generatorenschrank
Generator cabinet
Page: 8
Doc. № 87.8073.02
Components on demandTeile auf Anfrage
Alias Code Bezeichnung Description Ref.
4
1 82.2765.03 2 82.7145.01 3 712 044120.04 4 1 701 2590 0G4171 Rändelschraube Knurled screw all types 5 82.2765.01 6 83.3085.04 7 82.7272.02 8 82.2766.01 9 712 044120.05 0G3998
10 82.2354
11 83.7029 ??? Hebelschloss
12 83.7063 0G6260 Vierkantschlüssel
Einschubblech Slide-in sheet all types
0G6328 Generator Q+ 4x3.5kW GFI 400V Generator Q+ 4x3.5kW Full induct. 400V
0G4918 Keps-Mutter M4
Einschubblech
Blende mit Ausschnitt
??? Filter
Schutzblech Protection sheet all types Keps-Mutter M5
Tür mit Lamellen Door all types
Keps-nut M4
Slide-in sheet all types Panel all types Filter all types
Keps-nut M5
Lever lock
Square key
all types all types
all types
all types all types
Valid from Serial N°
Components on demandTeile auf Anfrage
Doc. № 87.8072.03
Page: 9
Wärmeschrank
5
Warming cabinet
Page: 10
Doc. № 87.8073.02
Components on demandTeile auf Anfrage
Alias Code Bezeichnung Description Ref.
5
1 82.0032.03
82.0084.06
2 82.2326.03 ??? Einlegeboden 640 1S False bottom 640 1S 1-Side
82.0195.04 ??? Einlegeboden 640 2S 900 False bottom 640 2S 900 2-Sides 3 62.4208 ??? Halter Heizung Heating element support all types 4 62.4082 0G2911 Heizung 2000W /400V Heating element 2000W /400V all types 5 72.1120 0K4989 Dichtung 44x20x3 Sealing 44x20x3 all types 6 1 701 7002 0G2923 Fächerscheibe M5 Fan washer M5 all types 7 1 701 2579 0G4020 Sechslantschraube M5x16 Hex bolt M5x12 all types 8 1 201 2020 ??? Fühlerbefestigung Sensor fixation all types 9 72.6251 ??? Fühlerschutz Sensor protection all types
10 1 701 2579 0G4020 Sechslantschraube M5x16 Hex bolt M5x12 all types
11 82.0223.01 0G6757 Deckel Servicefenster Lid service cover all types
12 1 701 1145 0G6758 Senkkopfschraube M4x6 Countersunk screw M4x6 all types 13 82.0255.01 ??? Tür, doppelt, 290, links Door, couple, 290, left D900/850 H2
82.1068.02 ??? Tür, doppelt, NHC, 580, links Door, couple, NHC, 580, left D850 NHC
14 82.0255.02 ??? Tür, doppelt, 290, rechts Door, couple, 290, right D900/850 H2
82.1068.01 ??? Tür, doppelt, NHC, 580, rechts Door, couple, NHC, 580, right D850 NHC
Korpusdeckel 1S 640 Corpus cover 1S 640 1-Side
Korpusdeckel 2S 640X900 Corpus cover 2S 640X900 2-Sides
Valid from Serial N°
Components on demandTeile auf Anfrage
Doc. № 87.8072.03
Page: 11
Reglerblende Wärmeschrank
6
Control panel warming cabinet
Alias Code Bezeichnung Description Ref.
1
1 712 344039 0K5023 Kapillarrohrregler 30-100 Capllary control 30-100 all types 2 72.5938.04 0KI362 Anzeigelampe klar Indicator light, clear all types 3 82.2665 0G7229 Zwischenblech Spacer sheet all types 4 82.1043.03 5 72.5938.08 0KI364 Einsteckfassung klar Ø10mm Lamp holder, clear, Ø10mm all types 6 82.7009 0G6247 Dichtung Drehgriff Sealing for hande all types 7 82.9124.01 0G6369 Drehgriff mit Adapter 0°x6.0 Handle with adapter 0°x6.0 all types
62.1544.01 ??? Kabelbaum: Wärmeschrabk komplett Wiring harness: warming cabinet all types
62.1503.02 ??? Verdrahtung 2X0.5X 300 Wiring 2x0.5x300 all types
82.9183 ??? Kabel: WS-Qquerstromlüfter Cable: Warming cab.-cross flow blower all types
Page: 12
Bedienblende warming cabinet, rechts, 105 Control panel warming cabinet, right, 105 all types
Components on demand
Doc. № 87.8073.02
Teile auf Anfrage
Valid from Serial N°
