SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO
USA RE-THERMALIZER
PNC DESCRIPTION RIF
P80093-04 RETHERMALIZER 1X60L - USA 208/60Hz 5Kw A
P80854-03 RETHERMALIZER 1X60L - USA 208/60Hz 9kw C
Index
General components / componenti
Spare part list / liste ricambi
Electric components / component elettrici
Spare part list / liste ricambi
Page 2
Page 3
Page 4
Page 5
Bold = Last Change/ Grassetto= ultima
modifica
From Ser. Nr.
Up to Ser. Nr.
Ed. document . N° 01 / 2015 - 12
Page 1
Doc. N° 59785UF00
Ed. page revison 2015 - 12
SPARE PART CATALOGUE N° 01 / 2015 – 12
PRELIMINARY EDITION FOR FIELD TEST
USE.
From Ser. Nr.
Up to Ser. Nr.
Ed. document . N° 01 / 2015 - 12
Page 2
Doc. N° 59785UF00
SPARE PART CATALOGUE N° 01 / 2015 – 12
PRELIMINARY EDITION FOR FIELD TEST
USE.

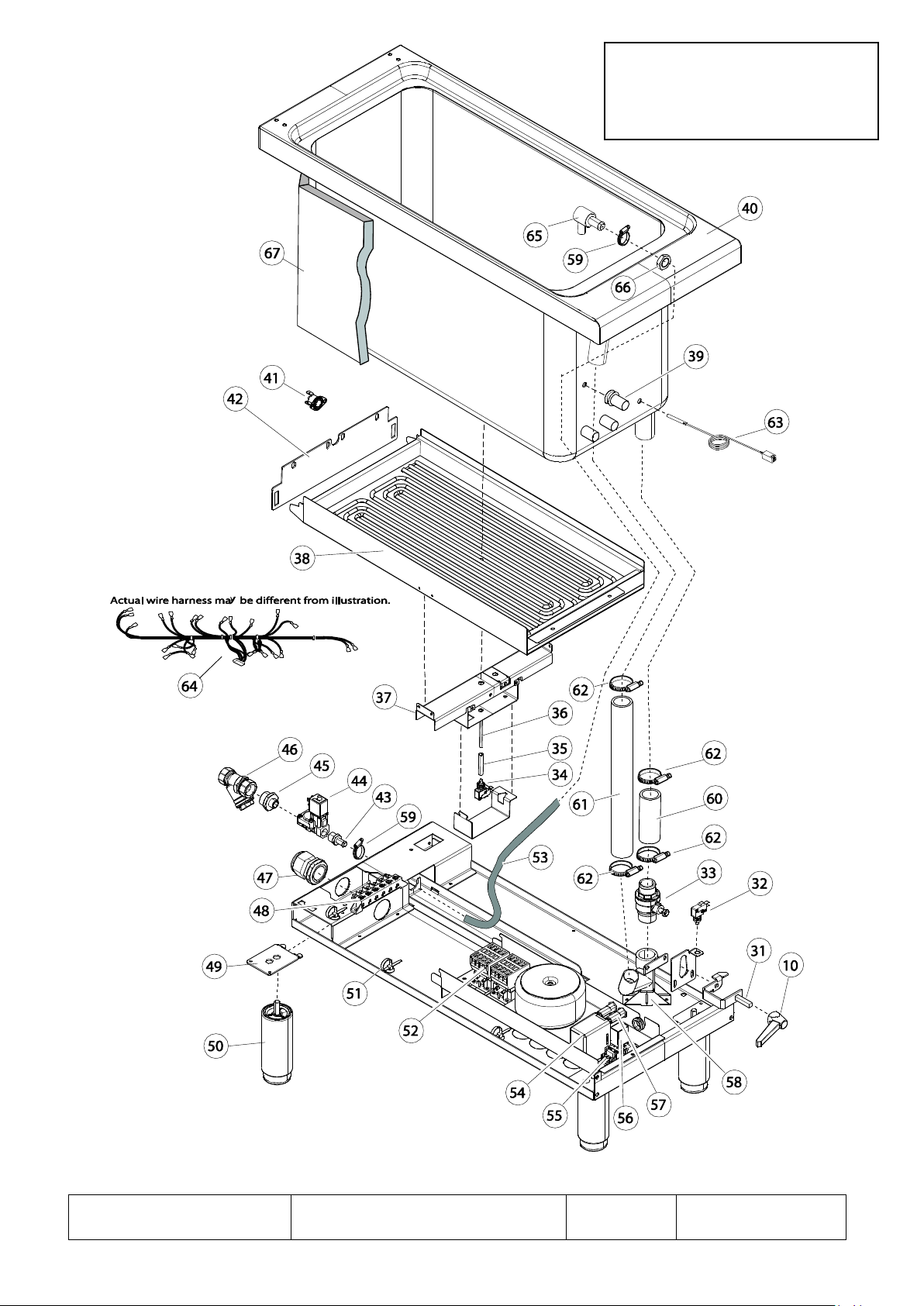

RE THERMALIZER USA
Pos
Spare
part
Code
Factory
Code
Descrizione
Description
Ref./Note
1
0CA554
85089MS01
COPERCHIO COMPLETO
COMPLETE LID
2 * 51589CF00
MANIGLIA
HANDLE
3 *
83089LN00
DISTANZIALE BUSTE
BAG SEPARATOR
4*
TO MAKE SPCODE
KIT BUSTE COMPLETO
COMPLETE HOLDER
4+3+25
4 * 83089LM00
SUPPORTO BUSTE
SOUP HOLDER
5 * 675860S01
MEMBRANA ADESIVA
THERMOREGULATOR
STICKER
6
0CA549
673800A00
TERMOREGOLATORE
THERMOREGULATOR
7 *
83089LK00
CRUSCOTTO PANERA
CONTROL PANEL PANERA
8 * 83089LJ00
PANNELLO FRONT.INFERIORE
LOWER FRONT PANEL
9 * 598889G00
INDICATORE OPEN /CLOSE
OPEN/CLOSE LABLE
10
056887
835821900
MANOPOLA VALVOLA SCARICO
DRAIN VALVE HANDLE
11 * 50089AK00
FIANCO SX
LEFT SIDE PANEL
12 * 50489TX01
COPERCHIO SCATOLA IMP.EL.
EL.BOX COVER
13 * 50089AM00
SCHIENALE
BACK PANEL
14 * 50089AL00
FIANCO DX
RIGHT SIDE PANEL
15 * 50089AU00
FILTRO DI FONDO
WELL FILTER
16
*
051589CD00
COPERCHIO CERNIERA
HINGE COVER
17 * 541813K01
TAPPO CANOTTA
HINGE PLUG
18 * 51489F001
CANOTTA
HINGE SHAFT
19 * 51489F101
MOLLA
SPRING
20
0CA552
546825801
COPPIA BOCCOLE ELICOIDALI
PAIR OF CAMS
21
0C4202
516896000
DADO FISS. BOCCOLE
NUT, FIXING BUSH
22 * 219301500
SPINA
PIN
8X32mm
23
TO MAKE SPCODE
KIT COMPLETO CERNIERA
KIT ASSEMBLY HINGE
16+17+18+19
+20+21+22
24
0C7366
830825901
CAVETTO CRUSCOTTO.
SUPPORT CABLE
25 * 51489F600
BULLONE FILETTO CAVO
INNER THREADED BOLT
26
005011
876800102
LAMPADA COMPLETA ARANCIO
COMPLETE ORANGE LAMP
0C0249
660805600
LAMPADINA
BULB
0C2182
655800200
LENTE ARANCIO
ORANGE LENS
27
0C6960
506899Z01
GRIGLIETTA SCARICO
WELL DRAIN GRID
28
0C2496
543821900
GUARNIZ. SPUGNA GRIGIA
GRAY SPONGE GASKET
From Ser. Nr.
Up to Ser. Nr.
Ed. document . N° 01 / 2015 - 12
Page 3
Doc. N° 59785UF00
SPARE PART CATALOGUE N° 01 / 2015 – 12
PRELIMINARY EDITION FOR FIELD TEST
USE.
From Ser. Nr.
Up to Ser. Nr.
Ed. document . N° 01 / 2015 - 12
Page 4
Doc. N° 59785UF00
SPARE PART CATALOGUE N°
01 / 2015 – 12 PRELIMINARY
USE.
EDITION FOR FIELD TEST
RE THERMALIZER USA
Pos
Spare
part
Code
Factory
Code
Descrizione
Description
Ref./Note
10
056887
835821900
MANOPOLA VALVOLA SCARICO
DRAIN VALVE HANDLE
31 * 80589DC01
PROLUNGA MANIGLIA SCARICO
EXSTENSION DRAIN HANDLE
32
0CA553
640804N00
MICRO SICUREZZA SCARICO
DRAIN SAFETY SWITCH
33
0CA274
80589CN00
VALVOLA
VALVE
34
0CA553
640804N00
MICRO SICUREZZA VASCA
WELL SAFETY SWITCH
35
0C8182
569807501
ASTA CERAMICA
CERAMIC ROD
36 * 51489DT00
PROLUNGA ASTA MICRO
EXTENSION ROD
37 * 50489T401
STAFFA SUPPORTO
SUPPORT BRAKET
38 * 61783A101
RESISTENZA ELETTRICA
HEATING ELEMENT
C, 208V9KW
* 61783A001
RESISTENZA ELETTRICA
HEATING ELEMENT
A, 208V5KW
39
0C9755
541813G03
SUPPORTO SONDA, TEFLON
TEFLON PROBE SUPPORT
40 * 83089LH02
RIPIANO VASCA
WELL ASSEMBLY
41
0C6155
653800001
TERMOSTATO DI SICUREZZA
SAFETY THERMOSTAT
42 * 50489TZ01
STAFFA RESISTENZA
H.ELEMENT BRAKET
43 * 51489F200
PORTAGOMMA
PIPE ADAPTER
44 * 696618700
ELETTROVALVOLA
WATER VALVE
45 * 51489F400
ADATTATORE NIPPLO
ADAPTER
46
0C4113
806862800
FILTRO CARTUCCIA INGRESSO
WATER FILTER
47
0C3528
544802400
FERMA CAVO ALIMENTAZIONE
CABLE STOPPER (GLAND)
Ø 37,5 mm
48
0CA556
639813800
MORSETTIERA
TERMINAL BLOCK
49
0TTG45
50589CD00
STAFFA PIEDE
FOOT BRAKET
50
0C0204
835856901
PIEDE
FOOT
51 * 639622800
FASCETTA MESSICANO
CABLE STOPPER STRAP
5X160MM
52 * 648809200
RELE’ / CONTATTORE
RELE’ / CONTACTOR
53 * 544819400
TUBO CARICO
INLET WATER PIPE
54
0C0937
646813400
REG. LIV.ACQUA (GICAR)
WATER LEVEL REG. (GICAR)
55
002786
639806401
BASE RELE’ FINDER
BASE FOR RELE’
56
002787
648804201
RELE’
RELE’
57
0F0031
652802100
PORTA FUSIBILE
FUSE HOLDER
* 652802900
FUSIBILE
FUSE
630MA
5X20mm
58 * 80589DB00
RACCORDO SCARICO ACQUA
WATER DRAIN CONNECTION
59 * 518613100
FASCETTA, ALIMENTAZIONE
CLAMP BAND, INLET
Ø 12-22MM
60
0C5829
544819400
TUBO SCARICO EPDM BLU
DRAIN PIPE
10X17MM
61
0CA276
544826400
TUBO TROPPOPIENO
OVERFLOW PIPE
62 * 518613300
FASCETTA, SCARICO
CLAMP BAND, DRAIN
Ø 25-40MM
63
006609
675837201
SONDA TEMPERATURA
TEMPERATURE PROBE
64 * 63889B800
CABLAGGIO RE-THERM. 9KW
WIRING HARNESS 9KW
65 * 51489F701
GETTO EROGATORE VASCA
TIP INLET
66
0C8993
516875100
DADO FISS. GETTO
TIP NUT
67 * 560874000
ISOLAMENTO LANA DI VETRO
FIBERGLASS INSULATION
From Ser. Nr.
Up to Ser. Nr.
Ed. document . N° 01 / 2015 - 12
Page 5
Doc. N° 59785UF00
SPARE PART CATALOGUE N° 01 / 2015 – 12
PRELIMINARY EDITION FOR FIELD TEST
USE.
