Dell Force10 S4820T Command Line Reference Guide

0 (0)

FTOS Command Line Reference

Guide for the

S4820T (FTOS 8.3.19.0)

System

Publication Date: January 2013

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to

avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, KACE™, FlexAddress™ and V ostro™ are trademarks of Dell Inc. Intel

, Pentium

, Xeon

Core™ and Celeron

are registered trademarks of Intel Corporation in the U.S. and other countries. AMD

is a registered trademark and AMD

Opteron™, AMD Phenom™, and AMD Sempron™ are trademarks of Advanced Micro Devices, Inc. Microsoft

, Windows

Server

, MS-DOS

and Windows V ista

are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Red Hat Enterprise Linux

and Enterprise Linux

are registered trademarks of Red Hat, Inc. in the United S tates and/or other

countries. Novell

is a registered trademark and SUSE ™ is a trademark of Novell Inc. in the United States and other countries. Oracle

is a

registered trademark of Oracle Corporation and/or its affiliates. Citrix

, Xen

, XenServer

and XenMotion

are either registered trademarks

or trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware

, Virtual SMP

, vMotion

, vCenter

, and vSphere

are registered trademarks or trademarks of VMWare, Inc. in the United States or other countrie s .

Other trademarks and trade names may be used in this publication to refer to either the entities claimi ng the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

January 2013

| 3

1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Information Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

2 CLI Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Accessing the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Multiple Configuration Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Navigating the Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Obtaining Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Using the Keyword No . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Filtering show Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Displaying All Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Filtering Command Output Multiple Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Command Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

EXEC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

EXEC Privilege Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CONFIGURATION Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

INTERFACE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

LINE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TRACE-LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

MAC ACCESS LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

IP ACCESS LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ROUTE-MAP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

PREFIX-LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

AS-PATH ACL Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

IP COMMUNITY LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

REDIRECT-LIST Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

SPANNING TREE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Per-VLAN SPANNING TREE Plus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

RAPID SPANNING TREE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

MULTIPLE SPANNING TREE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

PROTOCOL GVRP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ROUTER OSPF Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ROUTER RIP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ROUTER ISIS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ROUTER BGP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

VLT DOMAIN Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Determining the Chassis Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

3 File Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Basic File Management Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

4 |

www.dell.com | support.dell.com

Upgrading the C-Series FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

4 Control and Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

5 802.1ag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

6 802.1X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

7 Access Control Lists (ACL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Commands Common to all ACL Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Common IP ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

Standard IP ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

Extended IP ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Common MAC Access List Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238

Standard MAC ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241

Extended MAC ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246

IP Prefix List Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252

Route Map Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

AS-Path Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

IP Community List Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .281

8 Bidirectional Forwarding Detection (BFD). . . . . . . . . . . . . . . . . . . . . . . .287

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .287

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .287

9 Border Gateway Protocol IPv4 (BGPv4). . . . . . . . . . . . . . . . . . . . . . . . .303

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303

BGPv4 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

MBGP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .395

BGP Extended Communities (RFC 4360) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .421

10 Bare Metal Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .431

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .431

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .431

| 5

11 Content Addressable Memory (CAM). . . . . . . . . . . . . . . . . . . . . . . . . . .435

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435

CAM Profile Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .436

CAM IPv4flow Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .449

CAM Layer 2 ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .452

12 Control Plane Policing (CoPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .457

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .457

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .457

13 Data Center Bridging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463

DCB and Switch Stacking Caveats for the S4820T . . . . . . . . . . . . . . . . . . . . . . . .463

DCB Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463

PFC Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463

ETS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .465

DCBX Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .465

14 Dynamic Host Configuration Protocol (DHCP) . . . . . . . . . . . . . . . . . . . .499

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .499

Commands to Configure the System to be a DHCP Server . . . . . . . . . . . . . . . . . . . . .499

Commands to Configure Secure DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .507

15 Equal Cost Multi-Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

16 FIPS Cryptography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525

FIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525

17 FIP Snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531

FIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531

18 Force10 Resilient Ring Protocol (FRRP) . . . . . . . . . . . . . . . . . . . . . . . .543

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

6 |

www.dell.com | support.dell.com

19 GARP VLAN Registration (GVRP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .554

20 High Availability (HA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

21 ICMP Message Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .577

22 Internet Group Management Protocol (IGMP) . . . . . . . . . . . . . . . . . . . .579

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .579

IGMP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .579

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .579

IGMP Snooping Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .592

Important Points to Remember for IGMP Snooping . . . . . . . . . . . . . . . . . . . . . . . .592

Important Points to Remember for IGMP Querie r . . . . . . . . . . . . . . . . . . . . . . . . . .593

23 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .599

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .599

Basic Interface Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .599

Port Channel Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .659

Time Domain Reflectometer (TDR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .670

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .671

UDP Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .673

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .673

24 IPv4 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .677

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .677

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .677

25 IPv6 Access Control Lists (IPv6 ACLs) . . . . . . . . . . . . . . . . . . . . . . . . .737

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .737

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .737

IPv6 ACL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .738

IPv6 Route Map Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .765

26 IPv6 Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .771

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .771

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .771

| 7

27 IPv6 Border Gateway Protocol (IPv6 BGP). . . . . . . . . . . . . . . . . . . . . . .793

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .793

IPv6 BGP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .793

IPv6 MBGP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .865

28 iSCSI Optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .893

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .893

29 Intermediate System to Intermediate System (IS-IS) . . . . . . . . . . . . . . .901

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .901

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .901

30 Link Aggregation Control Protocol (LACP) . . . . . . . . . . . . . . . . . . . . . . .951

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .951

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .951

31 Layer 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .959

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .959

MAC Addressing Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .959

Virtual LAN (VLAN) Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .981

Far-End Failure Detection (FEFD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .992

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .992

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .992

32 Link Layer Discovery Protocol (LLDP) . . . . . . . . . . . . . . . . . . . . . . . . .1001

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1001

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1001

LLDP-MED Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1011

33 Multicast Source Discovery Protocol (MSDP). . . . . . . . . . . . . . . . . . . .1021

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1021

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1021

34 Multiple Spanning Tree Protocol (MSTP) . . . . . . . . . . . . . . . . . . . . . . .1033

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1033

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1033

35 Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1049

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1049

IPv4 Multicast Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1049

IPv6 Multicast Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1059

8 |

www.dell.com | support.dell.com

36 Neighbor Discovery Protocol (NDP) . . . . . . . . . . . . . . . . . . . . . . . . . . .1067

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1067

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1067

37 Open Shortest Path First (OSPFv2) . . . . . . . . . . . . . . . . . . . . . . . . . . .1075

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1075

OSPFv2 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1075

38 PIM-Sparse Mode (PIM-SM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1139

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1139

IPv4 PIM-Sparse Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1139

IPv6 PIM-Sparse Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1163

39 Port Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1177

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1177

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1177

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1177

40 Private VLAN (PVLAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1183

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1183

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1183

Private VLAN Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1183

41 Per-VLAN Spanning Tree Plus (PVST+). . . . . . . . . . . . . . . . . . . . . . . .1193

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1193

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1193

42 Quality of Service (QoS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1207

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1207

Global Configuration Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1207

Per-Port QoS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1208

Policy-Based QoS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1218

Important Points to Remember — multicast-bandwidth option . . . . . . . . . . . . . . .1234

Queue-Level Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1258

43 Routing Information Protocol (RIP). . . . . . . . . . . . . . . . . . . . . . . . . . . .1269

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1269

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1269

44 Remote Monitoring (RMON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1291

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1291

| 9

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1291

45 Rapid Spanning Tree Protocol (RSTP). . . . . . . . . . . . . . . . . . . . . . . . .1305

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1305

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1305

46 Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1317

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1317

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1317

AAA Accounting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1318

Authorization and Privilege Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1321

Authentication and Password Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1325

RADIUS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1339

TACACS+ Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1346

Port Authentication (802.1X) Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1349

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1350

SSH Server and SCP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1360

Trace List Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1375

Secure DHCP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1385

47 Service Provider Bridging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1391

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1391

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1391

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1391

48 sFlow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1397

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1397

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1397

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1398

49 Simple Network Management Protocol and Syslog . . . . . . . . . . . . . . . 1409

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1409

SNMP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1409

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1410

Syslog Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1428

50 S-Series Stacking Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1443

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1443

Switch Stacking an DCB Caveats for the S4820T . . . . . . . . . . . . . . . . . . . . . . . .1443

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1444

10 |

www.dell.com | support.dell.com

51 Storm Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1453

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1453

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1453

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1453

52 Spanning Tree Protocol (STP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1463

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1463

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1463

53 System Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1475

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1475

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1475

54 S4810 and S4820T u-Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1493

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1493

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1493

55 Uplink Failure Detection (UFD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1497

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1497

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1497

56 VLAN Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1507

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1507

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1507

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1507

57 Virtual Link Trunking (VLT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1519

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1519

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1519

58 Virtual Router Redundancy Protocol (VRRP) . . . . . . . . . . . . . . . . . . . .1533

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1533

IPv4 VRRP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1533

IPv6 VRRP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1546

59 S-Series Debugging and Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . .1553

Offline Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1553

Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1553

Buffer Tuning Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1556

Hardware Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1561

| 11

60 SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1573

12 |

www.dell.com | support.dell.com

About this Guide | 13

About this Guide

This book provides information on the FTOS Command Line Interface (CLI). It

includes some information on the protocols and features found in FTOS and on the

Dell Force10 systems supported by FTOS (C-Series

c, E-Series e, and S-Series

s).

This chapter includes:

• Objectives

• Audience

• Conventions

• Related Documents

Objectives

This document is intended as a reference guide for the FTOS command line interface

(CLI) commands, with detailed syntax statements, along with usage information and

sample output.

For details on when to use the commands, refer to the

FTOS Configuration Guide. That

guide contains a chapter with a list of the RFCs and MIBs (management information

base files) supported.

Audience

This document is intended for system administrators who are responsible for

configuring or maintaining networks. This guide assumes you are knowledgeable in

Layer 2 and Layer 3 networking technologies.

14 | About this Guide

www.dell.com | support.dell.com

Conventions

This document uses the following conventions to describe command syntax:

Information Symbols

Table 1-1 describes symbols contained in this guide.

CLI Basics

This chapter describes the command structure and command modes. FTOS

commands are in a text-based interface that allows you to use launch commands,

change the command modes, and configure interfaces and protocols.

This chapter covers the following topics:

• Accessing the Command Line

• Multiple Configuration Users

• Navigating the Command Line Interface

• Obtaining Help

• Using the Keyword No

• Filtering show Commands

• Command Modes

Accessing the Command Line

When the system boots successfully, you are positioned on the command line in the

EXEC mode and not prompted to log in. You can access the commands through a

serial console port or a Telnet session. When you Telnet into the switch, you are

prompted to enter a login name and password.

The following text is an example of a successful Telnet login session.

telnet 172.31.1.53

Trying 172.31.1.53...

Connected to 172.31.1.53.

Escape character is '^]'.

Password: FTOS>

Once you log into the switch, the prompt provides you with current command-level

information (refer to Table 2-1).

18 | CLI Basics

www.dell.com | support.dell.com

Multiple Configuration Users

When a user enters the CONFIGURATION mode and another user(s) is already in

that configuration mode, FTOS generates an alert warning message similar to the

following:

FTOS#conf

% Warning: The following users are currently configuring the system:

User "" on line console0

User "admin" on line vty0 ( 123.12.1.123 )

User "admin" on line vty1 ( 123.12.1.123 )

User "Irene" on line vty3 ( 123.12.1.321 )

FTOS#conf

When another user enters the CONFIGURATION mode, FTOS sends a message

similar to the following, where the user in this case is “admin” on vty2:

% Warning: User "admin" on line vty2 "172.16.1.210" is in configuration

Navigating the Command Line Interface

The Command Line Interface (CLI) prompt displayed by FTOS is comprised of:

• “hostname”— the initial part of the prompt, “FTOS” by default. You can change

it with the

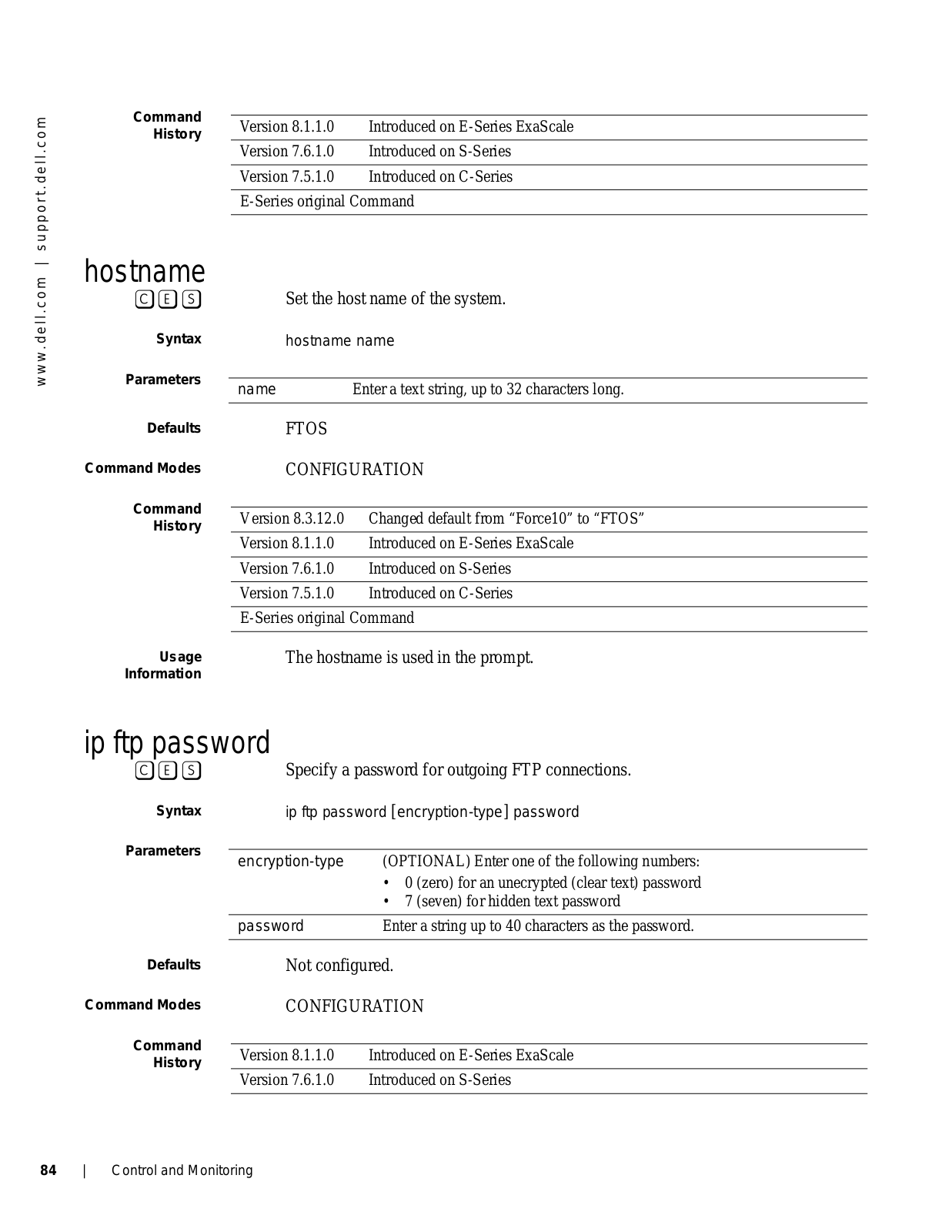

hostname command, as described in hostname.

• The second part of the prompt, reflecting the current CLI mode, as shown in

Table 2-1.

The CLI prompt changes as you move up and down the levels of the command

structure. Table 2-1 lists the prompts and their corresponding command levels, called

modes. Starting with the CONFIGURATION mode, the co mm and prompt adds

modifiers to further identify the mode. The command modes are explained in

Command Modes.

Note: Some of the following modes are not available on C-Series or S-Series.

Table 2-1. Command Prompt and Corresponding Command Mode

Prompt CLI Command Mode

FTOS> EXEC

FTOS# EXE C Privilege

FTOS(conf)# CONFIGURATION

CLI Basics | 19

Obtaining Help

As soon as you are in a command mode there are several ways to access help.

• To obtain a list of keywords at any command mode, do the following:

FTOS(conf-if)#

FTOS(conf-if-gi-0/0)#

FTOS(conf-if-te-0/0)#

FTOS(conf-if-fo-0/0)#

FTOS(conf-if-lo-0)#

FTOS(conf-if-nu-0)#

FTOS(conf-if-po-0)#

FTOS(conf-if-vl-0)#

FTOS(conf-if-so-0/0)#

FTOS(conf-if-ma-0/0)#

FTOS(conf-if-range)#

INTERFACE

FTOS(config-ext-nacl)#

FTOS(config-std-nacl)#

IP ACCESS LIST

FTOS(config-line-aux)#

FTOS(config-line-console)#

FTOS(config-line-vty)#

LINE

FTOS(config-ext-macl)#

FTOS(config-std-macl)#

MAC ACCESS LIST

FTOS(config-mon-sess)# MONITOR SESSION

FTOS(config-span)# STP

FTOS(config-mstp)# MULTIPLE SPANNING TREE

FTOS(config-pvst)# Per-VLAN SPANNING TREE Plus

FTOS(config-rstp)# RAPID SPANNING TREE

FTOS(config-gvrp)# PROTOCOL GVRP

FTOS(config-route-map)# ROUTE-MAP

FTOS(conf-nprefixl)# PREFIX-LIST

FTOS(conf-router_rip)# ROUTER RIP

FTOS(conf-redirect-list)# REDIRECT

FTOS(conf-router_bgp)# ROUTER BGP

FTOS(conf-router_ospf)# ROUTER OSPF

FTOS(conf-router_isis)# ROUTER ISIS

FTOS(conf-trace-acl)# TRACE-LIST

FTOS(config-vlt-domain) VLT DOMAIN

Table 2-1. Command Prompt and Corresponding Command Mode

Prompt CLI Command Mode

20 | CLI Basics

www.dell.com | support.dell.com

• Enter a ? at the prompt or after a keyword. There must always be a space

before the

• To obtain a list of keywords with a brief functional description, do the following:

•Enter

help at the prompt.

• To obtain a list of available options, do the following:

• Type a keyword followed by a space and a

• Type a partial keyword followed by a

• A display of keywords beginning with the partial keyword is listed.

The following text illustrates the results of entering

ip ? at the prompt.

FTOS(conf)#ip ?

access-list Named access-list

as-path BGP autonomous system path filter

community-list Add a community list entry

domain-list Domain name to complete unqualified host name

domain-lookup Enable IP Domain Name System hostname translation

domain-name Define the default domain name

fib FIB configuration commands

ftp FTP configuration commands

host Add an entry to the ip hostname table

max-frag-count Max. fragmented packets allowed in IP re-assembly

multicast-routing Enable IP multicast forwarding

name-server Specify address of name server to use

pim Protocol Independent Multicast

prefix-list Build a prefix list

radius Interface configuration for RADIUS

redirect-list Named redirect-list

route Establish static routes

scp SCP configuration commands

source-route Process packets with source routing header options

ssh SSH configuration commands

tacacs Interface configuration for TACACS+

telnet Specify telnet options

tftp TFTP configuration commands

trace-group Named trace-list

trace-list Named trace-list

FTOS(conf)#ip

When entering commands, you can take advantage of the following timesaving

features:

• The commands are not case sensitive.

• Y ou can enter partial (truncated) command keywords. For example, you can enter

int gig int interface for the interface gigabitethernet interface

command.

• Use the TAB key to complete keywords in commands.

• Use the up arrow key to display the last enabled command.

• Use either the Backspace key or the Delete key to erase the previous character.

CLI Basics | 21

Use the left and right arrow keys to navigate left or right in the FTOS command

line. Table 2-2 defines the key combinations valid at the FTOS command line.

Using the Keyword No

To disable, delete, or return to default values, use the no form of the commands. For

most commands, if you type the keyword

no in front of the command, you will

disable that command or delete it from the running configuration. In this document,

the no form of the command is discussed in the Command Syntax portion of the

command description.

Filtering show Commands

You can filter the display output of a show command to find specific information, to

display certain information only , or to begin the command output at the first instance

of a regular expression or phrase.

Table 2-2. Short-cut Keys and their Actions

Key

Combination Action

CNTL-A Moves the cursor to the beginning of the command line.

CNTL-B Moves the cursor back one character.

CNTL-D Deletes character at cursor.

CNTL-E Moves the cursor to the end of the line.

CNTL-F Moves the cursor forward one character.

CNTL-I Completes a keyword.

CNTL-K Deletes all characters from the cursor to the end of the command line.

CNTL-L Re-enters the previous command.

CNTL-N Return to more recent commands in the history buffer after recalling commands

with Ctrl-P or the up arrow key

CNTL-P Recalls commands, beginning with the last command

CNTL-R Re-enters the previous command.

CNTL-U Deletes the line.

CNTL-W Deletes the previous word.

CNTL-X Deletes the line.

CNTL-Z Ends continuous scrolling of command outputs.

Esc B Moves the cursor back one word.

Esc F Moves the cursor forward one word.

Esc D Deletes all characters from the cursor to the end of the word.

22 | CLI Basics

www.dell.com | support.dell.com

When you execute a show command, followed by a pipe ( | ) and one of the

parameters listed below and a regular expression, the resulting output either excludes

or includes those parameters, as defined by the parameter:

•

display — display additional configuration information

•

except— display only text that does not match the pattern (or regular expression)

•

find — search for the first occurrence of a pattern

•

grep — display text that matches a pattern

•

no-more — do not paginate the display output

•

save — copy output to a file for future use

The

grep command option has an ignore-case sub-option that makes the search

case-insensitive. For example, the commands:

•

show run | grep Ethernet would return a search result with instances containing a

capitalized “Ethernet,” such as

interface GigabitEthernet 0/0.

•

show run | grep ethernet would not return the search result, above, because it only

searches for instances containing a non-capitalized “ethernet.”

Executing the command

show run | grep Ethernet ignore-case would return instances

containing both “Ethernet” and “ethernet.”

Displaying All Output

To display the output all at once (not one screen at a time), use the no-more after the

pipe. This is similar to the

terminal length screen-length command except that the

no-more option affects the output of just the specified comm a nd.For example:

FTOS#show running-config|no-more

Filtering Command Output Multiple Times

You can filter a single command output multiple times. Place the save option as the

last filter. For example:

FTOS# command | grep regular-expression | except regular-expression | grep

other-regular-expression |

find regular-expression | no-more | save

Note: FTOS accepts a space before or after the pipe, no space before or after the

pipe, or any combination. For example:

FTOS

#command | grep gigabit |except regular-expression | find

regular-expression

CLI Basics | 23

Command Modes

T o navigate to various CLI modes, you need to use specific commands to launch each

mode. Navigation to these modes is discussed in the following sections.

EXEC Mode

When you initially log in to the switch, by default, you are logged into the EXEC

mode. This mode allows you to view settings and to enter the EXEC Privilege mode

to configure the device. While you are in the EXEC mode, the

> prompt is displayed

following the “hostname” prompt, as described above, wh ich is “

FTOS” by default.

You can change it with the

hostname command. Refer to the command hostname.

Each mode prompt is preceded by the hostname.

EXEC Privilege Mode

The enable command accesses the EXEC Privilege mode. If an administrator has

configured an “Enable” password, you will be prompted to enter it here.

The EXEC Privilege mode allows you to access all commands accessible in EXEC

mode, plus other commands, such as to clear ARP entries and IP addresses. In

addition, you can access the CONFIGURATION mode to configure interfaces,

routes, and protocols on the switch. While you are logged in to the EXEC Privilege

mode, the # prompt is displayed.

CONFIGURATION Mode

In the EXEC Privilege mode, use the configure command to enter the

CONFIGURATION mode and configure routing protocols and access interfaces.

To enter the CONFIGURATION mode:

1. Verify that you are logged in to the EXEC Privilege mode.

2. Enter the

configure command. The prompt changes to include (conf).

From this mode, you can enter INTERFACE by using the interface command.

INTERFACE Mode

Use the INTERF ACE mode to configure interfaces or IP services on those interfaces.

An interface can be physical (for example, a Gigabit Ethernet port) or virtual (for

example, the Null interface).

Note: Some of the following modes are not available on C-Series or S-Series.

24 | CLI Basics

www.dell.com | support.dell.com

To enter INTERFACE mode:

1. Verify that you are logged into the CONFIGURATION mode.

2. Enter the

interface command followed by an interface type and interface number that is

available on the switch.

3. The prompt changes to include the designated interface and slot/port number, as outlined

in Table 2-3.

LINE Mode

Use the LINE mode to configure console or virtual terminal parameters.

To enter LINE mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Enter the

line command. You must include the keywords console or vty and their line num-

ber available on the switch.The prompt changes to include (config-line-console) or (con-

fig-line-vty).

You can exit this mode by using the exit command.

TRACE-LIST Mode

When in the CONFIGURATION mode, use the trace-list command to enter the

TRACE-LIST mode and configure a Trace list.

1. Verify that you are logged in to the CONFIGURATION mode.

2. Enter the

ip trace-list command. You must include the name of the Trace list. The prompt

change to include (conf-trace-acl).

Table 2-3. Interface prompts

Prompt Interface Type

FTOS(conf-if)# INTERFACE mode

FTOS(conf-if-gi-0/0)# Gigabit Ethernet interface followed by slot/port information

FTOS(conf-if-te-0/0)# Ten Gigabit Ethernet interface followed by slot/port information

FTOS(conf-if-fo-0/0)# Forty Gigabit Ethernet interface followed by slot/port information

FTOS(conf-if-lo-0)# Loopback interface number.

FTOS(conf-if-nu-0)# Null Interface followed by zero

FTOS(conf-if-po-0)# Port-channel interface number

FTOS(conf-if-vl-0)# VLAN Interface followed by VLAN number (range 1 to 4094)

FTOS(conf-if-so-0/0)# SONET interface followed by slot/port information.

FTOS(conf-if-ma-0/0)# Management Ethernet interface followed by slot/port information

FTOS(conf-if-range)# Designated interface range (used for bulk configuration; refer to

interface range).

CLI Basics | 25

You can exit this mode by using the exit command.

MAC ACCESS LIST Mode

While in the CONFIGURATION mode, use the mac access-list standard or mac

access-list extended command to enter the MAC ACCESS LIST mode and configure

either standard or extended access control lists (ACL).

To enter MAC ACCESS LIST mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Use the

mac access-list standard or mac access-list extende d command. You must include

a name for the ACL.The prompt changes to include (conf-std-macl) or (conf-ext-macl).

You can return to the CONFIGURATION mode by entering the exit command.

IP ACCESS LIST Mode

While in the CONFIGURATION mode, use the ip access-list standard or ip access-list

extended

command to ente r the IP ACCESS LIST mode and configure either standard

or extended access control lists (ACL).

To enter IP ACCESS LIST mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Use the

ip access-list standard or ip access-list extended command. You must include a

name for the ACL.The prompt changes to include (conf-std-nacl) or (conf-ext-nacl).

You can return to the CONFIGURATION mode by entering the exit command.

ROUTE-MAP Mode

While in the CONFIGURATION mode, use the route-map command to enter the

ROUTE-MAP mode and configure a route map.

To enter ROUTE-MAP mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Use the

route-map map-name [permit | deny] [sequence-number] command. The prompt

changes to include (route-map).

You can return to the CONFIGURATION mode by entering the exit command.

26 | CLI Basics

www.dell.com | support.dell.com

PREFIX-LIST Mode

While in the CONFIGURATION mode, use the ip prefix-list command to enter the

PREFIX-LIST mode and configure a prefix list.

To enter PREFIX-LIST mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Enter the

ip prefix-list command. You must include a name for the prefix list.The prompt

changes to include (conf-nprefixl).

You can return to the CONFIGURATION mode by entering the exit command.

AS-PATH ACL Mode

Use the AS-PATH ACL mode to configure an AS-PATH Access Control List (ACL)

on the E-Series. Refer to Chapter 7, Access Control Lists (ACL).

To enter AS-PATH ACL mode:

1. Verify that you are logged in to the CONFIGURATION mode.

2. Enter the

ip as-path access-list command. You must include a name for the AS-PATH

ACL.The prompt changes to include (config-as-path).

You can return to the CONFIGURATION mode by entering the exit command.

IP COMMUNITY LIST Mode

Use the IP COMMUNITY LIST mode to configure an IP Community ACL on the

E-Series. Refer to Chapter 7, Access Control Lists (ACL) .

To enter IP COMMUNITY LIST mode:

1. Ve rify that you are logged in to the CONFIGURATION mod e.

2. Enter the

ip community-list command. You must include a name for the Community

list.The prompt changes to include (config-community-list).

You can return to the CONFIGURATION mode by entering the exit command.

REDIRECT-LIST Mode

Use the REDIRECT-LIST mode to configure a Redirect list on the E-Series, as

described in the E-Series

FTOS Command Line Reference Guide Chapter 39,

Policy-based Routing (PBR).

To enter REDIRECT-LIST mode:

CLI Basics | 27

1. Ve rify that you are logged in to the CONFIGURATION mod e.

2. Use the

ip redirect-list command. You must include a name for the Redirect-list.The

prompt changes to include (conf-redirect-list).

You can return to the CONFIGURATION mode by entering the exit command.

SPANNING TREE Mode

Use the STP mode to enable and configure the Spanning Tree protocol, as described

in Chapter 52, Spanning Tree Protocol (STP).

To enter STP mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

protocol spanning-tree stp-id command.

You can return to the CONFIGURATION mode by entering the exit command.

Per-VLAN SPANNING TREE Plus Mode

Use PVST+ mode to enable and configure the Per-VLAN Spanning Tree (PVST+)

protocol, as described in Chapter 41, Per-VLAN Spanning Tree Plus (PVST+).

To enter PVST+ mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

protocol spanning-tree pvst command.

You can return to the CONFIGURATION mode by entering the exit command.

RAPID SPANNING TREE Mode

Use PVST+ mode to enable and configure the RSTP protocol, as described in

Chapter 45, Rapid Spanning Tree Protocol (RSTP).

To enter RSTP mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

protocol spanning-tree rstp command.

You can return to the CONFIGURATION mode by entering the exit command.

Note: The protocol is PVST+, but the plus sign is dropped at the CLI prompt

28 | CLI Basics

www.dell.com | support.dell.com

MULTIPLE SPANNING TREE Mode

Use MULTIPLE SPANNING TREE mode to enable and configure the Multiple

Spanning Tree protocol, as described in Chapter 34, Multiple Spanning Tree Protocol

(MSTP).

To enter MULTIPLE SPANNING TREE mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

protocol spanning-tree mstp command.

You can return to the CONFIGURATION mode by entering the exit command.

PROTOCOL GVRP Mode

Use the PROTOCOL GVRP mode to enable and configure GARP VLAN

Registration Protocol (GVRP), as described in Chapter 19, GARP VLAN

Registration (GVRP).

To enter PROTOCOL GVRP mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

protocol gvrp command syntax.

You can return to the CONFIGURATION mode by entering the exit command.

ROUTER OSPF Mode

Use the ROUTER OSPF mode to configure OSPF, as described in Chapter 37, Open

Shortest Path First (OSPFv2).

To enter ROUTER OSPF mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Use the

router ospf {process-id} command.The prompt changes to include

(conf-router_ospf-id).

You can switch to the INTERFACE mode by using the interface command or you can

switch to the ROUTER RIP mode by using the

router rip command.

ROUTER RIP Mode

Use the ROUTER RIP mode to configure RIP on the C-Series or E-Series, as

described in Chapter 43, Routing Information Protocol (RIP).

To enter ROUTER RIP mode:

CLI Basics | 29

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

router rip command.The prompt changes to include (conf-router_rip).

You can switch to the INTERFACE mode by using the interface command or you can

switch to the ROUTER OSPF mode by using the

router ospf command.

ROUTER ISIS Mode

Use the ROUTER ISIS mode to configure ISIS on the E-Series, as described in the

E-Series E-Series

FTOS Command Line Reference Guide chapter Intermediate System to

Intermediate System (IS-IS).

To enter ROUTER ISIS mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

router isis [tag] command.The prompt changes to include (conf-router_isis).

You can switch to the INTERFACE mode by using the interface command or you can

switch to the ROUTER RIP mode by using the

router rip command.

ROUTER BGP Mode

Use the ROUTER BGP mode to configure BGP on the C-Series or E-Series, as

described in Chapter 9, Border Gateway Protocol IPv4 (BGPv4).

To enter ROUTER BGP mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

router bgp as-number command.The prompt changes to include

(conf-router_bgp).

You can return to the CONFIGURATION mode by entering the exit command.

VLT DOMAIN Mode

Use VLT DOMAIN mode to enable and configure the VLT domain protocol, as

described in Chapter 57, Virtual Link Trunking (VLT ).

To enter VLT DOMAIN mode:

1. Ve ri fy that you are logged into the CONFIGURATION mode.

2. Enter the

config-vlt-domain command.

You can return to the CONFIGURATION mode by entering the exit command.

30 | CLI Basics

www.dell.com | support.dell.com

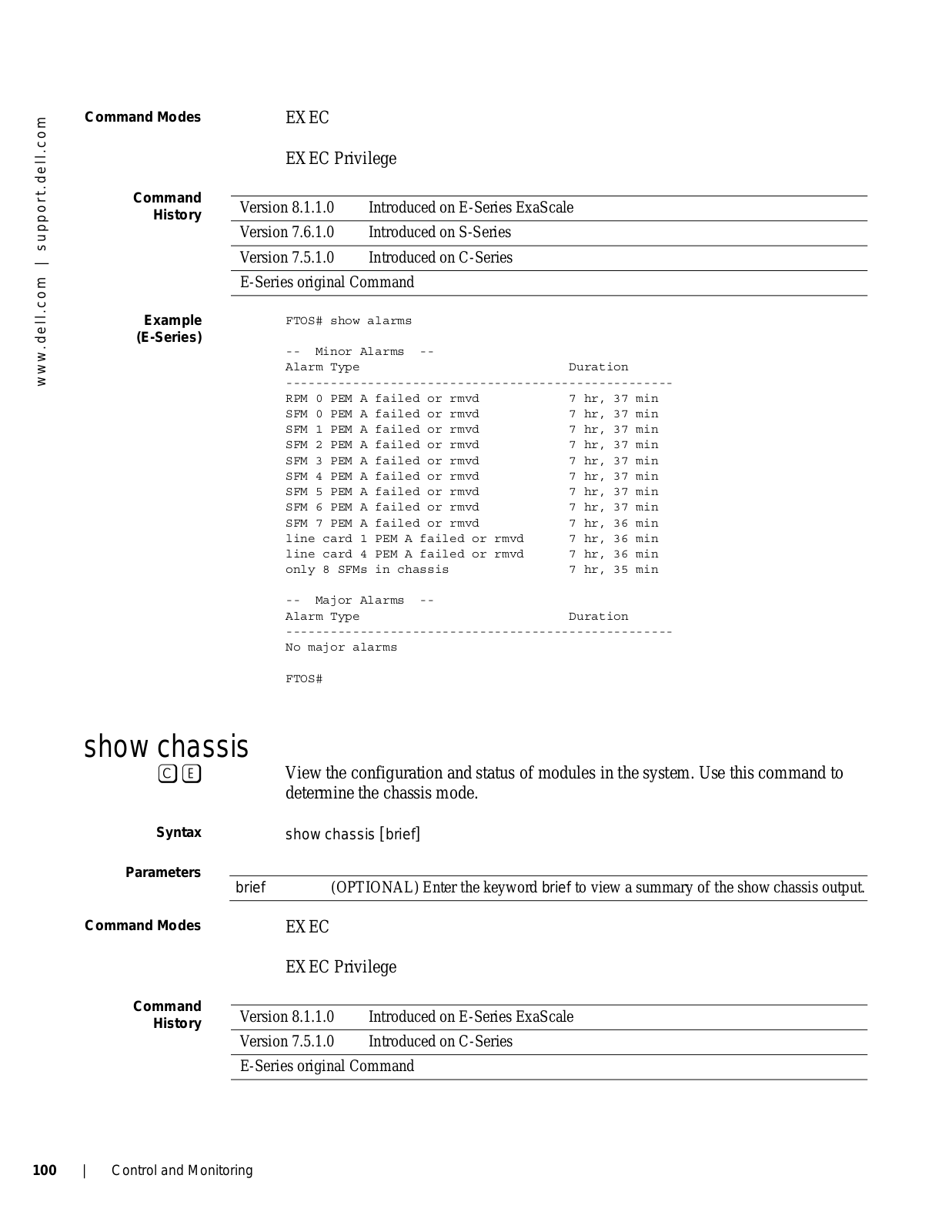

Determining the Chassis Mode

The chassis mode in FTOS determines which hardware is being supported in an

E-Series chassis. The chassis mode is programmed into an EEPROM on the

backplane of the chassis and the change takes place only after the chassis is rebooted.

Configuring the appropriate chassis mode enables the system to use all the ports on

the card and recognize all software features.
