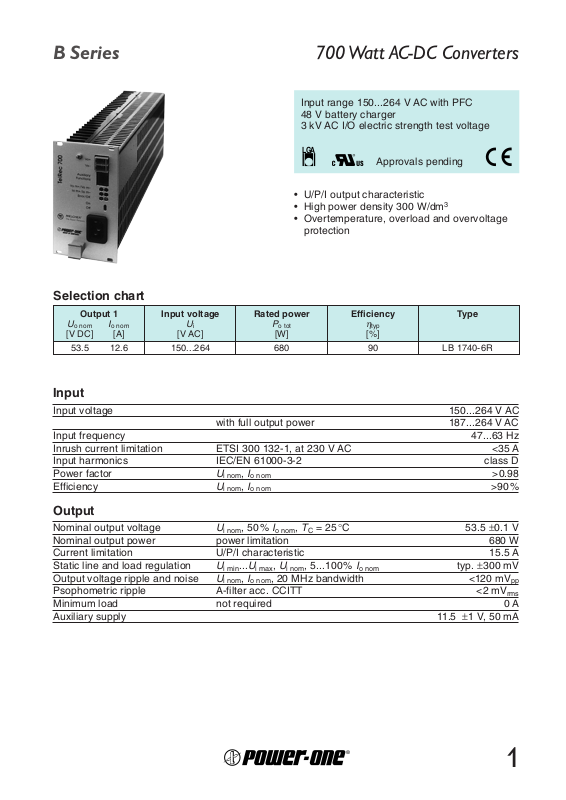

Page 1
B Series 700 Watt AC-DC Converters
Input range 150...264 V AC with PFC
48 V battery charger
3 kV AC I/O electric strength test voltage
LGA
Approvals pending
• U/P/I output characteristic
• High power density 300 W/dm
3
• Overtemperature, overload and overvoltage
protection
Selection chart
Output 1 Input voltage Rated power Efficiency Type
U
o nomIo nom
[V DC] [A] [V AC] [W] [%]
53.5 12.6 150...264 680 90 LB 1740-6R
U
i
P
o tot
h
typ
Input
Input voltage 150...264 V AC
with full output power 187...264 V AC
Input frequency 47...63 Hz
Inrush current limitation ETSI 300 132-1, at 230 V AC <35 A
Input harmonics IEC/EN 61000-3-2 class D
Power factor
Efficiency
U
U
i nom
i nom
,
,
I
o nom
I
o nom
>0.98
>90%
Output
Nominal output voltage
Nominal output power power limitation 680 W
Current limitation U/P/I characteristic 15.5 A
Static line and load regulation
Output voltage ripple and noise
Psophometric ripple A-filter acc. CCITT <2 mV
Minimum load not required 0 A
Auxiliary supply 11.5 ±1 V, 50 mA
U
U
U
i nom
i min
i nom
, 50%
...
U
i max
,
I
o nom
I
,
T
o nom
,
U
= 25°C 53.5 ±0.1 V
C
, 5...100%
i nom
I
o nom
typ. ±300 mV
, 20 MHz bandwidth <120 mV
pp
rms
1
Page 2
Cassette Style B Series
Protection
Input fuses not user accessible (fuses in both lines) 6.3 AT
Input transient protection varistor
Output no-load, overload and short circuit proof
Overtemperature automatic output power derating
Control
T
= 90°C
C
Output voltage adjustment by remote control,
ON/OFF switch
Shut-down input TTL compatible signal
Status monitoring input OK output, module OK output
Output voltage monitor
Output current monitor
Current share up to 6 units in parallel ±50 W
Status indication LEDs: OK, error
U
= 0...10 V for
Uo M
U
= 0...10 V for
Io M
U
= 0...10 V 44...59.0 V DC
cr
U
= 0...60 V
o
I
= 0...20 A
o
Safety and EMC
Approvals in progress EN 60950, UL 1950, CSA 22.2 No. 950
Protection degree IP 20
Electric strength test voltage class I, I/case 1.5 kV AC
class I, I/O 3 kV AC
class I, O/case 1 kV AC
Electrostatic discharge IEC/EN 61000-4-2, level 3 4/8 kV, criterion B
Electromagnetic field IEC/EN 61000-4-3, level 2 3 V/m, criterion A
Electr. fast transients/burst IEC/EN 61000-4-4, level 4 4 kV, criterion B
Surge IEC/EN 61000-4-5, level 4 4 kV, criterion B
Electromagnetic emissions CISPR 22/EN 55022, conducted and radiated class B
Environmental specifications
Operating temperature
Storage temperature non operational –40...90°C
Relative humidity non condensing ≤93%
Shock IEC/EN 60068-2-27, 11 ms 15 g
Bump IEC/EN 60068-2-29, 6 ms 10 g
Sinusoidal vibration IEC/EN 60068-2-6, 8.2...58.1/58.1...500 Hz 1 gn/2 g
Random vibration IEC/EN 60068-2-64, 10...200/200...2000 Hz 0.01/0.003 g2/Hz
U
i nom
,
I
, cooling by forced air flow ≥1 m/s –25...60°C
o nom
n
n
n
2
Page 3
B Series 700 Watt AC-DC Converters
Mechanical data
Tolerances ±0.3 mm (0.012") unless otherwise indicated.
European
Projection
299 (11.77")
70.8 (2.79")
S90050
128.5 (5.06")
3
Page 4
Cassette Style B Series
AMP 558065 Western connector
Pin Destination Description
1
U
aux
2 G Reference ground
3 SD Shut down input
4 D Module OK
5 AC OK AC input OK
6
U
cr
7
U
oM Output voltage monitor
8
I
oM
9 T or Uh Current sharing or Aux.
10 n.c. Open circuit
Auxiliary voltage (12 V, 50 mA)
Remote control input
Output current monitor
Accessories
Temperature sensor for battery charging
Phoenix Power-Combicon connector
Pin Designation
1Vi+
2Vi–
4
