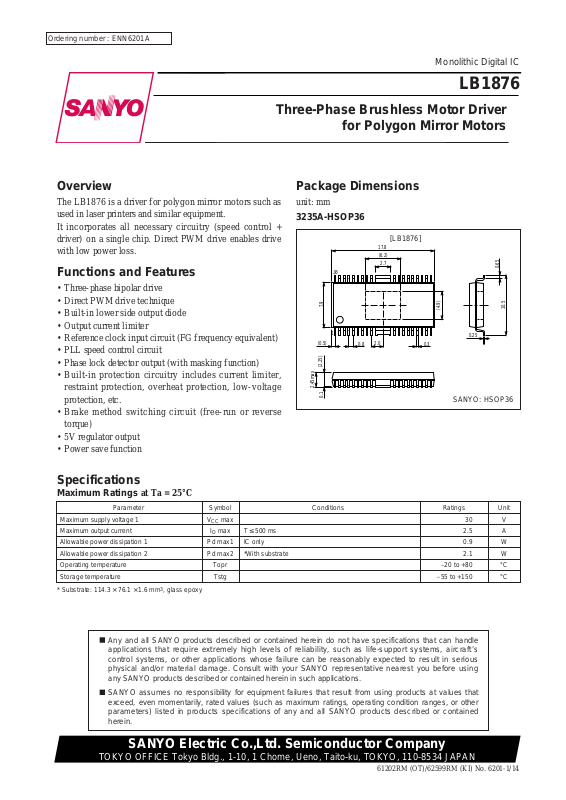

Ordering number : ENN6201A

61202RM (OT)/62599RM (KI) No. 6201-1/14

Overview

The LB1876 is a driver for polygon mirror motors such as
used in laser printers and similar equipment.
It incorporates all necessary circuitry (speed control +
driver) on a single chip. Direct PWM drive enables drive
with low power loss.

Functions and Features

• Three-phase bipolar drive

• Direct PWM drive technique

• Built-in lower side output diode

• Output current limiter

• Reference clock input circuit (FG frequency equivalent)

• PLL speed control circuit

• Phase lock detector output (with masking function)

• Built-in protection circuitry includes current limiter,
restraint protection, overheat protection, low-voltage
protection, etc.

• Brake method switching circuit (free-run or reverse
torque)

• 5V regulator output

• Power save function

Package Dimensions

unit: mm

3235A-HSOP36

(6.2)

36

1

0.8

17.8

2.7

0.3

(4.9)

10.5

0.65

0.25

(0.5)

7.9

(2.25)

2.45max

0.1

2.0

SANYO: HSOP36

[LB1876]

LB1876

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

Three-Phase Brushless Motor Driver

for Polygon Mirror Motors

Monolithic Digital IC

Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.

Parameter Symbol Conditions Ratings Unit

Maximum supply voltage 1 V

CC

max 30 V

Maximum output current I

O

max T ≤ 500 ms 2.5 A
Allowable power dissipation 1 Pd max1 IC only 0.9 W
Allowable power dissipation 2 Pd max2 *With substrate 2.1 W
Operating temperature Topr –20 to +80 °C
Storage temperature Tstg –55 to +150 °C

Specifications

Maximum Ratings at Ta = 25°C

* Substrate: 114.3 × 76.1 × 1.6 mm3, glass epoxy

No. 6201-2/14

LB1876

Parameter Symbol Conditions

Ratings

Unit

min typ max

Power supply current 1 I

CC

1 17 22 mA

Power supply current 2 I

CC

2 Quiescent Current 3.6 5.0 mA
[5V regulated output]
Output voltage VREG 4.65 5.0 5.35 V
Voltage fluctuation ∆VREG1 V

CC

= 9.5 to 28 V 50 100 mV

Load fluctuation ∆VREG2 I

O

= –5 to –20 mA 30 100 mV
Temperature coefficcient ∆VREG3 Design target value 0 mV/°C
[Output block]
Output saturation voltage 1 V

O

sat1 IO= 1.0 A, VO(SINK)+VO(SOURCE) 2.0 2.5 V

Output saturation voltage 2 V

O

sat2 IO= 2.0 A, VO(SINK)+VO(SOURCE) 2.6 3.2 V

Output leak current I

O

leak 100 µA
Lower side diode forward voltage 1 VD1 ID = –1.0 A 1.2 1.5 V
Lower side diode forward voltage 2 VD2 ID = –2.0 A 1.5 1.9 V
[Hall amplifier block]
Input bias current IHB –2 –0.5 µA
Common mode input voltage range VICM 0

VREG – 2.0

V
Hall input sensitivity 80 mVp–p
Hysteresis width ∆V

IN

(HA) 15 24 42 mV
Input voltage L → H VSLH 12 mV
Input voltage H → L VSHL –12 mV
[FG/Schmitt block]
Input bias current IB(FGS) –2 –0.5 µA
Common mode input voltage range

VICM(FGS)

0

VREG – 2.0

V

Input sensitivity V

IN

(FGS) 80 mVp–p

Hysteresis width

∆VIN(FGS)

15 24 42 mV

Input voltage L → H

VSLH(FGS)

12 mV

Input voltage H → L

VSHL(FGS)

–12 mV
[PWM oscillator]
Output High level voltage

VOH(PWM)

2.5 2.8 3.1 V

Output Low level voltage

VOL(PWM)

1.2 1.5 1.8 V
External capacitor charge current ICHG VPWM = 2 V –125 –95 –75 µA
Oscillator frequency f(PWM) C = 3000 pF 22 kHz
Amplitude V(PWM) 1.05 1.27 1.50 Vp-p
[FGS output]
Output saturation voltage V

O

L(FGS) IFGS = 7 mA 0.15 0.5 V
Output leak current IL(FGS) 10 µA
[CSD oscillator]
Output High level voltage

VOH(CSD)

2.65 3.0 3.3 V

Output Low level voltage

VOL(CSD)

0.75 0.9 1.1 V
Amplitude V(CSD) 1.75 2.1 2.3 Vp–p
External capacitor charge current ICHG1 –13.5 –9 –5.5 µA
External capacitor discharge current ICHG2 5.5 9 13.5 µA
Oscillator frequency f(CSD) C = 0.068 µF 30 Hz

Electrical Characteristics at Ta = 25°C, VCC= VM = 24 V

Parameter Symbol Conditions Ratings Unit

Power supply voltage range V

CC

9.5 to 28 V
5 V regulated output current IREG 0 to –20 mA
LD pin voltage VLD 0 to 28 V
LD pin output current ILD 0 to 15 mA
FGS pin voltage VFGS 0 to 28 V
FGS pin output current IFGS 0 to 10 mA

Allowable Operating Ranges at Ta = 25°C

Continued on next page.

No. 6201-3/14

LB1876

Continued from preceding page.

Parameter Symbol Conditions

Ratings

Unit

min typ max
[Phase comparator output]
Output High level voltage VPDH I

O

H = –100 µA

VREG-0.2 VREG-0.1

V

Output Low level voltage VPDL I

O

H = 100 µA 0.2 0.3 V
Output source current IPD+ VPD = VREG/2 –0.5 mA
Output sink current IPD– VPD = VREG/2 1.5 mA
[Phase lock detector output]
Output saturation voltage V

O

L(LD) ILD = 10 mA 0.15 0.5 V

Output leak current IL(LD) V

O

= V

CC

10 µA
[ERR amplifier]
Input offset voltage V

I

O(ER) Design target value –10 +10 mV

Input bias current I

B

(ER) –1 +1 µA

Ouput High level voltage V

O

H(ER) IOH = –500 µA

VREG–1.2 VREG-0.9

V

Ouput Low level voltage V

O

L(ER) IOL = 500 µA 0.9 1.2 V
DC bias level VB(ER) –5% VREG/2 +5% V
[Current limiter]
Drive gain 1 GDF1 in phase lock mode 0.4 0.5 0.6 times
Drive gain 2 GDF2 in unlock mode 0.8 1.0 1.2 times
Limiter voltage VRF V

CC

- V

M

0.45 0.5 0.55 V
[Thermal shutdown operation]
Termal shutdown operating temperature TSD Design target value (junction temperature) 150 180 °C
Hysteresis width ∆TSD Design target value (junction temperature) 40 °C
[Low voltage protection]
Operating voltage VSD 8.1 8.5 8.9 V
Hysteresis ∆VSD 0.2 0.35 0.5 V
[CLD circuit]
External capacitor charge current ICLD –6 –4.3 –3 V
Operating voltage VH(CLD) 3.25 3.5 3.75 V
[CLK pin]
External input frequency fI(CKIN) 0.1 10 kHz
High level input voltage V

I

H(CKIN) 3.5 VREG V

Low level input voltage V

I

L(CKIN) 0 1.5 V

Input open voltage V

I

O(CKIN)

VREG-0.5

VREG V

Hysteresis width V

I

S(CKIN) 0.35 0.5 0.65 V

High level input current I

I

H(CKIN) VCKIN = VREG –10 0 +10 µA

Low level input current I

I

L(CKIN) VCKIN = 0 V –280 –210 µA
[S/S pin]
High level input voltage V

I

H(SS) 3.5 VREG V

Low level input voltage V

I

L(SS) 0 1.5 V

Input open voltage V

I

O(SS)

VREG-0.5

VREG V

Hysteresis width V

I

S(SS) 0.35 0.5 0.65 V

High level input current I

I

H(SS) VS/S = VREG –10 0 +10 µA

Low level input current I

I

L(SS) VS/S = 0 V –280 –210 µA
[LDSEL pin]
High level input voltage

VIH(LD

SEL

)

3.5 VREG V

Low level input voltage

VIL(LD

SEL

)

0 1.5 V

Input open voltage

VIO(LD

SEL

)

VREG-0.5

VREG V

High level input current

IIH(LD

SEL

)

V

LDSEL

= VREG –10 0 10 µA

Low level input current

IIL(LD

SEL

)

V

LDSEL

= 0 V –280 –210 µA
[BRSEL pin]
High level input voltage

VIH(BR

SEL

)

3.5 VREG V

Low level input voltage

VIL(BR

SEL

)

0 1.5 V

Input open voltage

VIO(BR

SEL

)

VREG-0.5

VREG V

High level input current

IIH(BR

SEL

)

V

LDSEL

= VREG –10 0 10 µA
Low level input current

IIL(BR

SEL

)

V

LDSEL

= 0 V –280 –210 µA

Three-phase logic truth table (IN = "H" indicates the IN+ > IN– condition)

No. 6201-4/14

LB1876

IN1 IN2 IN3 OUT1 OUT2 OUT3

H L H L H M
H L L L M H
H H L M L H
L H L H L M
L H H H M L
L L H M H L

Pin Assignment

LB1876

35

LDSEL

BRSEL

GND3

34

OUT3

NC

33 32 31 30 29 2836 27 26 25 24 23 22 21 20 19

VM1

VM2

V

CC

VREG

FGS

LD

S/S

CLK

EO

EI

PD

CLD

TOC

FGFIL

FRAME

FC

PH

CSD

GND1

FGIN-

PWM

GND2

FGIN+

FRAME

IN2-

IN2+

IN1-

IN1+

NC

OUT1

IN3-

IN3+

OUT2

Top view

0.4

0

0.8

0.9

1.2

1.6

2.0

2.1

2.4

–20 0 20 40 60 80 100

Pd max — Ta

1.18

Ambient temperature, Ta — ºC

With substrate (114.3 × 76.1 × 1.6 mm

3

, glass epoxy)

Power dissipation, Pd max — W

IC independent

987654321

10 11 12 13 14 15 16 17 18

No. 6201-5/14

LB1876

Pin Description

Pin name Pin number Function

OUT1 2
OUT2 1

OUT3 36
IN1+, IN1– 8, 9
IN2+, IN2– 6, 7
IN3+, IN3– 4, 5

FG IN+ 10 FG comparator non-inverting input.
FG IN– 11 FG comparator inverting input.

GND1 12 Control circuit ground.

GND2 13 Sub-ground.

PWM 14 PWM oscillation frequency setting pin. Connect to ground via capacitor.

FC 15 Current control circuit frequency characteristics compensation pin. Connect to ground via capacitor.

FGFIL 16 FG filter pin. Connect to ground via capacitor if noise in FG signal is a problem.

CSD 17

PH 18 RF waveform smoothing pin. Connect to ground via capacitor.

TOC 19

EO 20 Error amplifier output.

EI 21 Error amplifier input.

PD 22 Phase comparator output pin. Phase deviation is output as a duty cycle change of the pulse.

CLD 23

FGS 24 FG Schmitt output (open collector output).

LD 25 Phase lock detector output (open collector output). Goes ON when PLL is locked.

S/S 26 Start/stop input. Low: Start; High or Open: Stop.
CLK 27 Clock input. 10 kHz max.
VM1 28 Output block power supply. Short to VM2 for use.

VM2 29

VCC 30 Power supply pin. Connect to ground via capacitor to prevent noise.

VREG 31 5V regulator output pin (control circuit power supply). Connect to ground via capacitor to stabilize operation.

LDSEL 32

BRSEL 33

GND3 34 Output circuit ground.

FRAME —

NC 3, 35 Not connected internally. Can be used for wiring.

Output pins.
PWM controls duty cycle ratio by lower transistors.
Connect Schottky diode between these pins and VCC.

Hall input pins for each phase.
Logic High indicates VIN+ > VIN–.

Restraint protection circuit operating time setting pin/reset pulse setting pin.
Connect to ground via capacitor. If the protection circuit is not to be used, connect a resistor in parallel
with capacitor.

Torque specifying input pin. Normally connected to EO pin. When TOC potential falls, ON duty cycle ratio of
lower side output transistors changes and torque increases.

Phase lock signal masking time setting pin. Connect to ground via capacitor. Leave open if masking is not
required.

Output current detector pin. Connect to VCC via low resistor.
Set to maximum output current IOUT = 0.5/Rf.

Phase lock signal masking switching pin. When "Low", the unlock signal (short "High" signal of LD output) is
masked. When "High" or Open, the lock signal (short "Low" signal of LD output) is masked.

Braking method select pin. "Low" selects reverse torque control and "High" or Open selects free-run.
When reverse torque is controlled, lower side output transistors require external SBD.

The FRAME pin is connected internally to the metal frame at the base of the IC. Electrically, both the FRAME
pin and the metal frame are left open. To improve thermal dissipation, provide a corresponding land on the
PCB and solder the FRAME pin to that land.

No. 6201-6/14

LB1876

Equivalent Circuit Block Diagram and Sample Application Circuit

–

+

HALL LOGIC

HALL

HYS AMP

PWM

OSC

BRSEL

S/S

LOGIC

COMP

TSD

VREG

CLK

LD

PLL

FG

FILTER

–

+

IN2+ IN2- IN3+ GND1IN3-

PWM

S/S

VREG

VM2
VM1

FGIN+

FGIN-

LD

EO

EI

PD

TOC

G

V

CC

BRSEL

CSD

IN1+IN1-

DRIVER

OUT1

OUT2

OU

Top view

T3

GND3

VREG

FGS

V

CC

Rf

PEAK

HOLD

CURR

LIM

CONT

AMP

PH

FC

VREG

VREG

COUNT

SD

OSC

GND2

LDSEL

CLDLDSEL

FGFIL

CLK

VRE

No. 6201-7/14

LB1876

Pin Descriptions

Pin No. Symbol Description Equivalent circuit

Motor drive output.
Connect Schottky diodes between the outputs

and VCC.

2
1

36

OUT1
OUT2
OUT3

2 36

300Ω

VM1

V

CC

VM2

VREG

300

Ω

300Ω

864 97

VREG

300Ω

11

300Ω

10

Continued on next page.

Output block ground34 GND3

Output block power supply and output current
detection

Connect low-resistance resistors Rf between
these pins and VCC.

The output current is limited to the current
value set by IOUT = VREF/Rf.

28
29

VM1
VM2

Since these are not connected internally, they
can be used for wiring.

3

35

NC
NC

Hall device inputs
These inputs return a high level when IN+ >

IN- and a low level when IN– > IN+.
A Hall signal amplitude of at least 100 mV p-p

(differential) is desirable. Insert a capacitor
between IN+ and IN- if noise on the Hall signal
is a problem.

8
9
6
7
4
5

IN1+
IN1–
IN2+
IN2–
IN3+
IN3–

FG inputs
If noise on the FG signal is a problem, insert

either a capacitor or a filter consisting of a
capacitor and a resistor.

10
11

FGIN1+
FGIN1–

Control circuit block ground12 GND1

Sub-ground13 GND2

29
28

1

34

5

No. 6201-8/14

LB1876

Continued from preceding page.

Pin No. Symbol Description Equivalent circuit

Sets the PWM oscillator frequency.
Connect a capacitor between this pin and

ground.
A capacitance of 1800 pF for C sets the

frequency to approximately 37 kHz.

14 PWM

VREG

2KΩ

200Ω

14

VREG

300Ω

15

Continued on next page.

Current control circuit frequency characteri­stics correction.

Insert a capacitor (on the order of 0.01 to

0.1 µ F) between this pin and ground.
The output duty is determined by the ratio of

the voltage on this pin and the PWM
oscillator waveform.

15 FC

VREG

16

FG filter connection
If noise on the FG signal is a problem, insert

a capacitor (under about 2200 pF) between
this pin and ground.

16

FGFIL

VREG

300Ω

17

Sets the operating time of the constraint
protection circuit and also sets the initial
reset pulse.

A protection operating time of about 8
seconds can be set by connecting a
capacitor (about 0.068 µF) between this pin
and ground. If the protection circuit is not
used, connect a capacitor and resistor
(about 4700 pF, 220 kΩ) in parallel between
this pin and ground.

17 CSD

VREG

500Ω

18

RF smoothing
If noise on the RF signal is a problem, insert

a capacitor between this pin and ground.

18 PH

No. 6201-9/14

LB1876

Continued from preceding page.

Pin No. Symbol Description Equivalent circuit

Torque command voltage input
Normally, this pin is connected to the EO pin.

When the TOC voltage falls, the on duty of the
lower side transistor increases.

19 TOC

VREG

300Ω

19

VREG

20

40kΩ

Continued on next page.

Error amplifier output

20 EO

VREG

300Ω

21

Error amplifier input

21

EI

22

300Ω

VREG

Phase comparator output
The phase error is converted to a pulse duty

and output from this pin.

22 PD

VREG

23

300Ω

Phase lock signal mask time setting
A mask time of about 90 ms can be set by

inserting a capacitor (about 0.1 µF) between
this pin and ground. Leave this pin open if
there is no need to mask.

23 CLD

No. 6201-10/14

LB1876

Continued from preceding page.

Pin No. Symbol Description Equivalent circuit

FG Schmitt output

24 FGS

VREG

24

VREG

25

Continued on next page.

Phase lock detection output
Turns on (goes low) when phase lock is

detected.

25

LD

VREG

22

kΩ

2kΩ

26

Start/stop control
Low: 0 to 1.5 V
High: 3.5 V to VREG
Hysteresis: About 0.5 V
Apply a low level to start; this pin goes high

when open.

26

S/S

VREG

22

kΩ

2kΩ

27

Clock input
Low: 0 to 1.5 V
High: 3.5 V to VREG
Hysteresis: About 0.5 V
fCLK = 10 kHz maximum
If there is noise on the clock signal, remove

that noise with a capacitor.

27 CLK

31

V

CC

Stabilized power supply output (5 V output)
Insert a capacitor between this pin and

ground for stabilization. (About 0.1 µF.)

31

VREG

Power supply
Insert a capacitor between this pin and ground

to prevent noise from entering the IC. (Use a
value of 20 or 30 µF or higher.)

30

V

CC

No. 6201-11/14

LB1876

Continued from preceding page.

Pin No. Symbol Description Equivalent circuit

Phase lock signal mask switching
Low: 0 to 1.5 V
High: 3.5 V to VREG
When open, this pin goes to the high level.
When low, transient unlock signals (short

high-level periods on the LD output) are
masked, and when high, transient lock
signals (short low-level periods on the LD
output) are masked.

32 LDSEL

VREG

30kΩ

2kΩ

32

Braking control
Low: 0 to 1.5 V
High: 3.5 V to VREG
When open, this pin goes to the high level.
When low, reverse torque control is applied

and when high, the circuit operates in free­running mode. An external Schottky barrier
diode is required on the low side output when
reverse torque control is applied.

33 BRSEL

VREG

30kΩ

2kΩ

33

This pin must be left open.FREME

No. 6201-12/14

LB1876

LB1876 Overview

1. Speed control circuit
This IC provides high-precision, low-jitter, and stable motor rotation since it adopts a PLL speed control technique.

This PLL circuit compares the phases of the edges on the CLK signal (falling edges) and the FG signal (falling edges
on the FGIN+.FGS output) and controls the speed using that error output.

The FG servo frequency during control operation is the same as the clock frequency.

fFG(servo) = fC

LK

2. Output drive circuit
To reduce power loss in the output, this IC adopts a direct PWM drive technique. The output transistors are always

saturated when on, and the motor drive power is controlled by changing the output on duty. Since the lower side
transistor is used for the output PWM switching, Schottky diodes must be inserted between the outputs and VCC. (This
is because if the diodes used do not have a short reverse recovery time, instantaneous through currents will flow when
the lower side transistor turns on.)

The diodes between the outputs and ground are built in. However, if problems (such as waveform disruption during
lower side kickback) occur for large output currents, attach external rectifying diodes or Schottky diodes. If reverse
control mode is selected for braking and problems such as incorrect operation or excess heat generation due to the
reverse recovery time of the lower side diode causes a problem, add an external Schottky diode.

3. Current control circuit
The current control circuit controls the current (limits the peak current) to the current determined by I = VRF/Rf (VRF=

0.5 V typ., Rf: current detection resistor). The limiting operation consists of reducing the output on duty to suppress the
current.

The current control circuit detects the diode reverse recovery current due to the PWM operation, and has an operating
delay (about 3 µ s) to prevent incorrect current limiting operation. If the motor coils have a relatively low resistance, or
relatively low inductance, the changes in current flow at startup (the state where the motor presents no back
electromotive force) will be rapid. As a result, the current limiter may operate at currents in excess of the set current
due to this delay. In such cases, the current limit value must be set so as to take the current increase due to the delay
into account.

4. Power saving circuit
This IC goes to the power saving state, which reduces power consumption, in the stopped state. Power is reduced in the

power saving state by cutting the bias current to most of the circuit blocks in the IC. However, the 5 V regulator circuit
does operate and provide its output in the power saving state.

5. Reference clock
The externally input clock signal must be free of chattering and other noise. The input circuit does have hysteresis, but

if problems occur, the clock signal must be input through a capacitor or other noise reduction circuit.
If the IC is set to the start state with no reference clock input, and if the constraint protection circuit is operated, after

the motor rotates a certain amount, the drive will be turned off. However, if the constraint protection circuit is not
operated, and furthermore, if reverse control mode is selected during braking, the motor will run backwards at
increasing speed. A workaround will be required in this case. (This problem occurs because the constraint protection
circuit oscillator signal is used for clock cutoff protection.)

6. PWM frequency
The PWM frequency is determined by the capacitor C (F) connected to the PWM pin.

fPW ≈ 1/(15000 × C)

If an 1800 pF capacitor is used, the frequency will be about 37 kHz. If the PWM frequency is too low, the motor will
emit audible switching noise, and if it is too high, the power loss will increase. A frequency in the range 15 to 50 kHz
is desirable. The capacitor ground must be connected as close as possible to the IC control block ground (the GND1
pin) to minimize the influence of the output on this circuit.

No. 6201-13/14

LB1876

7. Hall sensor input signals
Input signals with amplitudes greater than the input circuit hysteresis (42 mV maximum) must be provided to the Hall

inputs. Input amplitudes of over 100 mV are desirable to minimize the influence of noise. If the output waveform is
disturbed by noise (at phase switching), insert capacitors across the input to prevent this.

8. FG input signal
Normally, one of the Hall sensor signals is input as an FG signal. If noise on the FG input is a problem, insert either a

capacitor or a filter consisting of a capacitor and a resistor. Although it is possible to exclude noise from the FG signal
by inserting a capacitor between the FGFIL pin and ground, if this pin's waveform is smoothed excessively, the circuit
may not be able to operate normally. Therefore, if a capacitor is used here, its value must be held to under 2200 pF. If
the position of the capacitor's ground lead is inappropriate, problems due to noise may become more likely to occur.
Select the position carefully.

9. Constraint protection circuit
This IC includes a built-in constraint protection circuit to protect the IC and the motor during motor constraint. In the

start state, when the LD output is high for a fixed period (the unlocked state), the lower side transistor turns off. The
time is set by the capacitor connected to the CSD pin.

Set time (seconds) ≈ 120 × C (µF)

If a 0.068 µ F capacitor is used, the protection time will be about 8 seconds. The set time must have a value that
provides an adequate margin relative to the motor start time. The protection circuit does not operate during braking
implemented by switching the clock frequency. Either switch to the stop state or turn off the power and restart to clear
the constraint protection state.

Since the CSD pin also functions as the initial reset pulse generation pin, if connected to ground the logic circuits will
be reset and speed control operation will not be possible. Therefore, if constraint protection is not used, connect CSD to
ground through a resistor of about 220 kΩ and a capacitor of about 4700 pF in parallel.

10. Phase lock signal
(1) Phase lock range

Since this IC does not have a counter in the speed control system, the speed error range in the phase locked state
cannot be determined solely by the IC's characteristics. (This is because of the influence of the acceleration of the
changes in the FG frequency.) If it is necessary to stipulate this for the motor, it will be necessary to measure this
with the actual motor. Since it is easier for speed errors to occur in the state where the FG acceleration is large, the
largest speed errors are thought to occur during lock pull-in at startup and when unlocked due to clock frequency
switching.

(2) Phase lock signal mask function

When the LDSEL pin is set high or left open, transient lock signals (short low-level periods on the LD output) is
masked. This function masks short low-level periods due to hunting during pull-in and allows a stable lock signal to
be output. However, the lock signal is delayed by amount of masking time.

When the LDSEL pin is set low, transient unlock signals (short high-level periods on the LD output) is masked.
This function prevents short period high-level signals from being output.

The mask time is set with the capacitor connected between the CLD pin and ground.

Mask time (seconds) ≈ 0.9 × C (µF)

A mask time of about 90 ms can be set by using a capacitor of about 0.1 µ F. If complete masking is required, the
mask time must be set large enough to provide ample margin. If masking is not required, leave the CLD pin open.

PS No. 6201-14/14

LB1876

This catalog provides information as of June, 2002. Specifications and information herein are subject to
change without notice.

Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer’s
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer’s products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products (including technical data, services) described or contained
herein are controlled under any of applicable local export control laws and regulations, such products must
not be exported without obtaining the export license from the authorities concerned in accordance with the
above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the “Delivery Specification”
for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.

11. Power supply stabilization
Since this IC provides a large output current and adopts a switching drive technique, it can easily disrupt the power

supply line voltage. Therefore, capacitors with ample capacitance must be inserted between the VCC pins and ground.
If reverse control mode is selected during braking, the circuit will return current to the power supply. This means that

the power supply lines are even more susceptible to disruption. Since the power supply is most easily influenced during
lock pull-in at high motor speeds, this case requires particular care. Select capacitor values that are fully adequate for
this case.

If diodes are inserted in the power supply lines to prevent damage if the power supply is connected with reverse
polarity, the power supply voltage will be even more susceptible to disruption, and even larger capacitors must be used.

12. V

REG

stabilization

Insert a capacitor of at least 0.1 µ F to stabilize VREG, which is the control circuit power supply. The capacitor ground
must be connected as close as possible to the IC control block ground (the GND1 pin).

13. Error amplifier circuit components
Locate the error amplifier components as close to the IC as possible to minimize the influence of noise on this circuit.

Locate this circuit as far from the motor as possible.
