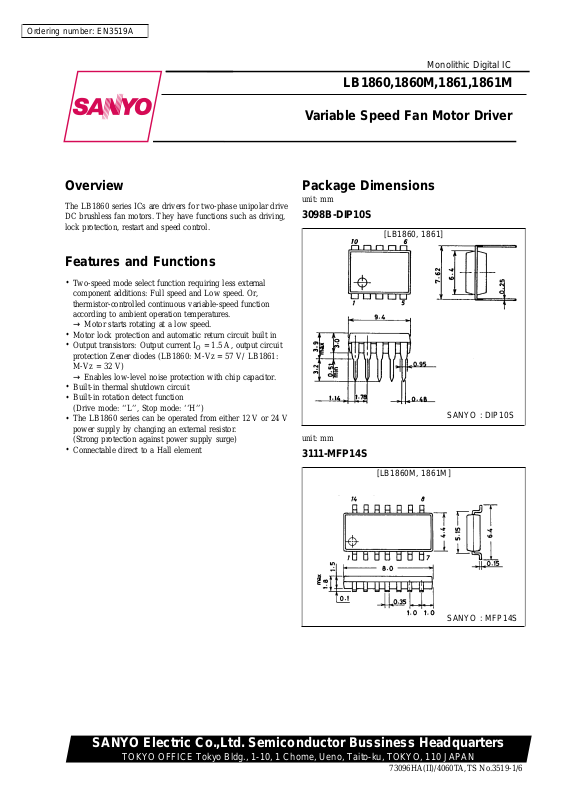

Variable Speed Fan Motor Driver

Overview

The LB1860 series ICs are drivers for two-phase unipolar drive DC brushless fan motors. They have functions such as driving, lock protection, restart and speed control.

Features and Functions

Two-speed mode select function requiring less external component additions: Full speed and Low speed. Or, thermistor-controlled continuous variable-speed function according to ambient operation temperatures. → Motor starts rotating at a low speed.

Motor lock protection and automatic return circuit built in

Output transistors: Output current IO= 1.5 A, output circuit protection Zener diodes (LB1860: M-Vz = 57 V/ LB1861: M-Vz = 32 V) → Enables low-level noise protection with chip capacitor.

Built-in thermal shutdown circuit

Built-in rotation detect function (Drive mode: ‘‘L’’, Stop mode: ‘‘H’’)

The LB1860 series can be operated from either 12 V or 24 V power supply by changing an external resistor. (Strong protection against power supply surge)

Connectable direct to a Hall element

Package Dimensions

unit: mm

3098B-DIP10S

[LB1860, 1861]

SANYO : DIP10S

unit: mm

3111-MFP14S

[LB1860M, 1861M]

SANYO : MFP14S

Ordering number: EN3519A

Monolithic Digital IC

LB1860,1860M,1861,1861M

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN

73096HA(II)/4060TA,TS No.3519-1/6

Page 2

Specifications

Absolute Maximum Ratings atTa=25°C, ( ): LB1860M, LB1861M

Parameter Symbol Conditions Ratings Unit

Maximum input current I

max t % 20 ms 200 mA

Output supply voltage V

OUT

Internal V

Output current I

OUT

1.5 A

RD flow-in current I

10 mA

RD supply voltage V

50 V

Allowable power dissipation

Pd1 max 1.1 W Pd2 max Mountedon 20 × 15 × 1.5mm glassepoxy board (0.8) W

Operating temperature Topr –30 to +80

Storage temperature Tstg –55 to +125

Allowable Operating Ranges atTa=25°C

Parameter Symbol Conditions Ratings Unit

Input current range I

6.0 to 50 mA

Common-mode input voltage range V

ICM

0toVIN–1.5 V

Electrical Characteristics atTa=25°C, ICC=10mA

Parameter Symbol Conditions min typ max Unit

Output limiting voltage V

OLM

LB1860, 1860M: I

= 0.1 A 54 57 60 V

LB1861, 1861M: I

= 0.1 A 30 32 34 V

Output saturation voltage

O sat1

IO= 0.5 A 0.95 1.2 V

O sat2

IO= 1.0 A 1.15 1.5 V

O sat3

IO= 1.5 A 1.4 2.0 V

Input voltage V

ICC= 7.0 mA 6.4 6.7 7.0 V

Amp input offset voltage V

OFF

–7.0 0 7.0 mV

Amp input bias current I

–250 nA

RD output saturation voltage

(sat) IRD= 5 mA 0.15 0.3 V

C flow-out current I

1 C = GND 2.7 3.9 5.0 µA

C discharge current I

2 C=V

0.35 0.50 0.65 µA

Comparator input threshold voltage

1 0.77 0.8 V

0.83 V

2 0.44 0.47 V

0.50 V

Ct discharge voltage Vct 0.18 0.2 V

0.22 V

Rt input current I

VRT= GND –440 –350 –240 µA

Rt comparator voltage V

RT= OPEN 0.59 0.62 V

0.65 V

Thermal protection circuit operating voltage

TSD Design target 180

Thermal protection circuit hysteresis

∆TSD Design target 40

Pin Assignments

Top view

LB1860,1860M,1861,1861M

No.3519-2/6

Page 3

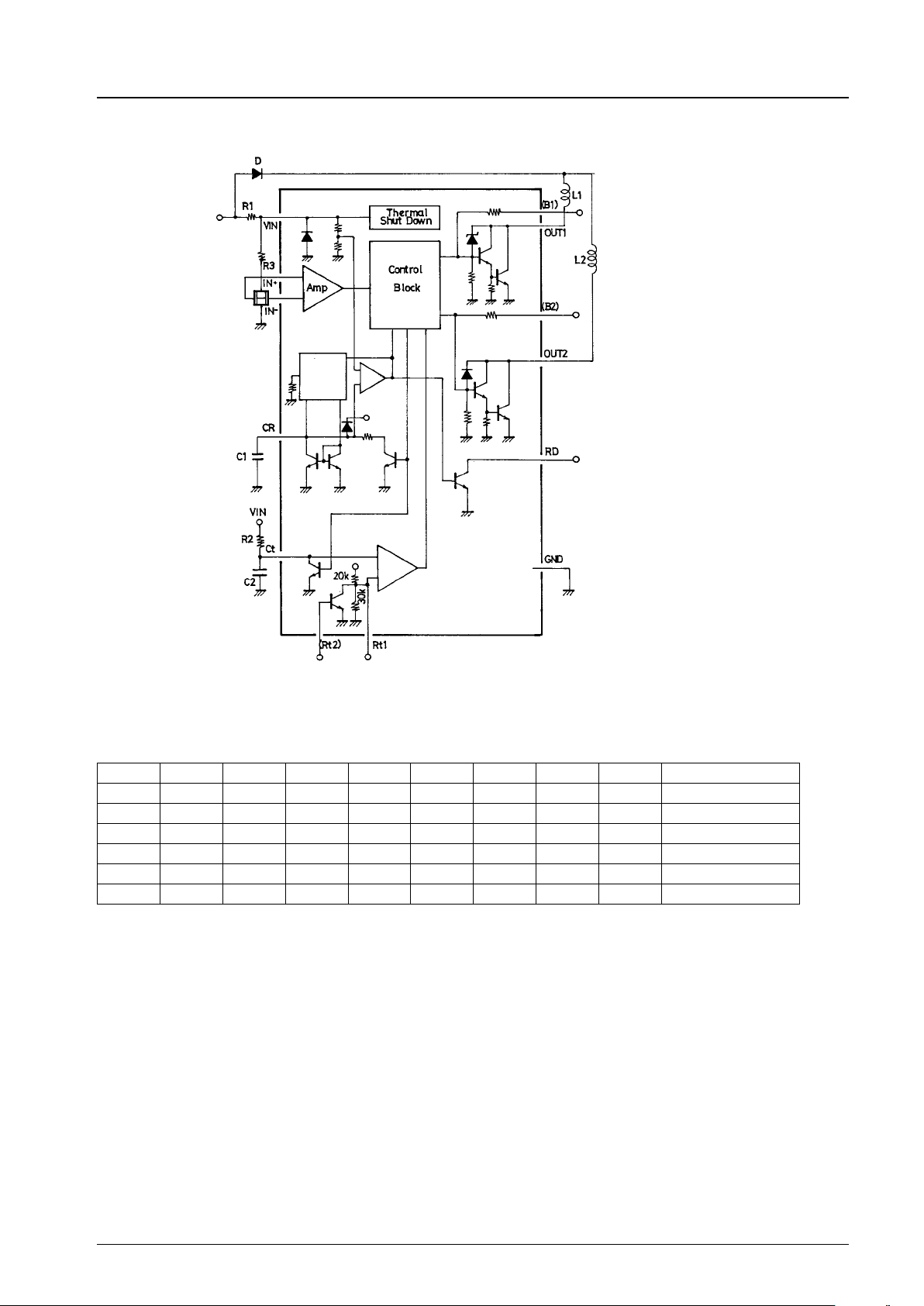

Block Diagram and Application Circuit

Truth Table

( ): LB1860M, 1861M

–

Ct Rt1 Rt2 CR OUT1 OUT2 RD Mode H L H L — L H L L Full speed L H H L — L L H L Full speed

(H) (L) — — (H) (L) (H) (L) (L) (Full speed)

(L) (H) — — (H) (L) (L) (H) (L) (Full speed)

— — L H L L H H L Low speed —————HHHHLock protection

Designer’s Notes

(1) Variable-speed circuit (Rt and Ct pins) — Refer to the application circuit diagram

The time constant gained by external components C2 and R2 is used to set the length of an ‘off’ operation time period after phase switching. This means that the variable-speed operations can be performed by changing the ‘on’ operation time of each phase through the duty control.

The sawtooth waveform signals are generated by the C2-R2 time constant. The voltage of this signal (Ct pin voltage) increases from 1.3 V to 4.0 V (Vct) at each phase switching. That is, during this period, the driver becomes inactive (t

off

), in which

output circuit is turned off.

If VCC^ 4.0 V, the driver IC remains active (ton) until the next phase switching. During this period, output circuit is turned on.

If the active drive time of each phase is assumed to ‘to’, the following relation can be established:

off

↑↑

Fixed Rotation speed constant proportional constant

off

= 0.69 c C2 c R2 ........................................ 1

Constant current circuit

Output timing control

Unit (resistance: Ω, capacitance: F)

Figure 1

( ): MFP14S

0.47 to 10 µ

LB1860,1860M,1861,1861M

No.3519-3/6

Page 4

From this relation, it can be observed that the ‘to’ and ‘ton’ are in proportional relation with each other, and that the ‘ton/to’ equals the ‘on’ time duty. As a result, a certain rotation speed can be fixed despite the fact that rotation speed exclusively depends on each motor.

At the start, the ‘ton’ value becomes longer while the ‘t

off

’ value remains unchanged. This means that the ‘t

off/to

’ duty becomes small enough compared to normal rotation mode. Therefore, the same start torque as that of the full speed rotation can be obtained because the ‘on’ operation time duty increases. This enables the motor to start at a very low speed.

(2) Supply voltage (V

pin)

The LB1860 has the internal parallel regulator which supplies power to the Hall amplifier circuit and the control block. Therefore, the driver ICs are not affected by power source fluctuations and kickbacks from the motor. They maintain the stable operations even if noise signals such as surge are generated.

Set the resistance R1 between VCCand VINso that the ICCcurrent of 6 mA to 50 mA can flow onto the VINpin within the supply voltage range of a fan motor.

VINis 6.7 V typ at ICC= 7 mA.

The current flowing into VINis calculated using the equation shown below.

ICC=

CC–VIN

............................ 2

Consideration given to surge voltage

The maximum allowable current at VINpin is 200 mA. Therefore, the pin is designed to withstand abnormal positive voltage of:

Vsurge = V

+R1×200 mA ............................................ 3

(3) Hall input pin voltage (Pins IN

–

,IN+)

Set the voltage levels of the input pin for the Hall element output and the Hall element output voltage to within the range of 0 V to V

– 1.5 V.

The gain between the hall input pin and the output pin is 100 dB or greater. The offset voltage of the hall input amp is ±7mV, therefore, the hall element output must be set with the offset voltage (±7 mV) considered.

(4) Output transistor (Pins OUT1, OUT2)

Output current IO= 1.5 A max

Output saturation voltage VOsat = 1.15 V/1.0 A typ

Output limiting voltage V

OLM

= 57 V typ (LB1860, 1860M)

OLM

= 32 V typ (LB1861,1861M)

Since the LB1860 series have a protect zener diode between collector and base, the kickback voltage induced by the coil is cut at V

OLM

= 57 V (32 V). When external capacitors are connected between OUT and GND, the capacitance should not exceed

10 µF.

(5) Output protection function (C pin)

Capacitor pin used in forming an automatic return circuit.

If rotation is stopped due to overload, the pin voltage level increases and then forces the output to become inactive. In this case, after proper load adjustment, the output returns to the ‘drive’ mode from the ‘stop’ mode automatically. By changing the capacitor value, the lock detect time period can be set.

For C marked with 1 µF Lock detect time Approximately 2 sec.

Lock protect time (output ON) Approximately 1 sec.

(output OFF) Approximately 6 sec.

Rotation

Output ON

Output OFF

Output

Output OFF Rotation

Lock

Lock release

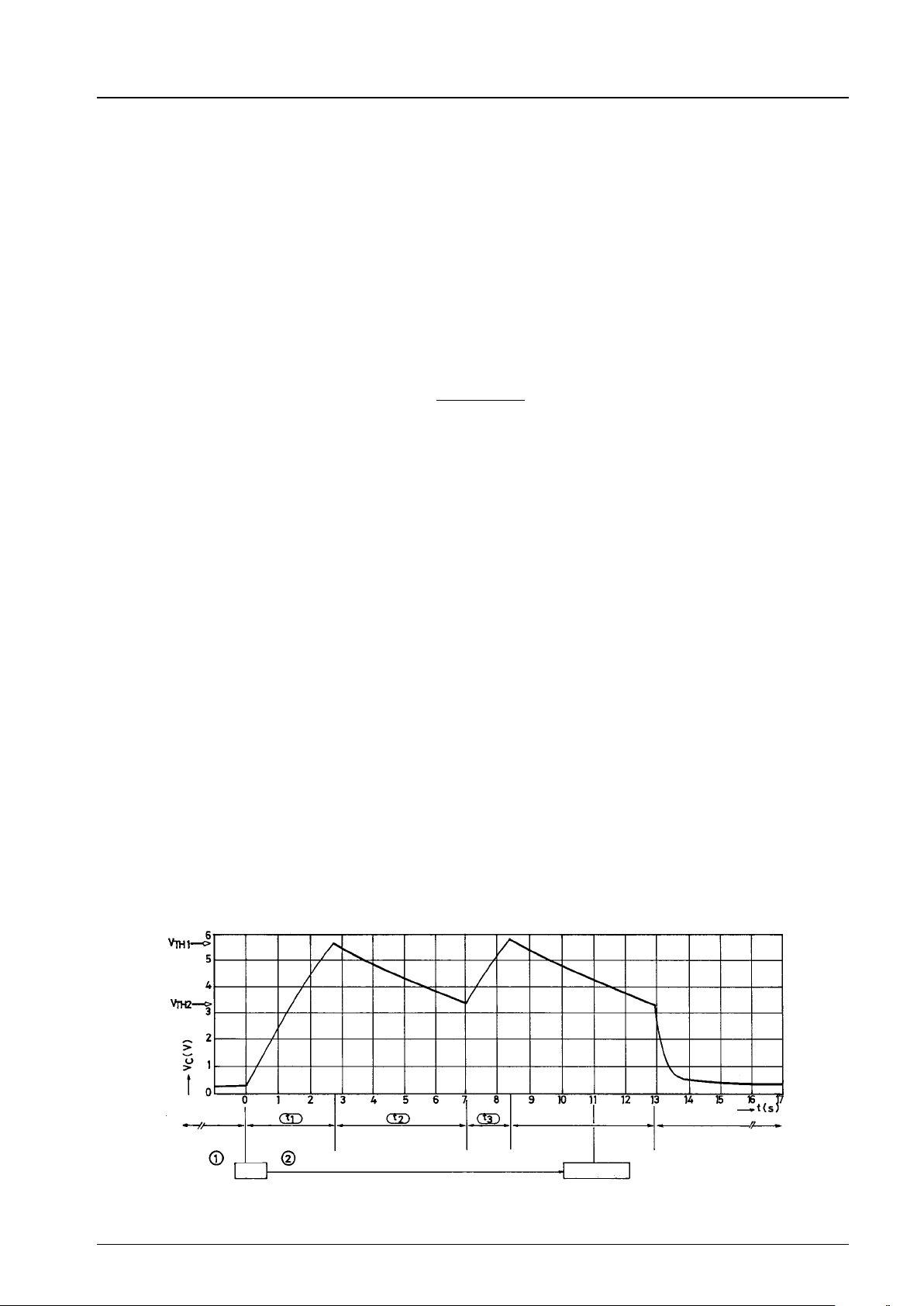

Automatic Return Circuit C Pin Voltage

LB1860,1860M,1861,1861M

No.3519-4/6

Page 5

1 When a fan is rotating, the capacitor is charged at 4 µA (typ) and discharged through the C with pulses according to the

rotational speed.

2 When a fan is locked, no discharge occurs through the C and the C voltage rises, turning OFF the output at 0.8 × V

3 When the output is turned OFF, discharge occurs through the C at 0.5 µA (typ). If the lock is not released when the C voltage

drops to V

2, the capacitor is charged to VTH1 again. (At this moment, the output is turned ON.) These operations 2 and

3 repeated at a cycle of approximately t

on:toff

= 1:6 protect a motor.

4 If the lock is released when the C voltage drops to V

2, the output is turned ON, starting rotation.

(6) Rotation detect signal (RD pin)

Open collector output (Drive mode: ‘‘L’’, Stop mode: ‘‘H’’)

(7) Radio noise reducing (Pins B1, B2)

Base pin of Darlington connection output transistor

If radio noises need to be processed properly, the following actions should be taken:

1 Connect a capacitor of 0.01 µ to 0.1 µF between B1 and B2. 2 Connect a capacitor of 0.001 µ to 0.01 µF between OUT and B.

If output causes oscillation, add a resistor of 200 Ω to1kΩin series with a capacitor.

(8) Thermal shutdown function

Shutdown the driver output in case of coil short-circuiting and abnormal IC heating.

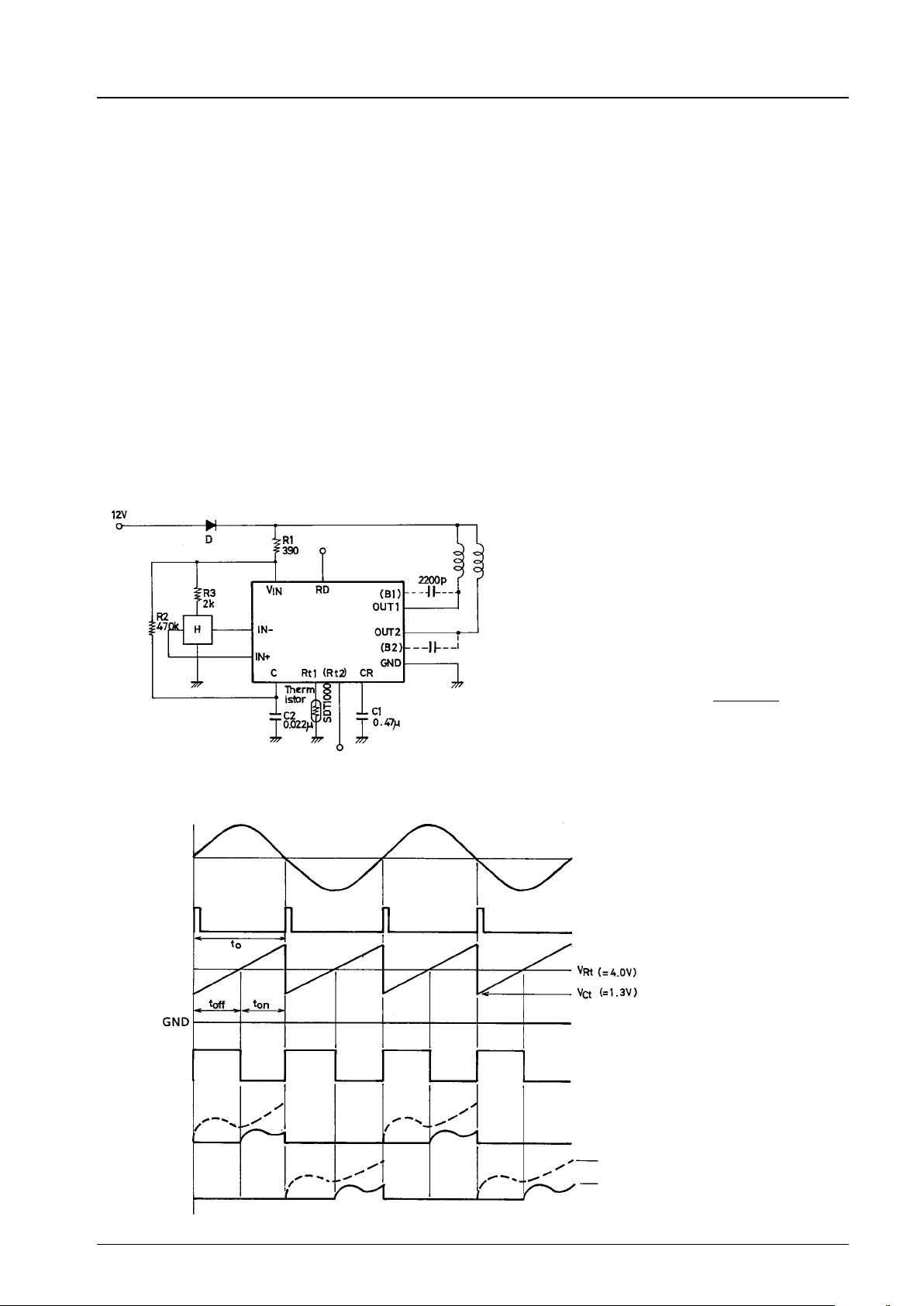

Thermistor-controlled Application Circuit Example

Output Timing Chart

Noise elimination capacitor

Figure 2

( ): MFP14S Unit (resistance: Ω, capacitance: F)

Use of a thermistor enables motor speed to be sensitive to the operating ambient temperature. The Rt pin voltage at Ta = 20°C has

1.42 ms of ‘t

off

’ as calculated in expression 4 with the application constant of Figure 2. However, the Rt pin voltage at Ta = 40°C is reduced into less than the Vct (= 1.3 V) level, which results ina0of‘t

off

’. This

means the 100% duty.

t = –C2 c R2 c 1n

IN–VRt

)

VIN–V

............. 4

Hall input

Discharge pulse

Ct voltage

Output ‘off’ signal

OUT1 current

OUT2 current

All-phase ON waveform Control output waveform

Figure 3

LB1860,1860M,1861,1861M

No.3519-5/6

Page 6

No products described or contained herein are intended for use in surgical implants, life-support systems, aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of which may directly or indirectly cause injury, death or property loss.

Anyone purchasing any products described or contained herein for an above-mentioned use shall: 1 Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors

and all their officers and employees, jointly and severally, against any and all claims and litigation and all damages, cost and expenses associated with such use:

2 Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on SANYO

ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees jointly or severally.

Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringements of intellectual property rights or other rights of third parties.

This catalog provides information as of July, 1996. Specifications and information herein are subject to change without notice.

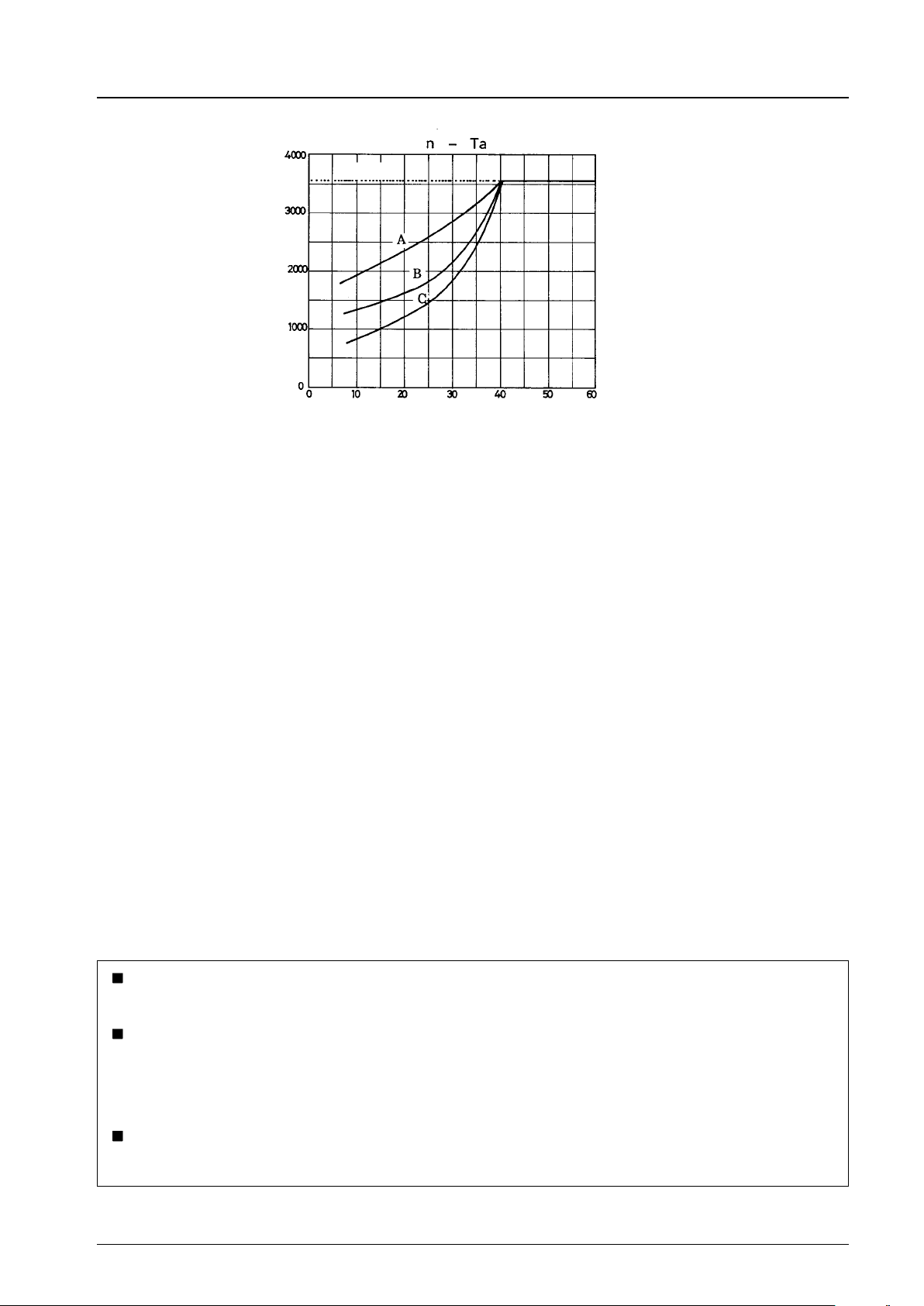

Number of rotation,n−rpm

Ambient temperature, Ta −°C

Top Speed
