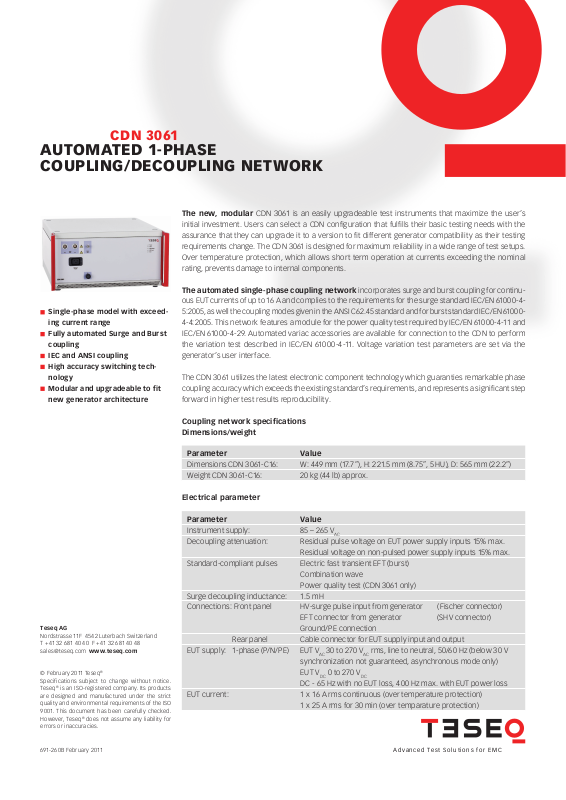

CDN 3061
AUTOMATED 1-PHASE COUPLING/DECOUPLING NETWORK
Single-phase model with exceeding current range
Fully automated Surge and Burst coupling
IEC and ANSI coupling
High accuracy switching technology
Modular and upgradeable to fit new generator architecture
The new, modular CDN 3061 is an easily upgradeable test instruments that maximize the user’s initial investment. Users can select a CDN confi guration that fulfi lls their basic testing needs with the assurance that they can upgrade it to a version to fi t different generator compatibility as their testing requirements change. The CDN 3061 is designed for maximum reliability in a wide range of test setups. Over temperature protection, which allows short term operation at currents exceeding the nominal rating, prevents damage to internal components.
The automated single-phase coupling network incorporates surge and burst coupling for continuous EUT currents of up to 16 A and complies to the requirements for the surge standard IEC/EN 61000-4- 5:2005, as well the coupling modes given in the ANSI C62.45 standard and for burst standard IEC/EN 61000- 4-4:2005. This network features a module for the power quality test required by IEC/EN 61000-4-11 and IEC/EN 61000-4-29. Automated variac accessories are available for connection to the CDN to perform the variation test described in IEC/EN 61000-4-11. Voltage variation test parameters are set via the generator’s user interface.
The CDN 3061 utilizes the latest electronic component technology which guaranties remarkable phase coupling accuracy which exceeds the existing standard’s requirements, and represents a signifi cant step forward in higher test results reproducibility.
Coupling network specifications
Dimensions/weight
Parameter |
Value |
Dimensions CDN 3061-C16: |
W: 449 mm (17.7”), H: 221.5 mm (8.75”, 5 HU), D: 565 mm (22.2”) |
Weight CDN 3061-C16: |
20 kg (44 lb) approx. |
Teseq AG
Nordstrasse 11F 4542 Luterbach Switzerland T +41 32 681 40 40 F +41 32 681 40 48 sales@teseq.com www.teseq.com
© February 2011 Teseq®
Specifications subject to change without notice. Teseq® is an ISO-registered company. Its products are designed and manufactured under the strict quality and environmental requirements of the ISO 9001. This document has been carefully checked. However, Teseq® does not assume any liability for errors or inaccuracies.
Electrical parameter
Parameter |
Value |
|
|
|
|
|
Instrument supply: |
85 – 265 VAC |
|
|
|
|
|
Decoupling attenuation: |
Residual pulse voltage on EUT power supply inputs 15% max. |
|
||||
|
Residual voltage on non-pulsed power supply inputs 15% max. |
|
||||
Standard-compliant pulses |
Electric fast transient EFT (burst) |
|
|
|
|
|
|
Combination wave |
|
|
|
|
|
|
Power quality test (CDN 3061 only) |
|
|
|
|
|
Surge decoupling inductance: |
1.5 mH |
|
|
|
|
|
Connections: Front panel |
HV-surge pulse input from generator |
|
(Fischer connector) |
|
||
|
EFT connector from generator |
|
(SHV connector) |
|
||
|
Ground/PE connection |
|
|
|
|
|
Rear panel |
Cable connector for EUT supply input and output |
|
||||
EUT supply: 1-phase (P/N/PE) |
EUT VAC 30 to 270 VAC rms, line to neutral, 50/60 Hz (below 30 V |
|
||||
|
synchronization not guaranteed, asynchronous mode only) |
|
||||
|
EUT VDC 0 to 270 VDC |
|
|
|
|
|
|
DC - 65 Hz with no EUT loss, 400 Hz max. with EUT power loss |
|
||||
EUT current: |
1 x 16 A rms continuous (over temperature protection) |
|
||||
|
1 x 25 A rms for 30 min (over temparature protection) |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
691-260B February 2011 |
