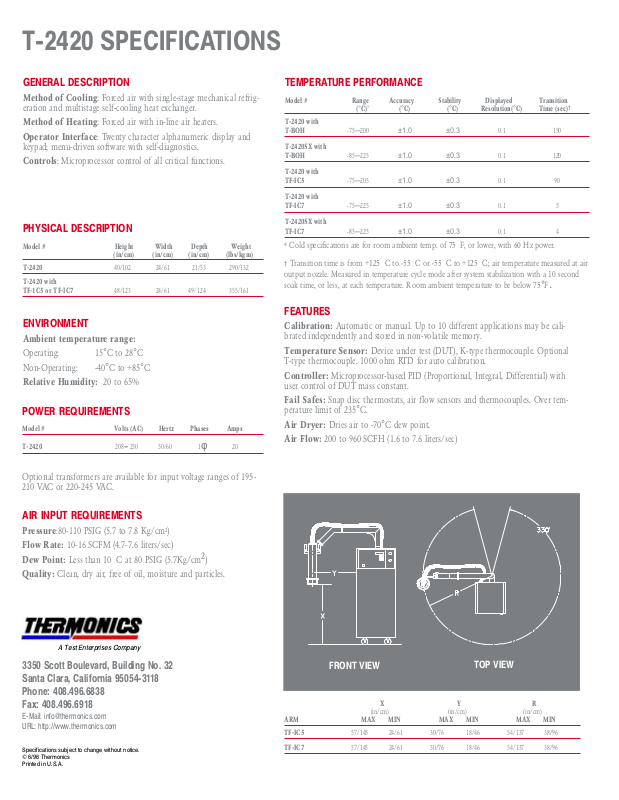

T-2420 SPECIFICATIONS

GENERAL DESCRIPTION

Method of Cooling: Forced air with single-stage mechanical refrigeration and multistage self-cooling heat exchanger.

Method of Heating: Forced air with in-line air heaters.

Operator Interface: Twenty character alphanumeric display and keypad; menu-driven software with self-diagnostics.

Controls: Microprocessor control of all critical functions.

PHYSICAL DESCRIPTION

Model #

Height

Width

Depth

Weight



(in/cm)

(in/cm)

(in/cm)

(lbs/kgm)

T-2420

40/102

24/61

21/53

290/132

T-2420 with









TF-1C5 or TF-IC7

48/123

24/61

49/124

355/161

TEMPERATURE PERFORMANCE

Model #

Range

Accuracy

Stability

Displayed

Transition



(°C)*

(°C)

(°C)

Resolution(°C)

Time (sec)

T-2420 with











T-BOH

-75–200

±1.0

±0.3

0.1

150

T-2420SX with











T-BOH

-85–225

±1.0

±0.3

0.1

120

T-2420 with











TF-IC5

-75–205

±1.0

±0.3

0.1

90

T-2420 with











TF-IC7

-75–225

±1.0

±0.3

0.1

5

T-2420SX with











TF-IC7

-85–225

±1.0

±0.3

0.1

4

* Cold specifications are for room ambient temp. of 75 F, or lower, with 60 Hz power.

Transition time is from +125 C to -55 C or -55 C to +125 C; air temperature measured at air output nozzle. Measured in temperature cycle mode after system stabilization with a 10 second soak time, or less, at each temperature. Room ambient temperature to be below 75°F.

ENVIRONMENT

Ambient temperature range:







Operating:

15°C to 28°C







Non-Operating:

-40°C to +85°C







Relative Humidity: 20 to 65%







POWER REQUIREMENTS







Model #

Volts (AC)

Hertz

Phases

Amps











T-2420

208230

50/60

1φ

20

Optional transformers are available for input voltage ranges of 195210 VAC or 220-245 VAC.

AIR INPUT REQUIREMENTS

Pressure:80-110 PSIG (5.7 to 7.8 Kg/cm2) Flow Rate: 10-16 SCFM (4.7-7.6 liters/sec)

Dew Point: Less than 10 C at 80 PSIG (5.7Kg/cm2) Quality: Clean, dry air, free of oil, moisture and particles.

A Test Enterprises Company

3350 Scott Boulevard, Building No. 32 Santa Clara, California 95054-3118 Phone: 408.496.6838

Fax: 408.496.6918

E-Mail: info@thermonics.com URL: http://www.thermonics.com

Specifications subject to change without notice. © 6/96 Thermonics

Printed in U.S.A.

FEATURES

Calibration: Automatic or manual. Up to 10 different applications may be calibrated independently and stored in non-volatile memory.

Temperature Sensor: Device under test (DUT), K-type thermocouple. Optional T-type thermocouple. 1000 ohm RTD for auto calibration.

Controller: Microprocessor-based PID (Proportional, Integral, Differential) with user control of DUT mass constant.

Fail Safes: Snap disc thermostats, air flow sensors and thermocouples. Over temperature limit of 235°C.

Air Dryer: Dries air to -70°C dew point.

Air Flow: 200 to 960 SCFH (1.6 to 7.6 liters/sec)





FRONT VIEW





TOP VIEW

























X



Y

R







(in/cm)

(in/cm)

(in/cm)





ARM

MAX

MIN

MAX

MIN

MAX

MIN



TF-IC5

57/145

24/61

30/76

18/46

54/137

38/96



TF-IC7

57/145

24/61

30/76

18/46

54/137

38/96
