Po werBook (FireW ire)

Basics

Overview

PowerBook (FireWire) is the latest addition to the PowerBook G3 Series of computers. This version offers increased processor speeds of up to 500 megahertz (MHz), larger hard drives, DVD-ROM drives standard in all configurations, FireWire, and wireless networking with AirPort.

Apple Service Source

To differentiate this model from previous G3 PowerBooks, look for the FireWire ports on the back I/O panel, or the name PowerBook printed in the middle of the bottom section of the display bezel.

PowerBook (FireWire)

Basics

Repair Strategy

Parts for the PowerBook (FireWire) will be available for order through the Apple Service Price Pages and the AppleOrder system. Except for the displays, Apple Authorized Service Providers (AASPs) in the U.S. can repair PowerBook (FireWire) systems. In Canada, Apple Authorized Service Providers can also repair displays.

Service PowerBook (FireWire) computers through module exchange and parts replacement. In the U.S. only, customers can request Apple Direct Dispatch, or they can choose carry-in service from an AASP.

Ordering

AASPs planning to support the computer systems covered in this manual may purchase Service modules and parts to develop servicing capability. To order parts, use the AppleOrder system and refer to the PowerBook (FireWire) Apple Service Price Pages.

Large businesses, universities, and K-12 accounts must provide a purchase order on all transactions, including orders placed through the AppleOrder system.

U.S. Ordering

U.S. Apple Authorized Service Providers not enrolled in AppleOrder may fax their orders to Service Provider Support (512-674-8125) or mail them to

Apple Computer, Inc. Service Provider Support MS 212-SPS Austin, TX 78714-9125

For U.S. inquiries, please call Service Provider Support at 800-9192775 and select option #1.

PowerBook (FireWire)

Warranty/AppleCare Protection PlanBasics

Canadian Ordering

In Canada, all service parts (including the displays) are available through AppleOrder. Refer to the Apple Service Price Pages or the Service Parts Database on Service Source Online for part numbers and pricing.

Canadian Service Providers not enrolled in AppleOrder may fax their orders to Service Provider Support in Canada (800-903-5284). For Canadian inquiries, please call Service Provider Support at 800-217-

9517.

Warranty/AppleCare Protection Plan

PowerBook (FireWire) computers are covered under the Apple One-Year Global Limited Warranty. The AppleCare Protection Plan is also available for these products. AASPs are reimbursed for warranty and AppleCare Protection Plan repairs made to these computers. For pricing information, refer to Apple Service Price Pages or the Service Parts Database on Service Source Online.

PowerBook (FireWire)

Basics

Repair Issues

Do Not Remove Heat Exchanger from Microprocessor Board

Unless the microprocessor board needs to be replaced, do not separate the heat exchanger from the microprocessor board when taking the PowerBook (FireWire) apart. When the heat exchanger is removed, the phase change material covering the microprocessor chip may need to be removed and replaced. For further information, refer to the Take Apart chapter of this manual.

Verify Model Before Ordering Parts

PowerBook (FireWire) computers look almost identical to previous PowerBook G3 Series computers. Most parts used in the PowerBook (FireWire) are different and are not backward- or forward-compatible. Verify the model of computer you are repairing before ordering parts. The configuration tool in the Service Parts Database will help you identify the correct parts for this product.

PowerBook (FireWire)

New Technologies

FireWir e

FireWire is a high speed serial data bus that can move large amounts of data between computers and peripheral devices. It features simplified cabling, hot swapping, and transfer speeds up to 400 megabits per second (Mbps).

FireWire allows users to connect digital consumer products such as digital camcorders, set-top boxes, and music systems directly to the computer.

PowerBook (FireWire) is the first of Apple’s portable computers to feature built-in FireWire ports.

For more complete technical information about FireWire, see the Tech Info Library article 30520, “FireWire: Technology Overview.”

FireWireBasics

AirPort

AirPort is a local area network (LAN) solution for wireless networking among multiple computers. Instead of using cables and wires, AirPort transfers data between computers via radio waves. Through AirPort networks, users can gain access to the Internet, send and receive email, share files, play multi-player games, and perform other network activities.

The AirPort product line includes the AirPort Base Station, AirPort Software Base Station, and AirPort Card. PowerBook (FireWire) is the first of the full-featured portable products to support it.

For more information about AirPort, see “AirPort Card” under “Boards and Cards” later in this chapter. You can also refer to the Tech Info Library or the AirPort service manual on Service Source.

PowerBook (FireWire)

Basics

AirPort

Features

PowerBook (FireWire) features include:

• PowerPC G3 microprocessor running at clock speeds of 400 or 500 MHz

• backside L2 cache of up to 1 MB of fast static RAM

• two standard SO-DIMM expansion slots for SDRAM modules and a minimum of 64 MB of SDRAM installed, expandable to 512 MB total

• 14.1-inch TFT (thin-film transistor) display with XGA resolution (1024 x 768 pixels)

• standard VGA video connector for external video monitor with XGA resolution, and S-video connector that supports PAL and NTSC video monitors

• 8 MB of video SDRAM

• Ultra ATA hard drive of up to 18 GB

• DVD-ROM with DVD-RAM readability supported

• integrated wireless communication with AirPort Card upgrade

• two hot-swappable expansion bays for two batteries or one battery and one DVD-ROM drive

• one manual-eject CardBus slot that accepts one Type II CardBus card or PCMCIA Card

• built-in 56 Kbps modem

• two FireWire ports with support for FireWire Disk Mode

• built-in Ethernet port with RJ-45 connector for 10Base-T and 100Base-T operation

• two USB ports for external keyboard, mouse, and other USB devices

• built-in microphone and speakers as well as a line-level stereo input jack and a stereo headphone jack

• keyboard with embedded numeric keypad and inverted-T arrow keys. Some function keys control the display and speakers

• trackpad with tap/double tap and drag features

• 2D and 3D graphics via ATI Rage Mobility M3 with AGP

• infrared link for up to 4 Mbit-per-second IrDA data transfer

PowerBook (FireWire)

Drives

Module Compatibility

Expansion modules used in the PowerBook G3 Series (Bronze Keyboard) may be used in the PowerBook (FireWire), and vice versa. Modules from PowerBook G3 Series computers before PowerBook G3 Series (Bronze Keyboard) are not compatible with the PowerBook (FireWire). Any third-party modules made for PowerBook (FireWire) also may not function properly if used in these earlier PowerBook G3 Series computers.

DVD-ROM Drive

All models of the PowerBook (FireWire) ship with a 4x-speed DVD-ROM drive that is compatible with existing CD-ROM media. The DVD-ROM drive supports the following disc formats:

• DVD-ROM

• DVD-RAM (read only)

• CD-ROM (Modes 1 and 2)

• CD-ROM XA (Mode 2, Forms 1 and 2)

• Audio CD

• Photo CD

• CD-RW (read only)

• CD-R (read only)

• CD-Extra

• CD-I (Mode 2, Forms 1 and 2)

• CD-I Ready

• CD-I Bridge

• Video CD

DrivesBasics

Hard Drive

The PowerBook (FireWire) ships with an Ultra-ATA hard drive of at least 6 GB. At introduction, hard drives of up to 18 GB are available for configuration-to-order.

PowerBook (FireWire)

Basics

Memory and Power

Sleep Memory Extension 1.0

Apple has identified a very rare issue that may occur when putting a PowerBook (FireWire) to sleep. The computer may be unable to recognize the hard drive at startup. To prevent this from happening, Apple strongly recommends that all PowerBook (FireWire) customers running systems prior to Mac OS 9.0.4 install the Sleep Memory Extension 1.0.

After installing the Sleep Memory Extension and restarting the computer, the "Preserve memory contents on sleep" checkbox in the Energy Saver control panel will be dimmed and unavailable.

Download the Sleep Memory Extension 1.0 from the Apple Software Updates Web site at http://www.apple.com/swupdates/.

RAM Expansion

The PowerBook (FireWire) has two RAM slots on the microprocessor board, and no RAM soldered on the I/O logic board. All units ship with a minimum of 64 MB of factory-installed RAM. The maximum amount of RAM supported is 512 MB. The PowerBook (FireWire) uses standard 144-pin SDRAM SO-DIMMs with a height of up to two inches.

RAM Compatibility

SDRAM SO-DIMMs used for PowerBook (FireWire) must be PC-100 compatible. Previous PowerBook G3 Series computers used PC-66 RAM that may not be compatible with this computer.

As with the PowerBook G3 Series computers, EDO RAM should not be used.

PowerBook (FireWire)

Memory and PowerBasics

Battery Compatibility

The Lithium Ion (LiIon) batteries used for the PowerBook (FireWire) are compatible with those used in the PowerBook G3 Series (Bronze Keyboard) and vice versa. Batteries from earlier PowerBook G3 Series computers are not compatible with PowerBook (FireWire).

Battery Level Indicators

LiIon batteries have battery level indicator lights that tell whether the battery is fully charged, three-fourths charged, one-half charged, onefourth charged, or empty. To check the battery charge, press the status button located next to the status lights. The battery charges whenever the external AC adapter is connected.

If the battery lights blink, there is a problem with the battery. If only one light blinks, the battery is fully depleted and needs to be recharged.

Battery Handling Guidelines

Warning:

thrown out with household or office trash. Review battery handling and disposal instructions in Safety Information in Bulletins/Safety.

The following are guidelines for properly handling batteries:

• Never get batteries wet.

• Handle the battery carefully. Do not drop, puncture, disassemble, mutilate, or incinerate it.

• Do not leave a battery in the computer for longer than a week without plugging in the power adapter.

• Do not short the battery contacts.

• Do not leave the battery in hot locations (such as the trunk of a car).

• Do not leave a battery in storage for longer than six months without recharging it.

• Recharge batteries only as described in the user’s manual and only in ventilated areas.j

LiIon batteries contain hazardous chemicals and should not be

PowerBook (FireWire)

Basics

Memory and Power

Battery Disposal and Recycling

Lithium batteries such as the backup battery in PowerBook (FireWire) require disposal when dead, but you cannot throw them away. In Addition to being potentially explosive, lithium is water reactive, requiring these batteries to be disposed of as hazardous waste.

After removing a dead backup battery, clip off the lead wires and place the battery into the zip-lock wrapper that the replacement battery came in. Call your local or regional solid waste agency or recycling organizations to find out about battery disposal options in your area.

PowerBook (FireWire)

Sound and VideoBasics

Sound and Video

Sound

The PowerBook (FireWire) supports 44.1 kHz 16-bit stereo sound output and input, available simultaneously. Sound output is through either the built-in speakers or the external sound output jack.

Sound input can come from:

• built-in microphone

• external stereo sound input jack

• modem slot

• CardBus socket

• expansion bay device

Video

The PowerBook (FireWire) 14.1 inch thin-film transistor (TFT) display contains 1024 x 768 pixels and shows up to millions of colors. Both the internal display and an external monitor are supported by an ATI Rage Mobility M3 IC.

Features of the Rage Mobility M3 include:

• 8 MB of embedded SDRAM

• 3D acceleration

• video acceleration

• MPEG decoding support

• dual-display mode support

• composite video output for a TV monitor

PowerBook (FireWire)

Basics

Input and Output

Keyboard and Trackpad

The keyboard and trackpad are the same design as those used in the earlier PowerBook G3 Series of computers. The PowerBook (FireWire) keyboard includes a built-in numeric keypad and controls to adjust display brightness, speaker volume, and external audio port volume.

Several of the keys on the keyboard have more than one mode of operation. These changes are controlled by the Fn key, the Num Lock key, and the Function Keys checkbox in the Keyboard control panel.

FireWire Ports and Target Disk Mode

The PowerBook (FireWire) has two external FireWire ports. The ports:

• support serial I/O at up to 400 Mbps

• provide up to 6 watts of power when the computer is turned on

• accept external power input from the bus

• support starting up the system from a mass storage device

• support target disk mode

Target Disk mode is similar to SCSI Disk mode, except it uses a FireWire connection. When the PowerBook is in Target Disk mode, the PowerBook operates as a mass storage device. The two primary uses of this feature are:

• high-speed data transfer between computers or devices

• diagnosis and repair of a corrupted internal hard drive

To put the PowerBook in Target Disk mode, press the T key while starting up. To take the PowerBook out of Target Disk mode, press the power button.

USB Ports

The PowerBook (FireWire) has two Universal Serial Bus (USB) ports that can be used to connect I/O devices such as a USB mouse, printers,

PowerBook (FireWire)

Input and OutputBasics

scanners, and low-speed storage devices. The ports use USB Type A connectors, which have four pins.

Ethernet Port

The PowerBook (FireWire) has a built-in 10/100 Mbps Ethernet port. When connected to either a 10Base-T or a 100Base-T hub, the port will recognize which type of hub is connected.

The connector for the Ethernet port is a short, shielded RJ-45 connector on the back of the computer.

Infrared

The PowerBook (FireWire) has a direct infrared (IR) communication link connected internally to a serial port on the KeyLargo IC. The IR link in the PowerBook (FireWire) supports IrDA at up to 4.0 Mbps.

PowerBook (FireWire)

Basics

Boards and Cards

General

The architecture of the PowerBook (FireWire) is designed around two main circuit boards: the microprocessor board and the I/O logic board.

Besides the two main boards, the PowerBook (FireWire) can contain up to seven cards: power supply card, sound card, RAM card (factory installed), RAM card (user installed), AirPort Card, modem, and modem EMI filter.

AirPort Card

The AirPort Card transmits and receives data at up to 11 Mbps. Connecting to the Internet or a wired local area network (LAN) requires a base station as the connection to the Internet or a bridge between the wireless signals and a wired LAN. Software included with the AirPort Card enables a Macintosh computer that has an AirPort Card installed to act as a base station.

In PowerBook (FireWire), the AirPort Card is installed under the keyboard and above the PCMCIA Card slot.

PCMCIA (PC) Cards

The PCMCIA Card slot accepts one Type II card. The slot supports both 16bit PC Cards and 32-bit CardBus cards. Cards can be removed and replaced while the computer is operating. The slot supports Zoomed Video on the card connector.

To eject a PC card, first drag the PC Card icon (if present) to the trash. Then push once on the eject button to release the button, and a second time to eject the card.

The following are guidelines for properly handling PC Cards:

• Use only cards that are compatible with the PC Card unit. Refer to the compatibility information that came with the PC Card. If you cannot

PowerBook (FireWire)

Boards and CardsBasics

find the compatibility information, contact the card vendor.

• Do not insert anything other than a PC Card into the card slots.

• The computer must be on or off to eject a PC Card. Do not eject a PC Card when the computer is in sleep mode.

• Before you eject a card, make sure nothing is blocking the card’s slot.

• To use the card again immediately, pull it out about an inch more and then push it back in. If you don’t follow this procedure and try to push the card back in to use it again, the card will not engage properly.

• Do not pull on a PC Card before it has been ejected out of the slot. Forcing a PC Card out of the slot may damage the computer or the card. If the card is partially ejected, use pliers to carefully pull the card out the rest of the way.

PowerBook (FireWire)

Basics

Left Side View

Views

Left Side View

PowerBook (FireWire)

Front V iew

Front ViewBasics

PowerBook (FireWire)

Basics

Right Side View

PowerBook (FireWire)

Rear View

Rear ViewBasics

PowerBook (FireWire)

Basics

Internal Hardware Locator

PCMCIA

Cardcage

(Under

AirPort Card)

I/O Logic Board

AirPort

Card

Inverter Board

Heat

Exchanger

Microprocessor

Board

Hard Drive

Sound

Card

Modem Card

Fan Battery

(Under

Heat Exchanger)

PowerBook (FireWire)

Power

Supply Card

Backup Battery

Expansion Bay

I/O Logic Board Drawing

I/O Logic Board DrawingBasics

PCMCIA CardCage

Connector

Fan

Connector

Modem Connector

RJ-11 Cable/

Phone Jack

Connector

Keyboard

Connector

Trackpad

Connector

Display Cable Connector

Power

Supply

Card

Connector

Sound Card Connector

Hard Drive Connector

Microprocessor Board Connector

Backup Battery Connector

Expansion Bay Connector

PowerBook (FireWire)

Basics

Microprocessor Board Drawing

Microprocessor

Board

RAM

Card Slot

Microprocessor Board Drawing

Heat

Exchanger

Mounting

Bracket

Pull Tab

I/O Logic Board Connector

(Underside of Board)

Factory-Installed RAM

Card Slot

PowerBook (FireWire)

Speciﬁcations

Introduction

Apple Service Source

Specifications information for this product can be found in the SpecDatabase, which you can access at Service Source Online (http://service.info.apple.com) or on Service Source CD.

Spec Database at Service Source Online

From the Service Source Online home page, click Troubleshoot and Repair to access the main repair procedures page. Then click either Apple Spec in the navigation table in the upper right corner of the page, or click Apple Spec Database from the list of reference tools below.

Spec Database on Service Source CD

Open the CD and double-click the Apple Spec Database alias located at the top level of the CD.

PowerBook (FireWire)

Apple Service Source

Troubleshooting

General

General -

In each service manual on Service Source, you will find Flowcharts and/or Symptom Charts designed to help you diagnose and repair Apple computers.

If you have narrowed the problem down to a particular symptom, start with the Symptom Charts. Because cures are listed in the order of most likely solution, try the first cure first. Verify whether or not the product continues to exhibit the symptom. If the symptom persists, try the next cure.

If you are not sure what the problem is, or if the Symptom Charts do not resolve the problem, refer to the Flowcharts.

Diagnostic tools are also available to help you isolate a hardware problem. Refer to the Diagnostics page of Service Source, which you can access on Service Source CD or at Service Source Online (http://service.info.apple.com).

If you require additional assistance, contact Apple Technical Support.

PowerBook (FireWire)

Troubleshooting

General / Power-On Self Test -

Power-On Self Test

There is a power-on self test that resides in the ROM of the PowerBook (FireWire). This test automatically runs whenever the computer is powered on after being fully shut down (the power-on self test does not run if the computer is only restarted).

If a problem is detected during the test, you will not hear a normal startup chime. Instead, the system will beep as explained in the Power-On Self Test Beep Definitions chart.

Power-On Self Test Beep Deﬁnitions

Beeps Definition 1 beep No RAM is installed or detected.

2 beeps EDO memory is installed. The PowerBook (FireWire)

ships with SDRAM SO-DIMMs and does not accept EDO memory.

3 beeps No RAM banks passed memory testing. 4 or 5 beeps Bad checksum for the remainder of the boot ROM. The

ROM (which is located on the microprocessor module) is bad.

PowerBook (FireWire)

Troubleshooting

General / AirPort -

AirPort

Verify you are using the latest AirPort software. In the U.S., this should be at least AirPort 1.1.

Always make sure the antenna cable connector is plugged in fully. There should be no space between the base of the connector and the edge of the AirPort Card.

For AirPort troubleshooting help, refer to the Troubleshooting chapter of the AirPort service manual on Service Source.

Battery Veriﬁcation

PowerBook (FireWire) batteries have level-indicator lights that show whether the battery is fully charged, three-fourths charged, one-half charged, or one-fourth charged.

To determine the actual battery charge, push in the level indicator button to activate the indicator lights.

If more than one light is blinking, there is a problem with the battery. If only one light is blinking, the battery is fully depleted and should be charged soon.

Battery Level Indicator Lights

Battery Level Indicator Button

If it seems that the lights are not reporting levels

Note:

Fully charged 3/4 charged 1/2 charged 1/4 charged

correctly, fully discharge the battery and then recharge it to

PowerBook (FireWire)

Troubleshooting

General / Backup Battery Veriﬁcation -

calibrate the battery. After this calibration, the lights will report charge levels properly.

Backup Battery Veriﬁcation

The backup battery saves the PRAM and power management information on the I/O logic board when the computer is shut down. To check that the backup battery is working:

1. Verify backup battery is connected to the I/O logic board.

2. Set the date, time, and time zone.

3. Select Shut Down from the Apple menu or Special menu.

4. Remove the main battery and disconnect the power adapter for 10 minutes.

5. Connect the power adapter, insert the battery, and power on the computer.

6. If the date and time were lost, the backup battery may be dead or discharged.

7. To recharge the backup battery, leave the computer plugged in for 48 hours. It is OK to use it while it is charging.

8. If the backup battery appears dead or will not charge, replace the backup battery.

PowerBook (FireWire)

Troubleshooting

Reset PRAM

General / Reset PRAM -

Important:

disk, if there is one. Resetting PRAM also restores the default settings in most control panels. After you reset PRAM, be sure to check any custom settings for the desktop pattern, memory, network, AppleTalk, trackpad, power conservation, and so forth.

To reset PRAM:

1. Power on the computer by pressing the Power key.

2. Immediately press Option-Command-P-R.

3. Press the four keys until you have heard the startup chime at least one additional time after the initial startup chime.

Resetting PRAM erases the contents of the RAM

Reset the Power Manager

PowerBook (FireWire) computers have a reset button located on the back of the computer behind the I/O door. Press the button once to reset the power manager.

PowerBook (FireWire)

Troubleshooting

PowerPC G3

microprocessor

Backside L2 cache

SO-DIMM

slots

100 MHz

memory bus

100 MHz

Max bus

66 MHz

AGP bus

Uni-N

memory

controller

and PCI

bus bridge

Ethernet port

FireWire port FireWire port

Connector to

Internal display

Expansion bay connector

RAGE 128 M3

graphics IC

Ethernet

PHY

FireWire

PHY

CardBus slot

connector

PCI1211

CardBus

bridge

KeyLargo

I/O device

and disk

controller

Boot

ROM

32-bit

33MHz

PCI bus

Connector to

internal IDE

disk drive

Ultra-ATA

bus

Connector to internal antenna

Wireless LAN module

PMU99

power

controller

and

DSP and

MAC

ATA bus

Screamer

sound IC

Internal speaker connector

S-video connector VGA monitor

connector

Sound in jack Sound out jack

IrDA link USB port USB port

Controller

and DAA

Modem module

Telephone connector

Block Diagram

General / Block Diagram -

PowerBook (FireWire)

Troubleshooting

Symptom Charts

Start Up

Symptom Charts / Start Up -

RAM failure occurs (beeps are heard at start up)

Computer won’t power up

Note:

There is no RAM on the microprocessor board itself, so the computer will beep if no memory is installed in at least one of the slots.

1. Remove top RAM SO-DIMM (if present) and restart computer.

If startup sequence is normal, replace RAM SO-DIMM and retest. Note: Verify RAM is PC-100 compatible.

2. Replace bottom RAM SO-DIMM and retest.

3. Replace microprocessor board.

4. Replace I/O logic board.

Power

1. Restart computer by pressing the reset button on the back of

the unit. Wait five seconds and press the Power key.

2. Try known-good power adapter.

3. Try known-good, firmly seated, charged battery. Repeat.

4. Connect power adapter and restart computer in 3-4 minutes.

5. Disconnect internal keyboard completely and try powering up

unit. If unit powers up, replace keyboard.

6. Verify microprocessor card is firmly seated.

7. Replace sound card.

8. Replace power supply card.

9. Replace microprocessor board. 1 0. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Power -

Screen is blank; backlight isn’t on; computer doesn’t respond

Power adapter is plugged in, but Control Strip doesn’t indicate adapter is connected

1. Restart the computer by pressing the reset button on the back

of the unit. Wait five seconds and press the Power key.

2. Restart computer.

3. Disconnect power adapter and remove battery, then wait 3-4

minutes. Reconnect computer to power source and restart.

4. Check power adapter cable.

5. Try known-good, charged battery.

6. Try known-good power adapter.

7. Remove all power (power adapter and batteries) and

disconnect backup battery for ten minutes.

8. Check all I/O logic board cables and connections.

9. Replace sound card.

10. Replace microprocessor board.

11. Replace power supply card. 1 2. Replace I/O logic board.

1. Verify power adapter is connected correctly and the power

cord is plugged solidly in the adapter.

2. Verify there is power at the outlet.

3. Try known-good power adapter.

4. Try known-good power cord.

After you remove battery and power adapter, some Control Panel settings are different

5. Reset power manager (press reset button behind the I/O door.

6. Replace sound card.

7. Replace power supply card.

8. Replace I/O logic board.

1. Connect power adapter to unit for 24 hours to see if backup

battery is just depleted. (It takes approximately 48 hours to fully charge the backup battery.)

2. Check backup battery cable and connections.

3. Replace backup battery.

4. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Power -

Computer functions when plugged into wall outlet but not on battery power

1. Verify battery is charged by pressing the level indicator

button on the battery. If the battery is charged, one or more status lights on the battery will glow.

2. Reseat battery to make sure battery is mating with contacts on

I/O logic board.

3. Try battery in opposite expansion bay.

4. Try known-good, firmly seated, charged battery. Try the same

battery in opposite expansion bay.

5. Turn off the computer. Press the reset button on the back of

the unit, wait five seconds, then press the Power key.

6. Try known-good power adapter.

7. Replace power supply card.

8. Replace I/O logic board.

Battery won’t charge 1. Verify battery is charged by pressing the level indicator

button on the battery. If the battery is charged, one or more status lights on the battery will glow.

2. Turn off the computer. Press the reset button on the back of

the unit, wait five seconds, and press the Power key.

Battery will not charge unless unit is in sleep mode or shut down

3. Try battery in opposite expansion bay.

4. Try known-good, firmly seated, charged battery. Try the same

battery in opposite expansion bay.

5. Replace power supply card.

6. Replace I/O logic board.

Verify the appropriate power adapter is being used.

PowerBook (FireWire)

Troubleshooting

Video

Symptom Charts / Video -

Pixel(s) always on or off

Partial or full row of pixels is always on or always off

Display is very light or totally white

1. A certain number of pixel anomalies are inherent in display

technology and vary by many factors, including type of technology. If you suspect that the display contains an abnormal number of anomalies, contact Apple Technical Support.

Warning:

or shorting could result. Use a plastic or nylon tool.

1. Check display cable connection.

2. In the U.S., contact Apple Technical Support.

3. Replace display cable (international only).

4. Replace display (international only).

5. Replace I/O logic board.

1. Verify display cable and inverter board cable connections to

2. Replace inverter board.

3. In the U.S., contact Apple Technical Support.

Do not use a metal screwdriver to reseat the display cable

the I/O logic board.

An external monitor connected to the computer shows no video

4. Replace display cable (international only).

5. Replace display (international only).

1. Verify external monitor has power.

2. Try different resolutions in the Monitors control panel.

3. Try another monitor cable and verify the video adapter has

part number 590-1123 on the adapter.

4. Try another monitor.

5. Restart unit and reset PRAM.

6. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Video -

No display, but computer appears to operate correctly

An external monitor connected to the computer shows either horizontal or vertical rolling, or horizontal or vertical distortion

1. Connect power adapter.

2. Adjust screen brightness using keyboard controls.

3. Verify display cable, inverter board, and I/O logic board

connections.

4. Connect external, known-good monitor.

5. Verify inverter cable is properly connected.

6. Replace inverter cable.

7. Replace inverter board.

8. In the U.S., contact Apple Technical Support.

9. Replace display cable (international only). 10 . Replace display (international only). 1 1. Replace I/O logic board.

1. Try different resolutions in the Monitors control panel.

2. Verify monitor using another computer.

3. Try another video adapter and verify the video adapter has

part number 590-1123 on it.

4. Replace I/O logic board.

Backlight doesn’t operate; screen is very dim

1. Adjust screen brightness setting.

2. Verify backlight cable connection is secure.

3. Check display cable and inverter board connections to the I/O

logic board.

4. Verify inverter cable is properly connected and that cable is

good.

5. Verify cables are not pinched or severed.

6. Replace inverter board.

7. In the U.S., contact Apple Technical Support.

8. Replace display (international only).

9. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Sound

Symptom Charts / Sound -

No sound from speaker(s)

Startup sound is heard, then no sound from speaker(s)

Internal hard drive does not spin

1. Verify mute mode is not enabled (F6 on the keyboard).

2. Check the volume setting in the Sound control panel.

3. Verify no external speakers or headphones are plugged in.

4. Reset PRAM.

5. Make sure speaker cable is plugged into sound card.

6. Replace sound card.

7. Replace speakers (part of the top case).

8. Replace I/O logic board

1. Remove sound preferences from System Folder, reset PRAM,

then restart.

2. Perform clean installation of system software.

Hard Drive

1. Make sure power adapter is connected.

2. Disconnect external devices.

Expansion bay module will not insert properly in the expansion bay

3. Check hard drive connection.

Note:

4. Replace hard drive cable.

avoid bending pins.

5. Replace hard drive.

6. Replace I/O logic board.

1. Check for obstructions in the expansion bay.

2. Check that the far right keyboard tab is inserted properly and

not extending into the expansion bay.

3. Try another module.

4. Replace I/O logic board.

PowerBook (FireWire)

Pull up evenly on the cable to

Symptom Charts / PC Card Module (PCMCIA) -Troubleshooting

PC Card Module (PCMCIA)

PC Card won’t eject 1. Make sure computer is not in sleep mode.

2. Make sure PC Card slot is not blocked.

3. Drag PC Card to trash.

4. Try PC Card eject button. (Press the PC Card eject button

once to release the button, then again to eject the card.)

PC Card is inserted but doesn’t appear on desktop

PC Card can’t be inserted

5. Remove keyboard and

the card out with your finger.

6. Verify PC Card is not warped or damaged in any way; if so,

replace with new card.

7. Replace PCMCIA cardcage.

Note:

Modem and communication cards may not appear on desktop.

1. Verify correct software for the PC Card is installed.

2. Manually eject the PC Card and reinsert it.

3. Try another PC Card.

4. Replace PCMCIA cardcage.

5. Replace I/O logic board.

1. Make sure PC Card is right side up (cards are keyed and

cannot be inserted upside down).

2. Check for obstructions in the PC Card slot.

3. Push PC Card in from center of the exposed edge.

4. Try a different PC Card.

AirPort Card (if installed)

, then gently push

5. Replace PCMCIA cardcage.

PowerBook (FireWire)

Troubleshooting

DVD-ROM Drive

Symptom Charts / DVD-ROM Drive -

Drive does not accept disc

Volume control does not operate correctly

Computer cannot mount disc

1. Verify disc is properly seated in the carrier.

2. Reinsert drive in expansion bay.

3. Replace drive.

4. Replace I/O logic board.

1. Check Sound control panel setting.

2. Verify mute mode is not enabled.

3. Verify the setting of volume control button.

4. Reinsert drive.

1. Reinsert drive.

2. Replace disc (if dirty or damaged).

3. Verify Apple CD/DVD ROM extension is installed.

4. Replace drive.

5. Replace I/O logic board.

DVD-Video

Movie plays, but special features (such as director’s notes and other languages) are unavailable

1. Not all DVD titles offer special features. Check the liner notes

included with the disc for a list of features.

2. If both the picture and sound are OK, then DVD drive is

functional. This means either the software or the movie title (DVD video disc) is the source of the symptom. Try playing another title to determine if the disc is the cause. If the software is the cause, reinstall software.

PowerBook (FireWire)

Symptom Charts / Infrared Communication -Troubleshooting

DVD video movie will not play

Poor performance of DVD video disc (poor sound or picture)

1. Clean the disc with an appropriate cleaner.

2. Try another

3. Ensure DVD video disc appears on desktop.

4. Check that Parental Controls setting is set to On. Select an

MPAA rating at the same level or higher than the title being viewed.

5. Check region code for DVD video title. (Warning message

appears.)

6. Reinstall software.

1. Check the DVD video disc for scratches.

2. Disable background applications.

3. Turn off AppleTalk and TCP/IP.

4. Set display to millions of colors.

5. Set Disk Cache to default setting in Memory control panel.

6. Use Extensions Manager to disable extensions except for the

standard Apple extensions and DVD extensions. Restart the computer.

DVD video

disc.

Infrared communication is not working

7. For an audio problem, try playing an audio CD. If problem

persists, refer to the Sound symptom chart in this chapter.

Infrared Communication

1. Clean infrared window with soft lint-free cloth.

2. Make sure units are spaced 3-6 feet apart and at less than a

20 degree angle.

3. Verify infrared signal is being received by host computer.

4. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Modem -

Modem

No dial tone 1. Verify known-good analog (not digital) telephone line.

2. Verify cable is not plugged into Ethernet port.

3. If using Apple Remote Access 3.0, select Ignore Dial Tone in

the Modem control panel. If the modem connects with this setting selected, try another phone line. If using a terminal or communications program, enter “atx1” to disable tone detection. To reset the modem back to the factory settings, enter “atz.”

4. Replace cable/phone jack.

5. Replace modem EMI filter card.

6. Replace modem.

No internal modem selection available

Modem reports an error when dialing out

Modem is having trouble connecting to Online site

1. Remove keyboard and verify modem is properly installed and

modem EMI filter card is plugged in.

2. Verify correct modem software is installed and selected.

3. Replace modem.

1. Use the Modem Country Selector utility to make sure the

modem is set to the correct country.

2. Make sure the correct driver is installed and the correct CCL

is selected and that they are not corrupted. If necessary, reinstall the driver and/or CCL.

3. Try another cable and phone jack.

4. If problem persists, reinstall system and modem software.

1. Use the Modem Country Selector utility to make sure the

modem is set to the correct country.

2. The phone line may have too much noise. If the user has a

second line, try that one. The user should contact their local phone company and request their line be checked.

3. Check to make sure the TCP/IP control panel is correctly

configured for the user's Internet Service Provider. If the

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Modem -

TCP/IP control panel is not configured correctly, it may connect but won’t be able to access any sites.

4. Sometimes online services use different servers for dial-up/

authentication and for services. If one server is down, users may be able to login but not access any services. Contact the online service for help.

The dialup software will not initiate a connection

Modem is dropping its connection

1. Use the Modem Country Selector utility to make sure the

modem is set to the correct country.

2. Make sure dialup software is fully installed and all required

extensions are enabled. If necessary, reinstall the dialup software and provide the necessary information for setup.

1. Use the Modem Country Selector utility to make sure the

modem is set to the correct country.

2. Try another cable and phone jack.

3. The phone line may be too noisy to handle the higher modem

speeds. Try connecting at a slower speed or use a generic CCL file. (If you are familiar with the CCL script language, you can edit the modem script to force a connection at a lower speed.) If the problem continues, contact the phone company to report the bad phone line.

4. Verify that the user has call waiting on that phone line. With

call waiting active, an incoming call can interrupt the connection. Disable call waiting using AT commands placed in the init string of the dialup application. Usually the string is *70.

5. There may be a problem with the server to which you are

connecting. Servers sometimes develop problems that disconnect users without explanation. Try calling back later or use an alternate number if one is available.

6. Check with the Internet Service Provider.

7. Reseat the modem. If the problem persists, replace the

modem.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / USB and FireWire -

USB and FireWire

After you connect external USB or FireWire device, computer does not start up

Computer starts up to a floating FireWire icon (similar to SCSI Disk Mode)

In target disk mode, computer does not display FireWire icon until host is started up, or computer crashes when host is shut down

1. Disconnect all external devices and start up computer. Then

plug in devices.

2. Eliminate chain by plugging in only one device.

3. Try

5. If device is self-powered, power on external device before

6. Check cable connections.

7. Try known-good cable.

8. Try known-good external device.

9. Replace I/O logic board.

1. Reset computer.

2. Replace keyboard.

3. Replace I/O logic board.

1. Verify

2. Make sure host computer is running FireWire 2.3 or later. Use Apple

3. Make sure no other FireWire devices are connected.

4. Verify computer was started up with the T key pressed.

5. Check the keyboard connection.

another

Start up system with extensions off.

starting computer.

System Profiler to verify.

port.

FireWire

cable is good and check the connection.

6. Replace keyboard.

7. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / USB and FireWire -

USB or FireWire device, such as digital camera, not recognized by computer

I/O devices are unrecognized, or garbage is transmitted or received

Note:

If you are trying to use a serial device with a USB/Serial adapter, check with the manufacturer for compatibility.

1. Verify current driver for the device is installed.

2. Turn on camera before launching desktop video (DV)

application.

3. Try different USB

or FireWire

device on same port.

4. Eliminate chain by plugging in only one device.

5. Try the other USB

or FireWire

port.

6. Replace I/O logic board.

1. Check cables.

2. Check with vendor for current drivers.

3. Try other USB

or FireWire

port.

4. Reset PRAM.

5. Test device with known-good computer.

6. Replace I/O logic board.

Cursor does not move when using trackpad

1. Shut down computer, unplug power adapter, and remove

battery. Let computer sit for one minute before restarting.

2. Reset power manager (press the reset button behind the I/O

door).

3. Check trackpad connections.

trackpad does

4. Connect USB mouse and try to move cursor. If

not move cursor but external USB mouse does, replace trackpad (included in top case).

5. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / USB and FireWire -

Cursor moves on screen with external mouse connected, but clicking or doubleclicking the mouse has no effect

Cursor moves, but clicking trackpad button has no effect

Cursor does not move on the screen with an external mouse, but USB external keyboard works

1. If the mouse is connected to an external keyboard, connect the

mouse to one of the USB ports on the computer.

2. Try the other USB port.

3. Try another mouse.

4. Reset PRAM.

5. Start up from the CD that came with the computer. If the

mouse works, reinstall the system software.

6. Replace I/O logic board.

1. Reset power manager (press the reset button behind the I/O

door).

2. Remove top case and manually press trackpad button on power

supply with a nylon tool or other non-metal object. If button activates cursor, check top case seating.

3. Replace power supply card.

4. Replace trackpad button actuator (included in the top case).

1. Verify the mouse is connected securely to the USB keyboard or

port.

2. Check inside mouse for buildup of dirt or other contaminants.

Clean mouse if necessary.

3. If mouse is connected to the keyboard, connect it to a USB port.

4. Try the other USB port.

5. Try another mouse.

6. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / USB and FireWire -

Cursor intermittently does not move or moves erratically

No response to any key on keyboard

Note:

User must touch trackpad with the surface of only one finger

at a time and point directly down on the trackpad surface.

1. Clean trackpad surface with computer off, using a non-static-

inducing material.

2. Reset power manager (press the reset button behind the I/O

door).

3. Turn off clicking in Trackpad control panel.

4. Try unit on battery power. If problem goes away, replace

power adapter.

5. Check trackpad connections.

6. Replace trackpad (included in top case).

7. Replace I/O logic board.

1. Reset the power manager (press the reset button behind the I/

O door).

2. Check keyboard connection by disconnecting and reconnecting

keyboard cable.

3. Replace keyboard.

Known-good Ethernet network printer does not print

4. Replace I/O logic board.

1. Verify Chooser and networking control panel (AppleTalk and

TCP/IP) settings are correct.

2. Reinstall printer drivers.

3. Check printer cables.

4. Attach computer directly to printer using Ethernet crossover

cable, and retest.

5. Reset PRAM.

6. Replace I/O logic board.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / USB and FireWire -

Known-good USB printer does not print

Power-related error message appears

After sleep, a USB device is sometimes not recognized

1. Verify computer has correct driver installed. Check vendor’s

Web site to download current driver.

2. Reset PRAM.

3. Verify printer is selected in the Chooser.

4. Run Apple System Profiler to see if it recognizes the USB

printer is connected. If it does, it is a software issue.

5. Try the other port. Make sure the printer is connected

directly to the computer.

6. Check cables.

7. Replace I/O logic board.

1. Plug the device into an electrical outlet if it has a power cord.

2. Unplug the device and plug it into another USB port on the

computer or another device plugged into a power outlet such as a USB hub.

1. Restart the computer.

2. Contact device manufacturer for latest driver update.

PowerBook (FireWire)

Troubleshooting

Miscellaneous

Symptom Charts / Miscellaneous -

Sleep light doesn’t turn on

Screen goes blank and computer shuts down every few minutes

Application seems to run slower after a few seconds

Hard drive is slow to respond, or screen goes blank too often

1. Verify computer is in sleep mode and not off.

2. Reset power manager (press the reset button behind the I/O

door.

3. Replace inverter board.

1. Computer is going into system sleep to conserve battery

power. Adjust sleep delays in Energy Saver control panel or connect power adapter.

2. Verify the appropriate power adapter is being used.

3. Try a known-good power adapter.

Computer is in processor cycling mode. If this interferes with operation of application, turn off Allow Processor Cycling in the

This feature conserves energy

Energy Saver control panel. when running off battery power.

Adjust sleep delays in Energy Saver control panel or connect power adapter.

Note:

Fax software is not working

The PowerBook (FireWire) comes with FaxSTF software installed. Apple does not provide support for this software. Contact Smith Micro at 949-632-5810 or send email to stfsupport@smithmicro.com.

PowerBook (FireWire)

Troubleshooting

Symptom Charts / Miscellaneous -

Intermittent operating problems such as not starting up or initialization errors

1. Remove the microprocessor EMI shield and check that the two

screws over the microprocessor unit and the screw on the left side of the heat exchanger are installed.

2. Verify microprocessor board is properly installed.

3. Press on microprocessor board a second time to make sure the

board is fully seated.

Important: The microprocessor board can be partially inserted and

the computer will still function. However, over time, heat will cause a partially seated microprocessor board to lose contact and cause intermittent system problems. The connection of these boards is checked and double-checked at the factory.

4. Remove the heat exchanger and examine the black thermal

transfer material over the microprocessor chip. Follow the procedures in the Take Apart chapter of this manual to replace the heat exchanger.

PowerBook (FireWire)

Symptom Charts / Miscellaneous - 24Troubleshooting

Startup Problems Flowchart

START

Reset the

power manager.

Press power button to begin startup sequence.



Do you

hear the

startup tones?

Yes

Are the

startup tones

normal?

Yes

Does a gray screen appear with

pointer?

Yes

Does any

video

appear?

Yes

1. Check the volume.

2. Check the keyboard and display cables.

3. Replace the sound card.

4. Replace the speaker.

5. Replace the I/O logic board.

See Startup in the Symptom Charts.

1. Check display/inverter cable connections.

2. Replace the display and backlight cables.

3. Replace the inverter.

4. Replace the display.

5. Replace the I/O logic board.

1. Check the display cables.

2. Replace the power supply card.

3. Replace the sound card.

PowerBook (FireWire)

Symptom Charts / Startup Problems FlowchartTroubleshooting

Startup Problems Flowchart (continued)

Does

the

PowerBook continue

to start up to the

desktop?

Yes

Do the

trackpad and

keyboard function?

Yes

Insert a known-good

CD-ROM or DVD disc

and see if it mounts.

1. Start up with extensions off.

Does

the flashing

question mark

appear?

Yes

1. Reset PRAM.

2. Start up from the CD that comes with the computer.

3. If hard drive appears, reinstall system software.

4. If hard drive doesn't appear,see if Drive Setup can reformat it.

5. Replace the hard drive cable.

6. Replace the hard drive.

7. Replace the I/O logic board.

1. Reset the power manager.

2. Check the trackpad and keyboard cables.

3. Replace the trackpad and keyboard cables.

4. Replace the trackpad.

5. Replace the keyboard.

6. Replace the I/O logic board.

2. Start up with the CD that

comes with the computer (press the C key).

3. Replace the hard drive.

4. Replace the I/O logic board.

Go to

Start

Does the

disc

mount?

END

Yes

1. Check for proper software drivers.

2. Reseat the module.

3. Replace the module.

4. Replace the I/O logic board

PowerBook (FireWire)

Take Apart

Apple Service Source

General

Tools

Use the following tools for procedures in this chapter:

• 5 mm nut driver

• #8 Torx screwdriver (T-8)

• #1 Phillips screwdriver

• flat-head jeweler’s screwdriver (for keyboard lock)

• flat-blade nylon or plastic tool (spudger)

• dental pick or hook tool (to open flex connectors)

• razor blade or X-Acto knife (to remove screw covers)

PowerBook (FireWire)

Take Apart

Cables

Follow these guidelines when working with cables:

• Ensure all cables are routed exactly when reassembling. Use all grooves and/or protrusions to align cabling. If the cable is improperly routed, you may not be able to reassemble the computer, or once reassembled, the computer may fail to function.

• Check that all cables are properly aligned in the connectors and that the connections are tight.

• Handle flex cables carefully. Using excessive force to disconnect a cable can tear the cable or damage it so it will not work properly.

• Use a nylon tool or dental pick to help loosen cable connections.

PowerBook (FireWire)

Procedures

Expansion Bay Modules

Expansion Bay ModulesTake Apart

Before you begin, unplug the AC adapter.

Important:

remove all modules (batteries and drives) in the expansion bays before performing any Take Apart procedure.

You must

PowerBook (FireWire)

Expansion Bay ModulesTake Apart

1. Open the display to a 90-degree angle to prevent the computer from tipping over when the expansion bay modules are removed.

Note:

If you open the display all the way, support the underside of the screen with a book or other flat object.

2. Pull the expansion bay

eject arm toward you to eject the module.

3. Slide the module out of

the expansion bay.

PowerBook (FireWire)

Keyboard

KeyboardTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

Note:

You do not need to disconnect and remove the keyboard completely to gain access to the hard drive, SDRAM DIMMs, backup battery, and some other modules.

PowerBook (FireWire)

1. Unlock the keyboard if

it is locked. Locate the locking screw in the LED to the left of the F5 key and turn the screw counterclockwise.

KeyboardTake Apart

2. Pull down on the

keyboard release tabs located to the left of the F1 and F9 keys until the top portion of the keyboard pops up.

PowerBook (FireWire)

3. Lift the top of the

keyboard up and pull it away from you to disengage the five tabs holding the keyboard in place.

Important:

Do not lift the keyboard by the keycaps. Keycaps are not replaceable.

Replacement Note:

Check that the far right tab on the keyboard is in the slot and not protruding into the expansion bay.

KeyboardTake Apart

4. Flip the keyboard over

and lay it on top of the palm rests and trackpad.

5. Grasp the keyboard

cable as close as possible to the connector and pull up to disconnect the keyboard from the I/O logic board. Rock the cable carefully if additional leverage is needed.

Replacement Note:

Position the cable over the connector and pull the keyboard slightly to the right so the cable is not bent. Hold the cable as close as possible to the connector and press straight down. Use the end of a nylon tool to press the cable firmly into the connector.

PowerBook (FireWire)

Microprocessor EMI Shield

Microprocessor EMI ShieldTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

PowerBook (FireWire)

1. Remove the two shield

mounting screws.

2. Release the latch on the

left side of the shield, and lift the shield out of the computer.

AirPort Card

AirPort CardTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

Important:

Card is present, park the antenna cable connector in the plastic holder next to the modem. This keeps the cable connector from moving around and possibly shorting the system.

1. If an AirPort card is

installed, lift up on the AirPort Card tab and raise the card slightly, then disconnect the antenna cable from the card.

2. Pull the tab to the

right to remove the card from its slot.

If no AirPort

PowerBook (FireWire)

Replacement Note:

the edge of the tab under the plastic cover on the inverter board to keep the card flat.

Tuck

Microprocessor Board and Heat ExchangerTake Apart

Microprocessor Board and Heat Exchanger

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

PowerBook (FireWire)

1. Disconnect the backup

battery from the I/O logic board.

Note:

To remove the backup battery, pull it firmly to the left and out of its holder.

Caution:

explosion if the lithium backup battery is not replaced properly. Verify that the replacement battery is the correct type before replacing it.

There is danger of

Microprocessor Board and Heat ExchangerTake Apart

2. Remove the long

Phillips screw from the bottom left side of the heat exchanger.

Important:

Do not remove the two screws holding the heat exchanger to the microprocessor board unless you are replacing the microprocessor board.

3. Pull up on the tab on

the right side of the board to release it from its connector. The connector is along the bottom, right side of the board.

PowerBook (FireWire)

Microprocessor Board and Heat ExchangerTake Apart

4. Lift up on the bottom,

left corner of the heat exchanger and lift it up with the microprocessor board.

5. Pull the board to the

right until the tabs on the left side of the board clear the slots in the stiffener.

Warning:

Do not flex these pieces or you could break the heatpipe or the plastic frame around the microprocessor.

PowerBook (FireWire)

Microprocessor Board and Heat ExchangerTake Apart

Heat Exchanger Replacement

1. Remove the two

Phillips screws from the heat exchanger and separate it from the microprocessor board.

2. Use a razor blade to

carefully scrape the black thermal transfer pad off the bottom of the heat exchanger and the top of the microprocessor chip.

3. Place a new thermal

transfer pad on the heat exchanger.

PowerBook (FireWire)

4. Replace the plastic

frame around the microprocessor chip if it has been removed.

5. Replace the two screws

on the heat exchanger.

Microprocessor Board and Heat ExchangerTake Apart

Microprocessor Board and Heat Exchanger Replacement

1. Tilt the left side of the

board down slightly to engage the two tabs in the slots in the stiffener.

2. Make sure the hard

drive tab is not caught under the microprocessor board when you replace the board.

3. Press twice on the

microprocessor board to make sure it is firmly seated.

PowerBook (FireWire)

SDRAM

SDRAMTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

• microprocessor board There are two expansion

slots for RAM modules on the microprocessor board. The factory-installed RAM is on the underside of the microprocessor board.

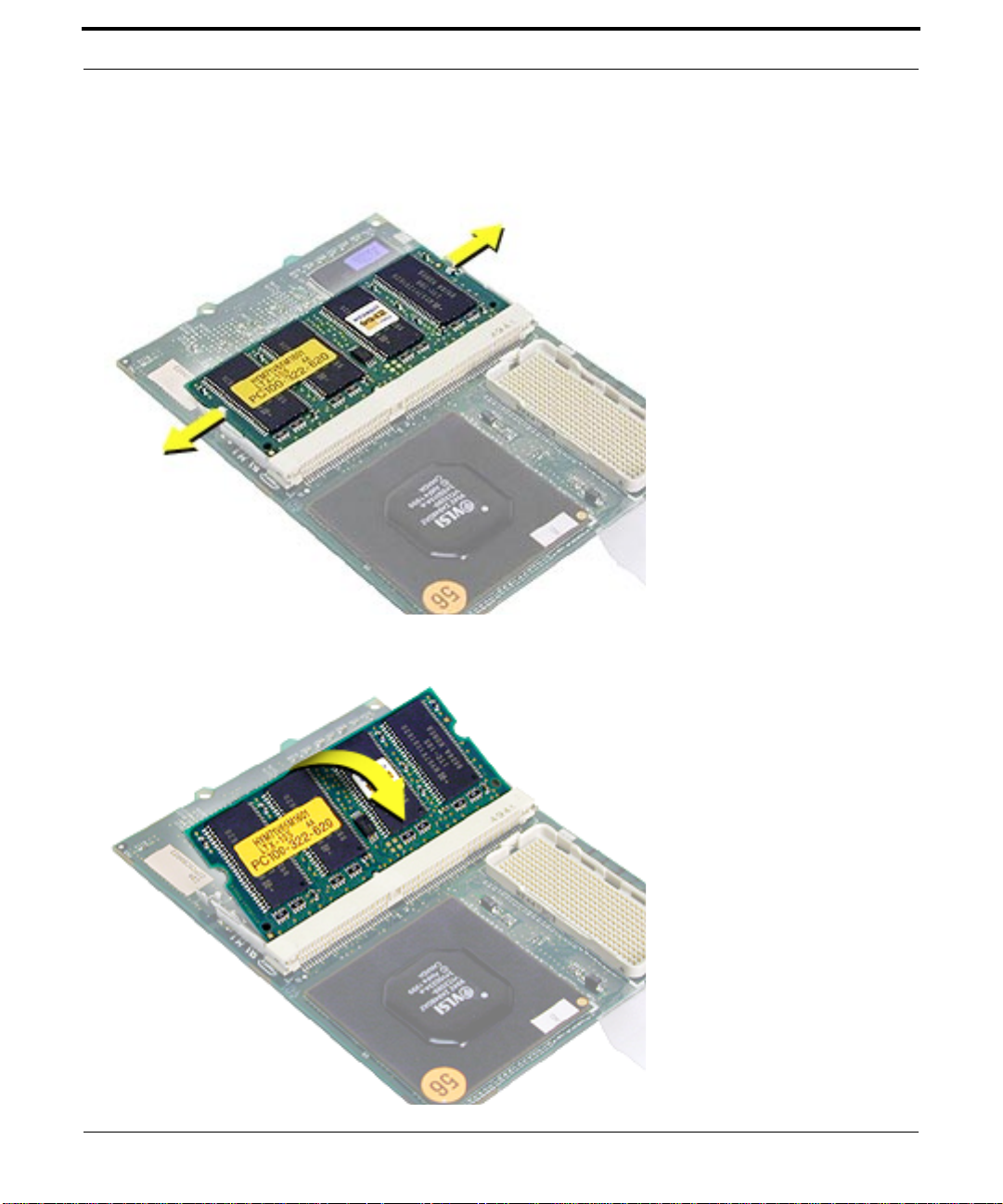

1. Pull the snaps on

either side of the RAM card to the sides. The card will tilt up.

PowerBook (FireWire)

2. Pull the RAM card out.

Replacement Note:

the RAM card at a 30degree angle and line up the notch in the RAM card with the small plastic tab in the RAM expansion slot. Push in on the card and then down until the two snaps click into place.

Hold

Modem

ModemTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

• microprocessor board

PowerBook (FireWire)

1. If no AirPort Card is

installed, remove the antenna cable connector from the antenna cable holder on the right side of the modem.

2. Remove the T-8 screw

on the right side of the modem and lift off the antenna cable holder.

ModemTake Apart

3. Use a flat-blade nylon

tool to lift up the top, left side of the modem and release it from its connector.

PowerBook (FireWire)

4. Disconnect the modem

EMI filter cable on the right side of the modem.

Replacement Note:

Do not replace the long screw on the bottom left of the modem. This long screw passes through the heat exchanger and then the modem. If you replace the screw at this stage, you will damage the bottom case.

Replacement Note:

After replacing an international modem, use the Modem Country Selector utility to set the modem to the correct country.

Hard Drive

Hard DriveTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

• microprocessor board

PowerBook (FireWire)

1. Use a nylon tool to

disconnect the hard drive cable from the I/O logic board.

Hard DriveTake Apart

2. Pull up on the tab until

the hard drive lifts up, then pull the hard drive out of its bay.

PowerBook (FireWire)

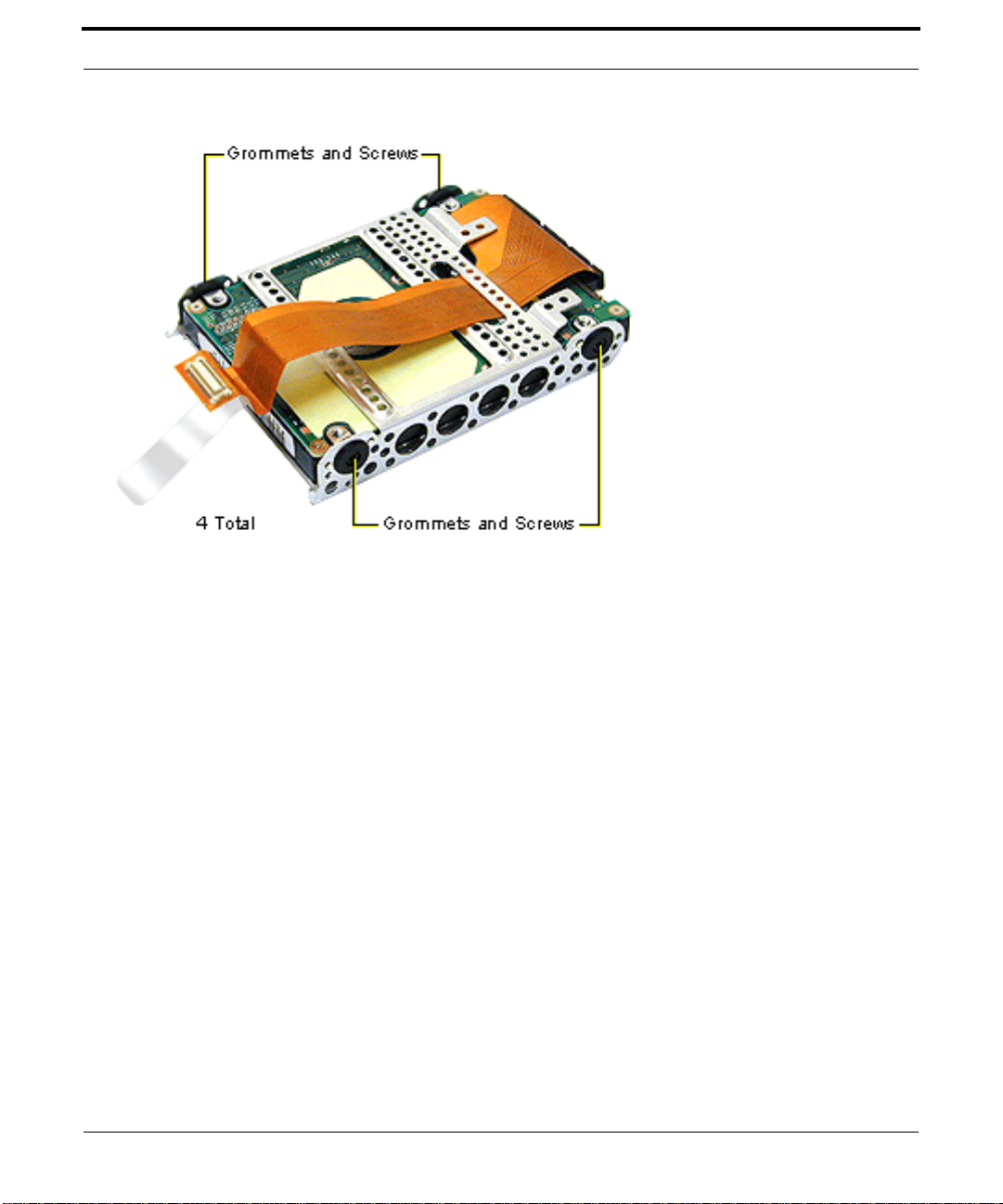

3. Remove the four T-8

screws at each black grommet.

4. Pull the hard drive

away from the bracket and pull the hard drive cable through the slot in the bracket.

5. Loosen both sides of the

hard drive connector with a nylon tool before pulling up on the hard drive cable.

Important:

Bent pins in the hard drive cable may affect the performance of the hard drive.

Hard DriveTake Apart

Hard Drive Replacement

1. Place the hard drive in

the hard drive bracket with the label showing through the open side.

2. Route the hard drive

cable through the slot in the bracket on the component side of the hard drive before replacing the four screws.

Warning:

cable is not keyed. If you troubleshoot or format a hard drive outside the unit, make sure the cable is inserted into the connector on the I/O logic board correctly. Serious damage could result to both the hard drive and the computer if the cable is connected improperly.

The hard drive

PowerBook (FireWire)

Hard DriveTake Apart

3. Slide the hard drive in

the bottom case so that the tabs in the bottom of the bracket fit inside the alignment slots on the bottom case. Take care not to scrape the cable on the top of the stiffener.

PowerBook (FireWire)

Inverter Board

Inverter BoardTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

Important:

bend the inverter board.

1. Lift the front of the

clutch cover up until you can disengage the hooks at the back edge of the cover.

Replacement Note:

the hooks on the top edge of the clutch cover to the corresponding latches, then press the bottom edge of the clutch cover down on both ends until it snaps into place.

Do not flex or

Line up

PowerBook (FireWire)

Inverter BoardTake Apart

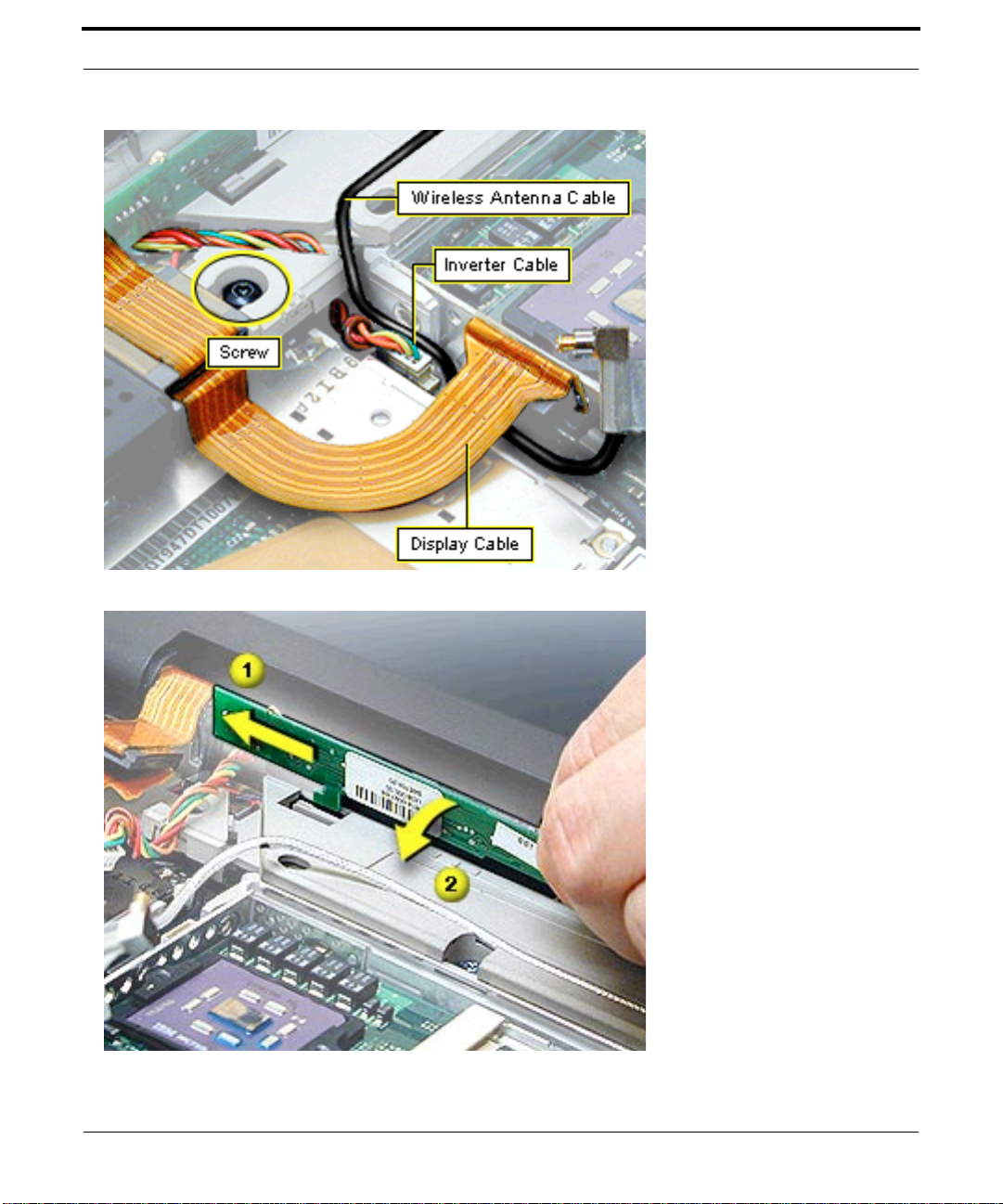

2. Disconnect the display

cable.

3. Remove the T-8 screw

on the display cable to the left of the inverter board.

4. Peel the ferrite bead

attached to the display cable off the top case to allow you to move the cable out of the way.

5. Tilt the inverter board

slightly toward you to disengage the hook on the left end of the board from its holding slot, then lift the board up until the hook is clear of the slot.

PowerBook (FireWire)

6. Slide the inverter

board straight to the left until the hook on the right end of the board clears its holding slot. Do not bend the board.

7. Disconnect the

inverter cable at the I/O logic board and pull it out of its routing.

Inverter BoardTake Apart

8. Deroute the wireless

antenna cable from the top case.

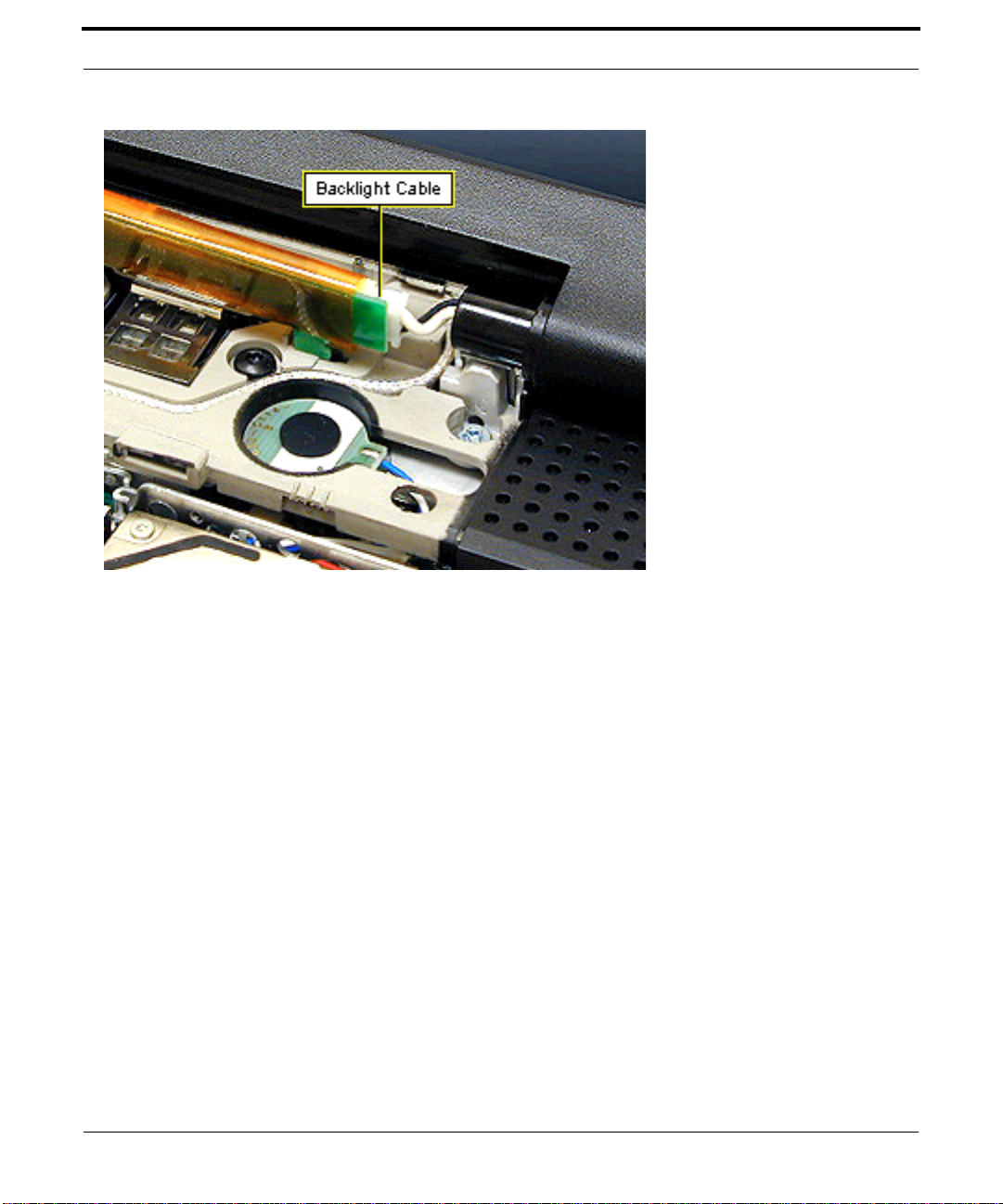

9. Disconnect the

backlight cable on the right side of the inverter board.

Important:

Do not pull on the backlight cable or attempt to pull the cable further out from the display, or you may pinch the wire.

PowerBook (FireWire)

Display Module

Display ModuleTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

• inverter board

PowerBook (FireWire)

1. Disconnect the display

cable from the I/O logic board.

2. Remove the T-8 screw

holding the display cable to the top case.

Display ModuleTake Apart

3. Turn the computer

around and remove the four T-8 screws behind the I/O door.

4. Lift up on the display

to remove it from the base. For quicker reassembly, do not change the position of the clutches.

Important:

The four screws behind the I/O door are slightly longer than other similar screws and could cause dimpling of the plastics if they are used in the wrong location.

PowerBook (FireWire)

Top Case

Top CaseTake Apart

Before you begin, remove the following:

• AC adapter

• expansion bay modules

• keyboard

• microprocessor EMI

shield

• AirPort Card

• microprocessor board

• inverter board

• display module

PowerBook (FireWire)

1. Disconnect the

wireless flex cable from the I/O logic board.

Top CaseTake Apart

2. Remove the three long,

silver T-8 screws under the clutch cover.

3. Remove the black T-8

screw under the clutch cover near the power key.

Replacement Note:

Do not replace the second black T-8 screw on the left at this stage. It is installed when the display module is replaced.

4. Remove the black T-8

screw on the far right of the stiffener near the expansion bay door.

5. Slide the black mylar

EMI shield out from under the palmrest and pull it back

PowerBook (FireWire)

Top CaseTake Apart

6. Disconnect the

trackpad cable from the I/O logic board.

7. Remove the two long

silver T-8 screws on the power supply card.

PowerBook (FireWire)

8. Turn the unit over and

remove the seven T-8 screws on the bottom case.

Replacement Note:

The two long screws go in the outside holes above the expansion bay release levers.

Top CaseTake Apart

9. Locate the tab on the

inside of the top case between the right expansion bay door and the vents.

10.Insert the flat end of a

nylon tool into the open seam and press up against the tab until it pops apart.

PowerBook (FireWire)

Top CaseTake Apart

11.Insert the flat end of a

nylon tool between the metal I/O wall and the top case, then gently press back until the holding tab pops out of its slot.

1 2.Continue separating

the top and bottom cases from the back to the front. Push in on the PC card eject button on the left side if the button pops out.

13.Release the tabs on the

front last.

PowerBook (FireWire)

Top CaseTake Apart

14.Disconnect the speaker

cable from the sound card.

1 5.Disconnect the power

cable from the sound card.

16.Lift the top case off.

PowerBook (FireWire)

Power Supply Card

Power Supply CardTake Apart

Before you begin, remove the top case.

PowerBook (FireWire)

1. Remove the two silver

T-8 screws on the power supply card.

2. Use a black nylon tool

to lift up on the top, left side of the card to release it from its connector.

Replacement Note:

install a power supply card without the black EMI shield attached.

Do not

Stiffener and Modem EMI Filter

Stiffener and Modem EMI FilterTake Apart

Before you begin, remove the following:

• top case

• power supply card

PowerBook (FireWire)

1. Lift the I/O EMI shield

off the I/O ports at the back wall.

Replacement note:

the shield over the metal of the I/O wall before pressing it into place.

2. Remove the two black

T-8 screws near the backup battery and the PCMCIA cardcage.

hook

Stiffener and Modem EMI FilterTake Apart

3. Use a flat-blade nylon

tool to disconnect the RJ-11 cable/phone jack from the modem EMI filter. Do not pull on the cable.

4. Note the routing of the

cable and then lift the stiffener off the I/O logic board.

PowerBook (FireWire)

Stiffener and Modem EMI FilterTake Apart

5. Remove the T-8 screw

from the back of the EMI filter.

6. Lift the filter and its

cable off the stiffener.

Modem EMI Filter Replacement

1. Align the screw hole on

the modem EMI filter to the screw hole in the back left arm of the stiffener. The black EMI shield will extend to the left of the stiffener.

2. Replace the screw on

the back of the stiffener.

3. Make sure the black

cable is not pinched under the stiffener or pinched by a screw when assembling the unit.

PowerBook (FireWire)

Fan

FanTake Apart

Before you begin, remove the following:

• top case

• power supply card

• stiffener

1. Disconnect the fan

from the I/O logic board.

2. Peel the fan off its

frame and lift the fan out.

Replacement Note:

the fan with the cable against the corner of the I/O logic board.

Place

PowerBook (FireWire)

Sound Card

Sound CardTake Apart

Before you begin, remove the following:

• top case

• stiffener Lift up on the left side of

the sound card to release it from its connector. Flex the back wall if the card does not come out easily.

PowerBook (FireWire)

I/O Logic Board

I/O Logic BoardTake Apart

Before you begin, remove the following:

• top case

• power supply card

• stiffener

• sound card

• fan

PowerBook (FireWire)

1. Remove the black T-8

screw from the yoke.

2. Unhook the spring

from the latch and remove it from the yoke.

3. Lift the yoke off the I/O

logic board.

I/O Logic BoardTake Apart

4. Disconnect the fan

cable from the I/O logic board.

5. Remove the T-8 screw

from the front, left corner of the board, next to the fan.

6. Use a 5 mm nut driver

to remove the nut from the back, left corner of the board.

7. Lift up on the front and

side of the I/O logic board and pull forward on the board until it clears the I/O wall at the rear.

PowerBook (FireWire)

Warning: Do not use the

narrow part of the board as a handle. The board could break at this junction.

I/O Logic BoardTake Apart

8. Slide the RJ-11 cable/

phone jack off the back of the I/O logic board.

9. Slide the reset button

off the board.

Replacement Notes: Align

the reset button so the long post is on the bottom and extends to the outer edge of the board. Align the channels on the button to the edges of the board and slide the button onto the board.

Position the RJ-11 cable/ phone jack so the wires extend up the phone jack and over the top. Align the channels to the edges of the board and slide the RJ-11 phone jack on.

PowerBook (FireWire)

I/O Logic BoardTake Apart

PCMCIA Cardcage

Note: The PCMCIA cardcage

consists of two pieces that can come apart. To avoid alignment problems, it is important not to separate the two pieces.

1. Turn the I/O logic

board over and remove the four Phillips screws holding the PCMCIA cardcage on.

Replacement Note: The two

short screws go in the holes near the outside edge of the board.

2. Turn the board right-

side up and use a flatblade nylon tool to separate the cardcage from its connector.

PowerBook (FireWire)

3. Grasp the bottom edges

of the cardcage and pull straight up. Do not pull on the top edges of the cardcage or the cardcage could come apart.

Display (International Only)Take Apart

Display (International Only)

Repairs to the display are handled only by the CPRC in the United States. See the Basics chapter of this manual for information on repair strategy in the U.S. and Canada.

Repair strategy varies in international regions.

Note: The display uses vendor-specific display cables. To identify the manufacturer of the

display panel, remove the microprocessor EMI shield and then disconnect the display cable. The manufacturer’s name is printed on the underside of the cable.

PowerBook (FireWire)

Display Housing

Display HousingTake Apart

Before you begin, follow the procedures to remove the display module from the bottom case.

1. Use an X-Acto knife or

razor blade to pry up the two mylar screw covers at the bottom of the display bezel.

2. Use the pointed end of a

nylon tool to pry the four display bumpers from their recesses.

Note: The adhesive on the

backs of the screw covers and bumpers must be kept clean or they will not adhere properly when reapplied. Use new parts if those you removed are damaged or dirty.

PowerBook (FireWire)

Display HousingTake Apart

3. Remove the two

Phillips screws on the bottom of the bezel.

4. Remove the four

Phillips screws on the top of the bezel.

PowerBook (FireWire)

5. Insert the flat end of a

nylon tool into the seam between the clutches and work it along the seam from side to side to pop open the three tabs

Display HousingTake Apart

6. Work the nylon tool

along the seam on each side of the display clamshell and open the three tabs on each side of the display

PowerBook (FireWire)

Wireless Antenna

Wireless AntennaTake Apart

Before you begin, remove the display housing.

Note: Look at the routing of

the antenna cable before you start to make sure you correctly reroute the cable in reassembly.

PowerBook (FireWire)

1. Remove the black

Phillips screw holding the diversity board to the left clutch.

2. Slide the black clip off

the left clutch. Make a discreet mark on the wireless antenna cable to show how much cable should extend outside the clip in reassembly.

Note:

Wireless AntennaTake Apart

3. Deroute the antenna

cable along the left side of the display.

4. Pull up on the metal

antenna ground at the top left side of the display panel to unstick it from the bezel.

PowerBook (FireWire)

Wireless AntennaTake Apart

5. Remove the two silver

Phillips screws from the antenna ground on the right side of the display panel.

6. Deroute the antenna

cable along the right side of the display panel and lift the wireless antenna assembly off the display.

Replacement Note: Route

the antenna cable under the guides along the bottom edge of the display panel bracket.

PowerBook (FireWire)

Use a nylon tool to tuck the cable into the slot on the right side. The cable will sit on top of the panel as it crosses the corners of the LCD panel.

Display Cable

Display CableTake Apart

Before you begin, remove the following:

• display module

• display housing

Important: Do not press on

the back of the display panel with your hand or any other object. Bright spots in the display could result.

PowerBook (FireWire)

1. Remove and set aside

any kapton tape holding the display cable and microphone cable in place.

2. Disconnect the

microphone cable from the display cable.

3. Disconnect the display

cable from the LCD panel.

Apple powerbook fw Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Basics

Overview

Repair Strategy

Ordering

U.S. Ordering

Canadian Ordering

Warranty/AppleCare Protection Plan

Repair Issues

Do Not Remove Heat Exchanger from Microprocessor Board

Verify Model Before Ordering Parts

New Technologies

FireWir e

AirPort

Features

Drives

Module Compatibility

DVD-ROM Drive

Hard Drive

Memory and Power

Sleep Memory Extension 1.0

RAM Expansion

RAM Compatibility

Battery Compatibility

Battery Level Indicators

Battery Handling Guidelines

Battery Disposal and Recycling

Sound and Video

Sound

Video

Input and Output

Keyboard and Trackpad

FireWire Ports and Target Disk Mode

USB Ports

Ethernet Port

Infrared

Boards and Cards

General

AirPort Card

PCMCIA (PC) Cards

Left Side View

Views

Front V iew

Right Side View

Rear View

Internal Hardware Locator

I/O Logic Board Drawing

Microprocessor Board Drawing

Introduction

Spec Database at Service Source Online

Spec Database on Service Source CD

Troubleshooting

General

Power-On Self Test

AirPort

Reset PRAM

Reset the Power Manager

Block Diagram

Symptom Charts

Start Up

Power

Video

Sound

Hard Drive

PC Card Module (PCMCIA)

DVD-ROM Drive

DVD-Video

Infrared Communication

Modem

USB and FireWire

Miscellaneous

Startup Problems Flowchart

Startup Problems Flowchart (continued)

Take Apart

General

Tools

Cables
