APPLE Mac Pro 2008 User Manual

Congratulations, you and your Mac Pro
were made for each other.
Finder
Browse the contents of your computer using Cover Flow.
www.apple.com/macosx
Mac Help
finder
Back to My Mac
Access files on your Mac at home via the Internet — from anywhere.
www.apple.com/macosx
Mac Help
.mac
Spaces
Arrange windows in different spaces to unclutter your desktop.
www.apple.com/macosx
Mac Help
spaces
Time Machine
www.apple.com/macosx
Mac Help
time machine
iMovie
Collect all your video in one library. Create and share movies in minutes.
www.apple.com/ilife/imovie
iMovie Help movie
iPhoto
Organize all your photos with Events. Publish to a Web Gallery with a click.
www.apple.com/ilife/iphoto
iPhoto Help
GarageBand
Create music by adding musicians to a virtual stage. Enhance your song to sound like a pro.
www.apple.com/ilife/garageband
GarageBand Help
record
iWeb
Create beautiful websites with photos, movies, blogs, podcasts, and dynamic web widgets.
www.apple.com/ilife/iweb
iWeb Help
website

Contents

Chapter 1: Ready, Set Up, Go
11
Setting Up Your Mac Pro
19
Putting Your Mac Pro to Sleep or Shutting It Down
Chapter 2: Life with Your Mac Pro
24
Basic Features on the Front of Your Mac Pro
26
Features of Your Apple Keyboard
28
Ports and Connectors on the Back of Your Mac Pro
30
More Ports and Connectors on the Back
32

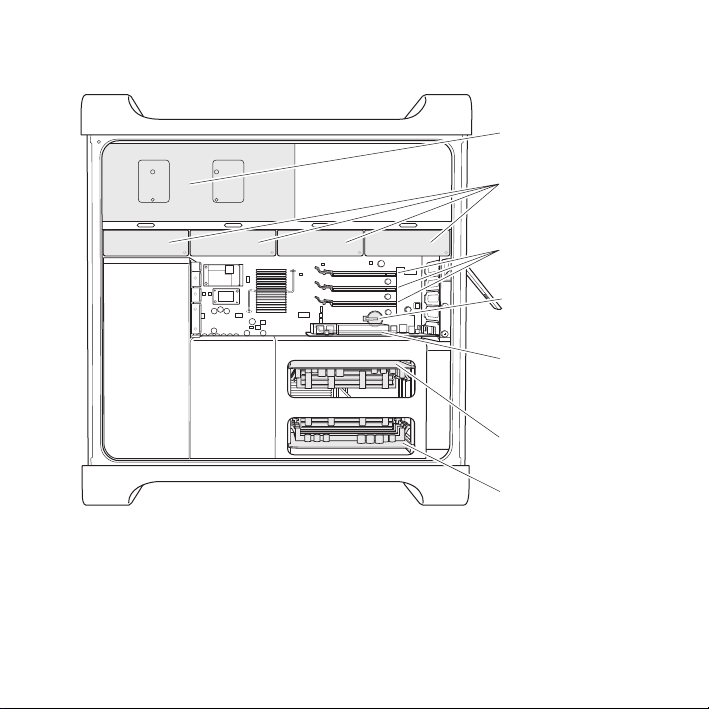

Internal Expansion Options
34
Getting Answers
Chapter 3: Making a Good Thing Better
39
Opening the Mac Pro
43
Installing Memory
51
Installing Internal Storage Devices
60
Adding PCI Express Cards
64
Replacing the Internal Backup Battery
Contents
5
Chapter 4: Problem, Meet Solution
68
Problems with Your Mac Pro
70
Problems with Software
71
Keeping Your Software Up to Date
72
Problems with AirPort Wireless Communication
72
Problems with Your Display
75
Problems with Your Internet Connection
78
Using Apple Hardware Test
79
Reinstalling the Software That Came with Your Computer
80
Maximizing Ethernet Performance
81
Learning More, Service, and Support
83
Locating Your Serial Number
Chapter 5: What’s Under the Hood
86
Specifications
Chapter 6: Last, but Not Least
96
Important Safety Information
97
General Maintenance
10 0
Understanding Ergonomics
10 2
Avoid Hearing Damage
10 2
Apple and the Environment
10 3
Regulatory Compliance Information
6
Contents
Looking for Something?
110
Index
Contents
7
1

Ready, Set Up, Go

www.apple.com/macpro
Mac Help Migration Assistant
1
Your Mac Pro features the latest computer technology, including advanced 64-bit multicore processor technology, high-speed FB-DIMM memory, PCI Express graphics and expansion slots, and internal storage, all in an anodized aluminum chassis with easy access to internal components.
Important:
Read all the installation instructions (and the safety information starting on
page 95) carefully before you first use your Mac Pro.
Before you begin, remove any protective film from the outside of your Mac Pro and from the inside of the side panel. For information about opening the side panel, see “Opening the Mac Pro” on page 39.
Make sure you look over the information in Chapter 2, “Life with Your Mac Pro,” to find out about the new features of this Mac Pro.
Many answers to questions can be found on your Mac Pro in Mac Help. For information about Mac Help, see “Getting Answers” on page 34.
Apple may release new versions and updates to its system software, so the images shown in this book may be slightly different from what you see onscreen.
10 Chapter 1
Ready, Set Up, Go

Setting Up Your Mac Pro

Your Mac Pro is designed so that you can set it up quickly and start using it right away. Follow the steps on the next few pages to get started.
Step 1: Position your Mac Pro and display
Pick up your Mac Pro by both of its handles using correct lifting techniques. If your display is heavy, use correct lifting techniques when positioning it as well. Position your Mac Pro and display so that:
Â
They are each on a sturdy, flat surface
Â
The power cable connectors don’t press against a wall or other object
Â
The airflow in front of, behind, and below your Mac Pro and the display is not obstructed
Â
The computer’s optical drive trays have space to open in front
The only way to shut off power completely to your Mac Pro and display is to disconnect their power plugs from the power source. Make sure the power cords for your Mac Pro and display are within easy reach so that you can unplug them.
Chapter 1
Ready, Set Up, Go
11
Step 2: Plug in the power cord
Plug the power cord completely into the recessed power cord socket on the back of your Mac Pro and plug the other end into a grounded outlet or a grounded power strip.
Power cord socket
Power cord plug
12 Chapter 1
Ready, Set Up, Go
Step 3: Connect the display
Connect your display as shown in the illustration below. Depending on the display, you may have one or more cables to connect. Check the instructions that came with the display for additional setup information.
Display ports
USB port
FireWire 400 port
Display cable
You can connect two displays with Digital Visual Interface (DVI) connectors to the display ports on the back of your Mac Pro.
Chapter 1
Ready, Set Up, Go
13
You can connect an Apple Cinema Display to either port.
DVI display port
DVI to VGA
DVI display ports
Display Adapter
VGA connector on display cable
You can also connect displays that have an Apple Display Connector (ADC) or a video graphics array (VGA) connector using one of the following adapters:
Â
To connect a VGA display, use the Apple DVI to VGA Display Adapter included with your Mac Pro to connect the display to the DVI port.
Â
To connect an ADC display, use an Apple DVI to ADC Display Adapter, not included, to connect the display to the DVI port.
To purchase an Apple DVI to ADC Display Adapter, contact an Apple Authorized Reseller, visit an Apple Store retail location, or go online to the Apple Store at www.apple.com/store.
14 Chapter 1
Ready, Set Up, Go
Step 4: Connect an Ethernet cable
To access the Internet or a network, connect one end of an Ethernet cable to either of the gigabit Ethernet ports on the back of your Mac Pro. Connect the other end to a DSL modem, cable modem, or Ethernet network.
Gigabit Ethernet ports
Chapter 1
Ready, Set Up, Go
15
Step 5: Connect the keyboard and mouse
Connect the keyboard cable to one of the USB (d
) ports on your Mac Pro or on the
display. Plug the Mighty Mouse cable into a USB port on the keyboard.
Plug the mouse into a USB port on the keyboard
MouseKeyboard
16 Chapter 1
Ready, Set Up, Go
If the keyboard cable isn’t long enough, use the keyboard extension cable that came with your Mac Pro.
Apple keyboard extension cable
Using a Wireless Keyboard and Mouse
If you purchased an Apple Wireless Keyboard and Mouse with your Mac Pro, follow the instructions that came with the keyboard and mouse to set them up.
Step 6: Turn on your Mac Pro
Press the power (®
) button on the front of your Mac Pro to turn it on. If your display
must be turned on separately, turn it on by pressing its power button.
Step 7: Use Setup Assistant
The first time you turn on your Mac Pro, Setup Assistant starts. Setup Assistant helps you enter your Internet and email information and set up a user account on your Mac Pro. If you already have a Mac, Setup Assistant can help you automatically transfer files, applications, and other information from your previous Mac to your new Mac Pro.
Step 8: Customize Your Desktop and Set Your Preferences
You can quickly make your desktop look the way you want using System Preferences. Choose Apple (
) > System Preferences from the menu bar. As you get to know your Mac Pro, explore System Preferences—it’s your command center for most computer and display settings. For more information, open Mac Help and search for “System Preferences” or for the specific preference you want to change.
Chapter 1
Ready, Set Up, Go
17

Need Help Setting Up?

If you don’t see anything on your screen or you think your Mac Pro didn’t start up properly, check the following:
Â
Is your Mac Pro plugged into a power source? If it’s plugged into a power strip, is the power strip turned on?
Â
Is the power cord securely plugged into the back of your Mac Pro?
Â
Are the keyboard and display cables connected correctly?
Â
Is the display turned on? Are the brightness and contrast of the display adjusted correctly? If the display has brightness controls, adjust them.
Â
If you still don’t see anything on your screen, restart your Mac Pro. Press and hold the power (® power (®
Â
If you see a blinking question mark on the screen or a series of flashes from the status light, see Chapter 4, “Problem, Meet Solution,” on page 67.
18 Chapter 1
) button on your Mac Pro for 5 or 6 seconds, until it turns off. Press the ) button again to restart.
Ready, Set Up, Go

Putting Your Mac Pro to Sleep or Shutting It Down

When you finish working, you can put your Mac Pro to sleep or shut it down.

Putting Your Mac Pro to Sleep

If you will be away from your Mac Pro for only a short time, put it to sleep. When your Mac Pro is in sleep, the display’s screen is dark. You can quickly wake your Mac Pro from sleep and bypass the startup process.
To put your Mac Pro to sleep, do one of the following:
Â
Choose Apple (
Â
Press the power (® dialogue box that appears.
Â
Choose Apple (
To wake your Mac Pro from sleep, do one of the following:
Â
Press any key on the keyboard.
Â
Click the mouse.
Â
Press the power (®
) > Sleep.
) button on the front of your Mac Pro and click Sleep in the
) > System Preferences, click Energy Saver, and set a sleep timer.
) button on the front of your Mac Pro.
Chapter 1
Ready, Set Up, Go
19

Shutting Down Your Mac Pro

If you will not be using your Mac Pro for a day or more, you should turn it off.
To turn off your Mac Pro, do one of the following:
Â
Choose Apple (
Â
Press the power (® dialogue box that appears.
NOTICE:
Do not turn off your Mac Pro by turning off the switch on a power strip or by pulling out your Mac Pro’s power plug (unless you can’t turn off your Mac Pro any other way). Your files or system software could be damaged if your Mac Pro is not shut down properly.
NOTICE:
Shut down your Mac Pro before moving it. Moving your computer while the hard disk is spinning can damage the hard disk, causing loss of data or the inability to start up from the hard disk.
20 Chapter 1
) > Shut Down.
) button on the front of your Mac Pro and click Shut Down in the
Ready, Set Up, Go
2

Life with Your Mac Pro

www.apple.com/macpro
Mac Help ports
2
Read on for an overview of the features and ports of your Mac Pro.
The Apple website at www.apple.com links you to the latest Apple news, free downloads, and online catalogs of software and hardware for your Mac Pro.
You can also find the manuals for many Apple products, and technical support for all of Apple’s products, on the Apple Support website at www.apple.com/support.
Chapter 2
Life with Your Mac Pro
23

Basic Features on the Front of Your Mac Pro

Optical drive
Second optical drive
®
Power button
FireWire 800 port
24 Chapter 2
(optional)
Life with Your Mac Pro
Status light
f
Headphone jack
USB 2.0 ports (2)
FireWire 400 port
Optical drive
Your Mac Pro has a DVD+R DL/DVD±RW/CD-RW SuperDrive, which can read CD-ROM, photo CD, audio, and DVD discs. It can write music, documents, and other files to CD-R, CD-RW, DVD±R, DVD±RW, and DVD+R Double Layer (DL) discs. To open the drive, press the Media Eject ( drive, press the Option and Media Eject (
Power button
®
Press this button to turn on your Mac Pro, put it to sleep, or wake it from sleep. To restart, press and hold this button for 5 or 6 seconds until your Mac Pro turns off, and, then press it again to turn it on.
FireWire 400 and 800 ports
H
Connect your Mac Pro to FireWire digital video (DV) cameras, scanners, and external hard disk drives. Connect and disconnect FireWire devices without restarting. The FireWire 400 port supports data rates up to 400 megabits per second (Mbit/s). The FireWire 800 port supports data rates up to 800 Mbit/s.
USB 2.0 ports
d
Connect your Mac Pro to USB keyboards, mice, printers, scanners, iPods, speakers, microphones, and hubs. Your display may also have USB ports.
Headphone jack
f
Connect headphones to your Mac Pro through the headphone minijack.
Status light
A white light indicates your Mac Pro is on; a pulsing light indicates it’s in sleep.
C) key on your Apple Keyboard. If your Mac Pro has a second optical
C) keys to open it.
Chapter 2 Life with Your Mac Pro 25

Features of Your Apple Keyboard

Escape
Decrease brightness
Increase brightness
Exposé
Dashboard
Fast Forward
Mute
Volume Down
Volume Up
Media Eject
Caps Lock
26 Chapter 2 Life with Your Mac Pro
Function
Play/Pause
Rewind
USB port
(both sides)
Escape (esc) key
Press the Escape (esc) and Command ( Press the Escape (esc) key to exit Front Row.
Brightness keys (F1, F2)
Increase ( ) or decrease ( ) the brightness of your Apple display.
Exposé All Windows key (F3)
Open Exposé for quick access to all your open windows.
Dashboard key (F4)
Open Dashboard to access your widgets.
Mute key (F10)
Mute the sound coming from the built-in speakers and headphone port.
Volume keys (F11, F12)
-
Decrease (
) or increase (-) the volume of sound coming from the speakers or
headphone port on your Mac Pro.
Media Eject key
C
Press and hold the Media Eject (
Function (fn) key
Hold down to activate customized actions assigned to the function keys (F1 to F19). To learn about customizing function keys, choose Help > Mac Help from the menu bar and search for “function keys.”
Media keys (F7, F8, F9)
Fast-forward (
Caps Lock key
Press the Caps Lock key to engage caps lock so you can type capital letters.
Two USB 2.0 ports
d
Connect a mouse and sync your iPhone, iPod, or digital camera.
), play or pause (), or rewind (]) a song, movie, or slideshow.
x) keys simultaneously to open Front Row.
C) key to remove a disc.
Chapter 2 Life with Your Mac Pro 27

Ports and Connectors on the Back of Your Mac Pro

Power socket
¥
Locking latch
d
USB 2.0 ports (3)
H
FireWire 400 port
H
FireWire 800 port
Gigabit Ethernet
G
28 Chapter 2 Life with Your Mac Pro
ports (2)
Power socket
Connect the power cord that came with your Mac Pro. Don’t use ordinary power or extension cords.

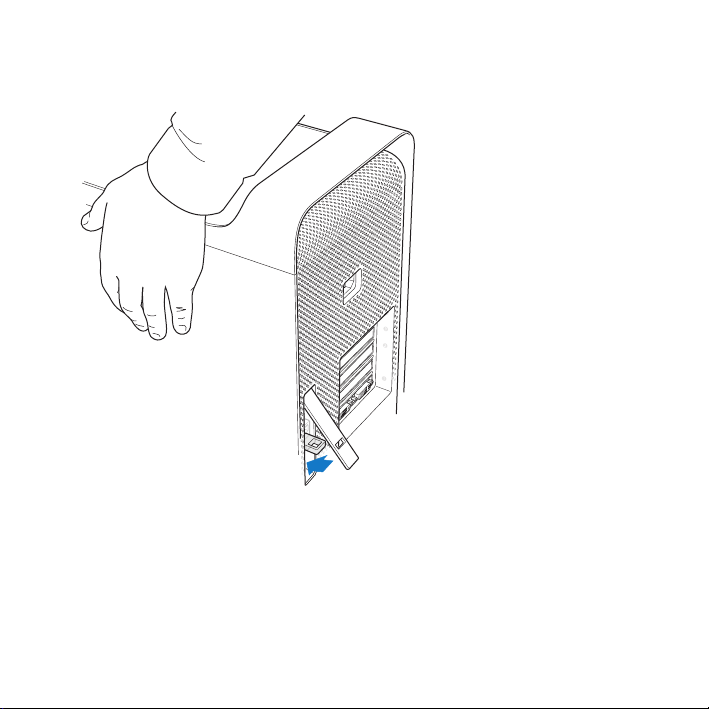

Locking latch
¥
Lift the latch to open the side panel and access the internal components in your Mac Pro. If you are working inside your Mac Pro and the latch is down, the optical and hard drives are locked in place. You can attach a security lock to the latch to prevent access and secure the internal components. You can also attach a security cable to the latch or through the handles and feet to protect your Mac Pro.
USB 2.0 ports
d
Connect your Mac Pro to USB devices, such as keyboards, mice, printers, scanners, speakers, USB microphones, and USB hubs. Your display may also have USB ports.
FireWire 400 and 800 ports
H
The FireWire 400 port supports data rates up to 400 Mbit/s. The FireWire 800 port supports data rates up to 800 Mbit/s.
Dual Gigabit Ethernet ports with jumbo frame support
G
Connect your Mac Pro to a high-speed Ethernet network to access the Internet or network resources such as printers and servers, and share information over the network using a CAT 5e cable.
Chapter 2 Life with Your Mac Pro 29

More Ports and Connectors on the Back

PCI Express
expansion slots
DVI display port 1
£
DVI display port 2
£
Optical digital
audio out port
Optical digital
audio in port
,
Audio line-in port
Audio line-out port
-
30 Chapter 2 Life with Your Mac Pro
PCI Express expansion slots (3)
Expand your Mac Pro by installing up to three Peripheral Component Interconnect (PCI) Express cards in the covered slots labeled 2, 3, and 4.
DVI display ports
£
Connect displays that use a Digital Visual Interface (DVI) connector to the DVI display ports. Connect an Apple display, such as the 20-, 23-, or 30-inch Apple Cinema Display, to either port. You can also connect displays that use a video graphics array (VGA) connector using the Apple DVI to VGA Display Adapter that came with your Mac Pro.
Optical digital audio in and audio out ports
Connect to decks, receivers, digital instruments, and 5.1 surround-sound speaker systems using standard TOSLINK cables or fiber-optic cables with a 3.5 mm plastic or nylon optical plug. You can transfer stereo or encoded 5.1 audio using the S/PDIF (Sony/Philips Digital Interface) protocol and TOSLINK cables.
Analog audio line-in port
,
Connect self-powered microphones, MP3 and CD players, and other devices with analog capability.
Analog audio line-out port
-
Connect self-powered analog speakers and other devices with analog capability.
Chapter 2 Life with Your Mac Pro 31

Internal Expansion Options

32 Chapter 2 Life with Your Mac Pro
Optical drive carrier
Hard disk drive carriers (4)
Slots 2–4: PCI Express
Battery
Slot 1: Double-wide PCI Express graphics
(graphics card installed)
Top memory card
Bottom memory card
Optical drives
Your Mac Pro comes with one or two DVD+R DL/DVD±RW/CD-RW SuperDrives in the optical drive carrier. To replace an optical drive, see “Replacing the Optical Drive” on page 55.
Hard disk drive
Your Mac Pro comes with up to four hard disk drives installed in the drive carriers. To install or replace the hard disk drives, see “Installing Internal Storage Devices” on page 51.
PCI Express slots
Your Mac Pro has three PCI Express expansion slots. To install PCI cards in slots 2 through 4 to expand the capabilities of your Mac Pro, see “Adding PCI Express Cards” on page 60.
Battery
Your Mac Pro uses an internal backup battery. If your Mac Pro has trouble starting up, or if the system date and time are frequently incorrect, you may need to replace the battery. See “Replacing the Internal Backup Battery” on page 64.
Double-wide PCI Express graphics slot
Connect up to two displays to the graphics card in the PCI Express graphics slot (slot 1). You can replace the card in this slot and install additional graphics cards in PCI slots 2 through 4. See “Adding PCI Express Cards” on page 60.
Memory cards
Your Mac Pro has two memory cards. Each card holds up to four FB-DIMMs, for a total of eight DIMMs. To add more memory, install 800 MHz FB-DIMMs in matched pairs on the memory cards. See “Installing Memory” on page 43 for information about the specific type of memory used in Mac Pro.
Chapter 2 Life with Your Mac Pro 33

Getting Answers

Much more information about using your Mac Pro is available in Mac Help and on the Internet at www.apple.com/support/macpro.
To open Mac Help:
1 Click the Finder icon in the Dock (the bar of icons along the edge of the screen).
2 Click the Help menu in the menu bar and type a question or term in the Search field.
3 Choose a topic from the list or choose Show All Results to see all of the topics.

More Information

For more information about using your Mac Pro, see the following:
To learn about See
Installing additional drives, memory, expansion cards, or changing the battery
Troubleshooting your Mac Pro if you have a problem
Finding service and support for your Mac Pro
Using Mac OS X The Mac OS X website at www.apple.com/macosx. Or search
Moving from a PC to a Mac “How to move to Mac” at www.apple.com/getamac/movetomac.
Using iLife applications The iLife website at www.apple.com/ilife. Or open an iLife
34 Chapter 2 Life with Your Mac Pro
Chapter 3, “Making a Good Thing Better,” on page 37.
Chapter 4, “Problem, Meet Solution,” on page 67.
“Learning More, Service, and Support” on page 81. Or the Mac Pro Support website at www.apple.com/support/macpro.
for “Mac OS X” in Mac Help.
application, open Mac Help, and then type a question in the search field.
To learn about See
Changing System Preferences Open System Preferences by choosing Apple (
K) > System
Preferences. Or search for “system preferences” in Mac Help.
Using your mouse or keyboard Open System Preferences and choose the Keyboard & Mouse
preference. Or open Mac Help and search for “mouse” or “keyboard.”
Using AirPort Extreme wireless technology
Using Bluetooth
®
wireless
technology
The AirPort Support page at www.apple.com/support/airport. Or open Mac Help and search for “AirPort.”
The Bluetooth Support page at www.apple.com/support/ bluetooth. Or open the Bluetooth File Exchange application, located in the Utilities folder within the Applications folder, and choose Help > Bluetooth Help.
Connecting a printer Search for “printing” in Mac Help.
FireWire and USB connections Search for “FireWire” or “USB” in Mac Help.
Connecting to the Internet Search for “Internet” in Mac Help.
Connecting an external display Search for “display port” in Mac Help.
Using Front Row Search for “Front Row” in Mac Help.
Burning a CD or DVD Search for “burn disc” in Mac Help.
Mac Pro specifications Chapter 5, “What’s Under the Hood,” on page 85. Or the Mac Pro
specifications page at www.apple.com/macpro/specs.html. Or open System Profiler by choosing Apple (
K) > About This Mac
from the menu bar, and then clicking More Info.
Chapter 2 Life with Your Mac Pro 35
3

3 Making a Good Thing Better

www.apple.com/store
Mac Help RAM
Use the information in this chapter to customize and expand your Mac Pro to fit your needs. You can find information about important procedures in the following sections:
 “Opening the Mac Pro” on page 39  “Installing Memory” on page 43  “Installing Internal Storage Devices” on page 51  “Adding PCI Express Cards” on page 60  “Replacing the Internal Backup Battery” on page 64
NOTICE: Apple recommends that you have an Apple-certified technician install
memory, PCI Express cards, and internal storage devices. To contact an Apple Authorized Service Provider or Apple for service, see “Learning More, Service, and Support” on page 81. If you install these items yourself, you risk damaging your equipment, and such damage is not covered by the limited warranty on your computer. See an Apple Authorized Reseller or Apple Authorized Service Provider for additional information about this or any other warranty question.
38 Chapter 3 Making a Good Thing Better

Opening the Mac Pro

1 Before you open your Mac Pro, shut it down by choosing Apple () > Shut Down.
NOTICE: Always shut down your Mac Pro before opening it to avoid damaging its
internal components or the components you want to install. Do not open your Mac Pro or attempt to install items inside it while it is on.
2 Wait 5 to 10 minutes to allow the internal components of your Mac Pro to cool.
WARNING: Let your Mac Pro cool down before you touch the internal components,
·
which may be very hot.
Chapter 3 Making a Good Thing Better 39
3 Touch the metal on the outside of your Mac Pro to discharge any static electricity.
Important: Always discharge static before you touch parts or install components inside
your Mac Pro. To avoid generating static, do not walk around the room until you finish installing the cards, memory, or internal storage device and replace the side panel.
Touch the metal case to discharge static.
40 Chapter 3 Making a Good Thing Better
4 Unplug all the cables and the power cord from your Mac Pro.
NOTICE: To avoid damaging internal components or the components you want
to install, always unplug your Mac Pro. Don’t attempt to install items while it’s plugged in.
5 Hold the side panel and lift the latch on the back.
Chapter 3 Making a Good Thing Better 41
6 Remove the side panel by pulling the top away from your Mac Pro and lifting up.
Important: When you remove the side panel, hold it securely.
42 Chapter 3 Making a Good Thing Better

Installing Memory

Your Mac Pro has two memory cards with four memory slots on each card (in four banks of two each). Your Mac Pro comes with a minimum of 2 GB of memory, installed as a pair of 1 GB fully buffered dual inline memory modules (FB-DIMMs) in two of the DIMM slots. You can install additional pairs of 1 GB, 2 GB, or 4 GB FB-DIMMs in the open DIMM slots on the memory cards, for a total of 32 GB of memory.
DIMMs must be installed in matched pairs and fit these specifications:
 800 MHz, DDR2, FB-DIMMs  72-bit wide, 240-pin modules  36 memory ICs maximum per DIMM  Error-correcting code (ECC)
Important: Apple recommends that you use Apple-approved FB-DIMMs. Other
FB-DIMMs may cause your Mac Pro to operate louder or decrease performance to conserve heat. DIMMs from older Mac computers cannot be used in your Mac Pro.
Note: When purchasing DIMMs for use in Mac computers, make sure that the memory vendor conforms to the Joint Electron Device Engineering Council (JEDEC) specification. Check with your memory vendor to ensure that the DIMMs support the correct timing modes and that the Serial Presence Detect (SPD) feature has been programmed properly, as described in the JEDEC specification. To check the compatibility of your DIMMs, see the Macintosh Products Guide on Apple’s website at www.apple.com/guide. You can purchase Apple-branded memory online from the Apple Store at www.apple.com/store.
Chapter 3 Making a Good Thing Better 43
It’s important to install FB-DIMMs in matched pairs of equal size and equal specification. Use the table below and the instructions that follow as guidelines for DIMM placement.
If you have Install
Two DIMMs (standard configuration)
Four DIMMs One pair on the top memory card and one pair on the
Six DIMMs Two pairs on the top memory card and one pair on the
Eight DIMMs Two pairs on the top memory card and two pairs on the
One on the top memory card and one on the bottom card
bottom card
bottom card
bottom card
To install memory:
1 Shut down your Mac Pro, open it, and remove the side panel, following the instructions
on page 39.
WARNING: Let your Mac Pro cool down for 5 to 10 minutes before you touch the
·
internal components. The components on the memory cards may be very hot.
44 Chapter 3 Making a Good Thing Better
2 Using the two finger holes, pull on the memory cards to remove them, and then place
them on a soft, clean cloth with the DIMMs facing up.
Chapter 3 Making a Good Thing Better 45
3 On the bottom memory card, open the ejectors on the DIMM slot and push them out
to the sides, and then remove the DIMM from slot 1.
Important: When installing or removing DIMMs, don’t touch the gold connectors on
the DIMMs or the memory cards.
4 Reinstall the DIMM you removed on the top memory card by aligning it in DIMM slot 2,
as shown in the illustration, and pushing both ends of the DIMM down until the tabs are vertical and the ejectors snap into place.
5 Install the first pair of additional DIMMs on the bottom memory card in DIMM slots 1
and 2, the slots closest to the card’s gold connectors.
Important: Always install DIMMs as matched pairs and in the order shown here.
Move one DIMM
1a
from bottom card to top card
Top memory card
Bottom memory card
46 Chapter 3 Making a Good Thing Better
First pair of
1b
additional DIMMs
6 If you add a second pair of additional DIMMs, install them on the top memory card in
DIMM slots 3 and 4, the last two slots.
Third pair of additional DIMMs
Top memory card
Bottom memory card
Second pair of
2 3
additional DIMMs
7 If you add a third pair of additional DIMMs, install them on the bottom memory card in
DIMM slots 3 and 4.
Chapter 3 Making a Good Thing Better 47

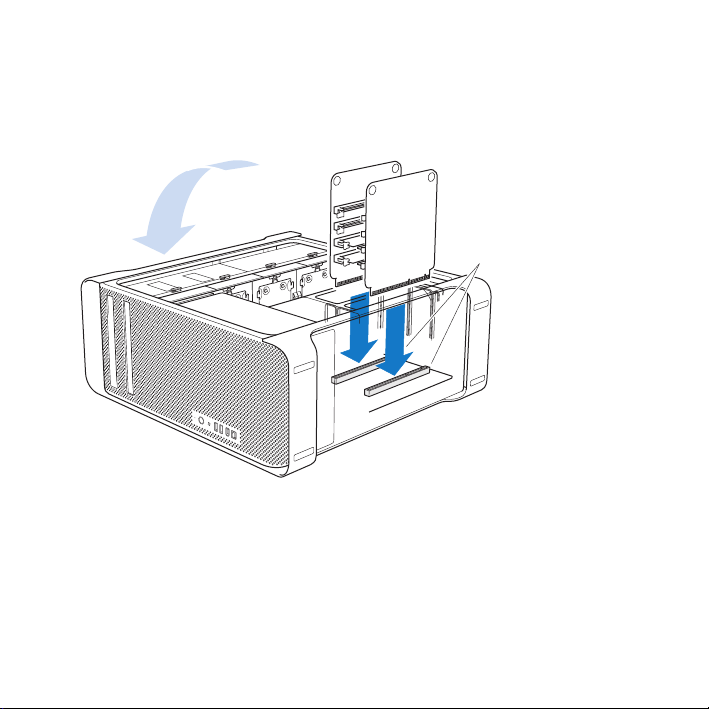

8 Lay your Mac Pro down on a soft, clean cloth on the desk or work surface to avoid
scratching the work surface or your Mac Pro.
9 Reinstall each memory card, pushing it straight down until it’s seated in the
memory slot.
Memory slots
48 Chapter 3 Making a Good Thing Better
10 Stand your Mac Pro up and replace the side panel.
Important: When you replace the side panel, make sure the latch is up. Hold the side
panel securely so it stays in place as you push the latch down.
Place the side panel in the slot and then push to close.
Chapter 3 Making a Good Thing Better 49

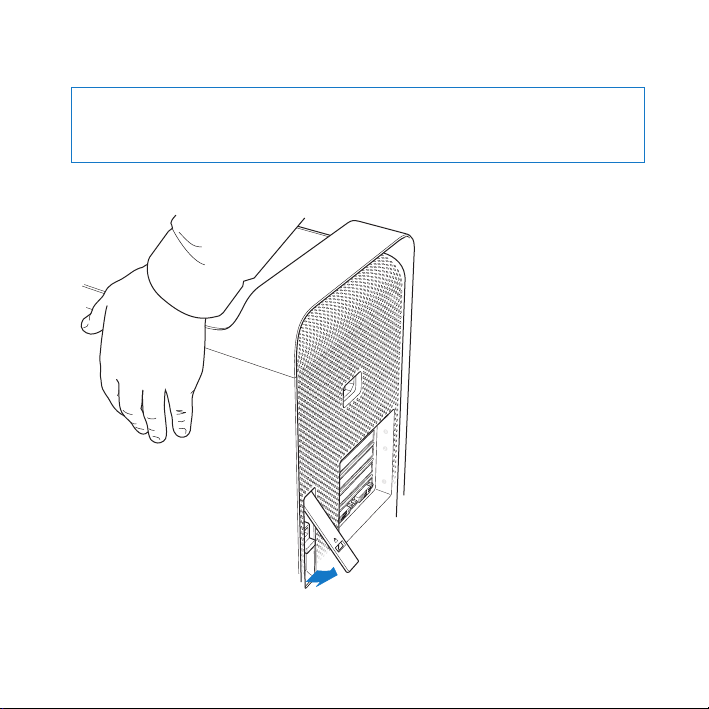

11 Hold the side panel against your Mac Pro and push the latch down to secure the side
panel.
12 You can attach a lock or cable through the metal loop to secure your Mac Pro. Flip the
lock tab down before you close the latch.
50 Chapter 3 Making a Good Thing Better

Installing Internal Storage Devices

Your Mac Pro has room for six internal drives: two optical drives and four hard disk drives. In most configurations, a single hard disk drive occupies the first hard drive bay and an optical drive is located in the top optical drive bay.
You can add up to three additional Serial ATA (SATA) hard disk drives to the empty hard drive bays or up to four Serial Attached SCSI (SAS) drives. The drives must meet these specifications:
 Type: SAS or SATA 3 Gb/s  Width: 3.9 inches (102 mm)  Depth: 5.7 inches (147 mm)  Height: 1.0 inch
Important: To install SAS drives in your Mac Pro, you must also install the optional
Mac Pro RAID Card.
For more information about requirements or devices supported, visit an Apple Authorized Reseller, the Apple Store at www.apple.com/store, or the Mac Pro Support site at www.apple.com/support/macpro.

Installing SAS or SATA 3 Gb/s Hard Disk Drives

Your Mac Pro can accommodate up to four internal 1-inch-high SATA or SAS 3 Gb/s hard disk drives in the hard drive bays. If your Mac Pro comes with a single drive installed, it’s in the first bay. You can install drives in the second, third, and fourth hard drive bays.
Chapter 3 Making a Good Thing Better 51
To install a hard disk drive:
1 Open your Mac Pro and remove the side panel following the instructions that
begin on page 39.
2 Lift the latch to unlock the hard drive carriers.
Important: When the latch is down, the carriers are locked in the drive bays
and can’t be removed.
3 Pull the hard drive carrier out of the drive bay.
52 Chapter 3 Making a Good Thing Better
Hard drive carrier
4 Position the carrier over the hard disk drive with the connectors at the rear.
5 Use the four screws on the carrier to attach the hard disk drive to the carrier.
Important: If the printed circuit board is exposed on the bottom of the hard disk drive,
hold the drive by its sides. To avoid damaging the drive, don’t touch the printed circuit board.
Connectors
Chapter 3 Making a Good Thing Better 53

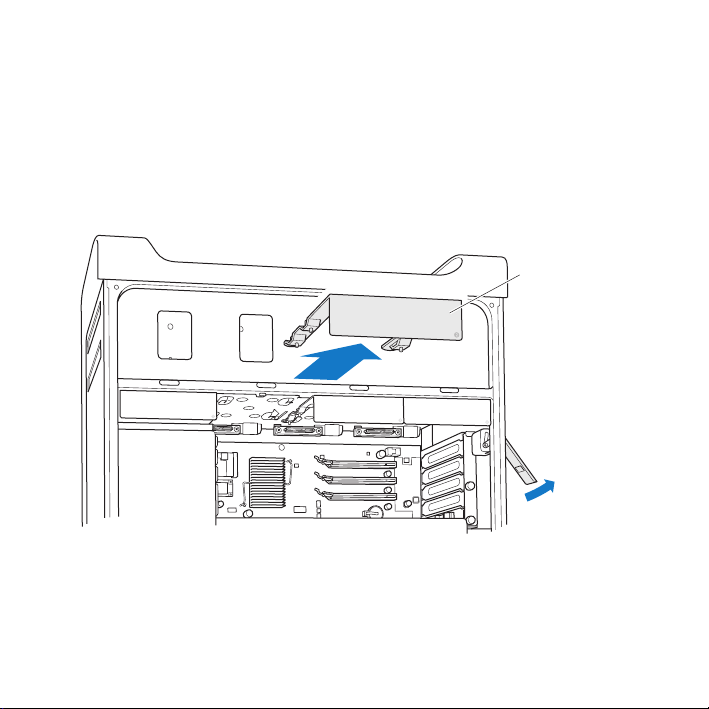

6 Lift the latch and slide the carrier over the guides and into the drive bay, until it’s
seated in the bay and snaps into the hard drive connectors.
Hard drive connectors
7 Replace the side panel and push the latch down to secure it.
54 Chapter 3 Making a Good Thing Better

Replacing the Optical Drive

Your Mac Pro comes with one or two SuperDrives installed in the optical drive bays. Follow these instructions to replace your optical drive.
Important: Contact your drive manufacturer or consult the manufacturer’s website to
determine if your drive is set to cable select mode. Before installation, set the drive to cable select mode if the manufacturer hasn’t already done so.
To replace the optical drive:
1 Open your Mac Pro and remove the side panel following the instructions on page 39.
2 Lift the latch to unlock the optical drive carriers.
Important: When the latch is down, the drives and carriers are locked in the drive bays
and can’t be removed.
3 Pull the optical drive carrier halfway out of the optical drive bay.
Chapter 3 Making a Good Thing Better 55
4 Disconnect the power and ribbon cables from the optical drive and remove the carrier.
Important: When you install or replace the optical drives, use the original Apple cables
that came with your Mac Pro.
56 Chapter 3 Making a Good Thing Better
5 Remove the optical drive from the carrier by unscrewing the four attachment screws.
6 Use the four screws from the original optical drive to attach the replacement drive to
the carrier.
Chapter 3 Making a Good Thing Better 57
7 Slide the optical drive and carrier over the guides halfway into the drive bay,
8 Attach the power and ribbon cables to the back of the drive.
58 Chapter 3 Making a Good Thing Better
Power cable middle connector
Ribbon cable end connector
9 Lift the latch and then slide the optical drive carrier into the drive bay, pushing it
into place.
10 Replace the side panel and push the latch down to secure it.
Chapter 3 Making a Good Thing Better 59

Adding PCI Express Cards

You can expand the capabilities of your Mac Pro by installing cards in the Peripheral Component Interconnect (PCI) Express slots. Your Mac Pro has one double-wide PCI Express graphics slot and three PCI Express expansion slots, for a total of four slots. These slots accommodate PCI Express graphics cards and expansion cards.

About PCI Express Cards

Your Mac Pro comes with a high-performance PCI Express graphics card, which contains the graphics processor unit (GPU) and provides the computer’s display ports. The graphics card is installed in slot 1.
You can install additional PCI Express graphics and expansion cards. Before installing a card, refer to the table below and check its specifications to make sure it can operate in your Mac Pro.
Slot Typ e Bandwidth
4 PCI Express 1.1 4-lane
3 PCI Express 1.1 4-lane
2 PCI Express 2.0 16-lane
1 (double-wide) PCI Express 2.0 16-lane
Important: Combined maximum power consumption for all four PCI Express slots must
not exceed 300 watts (W).
60 Chapter 3 Making a Good Thing Better
To install a PCI Express card:
1 Open your Mac Pro and remove the side panel (see page 39).
WARNING: To avoid damaging internal components or the components you want to
·
install, always turn off and then unplug your Mac Pro. Do not attempt to install items while it is plugged in. Let your Mac Pro cool down for 5 to 10 minutes before you touch the internal components, which may be very hot.
2 Lay your Mac Pro down on a soft, clean cloth to avoid scratching it or the work surface.
3 Unscrew the captive screws in the PCI bracket and remove the bracket.
Chapter 3 Making a Good Thing Better 61
4 Remove the port access cover from the slot in which you plan to install the card.
PCI bracket
Port access cover
Tab
5 Remove your new card from its static-proof bag and hold it by its corners. Don’t touch
the gold connector or the components on the card.
62 Chapter 3 Making a Good Thing Better
6 Align the card’s connector with the expansion slot and press the card into the slot.
Did You Know?—Installing a Full-Length PCI Card
It may be easier to install a PCI card if you remove the hard disk drives and carriers, and remove adjacent cards. Make sure the end of the card goes in the appropriate card guide before aligning the card with the PCI slot and completing the installation.
PCI bracket
Brace
Port access opening
PCI Express slot
Card guides
Chapter 3 Making a Good Thing Better 63
7 Press the card gently but firmly until the connector is fully inserted. Press only on the
bare areas of the card to avoid damaging the components.
Note: Don’t rock the card from side to side or force it. If you meet resistance, check the connector and slot for damage or obstructions, and then try inserting the card again.
8 Pull the card gently to see if it is properly connected. If it stays in place and its gold
connectors are barely visible, the card is connected.
9 Replace the PCI bracket under the brace and tighten the screws to secure the card.
NOTICE: If you remove a card and don’t install a replacement, place a port access
cover over the empty slot to keep foreign objects out of the enclosure. An uncovered slot affects the airflow that cools the internal components and may cause damage.
10 Replace the side panel and push the latch down to secure it.

Replacing the Internal Backup Battery

Your Mac Pro uses a CR 2032 Lithium battery that preserves settings, such as the date and time, when your Mac Pro is off. If you notice intermittent problems when your Mac Pro starts up or changes in the date and time settings, replace the battery.
Important: Dispose of the old battery according to your local environmental laws.
To replace the battery:
1 Open your Mac Pro and remove the side panel, following the instructions on page 39.
2 Remove any PCI Express cards that block access to the battery. See “Adding PCI Express
Cards” on page 60 for instructions.
64 Chapter 3 Making a Good Thing Better
3 Remove the old battery from the holder.
WARNING: Installing the battery incorrectly may cause an explosion. Use only the
·
same type of battery or an equivalent recommended by the manufacturer of the original.
4 Insert the new battery in the holder with the positive (+) side facing up.
5 Replace the PCI Express cards that you removed (see page 60).
6 Replace the side panel and push the latch down to secure it.
Chapter 3 Making a Good Thing Better 65
Tab
4

4 Problem, Meet Solution

www.apple.com/support
Mac Help help
Occasionally you may have a problem while working with your Mac Pro. This chapter gives you some solutions to try.

Problems with Your Mac Pro

If your Mac Pro won’t respond or turn on, you have trouble ejecting a disk, or the status light is flashing, try the steps in this section.
If the computer won’t respond or the pointer won’t move
First, make sure the mouse and keyboard are connected by unplugging and then plugging in the connectors, and make sure they are firmly seated.
Then try to cancel what the computer is doing. Â Press the Command (x) and Q keys at the same time to try to quit the current
application.
 Press the Command (x) and period keys at the same time. If a dialog appears,
click Cancel.
 Choose Apple () > Force Quit and select the application you want to quit.
You can also force quit by pressing the Esc, Option, and Command (x) keys at the same time. Restart your Mac Pro by choosing Apple () > Restart to be sure the problem is entirely cleared up. You can also restart by pressing the power (®) button for about 5 or 6 seconds until your Mac Pro shuts down. Press the power (®) button again to start up your Mac Pro.
 If the problem occurs only when you use a particular program, check with the program’s
manufacturer to see if it is compatible with your computer.
 If the problem occurs frequently, choose Help > Mac Help and search for “problems. “
68 Chapter 4 Problem, Meet Solution
If the computer won’t turn on or start up
 Make sure the power cord is connected to a working power source. The plug on the
power cord must be completely inserted into the computer’s power socket and firmly seated.
 If your computer still does not start up, try resetting the parameter random access
memory (PRAM). Turn on the computer and immediately hold down the Command (x), Option, P, and R keys until you hear the startup sound a second time. Release the keys. Set your hard disk as the computer’s startup disk, by doing the following:
1 Choose Apple () > System Preferences.
2 Click Startup Disk.
3 Select your hard disk.
The PRAM is reset to the default values and your clock settings may need to be reset. Â If your computer does not start up after resetting the PRAM, restart your computer
while holding down the Option key to select your startup disk.
 If this doesn’t work, restart your computer while holding down the Shift key.
If you are unable to eject a disc
A file on the disc may be in use. Quit applications that are open, and then try again.
If that doesn’t work, choose Apple () > Restart and hold down either the mouse button or the Media Eject (C) key on your Apple Keyboard.
If that doesn’t work:
1 Shut down the computer and remove the side panel, see the instructions on page 39.
2 Pull optical drive carrier out of the optical drive bay, see page 55.
Chapter 4 Problem, Meet Solution 69
3 Carefully insert the end of a straightened paper clip into the small hole on the
front of the optical drive.
4 Push firmly until the tray opens, remove the disc, and push the tray to close it.
5 Replace optical drive carrier and the side panel, see page 59.
If the status light flashes and the computer won’t start up
 If you recently installed memory, a PCI expansion card, or another internal
component, make sure that it is correctly installed and that it is compatible with your computer. See if removing it allows the computer to start up.
 If the status light still flashes, determine the number of flashes to identify the
problem:
 One short flash followed by a longer off period: No valid memory.  Three short flashes followed by a longer off period: Failed memory.

Problems with Software

When an application freezes or does not respond, Mac OS X provides a way to quit the application without restarting your computer. Quitting a frozen application may allow you to save your work in other open applications.
To force an application to quit:
1 Press Command (x)-Option-Esc or choose Apple () > Force Quit from the menu bar.
2 Select the name of the application you want to quit in the Force Quit Applications
dialogue.
3 Click Force Quit.
The application quits, leaving all other applications open.
70 Chapter 4 Problem, Meet Solution
If you have a problem with a software program
 Use Software Update to ensure that you have the latest drivers, bug fixes, and other
updates.
 For problems with software from a manufacturer other than Apple, contact the
manufacturer.
If you have a problem using your computer or working with Mac OS X
 Look in Mac Help (in the Help menu) for instructions and troubleshooting
information.
 For the latest troubleshooting information and software updates, go to the Apple
Support website at www.apple.com/support.

Keeping Your Software Up to Date

You can connect to the Internet and automatically download and install the latest free software versions, drivers, and other enhancements from Apple.
When you are connected to the Internet, Software Update checks Apple’s Internet servers to see if any updates are available for your computer. You can set your Mac to check the Apple servers periodically and download and install updated software.
To check for updated software:
1 Choose Apple () > Software Update.
2 Follow the onscreen instructions.
 For more information, search for “Software Update” in Mac Help.  For the latest information about Mac OS X, go to the Mac OS X website at
www.apple.com/macosx.
Chapter 4 Problem, Meet Solution 71

Problems with AirPort Wireless Communication

If you have a problem using AirPort wireless communication: Â Make sure you have properly configured the software according to the instructions
that came with your base station.
 Make sure the computer or network you are trying to connect to is running and has a
wireless access point.
 Make sure you are within antenna range of the other computer or the network’s
access point. Nearby electronic devices or metal structures can interfere with wireless communication and reduce this range. Repositioning or rotating the computer may improve reception.
 Check the AirPort signal level. You may have up to four bars in the AirPort status icon
in the menu bar.
 For more information, see the instructions that came with the wireless device or
search for “AirPort” in Mac Help.

Problems with Your Display

NOTICE: If you have a problem with your Apple display and nothing in this manual
solves it, contact an Apple Authorized Service Provider or Apple for assistance. If you attempt to repair the display yourself, any damage you may cause to the display will not be covered by the limited warranty on your display. Contact an Apple Authorized Reseller or Apple Authorized Service Provider for additional information about this or any other warranty question.
72 Chapter 4 Problem, Meet Solution
If no image appears on the screen
 Make sure the display and computer are turned on.  Make sure the cables are connected properly to your computer and the display.  If your graphics card has an internal power cable, make sure it’s connected to the
card and the logic board.
 Make sure your computer is not in sleep. Press the power button or any key to see if
the computer wakes.
 Make sure the display brightness and contrast are set properly. Use the brightness
keys on the Apple Keyboard. Some displays also have brightness and contrast controls on or under their front edge or on the side.
 Reset the PRAM by restarting the computer while holding down the Command (x),
Option, P, and R keys until you hear the startup sound a second time. Then start up using the software installation disc that came with your computer.
If the screen image appears dim or flickers
 Adjust the display brightness and contrast settings. Use the brightness keys on the
Apple Keyboard. Some displays also have brightness and contrast controls on or under their front edge. Or you may be able to adjust brightness or contrast using the Displays pane of System Preferences.
 Calibrate the display by choosing Apple () > System Preferences. Click Displays,
select Color, and click Calibrate. For more information on color and your display, see Mac Help.
Chapter 4 Problem, Meet Solution 73
 The flickering may be caused by interference from a nearby power line, a fluorescent
light, or an electrical device—for example, a radio, a microwave oven, or another computer. Try relocating nearby electrical devices or moving your computer and display.
If no colors appear on the screen or the colors don’t look right
 Make sure the display is connected firmly to the computer.  Open the Displays pane of System Preferences and make sure the display is set
to display millions of colors. For more information about color and your display, see Mac Help.
 Calibrate the display, as described on page 73.
If after you change the screen resolution, desktop icons move
Changing the screen resolution affects the display of information on your screen. The operating system may reposition icons when you change the screen resolution.
If the screen freezes
 Force the frozen application to quit. Choose Apple () > Force Quit and select the
application.
 If that doesn’t work, force the computer to restart by pressing the power (®) button
for 5 or 6 seconds until your Mac Pro shuts down. Press the power (®) button again to start up your Mac Pro.
74 Chapter 4 Problem, Meet Solution
If the light on the front of the display is flashing
On some Apple flat panel displays, the power light displays a series of short flashes when an error is detected.
 If you see a repeating sequence of three short flashes, the display is detecting input in
the wrong video format. Make sure your display is compatible with your graphics card and that you’ve installed the correct display software, if your display came with installation software.
 If you see a sequence of two short flashes and a long flash, the display is detecting a
problem with a backlighting lamp. Contact an Apple Authorized Reseller or Apple Authorized Service Provider.

Problems with Your Internet Connection

If you have trouble with your Internet connection, you can try the steps in this section starting with Network Diagnostics.
To use Network Diagnostics:
1 Choose Apple () > System Preferences.
2 Click Network and then click “Assist me” at the bottom of the page.
3 Click Diagnostics to open Network Diagnostics.
4 Follow the onscreen instructions.
If Network Diagnostics can’t resolve the problem, there may be a problem with the Internet service provider (ISP) you are trying to connect to, with an external device you are using to connect to your ISP, or with the server you are trying to access. You can also try the steps in the following section.
Chapter 4 Problem, Meet Solution 75
Cable Modem, DSL, and LAN Internet Connections
Make sure all modem cables are fully plugged in, including the modem power cord, the cable from the modem to the computer, and the cable from the modem to the wall jack. Check the cables and power supplies for Ethernet hubs and routers.
Turn the modem off and on to reset the modem hardware.
Turn off your DSL or cable modem for a few minutes, and then turn it back on. Some ISPs recommend that you unplug the modem’s power cord. If your modem has a reset button, you can press it either before or after you turn the power off and on.
PPPoE Connections
If you are unable to connect to your Internet service provider using PPPoE, make sure you have entered the correct information in Network preferences.
To enter PPPoE settings:
1 Choose Apple () > System Preferences.
2 Click Network.
3 Click Add (+) at the bottom of the network connection services list, and choose PPPoE
from the Interface pop-up menu.
4 Choose an interface for the PPPoE service from the Ethernet pop-up menu.
Choose Ethernet if you are connecting to a wired network, or AirPort if you are connecting to a wireless network.
5 Enter the information you received from your service provider, such as the account
name, password, and PPPoE service name (if your service provider requires it).
6 Click Apply to make the settings active.
76 Chapter 4 Problem, Meet Solution
Network Connections
Make sure the Ethernet cable is plugged into your computer and into the network. Check the cables and power supplies to your Ethernet hubs and routers.
If you have two or more computers sharing an Internet connection, be sure that your network is set up properly. You need to know if your ISP provides only one IP address or if it provides multiple IP addresses, one for each computer.
If only one IP address is used, then you must have a router capable of sharing the connection, also known as network address translation (NAT ) or “IP masquerading.” For setup information, check the documentation provided with your router or ask the person who set up your network. You can use an AirPort Base Station to share one IP address among multiple computers.
For information about using an AirPort Base Station, search for “AirPort” Mac Help or visit the AirPort support website at www.apple.com/support/airport.
If you cannot resolve the issue using these steps, contact your ISP or network administrator.
Chapter 4 Problem, Meet Solution 77

Using Apple Hardware Test

You can use Apple Hardware Test to help determine if there is a problem with your computer’s hardware.
To use Apple Hardware Test:
1 Disconnect all external devices from your computer except the keyboard and mouse.
If you have an Ethernet cable connected, disconnect it.
2 Restart your Mac Pro while holding down the D key.
3 When the Apple Hardware Test chooser screen appears, select the language
appropriate for your location.
4 Press the Return key or click the right arrow button.
5 When the Apple Hardware Test main screen appears (after about 45 seconds), follow
the onscreen instructions.
6 Apple Hardware Test displays an error code if it detects a problem. Make a note of the
error code before pursuing support options. If Apple Hardware Test doesn’t detect a hardware failure, the problem may be with your software.
For more information, see the Apple Hardware Test Read Me file on the Mac OS X Install Disc 1.
78 Chapter 4 Problem, Meet Solution

Reinstalling the Software That Came with Your Computer

Use the software installation discs that came with your computer to reinstall Mac OS X and the applications that came with your computer.
NOTICE: Apple recommends that you back up the data on your hard disk before
restoring software. Apple is not responsible for any lost data.
Installing Mac OS X
To install Mac OS X:
1 Back up your important files, if possible.
2 Insert the Mac OS X Install Disc 1 that came with your computer.
3 Double-click “Install Mac OS X and Bundled Software.”
4 Follow the onscreen instructions.
5 Select the destination disk for installation and continue following the onscreen
instructions.
Your computer may restart and ask you to insert the next Mac OS X disc.
NOTICE: Because the “Erase and Install” option erases your destination disk, you
should back up your essential files before installing Mac OS X and other applications.

Installing Applications

To install the applications that came with your computer, follow the steps below. Your computer must have Mac OS X already installed.
To install the applications:
1 Back up your important files, if possible.
Chapter 4 Problem, Meet Solution 79
2 Insert the Mac OS X Install Disc 1 that came with your computer.
3 Double-click “Install Bundled Software Only.”
4 Follow the onscreen instructions.
5 Select the destination disk for installation and continue following the onscreen
instructions.
Note: iCal, iChat, iSync, iTunes, and Safari are part of Mac OS X. To install these applications, follow the “Installing Mac OS X” instructions above.

Maximizing Ethernet Performance

Your computer performs best when the Ethernet port to which it is connected is set to autonegotiate. Ask your network administrator to verify this setting.
Important: If you experience connection problems on your network, make sure your
network switch is set to autonegotiate, if possible. If a switch’s port is not autonegotiating, your computer detects the appropriate speed but defaults to half­duplex mode. If the switch’s port at the other end of the link is configured for full­duplex mode, a large number of late events can occur on the link. If it isn’t possible to set the switch to autonegotiate, then set the switch’s port to half-duplex. For more information, see the documentation that came with the Ethernet switch.
Note: If you connect your computer directly to a configurable Ethernet switch, have your network administrator disable the spanning tree protocol on that port. Otherwise your computer may duplicate the AppleTalk address of another computer on the same network and both network connections may become unreliable.
80 Chapter 4 Problem, Meet Solution

Learning More, Service, and Support

If your Mac Pro needs service, take it to an Apple Authorized Service Provider or contact Apple for service. You can find more information about your Mac Pro through online resources, onscreen help, System Profiler, or Apple Hardware Test.
If you didn’t order AirPort wireless technology with your Mac Pro, contact an Apple Authorized Service Provider or an Apple Store to purchase it and have it installed.
Online Resources
For online service and support information, go to www.apple.com/support. Choose your country from the pop-up menu. You can search the AppleCare Knowledge Base, check for software updates, or get help from Apple’s discussion boards.
Onscreen Help
You can often find answers to your questions, as well as instructions and troubleshooting information, in Mac Help. Choose Help > Mac Help.
System Profiler
To get information about your computer, use System Profiler. System Profiler shows you which hardware and software is installed, the serial number and operating system version, how much memory is installed, and more. To open System Profiler, choose Apple () > About This Mac from the menu bar and then click More Info.
Apple Hardware Test
You can use Apple Hardware Test to diagnose hardware problems on your Mac Pro. For more information, see “Using Apple Hardware Test” on page 78.
Chapter 4 Problem, Meet Solution 81

AppleCare Service and Support Information

Your Mac Pro comes with 90 days of telephone support and one year of service coverage at an Apple-authorized repair center. You can extend your coverage by purchasing the AppleCare Protection Plan. For more information, visit the website address for your country listed below.
If you need further assistance, AppleCare telephone support representatives can help you with installing and opening applications, and with basic troubleshooting. Call the support center number nearest you (the first 90 days are complimentary). Have the date of purchase and your Mac Pro serial number ready when you call.
Note: Your 90 days of complimentary telephone support begins on the date of purchase. Telephone fees may apply.
Country Phone Website
United States 1-800-275-2273 www.apple.com/support
Australia (61) 133-622 www.apple.com/au/support
Canada (English)
(French)
Ireland (353) 1850 946191 www.apple.com/ie/support
New Zealand 00800-7666-7666 www.apple.com/au/support
United Kingdom (44) 0870 876 0753 www.apple.com/uk/support
For a complete list, go to www.apple.com/contact/phone_contacts.html. Telephone numbers are subject to change, and local and national telephone rates may apply.
82 Chapter 4 Problem, Meet Solution
1-800-263-3394 www.apple.com/ca/support
www.apple.com/ca/fr/support

Locating Your Serial Number

System Profiler shows the serial number of your Mac Pro. Open System Profiler, located in the Utilities folder in the Applications folder, and click the System Profile tab.
The serial number is also on the configuration label, which is located on the back of your Mac Pro near the video ports.
Chapter 4 Problem, Meet Solution 83
5

5 What’s Under the Hood

www.apple.com/macpro
Mac Help System Profiler
The technical specifications of your Mac Pro are included in the information that follows.

Specifications

Use System Profiler to find detailed information about your Mac Pro, including the amount of installed memory, hard disk size, connected devices, and product serial number. To open System Profiler, choose Apple () > About This Mac from the menu bar, and then click More Info.

Processor and Memory Specifications

Processor
 One or two Quad-Core Intel Xeon 5400 Series processors  12 MB of on-chip L2 cache per processor  1600 MHz dual independent frontside buses
Random-access memory (RAM)
 Fully buffered dual inline memory modules (FB-DIMMs)  PC2-6400, 800 MHz, DDR2, FB-DIMMs  DIMMs must be installed in matched pairs of equal size and equal specification
(an equal number of ICs per DIMM)
 Eight DIMM slots available (four slots per memory card)  Error-correcting code (ECC)  72-bit wide, 240-pin modules  36 ICs maximum per DIMM
86 Chapter 5 What’s Under the Hood
 Must contain an Apple-approved heat sink (for best acoustic performance)  Must conform to JEDEC specification (see page 43)  Maximum height of 31 mm  Nonparity

Graphics Card

PCI Express or PCI Express 2.0 graphics card with two dual-link Digital Visual Interface (DVI) connectors.

Video Display Modes

For technical specifications for your display:
 Apple displays: Go to www.apple.com/displays  Non-Apple displays: Go to www.apple.com/guide

Storage

 Four independent 3 Gb/s Serial ATA (SATA) or Serial Attached SCSI (SAS), cable-free,
direct-attach hard drive bays
 Type: SAS or SATA 3 Gb/s  Width: 3.9 inches (102 mm)  Depth: 5.7 inches (147 mm)  Height: 1.0 inch
 Four internal hard drive carriers
Chapter 5 What’s Under the Hood 87

PCI Express Expansion

 Four full-length PCI Express expansion slots (slot 1 contains the graphics card)
 Slots 1 and 2 are 16-lane, PCI Express 2.0 slots  Slots 3 and 4 are 4-lane, PCI Express 1.1 slots
 300 W combined maximum for all PCI Express slots

SuperDrive (DVD+R DL/DVD±RW/CD-RW) Specifications

 Disc diameters supported: 12 cm and 8 cm
Data formats
 CD-ROM  CD-Audio  CD-R  CD-RW  CD-I  CD-I Bridge  CD Extended  CD Mixed Mode  Photo CD  Video CD  Enhanced CD  DVD-Video  DVD±R  DVD±RW
88 Chapter 5 What’s Under the Hood
 DVD+R DL

USB Specifications

 Support for Universal Serial Bus (USB) 2.0 and 1.1  Seven external USB Type A ports
 Two USB 2.0 ports on the front  Three USB 2.0 ports on the back  Two USB 2.0 ports on the Apple Keyboard
 Each USB port (front and rear) is on a separate 480 megabit-per-second (Mbit/s)
USB channel
 500 milliamperes (mA) available for a total of 1.5 A on the rear and 1.0 A on the front

FireWire Specifications

 Support for FireWire 400 and FireWire 800  Four external FireWire ports: one FireWire 400 port (6-pin) and one FireWire 800 port
(9-pin) on both the front and back
 Data transfer speed:
 FireWire 400: 100, 200, and 400 Mbit/s  FireWire 800: 100, 200, 400, and 800 Mbit/s
Power
 Output voltage: Approximately 12 V  Output power: Up to a maximum of 28 W for all 4 ports or 12 W for any one port
Chapter 5 What’s Under the Hood 89

Ethernet Specifications

 IEEE 802.3 compliant  Maximum cable length: 100 meters (m)  Protocols: Open Transport, AppleShare, AppleTalk, NetWare for Macintosh, TCP/IP  Connector: RJ-45 for 10Base-T, 100Base-TX, and 1000Base-T  Media, 10Base-T: Category (CAT ) 3 or higher UTP on 2 pairs up to 100 m  Media, 100Base-TX: CAT 5e UTP on 2 pairs up to 100 m  Media, 1000Base-T: CAT 5e UTP on 4 pairs up to 100 m  Channel speeds: IEEE Autonegotiation of 10Base-T, 100Base-TX, and 1000Base-T

Bluetooth 2.0+EDR Specifications

 Wireless data rate: Up to 3 Mbit/s  Range: Up to 10 meters or 33 feet (data rates may vary depending on environmental
conditions)
 Frequency band: 2.4 gigahertz (GHz)

AirPort Extreme Specifications (Optional)

 Frequency band: 2.4 and 5 gigahertz (GHz)  Radio output power: 20 dBm (nominal)
Compatibility
 802.11a, b, g, and draft n
90 Chapter 5 What’s Under the Hood

Optical Digital Audio Specifications

 Data format: Sony/Phillips Digital Interface (S/PDIF) protocol (IEC60958-3)  Connector type: TOSLINK optical (IEC60874-17)  Bits per sample: 16-bit or 24-bit
Optical digital audio out
Based on a typical situation with playback of 1 kHz, 0dBFS 24-bit sine wave, 44.1 kHz output sample rate, unless otherwise specified below.
 Output sample rate: 44.1 kHz, 48 kHz, or 96 kHz  Signal-to-noise ratio: Greater than130 dB  Total harmonic distortion + noise: Less than -130 dB (0.00003 percent)
Optical digital audio in
Based on a typical situation with playback of 1 kHz, 0dBFS 24-bit sine wave, unless otherwise specified below.
 Input sample rate: 44.1 kHz, 48 kHz, or 96 kHz  Signal-to-noise ratio: Greater than130 dB  Total harmonic distortion + noise: Less than -130 dB (0.00003 percent)
Chapter 5 What’s Under the Hood 91

Analog Audio Specifications

 Sample rate: 44.1 kHz, 48 kHz, or 96 kHz  Jack type: 1/8” mini  Bits per sample: 16-bit or 24-bit  Frequency response: 20 Hz to 20 kHz, +0.5 dB/-3 dB
Analog audio out using the headphone jack (typical values)
Based on a typical situation with playback of 1 kHz, -3dBFS 24-bit sine wave, 44.1 kHz output sample rate into 150 ohms unless otherwise specified below.
 Output voltage: 1.4 volts (root mean square) (V  Output impedance: 24 ohms  Output power: 90 milliwatts (mW)  Signal-to-noise ratio: Greater than 90 dB  Total harmonic distortion + noise: Less than -75 dB (.02 percent)  Channel separation: Greater than 50 dB
Analog audio line in (typical values)
Based on a typical situation with playback of 1 kHz, -3dBFS 24-bit sine wave, 44.1 kHz output sample rate unless otherwise specified below.
 Maximum input voltage: 2 V
(+8.2 dBu)
rms
 Input impedance: Greater than 20 kilohms  Signal-to-noise ratio: Greater than 90 dB  Total harmonic distortion + noise: Less than -85 dB (.006 percent)  Channel separation: Greater than 80 dB
92 Chapter 5 What’s Under the Hood
) (+5.1 dBu)
rms
Analog audio line out (typical values)
Based on a typical situation with playback of 1 kHz, -3dBFS 24-bit sine wave, 44.1 kHz output sample rate into 100 kilohms unless otherwise specified below.
 Output voltage: 1.6 V
(+6.3 dBu)
rms
 Output impedance: 24 ohms  Signal-to-noise ratio: Greater than 90 dB  Total harmonic distortion + noise: Less than -85 dB (.01 percent)  Channel separation: Greater than 90 dB

Power Supply

AC line input
 Voltage ranges: 100–240 V alternating current (AC)  Current: Maximum of 12 A (low voltage range) or 6 A (high voltage range)  Frequency: 50–60 Hz

Power Requirements for Expansion Cards and Peripherals

Expansion cards
Combined maximum power consumption for all four PCI Express slots should not exceed 300 watts (W).
USB devices
Each of the computer’s built-in USB ports is allotted 500 mA.
FireWire devices
The computer can provide up to 28 W total to the FireWire ports.
Chapter 5 What’s Under the Hood 93

System Clock and Battery

Your computer has CMOS custom circuitry with a long-life battery.
Battery
Use a 3-volt, CR 2032 Lithium coin cell replacement battery (see “Replacing the Internal Backup Battery” on page 64).

Dimensions and Operating Environment

Dimensions
 Weight: 42.4 lbs. (19.2 kg)
Weight depends on configuration. The weight above is for a basic configuration and may be greater if optional devices are installed.
 Height: 20.12 inches (511 mm)  Width: 8.11 inches (206 mm)  Depth: 18.70 inches (475 mm)
Operating environment
 Operating temperature: 50° to 95° F (10° to 35° C)  Storage temperature: –40° to 116° F (–40° to 47° C)  Relative humidity: 5% to 95% (noncondensing)  Altitude: 0 to 10,000 feet (0 to 3048 meters)
94 Chapter 5 What’s Under the Hood

6 Last, but Not Least

www.apple.com/environment
Mac Help
ergonomics
6
This chapter provides important information about safety procedures, routine maintenance, and ergonomic considerations for using your Mac Pro and display.
For your safety and that of your equipment, follow these rules for handling and cleaning your Mac Pro and for working more comfortably. Keep these instructions handy for reference by you and others.

Important Safety Information

WARNING: Failure to follow these safety instructions could result in fire, electric
shock, or other injury or damage.
The only way to disconnect power completely from your Mac Pro is to unplug the power cord from the main power supply. To disconnect your display completely, you must also unplug its power cable from the computer or power outlet. Make sure that at least one end of the device’s power cord is within easy reach so that you can unplug the computer or display when necessary.
Always take the following precautions.
Disconnect the power plug (by pulling the plug, not the cord), from your computer or display and disconnect the phone cord if any of the following conditions exists:
 The power cord or plug becomes frayed or otherwise damaged  You spill something into the case  Your computer or display is exposed to rain or any other excess moisture  Your computer or display has been dropped or the case has been otherwise
damaged
96 Chapter 6 Last, but Not Least
 You suspect that your computer or display needs service or repair  You want to clean the computer or the case or screen of the display  If you plan to store your computer for an extended period of time, remove the
battery.
For service or questions about your warranty, contact an Apple Authorized Service Provider or Apple. Service and support information is included with your computer’s documentation.

General Maintenance

If you need to clean the computer or display by doing more than wiping it down with a clean cloth, follow these instructions:
1 Turn off your computer and display.
2 Disconnect the computer power cable from the electrical outlet or power strip. If your
display is connected to an outlet, disconnect it as well.
3 Disconnect the display’s cables from the computer.
4 Clean the display screen with soft, lint-free paper or cloth dampened with mild soap
and water.
WARNING: Do not spray liquid directly onto the display screen. Liquid could drip
·
inside the display and cause electrical shock.
Chapter 6 Last, but Not Least 97
5 Wipe the computer or display case surfaces lightly with a clean, soft cloth dampened
with water.
NOTICE: Don’t use alcohol, aerosol sprays, solvents, or abrasives that might damage
the finish on the case.

Protecting Your Optical Drive

To keep your optical drive working properly:
 Position your computer so that the drive tray doesn’t bump into anything when it
opens.
 Close the drive when you’re not using it.  Do not put anything on the drive tray when it is open.  Do not touch the optical drive lens with your fingers. Do not wipe the lens with a
paper towel or other abrasive surface. If you need to clean the lens, see an Apple Authorized Service Provider for a lens cleaner.
 Keep your computer away from any source of moisture.

Laser Information for Optical Disc Drive

WARNING: Making adjustments or performing procedures other than those specified
·
in your equipment’s manual may result in hazardous radiation exposure.
The optical disc drive in your computer contains a laser that is safe in normal use but that may be harmful to your eyes if disassembled. For your safety, have this equipment serviced only by an Apple Authorized Service Provider.
98 Chapter 6 Last, but Not Least

Maintaining Your Display

To maintain your display and ensure its long life:
 Do not press on the surface of the display screen.  Do not write on the screen or touch the screen with a sharp object.  If you will not be using your computer for a day or more, turn off the computer and
display or use Energy Saver.
Turn off your display, turn down the brightness, or use a screen saver program that dims or varies the image on the screen when the computer is idle for a prolonged time.

Cleaning Your Mighty Mouse

You may need to clean your mouse from time to time to remove dirt and dust that has accumulated in the scroll ball area. Hold the mouse upside-down and roll the scroll ball vigorously using a clean, soft, lint-free cloth to help dislodge any particles that may interfere with proper scrolling.
Chapter 6 Last, but Not Least 99

Understanding Ergonomics

Here are some tips for setting up a healthy work environment. Â Use an adjustable chair that provides firm, comfortable support. Adjust the height of
the chair so your thighs are tilted slightly and your feet are flat on the floor.
The back of the chair should support your lower back (lumbar region). Follow the manufacturer’s instructions for adjusting the backrest to fit your body properly.
 When you use the computer keyboard, your shoulders should be relaxed. Your upper
arm and forearm should form an approximate right angle, with your wrist and hand in roughly a straight line.
You may have to raise the chair so that your forearms and hands are at the proper angle to the keyboard. If this makes it impossible to rest your feet flat on the floor, you can use a footrest with adjustable height and tilt to make up for any gap between the floor and your feet. Or you can lower the desktop to eliminate the need for a footrest. Another option is to use a desk with a keyboard tray that’s lower than the regular work surface.
 Position the mouse at the same height as the keyboard and within comfortable
reach.
 Arrange the display so that the top of the screen is slightly below eye level when
you’re sitting at the keyboard. The best distance from your eyes to the screen is up to you, although most people seem to prefer 18 to 28 inches (45 to 70 cm).
100 Chapter 6 Last, but Not Least
Loading...
