Whirlpool AMD 033, AMD 321/1, AMD 322, AMD 322/1, AMD 323 INSTRUCTION FOR USE

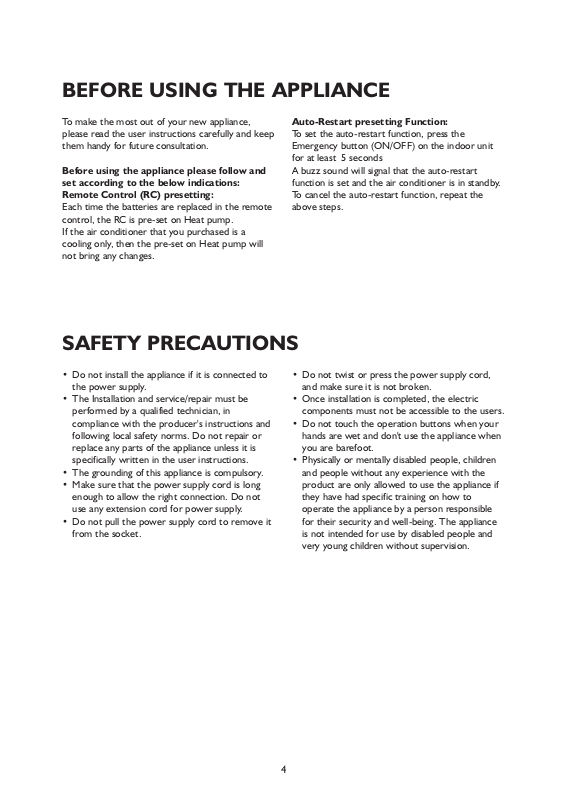

BEFORE USING THE APPLIANCE

To make the most out of your new appliance, please read the user instructions carefully and keep them handy for future consultation.

Before using the appliance please follow and set according to the below indications: Remote Control (RC) presetting:

Each time the batteries are replaced in the remote control, the RC is pre-set on Heat pump.

If the air conditioner that you purchased is a cooling only, then the pre-set on Heat pump will not bring any changes.

Auto-Restart presetting Function:

To set the auto-restart function, press the Emergency button (ON/OFF) on the indoor unit for at least 5 seconds

A buzz sound will signal that the auto-restart function is set and the air conditioner is in standby. To cancel the auto-restart function, repeat the above steps.

SAFETY PRECAUTIONS

•Do not install the appliance if it is connected to the power supply.

•The Installation and service/repair must be performed by a qualified technician, in compliance with the producer's instructions and following local safety norms. Do not repair or replace any parts of the appliance unless it is specifically written in the user instructions.

•The grounding of this appliance is compulsory.

•Make sure that the power supply cord is long enough to allow the right connection. Do not use any extension cord for power supply.

•Do not pull the power supply cord to remove it from the socket.

•Do not twist or press the power supply cord, and make sure it is not broken.

•Once installation is completed, the electric components must not be accessible to the users.

•Do not touch the operation buttons when your hands are wet and don't use the appliance when you are barefoot.

•Physically or mentally disabled people, children and people without any experience with the product are only allowed to use the appliance if they have had specific training on how to operate the appliance by a person responsible for their security and well-being. The appliance is not intended for use by disabled people and very young children without supervision.

4

AIR CONDITIONER PRECAUTIONS

Please strictly follow the below instructions:

•Long and direct exposure to cool air might be harmful to health. It is advisable to set the louvers in order to avoid direct cool air and deflect it within the room.

•Prevent the air flow from reaching the gas burners and stoves.

•Upon malfunctioning first turn the appliance off by pressing the ON/OFF button on the remote control, then disconnect it from the mains.

•Do not place any objects on the outdoor unit.

SAFEGUARDING THE ENVIRONMENT

•This appliance has been made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.

•For more detailed information on handling and recycling of this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF PACKAGING

•The packaging can be 100% recycled as

confirmed by the recycling symbol . The various parts of the packaging must not be

dispersed in the environment, but must be scrapped in line with local authority regulations.

SCRAPPING OF APPLIANCE

•This appliance is marked according to the European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

•By ensuring that this product is disposed of correctly, you will help to prevent potentially negative consequences for the environment and for human health.

•The symbol on the product or on the documents accompanying the product indicates

that this appliance should not be treated as household waste, but must be given to the appropriate local gathering place where electric and electronic appliances are stored and recycled.

5

PRODUCT DESCRIPTION

Indoor unit																																			Outdoor unit
1.	Air Intake																														11.											Air Intake
2.	Front Panel																														12.											Pipes and Power Connection Cord
3.	Display panel																														13.											Drain Hose
4.	Electrical box																																									Note: Condensate water drains at COOLING
5.	Air Outlet																																									or DRY operation.
6.	Filter monitor reset button																														14.											Air Outlet

7.Vertical Adjustment Louver

8.Horizontal Adjustment Louver

9.Air Filter

10.Remote Control

Images in the user instructions are based on external views of standard models, shape and design vary according to the model.

6

CONTROL PANEL DISPLAY INDICATORS DESCRIPTION

Temperature indicator (1)

Displays set temperature.

Running indicator (2)

It lights up during operation.

It flashes during outside unit defrosting.

Timer indicator (3)

It lights up during the set time.

It goes off when timer operation ends.

Sleep indicator (4)

It lights up during sleep mode.

Filter monitor indicator (5)

Filter monitor indicator flashes after 240 hours of usage as reminder to clean the filter.

After filter cleaning press the reset button located on the indoor unit behind the front panel in order to interrupt the flashing of the filter monitor indicator.

Emergency ON/OFF button (6)

Used to control the unit by pressing the button, when the RC is out of work. Used to set or cancel auto-restart function.

Signal Receptor (7)

1

2

3

4

5

6

7

7

REMOTE CONTROL FUNCTIONS AND INDICATORS

1.ON/OFF BUTTON

Starts and/or Stops the appliance by pressing this button.

2.TIMER BUTTON

Sets or cancels the timer operation.

3-4. ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature. Used to set time in timer mode.

5.MODE BUTTON

Used to select the operation mode.

6. BUTTON

Used to set or cancel 6th sense operation, also during stand-by.

7.SLEEP BUTTON

Used to set or cancel Sleep Mode operation.

8.FAN BUTTON

Used to select fan speed in sequence auto, high, medium or low.

9.SWING BUTTON

Used to stop or start vertical adjustment louver swinging and set the desired up/down airflow direction.

10.JET BUTTON

10	6
4	5
9	3
8	2
7	1

Used to start or stop the fast cooling.

(Fast cooling operates at high fan speed with 18°C set temp. automatically).

INDICATOR SYMBOLS ON RC DISPLAY

	Cooling indicator	indicator
	Dry indicator	Sleep indicator
	Fan only indicator	Jet indicator
	Heating indicator	Signal transmission
	Auto fan speed	Display set temperature
	High fan speed	Display set timer
	Medium fan speed	Adjust Temperature (±2°C) indicator in 6th
		sense mode
	Low fan speed

8

STORAGE AND TIPS FOR USING THE RC

How to insert the batteries

Remove the battery cover in the direction of the arrow.

Insert new batteries making sure that the (+) and (-) of battery are matched correctly.

Refit the cover by sliding it back into position.

Note:

• Use 2 LR03 AAA (1.5volt) batteries. Do not use rechargeable batteries.

Replace batteries with new ones of the same type when the display becomes dim.

• If the replacement is done within 1 minute, the remote control will keep original presetting. However, if you replace batteries taking more than 3 minutes, all presetting will be cancelled and timer will display Zero.

How to remove the batteries

Remove the battery cover in the direction of the arrow.

Press the positive pole of the battery softly with your fingers, then draw the batteries out of the compartment.

All this should be done by adults, children are forbidden to remove the batteries from the remote control in order to avoid danger of swallow.

Disposal of the batteries

Please discard the batteries as sorted municipal waste at the accessible collection point.

To operate the air conditioner, point the remote control at the signal receptor.

The remote control will operate the air conditioner at a distance of up to 7m.

Signal receptor

9

OPERATING MODE DESCRIPTION

Operation Modes:

1. Selecting mode

Each time MODE button is pressed, the operation mode is changed in sequence:

COOLING → DRY → FAN ONLY → HEATING

↑

Heating mode is not available for cooling only air conditioners.

2. FAN mode

Each time the "FAN" button is pressed, the fan speed is changed in sequence:

Auto → High → Medium → Low

↑

At "FAN ONLY" mode, only "High","Medium" and "Low" are available.

At "DRY" mode, Fan speed is set at "Low" automatically, "FAN" button is ineffective in this case.

3. Setting temperature

Press once to raise temperature setting by 1 raise °C

Press once to lower temperature setting by 1 lower °C

Range of available set temperature

*HEATING, COOLING	18°C~32°C
DRY	unable to set
FAN ONLY	unable to set

*Note: Heating mode is NOT available for cooling only models.

4. Turning on

Press button, when the appliance receives the signal, the RUNNING indicator of the indoor unit lights up.

During mode changes wait a few seconds and repeat the operation if the unit does not respond at once.

When selection the heating operation, air flow will start after 2-5 minutes.

10
