Tefal RK807D32 User Manual [ru]

EN

RU

UK

KK

44 in 1 Effectual Multicooker

www.tefal.com

1

2

3

4

8

10

5

6

14&15

7

9 11

12

13

1	2	3a	3b
			10cups
			MAX.
4	5	6	7
	10
	cups
	MAX.
8	9	10	11

12	13	14	15
a		a
b		b
16	17	18	19

CONTROL PANEL

14

a

b c d

e

Cancel

	FOOD
Delayed	type	Soup	Baking	Stew	Steam
		Boiling		Slow cook
Start					DIY
					Menu

Rice

Pilaf

Oatmeal

Frying

Jam

Cereal

Risotto

Porridge

Pasta

Cottage

Bread

Yogurt

Reheat

Pelmeni

cheese

rising

f

g h

i j

15

e a f b g c							d
FOOD									h
type		Soup		Baking		Stew	Steam
		Boiling				Slow cook

j							l
i	Frying	Rice	Pilaf		Oatmeal	Jam	m
		Cereal	Risotto		Porridge
	Pasta	Yogurt	Cottage		Bread	Reheat
	Pelmeni		cheese		rising
	n	o	p	k	q	r

4

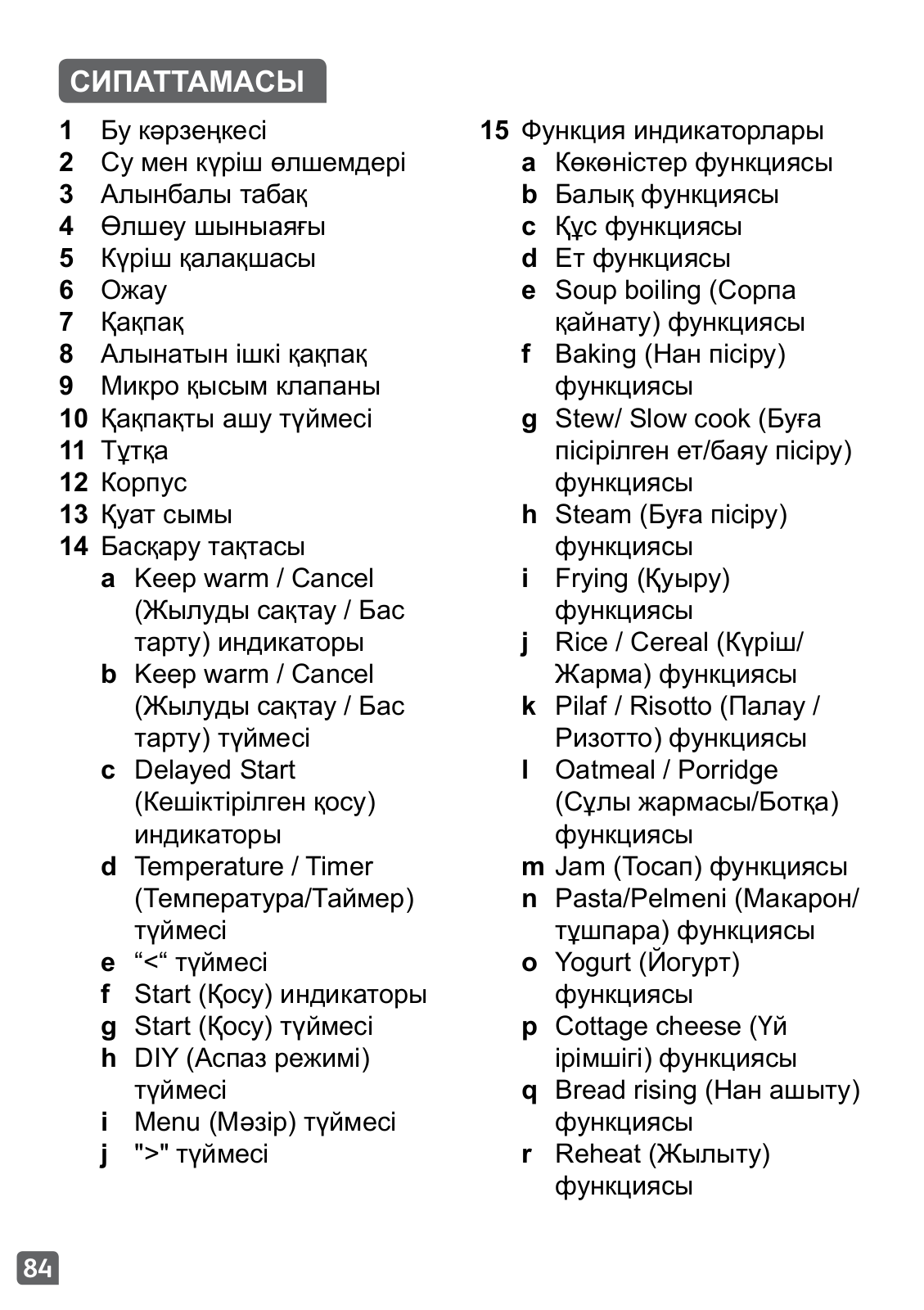

DESCRIPTION			EN
1	Steam basket	15 Function indicators
2	Graduation for water and rice	a	Vegetables function
3	Removable bowl	b	Fish function
4	Measuring cup	c	Poultry function
5	Rice spatula	d	Meat function
6	Soup spoon	e	Soup boiling function
7	Lid	f	Baking function
8	Removable inner lid	g	Stew/ Slow cook function
9	Micro pressure valve	h	Steam function
10	Lid opening button	i	Frying function
11	Handle	j	Rice / Cereal function
12	Housing	k	Pilaf / Risotto function
13	Power cord	l	Oatmeal / Porridge function
14	Control Panel	m	Jam function
a Keep warm / Cancel indicator		n	Pasta / Pelmeni function
b	Keep warm / Cancel key	o	Yogurt function
c	Delayed Start indicator	p	Cottage cheese function
d Temperature / Timer key		q	Bread rising function
e	“<“ key	r	Reheat function

fStart indicator

gStart key

hDIY key

iMenu key

j“>” key

5

IMPORTANT SAFEGUARDS

SAFETY INSTRUCTIONS

Read and follow the instructions for use. Keep them safe.

•This appliance is not intended to be operated by means of an external timer or a separate remotecontrol system.

•This appliance can be used by children aged from 8 years and above if they have been

given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children. Keep the appliance and its cord out of reach of children aged less than 8 years.

•Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

•Children shall not play with the appliance.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

6

and knowledge, unless they have been given EN supervision or instruction concerning use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

•As this appliance is for household use only, it is not intended for use in the following applications and the guarantee will not apply for:

––Staff kitchen areas in shops, offices and other working environments

––Farm houses

––By clients in hotels, motels and other residential type environments

––Bed and breakfast type environments

•If your appliance is fitted with a removable power cord: if the power cord is damaged, it must be replaced by a special cord or unit available from a authorised service centre.

•If your appliance is fitted with fixed power cord: if the power supply cord is damage, it must be replaced by the manufacturer, the manufacturer’s after-sales service department or similarly qualified person in order to avoid any danger.

•The appliance must not be immersed in water or any other liquid.

7

•Use a damp cloth or sponge with diswashing liquid to clean the accessories and parts in contact with foodstuff. Rince with a damp cloth or sponge. Drying accessories and parts in contact with food with a dry cloth.

•If the symbol is marked on the appliance, this symbol means “ Caution: surfaces may become hot during use ”.

•Caution: the surface of heating element is subject to residual heat after use.

•Caution: risk of injury due to improper use of the appliance.

•Caution: if your appliance has a removable power cord, do not spill liquid on the connector.

•Always unplug the appliance: ––immediately after use ––when moving it

––prior to any cleaning or maintenance ––if it fails to function correctly

•Burns can occur by touching the hot surface of the appliance, the hot water, steam or the food.

•During cooking, the appliance gives out heat and steam. Keep face and hands away.

•Do not get face and hands close to the steam outlet. Do not obstruct the steam outlet.

8

•For any problems or queries please contact our EN Customer Relations Team or consult our web site.

•The appliance can be used up to an altitude of 4000 m.

•For your safety, this appliance complies with the safety regulations and

directives in effect at the time of manufacture (Low-voltage Directive, Electromagnetic Compatibility, Food Contact Materials Regulations, Environment…).

•Check that the power supply voltage corresponds to that shown on the appliance (alternating current).

•Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved service centre.

CONNECTING TO THE POWER SUPPLY

•Do not use the appliance if:

––the appliance or the cord is damaged

––the appliance has fallen or shows visible damage or does not work properly

––In the event of the above, the appliance must be sent to an approved Service Centre. Do not take the appliance apart yourself.

•Do not leave the cord hanging

•Always plug the appliance into an earthed socket.

•Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has an earthed plug and is suited to the power of the appliance.

•Do not unplug the appliance by pulling on the cord.

USING

•Use a flat, stable, heat-resistant work surface away from any water splashes.

•Do not allow the base of the appliance to come into contact with water

•Never try to operate the appliance when the bowl is empty or without the bowl.

9

•The cooking function/knob must be allowed to operate freely. Do not prevent or obstruct the function from automatically changing to the keep warm function.

•Do not remove the bowl while the appliance is working.

•Do not put the appliance directly onto a hot surface, or any other source of heat or flame, as it will cause a failure or danger.

•The bowl and the heating plate should be in direct contact. Ensure that no food or liquid is inserted between the pot and heating plate.

•Do not place the appliance near a heat source or in a hot oven, as serious damage could result.

•Do not put any food or water into the appliance until the bowl is in place.

•Respect the levels indicated in the recipes.

•Should any part of your appliance catch fire, do not attempt to put it out with water. To smother the flames use a damp tea towel.

•Any intervention should only be made by a service centre with original spare parts.

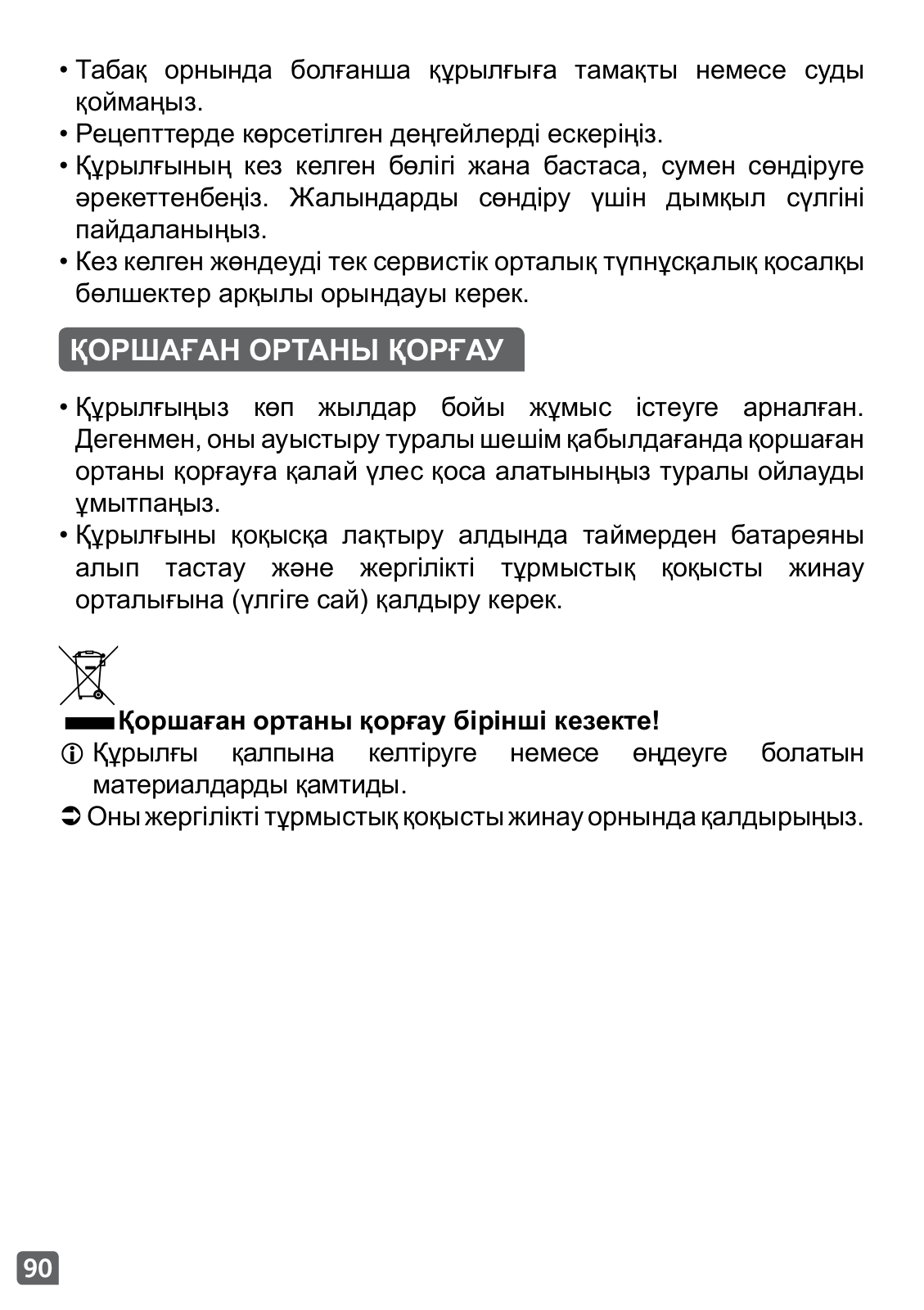

PROTECT THE ENVIRONMENT

•Your appliance has been designed to run for many years. However, when you decide to replace it, remember to think about how you can contribute to protecting the environment.

•Before discarding your appliance you should remove the battery from the timer and dispose of it at a local civic waste collection centre (according to model).

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

 Leave it at a local civic waste collection point.

10

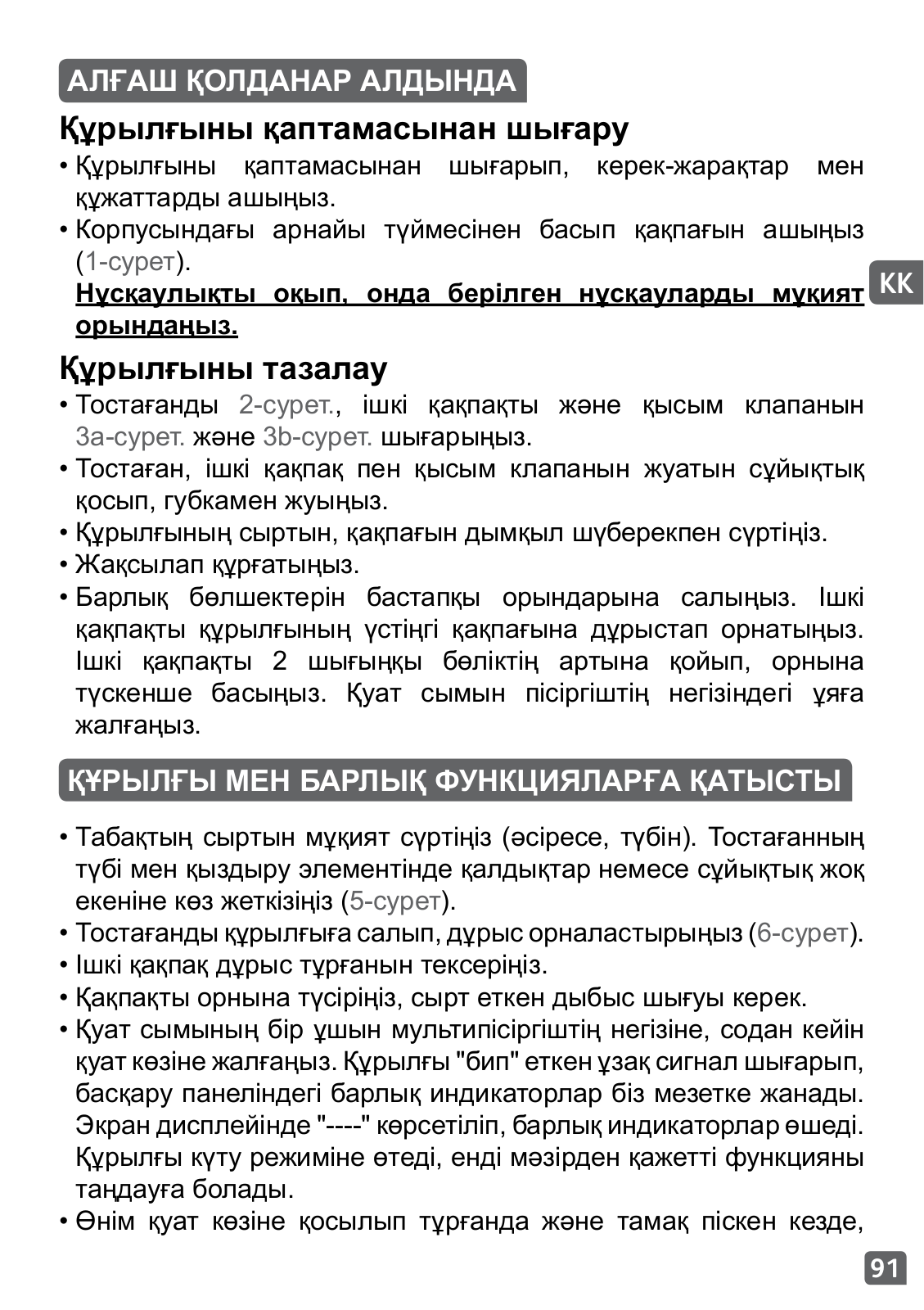

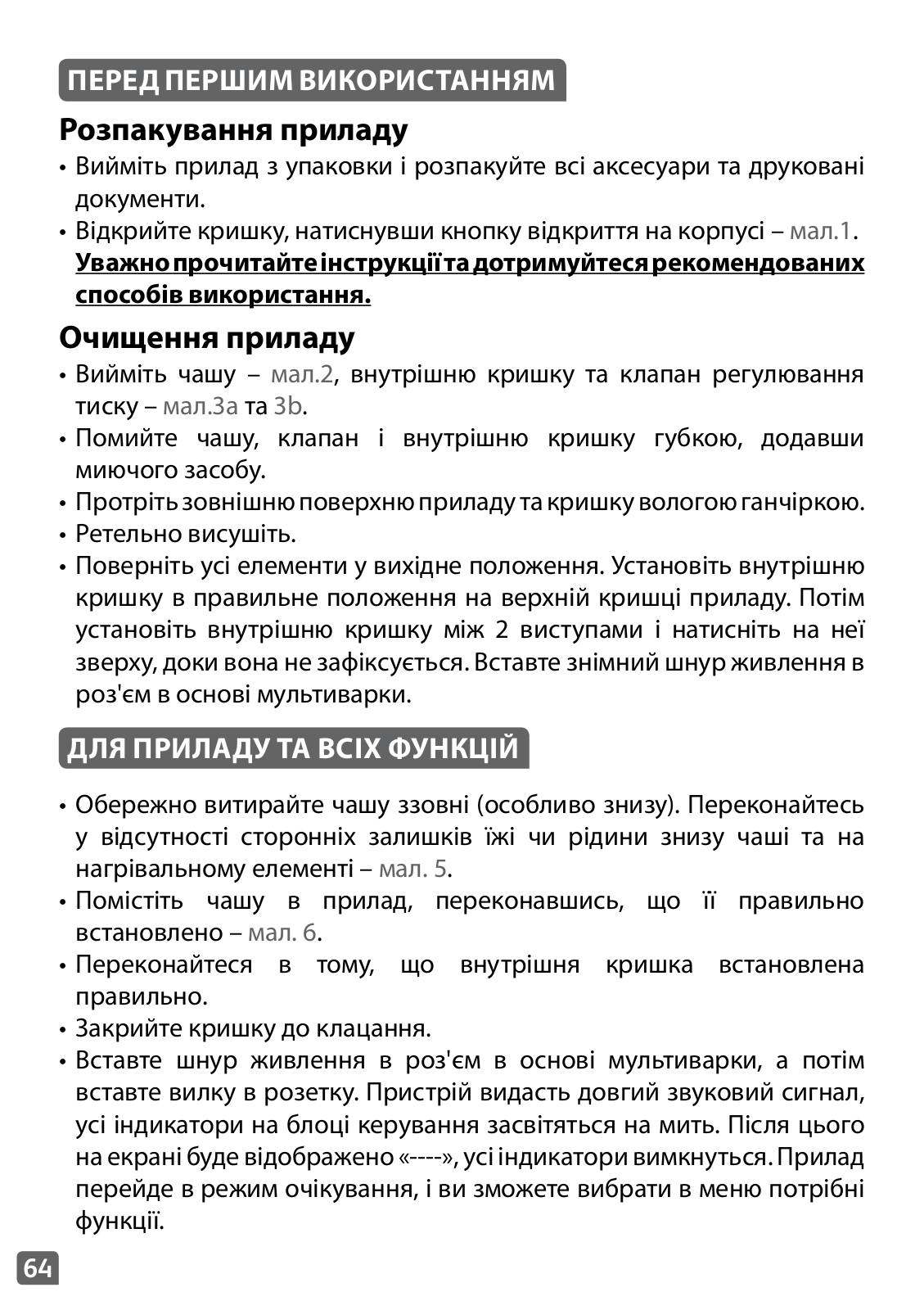

BEFORE THE FIRST USE

EN

Unpack the appliance

•Remove the appliance from the packaging and unpack all the accessories and printed documents.

•Open the lid by pushing the opening button on the housing – Fig.1.

Read the Instructions and carefully follow the operation method.

Clean the appliance

•Remove the bowl – Fig.2, the inner lid and the micro pressure valve – Fig.3a and Fig.3b.

•Clean the bowl, the valve and the inner lid with a sponge and washing up liquid.

•Wipe the outside of the appliance and the lid with a damp cloth.

•Dry off carefully.

•Put all the elements back in their original position. Install the inner lid in the right positions on the top lid of machine. Then, put the inner lid behind the 2 ribs and push it on the top until it’s fixed. Install the detachable cord into the socket on the cooker base.

FOR THE APPLIANCE AND ALL FUNCTIONS

•Carefully wipe the outside of the bowl (especially the bottom). Make sure that there are no foreign residues or liquid underneath the bowl and on the heating element – Fig.5.

•Place the bowl into the appliance, making sure that it is correctly positioned – Fig.6.

•Make sure that the inner lid is correctly in position.

•Close the lid in place so you hear a “Click”.

•Install the power cord into the socket of the multicooker base and then plug into the power outlet. The appliance will ring a long sound «Beep», all the indicators on the control box will light up for an instant. Then the screen display will show «----», and all the indicators will switch off. The appliance enters into standby mode, you can select the menu functions as you wish.

•Do not touch the heating element when the product is plugged in or after cooking. Do not carry the product in use or just after cooking.

•This appliance is only intended for indoor use.

Never place your hand on the steam vent during cooking, as there is a danger of burns – Fig.10.

11

After start the cooking, if you wish to change the selected cooking menu because of an error, press "KEEP WARM/CANCEL" key and rechoose the menu you want.

Only use the inner bowl provided with the appliance.

Do not pour water or put ingredients in the appliance without the bowl inside.

The maximum quantity of water + ingredient should not exceed the highest mark inside the bowl - Fig.7.

COOKING PROGRAM TABLE

Programs	Auto	Cooking Time			Temperature		Delayed Start	Keep warm
		Default	Range	Default		Range
	Veg	40min
Soup/Boiling	Fish	45 min	10min-4h	100 °C		90/100/110 °C	Cooking time ~24h	•
	Poultry	50min
	Meat	60min
	Veg	35min		140 °C
Bake	Fish	20min	5min-4h	160 °C		140/150/160 °C	Cooking time ~24h	•
	Poultry	40min		160 °C
	Meat	50min		160 °C
	Veg	40min
Stew/slow cook	Fish	40min	20min-9h	100 °C		80/90/100/110 °C	Cooking time ~24h	•
	Poultry	1h
	Meat	2h
	Veg	35min
Steam	Fish	25min	5min-3h	100 °C		-	Cooking time ~24h	•
	Poultry	45min
	Meat	55min
Frying	-	20min	5min-1h30min	160 °C		120/130/140/150/160 °C	-	•
rice/cereals	-	Automatic	Automatic	Automatic		-	Cooking time ~24h	•
Pilaf/ risotto	-	Automatic	Automatic	Automatic		-	Cooking time ~24h	•
Oatmeal Porridge	-	25min	5min-2h	100 °C		90/100 °C	Cooking time ~24h	•
Jam	-	1h	5min-3h	105 °C		-	Cooking time ~24h
Pasta/Pelmeni	-	10min	3min-3h	100 °C		-	-
Yogurt	-	8h	1h-12h	40 °C		-	-
Cottage cheese	-	2h	30min-4h	80 °C		-	-
Bread rising	-	1h	10min-6h	40 °C		-	-
Reheat		25min	5min-1h	100 °C		80°C/100°C	Cooking time ~24h	•
DIY	-	30min	5min-3h	100 °C		40-160°C	Cooking time ~24h
Keep warm	-	-	-	75 °C		-	-	•

12

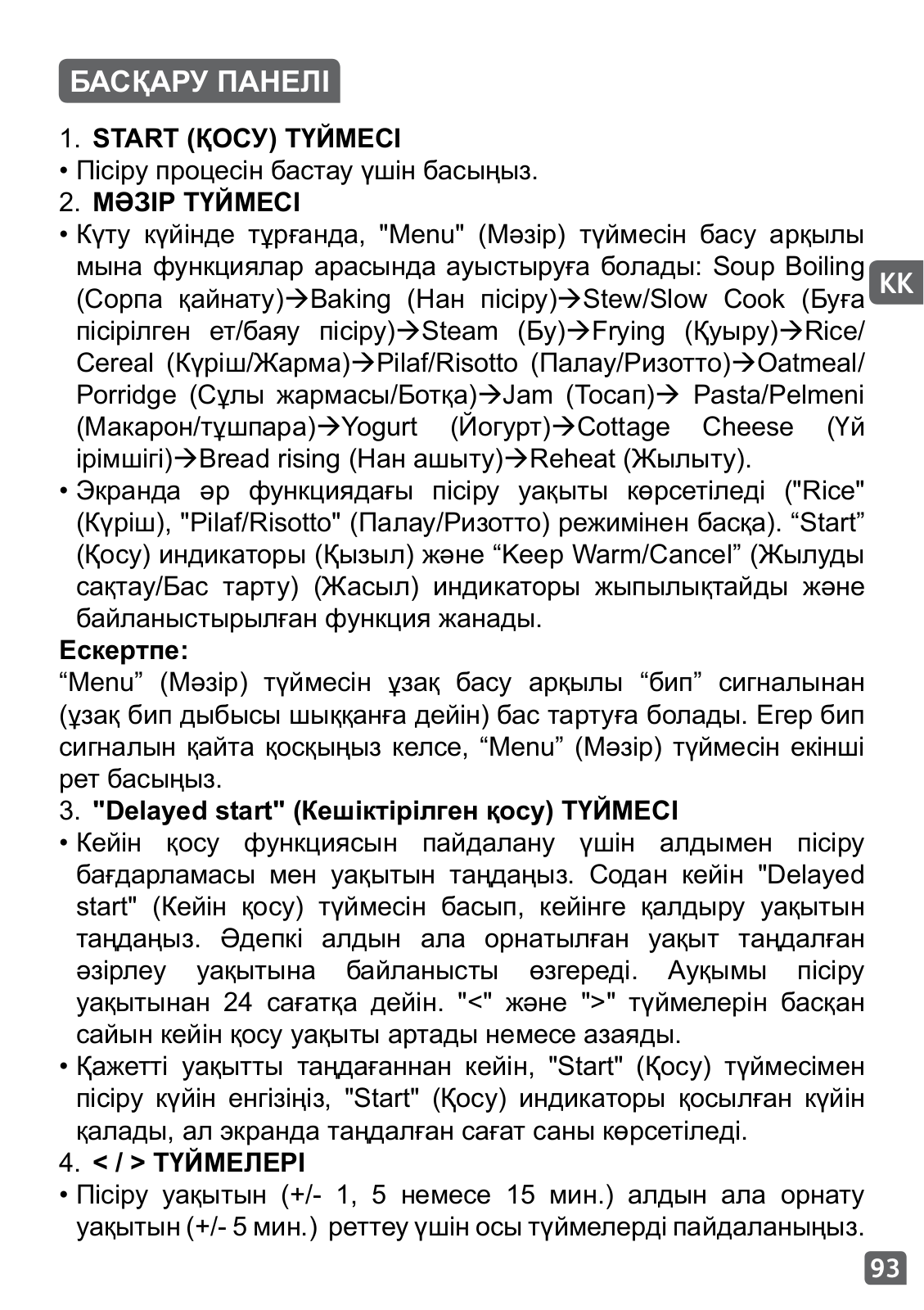

CONTROL PANEL

EN

1. START KEY

•Press to start the cooking process. 2. MENU KEY

•Under standby status, press the “Menu” key to cycle through the following functions: Soup BoilingBakingStew/Slow CookSteam FryingRice/CerealPilaf/RisottoOatmeal/PorridgeJam Pasta/PelmeniYogurtCottage CheeseBread rising Reheat.

•The screen displays the default cooking time of each function (except

“Rice”, “Pilaf/Risotto” mode ). “Start” indicator (Red) and “Keep Warm/ Cancel” (Green) flash and the linked function lights up.

Note:

You can long press the “Menu” key to cancel the “beep” sound if needed (until the long beep sound). If you want to start the beep sound again, press the “Menu” key for a second time.

3. “Delayed Start” KEY

•To use the delayed start function, choose a cooking program and the cooking time first. Then, press the “Delayed start” key and choose the preset time. The default preset time will change depending on the selected cooking time. The Range of preset is from the cooking time up to 24 hours. Each press of “<” and “>” key can increase or decrease the delayed start time.

•When you have chosen the required preset time, press the “Start” key to enter cooking status, the “Start” indicator will remain on and screen will display the number of hours you have chosen.

4. < / > KEYS

•Use these buttons to adjust the cooking time (+/- 1, 5 or 15 mins) and preset time (+/- 5 mins). You cannot adjust the cooking time in “Rice”,

“Pilaf/Risotto” mode and cannot adjust the preset time in “Crust/ Fry”,”Pasta/Pelmeni”, “Yogurt”, “Cottage Cheese” ,”Bread rising”mode.

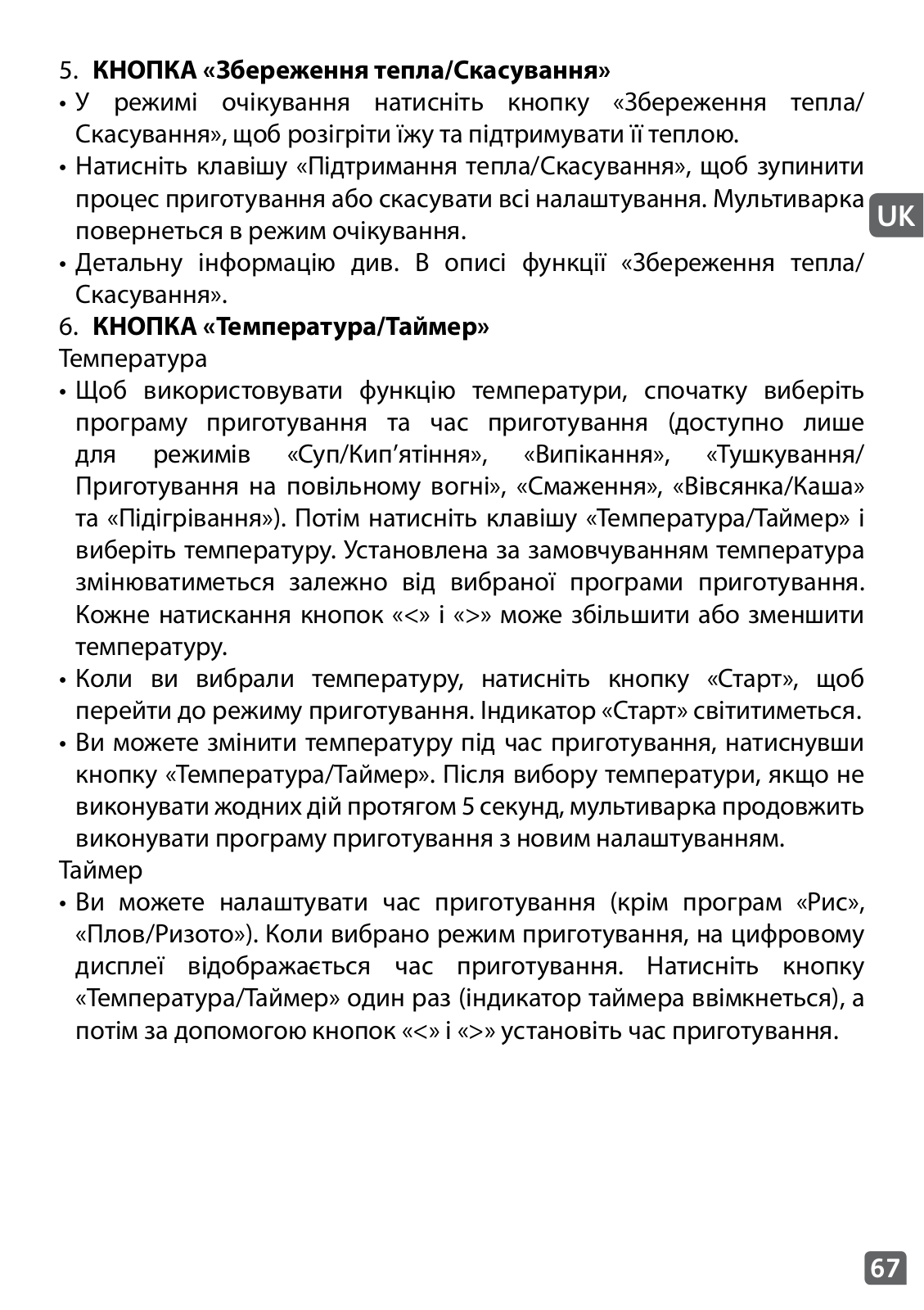

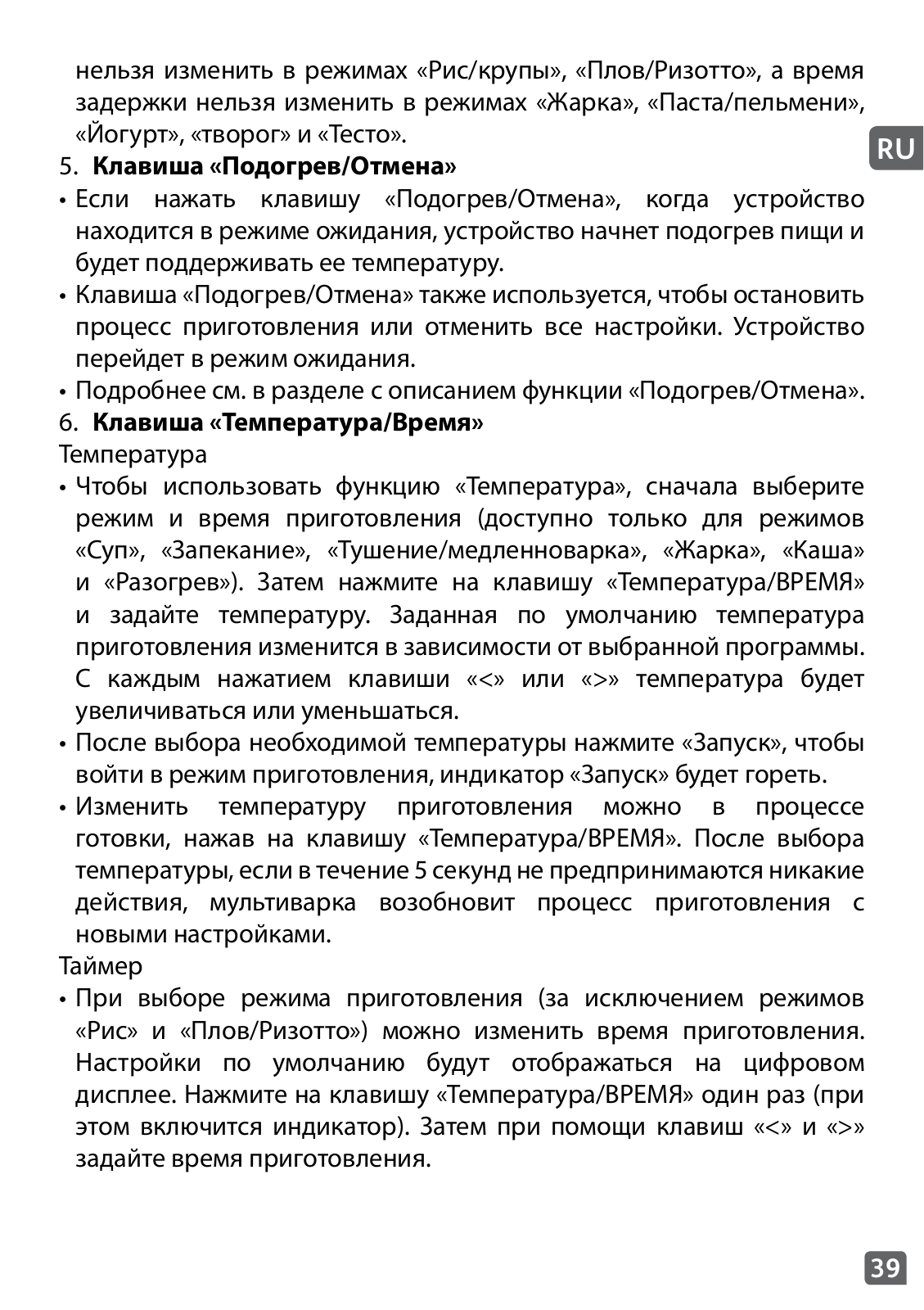

5. Keep Warm/Cancel KEY

•In standby mode, press the “Keep warm/Cancel” key to heat your food and keep it warm.

•Press the “Keep warm/Cancel” key to stop the cooking process or cancel all settings. The Multicooker will return to standby mode.

•See details in “Keep warm/Cancel” function description.

13

6. Temperature/Timer KEY

Temperature

•To use the Temperature function, choose a cooking program and cooking time first (only available for ‘’Soup/Boiling”, “Baking”, “Stew/ Slow Cook”, “Frying”, Oatmeal/Porridge” and “Reheat”). Then, press the “Temperature/Timer” key and select the temperature. The default cooking temperature will change depending on the selected cooking program. Each press of “<” and “>” key can increase or decrease the temperature.

•When you have chosen the required temperature, press the “Start” key to start the cooking process, the “Start” indicator will remain on.

•You can modify the temperature during the cooking by pressing the “Temperature/Timer” key. After selecting your new chosen temperature,

wait for 5 seconds, then the multicooker will resume cooking with the new setting.

Timer

•You can adjust the cooking time (except “Rice”, “Pilaf/Risotto” ), when you select a cooking mode, the default cooking time will be shown on the digital display. Press the “Temperature/Timer” key once (the timer indicator will turn on), and then use the “<” and “>” buttons to adjust the cooking time.

SOUP BOILING FUNCTION

•Press “Menu” key to select function “Soup Boiling”. The screen displays the default cooking time, the light of “Start” flickers red. Then press “<“ or “>” to select the food type : Vegetables, Fish, Poultry or Meat.

•Press “Temperature/Timer” key to active the time setting function and then press “<“ and “>” to change the cooking time. Press “Temperature /Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The multicooker enters into “Soup Boiling” cooking status, the light of “Start” lights up and the screen displays the remaining time.

•At the end of cooking, the appliance will beep three times, the multicooker will enter keep warm status with the “Keep Warm” indicator turning on and the screen will start to count the time of keeping warm.

14

BAKING FUNCTION

EN

•Press “Menu” key to select function “Baking”. The screen displays the default cooking time, the “Start” light will flash red. Press “<” or “>” to select the food type : Vegetables, Fish, Poultry or Meat.

•Press “Temperature / Timer” key to active the time setting function and then press “<“ and “>” to change the cooking time. Press “Temperature / Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The mulitcooker will start the “Baking” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

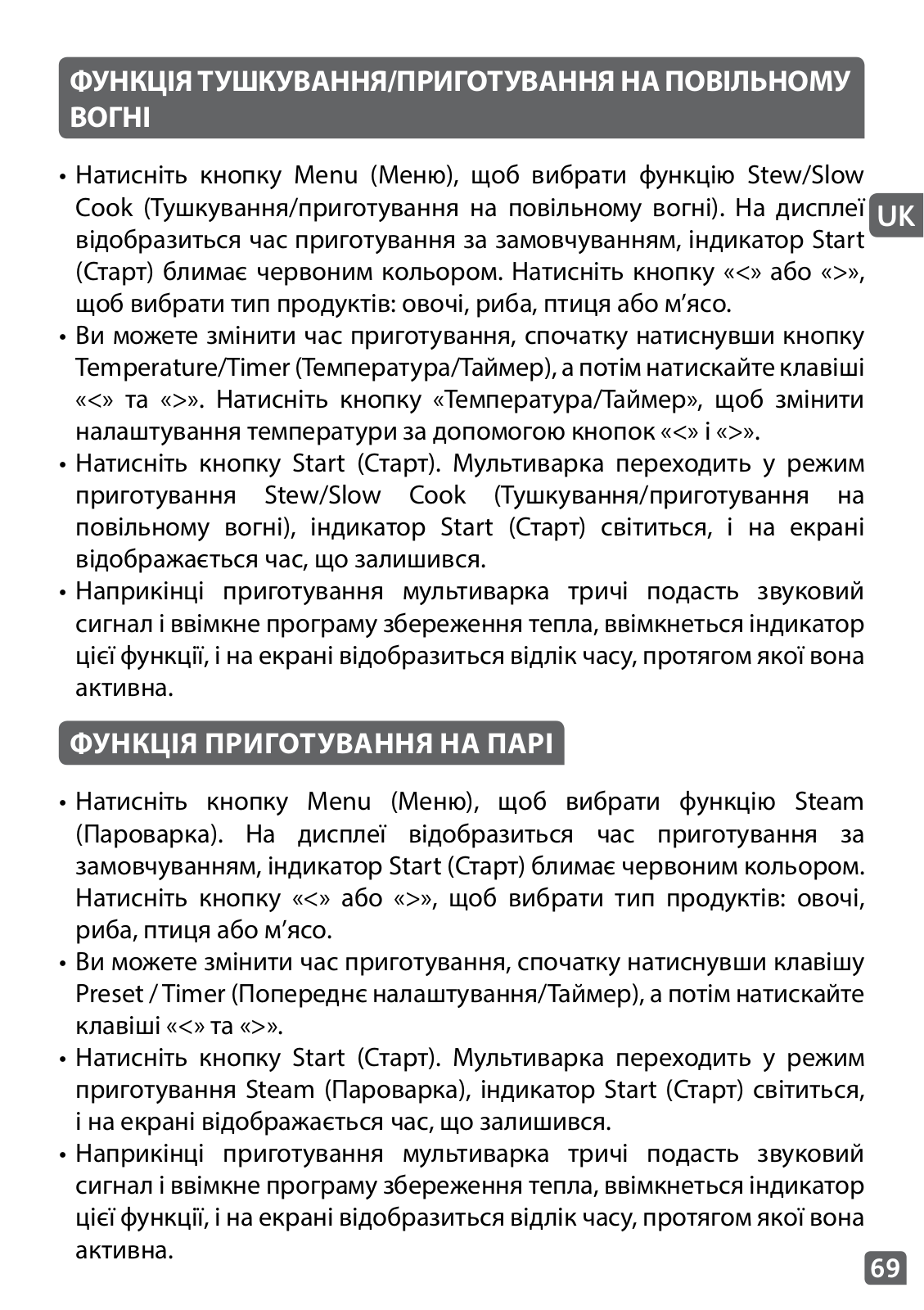

STEW/SLOW COOK FUNCTION

•Press “Menu” key to select function “Stew/Slow Cook”. The screen displays the default cooking time, the “Start” light will flash red. Press “<” or “>” to select the food type : Vegetables, Fish, Poultry or Meat.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys. Press “Temperature/Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The mulitcooker will start the “Stew/Slow Cook” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

15

STEAM FUNCTION

•Press “Menu” key to select function “Steam”. The screen displays the default cooking time, the “Start” light will flash red. Press “<” or “>” to select the food type : Vegetables, Fish, Poultry or Meat.

•You can change the cooking time by pressing “Preset / Timer” key first and then press “<” and “>” keys.

•Press “Start” key. The mulitcooker will start the “Steam” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

FRYING FUNCTION

•Press “Menu” key to select function <Frying>. The screen displays the default cooking time, the “Start” light will flash red.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys. Press “Temperature/Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The mulitcooker will start the “Frying” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and

the screen will start to count the time of keeping warm.

Note: Always use this function with oil and food. With oil only, it may cause a failure or danger.

16

RICE/CEREAL FUNCTION

EN

•Pour the required quantity of rice into the bowl using the measuring cup provided – Fig.8. Then fill with cold water up to the corresponding «CUP» mark printed in the bowl – Fig.9.

•Close the lid.

Note: Always add the rice first otherwise you will have too much water.

Press “Menu” key to select function “Rice/Cereal”. The screen displays « », the “Start” light will flash, then press “Start” key. The mulitcooker will start the “Rice/Cereal” cooking program and the “Start” light will come on. The screen will flash“ -- ”. Time is not displayed as the multicooker do it automatically and it can vary during cooking.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

PILAF/RISOTTO FUNCTION

•Press “Menu” key to select function “Pilaf/Risotto”. The screen displays « », the “Start” light will flash, then press «Start» key. The mulitcooker will start the “Pilaf/Risotto” cooking program and the “Start” light will come on. The screen will flash “ -- ”. Time is not displayed as the multicooker do it automatically and it can vary during cooking.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

RECOMMENDATIONS FOR BEST RICE COOKING (Rice and Pilaf/Risotto functions)

•Before cooking, measure the rice with the measuring cup and rinse it (do not rinse risotto rice).

•Put the rinsed rice well distributed around the whole surface of the bowl. Fill it with water to the corresponding water level (The graduations in cups).

•When the rice is ready, when the “Keep Warm” indicator light is on, stir the rice and then leave it in the multicooker for a few minutes longer in order to get perfect rice with separated grains.

This table below gives a guide to cook rice:

17

COOKING GUIDE FOR WHITE RICE – 10 cups

	Measuring cups	Weight of rice	Water level in	Serves
			the bowl (+ rice)
	2	300 g	2 cup mark	3per. – 4per.
	4	600 g	4 cup mark	5per. – 6per.
	6	900 g	6 cup mark	8per. – 10per.
	8	1200 g	8 cup mark	13per. – 14per.
	10	1500 g	10 cup mark	16per. – 18per.

The time and temperature are automatic for rice cooking. Please note that there are 7 steps:

Preheat => Water absorb => Temperature quick rise => Keep boiling => Water evaporation => Braise rice => Keep warm.

The cooking time depends on the quantity and type of rice.

OATMEAL/PORRIDGE FUNCTION

•Press “Menu” key to select function “Oatmeal/Porridge”. The screen displays the default cooking time, the light of “Start” flickers red.

•Press “Temperature/Timer” key to active the time setting function and then press “<“ and “>” to change the cooking time. Press “Temperature /Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The multicooker enters into “Oatmeal/Porridge” cooking status, the light of “Start” lights up and the screen displays the remaining time.

•At the end of cooking, the multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will display the time for which the keep warm function has been active.

18

JAM FUNCTION

EN

•Press “Menu” key to select function “Jam”. The screen displays the default cooking time, the “Start” light will flash red.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys.

•Press “Start” key. The mulitcooker will start the “Jam” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times.

Note: No keep warm function for this function

PASTA/PELMENI FUNCTION

•To cook pasta it is important to wait until the water reaches good temperature before adding pasta.

•Press “Menu” key to select function “Pasta/Pelmeni”. The screen displays the default cooking time, the “Start” light will flash red.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys.

•Press “Start” key. The mulitcooker will start the “Pasta/Pelmeni” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•The multicooker will beep when the water is at the ideal temperature. Put the pasta into the water and press the “start” key again to begin the cooking process. The lid must remain open while the pasta is cooking.

•At the end of cooking, the multicooker will “beep” three times.

Note: No keep warm function for this function

19

YOGURT FUNCTION

•Press “Menu” key to select function “Yogurt”. The screen displays the default cooking time, the “Start” light will flash red.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys.

•Press “Start” key. The mulitcooker will start the “Yogurt” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, the multicooker will “beep” three times.

Note: There is no keep warm at the end of cooking. Use for making yogurt in oven-proof glass containers.

CHOICE OF INGREDIENTS FOR YOGURT

Milk

What milk should you use?

All our recipes (unless otherwise stipulated) are prepared using cow’s milk. You can use plant milk such as soya milk for example as well as sheep or goat’s milk but, in this case, the firmness of the yogurt may vary depending on the milk used. Raw milk or long-life milks and all the milks described below are suitable for your appliance:

•Long-life sterilised milk: UHT whole milk results in firmer yogurt. Using semi-skimmed milk will result in less firm yogurt. However, you can use semi-skimmed milk and add one or two bowls of powdered milk.

•Pasteurised milk: this milk gives a more creamy yogurt with a little bit of skin on the top.

•Raw milk (farm milk): this must be boiled. It is also recommended to let it boil for a long time. It would be dangerous to use this milk without boiling it. You must then leave it to cool before using it in your appliance. Culturing using yogurt prepared with raw milk is not recommended.

•Powdered milk: using powdered milk will result in very creamy yogurt. Follow the instructions on the manufacturer’s box.

Choose a whole milk, preferably long-life UHT.

Raw (fresh) or pasteurised milk must be boiled then cooled and needs the skin removing.

20

COTTAGE CHEESE FUNCTION

EN

•Press “Menu” key to select function “Cottage Cheese”. The screen displays the default cooking time, the light of “Start” flickers red.

•Press “Temperature / Timer” key to active the time setting function and then press “<“ and “>” to change the cooking time.

•Press “Start” key. The multicooker enters into “Cottage Cheese” cooking status, the light of “Start” lights up and the screen displays the remaining time.

•At the end of cooking, the appliance will beep three times.

Note: No keep warm function for this function

BREAD RISING FUNCTION

•This function is to rise bread dough at 40°C after manual kneading and before baking.

•Press “Menu” key to select function “Bread rising”. The screen displays the default cooking time, the light of “Start” flickers red.

•Press “Temperature / Timer” key to active the time setting function and then press “<“ and “>” to change the cooking time.

•Press “Start” key. The multicooker enters into “Bread rising” cooking status, the light of “Start” lights up and the screen displays the remaining

time.

Recommendations Dough proofing (Bread rising):

•To prepare the dough separately and put it in the inner bowl, close the lid and select «Bread rising» function.

•Once your dough is ready, you can use “Baking” function at 160°C to bake for 20-23 minutes. Then turn it on other side for another 23 minutes approximate (depending on quantity of ingredients).

21

REHEAT FUNCTION

•This function is intended to reheat only cooked food.

•Press “Menu” key to select function “Reheat”. The screen displays the default cooking time, the “Start” light will flash red.

•You can change the cooking time by pressing “Temperature/Timer” key first and then press “<” and “>” keys. Press “Temperature/Timer” key again to change the temperature by pressing “<” and “>”.

•Press “Start” key. The mulitcooker will start the “Reheat” cooking program and the “Start” light will come on. The screen will display the remaining cooking time.

•At the end of cooking, multicooker will “beep” three times and begin the keep warm program, the “Keep Warm” indicator will come on and the screen will start to count the time of keeping warm.

CAUTION:

Never use the rehear function to defrost food. The cold food should not exceed ½ of the cooker’s volume. Too much food cannot be thoroughly heated. Repeated use of “Reheat” or too little food will lead to burnt food and hard layer at the bottom.

It is recommend not to reheat thick porridge, or it may become pasty. Do not heat long-stored cold food to avoid smell.

To reheat rice, it is recommended to add some water and stir the rice before starting.

During reheating, it is recommended to stir the food from time to time.

22

KEEP WARM FUNCTION

EN

There are 2 different functions of this key: Keep warm and Cancel.

1.Keep warm function: 1.1 Manual Keep warm:

You can press “Keep warm/Cancel” key manually, the light of “Keep Warm/Cancel” turns on, the multicooker enters into keep warm status.

1.2 Automatic keep warm:

The multicooker will enter “Keep Warm” status automatically at the end of the cooking (certain menus are excluded). The appliance will beep three times, and will begin the keep warm status with the “Keep Warm” indicator turning on and the screen will start to count the time of keeping warm.

In case that you need to pre-cancel the automatic keep warm when the cooking will be finished : long press “Keep warm” for 5 seconds before starting the cooking program.

If you want to resume automatic keep warm, press again during 5 seconds the keep warm button.

2.Cancel function:

Press “Keep Warm/Cancel” key to cancel all setting data and back to standby status.

DIY FUNCTION

•“Do It Yourself” function is to memorise your favourite cooking choices.

•Press “DIY” key when the multicooker is in standby mode to start the DIY setting. The screen will display the default cooking time, and the “Start” light will flash.

•2 possibilities for DIY setting :

––If you want to have stable temperature and time for your program, press “Temperature/Timer” key to define your settings.

––If you want to use a menu as basis of your program, press “menu” key to select your desiring cooking program. After select you menu, you can modify the setting by pressing “Temperature/Time” key.

•At the end of cooking, the multicooker will “beep” three times.

Note:

•Automatic keep warm is not available for “DIY” function.

•The multicooker can memorize the last temperature and cooking time DIY setting for your next use.

•After long press “DIY” key during 5 seconds , the setting will work with default setting.

23

ON COMPLETION OF COOKING

•Open the lid – Fig.1.

•Glove must be used when manipulating the cooking bowl and steam basket – Fig.11.

•Serve the food using the spoon provided with your appliance and reclose the lid.

•24 hours is the maximum keeping warm time.

•Press “Keep warm / Cancel“ to stop the keep warm status.

•Unplug the appliance.

CLEANING AND MAINTENANCE

•Ensure that the mutlicooker is unplugged and completely cooled down before cleaning and maintenance.

•It is strongly advised to clean the appliance after each use with a sponge – Fig.12.

•The bowl, the cup and the rice and soup spoons are dishwasher safe - Fig.13.

Bowl, steam basket

•Scouring powders and metal sponges are not recommended.

•If food has stuck to the bottom, you may put water in the bowl to soak for a while before washing.

•Dry the bowl carefully.

Taking care of the bowl

For the bowl, carefully follow the instructions below:

•To ensure the maintenance of bowl quality, it is recommended not to cut food in it.

•Make sure you put the bowl back into the multicooker.

•Use the plastic spoon provided or a wooden spoon and not a metal type so as to avoid damaging the bowl surface – Fig.14.

•To avoid any risk of corrosion, do not pour vinegar into the bowl.

•The color of the bowl surface may change after using for the first time or after longer use. This change in color is due to the action of steam and water and does not have any effect on the use of the multicooker, nor is it dangerous for your health. It is perfectly safe to continue using it.

24

Cleaning the micro pressure valve

EN

•When clean the micro-pressure valve, please remove it from the lid – Fig.15 and open it by rotating in the direction of “open” – Fig.16a and 16b. After cleaning it, please wipe dry it and meet the two triangle in the two parts together and rotate it in the direction of “close”, then put it back to the lid of the multicooker – Fig.18a and 18b.

Cleaning the inner lid

•Remove the inner lid by pushing outwards with both hands. Clean it with a sponge and washing up liquid (Fig.17). Then wipe dry and put it back behind the 2 ribs and push it on the top until it’s fixed.

Cleaning and care of the other parts of the appliance

•Clean the outside of the multicooker – Fig.19, the inside of the lid and the cord with a damp cloth and wipe dry. Do not use abrasive products.

•Do not use water to clean the interior of the appliance body as it could damage the heat sensor.

25

TECHNICAL TROUBLESHOOTING GUIDE

	Malfunction		Causes		Solutions
	description
	Any indicator		Appliance not		Check the appliance is
	lights off and no				plugged in the socket,
			plugged in.
	heating.				and is switched on.
			Problem of the
	Any indicator		connection of the		Send to authorized
	lights off and		indicator light or
					service center for repair.
	heating.		indicator light is
			damaged.
			Lid is badly closed.		Open and close the lid
					again.
					Stop the cooking (unplug
			Micro pressure valve		the product) and check
	Steam leakage				the valve is correctly
			not well positioned or
					assembled (2 parts
	during using		assembled incorrectly.
					locked together) and well
					positioned.
			Lid or micro pressure		Send to authorized
			valve gasket is
					service center for repair.
			damaged.
	Rice		Too much or not
			enough water		Refer to table for water
	undercooked or
			compared to rice		quantity.
	overcooked.
			quantity.

26

	Malfunction	Causes	Solutions
	description

EN

	Riceundercooked	Insufficiently
	or overcooked.	simmered.
	Automatic keep	The keep warm
	warm function
		function has been
	fails (appliance
		cancelled by user
	stays on cooking		Send to the authorized
		during the setting.
	programe or		service center for repair.
		See keep warm
	does not heat
		function paragraph.
	on keep warm).
		The sensor on the top
	E0	open circuit or short
		circuit.
		The sensor on the	Stop the appliance and
	E1	bottom open or short	restart the program. If the
		circuit.	problem repeats, please
	E3	High temperature	send to the authorized
		detected.	service center for repair.
			Put the inner pot inside
			the appliance, then unplug
	E5	Missing bowl.	and re-plug the appliance
			and finally restart the
			program.

Remark: If inner bowl is deformed, do not use it anymore and get a replacement from the authorized service center for repair.

27

TEFAL/T-FAL* INTERNATIONAL LIMITED GUARANTEE

: www.tefal.com

This product is repairable by TEFAL/T-FAL*, during and after the guarantee period.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.com

The Guarantee**: TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the attached country list, starting from the initial date of purchase or delivery date.

The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL’s choice, a replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions: TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country’s authorised service centres are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

-damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification

-using the wrong type of water or consumable

-mechanical damages, overloading

-ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects)

-scaling (any de-scaling must be carried out according to the instructions for use)

-damage as a result of lightning or power surges

-damage to any glass or porcelain ware in the product

-accidents including fire, flood, etc

-professional or commercial use

Consumer Statutory Rights: This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased

the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

***Where a product purchased in a listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the one in the country of usage, even if the product was purchased in a listed country with different guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL. If the product is not repairable in the new country, the international TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible.

*TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.

Please keep this document for your reference should you wish to make a claim under the guarantee.

**For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

**For India Only: Your Tefal product is guaranteed for 2 years. The guarantee covers exclusively the repair of a defective product, but at TEFAL’s choice, a replacement product may be provided instead of repairing a defective product. It is mandatory that the consumer, to have his product repaired, has to log a service request on the dedicated Smartphone application TEFAL SERVICE APP or by calling TEFAL Consumer Care Center at 1860-200-1232, Opening hours Mon-Sat 09 AM to 06 PM. Products returned by Post will not be covered by the guarantee. As a proof of purchase consumer needs to provide both this stamped guarantee card and cash memo.

28

ПАНЕЛЬ УПРАВЛЕНИЯ

14

RU

a

b c d

e

Т
а				а а
	а	а а	а

	а			а	Ва
				а

	а				а

f

g h

i j

15

e a f b g c							d
Т										h
а				а			а а а
		а а		а а		а а

j					а		l
i	а а					Ва	m
					а а
	а а					а
	n	o	p	k	q	r

29

ОПИСАНИЕ

1Паровая корзина

2Мерная шкала для воды и риса

3Съемная чаша

4Мерный стакан

5Ложка для риса

6Ложка для супа

7Крышка

8Съемная внутренняя крышка

9Микроклапан давления

10Кнопка фиксации крышки

11Рукоятка

12Корпус

13Шнур питания

14Панель управления

aИндикатор «Подогрев/ Отмена»

bКлавиша «Подогрев/ Отмена»

cИндикатор «Отложенный старт»

dКлавиша «Температура/ Время»

eКлавиша «<»

fИндикатор «Запуск»

gКлавиша «Запуск»

hКлавиша «Ручной режим»

iКлавиша «Меню»

jКлавиша «>»

15Индикаторы функций

aТип продуктов: овощи

bТип продуктов: рыба

cТип продуктов: птица

dТип продуктов: мясо

eФункция приготовления супа

fФункция выпечка/ запекание

gФункция тушения/ медленноварки

hФункция приготовления на пару

iФункция жарки

jФункция приготовления риса/круп

kФункция приготовления плова/ризотто

lФункция приготовления каши

mФункция приготовления варенья

nФункция приготовления пасты/пельменей

oФункция приготовления йогурта

pФункция приготовления творога

qФункция подъема теста

rФункция разогрева

30
