ESPRESSO MACHINE PLUS MULTI-CAPSULE™ HANDLE
Contents
Sunbeam's Safety Precautions |
1 |
Features of your Café Series® |
|
Espresso Machine |
2 |
Preparing your espresso machine |
|
for the first time |
8 |
Using your espresso machine - Ground coffee |
9 |
Inserting a capsule adaptor |
12 |
Using your espresso machine - Capsule |
13 |
Guide to milk texturing |
14 |

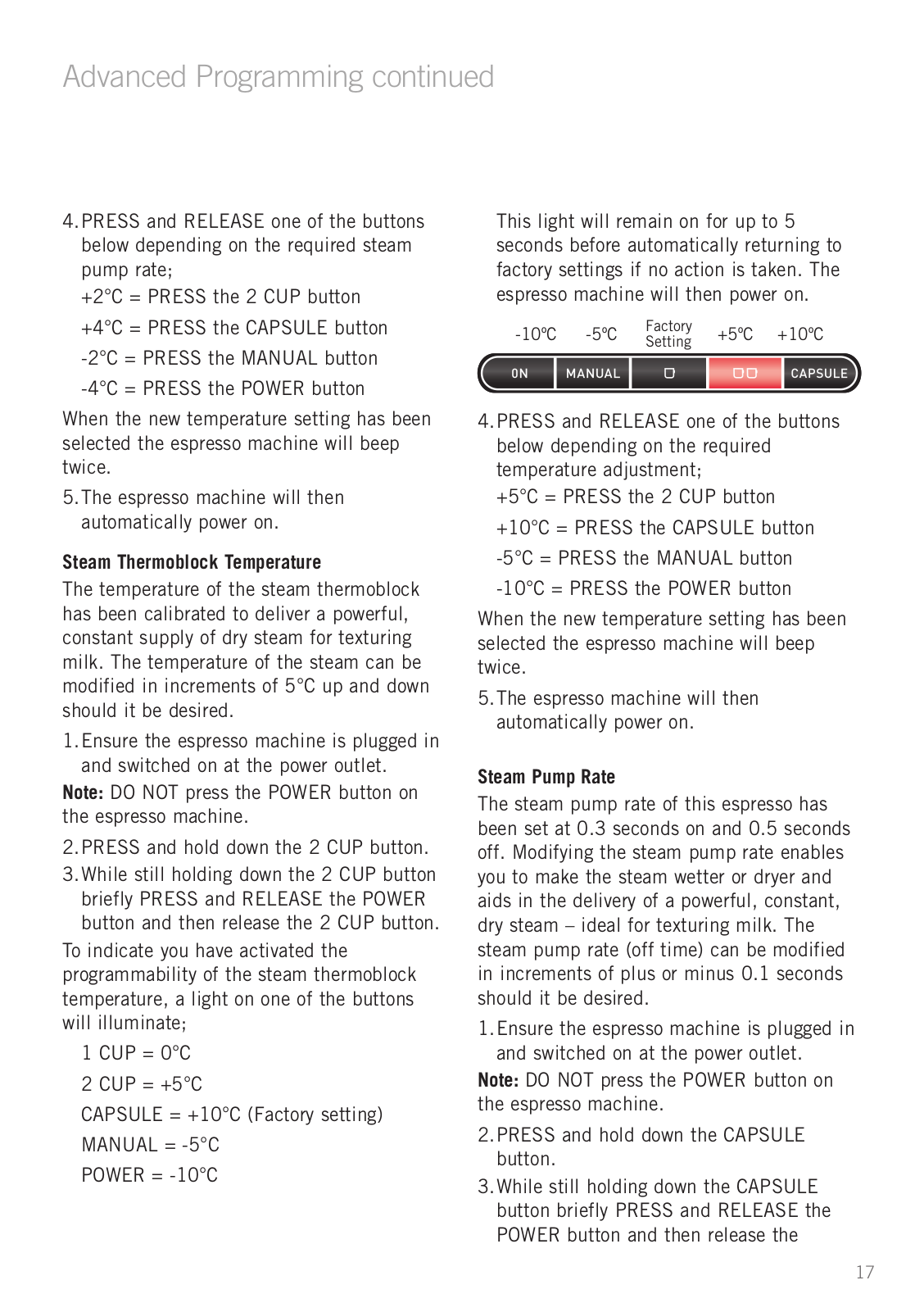

Advanced Programming |
15 |
Care and cleaning |
20 |
Coffee thermoblock cleaning cycle |
22 |
Descaling Cycle for both the Coffee |
|
and Steam Thermoblocks |
23 |
Disclaimer |
24 |
Important instructions – retain for future use.
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR SUNBEAM ESPRESSO MACHINE
•Always place the unit on a flat, level surface.
•Do not operate without water in reservoir. Fill reservoir with only clean and cold water.
Observe the maximum filling volume is 3 litres.
•Do not remove the filter handle during the espresso pour or water flow as the unit is under pressure. Removing the filter handle during either of these operations can lead to a scalding or injury.
•The steam wand and hot water tap become very hot during texturing milk and water flow. This may cause burns in case of contact, therefore avoid any
direct contact with the steam wand or hot water tap.
•Always disconnect the plug from the power outlet prior to cleaning the espresso machine or if there is any problem during the coffee making process.
•Do not allow the power cord to come into contact with the hot parts of the espresso machine, including the cup warming plate, hot water tap and steam wand.
•Do not place hands directly under the steam, hot water or coffee pour as this can lead to a scalding or injury.
Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:
•Read carefully and save all the instructions provided with an appliance.
•Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
•Turn the power off and remove the plug when the appliance is not in use and before cleaning.
•Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
•Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•The temperature of accessible surfaces may be high when the appliance is operating.
•Never leave an appliance unattended while in use.
•Do not use an appliance for any purpose other than its intended use.
•Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
•Do not place on top of any other appliance.
•Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
•Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
•For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
•Do not immerse the appliance in water or any other liquid unless recommended.
•Appliances are not intended to be operated by means of an external timer or separate remote control system.
•This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
1
Features of your Café Series® Espresso Machine
Warming plate
The large warming plate effectively pre-warms cups helping to retain the essential characteristics true of espresso - sweet, rich tasting and aroma.
Steam control dial
Used to open and close the steam.
Temperature sensing steam wand
The temperature sensing steam wand
ensures milk is textured to the correct temperature,
as milk heated to the correct temperature enhances the sweetness and taste. Fitted with a dedicated thermoblock and pump, it provides an instant and constant supply of powerful dry steam for achieving silky, dense and rich milk. The commercial ball joint allows the steam wand to be moved into the ideal position.
Espresso gauge
The gauge measures the resistance to the espresso pour and at a glance, the coffee maker can gauge the quality of the espresso pour.
Commercial size group head
Commercial size sloping group handle with tamping pad
The sloping handle is designed for improved ergonomic use and when rested on the bench provides an even tamping surface, resulting in a better tasting espresso.
Removable drip tray and grill
The large capacity drip tray is lined with plastic, preventing staining from espresso oils, lightweight for easy removal and designed with no dirt traps for simple wipe down cleaning.
Accessories |
Single filter basket |
Double filter basket |
|
All the essential accessories to make |
|||
|
|
||
an authentic café-quality espresso. |
|
|
|
|
Single dual |
Double dual |
|
|
floor basket |
floor basket |
2
Milk temperature gauge
The gauge displays the temperature of the milk to help the espresso machine achieve the desired temperature every time.
Control board with dual gauges, low water indicator & large buttons
Slightly angled for easy viewing, the control board houses all the information the espresso machine needs to create a great tasting espresso.
Capsule Button
Use for single or long capsule espresso pours.
Hot water control dial
Used to open and close the hot water.
Hot water wand
Dispenses a controlled flow of hot water.
3 litre water reservoir
Removable 3 litre water reservoir is fitted with an anti-calc filter and can be filled from the top or is removable from behind.
FEATURES YOU CAN'T SEE
Twin pumps and Twin thermoblocks allow you to texture milk and brew espresso at the same time.
15 BAR Italian espresso pump fitted with a pressure relief system.
Twin thermoblocks with stainless steel tubing.
PID technology controls water temperature precisely for both espresso and steam functions.
Pre-infusion; 3 programs to choose from.
Brass collar is durable and ideal for frequent use.
Advanced Programming to adjust pump and temperature settings for optimal steam and brewing performance.
Stainless steel and die-cast metal design Power saving mode
Cleaning disc
Measuring spoon
Tamp |
600ml jug |
3
Features of your Café Series® Espresso Machine continued
Group Handle for Capsule Adaptors
Designed to be used with Capsule Adaptors.
Capsule Adaptor Base
Controls the pressure through the capsule.
Capsule Adaptor Top
Holds your capsule in place.
Freedom to choose from three Capsule Systems.
-The group handle for capsule adaptors is designed to be used with three different capsule systems.
Colour Guide for Capsules
Nespresso* = Black |
Lavazza A Modo Mio * = Brown |
Caffitaly* = Red |
IMPORTANT: The capsule base and top must be the same colour. If you use different colours the machine will not work.
*Capsule trade marks are owned by third parties & are not related to Sunbeam. (See page 26 for full Trade marks Disclaimer)
4
Features of your Café Series® Espresso Machine continued
Required Espresso Pressure
The 15 BAR Italian pump produces the required pressure for brewing espresso consistently. Fitted with a pressure relief system which ensures that any remaining pressure after the extraction, is released into the drip tray; allowing for quick, successive brews.
Espresso Temperature
Independent thermoblock heating systems are lined with stainless steel and fitted with PID technology. The PID (proportional integral derivative) technology controls the thermoblock to deliver precise water temperature, ensuring a consistent brew every time.
Twin Pumps & Twin Thermoblocks
True to commercial use, the unique twin pumps and twin thermoblocks allow the coffee maker to texture milk and pour an espresso simultaneously.
Should the needle fail to reach the target area this is an indication that the serve of espresso is ‘under-extracted’. This occurs when water passes too quickly through the tamped coffee grinds and is an indication that either the grind is too coarse (so the water flows straight through the grinds) or the filter basket has been under-dosed. The pour is quick and light in colour and the resulting crema is thin with a creamy light brown colour.
|
Optimum |
|
|
Pour |
|
Under |
Over |
|
Extracted |
||
Extracted |
||
Pour |
||
Pour |
||
|
Espresso Gauge
The espresso gauge is an indicator of the quality of the espresso pour and should be used as a guide.
It measures the pressure or resistance created by water being pumped through the tamped coffee grinds in the group handle.
Whilst the needle is within the target area on the gauge it indicates that a quality serve of espresso has been made. This is indicated by a slow, but flowing pour of espresso with a consistency similar to that of dripping honey. The crema should be dark golden in colour.
When the needle goes beyond the target area it is an indication that the serve of espresso is ‘over-extracted’. This occurs when the water passes very slowly through the tamped coffee grinds and is an indication that either the grind is too fine (so that it is difficult for the water to pass through) or the filter basket has been over-dosed. In this situation the hot water is in contact with the coffee grinds for too long thus creating a burnt and bitter tasting espresso. This is characterised by the espresso only slowly dripping during the entire pour and the crema is very dark.
5
Features of your Café Series® Espresso Machine continued
Milk Temperature Gauge
The 4 BAR steam pump produces instant, constant steam pressure for texturing milk. An important factor when creating milk foam is temperature. The steam wand integrates a temperature sensing device that relays the temperature of the milk during texturing to the milk temperature gauge on the control board.
As most coffees are milk based, this highlights the importance of getting the milk right. The end product should be smooth, velvety with none or barely visible bubbles. Milk textured to the optimum temperature improves and sweetens the taste.
Commercial Size Group Head & Group Handle
The group head, group handle and filters are designed to commercial specifications using brass and stainless steel components. These elements help contribute to the preparation of an espresso serve, as it allows the coffee maker to pack the necessary amount of coffee grinds, which then expand firmly and evenly onto the shower screen.
The sloping group handle gives the coffee maker a more ergonomic action when attaching and removing the handle from the group head. Also when rested on the bench the filter basket sits level, this results in a more even tamp ensuring an even extraction. The under-side of the basket has a tamping pad so you can position the group handle on the side of the bench which prevents scratches on your bench top whilst ensuring the basket remains level.
Single Floor Filters
These are the most common style of filters. The smaller filter is used for a single cup of coffee, and the larger double filter is used for two cups of coffee, or one single 'double strength' cup of coffee.
Dual Floor Filters
These filters have 2 floors. They are designed for use with preground coffee. This coffee
is too coarse for use in the single floor baskets. Dual floor baskets are designed to compensate for this by slowing the flow of espresso creating a subtle aeration to ensure a golden crema. Although designed for
use with preground coffee, dual floor filter baskets can also be used with all ground coffee.
6
Features of your Café Series® Espresso Machine continued
Control Board
Slightly angled for easy viewing, the control board communicates the essential
information you need to create a great tasting coffee. Use the 'CAPSULE' button for capsule based coffee. Use the 'single' or 'double' cup for ground coffee bean based coffee.
Pre-Infusion
There are 3 programmable pre-infusion settings to help achieve the perfect extraction.
Pre-infusion is programmed into the MANUAL, 1 CUP and 2 CUP espresso operations.
1.Constant - delivers a constant water flow from start to finish.
2.Progressive - small amounts of water are released onto the tamped coffee prior to a steady water flow.
2.Infusion - small amount of water is released onto the tamped coffee, then there is a short infusion time before a steady flow of water is released.
Note: Pre-infusion is not activated when the capsule button is pressed.
Anti-Calc Filter
An Anti-Calc water filter reduces impurities that taint the flavour and odour of the water, improving the taste and aroma of the espresso brewed. Additionally, scale build up is slowed reducing the frequency of cleaning required.
The Anti-Calc water filter fitted inside the 3 litre water reservoir has a 12 month life for domestic use and a 3 month life for commercial use.
Note: Contact Sunbeam on 1300 881 861 for replacement filters (Part code: EM69101).
Note: The espresso machine can operate normally without the filter and is easily removed by gently pulling it out.
7
