Sunbeam LC6950, LC6250 User Manual

4 (1)

MultiProcessorRange

Instruction Booklet

LC6250 Sunbeam MultiProcessor™ – Food processor

LC6950 Sunbeam MultiProcessor™ Plus – 3 in 1 Processor, blender and citrus juicer (Pictured below)

Please read these instructions carefully and retain for future reference.

Contents

Sunbeam’s Safety Precautions

3

Features of your Sunbeam MultiProcessor

4

Features of your Sunbeam MultiProcessor Plus

6

Attachments for your Sunbeam MultiProcessor

8

Using your Sunbeam MultiProcessor

10

Fitting/using the tools on your MultiProcessor

12

Storing your Sunbeam MultiProcessor

16

Handy hints for in-bowl processing

18

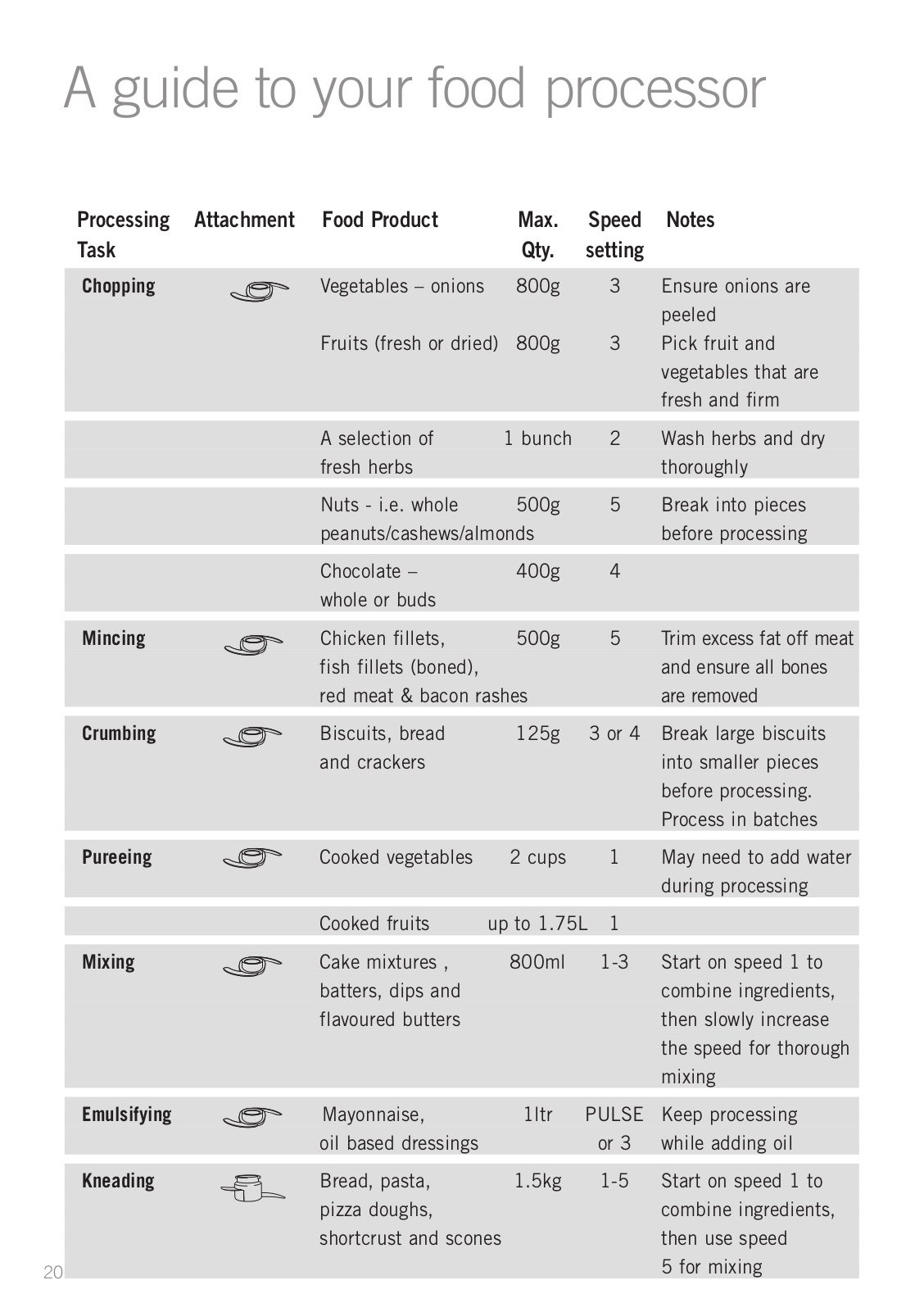

A guide to your food processor

20

Handy blending tips

22

A guide to your blender

23

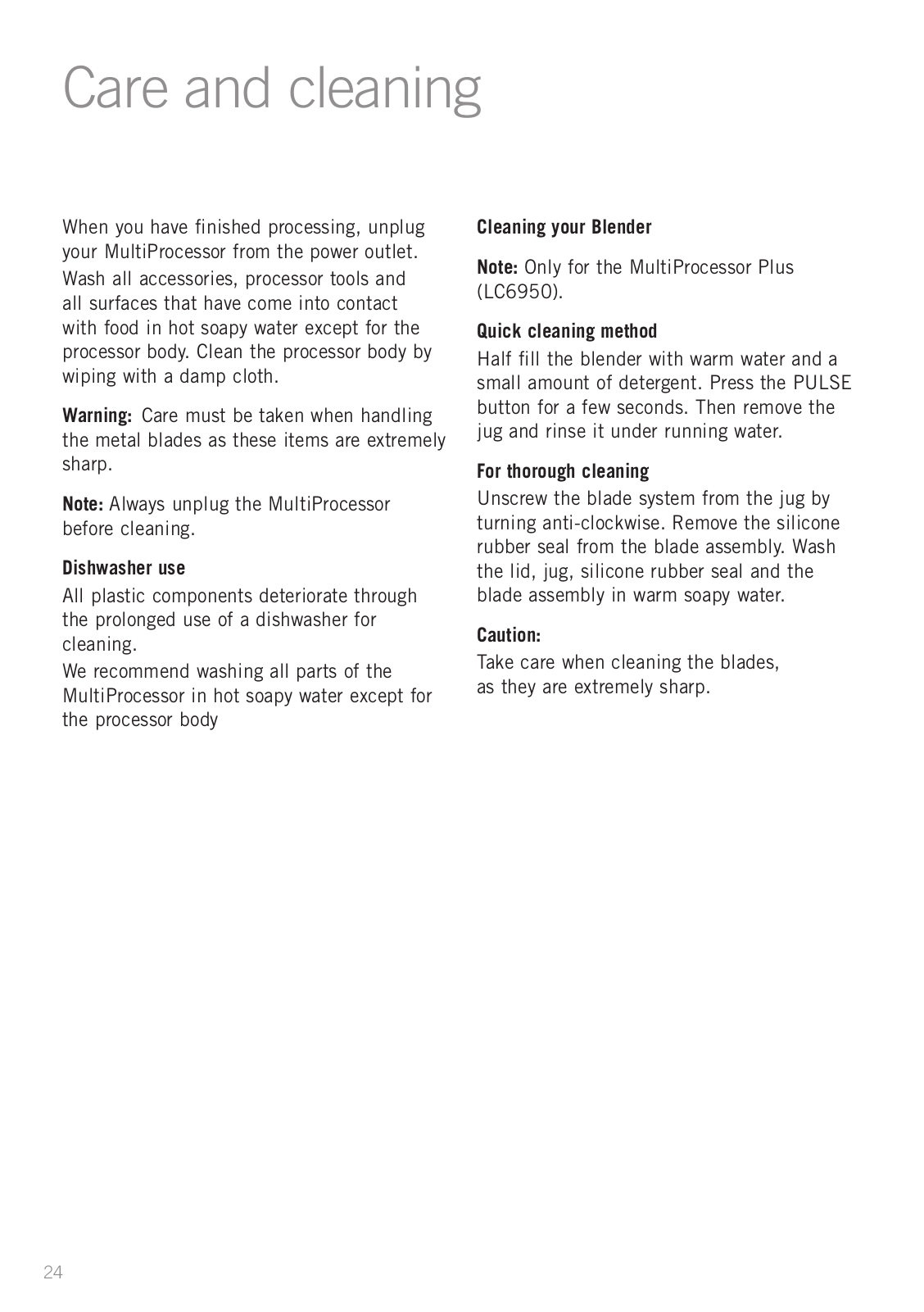

Care and cleaning

24

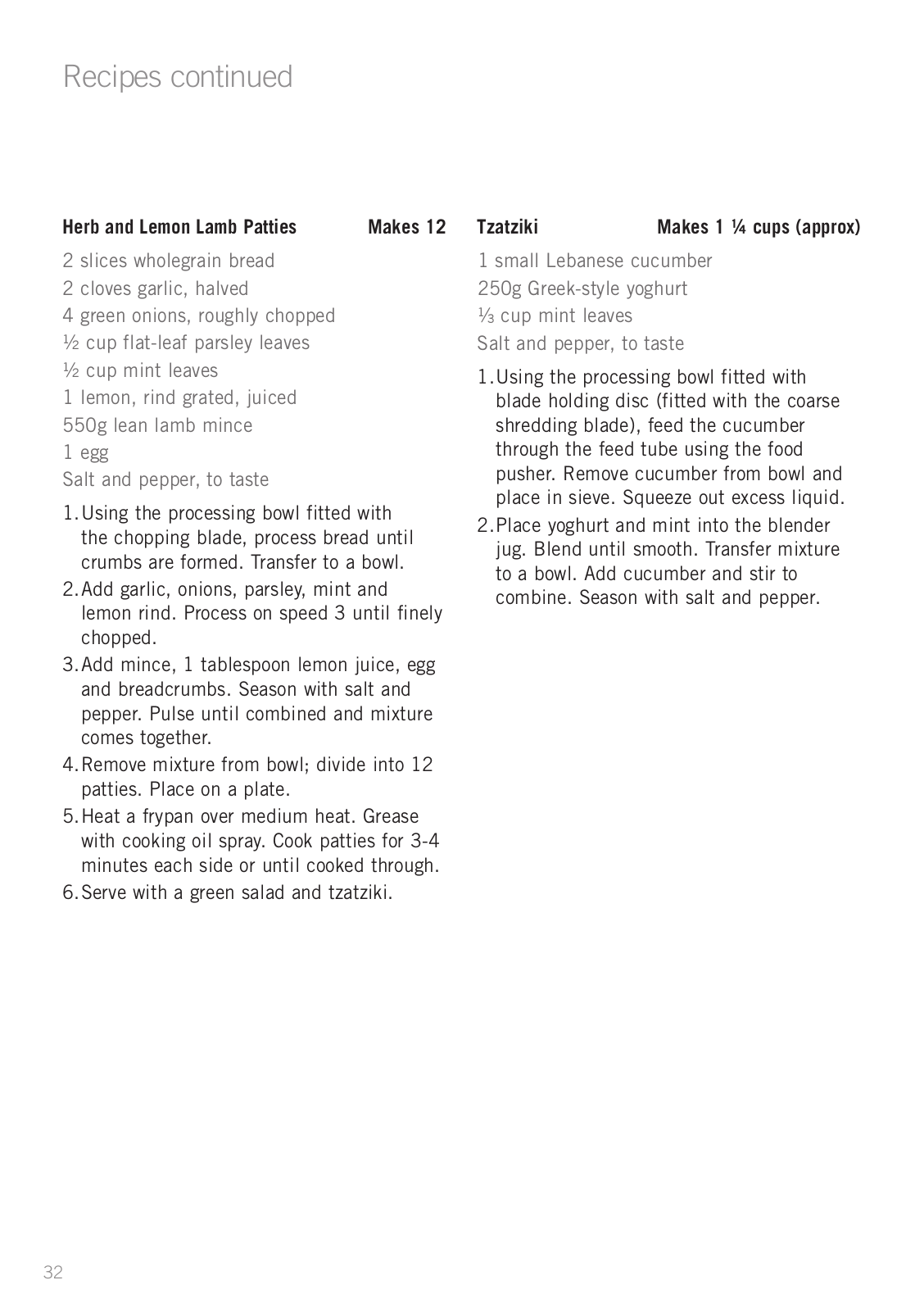

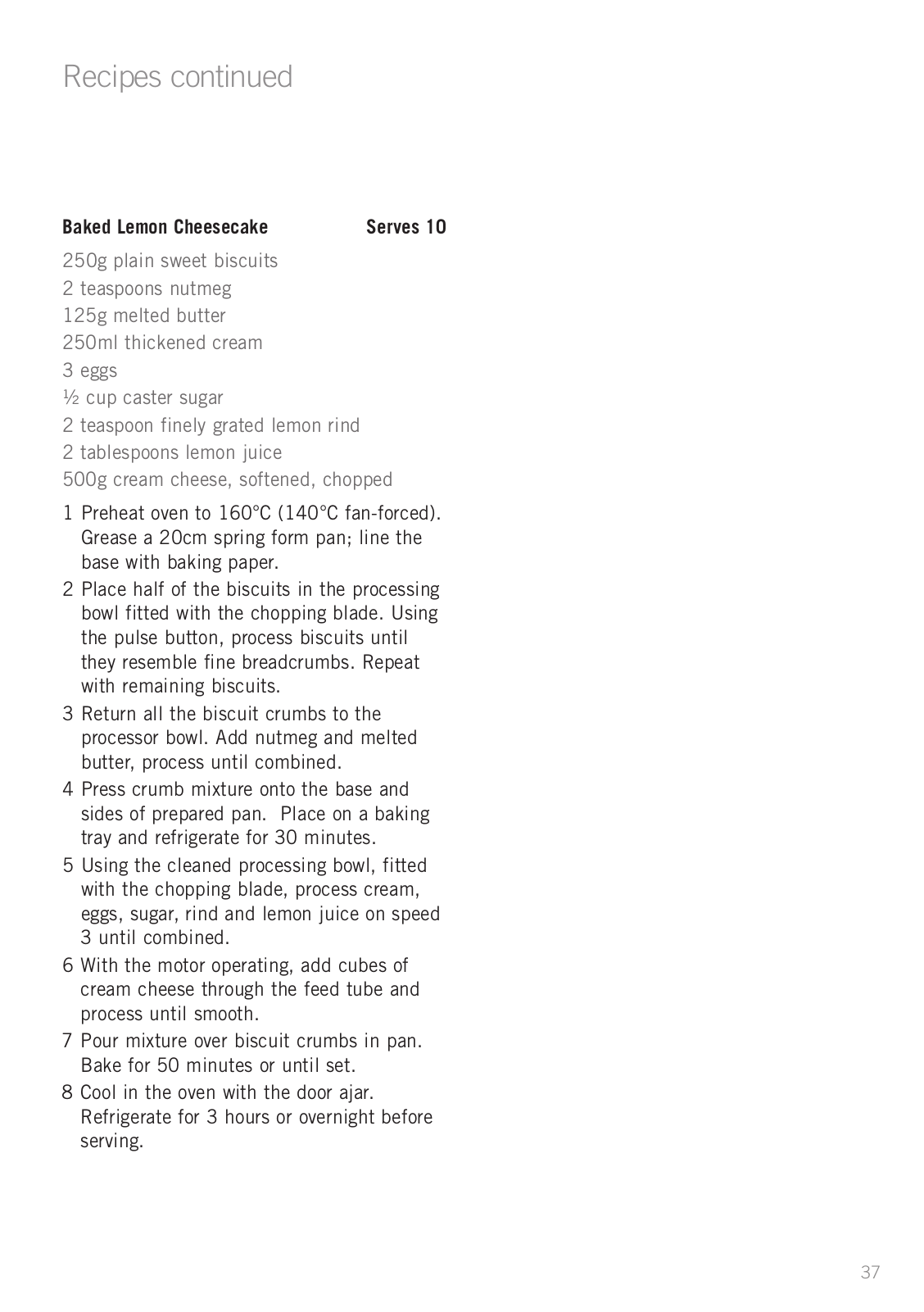

Recipes

25

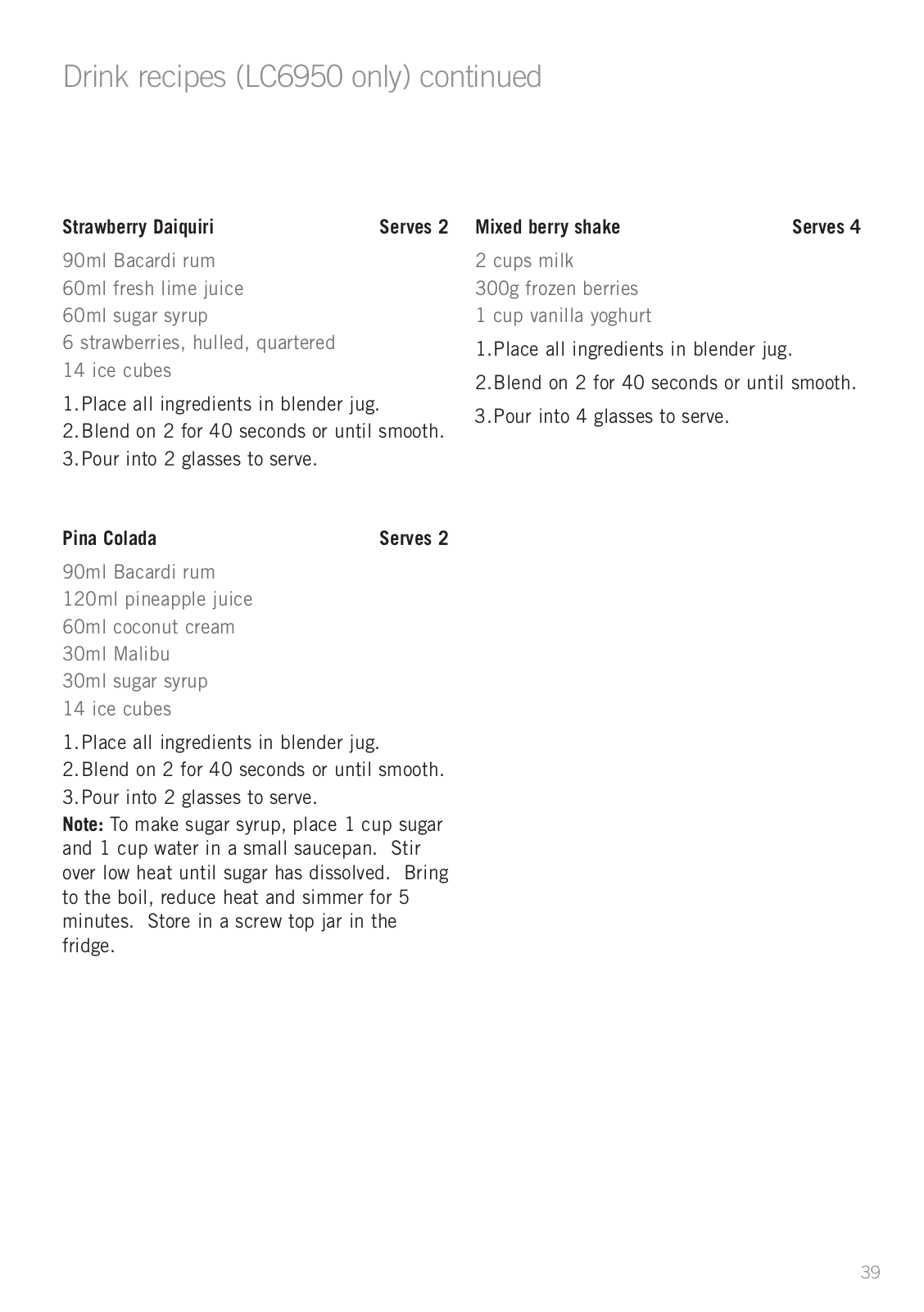

Drink recipes (LC6950 only)

38

Important instructions – retain for future use.

Sunbeam’s Safety Precautions

SAFETY PRECAUTIONS FOR YOUR SUNBEAM FOOD PROCESSOR.

Always use extreme care when handling processing blades and cutting discs. These are extremely sharp and may cause injury if handled incorrectly. Always store processing blades and cutting discs in their respective covers or processing containers.

Unplug from power outlet before cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Always fit the safety cover before using the food processor.

Do not put hot liquids into the food processor

bowl or blender. Cool to room temperature before blending or processing.

Avoid contacting moving parts at all times.

Place the processor bowl onto the base of the processor before fitting any attachments.

All blades and attachments should be removed with care before cleaning.

Do not over fill the processor.

Always remove the blade before emptying the processor bowl of its contents.

When mixing a heavy load, ie. a ‘1.5kg dough’ do not operate food processor for more than 45 seconds at a time. This does not apply for any of the recipes detailed in this booklet.

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

Read carefully and save all the instructions provided with an appliance.

Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.

Turn the power off and remove the plug when the appliance is not in use and before cleaning.

Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.

Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The temperature of accessible surfaces may be high when the appliance is operating.

Never leave an appliance unattended while in use.

Do not use an appliance for any purpose other than its intended use.

Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.

Do not place on top of any other appliance.

Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.

Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.

For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.

Do not immerse the appliance in water or any other liquid unless recommended.

Appliances are not intended to be operated by means of an external timer or separate remote control system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.

3

Features of your Sunbeam MultiProcessor

Processing bowl cover

The processing bowl cover activates the automatic safety system. The MultiProcessor will not operate unless the cover is correctly positioned on the processing bowl and locked into place.

850w motor base

The base houses a powerful 850 watt motor, which provides great processing results every time.

Pulse button

Increases the intensity of the standard processing action to assist in the most demanding tasks.

Variable speed control

The large speed control dial with 5 clearly marked speeds makes it easy to select the desired setting.

Blade storage compartment

Enables attachments to be stored conveniently when not in use.

Non-slip feet

Keeps the food processor secure on the bench top during use.

4

Food pusher

Guides food evenly down the feed tube and can also be used to close the chute while processing to prevent food from escaping through the feed tube.

Feed tube

The feed tube is used to guide ingredients down into the selected blades and allows you to add ingredients during other processing tasks.

Spindle

Drives all the food processing attachments. The spindle must be in place to operate the food processor.

Processing bowl

Capacity is 1.75 litres for liquids and 1.5 kilograms for solids. The bowl locks into place on the motor base and is designed to encourage even, efficient processing.

Cord storage facility

For tidy, convenient storage of the cord on the backside of the motor base.

LC6250 PICTURED

5

Sunbeam LC6950, LC6250 User Manual

FeaturesH ding of your Sunbeam

MultiProcessor Plus

Blender cover with lid pouring hole

The blender lid securely seals the jug and features a lid pouring hole that allows you to add

ingredients during blending.

1.5 litre shatter proof blender jug

The sizeable 1.5 litre jug features an easy grip handle and is marked in both cups and millilitres (ml) for ease of use.

The blender jug locks onto the motor base of the food processor and will not operate unless the jug is in the locked position.

Serrated stainless steel blades

These durable, serrated stainless steel blades are strong enough to crush ice cubes and are ideal for pureeing, blending and mixing. The blade assembly is detachable for easy and thorough cleaning.

Pulse button

Increases the intensity of the standard processing action to assist in the most demanding tasks.

Blade storage compartment

Enables attachments to be stored conveniently when not in use.

Variable speed control

The large speed control dial with 10 clearly marked speeds makes it easy to select the desired setting.

Non-slip feet

Keeps the food processor secure on the bench top during use.

6

Ingredient measuring cap

Handy 70mL ingredient measuring cap.

Food pusher

Guides food evenly down the feed tube and can also be used to close the chute while processing to prevent food from escaping through the feed tube.

Feed tube

The feed tube is used to guide ingredients down into the selected blades and allows you to add ingredients during other processing tasks.

Bowl cover

The processing bowl cover activates the automatic safety system. The MultiProcessor Plus will not operate unless the cover is correctly positioned on the processing bowl and locked into place.

Spindle

Drives all the food processing attachments. The spindle must be in place to operate the food processor.

Processing bowl

Capacity is 1.75 litres for liquids and 1.5 kilograms for solids. The bowl locks into place on the motor base and is designed to encourage even, efficient processing.

Cord storage facility

For tidy, convenient storage of the cord on the backside of the motor base.

LC6950 PICTURED

7

Attachments for your Sunbeam MultiProcessor

1. Processing blade

The stainless steel processing blade is contoured to fit the shape of the processing bowl to provide the most efficient chopping/ mixing action.

Please ensure that the processing blade protective cover is placed on the processing blade when not in use.

The processing blade can be used to chop raw meats to mince, chocolate to crumbs and nuts to paste.

2. Dough blade

The dough blade is contoured for fast, efficient processing. It is ideal for mixing doughs, heavy cake mixes and batters.

3. Blade holding disc

The blade holding disc houses the various processing attachments – slicing, chipping, grating and shredding.

Holding clip

4. Slicing blades - Thick and Thin

The thick slicing blade is ideal for slicing a variety of fruits and vegetables.

The thin slicing blade is ideal for slicing of fruits, vegetables, raw meats, chicken and deli meats like salami.

5. Chipping blade

The chipping blade is ideal for making potato chips and vegetable strips.

8

HeadingAttachments for your Sunbeam MultiProcessor continued

6. Grating blade

The grating blade is ideal for grating hard cheeses, especially parmesan.

9. Safety cover

This attachment is only available with the MultiProcessor Plus (LC6950).

When the blender is not in use, it is recommended that the blender is removed from the food processor body and the safety cover is locked in place. The MultiProcessor Plus will not operate unless the safety cover or blender jug is locked in place.

7. Shredding blades - Coarse and Fine

The coarse shredding blade is ideal for a variety of fruits and vegetables.

The fine shredding blade is ideal for chocolate, ginger and garlic and a variety of fruits and vegetables.

8. Whisk attachment

The whisk attachment is ideal for whisking egg whites, creams, light batters and packet cake mixtures.

10. Citrus Juicer

This attachment is only available with the MultiProcessor Plus (LC6950).

The citrus juicer sits inside the processing bowl (without the spindle) to filter pips and pulp pieces during juicing.

The citrus juicer attachment enables you to juice all types of citrus fruits from limes and lemons to oranges and grapefruit.

11. Spatula

The spatula is ideal for assisting with all food processing tasks.

9

UsingHeadingyour Sunbeam

MultiProcessor

Before using your MultiProcessor

Wash the processing bowl, cover and all attachments in warm water using a mild detergent. Dry each part thoroughly before use.

Before you assemble the food processor, ensure that the power cord is unplugged.

Before using the processing bowl

The following steps are only necessary for the MultiProcessor Plus (LC6950).

1.Place the motor base facing you on a dry, level surface.

2.Fit the safety cover onto the food processor body and twist anti-clockwise, see Figure 1

LC6950

Pictured

Fig 1

Note: The MultiProcessor Plus processing bowl will not operate if the safety cover or blender jug are not in place.

Positioning the processing bowl and cover

The following steps are for both models LC6250 and LC6950.

1.Place the motor base facing you on a dry, level surface.

2.Position the processing bowl over the drive shaft. The handle of the bowl needs to be facing you (marked “Locate handle”) and the bowl should now be resting on the base of the food processor, see Figure 2.

LC6250

Pictured

Fig 2

3.To lock the bowl into position for use, turn the handle to the right, as far as it will go, see Figure 3.

LC6250

Pictured

Fig 3

4.Place the processor bowl cover onto the processing bowl, by aligning the icon marked on the handle with the icon on the bowl cover. Then rotate lid to lock, see Figures 4 and 5.

unlocked

LC6250

Pictured

Fig 4

10

HeadingUsing your Sunbeam MultiProcessor continued

The holding lip should be flush with the top of the bowl handle.

locked

LC6250





Pictured

Fig 5

Important: If the processing bowl and cover are not correctly assembled, the MultiProcessor will not function.

Using your MultiProcessor

1.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

2.Using the control dial, select the desired processing speed.

The Pulse function remains on as long as the Pulse button is pressed down.

The variable speed settings will provide continuous processing until the control dial is returned to the ‘0’ position.

Further ingredients can also be added whilst processing by pouring through the feed tube once the food pusher has been removed.

3.After you have completed processing, turn the control dial to the ‘0’ position.

Note: For maximum control when using your food processor, load the feed tube before turning on your food processor. Always use the food pusher for more evenly processed foods and never use your fingers.

Important: When mixing a heavy load, ie. ‘1.5kg Dough’ do not operate food processor for more than 1 minute at a time.

11

Fitting/usingHeading the tools on your MultiProcessor

Note: All attachments must be firmly attached to the spindle. Always adjust the attachments until you are sure that they are correctly fitted.

Placing the spindle

1.Fit the spindle onto the drive shaft, see Figure 6.

LC6250

spindle



Pictured

drive shaft

Fig 6

Processing Blade

1.Fit the processor bowl and spindle as detailed previously in Figures 2, 3 & 6.

2.Remove the protective cover from the stainless steel processing blade, see Figure 7.

Fig 7

3.Fit the processing blade over the spindle and press firmly into place, see Figure 8.

chopping



blade

spindle





LC6250

Fig 8

Pictured

Warning: Use extreme caution as blades are sharp. Always handle the chopping blade by its central plastic section.

4.Place food into the processing bowl.

5.Fit the processing bowl cover to the processing bowl, see Figures 4 & 5 and place the food pusher in the feed tube.

6.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

7.Select the required speed.

8.When processing is complete, remove the spindle and blade from the processing bowl before removing the processed food.

Note: After cleaning, always replace the protective cover on the stainless steel processing blade.

Dough Blade

1.Fit the processor bowl and spindle as detailed previously, in Figures 2, 3 & 6.

2.Fit the dough blade over the spindle and press firmly into place, see Figure 9.

dough



blade

spindle

Fig 9

LC6250

Pictured

3.Place ingredients into the processing bowl.

4.Fit the processing bowl cover to the processing bowl, see Figures 4 & 5 and place the food pusher in the feed tube.

5.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

6.Select required speed.

7.When processing is complete, remove the spindle and blade from the processing bowl before removing the dough.

12

HeadingFitting/using the tools on your MultiProcessor continued

Note: For added safety we recommend that you always leave the food pusher in place whilst operating the processor.

Whisk Attachment

1.Fit the processor bowl and spindle as detailed previously in Figures 2, 3 & 6.

2.Fit the whisk attachment over the spindle and press firmly into place, see Figure 10.

whisk



spindle

LC6250



Pictured

Fig 10

3.Add ingredients into the processing bowl.

4.Fit the processing bowl cover to the processing bowl in Figures 4 & 5 and place the food pusher in the feed tube.

5.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

6.Select the required speed.

7.When processing is complete, remove the spindle and whisk from the processing bowl before removing the processed food.

Slicing, Chipping, Grating and Shredding Blades

1.Place the blade of your choice into the blade holding disc. Hold the blade by the holding clip and insert the other end into the blade holding disc. Press down on the end of the blade with the holding clip until the blade is sitting flat in the blade holding disc, see Figures 11 & 12.

Fig 11

Fig 12

2.Fit the processor bowl and spindle as detailed previously in Figures 2, 3 & 6.

3.Fit the blade holding disc over the spindle and press firmly into place, see Figure 13.

blade



holding

spindle

disc



Fig 13

LC6250

Pictured

Warning: Use extreme caution as the blades are sharp.

4.Fit the processing bowl cover to the processing bowl in Figures 4 & 5 and place the food pusher in the feed tube.

13

HeadingFitting/using the tools on your MultiProcessor continued

5.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

6.Select the required speed.

7.When processing is complete, remove the blade holding disc and spindle from the processing bowl before removing the processed food.

Citrus Juicer

Note: This attachment is only available with the MultiProcessor Plus (LC6950).

1.Fit the processor bowl as detailed previously in Figures 2 & 3.

2.Fit the citrus juicer bowl into the food processing bowl, see Figure 14.

Fig 14

3.Rotate anti-clockwise, ensuring that the citrus juicer bowl tab has locked into place, see Figure 15.

4.Insert the juicing cone into the centre of the citrus juicer bowl; the drive shaft

should be inside the central column of the bowl, see Figure 16.

Fig 16

5.Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.

6.Place fruit on citrus cone and hold with a cupped hand and turn speed control to speed 1.

Note: Always operate the juicer at minimum speed only.

Blender

Note: This feature is only available with the

MultiProcessor Plus (LC6950).

1.Remove the safety cover from the food processor body. Simply twist the safety cover clockwise and remove, see Figure 17.

LC6950

Pictured

Fig 15

Fig 17

14

Loading...
+ 30 hidden pages
