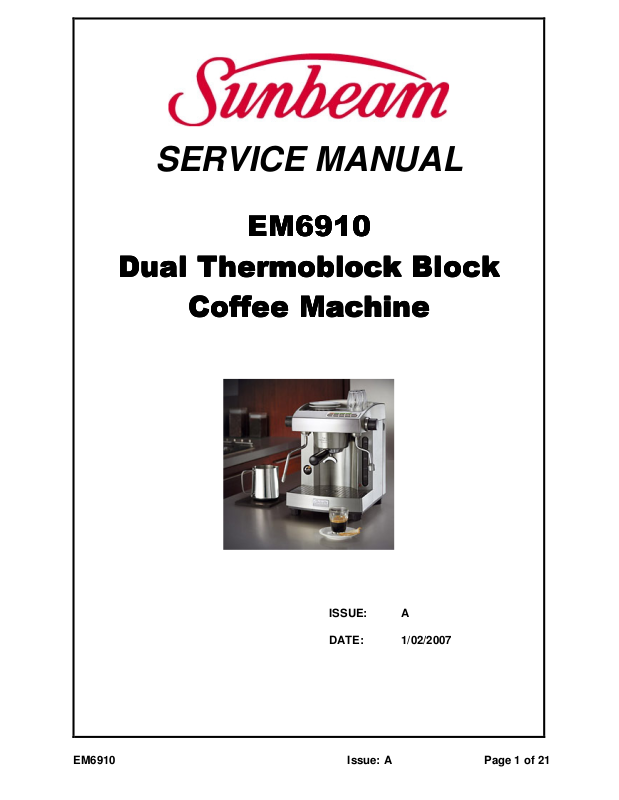

SERVICE MANUAL
EM6910
Dual Thermoblock Block
Coffee Machine
ISSUE: A
DATE: 1/02/2007
EM6910 |
Issue: A |
Page 1 of 21 |
SPARE PARTS LIST
Note: Not all parts are available as spare parts. Please check price list.
Item |
Description |
Sunbeam Part No. |
|
|
|
|
Filter anti-calc cartridge |
EM69101 |
Page 5, #11 |
Cleaning disc |
EM69102 |
Page 6, # 1 - 4 |
Filter handle assembly |
EM69103 |
Page 5, #31 |
Measuring spoon |
EM69104 |
Page 5, #35 |
Tamp |
EM69105 |
Page 7, # 1 - 11 |
Water tank assembly |
EM69106 |
Page 5, # 52 |
1 cup filter single wall |
EM69107 |
Page 5, # 53 |
2 cup filter single wall |
EM69108 |
Page 5, # 20 |
Milk frothing jug 800ml |
EM69109 |
|
Steam tube assembly |
EM69110 |
|
Valve assembly |
EM69112 |
|
Brew head seal |
EM69116 |
|
Steam / water valve assembly + steam pin |
EM69117 |
Page 5, # 3 |
Rear door hinge screw |
EM69118 |
|
New piping sets |
EM69122 |
|
Tension anti-drip spring |
EM69128 |
|
Solenoid valve assembly |
EM69129 |
|
Steam thermoblock |
EM69131 |
Page12, # 6 |
Coffee water pump assembly |
EM69132 |
Page 12, # 1, 2 |
Brass fitting for S2 valve |
EM69132B |
Page 12, # 3, 4 |
S2 valve & oring |
EM69132C |
|
Dial actuator |
EM69134 |
|
Screw for actuator |
EM69135 |
Page 5, # 33 |
Hot water and steam dial knob |
EM69138 |
|
Hot water arm |
EM69139 |
|
Hot water steam valve assembly mount screw |
EM69140 |
|
T-bar brass fitting |
EM69143 |
|
Anti-drip silicon valve |
EM69147 |
|
Long wire microswitch for hot water dial |
EM69148 |
|
Short wire microswitch for steam dial |
EM69149 |
|
Cable ties |
EM69150 |
|
Baffle |
EM69152 |
Page 8, # 24 |
Screw for thermoblock |
EM69153 |
Page 5, # 38 |
Warming plate |
EM69155 |
Page 5, # 13 |
Drip tray connector |
EM69156 |
Page 6, # 1 |
Filter cradle wire for EM69103 |
EM69157 |
Page 8, #2 |
Shower Head Plate |
EM69158 |
|
Single Pour Spout |
EM69160 |
|
Dual Pour Spout |
EM69161 |
|
Dumping Nozzle Brass Insert |
EM69162 |
Page 9, # 8 |
Steam Chamber Wire/Thermal Fuse Assembly |
EM69163 |
|
Coffee Block Wire/Thermal Fuse Assembly |
EM69164 |
Page 14, # 5 |
Water Tank Valve Body |
EM69165 |
Page 14, # 4 |
Water Tank Valve Rubber Ring |
EM69166 |
|
Spacer for Brew Head Seal |
EM69167 |
Page 13, #10,14 |
New steam nozzle EM6900/6910/6910R |
EM69168 |
Page 5, #35 |
New tamp EM6900/6910/6910R |
EM69169 |
Page 4, #3 |
Flow meter assembly EM6900/6910/6910R |
EM69170 |
EM6910 |
Issue: A |
Page 2 of 21 |
|
|
|
|
|
|
Item |
Description |
Sunbeam Part No. |
|
|
Page 8, |
|
|
|
|
#28,21,22,23 |
Thermoblock ass’y |
EM69171 |
|
|
|
1 cup filter dual wall |
EM6910101 |
|
|
|
2 cup filter dual wall |
EM6910102 |
|
|
Page 16, # 1 |
Screw for collar |
EM6910103 |
|
|
Page 5, # 3 |
Screw for back cover |
EM6910104 |
|
|
Page 8, # 4 |
Anti drip shower head screw |
EM6910105 |
|
|
Page 16, # 6 |
Shower head collar |
EM6910106 |
|
|
Page 4, # 8 |
Pressure gauge |
EM6910107 |
|
|
Page 8, # 9 |
Steam pump copper tube |
EM6910108 |
|
|
Page 9, # 12 |
Thermistor – steam |
EM6910109 |
|
|
Page 8, # 26 |
Thermistor – hot water |
EM6910110 |
|
|
Page 4, # 14 |
Steam pump |
EM6910111 |
|
|
Page 5, # 12 |
Steam knob ring |
EM6910112 |
|
|
Page 5, # 23 |
Hot water knob ring |
EM6910113 |
|
|
Page 5, # 26 |
PCB & wiring |
EM6910114 |
|
|
Page 5, # 29 |
Rear door |
EM6910115 |
|
|
Page 5 , # 37 |
Lid complete with PCB |
EM6910116 |
|
|
|
Instruction book |
EM6910118 |
|
|
|
1 & 2 cup filter dual wall |
EM6910119 |
|
|
Page 5, #10 |
Base Casting |
EM6910120 |
|
|
Page 8, #3 |
Upper Shower Head Plate |
EM6910121 |
|
|
Page 5, # 14 |
Drip tray assembly brushed |
EM6910145 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EM6910 |
Issue: A |
Page 3 of 21 |
EXPLODED VIEW DRAWING
EM6910 |
Issue: A |
Page 4 of 21 |
EM6910 |
Issue: A |
Page 5 of 21 |
EM6910 |
Issue: A |
Page 6 of 21 |
EM6910 |
Issue: A |
Page 7 of 21 |
