Page 1
kÉï=~ë=çÑW==
HELIODENT
PLUS
7mA DC7mA DC
70kV 60kV
S
00
8
.
HELIODENTHELIODENT
PLUS
7mA DC
70kV 60kV
S
00
8
.
MUKOMNR
ebiflabkq
lйЙк~нбеЦ=fелнкмЕнбзел
mirp
Cover page
bеЦдблЬ
bеЦдблЬ
=
Page 2
Page 3
Sirona Dental Systems GmbH Table of contents
Operating Instructions HELIODENT
PLUS
Table of contents
1
2
General data............................................................................................................ 5
1.1 Preface ......................................................................................................... 5
1.2 General information about this operating manual ........................................ 5
1.3 Contact information ...................................................................................... 6
1.4 Warranty and liability .................................................................................... 6
1.5 Intended use................................................................................................. 7
1.5.1 Indication and contraindication........................................................ 7
1.6 Structure of the document ............................................................................ 8
1.6.1 Identification of the danger levels.................................................... 8
1.6.2 Formats and symbols used ............................................................. 8
Safety information.................................................................................................... 9
2.1 Information on the unit.................................................................................. 9
2.2 Risk of crushing............................................................................................ 9
2.3 Maintenance................................................................................................. 10
2.4 Modifications to the product ......................................................................... 10
2.5 Condensation ............................................................................................... 10
2.6 Qualifications of operating personnel ........................................................... 10
bеЦдблЬ
2.7 Radiation protection ..................................................................................... 11
2.8 Hygiene ........................................................................................................ 11
2.9 Trouble-free operation.................................................................................. 11
2.10 Interference with electronic devices ............................................................. 11
2.11 Risks of electromagnetic fields..................................................................... 12
2.12 Electromagnetic compatibility....................................................................... 12
3
4
Technical description............................................................................................... 13
3.1 Technical data .............................................................................................. 13
3.2 Diagrams ...................................................................................................... 15
3.3 Certification, registration and standards....................................................... 16
Controls and functional elements ............................................................................ 17
4.1 Operating and Display Elements.................................................................. 17

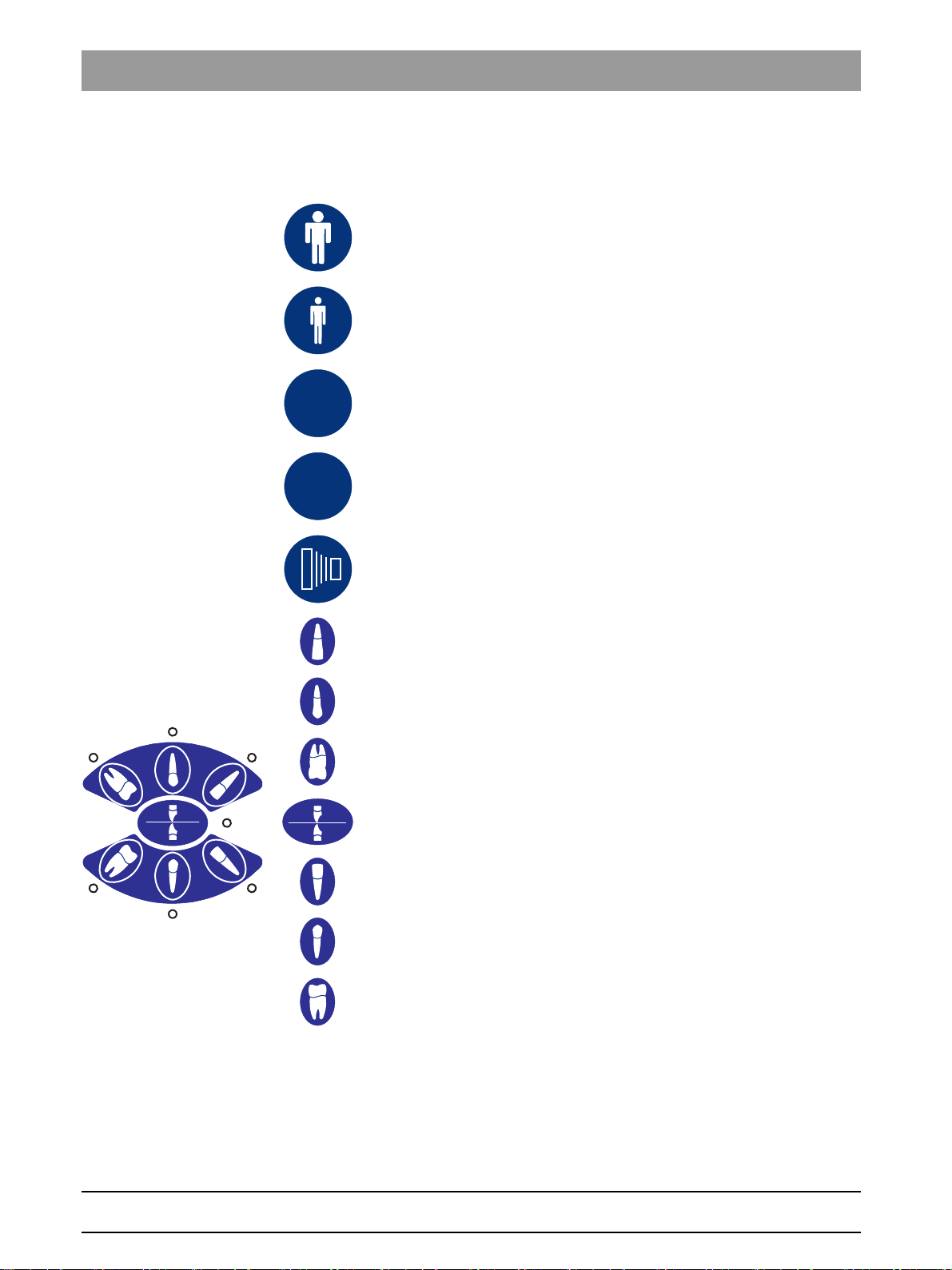

4.2 Meaning of the icons .................................................................................... 18
4.3 Display structure........................................................................................... 19
4.4 Version Ceiling model/Ceiling combination.................................................. 19
4.5 Mobile stand variant ..................................................................................... 20
62 14 717 D3507
D3507.201.01.13.02 08.2015
3
Page 4
Table of contents Sirona Dental Systems GmbH
Operating Instructions HELIODENT
4.6 Version Unit model........................................................................................ 22
4.7 Accessories................................................................................................... 23
4.8 Exposure times ............................................................................................. 24
4.8.1 Possible exposure times in seconds ................................................ 24
4.8.2 Pre-programmed exposure times for films of sensitivity class E and
with a 200 mm (8") FHA cone
4.8.3 Pre-programmed exposure times for films of sensitivity class E and
with a 300 mm (12") FHA cone
4.8.4 Pre-programmed exposure times for XIOS XG sensors with 200
mm (8") FHA cone
4.8.5 Pre-programmed exposure times for XIOS XG sensors with 300
mm (12") FHA cone (round or square cone)
PLUS
24
25
26
27
5
6
Operation.................................................................................................................. 28
5.1 Preparing the exposure................................................................................. 28
5.1.1 Switch the unit on............................................................................. 28
5.1.2 Selecting the tooth icon.................................................................... 28
5.1.3 Selecting the patient symbol ............................................................ 29
5.1.4 Checking the kV value: .................................................................... 29
5.1.5 Plus/Minus keys ............................................................................... 29
5.1.6 Checking the imaging technology .................................................... 29
5.2 Positioning the patient/X-ray tube assembly ................................................. 30
5.3 Releasing the exposure ................................................................................ 31
5.4 Adapting basic settings ................................................................................. 33
Maintenance............................................................................................................. 35
6.1 Cleaning and care ......................................................................................... 35
6.1.1 Cleaning ........................................................................................... 35
6.1.2 Disinfecting....................................................................................... 35
6.1.3 Maintenance of accessories............................................................. 36
6.2 Inspection and maintenance ......................................................................... 37
7
8
9
10
Error messages ........................................................................................................ 38
7.1 List of error messages................................................................................... 38
Dismantling and disposal ......................................................................................... 40
8.1 Dismantling and reinstallation ....................................................................... 40
8.2 Disposal ........................................................................................................ 40
8.2.1 Disposal of the X-ray tube assembly................................................ 41
Dose area product (DFP) ......................................................................................... 42
Brief Operating Instructions...................................................................................... 45
62 14 717 D3507
4 D3507.201.01.13.02 08.2015
Page 5
Sirona Dental Systems GmbH 1General data
Operating Instructions HELIODENT
PLUS
General data
1
1.1Preface
1.1
1.2
Observe the Operating Instructions Please familiarize yourself with the unit by reading through these
Keep documents safe Always keep the Operating Instructions handy in case you or another
Preface
Dear Customer,
Thank you for purchasing the HELIODENT
This system can be used to take intraoral X-rays.
Please familiarize yourself with the unit by reading through these
Operating Instructions before taking any X-rays of patients.
Please comply with the applicable radiation protection regulations and
warnings at all times.
SIRONA requires regular constancy tests to ensure image quality.
PLUS
Your HELIODENT
team
PLUS
X-ray system.
General information about this operating manual
Observe the Operating Instructions
Operating Instructions before putting it into operation. It is essential that
you comply with the specified warning and safety information.
Storage of documents, on line portal, help
user require(s) information at a later point in time. Save the Operating
Instructions on the PC or print them out.
bеЦдблЬ
If you sell the unit, make sure that the Operating Instructions are included
with it either as a hard copy or on an electronic storage device so that the
new owner can familiarize himself with its functions and the specified
warning and safety information.
Online portal for technical documents We have set up an online portal for the Technical Documents at http://
www.sirona.com/manuals. From here, you can download these
Operating Instructions along with other documents. Please complete the
online form if you would like a hard copy of a particular document. We will
then be happy to send you a printed copy free of charge.
Help If you reach an impasse despite having thoroughly studied the operating
instructions, please contact your dental depot.
62 14 717 D3507
D3507.201.01.13.02 08.2015
5
Page 6
1General data Sirona Dental Systems GmbH
1.3Contact information Operating Instructions HELIODENT
PLUS
1.3
Customer service center In the event of technical queries, please use our online contact form at
Contact information
Worldwide customer service
www.sirona.com. In the navigation bar, go to the menu commands
"CONTACT"
FORM FOR TECHNICAL QUESTIONS"
Manufacturer's address Sirona Dental Systems GmbH
Manufacturer's address (w orl d wi de )
/
"Customer Service Center"
and then click the
button.
"CONTACT
Fabrikstrasse 31
64625 Bensheim
Germany
Trademark
Phone: +49 (0) 6251/16-0
Fax: +49 (0) 6251/16-2591
e-mail: contact@sirona.com
www.sirona.com
1.4
Warranty and liability
Maintenance In the interest of the safety and health of patients, users and other
persons, inspection and preventive maintenance must be performed at
scheduled intervals to ensure the operational reliability and functional
safety of your product (IEC 60601-1 / DIN EN 60601-1 etc.).
The system owner must ensure that all inspections and maintenance
events take place.
As manufacturers of medical electrical equipment, we can assume
responsibility for the safety properties of the system only if maintenance
and repair work on the system is performed by ourselves or by agencies
expressly authorized by us, and if components affecting safe operation of
the system are replaced by original spare parts in case of failure.
Exclusion of liability If the system owner fails to fulfill the obligation to have inspections and
maintenance work performed or ignores error messages, Sirona Dental
Systems GmbH and its authorized dealers cannot assume any liability for
resulting damage.
Certificate of work We suggest that you request a certificate, showing the nature and extent
of the work performed, from those who carry out such work, and specify
that the certificate show any changes in rated parameters or working
ranges, as well as the date, the name of the firm and a signature.
6 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 7
Sirona Dental Systems GmbH 1General data
Operating Instructions HELIODENT
PLUS
1.5Intended use
1.5
Intended use
This system must not be used in areas subject to explosion hazards.
Intended use ww
The HELIODENT
PLUS
is an extraoral X-ray system. It is intended for use
in dental radiographic examination and diagnosis of diseases and
disorders of the teeth, the jaw and oral structures.
With room temperatures > 35°C (> 95°F) Sirona recommends the use of
an air conditioning system.
Recommended operating temperature: 18 °C - 35 °C (64 °F - 95 °F)
United States only
CAUTION Federal law (USA) restricts sale of this device to or on the
order of a physician, dentist, or licensed practitioner.
1.5.1 Indication and contraindication
Indications in the areas:
Intraoral indication
● Conservative dentistry
● Caries diagnosis, especially of proximal lesions
● Endodontics
● Periodontology
bеЦдблЬ
● Prosthodontics
● Functional diagnosis and therapy of craniomandibular dysfunctions
● Surgical dentistry
● Implantology
● Oral and maxillofacial surgery
● Orthodontics
Contraindications:
Intraoral contraindication
● Display of cartilage structures
● Display of soft tissue
62 14 717 D3507
D3507.201.01.13.02 08.2015
7
Page 8
1General data Sirona Dental Systems GmbH
1.6Structure of the document Operating Instructions HELIODENT
PLUS
1.6
Structure of the document
1.6.1 Identification of the danger levels
To prevent personal injury and material damage, please observe the
warning and safety information provided in the present operating
instructions. Such information is highlighted as follows:
DANGER
An imminent danger that could result in serious bodily injury or death.
WARNING
A possibly dangerous situation that could result in serious bodily injury
or death.
CAUTION
A possibly dangerous situation that could result in slight bodily injury.
NOTICE
A possibly harmful situation which could lead to damage of the product
or an object in its environment.
IMPORTANT
Application instructions and other important information.
Tip: Information on making work easier.
1.6.2 Formats and symbols used
The formats and symbols used in this document have the following
meaning:
Prerequisite
1. First action step
2. Second action step
or
➢ Alternative action
Result
➢ Individual action step
See "Formats and symbols
used [ → 8]"
● List Designates a list.
"Command / menu item" Indicates commands, menu items or
Requests you to do something.
Identifies a reference to another text
passage and specifies its page
number.
quotations.
8 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 9
Sirona Dental Systems GmbH 2Safety information
Operating Instructions HELIODENT
PLUS
Safety information
2
2.1Information on the unit
Accompanying documents
2.1
2.2
Information on the unit
Accompanying document s
This symbol is affixed next to the unit rating plate.
Meaning: When operating the unit, observe the operating instructions.
This symbol is affixed on the unit rating plate.
Meaning: The accompanying documents are available on the homepage
of Sirona.
Risk of crushing
Risk of crushing
CAUTION
Gaps appear between the internal hinges when moving the angular
support arm.
Fingers may be crushed in these gaps.
➢ Ensure that you never place your fingers in the gaps between the
hinges, neither during operation nor for cleaning purposes.
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
9
Page 10
2Safety information Sirona Dental Systems GmbH
2.3Maintenance Operating Instructions HELIODENT
PLUS
2.3
2.4
Maintenance
In the interest of the safety and health of patients, users and other
persons, inspection and preventive maintenance must be performed at
scheduled intervals to ensure the operational reliability and functional
safety of your product (IEC 60601-1 / DIN EN 60601-1 etc.).
The system owner must ensure that all inspections and maintenance
events take place.
If the system owner fails to fulfill the obligation to have inspections and
maintenance work performed or ignores error messages, Sirona Dental
Systems GmbH and its authorized dealers cannot assume any liability for
resulting damage.
As manufacturers of medical electrical equipment we can assume
responsibility for the safety-related features of the equipment only if
maintenance and repair are carried out only by ourselves or agencies
expressly authorized by us, and if components affecting safe operation of
the system are replaced with original spare parts upon failure.
We suggest that you request a certificate showing the nature and extent
of the work performed from those who carry out such work; it must contain
any changes in rated parameters or working ranges (if applicable), as well
as the date, the name of the company and a signature.
Modifications to the product
2.5
2.6
Modifications to this product which may affect the safety of the operator,
patients or third parties are prohibited by law!
Condensation
Safety information for condensatio n: Customer
Extreme fluctuations of temperature may cause condensation inside the
unit. Do not switch the unit on before it has reached normal room
temperature. See the chapter on “Technical data”.
Qualifications of operating personnel
Operating personnel
The system may only be operated by skilled or properly trained
personnel.
10 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 11
Sirona Dental Systems GmbH 2Safety information
Operating Instructions HELIODENT
PLUS
2.7Radiation protection
2.7
2.8
Radiation protection
Safety information for Heliode nt rad ia tion protection: Customer
The valid radiation protection regulations and measures must be
observed. The statutory radiation protection equipment must be used. In
order to reduce radiation exposure, Sirona recommends using bismuth or
lead shields or aprons, especially for pediatric patients.
During an exposure, the operator should move as far away from the X-ray
tube assembly as the coiled cable of the manual release permits.
With the exception of the patient, no other persons without radiation
protection are allowed to stay in the room during an exposure. In
exceptional cases, a third person may provide assistance, but not the
practice staff.
If the patient is within reach of the unit including its operating elements,
they must be supervised. Visual contact with the patient and the unit must
be maintained throughout the entire exposure.
In case of malfunctions, cancel the exposure immediately by letting go of
the exposure release button.
Hygiene
Suitable hygienic measures must be taken to prevent cross
contamination among patients, operators and other persons.
Before positioning the patient in the unit, you must ensure that
bеЦдблЬ
2.9
2.10
● all auxiliary X-ray equipment is used and prepared (sterilized and/or
disinfected) in accordance with manufacturer specifications (e.g.
hygienic protective sleeves).
Compliance with the hygienic measures prevents the transmission of
infections that can trigger severe illnesses.
Trouble-free operation
Generally valid
Use of this system is permissible only if it works properly without
malfunctions. If trouble-free operation cannot be ensured, the unit must
be taken out of service, checked by authorized technicians for
malfunctions and, if necessary, repaired.
Unit cover
The device may only be operated with a complete cover and protective
hood.
Interference with electronic devices
To prevent the malfunctioning of electronic devices and data storage
devices, e.g. radio-controlled watches, telephone cards, etc., these
objects must be removed prior to X-raying.
62 14 717 D3507
D3507.201.01.13.02 08.2015
11
Page 12
2Safety information Sirona Dental Systems GmbH
2.11Risks of electromagnetic fields Operating Instructions HELIODENT
PLUS
2.11
2.12
Risks of electromagnetic fields
The function of implanted systems (cardiac pacemakers or cochlear
implants, for example) can be affected by electromagnetic fields. Before
commencing treatment, ask if the patient has a cardiac pacemaker or any
other implanted system.
Any prevailing risks are listed in the documentation provided by the
equipment manufacturer.
Electromagnetic compatibility
The acquisition unit complies with the requirements of the standard IEC
60601-1-2.
Medical electrical devices are subject to special precautionary measures
with regard to EMC. It must be installed and operated as specified in the
document “Installation Requirements”.
Portable and mobile RF communications equipment may interfere with
medical electrical equipment.
12 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 13
Sirona Dental Systems GmbH 3Technical description
O
Operating Instructions HELIODENT
PLUS
Technical description
3
3.1Technical data
3.1
Technical data
Technical data AL1.5 WW
Nominal voltage: 120V, 200V– 240V
Permissible fluctuation: ± 10%
Rated current: At 120 V: 10A
At 200 – 240 V: 6 – 5 A
Nominal frequency: 50 Hz / 60 Hz
Internal line impedance: At 120 V 0.3 ohms
At 200 – 240 V 0.8 Ohm
Main building fuse: 16 A slow blow
Power input during radiation: 1.2 kW
Power input in standby
mode:
Tube voltage: 60 kV / 70 kV switchable
Tube current: 7 mA (max. tolerance ± 1.4 mA)
High-voltage waveform: DC high frequency
High voltage generation
frequency:
Radiation time: 0.01 – 3.2 s
Pulse/pause ratio: automatic monitoring from 1:1 to 1:60
Total filtration of X-ray tube
assembly:
Radiation field: Ø < 60 mm
Dose rate: 8.5 mGy/s ±40% at 60 kV
Measuring instruments: PTW Nomex with an ionization space of
Measuring conditions: 200 mm focus-meter space
Focal spot size as specified
in IEC 60336:
Focal spot marking O:
< 20 W
(max. tolerance ± 5 kV)
residual ripple value ≤ 4 kV
50 kHz - 70 kHz
(max. tolerance ± 10% +1 ms)
> 1.5 AI / 70 IEC 60522
11 mGy/s ±40% at 70 kV
3
1 cm
or Unfors mult-o-meter
230 V nominal voltage
0.4
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
13
Page 14
3Technical description Sirona Dental Systems GmbH
3.1Technical data Operating Instructions HELIODENT
PLUS
Source-skin distance: FHA 200 mm (8") - standard or 300 mm
(12")
Class I device
Degree of protection against
electric shock:
Degree of protection against
ingress of water:
Type B device
Ordinary equipment (without protection
against ingress of water)
Year of manufacture:
(on the rating plate)
Operating mode: Continuous operation
X-ray tubes: Petrick P470/8.35/12G
Nominal continuous power
26 W
rating of the X-ray tube:
Power rating of X-ray tube
490 W
(70kW/7mA):
Anode material: Tungsten
Anode angle: 12°
Exposure parameters for
0.12 mA / 70 kV
determining leakage
radiation:
Leakage radiation at 1 m
< 0.25 mGy/h
distance:
Transport and operating conditio ns
Transport and operating conditions:
Transport and storage
-40°C – +70°C (-40°F – 158°F)
temperature:
Air humidity: 10% – 95%
Operating conditions as
specified in IEC 60601-1:
Ambient temperature +10 °C – +40 °C
(50 °F – 104 °F)
Relative humidity: 30% – 75%
Operating altitude: ≤ 3000 m
14 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 15
Sirona Dental Systems GmbH 3Technical description
90
80
70
50
30
20
0
10 20 30 40 50 60 70 80 90 100 170 t (min)
Joule x10
3
110 120 130140 150 160
10
40
60
1 2 3 4 t (min)
5000
4000
3000
2000
1000
0
Joule
120
100
80
60
40
20
0
20 40 60 80 100 120 140 160 180 200 220 t (min)
Joule x10
3
Operating Instructions HELIODENT
PLUS
3.2Diagrams
3.2
Diagrams
Curves
Cooling curve of tube housing
Cooling curve of X-ray tube
bеЦдблЬ
Heating curve of tube housing
62 14 717 D3507
D3507.201.01.13.02 08.2015
15
Page 16
3Technical description Sirona Dental Systems GmbH
0123
3.3Certification, registration and standards Operating Instructions HELIODENT
PLUS
3.3
Certification, registration and standards
CE mark
The HELIODENT
others:
● IEC 60601-1
● IEC 60601-1-3
● IEC 60601-2-65
The dental X-ray equipment for intraoral radiography
HELIODENT
Original language: German
This product bears the CE mark in accordance with the provisions of the
Council Directive 93/42/EEC of June 14, 1993 concerning medical
devices (MDD).
PLUS
complies with the following standards, among
PLUS
D3507 complies with IEC 60601-2-65.
16 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 17
Sirona Dental Systems GmbH 4Controls and functional elements
L
M
K
N
30
60
6
0
9
0
I
H
G
F
E
D
C
B
A
J3
R
J1
A
J1
J2
I
H
G
F
E
D
C
B
S
Operating Instructions HELIODENT
PLUS
Controls and functional elements
4
4.1Operating and Display Elements
4.1
Operating and Display Elements
A Main ON/OFF switch
B Readiness for operation indicator (LED)
C Optical radiation indicator for X-ray
D Plus/minus keys for exposure time
E Digital display of exposure time
F Child/Adult pre-selection key
G Pre-selection keys and display of 60 kV/70 kV
H Pre-selection keys and display of digital mode and film
mode
I Keys and display for tooth selection/image type
J1 Manual release J1 Depending on
J2 Release button J2 on the Remote Timer
J3 Release button J3 on the remote control
K X-ray tube unit
L Scale for adjusting the angle of inclination
M Radiation field limitation
N Cone extension
R Remote control
S Remote Timer
the
installed
version
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
17
Page 18
4Controls and functional elements Sirona Dental Systems GmbH
+
_
4.2Meaning of the icons Operating Instructions HELIODENT
PLUS
4.2
Meaning of the icons
Patient symbol
Adult
Child
Plus key
Minus key
Exposure release button
Maxillary front tooth
Maxillary canine/premolar
Maxillary molar
Bite-wing exposure
Mandibular front tooth
Mandibular canine/premolar
Mandibular molar
18 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 19
Sirona Dental Systems GmbH 4Controls and functional elements
Operating Instructions HELIODENT
PLUS
4.3Display structure
4.3
4.4
Display structure
The background lighting of the display indicates the current status of the
unit.
Background color Meaning
Blue Ready for radiation
Yellow Radiation
White Service
Red Error
Version Ceiling model/Ceiling combination
Ceiling model
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
Ceiling combination with LEDview
19
Page 20
4Controls and functional elements Sirona Dental Systems GmbH
A
B
C
D
A
B
C
D
4.5Mobile stand variant Operating Instructions HELIODENT
PLUS
4.5
Mobile stand variant
Mounting of the wall model with round or angular support arm
(only support arm length short possible) on a mobile stand for mobile use.
Secure the tube assembly with the fastening strap (B).
Use the two handles (A) on the side to move the mobile stand.
The mobile stand must be moved slowly on an even surface.
CAUTION
Risk of injury!
When changing the treatment station, the stay arm must be secured
with the fastening strap provided (B).
The mobile stand must be moved extremely carefully using the
handholds provided (A).
Particular care must be taken when crossing floor beams. The mobile
stand may need to be lifted a little if necessary.
The mobile stand has 4 rollers with brakes.
To lock the rollers in place, press the locking lever (C) down ↓ , and to
release lift it up ↑ .
CAUTION
Always apply the brakes (C) before setting up the X-ray tube assembly.
The mobile stand can be fitted with a tray (D).
CAUTION
This tray may hold a maximum of 5 kg.
62 14 717 D3507
20 D3507.201.01.13.02 08.2015
Page 21
Sirona Dental Systems GmbH 4Controls and functional elements
610
24”
540°
550
21 5/8”
973
38 3/8”
782
30 3/4”
1740
68 1/2”
1330
52 3/8”
1001
39 3/8”
180°
Operating Instructions HELIODENT
PLUS
4.5Mobile stand variant
End stop
Rotation option of the round/angular support arm is 180°.
CAUTION
When the angular support arm moves, gaps are created between the
support arm and the tray.
Fingers can be crushed in these gaps.
➢ Be careful not to put your fingers in the space between the moving
arm and the tray, either during operation or when cleaning.
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
21
Page 22
4Controls and functional elements Sirona Dental Systems GmbH
1400
55 1/8”
2250
88 9/16”
500
19 5/8”
200
7 7/8”
300
11 7/8
*
”
B
A
E
1360
53 1/2”
C
180°
D
4.6Version Unit model Operating Instructions HELIODENT
PLUS
4.6
Version Unit model
HELIODENT Plus at a treatment center, only possible with angular
support arm system.
Rotation option of the angular support arm is 180°.
22 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 23
Sirona Dental Systems GmbH 4Controls and functional elements
Operating Instructions HELIODENT
PLUS
4.7Accessories
4.7
Accessories
Information about accessor ies
IMPORTANT
Not all of the accessories listed here are included in the scope of supply.
Test phantom
Only required in countries in which the constancy test is mandatory.
Phantoms for consistency checks on conventional imaging technology
Order No. 59 69 779
Only required in countries in which the constancy test is mandatory.
Phantoms for consistency checks on the Sirona XIOS XG sensor
Order no. 64 00 449
Phantoms for consistency checks on the Sirona XIOSPlus sensor
Order no. 62 09 634
Phantoms for consistency checks on the Sirona XIOS sensor
Order no. 61 37 447
Accessories
Cone extension to 300 mm FHA (12")
Order No. 62 41 983
bеЦдблЬ
Square cone extension to 300 mm FHA (12")
Order No. 62 41 975
Radiation field limitation white size 0 with rotary handle for Sirona XIOS
XG size 0 sensor and conventional imaging technology
Order No. 64 00 142
Radiation field limitation blue 3 x 4 cm with rotary handle for Sirona XIOS
XG size 2 sensor, Sirona XIOS
Plus
/XIOS size 2 sensor and conventional
imaging technology
Order No. 62 41 991
Radiation field limitation black 2 x 3 c m with rota r y handle f o r Sirona X IOS
Plus
XG size 1 sensor, Sirona XIOS
/XIOS size 1 sensor and conventional
imaging technology
Order No. 62 42 007
62 14 717 D3507
D3507.201.01.13.02 08.2015
23
Page 24
4Controls and functional elements Sirona Dental Systems GmbH
4.8Exposure times Operating Instructions HELIODENT
PLUS
4.8
Exposure times
4.8.1 Possible exposure times in seconds
0,01 0,02 0,03 0,04 0,05 0,06 0,08 0,10 0,12 0,16 0,20 0,25 0,32 0,40 0,50 0,64 0,80 1,00 1,25 1,60 2,00 2,50 3,20
4.8.2 Pre-programmed exposure times for films of sensitivity
class E and with a 200 mm (8") FHA cone
Exposure times film E cone 200 WW
Upper jaw
Lower jaw
Upper jaw
Lower jaw
Exposure time in
seconds with:
60 kV 0,06 0,08 0,10 0,12 0,16 0,20 0,25 0,32
70 kV 0,03 0,04 0,05 0,06 0,08 0,10 0,12 0,16
Freely programmed
values
NOTICE
For film of sensitivity class F: Set the exposure time one level lower with
the minus button.
For films of sensitivity class D: Set the exposure time four levels higher
with the plus button.
Using a film holder: Set the exposure time one or two levels higher with
the plus button.
24 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 25
Sirona Dental Systems GmbH 4Controls and functional elements
Operating Instructions HELIODENT
PLUS
4.8Exposure times
4.8.3 Pre-programmed exposure times for films of sensitivity
class E and with a 300 mm (12") FHA cone
Exposure times film E cone 300 WW
Upper jaw
Lower jaw
Upper jaw
Lower jaw
Exposure time in
seconds with:
60 kV 0,12 0,16 0,20 0,25 0,32 0,40 0,50 0,64
70 kV 0,06 0,08 0,10 0,12 0,16 0,20 0,25 0,32
Freely programmed
values
bеЦдблЬ
NOTICE
For film of sensitivity class F: Set the exposure time one level lower with
the minus button.
For films of sensitivity class D: Set the exposure time four levels higher
with the plus button.
Using a film holder: Set the exposure time one or two levels higher with
the plus button.
62 14 717 D3507
D3507.201.01.13.02 08.2015
25
Page 26
4Controls and functional elements Sirona Dental Systems GmbH
4.8Exposure times Operating Instructions HELIODENT
PLUS
4.8.4 Pre-programmed exposure times for XIOS XG sensors
with 200 mm (8") FHA cone
Possible exposure times in seconds
The recommended exposure times are limited to the following values
selected from the possible exposure times:
Exposure times XIOS XG sensors cone 8" WW
0.01 0.02 0.03 0.04 0.05 0.06 0.08 0.10 0.12 0.16 0.20 0.25 0.32 0.40
Exposure times by dental region XIOS XG sensors cone 8" WW
Upper jaw
Lower jaw
Upper jaw
Lower jaw
Exposure time in seconds
with:
60kV 0.060.080.100.120.16
70kV 0.030.040.050.060.08
Freely programmed values
26 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 27
Sirona Dental Systems GmbH 4Controls and functional elements
Operating Instructions HELIODENT
PLUS
4.8Exposure times
4.8.5 Pre-programmed exposure times for XIOS XG sensors
with 300 mm (12") FHA cone (round or square cone)
Possible exposure times in seconds
The recommended exposure times are limited to the following values
selected from the possible exposure times:
0.03 0.04 0.05 0.06 0.08 0.10 0.12 0.16 0.20 0.25 0.32 0.40 0.50 0.64 0.80
Upper jaw
Lower jaw
Exposure times XIOS X G sensors cone 12" WW
Exposure times by dental region XIOS XG sensors cone 12" WW
Upper jaw
Lower jaw
Exposure time in seconds
with:
60kV 0.12 0.16 0.20 0.25 0.32
70kV 0.06 0.08 0.10 0.12 0.16
Freely programmed values
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
27
Page 28
5Operation Sirona Dental Systems GmbH
B
A
5.1Preparing the exposure Operating Instructions HELIODENT
Operation
5
PLUS
5.1
Preparing the exposure
5.1.1 Switch the unit on
Switch on the unit with the main switch (A) (Position I).
During this process none of the keys of the operating panel must be
pressed.
After the unit is switched on, a self-test runs.
After approximately 20 seconds, the operational readiness LED (B) is
continuously lit and the background lighting of the display changes to
blue. The most recent exposure parameters set are displayed.
The unit is ready for radiation.
NOTICE
Error message after the self-test
If an error was detected during the self-test, a corresponding error code
is shown on the display. (See chapter entitled "Error Messages"). The
LED (B) flashes and the background lighting changes to red. The unit is
not ready for operation.
Switch unit OFF and ON again at the main switch (A).
CAUTION
Error message after a repeated self-test
If the error re-occurs, please call your service engineer.
5.1.2 Selecting the tooth icon
Press the key with the tooth icon to denote the region in which you want
to take an X-ray.
The programmed exposure time is indicated.
The LED above/below the tooth icon lights up. During bite-wing
exposures, the LED to the right of the icon lights up.
28 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 29
Sirona Dental Systems GmbH 5Operation
60kV
70kV
+
_
Operating Instructions HELIODENT
PLUS
5.1Preparing the exposure
5.1.3 Selecting the patient symbol
Press the button with the adult patient icon if you wish to take an X-ray of
an adult.
The programmed exposure time is indicated.
Press the button with the child patient icon if you wish to take an X-ray of
a child.
The programmed exposure time is indicated.
5.1.4 Checking the kV value:
Check to see which kV value is set.
Press the 60 kV key to switch to 60 kV.
The exposure time for greater contrast is displayed.
Press the 70 kV button to switch to 70 kV.
The exposure time for enhanced detail recognition with a low level of
exposure to radiation is displayed.
5.1.5 Plus/Minus keys
bеЦдблЬ
If you want to increase the exposure time, press the key with the plus
symbol until the desired value is displayed.
If you want to decrease the exposure time, press the key with the minus
symbol repeatedly until the desired value is displayed.
IMPORTANT
The LEDs above/below the tooth icon previously selected and the
patient icon on the display go out.
5.1.6 Checking the imaging technology
If you are working with a digital imaging system (e.g. XIOS XG), the
sensor indicator should be lit on the unit. To switch, press the key with the
sensor icon.
The exposure time for digital images is displayed.
Set the radiation field limitation for digital imaging technology.
If you wish to take conventional X-ray images (with film), the film indicator
should light up on the unit. To switch, press the key with the film icon.
The exposure time for conventional exposures is displayed.
Set the radiation field limitation for conventional imaging technology.
62 14 717 D3507
D3507.201.01.13.02 08.2015
29
Page 30
5Operation Sirona Dental Systems GmbH
660
3030
6060
60
90
5.2Positioning the patient/X-ray tube assembly Operating Instructions HELIODENT
PLUS
5.2
Positioning the patient/X-ray tube assembly
Ask the patient to take a seat on the chair.
The operating elements of the unit should be out of reach of the patient.
Touch the tube assembly with both hands to position the tube.
● Parallel technique (with radiation field limitation)
Position the film or the X-ray sensor using a holding system for the
parallel technique.
For Sirona X-ray sensors, only the holding systems recommended by
Sirona may be used.
Please comply with the operating instructions for intraoral X-rays
supplied with the sensors or films.
● Half-angle technique (without radiation field limitation)
Position the film or the X-ray sensor.
● Tilt angle
X-ray tube assembly at the occlusal plane
Upper jaw
Molars 35°
Premolars and canines 45°
Anterior teeth 55°
Bite-wing exposure 10°
-------------------------------------------------------------------- --------
Bite-wing exposure -0°
Anterior teeth -20°
Premolars and canines -10°
Molars -5°
Lower jaw
62 14 717 D3507
30 D3507.201.01.13.02 08.2015
Page 31
Sirona Dental Systems GmbH 5Operation
J1
J2
C
B
J3
C
B
Operating Instructions HELIODENT
PLUS

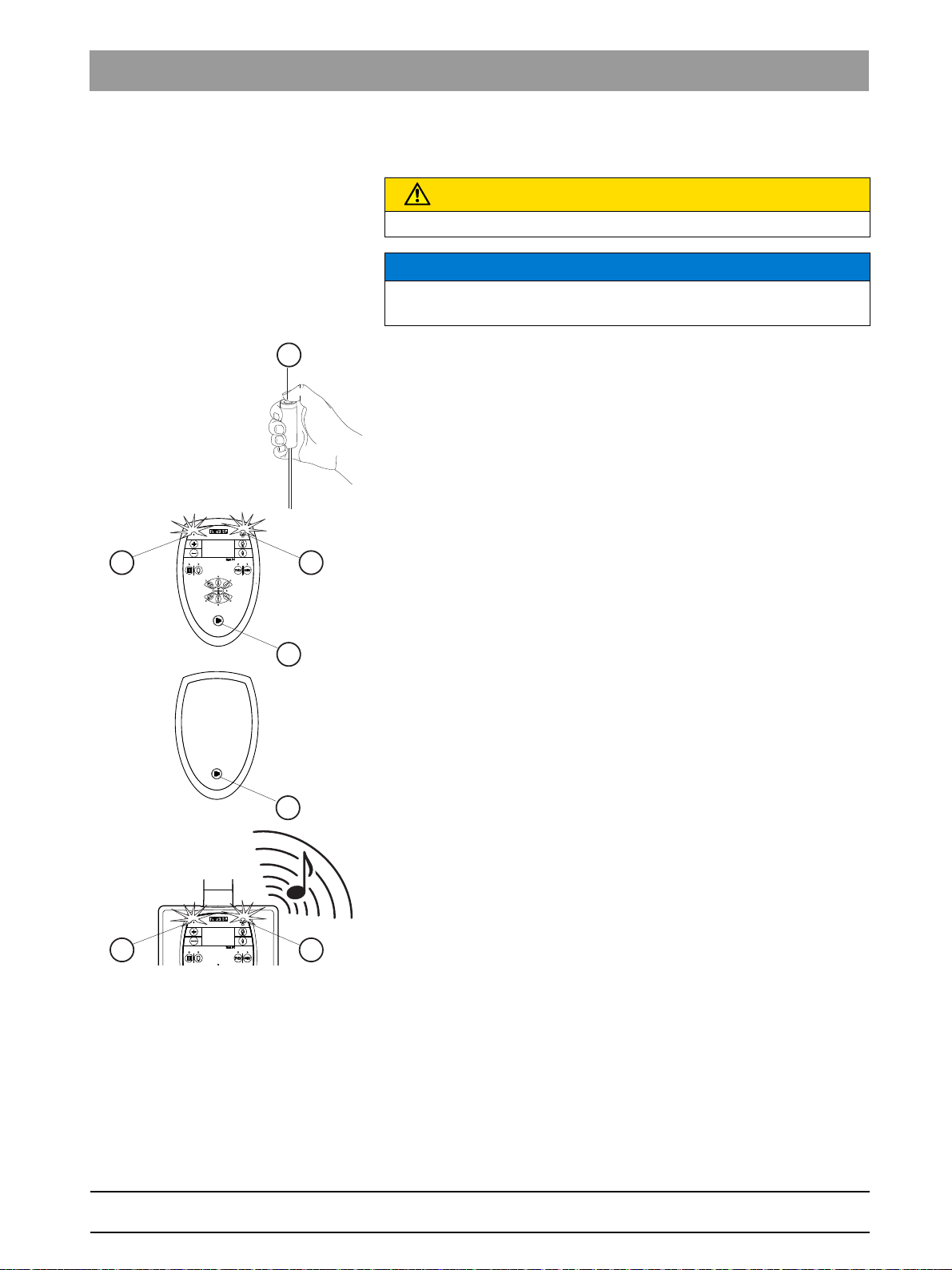

5.3Releasing the exposure
5.3
Releasing the exposure
CAUTION
Comply with the radiation protection provisions.
NOTICE
When using a digital sensor system, establish exposure readiness in
SIDEXIS before you release the exposure, see SIDEXIS User Manual.
● Check the exposure data.
● Keep the patient and unit in sight.
● Press and hold down the release key J1, J2 or J3. The exposure is
taken.
The (X-RAY) indicator C remains lit for the duration of the exposure. In
addition, an acoustic signal sounds throughout the entire radiation time.
● The exposure has been completed when the radiation indicator goes
out automatically and the acoustic signal stops.
● If the dose area product display is activated, the dose area product
appears on the display.
If the release key is pressed again, the cooling-off period appears on the
display The screen is then white.
bеЦдблЬ
The operational readiness LED B flashes until the automatic cooling-off
period of the X-ray tube assembly has expired (automatic exposure
block).
62 14 717 D3507
D3507.201.01.13.02 08.2015
31
Page 32
5Operation Sirona Dental Systems GmbH
5.3Releasing the exposure Operating Instructions HELIODENT
PLUS
Canceling an exposure
If you let go of the exposure release button prematurely, the exposure is
canceled. The elapsed exposure time flashes.
If the device is switched off at the main switch, the exposure is also
canceled.
After any key (except for the release button) is pressed, the cooling time
starts and the unit is once again ready for operation.
Repeat the X-ray if necessary.
If you are taking an X-ray with film, use a new film.
If you are taking a digital X-ray, ensure that the unit is ready to perform
exposures.
NOTICE
Error message
If an error is detected during the exposure, the exposure is automatically
canceled. The error code lights up on the digital display. At the same
time, the operational readiness LED (B) flashes.
In the case of an error code, please call your service engineer.
IMPORTANT
Switch off
If the device is out of use for a lengthy period of time, it can be switched
off at the main switch.
32 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 33
Sirona Dental Systems GmbH 5Operation
+
++
+
_
Operating Instructions HELIODENT
PLUS
5.4Adapting basic settings
5.4
Adapting basic settings
Exposure times for the use of films with the sensitivity class E are factory
pre-set, as well as the XIOS XG sensors.
IMPORTANT
The exposure times for sensor and film images are programmed
separately. The factory pre-set sensor programming is configured for
XIOS XG sensors.
The basic setting must be adjusted for other exposure conditions.
Deviating exposure conditions:
E for films of sensitivity class E such as Kodak Ekta Speed, Agfa-Dentus
M2
D for films of sensitivity class D such as Kodak Ultra Speed
Set the exposure time for films of sensitivity class D three levels higher
with the plus button.
Film and development conditions
Varying film and development conditions can result in additional
deviations of one time level up or down.
IMPORTANT
The configuration of the film and sensor keys permits flexible adjustment
to various film sensitivity classes and sensors. It is also possible to set
up the exposure adjustment for another film sensitivity class via the
sensor key, if no sensor is being used.
bеЦдблЬ
✔ Reprogramming the base values
1. Press the film, sensor and plus buttons at the same time.
Service S01 appears in the display.
2. Use the plus or minus key to select the base value that is to be
changed:
S01 corresponds to the base value for film
S02 corresponds to the base value for sensor
S03 corresponds to the software version
3. Confirm the entry with the Film key.
The current base value for film or sensor is now displayed:
62 14 717 D3507
D3507.201.01.13.02 08.2015
33
Page 34
5Operation Sirona Dental Systems GmbH
S00 / S01
000
_
+
X
5.4Adapting basic settings Operating Instructions HELIODENT
4. The base value can now be adjusted by pressing the plus or minus
buttons.
Each level corresponds to about a 25% extension or reduction in
exposure time.
5. The entry can be confirmed by pressing the button with the adult
patient icon. The new base value is now saved in the unit.
To cancel this without changing, press the button with the child
patient icon.
In either case you will return to point 2 and can select the required
base value again
or
conclude the process by switching the device off.
PLUS
34 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 35
Sirona Dental Systems GmbH 6Maintenance
Operating Instructions HELIODENT
PLUS
Maintenance
6
6.1Cleaning and care
6.1
Cleaning and care
6.1.1 Cleaning
Remove dirt, grime and disinfectant residue regularly using mild,
commercially available cleaning agents.
Cleaning the ventilation sl ots
NOTICE
During cleaning or disinfection, liquids may enter the manual release
button or unit via ventilation slots.
Electrical components of the system can be destroyed by liquids.
➢ Do not spray any liquids into the ventilation slots or manual release
button.
➢ First spray the liquid onto a cleaning cloth. Then wipe the ventilation
slots or manual release button with the cleaning cloth.
➢ Make sure that no liquids run along the surface and into the
ventilation slots or the manual release button.
6.1.2 Disinfecting
Only the external surfaces may be disinfected with approved chemical
disinfectants. Use only disinfectants that comply with the valid
requirements of the respective national regulatory body or whose
bactericidal, fungicidal and virucidal properties have been verifiably
tested and approved accordingly.
Cleaning and care agents
CAUTION
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
Cleaning and care agents may contain aggressive ingredients.
Unsuitable cleaning and care agents are detrimental to health and
attack the surface of the unit.
➢ Do NOT use: Substances containing phenol, peracetic acid,
peroxide or any other oxygen-splitting agents, sodium hypochlorite
or iodine-splitting agents.
➢ Use only cleaning and disinfecting agents approved by Sirona!
A continuously updated list of approved agents can be downloaded from
the Internet at:
"www.sirona.com"
/
"SERVICE"
/
"Care and cleaning"
/
"Care and
cleaning agents"
Orders WW
35
Page 36
6Maintenance Sirona Dental Systems GmbH
6.1Cleaning and care Operating Instructions HELIODENT
PLUS
If you do not have any access to the Internet, you can order the list in one
of the following two ways:
● Order from your local dental depot
● Order from Sirona:
Tel: ++49 (0) 62 51 / 16-16 70
Fax: ++49 (0) 62 51 / 16-18 18
REF 59 70 905
Sirona recommends the following disinfectants:
● MinutenSpray classic, by ALPRO®
● MinutenWipes, by ALPRO®
In the USA and Canada:
● CaviCide® or
● CaviWipes ™ .
6.1.3 Maintenance of accessories
IMPORTANT
With regard to accessories, particularly those of sensor and film holder
systems, please comply with the cleaning and care instructions in the
relevant operating instructions.
36 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 37
Sirona Dental Systems GmbH 6Maintenance
Operating Instructions HELIODENT
PLUS
6.2Inspection and maintenance
6.2
Inspection and maintenance
Inspection and preventive maintenance must be performed at scheduled
intervals to protect the health and safety of patients, users and other
persons.
Inspection and maintena nce
The information provided in the document
and safety-related checks"
REF 62 14 923 should be helpful here. The
document can be downloaded at http://www.sirona.com/manuals.
Annual inspection
In order to ensure the operational safety and functional reliability of your
product, you as the system owner should check the equipment at regular
intervals (at least once a year) or commission your dental depot to do so.
Maintenance by the service engineer
In addition to the annual check to be carried out by the system owner or
authorized persons, preventive maintenance must be performed after 4,
7 and 10 years, and then at two-year intervals.
Digital image quality
Image quality check
The image quality should be assessed by the system owner at regular
intervals, at least once a year.
On digital image receptor systems, the degree of postprocessing
(brightness or contrast adjustment) that is required in the image
processing software (e.g. SIDEXIS) to produce satisfactory results is
used as an assessment criterion.
Film image quality
For conventional X-rays with film processing, the increase of the
exposure time is used as an assessment criterion.
Assessment criteria
If, after taking into account the patient's anatomy and excluding possible
sources of error such as incorrect patient positioning, this criterion seems
to apply, immediately contact a service engineer to have potential system
faults repaired.
Country-specific requirements
Country-specific requirements
"Inspection and maintenance
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
Observe any possible additional country-specific requirements.
37
Page 38
7Error messages Sirona Dental Systems GmbH
7.1List of error messages Operating Instructions HELIODENT
Error messages
7
Errors during the self-test are indicated by a five-digit number lighting up.
The background color of the display is red.
PLUS
CAUTION
If an error re-occurs after the unit has been switched off and switched
on again, please call your service engineer.
Tell the service engineer which error message was displayed.
7.1
List of error messages
Error code Reason and measures
E3 04 30 Release error - the release button may have been
pressed during switch on
Switch the device OFF and then ON again
If the error persists, call a service engineer and report the
error code
E1 11 88 Display mode ACTIVE - X-ray cannot be release
Call a service engineer and report the error code
E1 04 03
E1 04 04
E1 04 06
E6 04 02
E5 04 50
E6 01 41
E6 01 61
E6 01 62
E6 04 01
E6 04 10
E6 04 11
E6 04 12
E6 04 20
E6 04 21
E6 04 40
E6 04 41
E6 04 42
E7 01 01
E7 01 21
E7 01 51
E5 01 02
E5 01 12
E5 01 14
E5 01 22
E5 01 32
E5 01 42
E6 01 11
E6 01 13
E6 01 23
E6 01 31
Internal error
Press any button to acknowledge the error
If the error persists, call a service engineer and report the
error code
Internal error
Switch the device OFF and then ON again and repeat the
exposure
If the error persists, call a service engineer and report the
error code
Internal error
Call a service engineer and report the error code
38 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 39
Sirona Dental Systems GmbH 7Error messages
Operating Instructions HELIODENT
PLUS
7.1List of error messages
Error code Reason and measures
E1 04 51 Safety circuit - the door switch may not be closed
properly
Switch the device OFF and then ON again, check the
door switch
If the error persists, call a service engineer and report the
error code
E3 04 31 Button error - a button may have been pressed during
switch on
Switch the device OFF and then ON again
If the error persists, call a service engineer and report the
error code
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
39
Page 40
8Dismantling and disposal Sirona Dental Systems GmbH
8.1Dismantling and reinstallation Operating Instructions HELIODENT
Dismantling and disposal
8
PLUS
8.1
8.2
Dismantling and reinstallation
When dismantling and reassembling the unit, proceed according to the
installation instructions for new installation in order to guarantee its
functioning and stability.
Disposal
Based on Directive 2012/19/EU and country-specific disposal directives
for waste electrical and electronic equipment, we would like to point out
that these must be disposed of in a special way within the European
Union (EU). These regulations require environmentally compliant
recycling/disposal of waste electrical and electronic equipment. They
must not be disposed of as domestic waste. This is shown with the
symbol of the crossed out dust bin, which has been in use since March
24, 2006.
Disposal procedure
We feel responsible for our products from the initial idea to their disposal.
That is why we give you the option of taking back our waste electrical and
electronic equipment.
If disposal is required, please proceed as follows:
In Germany
In order to arrange return of the electrical equipment, please send a
disposal request to "enretec GmbH." The following options are available
for this purpose:
● On the homepage of enretec GmbH, click on the "Return of electronic
equipment" button under the "eom" menu item.
● Alternatively, you may also contact the company directly.
enretec GmbH
Kanalstraße 17
16727 Velten
Tel: +49 3304 3919-500
Email: eom@enretec.de
As manufacturers, we assume the costs for disposal of waste from
electrical and electronic equipment in accordance with the countryspecific disposal regulations (ElektroG). All disassembly, transport and
packaging costs are to be borne by the owner/operator.
Proper preparation (cleaning/disinfection/sterilization) of the equipment
must be carried out prior to disassembly/disposal.
Any nonpermanently installed equipment will be picked up at its
installation site in the practice. Permanently installed equipment will be
picked up curbside at your address by appointment.
Other countries
The dental dealers would be glad to provide you with country-specific
information.
62 14 717 D3507
40 D3507.201.01.13.02 08.2015
Page 41
Sirona Dental Systems GmbH 8Dismantling and disposal
Operating Instructions HELIODENT
PLUS
8.2Disposal
8.2.1 Disposal of the X-ray tube assembly
Heliodent Plus X-ray tube assembly
The X-ray tube assembly in this device contains a tube which can
implode, a lead lining and mineral oil.
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
41
Page 42
9Dose area product (DFP) Sirona Dental Systems GmbH
0,20 s
38 mGy cm
2
Operating Instructions HELIODENT
Dose area product (DFP)
9
Information on patient exposure
Explanation
The patient's exposure to radiation can be determined in the tables below.
To compensate for measuring errors as well as for system and instrument
variations, a tolerance of 20% must be taken into account.
The radiation exposure is indicated as a dose area product (DFP) of the
energy dose (mGy x cm
aperture in the tables below.
Furthermore, the HELIODENT
be displayed immediately after exposure. The DFP appears on the
display together with the exposure time used.
Ask your service engineer about any individual setting requests you may
have.
2
) for every available kV level, cone length and
PLUS
also permits the dose area product to
PLUS
Display (sample):
42 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 43
Sirona Dental Systems GmbH 9Dose area product (DFP)
Operating Instructions HELIODENT
PLUS
Calculation and definition of the dose area product for the
HELIODENT
PLUS
Tables with typical values for the dose area product (DFP)
Round cone: with radiation field limitation
Dose area product cone 200 WW
200 mm (8") 3x4 2x3
60 kV 70 kV 60 kV 70 kV 60 kV 70 kV
Time
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
0,01331111
0,02572311
0,03 8 10 3 4 2 2
0,04 11 14 5 6 2 3
0,05 13 17 6 7 3 4
0,06 16 21 7 9 3 4
0,08 22 28 9 12 5 6
0,10 27 34 12 15 6 7
0,12 32 41 14 18 7 9
0,16 43 55 18 24 9 12
0,20 54 69 23 30 12 15
0,25 67 86 29 37 14 18
0,32 86 110 37 47 18 24
0,40 108 138 46 59 23 30
0,50 134 172 58 74 29 37
0,64 172 220 74 94 37 47
0,80 215 276 92 118 46 59
1,00 269 344 115 148 58 74
1,25 336 431 144 185 72 92
1,60 430 551 184 236 92 118
2,00 538 689 230 295 115 148
2,50 672 861 288 369 144 185
3,20 860 1102 369 472 184 236
bеЦдблЬ
62 14 717 D3507
D3507.201.01.13.02 08.2015
Dose area product cone 300 WW
43
Page 44
9Dose area product (DFP) Sirona Dental Systems GmbH
Operating Instructions HELIODENT
PLUS
Round cone: with radiation field limitation
300 mm (12") 3x4 2x3
60 kV 70 kV 60 kV 70 kV 60 kV 70 kV
Time
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
mGy cm
2
0,01121100
0,02331111
0,03452211
0,04572311
0,05793412
0,06 8 10 3 4 2 2
0,08 11 14 5 6 2 3
0,10 13 17 6 7 3 4
0,12 16 21 7 9 3 4
0,16 22 28 9 12 5 6
0,20 27 34 12 15 6 7
0,25 34 43 14 18 7 9
0,32 43 55 18 24 9 12
0,40 54 69 23 30 12 15
0,50 67 86 29 37 14 18
0,64 86 110 37 47 18 24
0,80 108 138 46 59 23 30
1,00 134 172 58 74 29 37
1,25 168 215 72 92 36 46
1,60 215 276 92 118 46 59
2,00 269 344 115 148 58 74
2,50 336 431 144 185 72 92
3,20 430 551 184 236 92 118
44 D3507.201.01.13.02 08.2015
62 14 717 D3507
Page 45
10
Brief Operating Instructions
Page 46
Page 47
Page 48
tЙ=кЙлЙкоЙ=нЬЙ=кбЦЬн=нз=г~вЙ=~еу=~днЙк~нбзел=пЬбЕЬ=г~у=ДЙ=кЙимбкЙЗ=ЗмЙ=нз=нЙЕЬебЕ~д=бгйкзоЙгЙенлK
«=pбкзе~=aЙен~д=pулнЙгл=dгДe=OMNR pйк~ЕЬЙW ЙеЦдблЕЬ mкбенЙЗ=бе=dЙкг~еу
aPRMTKOMNKMNKNPKMO MUKOMNR ûKJkêKW= NON=OMM
pбкзе~=aЙен~д=pулнЙгл=dгДe
c~Дкбвлнк~≈Й=PN
aJSQSOR=_ЙелЬЙбг
dЙкг~еу
пппKлбкзе~KЕзг
lêÇÉê=kç SO=NQ=TNT=aPRMT
Loading...
