Programmable |
PRO |
|
|
|
|
|
|
||
|
|
|
||
Digital |
4000Series |
|
|
|
Thermostat |
|
|
|
|
User Guide |
|
|
|
|
|
|
|
|
|
Read and save these instructions.
Your new thermostat is pre-programmed. Just set the time and day. For help please visit yourhome.honeywell.com
Thermostat controls
|
Press to set desired temperature. |
|
|
Note: Set SYSTEM switch to the system you want |
|
|
to control (Heat or Cool). |
|
|
Set: Sets time/day/schedule. |
|
|
Hold: Overrides programmed temperature. |
|
|
Run: Resumes program schedule. |
|
Fan Switch is used to |
System switch is used to control your heating |
|
control your fan. |
or cooling system. |
|
Auto: Fan runs only when |
Cool: Cooling system control. |
|
heating or cooling system |
Off: All systems off. |
|
is on. |
||
Heat: Heating system control. |
||
On: Fan runs continuously. |
||
Em Heat: Emergency & Auxiliary Heat control. |
||
|
||
|
Compressor is locked out. (Select models only.) |
Display screen
Low battery |
Temperature setting |
||||
warning |
(or Desired Temperature |
||||
Current inside |
when changing temperature) |
||||
|
|
|
|
|
|
temperature |
|
|
|
|
|
|
Replace Batt |
|
Set To |
|
|
|
|
|
|
||
|
|
Inside |
|
||
Current program |
|
75 |
|
||
|
|
Recovery |
|
||
period |
|
75 6:30 AM |
|
||
Wake/Leave/ |
|
Em Aux |
|
||
Return/Sleep |
|
Wake |
Heat On |
|
|
|
|
Wed |
|
|
|
Adaptive Intelligent |
Current day/time |
||||
RecoveryTM |
|
|
|
|
|
Set the time and day
1. Press the SET button, then press σ or τ to set the clock time.
2. Press the SET button, then press σ or τ to select the day of the week.
3. Press RUN to save & exit.
Note: If the display flashes Set Clock, the thermostat will follow your settings for the weekday “Wake” time period until you reset the time and day.
System Status
Cool On: Cooling system is on. Heat On: Heating system is on. Em: Emergency heat is on. ** Aux: Auxiliary heat is on. **
**Only for heat pumps with this capability (select models only).
If flashing, compressor protection is engaged.
Set
Clock
6:30 AM
Set Day
Wed
2
Save money by setting program schedules
It’s easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for weekdays and weekends.
WAKE
6:00 am
70°
LEAVE
8:00 am
62°
RETURN
6:00 pm
70°
SLEEP
10:00 pm
62°
Set to the time you awaken and the temperature you want during the morning, until you leave for the day.
Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).
This thermostat is pre-set with energy-saving program settings. We recommend these settings, since they can reduce your heating/cooling expenses. If you need to create a new schedule follow the steps on the next page.
To adjust program schedules
1.Press SET until Set Schedule is displayed.
2.Press σ or τ to set your weekday
Wake time (Mon-Fri), then press SET. 3. Press σ or τ to set the temperature
for this time period, then press SET.
4.Set time and temperature for the next time period (Leave). Repeat steps 2 and 3 for each weekday time period.
5.Press SET to set weekend time periods (Sat-Sun), then press RUN to
save & exit.
Note: Make sure the thermostat is set to the system you want to program (Heat or Cool).
Note: To cancel an unwanted time period (except Wake), press and hold σ + HOLD for 4 seconds while in the Set Schedule mode.
Set To
Set Schedule 75
6:30 AM
Heat
Wake
MonTueWedThuFri
Set To
Set Schedule 75
6:30 AM
Heat
Wake
MonTueWedThuFri
3
Program schedule override (temporary)
Press σ or τ to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.
The new temperature will be maintained only until the next programmed time period begins. For example, if you want to turn up the heat early in the morning, it will automatically be lowered later, when you leave for the day.
To cancel the temporary setting at any time, press RUN.
Note: Make sure the thermostat is set to the system you want to control (heat or cool).
Program schedule override (permanent)
Temporary |
Set To |
6:30 AM70
Set To
6:30 AM75
Press HOLD to permanently adjust the temperature. This will override the temperature settings for all time periods.
The “Hold” feature turns off the program schedule and allows you to adjust the thermostat manually, as needed.
Hold
Set To
6:30 AM70
Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press RUN to cancel “Hold” and resume the program schedule.
This feature helps prevent damage to the compressor in your air conditioning or heat pump system.
Note: Make sure the thermostat is set to the system you want to control (heat or cool).
Set To
6:30 AM75
4
Adaptive Intelligent RecoveryTM (AIR)
Adaptive Intelligent Recovery eliminates guesswork when setting your schedule. It allows the thermostat to “learn” how long your furnace and air conditioner take to reach the temperature you want.
Just set your program schedule to the time you want the house to reach your desired temperature. The thermostat then turns on the heating or cooling at just the right time to reach your scheduled temperature at your scheduled time.
For example: Set the Wake time to 6 am and the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by the time you wake at 6.
Built-in compressor protection
Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait for a few minutes before restarting.
During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on.
Battery replacement
Batteries are optional (for backup power) if your thermostat was wired to run on AC power when installed.
Install fresh batteries when the REPLACE BATT warning begins flashing. The warning flashes about two months before the batteries are depleted.
Replace batteries once a year, or before leaving home for more than a month. If batteries are inserted within one minute, the time and day will not have to be reset. All other settings are permanently stored in memory, and do not require battery power.
Inside |
Set To |
|
75 |
6:30 AM 75 |
|
Wake |
Cool |
|
On |
||
Wed |
||
|
MCR29477 |
Message flashes until safe restart time has elapsed.
Pull at bottom to remove thermostat from wallplate.
Turn thermostat over, insert fresh AA alkaline batteries, then reinstall thermostat.
5

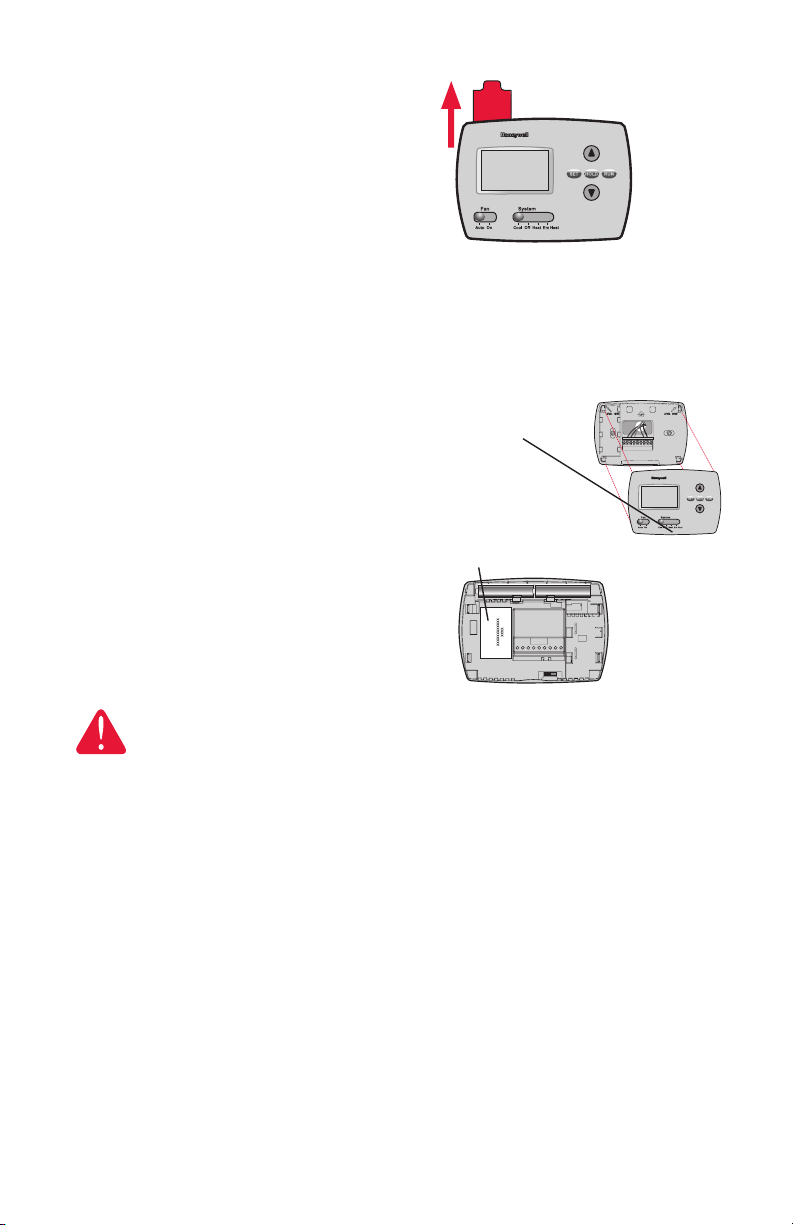

Quick Reference
Grasp and pull to see basic operating instructions at a glance.
Customer assistance
For assistance with this product, please visit yourhome.honeywell.com.
Or call Honeywell Customer Care tollfree at 1-800-468-1502.
Pull at bottom to remove thermostat from wallplate.
Turn thermostat over to find model number and date code.
CAUTION
Equipment damage hazard
To prevent possible compressor damage, do not operate cooling system when outdoor temperature is below 50°F (10°C).
6
Troubleshooting
If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.
Display is |
• Check circuit breaker and reset if necessary. |
blank |
• Make sure power switch at heating & cooling system is |
|
on. |
|
• Make sure furnace door is closed securely. |
|
• Make sure fresh AA alkaline batteries are correctly |
|
installed (see page 5). |
Heating |
• Set system switch to Heat (see page 1). Make sure |
or cooling |
the temperature is set higher than the Inside temperature. |
system does |
• Set system switch to Cool (see page 1). Make sure |
not respond |
the temperature is set lower than the Inside temperature. |
|
• Wait 5 minutes for the system to respond. |
Temperature |
Make sure heating and cooling temperatures are set to |
settings do |
acceptable ranges: |
not change |
• Heat: 40° to 90°F (4.5° to 32°C). |
|
|
|
• Cool: 50° to 99°F (10° to 37°C). |
“Cool On” or |
• Compressor protection feature is engaged. Wait 5 |
“Heat On” is |
minutes for the system to restart safely, without damage |
flashing |
to the compressor (see page page 5). |
“Heat On” is |
• Set the System switch to Heat, and set the |
not displayed |
temperature level above the current room |
|
temperature (see page 1). |
“Cool On” is |
• Set the System switch to Cool, and set the |
not displayed |
temperature level below the current room |
|
temperature (see page 1). |
7
5-year limited warranty
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of five (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i)return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
(ii)call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V4Z9.
Automation and Control Solutions
Honeywell International Inc. |
Honeywell Ltd |
|||||||||||||||||||||||||||||
1985 Douglas Drive North |
705 Montrichard Avenue |
|||||||||||||||||||||||||||||
Golden Valley, MN 55422 |
Saint-Jean-sur-Richelieu, Québec |
|||||||||||||||||||||||||||||
yourhome.honeywell.com |
J2X 5K8 |
|||||||||||||||||||||||||||||
® U.S. Registered Trademark. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
© 2013 Honeywell International Inc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
69-1760EFS—10 M.S. Rev. 11-13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Printed in U.S.A. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
69-1760EFS-10 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
