Operating instructions
for Washing machine
W 435-E
To avoid the risk of accidents or
damage to the machine it is
essential to read these operating instructions
before it is installed or used for the
first time.
WPS
G
M.-Nr. 05 777 661
Page 2
Caring for our environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection
centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate
advice in the "Warning and safety
instructions".
2
Page 3
Contents
Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Special programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delicates and Silks / programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Time left display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Locking functions (programme locking, system lock) . . . . . . . . . . . . . . . . . . . 10
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Important control panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Additional option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
"Spin" button with indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Energy and water consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Additional options (Soak, Pre-wash, Intensive) . . . . . . . . . . . . . . . . . . . . . . . . 15
When drying with a tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care symbols - washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Before washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 27
3
Page 4
Contents
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Altering a programme once selected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Skipping a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
To cancel or select a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fabric conditioners and liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adding fabric conditioner separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adding starch separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Colour run and dye removers/dyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Locking functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electronic programme locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Extra cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 39
A fault indicator light comes on but the wash programme continues as normal. . 40
General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 41
The drum door cannot be opened by pressing the Door button. . . . . . . . . . . . . . 43
Opening the drum door in the event of a blocked drain outlet and/
or power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Blocked drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Opening the drum door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4
Page 5
Contents
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Removing the transit fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Building under a continuous worktop/in a kitchen run . . . . . . . . . . . . . . . . . . . 53
Washer and Dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
The Miele Waterproof system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Note for test institutes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Top-up rinse for COTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
5
Page 6
Warning and safety instructions
supply. If in any doubt, consult a
Read the operating instructions be
fore using this machine for the first
time. They contain important infor
mation about the safety, use and
maintenance of the machine. This
way you will avoid the risk of acci
dents and damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
Only use the washing machine to
wash items which are specified by
the manufacturer to be machine-washable on the wash-care label, and
textiles composed of hand-washable
wool or wool blend fabrics as well as
satin, lace, silk and other
hand-washable garments.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
This appliance should not be
operated by children. Supervise its
use by the elderly or infirm.
Technical safety
-
qualified electrician.
when continuity is complete between
-
the machine and an effective earthing
system which complies with local and
national regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt the household wiring
system should be inspected by a
qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
engineer.
Ensure current is not supplied to the
appliance while maintenance or repair
work is being carried out.
The electrical safety of this
appliance can only be guaranteed
Do not connect the appliance to
the mains electricity supply by an
The machine is built in accordance
with current safety requirements.
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a
damaged machine.
Before connecting the machine,
ensure that the connection data on
the data plate (fusing, voltage and
frequency) match the mains electricity
6
The machine is only completely
isolated from the electricity supply
when:
–
it is switched off at the wall socket
and the plug is withdrawn, or
–
it is switched off at the mains, or
–
the mains fuse is withdrawn.
Page 7
Warning and safety instructions
The Miele "Waterproof system"
protects from water damage
provided the following conditions have
been met:
the machine is correctly plumbed in
–
and connected to the electricity
supply.
if a fault has been identified, the
–
machine must be examined by a
competent person before further use,
and repaired if necessary.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Use
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.
Do not install your washing
machine in rooms where
temperatures below freezing may
occur. Frozen hoses may burst under
pressure. The reliability of the electronic
control unit may be impaired at
temperatures below freezing point.
Before using the machine for the
first time, check that the transit
fitting at the rear of the machine has
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Turn off the stopcock if the
machine is to be left for any length
of time (e.g. holiday), especially if there
is no floor drain (gully) in the immediate
vicinity.
Flooding danger
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it.
Otherwise this will result in flooding.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the washing. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the washing.
7
Page 8
Warning and safety instructions
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt, contact the Miele Customer Ser
vice Dept. or your Miele Dealer.
Textiles which have been
pre-treated in solvent based
cleaning agents must be thoroughly
rinsed in clean water before being
washed in the machine.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such
detergents also pose a fire and
explosion hazard.
Only use dyes specified by the
manufacturer as being suitable for
use in a domestic washing machine.
Always observe the manufacturer's
instructions carefully.
Colour run and dye removers
contain sulphur compounds which
can cause damage such as corrosion.
Do not use these products in this
machine.
For machines with a ‘porthole’
door, remember that the porthole
glass will be hot when washing at very
high temperatures. Do not let children
touch it.
Always make sure the drum is
-
stationary before reaching in to
remove washing. Reaching into a
moving drum is extremely dangerous.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Disposal of your old machine
Before discarding an old machine,
unplug it. Render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse. This
should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
8
Page 9
Description of the appliance
Special programmes
Programme for hand-washable
–
fabrics (Silks /)
Hand-washable fabrics which crease
easily and do not contain wool can
be washed in the Silks /
programme (30°C temperature only).
Programme for hand-washable
–
fabrics (WOOLLENS /)
Hand-washable or
machine-washable wool or wool
blend fabrics can be washed in the
WOOLLENS / programme. If the
garment care label does not specify
a temperature, wash using the cold
setting.
– Programme for small loads
(Quick wash)
This is a Cottons programme for very
lightly soiled fabrics.
– Programme for mixed fabrics
(Mixed wash)
Delicates and Silks / programmes
In these programmes, the laundry is
washed and spun very gently to reduce
creasing and the amount of ironing
required, thus providing "Easy care" for
your laundry.
Water plus system
The water level for washing and/or
rinsing is increased. For COTTONS and
MINIMUM IRON programmes an
additional rinse can also be selected.
Suitable for small loads of garments
made from man-made fibres and
cotton garments which can be
washed together. Sort according to
colour.
–
Rinse programme (Separate rinse)
Articles are only rinsed and spun in
the machine.
9
Page 10
Description of the appliance
Time left display
After the start of a programme, the
duration of the programme selected will
be shown in the display counting down
in hours and minutes and finally in
minutes. At some points during the
wash, the time shown can change. This
is normal.
Locking functions (programme lock
ing, system lock)
Electronic programme locking
Electronic programme locking prevents
the door from being opened or the
programme cancelled during a wash
programme. The electronic programme
locking is automatically cancelled at the
end of the programme.
Electronic system lock
The system lock prevents anyone from
using the washing machine without
your knowledge. When the system lock
is activated :
-
Future updates (PC)
The indicator or check light marked PC
allows a service engineer to update
your machine in future years.
When, for example, new programmes
are developed or new fabrics are
introduced, a service engineer will be
able to modify existing programme
cycles accordingly.
Miele will provide information when
such developments become available.
–
the drum door cannot be opened
with the
–
a programme cannot be started.
10
Door
button and
Page 11
Control panel
Description of the appliance
a Display
see the following page for more
information.
b START button
starts the wash programme

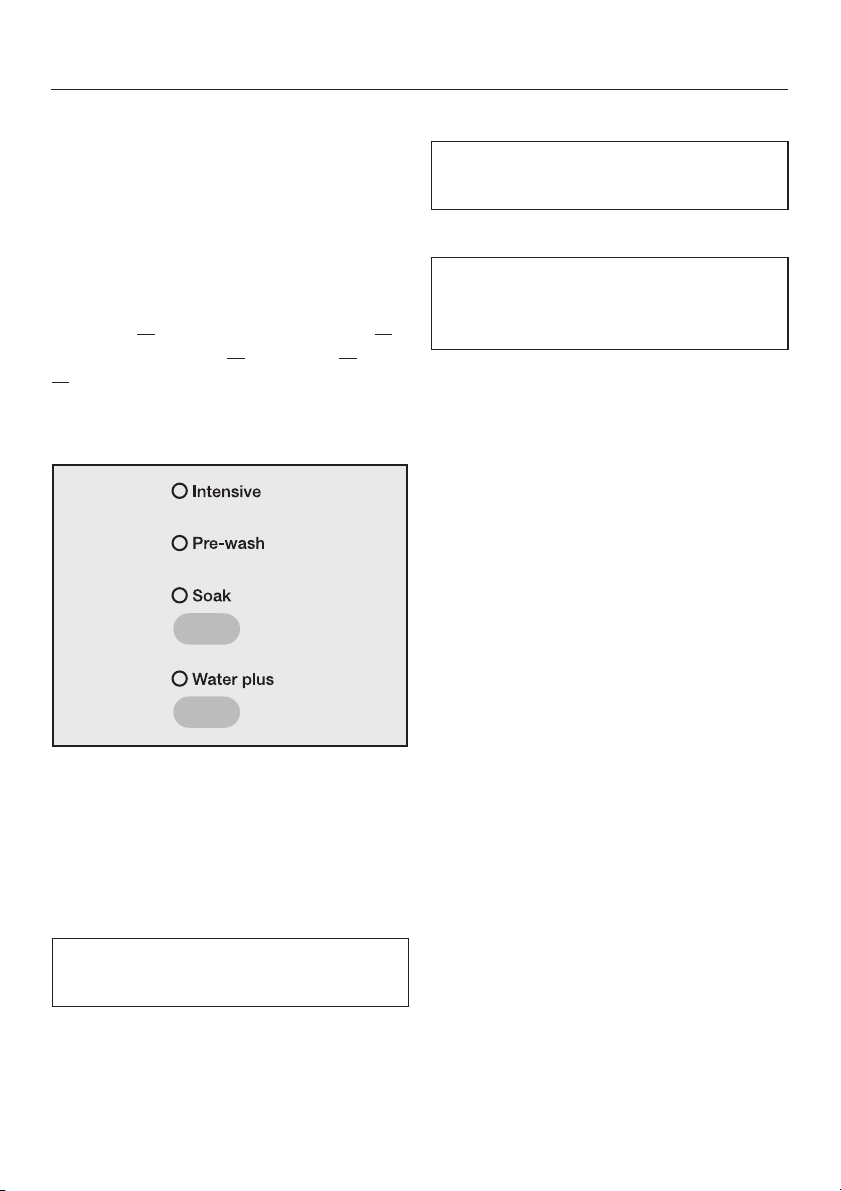

c Additional option buttons
Additional options can be added to
the basic programme.
Use the top button to select either
the
Intensive,Pre-wash
option or a combination of these
options.
Use the lower button to select the
Water plus
Indicator light on = option selected
Indicator light off = option not
selected
d Indicator lights for spin speed,
Rinse hold or Without spin
e Spin button
for selecting the final spin speed,
Rinse hold or Without spin
option.
, or
Soak
f Programme selector
for selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise
g Programme sequence indicator
lights
show which section of the wash
programme has been reached
h Fault / check / service indicator
lights
i I-On/0-Off button
for switching the machine on or off
or interrupting a programme
j Door button
opens the machine door
11
Page 12
Description of the appliance
Programme duration
After the start of the programme, the
maximum duration (wash time) for that
programme will appear in the display in
hours and minutes.
In the:
COTTONS
–
MINIMUM IRON
–
Mixed wash
–
programmes, the washing machine
measures the amount of water being
taken up by the laundry and uses this
to calculate the load during the first 10
minutes. If the machine recognises a
smaller load it will shorten the
programme time.
Programme Max. time reduction
Normal Intensive
COTTONS 37 min 52 min
MINIMUM IRON 12 min 13 min
Mixed wash 13 min 18 min
Soak
If a soak period has been selected, this
is added to the programme duration in
the display to give a a total running
time.
12
Page 13
Description of the appliance
Important control panel
features

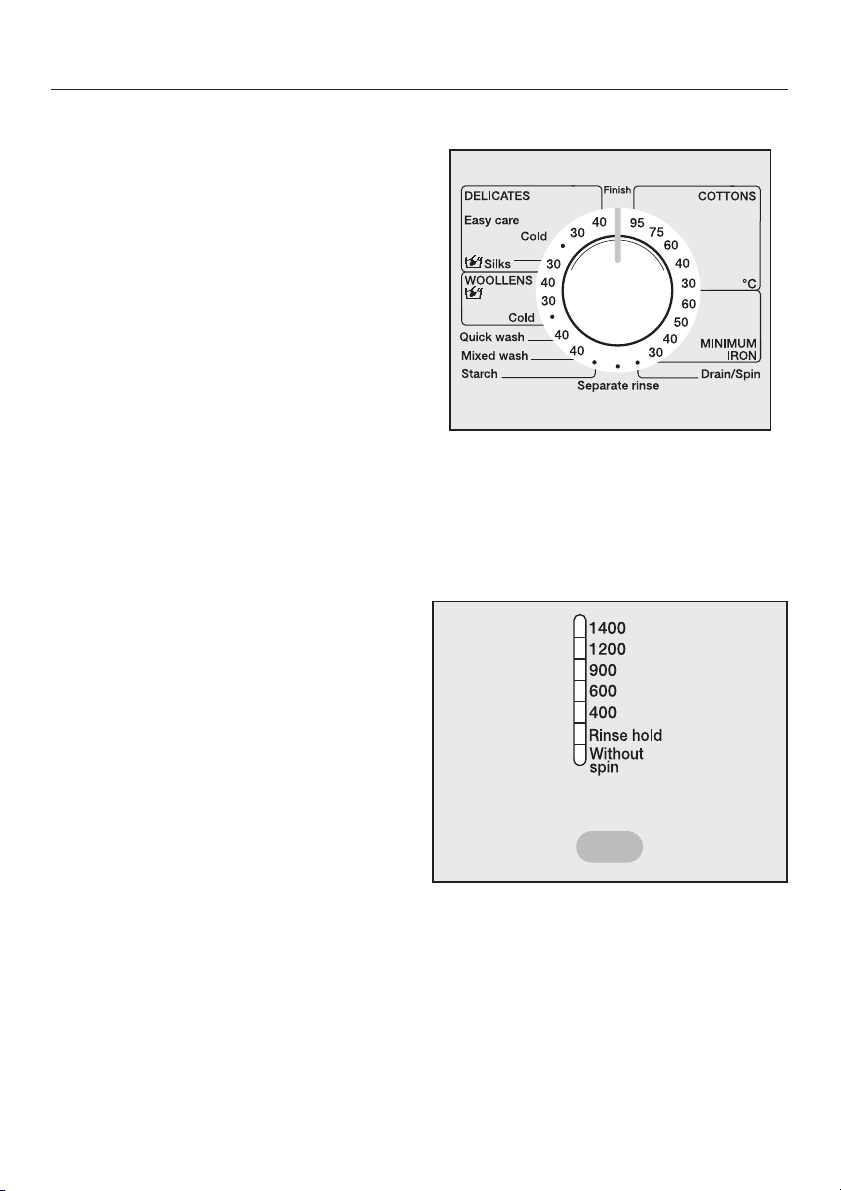

Programme selector
The programme selector is used to set
the basic wash programme and the
temperature for that programme.
The light ring will go out a few minutes
after the end of the programme to save
energy.
Additional option buttons
Additional options can be added to the
basic programme.
Use the top button to select either the
Intensive
option or a combination of these
options.
Use the lower button to select the Water
plus option.
The indicator light will come on to show
that the additional option has been
selected. If an additional option is
chosen, which is incompatible with the
basic programme, it cannot be
selected.
"Spin" button with indicator lights
The maximum spin speed which can be
selected depends on the basic
programme chosen.
Maximum
spin
speed
, the
Pre-wash
1400 COTTONS, Quick wash, Starch,
Drain/spin
1200 WOOLLENS, Separate rinse
900 MINIMUM IRON, Mixed wash
600 DELICATES
400 Silks
or the
Soak
Basic programme
Select the spin speed.
Press the "Spin" button to select a
different spin speed. However, you
cannot select a spin speed higher than
the maximum allowed for the basic
wash programme chosen.
The indicator lights show the speed
selected.
You can also omit the final spin
Press the "Spin" button to reach:
^
Rinse hold
–
The laundry is not spun and remains
suspended in the final rinse water.
This reduces creasing if the laundry
is not going to be removed from the
drum immediately after the end of
the programme.
To continue the programme select a
spin speed. When the programme is
finished the
Anti-crease/Finish
light
will come on. Turn the programme
selector to the
press the
Finish
door
button to open the
position and
door and remove the laundry.
–
Without spin
The laundry is not spun. After the wa
ter has been drained away the
machine goes straight into the
anti-crease stage. Spinning between
the rinses is also omitted in this
setting.
-
13
Page 14
Before using for the first time
Before using the machine for the first
time ensure that it is correctly
installed and connected. See the
relevant section under "Installation".
Also check that the fluff filter is
securely tightened. Otherwise there
is a risk of water leakage during use.
For safety reasons spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
^ Turn on the stopcock.
^
Press the I-ON/0-OFF button in.
^
Turn the programme selector to
COTTONS 40°C.
^
Press the "Spin" button repeatedly to
select
^
Press START.
When this programme has finished turn
the programme selector to
washing machine is ready for using for
the first time.
14
Without spin
.
Finish
. Your
Page 15
Washing environmentally and economically
Energy and water consumption
Water consumption and energy
–
usage are determined by the size of
the load.
Use the
–
wash
amounts of laundry.
When smaller amounts of laundry are
–
washed in the COTTONS
programmes, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the
programme duration alters during the
course of the wash programme.
– Instead of the COTTONS 95°C
programme, use the COTTONS 60°C
programme together with the
Intensive
give an energy saving of between
35% and 45%. The programme
duration will be longer. This
combination is sufficient for most
levels of soiling. For stubborn or old
stains, use the
Mixed wash
programme for smaller
additional option. This will
Soak
or the
option.
Quick
Detergent
Do not exceed the amounts of
–
detergent which may be
recommended by the manufacturer
on the packaging.
Reduce the amount of detergent with
–
smaller loads (approx.
the amount recommended can be
used when washing a half load).
Additional options (Soak, Pre-wash,
Intensive)
Select:
a wash programme without any
additional options for light to normal
soiling where there are no obvious
marks.
a wash programme together with the
Intensive
soiled laundry with visible staining.
– Use the additional option
instead of
followed immediately by a main wash
the same suds are used.
option for normal to heavily
Pre-wash
1
/3less than
Soak
. If Soak is
When drying with a tumble dryer
–
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
15
Page 16
How to wash correctly
Brief instructions
Please note:
To help familiarise yourself with how to
use your washing machine please read
the sections "Before washing",
"Selecting a programme" and "At the
end of a programme" in detail.
A Sort the laundry into colours and
fabric types
Selecting a programme:
B Switch on the washing machine
C Open the drum door
D Load the drum
E Close the drum door
F Select a programme
G Select a spin speed
H Select any additional option required
I Add detergent
See the "Programme chart" in the next
section for information on which
programmes to use for different fabric
types.
J Press the START button
At the end of a programme:
K Open the drum door
L Remove the laundry
M Switch off the washing machine
N Turn the programme selector to the
Finish
position
O Close the drum door
16
Page 17
How to wash correctly
Programme chart
COTTONS 9ö876
Fabric Cottons and linen fabrics, e.g. bed linen, table linen,
towelling, jeans, underwear, T-shirts, nappies.
Additional options Soak, Pre-wash, Intensive, Water plus
Notes
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 5 kg
Note for test institutes:
For testing in accordance with EN 60456 you must use the
MINIMUM IRON 4321876
Fabric White nylon (60°C), white polyester fabrics (50°C), coloured
Additional options Soak, Pre-wash, Intensive, Water plus
Notes
Only use the COTTONS 95°C programme for heavily
–
soiled and incontinent laundry.
For heavy soiling where staining is visible, use the
–
Intensive
For laundry with stubborn soiling or soiling which has
–
been left untreated for a while, select both the
and
For laundry with large amounts of dirt (e.g. dust, sand)
–
use the
– For dark coloured fabrics use a detergent for coloured
fabrics, or liquid detergent.
detergent, tablet detergent and liquid tab detergent. See
also "Detergent" section.
nylon, polyester, cotton and viscose fabrics with special
finishes, acrylic, cotton fabrics coloured polyester/cotton
fabrics, (40°/30°C) minimum iron fabrics not washable at
higher temperatures.
–
For heavy soiling where staining is visible, use the
Intensive
additional option.
Soak
options.
Pre-wash
additional option.
additional option.
Intensive
Intensive
option.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent, detergent for delicates. See also "Detergent" section.
Max. load 2.5 kg
Note for test institutes:
For testing in accordance with EN 60456 you must use the
Intensive
option.
17
Page 18
How to wash correctly
DELICATES 21 + COLD
Fabric Acrylics, acetate and triacetate, 100% cotton easy care
shirts and blouses.
Curtains, specified machine-washable by the manufacturer.
Additional options Soak, Pre-wash, Intensive
Notes
Detergent Detergent for delicates (mainly liquids). See also "Detergent"
Max. load 1 kg
Silks /c
Fabric Hand-washable fabrics with no wool content, e.g. satin, lace
Additional options Water plus
Notes – Laundry remains relatively crease-free for easier ironing.
Detergent Detergent for delicates (mainly liquids). See also "Detergent"
Max. load 1 kg
WOOLLENS /ac + COLD
Fabric Machine-washable or hand-washable wool or wool blend
Detergent Liquid detergent for machine washable woollens. See also
Max. load 2 kg
For heavy soiling where staining is visible, use the
–
Intensive
Laundry remains relatively crease-free for easier ironing.
–
Dust in curtains usually makes using a programme with
–
Pre-wash advisable
For curtains made from delicate fabrics, reduce the spin
–
speed or select Without spin.
section.
and silk.
– Place socks, tights, bras etc. in a washing bag.
section.
fabrics. If the care label does not specify a temperature
wash using the cold setting. Please note that hand
washable garments will not shrink, stretch, matt or felt
beyond the accepted tolerance of that item.
"Detergent" section.
additional option.
.
18
Page 19
How to wash correctly
Quick wash 7
Fabric Very lightly soiled fabrics, which can be washed in the
Cottons programme.
Additional option Water plus
Notes
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 2.5 kg
Mixed wash 72
Fabric Small loads of garments made from man-made fibres and
Additional option Soak, Pre-wash, Intensive, Water plus
Notes – For heavy soiling where staining is visible, use the
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 3 kg
Starch
Fabric Table cloths, napkins, overalls, aprons.
Notes
Max. load 5 kg
Separate rinse
Fabric Articles which have been washed by hand and only need to
Max. load 5 kg
Drain / Spin
Notes
Max. load 5 kg
Use less detergent (as for a half load).
–
If fabrics have a high proportion of man-made fibres it is
–
advisable to programme the machine for "Gentle Action".
See "Programmable functions". Note that this programme
is not suitable for delicate items.
detergent.
cotton garments which can be washed together. Sort
according to colour.
Intensive
– If fabrics have a high proportion of man-made fibres it is
advisable to programme the machine for "Gentle Action".
See "Programmable functions".
detergent.
–
The laundry should be washed but not treated with fabric
conditioner.
be rinsed and spun in the machine.
–
Drain only: Select
additional option.
Without spin
. Do not use for Woollens.
19
Page 20
How to wash correctly
Care symbols - washing
Care
symbols
e
no bar
f*
single bar
g
broken
bar
Fabric
types
Cottons Normal
Synthetics Reduced
Woollens Much reduced
Description of
process
(maximum)
machine action
and normal
spinning
(medium)
machine action
and reduced
spinning
(minimum)
machine action
but with normal
spinning
Programme:
(select the appropriate temperature
according to the temperature on the
care label symbol)
Cottons, Minimum iron, Quick wash
Delicates
*If the gentle action option has been
programmed into your machine via the
programmable functions, garments
with a single bar under the care label
f can also be processed using a
Cottons, Minimum Iron, Quick wash,
Mixed Wash or Starch programme.
Hand Wash Woollens programmes.
20
Page 21
Important - other care symbols
/ Hand wash (If no temperature
is specified use the lowest
temperature or cold)
h Do not wash
apf Dry clean
D Do not dry clean
y Suitable for chlorine
bleaching
z Do not use chlorine bleach
Tumble dry
q At normal temperature
r At low temperature
s Do not tumble dry
Ironing
How to wash correctly
I Hot iron
H Medium hot iron
G Cool iron
J Do not iron
N.B. If you have any textiles with the
older wash care labels, select a
programme according to the label
below:
[:\] Cottons
?;\ Minimum iron
={ Delicates
# Woollens
21
Page 22
How to wash correctly
Before washing
A Sort the laundry
^ Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^ Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can
be pre-treated with bar soap, liquid
detergent or detergent mixed into a
solution or paste.
With particularly stubborn stains ask
your dry cleaner for advice.
Do not use solvent-based
,
cleaning agents in this machine.
Sort the laundry by colour and by
^
care label symbol. Most garments
have a textile care label in the collar
or side seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being washed
together with other garments. Always
wash whites and coloureds separately.
Delicate textiles should be washed
separately in a delicates programme
(use a washing bag where
appropriate).
– Curtains:
Remove lead weights and strips or
place in a laundry bag.
– Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–
Knitted garments, trousers and
jeans, T-shirts and sweat shirts:
Turn inside out, if recommended by
the manufacturer.
–
Close any zips, fasten hooks and
eyes etc before washing.
22
–
Fasten duvet covers to prevent
smaller items rolling up inside them.
,
Do not wash any items in this
machine which are specified by the
manufacturer as non-machine
washable on the care label. (h
symbol)
Page 23
How to wash correctly
Selecting a programme
B Switch on the washing machine
Press in the I-ON/0-OFF button.
^
C Open the drum door
Press the
^
drum door.
D Load the drum
Unfold the laundry and load loosely
^
in the drum. To achieve best results it
is advisable to make up mixed loads
consisting of both large and small
items. This improves the washing
effect and helps distribute the load
evenly to keep the machine stable
and reduce the noise level during
spinning.
To save energy and water try to load
the maximum amount for the
programme selected.
However, be careful not to overload the
machine. Overloading reduces the
wash result and causes more creasing.
Door
button and open the
F Select a programme
^ Turn the programme selector to the
required programme.
The maximum duration for the
programme will appear in the display.
G Select a spin speed
E Close the drum door with a gentle
swing
Make sure that no garments are caught
between the drum door and seal.
^
Press the "Spin" button repeatedly
until the indicator light for the spin
speed you want comes on.
In some programmes the maximum
spin speed is limited. The machine will
not allow a higher spin speed to be
selected.
23
Page 24
How to wash correctly
Additional options
H Select additional option(s)
Additional options can be selected as
long as they are compatible with the
basic programme being used.
Each press of the top button selects the
additional option in the following order:
IntensiveorIntensive
Intensive
or no option selected.
Use the lower button to select or
deselect the
^
Press the appropriate additional
option button. Press the top button
repeatedly until the indicator light for
the additional option you want comes
on.
Intensive
and
SoakorPre-washorSoak
Water plus
and
option.
Pre-wash
or
Pre-wash
For heavily soiled laundry and items
with dried on stains.
Soak
For heavily soiled and stained items
with protein stains (e.g. blood, fats
and oils, cocoa).
A length of time of between 30
–
minutes and 2 hours can be
programmed in 30 minute
increments for the soak process.
– The machine is set ex-works with a
soak period of 2 hours.
To programme in a different soak period
see "Programmable functions - Soak
period".
Water plus
If you want to increase the water level
for a wash process you can choose one
of the four options for the
button. The options are explained in the
section on "Programmable functions Water plus system".
The machine is set at the factory so that
the water level in the main wash and
rinses will be increased if the
plus
button is pressed.
Water plus
Water
For normal to heavy soiling with
visible staining.
The duration of the main wash is
increased.
24
Page 25
I Adding detergent
It is important to dispense the correct
amount, because. . .
. . . too little detergent results in:
Laundry not getting properly clean
–
and with time it may become grey
and hard to the touch.
Greasy particles cling to the laundry.
–
Limescale deposits on the heater
–
elements.
. . . too much detergent results in:
– Excessive foam, which causes a low
level of agitation and poor wash,
rinse and spin results.
– higher water consumption because
an extra rinse is automatically
activated
– A burden to the environment.
Liquid detergent
How to wash correctly

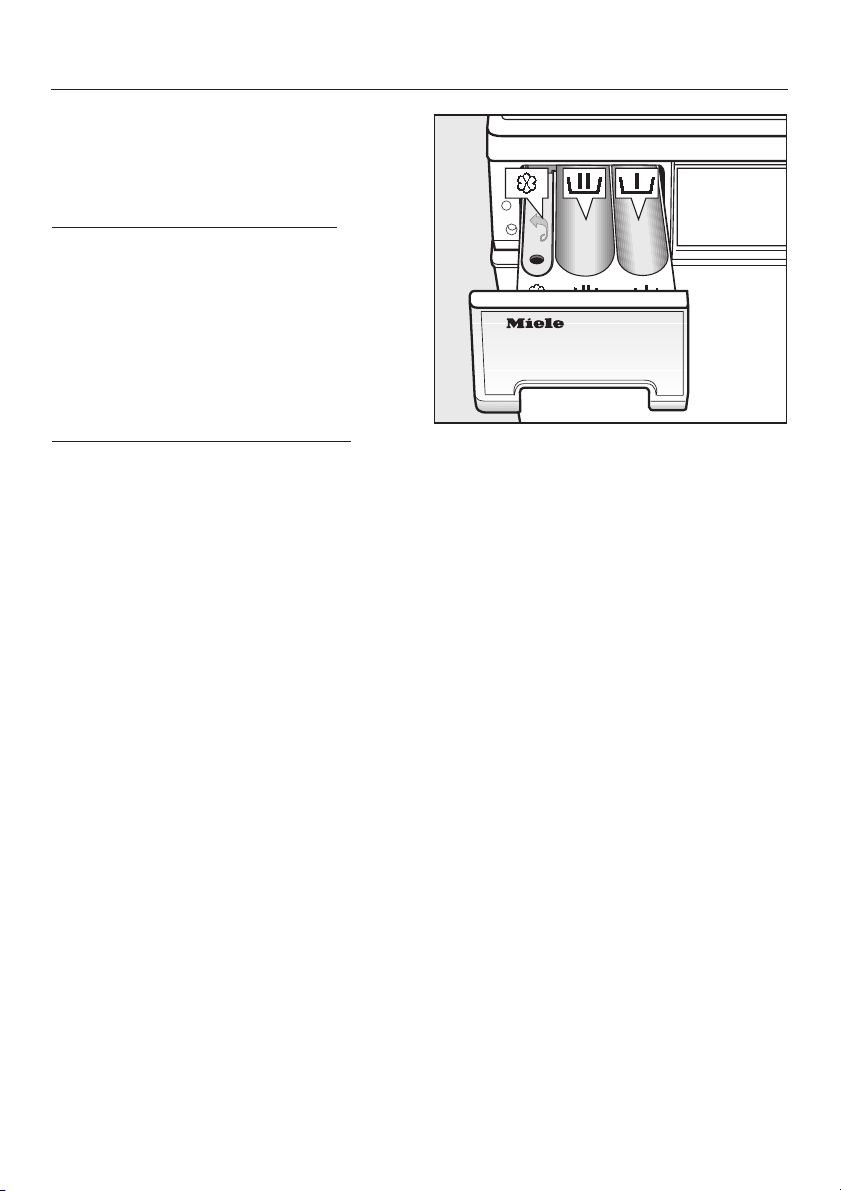

Pull out the detergent drawer and
^
place detergent in the compartments
as follows:
i = Pre-wash
(if selected, add
total amount recommended for
the programme). This compartment is also used for starch
formulations when starching
separately.
1
/4of the
Liquid detergent should be dispensed
using a ball provided by the
manufacturer for programmes without a
pre-wash.
For programmes with a pre-wash you
will need to purchase a special
container from the Miele Spare Parts
department which sits in the main wash
compartment j of the detergent
dispenser drawer. Add liquid detergent
to this container for the main wash and
to compartment i for the pre-wash.
j = Main wash
including the Soak period if
selected
§ = Fabric conditioner or
liquid starch.
^
Close the detergent drawer.
See section on "Detergent" for further
information on detergent and the
amount to dispense.
J Press the START button
This starts the programme. The
maximum programme duration will then
show in the display.
25
Page 26
How to wash correctly
At the end of a programme
When the
light comes on the laundry can be
removed from the drum. (This light
stays on at the end of the programme
and remains on until the selector is
turned back to the
K Open the drum door
Press the
^
L Remove the laundry.
,
machine once the drum has
stopped turning. Reaching into a
moving drum is extremely
dangerous and could result in injury.
Anti-crease/Finish
Finish
Door
button.
Only remove laundry from the
indicator
position).
Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.
M Switch off the washing machine.
Press and release the I-ON/0-OFF
^
button and turn the programme
selector to
Anti-crease/Finish
out.
N Close the drum door
Otherwise there is the danger of
objects being placed inadvertently in
the drum. If these remained unnoticed
and were washed in the next load, they
could damage the laundry.
Finish
. The
light will then go
^

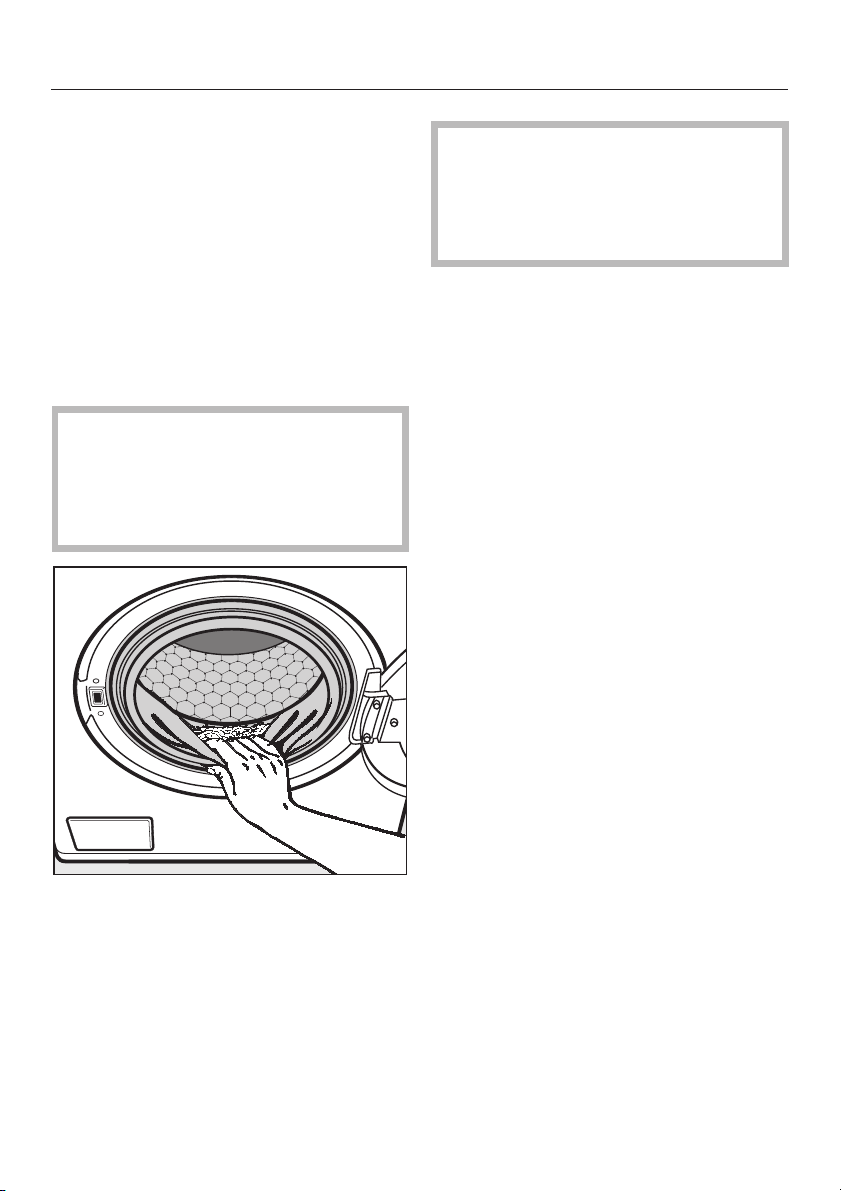

Check the folds in the door seal for
any small articles, e.g. buttons which
may be lodged there.
26
Page 27
How to wash correctly
Adding or removing laundry
after a programme has started
Laundry can be added or removed
after the programme has started when
using the following programmes:
COTTONS
–
MINIMUM IRON
–
Quick wash
–
Mixed wash
–
Starch
–
Press the
^
until the door springs open.
^ Add or remove items.
^ Close the door.
The programme will continue
automatically.
Please note:
Once a programme has started the
machine cannot recognise any
adjustment to the load. For this reason
if laundry is added or removed after the
start of a programme, the machine will
always complete the programme cycle
for a full load which can lead to an
increase in the time remaining for the
programme shown in the display.
Door
button in and hold it
The door cannot be opened, when:
the suds temperature is above 55°C.
–
the water is above a certain level.
–
programme locking is switched on.
–
the programme has reached the
–
Final spin
The
locked
if the
Door
above conditions are present.
stage.
indicator light will come on
button is pressed when the
27
Page 28
How to wash correctly
Interrupting a programme
Switch the machine off with the
^
I-ON/0-OFF button.
To continue with the same programme:
Switch the machine on with the
^
I-ON/0-OFF button.
Altering a programme once
selected
The machine will accept the following
changes after a programme has
started:
– at any time after the start
speed can be changed within the
limits for the programme.
– up to 6 minutes after the start
Water plus
selected or de-selected and a
different temperature can be
selected for the programme in use.
After the start of a programme it is no
longer possible to select a different
programme.
If the programme selector is moved, the
indicator light
start flashing. However, the programme
sequence remains unaffected. The
indicator light will go out again when
the programme selector is moved back
to the programme previously chosen.
additional option can be
Anti-crease/Finish
, the spin
, the
will
Skipping a programme stage
Turn the programme selector to
^
Finish
.
As soon as the programme sequence
indicator light for the programme stage
you want the programme to continue at
starts flashing:
Turn the programme selector back
^
again to the appropriate programme
within 4 seconds
Programmes cannot be altered and
programme stages cannot be
skipped if programme locking has
been activated.
.
To cancel or select a different
programme
^ Switch the machine off with the
I-ON/0-OFF button.
^ Turn the programme selector to
Finish
.
The programme has now been
cancelled.
^
Switch the machine on with the
I-ON/0-OFF button.
^
Select a different programme.
^
Press the START button.
28
Page 29
Programme sequence
This washing machine has fully
electronic controls with automatic load
recognition. This machine takes in the
right amount of water required for the
programme depending on the amount
of laundry and its absorbency rate. This
means that programme cycles and
durations shown in the display can
vary.
The programme sequences outlined
below are based on the basic
programme with a full load. Additional
options which can be selected have not
been taken into account.
The programme sequence indicator
lights show the stage the programme
has reached.
COTTONS
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: medium
No of rinses: 2 or 3
Spinning
Rinse and interim spin2): yes
Final spin: yes
1)
How to wash correctly
MINIMUM IRON
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: high
No of rinses: 2 or 3
Spinning
Rinse and interim spin2): yes
Final spin: yes
Main wash
Water level: high
Wash rhythm: Gentle action
Rinses
Water level: high
No of rinses: 3
Spinning
Rinse and interim spin: no
Final spin: yes
Main wash
Water level: medium
Wash rhythm: Silks
Rinses
Water level: medium
No of rinses: 2
Spinning
Rinse and interim spin: no
Final spin: yes
1)
DELICATES
Silks /
29
Page 30
How to wash correctly
WOOLLENS /
Main wash
Water level: medium
Wash rhythm: Woollens
Rinses
Water level: medium
No of rinses: 2
Spinning
Rinse and interim spin2): yes
Final spin: yes
Quick wash
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: medium
No of rinses: 2
Spinning
Rinse and interim spin2): yes
Final spin: yes
Mixed wash
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: high
No of rinses: 2
Spinning
Rinse and interim spin2): yes
Final spin: yes
Starch
Water level: low
Wash rhythm: normal
Final spin: yes
Separate rinse
Water level: high
No of rinses: 2
Final spin: yes
Special features in the programme
sequences:
Anti-crease:
At the end of every programme, with
the exception of the WOOLLENS
programme, the anti-crease action
switches on for a maximum of 30
minutes. The door can be opened and
laundry removed at any time during the
anti-crease phase.
1)
A third rinse takes place
automatically if:
–
there is too much foam in the drum
–
a spin speed of lower than 700 rpm
has been selected.
–
Without spin
2)
Rinse and interim spin:
has been selected
There is a spin between the rinses.
Omitting rinse and interim spin:
Select
Without spin
on the spin speed
display.
30
Page 31
Detergent
All modern detergents produced for
automatic washing machines are
suitable, including liquid, compact
(concentrated), tablets, liquid tablets
and special application detergents.
Use dispensing aids, e.g. balls, if these
are supplied with the detergent. Tablets
are suitable for full loads but note that it
may be impractical to reduce tablets by
proportion to suit smaller loads!
Woollens and knitwear containing wool
mixtures and hand-washable garments
should be washed using a detergent
specifically designed for washing
woollens.
Silk should be washed using a liquid
detergent specifically designed for
washing woollens. Do not use
biological detergents on silk as the
enzymes may damage the silk!
Instructions for use and recommended
amounts for a full load are given on the
detergent packaging.
^ Add detergent to the compartments
as follows:
i = Detergent for pre-wash
(if selecting a pre-wash add
of the total amount recommended). This compartment is
also used for starch formula-
tions when starching separately.
j = Detergent for the main wash
including Soak.
§ = Fabric conditioner or liquid
starch.
The right amount to dispense will
depend on the following:
–
The quantity of laundry.
1
/
4
The soiling level of the laundry.
–
Lightly soiled
No visible dirt or stains. Possibly
slight body odour.
Normally soiled
Visibly dirty and/or just a few slight
stains.
Heavily soiled
Stains and soiling clearly visible.
The water hardness level.
–
Check with your local water supplier
if you do not know the water
hardness level in your area.
Water softeners
A water softener can be used to cut
down on the use of detergents in
extremely hard water areas. Dispense
according to the amount specified on
the packaging. First add detergent and
then the water softener.
Use a quantity of detergent as for soft
water.
Miele do not recommend connecting
the machine to a household water
softener.
Washing with several
components
If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment j in the
following order:
1. Detergent
2. Water softener
3. Stain remover
This way the agents are distributed
more efficiently.
31
Page 32
Detergent
Fabric conditioners and liquid
starch
Fabric conditioners make garments soft
and fluffy to handle and help prevent
static cling when tumble drying.
Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.
Dispense according to the amount
^
specified on the packaging.
Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme
If starching frequently, the dispenser
compartment and especially the
siphon tube and conditioner channel
will need regular cleaning to remove
any residual starch. See "Cleaning
the detergent dispenser drawer".
Do not add starch formulations or
viscous liquid starch to the §
compartment as it will clog it up. See
"Adding starch separately".
Adding fabric conditioner separately
Add fabric conditioner to
^
compartment §.
^ Turn the programme selector to
^ Select a spin speed.
^ Press the START button.
Adding starch separately
Use the separate
when using starch formulations or
viscous liquid starch.
^ Prepare and measure the starch in
accordance with the manufacturer’s
instructions.
^
Add starch to compartment i.
^
Turn the programme selector to
^
Select a spin speed.
^
Press the START button.
Starch
programme
Starch
Starch
.
.
^

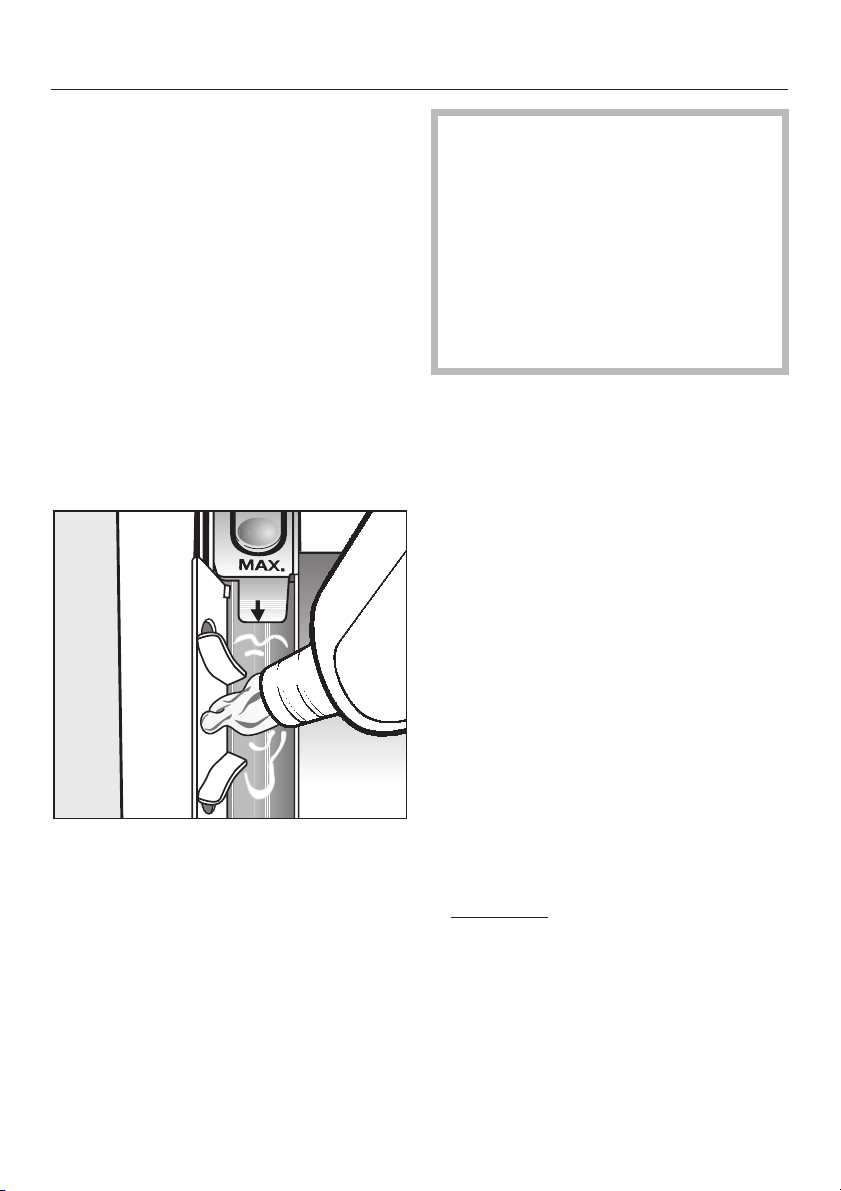

Add the fabric conditioner or liquid
starch to compartment §. Do not
exceed the maximum level mark.
The conditioner or liquid starch is
automatically dispensed in the last
rinse. At the end of the programme a
small amount of water remains in the
fabric conditioner compartment §.
32
Colour run and dye
removers/dyes
^
Do not use
removers in this washing machine.
^
Dyes suitable for use in domestic
washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Always observe the
manufacturer's instructions carefully.
colour run or dye
Page 33
Locking functions
Electronic programme locking
Programme locking prevents the
machine from being opened or the
programme cancelled during a wash
programme.
To activate programme locking
After the start of a programme, press
^
the START button for at least 4
seconds until the
(lower right on the control panel)
comes on.
Programme locking is now activated.
The machine will now not accept any
changes and the programme will
proceed through to the end. The door is
locked when programme locking is
activated.
Programme locking is deactivated
automatically at the end of the
programme.
locked
check light
Deactivating programme locking
early
Press the START button for at least 4
^
seconds until the
(lower right on the control panel)
goes out.
Exception:
If the programme selector has been
moved and the
indicator light is flashing in the
sequence display.
First, turn the programme selector
^
back to the programme chosen
previously. The
indicator light will go out.
^ Now press the START button for at
least 4 seconds until the
check light (lower right on the control
panel) goes out
locked
check light
Anti-crease/Finish
Anti-crease/Finish
locked
33
Page 34
Locking functions
Electronic system lock
The system lock prevents your
machine being used without your
knowledge.
When the system lock has been
activated:
the drum door cannot be opened
–
with the
a programme cannot be started.
–
To activate the system lock
First, ensure that:
– The drum door is closed
– The programme selector is at
A Switch on the washing machine with
the I-ON/0-OFF button.
B Press the
Soak
while carrying out steps C to E .
Door
button and
Finish
Intensive,Pre-wash
button and keep it pressed in
or
E Next slowly turn the programme
selector anti-clockwise
stage to DELICATES cold.
The
locked
on the control panel) will flash.
F Now release the
or
Soak
G Turn the programme selector to
Finish
H Switch the washing machine off with
the I-ON/0-OFF button.
To de-activate the system lock
Repeat steps A to G. The
check light goes out.
.
check light (lower right
Intensive,Pre-wash
button.
.
stage by
locked
C Slowly turn the programme selector
clockwise
COTTONS 60°C.
D Now slowly turn the programme
selector anti-clockwise
stage to
34
stage by stage to
Finish
.
stage by
Page 35
Cleaning and care
Disconnect the appliance from
,
the mains electricity supply and
withdraw the plug from the socket
prior to cleaning the machine.
Clean the casing with a mild
^
non-abrasive detergent or soap and
water. Wipe dry with a soft cloth.
Clean the fascia panel with a damp
^
cloth and wipe dry with a soft cloth.
The drum can be cleaned using a
^
suitable proprietary stainless-steel
cleaning agent.
Do not use solvents, abrasive
,
cleaners, glass cleaners or
all-purpose cleaning agents. These
might damage plastic surfaces and
other components because of the
chemicals they contain.
The washing machine must not be
hosed down.
Extra cleaning
Carry out a hot wash (70°C or above)
with powder detergent approx. every 6
weeks to help prevent deposits building
up in the machine. These can occur
when washing is mainly done at low
temperatures, and also lead to
unpleasant smells. If you have no
reason to wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part number 98013530, which is
suitable for cleaning surfaces such as
stainless steel, glass, plastic and
chrome without the use of chemicals. It
can be washed 300 times.
35
Page 36
Cleaning and care

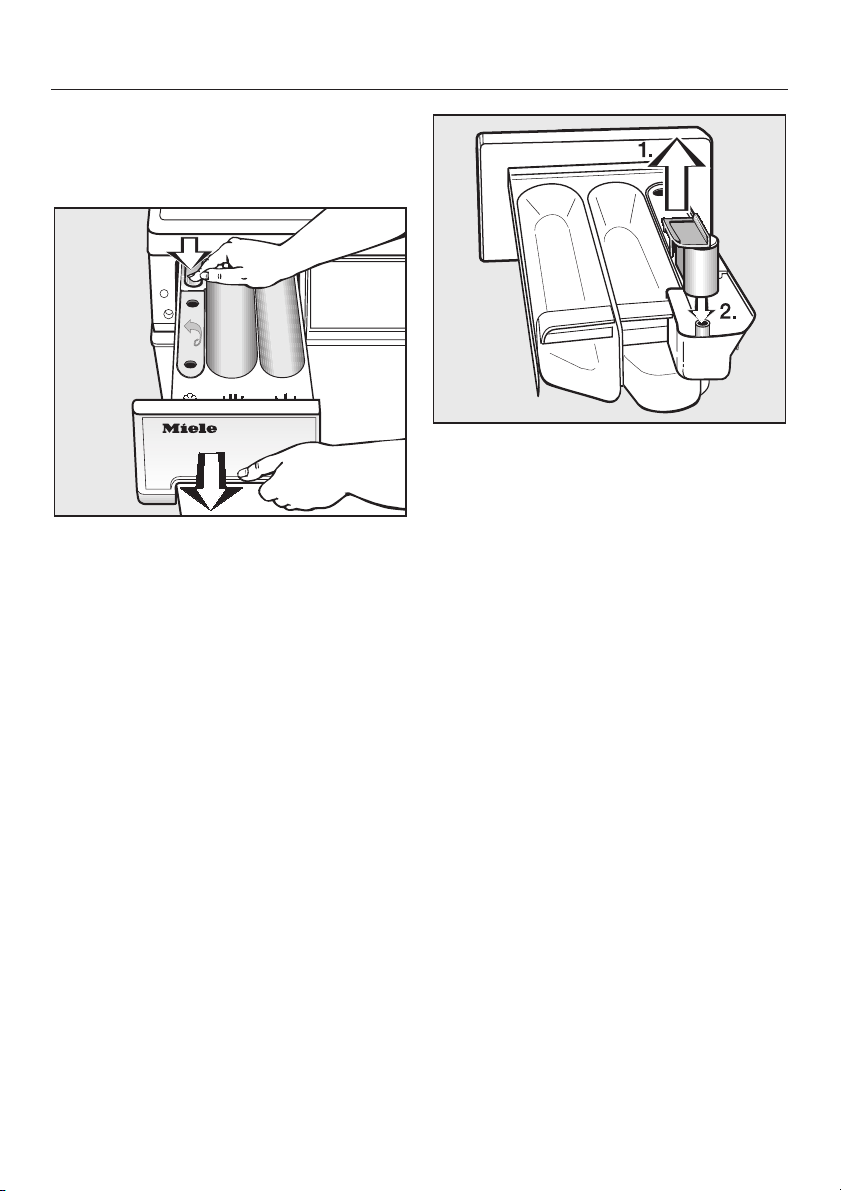

Cleaning the detergent dispenser
drawer
Remove detergent residues regularly.
^ Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.
^ Clean the detergent drawer with
warm water.
Clean the siphon.
^
1. Remove the siphon from
compartment §. Wash under
running warm water. Clean the
siphon tube in the same way.
2. Replace the siphon.
Over time, detergent residue can build
up in the water jets in the top of the
detergent drawer housing.
^
Before replacing the detergent
drawer, use a bottle brush or similar
to clean them out.
36
Page 37
Cleaning and care

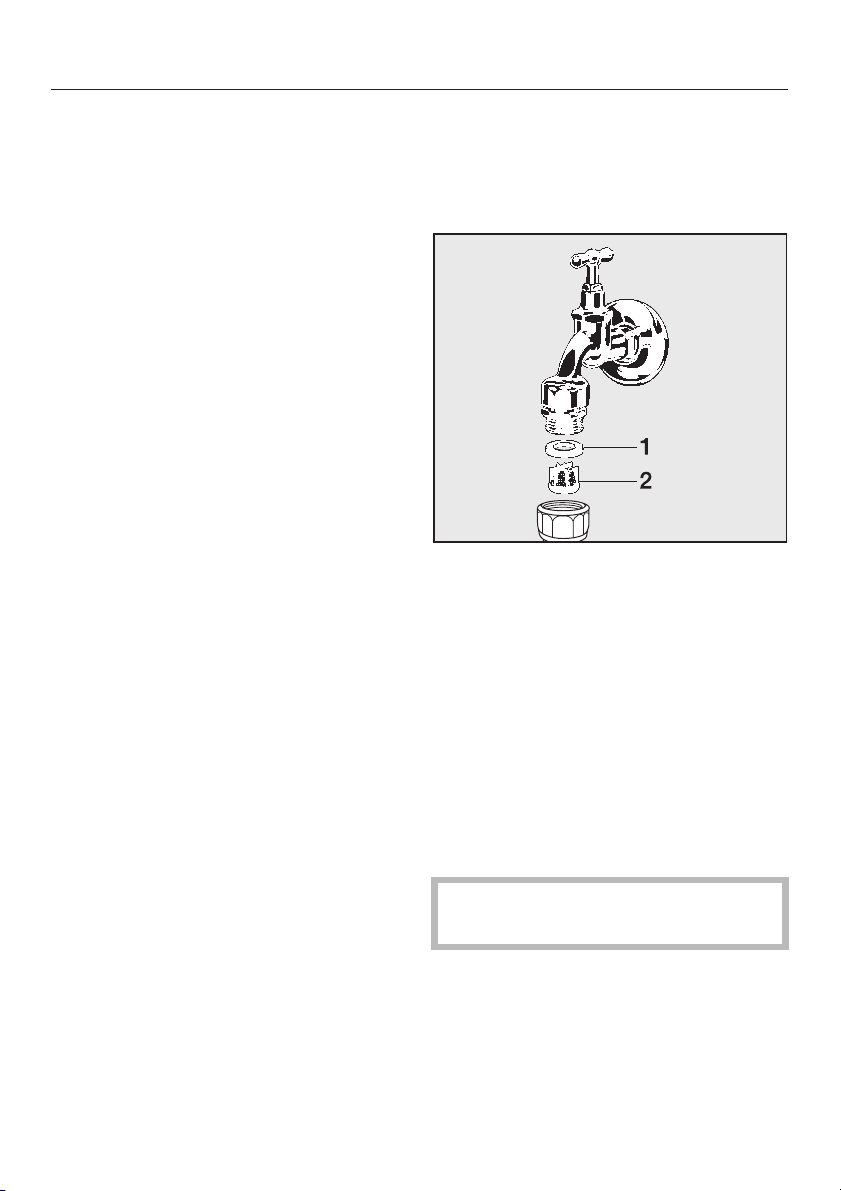

Cleaning the filter in the water
inlet
The washing machine has a filter to
protect the water inlet valve.
The accessible filter in the union in the
open end of the inlet hose should be
checked every six months, or more
often if there are frequent interruptions
to the external water supply.
First turn off the stopcock.
^
Unscrew the threaded union
^
connecting the free end of the inlet
hose to the stopcock.
^ Remove the rubber seal 1 from the
recess.
^ Using pointed pliers, take hold of the
plastic filter bar 2 and remove.
^ Clean the plastic filter.
^
Put the filter and seal back in the
reverse order and reconnect the
hose.
Turn on the stopcock and check the
connection is watertight. If water drips
out, tighten the connection.
Never forget to put the filter back in
place after cleaning.
37
Page 38
Problem solving guide
With the help of the following notes minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in accordance with local and national safety
regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.
The chart is divided into the following sections to help you:
The programme does not start.
–
The wash programme stops and a fault indicator light comes on.
–
A fault indicator light comes on but the wash programme continues as normal.
–
– General problems or an unsatisfactory wash result.
– The drum door cannot be opened by pressing the Door button.
The programme does not start.
Fault indicator Possible cause Remedy
The Anti-crease/Finish
indicator light is not on,
or the START indicator
light is not flashing.
The check light locked
is flashing.
The programme does
not start when
Drain/Final spin has
been selected.
38
There is no power.
The system lock has been
activated.
The washing machine has
not been prepared for
using for the first time.
Check that
–
the mains plug is
plugged in.
–
the fuse or circuit
breaker has not
tripped.
Deactivate the system
lock.
Prepare the machine as
described in "Before
using for the first time".
Page 39
Problem solving guide
The wash programme stops and a fault indicator light comes
on.
Fault indicator Possible cause Remedy A
The Check drain light
flashes. "– – –" appears
in the display.
The Check inlet light
flashes. "– – –" appears
in the display.
The Check inlet and
Check drain lights
flashes. "– – –" appears
in the display.
The Soak/Pre-wash or
Rinses indicator light
flashes in the
programme sequence.
"– – –" appears in the
display.
The water outlet is
blocked.
The drain hose has
been fixed too high.
The water inlet is
blocked.
The filter in the water
inlet hose is dirty.
The Waterproof system
has reacted.
There is a fault. Start the programme again.
Clean the fluff filter and the
drain pump as described in
"Problem solving guide Opening the door in the
event of a blocked drain
outlet and/or power failure".
The maximum drain height
is 1 m.
Open the stopcock.
Clean the filter.
Call the Service
Department.
If the fault indicators occur
again, contact the Service
Department.
A To switch off the fault indicator: switch the washing machine off with the I-ON/
0-OFF button and turn the programme selector to
Finish
.
39
Page 40
Problem solving guide
A fault indicator light comes on but the wash programme con
tinues as normal.
Fault indicator Possible cause Remedy A
The Check drain
light flashes.
The Check inlet light
flashes.
The Excess
detergent check
light comes on.
The Main wash
indicator light is
flashing in the
programme
sequence display.
The
Anti-crease/Finish
indicator light
flashes in the
programme
sequence display.
The drain outlet is
restricted.
The water inlet is
restricted.
The filter in the water inlet hose is
dirty.
Excessive foam
has built up during
washing.
There is a fault. Start the programme again.
The position of the programme selector was altered after
the start of the programme. Turn the programme selector
back to the programme previously chosen.
Clean the fluff filter and the drain
pump as described in "Problem
solving guide - Opening the door in
the event of a blocked drain outlet
and/or power failure".
Check whether
the stopcock is opened wide
–
enough.
– the inlet hose is kinked.
Clean the filter.
Use less detergent next time and
follow the manufacturer’s
instructions on dosage given on the
packaging.
If the fault indicator occurs again,
contact the Service Department.
-
A To switch off the fault indicator: switch the washing machine off with the I-ON/
0-OFF button and turn the programme selector to
40
Finish
.
Page 41
Problem solving guide
General problems or an unsatisfactory wash result
Problem Possible cause Remedy
The machine
shakes during the
spin cycle.
The laundry has
not been spun
satisfactorily.
The pump makes
strange noises.
The programme
selector light ring
is not lit up.
Large residues of
detergent remain
in the dispenser
drawer.
Fabric conditioner
is not completely
dispensed or too
much water
remains in the §
compartment.
When laundry is
dry it feels hard to
the touch.
The four feet are not
resting evenly on the
floor.
The spin speed
selected was too low.
These do not indicate a fault. They occur at the beginning
and end of a pumping sequence as a normal part of the
operation.
The machine has switched off the light ring to save energy.
To switch the light ring back on again: press one of the
additional option buttons or turn the programme selector.
The water supply
pressure is too low.
Washing powder used
with water softener
tends to become
sticky.
The siphon is either
incorrectly positioned
or clogged.
Too vigorous wash
action.
Not enough detergent
used.
No fabric conditioner
used.
Level the machine. See advice on
installation.
Select a higher spin speed next
time.
– Clean the filter in the water inlet
system.
– It may be useful to press the
Water plus
Pour washing powder into the
dispenser before adding any water
softener.
Clean the siphon, see "Cleaning
and care - Cleaning the detergent
drawer".
Programme in gentle action and
more water.
Increase detergent dose to
prevent limescale build up in
laundry.
Use fabric conditioner in last rinse.
button.
41
Page 42
Problem solving guide
Problem Possible cause Remedy
Liquid detergent does
not give the required
result.
Grey, greasy particles
cling to washed
laundry.
A stale smell is in the
drum and on laundry.
There are white
residues which look
like powder detergent
on dark coloured
laundry.
Machine is constantly
overfoaming/ excess
detergent light is on.
Clothes are coming
out creased.
Liquid detergents do not
contain bleaching agents.
They do not remove fruit,
coffee and tea stains.
Insufficient amounts of
detergent were used to
break down the particles of
grease in heavily soiled
laundry.
Low temperature washing. Before washing the next load run a
The detergent contained
compounds (zeolites) to aid
water softening which are not
soluble in water. These have
ended up on the laundry.
Machine connected to a water softener.
Too much detergent was
used.
Too little detergent was
used.
Programme was overloaded. Reduce quantity of clothes in drum.
The wrong programme was
used.
Use a general purpose washing machine
–
powder containing a bleaching agent.
Pour stain removers into compartment j
–
of the dispenser drawer and liquid
detergent into a dispenser ball.
Never put stain removers and liquid
–
detergent together in the dispenser
drawer.
Add more detergent.
–
Before washing the next load run a
–
COTTONS 95°C programme with powder
detergent but without a load. (See also
"Extra cleaning" in Cleaning and Care).
COTTONS 95°C programme with powder
detergent but without a load. (See also "Extra
cleaning" in Cleaning and Care).
Try and brush off the residues with a soft
–
brush once the laundry is dry.
Use a liquid detergent to wash dark
–
coloured textiles. Liquid detergents
usually contain no zeolites.
Connect machine to mains water and dose
detergent for hard water.
Reduce detergent.
Increase detergent slightly to bring back
foam suppressant ingredients to the load.
–
Check care lables with section "How to
wash correctly".
–
Use easy iron conditioners.
42
Page 43
Problem solving guide
The drum door cannot be opened by pressing the Door button.
Possible cause Remedy
The machine is not
connected to the
electricity supply.
The washing machine is
not switched on.
The electronic
programme lock has been
activated.
The electronic system
lock has been activated.
Power cut. Open the drum door as described in the section
The door was not
correctly engaged.
There is still water in the
drum and the machine is
unable to drain.
For safety reasons the drum door cannot be opened when the suds temperature
is higher than 55°C.
Put the plug in the socket and switch on.
Switch the machine on with the I-ON/0-OFF button.
This is automatically deactivated at the end of a
programme. To deactivate it early see "Locking
functions".
To deactivate it see "Locking functions".
"Opening the door in the event of a blocked drain
outlet and/or power failure".
Press hard against the lock side of the drum door
and then press the
Clean the fluff (drain) filter and the drain pump.
Door
button.
43
Page 44
Problem solving guide

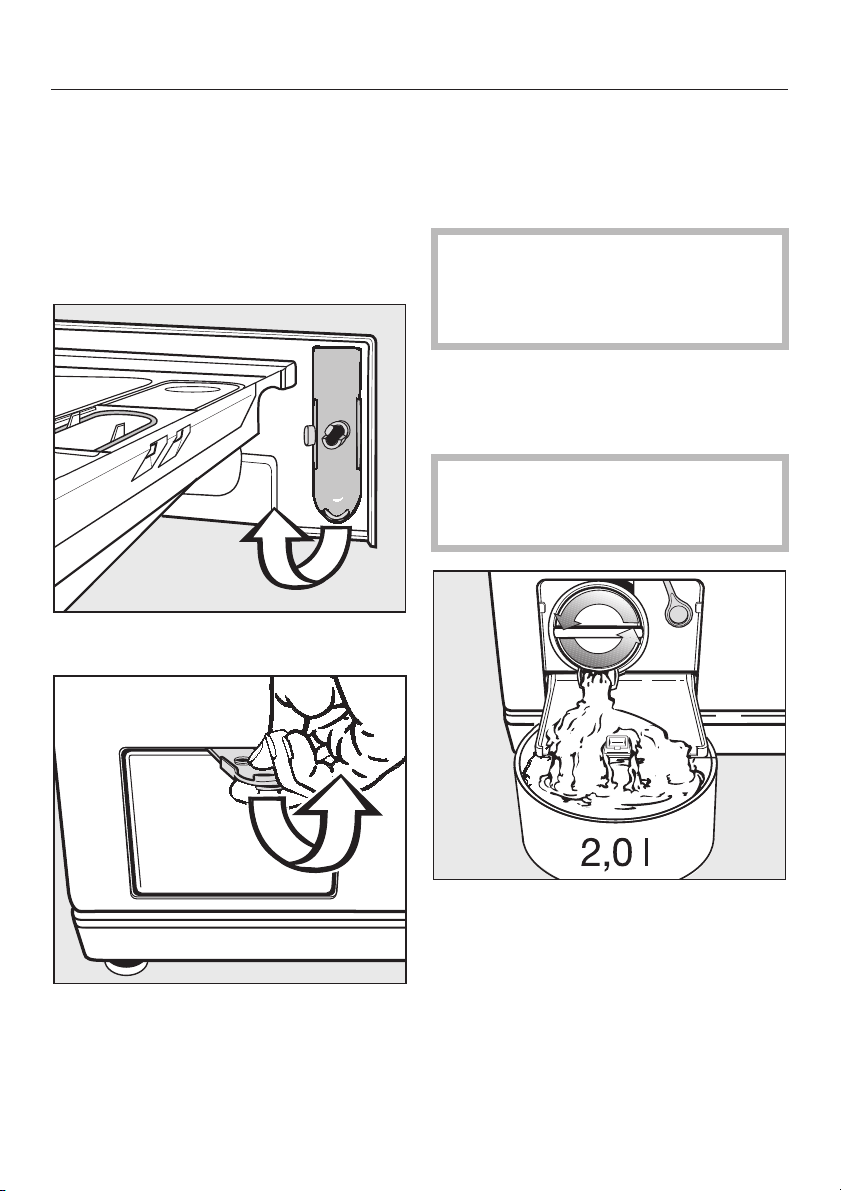

Opening the drum door in the
event of a blocked drain outlet
and/or power failure
Switch the washing machine off.
^
There is a filter flap opener behind the
detergent drawer fascia panel.
^ Remove the opener.
Blocked drain outlet
If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.
Caution: if laundry has been
,
washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!
Procedure for draining the machine
Place a suitable container under the
^
access flap.
When draining water from the
machine, do not unscrew the fluff
filter completely or take it right out.
^
Use it to open the access flap.
44
^
Unscrew the fluff filter lid until water
runs out.
To interrupt the flow of water:
^
Tighten the fluff filter back up again.
Page 45

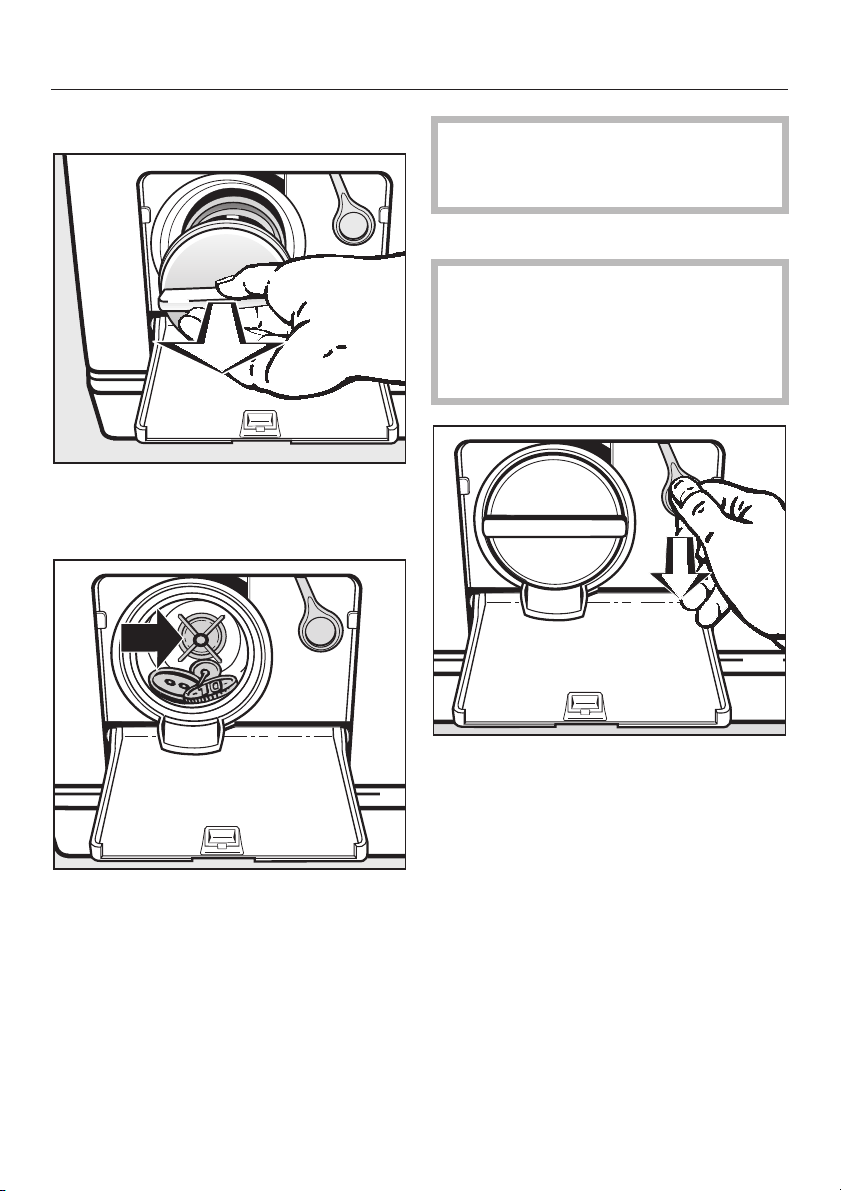

Once the flow of water ceases:
^ Remove the fluff filter completely.
^ Clean the fluff filter thoroughly.
Problem solving guide
Make sure the fluff filter is
,
securely tightened. Otherwise there
is a risk of water leakage during use.
Opening the drum door
Always make sure that the drum
,
is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.
^
Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff. Turn the
impeller by hand to check that it
rotates freely. Any foreign object
causing an obstruction should be
removed.
^
Put the fluff filter back in place and
secure.
^
Pull the emergency release
downwards (see illustration). The
drum door will open.
45
Page 46
Problem solving guide
Customer contact
In the event of any faults which you
cannot remedy yourself please contact
Your Miele dealer or
–
Your nearest Miele Service
–
Department (see back cover for the
address).

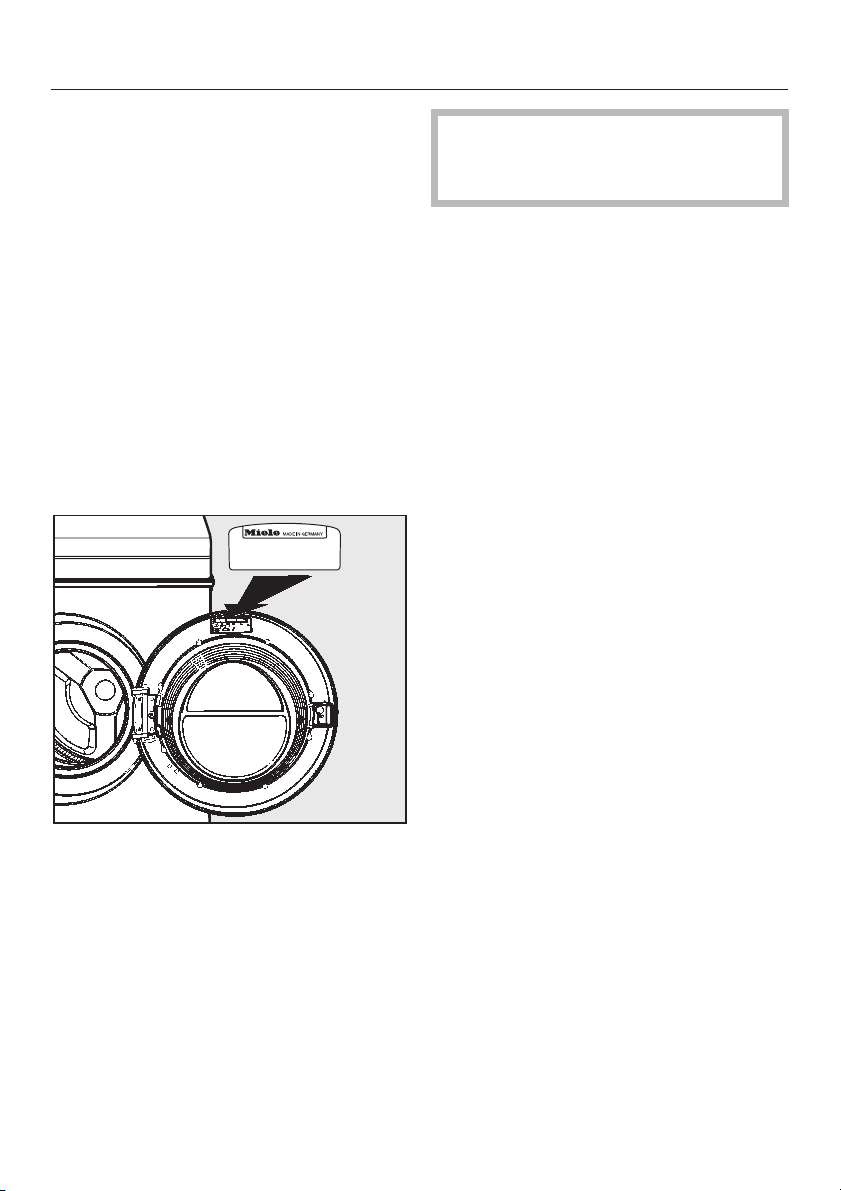

When contacting the Service
Department, please quote the model
and serial number of your appliance,
both of which are shown on the data
plate visible at the top inside of the
door above the porthole glass when the
door is open.
Please note that telephone calls may
be monitored and recorded to
improve our service.
46
Page 47

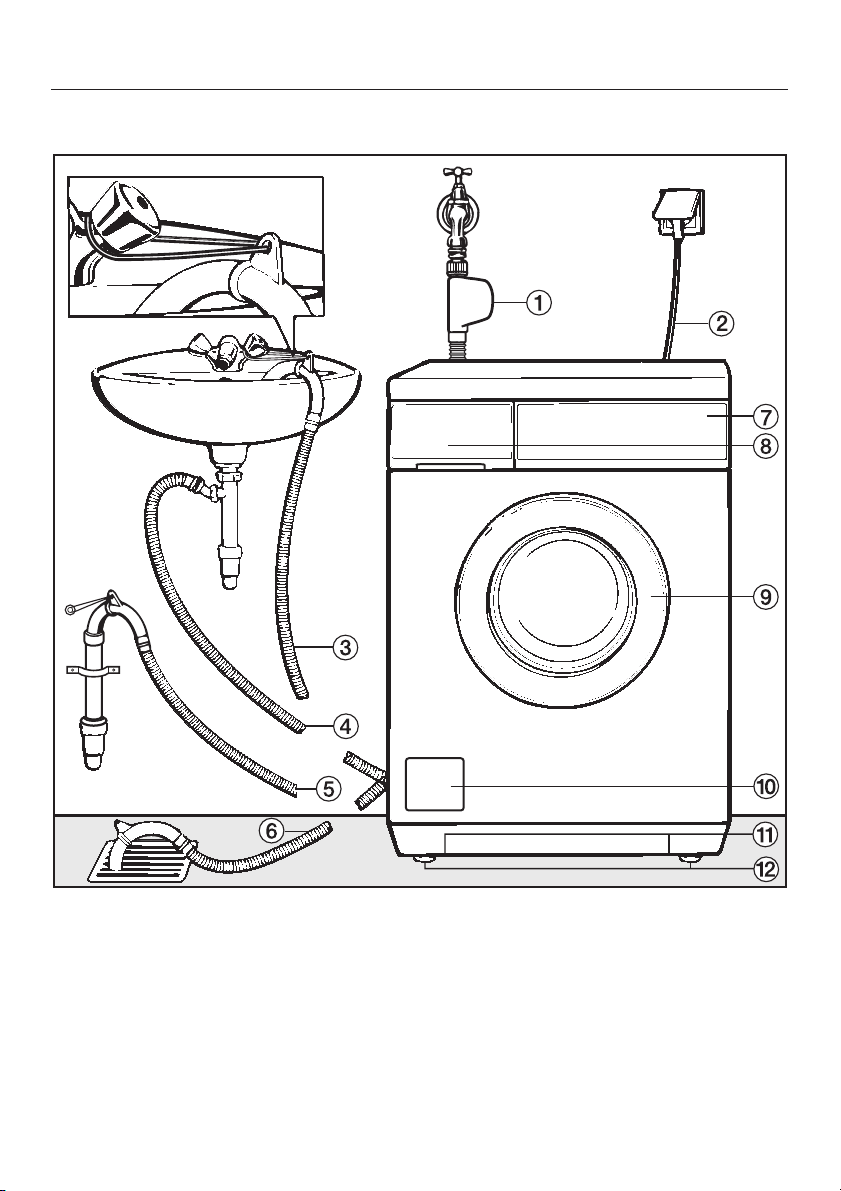

Front view
Installation and connection
a Inlet hose with "Waterproof" system
b Electricity supply cable
c - f Flexible drain hose (with
detachable swivel elbow)
g Facia panel with controls
h Detergent dispenser drawer
i Drum door
j Flap for fluff filter, drain pump and
emergency release
k Handle recesses for moving the
machine
l Four height adjustable feet
47
Page 48
Installation and connection

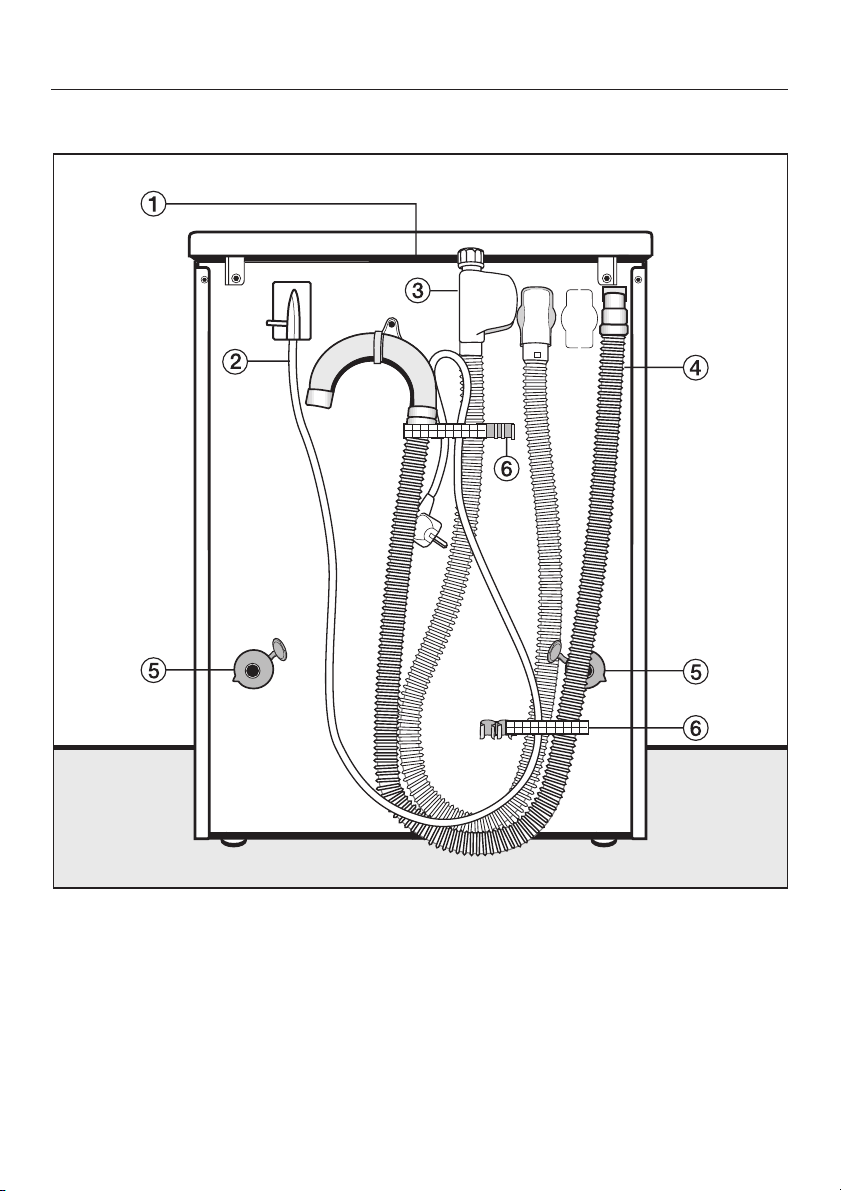

Rear view
a Protruding lid edge for holding when
moving the machine
b Electricity supply cable
c Inlet hose with "Waterproof" system
d Drainage hose
48
e Transit bar covers
f Restraining clip for:
–
Inlet hose
–
Drain hose
–
Electricity supply cable
–
Transit bars when removed
Page 49
Installation and connection
Installation surface
A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.
Please note the following points:
The machine must be level and
^
securely positioned.
To avoid vibrations during spinning,
^
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
^ We recommend a plywood base
(at least 59x52x3 cm). The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for the presence
of pipes and cables.
If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.
Installing the washing machine
To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the handle
recesses at the front.
Please note:
Do not lift the machine by the drum
^
door.
Ensure that the machine feet and
,
the floor are dry to prevent the
machine from slipping during the
spin cycle.
Removing the transit fittings
,
If the machine is installed on a
raised plinth, it has to be secured
against slippage during spin using
retaining clips (available from the
Miele Spare Parts Dept).
^

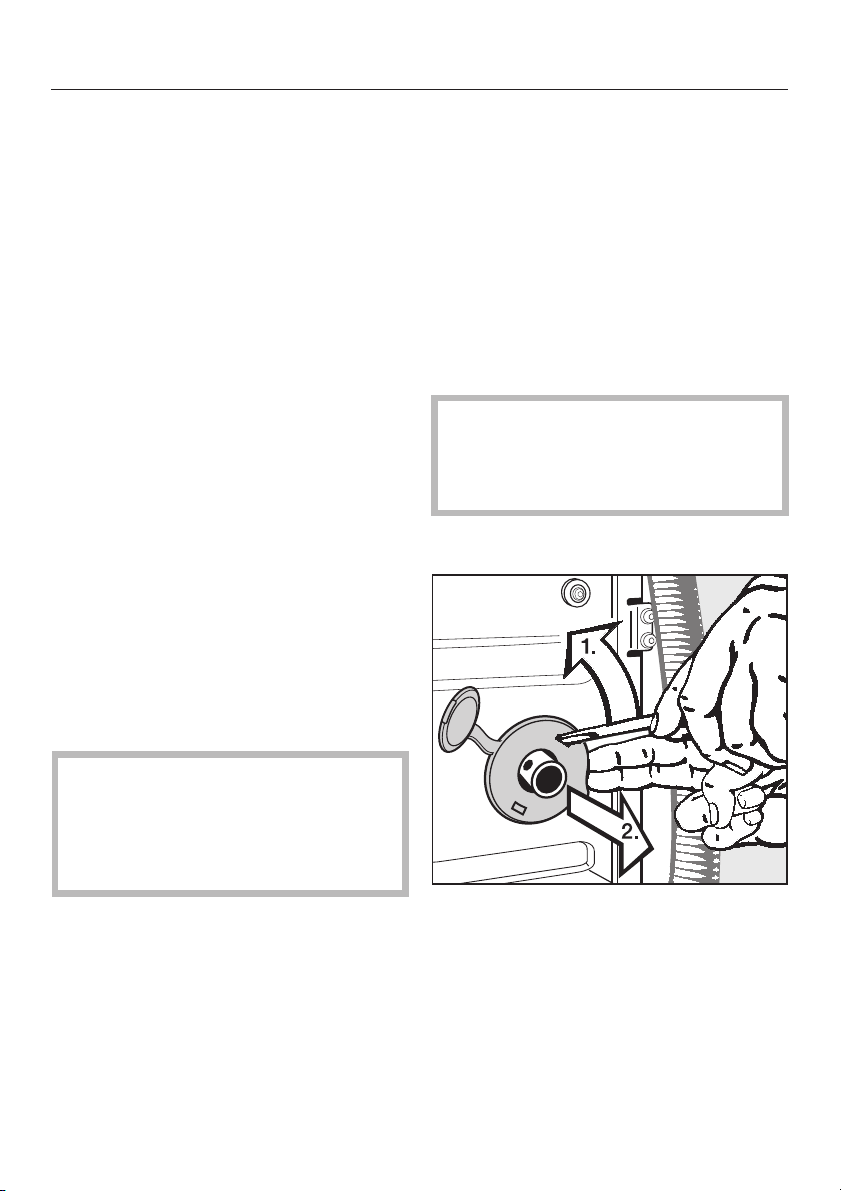

To remove the left and right covers
1. Use a screwdriver to prise out the
cover as illustrated.
2. Pull the cover forwards to remove.
49
Page 50
Installation and connection

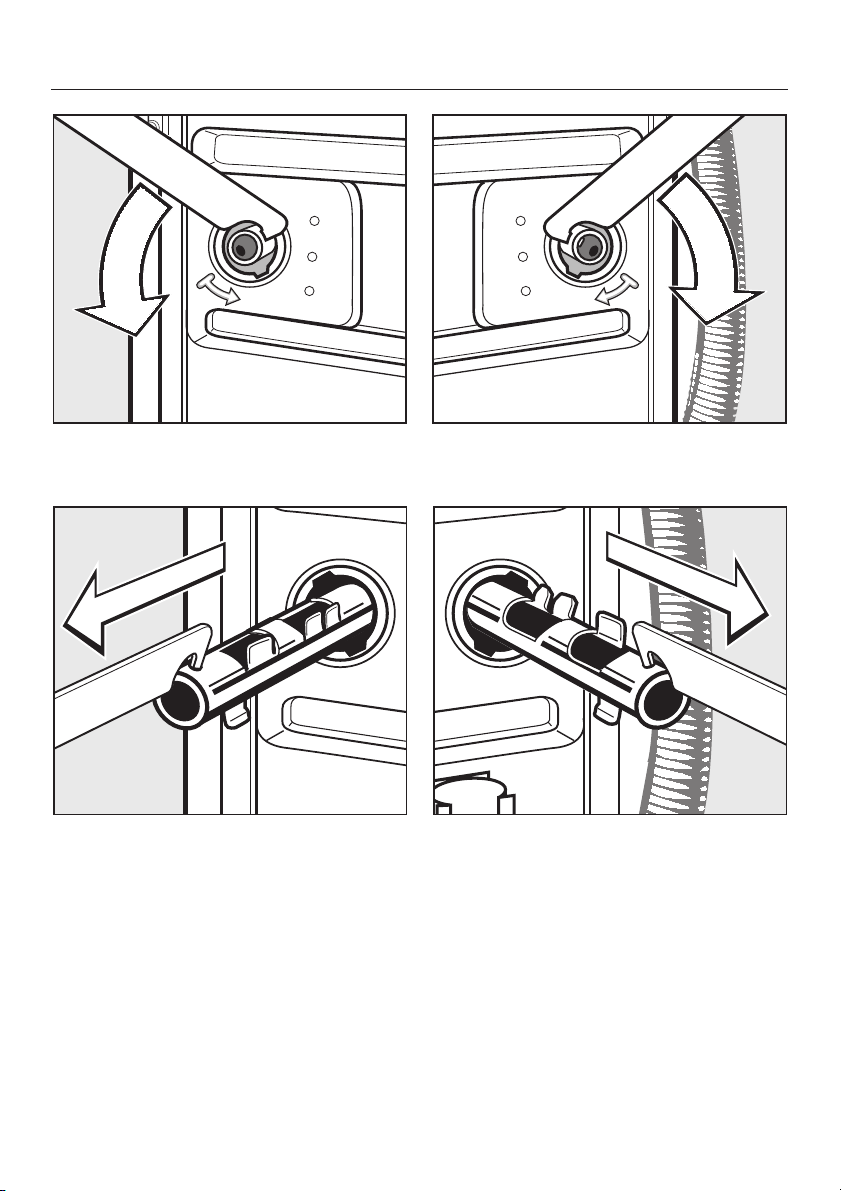

Using the spanner supplied turn the
^
left-hand transit bar 90°, then
^
withdraw the transit bar.
Turn the right-hand transit bar 90°,
^
then
^
withdraw the transit bar.
50
Page 51

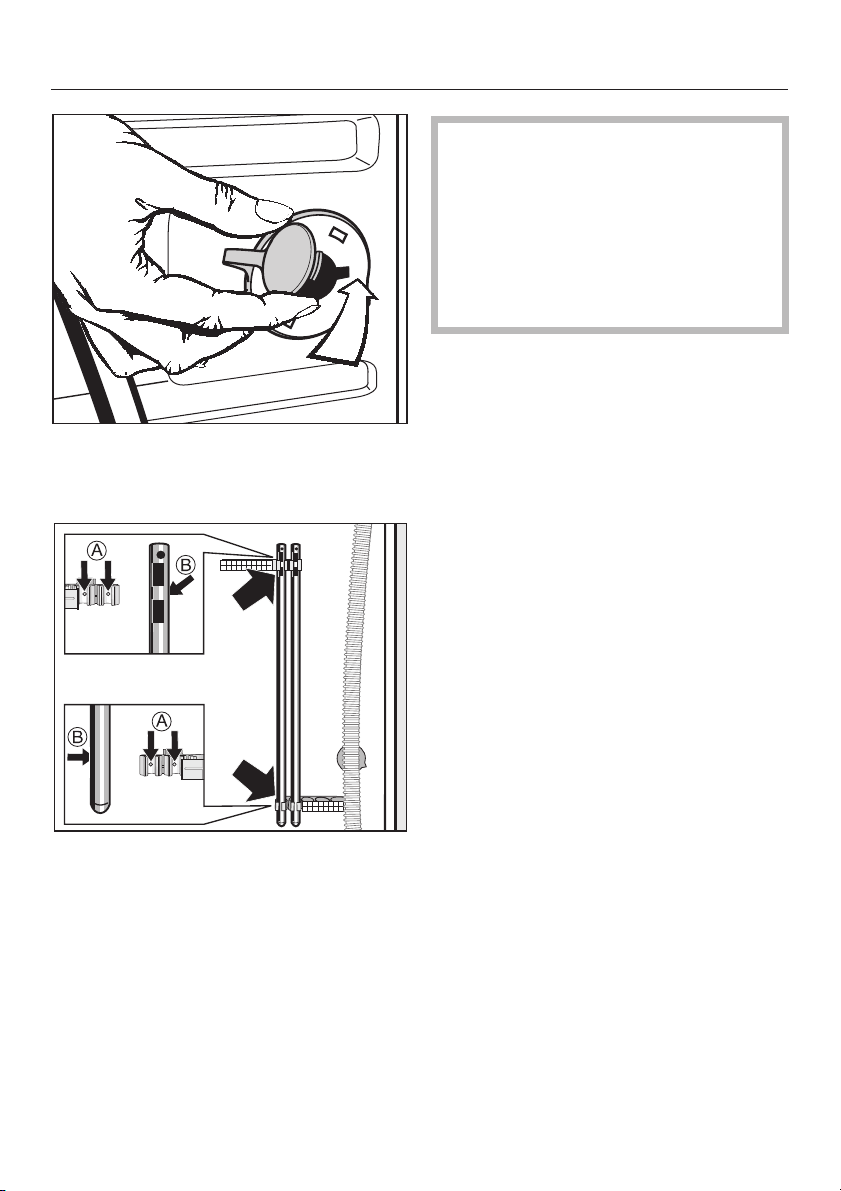

Fit the covers on to the two holes.
^
Then plug the holes as shown with
the caps.
Installation and connection
The washing machine must not
,
be moved without the transit bars in
place.
Store the transit bars as shown or
keep them in a safe place for future
use. They must be re-fitted if the
machine is to be moved again
(e.g.when moving house).
Re-fitting the transit bars
Re-fitting is carried out by reversing the
procedure.
^
Secure the transit bars to the back of
the washing machine. Make sure that
holes b are fitted over retainers a.
51
Page 52
Installation and connection

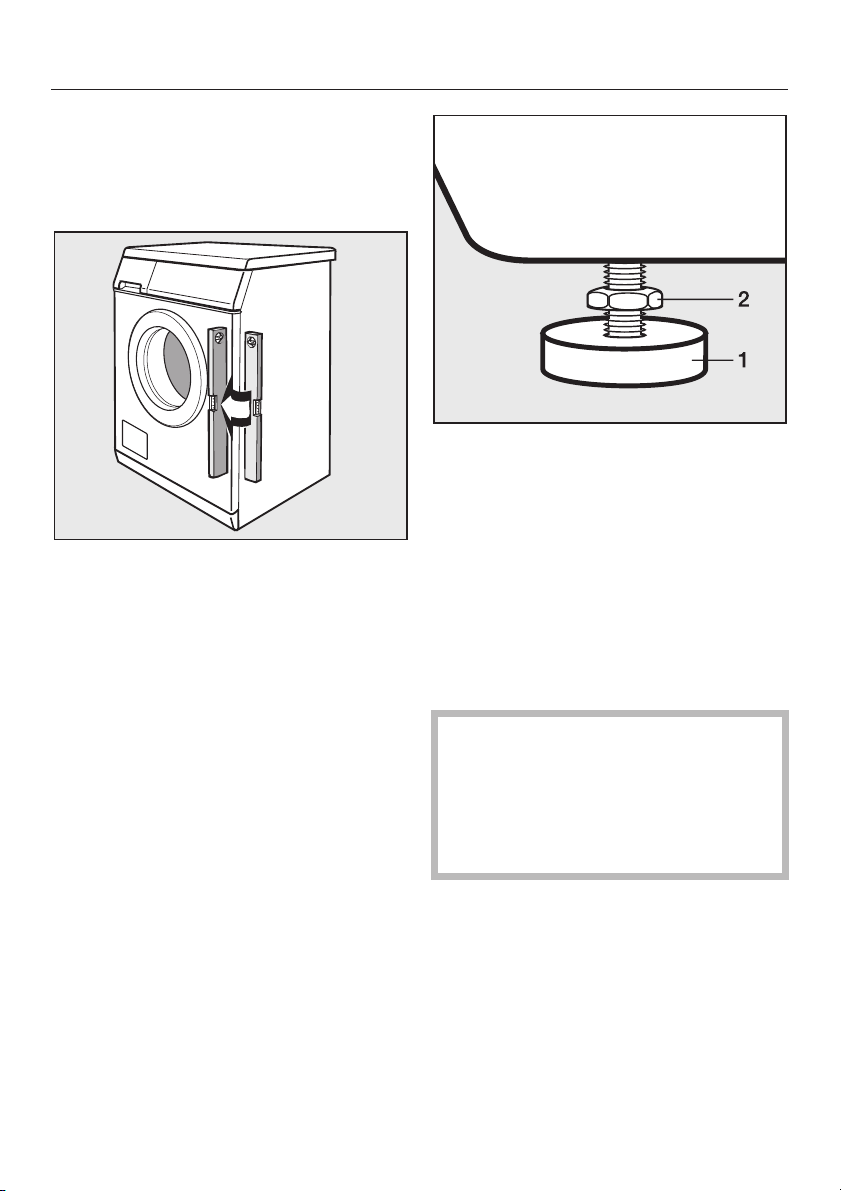

Levelling the machine
The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.
Using the spanner supplied turn
^
counter nut 2 in a clockwise
direction. Then turn counter nut 2
together with foot 1 to unscrew.
Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.
Screwing out and adjusting the feet
The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.
^ Use a spirit level to check the
machine is standing level.
^ Hold foot 1 securely with a pipe
wrench. Turn counter nut 2 again
using the spanner supplied until it
sits firmly up against the housing.
,
All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.
52
Page 53
Installation and connection
Building under a continuous work
top/in a kitchen run
A special building under conversion
–
kit* is required.
The machine lid must be replaced by
a cover plate. To ensure electrical
safety the cover plate must be fitted.
N.B.
If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.
– For installation under a work surface
900/910 mm from the floor, a raising
kit* is required.
– Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.
Fitting instructions are supplied with the
conversion kit.
All parts marked* are available from the
Miele Spare Parts or Sales Department.
The fitting of building under kits and
stacking kits must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.
-

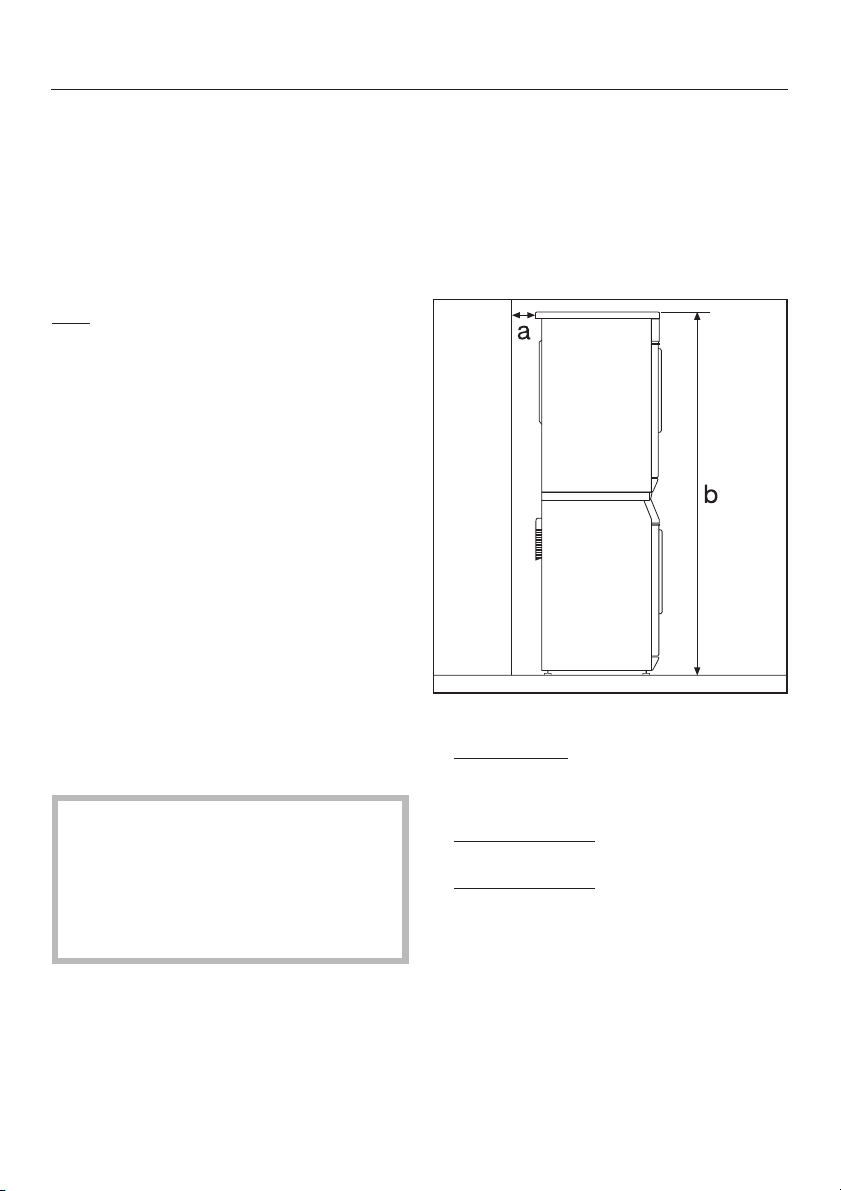

Washer and Dryer stack
A Miele tumble dryer can be stacked
with the washing machine. A stacking
kit* is necessary and can be purchased
from the Miele Spare Parts Department.
Please note
a Safety distance to wall:
at least 2 cm
b Height:
Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm
Replacing the lid
If the lid has been removed in order to
fit a stacking kit or cover plate, ensure
that, if the lid is replaced, it fits securely
into the rear holders. Otherwise, it is not
properly secure for transport.
53
Page 54
Installation and connection
The Miele Waterproof system
The Miele Waterproof system protects
the washing machine from water
damage.
The system consists of three main
components:
1) the inlet hose
2) the electronic unit and the washing
machine housing
3) the drain hose
1) Inlet hose
– The inlet hose is fitted with an
additional electrical safety valve
which works like an automatic
stopcock and is housed in the inlet
hose connection box.
– It is pressure proof to between 7.000
and 10.000 kPa.
– The inlet hose has a protective
sleeve.
2) Electronic unit and washing
machine housing
Sump
–
Any leaking water is collected in a
sump in the base of the appliance. A
float switches off the safety valves,
preventing any more water from
flowing into the machine and water in
the suds container is pumped away.
Overflow protection
–
This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.
3) Drain hose
The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.
Any leaking water from the inlet hose
is fed into the sump through this
protective sleeve. A float switches off
the safety valve, preventing any more
water from flowing into the machine
and water in the suds container is
pumped away.
54
Page 55
Connection to the water supply
Installation and connection

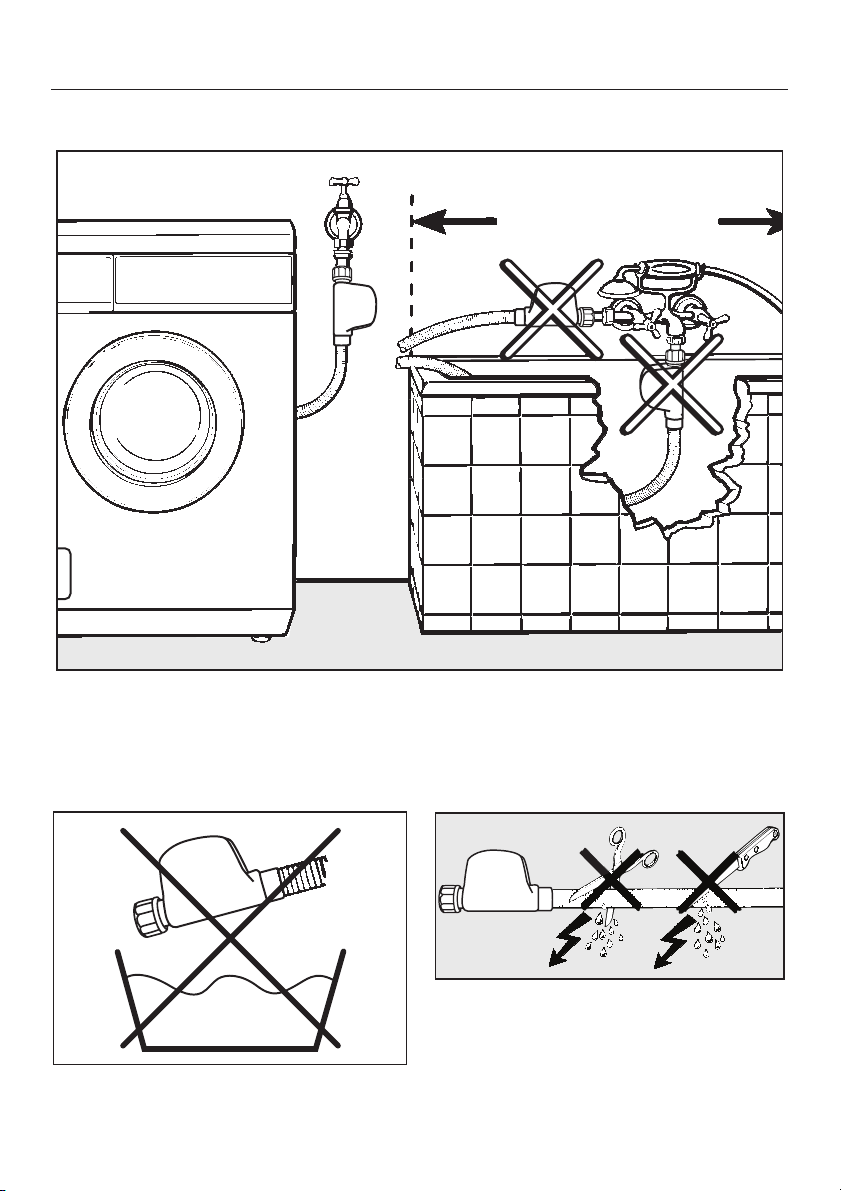

The plastic casing of the safety valve contains electrical components. The Waterproof system must only be connected to its own stopcock. It must not be
connected to mixer taps or similar and must not be fitted in areas where there is
the risk of water or other liquids reaching it.
The protective sleeve of the hose
must not be damaged or kinked.
Do not get wet.
55
Page 56
Installation and connection
The machine should be connected to a
mains water supply in accordance with
local and national safety regulations.
The German authorities do not require it
to have a non-return valve as the
washing machine has been designed
to comply with DIN regulations.
The machine is designed to operate
with a flow pressure of between 100
and
1.000 kPa it is essential to fit a reducer
valve.
Connection to the mains water supply
should incorporate a mains stopcock
3
with
/4" thread. The stopcock should
be fitted by a qualified plumber.
The connection point is subject
,
to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.
The washing machine is not suitable
for connection to a hot water supply
and connection to a household wa
ter softener is not recommended.
. If it is higher than
-
Maintenance and care
If you intend to unscrew the Miele
Waterproof system hose from the
stopcock it is essential to disconnect
the machine from the electricity supply
first.
Only use a Miele Waterproof system
hose should you need a replacement.
In order to protect the water inlet
valve, the dirt filter in the water inlet
valve connection must not be
removed.
Extension hose
A 1.5 metre long (metal) extension hose
is available from your Miele dealer or
the Miele Spare Parts Department as an
optional extra.
This hose is tested to withstand
pressures of up to 14.000 kPa and can
be used as a flexible extension to the
water supply.
N.B. Using this hose renders the Water
proof system safety valve on the inlet
hose ineffective.
-
56
Page 57
Installation and connection
Connection to the drainage
system
The machine drains via a drain pump
with a delivery head of 1 metre*.
The drain hose must not be kinked as
this restricts drainage. The swivel elbow
at the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.
If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can be purchased
from the Miele Spare Parts Department
or your Miele dealer.
* For a delivery head of more than 1 m
(up to a maximum of 1.8 m) a second
duo-drain pump is available with the
corresponding kit from the Miele Spare
Parts Department or your Miele Dealer.
Drain hose connection:
1. Direct into a sink or basin:
Please note the following
Hook the hose over the edge and
–
secure.
Make sure that the water can drain
–
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.
2. Connected securely to a plastic drain
pipe with a rubber nipple. There is no
need to use a non-return valve.
3. Connected securely to a standpipe.
4. Connected securely to a floor gully.
57
Page 58
Installation and connection
Electrical connection U.K.
All electrical work should be carried out
only by a suitably qualified and
competent person, in strict accordance
with national and local safety
regulations.
The appliance is supplied with a mains
cable with moulded plug for connection
to a 230-240V mains supply. The
voltage, rated load and fuse rating
are given on the data plate. Please
ensure these match the household
mains supply.
Connection should be made via a fused
plug and suitable switched socket
which is easily accessible after
installation.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
The wire which is coloured green and
yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth symbol
z or coloured green, or green and
yellow.
The wire which is coloured blue must
be connected to the terminal in the
plug which is marked with the letter N
or coloured black.
The wire which is coloured brown must
be connected to the terminal in the
plug which is marked with the letter L or
coloured red.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Ensure power is not supplied to the
appliance while installation work is
being carried out.
Do not connect via an extension lead.
Important
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
Where it is necessary to change plugs,
if the colours of the wires in the mains
lead of this appliance do not
correspond with the coloured markings
identifying the terminals of your plug,
proceed as follows:
58
Page 59
Non-rewireable plugs BS 1363
If this machine is fitted with a
non-rewireable plug, the following
information applies:
If the socket outlets are not suitable for
the plug supplied with the product, it
must be cut off and an appropriate plug
fitted. The fuse carrier and fuse should
be removed from the old plug and
disposed of.
The old plug should then be disposed
of and on no account be inserted into
any socket elsewhere in the house
(electric shock hazard).
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Installation and connection
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuse
covers may be purchased from your
local electrical supplier or Service
agent.
59
Page 60
Consumption data
Load Consumption data
Energy Water Duration
in kWh in litres Normal Intensive
COTTONS
95°C 5.0 kg 1.70 45 1 h 32 min 1 h 47 min
1)
60°C
60°C 5.0 kg 0.95 45 1 h 26 min 1 h 56 min
1)
40°C
40°C 5.0 kg 0.50 45 1 h 26 min 1 h 56 min
MINIMUM IRON
1)
40°C
40°C 2.5 kg 0.45 49 1 h 01 min 1 h 16 min
DELICATES
30°C 1.0 kg 0.35 65 49 min 59 min
Silks /
30°C 1.0 kg 0.24 39 37 min –
WOOLLENS /
30°C 2.0 kg 0.23 35 40 min –
5.0 kg 0.95 45 – 1 h 56 min
5.0 kg 0.50 45 – 1 h 56 min
2.5 kg 0.45 49
–
1 h 16 min
1)
1)
1)
1)
EN 60456 test programme
Note for test institutes:
For testing in accordance with EN 60456 you must use the
Intensive
option.
Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any additional options
selected.
60
Page 61
Technical data
Height 85.0 cm
Width 59.5 cm
Depth 58.0 cm
Depth with door open 94.5 cm
Weight 94 kg
Max. floor load 1600 Newton (approx. 160 kg)
Capacity 5 kg dry laundry
Voltage see data plate
Rated load see data plate
Fuse rating see data plate
Consumption data see "Consumption data"
Minimum water flow pressure 100 kPa (1 bar)
Maximum water flow pressure 1.000 kPa (10 bar)
Inlet hose length 1.60 m
Drain hose length 1.50 m
Connection cable length 1.60 m
Drain pump head max. 1.00 m
Drain pump length max. 5.00 m
Test marks VDE, radio and television suppressed
61
Page 62
62
Page 63
Programmable functions
for changing
standard settings
Page 64
Programmable functions
The programmable functions can be
used to tailor washing programmes to
suit your individual requirements.
The programmable functions are
activated with the help of the START
button and the programme selector.
Water plus system
Selecting the
option increases the water intake in
the programmes listed below.
The water intake is increased in the
wash and rinse stages and in the
COTTONS and MINIMUM IRON
programmes an extra rinse cycle is
introduced.
There are four different settings which
can be programmed to alter the water
intake for the following programmes:
– COTTONS
– MINIMUM IRON
Water plus
additional
The settings are as follows:
Setting 1:
an increase in the rinse water level for
the programmes listed.
Setting 2:
an increase in the water level in the
main wash and
programmes listed (the washing
machine is delivered with setting 2
programmed as standard).
Setting 3:
an extra rinse cycle in the COTTONS
and MINIMUM IRON programmes.
Setting 4:
an increase in the water level in the
main wash and
programmes listed and
rinse cycle in the COTTONS and
MINIMUM IRON programmes. This
setting should be programmed in if
laundry is too hard after drying and if
someone in the household suffers from
a detergent allergy.
rinses for the
rinses for the
also an extra
–
Quick wash
–
Mixed wash
–
Silks
The programmed setting is then
activated by pressing the
additional option button.
64
Water plus
Steps A to G on the following page
describe how to programme and store
a setting in memory.
Page 65
Programmable functions
Follow steps A to G to programme
and store a setting in memory.
Before you begin, first ensure that:
The washing machine is switched off.
–
The drum door is closed.
–
The programme selector is at
–
A Press the START button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-ON/0-OFF button.
C Wait until the START indicator light
comes on . . .
D . . . and then release the START
button.
Finish
E Turn the programme selector to the
COTTONS 75°C position:
A P will flash in the display alternating
with the number 1, 2, 3 or 4.
F Each subsequent press on the
START button selects a different
.
setting.
The number alternating with the P in
the display refers to the settings as
follows:
1 = Setting 1
(increased water level in the
rinses)
2 = Setting 2
(increased water level in the main
wash and in the rinses)
3 = Setting 3
(extra rinse in the COTTONS and
MINIMUM IRON programmes)
4 = Setting 4
(increase in the water level in the
main wash and rinses and also an
extra rinse in the COTTONS and
MINIMUM IRON programmes).
is selected
is selected
is selected
is selected
G Switch the washing machine off with
the I-ON/0-OFF button.
The
Water plus
allocated the setting you have chosen.
This setting will remain in memory until
another setting is programmed.
button has now been
65
Page 66
Programmable functions
Gentle action
Activating gentle action reduces the
drum action. Slightly soiled items are
washed more gently. It should be
activated for garments with a single
bar under the care label and for
articles which feel too hard after they
have been dried.
Gentle action can be used with the
COTTONS,
Mixed wash
If "Gentle action" is programmed into
the machine, every wash cycle in these
programmes will be carried out with
gentle action rhythm.
The washing machine is delivered with
"Gentle action" de-activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
–
The washing machine is switched off.
–
The drum door is closed.
–
The programme selector is at
Quick wash,Starch
programmes.
and
Finish
A Press the START button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-ON/0-OFF button.
C Wait until the START indicator light
comes on . . .
D . . . and then release the START
button.
E Turn the programme selector to the
COTTONS 60°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Gentle action is deactivated.
1 = Gentle action is activated
F Press the START button to change
from one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
G Switch the washing machine off with
the I-ON/0-OFF button.
The setting you have selected is now
stored in memory and will remain so
.
until you alter it.
66
Page 67
Programmable functions
Top-up rinse for COTTONS
When this is activated, additional wa
ter flows into the drum at the end of
the main wash to cool the suds down.
Hot suds can damage plastic
drainage pipes.
Top-up rinse takes place when
temperatures of 95°C and 75°C are
selected.
Top-up rinse should be activated:
to prevent the danger of scalding if
–
the drain hose is hooked over the
edge of a sink or basin.
– where the drainage pipes do not
comply with DIN 1986.
The washing machine is delivered with
the Top-up rinse for COTTONS deactivated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
–
The washing machine is switched off.
–
The drum door is closed.
A Press the START button and keep it
pressed in whilst carrying out steps
-
B to C.
B Switch the machine on with the
I-ON/0-OFF button.
C Wait until the START indicator light
comes on . . .
D . . . and then release the START
button.
E Turn the programme selector to the
COTTONS 40°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Top-up rinse is deactivated
1 = Top-up rinse is activated
F Press the START button to change
from one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
G Switch the washing machine off with
the I-ON/0-OFF button.
The setting you have selected is now
stored in memory and will remain so
until you alter it.
–
The programme selector is at
Finish
.
67
Page 68
Programmable functions
Memory Function
If an additional option(s) is selected
for a programme, and / or the spin
speed is altered, the machine stores
these changes in memory at the start
of a programme.
When that particular programme is
chosen again, the display will show the
additional option(s) and / or spin speed
which have been stored for that
programme in the memory.
The washing machine is delivered with
the memory function de-activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The washing machine is switched off.
– The drum door is closed.
– The programme selector is at
Finish
A Press the START button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-ON/0-OFF button.
C Wait until the START indicator light
comes on . . .
D . . . and then release the START
button.
E Turn the programme selector to the
COTTONS 30°C position:
A P will flash in the display alternating
with the number 0 or 1.
0 = Memory function is deactivated
1 = Memory function is activated
F Press the START button to change
from one to the other. The display will
change accordingly from 0 to 1 or
from 1 to 0.
.
G Switch the washing machine off with
the I-ON/0-OFF button.
68
The setting you have selected is now
stored in memory and will remain so
until you alter it.
Page 69
Programmable functions
Soak
A length of time of between 30 minutes
and 2 hours can be programmed in 30
minute increments for the soak
process.
If the soak option is pressed the
selected soak time will be carried out
for the period selected before the wash
programme is run.
The machine is set as standard to a two
hour soak time.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The washing machine is switched off.
– The drum door is closed.
– The programme selector is at
Finish
A Press the START button and keep it
pressed in whilst carrying out steps
B to C.
B Switch the machine on with the
I-ON/0-OFF button.
C Wait until the START indicator light
comes on . . .
D . . . and then release the START
button.
E Turn the programme selector to the
MINIMUM IRON 60°C position:
A P will flash in the display alternating
with the number 1, 2, 3 or 4.
F Each subsequent press on the
START button selects a different
setting.
The number alternating with the P in
the display refers to the settings as
.
follows:
1 = the soak time is 2 hours
2 = the soak time is 1 hour 30 minutes
3 = the soak time is 1 hour
4 = the soak time is 30 minutes
G Switch the washing machine off with
the I-ON/0-OFF button.
The setting you have selected is now
stored in memory and will remain so
until you alter it.
697071
Page 70
Page 71
Page 72
Alteration rights reserved/2103
M.-Nr. 05 777 661 / 01
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
