W 1945
Operating instructions
for Washing machine
W 1945
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.
M.-Nr. 09 345 280
en-GB
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old machine
Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your machine.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for our environment
2
Caring for our environment .........................................2
Warning and Safety instructions .....................................6
Operating the washing machine.....................................13
Control panel .....................................................13
Programme packages .............................................15
Before using for the first time.......................................16
Washing environmentally and economically ..........................17
Energy and water consumption ....................................17
Detergent .....................................................17
Eco feedback.....................................................18
How to wash correctly.............................................19
Extra quiet.....................................................22
Spinning ........................................................25
Final spin speed ..................................................25
Delay start.......................................................26
Programme chart .................................................27
Extra options ....................................................30
Garment care label symbols ........................................31
Programme sequence .............................................32
Changing the programme sequence .................................34
Cancelling a programme ............................................34
Interrupting a programme ...........................................34
Changing a programme ............................................34
Adding or removing laundry after a programme has started ................35
Safety lock .......................................................35
Contents
3
Detergent .......................................................36
The correct detergent ..............................................36
Water softener ....................................................38
Washing with several components ....................................38
Fabric conditioners and liquid starch ..................................39
Colour run and dye removers/dyes ....................................39
Cleaning and care ................................................40
Cleaning the drum (Hygiene info) .....................................40
External casing and fascia panel .....................................40

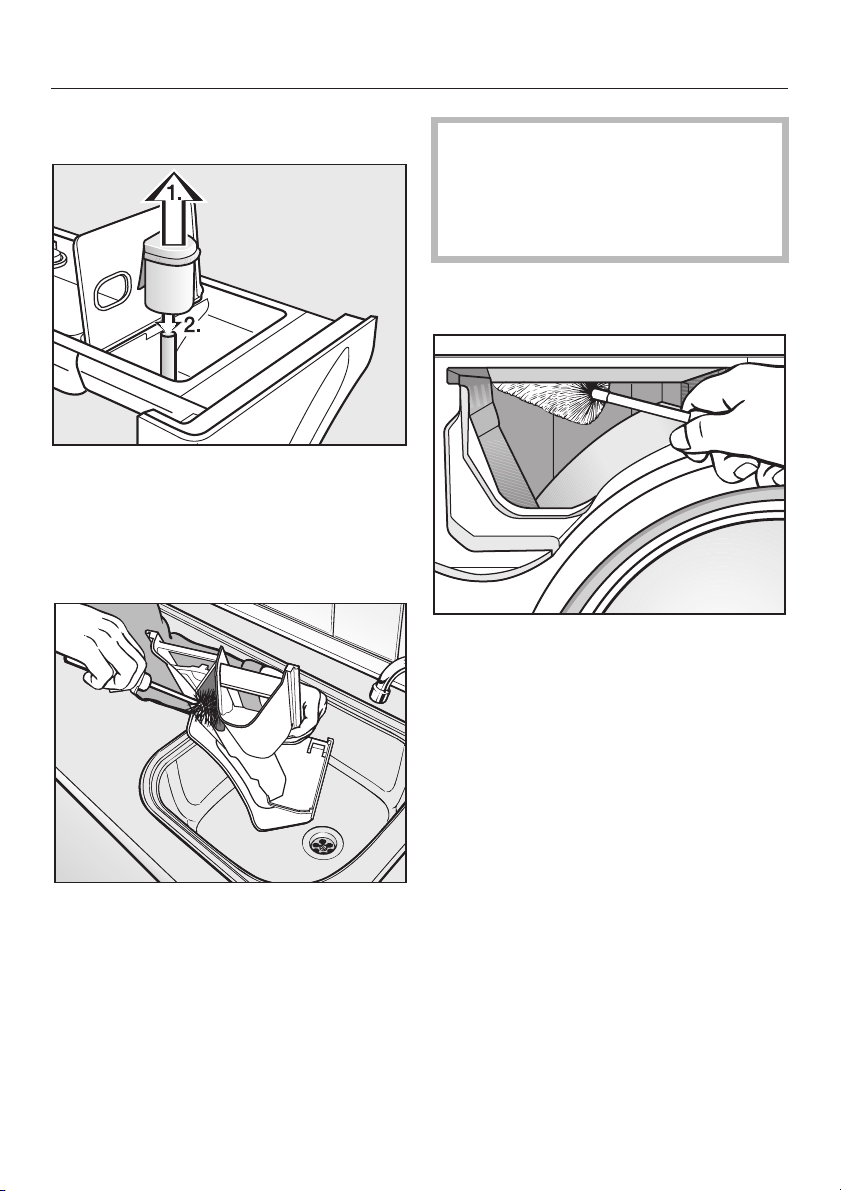

Cleaning the detergent dispenser drawer...............................40
Cleaning the filter in the water inlet ....................................42
Problem solving guide ............................................43
The programme does not start .......................................43
The following fault messages appear in the display and the programme stops. . 44
The following fault messages appear in the display at the end of the programme . . 45
General problems .................................................46
An unsatisfactory wash result ........................................47
The drum door does not open when you press the Door button..............48
Opening the drum door in the event of a blocked drain outlet
and/or power failure................................................49
Blocked drain outlet .............................................49
After sales service ................................................51
Future updates (PC) .............................................51
Guarantee .....................................................51
Optional spare parts and accessories ...............................51
Installation and connection ........................................52
Front view........................................................52
Rear view ........................................................53
Installation surface.................................................54
Transporting the washing machine to its installation site .................54
Removing the transit bars ...........................................54
Re-fitting the transit bars ............................................56
Contents
4
Levelling the machine ..............................................57
Screwing out and adjusting the feet .................................57
Building under a worktop .........................................58
Washer-dryer stack..............................................58
The Miele water protection system ....................................59
Connection to the water supply .......................................60
Connection to the drainage system....................................61
Electrical connection U.K. ...........................................62
Consumption data ................................................63
Notes for test institutes: ..........................................63
Technical data ...................................................64
Programmable functions...........................................65
To access programmable functions ................................65
To select a programmable function .................................65
To alter a programmable function ..................................65
To come out of programmable functions .............................65
Language
! ......................................................65
Total usage ......................................................66
Water plus .......................................................66
Gentle action .....................................................66
Suds cooling .....................................................66
Code ...........................................................67
Temperature unit ..................................................68
Buzzer ..........................................................68
Keypad tone .....................................................68
Brightness .......................................................68
Contrast .........................................................68
Standby display ...................................................69
Memory .........................................................69
Anti-crease.......................................................69
Optional accessories..............................................70
CareCollection ....................................................70
Contents
5
This washing machine conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the washing
machine, please read these instructions carefully before using it
for the first time. They contain important information on its
installation, safety, use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~
This washing machine is not designed for commercial use. It is
intended for use in domestic households and in similar working and
residential environments.
~
The washing machine is not intended for outdoor use.
~
It must only be used as a domestic appliance to wash items
which are specified by the manufacturer as being washable on the
care label.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation of the washing machine.
~
The washing machine can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it or have been shown
how to use it in a safe way and understand the hazards involved.
Warning and Safety instructions
6
Safety with children
~
Children 8 years and older may use, clean or maintain the
washing machine without supervision only if they have been shown
how to do so in a safe way and understand the hazards involved.
~
Children under 8 years of age must be kept away from the
machine unless they are constantly supervised.
~
The washing machine is not a toy! To prevent the risk of injury, do
not allow children to play with it or near it, or to play with the
controls.
~
For machines with a 'porthole' door, remember that the porthole
glass will be hot when washing at high temperatures
Do not let children touch it.
Warning and Safety instructions
7
Technical safety
~
Before setting up the washing machine, check it for any externally
visible damage.
Do not install or use a damaged washing machine.
~
Before connecting the washing machine, ensure that the
connection data on the data plate (voltage and frequency) match
the mains electricity supply. If in any doubt, consult a qualified
electrician.
~
The electrical safety of this washing machine can only be
guaranteed when correctly earthed. It is most important that this
basic safety requirement is observed and regularly tested, and
where there is any doubt the household wiring system should be
inspected by a qualified electrician. The manufacturer cannot be
held liable for the consequences of an inadequate earthing system
(e.g. electric shock).
~
Do not connect the washing machine to the mains electricity
supply by an extension lead. Extension leads do not guarantee the
required safety of the machine (e.g. danger of overheating).
~
Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
Warning and Safety instructions
8
~
Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician.
~
If the connection cable is faulty it must only be replaced by a
Miele approved service technician to protect the user from danger.
~
The machine must be isolated from the electricity supply in the
event of a fault and during installation, maintenance and repair work.
~
This washing machine must only be connected to the on-site
water supply using a new hose kit. Old hoses must not be re-used.
~
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
~
This machine must not be used in a non-stationary location (e.g.
on a ship).
~
Do not make any alterations to the washing machine, unless
authorised to do so by Miele.
Warning and Safety instructions
9
Correct use
~
Do not install your washing machine in rooms where temperatures
below freezing may occur. Frozen hoses may burst or split. The
reliability of the electronic control unit may be impaired at
temperatures below freezing point.
~
Before using the washing machine for the first time, check that
the transit bars at the rear of the machine have been removed (see
section on "Installation and connection"). During spinning, a transit
bar which is still in place may result in damage to both the machine
and adjacent furniture or appliances.
~
Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~
Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.
~
Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
10
~
If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from the Miele Spare Parts
Department or via the internet on www.miele-shop.com.
~
Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~
Do not use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~
Do not use solvent based cleaning agents, e.g. those containing
benzine, to clean the outside surfaces of this machine. They can
cause damage to plastic surfaces.
~
Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. Always observe the
manufacturer's instructions carefully.
~
Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
~
If detergent comes into contact with the eyes, rinse them
thoroughly with lukewarm water immediately. If swallowed, seek
medical assistance immediately and retain the packaging or label
for reference. Those with skin problems or sensitive skin should
avoid their skin coming into contact with detergent.
Warning and Safety instructions
11
Accessories
~
Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
Miele cannot be held liable for damage caused by non-
compliance with these Warning and Safety instructions.
Warning and Safety instructions
12
Control panel
a Display
See the following page for more
information.
b Delay start button (V)*
For delaying the start time of a
programme.
c Temperature button (OK)*
For selecting a temperature.
d Spin speed button (W)*
For selecting the final spin speed or
Rinse hold/e or No . (Without
spin).
e PC/Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
*(V/OK/W) = a second function,
please see the following page
f Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
g Extra option buttons
Various extra options can be added
to the washing programmes.
h EcoFeedback button
See "Washing environmentally" for
more details about this function.
i Programme selector
For selecting a programme. The
indicator light next to the selected
programme will come on. The
programme selector can be turned
clockwise or anti-clockwise.
j Door button
Opens the machine door.
l _ button
For switching the washing machine
on and off.
Operating the washing machine
13
Second function of the Delay start
(V), Temperature (OK) and Spin
speed (W) buttons
These buttons have a second function
when Eco 4 is selected and also in
the programmable functions. The
second function is represented by
symbols in the display.
– The Delay start (V) button scrolls
through the list of options to the left
or decreases values.
–
The Spin speed (W) button scrolls
through the list of options to the right
or increases values.
–
The Temperature (OK) button
confirms the programme selected,
the value set or opens the sub menu
of the programmable function
selected.
Programme duration
After the start of a programme, the
estimated programme duration will
appear in the display in hours and
minutes.
When delay start is being used, the
programme duration will appear after
the delay start time has elapsed.
During the first 8 minutes the washing
machine measures how much water is
being absorbed by the laundry and
uses this to calculate the load. The
programme duration may be longer or
shorter depending on this absorbency
rate.
Delay start
The delay start time selected will
appear in the display.
After the machine has started, the delay
start time counts down. If the delay start
time is more than 10 hours, it will count
down by the hour. If it is less than 9
hours and 59 minutes it will count down
minute by minute.
Once the delay start time has elapsed,
the programme will begin and the
estimated programme duration will
appear in the display.
Programmable functions
The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. In
programming mode, the display will
show the function selected.
Operating the washing machine
14
The programme packages offer you the
opportunity to add a number of special
programmes to the standard range of
programmes supplied with your
machine.
These programme packages have to
be downloaded by a Miele service
engineer.
To select these new
programmes
The programmes contained in these
packages are selected using the
programme selector in conjunction with
the Delay start (V), Temperature (OK)
and Spin speed (W) buttons.
^ Turn the programme selector to Eco.
The last programme selected will
appear in the display.
^
Scroll up or down through the list
using the Delay start (V)orSpin
speed (W) button.
^
When the programme you want
shows in the display, confirm your
selection by pressing the
Temperature (OK) button.
1:07 40° 1200
^
Press the Temperature button to alter
the temperature and press the Spin
speed button to alter the spin speed.
^
Press the Start/Stop button to start
the programme.
On machines without additional
programme packages the Eco
position is used for:
the Intensive plus programme and
Separate rinse/Starch
On machines with
additional
programme packages it is used for:
the Intensive plus programme,
Separate rinse/Starch and the
programmes contained in the
programme packages.
Programme packages
The following programme packages
can be downloaded onto your machine
if they are not already available ex-
works:
–
Eco
–
Home
–
Hygiene & kids
–
Nursery
–
Sport & leisure
The programmes will appear in a set
order in the display. This order cannot
be changed.
Programme packages
15
Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of leaks
during use. See "Installation and
connection".
This washing machine has
undergone a complete functional test
at the factory and there will be some
residual water in the drum from this
process.
For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
^
Press the _ button in.
If the washing machine is being
switched on for the first time, the
welcome screen will appear.
The welcome screen will appear in
the display every time the washing
machine is switched on until a
programme lasting longer than
1 hour has been completed.
Setting the language
You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the programmable
functions.
! deutsch
^
If the language shown is not the one
you want, press the Spin speed (W)
or Delay start (V) button until the
language you do want appears.
^
Press the Temperature (OK) button to
confirm your selection.
Reminder to remove transport bars
To avoid the risk of damage, the
transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.
^
After removing the transport bars (if
this has not already been done by
your fitter) press the Temperature
(OK) button.
Run your first programme
The Cottons 60°C will be selected
automatically. Run this programme
without any laundry and without
detergent.
^
Open the stopcock.
^
Press the Start/Stop button.
^
At the end of the programme switch
the machine off.
^
The washing machine is now ready
for use.
Before using for the first time
16
Energy and water consumption
–
Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
–
When smaller amounts of laundry are
washed, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.
– Use the Express 20 programme for
small loads.
– Modern detergents make it possible
to wash at lower temperatures (e.g
20°C). Washing using lower
temperature settings will save
energy.
– To maintain the hygiene of the
washing machine carry out a hot
wash (60°C or above) using powder
detergent at regular intervals. The
Hygiene info message will appear in
the display to remind you to carry out
a hot wash.
Detergent
–
Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–
Adjust the dosage to the degree of
soiling of the laundry.
–
Reduce the amount of detergent with
smaller loads (approx.
1
/
3
less than
the amount recommended can be
used when washing a half load).
Choosing the correct extra option
(Short and Pre-wash)
Select:
– A wash programme together with the
Short extra option for light soiling
where there are no obvious marks.
– A wash programme without any extra
options for normal to heavy soiling
with visible staining.
– The Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Washing environmentally and economically
17
Eco feedback
The Eco feedback button is used for
calling up information about the
machine's energy and water
consumption.
The Eco feedback button must be
held in to display this information.
Pressing the Eco feedback button gives
two different types of information:
–
Before and during the programme an
estimate is shown.
– At the end of the programme it
shows actual water and energy
consumption.
1. Estimate
^
Press and hold the Eco feedback
button after selecting the
programme.
The probable consumption levels will
then be displayed by a bar chart.
Energy eeefff Water eeffff
If there are more tall bars (e) than short
bars (
f) in this display, more energy or
water will be used.
The estimate is influenced by the
programme selected, the temperature
and any extra options selected.
2. Actual usage
The actual amount of energy and water
used can be shown in the display
before opening the door at the end of a
programme.
^ Press and hold the Eco feedback
button.
0.3 kWh 68 l
Opening the door resets the data to
the estimated values.
Total usage
The Total usage programmable
function gives details of energy and
water consumption over a period of
time.
Energy consumption is always given
in whole numbers, rounded up or
down.
For more information see
"Programmable functions".
Washing environmentally and economically
18
Brief instructions
The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.
A Sort the laundry
^ Empty all pockets.
,
Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^
Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,
If you use a solvent-based
cleaning agent (e.g. one containing
benzene) to pre-treat a stain, make
sure that any plastic parts (e.g.
buttons) are protected, and that the
cleaning agent is rinsed off before
washing the garment in the machine.
,
Do not use solvent-based
cleaning agents in or on this machine.
^
Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
– Curtains: Remove lead weights first
or place in a laundry bag.
–
Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–
Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
–
Close any zips, fasten hooks and
eyes etc before washing.
–
Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)
How to wash correctly
19
B Switch on the washing machine
C Load the drum
^
Press the Door button to open the
drum door.
^
Unfold the laundry and load loosely
into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
Make sure that no items are caught
between the drum door and seal.
^
Shut the door with a gentle swing.
D Select a programme
A Selecting programmes using the
programme selector
^ Turn the programme selector
clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.
How to wash correctly
20
Further programmes are available
under the programme setting Eco
4.
B Selecting programmes using the
programme selector at the Eco 4
position and the display
^ Turn the programme selector
clockwise until the indicator light for
the Eco 4 programmes comes on.
The following will appear in the display:
^ Scroll through the list using the
Delay start (V) and Spin speed (W)
buttons.
^ When the programme you want
shows in the display, confirm your
selection by pressing the
Temperature (OK) button.
E Select a temperature / spin speed
The suggested temperature and/or spin
speed can be changed.
2:59 60° 1400
^
Press the Temperature button to alter
the temperature and press the Spin
speed button to alter the spin speed.
How to wash correctly
21
F Select an extra option(s)
^ Select any extra options by pressing
the appropriate button. The relevant
indicator light will come on to show
which extra option has been
selected.
Not all the extra options are suitable for
use with every programme.
You can only select extra options which
are compatible with the programme
being used.
Short
For light to normal soiling with no visible
staining.
The duration of the main wash is
reduced.
Pre-wash
+
The Pre-wash
+
button is used for
activating the pre-wash as well as for
selecting a soak duration of one or two
hours.
Press the button:
Once = Pre-wash
Twice = Pre-wash + 1 hour
soak
3 times = Pre-wash + 2 hour
soak
4 times = option not selected
Extra quiet
If using your washing machine during
quiet periods, you can reduce the noise
levels even more.
If the Extra quiet extra option is
selected, the machine will activate the
Rinse hold extra option and not spin.
The programme duration is longer.
To deactivate Rinse hold
^
Use the Spin button to select the spin
speed you want.
By using Delay start you can make
sure the final spin occurs outside
quiet periods in the home.
How to wash correctly
22
