Operating Instructions
Dishwasher
To prevent accidents and machine damage, read these instructions be fore installation or use.
en-US |
HG05 |
M.-Nr. 10 014 110 |
Contents |
|
IMPORTANT SAFETY INSTRUCTIONS................................................................. |
5 |
Guide to the dishwasher ..................................................................................... |
14 |
Appliance overview................................................................................................ |
14 |
Control panel.......................................................................................................... |
15 |
Caring for the environment ................................................................................. |
16 |
Disposal of packaging material.............................................................................. |
16 |
Disposal of your old appliance .............................................................................. |
16 |
Energy-saving dishwashing ................................................................................... |
16 |
Before using for the first time............................................................................. |
17 |
Opening the door................................................................................................... |
17 |
Closing the door .................................................................................................... |
17 |
Water softener........................................................................................................ |
18 |
Displaying and setting the water hardness level .............................................. |
19 |
Before using the appliance for the first time, you require:..................................... |
21 |
Dishwasher salt...................................................................................................... |
21 |
Filling the salt reservoir ..................................................................................... |
22 |
Salt refill indicator ............................................................................................. |
23 |
Rinse aid ................................................................................................................ |
24 |
Adding rinse aid ................................................................................................ |
24 |
Rinse aid indicator ............................................................................................ |
25 |
Setting the rinse aid dosage ............................................................................. |
25 |
Loading the dishwasher ...................................................................................... |
26 |
Tips ........................................................................................................................ |
26 |
Loading examples.................................................................................................. |
28 |
Upper basket ......................................................................................................... |
32 |
Adjusting the upper basket............................................................................... |
33 |

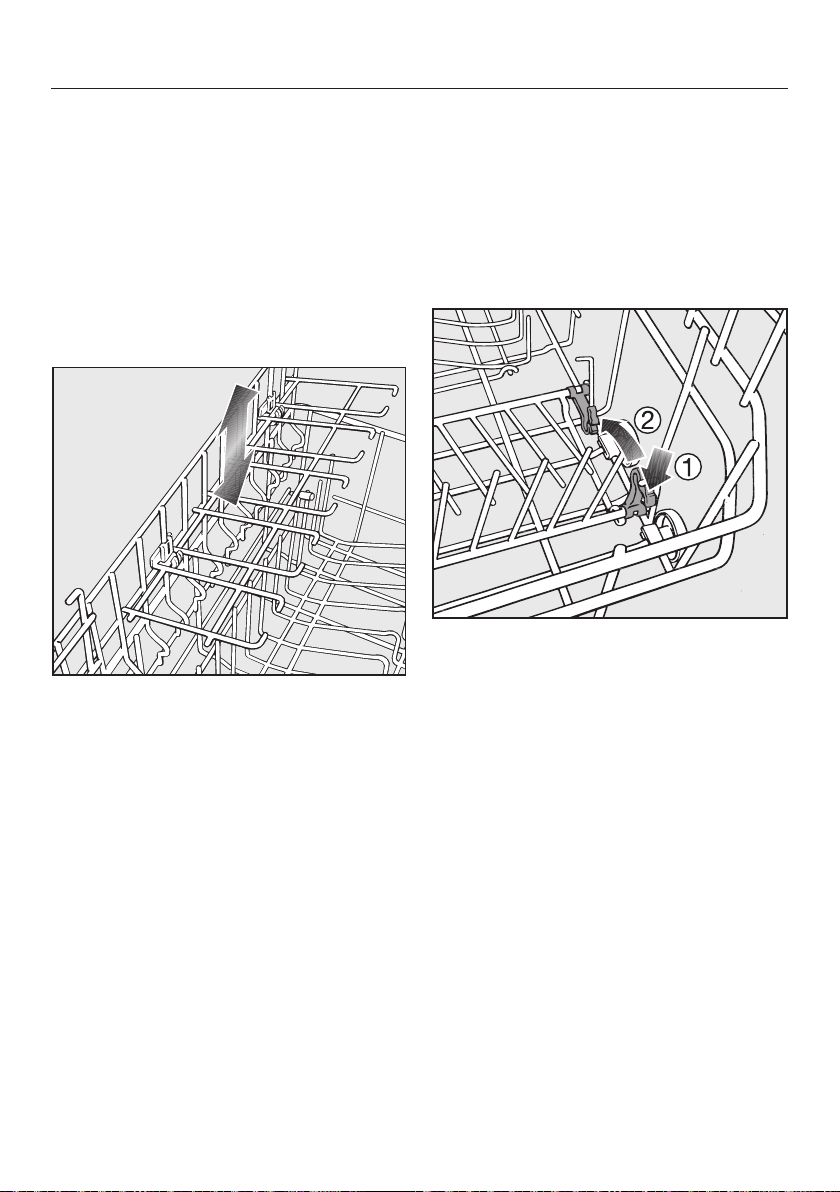

Lower basket ......................................................................................................... |
34 |
Cutlery.................................................................................................................... |
36 |

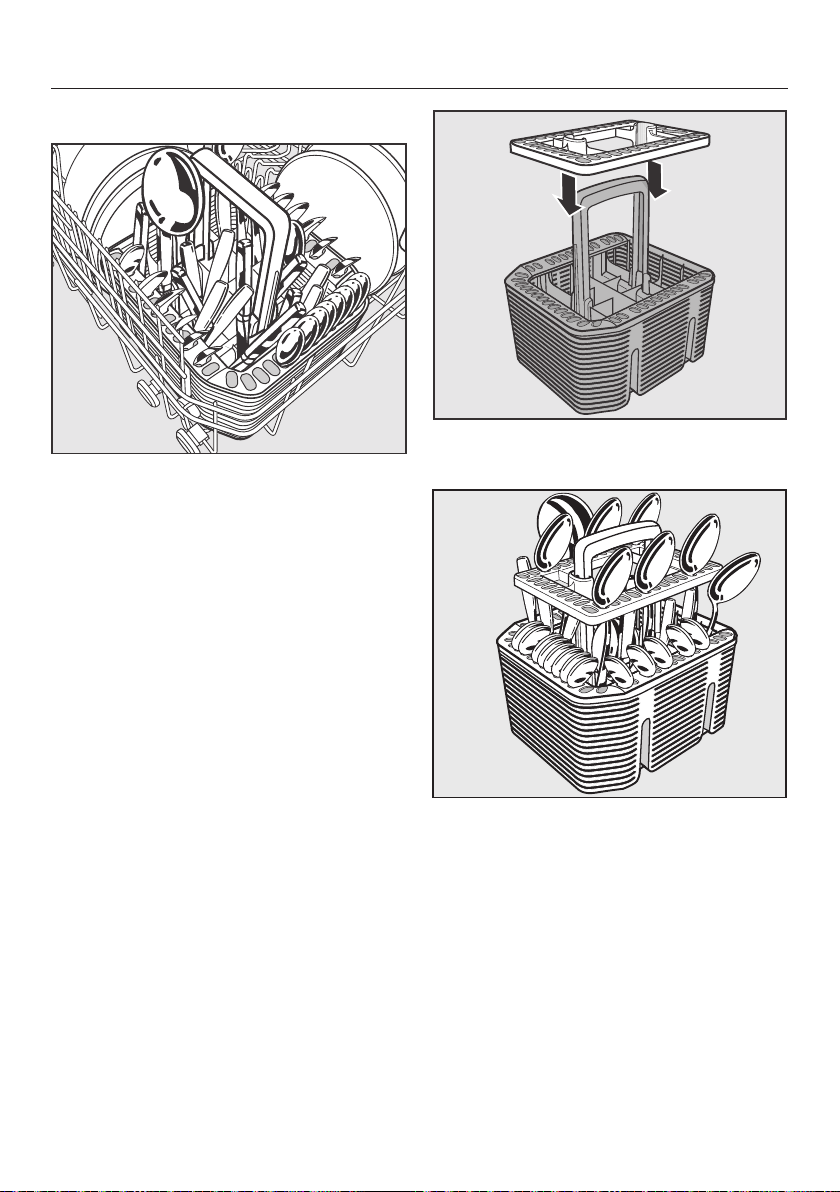

3D cutlery tray (depending on model)............................................................... |
36 |
Cutlery basket (depending on model)............................................................... |
37 |
Operation .............................................................................................................. |
38 |
Detergent ............................................................................................................... |
38 |
Adding detergent .............................................................................................. |
39 |
Turning on .............................................................................................................. |
40 |
Selecting a program............................................................................................... |
40 |
Starting a program ................................................................................................. |
41 |
Time display........................................................................................................... |
41 |
Energy management.............................................................................................. |
42 |
At the end of the program...................................................................................... |
42 |
2
|
Contents |
Turning off .............................................................................................................. |
43 |
Unloading the dishwasher ..................................................................................... |
43 |
Interrupting a program ........................................................................................... |
44 |
Changing a program .............................................................................................. |
44 |
Options.................................................................................................................. |
45 |
Short ................................................................................................................ |
45 |
Turning off the refill indicators................................................................................ |
46 |
Delay Start ............................................................................................................. |
47 |
Buzzer tones .......................................................................................................... |
49 |
Optimize Standby .................................................................................................. |
50 |
Factory default settings.......................................................................................... |
51 |
Program overview ................................................................................................ |
52 |
Cleaning and care ................................................................................................ |
53 |
Cleaning the wash cabinet..................................................................................... |
53 |
Cleaning the door and the door seal ..................................................................... |
53 |
Cleaning the control panel ..................................................................................... |
53 |
Cleaning the indicator reflector panel .................................................................... |
53 |
Cleaning the door front .......................................................................................... |
54 |
Filter system........................................................................................................... |
55 |
Cleaning the spray arms ........................................................................................ |
57 |
Frequently Asked Questions ............................................................................... |
58 |
Technical problems ................................................................................................ |
58 |
Water intake fault ................................................................................................... |
60 |
Water drainage fault............................................................................................... |
61 |
General problems................................................................................................... |
62 |
Noises .................................................................................................................... |
63 |
Poor cleaning results.............................................................................................. |
64 |
Frequently asked questions ................................................................................ |
67 |

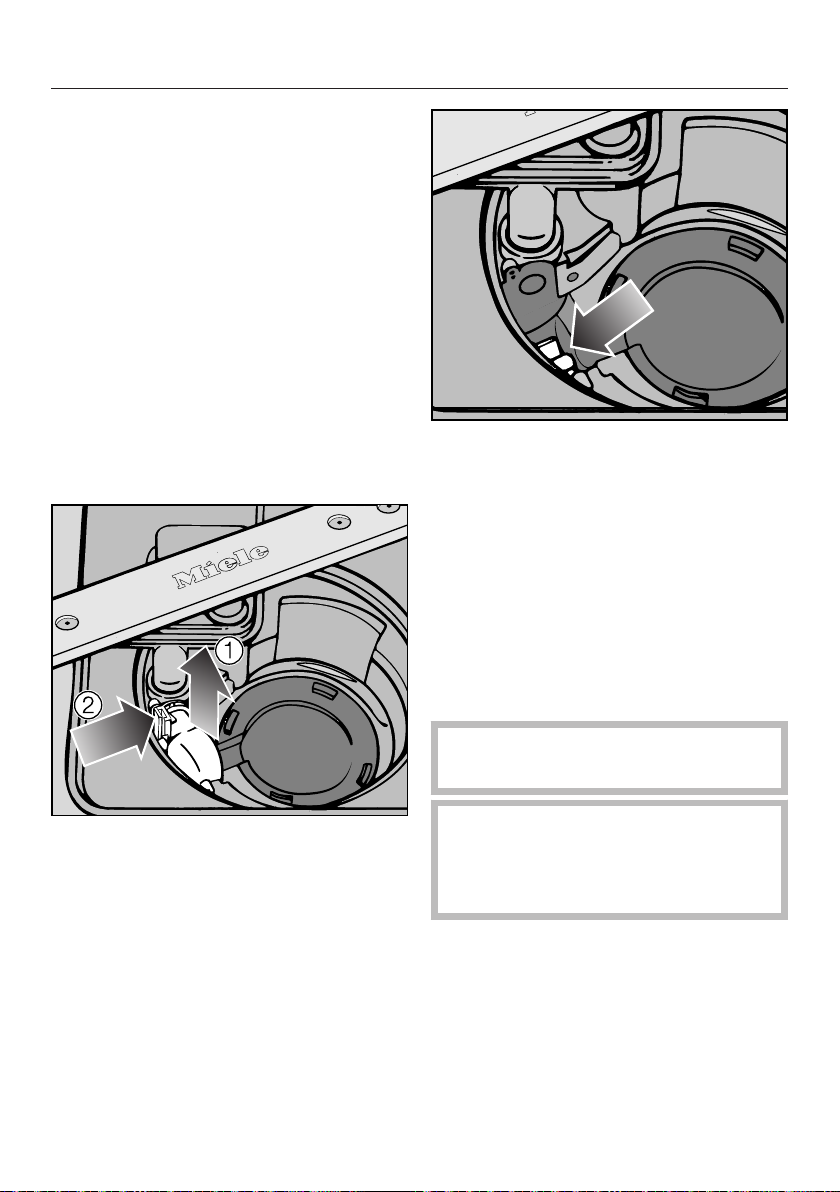

Cleaning the drain pump and non-return valve ..................................................... |
67 |
Customer service................................................................................................. |
68 |
Repairs................................................................................................................... |
68 |
Warranty................................................................................................................. |
68 |
Optional accessories........................................................................................... |
69 |
Installation Instructions .......................................................................................... |
71 |
Electrical connection........................................................................................... |
72 |
3
Contents |
|
Water connection................................................................................................. |
74 |
Connection to the water supply............................................................................. |
74 |
Drainage................................................................................................................. |
75 |
Sound emission testing ....................................................................................... |
76 |
4
IMPORTANT SAFETY INSTRUCTIONS
This dishwasher complies with current safety requirements. Inap propriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the dishwasher, please read the installation plan and the operating instructions carefully before it is installed and used for the first time. They con tain important information on its installation, safety, use and main tenance.
Keep the installation plan and the operating instructions in a safe place and pass them on to any future owner.
Miele cannot be held liable for damage caused by non-compli ance with this information.
5
IMPORTANT SAFETY INSTRUCTIONS
Correct use
This dishwasher is intended for use in domestic households and similar residential environments.
This dishwasher is not suitable for outdoor use.
It must only be used as specified in these operating instructions for cleaning domestic dishware and cutlery. Any other usage is not supported by the manufacturer and could be dangerous.
This appliance is not intended for use by persons (including chil dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
6
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
Children must be kept away from the appliance unless they are constantly supervised.
Children should be supervised to ensure that they do not play with the appliance. Keep small children away from the appliance at all times to avoid the risk of injury. There is the risk that children may lock themselves in the dishwasher.
If the automatic door opening mechanism (depending on model) is active keep young children away from the area in which the door opens. Danger of injury in the unlikely event of a fault with the open ing mechanism.
Danger of suffocation! Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
Keep children away from detergents. Dishwasher detergents can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet. Seek medical attention immediately if your child has swallowed or inhaled detergent.
7
IMPORTANT SAFETY INSTRUCTIONS
Technical safety
Installation, repair, and maintenance work should only be per formed by a Miele-authorized service technician. Work by unquali fied persons could be dangerous and may void the warranty.
Before installation, check the dishwasher for visible signs of dam age. Under no circumstances should you use a damaged dishwash er. A damaged dishwasher could be dangerous.
The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective grounding system. It is most important that this basic safety requirement is present and regularly tested and, where there is any doubt, the elec trical system in the house should be checked by a qualified electri cian.
Miele cannot be held liable for the consequences of an inadequate grounding system (e.g. electric shock).
Reliable and safe operation of this dishwasher can only be assur ed if it has been connected to the electrical supply.
The dishwasher must only be plugged into the electricity supply via a suitable switched socket using a 3-pin plug with a grounding contact (it must not be hard-wired). The electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time.
There must be no electrical sockets behind the dishwasher. There is a danger of overheating and fire risk if the dishwasher is pushed up against a plug.
The dishwasher must not be installed under a cooktop. The high radiant temperatures which are sometimes generated by a cooktop could damage the dishwasher. For the same reason, it should not be installed next to open fires or other appliances which give off heat, such as heaters, etc.
8
IMPORTANT SAFETY INSTRUCTIONS
To avoid the risk of damage to the dishwasher, make sure that the connection data on the data plate (fuse rating, voltage, and frequen cy) matches the electrical supply before connecting the dishwasher to the mains. Consult a qualified electrician if in any doubt.
Do not connect the dishwasher to the electrical supply until it has been fully installed and any adjustment has been made to the door springs.
The dishwasher may only be operated if the door opening mecha nism is working correctly. Otherwise there could be a risk of danger while the automatic door opening mechanism (depending on model) is active.
To check that the door opening mechanism is working correctly:
–The door springs must be adjusted equally on both sides. They are correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). It is also important that the door cannot fall open.
–The door locking pins automatically retract when the door opens at the end of the drying phase.
Do not connect the appliance to the electrical supply by a multisocket adapter or an extension lead. These do not guarantee the re quired safety of the appliance (e.g. danger of overheating).
This appliance must not be installed and operated in a non-sta tionary location (e.g., on a ship).
Do not install the dishwasher in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic module may be impaired at temperatures below freezing point.
The water pressure (flow pressure at the connection point) must be between 4.35 - 145 psi.
A damaged appliance could be dangerous. If the dishwasher gets damaged, turn off the electrical supply and contact Miele.
9
IMPORTANT SAFETY INSTRUCTIONS
The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele-authorized service technician.
Defective components should be replaced by Miele original parts only. Only with these parts can the manufacturer guarantee the safe ty of the appliance.
During installation, maintenance and repair work, the appliance must be disconnected from the electrical supply (turn it off and with draw the plug from the socket).
If the connection cable is damaged, it must be replaced with a special cable of the same type (available from Miele) by a Miele-au thorized service technician only.
10
IMPORTANT SAFETY INSTRUCTIONS
Proper installation
The dishwasher must be installed and connected in compliance with the installation plan.
Be careful when installing the dishwasher. Wear protective gloves to avoid injury on any sharp metal components.
The dishwasher must be correctly aligned horizontally to ensure problem-free operation.
In order to ensure stability, built-under and integrated dishwash ers must only be installed under a continuous counter which is se cured to adjacent cabinetry.
If you want to convert your freestanding dishwasher to a built-un der ("U") model, you will need to order the appropriate conversion kit. If you remove the existing toe-kick, you must replace it with a U- model plinth. This is necessary to avoid the risk of injury caused by protruding metal parts.
The door springs must be adjusted equally on both sides. They are correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). It is also important that the door cannot fall open.
The appliance may only be used with correctly adjusted door springs.
11
IMPORTANT SAFETY INSTRUCTIONS
Proper use
Do not use solvents in the dishwasher. Danger of explosion!
Do not inhale or ingest powder detergent. Dishwasher detergents contain irritant or corrosive ingredients which can cause burning in the nose, mouth, and throat if swallowed, or inhibit breathing. Seek medical attention immediately if detergent has been swallowed or in haled.
Avoid leaving the door open unnecessarily as someone could trip over it and be injured by it.
Do not sit or lean on the opened door. This could cause the dish washer to tip and be damaged, and you could get injured.
Dishes can be very hot at the end of a program. Allow them to cool until they are comfortable enough to handle before unloading.
Only use detergent and rinse aid formulated for domestic dish washers. Do not use dishwashing liquid.
Do not use commercial or industrial detergents as these may cause damage, and there is a risk of a severe explosive chemical re action (such as an explosive oxyhydrogen gas reaction).
Do not fill the rinse aid reservoir with powder or liquid detergent. This will cause serious damage to the reservoir.
Inadvertently filling the salt reservoir with powder or liquid dish washer detergent will damage the water softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!
Only use special coarse grained dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.
12
IMPORTANT SAFETY INSTRUCTIONS
In an appliance with a cutlery basket (depending on model), cut lery is cleaned and dried more efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury, place knives and forks with the handles upwards.
Plastic items which cannot withstand being washed in hot water, such as disposable plastic containers or plastic cutlery should not be cleaned in the dishwasher. The high temperatures in the dish washer may cause them to melt or lose shape.
If you use the "FlexiTimer/Delay Start" option (depending on mod el), make sure that the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dis penser and may not be thoroughly dispersed.
Please observe the information given in "Technical data" regard ing the capacity of the dishwasher.
Accessories
Use only genuine original Miele parts. If spare parts or accesso ries from other manufacturers are used, the warranty may become invalid.
Disposal of your old dishwasher
Make the door lock inoperative so that children cannot acciden tally shut themselves in. Remove or destroy the locking bracket of the door lock, and make appropriate arrangements for the disposal of the appliance.
SAVE THESE INSTRUCTIONS AND PASS THEM ON TO ANY FUTURE USER
13
Guide to the dishwasher
Appliance overview
a Upper spray arm (not visible)
b Cutlery tray (depending on model) c Upper basket
d Middle spray arm
eAir intake for drying (depending on model)
f Lower spray arm
g Filter system h Data plate
i Optical Interface j Rinse aid reservoir
kDual compartment detergent dis penser
l Reservoir for dishwasher salt
14
Guide to the dishwasher
Control panel
a Optical Interface b Program selection c Time display
d Check/Refill indicators
eDelay Start button with indicator light
f Short button with indicator light g Program selection button
h (On/Off) Button
These operating instructions apply to several different dishwasher models with different heights.
The specific dishwasher models are referred to as follows: Standard = 31 11/16" (80.5 cm) high dishwashers (integrated) and 33 1/4" (84.5 cm) high dishwashers (freestanding)
XXL = 33 1/4" (84.5 cm) high dishwashers (integrated)
15
Caring for the environment
Disposal of packaging material
The cardboard box and packaging pro tect the appliance during shipping. These materials are biodegradable and recyclable. Please recycle.
Disposal of your old appliance
Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.
Please be sure that your old appliance does not pose a danger to children while being stored for disposal.
Energy-saving dishwashing
This dishwasher is economical in the use of water and electricity. For best re sults follow these tips:
–For most economical dishwashing, make full use of the baskets without overloading the dishwasher.
–Choose a program that best suits the degree of soiling and the type of dishes being washed.
–Select the Economy program (de pending on model) for energy-saving dishwashing. This program is the most efficient in terms of its com bined energy and water consumption at cleaning normally soiled dishware.
–Follow the detergent manufacturer's recommendations on detergent dos age.
–When using powder or liquid deter
gent, you can use 1/3 less detergent if baskets are only half full.
–The dishwasher can be connected to a hot water supply for further econo mies. If the water is heated by for ex ample, solar panels, this would be energy efficient.
However, if your water is heated by electricity we would recommend con nection to cold water.
You can find additional tips on energysaving dishwashing in "Miele's guide to dishwashing".
16
Before using for the first time
Opening the door
Pull the handle to open the door.
If the door is opened during operation, all functions are automatically interrupt ed.
Water in the dishwasher may be hot. Danger of scalding!
Only open the door during operation if absolutely necessary and exercise extreme caution when doing so.
Closing the door
Push the baskets in.
Then lift the door upwards and push until it clicks into position.
Danger of crushing injuries!
Do not put your hand inside the door as it is closing.
17
Before using for the first time
Water softener
In order to achieve good cleaning re sults, the dishwasher needs to operate with soft water. Hard water results in a build-up of calcium deposits on dish ware and in the dishwasher.
Water supplies with a hardness level higher than 4 gr/gal (4 °d) needs to be softened. This takes place automatical ly in the integrated water softener. The water softener in the dishwasher is suit able for a water hardness level of up to 73 gr/gal (70 °d).
–The water softener requires dish washer salt.
Depending on the water hardness level (< 22 gr/gal, or 21 °d), dish washer salt is not required if combi nation tablets are being used (see "Operation - Detergent").
–The dishwasher must be program med for the water hardness in your area.
–Your local water supplier can tell you the water hardness level in your area.
–Where the water hardness fluctuates e.g. between 10 - 16 gr/gal (10 - 15 °d), always program the dishwasher to the higher value (16 gr/gal or 15 °d in this example).
It is useful to know your water hardness so that you can provide the service technician with this information in the event of any service calls.
Enter the water hardness below:
____________ gr/gal (°d)
The dishwasher is programmed at the factory for a water hardness level of 1 gr/gal (1 °d).
If this setting corresponds to the hard ness of your water, you do not need to do anything more.
However, if you have a different water hardness, you must adjust the water softener to match your water hardness.
18
Before using for the first time
Displaying and setting the water hardness level
Turn the dishwasher off with the button, if it is turned on.
Press the program selection button, and, simultaneously switch the dishwasher on using the button.
Keep the program selection button pressed in for at least four seconds until the lower right program indicator light comes on.
If this does not happen, start the proce dure from the beginning again.
Press the button twice.
The indicator light will flash twice at short intervals.
The value which has been set for the water hardness appears as a figure in the time display (see table) according to
.
will start flashing in the time display. This is the factory default setting of 1°.
Use the program selection button to select the value which equates to your water hardness level.
Each press of the button moves you up a level. When the highest water hardness level is reached, the setting starts from the beginning again.
The setting is now stored in memory.
Turn the dishwasher off with the button.
19
Before using for the first time
°d |
gr/gal |
°f |
Time dis |
|
|
|
play |
1 |
1 |
2 |
1 |
|
|
|
|
2 |
2 |
4 |
2 |
|
|
|
|
3 |
3 |
5 |
3 |
|
|
|
|
4 |
4 |
7 |
4 |
|
|
|
|
5 |
5 |
9 |
5 |
|
|
|
|
6 |
6 |
11 |
6 |
|
|
|
|
7 |
7 |
13 |
7 |
|
|
|
|
8 |
8 |
14 |
8 |
|
|
|
|
9 |
9 |
16 |
9 |
|
|
|
|
10 |
10 |
18 |
10 |
|
|
|
|
11 |
11 |
20 |
11 |
|
|
|
|
12 |
13 |
22 |
12 |
|
|
|
|
13 |
14 |
23 |
13 |
|
|
|
|
14 |
15 |
25 |
14 |
|
|
|
|
15 |
16 |
27 |
15 |
|
|
|
|
16 |
17 |
29 |
16 |
|
|
|
|
17 |
18 |
31 |
17 |
|
|
|
|
18 |
19 |
32 |
18 |
|
|
|
|
19 |
20 |
34 |
19 |
|
|
|
|
20 |
21 |
36 |
20 |
|
|
|
|
°d |
gr/gal |
°f |
Time dis |
|
|
|
play |
21 |
22 |
38 |
21 |
|
|
|
|
22 |
23 |
40 |
22 |
|
|
|
|
23 |
24 |
41 |
23 |
|
|
|
|
24 |
25 |
43 |
24 |
|
|
|
|
25 |
26 |
45 |
25 |
|
|
|
|
26 |
27 |
47 |
26 |
|
|
|
|
27 |
28 |
49 |
27 |
|
|
|
|
28 |
29 |
50 |
28 |
|
|
|
|
29 |
30 |
52 |
29 |
|
|
|
|
30 |
31 |
54 |
30 |
|
|
|
|
31 |
32 |
56 |
31 |
|
|
|
|
32 |
33 |
58 |
32 |
|
|
|
|
33 |
34 |
59 |
33 |
|
|
|
|
34 |
35 |
61 |
34 |
|
|
|
|
35 |
36 |
63 |
35 |
|
|
|
|
36 |
38 |
65 |
36 |
|
|
|
|
37-45 |
39--47 |
66-80 |
45 |
|
|
|
|
46-60 |
48-63 |
82-107 |
60 |
|
|
|
|
61-70 |
64-73 |
109-125 |
70 |
|
|
|
|
20
Before using for the first time
Before using the appliance for the first time, you require:
–Approx. 2 qt (2 l) of water
–Approx. 2 kg (4 lbs) of dishwasher salt
–Domestic dishwasher detergent
–Rinse aid formulated for domestic dishwashers
Every dishwasher is tested at the fac tory. There will be residual water in the appliance from this test. It is not an in dication that it has been used previ ously.
Dishwasher salt
In order to achieve good cleaning re sults, the dishwasher needs to operate with soft water. Hard water results in a build-up of calcium deposits on dish ware and in the dishwasher.
Water supplies with a hardness level higher than 4 gr/gal (4 °d) needs to be softened. This takes place automatical ly in the integrated water softener. The water softener in the dishwasher is suit able for a water hardness level of up to 73 gr/gal (70 °d).
The water softener requires dishwasher salt.
Depending on the water hardness level (< 22 gr/gal or 21 °d), dishwasher salt is not required if combination tablets are being used (see "Operation - Deter gent").
If the water in your area is very soft and constantly lower than 5 gr/gal (5 °d) you do not have to add dish washer salt. The prompt to add salt will be switched off automatically.
Dishwasher detergent will de stroy the water softener.
Do not fill the salt container with dishwasher detergent (even liquid detergent).
Use only special, coarse-grained dishwasher salt or other pure kitchen salt.
Other types of salt may contain in soluble components which can dam age the water softener.
21
Before using for the first time
Filling the salt reservoir
Important! Before filling the salt res ervoir with dishwasher salt for the first time, you must fill it with approx. 2 qt (2 l) of water to enable the salt to dissolve.
Once the dishwasher has been used for the first time, there is always suf ficient water in the reservoir.
Remove the lower basket and un screw the salt reservoir cap.
Water will run out of the reservoir when the cap is removed.
It should therefore only be removed in order to refill the salt reservoir.
Fill the reservoir with approx. 2 qt (2 l) of water (first use only).
Place the funnel provided over the salt reservoir and carefully fill with salt until the reservoir is full. The salt reservoir holds approx. 4 lbs (2 kg) of salt depending on the brand used.
Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
Immediately after filling the salt reser voir, run the Express program with the Short program option selected and without any dishware in the dish washer to remove any traces of salt from the cabinet.
22
Before using for the first time
Salt refill indicator
Fill the salt reservoir with dishwasher salt when the Salt indicator light comes on (If it comes on during a program, wait until the end of the program).
Risk of corrosion!
Immediately after filling the salt res ervoir, run the Express program with the Short program option selected and without any dishware in the dishwasher to remove any traces of salt from the cabinet.
After the salt reservoir has been filled, the refill indicator may still be lit up if the salt concentration has not yet reached the correct level. It will go out when the correct concentration is reached.
The salt refill indicator will be switched off if you have programmed the dish washer for a water hardness below 5 gr/gal (5 °d).
If you only ever use combination prod ucts in your dishwasher, you can switch both refill indicators for salt and rinse aid off if you wish (see "Op tions - Refill indicators").
If you switch to using detergent that does not contain salt or rinse aid, it is important to remember to add dishwasher salt and rinse aid and to switch the indicators back on.
23
Before using for the first time
Rinse aid
Rinse aid is needed to prevent spotting on dishes and glassware. The rinse aid is filled in the reservoir and the set amount will be automatically dosed.
Filling the rinse aid reservoir with detergent will damage the reservoir. Only pour rinse aid formulated for residential dishwashers into the res ervoir.
When using "Tab" detergents rinse aid is not needed.
Adding rinse aid
Press the button on the lid of the rinse aid reservoir in the direction of the arrow until the flap springs open.
Add rinse aid only until it is visible in the opening.
The rinse aid reservoir holds approx.
3.7oz. (110 ml).
Close the flap firmly so that it clicks into place. Otherwise water can enter the rinse aid reservoir during a pro gram.
Wipe up any spilled rinse aid. This prevents over-foaming occurring dur ing the next program.
24
Loading...
