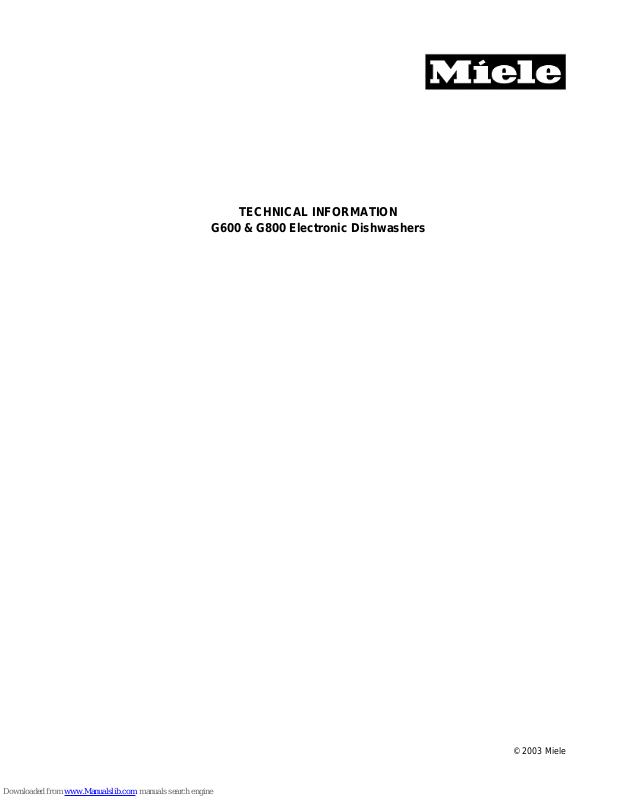

TECHNICAL INFORMATION

G600 & G800 Electronic Dishwashers

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 & G800 Electronic Dishwashers – Table of Contents

1.0Construction Design…………………………………………………………….8

1.1	Appliance Overview.............................................. ..				……………………9
	1.1.1 Appliance Overview – Typical Integrated Model.......................					9
	1.1.2 Unit Overview – Typical Fully Integrated (VI) Model...............					10
1.2	Controls Overview .............................................................................					11
1.3	Types of Dishwashers ........................................................................					13
1.4	Technical Data			....................................................................................		14
	1.4.1		Dishwasher Width...................................................................			14
	1.4.2		Dishwasher Height .................................................................			14
	1.4.3		Summary of Dimensions.........................................................			15
	1.4.4		Electrical Information ..............................................................			15
	1.4.5 Hard Wire .............................................Electrical Connection					16
	1.4.6		Plumbing Connection..............................................................			16
		1.4.6.1 .....................................................		Intake Connection		16
			1.4.6.2 ......................................................	Drain Connection		16
1.5	Data	Tag.............................................................................................				17
1.6	Layout of Components........................................................................					18
	1.6.1 Novotronic .........................................and Touchtronic Series					18
	1.6.2		Incognito Series ......................................................................			19

2.0Installation (Refer to the Appliance Installation Manual)………………. 20

3.0Commission and Operation………………………………………………….21

3.1	Door Handle and Door Lock (Novotronic & Touchtronic Series).........	21
3.2	Closing the Dishwasher Door .............................................................	21
3.3	Child Safety Lock................................................................................	21
3.4	Water Softener ...................................................................................	22
3.5	General Operation – Novotronic Series..............................................	23
3.6	General Operation – Touchtronic Series ............................................	23
3.7	General Operation – Incognito Series.................................................	23

4.0Description of Function……………………………………………………….24

4.1	Cabinet Construction ..........................................................................		24
4.2	Fan Assembly (Turbothermic Fan Equipped Models).........................		24
	4.2.1	PTC Release Element ............................................................	24
4.3	Combination Dispenser ......................................................................		25
	4.3.1	Construction ...........................................................................	25
	4.3.2	Dispensing...............................................................................	26
4.4	Heaters ...............................................................................................		27
	4.4.1 Wash Cavity Heating Element ...............................................		27
	4.4.2	Flow Through Heater:............................................................	28

		2

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 & G800 Electronic Dishwashers – Table of Contents (continued)

	4.4.2.1 Flow Through Heater Electrical Data ........................		28
4.5	Heater Circuit - Operation..................................................................		29
4.6	Pulsed Heating - Operation................................................................		30
4.7	Temperature Protection .....................................................................		30
4.8	Static Drying ......................................................................................		30
4.9	Spray Arms........................................................................................		31
	4.9.1	Spray Arms - Rotation Data..................................................	31
4.10	Filter Assembly ..................................................................................		31
4.11	Water Intake – Technical Data ..........................................................		32
4.12	WaterProof System ...........................................................................		33
4.13	Flowmeter - Operation.......................................................................		36
4.14	Water Intake......................................................................................		37
4.15	Water Mixing......................................................................................		38
	4.15.1	Water Mixing - External Flowmeter ......................................	38
	4.15.2	Water Mixing - Integrated Flowmeter ...................................	39
	4.15.3	Solenoid Valve - Operating (Plus Models Only) ..................	41
4.16	Electronic Controlled Water Hardness...............................................		42
4.17	Water Softener ..................................................................................		43
	4.17.1	Reactivation .........................................................................	44
	4.17.2	Reactivation Cycles .............................................................	45
4.18	Condenser Drying (UKT) ...................................................................		46
	4.18.1	Operation .............................................................................	46
	4.18.2	Technical Data .....................................................................	46
	4.18.3	Control Valve .......................................................................	48
4.19	Drain Pump, Circulation Pump ..........................................................		49
4.20	Level Switch – Heater (Heater Pressure Switch)...............................		49
4.21	Level Switch (Intake Overflow) ..........................................................		51
4.22	Temperature Sensor..........................................................................		52
4.23	Top Solo Valve ..................................................................................		53
4.24	Turbidity Sensor (ECO Sensor) .........................................................		54
4.25	Electronic Unit - Power Outputs.........................................................		55
	4.25.1 Programming After Replacing the Electronic .......................		56
	4.25.2	Electronic Modes .................................................................	56

5.0Service and Maintenance……………………………………………………..57

5.1	Locking Plate - Adjustment ................................................................	57
5.2	Cabinet Seal - Replacement..............................................................	57
5.3	Side Panel - Removal........................................................................	58
5.4	Spring Bracket - Replacement ..........................................................	59
5.5	Cover Plate - Removal .....................................................................	60
5.6	Connecting Strip - Removal...............................................................	61
5.7	Basket Support Rollers – Replacement.............................................	62
5.8	Combination Dispenser - Removal....................................................	64
5.9	Turbothermic Fan - Removal.............................................................	65

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 & G800 Electronic Dishwashers – Table of Contents (continued)

5.10	Door Panel (Outer and Inner) - Removal...........................................	66
5.11	Cable Holder - Removal ...................................................................	67
5.12	Lock / Handle Assembly - Removal...................................................	68
5.13	Door Hinge - Removal .......................................................................	69
5.14	Door Tension - Adjustment................................................................	70
5.15	Top Spray Arm - Removal.................................................................	71
5.16	Middle Spray Arm - Removal.............................................................	71
5.17	Bottom Spray Arm - Removal............................................................	71
5.18	Top Spray Arm Feed Pipe - Removal................................................	71
5.19	Middle Spray Arm Cover - Removal ..................................................	72
5.20	Middle Spray Arm Feed Pipe - Removal ...........................................	72
5.21	Flow-Through Heater - Removal .......................................................	73
5.22	Temperature Limiter - Replacement ..................................................	74
5.23	Microfine Filter – Exchange ...............................................................	75
5.24	WaterProof System (WPS) - Removal...............................................	76
5.25	WaterProof System (WPS) Restrictor - Exchange.............................	77
5.26	Water Inlet (Diverter) - Removal........................................................	78
5.27	Water Softener – Operational Check.................................................	79
5.28	Water Softener AssemblyRemoval..................................................	80
5.29	Drip Tray - Removal ..........................................................................	80
5.30	Float Switch Housing - Removal........................................................	80
5.31	Float Switch – Removal....................................................................	81
5.32	Steam Condenser - Removal ............................................................	82
5.33	Control Valve - Removal...................................................................	83
5.34	Temperature Sensor (NTC) - Removal ............................................	83
5.35	Circulation Pump (M6) - Removal......................................................	84
5.36	Circulation Pump - Partition & Impeller Replacement........................	85
5.37	Circulation Pump Housing - Exchange............................................	86
5.38	Circulation Pump – Release with Tool...............................................	86
5.39	Heater Level Switch – Removal.........................................................	88
5.40	Drain Pump – Removal .....................................................................	89
5.41	Top Solo Valve - Removal.................................................................	90
5.42	Overflow Level Switch - Removal ......................................................	91
5.43	Sump - Removal................................................................................	92
5.44	Turbidity Sensor - Calibration ............................................................	93
5.45	Turbidity Sensor - Removal ...............................................................	93
5.46	Fully Integrated (Vi) Control Panel - Removal ...................................	94
5.47	Novotronic & Touchtronic Control Panel – Removal..........................	95
5.48	Fixing Bracket – Removal..................................................................	96
5.49	Heating Relay & Power Relay – Removal .........................................	97

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 & G800 Electronic Dishwashers – Table of Contents (continued)

6.0Fault Diagnosis……………………………………………………………….....98

6.1 General Information ...........................................................................		98
6.2 Programming and Service Mode - Features......................................		98
6.2.1	Water Hardness Programming............................................	98
6.2.2 Drying Options (As Applicable) ...........................................		98
6.2.3	Water Intake Duration .........................................................	98
6.2.4	Buzzer (As Applicable)........................................................	99
6.2.5	Fault Code (Retrieval).........................................................	99
6.2.6	Increase Temperature.........................................................	99
6.2.7 With OR Without Water Softener ........................................		99
6.2.8	2nd Interim Rinse................................................................	99
6.2.9	Width of Unit .....................................................................	100
6.2.10	Flowmeter Count ..............................................................	100
6.2.11	Operating Hours ...............................................................	100

6.3Programming / Service Modes – Access……………………………...100

6.4	Timing Charts – General Information................................................	101
6.5	Wiring Diagrams – General Information...........................................	105
6.6	Timing Charts & Wire Diagrams ......................................................	105
6.7	Fault Repair .....................................................................................	106

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 &G800 Electronic Dishwashers – List of Figures

1-1:	Appliance Overview - Typical Integrated Model ...................................	9
1-2:	Appliance Overview – Typical Fully Integrated (Vi) Model .................	10
1-3:	Pre-Finished Dishwasher ...................................................................	13
1-4:	Integrated Dishwasher .......................................................................	13
1-5:	Fully Integrated ..................................................................................	13
1-6:	Dishwasher Widths ............................................................................	14
1-7:	Dishwasher Heights ...........................................................................	14
1-8:	Data Tag Locations and Information ..................................................	17
1-9:	Component Overview – Novotronic & Touchtronic Series .................	18
1-10:	Component Overview – Incognito (Vi) Series ....................................	19
4-1:	Dispenser Assembly ..........................................................................	25
4-2:	Cavity Style Heater Element ..............................................................	27
4-4:	Heater Circuit .....................................................................................	29
4-5:	Filter Assembly ..................................................................................	31
4-6:	WaterProof System Connection.........................................................	33
4-7:	Water Intake Circuit............................................................................	35
4-8:	Flowmeter Assembly Components (External Flowmeter Shown) ......	36
4-9:	Water Intake System Equipped With Integrated Flowmeter...............	37
4-10:	Water Hardness Selector ...................................................................	38
4-11:	Water Path with Integrated Flowmeter ...............................................	39
4-12:	Water Inlet Mixer................................................................................	40
4-13:	Water Hardness Mixer Solenoid ........................................................	41
4-14:	Water Softener...................................................................................	43
4-15:	Components for the Condenser Drying System.................................	47
4-16:	Control Valve .....................................................................................	48
4-17:	Heater Pressure Switch – Contact Positions and Current Paths........	50
4-18:	Water Intake / Level Switch Circuit.....................................................	51
4-19:	Circulation Pump & Top Solo Valve. ..................................................	53
4-20:	Turbidity Sensor (ECO Sensor) .........................................................	54
5-1:	Locking Plate .....................................................................................	57
5-2:	Seal Fitting Plan.................................................................................	57
5-3:	Side Panels and Cabinet....................................................................	58
5-4:	Side View, Door with Bracket.............................................................	59
5-5:	Cover Plate ........................................................................................	60
5-6:	Plinth area with Connecting Strip .......................................................	61
5-7:	Basket Guide .....................................................................................	62
5-8:	Bolt and Retaining Clip.......................................................................	62
5-9:	Basket Guide Stopper........................................................................	63
5-10:	Stopper removal.................................................................................	63

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

G600 &G800 Electronic Dishwashers – List of Figures (continued)

5-11: Exterior view of the Inner Door Panel.................................................	64
5-12: Fan Removal......................................................................................	65
5-13: Inner Door Panel Removal.................................................................	66
5-14: Cable Holder Removal .......................................................................	67
5-15: Lock Removal ....................................................................................	68
5-16: Hinge Removal ..................................................................................	69
5-17: Door Tension Adjustment Screw........................................................	70
5-18: Middle Spray Arm Cover Removal.....................................................	72
5-19: Dishwasher with Flow-Through Heater ..............................................	73
5-20: Flow-Through Heater with Seal..........................................................	74
5-21: Microfine Filter – Replacement ..........................................................	75
5-22: Pressing and Locking the Filter Assembly. ........................................	76
5-23: Tilting the Flow Restrictor...................................................................	77
5-24: Removing the Flow Restrictor. ...........................................................	77
5-25: Water Inlet - Removal ........................................................................	78
5-26: Float Switch Housing .........................................................................	81
5-27: Steam Condenser Components.........................................................	82
5-28: Circulation Pump – Removal..............................................................	84
5-29: Components within the Circulation Pump ..........................................	85
5-30: Placing the Circulation Pump Tool into ..............................................	86
5-31: Engaging the tool prongs into the Circulation Pumps Impellers. ........	86
5-32: Turning the Circulation Pump Tool.....................................................	87
5-33: Heater Level Switch and Circulation Pump ........................................	88
5-34: Drain Pump - Replacement................................................................	89
5-35: Circulation Pump with Top Solo Valve attached. ...............................	90
5-36: Releasing the Overflow Level Switch from the Connecting Strip .......	91
5-37: Self Tensioning Sump Clamp.............................................................	92
5-38: Sump Clamp without the self tensioning; ...........................................	92
5-39: Fully Integrated (Vi) Control Panel .....................................................	94
5-40: Control Panel (Novotronic and Touchtronic Dishwashers).................	95
5-41: Removing the Fixing Bracket .............................................................	96

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information
G600 &G800 Electronic Dishwashers – List of Tables
1-1: Summary of Dimensions ......................................................................	15
4-1: Detergent Quantity in Combination Dispensers. ..................................	26
4-2: Rinse Aid Dispensing...........................................................................	26
4-4: Flow Restrictor Data.............................................................................	32
4-5: Water Inlet Mixer Data .........................................................................	32
4-6: Reactivation Cycles Timing..................................................................	45
4-7: Circulation and Drain Pump Data.........................................................	49
4-8: NTC Sensor Resistance Values...........................................................	52
4-9: Activation of Components ....................................................................	55

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.0Construction and Design

1.1Appliance Overview

1.1.1Appliance Overview – Typical Integrated Model

Figure 1-1: Appliance Overview - Typical Integrated Model

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.1.2Unit Overview – Typical Fully Integrated Model

Figure 1-2: Appliance Overview – Typical Fully Integrated (Vi) Model

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.2Controls Overview

Miele dishwashers are currently categorized into three (3) product series, based on the type of controls.

Novotronic

Each Novotronic model dishwasher can be operated with a single knob. Surface mounted design technology (SMD) allows Miele Novotronic components to be extremely durable and reliable. These controls are capable of performing hundreds of tasks which cannot be handled by mechanical components.

Touchtronic

This new series of Miele dishwashers is operated by pushing a single button -- no separate temperature or drying selections -- just turn the machine on, pick a program and Miele does the rest. All models now include a Pots and Pans program and a Water Management System, designed to maximize cleaning results and optimize water and energy conservation.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

Incognito

The Incognito (fully integrated) series dishwashers have the program controls located on the top edge of the door; and are accessed while the door is open. Neither seen nor heard, the Miele Incognito Series OCI (Optical Cycle Indicator) you to see the progress of the dishwasher cycle by way of a red light, which is steady or flashing depending on the status of the cycle.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.3Types of Dishwashers

Pre-Finished: The pre-finished construction consist of a pre-assembled door panel and control panel; making it an ideal replacement unit.

Available in white, black or stainless steel.

Figure 1-3: Pre-Finished Dishwasher

Integrated: This type of dishwasher is shipped with a separate control panel, and optional GDU (door) panel. Every Integrated dishwasher ships with a bracket for installing a custom cabinet panel. The use of separate components allows for a truly customized installation.

Figure1-4: Integrated Dishwasher

Fully Integrated: Fully Integrated (Incognito) Dishwashers are designed to blend into the surrounding cabinetry. The operator controls are only available when door is opened. Each dishwasher is shipped with a bracket for securing a custom cabinet panel. An optional Miele

stainless steel SCVi panel is also available.

Figure 1-5: Fully Integrated

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.4Technical Data

1.4.1Dishwasher Width – Fullsize / Slimline


	23 ½ in.	17 ½ in.

Figure 1-6: Dishwasher Widths

1.4.2Dishwasher Height – 600 / 800 Series

32 1/4
32 1/4		33 1/8
	to	33 1/8
	to	to 35”
34	7/8”	to 35”
34	7/8”

Figure 1-7: Dishwasher Heights

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

					Technical Information
1.4.3	Summary of Dimensions

		FULLSIZE	G600 Series		G800 Series
		Height	32	¼” - 34 7/8”	33 1/8”- 35”
		Width of Machine	23 1/2”		23 1/2”
		Width of Opening	23 5/8”		23 5/8”
		Depth	22	½”	22 ½”
		Depth w/ door open	45	½”	47 ½”

		SLIMLINE	G600 Series		G800 Series
		Height	32	¼” - 34 7/8”	331/8” - 35”
		Width of Machine	17	½”	17 ½”
		Width of Opening	17	¾ “	17 ¾”
		Depth	22	½”	22 ½”
		Depth w/ door open	45	½”	47 ½”

Table 1-1: Summary of Dimensions

1.4.4Electrical Information

Power Requirements: 120 VAC, 60 Hz

Rated Load: 12.5 A / 1500 W (typical)

Circuit breaker: 15 AMPS

The appliance is equipped with a 4 ft power cord and molded NEMA 515 plug; for connection to a NEMA 5-15R receptacle

(120VAC, 15 Amp, 3 prong, grounded outlet).

It is recommended that the power outlet for the appliance be installed on the wall (within the cabinets), adjacent to under counter space where the appliance is installed.

Ensure the cabinets contain no rough edges that could damage the power cord or drain hose. If metal cabinets are used, ensure a rubber grommet is installed around the opening.

Always exercise care when sliding the dishwasher in or out, to prevent damaging the power cord and / or hoses.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.4.5Hard Wire Electrical Connection

Connections: L1 (Black) to L on terminal block, N (White) to N on terminal block, GND To ground connector.

Hard wiring the dishwasher should only be done if required by electrical code.

Do not cut the plug off the power supply cord / plug and connect it directly to the house wiring under any circumstances. This voids the warranty.

For hard wiring, the power cord must be removed from the appliance by disconnecting the cord from the terminal box located at the lower left front of the dishwasher, behind the Toekick and Service Panel. Pass the permanent power supply cable through the strain relief and secure it directly to the terminal box.

THIS APPLIANCE MUST BE GROUNDED

1.4.6Plumbing Connection

1.4.6.1Intake Connection

The appliance is equipped with a five (5) foot long Double WaterProof

System Intake Hose; equipped with a ¾ inch female hose connection; for connection to a ¾ inch male hose thread water supply valve.

1.4.6.2Drain Connection

The appliance is equipped with a five (5) foot long Drain Hose for connection to a ¾ inch drain nipple.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.5Data Tag

The Data Tag is located on the top edge of the door or on the right side edge of the door (fully integrated models) - as shown.

ETL Certification –OR-

Figure 1-8: Data Tag Locations and Information

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.6Layout of Components

1.6.1Novotronic and Touchtronic Series





1	Temperature Limiter 90°C, 3F2. (before 8/99)
1	Temperature Limiter 90°C, 3F2. (before 8/99)		14	Relay - Heating, 1K1/1
2	Interference Suppression Capacitor, Z2		15	Terminal Block, X3/1
3	Capacitor - Circulation Pump, C6		16	Circulation Pump, M6
4	Rinse Aid Dispenser, Y50		17	Water Softener Valve, Y38/1
5	Detergent Dispensert, Y51		18	Flow Meter, B3/4
6	Flow Through Heater, R1		19	Reed Switch – Salt Float, B8/2
7	Temperature Limiter 150°C, 1F2 and 2F2		20	Drain Pump, M8
8	Door Switch, S24		21	Level Switch - Overflow, B1/2
9	Fan M2 & PTC Release Element Y56		22	Temperature Sensor, R30
10		On / Off Switch, S2	23	Float Switch, B8/3
11		WaterProof System (WPS), Y2	24	Level Switch - Heating, B1/10
12		Electronic	25	Transformer, T1
13		Reed Switch - Rinse Aid, B8/1

Figure 1-9: Component Overview – Novotronic & Touchtronic Series

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

1.6.2Incognito Series


1	Temperature Sensor, R30		17	Water Intake Mixer
2	Float Switch, B8/3		18	Electronic
3	Level Switch - Heating, B1/10		19	Reed Switch - Rinse Aid, B8/1
4	Relay - Mains, 1K1/6		20	Capacitor - Circulation Pump, C6
5	Relay - Heating, 1K1/1		21	Water Control Valve, Y5
6	Fan, M2		22	Terminal Block, X3/1
7	Interference Suppression Capacitor, Z2		23	Flow Meter, B3/4
8	Steam Condenser (not all models)		24	Circulation Pump, M6
9	Rinse Aid Dispenser, Y50		25	Condenser Control Valve, Y6 (if equip. w #8)
10		Detergent Dispenser, Y51	26	Water Softener (Resin Tank)
11		Flow Through Heater, R1	27	Water Softener Valve, Y38/1
12		Temperature Limiter, 1F2 and 2F2	28	Reed Switch - Reactivation Salt Indicator, B8/2
13		Switch - Door Contact, S24	29	Circulation Valve, Y27
14		Electronic	30	Drain Pump, M8
15		WaterProof System (WPS), Y2	31	Level Switch - Overflow, B1/2
16		Door Switch, S5

Figure 1-10: Component Overview – Incognito (Vi) Series

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

2.0Installation

Refer to the Appliance Installation Manual.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

3.0Commission and Operation

3.1Door Handle and Door Lock

(Novotronic and Touchtronic Series)

Press the release catch inside the Door Grip.

Note

If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will restart.

3.2Closing the Dishwasher Door

1.Push the baskets in.

2.Lift the door and push it closed until it locks into the closed position.

3.3Child Safety Lock

Horizontal: the door is locked

Vertical:

the door can be opened

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

3.4Water Softener

If your tap water hardness is above 8 grains per gallon (140 ppm), the water should be softened.

A Water Hardness Test Strip is used to determine the water hardness.

If the Water Softener is needed:

The dishwasher must be programmed to “with Water Softener” (ON).

The Water Softener reservoir is filled with softener salt.

The water hardness level is programmed into the dishwasher electronic.

If the Water Softener is not needed:

The dishwasher must be programmed to “without Water Softener” (OFF); however the hardness level is not programmed into the electronic

Salt is not needed and should not be installed.

Water Softener Salt

Only use water softener salt specially formulated for dishwashers.

Other salts may contain insoluble additives that impair the Water

Softener. The proper salt can be purchased from the Miele Technical

Service Department.

To add salt:

1.Remove the Lower Basket.

2.Unscrew and remove the Salt Reservoir Cap located on the floor of the Wash Cabinet.

3.If this is the first time salt is installed; add 2 quarts water.

4.Place a funnel over the Salt Reservoir. Carefully fill with salt.

Note

The Salt Reservoir holds approximately 4.5 lbs (2 kg) of salt.

5.Clean any excess salt from the threads of the reservoir opening; and screw the cap on firmly.

6.Run the "Rinse & Hold" program to remove any traces of salt from inside the Wash Cabinet.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

3.5General Operation – Novotronic Series

1.Make sure the Spray Arms are not blocked.

2.Close the door.

3.Turn on the dishwasher. The "Start" Indicator will flash.

4.Select a wash program by turning the Program Selector to the left or right.

5.Press the "Start" button.

3.6General Operation – Touchtronic Series

1.Make sure the Spray Arms are not blocked.

2.Close the door.

3.Turn on the dishwasher. The "Start/Stop" Indicator will flash and a Program Indicator will light.

4.Select a wash program using the Program Selection Buttons. The

Selected Program Indicator will light.

5.Select "Top Solo" if desired.

6.Press the "Start/Stop" button.

3.7General Operation – Incognito Series

1.Open the door.

2.Make sure the Spray Arms are not blocked.

3.Turn on the dishwasher using the "On" button.

4.Select a wash program using the Program Selection Buttons.

The Selected Program Indicator will light.

5.Close the door. The Optic Indicator illuminates and the program begins.

Note

For specific program details and further information on operating the dishwasher refer to the model specific Operating Manual.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.0Description of Function

4.1Cabinet Construction

The inner cabinet is constructed of stainless steel (1.4301) welded onto four (4) vertical U-section sub-frames. The cabinet is sound and heat-insulated with bitumen and/or mineral wool matting.

4.2Fan Assembly

(Units equipped with Turbothermic Fan)

The fan assembly consists of the Fan Motor (M2) and a PTC Release

Element (Y56), which opens the air outlet flap. The 120VAC fan operates in the drying stage, after a brief delay. The PTC Release Element is activated, and the Air Outlet Flap is partially opened. A bypass channel behind the air outlet is also opened and ensures that the moist air from the cabinet is mixed with dry air from the door interior. This measure prevents condensation from developing. After about a minute, the electronic switches off the Release Element, however the Air Outlet Flap remains partially open. After a few minutes the Release Element is activated again, which completely opens the

Air Outlet Flap. The fan operates constantly throughout this period until the program ends.. The Air Outlet Flap remains open at program end and closes when the dishwasher door is opened.

4.2.1PTC Release Element

(Units equipped with Turbothermic Fan)

When 120VAC is applied to the Release Element, the PTC Resistor heats a small grease-filled capsule. As the grease expands it pushes a piston upward and slides the Air Outlet Flap to a partially open position. When the Release Element is activated the second time, the piston slides the Air Outlet Flap to a fully open position.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.3Combination Dispenser

4.3.1Construction

Two individual solenoids control detergent and rinse aid dispensing.

The Rinse Aid Reservoir has a capacity of about 130 ml. When the

Rinse Aid level drops to about 25 ml. the Magnetic Float activates a Reed Switch on the edge of the dispenser and the Rinse Aid LED illuminates.

Figure 4-1: Dispenser Assembly

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.3.2Dispensing

During the main wash, the Detergent Solenoid (Y51) is energized (120VAC), to open the Detergent Dispenser Flap. The water jet from the Middle Spray Arm flushes detergent out of the dispenser.

Table 4-1: Detergent quantity in Combination Dispensers C2.06 and C2.09.

During the final rinse the Rinse Aid Solenoid (Y50) is energized (120VAC), to open the dispenser chamber and allow Rinse Aid to be dispensed into the cabinet.

Note

The Rinse Aid only flows from the reservoir into the dispenser chamber when the front door is fully opened at the end of a program.

The quantity taken into the dispenser chamber depends on the dispenser selector setting.

Table 4-2: Rinse Aid Dispensing (Combination Dispensers C2.06 and C2.09).

When the Rinse Aid Light turns on, an additional 2 to 5 dispensings (at setting 2) remain available.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

Note

To allow proper filling of the Rinse Aid Dispenser; Rinse Aid should only be added with the door in the fully open position.

4.4Heaters

During the main wash and final rinse portions of a wash cycle, the water is heated to the programs specified temperature before advancing to the next step in the program (i.e.Thermal Stop).

The water is heated using one of two systems:

4.4.1Wash Cavity Heating Element

Figure 4-2: Cavity Style Heater Element

The Heating Element is mounted just off the floor of the wash cavity.

When powered (120 VAC) the element radiates heat thereby heating the surrounding and circulating water. The temperature of

the water is monitored by the Temperature Sensor, mounted in the Sump.

Heating Element switching is performed by the electronic via a Relay.

The relay (when energized) closes contacts to provide the Heater Element with 120VAC. A Temperature Limiter mounted with the element provides protection by opening up the circuit should the temperature become to high.

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.4.2Flow Through Heater:

The Flow Through Heater Assembly is mounted on the (left side) exterior of the wash cabinet. The Flow Through Heater is plumbed into the water path between the Circulation Pump Output and the Middle Spray Arm.

The Flow Through Heater Consist of a Heater Element mounted parallel to a metal tube that water passes through when the dishwasher is circulating.

As water flows through the metal tube; the water is heated and exits through the Middle Spray-Arm. As the water falls to the bottom of the wash cavity, it passes through the filter and re-enters the Circulation

Pump - the process then repeats.

The Temperature Sensor monitors the water temperature until the programs specified temperature is

reached. Generally the water heats Figure 4-3: Flow Through Heater about 20 per minute.

Heating Element switching is performed by the electronic via a Relay.

The relay (when energized) closes contacts to provide the Heater Element with 120VAC. Two Temperature Limiters are mounted along the element and provides protection by opening up the circuit should the temperature become to high.

4.4.2.1Flow Through Heater Electrical Data

120VAC

1.5kW

9.6 k.Ohms

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.5Heater Circuit - Operation

Figure 4-4: Heater Circuit

Downloaded from www.Manualslib.com manuals search engine

G600 & G800 Electronic Dishwashers

Technical Information

4.6Pulsed Heating - Operation

In certain programs the heating may be operated at full power until a water temperature of 77°F is reached; then power is applied in pulses. This extends the heating time and allows enzyme-containing detergents to develop their full cleaning potential.

The pulsed heating operates as follows:

•1 min heater element on.

•1 min heater element off.

The number of pulse cycles is limited to a maximum of 11. If the programs specified temperature has not been reached, the heating resumes using full power. Once the programs temperature has been reached, the electronic unit advances to the next step in the program.

If the temperature cannot be reached (i.e. heater failure) within a specified time, the program will advance; and a heating fault is stored in the electronic.

4.7Temperature Protection

The Flow-through Heater uses two (2) Temperature Limiters (2F2) mounted on the body of the Flow-Through Heater. The Temperature Limiters are designed to open the circuit should the temperature become too high. When the temperature falls, the Temperature

Limiters do not reset automatically and must be reset manually (via the red button on the back of the device).

Additional protection is provided by the Electronic, which switches the appliance off and stores an F4 fault code, should the temperature exceed 194°F (90°C) – as determined by the Temperature Sensor.

4.8Static Drying

The Static Drying System uses no electrical and / or mechanical components to assist in drying. With this system the final rinse water is heated to 154°F (68°C) (not the usual 150°F / 67°C). The dishwasher cabinet is made of stainless steel; and conducts the heat generated during the final rinse. As the final rinse ends this stored thermal energy radiates and assists in the drying.
