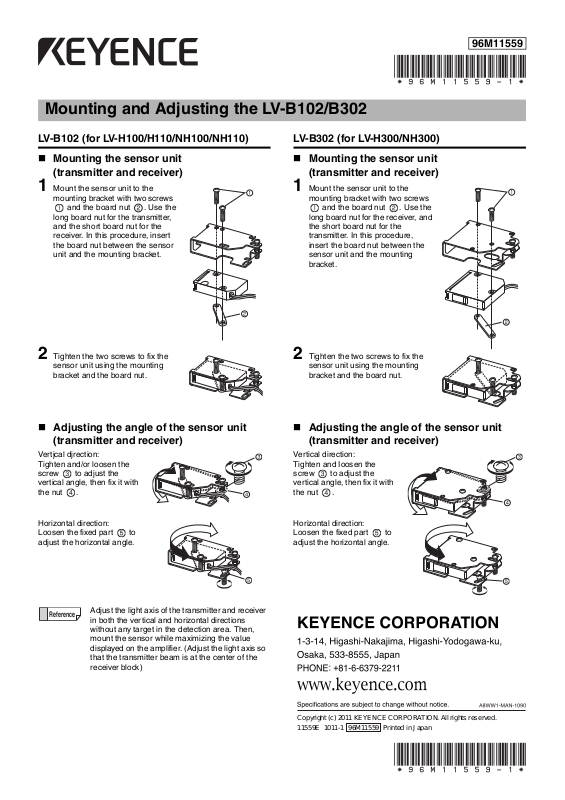

Mounting and Adjusting the LV-B102/B302
96M11559
LV-B102 (for LV-H100/H110/NH100/NH110)
Mounting the sensor unit
(transmitter and receiver)
1 Mount the sensor unit to the
mounting bracket with two screws
and the board nut . Use the
long board nut for the transmitter,
and the short board nut for the
receiver. In this procedure, insert
the board nut between the sensor
unit and the mounting bracket.
2 Tighten the two screws to fix the
sensor unit using the mounting
bracket and the board nut.
Adjusting the angle of the sensor unit
(transmitter and receiver)
Vertjcal djrection:
Tighten and/or loosen the
screw to adjust the
vertical angle, then fix it with
the nut .
Horizontal direction:
Loosen the fixed part to
adjust the horizontal angle.
LV-B302 (for LV-H300/NH300)
Mounting the sensor unit
(transmitter and receiver)
1 Mount the sensor unit to the
mounting bracket with two screws
and the board nut . Use the
long board nut for the receiver, and
the short board nut for the
transmitter. In this procedure,
insert the board nut between the
sensor unit and the mounting
bracket.
2 Tighten the two screws to fix the
sensor unit using the mounting
bracket and the board nut.
Adjusting the angle of the sensor unit
(transmitter and receiver)
Vertical direction:
Tighten and Ioosen the
screw to adjust the
vertical angle, then fix it with
the nut .
Horizontal direction:
Loosen the fixed part to
adjust the horizontal angle.
Adjust the light axis of the transmitter and receiver
in both the vertical and horizontal directions
without any target in the detection area. Then,
mount the sensor while maximizing the value
displayed on the amplifier. (Adjust the light axis so
that the transmitter beam is at the center of the
receiver block)
