Iveco N60 ENT M37 Service Manual

TECHNOLOGICAL EXCELLENCE

NEF

N60 ENT M37

6 CYLINDERS IN LINE

DIESEL CYCLE

FOR MARINE APPLICATIONS

INSTALLATION DIRECTIVE

FOREWORD

We strongly recommend that you carefully read the indica­tions contained in this document: compliance with them pro­tects the engine against irregular operation and assures its
reliability, safeguarding sea-going and maintenance personnel
against accident hazards.
The indications contained in this directive pertain to the
N60 ENT M37 engine and complement the IVECO
MOTORS publication “Guide to the Installation of Marine
Engines” the reader should refer to, for anything that is not
explained herein.
For more complete information about the engine, please
refer to the appropriate technical brochure.
Use of fuels and oils with different characteristics from those
set out in the operation and maintenance manual may com­promise the regular operation of the engine, limiting its per­formance, reliability and working life.

Exclusive use of IVECO Original Parts is a necessar y condi­tion to maintain the engine in its original integrity.

Tampering, making modifications and using non original parts
can jeopardize the safety of boat engineers and users.

To obtain spare par ts, you must indicate:

- Commercial code, serial number and indications shown
on the engine tag;

- Part number of the spare as per spare par t catalog.

The information provided below refer to engine characteris­tics that are current as of the publication date.
IVECO MOTORS reserves the right to make modifications
at any time and without advance notice, to meet technical or
commercial requirements or to comply with local legal and
regulatory requirements.

We refuse all liability

for any errors

and omissions.

The reader is reminded that the IVECO MOTORS Technical
Assistance Network is always at the Customer’s side with its
competence and professionalism.

Publication IVECO MOTORS edited by:
IVECO PowerTrain
Advertising & Promotion
Pregnana Milanese (MI)
www.ivecomotors.com

Printed P3D64N001 E - March 2004 Edition

N60 ENT M37 INSTALLATION DIRECTIVE

2

MARCH 2004

CONTENTS

Page

1. WARNINGS AND CAUTIONS 4

2. ENGINE PARTS AND COMPONENTS 6

3. INSTALLATION OVERVIEW 8

4. GENERAL INSTALLATION CRITERIA 9

5. TECHNICAL DATA FOR INSTALLATION 10

6. IDENTIFICATION DATA 12

7. FUEL LINE 13

8. ELECTRICAL EQUIPMENT 15

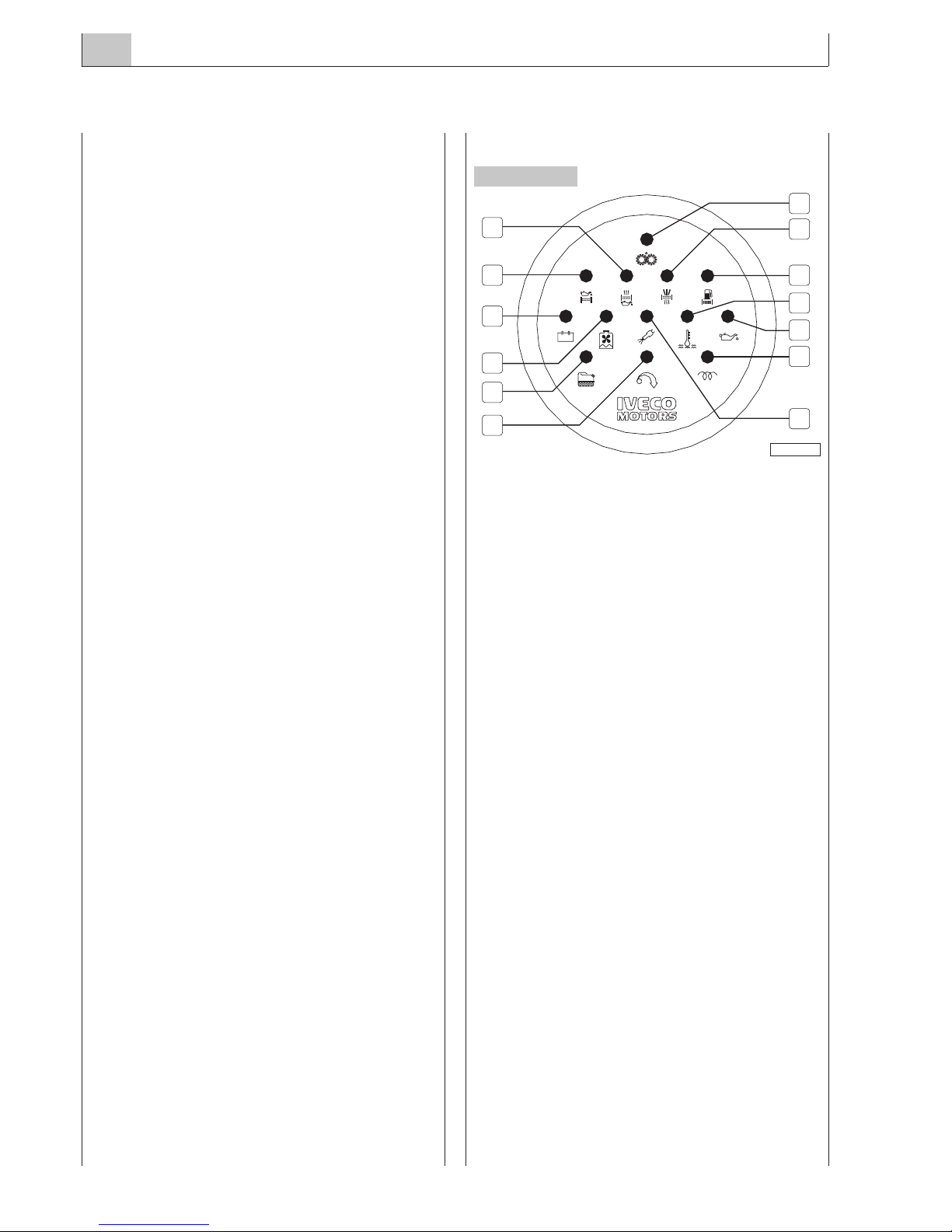

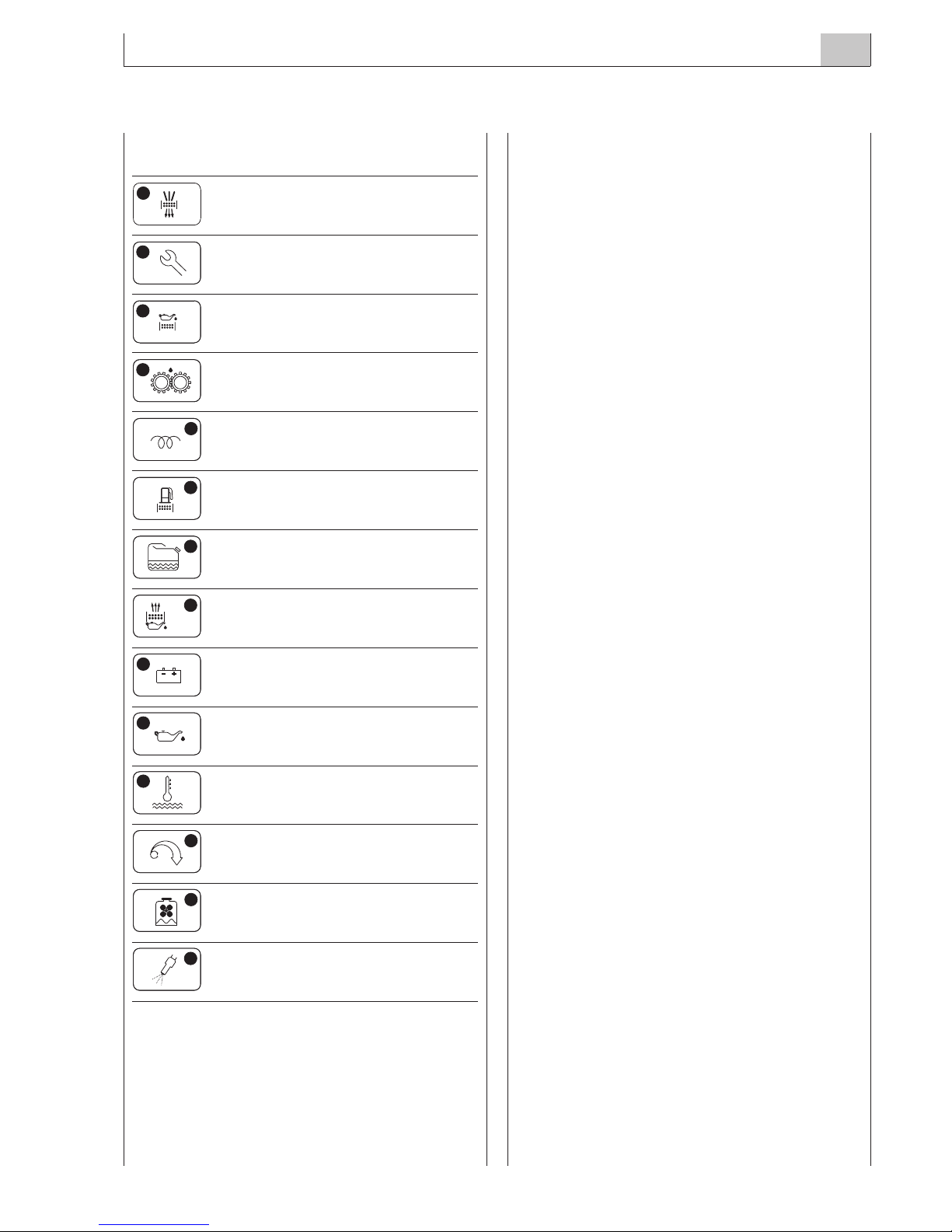

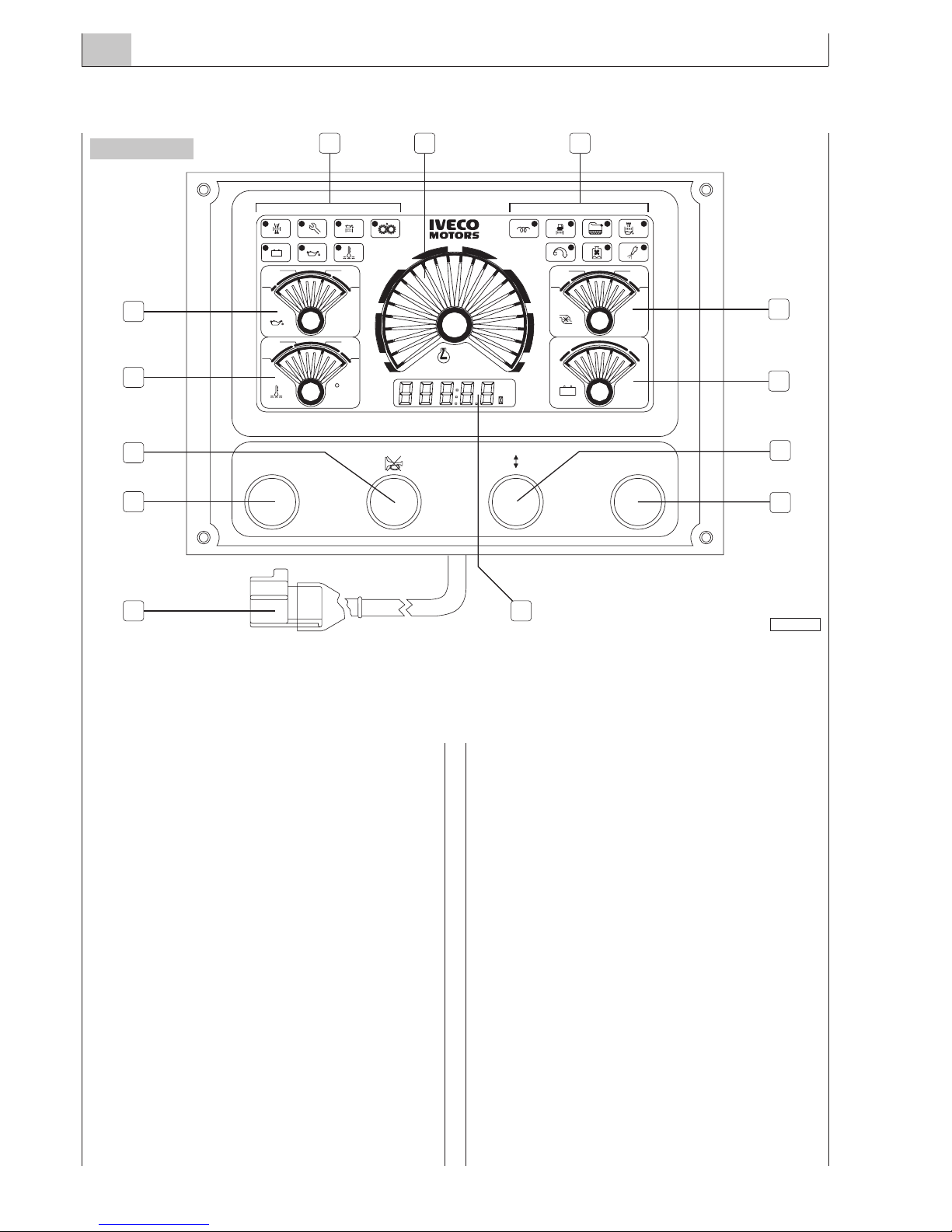

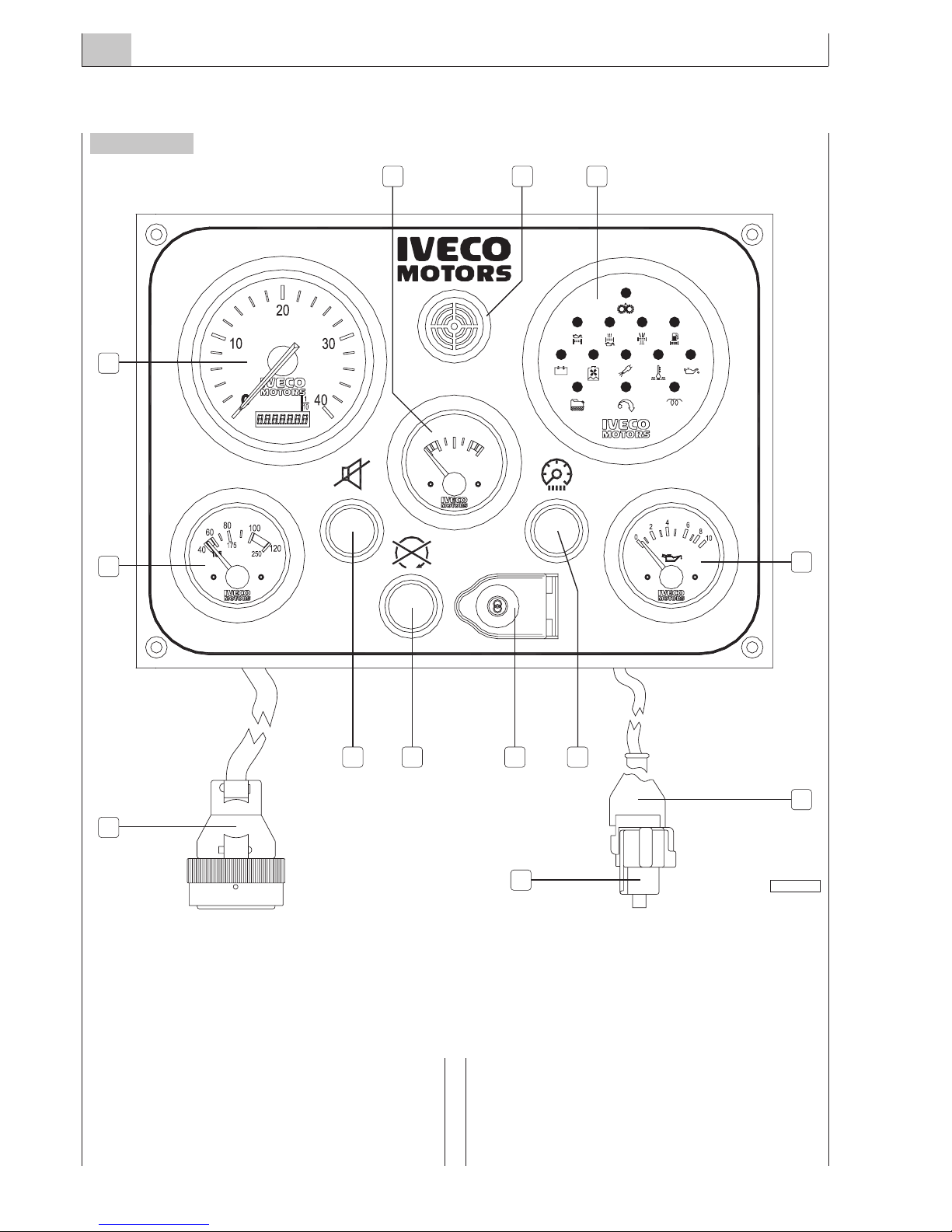

9. MAIN ANALOG INSTRUMENT PANEL 20

10. SECONDARY ANALOG INSTRUMENT PANEL 24

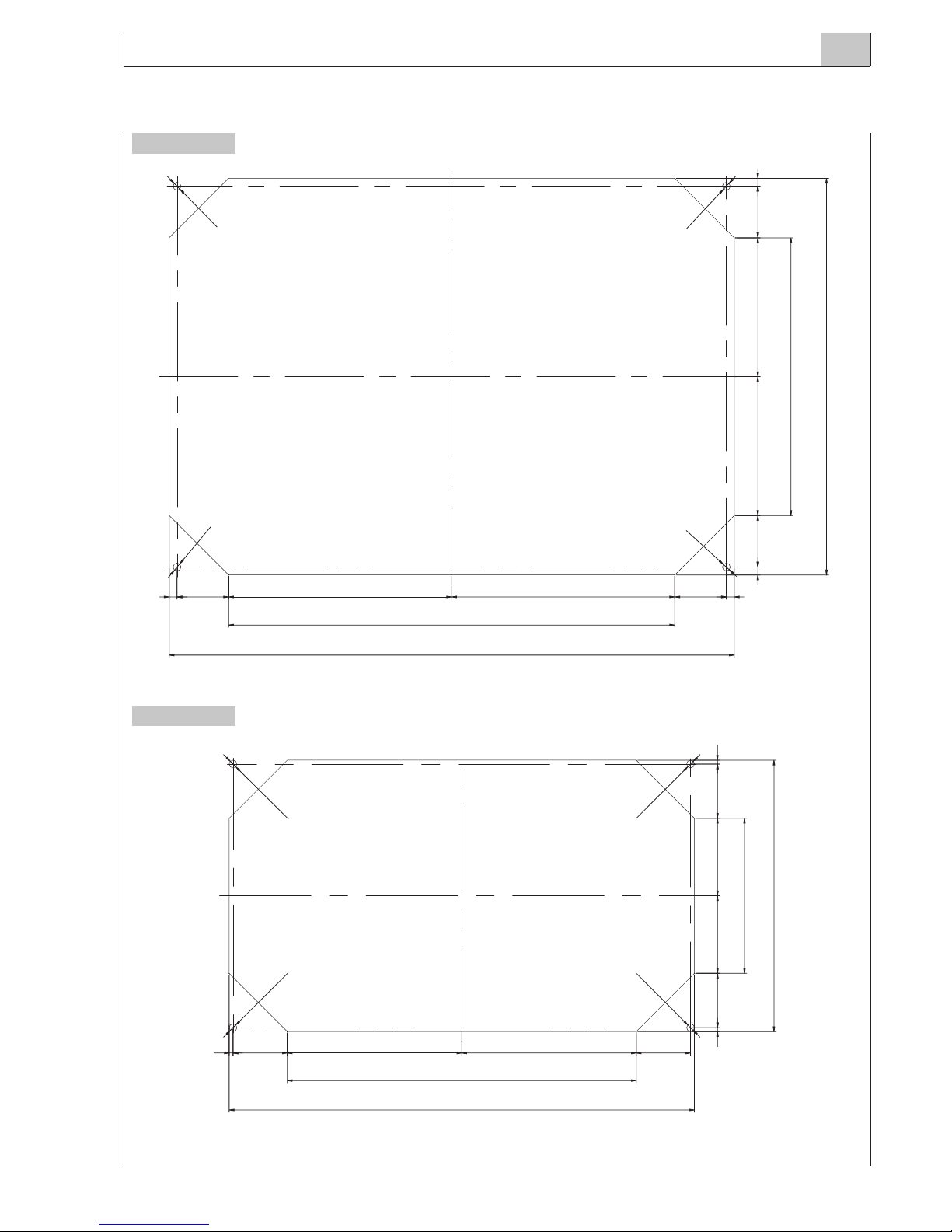

11. DRILLING PLANS FOR ANALOG PANELS 25

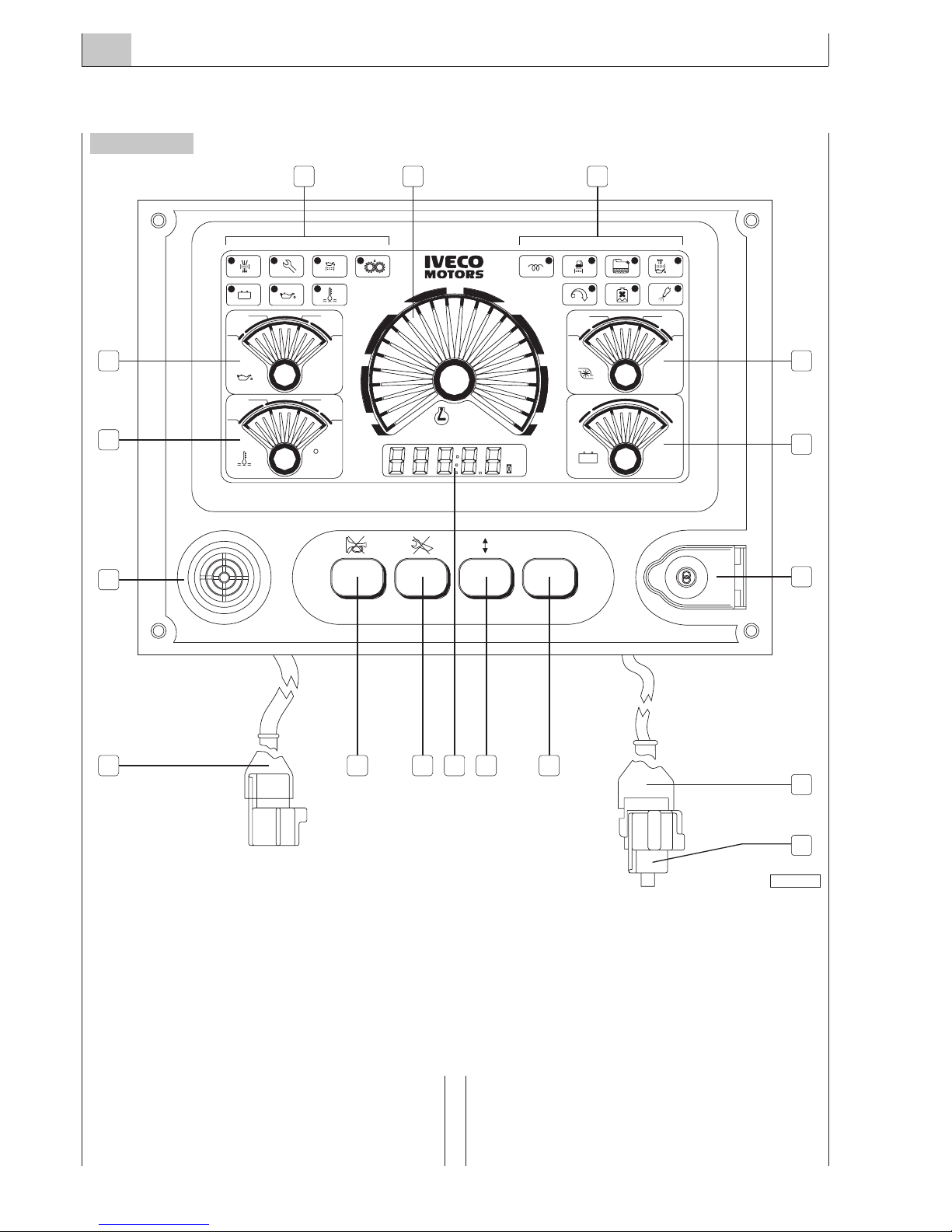

12. MAIN DIGITAL INSTRUMENT PANEL 26

13. SECONDARY DIGITAL INSTRUMENT PANEL 32

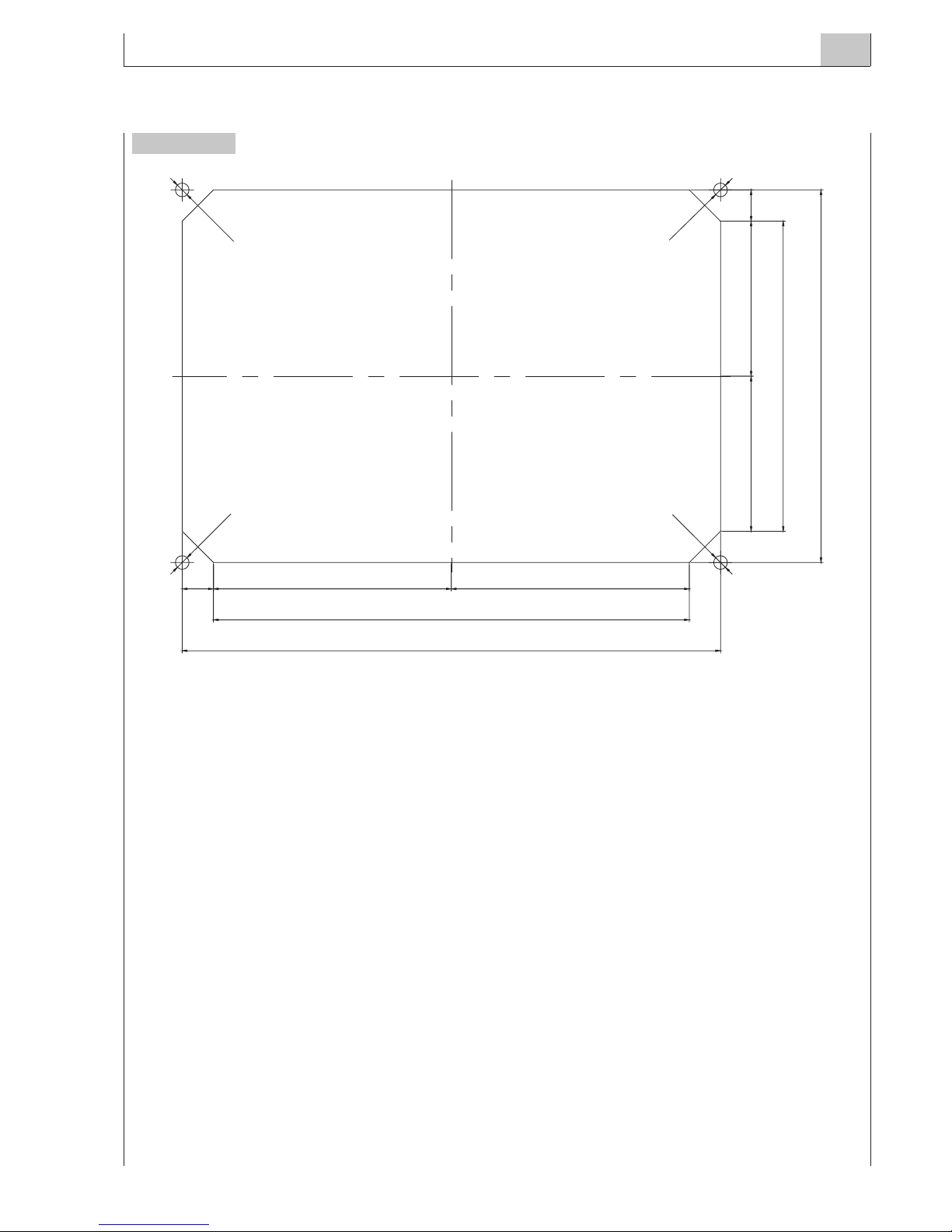

14. DRILLING PLAN FOR DIGITAL PANELS 33

15. CUSTOMIZED INSTRUMENT PANEL 34

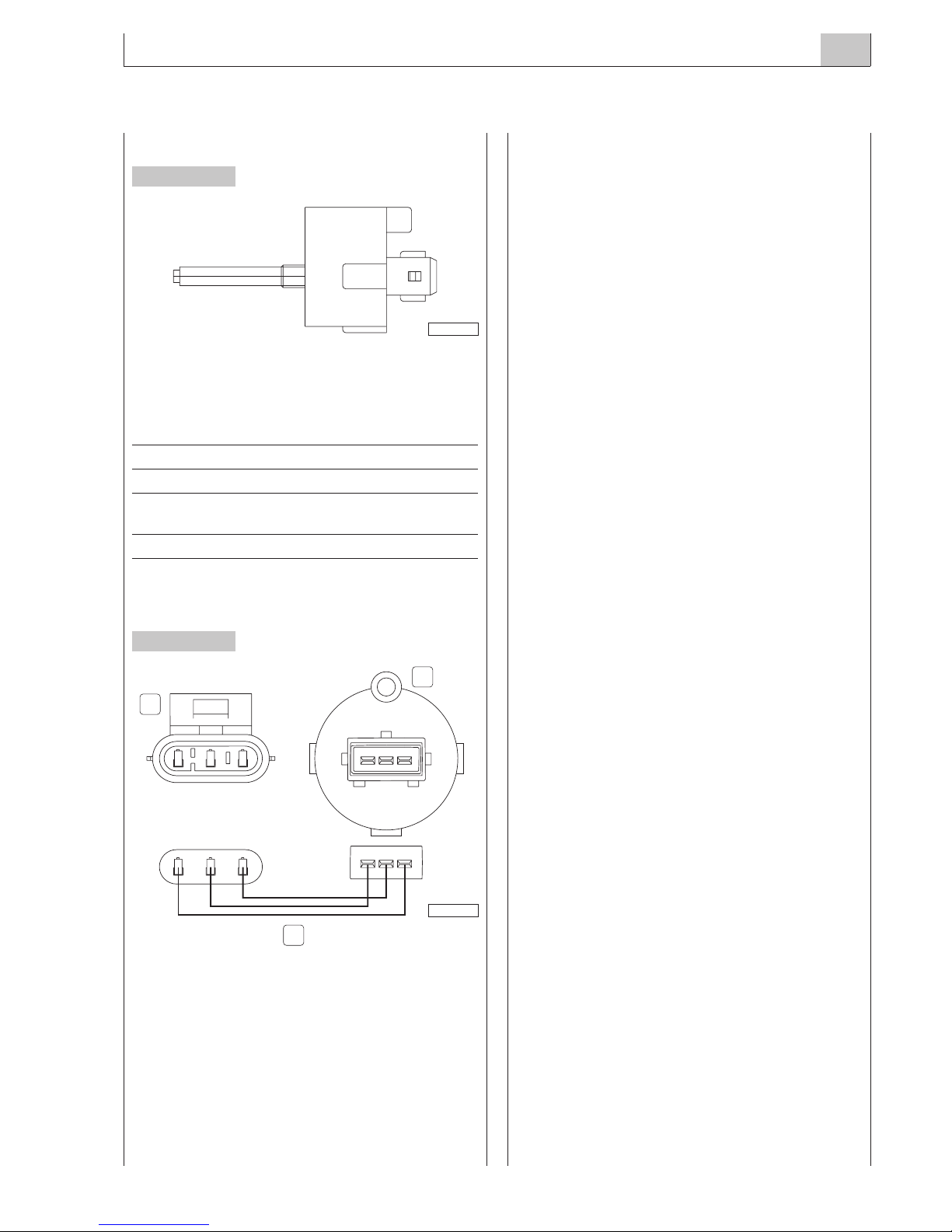

16. SENSORS FOR DETECTION
AND PANEL SIGNALING 36

17. PREPARING THE ENGINE FOR FIRST START-UP 38

18. TESTS BEFORE THE FIRST START-UP 38

19. FIRST ENGINE START 39

20. EDC ANOMALIES INDICATION 40

21. BLINK CODE TABLE 41

22. UNDERWAY CHECKS 43

23. PREPARING THE ENGINE
FOR LONG IDLE PERIODS 44

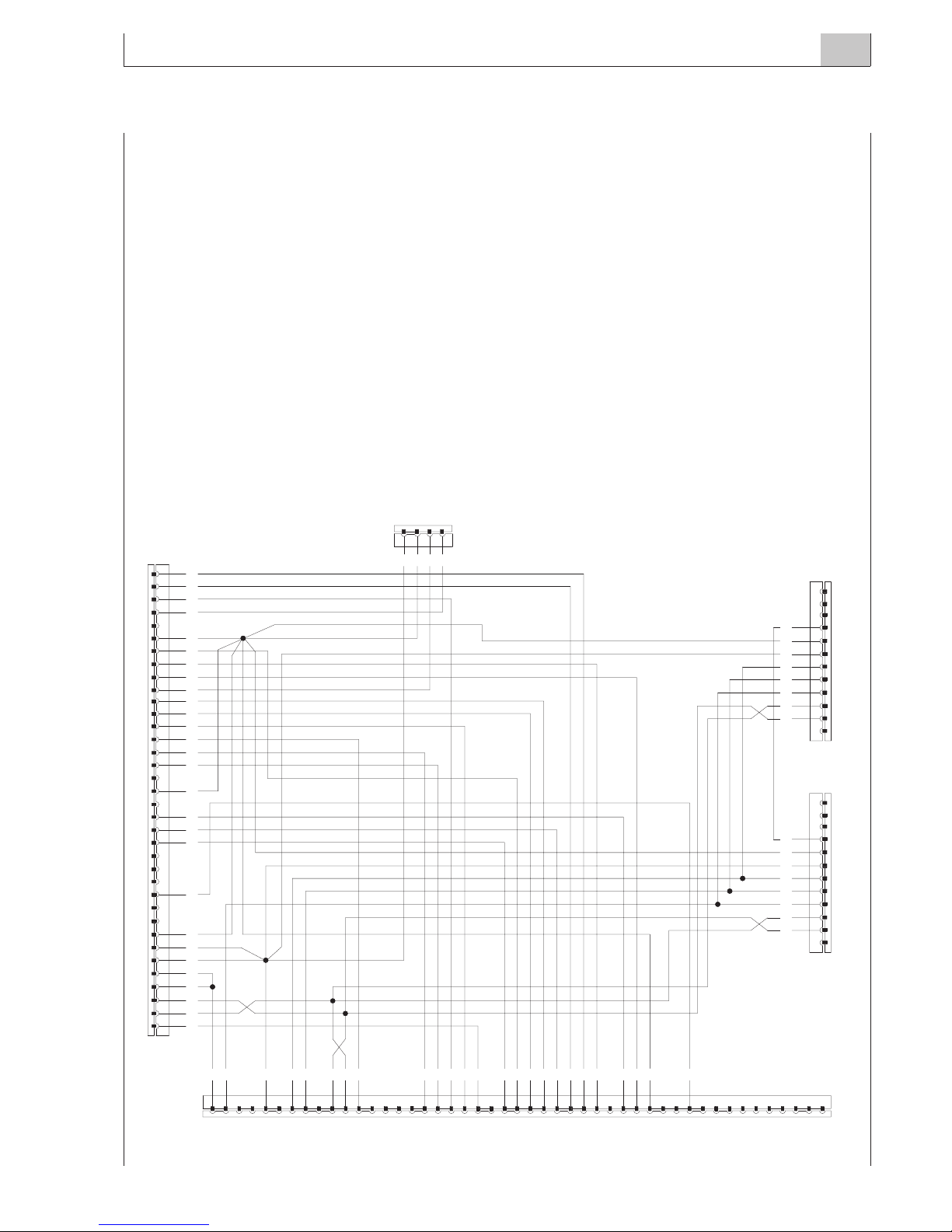

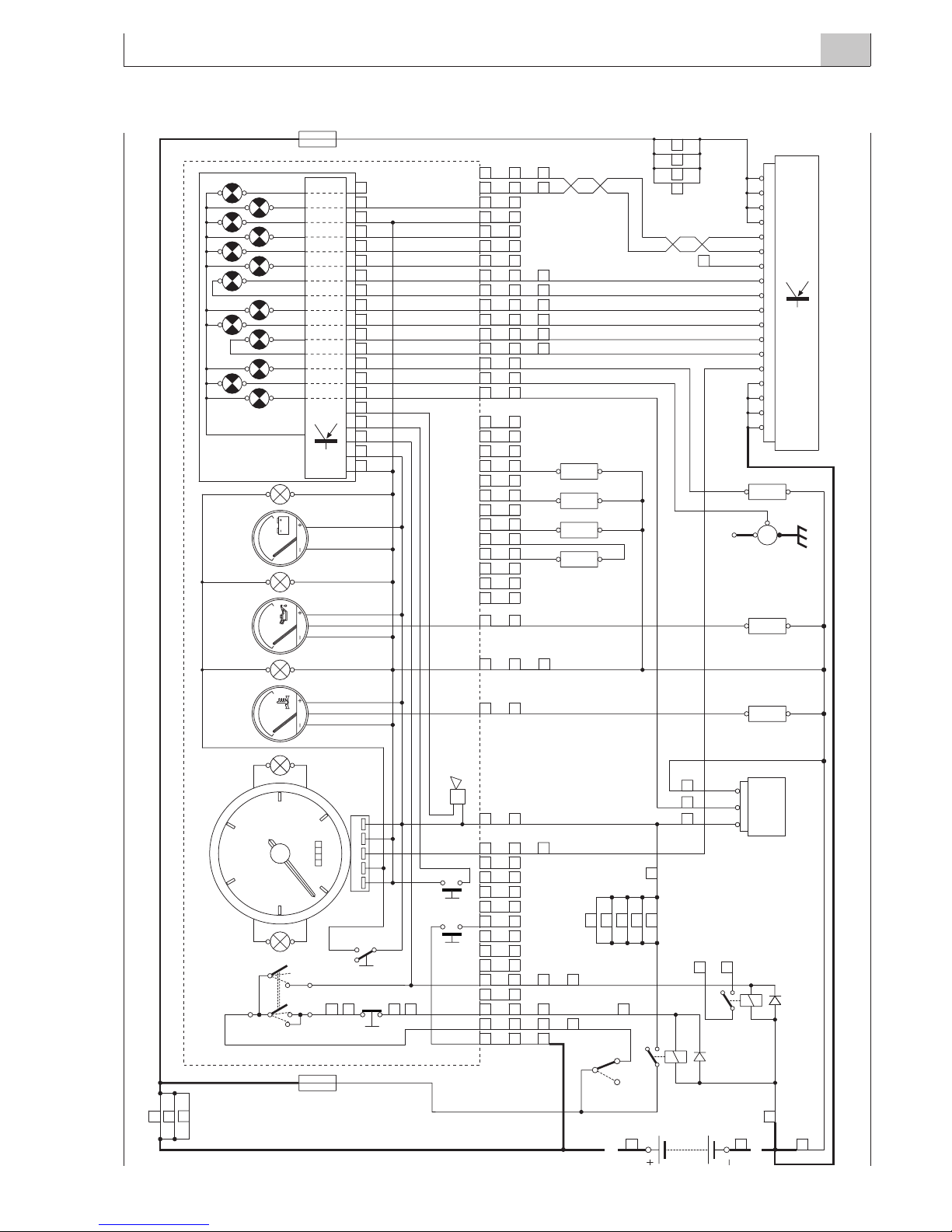

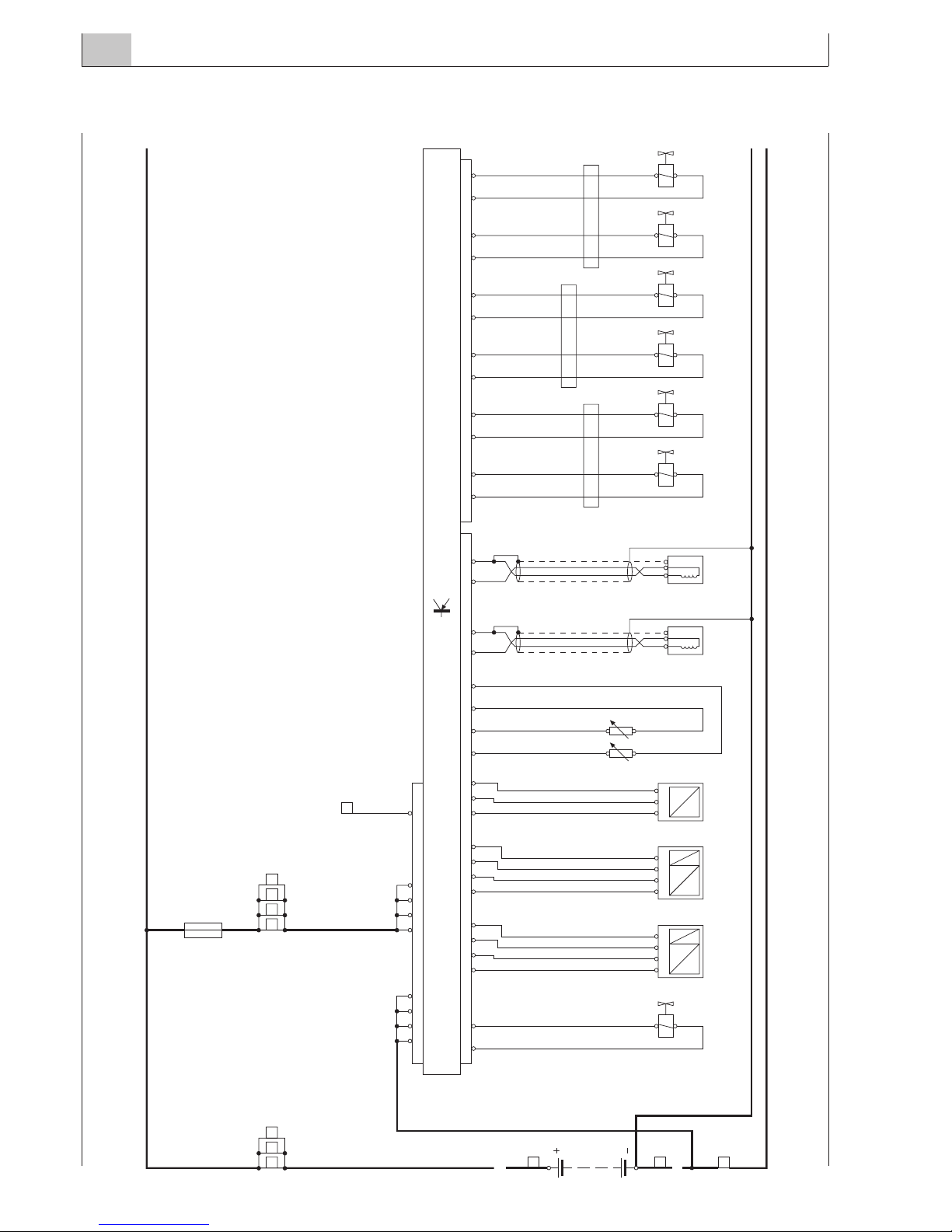

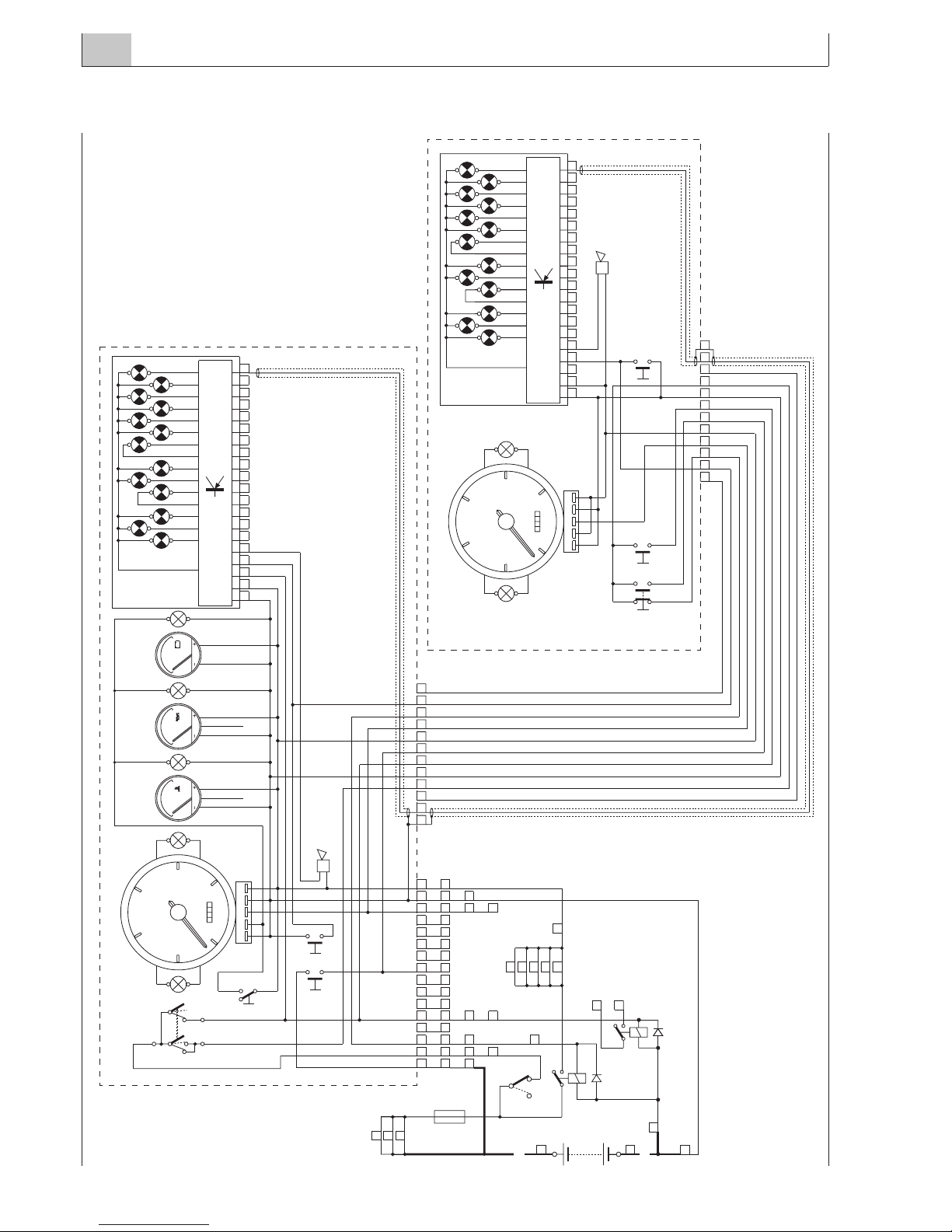

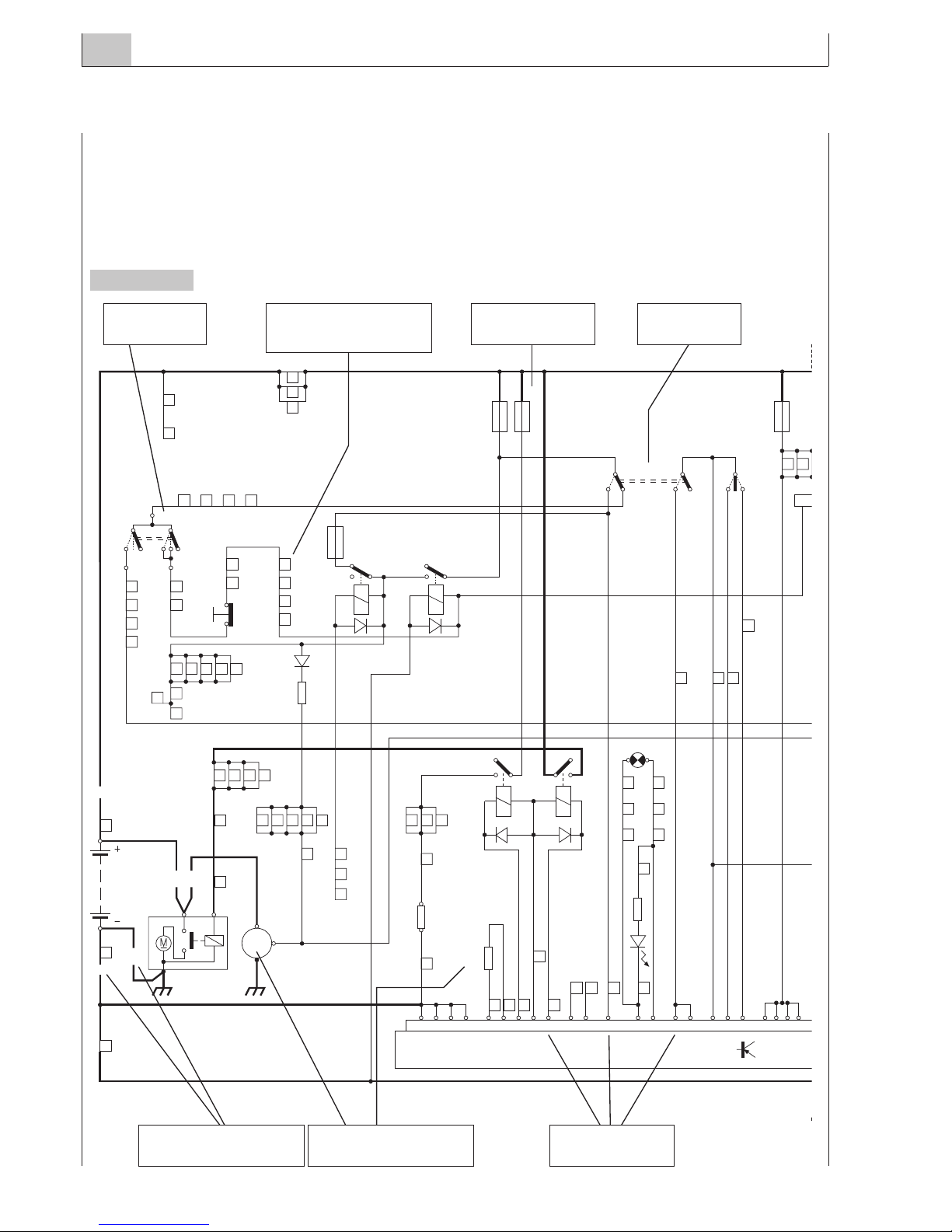

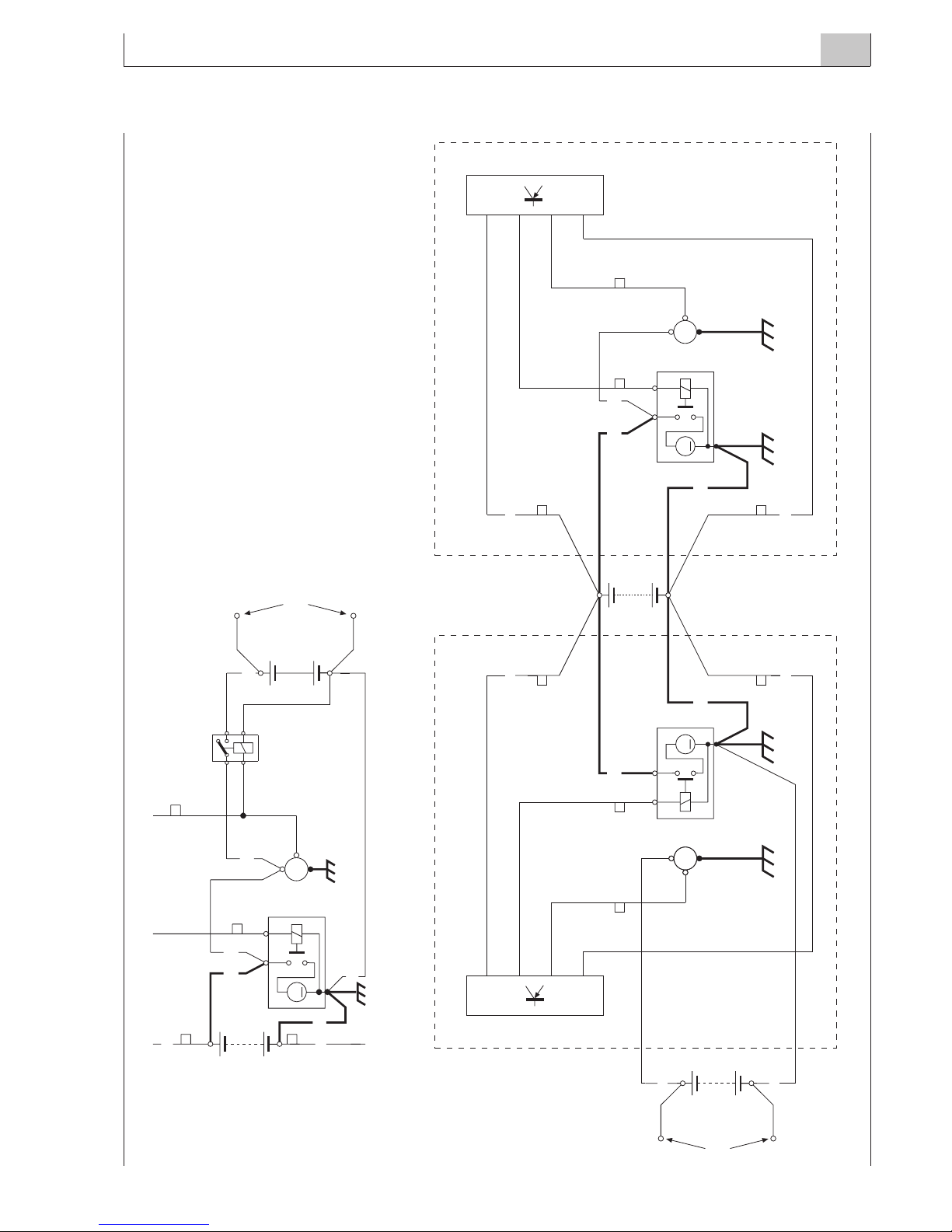

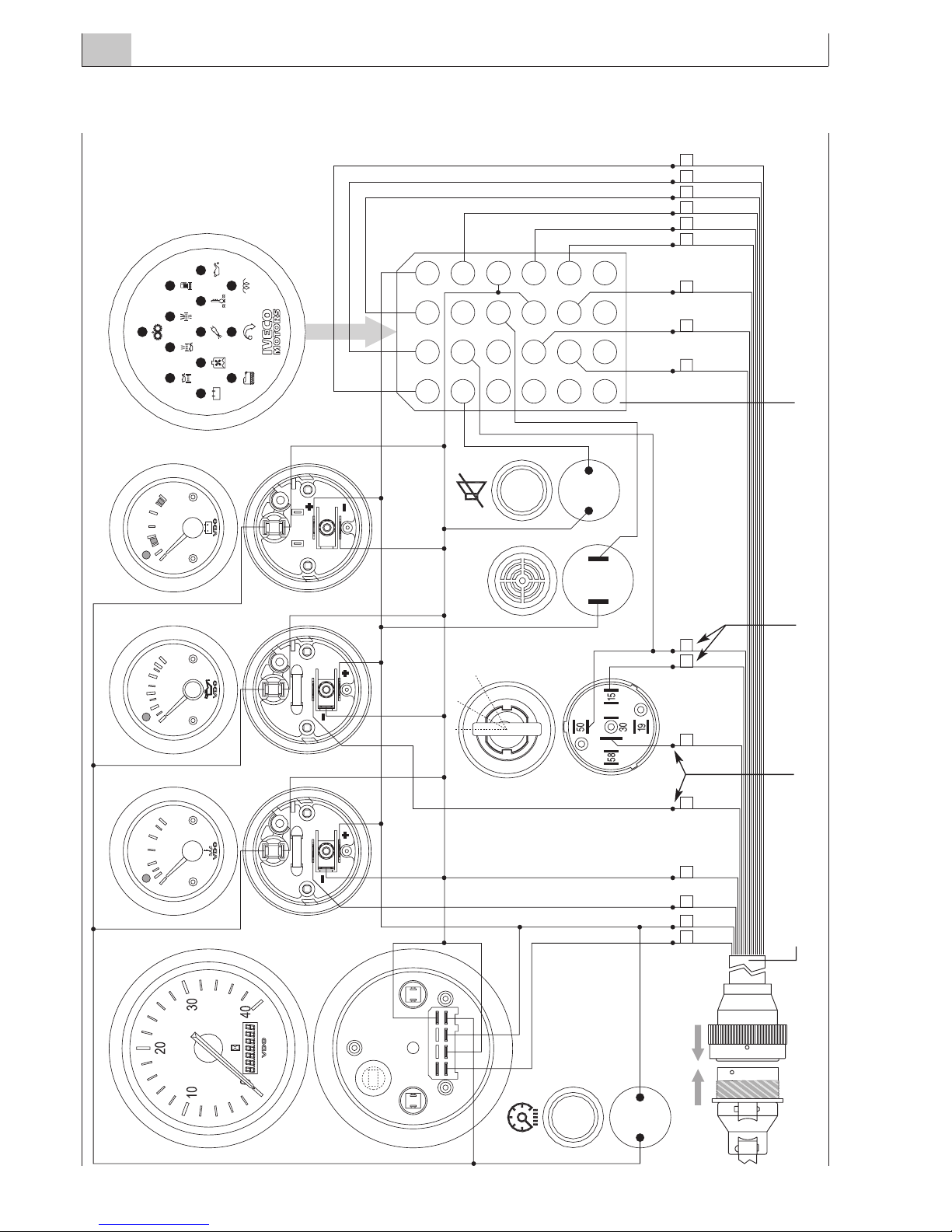

24. WIRING DIAGRAMS 45

N60 ENT M37INSTALLATION DIRECTIVE

3

MARCH 2004

To obtain the best engine performance, it is essential not to
deviate from the mission profile for which it was produced
and set up.The engine must not be used for purposes other
than those stated by the manufacturer. IVECO MOTORS is
willing to examine any need for par ticular installations
beforehand. Use of an electronically controlled injection sys­tem, in providing the engine with performance benefits,
requires that the installer and maintenance specialist comply
with some fundamental rules, which will become more and
more commonplace as use of such equipment becomes
progressively more widespread. Boat outfitters and mainte­nance specialists are invited to closely follow the instructions
contained herein. No modifications to the engine, its acces­sories and components, are allowed.

Failure to comply with the instructions that follow shall
void the warranty and relieve IVECO MOTORS of all lia­bilities.

For personnel safety

Specialists and installers are cautioned to comply with
workplace safety rules and to adopt prescribed individual
protection devices when working.

❏ Drain the cooling, lubrication and fuel lines only after the

fluids have duly cooled.The pressurized cap of the water
line may be opened only after the engine has duly
cooled.

❏ Batteries contain a highly corrosive sulfuric acid solution:

must never be upset and must be handled with the
utmost caution to prevent spillage. Ensure that the bat­tery compartment is adequately ventilated.

Handling

The engine must be handled by experienced personnel,
using the prescribed tool or a rocker arm that keeps the lift­ing lines parallel and with adequate equipment in terms of
capacity and size. The two eyebolts provided for lifting the
engine alone must always be used simultaneously.

Installation

❏ Knife switches or battery breakers may be used on the

power supply line of the engine electronic unit, provided
they are not used to shut the engine off.

❏ Do not modify the wiring harnesses; their length may

not be modified: use only available extensions.

❏ Do not use electronic device wiring harnesses not com-

pliant with the IVECO MOTORS directive, in terms of
length, type of conductor, location, clamping, connection
of the shielding and earth braids.

❏ To avoid any interference, the wiring harnesses of the

different on-board electronic devices must follow differ­ent paths from those of the engine electronic systems.

❏ Do not connect any extraneous user device to the

engine electrical equipment.

❏ Do not place voltage across the boat’s on-board electri-

cal system without first verifying that there are no short
circuits.

❏ Do not branch pipes off to draw fuel from the engine

supply lines.

❏ Do not make any change to the engine’s hydraulic cir-

cuits and components.

❏ Do not execute arc welding operations before remov-

ing the electronic units from their seating, placing them
at an adequate safety distance.

❏ Do not subject electronic units to temperatures exceed-

ing 80 °C.

❏ Do not paint electrical components and their connec-

tions.

❏ Do not alter the data contained in the engine control

electronic unit.

❏ Comply with prescribed procedures and torque values

when tightening threaded elements.

Start-up

❏ Ready the engine following the procedure set out in

Chapter 17.

❏ When star ting the engine the first time, have suitable

means available to cut off air intake in case of a runaway
condition.

❏ Start the engine after ensuring that it is complete with

every par t specified by the manufacturer and required
by the installation, without attempting to start it with
caps and occlusions to the lubrication, cooling and fuel
feed lines.

❏ Check that the fluid lines are perfectly sealed, especially

lines for fuels and lubricants, which may cause fires and
consequent harm to persons and equipment.

❏ Make sure that the various pipelines are not in contact

with warm surfaces or moving par ts.

❏ The installing yard is required to carr y out tests to veri-

fy the functional compatibility between the electrical­electronic equipment of the engine and the other elec­tronic equipment present on the boat.

Tests and tuning up

❏ Never disconnect the batteries when the engine is

running.

❏ Remove the electrical connections from the batteries

before any operation on the electrical system.

❏ Ensure that the battery terminals comply with the exact

polarity, are properly tightened and protected against
accidental short circuits and corrosion phenomena.

❏ Do not connect or disconnect electrical connections

when electrical power supply is present.

❏ Do not cause sparks in the attempt to verify the pres-

ence of electrical voltage.

❏ Do not draw fuel through unfiltered lines.

❏ Do not clean the engine and its parts with corrosive or

abrasive detergent substances, to avoid compromising
the integrity of electrical connections.

N60 ENT M37 INSTALLATION DIRECTIVE

4

MARCH 2004

1. WARNINGS AND CAUTIONS

❏ The engine fluids and air, water, and oil filters discarded

after use must be properly stored and delivered to
appropriate collection centers.

Long engine inactivity periods

Before long periods of inactivity, ready the engine following
the procedure set out in Chapter 23.

N60 ENT M37INSTALLATION DIRECTIVE

5

MARCH 2004

2. ENGINE PARTS AND COMPONENTS

N60 ENT M37 INSTALLATION DIRECTIVE

6

MARCH 2004

Figure 1

1. Engine coolant discharge cap - 2. Electric starter motor - 3. Tube bundle engine coolant/sea water heat exchanger -

4. Location of sacrificial anode - 5. Cooled exhaust manifold - 6. Exhaust gas and sea water discharge pipeline -

7. Cap for engine coolant outlet to sanitary water heating system - 8. Lifting eyebolts - 9. Rocker arm cover - 10. Oil refill cap

- 11. Coolant refill cap - 12. Location of thermostatic valve - 13. Engine coolant tank - 14. Auxiliar y belt automatic tensioner -

15. Alternator - 16. Cap for engine coolant discharge and recirculation from sanitary water heating system - 17. Oil filter.

17

16

2

3

4

5

6

9 10 11

8

12

13

15 14

1

04_006_N

7

N60 ENT M37INSTALLATION DIRECTIVE

7

MARCH 2004

Figure 2

1. Combustion air filter - 2. Common rail high pressure injection pump -3. Fuel filter - 4. Sea water pump - 5. Sea water inlet -

6.Throttle potentiometer - 7. Sacrificial anode - 8. Oil vapor separator - 9. Combustion air-sea water heat exchanger -

10. Location of sea water discharge cap - 11. Manual lubricating oil extraction pump - 12. Combustion air pressure and

temperature sensor - 13. Oil dipstick - 14. Common rail distributor - 15. Air filter clogging sensor - 16. Cooled turbocharger -

17. Sea water junction pipe from after-cooler to engine coolant/sea water heat exchanger.

1234

9

10

11

12 14 15 16

7

8

13

17

5

6

04_007_N

N60 ENT M37 INSTALLATION DIRECTIVE

8

MARCH 2004

The figure shows the set of components of an installation,
including those supplied with the engine equipment, standard
or optional, and those supplied or produced by the yard.
It provides a comprehensive picture of the operations
required to install the engine.
Components arrangement and illustrations are not binding
but merely indicative, subject to the choices made by yard
engineers according to their skills, available spaces and the
prescriptions set out herein.

3. INSTALLATION OVERVIEW

1. Indicator and control panel - 2. Electrical panel with relay box and EDC electronic unit - 3. Exhaust gas and sea water

discharge - 4. Filtered sea water intake - 5. Decanter filter - 6. Fuel feed pipe to the high pressure pump - 7. Fuel return pipe

to tank - 8. Fuel suction pipe - 9. Tank - 10.Throttle Bowden rod - 11.Throttle lever.

Figure 3

11

1 2

456789

3

10

04_071_N

4. GENERAL INSTALLATION CRITERIA

Accessibility

The engine must be located in such a way as to allow filling
and draining engine liquids when doing ser vicing operations.
Moreover, the relay box and the diagnostic push-button pre­sent on it must be accessible, also when underway.

Anchoring

If anchoring is accomplished by interposing shock mounts,
they must be able to support the engine’s mass and the lon­gitudinal thrust exerted by the propeller shaft in motion.
If rigid mounting is adopted, particular care must be given to
support alignment and co-planarity.
Information on dimensions and fastening values are provided
in the “Installation Diagram”.

Combustion and ventilation air

Compliance with prescriptions on the quantity of air
required for combustion and ventilation assures a regular
operation of the engine even in adverse conditions and it
enables to deliver its maximum design power (1).

Sea water line

It must be provided with an intake capable of preventing the
entry of foreign bodies into the suction pipes. Between the
intake and the pump, it is best to interpose a gate to be
closed in emergencies or for extended idle periods and a fil­ter to stop the smaller impurities; it is also recommended to
install a suitably dimensioned and easily replaced zinc anode.
The engine sea water line was provided by the manufactur­er with protection anodes to be replaced periodically.
The rubber hoses positioned along the pipeline shall be suffi­ciently rigid not to create choked areas caused by crushing (1).

Engine pre-heating

If the engine usage profile requires immediate delivery of
power at the highest rpm’s, it is recommended to install an
auxiliary pre-heater on the closed cooling loop.

Exhaust gas discharge

The exhaust gas discharge conduit shall be compliant with
the guidelines contained in the IVECO MOTORS publication
“Guide to the installation of marine engines”; it also provides
indications to compute the dimensions of the exhaust
pipelines, which is the Yard’s responsibility.

Electric - electronic equipment

Provide a suitable arrangement of the engine control elec­tronic unit, of the relay box and of the possible optional elec­tronic units, referring to the dimensions and position of the
wire harnesses and their connectors.
Both units must be anchored in such a way as to dampen the
vibrations and stresses undergone by the hull while under­way and/or induced by the engine’s operation.

(1) The EDC engine electronic control is programmed to

reduce maximum deliverable power if the operating
parameters measured by the sensors show that critical
conditions have been reached, and if exceeded the
engine could be damaged.

N60 ENT M37INSTALLATION DIRECTIVE

9

MARCH 2004

5. TECHNICAL DATA FOR INSTALLATION

Combustion and ventilation air when underway

Static vacuum allowed downstream of the air filter kPa ≤ 3,5

mmH2O ≤ 350

Combustion air flow rate m3/h ≥ 1050

Engine room ventilation air flow rate (excluding combustion air) m3/h ≥ 4700

Static vacuum allowed in the engine room kPa ≤ 0,1

mmH2O ≤ 10

Temperature allowed in the engine room °C ≤ 50

Temperature increase in the engine room to ext. temperature °C ≤ 15

Exhaust gas discharge

Allowed static back pressure kPa ≤ 10

mmH2O ≤ 1000

Exhaust gas temperature at maximum power (turbocharger inlet) °C 640 ± 25

Flow rate at maximum power kg/h 1560

Outer diameter of exhaust mixed with sea water mm 127

inches 5

Fuel supply

Transfer pump delivery at maximum rpm litres/h ≤ 250

Flow rate return to tank litres/h ≤ 240

Fuel temperature to allow maximum power °C ≤ 70

Inner diameter, intake pipe mm ≥ 8

Inner diameter, return pipe mm ≥ 8

Thread on pre-filter junctions M 14 x 1,5

Free height below filter to replace filter mm ≥ 30

Open sea water cooling line

Intake pipeline diameter mm 45

inches 1,77

Pump delivery at maximum rpm litres/h 12000

Sea water pump height above sea level m ≤ 2

Allowed intake vacuum kPa ≤ 20

mmH2O ≤ 2000

Discharge pipeline diameter (only if unmixed gas exhaust) mm 45

inches 1,77

Allowed engine inclination angles

Maximum longitudinal in continuous operation (static + dynamic) degrees/360 + 18

Maximum transverse in continuous operation (static + dynamic) degrees/360 ± 23

Longitudinal for oil level check with standard dipstick degrees/360 0 to +6

N60 ENT M37 INSTALLATION DIRECTIVE

10

MARCH 2004

Power takeoffs (optional)

2-race front pulley for “V” belts

Reference diameter mm 187

Race dimension mm 12.7

Power available at 900 rpm kW (HP) 6 (8,1)

Power available at 1800 rpm kW (HP) 12 (16,3)

Radial force resulting from belt tension (*) N ≤ 1340

(*) For direction of the resulting radial force between 60° and 300° with reference to the cylinder axis (piston at top dead
center = 0°)

3-race front pulley + elastic joint

Torque available in engine axis Nm (kgm) 150 (15)

Moment of iner tia of rigidly added masses kgm

2

≤ 0,015

N60 ENT M37INSTALLATION DIRECTIVE

11

MARCH 2004

177

(6.96) 840 (33.07)

1350 (53.15)

243 (9.57)

610 (24.01)

850 (33.46)

==

780 (30.70)

45 (1.77)

Figure 4

Dimensions

Measurements in: millimeters (inches).

04_070_N

6. IDENTIFICATION DATA

N60 ENT M37 INSTALLATION DIRECTIVE

12

MARCH 2004

Figure 6

Figure 5

Viale dell'Industria, 15/17 - 20010 Pregnana Mil.se MI - ITALY

ENGINE TYPE

ENGINE DWG

ENGINE S/N

COMMERC. TYPE / VERSION

POWER SET CODE

HOMOLOGATION

N°

ENGINE FAMILY

POWER (KW)
AND SPEED (RPM)

YEAR OF BUILD

S. p. A.

04_002_N

04_007_N

The engine identification data are stenciled on a tag positioned over the flywheel case.

7. FUEL LINE

N60 ENT M37INSTALLATION DIRECTIVE

13

MARCH 2004

For the installation, the following connections are required:

- from the tank to the pre-filter

- from the pre-filter to the pump inlet

- from the fuel discharge outlet to the tank

Pre-filter

The pre-filter with priming pump, supplied separately from
the engine, must be fastened near the tank, in a relatively low
point of the line to allow for easy replacement of the filter­ing car tridge and/or the operation of the hand pump. Avoid
the use of additional mesh or paper filters along the feed
lines between pre-filter and engine. To avoid introducing
impurities in the feeding lines inside the engine, do not place
filter cartridges pre-filled with fuel in the system.

Materials’ Characteristics

The fuel tank and the suction and return assembly must
withstand the continuous abrasion caused by a flow of fuel
oil of 250 l/h at a temperature of 120 °C without noticeable
deformation or wear or release of material. Use of metal
tanks, preferably made of iron alloys, is allowed,provided they
are connected to the negative terminal of the battery to pre­vent the accumulation of electrostatic charges.

Tanks must be provided with vents to avoid exceeding an
internal pressure of ± 5kPa (± 0.5 m of H

2

O column); their
shape and the suction assembly must be such as to assure a
suction at the maximum longitudinal and transverse inclina­tion allowed for the boat, with a residual quantity of fuel oil
considered “reserve”.
The suction inlet should be positioned in such a way as to
avoid taking in sludge.The return flow must be in such a way
as to facilitate the mixing of the returning fuel with the fuel
in the tank. If the tank is lower than the filter, then the return
pipe must always be submerged.The pipes and union fittings
of the fuel line must withstand a fuel oil flow rate of 250 l/h
at a temperature of 120 °C and a pressure of 3 bar (300
kPa) without noticeable deformation, wear or release of
material. Metal tubes, preferably made of iron alloys, are rec­ommended, taking care to connect each individual segment
to engine ground to avoid the accumulation of electrostatic
charges and inserting a vibration damper elastic joint on each
segment. The pipes used must be certified according to the
relevant Countries’ rules or to the standards issued by clas­sification Bodies.

1. Fuel filter - 2. Common rail - 3. Electro-injector - 4. Electro-injector return loop pressurization valve - 5. Rail overpressure
valve - 6. High and low pressure pump - 7. Priming pump - 8. Settling pre-filter.

High pressure Low pressure

Figure 7

1

2

3

5

4

8

6

04_072_N

7

Fuel supply system scheme

N60 ENT M37 INSTALLATION DIRECTIVE

14

MARCH 2004

1. High pressure radial pump - 2. Fuel temperature sensor - 3. Fuel filter - 4. Electro-injector - 5. Pressure sensor - 6. Common
rail - 7. Common rail overpressure valve - 8. Electro-injector return loop pressurization valve, 1.3 to 2 bar - 9. Fuel tank -

10. Recirculation manifold - 11. Manual priming pump - 12. Pre-filter - 13. Low pressure pump recirculation valve - 14. High
and low pressure pump - 15. Low pressure mechanical feed pump - 16. Low pressure pump by-pass valve - 17. Fuel filter

support - 18. Low pressure limiter valve - 19. Pressure regulating electrical valve.

04_040_N

1

17

19

16

18

15

1314 12 11

10 9

2 3 5 6 74 8

Figure 8

04_244_N

Figure 9

5

2

3

4

Hydraulic connections

B

A

1

A.To rail supply - B. Return flow from rail - 1. Low pressure fuel feed pump - 2. High pressure pump - 3. Rubber holder

junction for fuel inflow from pre-filter - 4. Rubber holder junction for fuel outflow to the tank - 5. Fuel filter.

8. ELECTRICAL EQUIPMENT

N60 ENT M37INSTALLATION DIRECTIVE

15

MARCH 2004

Figure 10

The electrical equipment of the engine comprises a series of
components provided separately from the engine to enable
an easy and diversified installation, according to the Yard’s
design choices.The need to make accessible, at sea or under­way, the controls to the electrical components and to the
connector for diagnostics contained in the relay box may be
met through different installation arrangements.
Along with the coupling of all connectors provided in the
wire harnesses, completing the installation also requires the
connecting wire harness (12) for the sensor for the presence
of water in the fuel (13), to complete the power line and to
connect the accumulator to the engine wire harness.

1

2

4

3

6

7 8

5

10

9

15

04_073_N

1. Engine wiring - 2. Indicator and control panel - 3. Provided wire harness - 4. JB Connection - 5. Relay box -

6. JA Connection - 7. Power supply and interface wire harness - 8. JF1 and JF2 connectors - 9. A2 connector of the ECU -

10. A and A1 connectors of the ECU - 11. M Connector - 12.Wiring harness to be manufactured by the yard -

13. Sensor for the presence of water in the fuel - 14. Sedimenting pre-filter -

15. Power line for electric starter motor and alternator.

11

12

13

14

Synoptic

N60 ENT M37 INSTALLATION DIRECTIVE

16

MARCH 2004

JB JA

JF1 JF2

A2

A1

A

04_235_N

Figure 11

1. Connector for instrument panel connection wire harness - 2. Engine wire harness - 3. Interface wire harness - 4. Power line.

3 41 2

INDICATIONS AND

ALARMS SENSORS

INDICATIONS AND

ALARMS SENSORS

ELECTRO-INJECTORS

EDC COMPONENTS

ALTERNATOR

BATTERY

EDC

RELAY

BOX

ELECTRIC STARTER

MOTO R

NEF ENT M37

GEAR BOX

THROTTLE POSITION

SENSOR

The wire harnesses provided with the engine include the
connectors for all optional components which may ordered
and their connections to the JB connector for the indicator
and control panel.

Wire harness

N60 ENT M37INSTALLATION DIRECTIVE

17

MARCH 2004

T

T

O

E2F

VE

WI

WI

SI

SI

VI

MM

A2 EDC

JB

M

JA

GG

B

PA

+ BATT

A EDC

A1 EDC

PF

A

ZH

V

C

K

K

E3

E2

PR

H

E1

V

- BATT

JF2 JF1

VI

Engine wire harness Interface wire harness

04_221_N

Figure 12

A. Fuel temperature sensor for EDC - B. Drive shaft sensor for EDC - C. Camshaft sensor - F. Engine coolant temperature sensor for EDC - H. Combustion air

pressure/temperature sensor for EDC - K. Air filter clogging sensor (for alarm) - M. Sensor for detecting the presence of water in the fuel pre-filter (for alarm) - O. Exhaust gas

temperature sensor (for gauge) - T. Coolant temperature sensor (for gauge) - V. Oil pressure sensor (for gauge) - E1. Cylinders 1 and 2 electro-injectors - E2. Cylinders 3 and 4

electro-injectors - E3. Cylinders 5 and 6 electro-injectors - GG. Alternator - JB. Instrument panel connection wire harness - JF1,JF2. Relay box - MM. Electric starter motor -

PA. Throttle position sensor - PF. Heating element on fuel filter - PR. Rail pressure sensor - SI. Gear box oil temperature sensor - VE. Engine oil pressure/temperature sensor for

EDC - VI. High gear box oil pressure sensor (25 bar) - WI. Low gear box oil pressure sensor (7 bar) - ZH. Pressure control solenoid valve.

Power supply line

1.Alternator - 2. Electric star ter motor - 3. Battery - 4.
Engine wire harness.

The connection of the +B terminal of the alternator to the
positive +30 terminal of the electric starter motor must be
achieved with a conductor having a cross section of at least
10 mm2.The connection of the positive +30 terminal of the
electric starter motor to the positive pole of the battery,
achieved with a conductor having a cross section of at least
70 mm2, allows to obtain, as shown in the figure, the simulta­neous connection of the alternator to the battery. The con­nection between the engine ground and the negative pole of
the battery must be achieved according to the guidelines
provided in the Engine electrical ground paragraph.

CAUTION

If magneto-thermal protecting breakers are inserted, they
must not be used to stop the engine and in any case they
must be activated only a few seconds after shut-down.

Supplementary services battery

To assure that the engine can be star ted with a sufficient
quantity of energy, it is advisable to provide for the installa­tion of a supplementar y batter y, dedicated to supplying
power to the on-board electrical services.The power line to
recharge it may be constructed according to the indications
provided in Chapter 24.

If one engine is installed

The batter y used for ser vices may be recharged interpos­ing on the power supply line a relay actuated by the
recharge signal of the alternator’s electronic regulator
(D+).

If two engines are installed

The presence of two generators allows to keep the recharg­ing functions separated: the generator (G1) recharges the
battery (AC1) dedicated to starting both engines and pow­ering both electrical/electronic control circuits, whilst the gen­erator (G2) recharges the battery (AC2) used to power the

services. In two-engine applications, it is essential to connect
the engine grounds to a common potential; the solution pro­posed in Chapter 24 fully complies with this need, assuring
the full functionality and independence of the two circuits.

Engine electrical ground

The connection of the engine electrical ground is achieved
by connecting with a cable of at least 70 mm2cross section
to the negative pole of the battery to the tightening point of
the electric starter motor as shown in Figure 14.

1. Point of connection of the engine electrical ground.

To anchor the grounding terminal to the engine, proceed as
follows:
Completely remove the conducting paint from both parts
constituting the connection, using mechanical means or suit­able chemical product; if the anchoring operation is to take
place on superficially treated par ts, completely remove the
anaphoretic paint with mechanical means, obtaining a
smooth support surface.
Apply a uniform layer of BH44D paint (IVECO standard 18-

1705) with a brush or spray gun.
Join the parts constituting the grounding note within 5 min­utes from the time the paint was applied.

Battery recharging

B+. Connected to the +30 of the electric star ter motor -

D+. Excitation - N. Not connected.

N60 ENT M37 INSTALLATION DIRECTIVE

18

MARCH 2004

EDC power supply

04_076_N

4

1

2

3

Figure 14

1

04_077_N

04_078_N

Figure 15

Figure 13

This is accomplished through the power supply line of the
electric starter motor and connection to the +B of the alter­nator. The electronic regulator of the alternator that equips
the engine allows an effective control over the batter y
recharging operation.
If, due to installation requirements, the batteries need to be
positioned at a distance from the engine, we recommend
increasing the cross section of the power line conductors
and verifying recharging effectiveness by measuring voltage
across the batter y poles.

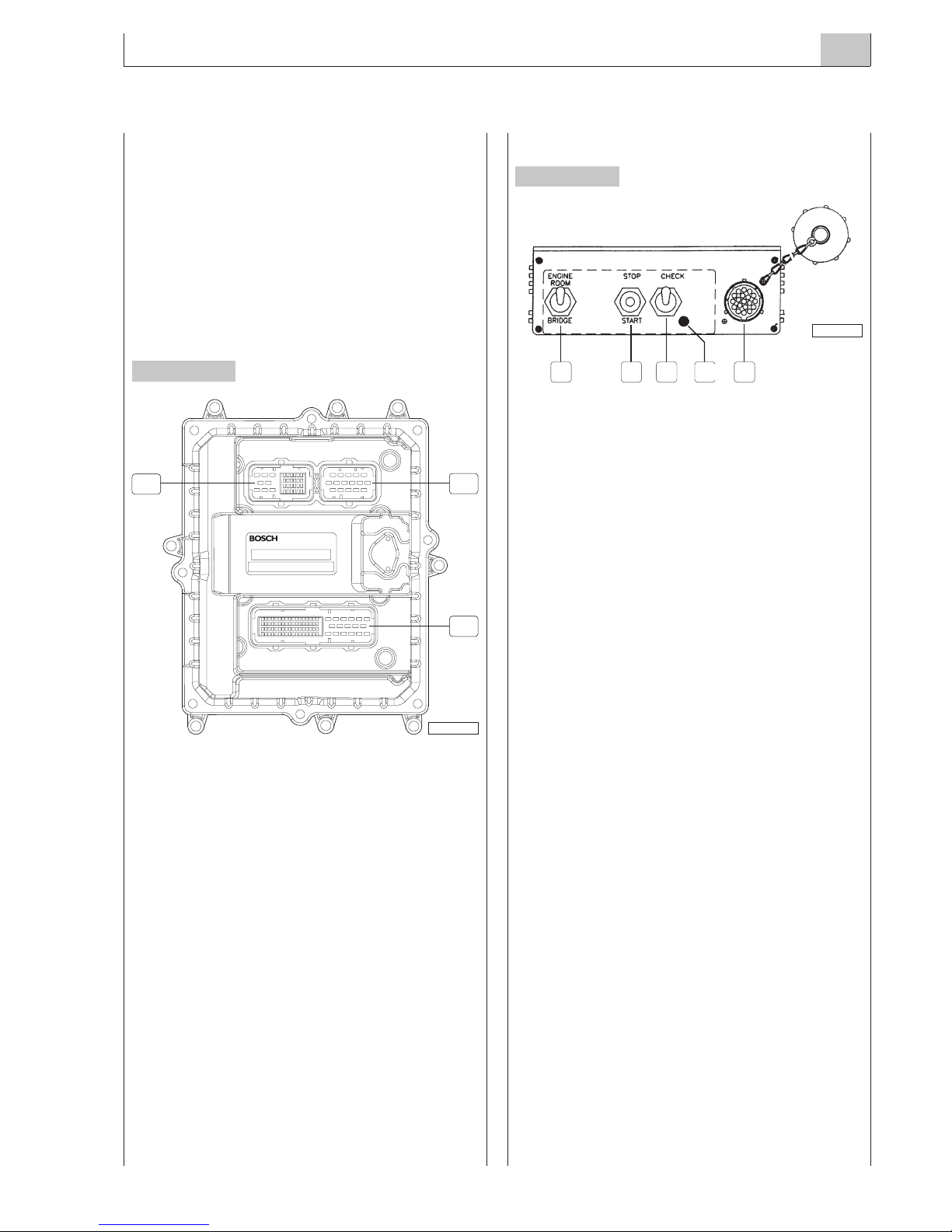

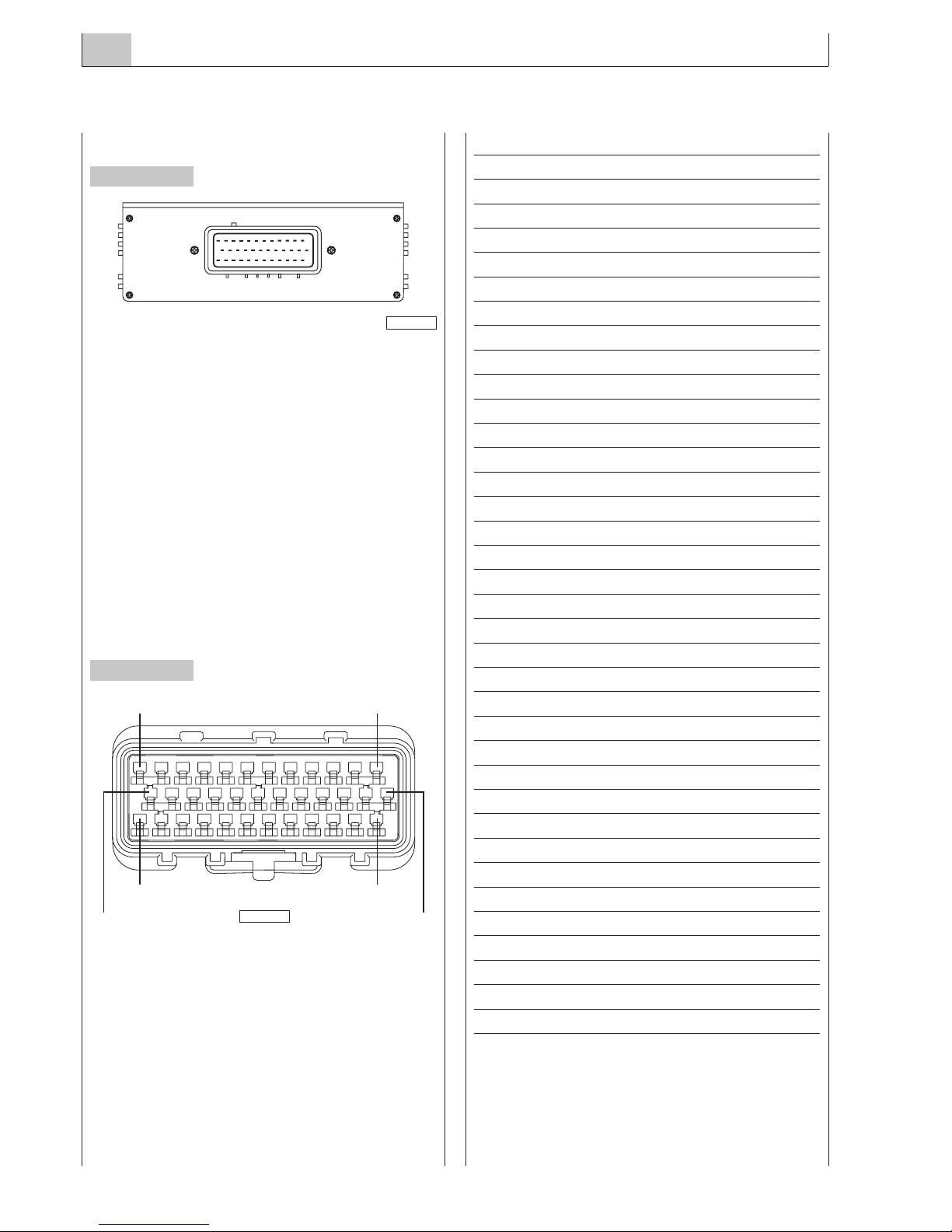

Connections of the central electronic unit
(ECU) EDC 7

A. 36 pole connector - A1. 16 pole connector -

A2. EDC at 89 poles.

The connection of the central electronic unit, ECU, to the
components of the EDC system is achieved by means of
three connectors to subdivide the wiring harnesses, thereby
favoring a quicker identification of the lines during testing
operations.
The different connectors are polarized and provided with
levers to favor the connection and disconnection operations
and assure proper coupling.
They are dedicated to the following functions:

❏ Connector A for engine mounted components

❏ Connector A1 reserved for electro-injector connection

❏ Connector A2 for boat side connections

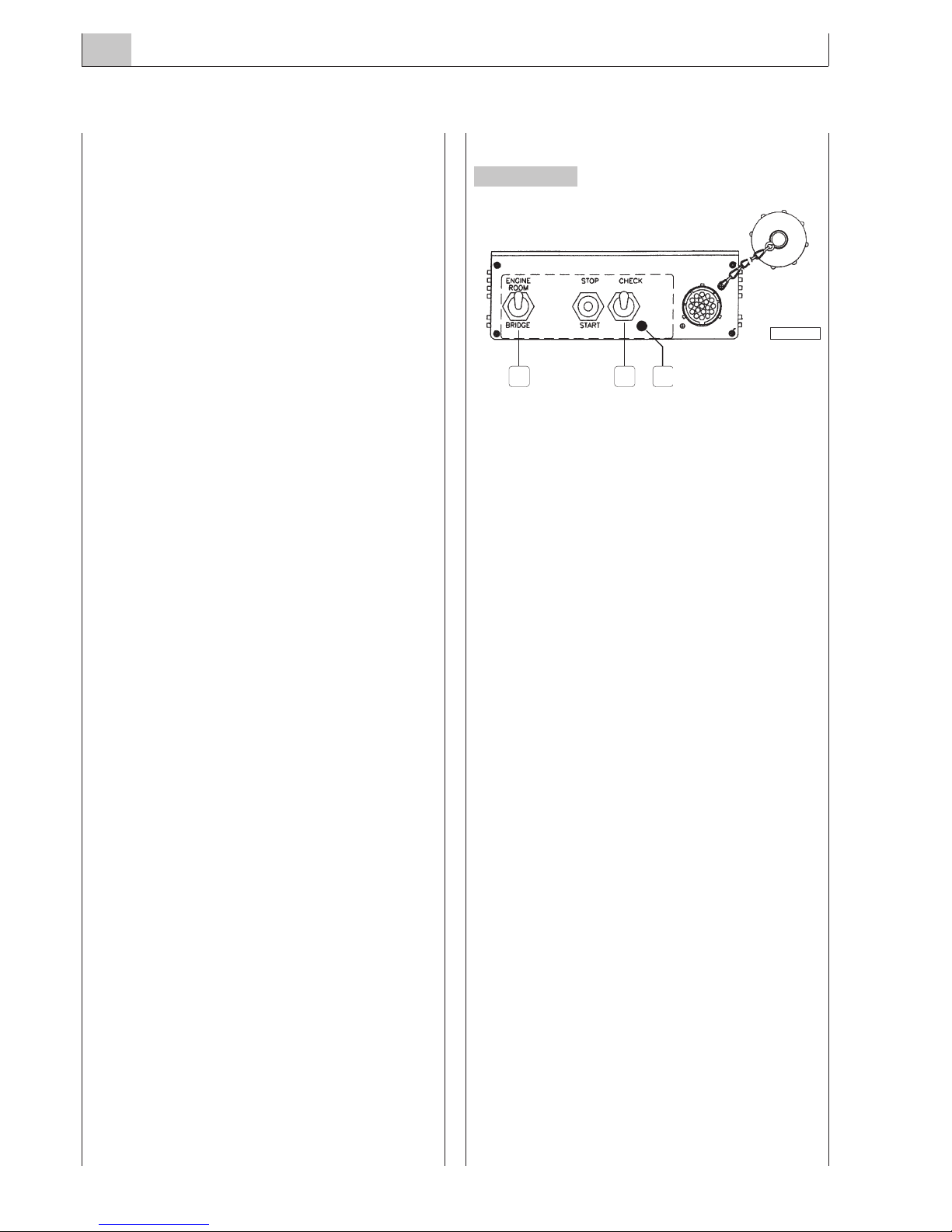

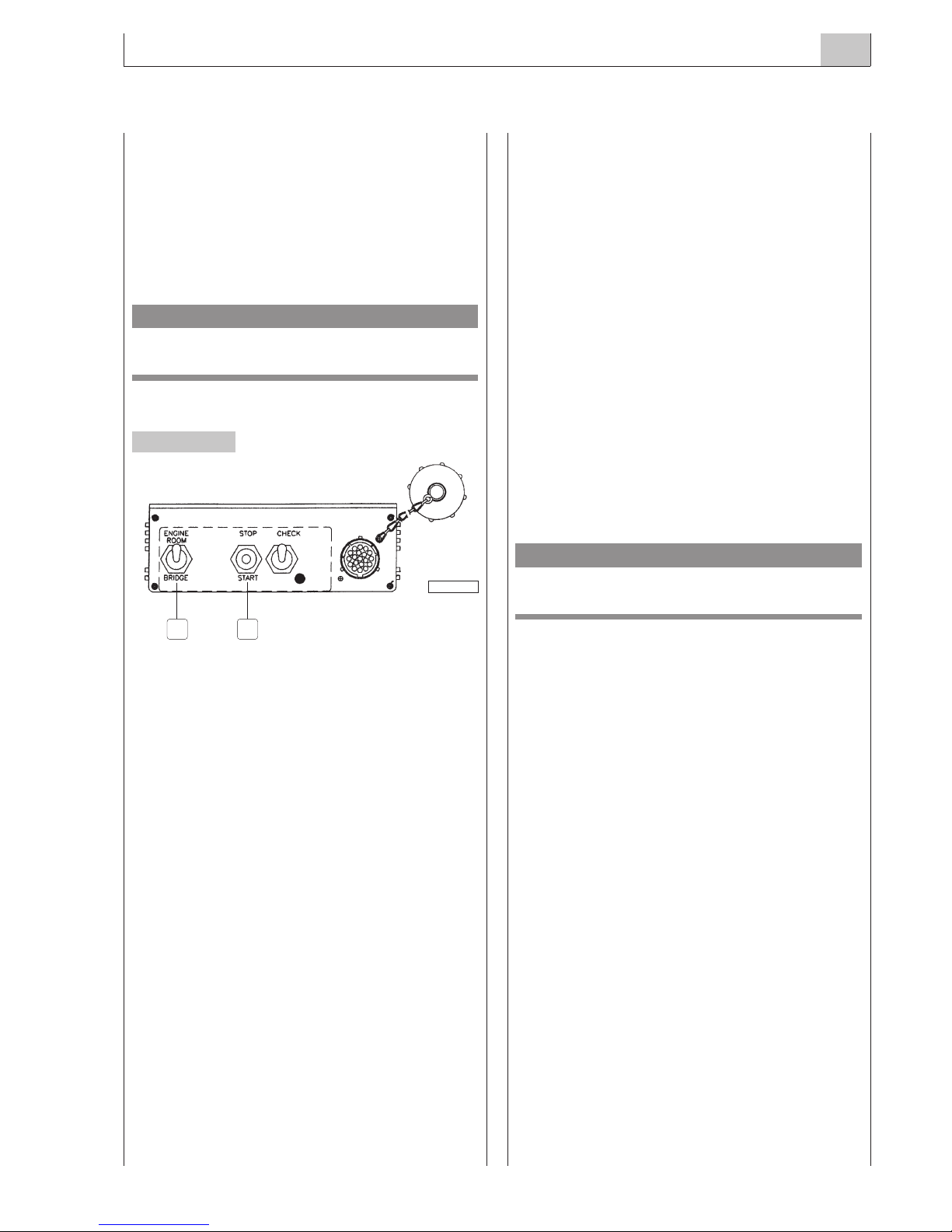

Relay box

This shall be installed and anchored in such a way as to
dampen the vibrations and stresses occurring when under­way, and they shall be accessible during servicing operations
and when underway.The electrical commands positioned on
the panel allow to control engine star ting and stopping (2)
directly from the engine room, while excluding any possibili­ty that anyone may involuntarily start the engine from the
bridge (1), during servicing operations. Among the controls
present on the panel are also the push-button (3) and the
“blink code” light indicator (4), useful to obtain, also while
underway, indications that will lead to identify failures or
improper engine operating conditions (see Chapter 20).

On the relay box is located the multipolar connector, pro­tected by a screw-on lid (5), for connection with the com­puterized diagnostic tools prescribed by IVECO MOTORS
(see Chapter 20).

Inside the box, anchored to a printed circuit board, are pre­sent the power management relays of some components
and the elements that protect the electrical lines against
short circuits or excessive current absorption.These compo­nents perform a similar function to that of fuses, almost total­ly avoiding the need to restore the electrical continuity of cir­cuits subjected to an anomaly condition. These components
are able to limit and eliminate shor t circuit currents without
melting, restoring their own and the circuit’s electrical conti­nuity, once the cause of the anomaly is removed.

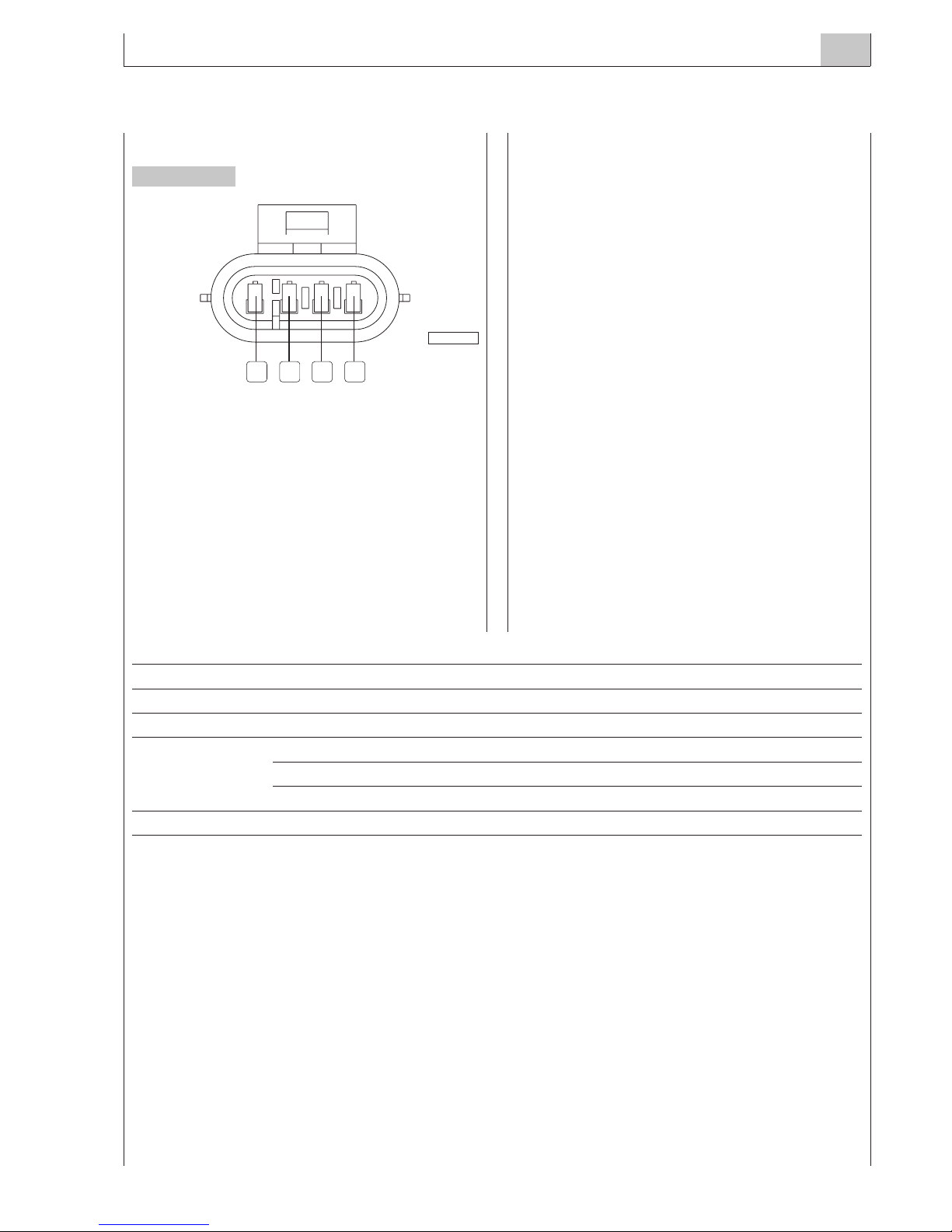

Throttle lever position sensor

After testing the working condition of the linkage, adjust the
run of the ser vo components (see Chapter 18).

❏ With the throttle at idle setting, the potentiometer rod

has to be in the resting position.

❏ With the throttle at the stop, the potentiometer rod has

to be in the position of maximum run out.

N60 ENT M37INSTALLATION DIRECTIVE

19

MARCH 2004

Figure 16

Figure 17

04_060_N

A

A1

A2

5321 4

04_074_N

9. MAIN ANALOG INSTRUMENT PANEL

N60 ENT M37 INSTALLATION DIRECTIVE

20

MARCH 2004

Installation of the IVECO MOTORS onboard panel with ana­log indicators entails connecting the panel’s JC connector to
the JB connector on engine wire harness, interposing the
appropriate extension wire harness available in 3, 5 and 7
meter-long versions. The JC-JB wire harness comprises 47
lines, each connected to the terminal identified on both con­nectors by the same number.

To the main panel is connected the JE connector, provided
for connection to the secondary panel; in installations with
no secondary panel, do not remove the cap of the JE con­nector to avoid compromising the electrical continuity of the
systems’ power supply circuit.

HOURS

°F

electronic

RPMx100

°C

V

bar

Figure 18

04_233_N

1. Coolant temperature gauge (TA) - 2. Revolution counter and hour counter (CG) - 3.Voltmeter (V) - 4. Buzzer (SA) -

5. Indications and alarms module (MS) - 6. Engine oil pressure gauge (MO) - 7. Connector for secondary instrument panel
(JE)- 8. On board panel instrument light switch (L) - 9. Engine start/stop key switch (CA) - 10. Engine stop push-button

(usable only on versions with excitation engine stop) - 11. Sound alarm inhibition push-button (P1) - 12. Connector for main

panel wiring (JC) - 13. Cap with electrical continuity connection.

1

12

2

3 4 5

6

7

11 10 9 8

13

N60 ENT M37INSTALLATION DIRECTIVE

21

MARCH 2004

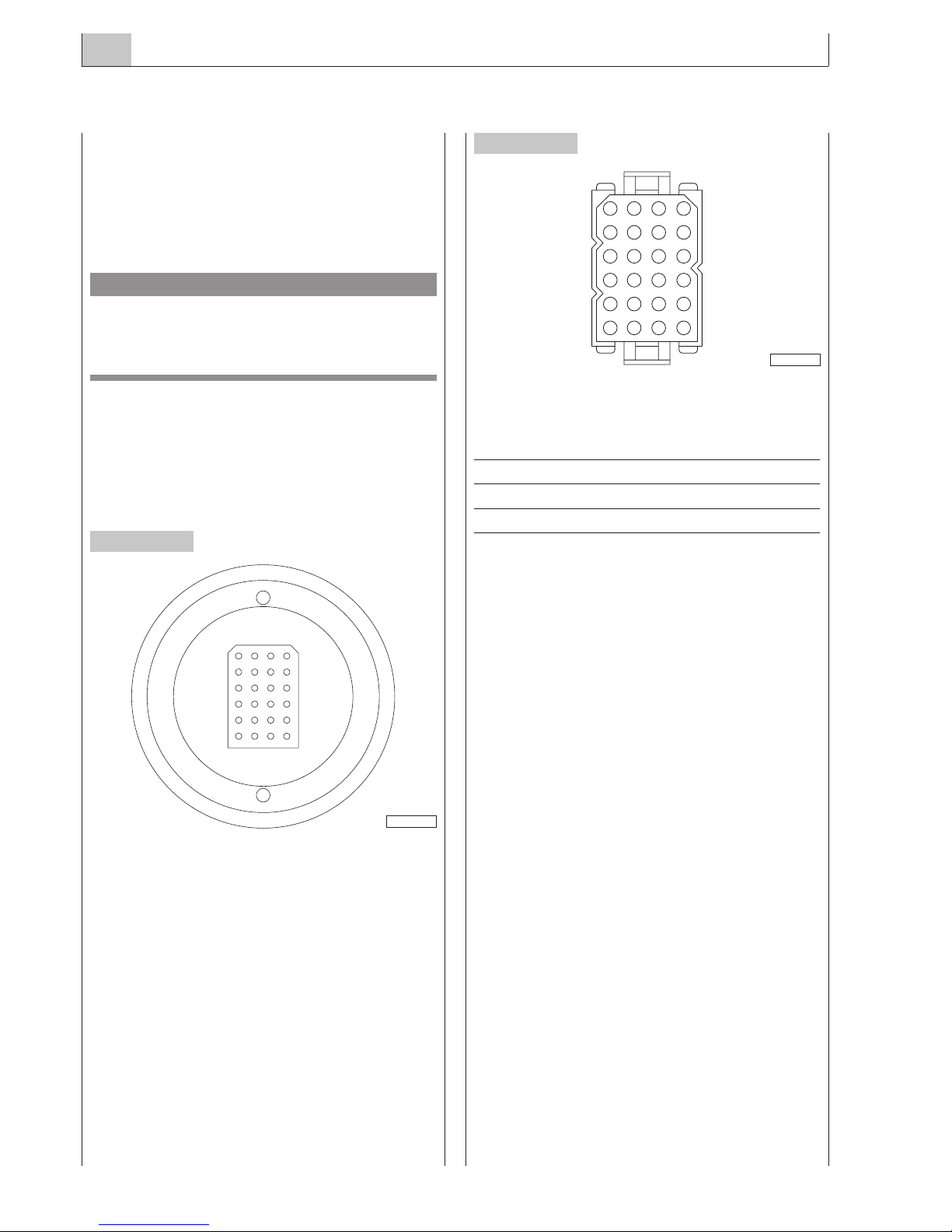

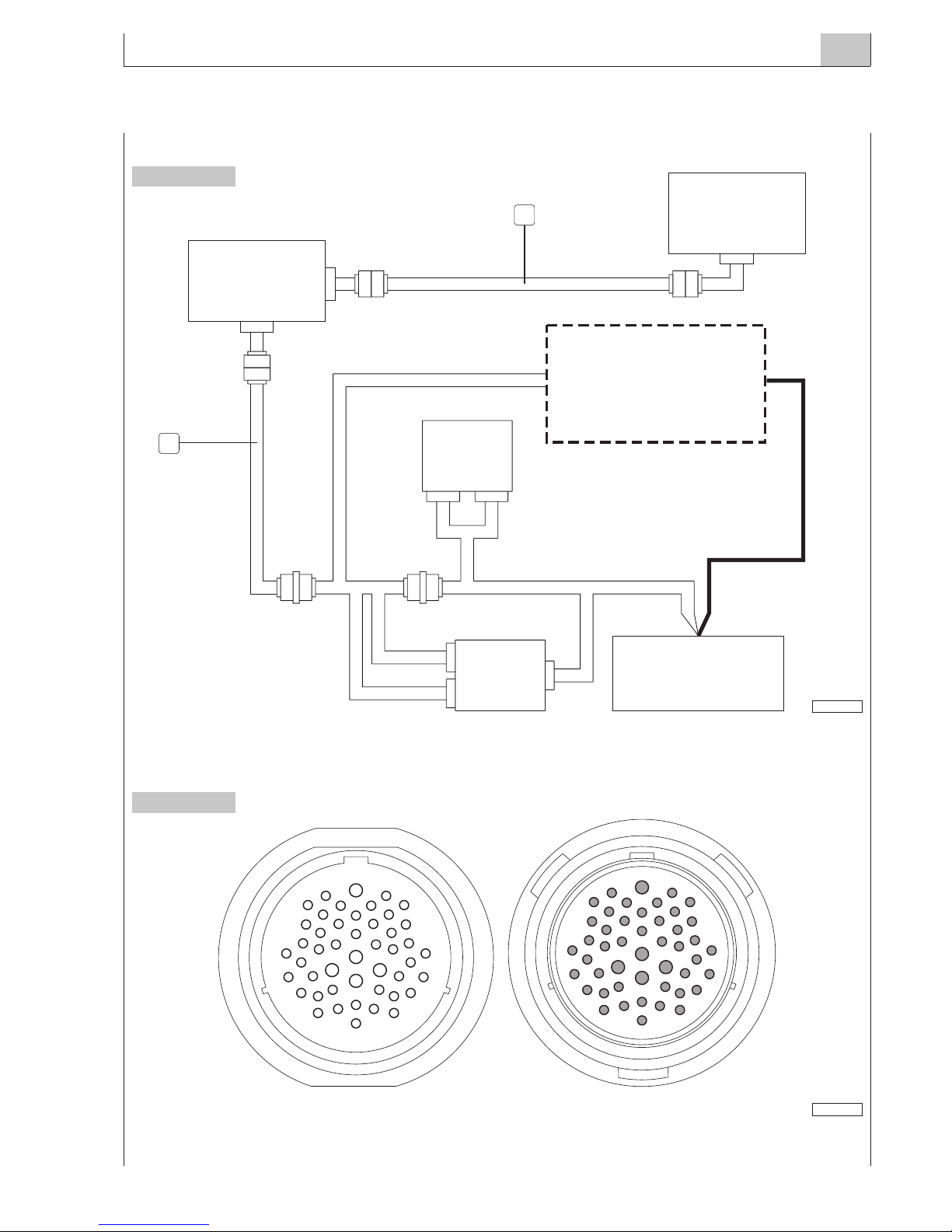

CONNECTORS OF THE JB - JC EXTENSION WIRE HARNESS, SEEN FROM THE COUPLING SIDE

To identify the functions served by the individual lines, refer to the electrical diagrams in Chapter 24.

1. JB-JC extension wire harness - 2. JE-JH extension wire harness.

JC JB

32

47

18

28

45

17

29

44

16

42

43

31

46

30

7

11

12

24

38

1

5

6

13

14

15

4

40

2627

41

25

39

21

22

36

34

8

9

19

20

33

35

23

37

2

3

10

24

12

40

39

22

38

37

23

36

44

16

13

14

41

26

25

27

15

28

42

43

1

11

4

10

2

3

7

5

17

6

18

35

21

9

20

19

33

8

32

34

47

29

45

30

31

46

04_250_N

Figure 20

JB JA

JF1 JF2

A2

A1

A

JHJH

JE JE

JC

JC

04_254_N

Figure 19

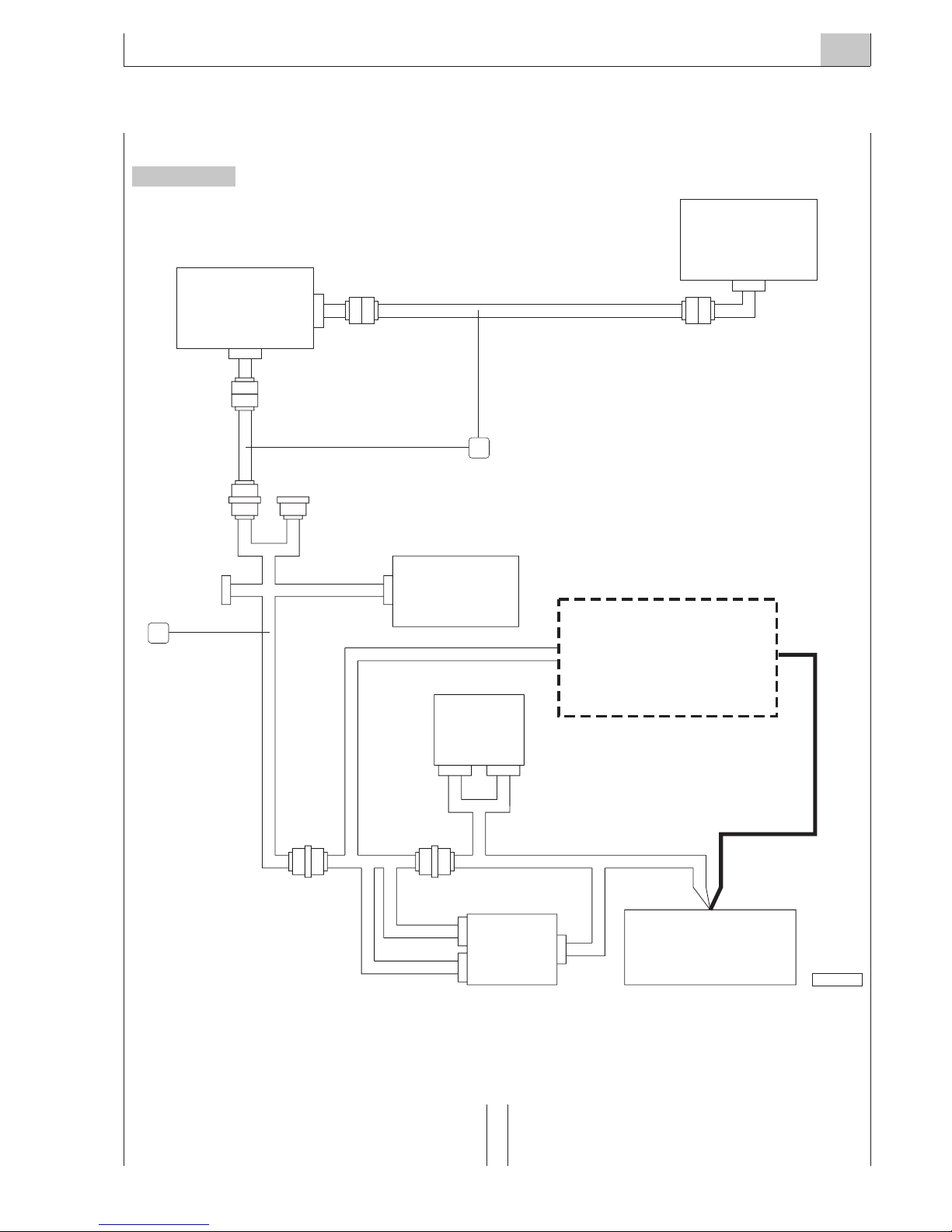

Synoptic of the connections of the analog panels

1

2

MAIN

INSTRUMENT

PANEL

RELAY

BOX

EDC

SECONDARY

INSTRUMENT

PANEL

BATTERY

ENGINE

EQUIPMENT

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 11.

Operation of the panel

After completing the electrical connections and engine
preparation, perform the tests required for the first start, as
described in Chapter 18.
Verify the proper operation of the panel, proceeding as
follows:

❏ Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then turn
the key switch to the first position and verify that the
instruments are powered and the indications and alarms
module runs the alarm test for about 5 seconds accord­ing to the procedures set out below.

❏ Once the test is complete, only the indications pre-

scribed for the engine not running must remain lighted:
e.g.“alternator charge” and “low oil pressure”; the analog
instruments must provide values consistent with the rel­evant physical parameters.

Testing the engine start function

Turn the key switch to the second position and keep it in it
until the engine has started, then release the switch, which
will stably return to the first position; after releasing the key,
the switch may be brought back to the starting position only
after the switch is returned to the resting or zero position.

Checking indications

After starting the engine, verify whether the operating
modes of the indications and alarms module are similar to
those set out below.
Using appropriate measuring instruments, verify the consis­tency of the indications provided by the analog instruments.
Verify the indication of the panel revolution counter, com­paring it with the one measured by a reference instrument;
if the indication is different, proceed as described below.

Testing the engine stop function

The engine is stopped and the panel is disabled by returning
the key switch to the resting or zero position.
The panel has an engine stop push-button whose function is
only enabled in versions where the engine stops as a result
of the excitation of an actuator, i.e. engine versions requiring
certification by Certification Bodies.

Indications and alarms module

1. Runaway engine (SSV) - 2. Presence of water in fuel pre­filter (SAC) - 3. Low coolant level (SBLA) - 4. Alternator

fault (SS) - 5. Clogged oil filter (SIFO) - 6. Clogged oil vapor

filter (SIFB) - 7. Pre-lubrication (SP) - 8. Clogged air filter

(SIFA) - 9. Clogged fuel filter (SIFC) - 10. High coolant
temperature (SATA) - 11. Low oil pressure (SBPO) -

12. Pre-post heating (SCP) - 13. EDC malfunction (EDC).

The indications and alarms module comprises the indicator
lights and the electronic alarm interface, timing and storage
circuit. It is programmed in such a way that when it is pow­ered, all indicator lights are lighted, with the exception of
those for “pre-lubrication”,“pre-post heating” and “EDC” fail­ure and a sound signal is emitted by the buzzer.
The sound alarm may be silenced before the end of the test,
acting on the appropriate control.
During the starting phase and for the subsequent 15 sec­onds, needed to stabilize the low oil pressure signal, all the
module’s functions are inhibited; once this time interval has
elapsed, every alarm state detected by the sensors will cause
the associated indicator to be lighted and the buzzer to be
powered; the exceptions are the “pre-lubrication” and “pre­post heating” indicators, given only visually.
When a new alarm state is detected, the indicator light will
flash to highlight the occurrence with respect to any others
which may be ongoing at the time.When the sound alarm is
shut off, the light indicator will remain lighted and the alarm
will be stored until the engine is stopped.

The standard set-up of the N60 ENT M37 provides for use
of the indicators SAC, SS, SIFA, SATA, SBPO, EDC.

N60 ENT M37 INSTALLATION DIRECTIVE

22

MARCH 2004

Figure 21

04_234_N

2

4

8

13

1

3

5

6

9

12

10

11

7

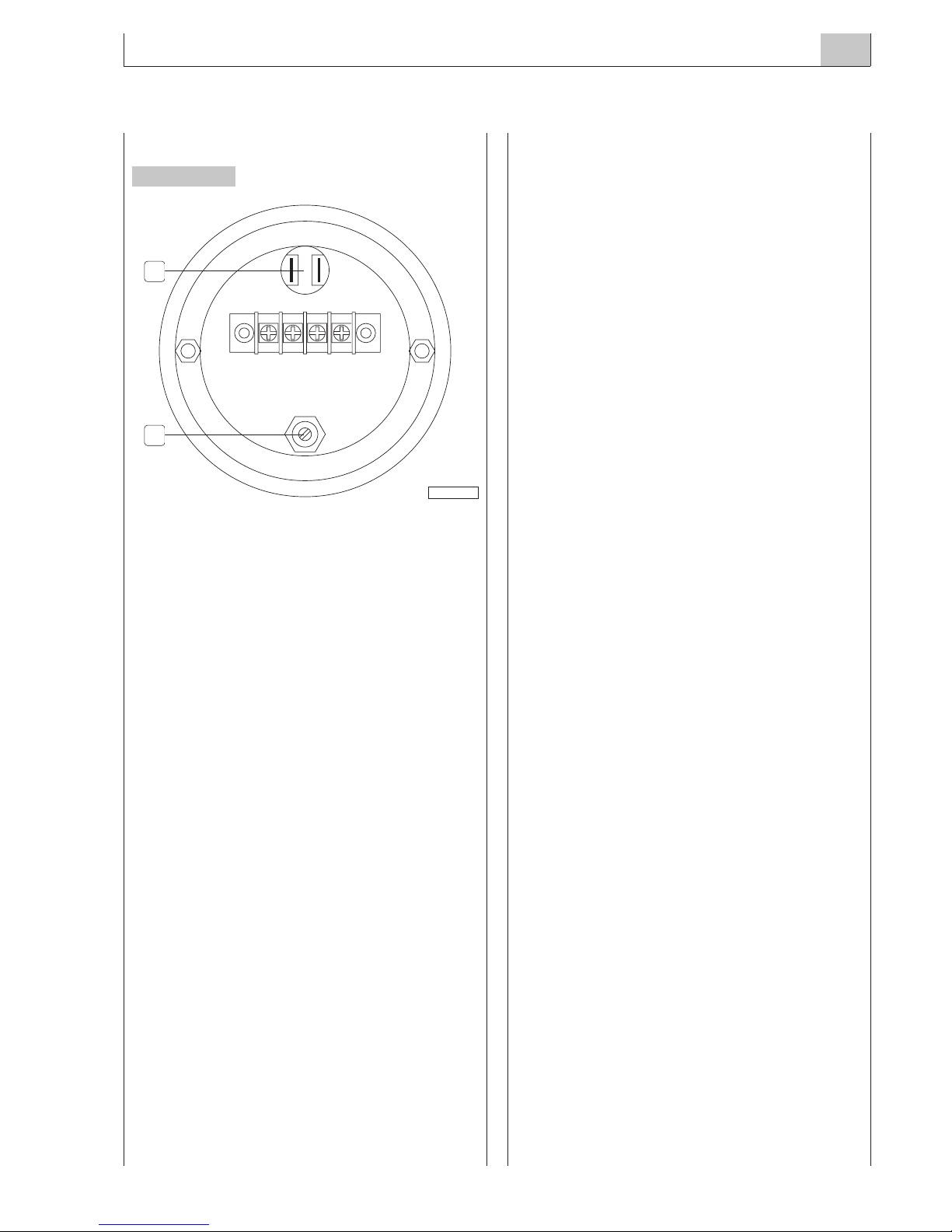

Revolution counter calibration

1. Adjustment screw -

2. Panel lighting lamp.

Verify the indication of the panel revolution counter by com­paring it with the one measured with a reference instrument;
if it differs, operate the adjustment screw (1), located in the
rear part of the instrument, until consistency is achieved;
repeat the operation for different engine rpms.

Maintenance

Should it become necessary to replace a panel light, remove
the lamp holder from the rear part of the instrument (see
Figure 22).

N60 ENT M37INSTALLATION DIRECTIVE

23

MARCH 2004

Figure 22

4

321

04_255_N

1

2

10. SECONDARY ANALOG INSTRUMENT PANEL

N60 ENT M37 INSTALLATION DIRECTIVE

24

MARCH 2004

electronic
RPMx100

04_240_N

1

3

2

5

4

6

7

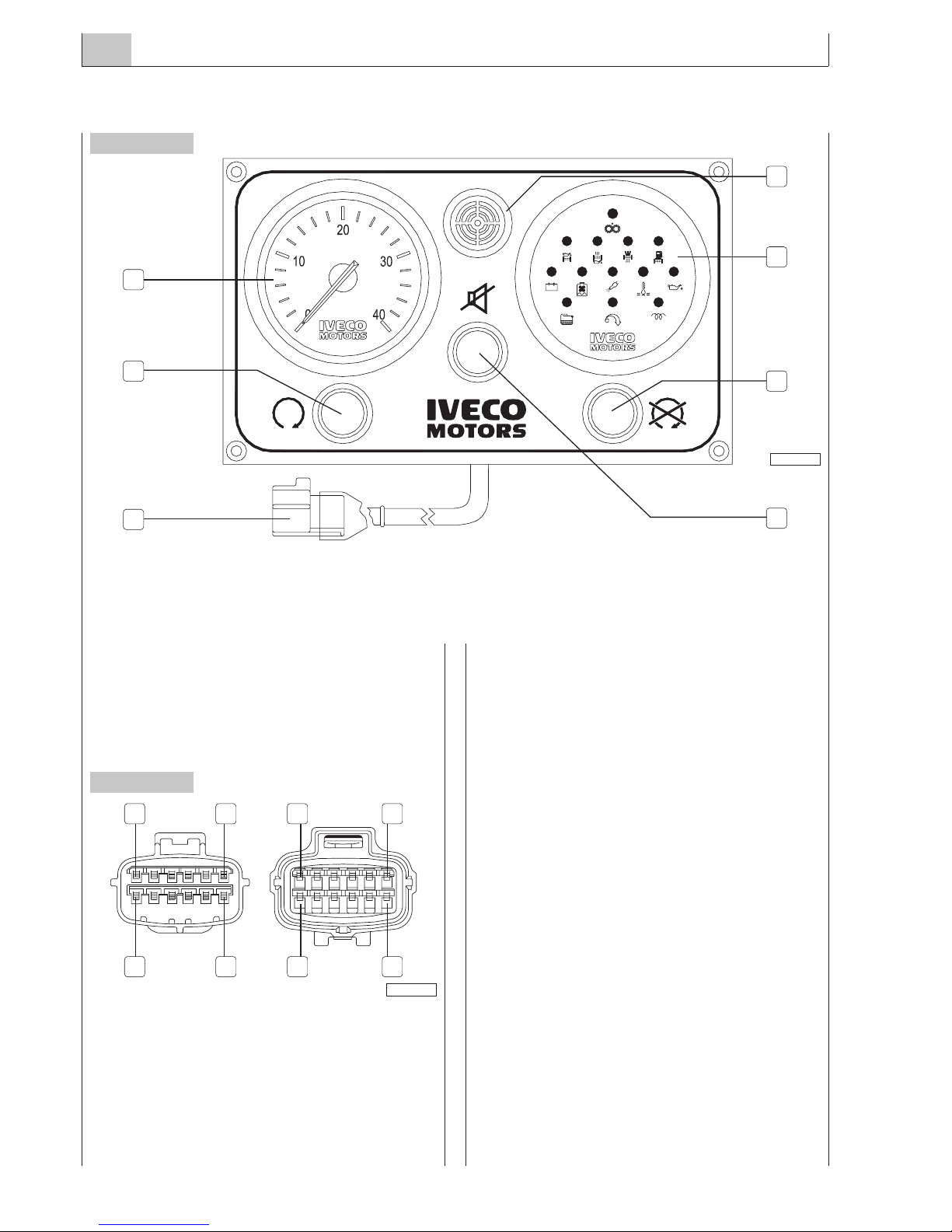

1.Connector for secondary panel wire harness (JH) - 2. Engine start push-button (CS) - 3. Revolution counter and hour
counter (CG) - 4. Buzzer (SA) - 5. Indications and alarms module (MS) - 6. Engine stop push-button (AS) -

7. Sound alarm inhibition push-button (P1).

Figure 23

The connection is achieved by removing the cap on the JE
connector of the main panel, and connecting the JE connec­tor to the JH connector on the secondar y panel, interposing
the extension wire harness, available in 3, 5 and 7 meter-long
versions (see Figure 19). The JE-JH wire harness comprises
12 lines, each connected to the terminal identified on both
connectors by the same number (see Figure 24).

CONNECTORS OF THE JE-JH EXTENSION WIRE

HARNESS, SEEN FROM THE COUPLING SIDE

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 11.

Operation of the secondary panel

After completing the electrical connection to the main panel
and engine preparation, and performing the tests required
for the first start (as described in Chapter 18), verify the
proper operation of the panel, proceeding as follows:

❏ Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then turn
the key switch to the first position, thus enabling the
operation of both panels.

❏ Carry out the same tests for the secondary panel as

were carried out for the main panel.

❏ Disable the secondary panel by bringing the key switch

on the main panel to the resting or zero position.

Testing the engine start and stop function.

With the panel enabled, press the green push-button until
the engine star ts, then release it; wait for engine rpm to sta­bilize before stopping it by pressing the red push-button.
The starting and stopping operations can be performed sev­eral times and consecutively from the secondary panel

Checking indications

Proceed in the same way as for the main panel.

JE JH

Figure 24

1 5 5 1

6 10 10 6

04_251_N

11. DRILLING PLANS FOR ANALOG PANELS

N60 ENT M37INSTALLATION DIRECTIVE

25

MARCH 2004

Figure 25

= =

225

285

264

Ø

4

Ø4

Ø4

Ø4

==

140

200

26264 4

26 4

Figure 26

= =

180

240

282

==

80

140

2828

28

Ø

4

Ø4

Ø4

Ø4

22

Measurements in: millimeters.

MAIN PANEL

SECONDARY PANEL

Installing the panel provided with digital displays requires con­necting the JH connector of the panel to the JE connector of
the interface wire harness, itself connected to the “Convert­er Module”, interposing the JE-JH extension wire harness,
available in 3, 5 and 7 meter-long versions (Figure 24).

To the main panel is connected the JE connector,set for con­nection to the secondar y panel; in installations lacking the
secondary panel, do not remove the cap of the JE connector
in order not to compromise the electrical continuity of the
system power supply circuit.

N60 ENT M37 INSTALLATION DIRECTIVE

26

MARCH 2004

Figure 27

RPM

X100

C

40

50

0

120

5

90

BAR

10

10

2

+–

8

15

20

h

RPM

– +

V

35

MIN

30

0

MAX

BAR

3

25

1

2

ROG.

P

1. Engine coolant temperature indicator - 2. Lubrication loop pressure indicator - 3. Service and alarm indicators -

4. Revolution counter - 5. Supercharger air pressure indicator - 6. Voltmeter - 7. Engine star t/stop key switch - 8. JE connector
for secondary panel - 9. Cap with electrical continuity connection - 10. Accessory function programming push-button -

11. Push-button for selecting accessory information - 12. Digital display - 13. Push-button for zeroing the “programmed

maintenance” indication - 14. Sound alarm inhibition push-button - 15. JH connector for panel wiring - 16. Buzzer.

1

15

16

2 5

6

7

8

3 34

04_256_N

9

14 13 12 11 10

12. MAIN DIGITAL INSTRUMENT PANEL

N60 ENT M37INSTALLATION DIRECTIVE

27

MARCH 2004

JB JA

JF1 JF2

JH

A2

A1

A

JA

JE

JE

JD

JO

JH

JE

JH

JE JE1

04_258_N

Synoptic of digital panel connections

Figure 28

1. Interface wire harness for converter module - 2. JE-JH extension wire harness.

1

MAIN

INSTRUMENT

PANEL

RELAY

BOX

EDC

SECONDARY

INSTRUMENT

PANEL

BATTERY

ENGINE

EQUIPMENT

CAN - BUS

CONVERTER

MODULE

The JE1 connector provides connection to a second main
onboard panel. Its installation is subject to IVECO MOTORS
approval.

2

CAN - BUS converter module

REAR VIEW OF THE MODULE

WITH JO CONNECTOR

The presence of the “Converter Module” is necessary to
translate the information of some sensor, provided in analog
form, into information suited to be decoded by the digital
converters of the panel.
The interface wire harness is set up to connect the main
panel (JE) from which the secondary panel is to be branched
off, and it is provided with a branch (JD) for connecting an
electronic engine rpm managing system or an electronic
throttle.

The JE1 connector is branched from the interface cable. The
connector provides connection to an optional second main
onboard panel. Its installation is subject to IVECO MOTORS
approval (see figure 28).

JO CONNECTOR

VIEW OF THE WIRE HARNESS TERMINAL,

COUPLING SIDE

Functions of the JO terminals

1 Gear box oil pressure signal

2 CAN L

3 CAN H

4 Power supply positive (+ B)

5 Power supply positive (+ B)

6 Battery positive with key in ON position

7 Battery positive with key in ON position

8 Power supply negative (ground)

9 Optional output

10 Engine rpm signal

11 Pre-lubrication signal

12 Not connected

13 Exhaust gas temperature signal (-)

14 Exhaust gas temperature signal (+)

15 Gear box oil temperature signal

16 Engine oil temperature signal

17 Engine oil pressure signal

18 Air filter clogging signal 2

19 Power supply negative (ground)

20 Not connected

21 Alternator anomaly signal

22 Pre-heating signal

23 EDC failure signal

24 Low coolant level signal

25 Exhaust gas temperature signal (–)

26 Exhaust gas temperature signal (+)

27 External throttle input signal

28 Coolant temperature signal

29 Air filter clogging signal 1

30 Not connected

31 Power supply negative (ground)

32 Not connected

33 Runaway engine signal

34 Water in fuel signal

35 Oil filter clogging signal

36 Fuel filter clogging signal

N60 ENT M37 INSTALLATION DIRECTIVE

28

MARCH 2004

Figure 29

04_259_N

Figure 30

PIN 13

PIN 1

PIN 25

PIN 24

PIN 12

PIN 36

04_218_N

Connector JD

The JD connector enables to use an electronic engine rpm
management instead of the system provided on the engine.
If this solution is used, the throttle position sensor, situated
on the engine, will remain electrically connected but not
used and the EDC Central Unit will manage engine rpm
according to the voltage signal applied to the terminals of the
JD connector.
In case of a fault in the electronic throttling system, the
engine rpm may be managed in emergency condition,
mechanically operating the sensor lever positioned on the
engine.
The connection requires a METRI PACK 150 four-way con­nector with male terminals.

N60 ENT M37INSTALLATION DIRECTIVE

29

MARCH 2004

Figure 31

04_263_N

PIN Wire code U Interpreted function I max

1 7731 +B, with key in ON position Electronic throttle enabling 0,5 A

2 0000 0 V (ground) Common reference terminal -

0 to 0,5 V Throttle to idle -

3 5584 0,5 to 4,5 V Throttle from idle to max., U function -

4,5 to 5 V Throttle to maximum -

4 5551 ground, with engine in overspeed Runaway engine indication 0,1 A

1 2 3 4

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 14.

Operation of the panel

After completing the electrical connections and engine
preparation, perform the tests required for the first start, as
described in Chapter 18.
Verify the proper operation of the panel, proceeding as fol­lows:

❏ Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then turn
the key switch to the first position and verify that the
instruments are powered and the indications and alarms
module runs the alarm test for about 5 seconds. During
this phase, all indicator lights must be lighted, with the
exception of those for “pre-lubrication”, “pre-post heat­ing” and “EDC failure”. A sound signal must be emitted
by the buzzer ; it may be silenced before the end of the
test, pressing the push-button on the panel.

❏ Once the test is complete, only the indications pre-

scribed for the engine stopped must remain lighted: e.g.
“alternator charge” and “low oil pressure”; the analog
instruments must provide values consistent with the
respective physical parameters.

Testing the engine start function

Turn the key switch to the second position and keep it in it
until the engine has started, then release the switch, which
will stably return to the first position; after releasing the key,
the switch may be brought back to the starting position only
after the switch is returned to the resting or zero position.

Checking indications

After starting the engine, verify whether the operating
modes of the indications and alarms module are similar to
those set out above.
Using appropriate measuring instruments, verify the consis­tency of the indications provided by the analog instruments.

Testing the engine stop function

The engine is stopped and the panel is disabled by returning
the key switch to the resting or zero position.
The panel has an engine stop push-button whose function is
only enabled in versions where the engine stops as a result
of the excitation of an actuator, i.e. engine versions requiring
certification by Certification Bodies.

Programming accessory functions

The following programming operations are required when
the panel is first operated:

❏ The hours of the maintenance interval relevant to the

characteristics of the engine in use.

❏ The maximum quantity of introduction, necessary to

compute fuel consumption.

With reference to Figure 27, proceed as follows:

❏ Holding down the “Programming” (10) and “Slide-down

selection” (11) push-buttons, positioned on the panel,
turn the key switch to the first position and wait for the
display to show the value of the maintenance interval set
previously (e.g., 200 hours).

❏ Release the push-buttons and set the hours of the time

interval, indicated for oil replacement, provided on the
operation and maintenance manual; the operation is
completed by repeatedly pressing the “Slide-down
Selection” push-button (11) until the number that is
selected and highlighted by flashing is correctly set, then
operating the “Programming” push-button (10) to select
the number to set.

❏ Press and hold the “Programming” push-button (10)

until the display shows the maximum introduction
value, set by default to the value 10 mg/strk, then
release it.

❏ Set the number for engine calibration, obtaining it from

the table that follows, proceeding as described in item 2.

❏ Press and hold the “Programming” push-button (10)

until the display shows the engine rpm indication.

If programming operations were not performed correctly,
the display will show the indication “Err.P”; check whether
the electrical connections of the main panel and of the con­verter module were performed correctly, then repeat the
procedure.

Maximum power calibration Introduction
HP mg/strk

370 131

330 116

270 98

N60 ENT M37 INSTALLATION DIRECTIVE

30

MARCH 2004

Symbology key

Clogged air filter

Expired programmed maintenance interval

Clogged oil filter

Pre-lubrication in progress

Pre-post heating

Clogged fuel filter

Presence of water in the fuel filter

Clogged blow-by filter

Alternator fault

Low oil pressure

High coolant temperature

Runaway engine

Low engine coolant level

EDC fault

N60 ENT M37INSTALLATION DIRECTIVE

31

MARCH 2004

13. SECONDARY DIGITAL INSTRUMENT PANEL

N60 ENT M37 INSTALLATION DIRECTIVE

32

MARCH 2004

The secondar y panel is branched to the main panel.
Remove the cap from the main panel JE connector and
connect the JE connector to the JA connector on the sec­ondary panel, placing the special extension JE-JH cable,
available 3, 5 and 7 meters long (see figure 24). IVECO
MOTORS standard supply is provided for the installation of
the main and secondary board and their simultaneous use
with no operation limitations.

Installation

In order to drill holes on the area where the panel is to be
mounted, refer to the dimensions indicated in Chapter 14.

Operation of the secondary panel

After completing the electrical connection to the main panel
and engine preparation, and performing the tests required
for the first start (as described in Chapter 18), verify the
proper operation of the panel, proceeding as follows:

❏ Make sure that the “ENGINE ROOM / BRIDGE” switch

of the Relay Box is in the “BRIDGE” position, then turn
the key switch to the first position, thus enabling the
operation of the main and secondar y panels.

❏ Carry out the same tests for the secondary panel as

were carried out for the main panel.

❏ Disable the secondary panel by bringing the key switch

on the main panel to the resting or zero position.

Testing the engine start and stop function.

With the panel enabled, press the green push-button until
the engine star ts, then release it; wait for engine rpm to sta­bilize before stopping it by pressing the red push-button.
The starting and stopping operations can be performed sev­eral times and consecutively from the secondary panel

Checking indications

Proceed in the same way as for the main panel.

Figure 32

RPM

X100

C

40

50

0

120

5

90

BAR

10

10

2

+–

8

15

20

h

RPM

– +

V

35

MIN

30

0

MAX

BAR

3

25

1

2

START

STOP

1

11

10

2

5

6

3 34

04_257_N

1. Engine coolant temperature indicator - 2. Lubrication loop pressure indicator - 3. Service and alarm indicators -

4. Revolution counter - 5. Supercharger air pressure indicator - 6. Voltmeter - 7. Push-button for selecting accessory
information - 8. Engine stop push-button - 9. Digital display - 10. JA connector for panel wire harness -

11. Engine start push-button - 12. Sound alarm inhibition push-button.

7

8

12

9

14. DRILLING PLAN FOR DIGITAL PANELS

N60 ENT M37INSTALLATION DIRECTIVE

33

MARCH 2004

Figure 33

= =

= =

16

16

244

276

159

191

Ø7

Ø

7

Ø

7

Ø

7

MAIN PANEL

AND SECONDARY PANEL

15. CUSTOMIZED INSTRUMENT PANEL

Using only the components of the panel that are not wired
to allow for panel customization, they will have to be wired
using the 10 meter long wire harness, set up at one end for
coupling to the JB connector and at the opposite end with
conductors with free terminals with identifying numbering
on each wire. The conductors will have to be connected to
the individual components as indicated in the electrical and
wiring diagrams in Chapter 24.

CAUTION

To assure the functionality of the safeties pertaining to the
engine start/stop commands from the instrument panel or
engine room, it is mandatory to wire the key switch strict­ly as shown in the electrical diagrams in Chapter 24.

The wiring details of the indications and alarms module
alone are provided below; indications for IVECO MOTORS
indicator instruments, are shown in the related wiring dia­grams in Chapter 24.

JD Connector for indications and alarms
module

VIEW FROM THE INTEGRATED SIDE

IN THE REAR PART OF THE MODULE

VIEW FROM THE TERMINAL SIDE

OF THE COUPLING SIDE WIRING

Connector TRIDENT - ITT Cannon

part # TST 24PA00

terminal female part # 192990-0050

lid rear part # TST24AH00

JD connects the indications and alarms module to the elec­trical system of the engine (sensors, power supply, etc.).
The terminal part of the wire harness, supplied with the
module, must be completed using female terminals, as
described in the electrical diagram of Chapter 24.
For standard-equipped engines, to have the essential indica­tions available, the following ways must be wired: 1, 2, 3, 7, 8,
9, 10, 13, 14, 15, 17, 18, 19 with the female terminals supplied
as standard equipment.

N60 ENT M37 INSTALLATION DIRECTIVE

34

MARCH 2004

Figure 34

123

4

5687

10 912 11

13141615

171820 19

212224 23

04_252_N

Figure 35

13

9

5

1

14 15

16

10 11 12

6

2

4

78

3

21 22 23 24

17 18 19 20

04_241_N

CAUTION

To assure the utmost reliability and safety while underway, all installations must be provided with the following alarm indi­cations:
(EDC) EDC failure
(SATA) high coolant temperature
(SBPO) low oil pressure

It is also recommended that the following indications be present:
(SAC) presence of water in the fuel pre-filter
(SIFA) clogged air filter
(SS) alternator fault

N60 ENT M37INSTALLATION DIRECTIVE

35

MARCH 2004

Functions of the JD terminals

PIN Description Electric level

OFF Indication ON Indication

1 Module power supply Positive (+B)

2 EDC lamp power supply Power supply positive (+B)

3 EDC Fault indication High (+B) Low (ground)

4 Pre-heating light power supply Power supply positive (+B)

5 Pre-heating indication High (+B) Low (ground)

6 Pre-lubrication indication Open circuit High (+B)

7 Engine star t Power supply positive (+B) while star ting

8 Sound alarm inhibition Negative (ground) during the request

9 Module power supply Negative (ground)

10 Buzzer power supply Negative (ground) during the emission of sound

11 Clogged oil filter indication Open circuit Low (ground)

12 Clogged oil vapor filter indication Open circuit Low (ground)

13 Clogged air filter indication Open circuit Low (ground)

14 Clogged fuel filter indication Low (ground) Open circuit

15 Alternator fault indication High (+B) Low (1 to 3 V)

16 Low engine coolant level indication Open circuit Low (ground)

17 High coolant temperature indication Open circuit Low (ground)

18 Low engine oil pressure indication Open circuit Low (ground)

19 Presence of water in fuel indication Open circuit Low (ground)

20 Overloaded or runaway engine indication Open circuit High (+B)

21 Not connected -

22 Not connected -

23 Reception of data from main panel NMEA communication protocol (0 to 5 V)

24 Transmission of data to secondary panel NMEA communication protocol (0 to 5 V)

16. SENSORS FOR DETECTION AND PANEL SIGNALING

Coolant temperature sensor

Resistor with negative temperature coefficient, providing the
signal for analog temperature indication.

Operating voltage from 6V to 24 V

Calibration range from 0 °C to 120 °C

Resistance value at 90 °C 51,2 ± 4,3 Ω

Poles isolated

High coolant temperature sensor

Function served by the ECU EDC according to its coolant
temperature sensor.

Oil pressure sensor

Rheostat component providing the signal for the analog indi­cation of pressure.

Operating voltage from 6V to 24 V

Calibration range from 0 bar to 10 bar

Resistance value at 0 bar 10 Ω +3/-5 Ω

Resistance value at 2 bar 52 ± 4 Ω

Resistance value at 4 bar 88 ± 4 Ω

Resistance value at 6 bar 124 ± 5 Ω

Maximum value of resistance 184 Ω

Operating temperature from -25 °C to 100 °C

Poles isolated

Low oil pressure sensor

Function served by the ECU EDC according to its oil pres­sure sensor.

Air filter clogging sensor

Vacuum switch, providing the signal for the clogged air filter
alarm indicator.

Operating voltage from 12V to 24 V

Condition at ambient pressure normally open

Closing vacuum ≥ 52 mbar

Operating temperature from -20 °C to +80 °C

Poles isolated

Exhaust gas temperature sensor

NiCr-Ni thermocouple sensor with insulated poles, pro­viding the signal for the analog indication of exhaust gas
temperature.

Temperature Voltage
°C mV

100 4,10

200 8,13

300 12,21

400 16,40

500 20,65

600 24,91

700 29,14

800 33,30

900 37,36

N60 ENT M37 INSTALLATION DIRECTIVE

36

MARCH 2004

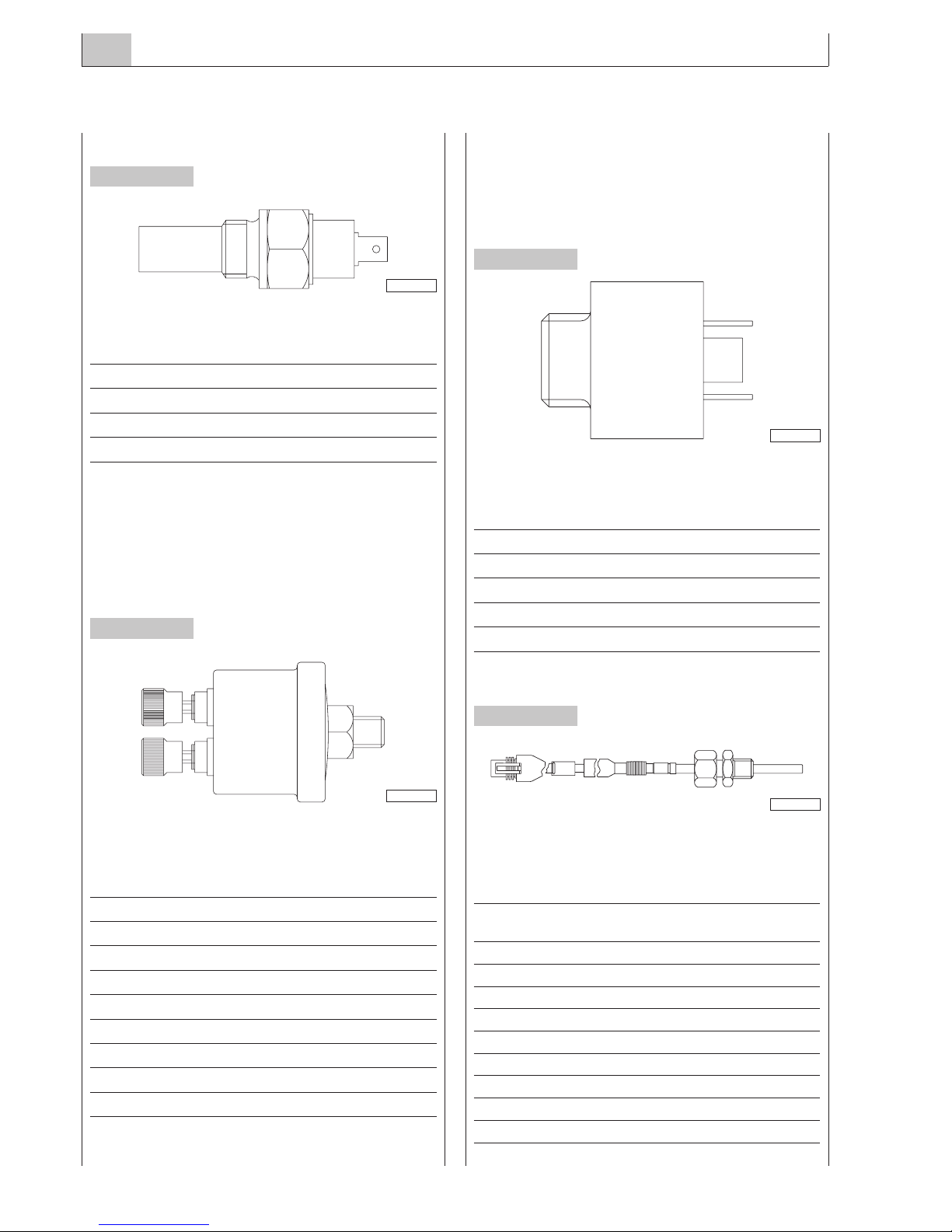

Figure 36

Figure 37

04_236_N

Figure 38

04_238_N

04_237_N

04_260_N

Figure 39

N60 ENT M37INSTALLATION DIRECTIVE

37

MARCH 2004

Sensor to detect the presence of water in fuel

Fuel resistivity sensor, integrated with the control and ampli­fication electronic circuit, providing the signal for the indica­tor of the presence of water in the fuel.

Operating voltage from 12V to 24 V

Condition in the absence of water open circuit

Closed condition resistance of the liquid

≤ 1 MΩ

Operating temperature from -20 °C to +80 °C

Connections of the sensor detecting the presence
of water in fuel

1. M Connector of the engine wire harness -

2. Sensor detecting the presence of water in the fuel -

3. Wiring harness (outfitter’s responsibility).

The three pole connection between the sensor for detect­ing the presence of water in the fuel and the engine wire har­ness must be produced by the outfitter according to the
position of the fuel pre-filter in the boat.
Connection to the engine wire harness requires a METRI­PACK 150 three-pole connector with three male terminals;
connection to the sensor requires a JUNIOR TIMER three­pole connector with three female terminals.

04_239_N

Figure 40

ABC

312

ABC

312

04_253_N

Figure 41

1

2

3

17. PREPARING THE ENGINE
FOR FIRST START-UP

18. TESTS BEFORE
THE FIRST START-UP

1. Drain the residual 30/M protective oil from the sump.

2. Pour into the lubricating loop only lubricating oil of the
type and in the quantities set out in the Refilling Table.

3. Drain the CFB protective liquid from the fuel loop, com­pleting the operations as indicated under item 3. of
Chapter 23.

4. Remove the caps and/or seals from the engine intake,
exhaust, aeration and venting por ts, restoring normal
conditions of use. Connect the inlet of the turbocharger
to the air filter.

5. Connect the fuel loops to the boat tank, completing the
operations set out in item 4. of Chapter 23. During fill­ing operations, connect the pipe returning fuel to the
tank to a collecting container, to prevent residues of CFB
protective liquid from ending up into the boat tank.

6. Verify and refill engine coolant as prescribed.

7. Remove from the engine the labels with the inscription
“ENGINE WITHOUT OIL”.

Although they are extremely impor tant, “common sense”
checks such as the exposure of sensitive parts (plastics, wire
harness, electronic units, etc...) to heat, and those that for
years have characterized the quality of the work performed
in the yard, are not mentioned herein.
Tests of the proper operation of the engine and the com­ponents of the electronic control system may be performed
rapidly and with the utmost reliability using specific diagnos­tic tools, available from IVECO MOTORS Technical Assis­tance Centers.

Fuel tank suction

Verify the fuel suction at the maximum allowed longitudinal
and transverse inclination, with the residual quantity of fuel
considered “RESERVE”, such as to cause the reserve indica­tor light to be permanently lighted.

Throttle lever position sensor

In the positions of minimum and maximum travel, verify the
correlation between the position of the throttle control
valve on the bridge and the position of the sensor rod,
checking:

❏ That in the resting position the safety switch inside it

is electrically open. Carr y out the test with an ohm­meter between the points D and E of the poten­tiometer connector.

- Value read ∞Ω= optimal adjustment;

- Value read 1 kΩ = a better mechanical adjustment of

the resting position is required, to bring the value back
to ∞Ω.

❏ In the position of maximum acceleration, the rod of the

sensor has reached the mechanical end stop.

Instrument panel

Verify the efficiency of all light indicators, as described in the
related Chapters.

N60 ENT M37 INSTALLATION DIRECTIVE

38

MARCH 2004

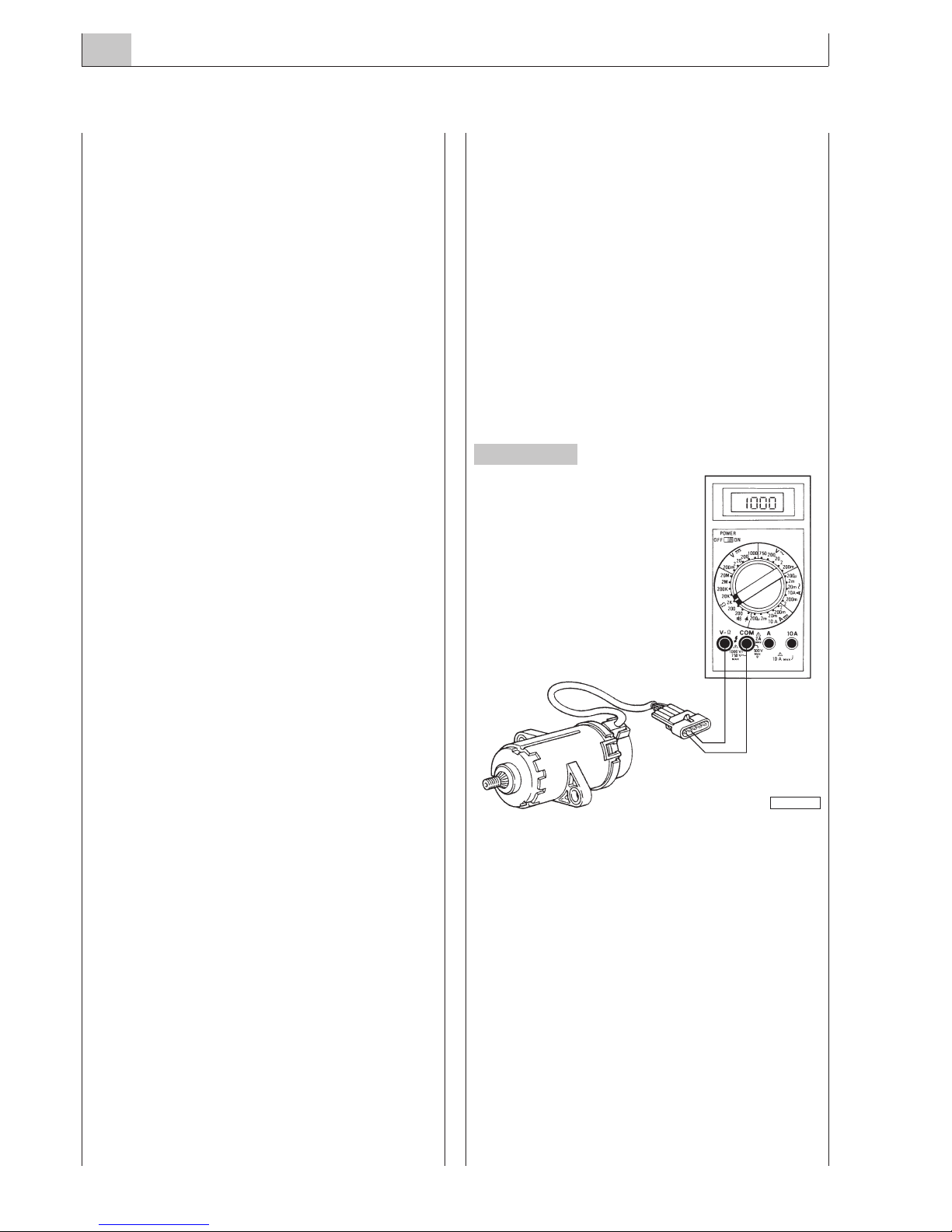

Figure 42

04_080_N

19. FIRST ENGINE START

Before starting the engine, check the levels of the lubricating
oil and of the engine coolant, and complete venting the air
from the fuel feed loop, acting on the hand pump of the pre­filter or with the aid of a dedicated electrical pump.
Loosen the vent fitting on the pre-filter and operate the
pump until only fuel without air flows out.
Tighten the vent fitting and continue pumping during the ini­tial start-up phases.
Make sure that the fuel that flows out of the fitting is not dis­persed in the environment.

CAUTION

Never attempt to vent the high pressure system, as this is
useless and extremely dangerous.

Start-up procedures

The electrical equipment of this engine allows to start it from
the “engine room” and from the “bridge”.

Starting the engine from the bridge

This is allowed only if the Relay box switch (1) is in the
“BRIDGE” position.
Start the engine and let it run until the idling rpm has fully
stabilized (see also the Chapters on the instrument panels).

Starting the engine from the “engine room”

Moving the Relay box switch (1) to the “ENGINE ROOM”
position (which must absolutely not be done when the
engine is running), regardless of the position of the key
switch on the indicator and control panel, enables the use of
the adjacent STOP - START push-button (2).
It will thereby be possible to start and stop the engine with
complete independence from the bridge controls.
Moving the switch (1) back to the “BRIDGE” position,
inhibits use of the “START-STOP” push-button positioned
on the Box, allowing the engine to be star ted only from
bridge controls.

RPM control

To allow easily to control engine RPM from the “engine
room”, a simultaneous acceleration/deceleration function
(SET+/SET-), active only when the switch (1) is in the
“ENGINE ROOM” position, has been implemented in the
“start” function.

Acceleration (SET +)

If, when the engine is running, the “start - stop” push-button
is held down in the “start” position, then engine rpm are pro­gressively increased; the increase ends when the push-button
is released, allowing the engine to run at the desired rpm.

Deceleration (SET –)

Moving the “start - stop” push-button back to the “start”
position, after releasing it during the rpm increase phase, a
progressive reduction in rpm is obtained; when the push-but­ton is release, the function is inhibited and the rpm reached
at that point is maintained.

NOTE: Further action on the push-button will alternatively
increase - decrease engine rpm.
The “stop” function takes priority and always stops the
engine.

CAUTION

Never operate the “BRIDGE - ENGINE ROOM” switch
when the engine is running.

Once the first star t-up phase is complete, verify that:

❏ There are no liquid leaks from the coolant loop pipeline

junction hoses.

❏ There are no exhaust gas leaks into the hull.

❏ Complete the instrument panel operation tests as

described in the related Chapters.

❏ Verify that the power supply voltage across the battery,

after about 15 minutes with the engine running, is no
less than about 13 V.

❏ Stop the engine and delete any “errors” which may have

been stored in the injection system ECU during the sta­bilization phases. For the deletion procedure, refer to
Chapter 20.

N60 ENT M37INSTALLATION DIRECTIVE

39

MARCH 2004

21

Figure 43

04_074_N

20. EDC ANOMALIES INDICATION

Anomalies indicator light

The ECU continuously monitors, with complex self-testing
routines, its own operating conditions as well as those of the
components connected to it and of the engine.
When anomalies are detected, the alarm indicator light on
the indicator and control panel is lighted in manners that
provide a first indication on the severity of the problem.

Light off: no anomaly detected or slight anomaly

that does not compromise operating
safety

Light on: significant anomaly, allowing to proceed to

a service center

Blinking light: severe anomaly requiring immediate

repairs. If possible, shut the engine down.

Blink code

The emission of the anomaly codes detected during self­testing and stored in the ECU starts after pressing and
releasing the “CHECK” push-button on the relay box panel,
when the “BRIDGE - ENGINE ROOM” switch is in the
“ENGINE ROOM” position
The LED located at the side of the push-button and the
EDC indicator light on the indicator and control panel will
simultaneously signal, with two series of emissions at differ­ent frequencies, the blink codes that indicate the anomaly
with decimal numbering.

Slow blinks identify the area of the anomaly (engine, injec­tors, ...), fast blinks identify a specific anomaly.

Every time the push-button is pressed and released, only one
of the stored codes is emitted; therefore, the procedure
must be repeated until an error indication identical to the
first one is obtained, which means the entire error memory
has been analyzed.

If no anomalies are stored, the light comes on when the
push-button is pressed and comes off about 1 second after
its release, without any subsequent blinking.

Recovery

The recognition of significant or severe anomalies causes the
adoption of strategies that allow to use the engine with com­plete safety, guaranteed by limiting performance within pre­set thresholds according to the severity of the case.

These strategies cause the reduction of the maximum values
of torque and power delivered by the engine.
In the case of intermittent anomalies, i.e. recognized by the
ECU and subsequently no longer present, performance
reduction will continue until the engine is shut down.
Normal operation will be restored only the next time the
engine is started, while the anomaly data will be “saved” in
the failure memor y.

Error deletion procedure

A. Shut the engine down and keep the key switch in the

“OFF” position.

B. Approach the relay box. Keeping the “CHECK” diagnos-

tic push-button (3) pressed, move the adjacent “BRIDGE

- ENGINE ROOM”switch (1) to the “ENGINE ROOM”
position, while keeping the diagnostic push-button
pressed for 8 more seconds.

C. Release the push-button and move the “ENGINE

ROOM” switch to the “BRIDGE” position

At the end of this procedure, the codes of any anomalies
detected during the engine installation and first start-up
operations will be deleted in the ECU.To make sure that no
anomaly data remain stored in it, or that there are no other
errors in the system, set the “BRIDGE - ENGINE ROOM”
switch to the “ENGINE ROOM” position and verify that,
when the diagnostic push-button is pressed, the blink code
light (4) does not emit any code.

At the end of these operations, return the switch to the
“BRIDGE” position

If the ECU signals the presence of errors or operating anom­alies, the installation will have to be reviewed to remove the
cause of the error or anomaly.
Indications for decoding the codes are provided in Chapter 21.

NOTE:The blink code diagnostic procedure provides indica­tions about current anomalies as well as past anomalies that
are no longer present when the diagnosis is carried out;
therefore, it is absolutely mandatory, at the end of every
repair operation, to erase the error memory to prevent
anomalies whose cause has already been removed from
being signaled in the future.

N60 ENT M37 INSTALLATION DIRECTIVE

40

MARCH 2004

Figure 44

31 4

04_074_N

21. BLINK CODE TABLE (software version 4.1_2 V5.3)

Blinking EDC indicator Indicated fault Max power
Code light reduction

Control area

1.1 (on) not significant in marine applications -

1.3 (on) not significant in marine applications -

1.4 on throttle position sensor x

1.5 (off) not significant in marine applications -

1.6 (on) not significant in marine applications -

1.7 (off) not significant in marine applications -

1.8 on EDC lamp indicator -

Engine Area 1

2.1 on water temperature sensor -

2.2 off air temperature sensor -

2.3 off fuel temperature sensor -

2.4 on supercharge air pressure sensor x

2.5 off ambient pressure sensor (inside the unit) -

2.6 on lubrication oil pressure sensor -

2.7 on lubrication oil temperature sensor -

2.8 off coil relay fuel heater -

2.9 (on) not significant in marine applications -

Engine Area 2

3.1 off cylinder balancing 1 -

3.2 off cylinder balancing 5 -

3.3 off cylinder balancing 3 -

3.4 off cylinder balancing 6 -

3.5 off cylinder balancing 2 -

3.6 off cylinder balancing 4 -

3.7 on battery voltage -

3.8 (off) not significant in marine applications -

3.9 (on) not significant in marine applications -

4.6 (on) not significant in marine applications -

Injectors

5.1 on cylinder 1 electro-injector fault x

5.2 on cylinder 5 electro-injector fault x

5.3 on cylinder 3 electro-injector fault x

5.4 on cylinder 6 electro-injector fault x

5.5 on cylinder 2 electro-injector fault x

5.6 on cylinder 4 electro-injector fault x

5.7 on electro-injector cylinder 1-2-3 power driver x

5.8 on electro-injector cylinder 4-5-6 power driver x

(continue to next page)

N60 ENT M37INSTALLATION DIRECTIVE

41

MARCH 2004

Blinking EDC indicator Indicated fault Max power
Code light reduction

Engine RPM sensor

6.1 on flywheel sensor x

6.2 on timing system sensor x

6.3 off engine speed signal plausibility -

6.4 blinking runaway engine -

6.5 on coil relay electric starter motor -

6.6 off revolution counter signal -

6.8 off synchronism trouble with diagnosis tool -

Fuel pressure

8.1 blinking fuel pressure control x

8.2 blinking fuel pressure signal x

8.3 blinking pressure regulator solenoid valve x

8.4 blinking twin stage valve tripping x

8.5 blinking MIN/MAX rail pressure error ENGINE STOP

Electronic unit

9.3 (blinking) not significant in marine applications x

9.4 on main relay -

9.6 blinking after-run procedure not completed x

9.7 on sensor/ECU supply x

N60 ENT M37 INSTALLATION DIRECTIVE

42

MARCH 2004

22. UNDERWAY CHECKS

ECU Temperature

Verify that the temperature of the surface of the electronic
engine control unit, after 30 minutes underway at full engine
power, is less than +70 °C.

Engine compartment vacuum

Verify that value of ambient air pressure in the engine room
with the engine(s) at full load and maximum power output
complies with the value specified herein.

Combustion air temperature

Verify that the temperature in the engine room, after 30 min­utes underway at full engine power, does not exceed 50 °C
and, in any case, does not exceed the value of external tem­perature by more than 15°C.

Exhaust back-pressure

Verify that the value of back-pressure present at the inlet of
the exhaust gas conduit, with the engine(s) at full load and
maximum power output, complies with the value specified
herein.

Exhaust temperature

Verify that the temperature of the exhaust gases under
maximum engine power output conditions is close to the
prescribed value.To determine the propeller power absorp­tion curve, it will also be possible to obtain the fuel injection
values from the ECU parameters by using the IVECO
MOTORS tool.

Fuel temperature

Verify that the temperature of the fuel in the low pressure
line, while underway at full power and with a stable quantity
of fuel in reserve, does not exceed 70 °C. A higher value
would entail a reduction in engine performance. If the ten­dency to reach the maximum allowed temperature is noted,
install a heat exchanger for the fuel.

Pressure in the fuel supply line

To assure the regular operation of the engine and the relia­bility of the components of the fuel supply and injection sys­tem, you need to verify that:

❏ vacuum in the fuel oil supply line to the low pressure

pump is less than 0.5 bar relative (5000 mm H

2

O);

❏ pressure in the fuel oil return line to the tank is less than

0.2 bar relative (2000 mm H

2

O).

Measures are carried out inserting a “T” junction near the
fuel inlet and outlet, taking care to avoid any air suction.Val­ues are read at variable rpm, from idle to maximum, at 200
rpm inter vals.
If there are any symptoms indicating the possible presence of
air in the fuel supply line, a check may be made by inserting
a clear tube, arranged as an inverted U, before the engine
inlet junction.

N60 ENT M37INSTALLATION DIRECTIVE

43

MARCH 2004

23. PREPARING THE ENGINE FOR LONG IDLE PERIODS

To prevent oxidation to the internal par ts of the engine and
to some components of the injection system, if idle periods
exceeding two months are expected, the engine needs to be
prepared with six-months periodicity,proceeding as follows:

1. Drain the lubricating oil from the sump, after heating the
engine.

2. Pour 30/M protective oil (alternatively, oil conforming
with MIL 2160B Type 2 specifications) into the engine to
the “minimum” level marked on the dipstick.
Start the engine and let it run for about 5 minutes.

3. Drain the fuel from the injection line and from the filter,
taking care to avoid letting the fuel come in contact with
the auxiliaries belt.

4. Connect the fuel line to a tank containing CFB protec­tive liquid (ISO 4113) and assist the inflow of the liquid
by pressurizing the line and turning the engine over for
about 2 minutes, after excluding the operation of the
injection system.The required operation may be carried
out by directly polarizing the terminal 50 of the electric
starter motor with positive voltage 12 V, using a con­ductor prepared for the occasion.

5. Nebulize 30/M protective oil at the rate of about 60 g
(10 g per liter of displacement) into the turbocharger
intake, while the engine is turning over as described
above.

6. Close with suitable stoppers or seal with adhesive tape
all engine intake, exhaust, aeration and venting ports.

7. Drain the residual 30/M protective oil from the sump;
it may be re-used for 2 more engine preparation oper­ations.

8. Apply tags with the inscription “ENGINE WITHOUT
OIL” on the engine and onboard panel.

9. Drain the coolant, if it has not been mixed with anti­freeze and corrosion inhibiting agents, affixing tags to
indicate that the operation has been carried out.

If external parts of the engine are to be protected, spray pro­tective liquid OVER 19 AR onto unpainted metal parts, such
as flywheel, pulleys and others; avoid spraying belts, connec­tor cables and electrical equipment.

N60 ENT M37 INSTALLATION DIRECTIVE

44

MARCH 2004

24. WIRING DIAGRAMS

Pagina

Wiring diagram key 46

Electrical equipment component code 47

EDC connector A2 49

EDC connectors A - A1 50

Main analog instrument panel 51

Secondary analog instrument panel 52

CAN - BUS conver ter module interface wiring 53

Customized instrument panel wiring 54

Supplementary services battery recharge 55

N60 ENT M37INSTALLATION DIRECTIVE

45

MARCH 2004

Wiring diagram key

N60 ENT M37 INSTALLATION DIRECTIVE

46

MARCH 2004

A2

3 9 14 15

85150

74 56 36 2 37 4 16 39 64 28 41 42

JF2

19 45 44 1 7 12 13

AS

6

BAT

6

+

BAT
–

12

JF2

JF2

2348

F4

70

10

AC

70

GG

B+

2

JA

1

5030

MM

JA

29

JF1

28

JA

6

JB

9

10 11

JF1

21 22

PF

A

B

JA

2

JA

5

718

JF1

31

27

JF115JF15JF1

14

JF2

33

JF1

R1

25JA28 6

JF11JF1

3

JF1

38

JB

16

JA

12

JB

10

JA

R4

DL1

EDC

K1 K2

DK1 DK2

17

JA

1

JB

F3

1

7

13

BA

SW1

NORMALENGINE

ROOM

30

50

JB

7

JA

14

JF1

36

15

JB

2JA12

JF1

25

JF1

8

JA

26

M

A

5

JB

9

R3

D1

F2

K4

DK4

K3

DK3

SW2

STOP

START

17

JF29JF216JF2

13

JF1

F1

56

T

CA

38

JC

12

JC

JC

7

JB

8

JA

15

JF2

15

JC

8

JH

10

JE

10

JH

4

JE

4

JC

2

JA

19 20 32

34

Figure 45

Component

terminal

Terminal

connections

Minimum cable

cross section in mm

2

Connection

JC: connector

8: terminal

Component code

or connector code

Component

code

Fuse code

General conditions for the preparation and interpretation of wiring diagrams

❏ Key switch open

❏ Engine not running

❏ Liquids at efficient levels and pressures

Electrical equipment component code

A fuel temperature sensor for EDC

B drive shaft sensor

C camshaft sensor

F engine coolant temperature sensor for EDC

H combustion air pressure/temperature sensor for

EDC

K air filter clogging sensor (for alarm)

L instrument panel light switch

M sensor for detecting the presence of water in

the fuel pre-filter (for alarm)

O exhaust gas temperature sensor

T coolant temperature sensor (for gauge)

V oil pressure sensor (for gauge)

P1 sound alarm inhibition push-button

R1 3.3 kΩ resistor to inhibit speed input

R2 120 Ω resistor for CAN line balancing

R3 alternator pre-excitation resistor

R4 DL1 resistor

AC battery

AQ engine shut-off push-button on main panel

AS engine shut-off push-button on secondary panel

CA key switch

CS engine start push-button on secondary panel

GG alternator

IN electro-injector

MC converter module for digital panel

MM electric star ter motor

MS IVECO MOTORS indications and alarms module

PA throttle position sensor

PE emergency shut-down push-button

(optional, installer’s responsibility)

PF heating element on fuel filter

PR rail pressure sensor

QP main analog instrument panel

QS secondar y analog instrument panel

SA buzzer

SI gear box oil temperature sensor

VE engine oil pressure/temperature sensor for EDC

VI high gear box oil pressure sensor (25 bar)

WI low gear box oil pressure sensor (7 bar)

ZH pressure control solenoid valve

DL1 EDC fault indicator and blink code LED

(on relay box panel)

SW1 bridge or engine room engine control selector

(on relay box panel)

SW2 manual throttle control in engine room

(on relay box panel)

SW3 blink code emission request push-button (on

relay box panel)

85150 ECU of the EDC system

(continues on next page)

N60 ENT M37INSTALLATION DIRECTIVE

47

MARCH 2004

Electrical equipment component code (follows)

Connectors

A 36 pole EDC engine components

A1 16 pole EDC electro-injectors

A2 89 poles EDC boat side

E1 cylinders 1 and 2 electro-injectors

E2 cylinders 3 and 4 electro-injectors

E3 cylinders 5 and 6 electro-injectors

J1 external diagnostic tool (on the relay box panel)

JA connection between engine wiring and interface

wire harness

JA ON SECONDARY DIGITAL INSTRUMENT PANEL

set for connection to the main digital
instrument panel

JB ON ENGINE WIRE HARNESS

set for connection to the main analog
instrument panel or to the interface wire
harness for converter module

JC ON MAIN ANALOG INSTRUMENT PANEL

set for connection to the engine wire harness

JD IVECO MOTORS indications and alarms module

JD ON INTERFACE WIRE HARNESS FOR CONVERTER MODULE

external throttle control

JE

ON MAIN ANALOG INSTRUMENT PANEL

set for connection to the secondary analog
instrument panel

JE ON INTERFACE WIRE HARNESS FOR CONVERTER MODULE

set for connection to the main digital
instrument panel

JE ON MAIN DIGITAL INSTRUMENT PANEL

set for connection to the secondary digital
instrument panel

JE1 ON INTERFACE WIRE HARNESS FOR CONVERTER MODULE

set for connection to the 2ndmain digital
instrument panel

JF1 relay box

JF2 relay box

JH ON SECONDARY ANALOG INSTRUMENT PANEL

set for connection to the main analog
instrument panel

JH ON MAIN DIGITAL INSTRUMENT PANEL

set for connection to the interface wire harness
for converter module

JO converter for digital panels

Indicator lights

EDC EDC malfunction

SAC presence of water in fuel pre-filter

SATA high coolant temperature

SBLA low coolant level

SBPO low oil pressure

SCP pre-post heating

SIFA clogged air filter

SIFB clogged oil vapor filter

SIFC clogged fuel filter

SIFO clogged oil filter

SP pre-lubrication

SS alternator fault

SSV runaway engine

Gauges

CG revolution-counter

MI gear box oil pressure gauge

MO engine oil pressure gauge

TA engine temperature

TI gear box oil temperature

TS exhaust gas temperature

V voltmeter

Relays contained in the relay box

K1 fuel filter heater element power supply

K2 power supply to terminal 50 of the electric

starter motor

K3 key switch electric discharge

K4 emergency engine shut-down provision

K5 star t request signal, from key switch to EDC

electronic unit

Fuses contained in the relay box

F1, F2, F3, F4, F5

self restoring (not replaceables)

N60 ENT M37 INSTALLATION DIRECTIVE

48

MARCH 2004

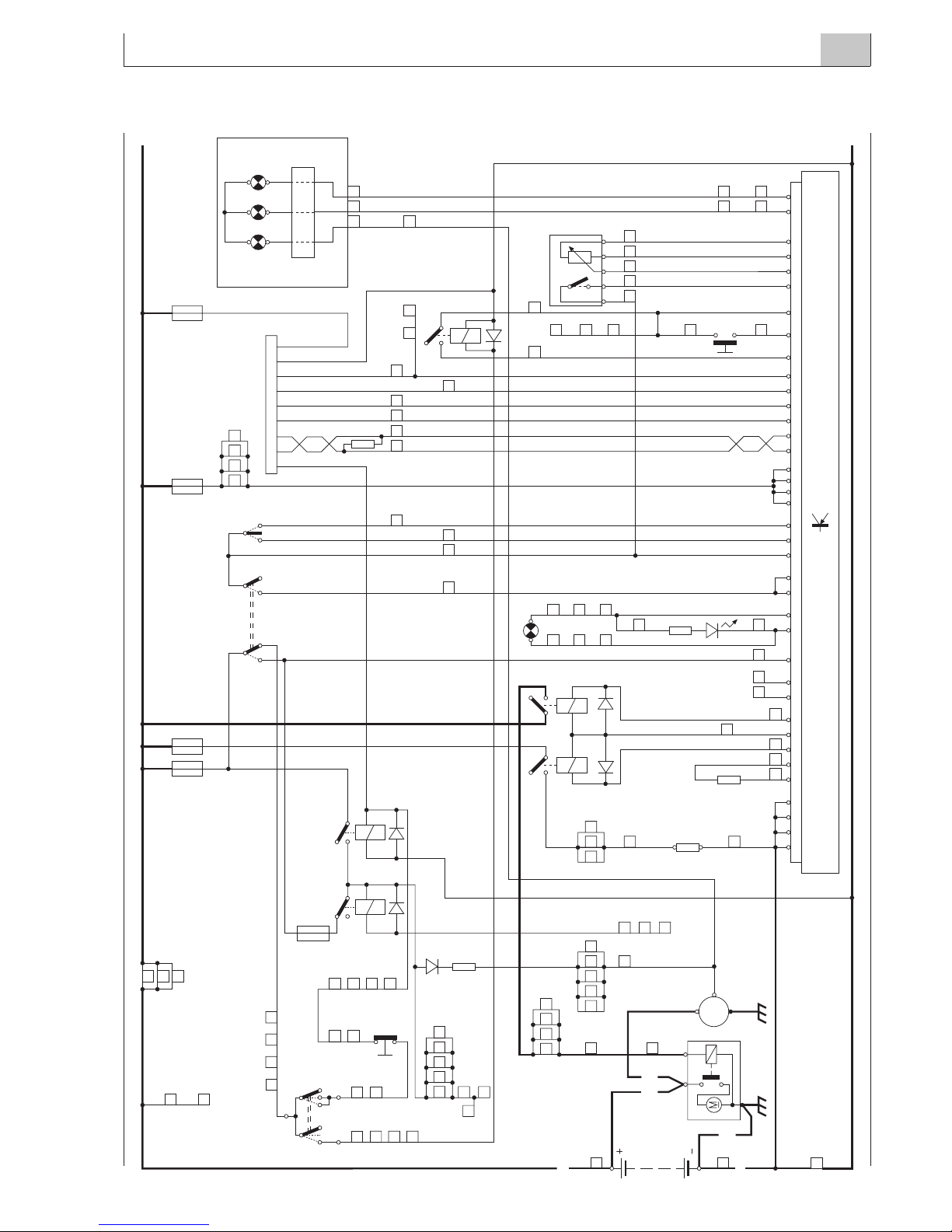

EDC connector A2

N60 ENT M37INSTALLATION DIRECTIVE

49

MARCH 2004

A2

3 9 14 15

85150

74 56 36 2 37 4 16 39 64 28 41 42

JF2

19 45 44 1 7 12 13 53 52 30 31 48 49 20 27 8 72 83 81 55 63 65

JA

8

JB

13

AS

6

BAT

6

+

BAT

–

12

JF2

JF2

2348

F4

70

10

AC

70

GG

B+

2

JA

1

5030

MM

JA

29

JF128JA6JB

9

10 11

JF1

21 22

PF

A

B

JA

2

JA

5

718

JF1

31

27

JF1

15

JF1

5

JF1

14

JF2

33

JF1

R1

25

JA

28 6

JF1

1

JF1

3

JF1

38JB16

JA

12JB10

JA

R4

DL1

EDC

K1 K2

DK1 DK2

17

JA

1

JB

F3

1

7

13

BA

SW1

NORMALENGINE

ROOM

30

50

JB

7

JA

14

JF1

36

15

JB

2

JA

12

JF1

25

JF1

8

JA

26

M

A

5

JB

9

R3

D1

F2

K4

DK4

K3

DK3

SW2

STOP

START

17

JF2

9

JF2

16

JF2

13

JF1

F1

56

JF2

10 11

TCDABFEVU

J1

F5

30

JF1

R2

29 26 16

18

4

JF1

35

JF1

17

K5

JF1

14

JF1

2

JB3JA

11

JA

79

JB

31 35

27

D

JA

22

E

JA

20

A

JA

21

C

JA

18

B

JA

SS

SBPO

SATA

CA

QP

JC

18 31 35

18

JB

PA

DK5

JC

3

SW3

38

JC

12

JC

JC

7

JB8JA

15

JF2

15

JC

8

JH

10JE10

JH

4JE4

JC

2

JA

19 20 32

34

JF2

EDC connectors A - A1

N60 ENT M37 INSTALLATION DIRECTIVE

50

MARCH 2004

6

BAT

6

+

BAT

–

6

JF2

57

A

A2

1

2

ZH

3 9 14 15

21

P

U

t

R

1342

10 28 29 19

P

U

t

R

1342

93335 20

P

U

123

27 12

HVEPR

A1

17 18 36 34 25 24

21 3

B

23 30

21 3

C

63

1

2

IN2

913

1

2

IN1

14 5

1

2

IN4

412

1

2

IN3

15 10

1

2

IN6

11 16

1

2

IN5

85150

214 3

E1

214 3

E2

214 3

E3

17

JF2

13

39

JF1

6

1 7 12 13

56

JF2

10 11

F1

AF

AC

Main analog instrument panel

N60 ENT M37INSTALLATION DIRECTIVE

51

MARCH 2004

C C

0

0

10

100

50

40

X100

20

30

CG

50

15

30

CA

SA

TA

MO

V

12

32

GG

13

7

1

JF1

NORMAL

17

1

JA
2

JF2

BAT

-

DK3

K3

ENGINE

ROOM

BAT

+

JA

JB

41

26

JF1

20

DK5

K5

A2 EDC

8

JA

20

3625

141512

8247146915

39271636

8

13 5

T

1

1

V

1

1

JA

33

JB

32

2

34

40

85150

65

B+

2

K

1

1

151493 642849

45

SIWIVIO

2111

42

11

2526 21

11

4322 23 19194746

1016

3018 1238

3946863 15253

JF1

6

JF2

13127

5 106 11

791311

3135 1732420 2928

JB

1037 11

11

JC

F3

41

L

P1

8247146915 39271636 13 5

L- L+ 3 2 1

33

JC

32

34

40

MS

12

45422526 21 4322 23

199

19194746 3018 38

19

8710 1315 2 3

3135 1732420 2928

17 18 541216 1411

JC

1037 11

620

F1

B+

44

44

AC

JF2

6

B

SAC

SS

SIFA

EDC

SATA

SBPO

A2

AQ

A

M

B C

312

M

QP

SW1

4JE4

JH

AS

10

JH

10

JE

JD

6

JA

JA

23 24

19

9

8

JA

JF2

15

SCP

SBLA

SIFB

SIFO

SIFC

SP

SSV

C C

0

0

10

100

50

40

X100

20

30

0

0

10

100

50

40

X100

20

30

CG

50

15

30

CA

SA

TA MO V

CG

SA

L-

L+

3

21

2

L-

3

L+ 1

JF1

17

1

JA

2

12

JF2

BAT
–

DK3

K3

BAT
+

JA

JB

26

32

JF1

20

DK5

K5

A2 EDC

8

JA

20

36

15

25

14

15

12

8

2

47

14
6915

39

27

16

36

8

13

5

11

JC

13

F3

7

1

L

8

2

47

14
6915

39

27

16

36 13

5

MS

1

99

198

7

10

13

15

2

3

17

18

5

4

12

16

1411

6

24

AC

JF2

6

B

2

34

34

CS

MS

1

9

198

7

10

13

15

2

3

17

18

5

4

12

16

1411

6

23

JA

49

A2 EDC

JD

JD

AS

12

3

4

6

5

8

7

109

11 1 2

12 11

10 9

7

8

5

6

3

4

21

P1

P1

AQ

**

JE

JH

QS

QP

ENGINE

ROOM

NORMAL

SW1

6

–

+

JF2

19

9

8

Secondary analog instrument panel

N60 ENT M37 INSTALLATION DIRECTIVE

52

MARCH 2004

* See main instrument panel

wiring diagram

CAN - BUS converter module interface wiring

35

4647454244

43

41

40

39

38

373536

34

1.0

2.5

28

313332

30

29

27

262425

23

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

12

JE

1 23

0.5

45678910 11

1.0

0.5

1.0

1.0

1.0

1.0

1.0

1 23

0.5

0.5

845 76 109 11 12

1.0

1.0

1.0

1.0

1.0

1.0

JO

JB

17

202221

19

18

16

151314

12

1.0

1.0

1.0

1.0

1.0

1.0

6

10

11

987

5

423

1

0.5

0.5

1.0

1.0

1.0

1.0

2.5

1

18

1.0

0.5

0.5

1.0

1.0

1.0

1.0

1.0

2

3

4 5 6 7 8 9

1.0

1.0

1.0

1.0

10 11 12 13 1614 15 17

1.0

1.0

1.0

1.0

1.0

1.0

1.0

2220

19

21 2423 25 26

1.0

1.0

1.0

1.0

1.0

1.0

1.0

27 28 29 30 333231 34

JE1

1.0

1.0

1.0

1.0

234

1

1.0

1.0

36

JD

N60 ENT M37INSTALLATION DIRECTIVE

53

MARCH 2004

Connector key:

JB instrument panel (engine side)

JD external throttle control

JE1 2

nd

main digital instrument panel

(see “Installation directive” document.)

JE main digital instrument panel

(engine side)

JO converter for digital panel

Customized instrument panel wiring

N60 ENT M37 INSTALLATION DIRECTIVE

54

MARCH 2004

12345687

10 912 11

1314

16

15

171820 19

212224 23

JB

1234

5678

min

X100

bar

psi

0

2

4

6

8

10

0

29

58

87

116

145

G

250

°F

°C

210175

105

120

100

40

80

VOLT

8

12

14

16

G

35 30 17 38 12 378232335 3413 19 18 31

Connections Identifying numbering

on each wire

10 meter long

wire harness

JD Connector integrated in the rear part

of the indications and alarms module

Supplementary services battery recharge

N60 ENT M37INSTALLATION DIRECTIVE

55

MARCH 2004

M

5030

50

30

M

70

10

70

70

70

AC1

+

BAT

+

BAT

BAT

–

–

BAT

MM

6

6

6

6

GG1

B+

AC2

+

–

10

10

GG2

B+

2

2

MM

JA

29

29

JA

IE1

IE2

+

–

M

30 50

6

70

BAT

6

–

AC1

MM

+

BAT

10

GG

B+

10

70

JA

29

30

86

87

85

–

AC2

+

10

10

RL

+

–

*

*

2

Single engine

installation

Two-engines

installation

Key:

- AC1: Main Battery

- AC2: Batter y for auxiliary ser vices

- IE1: Engine 1 electrical system

- IE2: Engine 2 electrical system

- RL: Relay 50A max.

-

*

: Electrical power supply for services

NOTES

N60 ENT M37 INSTALLATION DIRECTIVE

56

MARCH 2004

IVECO S.p.A.

PowerTrain

Viale Dell’Industria, 15/17

20010 Pregnana Milanese - MI - (Italy)

Tel. [phone] - Fax [phone]

www.ivecomotors.com
