Congratulations on your selection of a Honda outboard motor. We are certain you will be pleased with your purchase of one of the finest outboard motors on the market.
We want to help you get the best results from your new outboard motor and to operate it safely. This manual contains the information on how to do that; please read it carefully.
As you read this manual you will find information preceded by a
symbol. That information is intended to help you avoid damage to your outboard motor, other property, or the environment.
We suggest you read the warranty policy to fully understand its coverage and your responsibilities of ownership.
When your outboard motor needs scheduled maintenance, keep in mind that your Honda marine dealer is specially trained in servicing Honda outboard motors. Your Honda marine dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
2004 Honda Motor Co., Ltd. All
Rights Reserved
1
INTRODUCTION
A FEW WORDS ABOUT SAFETY
Your safety and the safety of others are very important. And using this outboard motor safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining an outboard motor. You must use your own good judgment.
You will find important safety information in a variety of forms, including:
Safety Labels on the outboard motor.
Safety Messages preceded by a safety alert symbol and one of three signal words, DANGER, WARNING, or CAUTION.
These signal words mean:
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
Safety Headings such as IMPORTANT SAFETY INFORMATION.
Safety Section such as OUTBOARD MOTOR SAFETY.
Instructions how to use this outboard motor correctly and safely.
This entire book is filled with important safety information please read it carefully.
2
OUTBOARD MOTOR SAFETY................................... |
. 7 |
IMPORTANT SAFETY INFORMATION................ |
. 7 |
SAFETY LABEL LOCATIONS................................ |
. 9 |
CONTROLS AND FEATURES ................................... |
10 |
CONTROL AND FEATURE |
|
IDENTIFICATION CODES ................................. |
10 |
COMPONENT AND CONTROL LOCATIONS ..... |
11 |
CONTROLS............................................................... |
16 |
LH and LHT Types (long tiller handle) |
|
Ignition Switch ....................................................... |
16 |
Emergency Stop Switch and Switch Clip.............. |
16 |
Throttle Grip........................................................... |
17 |
Throttle Friction Adjuster ...................................... |
18 |
Gearshift Lever ...................................................... |
18 |
Steering Friction Adjuster...................................... |
18 |
Tilt Lever (gas assist/LH type) .............................. |
19 |
LRT and XRT Types (remote control) |
|
Ignition Switch (side-mount type) ......................... |
19 |
Switch Clip and Emergency Stop Switch |
|
(side-mount type) ............................................... |
20 |
Fast Idle Lever (side-mount type).......................... |
21 |
Gearshift/Throttle Control Lever |
|
(side-mount type) ............................................... |
21 |
CONTENTS |
|
Common Controls |
|
Power Trim/Tilt Switch (LRT and XRT types) |
|
(side-mount type) ............................................... |
23 |
Power Tilt Switch (LHT, LRT and XRT types).... |
23 |
Manual Relief Valve |
|
(LHT, LRT and XRT types) .............................. |
24 |
Tilt Lock Lever ...................................................... |
24 |
Engine Cover Latches ............................................ |
24 |
Transom Angle Adjusting Rod .............................. |
25 |
Trim Tab................................................................. |
25 |
INSTRUMENTS........................................................ |
26 |
Trim Meter (optional equipment) .......................... |
26 |
Tachometer (optional equipment).......................... |
26 |
Fuel Gauge (optional equipment) .......................... |
26 |
INDICATORS............................................................ |
27 |
Oil Pressure Indicator............................................. |
27 |
Overheat Indicator.................................................. |
28 |
Cooling System Indicator ...................................... |
29 |
3
CONTENTS
OTHER FEATURES ................................................. |
29 |
Overrev Limiter...................................................... |
29 |
Anodes.................................................................... |
29 |
Portable Fuel Tank (optional equipment) .............. |
30 |
Fuel Cap Vent Knob (optional equipment) ........... |
30 |
Fuel Priming Bulb.................................................. |
31 |
BEFORE OPERATION................................................. |
32 |
ARE YOU READY TO GET UNDER WAY ...... |
32 |
IS YOUR OUTBOARD MOTOR |
|
READY TO GO ................................................. |
32 |
OPERATION ................................................................. |
34 |
SAFE OPERATING PRECAUTIONS ..................... |
34 |
BREAK-IN PROCEDURE........................................ |
34 |
TRANSOM ANGLE ADJUSTMENT ...................... |
35 |
PORTABLE FUEL TANK (optional equipment)..... |
36 |
FUEL HOSE CONNECTIONS................................. |
36 |
FUEL PRIMING........................................................ |
37 |
STARTING THE ENGINE ....................................... |
37 |
LH and LHT Types (long tiller handle)................. |
37 |
LRT and XRT Types (remote control) .................. |
39 |
EMERGENCY STARTING...................................... |
42 |
STOPPING THE ENGINE........................................ |
45 |
Emergency Engine Stopping ................................. |
45 |
Normal Engine Stopping........................................ |
45 |
GEARSHIFTING AND |
|
THROTTLE OPERATION ............................... |
47 |
LH and LHT Types (long tiller handle)................. |
47 |
LRT and XRT Types (remote control) .................. |
48 |
STEERING ................................................................ |
49 |
LH and LHT Types (long tiller handle)................. |
49 |
LRT and XRT Types (remote control) .................. |
49 |
CRUISING ................................................................. |
50 |
TRIM TAB................................................................. |
52 |
SHALLOW WATER OPERATIONS....................... |
52 |
MOORING, BEACHING, LAUNCHING................ |
54 |
4
CONTENTS
SERVICING YOUR OUTBOARD MOTOR ............... |
56 |
THE IMPORTANCE OF MAINTENANCE ............ |
56 |
MAINTENANCE SAFETY ...................................... |
57 |
TOOL KIT (optional equipment) AND |
|
EMERGENCY STARTER ROPE ........................ |
58 |
MAINTENANCE SCHEDULE ................................ |
59 |
TRIM TAB ADJUSTMENT ..................................... |
61 |
MANUAL RELIEF VALVE..................................... |
62 |
ENGINE COVER REMOVAL AND |
|
INSTALLATION .............................................. |
62 |
Engine Oil Level Check......................................... |
63 |
Engine Oil Change ................................................. |
64 |
Engine Oil Recommendations ............................... |
66 |
Lubrication Points .................................................. |
67 |
Spark Plug Service ................................................. |
68 |
REFUELING.............................................................. |
70 |
FUEL RECOMMENDATIONS................................ |
71 |
Fuel Pump Filter Inspection and Replacement...... |
72 |
Portable Fuel Tank and Filter Cleaning |
|
(optional equipment) .......................................... |
74 |
Anode Replacement ............................................... |
75 |
Propeller Replacement ........................................... |
76 |
STORAGE ..................................................................... |
77 |
STORAGE PREPARATION .................................... |
77 |
Cleaning and Flushing ........................................... |
77 |
Fuel......................................................................... |
80 |
Engine Oil .............................................................. |
81 |
STORAGE PRECAUTIONS .................................... |
82 |
REMOVAL FROM STORAGE................................ |
82 |
TRANSPORTING ......................................................... |
83 |
WITH OUTBOARD MOTOR INSTALLED |
|
ON BOAT .............................................................. |
83 |
WITH OUTBOARD MOTOR REMOVED |
|
FROM BOAT ........................................................ |
83 |
TAKING CARE OF UNEXPECTED |
|
PROBLEMS........................................................... |
84 |
BATTERY WILL NOT CHARGE AND |
|
ELECTRIC STARTER WILL NOT OPERATE.. |
89 |
OIL PRESSURE INDICATOR LIGHT GOES OFF |
|
AND ENGINE SPEED IS LIMITED.................... |
90 |
OVERHEAT INDICATOR LIGHT COMES |
|
ON AND ENGINE SPEED IS LIMITED............. |
91 |
SUBMERGED MOTOR ........................................... |
92 |
5
CONTENTS |
|
|
TECHNICAL AND CONSUMER INFORMATION... 94 |
||
TECHNICAL INFORMATION............................... |
|
. 94 |
Serial Number Locations ...................................... |
|
. 94 |
Carburetor Modification for High Altitude |
|
|
Operation........................................................... |
|
. 95 |
Battery ................................................................... |
|
. 95 |
Oxygenated Fuels.................................................. |
|
. 96 |
Emission Control System Information ................. |
. 97 |
|
Star Label .............................................................. |
|
. 99 |
Specifications...................................................... |
. |
101 |
CONSUMER INFORMATION ............................. |
. |
103 |
Customer Service Information............................ |
. |
103 |
Distributors Limited Warranty 2005 .............. |
104 |
|
Emission Control System Warranty .................... |
106 |
|
INDEX......................................................................... |
. |
108 |
WIRING DIAGRAMS......................... |
Inside Back Cover |
6
Honda BF40A and BF50A outboard motors are designed for use with boats that have a suitable manufacturer’s power recommendation. Other uses can result in injury to the operator or damage to the outboard motor and other property.
Most accidents can be prevented if you follow all instructions in this manual and on the outboard motor. The most common hazards are discussed below, along with the best way to protect yourself and others.
Operator Responsibility
It is the operator’s responsibility to provide the necessary safeguards to protect people and property. Know how to stop the engine quickly in case of emergency. Understand the use of all controls.
Stop the engine immediately if anyone falls overboard, and do not run the engine while the boat is near anyone in the water.
Always stop the engine if you must leave the controls for any reason.
Attach the emergency stop switch lanyard securely to the operator.
Always wear a PFD (Personal Flotation Device) while on the boat.
Familiarize yourself with all laws and regulations relating to boating and the use of outboard motors.
Be sure that anyone who operates the outboard motor receives proper instruction.
Be sure the outboard motor is properly mounted on the boat.
Do not remove the engine cover while the engine is running.
7
OUTBOARD MOTOR SAFETY
Refuel With Care
Gasoline is extremely flammable, and gasoline vapor can explode. Refuel outdoors, in a wellventilated area, with the engine stopped. Never smoke near gasoline, and keep other flames and sparks away.
Remove any portable fuel tank from the boat for refueling. Keep the portable fuel tank away from the battery or other potential spark sources.
Refuel carefully to avoid spilling fuel. Avoid overfilling the fuel tank.
After refueling, tighten the filler cap securely. If any fuel is spilled, make sure the area is dry before starting the engine.
Carbon Monoxide Hazard
Exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. Never run the engine in a closed garage or confined area.
8
OUTBOARD MOTOR SAFETY
The labels shown here contain important safety information. Please read them carefully. These labels are considered permanent parts of your outboard motor. If a label comes off or becomes hard to read, contact an authorized Honda Marine servicing dealer for a replacement.
9
Model |
|
BF40A |
|
|
BF50A |
|
Type |
LH |
LHT |
LRT |
LHT |
LRT |
XRT |
|
L |
|
|
|
|
|
Shaft Length |
|
|
|
|
|
|
|
X |
|
|
|
|
|
Long Tiller Handle |
|
|
|
|
|
|
Remote Control |
|
|
|
|
|
|
Gas Assist Tilt |
|
|
|
|
|
|
Power Trim/Tilt |
|
|
|
|
|
|
Tachometer (optional equipment) |
|
|
|
|
|
|
Trim Meter (optional equipment) |
|
|
|
|
|
|
Refer to this chart for an explanation of the Type Codes used in this manual to identify control and feature applications.
TYPE CODE (Example)
L R T
T=Power Trim/Tilt
H=Long Tiller Handle
R=Remote Control
L=Long Shaft
X=Extra Long Shaft
10
CONTROLS AND FEATURES
COMPONENT AND CONTROL LOCATIONS LH and LHT Types
(long tiller handle)
FUEL HOSE CONNECTOR
OIL LEVEL LONG TILLER ENGINE COVER DIPSTICK HANDLE
POWER TILT SWITCH
(LHT type) COOLING
|
SYSTEM |
|
|
INDICATOR |
|
STERN |
ENGINE OIL |
|
BRACKET |
||
DRAIN PLUG |
||
|
||
|
COVER |
TRANSOM ANGLE |
|
ANTIVENTILATION |
ADJUSTING ROD |
|
|
|
|
PLATE |
|
|
TRIM TAB (anode) |
GEAR OIL LEVEL |
|
|
CHECK PLUG |
|
EXHAUST PORT |
|
|
|
WASH PLUG |
GEAR OIL |
PROPELLER |
(Flush plug) |
DRAIN PLUG |
(optional equipment) |
OIL FILLER CAP
TILT LOCK LEVER
TILT LEVER (LH type)
MANUAL RELIEF VALVE
(LHT Type)
WATER INTAKE
11
CONTROLS AND FEATURES
OIL PRESSURE |
SWITCH CLIP |
INDICATOR LIGHT |
|
GEAR SHIFT |
|
OVERHEAT |
|
INDICATOR LIGHT |
EMERGENCY STOP SWITCH |
THROTTLE FRICTION ADJUSTER |
|
|
LANYARD |
POWER TRIM/TILT SWITCH |
STEERING FRICTION ADJUSTER |
(LHT type) |
|
|
THROTTLE GRIP |
|
IGNITION SWITCH |
|
IGNITION SWITCH KEY |
12
|
CONTROLS AND FEATURES |
LRT and XRT Types (remote control) |
|
ENGINE COVER |
OIL FILLER CAP |
|
|
POWER TILT SWITCH |
|
FUEL HOSE |
TILT LOCK LEVER |
CONNECTOR |
OIL LEVEL |
|
DIPSTICK |
STEERING |
|
PLATE |
|
TRANSOM ANGLE
ADJUSTING ROD
GEAR OIL LEVEL
CHECK PLUG
WASH PLUG (Flush plug)
COOLING SYSTEM
INDICATOR
ENGINE OIL DRAIN
PLUG COVER
TRIM TAB (anode)
EXHAUST PORT
PROPELLER
(optional equipment)
GEAR OIL DRAIN PLUG
STERN
BRACKET
MANUAL RELIEF
VALVE
ANTIVENTILATION
PLATE
WATER INTAKE
13
CONTROLS AND FEATURES
Remote Control box (side mount type/optional equipment)
|
GEARSHIFT/THROTTLE |
POWER TRIM/TILT SWITCH |
CONTROL LEVER |
|
NEUTRAL RELEASE LEVER |
|
OIL PRESSURE INDICATOR LIGHT |
SPARE SWITCH CLIP |
|
|
OVERHEAT INDICATOR LIGHT |
BUZZER (inside of the box) |
FAST IDLE LEVER |
IGNITION SWITCH |
IGNITION SWITCH KEY |
|
LANYARD
THROTTLE FRICTION ADJUSTER
EMERGENCY STOP SWITCH
SWITCH CLIP
14
|
CONTROLS AND FEATURES |

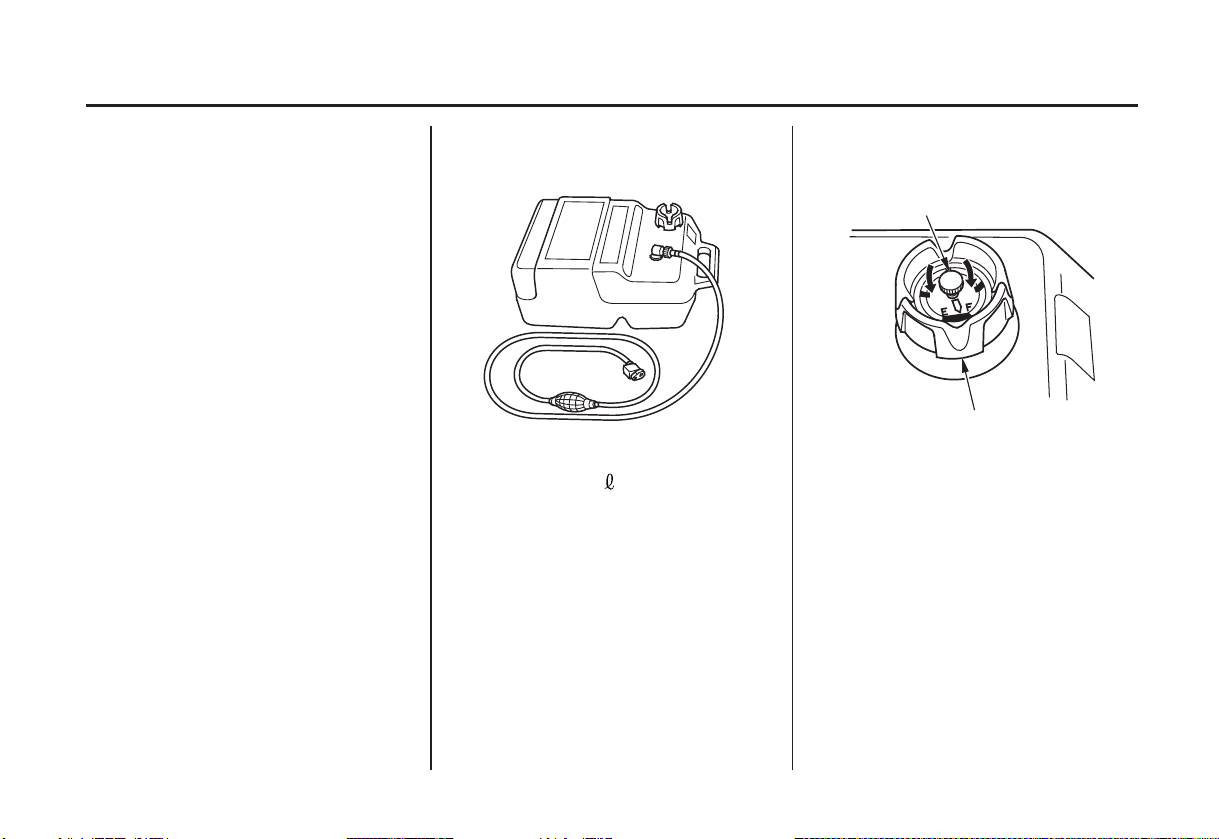

Fuel Tank (optional equipment) |
Tachometer |
|
(optional equipment) |
|
FUEL GAUGE |
|
VENT KNOB |
FUEL TANK
FUEL CAP
Trim Meter (optional equipment)
FUEL HOSE
|
FUEL HOSE CONNECTOR |
PRIMING BULB |
(female) |
|
15
CONTROLS AND FEATURES
LH and LHT Types (long tiller handle)
IGNITION SWITCH
ON
START
OFF
The ignition switch controls the ignition system and starter motor.
Turning the ignition switch key to the START position operates the starter motor. The key automatically returns to the ON position when released from the START position.
The ignition switch can be used to start the engine only when the gearshift lever (p. 18 ) is in the N (neutral) position, and the switch clip is in the emergency stop switch.
Turning the ignition switch to the OFF position stops the engine.
Emergency Stop Switch and
Switch Clip
EMERGENCY STOP SWITCH
LANYARD |
SWITCH CLIP |
SWITCH CLIP
LANYARD
16
CONTROLS AND FEATURES
The switch clip must be inserted in the engine stop switch in order for the engine to start and run. The lanyard should be attached to the operator’s PFD (Personal Flotation Device) or worn around the wrist as shown.
When used as described, the emergency stop switch and lanyard system stops the engine if the operator falls away from the controls.
A spare switch clip is supplied with the motor (LH and LHT types).
Throttle Grip |
The throttle grip controls engine |
|
speed. |
|
An index mark on the tiller arm |
|
shows throttle position and is helpful |
|
for setting the throttle correctly when |
|
starting (p. 38 ). |

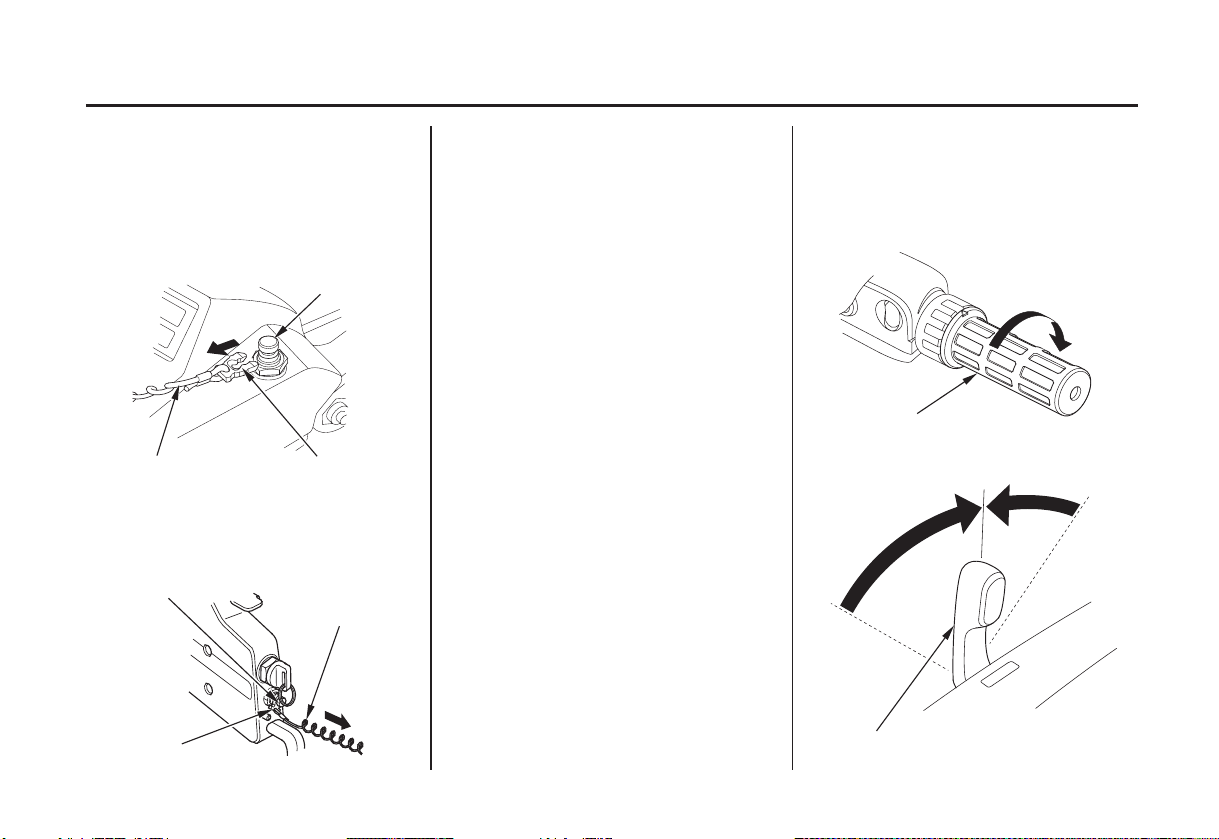

INCREASE
THROTTLE GRIP
THROTTLE INDEX MARK
17
CONTROLS AND FEATURES

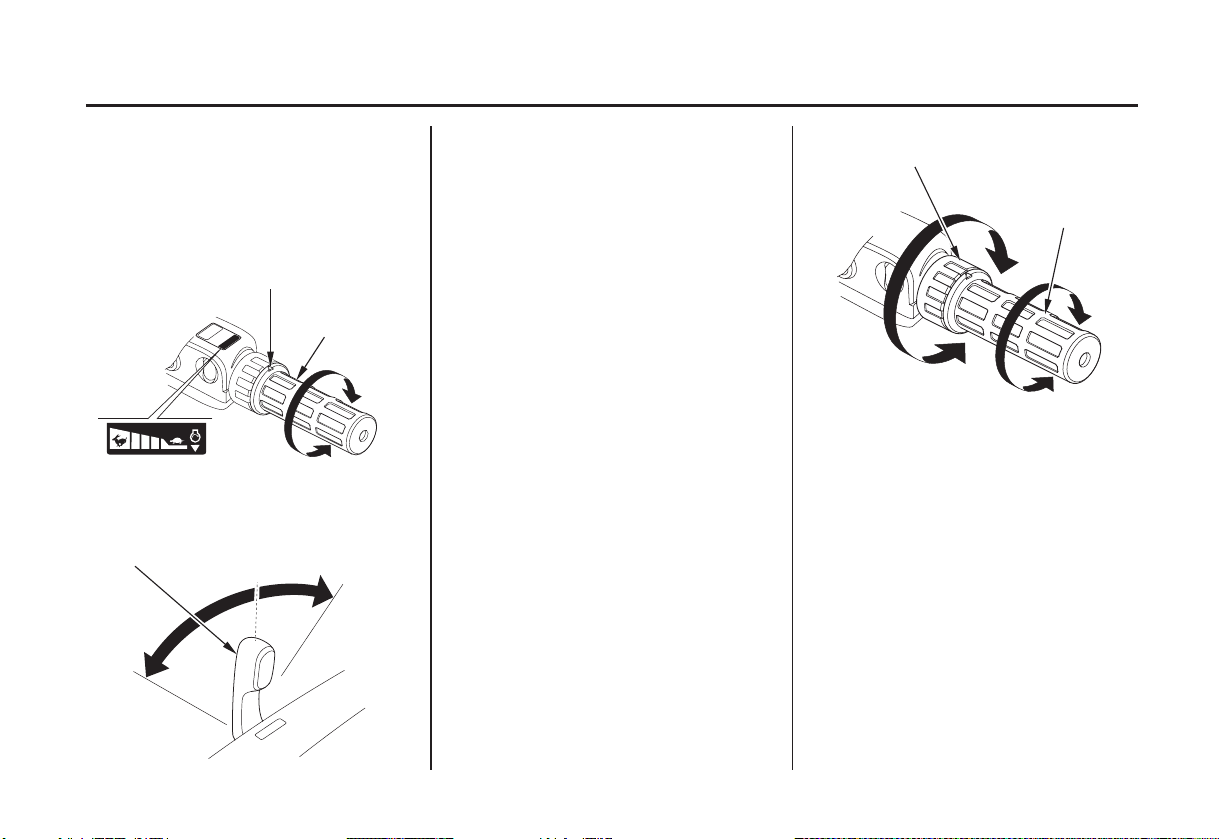

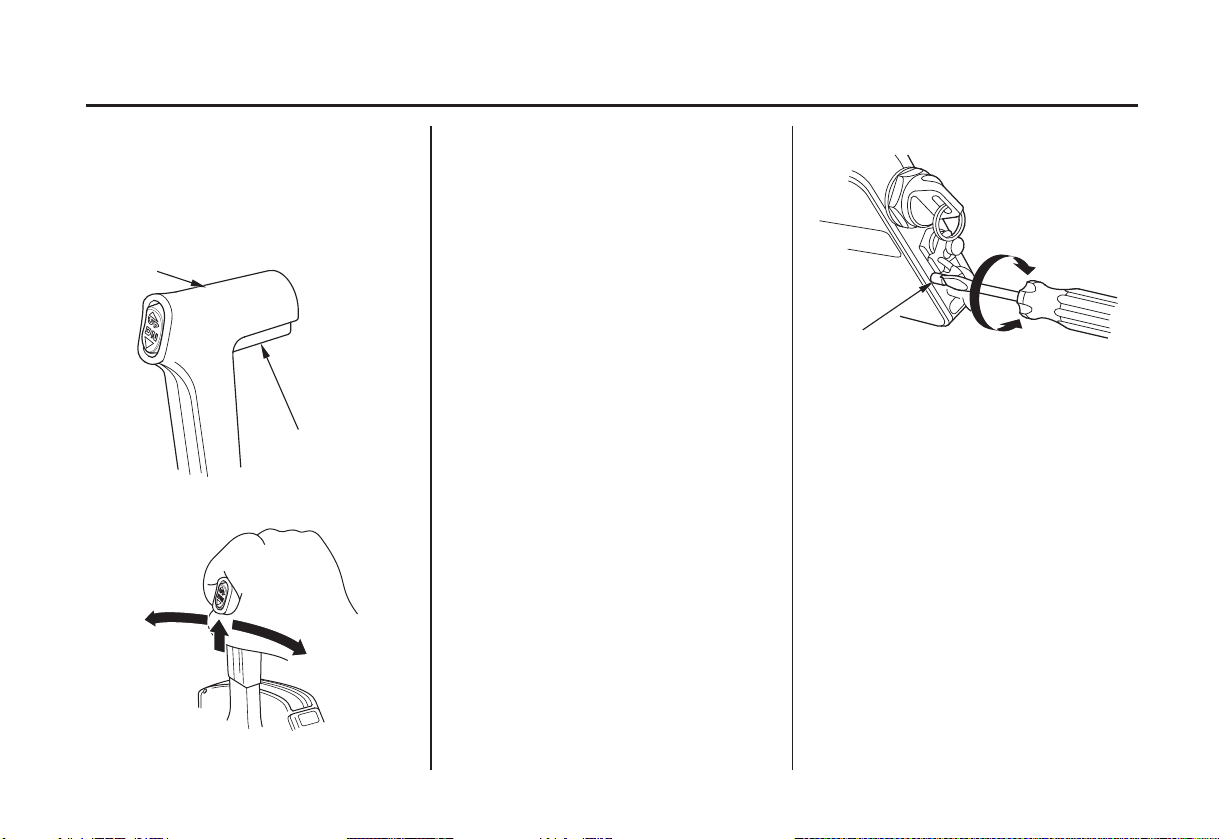

THROTTLE FRICTION
ADJUSTER
FIX
RELEASE
THROTTLE GRIP
The throttle friction adjuster adjusts resistance to throttle grip rotation.
Turn the adjuster clockwise to increase friction for holding a throttle setting while cruising.
Turn the adjuster counterclockwise to decrease friction for easy throttle grip rotation.
Gearshif t Lever
N (neutral) R (reverse)
F (forward)
GEARSHIFT
LEVER
The gearshift lever is used to select F (forward), N (neutral), or R (reverse) gears.
The engine can be started with the gearshift lever in the N (neutral) position only.
STEERING FRICTION ADJUSTER
LOCK |
FREE |
The steering friction adjuster adjusts steering resistance.
Less friction allows the outboard motor to turn more easily. More friction helps to hold steady course while cruising or to prevent the outboard motor from swinging while trailering the boat.
18
CONTROLS AND FEATURES
Tilt Lever
(gas assist/LH type)
FREE
LOCK
TILT LEVER
Moving the tilt lever to the FREE position allows the motor to be tilted and moving the tilt lever to the LOCK position locks the motor in the desired position. Use the tilt lever to temporarily tilt the motor when the boat is operating in shallow water, or mooring in shallow water. The tilt lever must be in the LOCK position before operating the motor or the motor could tilt up when operating in reverse.
LRT and XRT Types (remote control/optional equipment)
For panel mount or top mount remote control information, refer to the instructions provided with the remote control equipment.
ON START
OFF
IGNITION
SWITCH
EMERGENCY STOP SWITCH
SWITCH CLIP
The ignition switch controls the ignition system and starter motor.
19
CONTROLS AND FEATURES
Turning the ignition switch key to the START position operates the starter motor. The key automatically returns to the ON position when released from the START position.
The ignition switch can be used to start the engine only when the gearshift lever (p. 18 ) is in the N (neutral) position, and the switch clip is in the emergency stop switch.
Turning the ignition switch to the OFF position stops the engine.
Switch Clip and Emergency Stop Switch (side-mount type)
EMERGENCY
STOP SWITCH
LANYARD
SWITCH CLIP
LANYARD SWITCH CLIP
The switch clip must be inserted in the emergency stop switch in order for the engine to start and run. The lanyard must be attached to the operator’s PFD (Personal Flotation Device) or worn around the wrist as shown.
When used as described, the emergency stop switch and lanyard system stops the engine if the operator falls away from the controls.
A spare switch clip is stored in a slot in the control housing.
SPARE SWITCH CLIP
20
CONTROLS AND FEATURES
N (neutral) |
|
|
GEARSHIFT/THROTTLE |
FAST IDLE |
|
CONTROL LEVER |
||
|
START
FAST IDLE LEVER
The fast idle lever is used to set idle speed during warm-up.
The lever will not move unless the gearshift/throttle control lever is in the N (neutral) position. Conversely, the gearshift/throttle control lever will not move unless the fast idle lever is in the lowest position.
Leave the fast idle lever in the START position to provide a rich fuel mixture for starting a cold engine.
Lift the fast idle lever to warm up a cold engine after starting and to start a warm engine.
Gearshif t/Throttle Control Lever (side-mount type)
GEARSHIFT/THROTTLE
CONTROL LEVER
NEUTRAL
RELEASE
LEVER
The control lever automatically locks itself in the N (neutral) position. To move the lever out of the N (neutral) position, you must squeeze the neutral release lever on the underside of the lever handle.
21
CONTROLS AND FEATURES
The gearshift/throttle control lever controls engine speed and selects F (forward), N (neutral), or R (reverse) gears.
Moving the control lever 30° from N (neutral) selects the gear, and further movement increases engine speed.
A friction adjuster near the base of the control lever adjusts the operating resistance of the control lever (p. 48 ).
Less friction allows easier control lever movement. More friction helps to hold a steady throttle setting while cruising.
GEARSHIFT/THROTTLE
CONTROL LEVER
N (neutral)
F (forward) |
R (reverse) |
ENGINE SPEED
ENGINE
SPEED
HIGH
HIGH
22
CONTROLS AND FEATURES
Power Trim/Tilt Switch [LRT and XRT types (sidemount type)]
CONTROL LEVER
Press UP to trim or tilt the motor up.
Press DN to trim or tilt the motor down.
POWER TRIM/TILT SWITCH
(LHT type)
POWER TRIM/TILT SWITCH
Press UP to trim or tilt the motor up.
Press DN to trim or tilt the motor down.
The power trim/tilt switch is located on the control lever or the tiller handle. It is a rocker switch with UP and DN (down) positions for changing the angle of the outboard motor.
You can use the power trim/tilt switch anytime without turning the ignition switch is ON, whether the boat is underway or stopped.
Trim the outboard motor to obtain the best performance and stability (p. 50 ).
Tilt the outboard motor for shallow water operation, beaching, launching, or mooring.
Power Tilt Switch
(LHT, LRT and XRT types)
POWER TILT SWITCH
The power tilt switch is located on the engine pan. It is a rocker switch with UP and DN (down) positions for changing the angle of the outboard motor.
The power tilt switch will operate without turning the ignition switch ON.
This switch is used with the engine stopped to raise the outboard motor for mooring, trailering or maintenance.
23
CONTROLS AND FEATURES

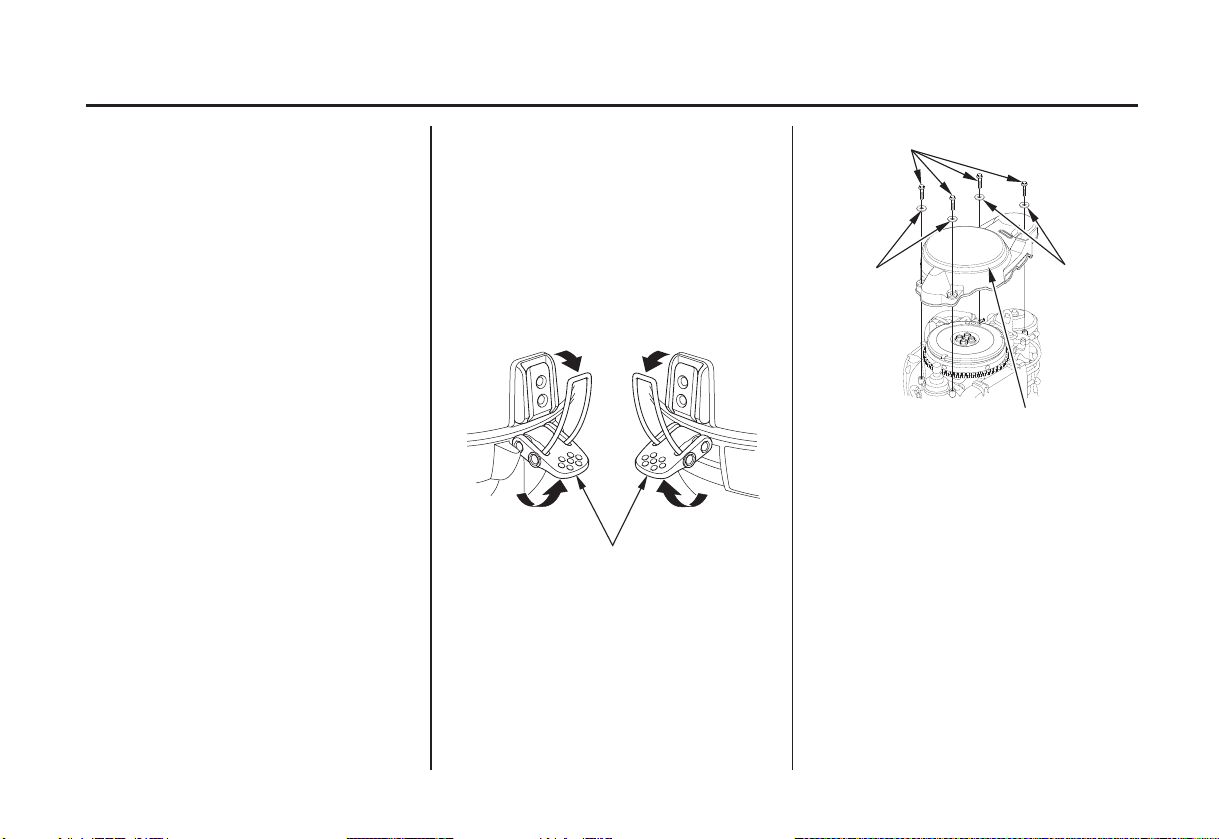

Manual Relief Valve (LHT, LRT and XRT types)
RIGHT STERN BRACKET
POWER |
MANUAL |
(To fix) |
(To release) |
MANUAL RELIEF VALVE
The outboard motor can be tilted manually after opening the manual relief valve. This allows the outboard motor to be tilted when no battery is connected.
TILT LOCK LEVER
FREE
LOCK

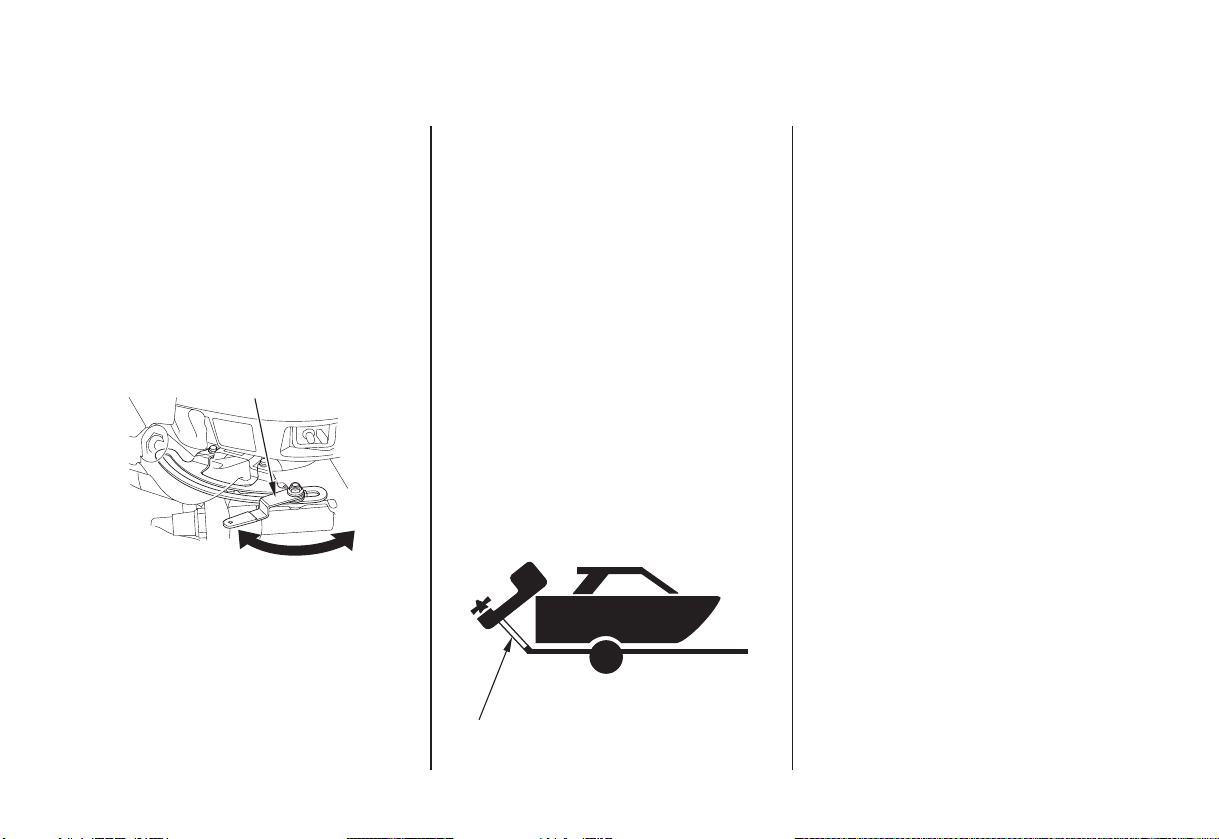

The tilt lock lever is used to support the outboard motor in the fully-raised position.
When the boat is to be moored for a long time, tilt the outboard motor as far as it will go. Then move the tilt lock lever to the LOCK position, and gently lower the outboard motor until the lever contacts the stern bracket.
FRONT
UNLATCH |
FIX |
|
|
ENGINE COVER LATCH |
|
REAR |
|
UNLATCH
FIX
ENGINE COVER LATCH
The engine cover latches fasten the engine cover to the outboard motor.
24
CONTROLS AND FEATURES
Transom Angle Adjusting Rod
STERN BRACKET
TURN UP
PUSH
TRANSOM ANGLE ADJUSTING ROD
TO CHANGE UNLOCKED POSITION
TO LOCK |
LOCKED POSITION |
TRANSOM ANGLE ADJUSTING ROD
The transom angle adjusting rod limits the tilt angle of the outboard motor when fully lowered.
Proper adjustment prevents the outboard motor from being trimmed too low (p. 50 ).
TIGHTENING BOLT
TRIM TAB
PROPELLER

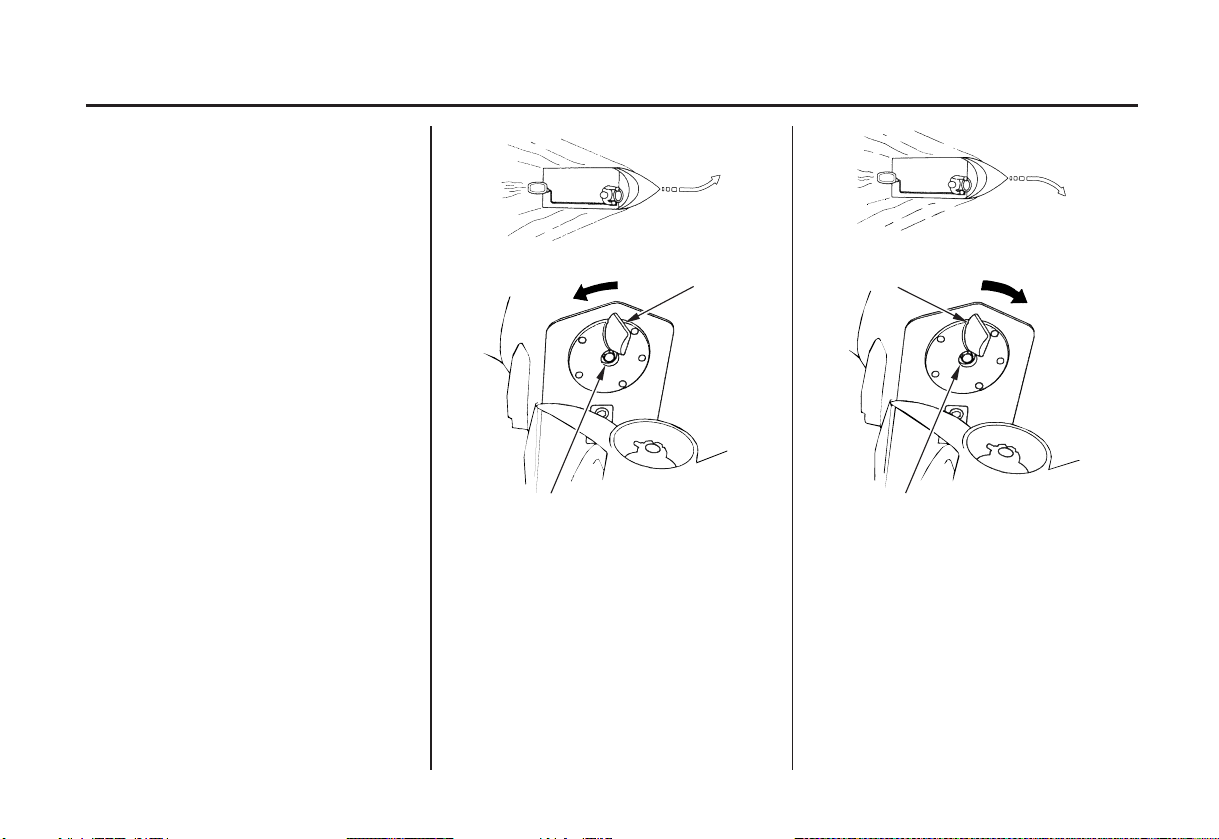

The trim tab compensates for ‘‘torque steer,’’ which is a reaction of the outboard motor to propeller rotation.
If uncompensated, torque steer would make the outboard motor tend to turn to one side.
When the trim tab is correctly adjusted (p. 61 ), steering effort is equal in either direction.
25
CONTROLS AND FEATURES
Trim Meter
[optional equipment (LHT, LRT and XRT Types)]
TRIM METER
The trim meter has a range of 0° to 16° and indicates the trim angle of the outboard motor.
Refer to the trim meter when using the power trim/tilt switch to achieve proper boat performance.
Tachometer (optional equipment)
TACHOMETER
The tachometer shows engine speed in revolutions per minute.
Refer to the tachometer when using the throttle and power trim/tilt controls to achieve the best performance from the boat.
Fuel Gauge
(optional equipment)
FUEL GAUGE
A fuel gauge is built into the cap of the portable fuel tank (optional equipment).
26
CONTROLS AND FEATURES

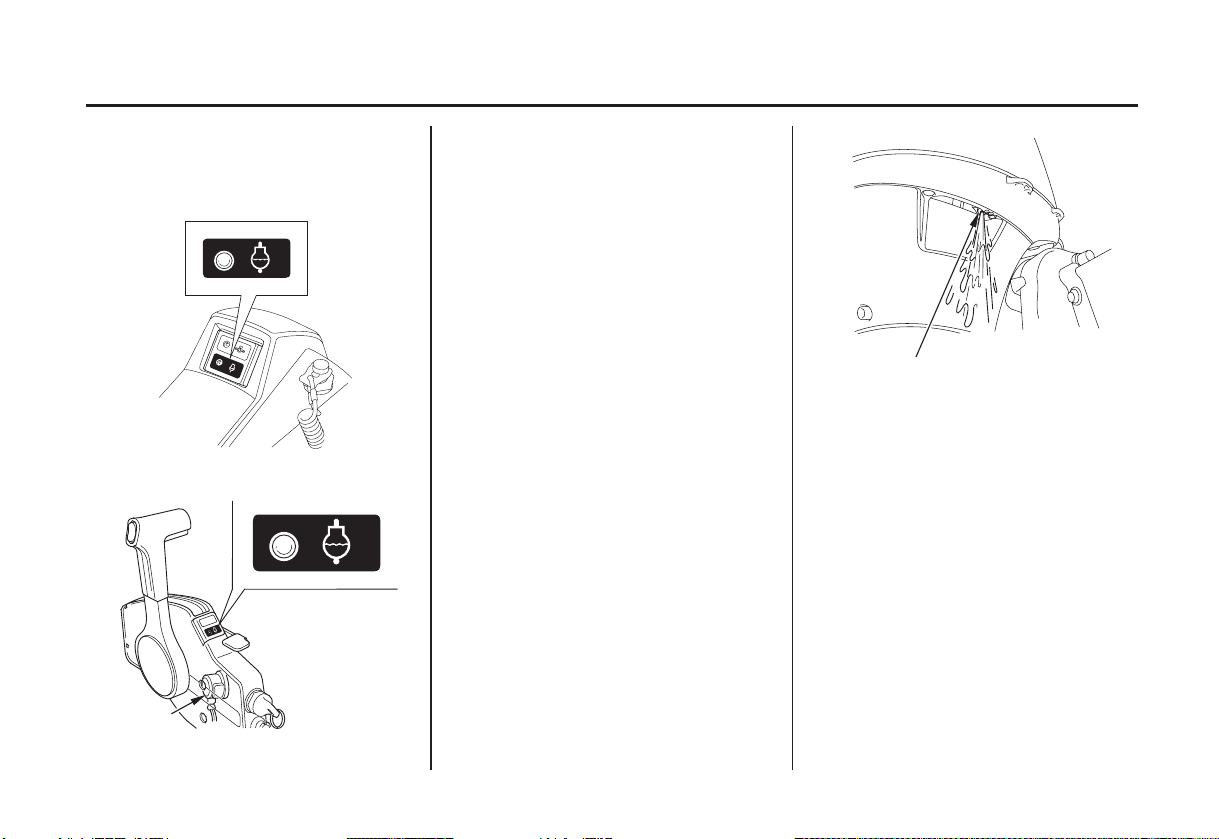

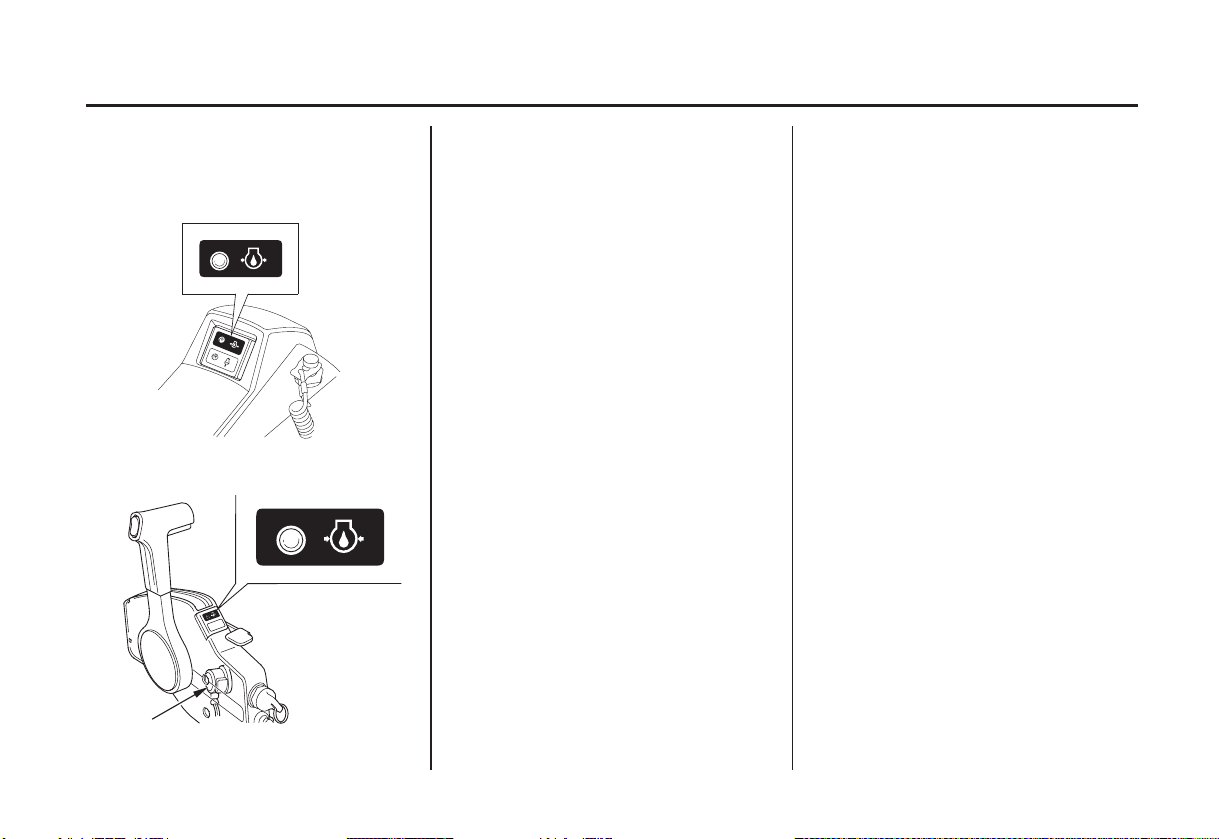

Oil Pressure Indicator
LH and LHT Types
(GREEN) |
LRT and XRT Types (side-mount type)
(GREEN)
BUZZER
When the green light is lit, oil pressure is OK.
If oil pressure becomes low, the green light will go off, and the engine protection system will limit engine speed. Refer to TAKING CARE OF UNEXPECTED PROBLEMS, p. 90 .
Remote controls are also equipped with a buzzer that sounds when the green light goes off.
The buzzer sound stops below an engine speed of 1,400 rpm.
Low oil pressure indicates that the engine oil level is low, or that there is a problem with the engine lubrication system.
27
CONTROLS AND FEATURES
LH and LHT Types
(RED) |
LRT and XRT Types (side-mount type)
(RED)
BUZZER
If the engine overheats, the red light will come on, and the engine protection system will limit engine speed.
If the condition persists for another 20 seconds, the engine will shut off. When normal engine temperature is restored, the engine speed will gradually rise to normal engine speed. Refer to TAKING CARE OF UNEXPECTED PROBLEMS, p. 91 .
Remote controls are also equipped with a buzzer that sounds when the red light comes on.
Engine overheating may be the result of clogged water intakes.
28
