Instruction Manual
HI 839800 COD REACTOR
and Test Tube Heater
2008 Series
w w w . h a n n a i n s t . c o m |
This Instrument is in |
Compliance with the CE Directives |
1
Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you with the necessary information for the correct use of the instrument. Please read it carefully before using the meter. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com.
This instrument is in compliance with
directives.
|
TABLE OF CONTENTS |
PRELIMINARY EXAMINATION |
............................................................................................................... 3 |
GENERAL DESCRIPTION ....................................................................................................................... |
3 |
ABBREVIATIONS .................................................................................................................................. |
3 |
HEALTH & SAFETY .............................................................................................................................. |
4 |
SPECIFICATIONS .................................................................................................................................. |
4 |
FUNCTIONAL DESCRIPTION ................................................................................................................. |
5 |

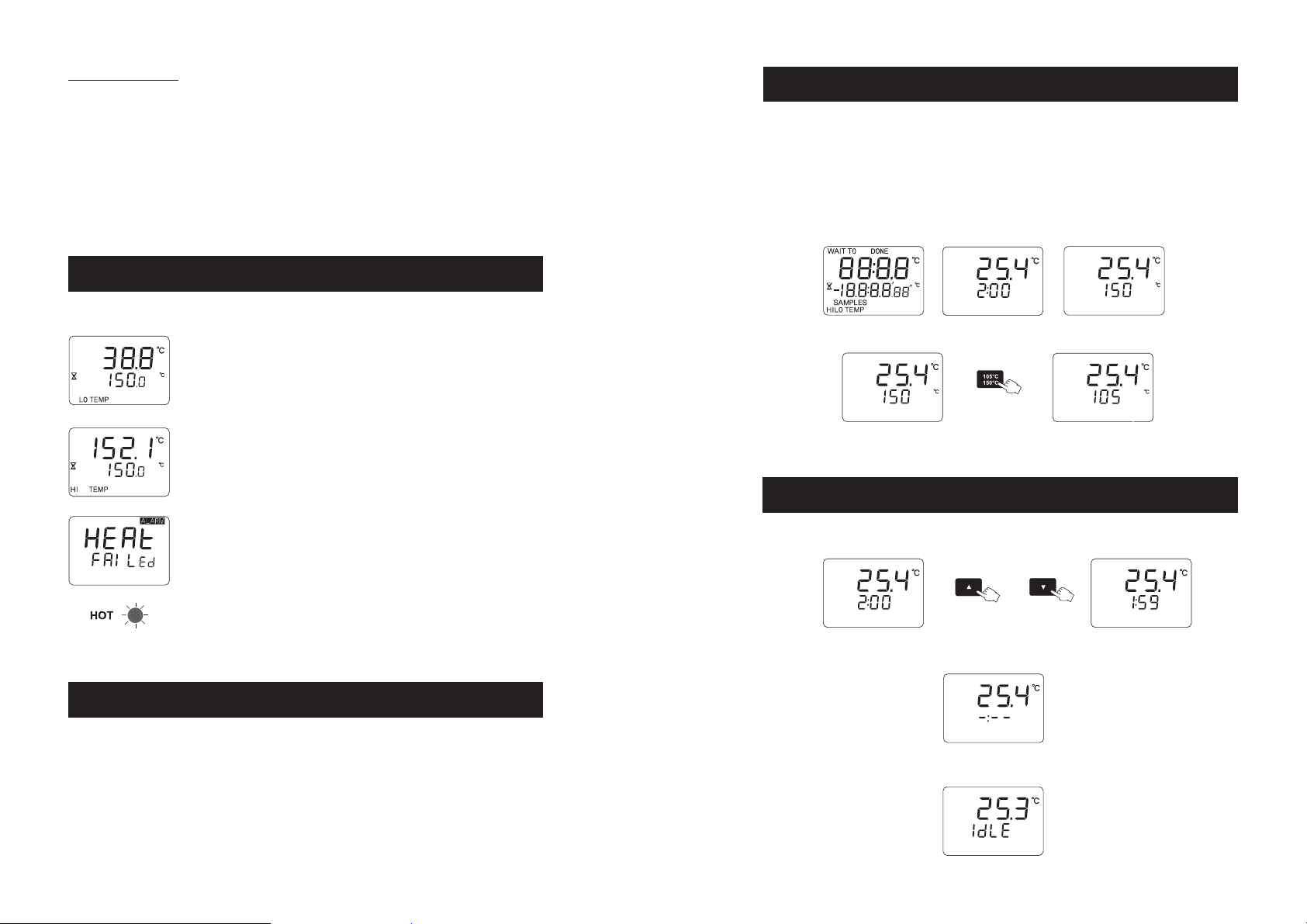

ERRORS AND WARNINGS .................................................................................................................... |
6 |
STARTUP ............................................................................................................................................ |
6 |
TEMPERATURE SELECTION ................................................................................................................... |
7 |
DIGESTION PROCEDURE ....................................................................................................................... |
8 |
MAINTENANCE .................................................................................................................................. |
10 |
ACCESSORIES .................................................................................................................................... |
10 |
WARRANTY ....................................................................................................................................... |
11 |
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
GENERAL DESCRIPTION
The HI 839800 thermo-reactor is constructed of durable materials with a vial capacity to perform up to 25 digestions simultaneously.
The reactor is equipped with 2 predefined temperature programs (dedicated temperature settings for COD and total phosphorous reactions at 150°C, and also 105°C for total nitrogen digestion).
In addition, HI 839800 features LED indicators for visual indication of power on (POWER), heating in progress (HEATING) and hot surface warning (HOT).
The heater block temperature can be verified by placing a thermometer in the temperature well in the block. A 3-hour timer is incorporated for applications where timed digestions are required. When this feature is enabled, a beep will be heard and the heating element will turn off at the end of the selected time period. The reactor contains a thermal fuse that prevents overheating, by turning off the heating element.
The temperature is continuously displayed on the LCD even when there is no active temperature program running.
Two models are available:
•HI 839800-01 runs with 115 Vac power supply
•HI 839800-02 runs with 230 Vac power supply
PRELIMINARY EXAMINATION
Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your Dealer.
Each HI 839800 Test Tube Heater is supplied complete with:
•Power Cable
•Instruction Manual
Note: Save all packing material until you are sure that the instrument works correctly. Any defective item must be returned in its original packing.
ABBREVIATIONS
°C: degree Celsius
COD: Chemical Oxygen Demand
2 |
3 |
HEALTH & SAFETY
Before unpacking, setting up or using this reactor it is important to carefully read this manual. Pay particular attention to all warnings, cautions and notes. Failure to do so could result in serious injury to the operator or damage to the equipment.
To ensure the safe use of this reactor, it must not be installed or used in any manner other than that specified in this manual.
Reactor Operation: The Reactor incubates glass vials containing hazardous chemicals at high temperature. Read the Material Safety Data Sheet (MSDS) before handling reagent vials.
Handling Reagent Vials: Handle the vials very carefully and wear protective clothing. After use, dispose of the reagent vials according to local regulations.
Safety Equipment: When operating with Reactor use protective clothing, including goggles or face mask, and gloves.
Use of the optional safety shield is highly recommended.
Reagent Spills: Wipe up spilled reagents immediately. If reagent contacts skin, rinse the affected area thoroughly with water. Avoid breathing released vapors. Read the Material Safety Data Sheet (MSDS) for each reagent for complete chemical information.
Fire Hazard: Avoid the presence of flammable liquids or paper near the operating Reactor. A fire hazard could be created.
|
SPECIFICATIONS |
|
|
Temperature of Reaction |
105 °C or 150°C (221 °F or 302 °F) |
Temperature Stability |
±0.5°C |
Temperature Range |
-10°C to 160°C |
Accuracy |
±2°C (@ 25°C) |
Capacity |
25 vials (dia 16x100 mm), 1 receptacle for a stainless steel reference |
|
thermometer |
Warm-up Time |
10 - 15 minutes, depending on selected temperature |
Operating Mode |
timed (0 to 180 minutes) or infinity mode |
Environment |
5 to 50°C (41 to 122 °F) |
Power Supply |
HI 839800-01 115 Vac; 60 Hz; 250 W |
(fuse protected) |
HI 839800-02 230 Vac; 50 Hz; 250 W |
Dimensions |
190 x 300 x 95 mm (7.5 x 11.8 x 3.7") |
Weight |
approx. 4.8 kg (10.6 lb.) |
FUNCTIONAL DESCRIPTION
REACTOR DESCRIPTION
1)Heater block: can hold up to 25 vials.
2)POWER LED indicator: lights (green) when the power switch on the back of the reactor is set in the ON position.
3)HOT surface indicator: flashes (red) if the block temperature is above 50°C.
4)HEATING LED indicator: lights (yellow) only when the heater is ON. When the indicator cycles ON and OFF, the heater is maintaining a stable temperature.
5)▲, ▼: keys are used to adjust the timer values when setting reaction time.
6)105°C/150°C: key is used to select the temperature program, 105°C or 150°C (221°F or 302°F).
7)START: key is used to start the selected temperature program or to start the timer after placing the vials into the heater block.
8)STOP: key is used to stop the heating process or to stop the timer.
9)Liquid Crystal Display (LCD)
10)Power switch: turns the reactor ON and OFF. When the power switch is set in the ON position the power indicator will light.
11)Power supply: 115 or 230 Vac, depending on model.
12)Fuse holder: the fuse is placed on the rear of the case for easy maintenance.
4 |
5 |
