CITIZEN OPOS DRIVER 1.8

Application Development Guide

'07/07/26 Ver1.00

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Revision Record











Description

Date



Version

07/07/26



V1.00

New issue









2

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Notes

1.Unauthorized use of all or any part of this document is prohibited.

2.The information in this document is subject to change without prior notice.

3.This document has been created with full attention. If, however, you find an error or question, please contact us.

4.We shall not be liable for any effect resulting from operation regardless of the above item 3.

5.If you do not agree with the above terms, you are not permitted to use this driver.

Trademark

Microsoft, Windows 2000, Windows XP, Visual Basic, and Visual C++ are registered trademarks of Microsoft Corporation in the United States and/or other countries. (Official name for Windows is Microsoft Windows Operating System.)

Company names and product names appearing on this document are trademarks and/or registered trademarks of respective companies.

CITIZEN is a registered trademark of Citizen Holdings Co., Ltd.

3

CITIZEN OPOS DRIVER 1.8 Application Development Guide

1. INTRODUCTION ...........................................................................................................................................

6

1.2. CITIZEN OPOS DRIVER..............................................................................................................................

6

1.3. OPERATING ENVIRONMENT ..........................................................................................................................

6

1.4. APPLICATION DEVELOPER ............................................................................................................................

7

1.5. OPOS CONTROL ...........................................................................................................................................

7

1.6. CITIZEN OPOS DRIVER REGISTRY STRUCTURE.........................................................................................

8

Registry Operation...........................................................................................................................................

9

1.7. CITIZEN OPOS DRIVER PRECAUTIONS ....................................................................................................

10

2. CITIZEN OPOS PRINTER SERVICE OBJECT ...........................................................................................

11

2.2. POS PRINTER SERVICE OBJECT AND METHOD RELATIONS .......................................................................

11

CBM-1000TypeII ...........................................................................................................................................

11

CT-S300/CT-S310..........................................................................................................................................

12

CT-S2000.......................................................................................................................................................

13

CT-S4000.......................................................................................................................................................

14

CD-S500 ........................................................................................................................................................

15

2.3. POS PRINTER SERVICE OBJECT AND PROPERTY RELATIONS.....................................................................

16

CBM-1000TypeII ...........................................................................................................................................

16

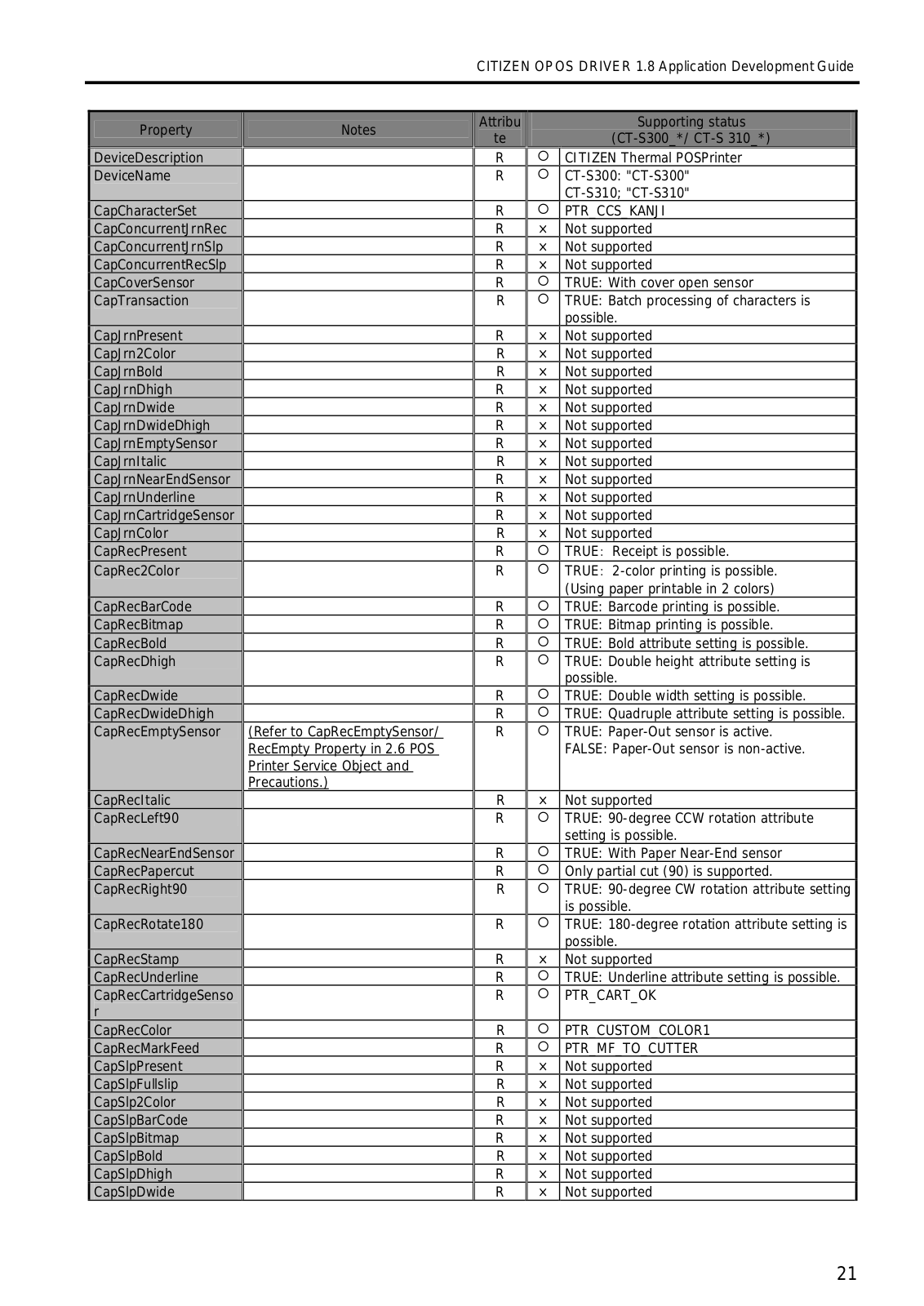

CT-S300/CT-S310..........................................................................................................................................

20

CT-S2000.......................................................................................................................................................

24

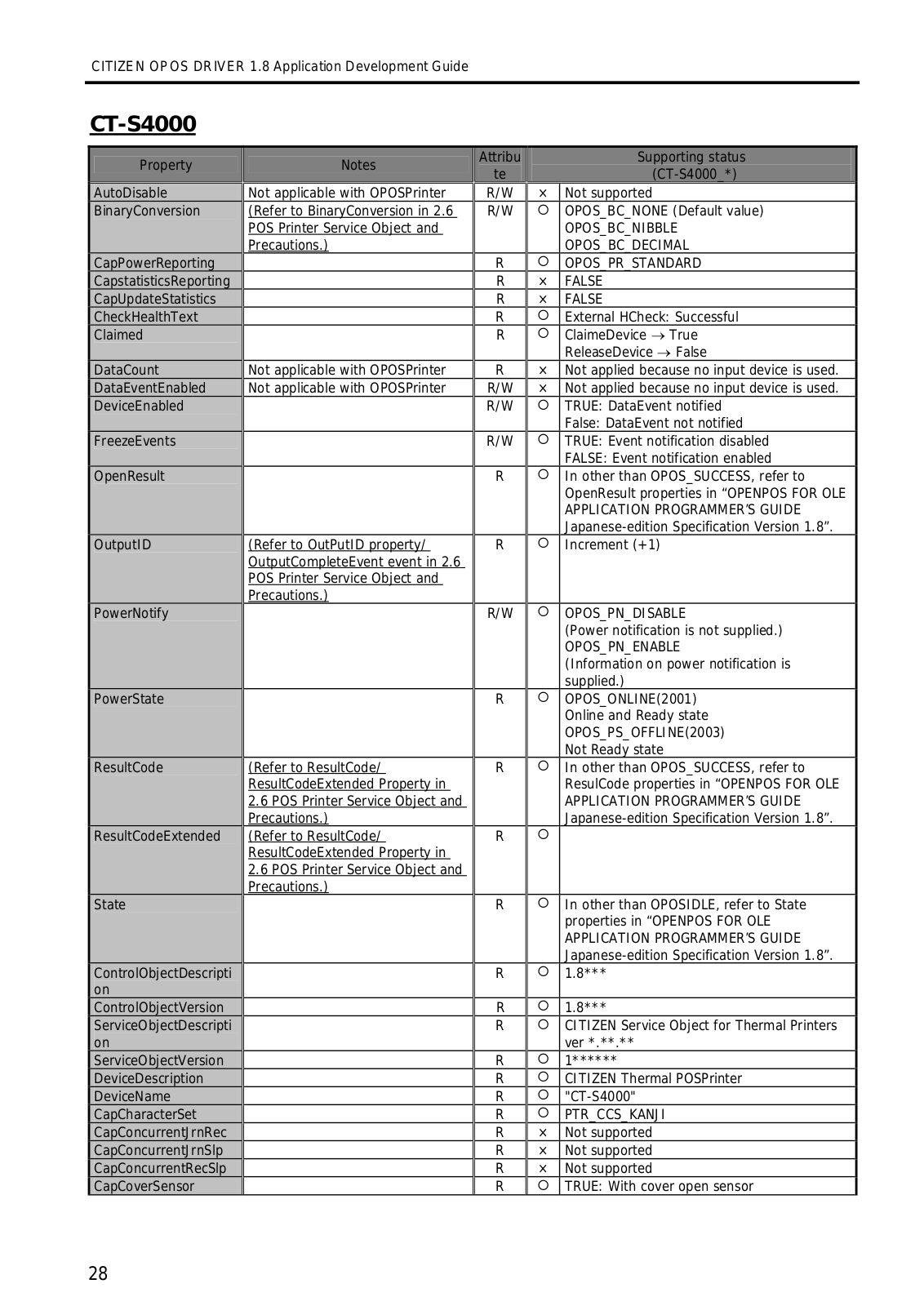

CT-S4000.......................................................................................................................................................

28

CD-S500 ........................................................................................................................................................

32

2.4. POS PRINTER SERVICE OBJECT AND OPOS ESCAPE SEQUENCE RELATIONS ...........................................

36

CBM-1000TypeII ...........................................................................................................................................

36

CT-S3000/CT-S310........................................................................................................................................

37

CT-S2000.......................................................................................................................................................

38

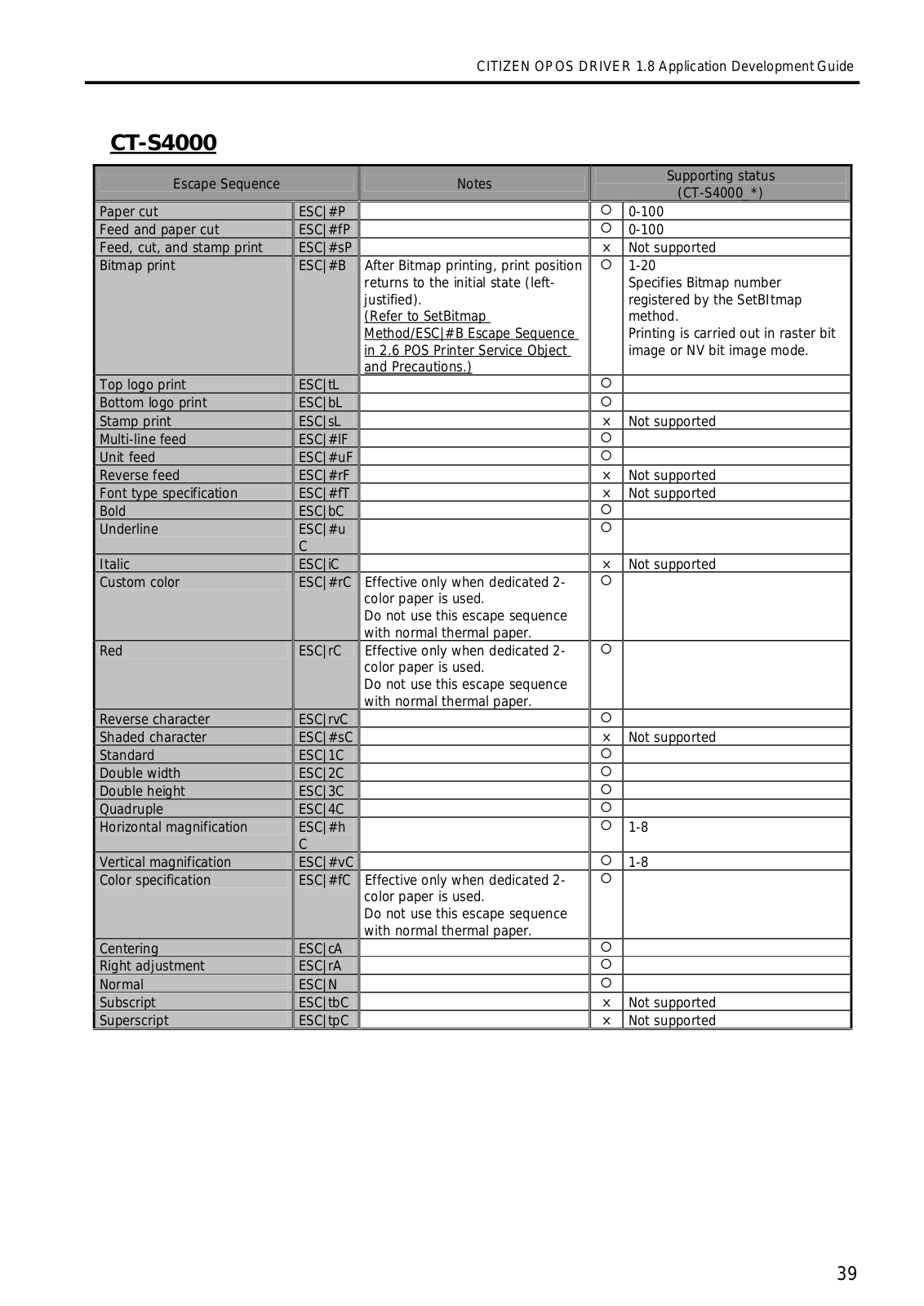

CT-S4000.......................................................................................................................................................

39

CD-S500 ........................................................................................................................................................

40

2.5. POS PRINTER SERVICE OBJECT AND EVENT RELATIONS...........................................................................

41

CBM-1000TypeII ...........................................................................................................................................

41

CT-S 00/CT-S310 ........................................................................................................................................

41

CT-S2000.......................................................................................................................................................

41

CT-S4000.......................................................................................................................................................

42

CD-S500 ........................................................................................................................................................

42

2.6. POS PRINTER SERVICE OBJECT AND PRECAUTIONS ..................................................................................

43

ClaimDevice Method......................................................................................................................................

43

PrintBarCode Method/RotateSpecial .............................................................................................................

43

RotatePrint Method .......................................................................................................................................

43

SetBitmap Method/ESC|#B Escape Sequence ..............................................................................................

44

AsyncMode Property......................................................................................................................................

45

ErrorLevel Property .......................................................................................................................................

45

BinaryConversion Property ............................................................................................................................

45

OutPutID Property/ OutputCompleteEvent Event .........................................................................................

47

CapRecEmptySensor/ RecEmpty Property ....................................................................................................

47

RecLineChars/ RecLineCharsList Property.....................................................................................................

48

RecSidewaysMaxChars Property....................................................................................................................

50

RecSidewaysMaxLines Property ....................................................................................................................

50

ResultCode/ ResultCodeExtended Property ..................................................................................................

50

3. CASH DRAWER SERVICE OBJECT............................................................................................................

51

3.2. CASH DRAWER SERVICE AND OBJECT METHOD RELATIONS ......................................................................

51

CBM-1000TypeII ...........................................................................................................................................

51

CT-S300/ CT-S310.........................................................................................................................................

51

CT-S2000.......................................................................................................................................................

51

CT-S4000.......................................................................................................................................................

52

CD-S500 ........................................................................................................................................................

52

4

CITIZEN OPOS DRIVER 1.8 Application Development Guide

3.3. CASH DRAWER SERVICE OBJECT AND PROPERTY RELATIONS....................................................................

53

CBM-1000TypeII ...........................................................................................................................................

53

CT-S300/CT-S310..........................................................................................................................................

54

CT-S2000.......................................................................................................................................................

55

CT-S4000.......................................................................................................................................................

56

CD-S500 ........................................................................................................................................................

57

3.4. CASH DRAWER SERVICE OBJECT AND EVENT RELATIONS .........................................................................

58

CBM-1000TypeII ...........................................................................................................................................

58

CT-S300/CT-S310..........................................................................................................................................

58

CT-S2000.......................................................................................................................................................

58

CT-S4000.......................................................................................................................................................

58

CD-S500 ........................................................................................................................................................

59

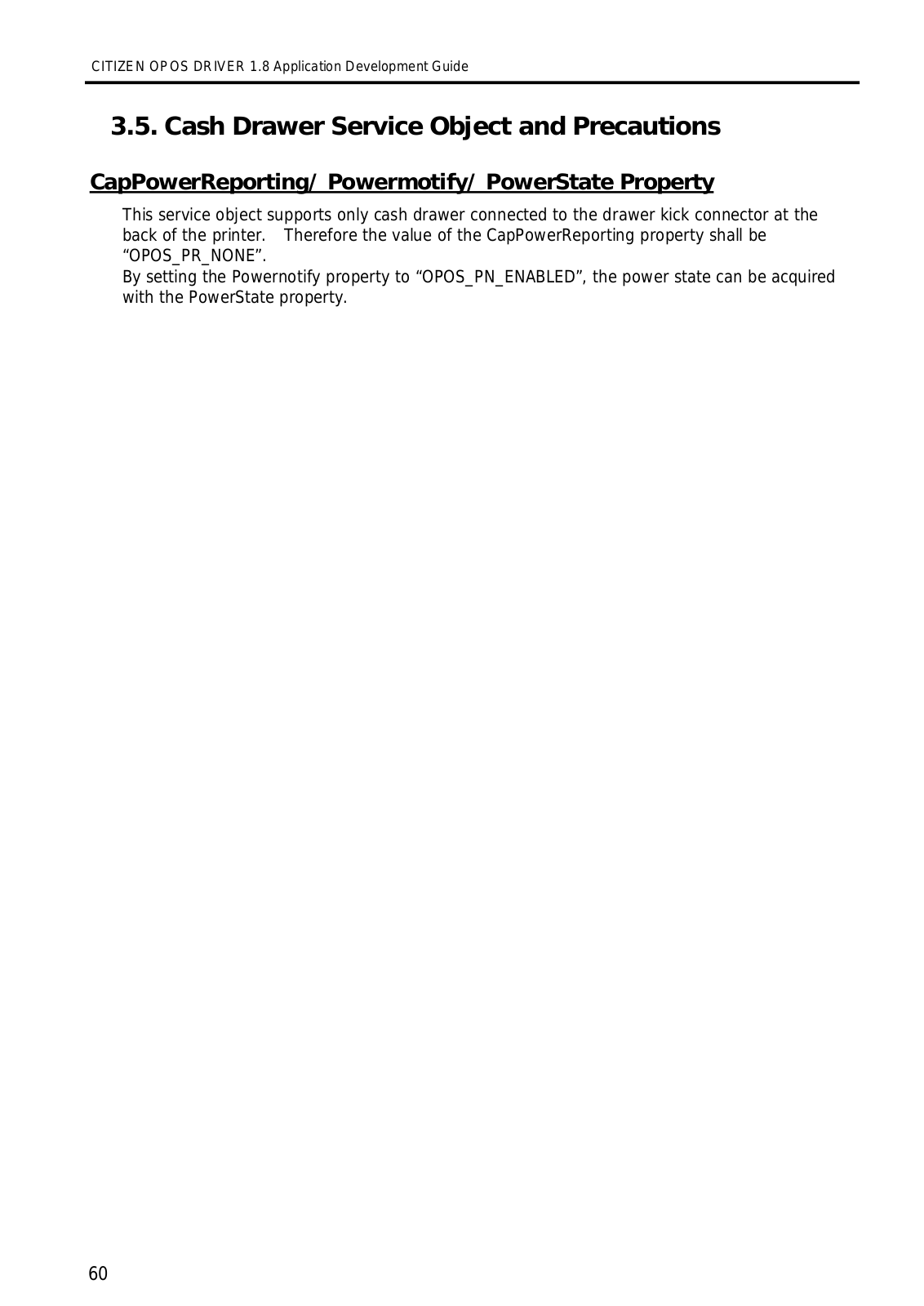

3.5. CASH DRAWER SERVICE OBJECT AND PRECAUTIONS.................................................................................

60

CapPowerReporting/ Powermotify/ PowerState Property .............................................................................

60

5

CITIZEN OPOS DRIVER 1.8 Application Development Guide

1. Introduction

The OPOS Driver complies with OPOS1.8. This document provides the explanation of device (POS printer)-dependent specifications and precautions. When you want to develop applications by using this driver, refer to “OpenPOS for OLE Application Programmer’s Guide, Japanese Edition, Version 1.8” beforehand.

Reference link (as of July 17, 2007) https://www.microsoft.com/japan/business/industry/retail/opos/download.mspx

1.2. CITIZEN OPOS Driver

This driver provides an open device driver architecture that can easily integrate the CITIZEN POS printer and the cash drawer connected to it by the POS system based on Microsoft Windows Operating System. This driver has been developed for the following purpose.

Definition of architecture for accessing the Win32-based POS printer and cash drawer connected to it

Definition of interface of CITIZEN POS printer supporting POS solution and cash drawer

connected to it

1.3. Operating Environment

Object Operating System

This driver supports the following Windows operating systems.

Windows 2000

Windows XP

Object Models

Object models of this driver and the corresponding drivers are as shown below. For details of each model, refer to the Printer User’s Guide.



Object Model





Function





Applicable driver





Applicable driver













(Printer)





(Drawer)

























CBM-1000TypeII



Standard



CBM1000TYPEII_*

CBM1000TYPEII_*.C



CBM-1000TypeII- L



Blackmark paper and label paper are









D*









supported.





























CT-S300

Standard (Paper with blackmark on front side





















is supported)



CT-S300_*

CT-S300_*.CD*



CT-S300-M1/M2



Paper with blackmark on back side is



























supported.















CT-S310



Standard (Paper with blackmark on front side





















is supported)



CT-S310_*

CT-S310_*.CD*



CT-S310-M1/M2



Paper with blackmark on back side is



























supported.















CT-S2000



Standard



CT-S2000_*



CT-S2000_*.CD*



CT-S2000-M

Blackmark paper is supported.







CT-S2000-L

Label paper is supported.















CT-S4000

Standard (Paper with blackmark on front side





















is supported)



CT-S4000_*



CT-S4000_*.CD*



CT-S4000-M



Paper with blackmark on back side is













supported.















CT-S4000-L

Label paper is supported.















CD-S500

Standard type (Without cutting feature)



CD-S500_*

CD-S500_*.CD*



CD-S501



With cutting feature





CD-S503

Rewinder equipped (With cutting feature)













6

CITIZEN OPOS DRIVER 1.8 Application Development Guide

1.4. Application Developer

Application developer who wants to use this driver must be familiar with the following items.

OPOS1.8 specifications

General characteristics of CITIZEN POS printer

Terms and structure of ActiveX control and OLE automation

ActiveX control container development environment such as Microsoft Visual Basic and Microsoft Visual C++, etc.

1.5. OPOS Control

The OPOS control, conforming to ActiveX control specifications, provides the application with property, method, and/or event. It consists of control object (CO) for device class and service object (SO). CO supplies application interface (API) and SO executes the API,

The OPOS software us implemented by the use of the layer shown in the following figure.

Application







Method







Interface



Property







ActiveX



















Event



Control

















































Control Object









OPOS





Device class support



Control

System



Device independent



























Registration











Interface



Method































Mapping

ActiveX



















Event



















Automation



















Parameter





















Method







Service Object









Device dependent

























































Operating System/Driver

Printer

Cash Drawer





Device Class

This is a category of the POS device sharing the set of property, method and event.

Control Object (CO)

Control Object provides the application with a set of property, method and event for each device class. CO is a standard Active (OLE 32 bit) control and is not visible at the time of execution. As a rule, this driver uses OPOS standard CO. (OPOS standard CO is installed automatically at the installation of this driver.)

7

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Service Object (SO)

Service Object is called by Control Object and executes the function specified by OPOS for each device. It is implemented as automation server and provides the set of methods called by CO. This driver provides the processing dependent on the CITIZEN POS printer and cash drawer connected to the printer.

1.6. CITIZEN OPOS Driver Registry Structure

In order for Control Object to be connected to Service Object exactly and initialize the corresponding device, the OPOS control requires data for the system registry. The registry has a hierarchical structure with levels called “key”. Each key consists of the following.

Additional key (also called sub-key)

Named value (“Data” of string, binary, or double-word type is defined for each value.)

One “default value” defined by string-type data.

OPOS defines only string data.

The following is a registry structure taking CT-S2000 (printer and cash drawer) as an example.

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail] @=""

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceInfo]

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceInfo\OposCCOs] "Version"="1.8.001"

"Company"="Research Computer Services, Inc; Dayton OH" "Directory"="C:\\Program Files\\CITIZEN\\CITIZEN Service Objects\\" "Author"="Curtiss R. Monroe"

@="OPOS Common Control Objects -- Public Binaries. Source (c) RCS-Dayton."

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceOPOS] @=""

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceOPOS\CashDrawer] @=""

"DRW001"="CT-S2000_1.CD1"

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceOPOS\CashDrawer\CT-S2000_1.CD1] @="CBM.Thermal.CashDrawer"

"PhysicalDeviceID"="CITIZENCT-S2000" "Version"="1008009" "WriteTimeout"="5000"

"Pin3"="001"

"StatusBackInterval"="200"

"Service"="C:\\Program Files\\CITIZEN\\CITIZEN Service Objects\\CBMTSO.dll" "Port"="COM1:"

"BaudRate"="19200"

"HandShake"="000"

"BitLength"="008"

"Parity"="000"

"ServiceObjectDescription"="Citizen Systems Service Object for CT-S2000_1 Printer Cash Drawer No.1 ver 1.08.09"

"DrawerName"="CTS2000.CITIZEN.CD1"

"DeviceDescription"="Citizen Systems Thermal POSPrinter's Cash Drawer 1" "OnTime"="005"

"PrinterID"="CT-S2000_1" "CapStatus"="001"

8

CITIZEN OPOS DRIVER 1.8 Application Development Guide

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceOPOS\POSPrinter] @=""

"PRN001"="CT-S2000_1"

[HKEY_LOCAL_MACHINE\SOFTWARE\OLEforRetail\ServiceOPOS\POSPrinter\CT-S2000_1] @="CBM.Thermal.POSPrinter"

"PhysicalDeviceID"="CITIZENCT-S2000" "Version"="1008009" "WriteTimeout"="5000"

"Pin3"="001"

"StatusBackInterval"="200"

"Service"="C:\\Program Files\\CITIZEN\\CITIZEN Service Objects\\CBMTSO.dll" "Port"=" COM1:"

"BaudRate"="19200"

"HandShake"="000"

"BitLength"="008"

"Parity"="000"

"FamilyID"="001"

"MapResolution"="001"

"PrinterName"="CTS2000.CITIZEN.POSPrinter" "DeviceDescription"="Citizen Systems Thermal POSPrinter."

"ServiceObjectDescription"="Citizen Systems Service Object for Thermal PosPrinters ver 1.08.09." "PrinterMode"="000"

"BitmapMode"="000"

"PrinterLanguageModel"="008"

"PaperSensor"="000"

"PaperModel"="003"

"Column"="001"

"UseNVRAM"="000"

Registry Operation

Writing illegal value in a registry may cause serious trouble in the system. Therefore, Close attention is required in handling a registry. When handling a registry, the following registrysetting tool (Configuration Utility) shall be used as a rule. For the method of using this tool, refer to “Setup Guide” of this driver.

(Configuration Utility)

9

CITIZEN OPOS DRIVER 1.8 Application Development Guide

1.7. CITIZEN OPOS Driver Precautions

If the printer power is turned off/on while connection to the printer is being established, acquiring status of printer or cash drawer may become unsuccessful. In this case, close SO once and then open SO again.

Though cash drawer SO can be opened singly without opening the corresponding printer SO, opening/closing the corresponding printer SO thereafter impossibility in acquiring cash drawer status may result. In this case, close cash drawer SO once and then open the cash drawer SO again.

When printing on label paper, use MarkFeed method (handling of marked paper).

For the method of using this method, refer to “OpenPOS for OLE Application Programmer's Guide Japanese Versin Rev. 18”.

Also refer to the notes in each chapter.

10

CITIZEN OPOS DRIVER 1.8 Application Development Guide

2. CITIZEN OPOS Printer Service Object

For the details, method of use, etc. of property, method and event, refer to “OpenPOS for OLE Application Programmer's Guide, Japanese Edition, Version 1.8”.

2.2. POS Printer Service Object and Method Relations

CBM-1000TypeII



Method



Notes





Supporting status











(CBM1000TYPEII_*)

















Open

Close

ClaimDevice

ReleaseDevice

CheckHealth

ClearInput

ClearOutput

DirectIO

ResetStatistics

RetrieveStatistics

UpdateStatistics

PrintNormal

PrintTwoNormal

PrintImmediate

BeginInsertion

EndInsertion

BeginRemoval

EndRemoval

CutPaper

RotatePrint

PrintBarCode

PrintBitmap

TransactionPrint

ValidateData

SetBitmap

SetLogo

ChangePrintSide

MarkFeed

Notes on Serial I/F connection

(Refer to RotatePrint in 2.6 POS Printer Service Object and Precautions.)

OPOS_CH_EXTERNAL

Only (self diagnostic printing) is supported.

Not applicable with OPOSPrinter

Data being transmitted cannot be stopped.

(Refer to RotatePrint in 2.6 POS Printer Service Object and Precautions.)

(Refer to PrintBarcode in 2.6 POS Printer Service Object and Precautions.)

(Refer to SetBitmap Method/ESC|#B Escape Sequence in 2.6 POS Printer Service Object and Precautions.)

{

{

{

{

UOPOS_CH_EXTERNAL

×Not applied because no input device is used.

{

×Not supported

×Not supported (OPOS_E_ILLEGAL)

×Not supported (OPOS_E_ILLEGAL)

×Not supported (OPOS_E_ILLEGAL)

{

×Not supported

{

×Not supported

×Not supported

×Not supported

×Not supported

Partial cut (0-100)

{Full cut (0-100) provided hardware change is required.

U

{

{ Raster bit image printing

{

{

Raster bit image mode

{NV bit image mode

{

×Not supported

{Blackmarksupported. paper and label paper are

11

CITIZEN OPOS DRIVER 1.8 Application Development Guide

CT-S300/CT-S310



Method



Notes



Supporting status









(CT-S300_*/CT-S310_*)















Open

Close

ClaimDevice

ReleaseDevice

CheckHealth

ClearInput

ClearOutput

DirectIO

ResetStatistics

RetrieveStatistics

UpdateStatistics

PrintNormal

PrintTwoNormal

PrintImmediate

BeginInsertion

EndInsertion

BeginRemoval

EndRemoval

CutPaper

RotatePrint

PrintBarCode

PrintBitmap

TransactionPrint

ValidateData

SetBitmap

SetLogo

ChangePrintSide

MarkFeed

Notes on Serial I/F connection

(Refer7 to ClaimDevice in 2.6. POS Printer

Service Object and Precautions.)

OPOS_CH_EXTERNAL

Only (self diagnostic printing) is supported.

Not applicable with OPOSPrinter

Data being transmitted cannot be stopped.

(Refer7 to RotatePrint in 2.6 POS Printer

Service Object and Precautions.)

(Refer7 to PrintBarcode in 2.6 POS Printer

Service Object and Precautions.)

(Refer8 to SetBitmap Method/ESC|#B

Escape Sequence in 2.6 POS Printer

Service Object and Precautions.)

{

{

{

{

UOPOS_CH_EXTERNAL

×

Not applied because no input device is used.

{







×

Not supported

×

Not supported (OPOS_E_ILLEGAL)

× Not supported (OPOS_E_ILLEGAL)

×

Not supported (OPOS_E_ILLEGAL)

{



×

Not supported

{



×

Not supported

×

Not supported

×

Not supported

×

Not supported

{

Partial cut (0-99)

Full cut (100)

U







{







{

Raster bit image printing

{



{





Raster bit image mode

{NV bit image mode

{

×Not supported

{Blackmark paper is supported.

12

CITIZEN OPOS DRIVER 1.8 Application Development Guide

CT-S2000



Method



Notes



Supporting status









(CT-S200_*)















Open

Close

ClaimDevice

ReleaseDevice

CheckHealth

ClearInput

ClearOutput

DirectIO

ResetStatistics

RetrieveStatistics

UpdateStatistics

PrintNormal

PrintTwoNormal

PrintImmediate

BeginInsertion

EndInsertion

BeginRemoval

EndRemoval

CutPaper

RotatePrint

PrintBarCode

PrintBitmap

TransactionPrint

ValidateData

SetBitmap

SetLogo

ChangePrintSide

MarkFeed

Notes on Serial I/F connection

(Refer8 to ClaimDevice in 2.6. POS Printer

Service Object and Precautions.)

OPOS_CH_EXTERNAL

Only (self diagnostic printing) is supported.

Not applicable with OPOSPrinter

Data being transmitted cannot be stopped.

(Refer8 to RotatePrint in 2.6 POS Printer

Service Object and Precautions.)

(Refer8 to PrintBarcode in 2.6 POS Printer

Service Object and Precautions.)

(Refer8 to SetBitmap Method/ESC|#B

Escape Sequence in 2.6 POS Printer

Service Object and Precautions.)

{

{

{

{

UOPOS_CH_EXTERNAL

×

Not applied because no input device is used.

{







×

Not supported

×

Not supported (OPOS_E_ILLEGAL)

× Not supported (OPOS_E_ILLEGAL)

×

Not supported (OPOS_E_ILLEGAL)

{



×

Not supported

{



×

Not supported

×

Not supported

×

Not supported

×

Not supported

{

Partial cut (0-99)

Full cut (100)

U













{

Raster bit image printing

{



{





Raster bit image mode

{NV bit image mode

{

×Not supported

{Blackmarksupported.paper and label paper are

13

CITIZEN OPOS DRIVER 1.8 Application Development Guide

CT-S4000



Method



Notes



Supporting status









(CT-S4000_*)















Open

Close

ClaimDevice

ReleaseDevice

CheckHealth

ClearInput

ClearOutput

DirectIO

ResetStatistics

RetrieveStatistics

UpdateStatistics

PrintNormal

PrintTwoNormal

PrintImmediate

BeginInsertion

EndInsertion

BeginRemoval

EndRemoval

CutPaper

RotatePrint

PrintBarCode

PrintBitmap

TransactionPrint

ValidateData

SetBitmap

SetLogo

ChangePrintSide

MarkFeed

Notes on Serial I/F connection

(Refer9 to ClaimDevice in 2.6. POS Printer

Service Object and Precautions.)

OPOS_CH_EXTERNAL

Only (self diagnostic printing) is supported.

Not applicable with OPOSPrinter

Data being transmitted cannot be stopped.

(Refer9 to RotatePrint in 2.6 POS Printer

Service Object and Precautions.)

(Refer9 to PrintBarcode in 2.6 POS Printer

Service Object and Precautions.)

(Refer9 to SetBitmap Method/ESC|#B

Escape Sequence in 2.6 POS Printer

Service Object and Precautions.)

{

{

{

{

UOPOS_CH_EXTERNAL

×

Not applied because no input device is used.

{







×

Not supported

×

Not supported (OPOS_E_ILLEGAL)

× Not supported (OPOS_E_ILLEGAL)

×

Not supported (OPOS_E_ILLEGAL)

{



×

Not supported

{



×

Not supported

×

Not supported

×

Not supported

×

Not supported

{

Partial cut (0-99)

Full cut (100)

U







{







{

Raster bit image printing

{



{





Raster bit image mode

{NV bit image mode

{

×Not supported

{Blackmarksupported.paper and label paper are

14

CITIZEN OPOS DRIVER 1.8 Application Development Guide

CD-S500



Method



Notes



Supporting status









(CD-S500_*)















Open

Close

ClaimDevice

ReleaseDevice

CheckHealth

ClearInput

ClearOutput

DirectIO

ResetStatistics

RetrieveStatistics

UpdateStatistics

PrintNormal

PrintTwoNormal

PrintImmediate

BeginInsertion

EndInsertion

BeginRemoval

EndRemoval

CutPaper

RotatePrint

PrintBarCode

PrintBitmap

TransactionPrint

ValidateData

SetBitmap

SetLogo

ChangePrintSide

MarkFeed

Notes on Serial I/F connection

(Refer9 to ClaimDevice in 2.6. POS Printer

Service Object and Precautions.)

OPOS_CH_EXTERNAL

Only (self diagnostic printing) is supported.

Not applicable with OPOSPrinter

Data being transmitted cannot be stopped.

(Refer1 to RotatePrint in 2.6 POS Printer

Service Object and Precautions.)

(Refer1 to SetBitmap Method/ESC|#B

Escape Sequence in 2.6 POS Printer

Service Object and Precautions.)

{

{

{

{

UOPOS_CH_EXTERNAL

×

Not applied because no input device is used.

{







×

Not supported

×

Not supported (OPOS_E_ILLEGAL)

× Not supported (OPOS_E_ILLEGAL)

×

Not supported (OPOS_E_ILLEGAL)

{



×

Not supported

{



×

Not supported

×

Not supported

×

Not supported

×

Not supported

{

Partial cut (0-100)

Full cut (100)

U







×

Not supported

{

Raster bit image printing

{



{





Raster bit image mode

{NV bit image mode

{

×Not supported

{Blackmark paper is supported.

15

CITIZEN OPOS DRIVER 1.8 Application Development Guide

2.3. POS Printer Service Object and Property Relations

CBM-1000TypeII

Property

AutoDisable

BinaryConversion

CapPowerReporting

CapstatisticsReporting

CapUpdateStatistics

CheckHealthText

Claimed

DataCount

DataEventEnabled

DeviceEnabled

FreezeEvents

OpenResult

OutputID

PowerNotify

PowerState

ResultCode

ResultCodeExtended

State

ControlObjectDescripti on

ControlObjectVersion

ServiceObjectDescripti on

ServiceObjectVersion

DeviceDescription

DeviceName

CapCharacterSet





Notes



Attribu







Supporting status









te







(CBM1000TYPEII_*)























Not applicable with OPOSPrinter



R/W



×

Not supported





(Refer to BinaryConversion in 2.6



R/W

{

OPOS_BC_NONE (Default value)





POS Printer Service Object and











OPOS_BC_NIBBLE





Precautions.)











OPOS_BC_DECIMAL















R

{

OPOS_PR_STANDARD















R



×

FALSE















R



×

FALSE















R



{

External HCheck: Successful















R

{

ClaimeDevice → True























ReleaseDevice → False



Not applicable with OPOSPrinter



R



×

Not applied because no input device is used.



Not applicable with OPOSPrinter



R/W



×

Not applied because no input device is used.















R/W

{

TRUE DataEvent notified























False: DataEvent not notified















R/W

{

TRUE Event notification disabled























FALSE: Event notification enabled















R

{

In other than OPOS_SUCCESS, refer to























OpenResult properties in “OPENPOS FOR OLE























APPLICATION PROGRAMMER’S GUIDE























Japanese-edition Specification Version 1.8”.





(Refer11

to OutPutID property/





R

{

Increment (+1)





OutputCompleteEvent event in 2.6

















POS Printer Service Object and

















Precautions.)



























R/W

{

OPOS_PN_DISABLE























(Power notification is not supplied.)























OPOS_PN_ENABLE























(Information on power notification is























supplied.)















R

{

OPOS_ONLINE(2001)























Online and Ready state























OPOS_PS_OFFLINE(2003)























Not Ready state





(Refer to ResultCode/



R

{

In other than OPOS_SUCCESS, refer to





ResultCodeExtended Property in











ResulCode properties in “OPENPOS FOR OLE





2.6 POS Printer Service Object and











APPLICATION PROGRAMMER’S GUIDE





Precautions.)











Japanese-edition Specification Version 1.8”.





(Refer1

to ResultCode/





R

{







ResultCodeExtended Property in

















2.6 POS Printer Service Object and

















Precautions.)



























R

{

In other than OPO_S_IDLE, refer to State























properties in “OPENPOS FOR OLE























APPLICATION PROGRAMMER’S GUIDE























Japanese-edition Specification Version 1.8”.















R

{

1.8***



R { 1.8***

R{ CITIZEN Service Object for Thermal Printers ver *.**.**

R

{

1******

R

{

CITIZEN Thermal POSPrinter

R

{

"CBM1000II"

R

{

PTR_CCS_KANJI

16

Citizen OPOS DRIVER User Manual

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Property

CapConcurrentJrnRec

CapConcurrentJrnSlp

CapConcurrentRecSlp

CapCoverSensor

CapTransaction

CapJrnPresent

CapJrn2Color

CapJrnBold

CapJrnDhigh

CapJrnDwide

CapJrnDwideDhigh

CapJrnEmptySensor

CapJrnItalic

CapJrnNearEndSensor

CapJrnUnderline

CapJrnCartridgeSensor

CapJrnColor

CapRecPresent

CapRec2Color

CapRecBarCode

CapRecBitmap

CapRecBold

CapRecDhigh

CapRecDwide

CapRecDwideDhigh

CapRecEmptySensor

CapRecItalic

CapRecLeft90

CapRecNearEndSensor

CapRecPapercut

CapRecRight90

CapRecRotate180

CapRecStamp

CapRecUnderline

CapRecCartridgeSensor

CapRecColor

CapRecMarkFeed

CapSlpPresent

CapSlpFullslip

CapSlp2Color

CapSlpBarCode

CapSlpBitmap

CapSlpBold

CapSlpDhigh

CapSlpDwide

CapSlpDwideDhigh

CapSlpEmptySensor

CapSlpItalic

CapSlpLeft90

CapSlpNearEndSensor

Notes

(Refer to CapRecEmptySensor/ RecEmpty Property in 2.6 POS Printer Service Object and Precautions.)

Attribu







Supporting status



te







(CBM1000TYPEII_*)



R



×

Not supported



R



×

Not supported



R



×

Not supported



R

{

TRUE: With cover open sensor



R{ TRUE: Batch processing of characters is possible.

R

×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



{

TRUE Receipt is possible.

R



{

TRUE 2-color printing is possible.



(Using paper printable in 2 colors)

R



{

TRUE: Barcode printing is possible.

R



{

TRUE: Bitmap printing is possible.

R

{

TRUE: Bold attribute setting is possible.

R{ TRUE: Double height attribute setting is possible.

R

{

TRUE: Double width setting is possible.

R

{

TRUE: Quadruple attribute setting is possible.

R{ TRUE: Paper-Out sensor is active. FALSE: Paper-Out sensor is non-active.

R

×

Not supported

R

{

TRUE: 90-degree CCW rotation attribute





setting is possible.

R

{

TRUE: With Paper Near-End sensor

R

{

Only partial cut (90) is supported.

R{ TRUE: 90-degree CW rotation attribute setting is possible.

R

{

TRUE: 180-degree rotation attribute setting is







possible.

R



×

Not supported

R



{

TRUE: Underline attribute setting is possible.

R



{

PTR_CART_OK

R



{

PTR_CUSTOM_COLOR1

R

{

PTR_MF_TO_CUTTER

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

17

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Property

CapSlpRight90

CapSlpRotate180

CapSlpUnderline

CapSlpBothSidesPrint

CapSlpCartridgeSensor

CapSlpColor

AsyncMode

CartridgeNotify

CharacterSet

CharacterSetList

CoverOpen

ErrorLevel

ErrorStation

ErrorString

FontTypefaceList

FlagWhenIdle

MapMode

RotateSpecial

JrnLineChars

JrnLineCharsList

JrnLineHeight

JrnLineSpacing

JrnLineWidth

JrnLetterQuality

JrnEmpty

JrnNearEnd

JrnCartridgeState

JrnCurrentCartridge

Notes

(Refer to AsyncMode Property in 2.6 POS Printer Service Object and Precautions.)

(Refer to ErrorLevel Property in 2.6 POS Printer Service Object and Precautions.)

Attribu

te

R

R

R

R

R

R

R/W

R/W

R/W

R

R

R

R

R

R

R/W

R/W

R/W

R/W

R

R/W

R/W

R

R/W

R

R

R

R/W

Supporting status (CBM1000TYPEII_*)

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported { TRUE/FALSE

×Not supported { Default value

Japanese version: Code932 English version: Code437

{437: Code437

850:Code850 Multilingual

860:Code860 Portugal

863:Code863 Canada-French

865:Code865 Norway

852:Code852 Eastern Europe

866:Code866 Russia

857:Code857 Turkey

932:KANA

998:A SCII

999:Windows Code 1252: Windows Code

{TRUE: POS printer cover is open. FALSE: POS printer cover is closed.

{PTR_EL_NONE PTR_EL_RECOVERABLE PTR_EL_FATAL

{PTR_S_RECEIPT

{Description on present error is retained.

{Font A, B

{

{PTR_MM_DOTS (Default value) PTR_MM_TWIPS PTR_MM_ENGLISH PTR_MM_METRIC

UPTR_RP_NORMAL (OPOS_SUCCESS) PTR_RP_RIGHT90 (OPOS_E_ ILLEGAL) PTR_RP_LEFT90: Not supported (OPOS_E_ILLEGAL) PTR_RP_ROTATE180: Supported (OPOS SUCCESS)

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

×Not supported

18

CITIZEN OPOS DRIVER 1.8 Application Development Guide

Property

RecLineChars

RecLineCharsList

RecLineHeight

RecLineSpacing

RecLineWidth

RecLetterQuality

RecEmpty

RecNearEnd

RecSidewaysMaxLines

RecSidewaysMaxChars

RecLinesToPaperCut

RecBarCodeRotationLis t

RecCartridgeState

RecCurrentCartridge

RecBitmapRotationList

SlpLineChars

SlpLineCharsList

SlpLineHeight

SlpLineSpacing

SlpLineWidth

SlpLetterQuality

SlpEmpty

SlpNearEnd

SlpSidewaysMaxLines

SlpSidewaysMaxChars

SlpMaxLines

SlpLinesNearEndToEnd

SlpBarCodeRotationList

SlpPrintSide

SlpCartridgeState

SlpCurrentCartridge

Notes

The Font size is changed depending on the set value.

Select the value from RecLineCharsList property. (Refer to RecLineChars/ RecLineCharsLis Property in 2.6 POS Printer Service Object and Precautions.)

(Refer1 to RecLineChars/ RecLineCharsLis Property in 2.6 POS Printer Service Object and Precautions.)

The value is changed according to the RecLineChars property.

Only if the value is smaller than RecLineHeight property, the value is changed in accordance with to the RecLineHeight property.

(Refer to RecEmpty Property in 2.6 POS Printer Service Object and Precautions.)

(Refer to RecSidewaysMaxLines Property in 2.6 POS Printer Service Object and Precautions.)

(Refer to RecSidewaysMaxChars Property in 2.6 POS Printer Service Object and Precautions.)

Attribu



Supporting status



te



(CBM1000TYPEII_*)



R/W



{ OPOS_SUCCESS







(Normal setting)







OPOS_E_ILLEGAL







(Illegal line character width is specified.)



R{ 58 mm paper "30, 40"

"36, 48"

80 mm paper "42, 56"

"48, 64"

R/W {

R/W {

R

{



R/W



×

Not supported

R○ TRUE: Receipt paper out FALSE: With receipt paper

*Always FALSE if CapRecSensor is False.

R



{



R

{











R

{











R



{



R

{

0 (Default value), 180





Not supported

R



×

R/W

{

PTR_CUSTOM_COLOR1

R



{

0 (Default value), 180

R/W



×

Not supported

R



×

Not supported

R/W



×

Not supported

R/W



×

Not supported

R



×

Not supported

R/W



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R



×

Not supported

R/W



×

Not supported

19

Loading...
+ 42 hidden pages
