INSTRUCTION MANUAL
FOR
DIGITAL BLOOD PRESSURE MONITOR
REF CH-657
0901
English
3 - GENERAL REMARKS
5 - PRECAUTIONS FOR USE AND MAINTENANCE
10 - IDENTIFICATION OF PARTS
12 - LOADING THE BATTERIES
13 - REMOVING THE BATTERIES
14 - HOW TO WRAP THE WRIST CUFF
16 - TIPS FOR OBTAINING ACCURATE MEASUREMENTS
18 - MEASURING YOUR BLOOD PRESSURE
20 - CALLING UP THE DATA STORED IN MEMORY
22 - ERROR INDICATIONS
23 - ABOUT “BLOOD PRESSURE”
24 - BLOOD PRESSURE Q&A
25 - BEFORE REQUESTING REPAIRS OR TESTING
26 - SPECIFICATIONS
Ensure that you have all the following components
INSTRUCTION MANUAL
FOR
DIGITAL BLOOD PRESSURE MONITOR
REF CH-657
Blood pressure
monitor unit
Storage case (for monitor)
2 AAA batteries
Instruction
Manual
English
0901
- Eng 2 -
GENERAL REMARKS
General remarks on blood pressure and blood pressure measurement
1. To defl ate the cuff quickly, press the “START/STOP” switch.
2. The attached cuff is suitable for wrist circumferences of 13.5-
21.5 cm.
3. When attaching the cuff, the body of a blood pressure monitor should be placed on the inside of your wrist.
4. Self measurement is not therapy! In no event should you change the dosage of your medication prescribed by your physician.
5. As preparation for measuring your blood pressure, you should urinate and then remain relatively still for 10 to 15 minutes prior to measurement.
6. Exercising, eating, drinking, smoking, etc., prior to measurement may affect the results.
7. Your blood pressure varies constantly throughout the day. Measurements should be taken regularly at the same time each day.
8. DO NOT place too much emphasis on the results of one measurement. Keep a continuing record of your blood pressure variations. A complete picture can only be obtained from a large number of readings.
9. Emotional stress tends to cause your blood pressure to rise.
To obtain correct blood pressure measurements
1. Take fi ve or six deep breaths and then relax before measuring your blood pressure. If you are tense when taking the measurement, you will not get a valid reading.
2. Your blood pressure will be elevated if you are anxious or irritated, suffering from lack of sleep or constipation, or have just taken some exercise or eaten a meal.
3. Wrap the cuff around your wrist snugly. (
4. DO NOT measure your blood pressure after bathing or drinking.
5. If you feel the need to urinate, do so before measuring your blood pressure.
6. Measure your blood pressure where the room temperature is around 20°C. DO NOT measure your blood pressure when it is too
- Eng 3 -
See page 14)
English
GENERAL REMARKS
cold (below 10°C) or too hot (above 40°C) in the room.
7. DO NOT try to measure your blood pressure immediately after drinking coffee or tea or after smoking.
8. Measure your blood pressure when you are relaxed and still. Keep
English
the center of the cuff at the level of your heart and DO NOT move your arm or talk.
9. DO NOT measure blood pressure when the cuff has been on your wrist for a few minutes or more. During this time, your wrist will have built up a higher blood pressure and you will not get valid reading.
10. The fi gure below shows the blood pressure classifi cations under the WHO standards.
SYSTOLIC
(mmHg)
Grade 3 Hypertension (severe)
180
Grade 2 Hypertension (moderate)
160
Grade 1 Hypertension (mild)
140
High-Normal
130
Normal
120
Optimal
80 85 90 100 110 DIASTOLIC
Remarks:
The graph is not exact, but may be used as a guide in understanding non­invasive blood pressure measurements. The device is only intended for use by adults.
(mmHg)
Defi nitions and Classifi cations of Blood Pressure Levels
Measure your blood pressure at the same time each day.
* Your blood pressure changes all the time. This means that data
gathered over a long period has far more signifi cance than data from just one measurement. For this reason, you must measure your blood pressure on a daily basis. Ideally, you should measure your blood pressure at the same time each day, wherever possible.
- Eng 4 -
PRECAUTIONS FOR USE AND MAINTENANCE
Precautions for use
1. If you suffer from heart disease, high blood pressure or other circulatory disease, consult your physician before using the monitor.
2. If you feel abnormal pressure of the cuff during use or any other irregularity, reduce the pressure by immediately switching off the power or remove the batteries and consult the sales outlet where purchased.
3. If you think the measurement is abnormal or if measurement makes you feel unwell, discontinue use and consult your physician.
4. Blood pressure measurement may not be possible for anyone with a weak pulse or arrhythmia.
5. Repeated blood pressure measurement may cause problems such as congestion or swelling in some people.
6. Frequently repeated blood pressure measurements will not give accurate results. Allow an interval of about 1 minute between measurements.
7. If you suffer from a severe problem with blood circulation in your arms, consult your physician before using the monitor. Failure to do so could be hazardous to your health.
8. Measurement may not be possible for anyone with insuffi cient blood fl ow to the area where measurements will be taken or who suffers from a frequent irregular heartbeat. Consult your physician for advice on whether to use the monitor.
9. DO NOT wrap the cuff around an injured wrist.
10. DO NOT wrap the cuff around a wrist in which a drip (intravenous infusion) is inserted, or which is being used for blood transfusion as part of medical treatment. Doing so could result in an injury or a serious accident.
11. DO NOT use the monitor in the vicinity of fl ammable gases such as those used for anaesthesia. Doing so could ignite the gases and cause an explosion.
12. DO NOT use the monitor in enriched oxygen environments such as a hospital’s hyperbaric chamber or oxygen tent. Doing so could ignite the oxygen and cause a fi re.
English
- Eng 5 -
PRECAUTIONS FOR USE AND MAINTENANCE
13. DO NOT use mobile phones near the monitor as this could result in a malfunction.
14. If you use a cardiac pacemaker, consult your physician before using the monitor.
English
15. Be sure to use this unit only for measuring blood pressure. DO NOT use it for any other purpose.
16. DO NOT use this unit on infants.
17. Blood pressure measurement may not be possible for anyone with common arrhythmias such as atrial or ventricular premature beats or atrial fi brillation.
Maintenance Precautions
1. DO NOT store the blood pressure monitor in locations exposed to direct sunlight, high temperatures (over 60°C), low temperatures (below -20°C), high relative humidity (over 95%) or excessive amounts of dust.
2. DO NOT drop the blood pressure monitor or subject it to other shocks or vibration.
3. Remove the batteries if the monitor will be left unused for a long period.
4. DO NOT attempt to disassemble the monitor.
5. DO NOT bend the cuff excessively.
6. If the monitor is very dirty, wipe it clean with a cloth moistened with sterilizing alcohol or a neutral detergent. Then wipe it with a dry cloth.
7. NEVER clean the blood pressure monitor with thinners or benzene, as this could damage the monitor.
8. To clean the cuff, wipe it with a moist cloth. Avoid hard rubbing, as this will cause air leakages.
- Eng 6 -
PRECAUTIONS FOR USE AND MAINTENANCE
Symbols Explanation
: The CE marking is meant to provide information to market
inspectors in the EU member countries.
: Type B applied part
: Refer to instruction manual before use
: Appliance compliance WEEE directive
: Accumulators and battery packs for separate collection
Pb
: Manufacturer
Warning
The device has been tested and homologated in accordance with EN60601-1-2 for EMC. This does not guarantee in any way that the device will not be affected by electromagnetic interference. Avoid using the device in high electromagnetic environment.
English
- Eng 7 -
PRECAUTIONS FOR USE AND MAINTENANCE
Nature and frequency of maintenance:
This product is designed for use over an extended period of time; however, it is generally recommended that it be inspected every two years to ensure proper function and performance.
English
Protect the nature environment:
Please help to protect natural environment by respecting national and/or local recycling regulations when disposing of the battery and the product at the end of their useful live.
WEEE MARK
If you want to dispose this product, do not mix with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive (Directive 2002/96/EC) and is effective only within European Union.
Information for Users on Collection and Disposal of used Batteries.
The symbol in this information sheet means that used batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of used batteries, please take them to applicable collection points. For more information about collection and recycling of batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
Information on Disposal in other Countries outside the European Union.
This symbol is only valid in the European Union. If you wish to discard used batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol.
The symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
Calibration:
The blood pressure measuring device is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please contact a distributor.
PbPb
- Eng 8 -
PRECAUTIONS FOR USE AND MAINTENANCE
Name : Address :
European Representative:
Name : WvW electronishe Geräte Vertrieb GmbH Address : Fintelmannstraße 20/Eingang, Martin-Heydert-Straße,
• For technical data, please contact our European Representative
CITIZEN SYSTEMS JAPAN CO.,LTD. 6-1-12, Tanashi-cho, Nishi-Tokyo-shi, Tokyo 188-8511, Japan
D-14109 Berlin, Germany
English
- Eng 9 -
IDENTIFICATION OF PARTS
Component names
<Main Unit>
English
Display
MEMORY Switch
Battery cover
Wrist cuff
START/STOP Switch w Stand-by
- Eng 10 -

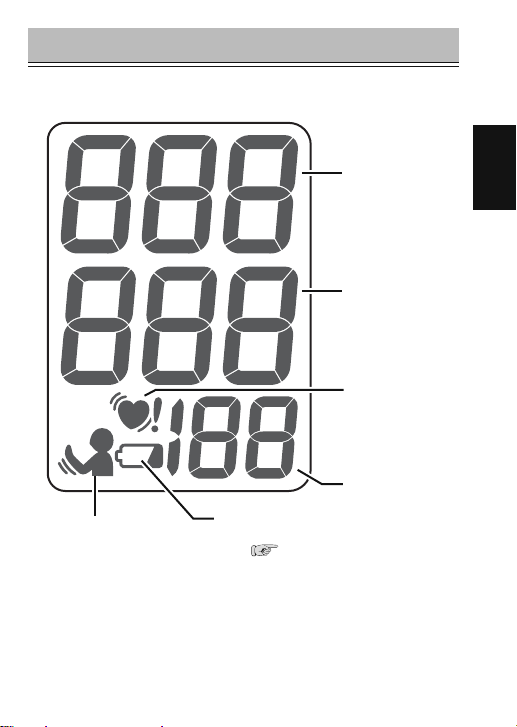

<Display>
IDENTIFICATION OF PARTS
Systolic blood pressure
Diastolic blood pressure
Irregular Heartbeat (IHB) Indicator
Pulse
English
Body Movement Indicator
Battery level indicator Appears when the batteries are running low. (
See page 13)
- Eng 11 -
LOADING THE BATTERIES
(Batteries supplied with the unit should be loaded in compartment before you use the blood pressure monitor.)
English
1 Open the cover of battery compartment.
Battery cover
Pressing down on the battery cover, slide the cover off in the direction of the arrow.
2 Place batteries in the compartment.
Put the batteries paying attention to the positive and negative
terminal symbols
* The battery goes in negative side fi rst.
Insert the battery near the display fi rst.
and .
- Eng 12 -
LOADING THE BATTERIES
3 Close the battery cover.
Slide the cover in the direction of the arrow. Push the cover on until it clicks.
REMOVING THE BATTERIES
• When the icon is displayed or nothing appears in the display, replace the old batteries with two new ones. All two batteries should be changed at once.
• Do not use rechargeable batteries.
• Do not use alkaline (LR03) and manganese (R03) batteries together.
• Batteries included are for demonstration purposes only. Battery life may be shorter than specifi ed.
• When disposing of used batteries, comply with governmental regulations or environmental public institution’s rules that apply in your country/area.
English
- Eng 13 -
HOW TO WRAP THE WRIST CUFF
Wrap the wrist cuff around your wrist properly. Improper wrapping of the cuff may result in measuring errors.
English

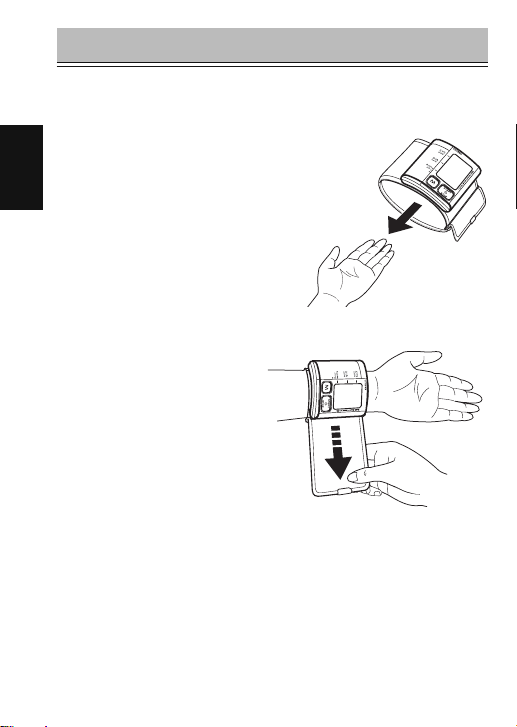

1 Unfasten and open the wrist cuff. 2 Wrap the cuff around your left wrist
so that the monitor is positioned on the inside of your wrist.
• Wrap the wrist cuff on bare skin.
• The wrist cuff is designed to fi t wrists from 13.5 to 21.5 cm in circumference.
3 Loosely fi t the wrist cuff by
pulling the end of the cuff.
- Eng 14 -
HOW TO WRAP THE WRIST CUFF
4 Position the top edge of the cuff
approximately 1 to 2 cm away from the crease of your wrist.
5 Secure the wrist cuff with the
Velcro.
• If the wrist cuff is wrapped too loose or tight, errors or incorrect readings may result.
You may use your right wrist to measure your blood pressure.
However, your blood pressure may differ by about 10mmHg depending on whether measured on your left or your right wrist, so ideally you should measure your blood pressure on the same wrist each time.
To obtain accurate measurements
• Wrapping the cuff too loosely or too tightly may prevent correct measurement.
• Sit up straight while taking the measurement.
English
- Eng 15 -

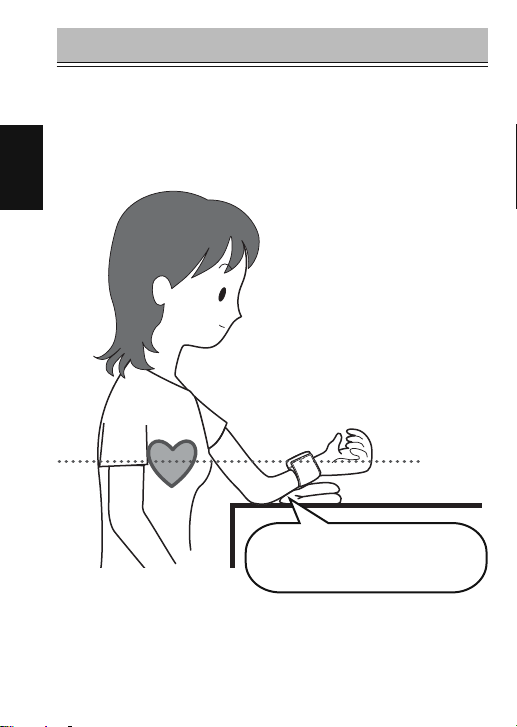

TIPS FOR OBTAINING ACCURATE MEASUREMENTS
Place a folded towel or similar under your arm.
Your blood pressure varies according to your posture, the time of day and a range of other factors. Ideally, you should measure your blood pressure in the same posture at the same time every day.
English
Make sure that your posture is correct.
1
Sit up straight, take a deep breath and relax.
Place your palm facing up and
2
keep your fi ngers relaxed.
It is important to have the
3
cuff level with your heart.
- Eng 16 -
TIPS FOR OBTAINING ACCURATE MEASUREMENTS

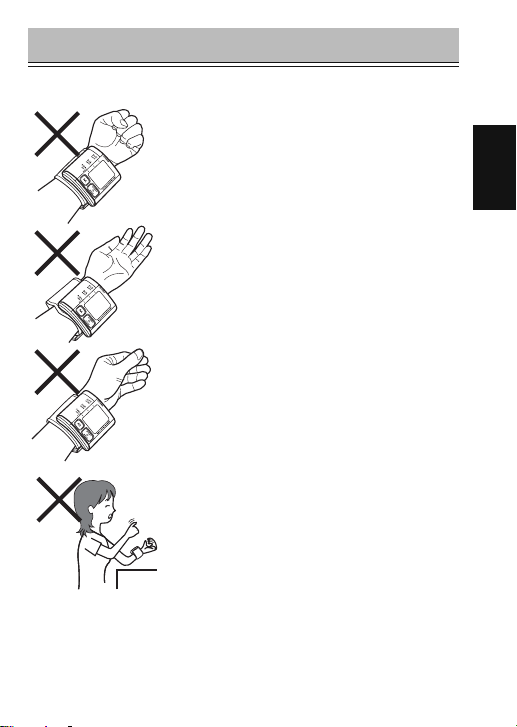

To obtain correct measurements
• Do not clench your fi st tightly.
• Do not wrap the wrist cuff too loosely.
• Do not change the position of the monitor.
• Do not move your body or talk during measurement
English
- Eng 17 -
MEASURING YOUR BLOOD PRESSURE
1 Wrap the wrist cuff around your left wrist.
( See page 14 “HOW TO WRAP THE WRIST CUFF”.)
2 Make sure that your posture is correct.
English
( See page 16 “TIPS FOR OBTAINING ACCURATE
MEASUREMENTS”.)

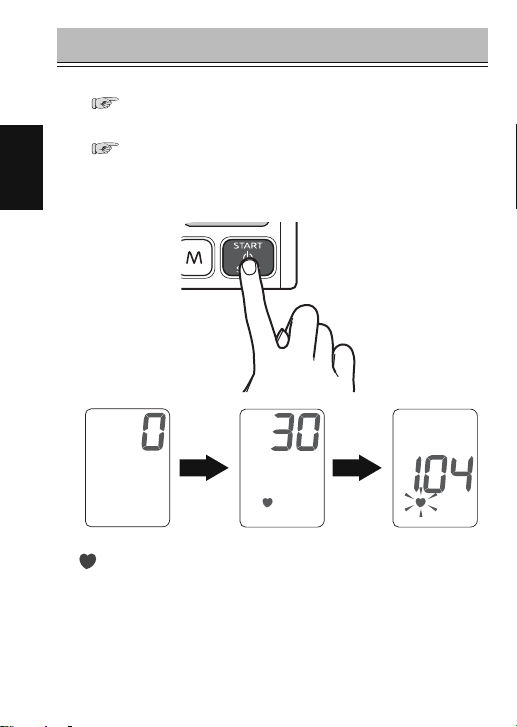

3 Press the “START/STOP” switch to start measurement.
is displayed when a pulse is detected.
- Eng 18 -
MEASURING YOUR BLOOD PRESSURE
4 The measurement results are displayed.
Systolic blood pressure
Irregular Heartbeat (IHB) Indicator
Body Movement Indicator
Caution
Diastolic blood pressure
Pulse
The Body Movement Indicator is displayed on the measurement results display if you move your hand or wrist during measurement, causing a substantial pressure change to be detected.
• If the Body Movement Indicator is displayed, measure your blood pressure again.
If an irregular heartbeat is detected during measurement, the Irregular Heartbeat (IHB) Indicator is displayed after measurement is completed.
• Measurement may not be correct if your heartbeat uctuates greatly during measurement. If the Irregular Heartbeat (IHB) Indicator is displayed, measure your blood pressure again.
If the Irregular Heartbeat (IHB) Indicator appears frequently, you are advised to consult a doctor about your health condition.
- Eng 19 -
English
MEASURING YOUR BLOOD PRESSURE
5 Finishing measurement.
• Press the “START/STOP” switch to turn the monitor off.
English
AUTOMATIC POWER OFF FEATURE
• After taking the blood pressure measurement, pressing the “START/ STOP” switch will turn the monitor off. However, if you do not press the switch, the monitor’s Auto OFF function will automatically turn the monitor off after 3 minutes.
CALLING UP THE DATA STORED IN MEMORY
90 measurement results can be stored in the memory. The average value is calculated automatically to help you manage your daily health.

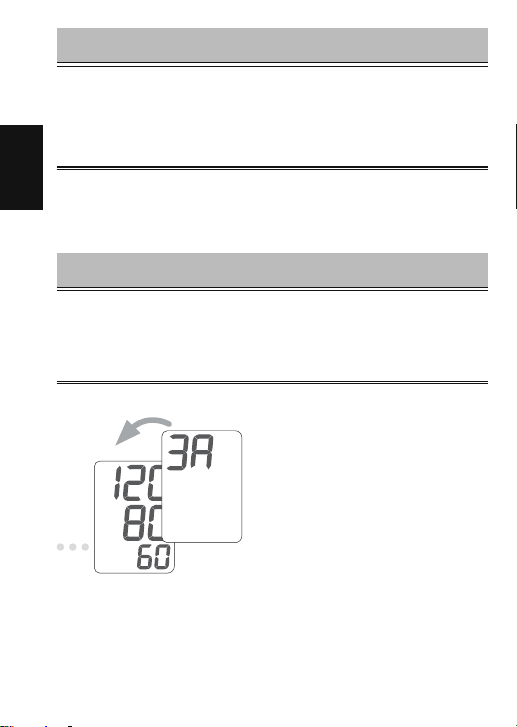

HOW TO CALL UP THE DATA
1 Press the “MEMORY” switch.
• “3A” indicating the average value appears on the left section of the display. Then, the average value, based on the last three measurements, is displayed. (“3A” and the average value do not appear if there are two or fewer measurements stored in memory.)
- Eng 20 -
CALLING UP THE DATA STORED IN MEMORY

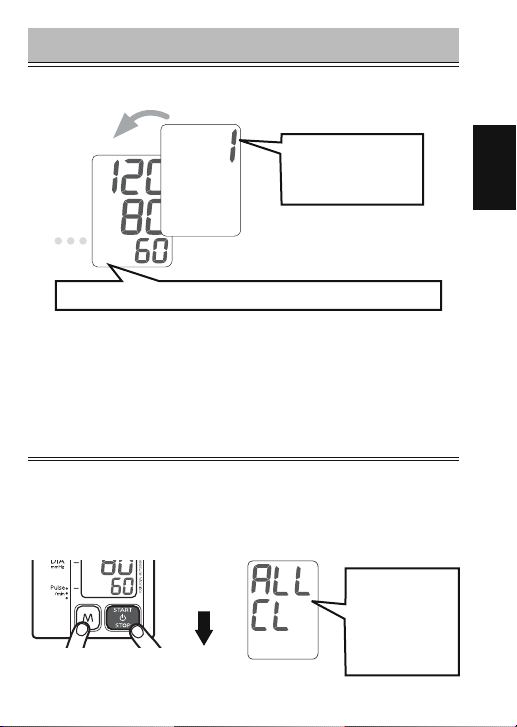

2 Each time you press the switch, the measurement data are
displayed in order from the most recent to the oldest.
The data number is displayed before the measurement results.
The measurement results are displayed after the data number.
• The value stored in memory is numbered in the order of measurements. For example, when 90 sets of data are stored in memory, the data number 1 represents the latest data.
Data number: 1, 2, 3, ... ... 89, 90
©
The latest data©The earliest data
HOW TO DELETE THE DATA
1 Press the “MEMORY” switch. 2 While pressing the “MEMORY” switch, press and hold the
“START/STOP” switch for more than 3 seconds.
All the stored data will be deleted.
Press and
hold for 3
seconds
Deleted
A message saying all the data have been deleted from the memory is displayed.
English
- Eng 21 -
ERROR INDICATIONS
DISPLAY MARK CONDITION/CAUSE
English
Appears when the wrist cuff is wrapped too loose.
Appears when your wrist moved during the measurement.; or Appears when the cuff is not wrapped correctly.
Appears when the batteries have run out.
Appears when the pulse rate falls outside the measuring range (below 39 beats/min. or above 181 beats/min.)
The unit does not function properly.
CORRECTIVE ACTION
Re-wrap the wrist cuff snugly. Take another reading, making sure you remain still. ( See page 14 “HOW TO WRAP THE WRIST CUFF”.)
Re-wrap the wrist cuff correctly. Take another reading, making sure you remain perfectly
See page 14
still. ( “HOW TO WRAP THE WRIST CUFF”.)
Replace two alkaline batteries with new ones. ( 13 “REMOVING THE BATTERIES”.)
Re-wrap the wrist cuff properly. Take deep breaths to relax, and measure again. ( See page 16 “TIPS FOR OBTAINING ACCURATE MEASUREMENT”.)
Contact the store where it was purchased or your local service center.
See page 25
( “BEFORE REQUESTING REPAIRS OR TESTING”.)
See page
- Eng 22 -
ABOUT “BLOOD PRESSURE”
What is blood pressure?
The heart is a pump that circulates blood throughout your body. Blood is pumped from the heart at a constant pressure into arteries. This pressure is called the arterial blood pressure and represents, in general terms, your blood pressure. Blood pressure is indicated by several kinds of pressures, including the systolic pressure that occurs when the heart pumps blood, and the diastolic pressure that occurs when blood returns to the heart.
(Systolic) (Diastolic)
Left atrium
Artery
Left atrium
Artery
English
Left ventricle
Your blood pressure changes all the time.
Your blood pressure differs according to your age, gender and a range of other factors. It is likely to be affected by your biorhythm during the day and by your posture, physical activities, mental activities, level of stress and even by the air temperature. The blood pressure of a healthy person generally varies within a day.
The artery wall expands.
Contraction
Left ventricle
Normal state is restored to the artery wall.
Dilation
[Example of blood pressure variations within a day]
Systolic blood
Sleeping
pressure
Diastolic blood
pressure
160
140
120
100
80
60
40
Blood pressure value (mmHg)
12 13 14 15 16 17 18 19 20 21 22 23 24 1 2 3 4 5 6 7 8 9 10 11
(Blood pressure values measured at fi ve-minute intervals through the day)
Time of day
Bevan AT, Honour AJ, Stott FH. Clin Sci 1969;36:329–44.
- Eng 23 -
BLOOD PRESSURE Q&A
Q Why is the blood pressure measured at home different from that
measured by the physician or at a hospital?
A Your blood pressure may vary due to exercise, the ambient temperature
English
or your mental state. When you have a physician or nurse measure your blood pressure, the pressure value is likely to be 10 to 20 mmHg higher than usual due to anxiety and/or stress. Knowing what affects your blood pressure helps you to better monitor your health.
Q Why does the blood pressure obtained vary with measurement? A Our blood pressure is adjusted by automatic nerve function. Blood
pressure differs with every heart beat. We are likely to think that our blood pressure is constant, but it varies if you take measurements in repetition. Blood pressure is susceptible to the time of day, such as morning and afternoon, season and atmospheric temperature. In addition, blood pressure is easily affected by mental stress or emotional ups and downs. It tends to increase when you feel tension or decrease when you are relaxed.
Q What is the bene t of measuring my blood pressure at home? A Blood pressure measurements taken at home give reliable data as they
can be taken when you are in a stable and relaxed condition. Physicians place considerable importance on blood pressure measurements taken at home. You should measure your blood pressure at the same time each day and record the variations in your blood pressure.
Always consult your physician for an interpretation of your blood pressure readings and to determine the proper treatment.
- Eng 24 -
BEFORE REQUESTING REPAIRS OR TESTING
Make sure to check the following before sending your blood pressure monitor away to be tested or repaired.
Problem Checks Response
Display stays blank when you press the “START/STOP” switch.
Check whether the batteries are dead.
Check whether the batteries are installed the right way round
and oriented
( correctly).
Replace all the batteries with new ones.
Load the batteries in the correct direction.
English
No measurements can be taken.
Your blood pressure readings are abnormally high or low compared with those taken in hospital.
Other phenomena
Check whether the measurement icon
is displayed.
Check whether the cuff is attached correctly.
Did you stay calm during measurement?
Note that blood pressure measurement may not be possible for someone with an extremely weak pulse or cardiac arrhythmia (irregular pulse).
- Eng 25 -
Attach the cuff properly.
Measure your blood pressure again, making sure to remain still.
See page 24.
Remove the batteries from the unit and change them with new ones.
SPECIFICATIONS
Model Number CH-657 Measurement system Oscillometric method Display Digital display type Wrist circumference range 13.5 to 21.5 cm
English
Measurement range
Accuracy
Infl ation Automatic infl ation by internal pump Rated voltage 3V DC Exhaust Electromagnetic quick exhaust valve Power supply 2 AAA batteries (LR03)
Battery duration Approx. 400 times
Operating conditions Storage conditions Memory Function Up to 90 measurements Electric shock Protection Internal power unit Safety Classifi cation Mode of operation Continuous operation Protection against ingress of water Dimensions 69(W) x 70(H) x 15(D) mm Weight Approx. 86g w/o batteries
Accessories
Pressure 0 to 280 mmHg Pulse 40 to 180 pulse/min Pressure ±3 mmHg Pulse ±5% of reading
( : direct current)
Temperature 10°C to 40°C Humidity 30% to 85% RH Temperature -20°C to 60°C Humidity 10% to 95%RH
Type B Equipment
IPX0
Set includes 2 AAA batteries (LR03) for the monitor, Instruction Manual, Storage case
(180 mmHg, once/day, 22°C)
- Eng 26 -
CITIZEN is a registered trade mark of Citizen Holdings Co., Japan.
CITIZEN es una marca registrada de Citizen Holdings Co., Japón.
Design and Specication are subject to change without notice.
Loading...
