PRINTER

PRODUCT GUIDE 2006

2006.01

MINI PRINTER

Line Thermal Printers

Impact Dot Matrix Printers

Line Thermal Kiosk Units

Line Thermal Printer Mechanisms

Impact Dot Matrix Printer Mechanisms

LeadingTechnologyforHumanity

Determined to develop as a corporation that offers new value for everyone everywhere through high-quality products and services . . . . . . Citizen Systems is reinventing itself.

“Leading Technology for Humanity”

— Our corporate slogan expresses the aspirations of every Citizen Systems employee, each of whom is striving to realize a shared ideal. We have superior miniaturization and refinement technologies cultivated by members of the Citizen Group. We have a desire to design products that are easy for anyone to use. And we have the skills required to pursue quality at every turn, combined with an unswerving commitment to manufacturing. We draw on these strengths to manufacture more advanced products for a wide range of fields, including health information management, information/entertainment and business information equipment. Our aim is to achieve advances in convenience, enabling people to lead more abundant and comfortable lives anytime and anywhere — and to disseminate people-friendly technologies and services that help individuals lead healthier, more fulfilling lives.

“Leading Technology for Humanity” — We continue to take up new challenges with an eye on our customers and with these words in mind.

Citizen Systems Co., Ltd.

A full range of compact high-performance printers designed to satisfy your most rigorous requirements

Reliability, value and performance are three key strengths of CITIZEN POS printers and OEM mechanisms. In today’s challenging business environment, you need to leverage every possible advantage, and the ability to select from one of the industry’s widest ranges of dot matrix and thermal printers and mechanisms gives you this competitive edge. Standard features include semi-automatic paper loading, compact design and reliable high-speed performance. Convenient options such as winders, auto-cutters and multicolor ribbons are also available. Rely on the resources and reputation of a worldwide industry leader to meet your POS printer and OEM mechanism requirements. Get the CITIZEN advantage.

Citizen Systems engages actively in the field of

Universal Design, introducing products to

enthusiastic consumer response one after

another and moving positively to open up

new markets.

The design of products and environments to be usable by all people, to the greatest extent possible, without the need for adaptation or specialized design.

- Ron Mace -

7 Principles

Line Thermal Printers

CT-S300

CT-S2000

CBM1000 TypeⅡ

CT-S4000

CT-S280

CBM-270L

10 11 12

CBM-262 TypeⅡ

CBM-291 / 293

CMP-10

Line Thermal Kiosk Units

19 20

PPU-700 / PHU-331

PPU-231 / PHU-131

Line Thermal Printer Mechanisms

LT-286

Impact Dot Matrix Printers

CD-S500 / 501/ 503

13 15

iDP3550 / 3551

iDP3420 / 3421 / 3423

CBM-910 TypeⅡ/ CBM-920

CBM-820

Impact Dot Matrix Printer Mechanisms

MD-910 / 911

Equitable Use Flexibility in Use

Simple and

Intuitive Use

Equitable Use

Low Physical EffortEquitable Use

Size and Space for

Approach and Use

24 25 26 27 28 29

MLT-288 / 289

MLT-388 / 389

LT2220 / 2320

LT2221 / 2321

LT-281 / 481

LT-483 / LT1322

Application / Feature

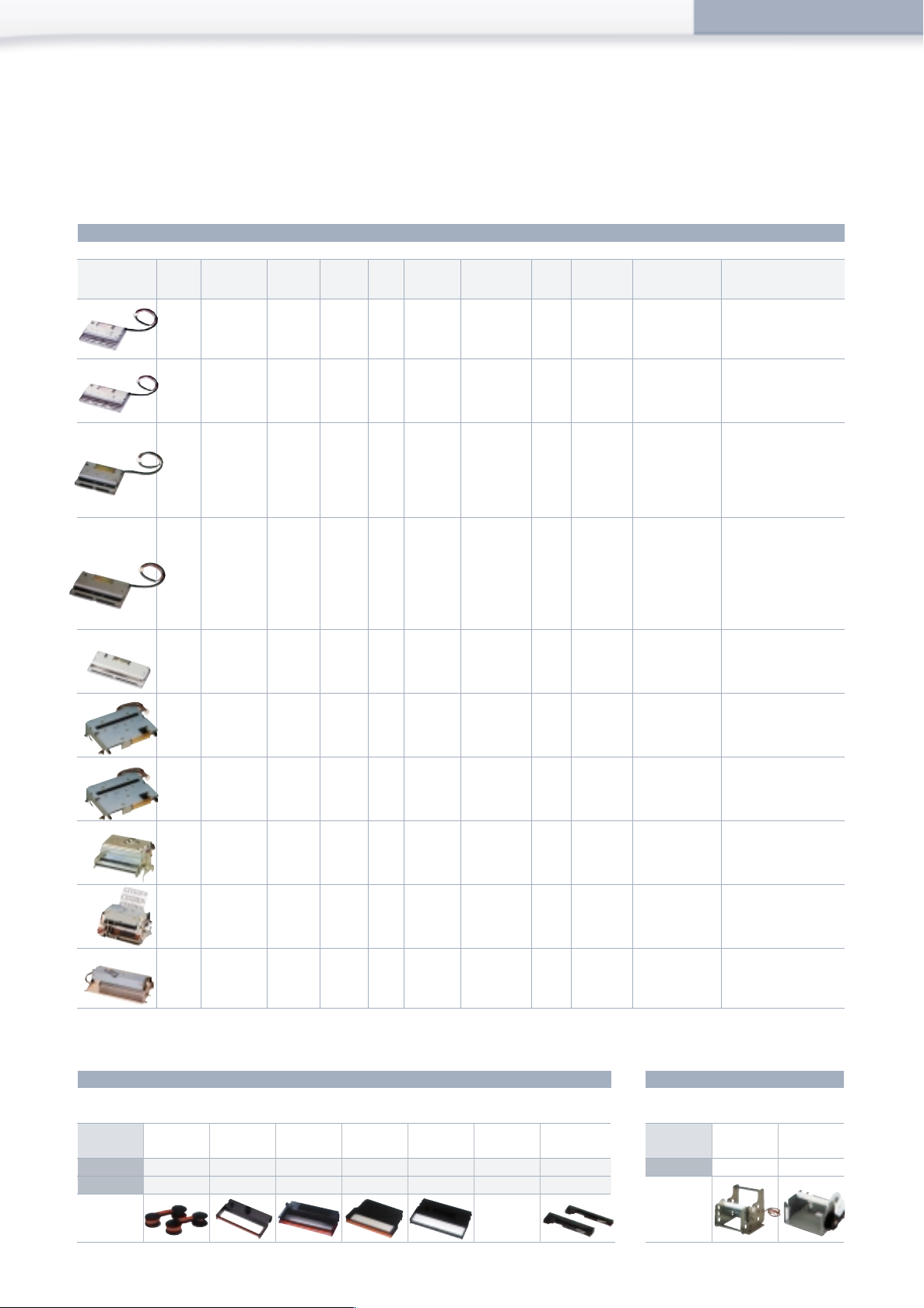

Accessories / Options22

DP-320 / 330 DP-420 / 430 DP-555 / 575 DP-61X

SERIES

DP-654 / 657 DP-62X

SERIES

DP-630 DP-730

Line Thermal Printers

Citizen Systems is responding proactively to the world’s need for thermal printers, beginning with printers for POS, ECR and kiosk applications. Positive characteristics such as quiet operation, high-speed printing and superior high-density barcode printing make thermal printers ideal for wide-ranging applications, and CITIZEN printers are setting the standard for this vital printer segment.

CT-S300

Paper Roll

■ 100 mm/sec printing speed

■ 80 / 58mm selectable paper width

■ Easy paper loading

■ Optional interface cards

■ Built-in AC adapter

■ Black mark function (option)

■ Cash drawer kick-out

Standard type

Available in black

■ Bitmap data registration (NV memory)

■ Barcode printing

■ ESC/POS compatibility

■ Page mode

■ Two color printing

■ Smoothing font

■ Easy customization by software

■ Availability in white or black

Type Classification

Vertical solution

CT-S300 R F 230 S M1

1) 2) 3) 4) 5) 6)

1) Model type

CT-S300

Applications

Receipt

•

Coupon

•

Ticket

•

Daily report

•

Kitchen

•

Delivery

•

Barcode

•

2) Interface

P: Parallel R: Serial RS-232C U: USB

3) Character set

F: International

4) Power source

120: AC 120V 230: AC 230V

5) Power supply

S: Built-in AC adapter A: External AC adapter D: No AC adapter

Easy paper loading

Accessories

Line Thermal Printers

Just drop paper in and close the top cover.

Wall mount kit

WALL-CTS300

Splash proof cover

SPROOF-CTS300

*Available for built-in AC

adapter type only.

Specifications

Printing method Printing width

Dot pitch Printing speed Number of columns

Character size (W × H)

Character table

Barcode type Line spacing Paper Interface Input buffer NV user memory Drawer kick-out Power supply AC adapter Weight Dimensions (W × D × H)

Operating environment Storage environment Reliability EMC and safety standards

Interface cards

Parallel Serial USB

Customization software for easy customization

*Available for external AC

adapter type only.

Line thermal dot printing 80mm paper: 72mm/576 dots 58mm paper: 48mm/384 dots 8 × 8 dots/mm (203 dpi × 203 dpi) Max. 100mm/sec (23.6 lines/sec) 80mm paper: Font A-48/42 columns / Font B-64/56 columns / Font C-72/63 columns 58mm paper: Font A-32/30 columns / Font B-42/40 columns / Font C-48/45 columns Font A: 1.25 × 3.00mm (12 × 24 dots) / Font B: 0.88 × 2.13mm (9 × 17 dots) Font C: 0.88 × 2.00mm (8 × 16 dots) Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866, Katakana, WPC1252 , Thai code 18 UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93

4.23mm (1/6 inch); can be set by a command. Thermal paper roll, 80 or 58mm (W) × ø83mm Parallel: IEEE 1284 and Centronics compliant, Serial (RS-232C), USB 4K bytes / 45 bytes 256K bytes 2 Drawers DC 24V ± 7% Input: AC 100-230V, 50/60 Hz, 120VA Output: DC 24V, 2A Approx. 1.2kg Standard type: 145 × 195 × 159mm External AC adapter type: 145 × 195 × 121mm 5 ~ 40°C, 35 ~ 85% RH

-20 ~ 60°C, 10 ~ 90% RH Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts UL, C-UL, FCC Class A, TUV-GS, CE marking

6) Blackmark sensor (Option)

None: No sensor M1: Left side M2: Right side

Line Thermal Printers

82.5

Paper Roll

NEW

Standard type

Available in black

CT-S2000

■ 220 mm/sec high-speed printing

■ 82.5 / 80 / 60 / 58mm selectable paper width

■ Front paper exit

■ Water proof design(Conform to IPX1)

■ One touch cover open and Easy paper loading

■ Larger paper roll capability as φ102 mm

■ Optional interface cards

■ USB is default in addition to Serial or Parallel

interface board

■ Built-in AC adapter

■ Label/Black mark function(option)

■ Cash drawer kick-out

■ Bitmap data registration(NV memory)

■ Barcode printing

■ ESC/POS compatibility

■ Page mode

■ Two color printing

■ Smoothing font

■ Easy customization by software

■ Availability in white or black or dark grey(option)

Label type

Type Classification

CT-S2000 DC RS E BK L

1) 2) 3) 4) 5) 6)

1) Model type

CT-S2000

Applications

Receipt

•

Coupon

•

Ticket

•

Daily report

•

Kitchen

•

Delivery

•

Barcode

•

2) Power Supply

None: AC power type DC: DC power supply type

3) Interface

PA: Parallere + USB RS: Serial + USB UB: USB only (Option)

4) Character set

U: USA E: Europe

5) Body case color

WH: Cool white BK: Black GR: Dark Grey (Option)

Accessories

Line Thermal Printers

Easy paper loadingOne touch cover open and Easy paper loading

Just drop paper in and close the top cover.

Interface cards

Parallel Serial USB

Specifications

Printing method Printing width

Dot pitch Printing speed Number of columns

Character size (W x H) Character table Barcode type Line spacing Paper Interface Input buffer NV user memory Drawer kick-out Power supply AC adapter

Weight Dimensions (W x D x H) Operating environment Storage environment Reliability EMC and safety standard

Customization software for easy customization

USBisdefaultinaddition to Serial orParallelinterfaceboard

Line thermal dot printing

82.5 mm paper: 80mm / 640 dots 80 mm paper: 72mm / 576 dots 60 mm paper: 54.5mm / 436 dots 58 mm paper: 54mm / 432 dots 8 x 8 dots / mm (203 dpi x 203 dpi) Max. 220 mm/sec (52 lines/sec)

82.5 mm paper: Font A - 53 columns / Font B - 71 columns / Font C - 80 columns 80 mm paper: Font A - 48 columns / Font B - 64 columns / Font C - 72 columns 60 mm paper: Font A - 36 columns / Font B - 48 columns / Font C - 54 columns 58 mm paper: Font A - 35 columns / Font B - 46 columns / Font C - 52 columns Font A: 1.25 x 3.0 mm (12 x 24 dots) / Font B: 0.88 x 3.00mm (9 x 24 dots) / Font C: 0.88 x 2.00(8 x 16 dots) Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866, Katakana, WPC1252, Thai code 18 UPC-A / UPC-E / JAN(EAN)-13/8 / ITF / Code 39 / CODE 128 / CODABAR/ Code 93

4.23mm (1/6 inch), can be set by command

82.5/80/60/58 mm x φ102 mm Parallel(IEEE1284 and Centronics compliant)+USB, Serial(RS-232C compliant)+USB 4K bytes / 45 bytes 384K bytes 2 drawers DC 24V ± 7% Input: AC100-240V, 50/60Hz, 150VA Output: DC24V, 2A AC power type: 2.0kg / DC power type: 1.8kg 147 x 207 x 147 mm 5 ~ 40°C, 10 ~ 90% RH (No condensation)

-20 ~ 60°C, 10 ~ 90% RH (No condensation) Main unit: 20,000,000 lines, Thermal head: 200,000,000 pulse or 150 km, Auto cutter: 2,000,000 cuts UL, C-UL, FCC class A, TUV-GS, CE marking

6) Label/Black mark

None: Standard(No sensor type) L:Label sensor type M: Black mark sensor type

Line Thermal Printers

Standard type

Available in black

Label type

Easy paper loading

Droppaper inandclosethecover. Thenit’sreadytoprint.

Accessories

Interface cards

Parallel Serial USB Ethernet

Rear cover

Applications

Receipt

•

Coupon

•

Ticket

•

Daily report

•

Kitchen

•

Delivery

•

Barcode

•

CBM1000 Type II

Paper Roll

■ 150 mm/sec printing speed

■ 80 / 58mm selectable paper width

■ Front paper exit

■ Water proof design

■ Easy paper loading

■ Optional interface cards

■ Built-in AC adapter

■ Label/Black mark function(option)

■ Cash drawer kick-out

■ Bitmap data registration (NV memory)

■ Barcode printing

■ ESC/POS compatibility

■ Page mode

■ Two color printing

■ Smoothing font

■ Easy customization by software

■ Availability in white or black or dark grey(option)

Specifications

Printing method Printing width Dot pitch Printing speed Number of columns

Character size (W × H) Character table Barcode type Line spacing Paper Interface Input buffer NV bit map data area Drawer kick-out Power supply AC adapter Weight Dimensions (W × D × H)

Operating environment Storage environment Reliability EMC and safety standard

Line thermal dot printing 80mm paper: 72mm/576 dots 58mm paper: 54mm/432 dots 8 × 8 dots/mm (203 dpi × 203 dpi) Max. 150mm/sec (35.4 lines/sec) 80mm paper: Font A - 48/42 columns Font B / 64/56 columns 58mm paper: Font A - 36/30 columns Font B / 48/40 columns Font A: 1.25 × 3.00mm (12 × 24 dots) / Font B: 0.88 × 3.00mm (9 × 24 dots) Code page 437, 850, 852, 857, 858, 860, 863, 865, 866, Katakana, WPC1252 UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93

4.23mm (1/6 inch), can be set by a command Thermal paper roll, 80 / 58mm (W) × ø83mm Parallel: IEEE1284 and Centronics compliant Serial: RS-232C, USB, 10/100 Base-T 4K bytes / 72 bytes 256K bytes 2 Drawers DC 24V ± 7% Input: AC100-240V, 50/60Hz, 120VA Output: DC24V, 1.9A Standard type: 2.0kg/Compact type: 1.4kg Standard type: 145 × 190 × 152mm External AC adapter type: 145 × 190 × 114mm 5 ~ 40°C, 35 ~ 85% RH –20 ~ 60°C, 10 ~ 90% RH Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts UL, C-UL, FCC class A, TUV-GS, CE marking

Type Classification

CBM1000II R F 230 T L

1) 2) 3) 4) 5) 6)

1) Model type

CBM1000 Type II

2) Interface

P: Parallel R: Serial RS-232C U: USB

3) Character set

F: International

4) Power source

120: AC 120V 230: AC 230V

5) Power supply

T: Built-in AC adapter A: External AC adapter D: No AC adapter

6) Label/Blackmark sensor

None: No sensor L: Label/Blackmark type

CT-S4000

Line Thermal Printers

Standard type

Applications

Receipt

•

Coupon

•

Ticket

•

Daily report

•

Vertical solution

Kitchen

•

Delivery slip

•

Barcode

•

Paper Roll

Paper Rol l

82.5

Paper Roll

■ 150 mm/sec high-speed printing

■ 112 / 82.5 / 80mm selectable paper width

■ Easy paper loading

■ Larger paper roll capability as φ102 mm

■ Optional interface cards

■

SB is default in addition to Serial or Parallel interface board

■ Built-in AC adapter

■ Label/Black mark function (option)

■ Bitmap data registration (NV memory)

■ Cash drawer kick-out

■ Barcode printing

■ ESC/POS compatibility

■ Page mode

■ Availability in black or white

■ Two color printing

■ Smoothing font

■ Availability in white or black

Accessories

Interface cards

Parallel Serial USB

Wall mount kit

WALL-CTS300

*Available for external AC

adapter type only.

Easy paper loading

USBisdefaultinaddition to Serial orParallelinterfaceboard

Customization software for easy customization

Specifications

Printing method Printing width

Dot pitch Printing speed Number of columns

Character size (W x H)

Character table Barcode type Line spacing Paper Interface Input buffer NV user memory Drawer kick-out Power supply AC adapter Weight Dimensions (W x D x H) Operating environment Storage environment Reliability EMC and safety standard

Line thermal dot printing 112 mm paper: 104mm/832 dots

82.5 mm paper: 82.5m/660 dots 80 mm paper: 72mm/576 dots 8 X 8 dots / mm (203 dpi X 203 dpi) Max. 150 mm/sec (35.4 lines/sec) 112 mm paper: Font A - 69 columns / Font B - 92 columns / Font C - 104 columns

82.5 mm paper: Font A - 55 columns / Font B - 73 columns / Font C - 82 columns 80 mm paper: Font A - 48 columns Font B - 64 columns Font C - 72 columns Font A: 1.25 x 3.0 mm (12 x 24 dots) / Font B: 0.88 x 2.13mm (9 x 17 dots) / Font C: 0.88 x 2.00 (8 x 16 dots) Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866, Katakana, WPC1252, Thai code 18 UPC-A / UPC-E / JAN(EAN)-13/8 / ITF / Code 39 / CODE 128 / CODABAR/ Code 93

4.23mm (1/6 inch), can be set by command 112 / 82.5 / 80 mm x φ102 mm Parallel(IEEE1284 and Centronics compliant)+USB, Serial(RS-232C compliant)+USB 4K bytes / 45 bytes 384K bytes 2 drawers DC 24V ± 7% Input: AC100-240V, 50/60Hz, 150VA / Output: DC24V, 2A AC power type: *.*kg / DC power type: *.*kg 180 x 213 x 148 mm 5 ~ 45°C, 10 ~ 90% RH (No condensation)

-10 ~ 60°C, 10 ~ 90% RH (No condensation) Main unit: 20,000,000 lines, Thermal head: 100,000,000 pulse or 100 km, Auto cutter: 1,000,000 cuts UL, C-UL, FCC class A, TUV-GS, CE marking

Just drop paper in and close the top cover.

Type Classification

CT-S4000 DC RS E BK L

1) 2) 3) 4) 5) 6)

1) Model type

CT-S4000

2) Power supply

None: AC power type DC: DC power suppy type

3) Interface

PA: Parallel + USB RS: Serial + USB UB: USB (only Option)

4) Character set

U: USA E: Europe

5) Body case color

WH: Cool white BK: Black

6) Label/Black mark

None: Standard(No sensor type) L:Label sensor type M: Black mark sensor type

Line Thermal Printers

CT-S280

CBM-270L (Label type)

Applications

Receipt

•

Kitchen

•

Coupon

•

Delivery

•

Easy paper loading

CT-S280

Just drop paper in and close the top cover.

Mechanism

LT-286 for CBM-270L

Ticket

•

Banking

•

Daily report

•

Medical equipment

•

CT-S280/CBM-270L

Paper Roll

CT-S280

■ 80 mm/sec speed printing

■ 58mm paper width

■ Easy paper loading

■ Memory switch function

■ Bitmap data registration (NV memory)

■ Barcode printing

■ ESC/POS compatibility

■ Page mode

■ Two color printing

■ Wall mount installation

CBM-270L Label model

■ 50 mm/sec printing speed

■ Paper auto loading

■ 2K bytes input buffer

Specifications

Model CT-S280 CBM-270L

Printing method Printing width Printing speed Number of columns Character size (W × H)

Character table

Dot pitch Barcode type Line spacing Paper

Interface

Input buffer NV user memory Power supply AC adapter Weight Dimensions (W × D × H) Operating temp.range Storage temp.range Reliability EMC and safety standards

Line thermal dot printing 48mm (384 dots/line) Max. 80 mm/sec (18.9 lines/sec) Font A - 32 columns / Font B - 42 columns / Font C - 48 columns Font A: 1.25 x 3.0 mm (12 x 24 dots) / Font B: 0.88 x 3.00mm (9 x 24 dots) / Font C: 0.88 x 2.00 (8 x 16 dots) Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866, Katakana, WPC1252, Thai code 18 8 × 8 dots/mm(203dpi × 203dpi) UPC-A / UPC-E / JAN(EAN)-13/8 / ITF / Code 39 / CODE 128 / CODABAR/ Code 93

4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) Size: 58 mm x φ83mm, Thickness:0.065-0.075mm

Parallel(IEEE1284 and Centronics compliant), Serial(RS-232C compliant), USB 4K bytes / 45 bytes 256K bytes DC8.5V Input: AC100-240V, Output: DC8.5V Printer: Approx.430g, AC adapter: Approx.240g 106 × 170× 116.5mm 0 ~ 40°C, 10 ~ 85% RH (No condensation)

-20 ~ 60°C, 5 ~ 90% RH (No condensation) Thermal head: 100,000,000 pulse or 50 km UL, C-UL, FCC class A, TUV-GS, CE marking

Max. 50mm/sec, 400 dot-line/sec (11 lines/sec) Font A: 32 columns. Font B: 42 columns.Font Font A: 1.25 × 3.00 mm (12 × 24 dots) Font B: 0.88 × 3.00 mm (9 × 24 dots)

Code page 437

UPC-A/E, JAN (EAN), ITF, CODABAR,CODE93,CODE128

Thermal roll paper: 58 ×φ83mm (max.) Thickness: 0.065-0.075mm Thermal label paper: 58 ×φ83mm (max.) Thickness: 0.150mm(max.) Label width: 56mm (max.) Label length: 25mm/pc (min.) Parallel: Centronics, Serial: RS-232C

2K bytes — DC 7.2V Input: AC100-240V(27AD), Output: DC7.2V 2A(Peak 6A) Printer:Approx. 600g AC adapter:Approx.350g 106 × 184 × 110mm

Thermal head: 50,000,000 pulses or 50km

Type Classification

CT-S280-RS -E

1) 2) 3)

1) Model type

CT-S280

2) Interface

PA: Parallel RS: Serial RS-232C UB:USB

3) Region (Character + power cord)

E: Europe U: North America

CBM-270 R F 230-L

1) 2) 3) 4) 5)

1) Model type

CBM-270

2) Interface

P: Parallel R: Serial RS-232C

3) Character set

F: International

4) Power source

120: 120 V 230: 230 V

5) Label sensor

L: Label type

Line Thermal Printers

CBM-262 Type II

Paper Roll

Receipt Journal

■ Two station printing

■ 80 mm/sec printing speed

■ Paper auto loading

■ Barcode printing

■ Cash drawer kick-out

■ ESC/POS compatibility

■ Page mode

■ Auto cutter (Receipt only)

■ Smoothing font

2 station

(Receipt and journal with paper winder)

Auto Cutter

ACS-220

Mechanism

LT-289 (Receipt) LT-289D (Journal)

Applications

Receipt

•

Journal

•

Coupon

•

Ticket

•

Specifications

Printing method Printing width Printing speed Number of columns

Character size (W × H)

Dot pitch Barcode type Line spacing Paper Interface

Input buffer Power supply AC adapter Weight Dimensions (W × D × H) Operating temp. range Storage temp. range Reliability

EMC and safety standards

Daily report

•

Kitchen

•

Delivery

•

Barcode

•

Line thermal dot printing 54mm, 432 dots Max. 80mm/sec, 640 dot-line/sec (Approx. 19 lines/sec) Font A: 36 columns Font B: 48 columns Font A: 1.25 × 3.00mm (12 × 24 dots) Font B: 0.88 × 2.13mm (9 × 17 dots) 8 dots/mm (Horizontal/Vertical) UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 93, Code 128

4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) Thermal paper roll, 58mm ×φ83mm Parallel: Centronics Serial: RS-232C 8K bytes DC 24V Input: AC 100-240V, 50/60Hz, 120V, Output: DC 24V, 1.8A Main unit: 2.3kg, AC adapter: 0.4kg 128 × 359.5 × 162.5mm 5 ~ 40˚C

-10 ~ 60˚C Thermal head: 50,000,000 pulses or 50km Auto cutter: 300,000 cuts UL, C-UL, FCC class A, TUV-GS, CE marking

Type Classification

CBM-262II R F 230

1) 2) 3) 4)

1) Model type

CBM-262 Type II

2) Interface

P: Parallel R: Serial RS-232C

3) Character set

F: International

4) Power source

120: AC 120 V 230: AC 230 V

Line Thermal Printers

CBM-293

CBM-291

CBM-291/293

Paper Roll

CBM-291 CBM-293

■ Compact design

■ Panel mounting

■ High-speed line thermal printing

■ Paper auto loading

■ Barcode printing

■ ESC/POS compatibility

■ Auto cutter

■ DC 24V drive

■ Both parallel and serial interface

Applications

•

Paper Roll

Receipt Coupon Ticket Daily report Kiosk

Kitchen

•

Delivery

•

Barcode

•

Industrial machine

•

Auto Cutter

ACS-220 (CBM-291) ACS-230 (CBM-293)

Mechanism

LT-282 (CBM-291) LT-381 (CBM-293)

Type Classification

CBM-291 F DC

1) 2) 3)

1) Model type

CBM-291 (58mm) CBM-293 (80mm)

Specifications

Model

Printing method Printing width Printing speed Number of columns

Character size (W × H)

Dot pitch Barcode type Line spacing Paper Interface

Input buffer Power supply Weight Dimensions (W × D × H) Operating temp. range Storage temp. range Reliability

EMC and safety standards

2) Character set

F: International

CBM-291

Line thermal dot printing 52mm, 416 dots Max. 50mm/sec Font A: 34 columns Font B: 46 columns Font A: 1.25 × 3.00mm (12 × 24 dots) Font B: 0.88 × 2.14mm (7 × 19 dots) 8 dots/mm (Horizontal and Vertical) UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 128

4.23mm (1/6 inch), can be set by a command (Min. 1/203 inch) 58 × Max. φ50mm Parallel: Centronics Serial: RS-232C 4K bytes DC 5V and DC 24V

0.56kg 106 × 109 × 99mm 5 ~ 40˚C

-20 ~ 60˚C Thermal head: 50,000,000 pulses or 30km Auto cutter: 300,000 cuts FCC class A, TUV, CE marking

3) Power source

DC: No AC adapter

CBM-293

72mm, 576 dots Max. 62.5mm/sec Font A: 48 columns Font B: 64 columns

80 × Max. φ50mm

DC 24V

0.67kg 126 × 109 × 99mm

Mag stripe card reader type

Standard type

Line Thermal Printers

CMP-10/CMP-10BT

Paper Roll

■ Palm size

■ Easy paper loading

■ IrDA and serial interface (Cable is option)

■ Bluetooth type available

■ Li-ion battery (Large capacity)

■ ESC/POS compatibility

■ Auto power off

■ Low battery monitoring

■ Belt clip

■ 40 or 50 mm diameter cover

■ Internal charging circuit

■ Mag stripe card reader type available

Wireless communication using IrDA

Easy paper loading

Just drop a paper in and close the top cover.

Accessories

Serial interface cable (option)

CA10-01

Long battery life using Li-ion battery

MLT-289

Softcase (option)

SC10-01

Belt clip available as standard

Mechanism

Applications

Mobile

•

Receipt

•

Ticket

•

Credit/ Debit

•

Specifications

Printing method Printing width Dot pitch Printing speed Number of columns Character size (W × H) Character table Barcode type Line spacing Paper

Interface

Input buffer Sensor & Error monitoring Mag stripe card reader Power supply

Battery

Auto power off Weight Dimensions (W × D × H) Operating environment Storage environment Reliability

EMC and safety standards

The Bluetooth trademarks are owned by Bluetooth SIG, Inc. ©Bluetooth SIG, Inc. 2004.

Daily report

•

Delivery slip

•

Barcode

•

Taxi meter

•

Line thermal dot printing 58mm/ 384 dots 8 × 8 dots/mm (203dpi × 203dpi) Max.50mm/sec Font A: 32 columns: 12 × 24 dots Font B: 42 columns: 9 × 16 dots Font A: 1.25 × 3.00mm (12 × 24 dots) Font B: 0.88 × 2.13mm (9 × 16 dots) ASCII, WPC1252 (Other code page data are ready to load) UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 93, Code 128

4.23mm (1/6 inch), Software selectable Thermal paper roll width: 58mm, Thickness: 60-65μm, Outer diameter: φ50 or 40 (option), Core diameter: Min.8mm IrDA Version 1.0 RS-232C with optional special cable (1200-115200 bps), Bluetooth (option) 64K bytes Paper end, Cover-open, Low battery, Head overhead Track 1, 2, 3 Li-ion battery, 2000mAh AC adapter only for charging (Output DC9V, 2A) 40,000 print lines per charge Maximum recharge time: 3 hours 1-60min. (default 10min.) Software selectable Approx. 370g (with 50mm dia cover + card reader) 116 × 104 × 63mm (with 50mm dia cover + card reader) 5 ~ 40˚C

-20 ~ 60˚C Thermal head: 100,000 pulses or 50km Mechanism (MCBF) : 15,000,000 lines UL, C-UL, TUV, GS, CE Marking, FCC Class B, VCCI Class B

Type Classification

CMP-10 E 5 M

1) 2) 3) 4)

1) Model type

CMP-10: Standard type CMP-10BT: Bluetooth type

2) Power source

U: AC 120V E: AC 230V

3) Diameter of paper roll in stock (Paper cover)

4: 40mm 5: 50mm

4) Mag stripe card reader

None: Standard M: Mag stripe card reader type

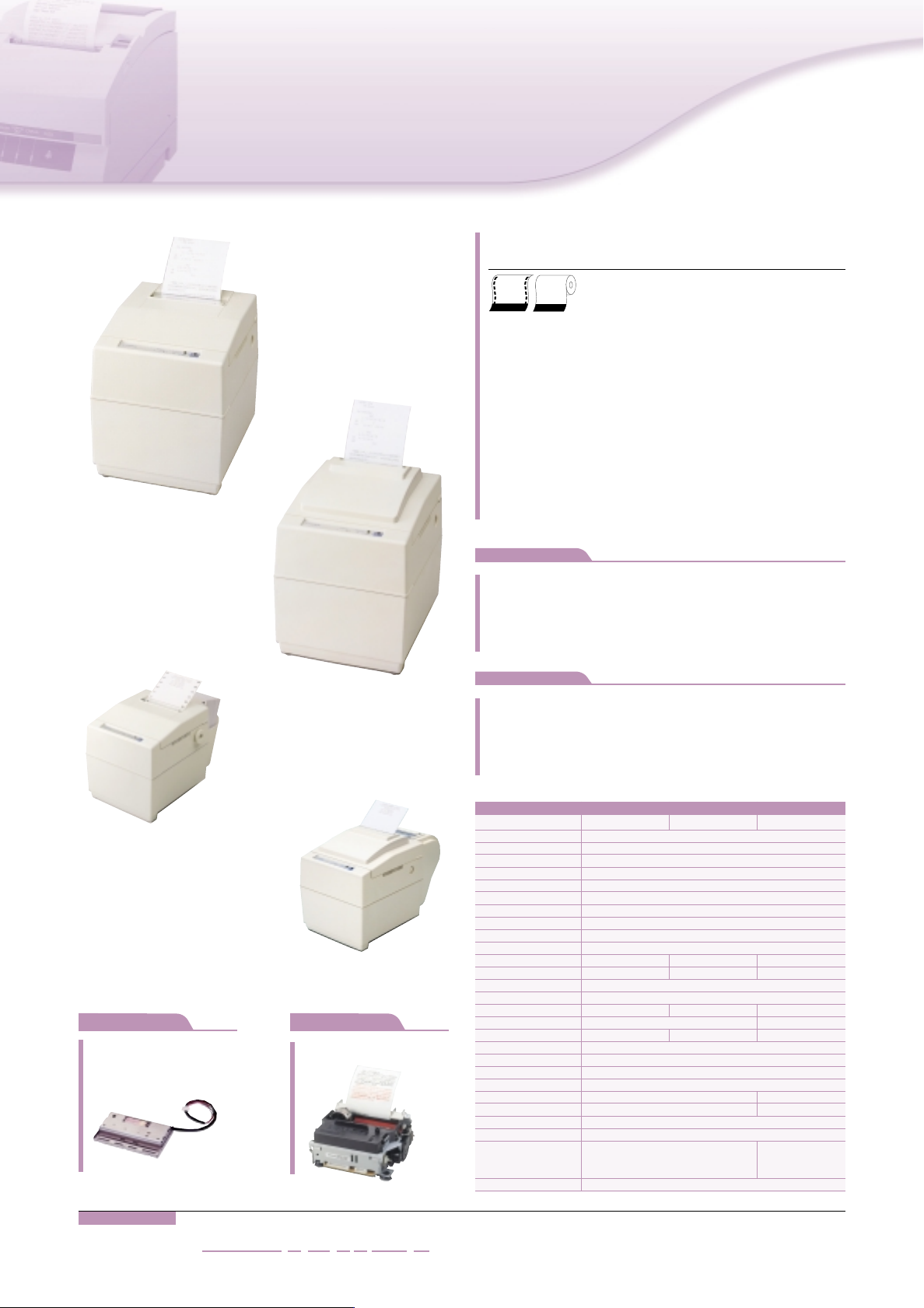

Impact Dot Matrix Printers

A standard among the expanding variety of printers, dot impact printers remain the top choice for a variety of applications. Their special strength in high-speed, plain-paper printing makes dot impact printers essential for check and validation applications, among others. Because CITIZEN brings all its precision machinery expertise to bear in the development of dot impact printers, it is perfectly positioned to meet every customer need.

CD-S500/501/503

Paper Roll

CD-S500S (Standard type)

CD-S501S (With auto cutter type) Available in Black

■ 5.0 lines/sec high-speed printing

■ 76.2 / 69.5 / 57.5mm selectable paper width

■ Easy paper loading

■ Logic-seeking control

■ Optional interface cards

■ Built-in AC adapter

■ Black mark function (option)

■ Cash drawer kick-out

■ Memory switch function

■ Build-in buzzer

■ Bitmap data registration (NV memory)

■ ESC/POS compatibility

■ Page mode

■ Two color printing

■ 3 PLY paper printing capability

■ Easy customization by software

■ Availability in white or black

■ High reliability and durability

CD-S503S (With auto cutter/winder type)

Type Classification

Vertical solution

CD-S500 S RS E WH M1

1) 2) 3) 4) 5) 6)

Applications

Receipt

•

Journal

•

Ticket

•

1) Model type

CD-S500: Standard type CD-S501: With auto cutter type CD-S503: With auto cutter and winder type

2) Power source type

S: Built-in AC adapter type

Daily report

•

Kitchen

•

Delivery

•

3) Interface

PA: Parallel IEEE1284 RS: Serial RS-232C UB: USB

Impact Dot Matrix Printers

Easy paper loading

Accessories

Wall mount kit

WALL-CTS300

Interface cards

Just drop paper in and close the top cover.

Accessories

Ink ribbon: IR-31B (Black)

•

Ink ribbon: IR-31P (Purple)

•

Ink ribbon: IR-31RB (Red/Black)

•

Customization software for easy customization

Parallel Serial USB

Specifications

Printing method Printing direction Font Number of columns

Printing speed

Character size (W × H) Character set Line spacing Line feed speed Paper feed method Paper

Interface Input buffer NV bit map data area Drawer kick-out Ink ribbon Power supply AC adapter Weight Dimensions (W × D × H)

Operating environment Storage environment Reliability

EMC and Safety standards

Serial dot impact (Logic-seeking control) Bi-directional Font A: 7 × 9, 9 × 9 matrix

76.2mm paper : Font A-40/42 columns / Font B-33/35 columns

69.5mm paper : Font A-36/30 columns / Font B-38/31 columns (69.5mm paper width)

57.5mm paper : Font A-30/25 columns / Font B-31/26 columns (57.5mm paper width)

5.0 lines/sec at 76.2mm width+40 columns

5.4 lines/sec at 69.5mm width+36 columns

6.0 lines/sec at 57.5mm width+30 columns Font A: 1.25 × 3.12mm(7 × 9 dots), Font B: 1.57 × 3.12mm(9 × 9 dots) Alphanumeric, International, Code page 437,850,860,863,865,852,866,857,858, WPC1252

4.23mm 40 lines/sec Friction

76.2/69.5/57.5±0.5mm ×φ83mm Thickness:0.06-0.085mm(1 Ply) 1Ply/2Ply/3Ply copy paper 0.05 - 0.14mm(Copy paper cut)

0.05 - 0.20mm(Copy paper print) Parallel: IEEE1284 and Centronics compliant or Serial:RS-232C or USB 4K/40 bytes 128K bytes 2 drawers Red/Black, Black, Purple, Cassette DC24V±7% Input:AC 100-230V,1.3A Output:DC24V±5% Approx.2.8kg(Standard type) 3.2kg(With auto cutter/winder type) 156 × 247.7 × 174.4mm(Standard type) 156 × 277.7 × 197.8mm(With auto cutter/winder type) 0 - 50˚C, 10 - 90% RH

-20 - 70˚C, 5 - 90% RH Printer:MCBF 7.5 million lines Print Head:150 million characters Auto cutter:1,000,000 cuts UL, C-UL, FCC classA, TUV-GS, CE marking

4) Region(Characters + power cord)

E: Europe U: North America

5) Case Color

WH: Cool white BK: Black

6) Black mark sensor

None: No sensor M1: Left sensor for paper front M2: Right sensor for paper back M3: Left sensor for paper front M4: Right sensor for paper back

Impact Dot Matrix Printers

Sprocket

76〜

P type

Paper Roll

F type

iDP3550F (StandardType)

iDP3550/3551

■ Paper auto loading

■ Compatibility (CBM, ESC/POS, Star)

■ 6K bytes input buffer

■ Auto cutter (iDP3551)

■ Auto winder option (AW-3)

■ Cash drawer kick-out

■ Pinfeed version (iDP3550P)

■ Two color printing

Applications

iDP3551F (Withautocuttertype)

iDP3550P+35PB-1Paper basket

iDP3551F+AW-3Winder

Auto Cutter Mechanism

AC-134

DP-650 Series

Receipt

•

Journal

•

Ticket

•

Label

•

Accessories

Winder: AW-3

•

Paper basket: 35PB-1

•

Ink ribbon: IR-61B

•

(Black)

Specifications

Model iDP3550F iDP3550P iDP3551F

Printing method Serial impact dot matrix Printing direction Bidirectional Font 7 × 9 matrix Number of columns 40 columns Printing speed 3.6 lines/sec(DP-654), 3.0 lines/sec (DP-657) Character size (W × H) 1.36 × 2.4mm (DP-654), 1.20 × 2.4mm (DP-657) Character set Line spacing 4.23mm, (DP-654), 2.82mm (DP-657) Character pitch 1.59mm (DP-654), 1.46mm (DP-657) Line feed speed 18 lines/sec(DP-654), 15 lines(DP-657) Paper feed method Friction Sprocket Friction Paper 76mm roll paper Interface Parallel: Centronics, Serial: RS-232C Input buffer 6K bytes Paper end sensor Equipped None Equipped Paper cutter None Partial/Full cut Paper winder AW-3 (Option) None AW-3 (Option) Cash drawer kick-out 2 drawers Ink ribbon Red/Black, Cassette Power supply AC 100/120/230V Power consumption 30W Weight 2.8kg 3.0kg Dimensions (W × D × H) Operating temp. range 0 ~ 40˚C Storage temp. range -20 ~ 60˚C Reliability Printer: MCBF 4.0 million lines

EMC and safety standards

Alphanumeric, International, Code page 437, 850, 860, 863, 865, 852, 866, 857, WPC1252

160 × 184 × 173mm

Print head: 80 million characters

UL, C-UL, FCC class A, TUV-GS, CE marking

Credit/Debit

•

Daily report

•

Kitchen

•

Delivery

•

Ink ribbon: IR-61P

•

(Purple) Ink ribbon: IR-61RB

•

(Red/Black)

76 ~ 89mm fanfold paper

76mm roll paper

160 × 184 × 199.3mm

Printer: MCBF 4.0 million lines, Print head: 80 million characters, Cutter: 500,000 cuts

Type Classification

iDP3551 F 40 R F 230 C

1) 2) 3) 4) 5) 6) 7)

1) Model type

iDP3550: No cutter iDP3551: With cutter

2) Paper

F: Friction feed P: Sprocket feed

3) Column capacity

40: 40 columns

4) Interface

P: Parallel R: Serial RS-232C

5) Character set

F: International

6) Power source

120: AC 120 V 230: AC 230 V

7) Mode

C: Character G: Graphic

iDP3420 (Standard type)

Impact Dot Matrix Printers

iDP3420/3421/3423

Paper Roll

■ Auto cutter (iDP3421/3423)

■ Auto winder (iDP3423)

■ 6K bytes memory buffer

■ Graphic printing

■ Two color printing

■ Cash drawer kick-out

■ Compatibility (CBM, ESC/POS, Star)

■ Paper auto loading

(With auto cutter type)

Auto Cutter Mechanism

ACS-234

iDP3421

iDP3423 (With auto cutter + Auto winder type)

DP-430

Applications

Receipt

•

Journal

•

Ticket

•

Credit/Debit

•

Accessories

Ink ribbon: IR-41B (Black)

•

Ink ribbon: IR-41P (Purple)

•

Ink ribbon: IR-41RB (Red/Black)

•

Specifications

Model iDP3420 iDP3421 iDP3423

Printing method Serial impact dot matrix Printing direction Bidirectional Font 7 × 9 matrix Number of columns 40/42 columns (Selectable by Dip switch) Printing speed Approx. 3.0 line/sec Character size (W × H) 1.31 × 3.1mm Character set Line spacing Paper 76mm Roll paper Interface Parallel: Centronics, Serial: RS-232C Input buffer 6K bytes / 256 bytes Paper end sensor Equipped Paper near end sensor Equipped Paper cutter None Equipped Equipped Paper winder None None Equipped Cash drawer kick-out 2 drawers Ink ribbon Red/Black, or Black (CBM Ink ribbon cassette) Power supply AC 100/120/230V Power consumption 30W (During printing) Weight 2.4kg 2.6kg 2.8kg Dimensions (W × D × H) Operating environment 0 ~ 40˚C, 35 ~ 85% RH Storage environment -20 ~ 60˚C, 10 ~ 90% RH Reliability

EMC and safety standards

Alphanumeric, International, Code page 437, 850, 860, 863, 865, 852, 866, 857, Windows code

4.23mm (1/6 inch) or 2.82mm (1/9 inch) Min. 1.41mm (1/18inch)

164 × 248 × 140mm

Printer: MCBF 2.5 million lines Printer: MCBF 2.5 million lines Printer: MCBF 2.5 million lines Print head: 80 million characters Print head: 80 million characters Print head: 80 million characters

UL, C-UL, FCC class A, TUV-GS, CE marking

Delay report

•

Kitchen

•

Delivery

•

164 × 280 × 183mm

Auto cutter: 500,000 cuts Auto cutter: 500,000 cuts

Type Classification

iDP3420 R F 230

1) 2) 3) 4)

1) Model type

iDP3420: Standard type iDP3421: With auto cutter type iDP3423: With auto cutter

and winder type

2) Interface

P: Parallel R: Serial RS-232C

3) Character set

F: International

4) Power source

120: AC 120 V 230: AC 230 V

Impact Dot Matrix Printers

CBM-910 type II

CBM-910 Type II / CBM-920

Paper Roll

■ Palm size and Light weight

■ Bit image graphics printing

■ Memory switch equipped (CBM-910 type II)

■ CBM-910/iDP3110 emulation (CBM-910 type II)

■ 2K bytes input buffer

■ Wall mount (CBM-910 type II)

■ Panel mount (CBM-920)

■ Paper-near-end sensor

■ Paper auto loading (CBM-920)

■ Paper-end sensor (CBM-920)

Applications

CBM-920

Accessories

Mechanism

MD-910/911

Receipt

•

Daily report

•

Industrial machine (CBM-920)

•

Ticket

•

Accessories

Ink ribbon: IR-91B (Black)

•

Ink ribbon: IR-91P (Purple)

•

Specifications

Model CBM-910TypeⅡ CBM-920

Printing method Serial dot impact Printing direction Left to right Font 5 × 8 matrix Number of columns 24/40 columns Paper width 57.5mm Printing speed 24 col = 2.5 lines/sec 40 col = 1.8 lines/sec Character size (W × H) 24 col = 1.62 × 2.4mm 40 col = 1.08 × 2.4mm Character table

Line spacing Character = 3.52mm / Graphic = 2.4mm Character pitch 24 col = 1.98mm / 40 col = 1.19mm Line feed speed 5.0 lines/sec Paper Interface Parallel: Centronics, Serial: RS-232C Input buffer Paper end sensor — Equipped Paper nearend sensor Equipped — Ink ribbon Purple, Cassette Power supply Power consumption Printing: Approx. 7VA Stand-by: Approx. 0.5VA Weight Approx. 0.47kg Approx. 0.5kg Dimensions (W × D × H) Operating environment 0 to 40˚C, 35 to 85% RH(without condensation) Storage environment -20 to 60˚C, 10 to 90% RH(without condensation) Reliability EMC and safety standards

PC437, 852, 857, 858, 860, 863, 864, 865, 866, 869, WPC1252, Katakana, CBM-910 emulation (Japan, International)

Paper roll: 57.5±0.5(W) × 60 or 80(Dia) mm Paper roll: 57.5±0.5(W) × 50 or 50(Dia) mm

2k bytes/72 bytes (Selectable by memory switch on Serial I/F model)

AC adapter (92ADE), Input:AC 100/120/230 Output: DC7V

106 × 180 × 88mm 115 × 119 × 65mm

Printer: MCBF 1.5 million lines Printer: MCBF 1.0 million lines (40 columns) FCC class B, TUV-GS, CE Marking FCC class A, TUV-GS, CE marking

Kitchen

•

Credit/Debit

•

Delivery

•

Journal

•

2K bytes

DC 5V only

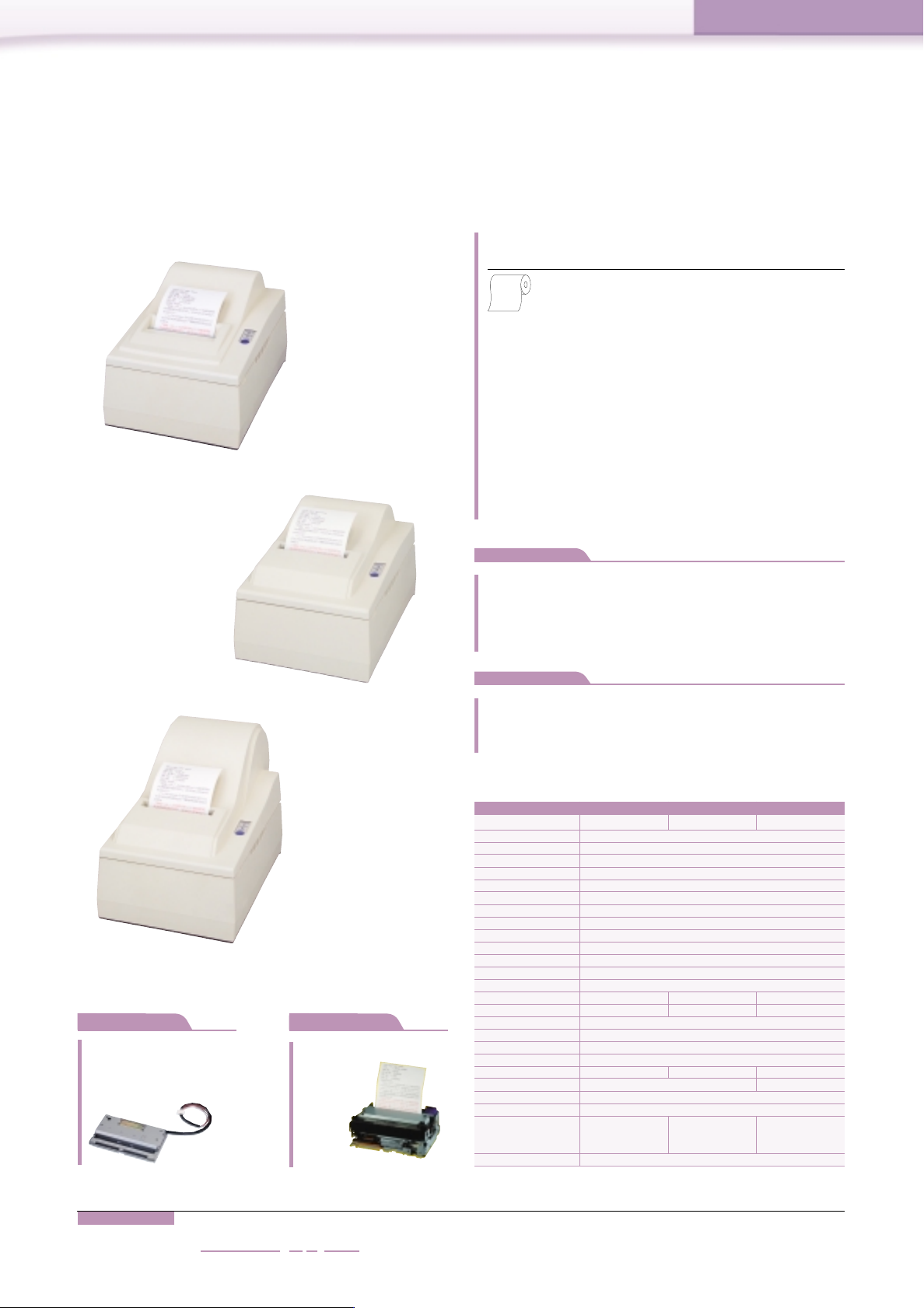

Type Classification

CBM-910II-24 R F 230-A

1) 2) 3) 4) 5) 6)

1) Model type

CBM 910 type II CBM 920

2) Number of columns

24: 24 columns/144 dots 40: 40 columns/180 dots

3) Interface

P: Parallel R: Serial RS-232C

4) Character set

F: International

5) Power source

CBM-910 type II

120: AC 120 V 230: AC 230 V

CBM-920

DC: DC 5 V

6) Printer cover

CBM-910 type II

A: For 60 mm (Dia.) Paper roll B: For 80 mm (Dia.) Paper roll

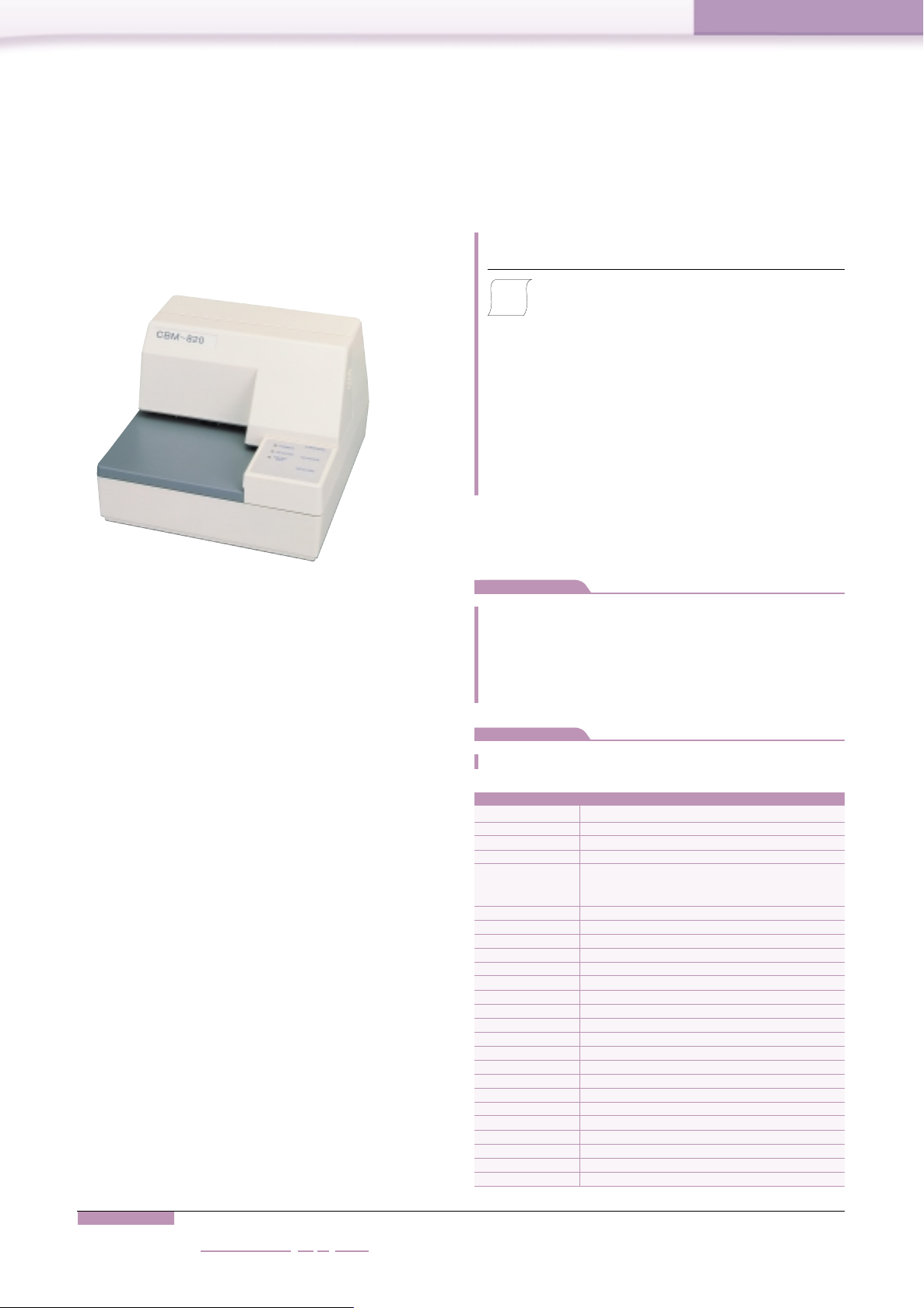

CBM-820

Slip

80〜

18 2

■ Compact design

■ Easy paper loading

■ Slip paper printing

■ Cash drawer kick-out

■ 3 PLY paper printing capability

■ ESC/POS compatibility

■ Page mode

Impact Dot Matrix Printers

Applications

Receipt

•

Invoice

•

Sales slip

•

Daily report

•

Ticket

•

Accessories

Ink ribbon: IR-82P (Purple)

•

Specifications

Printing method Serial impact dot matrix Printing head 9 pins Number of columns 42 col. (7 × 9 font), 35 col. (5 × 9 font) Printing speed 3.1 lines/sec (Maximum) Character size (W × H) 7 × 9 font (half): 1.2 × 2.42mm

Character set PC437, PC850, International Dot spacing Horizontal: 0.30mm Vertical: 0.35mm Printing width 63mm Emulation ESC/POS Ink ribbon Purple or Black (CBM ink ribbon cassette) Paper 80 to 182mm (W) × 80 to 257mm (H)

Interface Serial: RS-232C Input buffer 2K bytes or 35 bytes Cash drawer kick-out 2 drawers Sensors Paper out top-of-form, bottom-of-form sensors Power supply AC adaptor (32AD) 100/120/230V / Output 24V DC 5%, 1.9A Power consumption Weight 2.1kg Dimensions (W × D × H) Operating environment 5 ~ 40˚C Storage environment -20 ~ 60˚C Reliability EMC and safety standards

5 × 9 font (2 pulses per dot): 1.5 × 2.42mm 5 × 9 font (3 pulses per dot): 2.1 × 2.42mm

Original + 2 copies / Thickness: 1 ply 0.09 to 0.2mm Duplicates 0.12mm to 0.25mm / (Max. 0.2mm for graphics printing)

Peak current: 3.1A / Continuous ASCII printing + paper feed: 0.6A

180 × 190 × 138mm

Printer: MCBF 2.5 million lines Print head life: 70 million characters UL, C-UL, FCC class A, TUV-GS, CE marking

Delivery slip

•

Credit/Debit

•

Check endorsement

•

Check

•

Type Classification

CBM-820 R F 230

1) 2) 3) 4)

1) Model type

CBM-820

2) Interface

R: Serial RS-232C

3) Character set

F: International

4) Power source

120: 120 V 230: 230 V

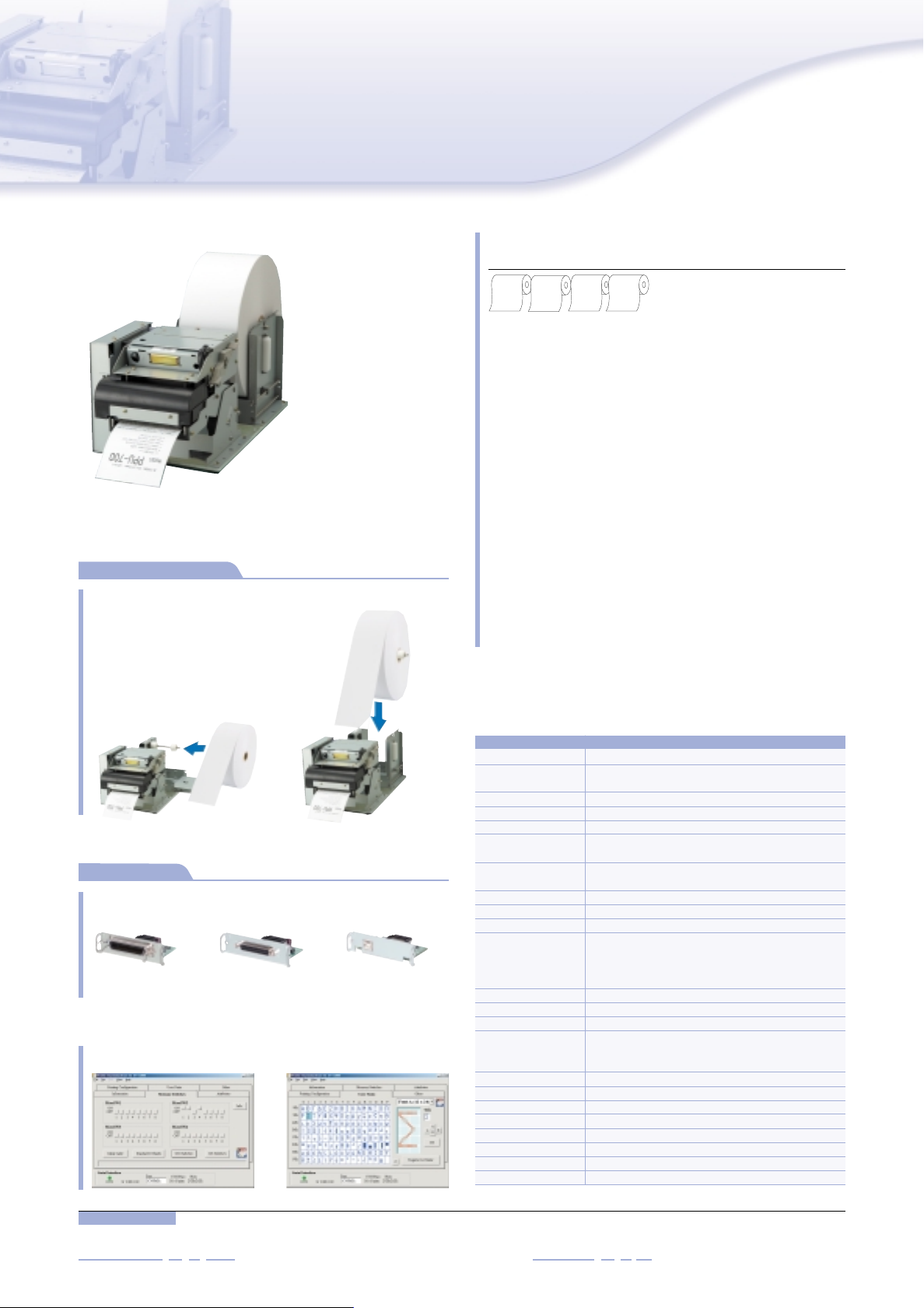

Line Thermal Kiosk Units

Complete unit PPU-700/PHU-331 *The bottom plate is not included.

Easy roll paper installation

PPU-700/PHU-331S PPU-700/PHU-331T

PPU-700/PHU-331

Paper Roll

■ 150 mm/sec high-speed printing

■ 83 / 80 / 67 / 58mm selectable paper width

■ Easy paper handling

■ Optional interface cards

■ Presenter unit incorporared

■ Label/Black mark function(option)

■ Bitmap data registration (NV memory)

■ Barcode printing

■ Page mode

■ Two color printing

■ Smoothing font

■ Easy customization by software

■

Large roll paper diameter up to 203mm (PHU-331/332)

Paper Roll

Accessories

Interface cards

Parallel Serial USB

Customization software for easy customization

Specifications

Printing method Line thermal dot printing Printing width

Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 150mm/sec, (35.4 lines/sec) Number of columns Character size (W × H)

Character table Code page 437, 850, 852, 857, 858, 860, 863, 864, 865, 866,

Barcode type Logo registration/print Line spacing 4.23mm (1/6 inch); can be set by a command. Paper

Interface Input buffer 4K bytes (72 bytes selectable with a DIP switch) NV user memory 256K bytes Sensors

Power supply 24V ± 7% Power consumption 100W Weight Dimensions (W × D × H) Operating environment 5 ~ 40˚C, 35 ~ 85% RH Storage environment -20 ~ 60˚C, 10 ~ 90% RH Reliability EMC and safety standards

80mm/640 dots (paper width 83mm) 72mm/576 dots (paper width 80mm) 60mm/480 dots (paper width 67mm) 54mm/432 dots (paper width 58mm)

80mm paper: Font A - 48 columns Font B - 64 columns Font C - 72 columns

1.25mm × 3.00mm (Font A: 12 × 24 dots) 0.88mm × 2.13mm (Font B: 9 × 17 dots)

0.88mm × 2.00mm (Font C: 8 × 16 dots)

Katakana, WPC1252 , Thai code 18 UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 Capable of registering user-defined characters print and logos into flash memory.

Thermal paper roll: Paper width 58/67/80/83mm Paper roll diameter 203mm or less Paper thickness 0.065 - 0.150mm Core diameter : 12mm (paper thickness : 0.065 - 0.080mm) 25.4mm (paper thikness : 0.080 - 0.150mm) Recommended paper : TF-50KS-E-2D, TF-62KS-E (Nippon Paper industries) Parallel: IEEE 1284 and Centronics compliant, Serial (RS-232C), or USB

Paper near end sensor (adjustable, for PHU series) (photo interrupter) Paper end sensor (mechanical switch) Black mark sensor (photo interrupter) Cover open sensor (mechanical switch) Presenter sensor (photo interrupter)

PPU700: 2.1 kg (incl. control PCB) PHU-331: 0.95 kg (excl. roll paper) PPU-700: 163.2 (incl. control PCB) × 176 × 143mm PHU-331: 114.4~138.9 × 122.6 × 137.2mm

Thermal head: 100,000,000 pulses or 100km Auto cutter: 1,000,000 cuts UL, C-UL, FCC Class A, TUV-GS, CE marking

Type Classification

PPU-700 P U M1

1) 2) 3) 4)

1) Model type

PPU-700

2) Interface

P: Parallel R: Serial RS-232C U: USB

3) Character set

U: US/Europe

4) Blackmark sensor (Option)

None: No sensor M1: Left side of back M2: Right side of back (Open lever side) M3: Left side of front

PHU-3 3 1 S

1) 2) 3) 4)

1) Model type

2) Length of roll paper shaft

3: 58-82.5mm (Standard) 2: 58mm fixed

3) Number of PNE senser

1: 1 sensor (Standard) 2: 2 sensor

4) Roll paper installation

S: From side (Standard) T: From top

Complete unit

(option)

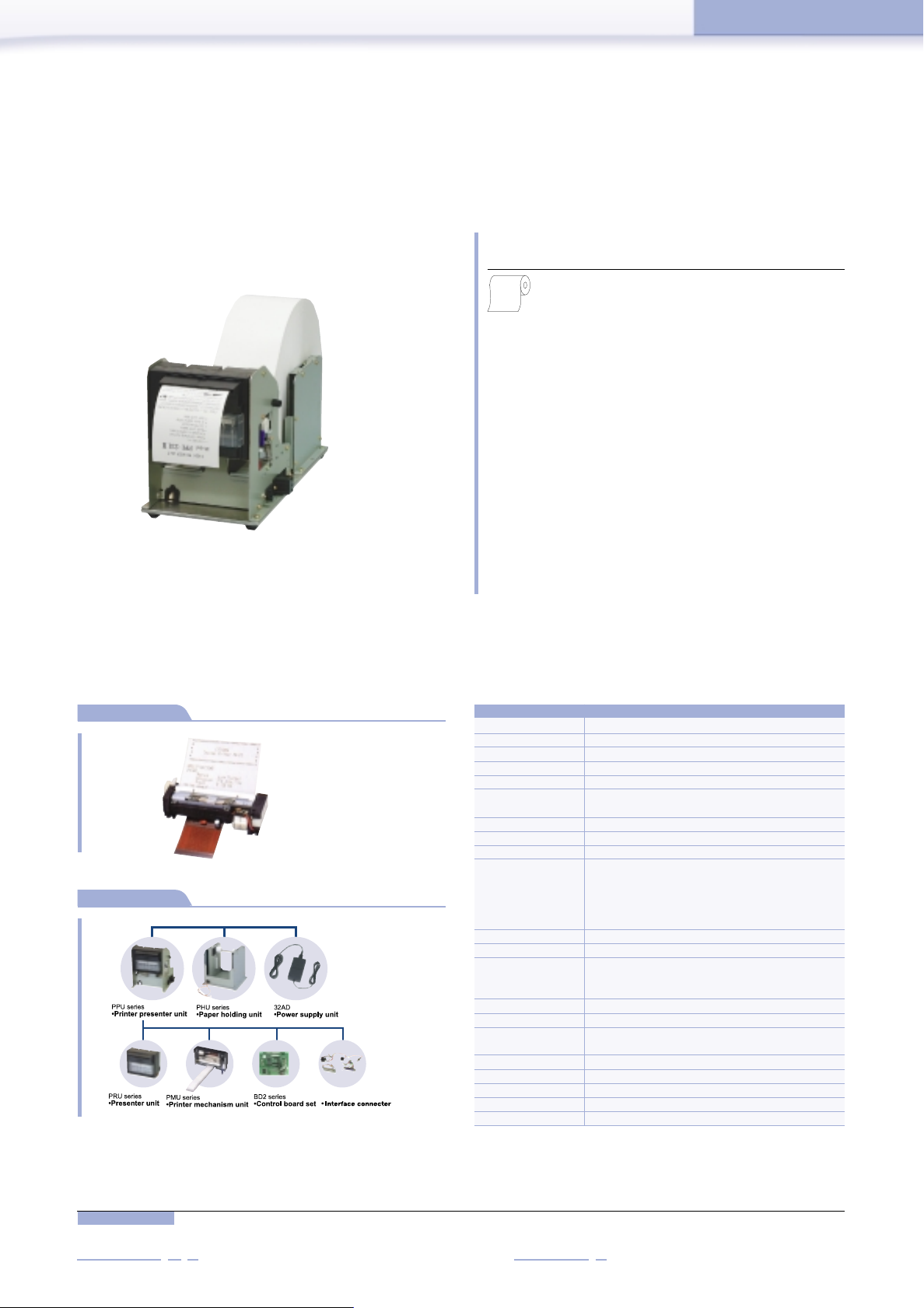

PPU-231/PHU-131 *The bottom plate is not included.

Line Thermal Kiosk Units

PPU-231/PHU-131

Paper Roll

■ Easy paper handling — the presenter unit feeds

the paper after print and cut

■ Paper auto loading

■ Barcode printing

■ Bitmap registration

■ Page Mode

■ Large roll paper diameter up to 203mm

■ Both parallel (Centronics) and serial (RS-232C)

interfaces available

■ Equipped with a paper end sensor and paper near

end sensor

Mechanism

LT-380V

Unit breakdown

Specifications

Printing method Line thermal dot printing Printing width 72mm/576 dots Dot pitch 8 × 8 dots/mm (203 dpi × 203 dpi) Printing speed Max. 62.5mm/sec (14.8 lines/sec) Number of columns Font A - 48 columns Font B - 64 columns Character size (W × H) 1.25mm × 3.00mm (Font A: 12 × 24 dots)

Character table Alphanumeric, International characters Barcode type Line spacing 4.23mm (1/6") Selectable by command set (Min. 1/203 inch). Paper Thermal roll paper Width: 80mm (W) ×φ83mm

Interface Serial (RS-232C), Parallel (Centronics) Input buffer 4K bytes Sensors Paper near end sensor (adjustable, for PHU series)

Power source voltage 24V±7% Power consumption 100W Weight PPU-231: 1.6 kg (incl. control PCB)

Dimensions (W × D × H) PPU: 153.7 × 160 × 172mm / PHU: 132.2 × 120 × 125.2mm Operating environment 5 ~ 40˚C, 35 ~ 85%RH (No condensation) Storage environment -20 ~ 60˚C, 10 ~ 90%RH (No condensation) Reliability EMC and safety standards

0.88mm × 3.00mm (Font B: 9 × 24 dots)

UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93

External diameter: φ203mm (with paper holder unit) Internal diameter: φ25.4mm Paper thickness: 60 to 85μm Recommended paper: TF-50KS-E, TF-62KS-E (Nippon Paper Industries)

Paper end sensor (for PMU series) Black mark sensor (option)

PHU-131: 0.9 kg (excl. roll paper)

Thermal head: 50,000,000 pulses or 30km Auto cutter: 300,000 cuts UL, C-UL, FCC class A, TUV-CE marking

Type Classification

PPU-231 F E

1) 2) 3)

1) Model type

PPU-231

2) Interface (option)

P: Parallel (235EC-2663) R: Serial (235EC-2662)

3) Character set

U: US E: Europe

PHU-13 1

1) 2)

1) Model type

PHU-13*: Paper holding unit

2) Number of PNE sensor

1: 1 sensor 2: 2 sensors

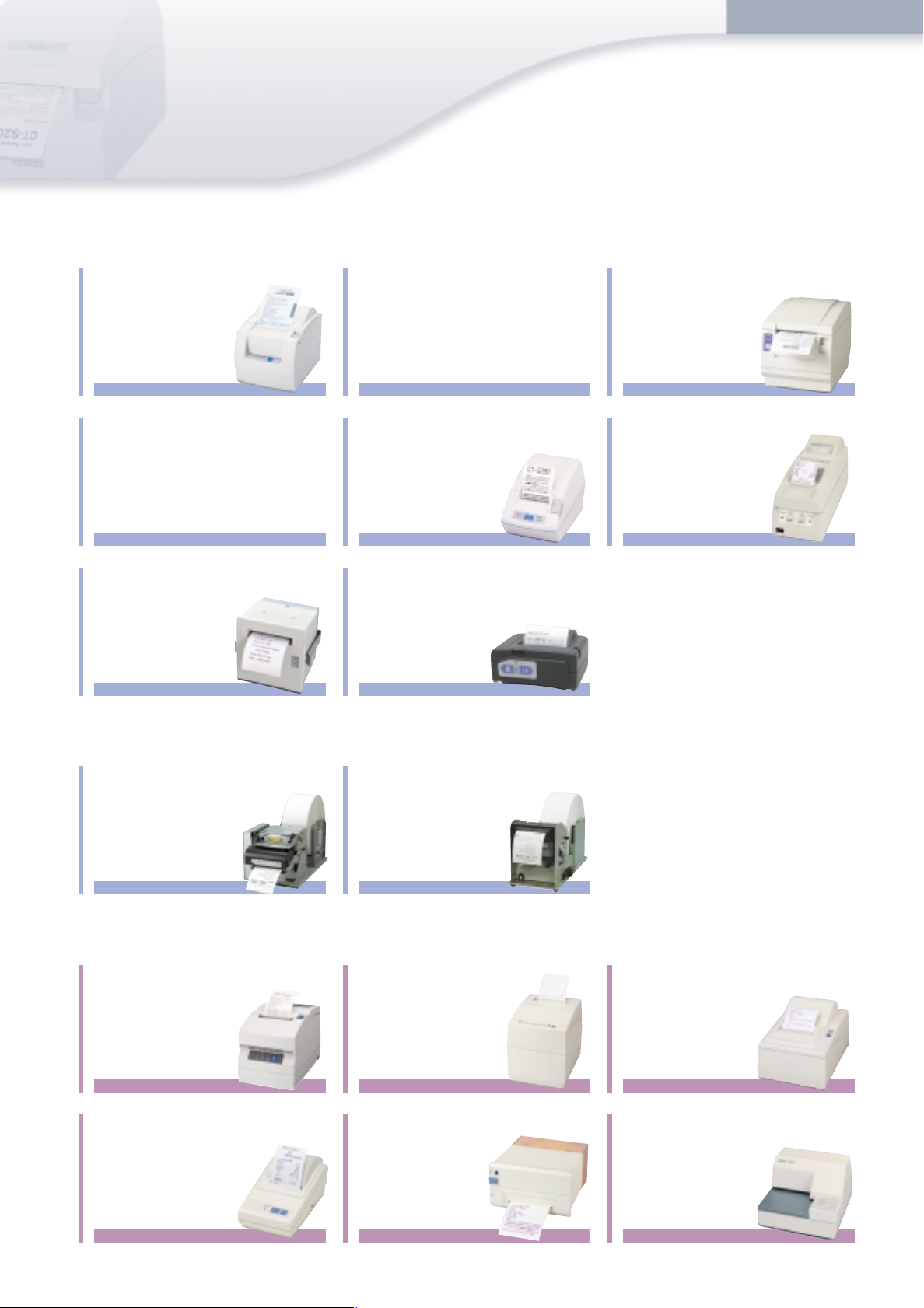

Printers Lineup

Line Thermal Printers

Printers Lineup

CT-S300

■ 100mm/sec printing speed

■ 80/58mm paper width

■ Smallest size in its class

■ Easy paper loading

■ Built-in AC adapter

■ Wall mount installation

sP3

CT-S4000

■ 150 mm/sec high-speed printing

■ 112 mm paper width

■ Easy paper loading

■ Built-in AC adapter

■ Wall mount installation

sP8

CBM-291/293

■ Panel mount installation

■ 58mm(CBM-291)/

80mm(CBM-293) paper width

■ Compact design

■ Auto cutter equipped

■ Paper auto loading

sP11

CT-S2000

■ 220mm/sec high-speed printing

■ 82.5/80/60/58mm paper width

■ One touch cover open and easy paper loading

■ Front paper exit and Water proof design

■ Larger paper roll capability as φ102mm

■ Built-in AC adapter

sP5

CT-S280/CBM-270L

■ 80 mm/sec printing speed

■ 58mm paper width

■ Easy paper loading

■ Label paper printing(CBM-270L)

■ Wall mount installation

sP9

CMP-10/CMP-10BT

■ Palm size

■ 58 mm paper width

■ Battery drive

■ IrDA and serial interface

■ Bluetooth type available

sP12

CBM1000 Type II

■ 150mm/sec printing speed

■ 80/58 mm paper width

■ Easy paper loading

■ Front paper exit

■ Built-in AC adapter

sP7

CBM-262 Type II

■ 80mm/sec printing speed

■ Two station printing

■ Paper auto loading

■ Auto cutter equipped(For receipt)

■ Cash drawer kick-out

sP10

Line Thermal Kiosk Units

PPU-700/PHU-331

■ 150mm/sec high speed printing

■ 83/80/67/68 selectable paper width

■

Thicker paper capability(0.065-0.150mm)

■ Presenter unit incorporated

■ Larger paper roll capability

as φ203mm(PHU-331)

sP19

PPU-231/PHU-131

■

62.5mm/sec printing speed

■

80mm paper width

■

Paper auto loading

■

Presenter unit incorporated

■

Larger paper roll capability as

203mm(PHU-131)

sP20

Impact Dot Matrix Printers

CD-S500/501/503

■ 5.0 lines/sec high-speed printing

■ 76/69/58mm paper width

■ Easy paper loading

■ Logic seeking control

■ Wall mount installation

sP13

CBM-910 Type II

■ Palm size and Light weight

■ 58mm paper width

■ Memory switch equipped

■ CBM-910/iDP3110 emulation

■ Bit image graphics printing

iDP3550/3551

■ 3.6lines/sec printing speed

■ 76mm paper width

■ Paper auto loading

■ Auto cutter equipped(iDP3551)

■ CBM, ESC/POS, STAR compatibility

sP15

CBM-920

■ 58mm paper width

■ Panel mount

■ Paper auto loading

■ Paper-end sensor

iDP3420/3421/3423

■ 3.0lines/sec printing speed

■ 76mm paper width

■ Paper auto loading

■ Auto cutter equipped(iDP3421)

■ Auto cutter & Auto winder

equipped(iDP3423)

sP16

CBM-820

■ Slip paper printing

■ Easy paper loading

■ 3 ply paper printing capability

■ Cash drawer kick-out

sP17

sP18

Application / Feature

Application Reference Table

Accessories / Options

Line Thermal Printers

CT-S300

CT-S2000 CBM1000Ⅱ CT-S4000 CBM-262Ⅱ

Receipt

Journal

Sales Slip

Coupon

Ticket

Label

Credit / Debit

Check

Invoice

Daily Report

Kitchen

Delivery

Check Endorsement

Barcode

Industrial machine

Portable

Kiosk

●

Option

●

Option

●

CT-S280

●

CBM-291

CBM-270L

CBM-293 PHU-331

●

CMP-10

●

PPU-700

●

PPU-231 PHU-131

●

Impact Dot Matrix Printers

Receipt

Journal

Sales Slip

Coupon

Ticket

Label

Credit / Debit

Check

Invoice

Daily Report

Kitchen

Delivery

Check Endorsement

Barcode

Industrial machine

Portable

Kiosk

CD-S500 CD-S501 iDP3551 iDP3421

●

CD-S503

●

iDP3550 iDP3420

●

iDP3423

●

CBM-910Ⅱ

●

CBM-920 CBM-820

●

Feature Reference Table

Auto Bar- Battery

Model name

CT-S300

CT-S2000

CBM1000II

CT-S4000

CBM-262II

CT-S280

CBM-270L

CBM-291

CBM-293

CMP-10

PPU-700

PPU-231

CD-S500

CD-S501

CD-S503

iDP3550F

iDP3550P

iDP3551F

iDP3420

iDP3421

iDP3423

CBM-910II

CBM-920

CBM-820

Presenter

cutter code drive

●

Cash

DC ESC/

drawer power paper auto color tion

drive POS

kick-out

●

Internal

Label Page Panel Paper

printing mode mount winder

supply

●

Option Option Option

●

Option

●

Easy Paper

loading loading

●

Sprocke

feed station

●

Two

●

Two Valida-

print print

●

columns

●

Line Thermal Printer Mechanisms

The many benefits of thermal printers include quiet operation, high-speed printing and excellent high-density barcode printing. Demand for thermal printers is rising steadily worldwide as POS, ECR and KIOSK applications proliferate. Citizen Systems provides a wide range of high-quality thermal printers to meet these expanding customer needs.

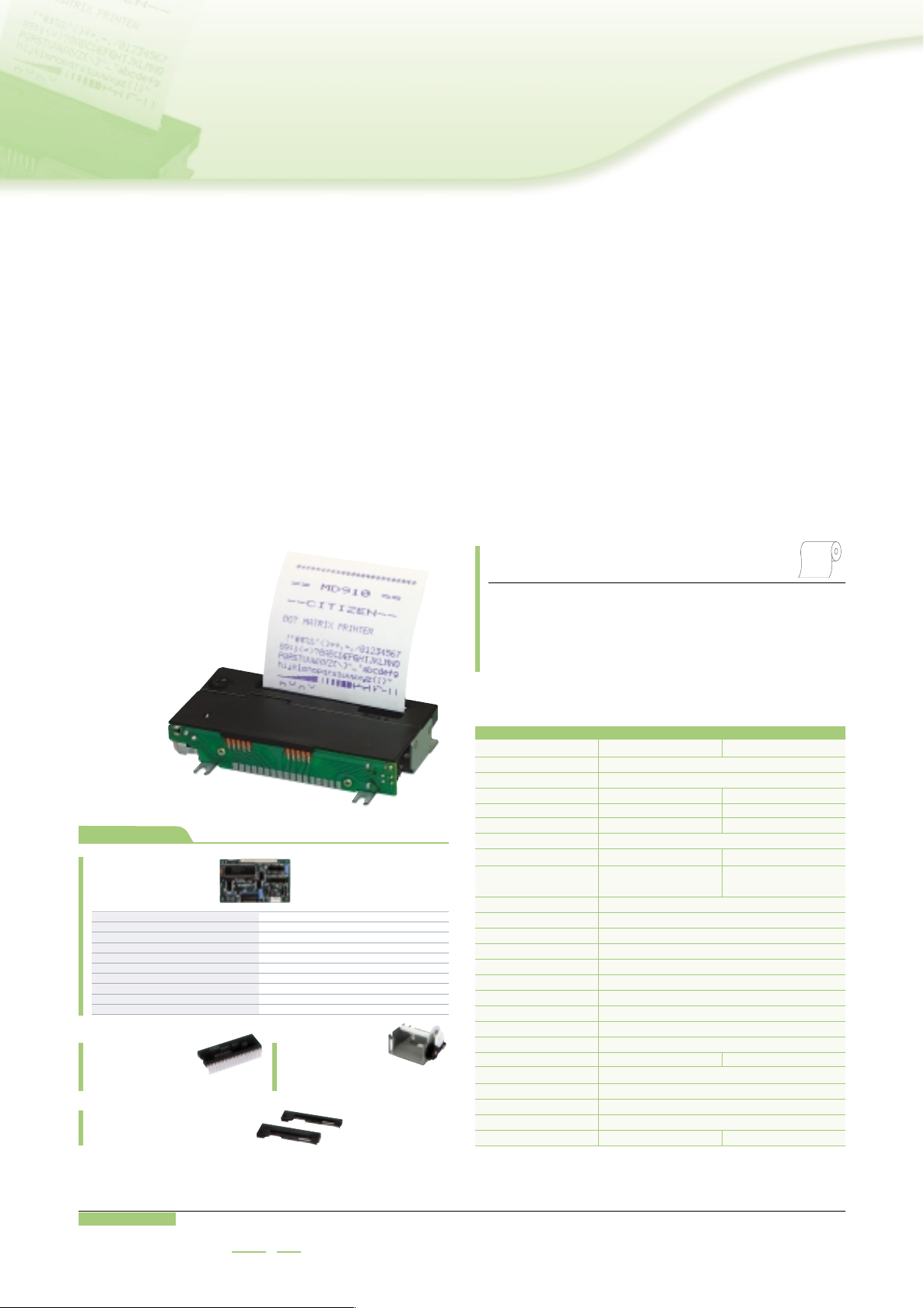

LT-286

Paper Roll

■ 58mm paper width

■ 5V operation

■ 50mm/sec printing speed

■ Compact design

Accessories

Control board

BD2-2860U

Interface Parallel and RS-232C Number of columns Font A: 32 / Font B: 42 Font Font A: 12 ×24 dots / Font B: 9 × 24 Command set ESC/POS Barcode Supported Firmware location Masked CPU Buffer 2k bytes Supporting devices Auto cutter, Paper sensor, Head-up, LF switch, Error LED, Paper out LED Dimensions 80 × 80mm Source voltage 5.0 ±5% Gate array 202LA-00

Auto cutter

ACS-224

Gate array

202LA-00

Cutting method Slide cutting Paper width 45 — 69mm

Max. cutting frequency 20 cuts/min Voltage 5V ±10% Current (peak) 2.8A Operating temperature 0 — 45°C Size 80×55.7×15mm Weight 140g Reliability 500,000 cuts Number of tab left (F) ull cut blade type None

(P) artical cut blade type None or 1 tab

Control chip

202PC-04

0.06 — 0.15mm

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Paper presence Head-up

Voltage range VH

Vdd Current Head (VH = 5V) consumption Motor (VH = 5V) Recommended Width paper Thickness

Paper (Manufacturer) Reliability Head pulse-resistance

Head wear-resistance Environment Operation

Storage

External dimensions (W×D×H) Weight

Line thermal dot printing 384 dots/line 8 dots/mm 48mm Max. 400 dot-lines/sec

0.125mm Thermistor Photo-interrupter Mechanical switch DC 4.2 – 8.5V DC 4.75 – 5.25V Max. Approx. 2.3A Max. Approx. 0.5A 58mm 60–72µm KF50-HAD (Shin-Oji) 50,000,000 pulses or more 50km or more Temperature: 0〜45˚C Humidity: 35〜85% RH Temperature: -20〜60˚C Humidity: 10〜90% RH 75×56.5×21mm Approx. 82g

Type Classification

LT-286

1) Model

LT-286

MLT-288

Paper Roll

■ 58mm paper width

■ 5V operation

■ 52.5mm/sec printing speed

■ Ultra compact design

Line Thermal Printer Mechanisms

Accessories

Control board

BD2-2880U

Interface Parallel and RS-232C Number of columns Font A: 32 / Font B: 42 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 2k bytes Supporting devices Auto cutter, Paper sensor,Head-up sensor, LF switch, Erro r LED, Paper out LED Dimensions 75 × 80mm Source voltage 5.0 ±5% Gate array 202LA-00

Auto cutter

Gate array

202LA-00

ACS-228

Cutting method Slide cutting Paper width 45 — 69mm

thickness 0.06 — 0.15mm Max. cutting frequency 20 cuts/min Voltage 5V ±10% Current (peak) 2.8A Operating temperature 0 — 45°C Size 80 × 55.7 ×15mm Weight 140g Reliability 500,000 cuts Number of tab left (F)ull cut blade type None

(P)artical cut blade type None or 1 tab

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Paper presence Head-up

Voltage range VH

Vdd Current Head (VH = 5V) consumption Motor (VH = 5V) Recommended Width paper Thickness

Paper (Manufacturer) Reliability Head pulse-resistance

Head wear-resistance Environment Operation

Storage

External dimensions (W × D ×H) Weight

Line thermal dot printing 384 dots/lines 8 dots/mm 48mm Max. 420 dot-lines/sec

0.125mm Thermistor Photo-interrupter Mechanical switch DC 4.2 — 8.5V DC 4.75 — 5.25V Max. Approx. 1.7A Max. Approx. 0.5A 58mm 60 — 72µm TF50KS-E2D (Nippon Paper) 100,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH

72.7 × 38 ×15mm Approx. 45g

Type Classification

MLT-288 V

1) Model

2) Paper path

1) Model

MLT-288

2) Paper path

H: Curl V: Straight

Line Thermal Printer Mechanisms

MLT-289

Paper Roll

■ 58mm paper width

■ 5V operation

■ 52.5mm/sec printing speed

■ Ultra compact design

■ Platen removable design

Accessories

Control board

BD2-2890U

Interface Parallel and RS-232C Number of columns Font A: 32 / Font B: 42 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 2k bytes Supporting devices Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED, Paper out LED Dimensions 75 × 80mm Source voltage 5.0 ±5% Gate array 202LA-00

Gate array

202LA-00

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Paper presence Platen

Voltage range VH

Vdd Current Head (VH = 5V) consumption Motor (VH = 5V) Recommended Width paper Thickness

Paper (Manufacturer) Reliability Head pulse-resistance

Head wear-resistance Environment Operation

Storage

External dimensions (W × D ×H) Weight

Line thermal dot printing 384 dots/lines 8 dots/mm 48mm Max. 420 dot-lines/sec

0.125mm Thermistor hoto-interrupter Mechanical switch DC 4.2 — 8.5V DC 4.75 — 5.25V Max. Approx. 1.7A Max. Approx. 0.5A 58mm 65µm TF50KS-E2C (Nippon Paper) 100,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH

76.8 × 37 ×16mm Approx. 50g

Type Classification

MLT-289

1) Model

MLT-289

2) Paper path

None:Curl

Line Thermal Printer Mechanisms

Accessories

Control board

BD2-3880U

Interface Parallel and RS-232C Number of columns Font A: 48 / Font B: 64 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 2k bytes Supporting devices Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED,

Dimensions 80 × 90mm Source voltage 5.0 ±5% Gate array 202LA-00

Auto cutter

Paper out LED

Gate array

202LA-00

ACS-238

MLT-388

Paper Roll

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Voltage range VH

Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Reliability Head pulse-resistance

Environment Operation

External dimensions (W × D ×H) Weight

Paper presence Head-up

Vp Vdd

Paper (Manufacturer)

Head wear-resistance

Storage

■ 80mm paper width

■ 5V operation

■

60mm/sec printing speed

■ Ultra compact design

Line thermal dot printing 576 dots/lines 8 dots/mm 72mm Max. 480 dot-lines/sec

0.125mm Thermistor Photo-interrupter Mechanical switch DC 4.2 — 8.5V DC 4.2 — 8.5V DC 4.75 — 5.25V Max. Approx. 2.5A Max. Approx. 0.5A 80 0/–1mm 65µm TF50KS-E2D (Nippon Paper) 10,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH

99.5 × 41 ×21mm Approx. 95g

Accessories

Control board

BD2-3890U

Dimensions 75 × 80mm Source voltage 5.0 ±5% Gate array 202LA-00

Paper out LED

Gate array

202LA-00

MLT-389

Paper Roll

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Voltage range VH

Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Reliability Head pulse-resistance

Environment Operation

External dimensions (W×D×H) Weight

Paper presence Head-up

Vp Vdd

Paper (Manufacturer)

Head wear-resistance

Storage

■ 80mm paper width

■ 5V operation

■

60mm/sec printing speed

■ Ultra compact design

■

Platen removable design

Line thermal dot printing 576 dots/lines 8 dots/mm 72mm Max. 480 dot-lines/sec

99.5 × 41×21mm Approx. 95g

Type Classification

MLT-388

1) Model

MLT-388 MLT-389

Line Thermal Printer Mechanisms

LT2220

Paper Roll

Accessories

Control board

BD2-1220U

Interface Parallel and RS-232C Number of columns 36/48 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 2k bytes Supporting devices Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED,

Dimensions 90 × 65mm Source voltage 5.0 ±5% and 24V ±5% Gate array 202LA-00

Auto cutter

ACS-225

● LT1220 is still available

Gate array

202LA-00

Paper out LED

Cutting method Slide cutting Paper width 45 — 69mm

thickness 0.06 — 0.15mm Max. cutting frequency 20 cuts/min Voltage 24V ±10% Current (peak) 0.8A Operating temperature 0 — 45°C Size 80 × 55.7 ×15mm Weight 140g Reliability 500,000 cuts Number of tab left (F)ull cut blade type None

(P)artical cut blade type None or 1 tab

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Paper presence Head-up

Voltage range VH

Vdd Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Paper (Manufacturer) Reliability Head pulse-resistance

Head wear-resistance Environment Operation

Storage

External dimensions (W × D ×H) Weight

■

58mm paper width■24V operation

■

150mm/sec high-speed printing

■

Thick paper up to 0.15mm(LT2220A)

■ Compact design

Line thermal dot printing 432 dots/lines 8 dots/mm 54mm Max. 150mm /sec

0.125mm Thermistor Photo-sensor Photo-sensor DC 21.6 — 26.4V DC 4.75 — 5.25V Max. Approx. 5.2A Max. Approx. 0.41A 58mm 60 – 105µm (Standard) 110 – 150µm (A type) TF50KS-E2D (Nippon Paper) etc. 50,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH

91.5 × 58 ×20mm Approx. 87g

● LT1320 is still available

Accessories

Control board

BD2-1220U

Interface Parallel and RS-232C Number of columns 48/64 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 4k bytes Supporting devices Dimensions 90 × 65mm Source voltage 5.0 ±5% and 24V ±5% Gate array 202LA-00

Auto cutter

ACS-235

Examplefor KIOSKunit

Type Classification

Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED,Paper out LED

Cutting method Slide cutting Paper width 50 — 89mm

thickness 0.06 — 0.15mm Max. cutting frequency 20 cuts/min Voltage 24V ±10% Current (peak) 0.8A Operating temperature 0 — 45°C Size 102 × 55.7 ×15mm Weight 180g Reliability 500,000 cuts Number of tab left (F)ull cut blade type None

Gate array

202LA-00

(P)artical cut blade type None or 1 tab

1) Size

LT-1220HA

2) 3) 4) 5)

2: 2inch class 3: 3inch class

2) Voltage

2: 24V

LT2320

Paper Roll

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Voltage range VH

Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Reliability Head pulse-resistance

Environment Operation

External dimensions (W×D×H) Weight

3) Type

0: Standard

Paper presence Head-up

Vdd

Paper (Manufacturer)

Head wear-resistance

Storage

4) Paper path

H: Curl V: Straight

5) Paper pressure

■ 80mm paper width

■ 24V operation

■

150mm/sec high-speed printing

■

Thick paper up to 0.15mm(LT2320A)

■ Compact design

Line thermal dot printing 576 dots/lines 8 dots/mm 72mm Max. 150mm /sec

0.125mm Thermistor Photo-sensor Photo-sensor DC 21.6 — 26.4V DC 4.75 — 5.25V Max. Approx. 5.2A Max. Approx. 0.41A 80 mm 60 – 105µm (Standard) 110 – 150µm (A type) TF50KS-E2D (Nippon Paper) etc. 50,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH 108 × 58 ×20mm Approx. 99g

None: Standard (60-105µm) A: For thick paper (110-150µm)

Line Thermal Printer Mechanisms

Accessories

● LT1221 is still available

Control board

BD2-1221U

Interface Parallel and RS-232C Number of columns 36/48 Font Font A: 12 × 24 dots / Font B: 9 × 24 dots Command set ESC/POS Barcode Supported Firmware location Flash memory Buffer 4k bytes Supporting devices Dimensions 90 × 65mm Source voltage 5.0 ±5% and 24V ±5% Gate array 202LA-00

Specifications for Auto cutter

(Auto cutter only for LT2221C)

Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED,Paper out LED

Cutting method Slide cutting Paper width 58mm

thickness 0.06 — 0.15mm Max. cutting frequency 20 cuts/min Voltage 24V ±10% Current (peak) 0.8A Operating temperature 0 — 45°C Size 102 × 55.7 ×15mm Weight 180g Reliability 300,000 cuts Number of tab left (F)ull cut blade type None

Gate array

202LA-00

(P)artical cut blade type None or 1 tab

LT2221 LT2221C

Paper Roll

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Voltage range VH

Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Reliability Head pulse-resistance

Environment Operation

External dimensions (W × D ×H)

Weight

Paper presence Platen

Vdd

Paper (Manufacturer)

Head wear-resistance

Storage

■ 58mm paper width

■ 24V operation

■

150mm/sec high-speed printing

■

Platen removable design

■

Auto cutter equipped(LT2221C)

■ Compact design

Line thermal dot printing 432 dots/lines 8 dots/mm 54mm Max. 150mm /sec

0.125mm Thermistor Photo-sensor Mechanical Switch DC 21.6 — 26.4V DC 4.75 — 5.25V Max. Approx. 5.2A Max. Approx. 0.41A 58mm 60 – 105µm (Standard) 110 – 150µm (A type) TF50KS-E2C (Nippon Paper) etc. 50,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH

91.5 × 58 ×20mm(LT2221)

101.3 × 61.5 ×37.2mm(LT2221C) Approx. 85g(LT2221) Approx. 273g(LT2221C)

● LT1321 is still available

Accessories

Control board

BD2-1221U

Specifications for Auto cutter

(Auto cutter only for LT2321C)

Auto cutter, Paper sensor, Head-up sensor, LF switch, Error LED,Paper out LED

Cutting method Slide cutting Paper width 58mm

Gate array

202LA-00

(P)artical cut blade type None or 1 tab

LT2321 LT2321C

Paper Roll

Specifications

Printing method Total dots Dot density Printing width Printing speed Paper feeding pitch Sensors Head temperature

Voltage range VH

Current Head (Vp = 5V) consumption Motor (Vp = 5V) Recommended Width paper Thickness

Reliability Head pulse-resistance

Environment Operation

External dimensions (W×D×H)

Weight

Paper presence Platen

Vdd

Paper (Manufacturer)

Head wear-resistance

Storage

■ 80mm paper width

■ 24V operation

■

150mm/sec high-speed printing

■

Platen removable design

■

Auto cutter equipped(LT2321C)

■ Compact design

Line thermal dot printing 576 dots/lines 8 dots/mm 72mm Max. 150mm /sec

0.125mm Thermistor Photo-sensor Mechanical Switch DC 21.6 — 26.4V DC 4.75 — 5.25V Max. Approx. 5.2A Max. Approx. 0.41A 80 mm 60 – 105µm (Standard) 110 – 150µm (A type) TF50KS-E2C (Nippon Paper) etc. 50,000,000 pulses or more 50km or more Temperature: 0 ~ 45°C Humidity: 35 ~ 85% RH Temperature: –20 ~ 60°C Humidity: 10 ~ 90% RH 108 × 58 ×20mm(LT2321) 119 × 61.5 ×37.2mm(LT2321C) Approx. 97g(LT2321) Approx. 330g(LT2321C)

Type Classification

LT-1221C

2) 3) 4)

1) Size

2: 2inch class 3: 3inch class

2) Voltage

2: 24V

3) Type

1: Removable platen model

4) Cutter

None: Standard C: With cutter

Line Thermal Printer Mechanisms

Accessories

Auto cutter AC-5/5F ACS-229

Cutting method Guillotine Paper width 59.5 ±0.5mm

thickness 0.065mm Max. cutting frequency 6 cuts/min Voltage 24V ±1 0% Current (peak) 1.3A Operating temperature 5 — 40°C Size 70×55×31.7mm Weight 160g Reliability 300,000 cuts Number of tab left (F)ull cut blade type None or 1 tab (P)artical cut blade type Several tabs

Slide cutting 45 — 69mm

0.06 — 0.15mm 20 cuts/min 24V ±10%

0.8A 0 — 45°C 80

×55.7×15mm

140g 500,000 cuts

None None or 1 tab

LT-281

Paper Roll

Specifications

Printing method Line thermal dot printing Total dots 448 dots/lines Dot density 8 dots/mm Printing width 56mm Printing speed Max. 101.6mm/sec (813 dot-lines/sec) Paper feeding pitch 0.125mm Sensors Head temperature Thermistor

Voltage range Vp 24V DC ±5%

Current Head 0.9A consumption Motor 0.39A Recommended Width 59.5mm paper Paper (Manufacturer) TF50SY-EY, TF50KS-E2D (Nippon Paper) Reliability Head pulse-resistance 100,000,000 pulses or more

Environment Operation Temperature: 5 ~ 40°C

External dimensions (W×D×H) 111.5×53.5×40.8mm Weight Approx. 300g

Paper presence Photo-interrupter Head-up Machanical switch

Vdd 5V DC ±5%

Head wear-resistance 100km or more Mechanical life (MCBF) 23,600,000 lines

Storage Temperature: –20 ~ 60°C

■ 24V operation

■

101.6mm/sec high-speed printing

■

High reliability due to heavy duty design

Humidity: 35 ~ 80% RH

Humidity: 10 ~ 90% RH

■ 60mm paper width

LT-481H

Accessories

Auto cutter AC-6 ACS-249

Cutting method Guillotine Paper width 111.5 ±0.5mm

thickness 0.065mm Max. cutting frequency 6 cuts/min Voltage 24V ±10% Current (peak) 1A Operating temperature 5 — 40°C Size 130 × 55 ×21.5mm Weight 260g Reliability 300,000 cuts Number of tab left (F)ull cut blade type None or 1 tab (P)artical cut blade type Several tabs

Slide cutting 55 — 115mm

0.06 — 0.13mm 20 cuts/min 24V ±10%

0.8A 0 — 45°C 130 × 55.7 ×15mm 220g 300,000 cuts

None None or 1 tab

LT-481V

LT-481

Paper Roll

Specifications

Printing method Line thermal dot printing Total dots 832 dots/lines Dot density 8 dots/mm Printing width 104mm Printing speed Max. 100mm/sec (800 dot-lines/sec) Paper feeding pitch 0.125mm Sensors Head temperature Thermistor

Paper presence Photo-interrupter Head-up Machanical switch

Voltage range Vp 24V DC ±5%

Vdd 5V DC ±5% Current Head 1.6A consumption Motor 0.48A Recommended Width 111.5mm paper Paper (Manufacturer) TF50SY-EY, TF50KS-E2D (Nippon Paper) Reliability Head pulse-resistance 100,000,000 pulses or more

Head wear-resistance 100km or more

Mechanical life (MCBF) 8,000,000 lines Environment Operation Temperature: 5 ~ 40°C

Storage Temperature: –20 ~ 60°C

External dimensions (W × D ×H) 161 × 60 ×41mm Weight Approx. 420g

■ 24V operation

■ 100mm/sec high speed printing

■

High reliability due to heavy duty design

Humidity: 35 ~ 80% RH

Humidity: 10 ~ 90% RH

■ 112mm paper width

Type Classification

LT-281

1) Model

LT-281

LT-481 H

1) Model

2) Paper path

1) Model

LT-481

2) Paper path

H:Curl V:Straight

Line Thermal Printer Mechanisms

Accessories

Auto Cutter

AC-4P / 4F

Cutting method Guillotine Paper width 49.5 ±0.5mm

thickness 0.063mm Max. cutting frequency 6 cuts/min Voltage 24V ±10% Current (peak) 1.3A Operating temperature 5 — 40°C Size 60 ¥ 55 ¥ 23mm Weight 260g Reliability 300,000 cuts Number of tab left (F)ull cut blade type None or 1 tab (P)artical cut blade type Several tabs

Paper winder

AW-4H / 4V

LT-483

Paper Roll

2 station

Specifications

Printing method Line thermal dot printing Total dots 832 dots/lines Dot density 8 dots/mm Printing width 44mm × 2 Printing speed Max. 100mm/sec (800 dot-lines/sec) Paper feeding pitch 0.125mm Sensors Head temperature Thermistor

Voltage range Vp 24V DC ±5%

Current Head 1.2A consumption Motor 0.96A Recommended Width 49.5mm × 2 paper Paper (Manufacturer) TF50KS-E2D (Nippon Paper) Reliability Head pulse-resistance 100,000,000 pulses or more

Environment Operation Temperature: 5 ~ 40°C

External dimensions (W × D ×H) LT483: 155.2 × 60 ×71.5mm

Weight LT483: Approx. 560g

Paper presence Photo-interrupter Head-up Machanical switch

Vdd 5V DC ±5%

Head wear-resistance 100km or more

Storage Temperature: –20 ~ 60°C

■ 50+50mm paper width

■ 24V operation

■

100mm/sec high speed printing

■

High reliability due to heavy duty design

Humidity: 35 ~ 80% RH

Humidity: 10 ~ 90% RH LT483CF: 155.2 × 67 ×98.9mm

LT483CP: 155.2 × 67 ×100.2mm

LT483CF: Approx. 750g LT483CP: Approx. 760g

■ 2 station printing

LT1322

Paper Roll

2 station

Specifications

Printing method Line thermal dot printing Total dots 248 dots/lines × 2 Dot density 8 dots/mm Printing width 38mm × 2 Printing speed Max. 80mm/sec (640 dot-lines/sec) Paper feeding pitch 0.125mm Sensors Head temperature Thermistor

Voltage range Vp 24V DC ±10%

Current Head 4.5A consumption Motor 0.4A Recommended Width 38mm × 2 paper Paper (Manufacturer) TF50KS-E2D (Nippon Paper) Reliability Head pulse-resistance 50,000,000 pulses or more

Environment Operation Temperature: 0 ~ 45°C

External dimensions (W × D ×H) 120 × 58 ×24.5mm Weight Approx. 97g

Paper presence Photo-interrupter Head-up Photo-sensor

Vdd 5V DC ±5%

Head wear-resistance 50km or more

Storage Temperature: –20 ~ 60°C

■ 38+38mm paper width

■ 24V operation

■ 80mm/sec speed printing

Humidity: 35 ~ 85% RH

Humidity: 10 ~ 90% RH

■ 2 station printing

Type Classification

LT-483CF

1) 2) 3) 4) 5)

1) Size

4:4 inch class

2) Dot density

8:8 dots/mm

3) Type

483:2 station, 112mm, 24V

4) Cutter

C:With cutter None: No Cutter

5) Power Source

F:Full cut blade P:Partial cut blade

LT1322

2) 3)

1) Size

3:3 inch class

2) Voltage

8:24V

3) Type

2: 2Station model

Impact Dot Matrix Printer Mechanisms

Despite the growth in demand for thermal printers, dot impact printers are still most appropriate for many applications and worldwide demand remains strong. Particularly well-suited to plain paper and high-speed printing, they are indispensable for check and validation and other such applications. As in its thermal printer development, Citizen Systems makes the most of its precision equipment technologies in the development of dot impact printers, drawing on its formidable strengths in this area to offer products that satisfy customers’ dot impact printing needs fully and accurately.

Paper Roll

MD-910 / 911

Accessories

Control board

CBM-909-4D

(Only for MD-911)

Interface Parallel and serial Number of columns 40 Font 4 × 7 (including half dot) Command set Unique Firmware location Masked CPU Buffer 1 line Supporting devices LF switch, On-line switch Dimensions 80 × 55.5mm Source voltage 4.0+0.7/–1.0V Custom control chip 909PC-4DU

Control chip

909PC-4DU

(Only for MD-911)

Ink ribbon

Paper winder

AW-5

(not supported by CBM-909)

IR-91, IR-91L (Long life)

■ 58mm paper width

■ 5V operation

■ 2.5 lines/sec printing speed

■ Ultra compact design

Specifications

Model MD-910 MD-911

Printing method Serial impact dot matrix Printing direction One-way printing Printing speed Approx. 2.5 lines/sec Number of columns 24 columns: 144 dots/line Font 5 × 7 matrix Number of wires 8 pins (4 pins × 2 heads) Character size (W × H) Approx. 1.7 × 2.4mm Character pitch

Motor Dot pulse sensor Photo interrupter Home pulse sensor Leaf switch Printing sensor Voltage: 5.0 V DC / Resistance: 1.7 ±0.3Ω (25°C) Paper feeding solenoid Voltage: 5.0 V DC / Resistance: 9 ±2Ω (25°C) Connecting method Copper foil patterns at 2.54mm pitch. Driving voltage 3.5 ~ 5.5V DC Printing paper 57.5 ±0.5mm Copy Original print + 1 copy Ink ribbon Special ribbon cartridge of black or purple Paper feeding speed Approx. 5 lines/sec External dimensions 90 ×45.5 × 16mm(W × D × H) Weight 105g ±10% Operating temperature 0 ~ 50°C Storage temp. range –25 ~ 70°C Reliability MCBF: 1.5 million lines

1.98mm (Interval of columns)

3.52mm (Interval of lines)

Voltage: 5.0V DC / Peak current: Approx. 1A / Average current: 0.3A max.

Approx. 1.8 lines/sec 40 columns: 180 dots/line 4 × 7 matrix

Approx. 1.1 × 2.4mm

1.17mm (Interval of columns) / 3.52mm (Interval of lines)

Approx. 3.6 lines/sec

MCBF: 1.0 million lines

Type Classification

MD-910-SS

1) 2)

1) Type

910: 24 columns 911: 40 columns

2) Knob

SS: No knob HS: Horizontal knob VS: Vertical knob

Accessories

Auto cutter

ACS-236

Cutting method Slide cutting Paper width 50 — 89mm

Max. cutting frequency 20 cuts/min Voltage 24V ±10% Current (peak) 0.8A Operating temperature 0 — 45°C Size 102 × 55.7 ×15mm Weight 180g Reliability 500,000 cuts Number of tab left (F)ull cut blade type None

Ink ribbon

IR-31

thickness 0.06 — 0.15mm

(P)artical cut blade type None or 1 tab

*Six sensor positions are available. Please contact dealer.

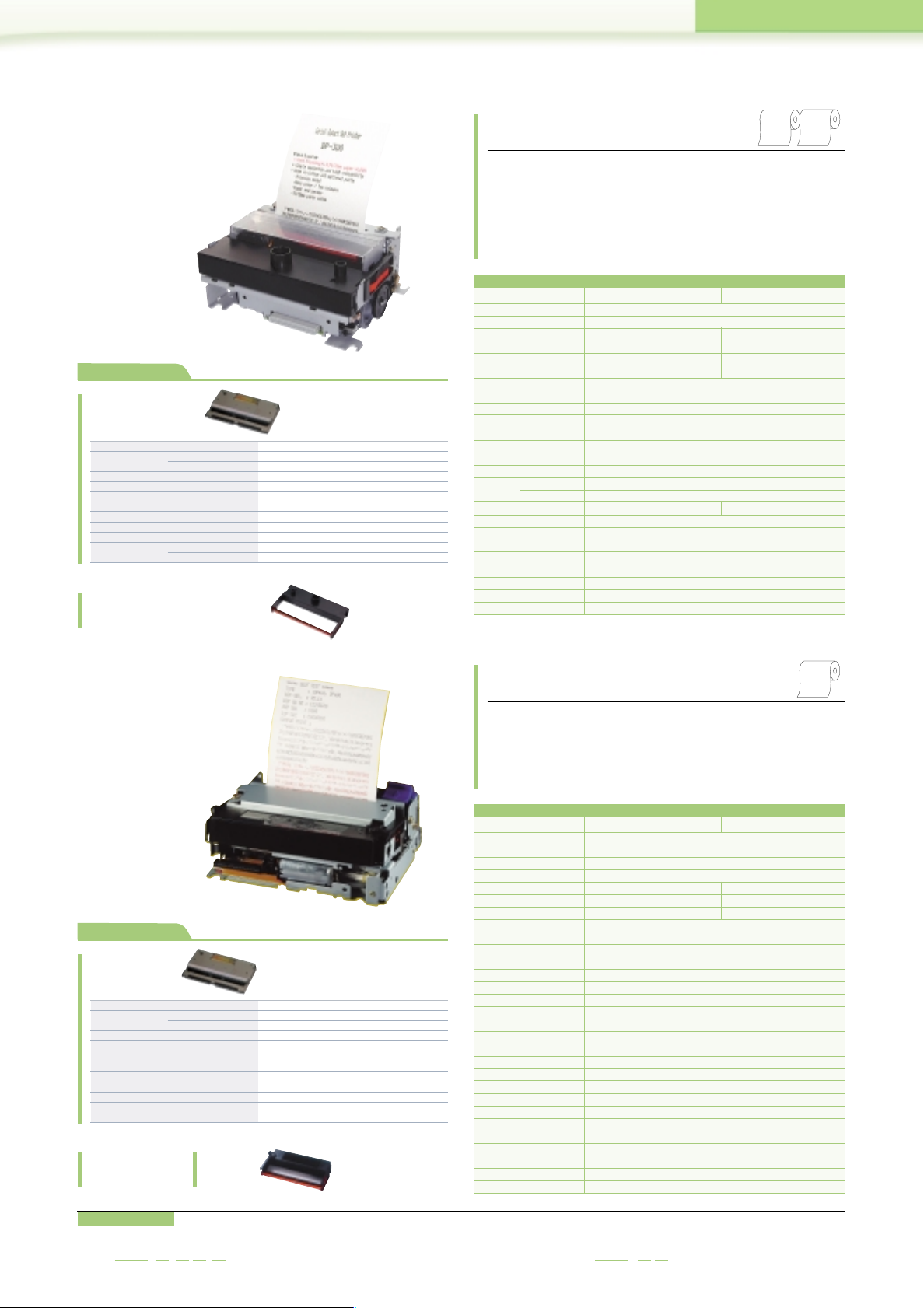

Impact Dot Matrix Printer Mechanisms

Paper Roll

DP-320 / 330

■ 58/76mm paper width

■ 24V operation

■ 5.6/4.3 lines/sec high-speed printing

■ Logic seeking control

■ 2 color printing

Specifications

Model DP-320 DP-330

Printing method Serial impact dot matrix Printing direction Bi-directional (Logic seeking control) Printing speed Approx. 5.6 lines/sec Approx. 4.3 lines/sec

Number of columns Approx. 30 columns Approx. 42 columns

Total no. of dot 210 dots (420 positions) Font 7 × 9 matrix Number of wires 9 pins Character size (W ×H) 1.25 × 3.12mm (7 × 9 dots) / 1.25 × 2.42mm (7 × 7 dots) Character pitch 1.59mm Line spacing Minimum 0.176mm (1/144 inch) Home position sensor Photo interrupter Paper end sensor Photo interrupter Motor Carriage

Paper feeding

Printing paper 58 × φ83mm 76 × φ83mm Copy capability Original + 1 copy Ink ribbon Mono color (Black or Purple ) / Two colors (Black/Red) Paper feeding speed Approx. 34 lines/sec External dimensions(W×D×H) Weight 485g (Included ribbon cassette) Operating temp. range 0 ~ 50°C Storage temp. range –20 ~ 70°C Reliability

(58mm paper width) (76mm paper width)

Stepping motor Voltage: 24V ±5% V DC / Resistance: 20Ω (25°C) Stepping motor Voltage: 24V ±5% V DC / Resistance: 20Ω (25°C)

126.7 × 97.5 × 52.7mm

Mechanism: MCBF 5.0 million lines / Head: 100 million characters

Accessories

Auto cutter

ACS-234

Cutting method Slide cutting Paper width 50 — 89mm

Paper winder

AW-2FA

thickness 0.06 — 0.15mm

(P)artical cut blade type None or 1 tab

Ink ribbon

IR-41

Paper Roll

DP-420 / 430

■ 76mm paper width

■ 24V operation

■ 3.0 lines/sec speed printing

■ 2 color printing

Specifications

Model DP-420 DP-430

Printing method Serial impact dot matrix Printing direction Bi-directional Printing speed Approx. 3.0 lines/sec Number of columns 42 columns, 189 dots/line Font 7 ×7 matrix 7 × 9 matrix Number of wires 7 pins 9 pins Character size (W ×H) 1.31 × 2.4mm 1.31 × 3.1mm Character pitch 1.52mm Line spacing 4.23 or 2.82mm (1/6 or 1/9 inch) / Minimum 1.41mm (1/18 inch) Motor Reset pulse sensor Photo interrupter Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Paper out sensor Photo interrupter Black mark sensor (option) Printing solenoid Voltage: 24V ±5% V DC / Resistance: 17Ω (25°C) Printing feed solenoid Voltage: 24V ±5% V DC / Resistance: 34Ω (25°C) Color change solenoid Voltage: 24V ±5% V DC / Resistance: 34Ω (25°C) Connecting method FFC or FPC cable Paper feeding Friction feed or sprocket feed Printing paper Friction feed: 76 ±0.5 × φ83mm Copy Friction feed: original + 1 copy Ink ribbon Exclusive ink ribbon cartridge / 2 color (Black/red), black or purple Paper feeding speed Approx. 28 lines/sec External dimensions (W×D×H) Weight Approx. 470g Operating temp. range 0 ~ 50°C Storage temp. range –20 ~ 70°C Reliability

Voltage: 24V ±5% V DC / Current: Peak Approx. 1A /Average less than 0.2A

Photo interrupter

120 × 90 × 45mm

Mechanism: MCBF 2.5 million lines / Head: 80 million characters

Type Classification

DP-320 D F V *

1) 2) 3) 4) 5)

1) Type

320: 58mm paper width 330: 76mm paper width

2) Ribbon

D: 2 color M: 1 color

3) Paper feed method

F: Friction feed

4) Blackmark sensor volume

N: No volume V: BM sensor volume

5) Blackmark sensor position

*Six sensor positions are available. Please contact dealer.

DP-420-DF

1) 2) 3)

1) Type

420: 7 pin head 430: 9 pin head

2) Ribbon

D: 2 color

3) Paper feed method

F: Friction feed

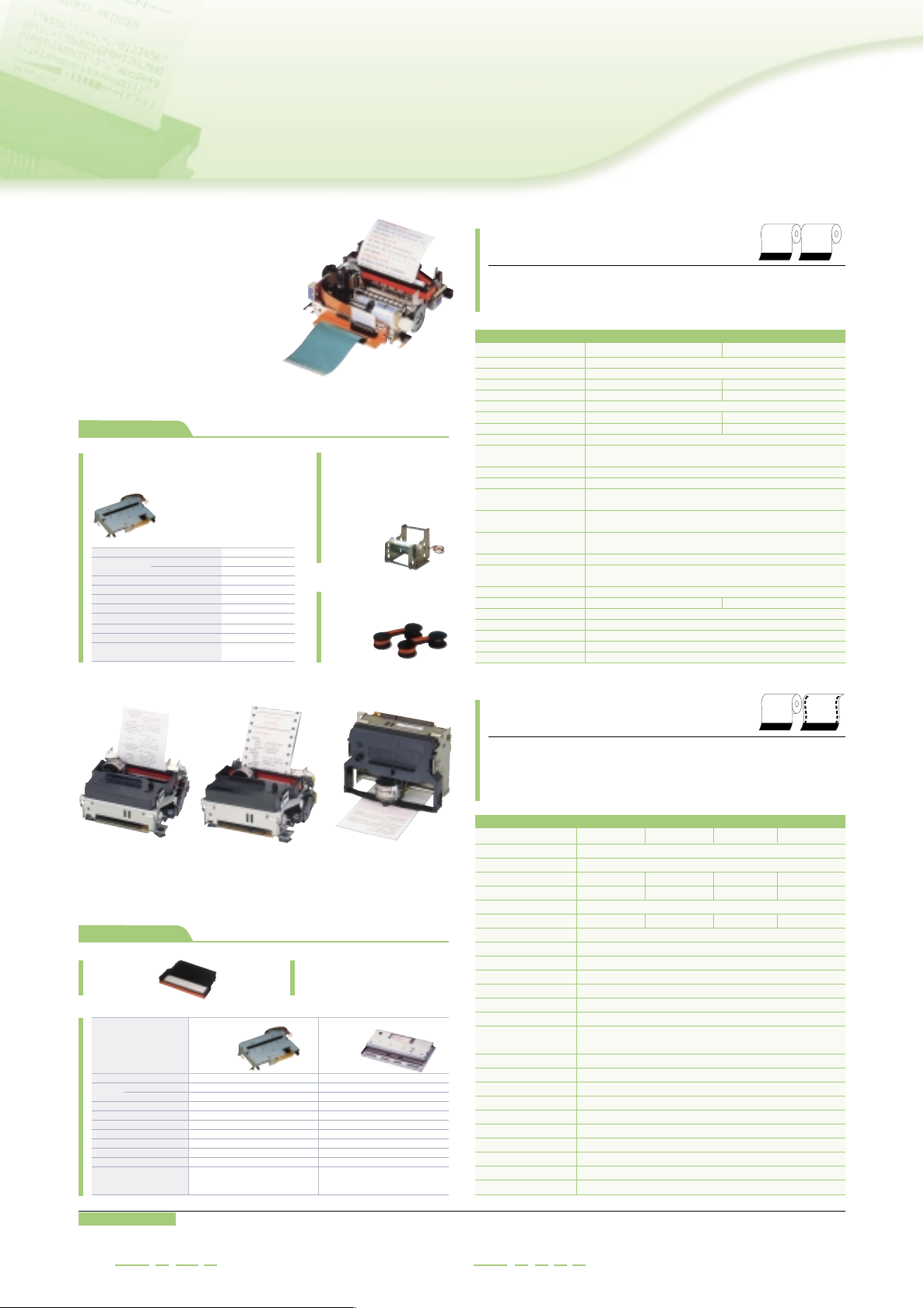

Impact Dot Matrix Printer Mechanisms

DP-555 / 575

■

58/69mm paper width

■ 12/17V operation

Specifications

Model DP-555 DP-575

Printing method Serial impact dot matrix Printing direction Printing speed Approx. 1.9 lines/sec Approx. 1.2 lines/sec Number of columns 24 columns 40 columns Font 5 × 7 matrix Character size (W×H) 1.7 × 2.75mm 1.25 × 2.75mm

Accessories

Auto cutter

AC-3 / 3F

Cutting method Guillotine Paper width 76 ±0.5mm

Max. cutting frequency 20 cuts/min Voltage 12V ±10% Current (peak) 1.2A Operating temperature 0 — 40°C Size Weight 200g Reliability 300,000 cuts Number of tab left (F)ull cut blade type

thickness 0.06 — 0.085mm

93 × 74 ×25mm

(P)artical cut blade type

None or 1 tab 2 or 3 tabs

Paper winder

NW-58(DP-555) NW-69(DP-575)

Ink ribbon

IR-01

Character pitch 2mm 1.5mm Line spacing 5.5mm Motor Voltage: 12V ±1V DC / Peak current: Approx. 2.5A (12V, 25°C)

Dot pulse sensor Photo interrupter Home switch Printing solenoid Voltage: 12V ±1V DC / Resistance: 4.9 ±0.5Ω (25°C)

Main solenoid Voltage: 12V ±1V DC / Resistance: 18.4 ±1Ω (25°C)

Color change solenoid Voltage: 12V ±1V DC / Resistance: 18.4 ±1Ω (25°C) Connecting method Flexible cable (SMCD 18 × 91 ES10)

Ink ribbon Color 2 colors (Red and black), black or purple

Paper feeding speed Approx. 8 lines/sec Printing paper 57.5 ± 0.5mm 69 + 1mm External dimensions (W×D×H) Weight Approx. 450g Operating temp. range 0 ~ 50°C Paper feeding traction More than 100g (Citizen recommended paper) Reliability

Paper Roll

DP-575

DP-555

■

1.9/1.2 lines speed printing

■ 2 color printing

L Series Left to right (Horizontal),R Series Right to left (Horizontal)

Average current: Approx. 0.25A

Voltage: 5V DC ~ 20V DC / Current: 100µA ~ 3mA (Resistance load)

Energized time: 2 dot pulses (700 ±50µS) / Peak current: Approx. 2A

Energized time: 16ms±10% (Max. of 5 continuous seconds)

Energized time: 20 ±2ms (Max. of 5 continuous seconds)

Spool diameter: 30mm or 35mm, width: 13mm

120.5 × 114 × 44.5mm

Printer mechanism MCBF: 1.5 million lines / Dot head 50 million characters

DP-61XF DP-61XP DP-61XH

Accessories

Ink ribbon

IR-61

Auto cutter

Cutting method Paper width

thickness Max. cutting frequency Voltage Current (peak) Operating temperature Size Weight Reliability Number of tab left (F)ull cut blade type (P)artical cut blade type

AC-2 / 2F

Guillotine 76±0.5mm

0.06 — 0.085mm 20 cuts/min 24V ±10%

0.8A 0 — 40°C 99 ¥ 74 ¥ 30mm 200g 300,000 cuts

None or 1 tab 2 or 3 tabs

Paper winder

AW-2FA

AC-134

Guillotine 50 — 89mm

0.06 — 0.09mm 20 cuts/min 24V ±10%

0.8A 0 — 45°C 120 ¥ 57 ¥ 15mm 160g 300,000 cuts

None or 1 tab 2 or 3 tabs

Sprocket

Paper Roll

76〜

DP-61X SERIES

■ 76mm paper width

■ 24V operation

■ 2 color printing

■

Sprocket feeding model (P type)

F type

P type

■ 3.0 lines/sec speed printing(DP-614)

Specifications

Model DP-610 DP-612 DP-614 DP-617

Printing method Serial impact dot matrix Printing direction Bi-directional Printing speed Number of columns Font 7 ×9 matrix Character size (W×H) 1.8 ×2.4mm 1.5 ×2.4mm 1.36 ×2.4mm 1.2 ×2.4mm Line spacing 1/6 inch Motor Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Paper feeding motor Printing solenoid Voltage: 24V ±1V DC / Resistance: 17Ω (24V DC, 25°C) Color change solenoid Voltage: 24V DC V DC / Resistance: 48Ω (24V DC, 25°C) Connector terminals

Paper feeding Friction feed or sprocket feed Printing paper Copy Friction feed: original + 1 copy / Sprocket feed: original + 2 copies Paper feed power More than 100g (Citizen recommended paper) Ink ribbon Two colors (Red and black) / Single color (Black or purple) Paper feeding speed External dimensions (W×D×H) Weight Approx. 690g Operating temp. range 0 ~ 50°C Reliability Printer: MCBF 4.0 million lines / Head: 80 million characters

Approx. 4.0 lines/sec Approx. 3.5 lines/sec Approx. 3.0 lines/sec Approx. 2.4 lines/sec 23 columns, 230 dots/line 28 columns, 280 dots/line

Voltage: 24V DC V DC / Peak current: Max. 21A (12V, 25°C) / Average current: Approx. 0.2A or les

Voltage: 24V DC V DC / Resistance: 48Ω (25°C) / Driving pulse width: 30 DP, Approx. 20ms

Connector 1 (S16B-PH-K-S (16P): Counterpart PHR-16 (16P) manufactured by JST) Connector 2 (S10B-PH-K-SC (10P): Counterpart PHR-10 (10P) manufactured by JST)

Friction feed: 76mm Roll paper × φ83mm / Sprocket feed: 76 ~ 89mm fanfold paper

Approx. 25 lines/sec Approx. 21 lines/sec Approx. 18 lines/sec Approx. 15 lines/sec Two colors: 137 ×136 ×63.5mm / Single color: 134 ×136 ×63.5mm

40 columns, 360 dots/line

40 columns, 400 dots/line

Type Classification

DP-575 L 12 A

1) 2) 3) 4)

1) Type

555: 24 columns 575: 40 columns

2) Printing direction

L: Left to right R: Right to left

3) Voltage

12: 12V 17: 17V

4) Special feature

None: Regular model A: Cassette ribbon model

DP-614 D F V V

1) 2) 3) 4) 5)

1) Type

610: 23 columns 612: 28 columns 614: 40 columns (360dots) 617: 40 columns (400dots)

2) Ribbon

D: 2 color M: 1 color

Paper feeding method

F: Friction feeding P: Sprocket feeding

Character / Graphic

C: Character only G: Graphic

Validation sensor

None: No validation V: Equipped

Accessories

Ink ribbon

IR-61

Auto cutter

Cutting method Paper width

thickness Max. cutting frequency Voltage Current (peak) Operating temperature Size Weight Reliability Number of tab left (F)ull cut blade type (P)artical cut blade type

AC-2 / 2F

Guillotine 76±0.5mm Ma

0.06 — 0.085mm 20 cuts/min 24V ±10%

0.8A 0 — 40°C 99 ¥ 74 ¥ 30mm 200g 300,000 cuts

None or 1 tab 2 or 3 tabs

Paper winder

AW-2FA

AC-134

Guillotine 50 — 89mm

0.06 — 0.09mm 20 cuts/min 24V ±10%

0.8A 0 — 45°C 120 ¥ 57 ¥ 15mm 160g 300,000 cuts

None or 1 tab 2 or 3 tabs

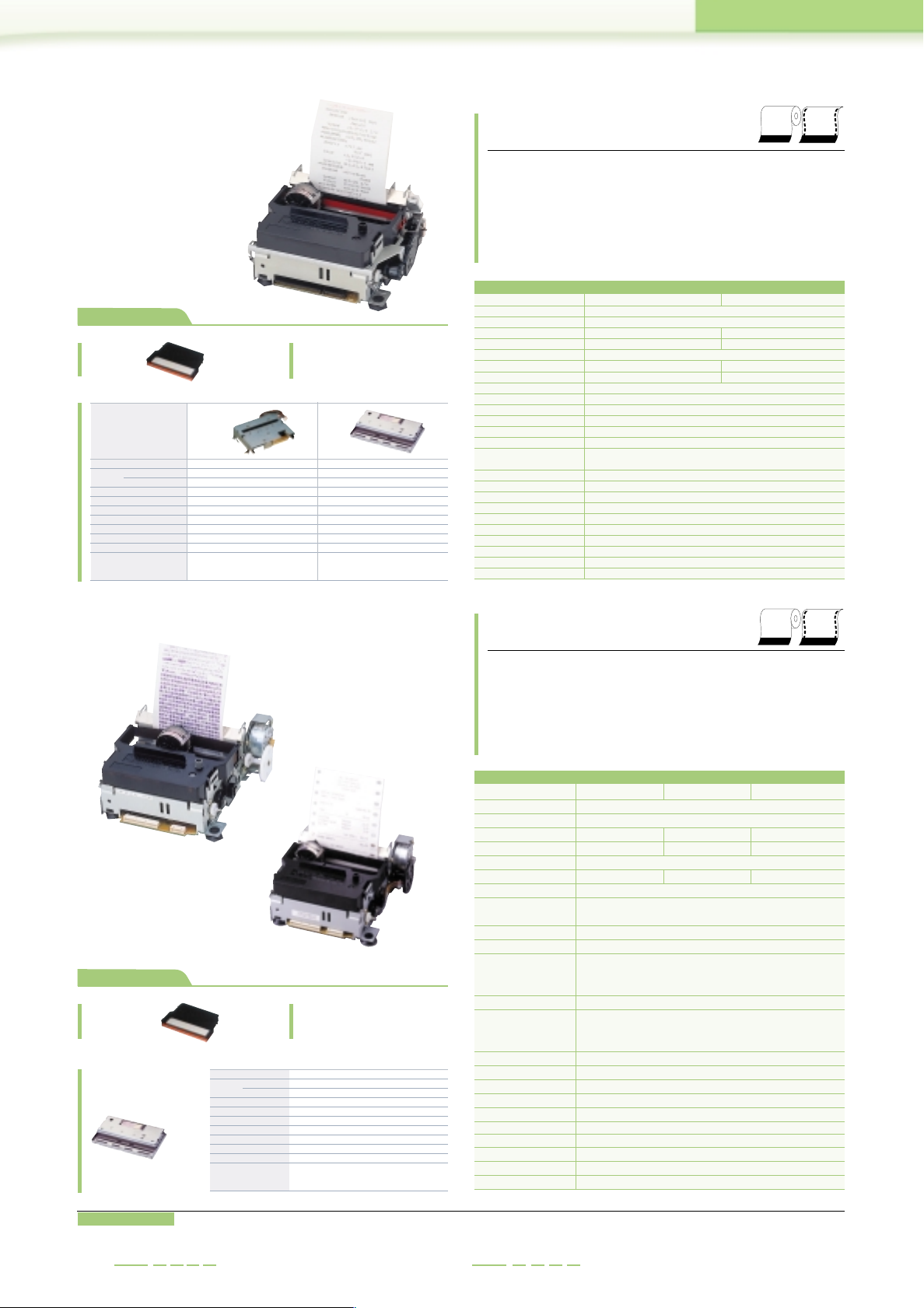

Impact Dot Matrix Printer Mechanisms

Sprocket

Paper Roll

76〜

F type

DP-654 / 657

P type

■ 76mm paper width

■ 24V operation

■ 3.6 lines/sec speed printing(DP-654)

■ 2 color printing

■ Sprocket feeding model (P type)

Specifications

Model DP-654 DP-657

Printing method Serial impact dot matrix Printing direction Bi-directional Printing speed 3.6LPS ±10% 3.0LPS ±10% Number of columns 40 columns, 360 dots/line 40 columns, 400 dots/line Font 7 ×7 or 7 ×9 (half-dot) Character size (W ×H) 1.36 ×2.4mm 1.2 ×2.4mm Line spacing 1/6 inch 1/9 inch (DR617DFG) Motor Reset pulse sensor Mechanical leaf switch Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Printing solenoid Voltage: 24V ±1V DC / Resistance: 17Ω (24V DC, 25°C) Paper feeding solenoid Voltage: 24V DC Resistance: 33Ω ±10% Connector terminals

Connecting method Pin connector Paper feeding Friction feeding or sprocket feeding Ink ribbon Dedicated ink ribbon cartridge (Red/Black or single color Black) Paper feeding speed 18 lines/sec Printing paper Receipt and journal 37 ~ 38mm, Outer dia Max. φ83mm External dimensions (W×D×H) Weight Approx. 690g Operating temp. range 0 ~ 50°C Storage temp. range –25 ~ 70°C Reliability

Voltage: 24V V DC / Peak current: Approx. 1.5A / Average less than 0.3A

Connector 1 (S16B-PH-K-S (16P): Counterpart PHR-16 (16P) manufactured by JST) Connector 2 (S10B-PH-K-SC (8P): Counterpart PHR-10 (8P) manufactured by JST)

137 ×138 ×63.5mm

Mechanism: MCBF 4.0 million lines / Head: 80 million characters

DP-62XF

Accessories

Ink ribbon

IR-61

Auto cutter

AC-134 / 134F

DP-61XP

Paper winder

AW-2FA

Cutting method Guillotine Paper width 50 — 89mm

thickness 0.06 — 0.09mm Max. cutting frequency Voltage 24V ±10% Current (peak) 0.8A Operating temperature Size 102 ¥ 57 ¥ 15mm Weight 160g Reliability 300,000 cuts Number of tab left (F)ull cut blade type None or 1 tab (P)artical cut blade type

20 cuts/min

0 — 40°C

2 or 3 tabs

Paper Roll

DP-62X SERIES

F type

■ 76mm paper width

■ 24V operation

■ 3.6 lines/sec speed printing(DP-654)

■ 2 color printing

■ Sprocket feeding model (P type)

Specifications

Model DP-622 DP-624 DP-627

Printing method Serial impact dot matrix Printing direction Bi-directional Printing speed Number of columns Font 7 ×9 matrix Character size (W×H) 1.5 ×2.4mm 1.36 ×2.4mm 1.2 ×2.4mm Line spacing Min. 1/144 inch Motor Voltage: 24V DC V DC / Peak current: Max. 1.5A

Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Paper feeding motor 4 shase 48 poles permanent magnet type stepping motor

Printing solenoid Voltage: 24 ±1V DC / Resistance: 17Ω (24V DC, 25°C) Connector terminals

Paper feeding Friction feeding or sprocket feeding Printing paper Copy Paper feeding power More than 100g (Citizen recommended paper) Ink ribbon Single color (Black or purple) Paper feeding speed Approx. 25 lines/sec

External dimensions (W×D×H) Weight Approx. 730g Operating temp. range 0 ~ 50°C Reliability Printer: MCBF 5.0 million lines / Head: 80 million characters

Approx. 4.2 lines/sec Approx. 3.6 lines/sec Approx. 3.0 lines/sec 28 columns, 280 dots/line 40 columns, 360 dots/line 40 columns, 400 dots/line

Average current: Approx. 0.3A or less

24V DC ±10% (Drive voltage) / 5V DC ±15% (Hold voltage) Mean current: Approx. 300mA / Hold current: Approx. 150mA

Connector 1 (53156-1710 (17P): Counter part 51049-1700 (17P) manufactured by Molex) Connector 2 (53015-0610 (6P): Counter part 51004-0600 (6P) manufactured by Molex) Connector 3 (51004-0600 (6P): Counter part 57014-0610 (6P) manufactured by Molex)

Friction feeding:76mm roll paper×ø83mm/ Sprocket feeding:76~89mm fanfold paper Friction feeding: original + 1 copy / Sprocket feeding: original + 2 copies

140.9 ×153.2 ×63.5mm

Sprocket

76〜

P type

Type Classification

DP-654DFCV

1) 2) 3) 4) 5)

1) Type

654: 40 columns (360dots) 657: 40 columns (400dots)

2) Ribbon

L: Left to right R: Right to lef

Paper feeding method

F: Friction feeding P: Sprocket feeding

4) Paper path

C: Character only G: Graphic

5) Paper pressure

None: No validation V: Equipped

DP-624MPCS

1) 2) 3) 4) 5)

1) Type

622: 28 columns 624: 40 columns (360 dots) 627: 40 columns (400 dots)

2) Ribbon

M: 1 color

Paper feeding method

F: Friction feeding P: Sprocket feeding

Copy capability

None: No sensor S: with sensor

Auto loading sensor

None: No sensor S: with sensor

Impact Dot Matrix Printer Mechanisms

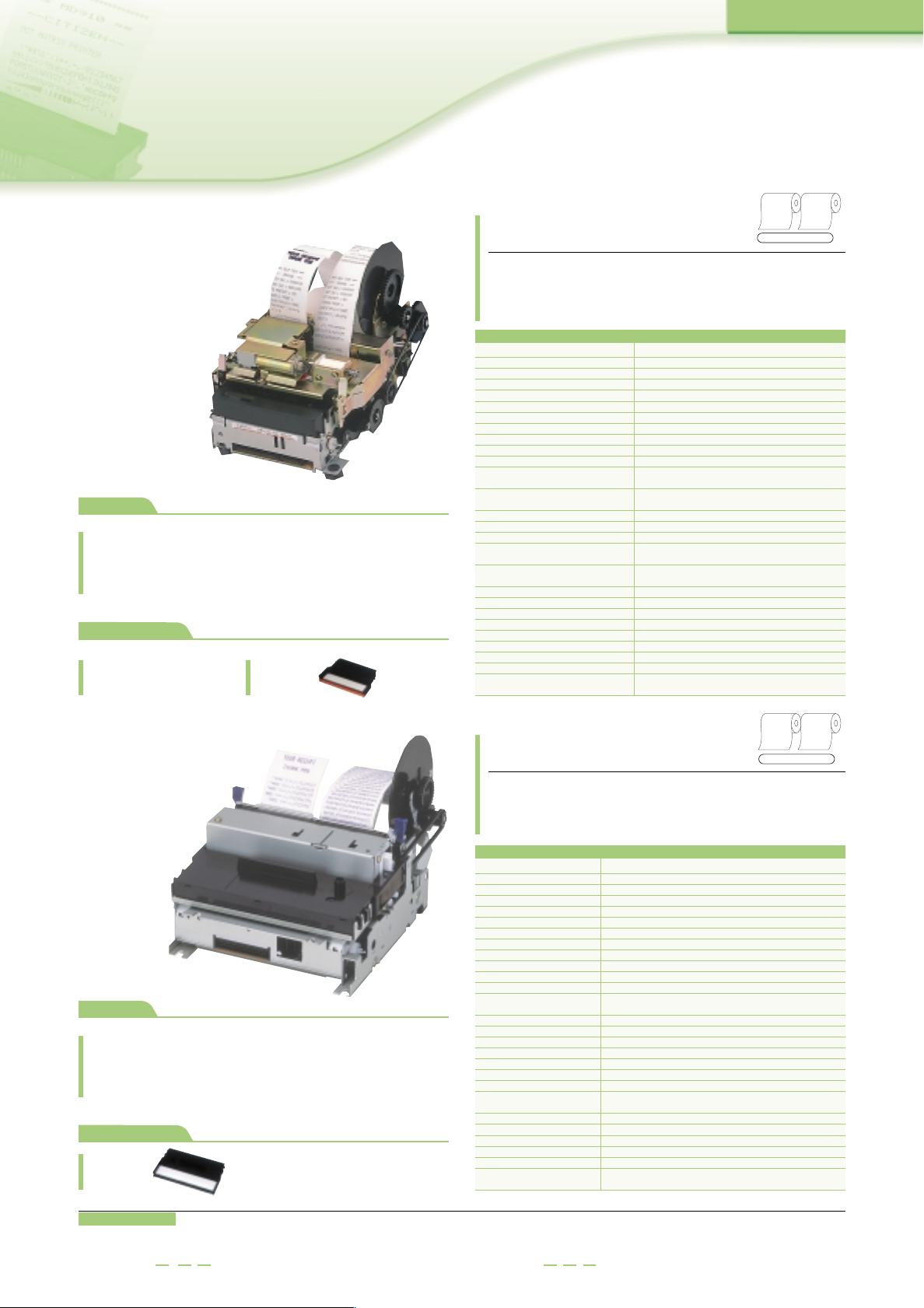

DP-630

Impact Dot Matrix Printer Mechanisms

Paper Roll

2 station

Options

Validation sensor

•

Paper winder

•

Mark sensor

•

Accessories

Paper winder

PW-2

Auto cutter

•

Paper near end sensor

•

Stamp

•

Ink ribbon

IR-61

■ 2 station printing

■ 38+38mm paper width

■

3.0 lines/sec speed printing

■

Validation printing (option)

■ 24V operation

Specifications

Model DP-630

Printing method Serial impact dot matrix Printing direction Bi-directional Font 7 ×9 matrix Number of columns (validation) 18 columns ×2 (40 columns) Number of total dot/line (half dot) 180 (360) dots Number of wires 9 pins (dot pitch 0.353mm) Printing speed Approx. 3.0 lines/sec Character size (W ×H) 1.36 ×2.4mm Line spacing 5.08mm Character pitch Character = 1.59mm Ink ribbon Exclusive ink ribbon cartridge

Motor Voltage: 24V +1/–2V DC / Current: Peak Approx. 1A

Reset pulse sensor Mechanical leaf switch Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Printing solenoid Voltage: 24V ±1V DC

Paper feeding solenoid Voltage: 24V +1/–2V DC

Connecting method Pin connector Paper feeding Friction feed Printing paper Receipt and journal 37 — 38mm / Outer dia Max.φ83mm Paper feeding speed 18 lines/sec External dimensions (W ×D ×H) 134 ×136 ×63.5mm Weight Approx. 690g Operating temp. range 0 ~ 50°C Storage temp. range –25 ~ 70°C Reliability Mechanism MCBF 2.5 million lines

DP-730

(single color, black or purple) IR-61

Average less than 0.2A

Resistance: 17Ω

Resistance: 32Ω ±10%

Head 50 million characters

Paper Roll

2 station

Paper Roll

Options

Validation sensor

•

Paper winder

•

Mark sensor

•

Accessories

Ink ribbon

IR-71

Type Classification

DP-630 V-S C

1) 2) 3)

Auto cutter

•

Paper near end sensor

•

Stamp

•

1) Validation sensor

V: Equipped None: No validation sensor

2) Stamp

S: Equipped None: No stamp

3) Cutter

C: Equipped None: No cutter

■ 2 station printing

■ 45+45mm paper width

■

3.0 lines/sec speed printing

■

Validation printing (option)

■ 24V operation

Specifications

Model DP-730

Printing method Serial impact dot matrix Printing direction Bi-directional Font 7 ×9 matrix Number of columns (validation) Number of total dot/line (half dot) Number of wires 9 pins (dot pitch 0.353mm) Printing speed Approx. 3.0 lines/sec Character size (W ×H) Line spacing 4.23mm (1/6 inch) Character pitch Character = 1.59mm Ink ribbon Motor Voltage: 24V ±10% / Current: Peak Approx. 2.5A

Reset pulse sensor Mechanical leaf switch Dot pulse sensor Photo interrupter Home position sensor Photo interrupter Printing solenoid Voltage: 24V ±10% / Resistance: 10.5Ω ±10% Paper feeding solenoid Voltage: 24V ±10% / Resistance: 34Ω ±10% Connecting method Pin connector Paper feeding Friction feed Printing paper Receipt and journal

Paper feeding speed 30 lines/sec External dimensions (W × D × H) Weight Approx. 1,250g Operating temp. range 0 ~ 50°C Storage temp. range –25 ~ 70°C Reliability Mechanism Head

Validation 135 — 210 (W) ×70 (H) mm

DP-730 F R C B

1) 2) 3)

24 columns × 2 (55 columns) 248 (495) dots

1.36 × 2.4mm or 1.36 × 3.1mm

Exclusive ink ribbon cartridge (single color, black or purple) IR-71

Average less than 0.45A

44.5 ±0.5mm / Outer dia Max. φ83mm

151 ×234.6 ×123.7mm

MCBF 4 million lines 100 million characters

1) Validation sensor

R: No validation sensor M: Multi-line validation sensor P: 1 line L/R sensor None: 1 line right sensor

2) Cutter

C: Equipped None: No cutter

3) Winder

C: Equipped None: No cutter

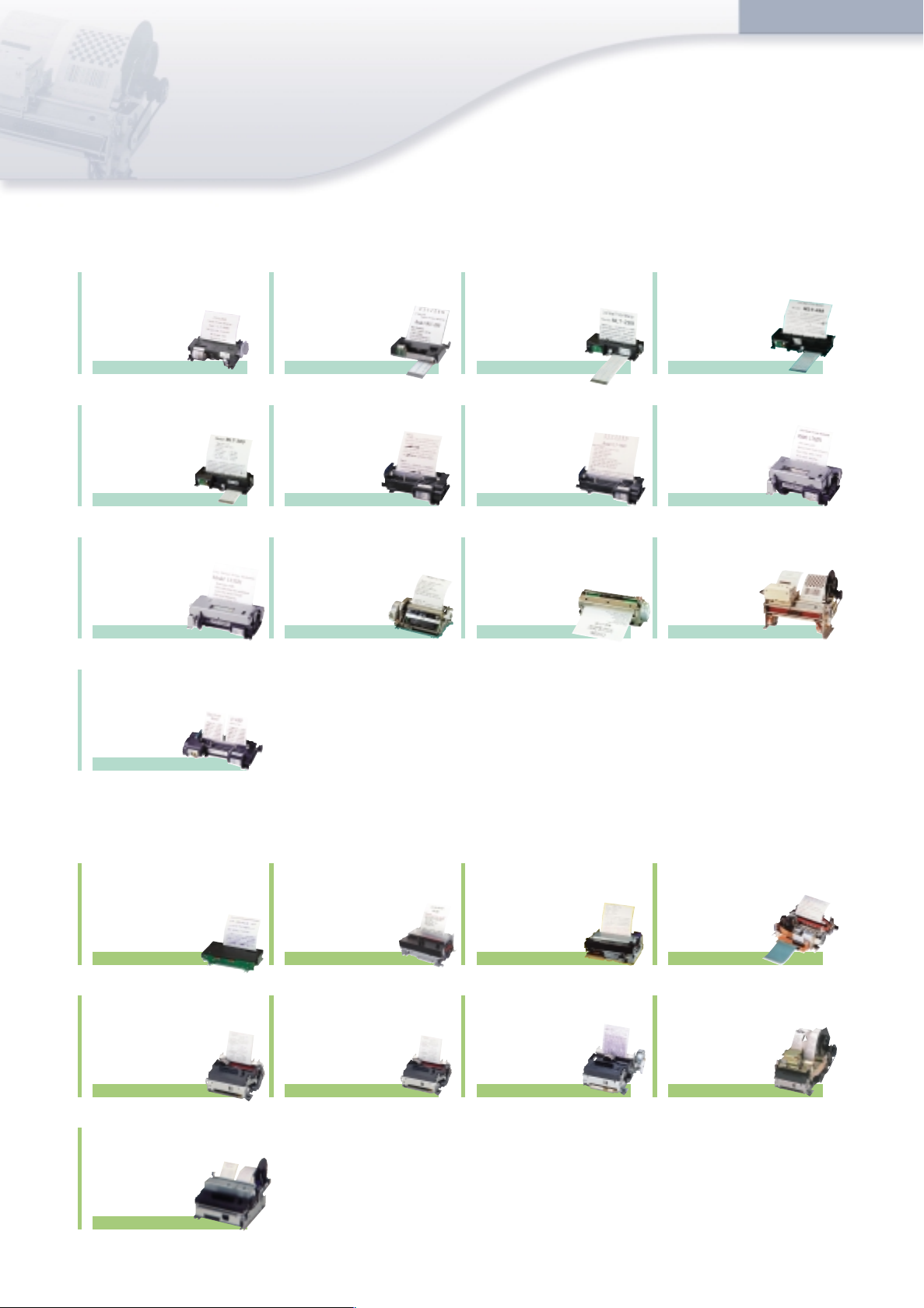

Printer Mechanisms Lineup

Line Theermal Printer Mechanisms

Printer Mechanisms Lineup

LT-286

■ 58mm paper width

■ 5V operation

■

50mm/sec printing speed

■ Compact design

sP23

MLT-389

■ 80mm paper width

■ 5V operation

■ 60mm/sec printing speed

■ Ultra compact design

■ Platen removable design

sP26

LT2321 / 2321C

■

80mm paper width■24V operation

■

150mm/sec high-speed printing

■ Platen removable design

■

Auto cutter equipped(LT2321C)

■ Compact design

sP28

LT1322

■ 2 station printing

■ 38+38mm paper width

■ 24V operation

■

80mm/sec speed printing

sP30

MLT-288

■ 58mm paper width

■ 5V operation

■

52.5mm/sec printing speed

■ Ultra compact design

sP24

LT2220

■ 58mm paper width

■ 24V operation

■

150mm/sec high-speed printing

■

Thick paper up to 0.15mm(LT2220A)

■ Compact design

sP27

LT-281

■ 60mm paper width

■ 24V operation

■

101.6mm/sec high-speed printing

■

High reliability due to heavy duty design

sP29

LT-289

■ 58mm paper width

■ 5V operation

■

52.5mm/sec printing speed

■ Ultra compact design

■ Platen removable design

sP25

LT2320

■ 80mm paper width

■ 24V operation

■

150mm/sec high-speed printing

■

Thick paper up to 0.15mm(LT2320A)

■ Compact design

sP27

LT-481

■ 112mm paper width

■ 24V operation

■

100mm/sec high speed printing

■

High reliability due to heavy duty design

sP29

MLT-388

■ 80mm paper width

■ 5V operation

■

60mm/sec printing speed

■ Ultra compact design

sP26

LT2221 / 2221C

■

58mm paper width■24V operation

■ 150mm/sec high-speed printing

■ Platen removable design

■

Auto cutter equipped(LT2221C)

■ Compact design

sP28

LT-483

■ 2 station printing

■ 50+50mm paper width

■ 24V operation

■

100mm/sec high speed printing

■

High reliability due to heavy duty design

sP30

Impact Dot Matrix Printer Mechanisms

MD-910 / 911

■ 58mm paper width

■ 5V operation

■ 2.5 lines/sec printing speed

■ Ultra compact design

sP31

DP-61X SERIES

■ 76mm paper width

■ 24V operation

■

3.0 lines/sec speed printing(DP-614)

■ 2 color printing

■

Sprocket feeding model (P type)

sP33

DP-730

■ 2 station printing

■ 45+45mm paper width

■ 24V operation

■

3.0 lines/sec speed printing

■

Validation printing (option)

sP35

DP-320 / 330

■ 58/76mm paper width ■ 24V operation

■

5.6/4.3 lines/sec high-speed printing

■ Logic seeking control

■ 2 color printing

sP32

DP-654 / 657

■ 76mm paper width

■ 24V operation

■

3.6 lines/sec speed printing(DP-654)

■ 2 color printing

■

Sprocket feeding model (P type)

sP34

DP-420 / 430

■ 76mm paper width

■ 24V operation

■ 3.0 lines/sec speed printing

■ 2 color printing

sP32

DP-62X SERIES

■ 76mm paper width

■ 24V operation

■

3.6 lines/sec speed printing(DP-654)

■ 2 color printing

■

Sprocket feeding model (P type)

sP34

DP-555 / 575

■ 58/69mm paper width

■ 12/17V operation

■

1.9/1.2 lines speed printing

■ 2 color printing

sP33

DP-630

■ 2 station printing

■ 38+38mm paper width

■ 24V operation

■

3.0 lines/sec speed printing

■

Validation printing (option)

sP35

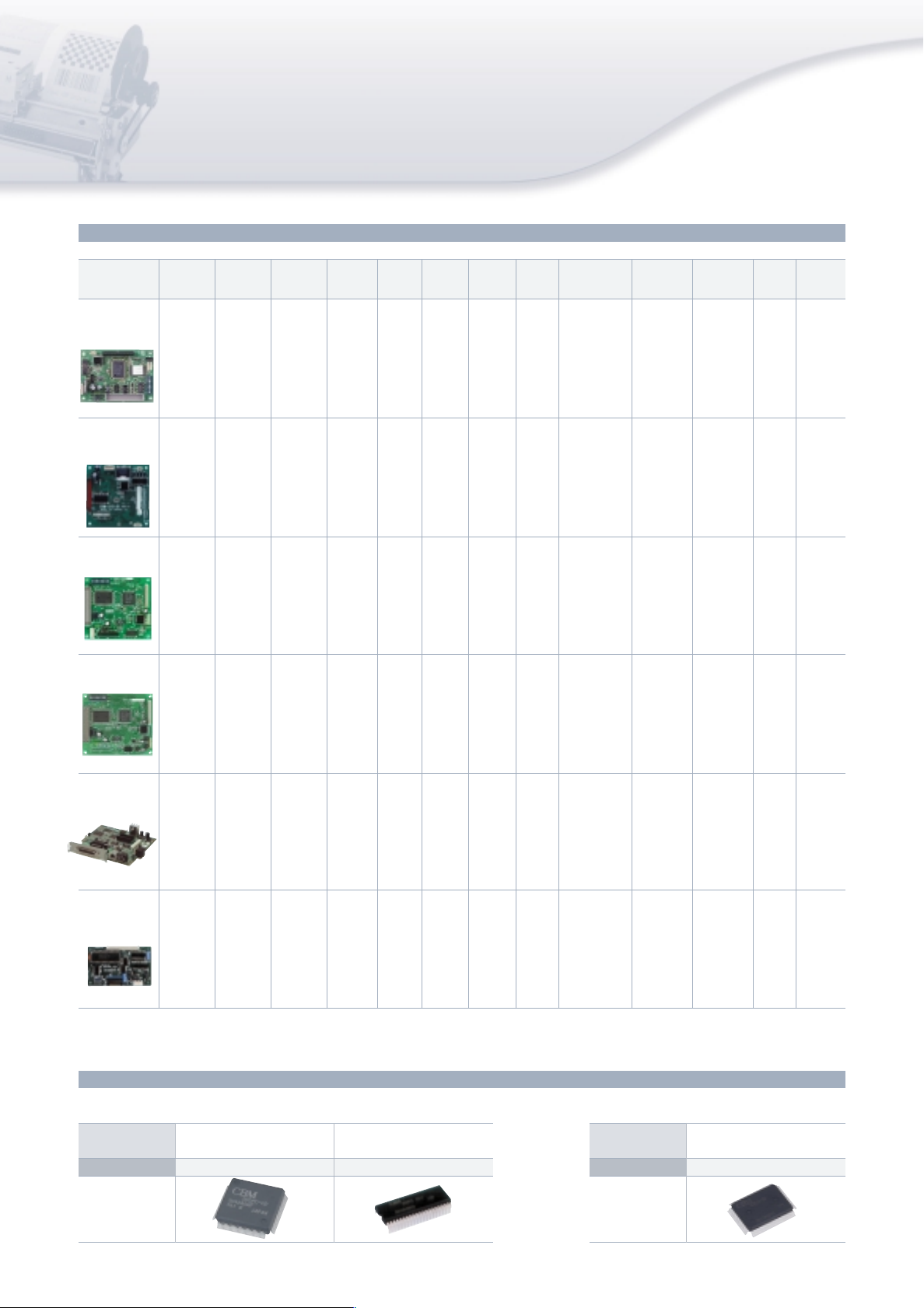

Accessories / Options

Specifications

Model

BD2-1220/1221

BD2-2860

BD2-2880 / 2890

BD2-3880 / 3890

Printer

mechanism

LT1220/1320/

1221/1321

LT-286

MLT-

288/289

MLT-

388/389

Interface

Parallel and

RS-232C

Parallel and

RS-232C

Parallel and

RS-232C

Parallel and

RS-232C

Number of

columns

LT1220/1221

: 32/42

LT1320/1321

: 48/64

Font A: 32 Font B: 42

Font A: 48 Font B: 64

Font

Font A:

12×24dots

Font B:

9×24dots

Font A:

12×24dots

Font B:

9×24dots

Font A:

12×24dots

Font B:

9×24dots

Font A:

12×24dots

Font B:

9×24dots

Command

set

ESC/ POS

Bar-code

Suppoted

Firmware

location

Flash

memory

Masked

CPU

Flash

memory

Flash

memory

Buffer

4K bytes

2K bytes

Supporting

devices

Auto cutter

Paper sensor

Head-up sensor

LF switch Error LED

Paper out LED

Auto cutter

Paper sensor

Head-up sensor

LF switch Error LED

Paper out LED

Auto cutter

Paper sensor

Head-up sensor

LF switch Error LED

Paper out LED

Auto cutter

Paper sensor

Head-up sensor

LF switch Error LED

Paper out LED

Dimensions

(W×D)

90 × 65mm

80 × 80mm

80 × 75mm

× 80mm

Source voltage

5V ±5% and

24V ±5%

5V ±5%

Custom control chip

—

202LA-00

202PC-

202LA-00

—

202LA-00

—

202LA-00

Gate

array

BD1-3000

CBM-909

DP-320/330

MD-911

Parallel and

RS-232C,

USB

Parallel and

serial

DP-320: 30 DP-330: 42

MD-911: 40

7 x 9

MD-911:4×7 (including half dot)

ESC/ POS

Unique

Flash

—

memory

Masked

—

CPU

40 bytes

1 line

Auto cutter

Auto winder

Paper end sensor

4K/

Paper near end sensor

LED's

(Power/Error/On-line)

Switches(LF/On-line)

LF switch

On-line switch

132 x 126mm

80×55.5mm

*ESC/POS is a trademark of Seiko Epson Corporation.

Control Chip / Gate Array

Control Chip Gate Array

Model 202PC-04

LT-286

909PC-4DU

MD-911

Model

Printer mechanism

5V±5% and

24V±5%

+0.7/–1.0V

—

909PC-

202LA-00

LT-seriesPrinter mechanism

—

Cutters

Accessories / Options

Model

AC-120

AC-130

ACS-220

ACS-230

ACS-240

AC-2

Cutting

Method

Guillotine

Slide

cutting

Slide

cutting

Slide

cutting

Guillotine

Paper width

thickness

38 — 69mm

0.06—0.09mm

50 — 89mm

0.06—0.09mm

45 — 69mm

0.06—0.15mm

50 — 89mm

0.06—0.15mm

55 — 115mm

0.06—0.13mm

76 ±0.5mm

0.06—0.085mm

Max. cutting

frequency

20cuts/min

20cuts/min 24V

24V

Voltage

±10%

Current

Operating

(peak)

temperature

0.8A

0 — 45˚C

0.8A 0 — 45˚C

0.8A 0 — 40˚C

Size

80×57×15mm

102×57×15mm

80×55.7×15mm

102×55.7×15mm

130×55.7×15mm

99×74×30mm

Weight

Reliability

130g

300,000cuts

160g 300,000cuts

140g 500,000cuts

180g 500,000cuts

220g 300,000cuts

200g 300,000cuts

Number of tab left (F)ull cut blade type (P)article cut blade type

None or 1 tab

2 or 3 tabs

None or 1 tab

2 or 3 tabs

None

None or 1 tab

None

None or 1 tab

None

None or 1 tab

2 or 3 tabs

(cutter model name with mounting

bracket and paper guide)

CT1220/2220(AC-125)

LT-286 (ACS-224) 5V

CT1220/2220(AC-225)

MLT-288 (ACS-228) 5V

DP-420 (ACS-234) DP-430 (ACS-234)

CT1320/2320(ACS-235)

MLT-388 (ACS-238) 5V DP-320/330 (ACS-236)

Applicable mechanism

LT2220(AC-125)

DP-6XX(AC-134)

LT2320 (AC-135)

LT-281 (ACS-229)

LT481 (ACS-249)

DP-6XX (AC-2)

AC-3

AC-4

AC-5

AC-6

Guillotine

76 ±0.5mm

0.06—0.085mm

49.5 ±0.5mm

0.063mm

59.5 ±0.5mm

0.065mm

111.5 ± 0.5mm

0.065mm

20cuts/min 12V

6cuts/min 24V

±10%

1.2A 0 — 40˚C

1.3A 5 — 40˚C

1A 5 — 40˚C

93×74×25mm

60×55×23mm

70×55×31.7mm

130×55×21.5mm

200g 300,000cuts

260g 300,000cuts

160g 300,000cuts

260g 300,000cuts

None or 1 tab

2 or 3 tabs

None or 1 tab

several tabs

None or 1 tab

several tabs

None or 1 tab

several tabs

Ribbons Winders

Model

RB / BL/ P

Mini printers

Printer mechanism

DP-555/575 DP-320/330 DP-420/430 DP-6XX

IR-01

–

IR-31

RB / B/ P

CD-S500/501/503

RB / B/ P

iDP3420/3421/3423

IR-41

IR-61

RB/B/P

iDP3550/ 3551

IR-71P

–

DP-730

IR-82P

CBM-820

–

IR-91 P/ B

(ling life)

IR-91 L

CBM-910/920 MD-910/911

Model

Printer mechanism

DP-5XX (AC-3)

LT-483 (AC-4)

LT-281 (AC-5)

LT-481 (AC-6)

NW-58 NW-69

DP-555/575

AW-5

MD-910/911

Accessories / Options

Accessory Reference Table

Line Thermal Printer Mechanisms

Model

Ribbon IR-01RB/B/P

IR-31RB/B/P IR-41RB/B/P IR-61RB/B/P IR-61B/P IR-71P IR-82P IR-91B/P

Cutter AC-12X

AC-13X AC-22X ACS-22X(5V) ACS-23X ACS-23X(5V) ACS-24X AC-2 AC-3 AC-4 AC-5 AC-6

Winder NW-58

NW-69 PW-2 AW-2 AW-2FA AW-3 AW-4 AW-5

LT-286 MLT-288 MLT-388 LT2220

ACS-224 ACS-228

ACS-228

LT2320 LT2221 LT2321 LT-281 LT-481 LT-483

ACS-229

ACS-228

ACS-249

●

Impact Dot Matrix Printer Mechanisms

Model

Ribbon IR-01RB/B/P

IR-31RB/B/P IR-41RB/B/P IR-61RB/B/P IR-61B/P IR-71P IR-82P IR-91B/P

Cutter AC-12X

AC-13X ACS-22X ACS-22X(5V) ACS-23X ACS-23X(5V) ASC-24X AC-2 AC-3 AC-4 AC-5 AC-6

Winder NW-58

NW-69 PW-2 AW-2 AW-2FA AW-3 AW-4 AW-5

MD-910 MD-911

●

DP-320 DP-330

●

ACS-236

DP-420 DP-430

●

ACS-234

●

DP-555 DP-575

●

DP-61X

●

AC-134

●

DP-65X

●

AC-134

●

DP-62X

●

AC-134

●

DP-630

●

DP-730

●

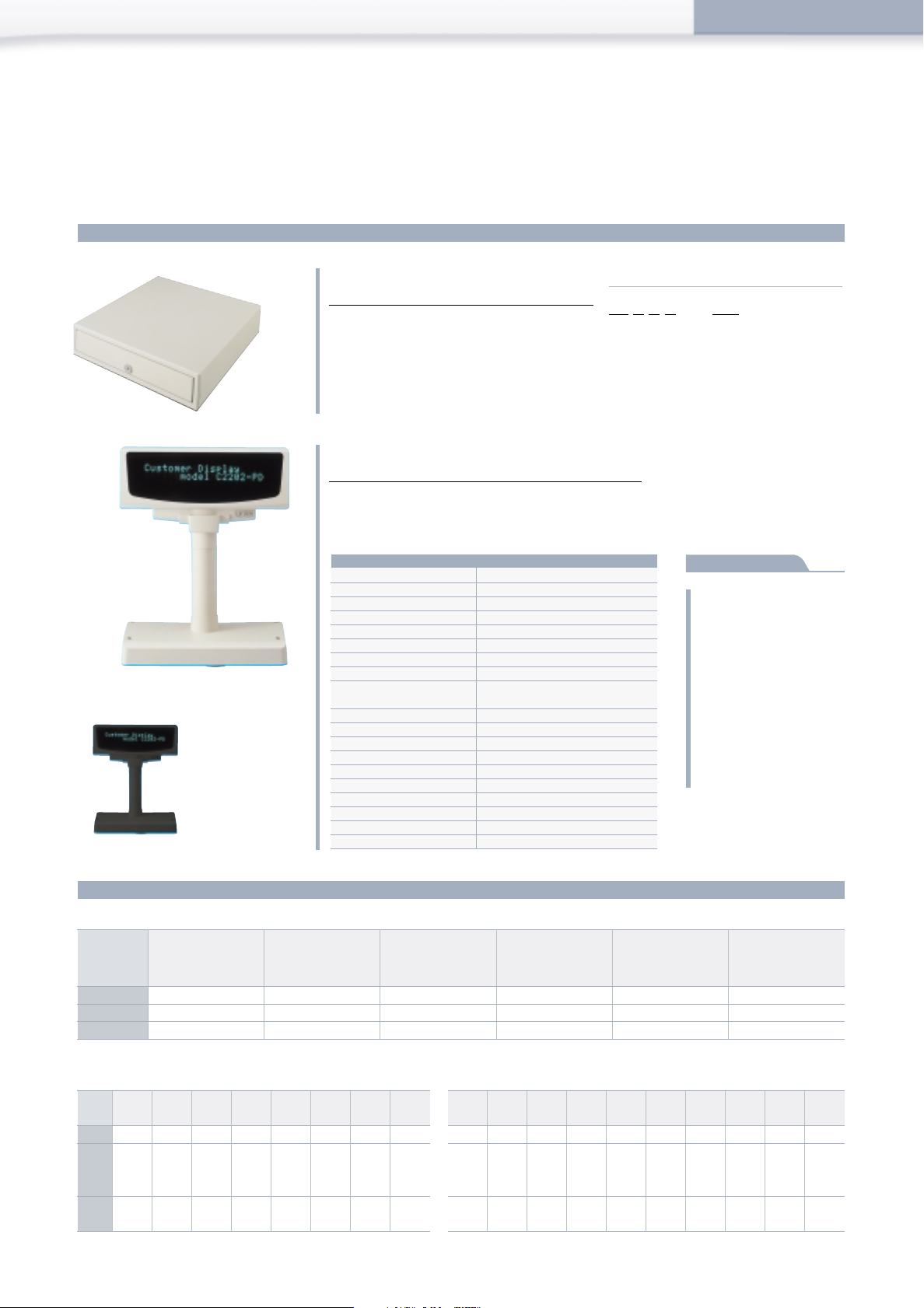

Peripherals

Accessories / Options

Available in black

Cash Drawers

Model Classification

■ 8 coin drawer

420(W)

■ 5 coin drawer

420(W)

450(D) ×98(H) mm

420(D) ×98(H) mm

23 8 5 E-DR-MS

(1) (2)(3)(4) (5)

(1) Connector

23 - Modalar (RJ-11)

(2) Number of coins

8 or 5

(3) Number of bills

5 or 4

Customer Display

■ 8 coin drawer

420(W)

■ 5 coin drawer

450(D) ×98(H) mm

420(W)

420(D) ×98(H) mm

Specifications

MODEL C2202-PD

Display method Vacuum fluorescent display Display color Blue green Number of character 20 columns x 2 lines Brightness 700 cd/m2 Character font 5 x 7 dot matrix, comma, decimal point Character size 9.2 x 5.25 mm Character pitch 8.3 mm Code page PC-437 / 850 / 860 / 863 / 865, Slavonic,

Emulation CBM standard, ESC/POS Interface RS-232C (with path through function) Power supply 12V DC Power consumption 4.5 W MTBF 25,000 hours Dimensions 230(W) x 100(H) x 42(D) mm Viewing angle ±30 degrees Rotation angle Maximum 270 degrees Weight 0.9 kg Safety FCC class B, CE

Russian, Katakana

(4) Key option

E : 3 position key None : 2 position key

(5) Microswitch option

MS: Microswitch equipped None : No microswitch

Included items

Display unit

•

AC adapter

•

Base unit

•

AC cable

•

Short pole

•

Long pole

•

Interface cable

•

(DB25 female - DB9 male)

User’s manual

•

Accessory Reference Table

Complete Printers

CT-S300

CT-S2000

Model

RIBBON

WINDER

DRAWER

CBM1000 TypeⅡ

CT-S2000

CBM-262 TypeⅡ

– –

23XXDR

Printer Mechanisms

Impact Dot Matrix

DP-320

Model

RIBBON

CUTTER

WINDER

MD-910 MD-911

IR-91B/P

–

AW-5

DP-330

IR-31RB/B/P

ACS-234

–

AW-2FA

DP-420

DP-555

DP-430

DP-575

IR-41RB/B/P

IR-01RB/B/P

ACS-236

NW-58

NW-69

AC-3

CD-S500 CD-S501 CD-S503

IR-31RB/B/P

●

(CD-S503) 23XXDR

DP-614

IR-61RB/B/P AC-134

ACS-236

AC-2

AW-2FA

DP-62X

IR-61RB/B/P

AC-134

AW-2FA

DP-630

DP-730

IR-61RB/B/P

IR-71P

–

AW-2

iDP3550

iDP3551

IR-61RB/B/P

AW-3

23XXDR

iDP3420 iDP3421 iDP3423

IR-41RB/B/P

●

(iDP3423) 23XXDR

CBM-910 TypeⅡ

CBM-920

IR-91B/P

– –

CBM-820

IR-82P

–

23XXDR

Line Thermal

CT1220

CT1221

CT1320

LT-286

MLT-288

MLT-289

LT2220

LT2221

–

AC-5 AC-7

ACS-224

ACS-228

––

–

ACS-225

–

LT2320

–

ACS-235

–

CT1321 LT2321

–

LT-481

–

ACS-249

–

LT-281

–

ACS-229

AC-5

LT-483

–

AW-4

Printed on 100% recycled paper

Citizen Mini Printer User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
