Please read this guide first!

Dear Customer,

We hope that your product which has been manufactured in modern facilities and passed through a strict quality control procedure will give you the best results.

Therefore, we advise you to read through this document carefully before using your product and keep it for future reference.

This guide will…

…help you use your washer in a fast and safe way.

•Please read the guide before installing and starting your washer.

•Particularly follow the instructions related to safety.

•Keep this guide within easy reach. You may need it in the future.

•Please read all additional documents supplied with this washer.

Please note that this owner’s guide & installation instructions may be applicable for several other models. Differences between models will be identified in the guide.

This product was manufactured using the latest technology in environmentally friendly conditions.

2 / English	Front-Loading Automatic Washer

Explanation of symbols

Throughout this guide the following symbols are used:

C CAUTION

• Important information or useful hints about usage.

AWARNING

• Warning for hazardous situations with regard to life and property.

BWARNING

• Warning for electrical shock

Please contact your authorized Beko dealer or visit www.beko.us to locate and get information for the closest authorized Beko service center

Please fill in the information below for future reference.

Model no.:

Serial no.:

Purchase date:

	Owner’s Guide & Installation Instructions	3 / English

TABLE OF CONTENTS

1 Your Washer							6
	Overview . . . . . . . . . . . . . . . . . . . . . . .		.	.	.	.	. 6
	Specifications . . . . . . . . . . . . . . . . . . . .	.	.	.	.	.	. 7
2	Important Safety Instructions						8
3	Installation Instructions						13

The Right Location of Installation . . . . . . . . . . . . . . . . . . 13 Installation Clearances . . . . . . . . . . . . . . . . . . . . . . 14 Allowable Clearances for Undercounter Installation . . . . . . . . . . . 15 Allowable Clearances for Closet Installation . . . . . . . . . . . . . . 16 Stacked Installation . . . . . . . . . . . . . . . . . . . . . . . 16 Removing packaging reinforcement . . . . . . . . . . . . . . . . . 16 Removing shipping bolts . . . . . . . . . . . . . . . . . . . . . 17 Leveling the washer . . . . . . . . . . . . . . . . . . . . . . . 18 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . 18 Power supply and circuit . . . . . . . . . . . . . . . . . . . . . 20 Water Supply Connection . . . . . . . . . . . . . . . . . . . . . 21 Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . 24 Transportation . . . . . . . . . . . . . . . . . . . . . . . . . 24 Disposal Information . . . . . . . . . . . . . . . . . . . . . . . 25 Appliance Disposal . . . . . . . . . . . . . . . . . . . . . . . 25

4 Operating Instructions	26
First Use . . . . . . . . . . . . . . . . . . . . . .	. . . . . 26
Laundry Tips . . . . . . . . . . . . . . . . . . . . .	. . . . . 27

Preparing the laundry . . . . . . . . . . . . . . . . . . . . . . 28 Loading the washer . . . . . . . . . . . . . . . . . . . . . . . 29 Detergent Use . . . . . . . . . . . . . . . . . . . . . . . . . 30 Detergent Quantity . . . . . . . . . . . . . . . . . . . . . . . 31

Detergent Dispenser . . . . . . .	. . . . . . . . . . .	. . . . . 32
(II) Main Wash Detergent Compartment	. . . . . . . . . .	. . . . . 33
Liquid Fabric Softener Compartment .	. . . . . . . . . .	. . . . . 34
Using liquid detergents . . . . . .	. . . . . . . . . . .	. . . . . 34
(I) Liquid Chlorine Bleach Compartment	. . . . . . . . . .	. . . . . 35
Water Consumption . . . . . . . .	. . . . . . . . . .	. . . . . 35

4 / English	Front-Loading Automatic Washer

TABLE OF CONTENTS

5 Selecting a Program and Operating Your Washer

36

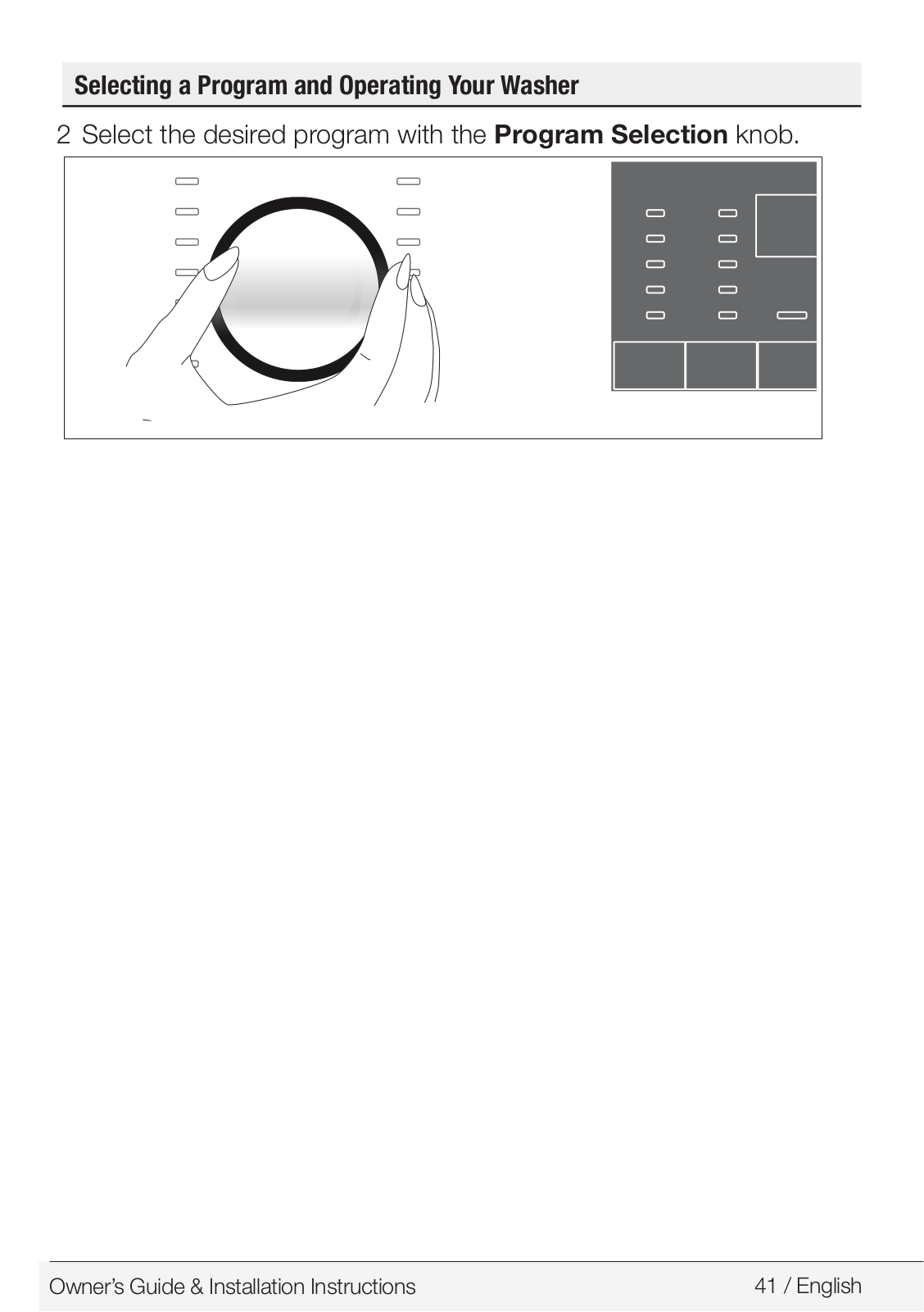

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Program selection . . . . . . . . . . . . . . . . . . . . . . . . 40

Program and consumption table . . . . . . .	. . . . .	. . . . .	.	42
Temperature selection . . . . . . . . . . .	. . . . .	. . . . .	.	45
Spin speed selection . . . . . . . . . . . .	. . . . . . . . . . . 46
Rinse Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Auxiliary function selection . . . . . . . . . .	. . . . .	. . . .	.	. 47

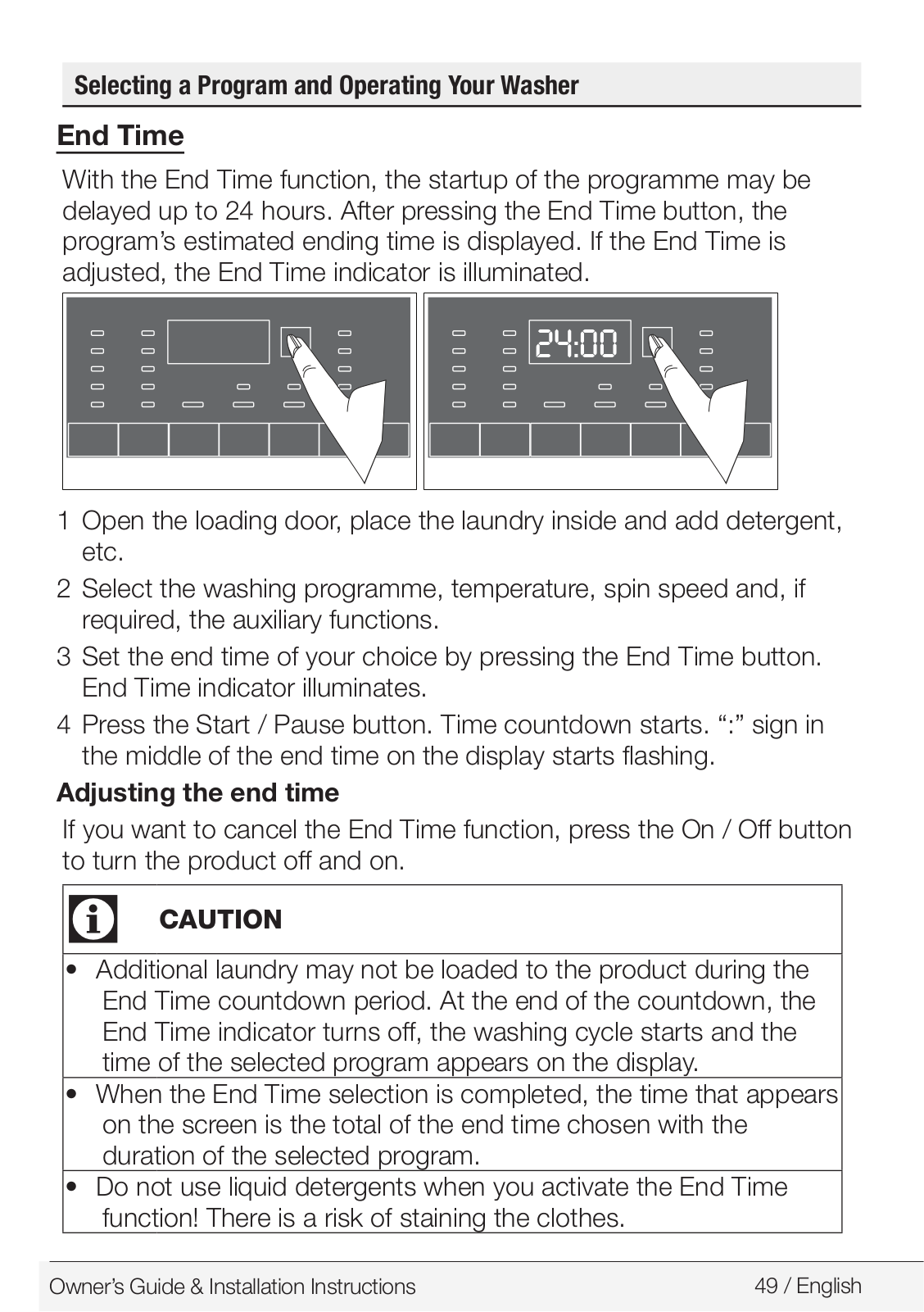

End Time . . . . . . . . . . . . . . . .	. . . . .	. . . . .	.	49
Changing the selections after program has started	. . . . .	. . . . .	.	50
Child Lock . . . . . . . . . . . . . . . .	. . . . .	. . . .	.	. 51

6 Preparation	52

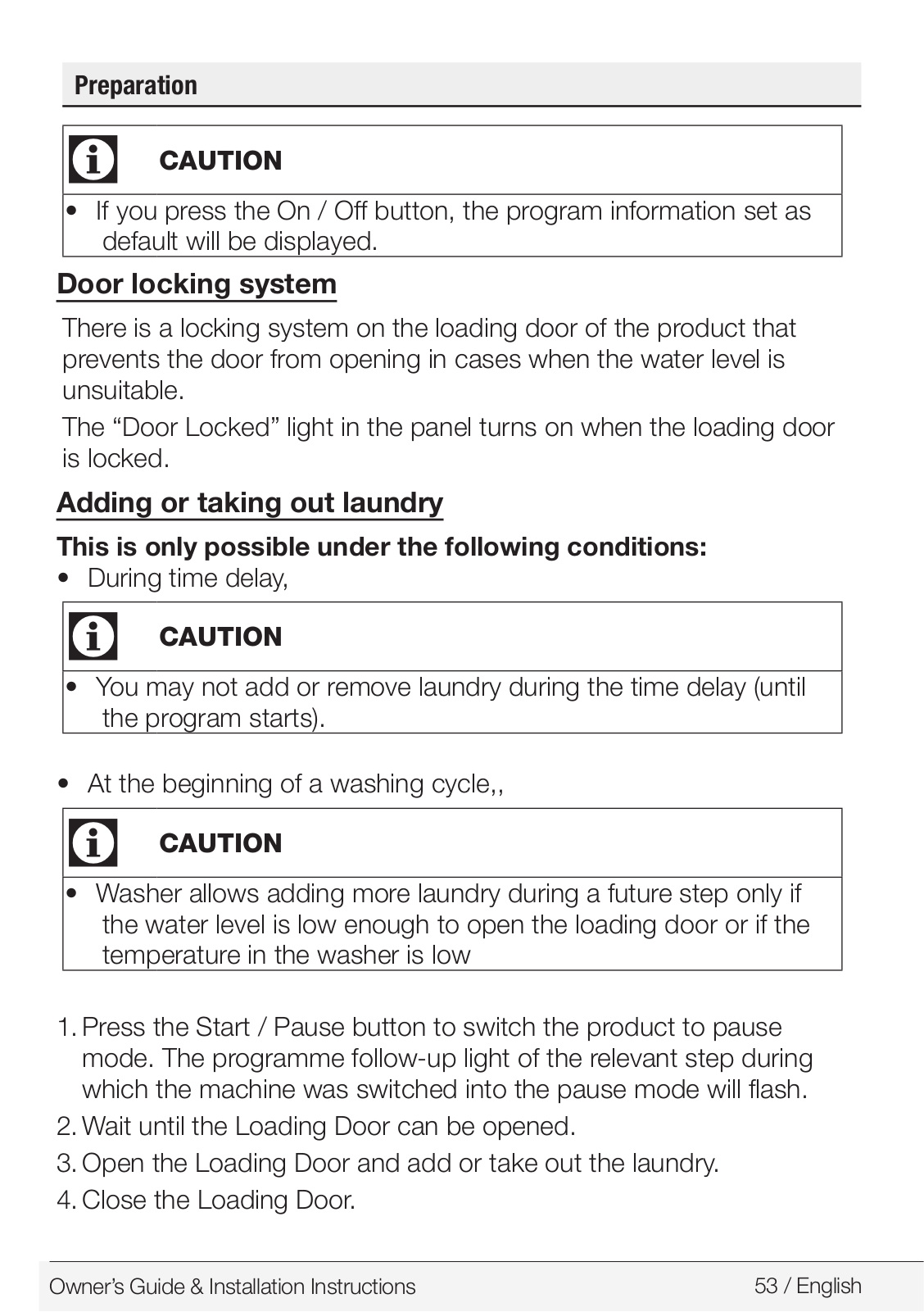

Starting the program . . . . . . . . . . . . . . .	. . . . . . . . 52

Door locking system . . . . . . . . . . . . . . . . . . . . . . . 53

Adding or taking out laundry . . . . . . . . . . . . . .	. . . .	.	. 53
Cancelling the program . . . . . . . . . . . . . . . .	. . . .	.	. 54
Re-spinning the laundry . . . . . . . . . . . . . . . .	. . . .	.	. 54
End of program . . . . . . . . . . . . . . . . . . .	. . . .	.	. 55
Energy saving mode . . . . . . . . . . . . . . . . .	. . . .	.	. 55

7 User maintenance instructions

56

Cleaning detergent dispenser . . . . . . . . . . . . . . . . . . . 56

Cleaning the door seal . . . . . . . . . . . . . . . . . . . . .	. 57
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . .	57
Cleaning the outer cabinet and control panel . . . . . . . . . . . . .	. 58
Cleaning the water inlet strainers . . . . . . . . . . . . . . . . . .	58
Cleaning the drain pump filter . . . . . . . . . . . . . . . . . . .	59
Descaling the washer . . . . . . . . . . . . . . . . . . . . . .	61

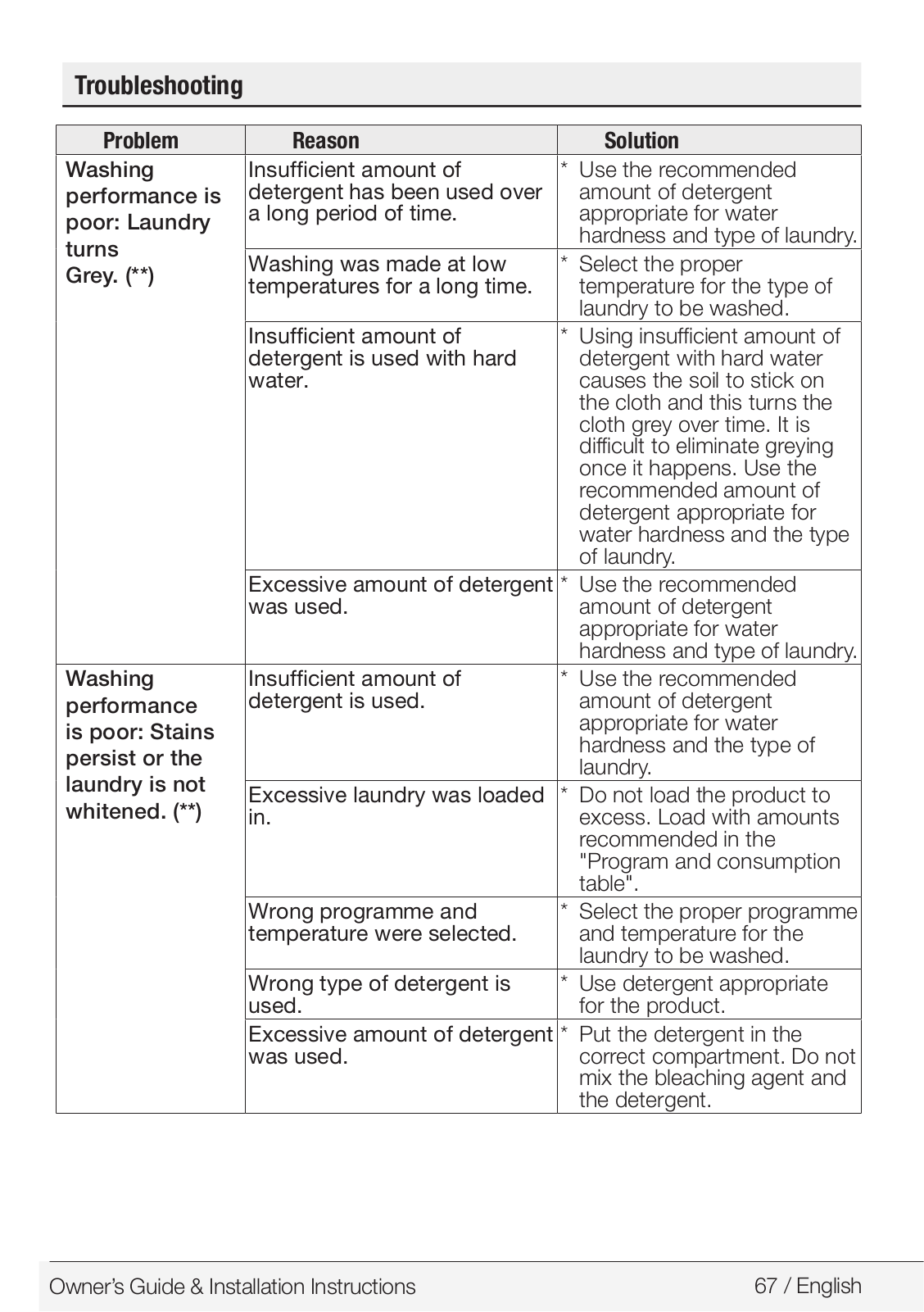

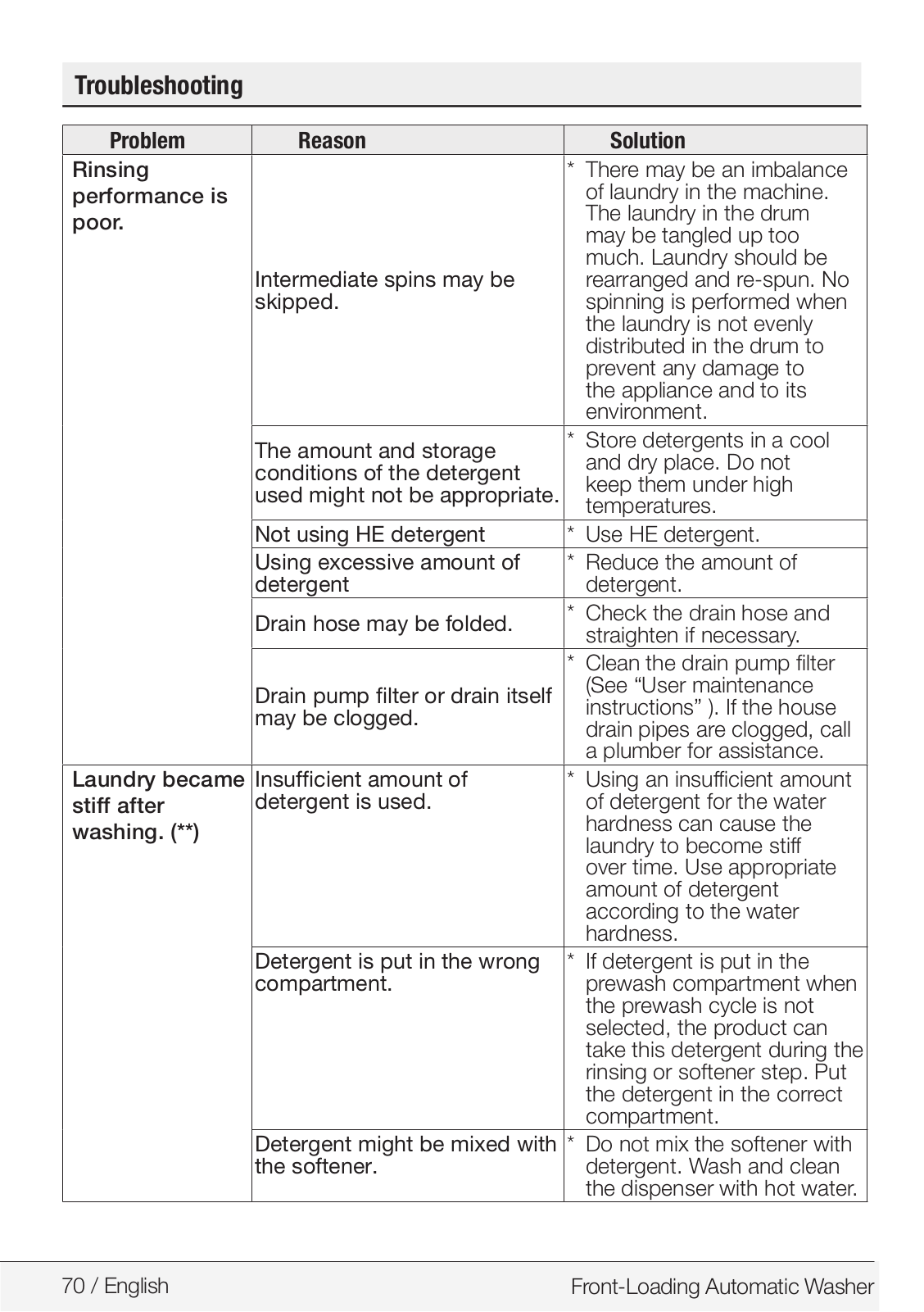

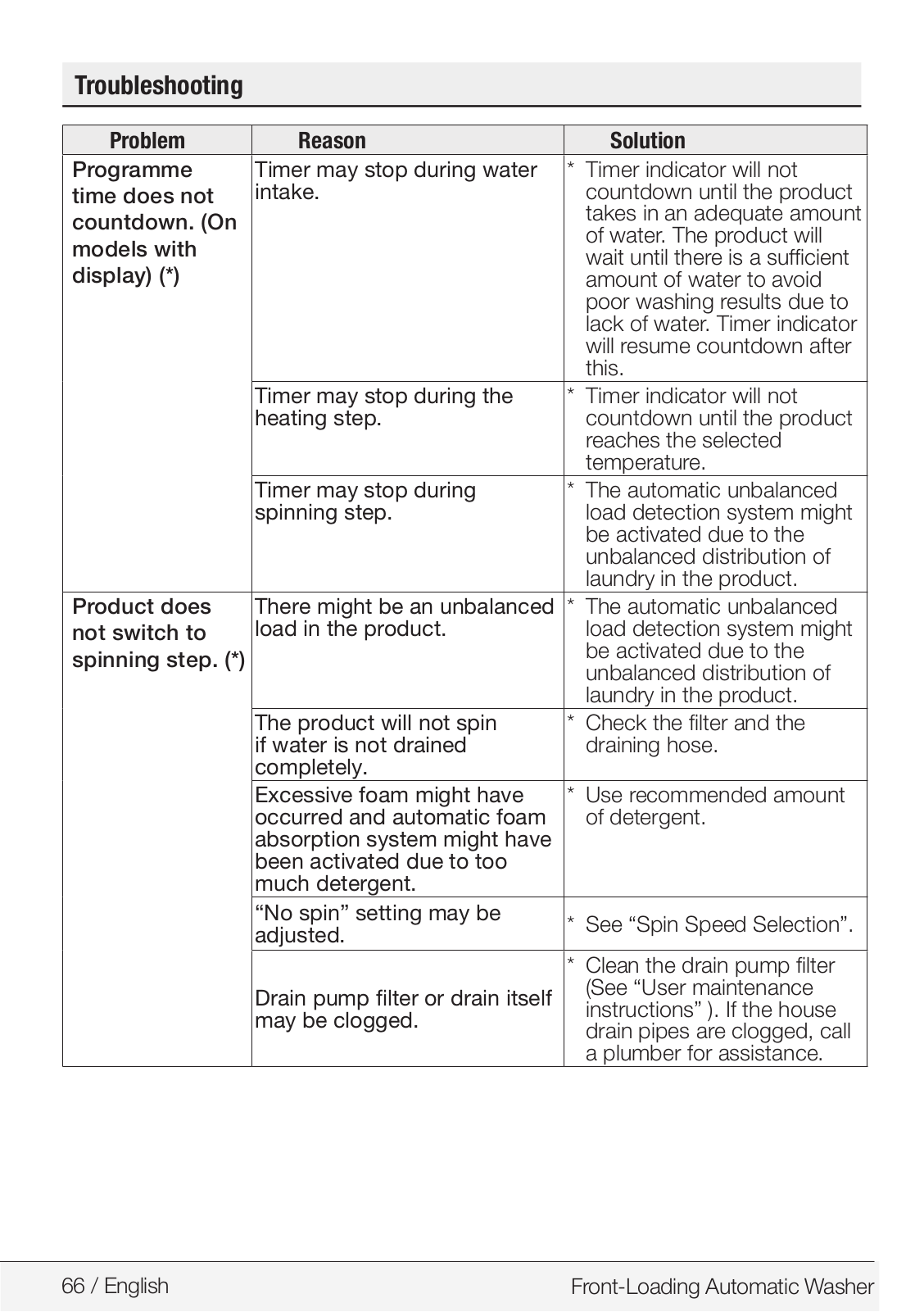

8 Troubleshooting	62
9 WARRANTY STATEMENT FOR THE BEKO CLOTHES WASHERS	75
10 HOW TO GET SERVICE	76

	Owner’s Guide & Installation Instructions	5 / English

1 Your Washer

Overview

1

2 8 3 4

5

6

7

1- Power cable

2- Top panel

3- Control panel

4- Drain hose

5- Loading door

6- Filter cap

7- Adjustable feet

8- Detergent drawer

6 / English	Front-Loading Automatic Washer

Your Washer

Specifications

	Front Loading Automatic Washer
Models	WMY 10148 C0 - WMY 10148 W0
Height (in) / (cm)	33.1	/ 84
Width (in) / (cm)	23.6	/ 60
Depth (in) / (cm)	24.6 / 62,5
Net Weight (lbs) / (kg)	167.6 / 76
Electricity (V/Hz.)	208-240 / 60
Total Current (A)	10
Total Power (W)	2000-2350
Spinning cycle (rpm max.)	1400
Water pressure (psi) / (bar)	(15-145) / (1-10)
Drain height (ft.) / (m.)	4.9 / 1.5
Wash capacity (cu. Ft.)	2.5
Dry Load Capacity (lbs)/(kg)	22.26	/ 10.1

Specifications of this appliance may change without notice to improve the quality of the product. Figures in this guide are schematic and may not match your product exactly.

Values stated on the washer labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the appliance, these values may vary.

	Owner’s Guide & Installation Instructions	7 / English

2 Important Safety Instructions

BWARNING

•To reduce the risk of fire, electric shock or injury to persons while using your appliance follow basic safety precautions, including the following:

•Read all instructions before using the washer.

•Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents,

or other flammable or explosive substances (acetone, alcohol, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes and wax removers) as they give off vapors that could ignite or explode.

•Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

•Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more.

HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame this time.

•Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

•Before the appliance is removed from service or discarded, remove the door and the power cord / main plug to prevent accidents.

•Do not reach into the appliance if the drum is moving. Wait until the drum has completely stopped before opening the door.

•Do not install or store this appliance where it will be exposed to the weather and direct sunlight.

•Do not tamper with controls.

8 / English	Front-Loading Automatic Washer

Important Safety Instructions

•Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

•This appliance must only be used for the purpose of washing, rinsing and spinning machine-washable items using laundry additives that are suitable for use in washers . The appliance manufacturer cannot be held responsible for damage caused by improper or unintended use of the appliance.

•Only detergents, softeners and additives suitable for use in

HE (High-efficiency) washers may be used. Always follow the instructions and information given by the laundry detergent manufacturers when using these products.

•Always follow the fabric care instructions of garment manufacturers.

•Do not touch the door glass while washing at high temperatures.

Danger of burning!

•Do not sit on top of the washer.

•Do not climb onto the washer.

•Destroy the shipping carton, plastic bag and other packing materials after the washer is unpacked. Keep children away from these packing materials. Danger of suffocation from plastic sheets and cartons!

•Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover when washing. This mixture can produce hazardous fume which may cause death.

•Do not operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

	Owner’s Guide & Installation Instructions	9 / English

Important Safety Instructions

•Store laundry detergents and additives in a cool, dry place out of children’s reach due to danger of chemical poisoning and skin

irritation. Follow the manufacturers’ instructions when using laundry products.

•Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in following cycles and may lead to skin irritation.

•Do not wash items stained with vegetable oil, cooking oil or petroleum. These items may contain some flammable oils after laundering and the fabric may smoke or catch fire by itself.

•Be sure to unplug the power cable before attempting maintenance or cleaning of your appliance to minimize the risk of electric shock. Always unplug the cable by grasping the plug, not the cord.

•Do not use wet hands when plugging/unplugging the power cable.

•Check the water inlet and drain hose connections regularly for any leakage. Hoses should be replaced every 5 years.

•Do not leave the washer door open to prevent children hurt themselves by hanging on the door or going inside the drum.

•Be careful when the appliance is draining hot water. Danger of burning!

•At the end of a washing day, turn off the water faucets to prevent any leakage that may occur due to a faulty condition of the appliance.

•Check the appliance and inlet hose connections for water leakage after each use. If there is leakage, turn off the appliance and water faucets and call service.

•Do not machine wash items having large or heavy metal parts such as buttons or buckles. These items could severely damage the appliance.

•Always be sure to empty all foreign materials from the pockets of your clothing as small items such as coins, pins etc. could severely damage the appliance.

•Do not install and operate the appliance in places exposed to temperatures below freezing. Frozen water may cause severe damage by bursting hoses and pump.

10 / English	Front-Loading Automatic Washer

Important Safety Instructions

•Make sure that shipping bolts are removed before you operate the washer. If service is required as a result of not removing the bolts, it will not be covered by the warranty.

•Make sure that the wash drum is empty before you load the washer.

•Do not store and use any flammable and combustible substances such as lint, paper and chemicals near the appliance.

•Always follow the manufacturer’s instructions when you are using a descaling agent. Be sure that descaling agent contains rustprotective materials and rinse the washer a few times thoroughly after the descaling process (See, Descaling the washer).

•Install and operate the washer on a solid floor to prevent vibration or movement. It is not recommended to install and operate the washer on wooden floor or on a carpet.

•The rated voltage of your washer is 208/240V, so it should not be directly connected to the wall power of 110/120V. A special junction box will be provided and used for the wall power connection

(See, Installation Instructions for Grounding Instructions and

Requirements).

•If an abnormal sound is heard during the washer operation, refer to the “Troubleshooting” of this guide.

•Call service for checking any possible damage or fault if the appliance is dropped or bumped.

•The end of drain hose should not contact the discharge water in any way as this might cause siphoning of water.

•Always leave the property after checking that the wash cycle is completed and the washer is turned off.

•Damaged or worn power cords and plugs must only be replaced by a Beko Service technician.

•Never use an extension cord or adapter to connect the appliance to the electrical power due to the risk of electric shock and/or fire.

•All broken and faulty components, panels and parts must only be replaced with original Beko spare parts by a Beko Service technician.

•Do not force the washer door open when it is locked. The door

	Owner’s Guide & Installation Instructions	11 / English

Important Safety Instructions

must be closed any time during the program cycle.

•Do not use fabric softeners or products to reduce static unless recommended by the manufacturers of the fabric softener product.

•Check the drain pump filter occasionally to remove coins, buttons and such small objects.

•Always drain off the water completely before cleaning the pump filter, before transporting the washer, when there is a danger of frost and when there is a power failure (For emergency draining, See User maintenance instructions).

•Always be sure that the washer has been properly installed by licensed personnel, water and electrical connections and grounding conform to all relevant codes and requirements.

•This manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating, and maintaining any appliance.

AWARNING

•This product may ccontain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

Always follow the instructions on this user guide. If you aren’t sure how to perform them, please call Customer Service for assistance and scheduling service.

12 / English	Front-Loading Automatic Washer

3 Installation Instructions

Read this first !

This washer can be individually installed in free-standing and built-in installations. You can also install your washer with your dryer as a free-standing or built-in pair. Before you install your appliance, read the following instructions completely and carefully:

•Save these instructions for future reference.

•This appliance must be properly installed and grounded by qualified and skilled technicians in accordance with all local codes and ordinances and the latest edition of the National Electrical Code,

ANSI/NFPA 70.

•Proper installation of this appliance is the responsibility of the owner and failure due to improper installation is not covered by the warranty.

The Right Location of Installation

You can install your washer in a basement, closet or in a laundry room if the location has proper drainage, plumbing and power supply system. Always follow these instructions for installation:

•Do not install or store this appliance where it will be exposed to the weather, rain, damp places, water and direct sunlight. The ambient temperature must be higher than 60°F (15.6°C) for proper operation. Installation location must have the proper ventilation.

•Do not store and use any flammable and combustible substances such as lint, paper, curtains, gasoline, coal and liquid or vapor chemicals near the appliance.

•Install and operate the washer on a strong solid concrete floor to prevent vibration, noise or movement in case of load unbalance. The floor must have sufficient load carrying capacity and the washer must be leveled properly before the operation.

•It is not recommended to install and operate the washer on a wooden floor or soft floor. If you have to install your washer on a wooden or frame construction floor, the floor must be reinforced properly and the washer must be located in the corner of the room if possible.

	Owner’s Guide & Installation Instructions	13 / English

Installation Instructions

•Never place your washer on a carpet. This prevents air circulation.

The electrical components of the machine may overheat and cause damage.

•Do not stand appliance on the power cable.

•Do not install and operate your washer in ambient temperatures lower than 32˚F (0˚C). Controls may stop working properly in such condition.

•If there is danger of frost, drain all remaining water in pump and hoses since it may freeze and cause damage by bursting them (see “Cleaning the drain pump filter”).

Installation Clearances

C CAUTION

•The installation location must be large enough for the washer door to be fully opened for loading.

•The installation location must be large enough for ease of operation, maintenance and service.

•Ensure there is min 1/2” of clearance on each side of the washer to allow slight sideways movement during washing and spin drying.

14 / English	Front-Loading Automatic Washer

Installation Instructions

Allowable Clearances for Undercounter Installation

The dimensions are for the recommended spacing. Counter depth should be 23.5-24.5”(60-62 cm).

Custom undercounter installation – Washer only

Minimum counter width should be 50” (127 cm) for a pair of Beko washer & dryer.

Custom undercounter installation – Washer & Dryer

50Ó (127 cm)

	Owner’s Guide & Installation Instructions	15 / English

Installation Instructions

Allowable Clearances for Closet Installation

When installed in closet (washer only/washer dryer stacked) : Sides, Rear, Front 1/2 in. (1.27 cm), Top= 1 in. (2.54 cm)

Closet door ventilation requirement: A louver having minimum 23 in2 (148 cm2) air opening located at 3 in (7.62 cm) from the bottom of closet door.

Stacked Installation

You can stack your Beko washer and dryer (model no.: DHP 24412 W / DHP 24400 W) by using a special stacking kit (Part

No.2985300200). If necessary, consult your dealer or technical service for supplying the stack kit. In stacked closet installation, following configuration is necessary:

A louver having minimum 23 in2 (148 cm2) air opening located at 3 in (7.62 cm) height from the bottom of closet door (for washer) & A louver of minimum 46 in2 (297 cm2) air opening located at 3 in (7.62 cm) distance from the top of closet door (for dryer).

Removing packaging reinforcement

Tilt the washer to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.

16 / English	Front-Loading Automatic Washer

Installation Instructions

Removing shipping bolts

BWARNING

•Shipping bolts must be removed before operating the washer! Otherwise, the appliance will be damaged seriously!

1.Loosen all the bolts with a spanner wrench until they rotate freely (“C”)

2.Remove the shipping bolts by turning them gently.

3.Bolt hole covers (supplied in the bag with the owner’s guide) are fitted into the holes on the rear panel with a special lock mechanism. To fit the cover, first insert it into the hole and then rotate it counterclockwise with a screwdriver until it is locked. To unlock, apply the procedure in reverse.

C CAUTION

•Keep the shipping bolts in a safe place to reuse when the clothes washer needs to be moved again in the future.

•Never move the appliance without shipping bolts properly fixed in place!

	Owner’s Guide & Installation Instructions	17 / English

Installation Instructions

Leveling the washer

BWARNING

•Do not use any tools to loosen the lock nuts. Otherwise, they can be damaged.

1.Manually (by hand) loosen the lock nuts on the feet. 2.Adjust them until the washer stands level and firmly. 3.Important: Tighten all lock nuts up again.

Electrical Connection

Grounding Instructions

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances and the latest edition of the National

Electrical Code, ANSI/NFPA 70.

BWARNING

•Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

•Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

18 / English	Front-Loading Automatic Washer

Installation Instructions

BWARNING

•Be sure that the power cord is always accessible by the user after the appliance is installed.

•Never use an extension cord or adapter to connect the appliance to the electrical power due to the risk of electric shock and/or fire.

•It is the personal responsibility and obligation of the appliance owner to provide a proper and grounded outlet installed by a qualified electrician.

•Never use a damaged power cord since there is a risk of electric shock and/or fire.

•The damaged power cord must be replaced by a qualified electrician as soon as possible.

•Do not use wet hands when plugging/unplugging the power cable.

•Electrical supply voltage must conform to the voltage specifications (208-240V, 60Hz) located on the appliance. For this purpose, a junction box (as seen in picture below) must be obtained. Junction box is supplied with Beko Clothes Dryer

(model no.: DHP 24412 W / DHP 24401 W) and it works as a voltage converter from 110/120V to 208/240V between the wall power and appliance.

•Only one appliance must be connected to a properly grounded individual branch circuit outlet.

•Be sure to unplug the power cable before attempting maintenance or cleaning of your appliance to minimize the risk of electric shock. Always unplug the cable by grasping the plug, not the cord.

•Do not use wet hands when plugging/unplugging the power cable.

Owner’s Guide & Installation Instructions

19 / English

Installation Instructions

Power supply and circuit

Connect the clothes washer to the junction box supplied. Junction box must be connected to an earthed outlet protected by a fuse of suitable capacity.

Important:

•Wall power connection should comply with national regulations.

•The voltage and maximum total current are specified in the section

“Specifications”.

•The appliance must not be directly connected to the wall power in case of absence of junction box.

•Connection via extension cords or multi-plugs should not be made.

BWARNING

•A damaged power cable must be replaced by a qualified electrician.

•The appliance must not be operated unless it is repaired! There is the risk of electric shock!

15 Amp. Fuse or circuit breaker, 208-240 volt, 60 Hz, grounded, alternating current

Properly grounded 3-prong receptacle and junction box to be located so the power supply cords are accessible when the washer is in installed position.

20 / English	Front-Loading Automatic Washer

Installation Instructions

Water Supply Connection

Your washer comes with both cold and hot water connections.

Connect the blue marked cold water supply hose to the cold water inlet valve/faucet and the red marked hot water intake hose to the hot water inlet valve/faucet. Screw the connecting bolts by hand and tighten the connection properly using a plier. Over tightening may cause damage on bolted connection.

BWARNING

•Be sure that the water connection of this washer is handled by a qualified service technician or a plumber.

The washer has two bolted ½’’ water supply hoses and ¾’’ female hose connections that can be connected to ¾’’ hot and cold water faucets.

BWARNING

•Be sure that there are rubber seals located on the hose connections. These seals and adjustable bolts ensure a safe connection without leaking. After the water connection is done, turn on both water faucets slowly and completely to check any water leaks.

•Be sure that water supply hoses are not crushed and they have no kinking, bulges or cuts before the water connection.

Owner’s Guide & Installation Instructions

21 / English

Installation Instructions

The water pressure must be between 15-145 psi (1-10 bar) for the proper operation of this washer. 1 bar corresponds to more than 2.1 gallons (8 liters) per minute flow rate with a fully open faucet. Water inlet hoses and valves should withstand a water pressure of 145

psi (10 bar) at maximum. If the pressure is higher than 145 psi, a pressure-reducing valve must be installed before the water inlet. If the water pressure is lower than 15 psi (1 bar), water fill time may extend or water inlet valve may shut off completely.

•Hot water supply temperature must not exceed 140˚F (60˚C). (Ideally

120˚F (48˚C))

•Do not connect the washer to an unpressurized water boiler since water pressure may not be adequate for proper operation.

•Do not remove the filters located on the water supply hoses (on faucet/hose and hose/inlet valve connections).

•Always use genuine “Beko” water supply hoses when connecting with this washer. Old or worn-out hoses must not be reused. It is not advised to extend inlet or drain hoses, if necessary consult your dealer or technical service about hose extensions.

•Hot and cold water faucets must always be easily accessible to the user.

•At the end of a washing day, turn off water faucets to prevent any leakage or water damage that may occur due to a faulty condition of the appliance.

•Check the appliance and inlet hose connections for water leakage after each use. If there is leakage, turn off the appliance and water faucets and call service.

•Check the water inlet and drain hose connections regularly for any leakage. Hoses should be replaced every 5 years.

•If there is no hot water supply, hot water valve must be connected to a cold water faucet nevertheless. Both water valves should be connected to water supply for proper operation of your washer.

22 / English	Front-Loading Automatic Washer

Installation Instructions

Drainage

BWARNING

•Drain hose should not be bent. Be sure that there are no kinks or cuts on it.

•Drain hose outlet must not contact the drained water.

Drain hose may be connected into a sink, into the drain of a sink, to a standpipe and floor drain.

•When connecting into a sink, the drain hose should be placed at the edge of the sink and secured with the hose guide supplied by the manufacturer. Additionally, the guided hose may be tied to the water faucet with a strap for extra security.

•Drain hose may be connected into the drain of a sink . Be sure that the connection is safe and not leaking. An additional clip etc can be used for safe connection.

•Drain hose may also be connected to a minimum 1.26 in (32 mm) diameter stand pipe.

•Be sure to secure the drain hose tightly to the pipe (stand pipe, drain pipe/edge of the sink) with a strap etc.

•The hose should be placed between 16 and 39 in. (40 and 100 cm) from the floor level

•If you have floor drain system, you can place the drain hose in the hole located on the floor.

	Owner’s Guide & Installation Instructions	23 / English

Installation Instructions

Installation Checklist

•Water inlet hoses and accessory bags must be removed from the wash drum.

•Transportation/shipping bolts must be removed.

•Washer must be properly leveled by using the adjustable feet.

•Water inlet hoses are connected to the water faucets, secured and checked for any leaks by turning on both faucets.

•Drain installation is done properly and drain hose is checked and secured to prevent any flooding.

•Washer is connected the junction box which is plugged to a properly grounded live wall power outlet.

•Be sure that power outlet, water faucets and drain outlet must be always accessible to the user.

Transportation

Before you transport the washer, you should carry out the following:

1.Turn off both water faucets.

2.Before you disconnect the water inlet hoses, decrease the pressure inside hoses by turning on the washer choosing any wash program.

As soon as the Start/Pause/Cancel led starts blinking, turn off the appliance. You may securely disconnect inlet hoses without any water gush.

3.Disconnect the drain hose and hang it on the back plate by inserting into the holder plastic brackets.

4.Unplug the power cord and hang it on the back plate by inserting into the holder plastic brackets.

5.Remove bolt hole covers and reinstall shipping bolts to their places.

You can apply the procedure in chapter “Removing shipping bolts” in reverse to accomplish this.

6.Be sure that rubber bushes are properly located in holes and bolts are screwed back tightly for secure transportation of the appliance.

24 / English	Front-Loading Automatic Washer
