Beko WMY 71243 CS PTLMB1 User Manual [cz]

Washing Machine

User’s Manual

Plně automatická pračka

Uživatel Manuální WMY 71243 CS PTLMB1

Automatická pračka

Používateľská príručka

Document Number 2820524284_EN/ 11-10-14.(8:59)

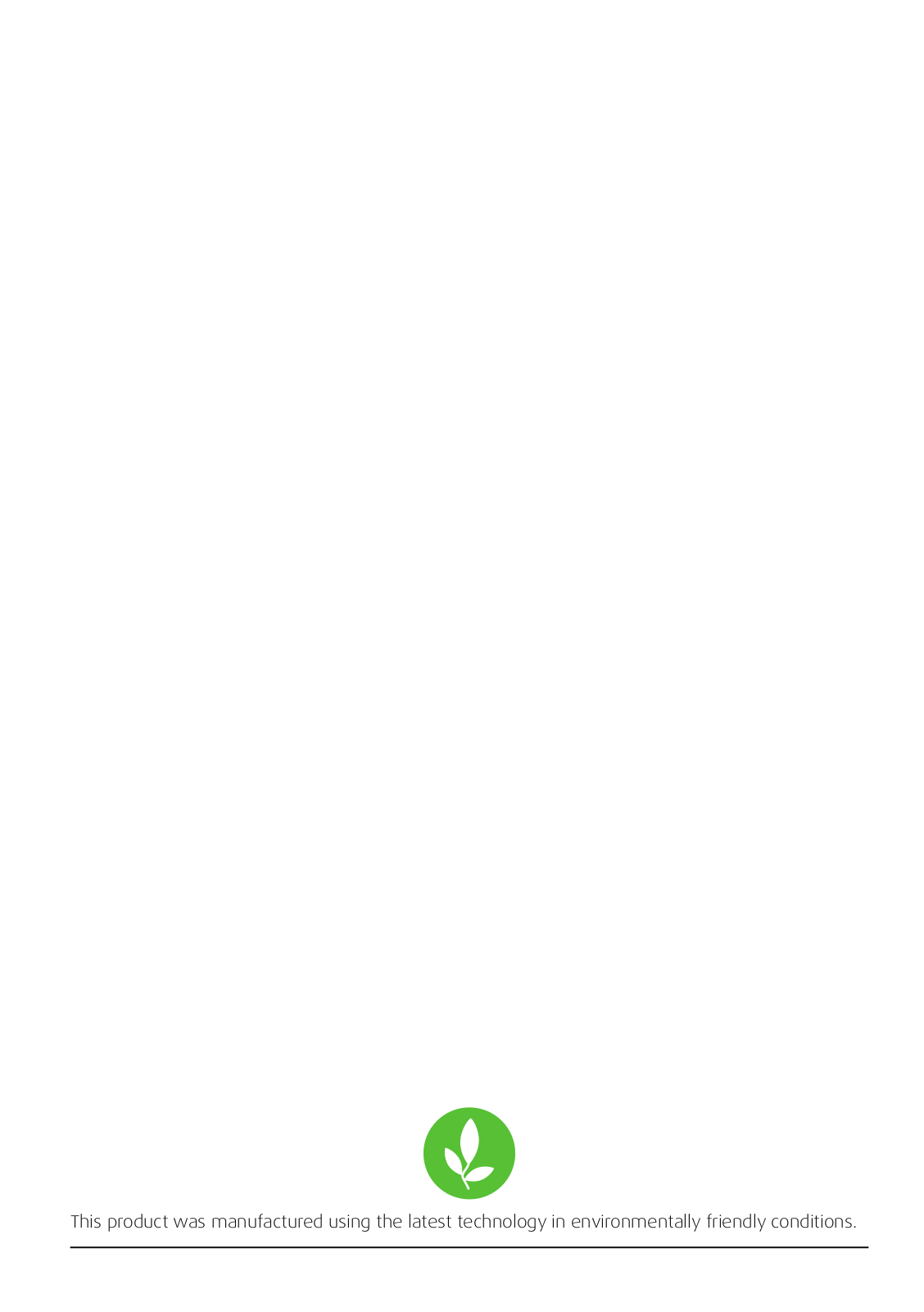

This product was manufactured using the latest technology in environmentally friendly conditions.

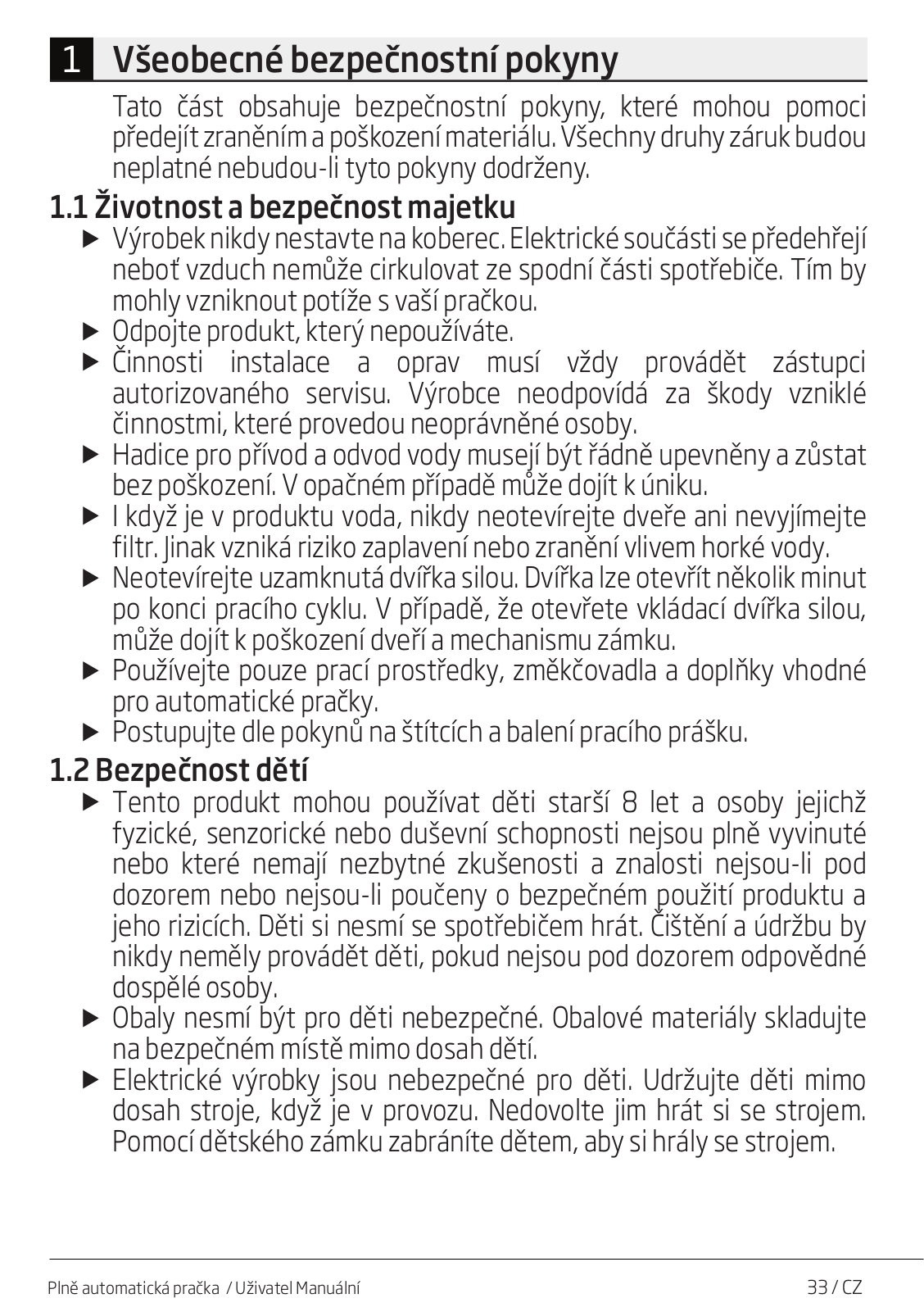

1 General safety instructions

This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed.

1.1 Life and property safety

u Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. This will cause problems with your product.

u Unplug the product if it is not in use.

u Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

u The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, water leak may occur.

u While there is still water inside the product, never open the loading door or remove the filter. Otherwise, risk of flooding and injury from hot water will occur.

u Do not force open the locked loading door. Door can be opened a few minutes after the washing cycle ends. In case of forcing the loading door to open, the door and the lock mechanism may get damaged.

u Use detergents, softeners and supplements suitable for automatic washing machines only.

u Follow the instructions on the label of textiles and the detergent package.

1.2 Children's safety

u This product can be used by the children who are at the age of 8 and over and the people whose physical, sensory or mental skills are not fully developed or who do not have necessary required experience and knowledge as long as they are supervised or trained about the safe use of the product and its risks. Children should not play with the device. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.

u Packaging materials may be dangerous for the children. Keep packaging materials in a safe place away from reach of the children.

Washing Machine / User’s Manual

3 / EN

uElectrical products are dangerous for the children. Keep the children away from the product when it is in use. Do not allow them to play with the product. Use child lock to prevent children from intervening with the product.

uDo not forget to close the loading door when leaving the room where the product is located.

ustore all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package.

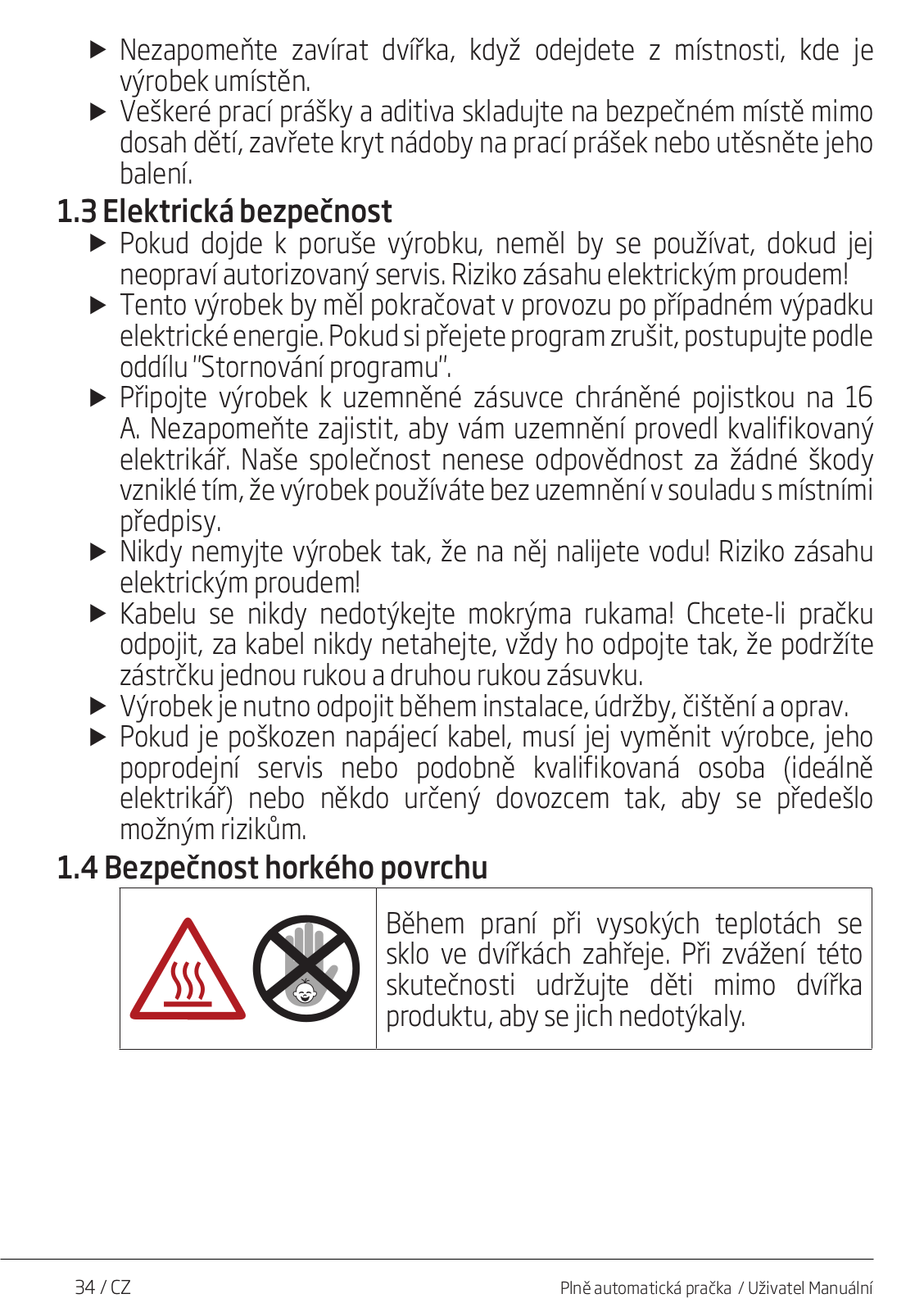

1.3Electrical safety

uIf the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. Risk of electric shock!

uThis product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme" section.

uPlug the product into a grounded outlet protected by a 16 A fuse. Do not neglect to have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

uDo not wash the product by spraying or pouring water onto it! Risk of electric shock!

uNever touch the power cable plug with wet hands! Do not grab the power cord to unplug the machine, always unplug it by holding the socket with one hand, and pulling the plug with the other hand.

uProduct should be unplugged during installation, maintenance, cleaning and repair procedures.

uIf the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks.

1.4Hot surface safety

While washing the laundry at high temperatures, the loading door glass will get hot. Considering this fact, during washing operation keep the children away from the loading door of the product to prevent them touching it.

4 / EN

Washing Machine / User’s Manual

2 Important instructions for environment

2.1 Compliance with WEEE Directive

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

3Intended use

•This product has been designed for domestic use. It is not for commercial purposes or it should not be used out of its intended use.

•The product must only be used for washing and rinsing of laundry that are marked accordingly.

•The manufacturer waives any responsibility arisen from incorrect usage or transportation.

•The service life of your product is 10 years. During this period, original spare parts will be available to operate the appliance properly.

Washing Machine / User’s Manual

5 / EN

4		Technical specifications
Complying Commission Delegated Regulation (EU) No 1061/2010
Supplier name or trademark				BEKO
Model name				WMY 71243 CS PTLMB1
Rated capacity (kg)				7
Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency)				A+++
Annual Energy Consumption (kWh) (1)				174
Energy consumption of the standard 60°C cotton programme at full load (kWh)				0.880
Energy consumption of the standard 60°C cotton programme at partial load			(kWh)	0.695
Energy consumption of the standard 40°C cotton programme at partial load			(kWh)	0.690
Power consumption in ‘off-mode’ (W)				0.440
Power consumption in ‘left-on mode’ (W)				0.640
Annual Water Consumption (l) (2)				8800
Spin-drying efficiency class / Scale from A (Highest Efficiency) to G (Lowest Efficiency)				B
Maximum spin speed (rpm)				1200
Remaining moisture Content (%)				53
Standard cotton programme (3)				Cotton Eco 60°C and 40°C
Programme time of the standard 60°C cotton programme at full load (min)				209
Programme time of the standard 60°C cotton programme at partial load (min)				185
Programme time of the standard 40°C cotton programme at partial load (min)				185
Duration of the left-on mode (min)				N/A
Airborne acoustical noise emissions washing/spinning (dB)				53/75
Built-in				No
Height (cm)				84
Width (cm)				60
Depth (cm)				50
Net weight (±4 kg.)				66
Single Water inlet / Double Water inlet				• / -
• Available
Electrical input (V/Hz)				230 V / 50Hz
Total current (A)				10
Total power (W)				2200
Main model code				9710

(1)Energy Consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

(2)Water consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

(3)“Standard 60°C cotton programme” and the “standard 40°C cotton programme” are the standard washing programmes to which the information in the label and the fiche relates and these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.

Technical specifications may be changed without prior notice to improve the quality of the product.

6 / EN

Washing Machine / User’s Manual

4.1 Installation

•Apply to the nearest authorized service agent for the installation of your product.

•Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.

•Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

•Make sure that the installation and electrical connections of the product are performed by authorized service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

•Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

4.1.1Appropriate installation location

•Place the product on a hard and level floor. Do not put it onto a carpet with high pile or other similar surfaces.

•When the washing machine and drier are placed on top of each other, their total weight –when loaded– amounts to 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!

•Do not place the product on the power cable.

•Do not install the product in the environments where the temperature falls below 0 ºC.

•Leave a minimum space of 1 cm between the machine and the furniture.

•On a graduated floor, do not place the product next to the edge or on a platform.

4.1.2Removing packaging reinforcement

Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon. Do not make this operation alone by yourself.

4.1.3 Removing the transportation locks

1Loose all bolts with an appropriate wrench until they turn freely (C).

2Remove the transport safety bolts by turning them slightly.

3Insert the plastic covers in the bag containing the user manual to the openings on the rear panel. (P)

A CAUTION: Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be damaged.

C Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

Install the transport safety bolts in reverse order of the disassembly procedure.

Never move the product without the transportation safety bolts properly fixed in place!

Washing Machine / User’s Manual

7 / EN

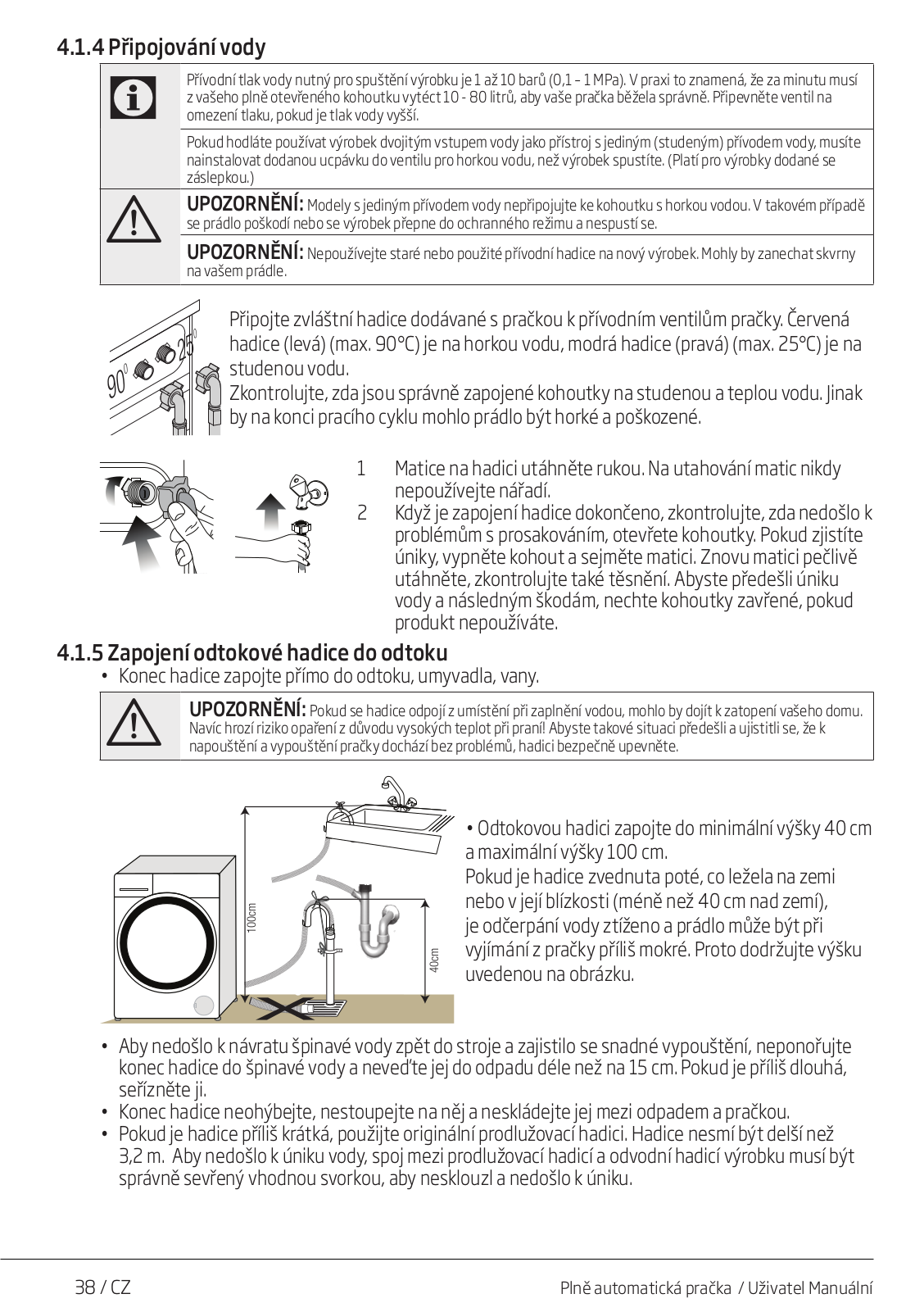

4.1.4 Connecting water supply

C The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)

A CAUTION: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate.

CAUTION: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

Connect the special water supply hoses supplied with the product to the water inlets on the product. Red hose (left) (max. 90 ºC) is for hot water inlet, blue hose

(right) (max. 25 ºC) is for cold water inlet.

Make sure that the hot and cold water taps are connected correctly when the

product is being installed. Otherwise, your laundry will come out hot at the end of the washing process and wear out.

1 Tighten the nuts of the hose by hand. Never use a tool when tightening the nuts.

2 When hose connection is completed, check whether there is leak problems at the connection points by opening the taps fully. If any leaks occur, turn off the tap and remove the nut.

Retighten the nut carefully after checking the seal. In order to prevent the water leaks and resultant damages, keep the taps closed when you do not use the product.

4.1.5Connecting the drain hose to the drain

•Attach the end of the drain hose directly to waste water drain, lavatory or bathtub.

A CAUTION: Your drain house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing temperatures! In order to prevent such situations and make sure that the machine performs water intake and discharge processes without any problem, fix the drain hose securely.

100cm

40cm

•Connect the drain hose to a minimum height of 40 cm and a maximum height of 100 cm.

•In case the drain hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.

•To prevent the waste water to go back into the machine again and to ensure easy drainage, do not immerse the end of the hose into the waste water or do not insert it into the drain for more than 15 cm. If it is too long, cut it short.

•The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine.

•If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.

8 / EN

Washing Machine / User’s Manual

4.1.6 Adjusting the feet

A CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.

CAUTION: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.

1 Loosen the lock nuts on the feet by hand.

2 Adjust the feet until the product stands in a stable and balanced way. 3. Tighten all lock nuts by hand again.

4.1.7 Electrical connection

Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.

• Power cable plug must be within easy reach after installation.

• If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.

• The voltage specified in the "Technical specifications" section must be equal to your mains voltage.

• Do not make connections via extension cables or multi-plugs.

B CAUTION: Damaged power cables must be replaced by the Authorized Service Agents.

4.1.8 Initial use

Before starting to use the product make sure that the preparations are made which are in line with the “Important Safety and Environment Instructions” and the instructions in the “Installation” section.

To prepare the product for washing laundry, perform first operation in Drum Cleaning programme. If this program is not available in your machine, apply the method which is described in the section 4.4.2.

C Use an anti-limescale suitable for the washing machines.

Some water might have remained in the product due to the quality control processes in the production. It is not harmful for the product.

Washing Machine / User’s Manual

9 / EN

4.2 Preparation

4.2.1 Sorting the laundry

* Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature.

* Always obey the instructions given on the garment tags.

4.2.2 Preparing laundry for washing

• Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case.

• Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem.

• Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillow case.

• Place curtains in without compressing them. Remove curtain attachment items.

• Fasten zippers, sew loose buttons and mend rips and tears.

• Wash “machine washable” or “hand washable” labeled products only with an appropriate programme.

• Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.

• Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.

• Only use the dyes / color changers and descaling agents which are appropriate to machine wash. Always follow the instructions on the package.

• Wash trousers and delicate laundry turned inside out.

• Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.

• Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage.

4.2.3 Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product in the highest capacity allowed by the programme you have selected, but do not overload; see, "Programme and consumption table". See, “Programme and consumption table"

• Always follow the instructions on the detergent packaging.

• Wash slightly soiled laundry at low temperatures.

• Use faster programmes for small quantities of lightly soiled laundry.

• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.

• If you plan to dry your laundry in a dryer, select the highest spin speed recommended during washing process.

• Do not use more detergent than the recommended amount specified on its package.

4.2.4Loading the laundry

1.Open the laundry cover.

2.Put the laundry items into the machine in a loose manner.

3.Push and close the loading cover until you hear the locking sound. Ensure that no items are caught in the door. The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.

4.2.5 Correct load capacity

The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.

Machine automatically adjusts the water amount according to the weight of the laundry put inside it.

A WARNING: Follow the information in the “Programme and consumption table”. When overloaded, machine's washing performance will drop. Moreover, noise and vibration problems may occur.

10 / EN

Washing Machine / User’s Manual

4.2.6 Using detergent and softener

C When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available.

2	3	1
		The detergent drawer is composed of three compartments:
		– (1) for prewash
		– (2) for main wash
		– (3) for softener
		– ( ) in addition, there is a siphon piece in the softener
		compartment.

	Detergent, softener and other cleaning agents
	• Add detergent and softener before starting the washing programme.
	•	While the washing cycle is in progress, do not leave the detergent dispenser open!
	• When using a programme without prewash, do not put any detergent into the prewash
		compartment (compartment nr. "1").
	• In a programme with prewash, do not put liquid detergent into the prewash compartment
		(compartment nr. "1").
	• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place
		the detergent bag or the dispensing ball directly among the laundry in the machine.
	If you are using liquid detergent, do not forget to place the liquid detergent container into the main
		wash compartment (compartment number “2”).
	Choosing the detergent type
	Detergent type to be used depends on the fabric type and color.
	• Use different detergents for coloured and white laundry.
	• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.)
	•	used solely for delicate clothes.
		When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
	•	Wash woolens with special detergent made specifically for woolens.
	A		CAUTION: Use only detergents manufactured specifically for washing machines.
			CAUTION: Do not use soap powder.

Adjusting detergent amount

The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness.

• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.

• Use lesser detergent for small amounts or lightly soiled clothes.

Using softeners

Pour the softener into the softener compartment of the detergent drawer.

• Do not exceed the (>max<) level sign on the softener compartment.

• If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.

Washing Machine / User’s Manual

11 / EN

Using liquid detergents

If the product contains a liquid detergent cup:

• Put the liquid detergent container into the compartment no “2”.

• If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container.

If the product does not contain a liquid detergent cup:

• Do not use liquid detergent for the prewash in a programme with prewash.

• Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent.

Using gel and tablet detergent

• If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme.

• If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.

• Put tablet detergents into the main wash compartment (compartment nr. "2") or directly into the drum before washing.

Using starch

• Put the liquid soda, powder soda or the fabric dye into the softener compartment. Do not use softener and starch together in a washing cycle.

Wipe the inside of the machine with a damp and clean cloth after using starch.

Using limescale remover

• When required, use limescale removers manufactured specifically for washing machines only.

Using bleaches

Add the bleach at the beginning of the washing cycle by selecting a prewash program. Do not put detergent in the prewash compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step.

• Do not use bleaching agent and detergent by mixing them.

• Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the bleach onto the laundry and do not use it with the colored items.

• When using oxygen-based decolorant, select a program which washes the laundry at a low temperature.

• Oxygen-based decolorant can be used with the detergent; however, if it is not at the same consistence, first put detergent in the compartment number “2” in the detergent dispenser and wait for the machine to flush the detergent when taking in water. While the machine continues taking in water, add decolorant in the same compartment.

12 / EN

Washing Machine / User’s Manual

4.2.7 Tips for efficient washing

Soiling Level

							Clothes
		Light Colours and						Black/Dark	Delicates/
							Colours		Woolens/
				Whites				Colours
									Silks
		(Recommended temperature			(Recommended temperature			(Recommended	(Recommended
								temperature range	temperature range
		range based on soiling level:			range based on soiling level:
		40-90	o	C)	cold -40	o	C)	based on soiling level:	based on soiling
								cold -40 oC)	level: cold -30 oC)
		It may be necessary to pre-			Powder and liquid detergents				Prefer liquid
	Heavily	treat the stains or perform
		prewash. Powder and liquid			recommended for colors can be			Liquid detergents	detergents
	Soiled	detergents recommended			used at dosages recommended				produced for
								suitable for colors
		for whites can be used at			for heavily soiled clothes. It is			and dark colors can	delicate clothes.
	(difficult stains	dosages recommended for			recommended to use powder				Woolen and silk
								be used at dosages
	such as grass,	heavily soiled clothes. It is			detergents to clean clay and			recommended for	clothes must
	coffee, fruits	recommended to use powder			soil stains and the stains that			heavily soiled clothes.	be washed with
	and blood.)	detergents to clean clay and			are sensitive to bleaches. Use				special woolen
		soil stains and the stains that			detergents without bleach.				detergents.
		are sensitive to bleaches.
	Normally							Liquid detergents	Prefer liquid
					Powder and liquid detergents				detergents
	Soiled	Powder and liquid detergents						suitable for colors	produced for
					recommended for colors can be
	(For example,	recommended for whites			used at dosages recommended			and dark colors can	delicate clothes.
	stains caused	can be used at dosages			for normally soiled clothes.			be used at dosages	Woolen and silk
	by body on	recommended for normally			Detergents which do not			recommended for	clothes must
	collars and	soiled clothes.			contain bleach should be used.			normally soiled	be washed with
	cuffs)							clothes.	special woolen
									detergents.
									Prefer liquid
	Lightly	Powder and liquid detergents			Powder and liquid detergents			Liquid detergents	detergents
									produced for
	Soiled	recommended for whites			recommended for colors can be			suitable for colors	delicate clothes.
					used at dosages recommended			and dark colors can
		can be used at dosages			for lightly soiled clothes.			be used at dosages	Woolen and silk
	(No visible	recommended for lightly soiled							clothes must
					Detergents which do not			recommended for
	stains exist.)	clothes.			contain bleach should be used.			lightly soiled clothes.	be washed with
									special woolen
									detergents.

Allergy UK is the operational name of The British Allergy Foundation. The Seal of Approval endorsement, which indicates that the product bearing it specifically

restricts / reduces / removes allergens from the environment of the allergy sufferer or has significantly reduced allergen content, was created in order to provide guidance for people seeking advice in this issue. It is aimed to assure poeple that products had been scientifically tested or reviewed with measurable results.

Washing Machine / User’s Manual

13 / EN

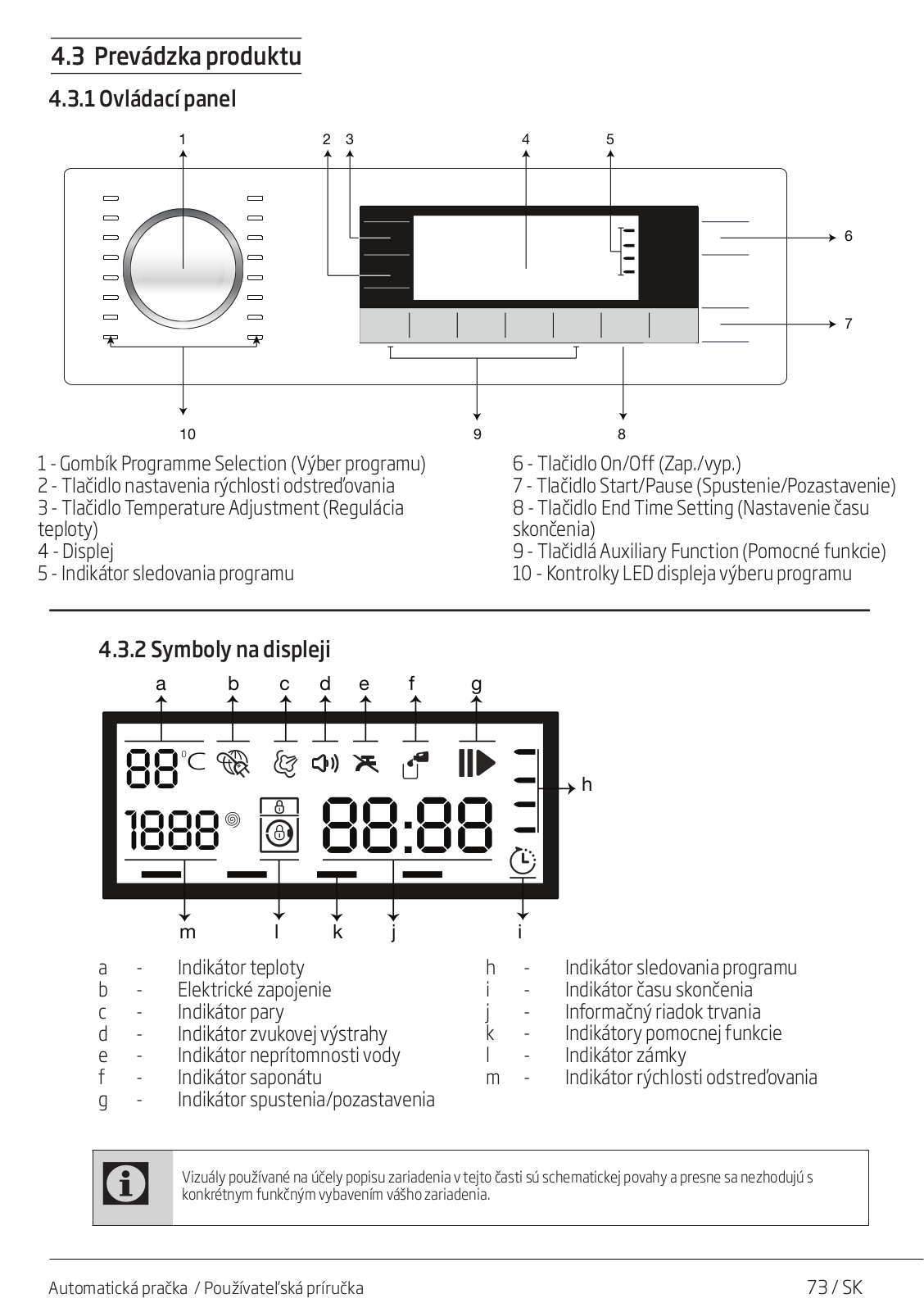

4.3 Operating the product

4.3.1 Control panel

1

2

3

4

5

6

7

	10	9	8
1 - Programme Selection knob		6	- On / Off button
2	- Spin speed adjustment button	7 - Start / Pause button
3	- Temperature Adjustment button	8 - End Time Setting button
4 - Display		9	- Auxiliary Function buttons
5	- Program Follow-up indicator	10 - Programme Selection LEDs

4.3.2 Display symbols

a b c d e f g

	880C			88:88			h
	1888
		m	l	k	j	i
a	-	Temperature indicator			h	-	Program Follow-up indicator
b	-	Electrical connection			i	-	End Time indicator
c	-	Steam indicator			j	-	Duration Information Line
d	-	Audio Warning indicator			k	-	Auxiliary Function indicators
e	-	No Water indicator			l	-	Lock indicator
f	-	Detergent indicator			m	-	Spin Speed indicator
g	-	Start / Pause indicator

C The visuals used for machine description in this section are schematic and may not match exactly will the features of your machine.

14 / EN

Washing Machine / User’s Manual

4.3.3 Programme and consumption table

	EN			2						Auxiliary functions
		Programme (°C)				Water Consumption (l)	Energy Consumption (kWh)									Selectable
					Max. Load (kg)			Max. Speed***			Rychlé praní			PET program		temperature range
									Předpírka				Rinse Hold		Nocní režim	°C
			60**		7	44	0.88	1600								Cold-60
Bavlna Eco			60**		3.5	37	0.70	1600								Cold-60
			40**		3.5	37	0.69	1600								Cold-60
			90		7	70	2.20	1600	•		•		•	•	•	Cold-90
Bavlna			60		7	70	1.55	1600	•		•		•	•	•	Cold-90
			40		7	67	0.90	1600	•		•		•	•	•	Cold-90
Syntetika			60		3	52	1.10	1200	•		•		•	•	•	Cold-60
			40		3	49	0.60	1200	•		•		•	•	•	Cold-60
Vlna			40		1.5	49	0.25	1000			•		•		•	Cold-40
Rucní praní			30		1	40	0.25	600								Cold-30
BabyProtect+			60		7	85	1.90	1600								30 - 90
Tmavé prádlo			40		3	60	0.60	1000	•				•	•	•	Cold-40
Refresh			-		2	35	0.15	1000								-
40 min / 40°			40		7	45	0.60	1400					•			Cold-40
Jemné 20°			20		3.5	45	0.15	1000	•		•		•		•	20
Hygiena 20°			20		2	95	0.40	1600								20
Xpress Super Short			30		2	35	0.15	1400					•		•	Cold-30
			90		7	67	2.00	1400					•		•	Cold-90
Denní praní			60		7	67	1.10	1400					•		•	Cold-90
			30		7	67	0.25	1400					•		•	Cold-90
Auto Program			40		7	****	****	1600	•		•		•	•	•	Cold-60
•	: Selectable.
*	: Automatically selected, no canceling.
** : Energy Label programme (EN 60456 Ed.3)
*** : If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin
	speed.
**** : Programme detects the type and quantity of the laundry to automatically adjust water and energy consumption
-	and programme time.
	: See the programme description for maximum load.
		** “Cotton eco 40°C and Cotton eco 60°C are standard programmes.” These programmes are known as ‘40°C cotton
		standard programme’ and ‘60°C cotton standard programme’ and indicated with the														symbols on the
		panel.
	C	The auxiliary functions in the table may vary according to the model of your machine.
		Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature,
		ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in
		electric voltage.
		You can see the washing time of the programme you have selected on the display of the machine. It is normal that small
		differences may occur between the time shown on the display and the real washing time.
		“Selection patterns for auxiliary functions can be changed by the manufacturer company. New selection patterns can be
		added or removed.”
		“The spin speed of your machine may vary according to the programme; this spin speed cannot exceed the max. spin
		speed of your machine.”

Washing Machine / User’s Manual

15 / EN

Indicative values for Synthetics programmes (EN)

	Load (kg)	Water Consumption (l)	Energy Consumption (kWh)	Programme Duration (min) *
Synthetics 60	3	52	1.10	01:45
Synthetics 40	3	49	0.60	01:31

	Remaining Moisture Content	Remaining Moisture Content
	(%) **	(%) **
	≤ 1000 rpm	> 1000 rpm
	45	40
	45	40

*You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time.

**Remaining moisture content values may differ according to the selected spin speed.

4.3.4Programme selection

1Determine the programme suitable for the type, quantity and soiling level of the laundry in accordance with the "Programme and consumption table".

C Programmes are limited with the highest spin speed appropriate for that particular type of fabric.

When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature.

Always select the lowest required temperature. Higher temperature means higher power consumption.

2 Select the desired programme with the “Programme Selection” knob.

880C	88:88
1888

4.3.5 Programmes

• Bavlna (Cottons)

Use for your cotton laundry (such as bed sheets, duvet and pillowcase sets, towels, bathrobes, underwear, etc.). Your laundry will be washed with vigorous washing action for a longer washing cycle.

• Syntetika (Synthetics)

Use to wash your synthetic clothes (shirts, blouses, synthetic/cotton blends, etc.). It washes with a gentle action and has a shorter washing cycle compared to the Cottons programme.

For curtains and tulle, use the Synthetic 40˚C programme with prewash and anti-creasing functions selected. As their meshed texture causes excessive foaming, wash the veils/tulle by putting little amount of detergent into the main wash compartment. Do not put detergent in the prewash compartment.

• Vlna (Woollens)

Use to wash your woolen clothes. Select the appropriate temperature complying with the tags of your clothes. Use appropriate detergents for woolens.

“The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M14089” “In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.”

16 / EN

Washing Machine / User’s Manual

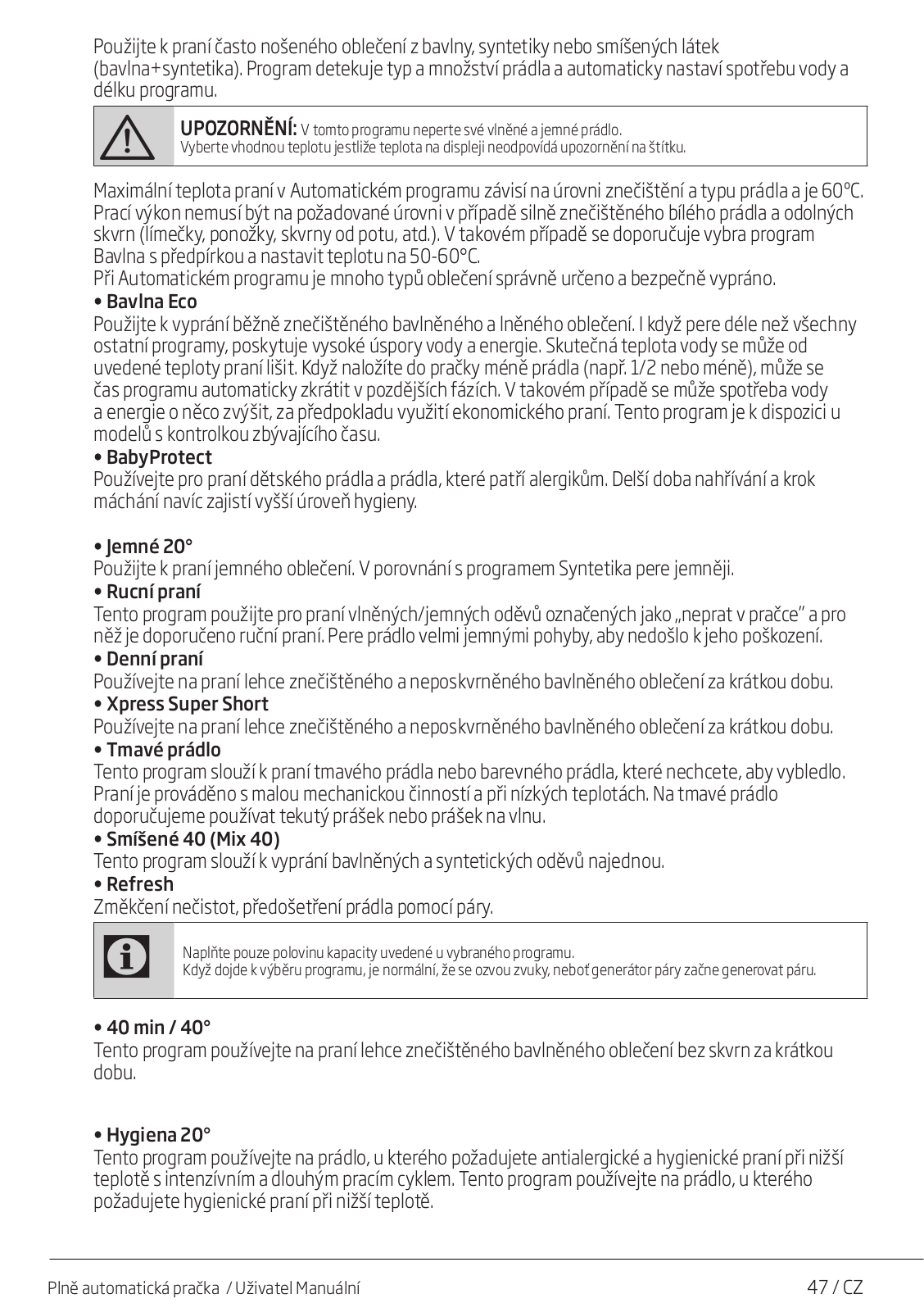

• Auto Program (Automatic Programme)

Use to wash your frequently washable cotton, synthetic or blended (cotton+synthetic) clothes. Programme detects the type and quantity of the laundry to automatically adjust water consumption and programme time.

A CAUTION: Do not wash your woolen and delicate clothes in this programme.

Select a suitable temperature if the temperature shown on the temperature display is not compatible with the warnings on the garment label.

The maximum washing temperature in Automatic programme depending on the soiling level and laundry type is 60ºC. Washing performance may not be at the desired level for heavily soiled whites and stubborn stains (collar, sock soil, perspiration stain, etc.). In this case, it is recommended to select Cottons programme with prewash and set the temperature to 50-60°C.

Many types of clothing are correctly detected and safely washed in Automatic programme.

• Bavlna Eco (Cotton Economic)

Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the machine with less laundry (e.g. ½ capacity or less), programme time may automatically get shorter. In this case, energy and water

consumption will decrease more, providing a more economic wash. This programme is available in the models with the remaining time indicator.

• BabyProtect

Use to wash baby laundry, and the laundry that belongs to allergic persons. Longer heating time and an additional rinsing step provide a higher level of hygiene.

• Jemné 20° (Delicate 20°)

Use to wash your delicate clothes. It washes with more gentle washing action compared to the Synthetics programme.

• Rucní praní (Hand wash)

Use to wash your woolen/delicate clothes that bear “not machine-washable” tags and for which hand wash is recommended. It washes laundry with a very gentle washing action to not to damage clothes.

• Denní praní (Daily express)

Use to wash your lightly soiled and unstained cotton laundry in a short time.

• Xpress Super Short (Super short express)

Use to wash your lightly soiled and unstained cotton laundry in a short time.

• Tmavé prádlo (Darkcare)

Use this programme to wash your dark colored laundry or colored laundry that you do not want them get faded. Washing is performed with little mechanic action and at low temperatures. It is recommended to use liquid detergent or woolen shampoo for dark coloured laundry.

• Mixed 40 (Mix 40)

Use this programme to wash your cotton and synthetic clothes together without sorting them.

• Refresh (Freshen Up)

To soften the soiling, it pre-treats the laundry by giving steam.

C Load only half of the capacity stated for the selected programme.

When this programme is selected, it is normal to hear boiling noises since the steam generator boils water to produce steam.

• 40 min / 40° (40° / 40’)

Use this programme to wash your lightly soiled and unstained cotton laundry in a short time.

• Hygiena 20° (Hygiene 20°)

Use this programme for your laundry for which you require washing at lower temperature with intensive and long washing cycle. Use this programme for your laundry for which you require hygienic washing at lower temperature.

Washing Machine / User’s Manual

17 / EN

• Máchání (Rinse)

Use when you want to rinse or starch separately.

• Odstřeďování (Spin + Drain)

Use to drain the water in the machine.

4.3.6 Temperature selection

Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature indicator. It is possible that the recommended temperature value is not the maximum temperature that can be selected for the current programme.

880C	88:88
1888

Press the Temperature Adjustment button to change the temperature. Temperature will decrease by increments of 10 °C.

Finally, “-” symbol indicating the cold wash option appears on the display.

-0C	88:88
1888

C No change can be made in programmes where temperature adjustment is not allowed.

You can also change the temperature after the washing starts. This change can be made if the washing steps allow it. Changes cannot be made if the steps do not allow it.

C If you scroll to cold wash option and press Temperature Adjustment button again, the recommended maximum temperature for the selected programme appears on the display. Press the Temperature Adjustment button again to decrease the temperature.

4.3.7 Spin speed selection

Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the Spin Speed indicator.

It is possible that the recommended spin speed value is not the maximum spin speed that can be selected for the
C current programme.
880C	88:88
1888

Press the Spin Speed Adjustment button to change the spin speed. Spin speed decreases gradually.

Then, depending on the model of the product, "Rinse Hold" and "No Spin" options appear on the display.

C Spin Speed Adjustment button only serves for decreasing the spin speed.

Rinse Hold option is indicated with “ı_ı” symbol and No Spin option is indicated with “_” symbol.

18 / EN

Washing Machine / User’s Manual

If you are not going to unload your laundry immediately after the programme completes, you can use Rinse Hold function in order to prevent them from getting wrinkled when there is no water in the machine.

This function holds the laundry in the final rinsing water.

880C

88:88

If you want to spin your laundry after the Rinse Hold function:

- Adjust the Spin Speed.

- Press Start / Pause / Cancel button. The programme resumes. Machine spins the laundry by discharging the water.

If you want to discharge the water at the end of the programme without spinning, use No Spin function.

880C

88:88

C No change can be made in programmes where spin speed adjustment is not allowed.

You can change the spin speed after the washing starts if the washing steps allow it. Changes cannot be made if the steps do not allow it.

4.3.8 Auxiliary function selection

Select the desired auxiliary functions before starting the programme. Whenever a programme is selected, frames of the auxiliary function symbol that can be selected together with it illuminates. And when you select an auxiliary function, the interior area of the auxiliary function symbol also starts to illuminate.

880C	88:88
1888

C Frame of the auxiliary function symbol that cannot be selected with the current programme does not illuminate.

Also the frames of the auxiliary function suitable for the current programme after the washing has started remains illuminated. You can select or cancel the auxiliary functions whose frames are

illuminated. If the wash cycle has reached a point where you cannot select the auxiliary function, the function's frame turns off.

C Some functions cannot be selected together. If a second auxiliary function conflicting with the first one is selected before starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Additional Water, Additional Water will be canceled and Quick Wash will remain active.

An auxiliary function that is not compatible with the programme cannot be selected. (See, “Programme and consumption table")

Some programmes have auxiliary functions that must be operated simultaneously. Those functions cannot be cancelled. The frame of the auxiliary function will not be illuminated, only inner area will be illuminated.

Washing Machine / User’s Manual

19 / EN

When you select this function, load your machine with half of the maximum laundry specified in the programme table.

• Předpírka (Prewash)

A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

• Rychlé praní (Quick Wash)

This function can be used in Cottons and Synthetics programmes. It decreases the washing times and also the number of rinsing steps for lightly soiled laundry.

C

• Rinse Plus

This function enables the machine to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced.

• Anti-Creasing

This function creases the clothes lesser when they are being washed. Drum movement is reduced and spin speed is limited to prevent creasing. In addition, washing is done with a higher water level.

• Rinse Hold

If you are not going to unload your clothes immediately after the programme completes, you can use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine. Press Start / Pause button after this process if you want to drain the water without spinning your laundry. Programme will resume and complete after draining the water.

If you want to spin the laundry held in water, adjust the Spin Speed and press Start / Pause button. The programme resumes. Water is drained, laundry is spun and the programme is completed.

• Nocní režim (Night mode)

Use to wash the cottons with lesser energy consumption and silently. Spin steps are cancelled for a silent washing and the cycle ends with the Rinse Hold step. After completion of the programme, run Spin cycle to spin the laundry.

• Steam

To soften the soiling, it pre-treats the laundry by giving steam.

C Load only half of the capacity stated for the selected programme.

When this auxiliary function is selected, it is normal to hear boiling noises since the steam generator boils water to produce steam.

• PET program (Pet hair removal)

This function helps to remove pet hair that remain on your garments more effectively.

When you select this function, Prewash and Extra Rinse steps are added to the normal programme. Thus, washing is performed with more water (30%) and the pet hair is removed more effectively.

A warning: Never wash your pets in the washing machine.

Time display

Remaining time for the completion of the programme while it is running is displayed as “01:30” in hours and minutes format.

C Programme time may differ from the values in the "Programme and consumption table" depending on the water pressure, water hardness and temperature, ambient temperature, amount and the type of laundry, auxiliary functions selected and the changes at the mains voltage.

20 / EN

Washing Machine / User’s Manual

4.3.9 End Time

With the End Time function, the startup of the programme may be delayed up to 24 hours. After pressing End Time button, the programme's estimated ending time is displayed. If the End Time is adjusted, End Time indicator is illuminated.

880C	88:88
1888

In order for the End Time function is activated and the programme is completed at the end of the specified time, you must press Start / Pause button after adjusting the time.

880C	88:88
1888

If you want to cancel End Time function, press On / Off button to turn off and on the machine.

C Do not use liquid detergents when you activate End Time function! There is the risk of staining of the clothes.

1Open the loading door, place the laundry and put detergent, etc.

2Select the washing programme, temperature, spin speed and, if required, the auxiliary functions.

3Set the end time of your choice by pressing the End Time button. End Time indicator illuminates.

4Press Start / Pause button. Time countdown starts. “:” sign in the middle of the end time on the display starts flashing.

C Additional laundry may be loaded during the End Time countdown period. At the end of the countdown, End Time indicator turns off, washing cycle starts and the time of the selected programme appears on the display.

When the End Time selection is completed, the time appears on the screen consists of end time plus the duration of the selected programme.

4.3.10 Starting the programme

1 Press Start / Pause button to start the programme.

2 The Start / Pause button which was off before starts to illuminate steadily now, indicating that the programme has started.

880C	88:88
1888

3Loading door is locked. The door lock symbol appears on the display after the loading door is locked.

880C	88:88
1888

4 Programme follow-up indicator lights on the display will show the current programme step.

Washing Machine / User’s Manual

21 / EN

4.3.11 Loading door lock

There is a locking system on the loading door of the machine that prevents opening of the door in cases when the water level is unsuitable.

"Door Locked" symbol appears on the display when the loading door is locked.

4.3.12 Changing the selections after programme has started

Adding laundry after the programme has started:

If the water level in the machine is suitable when you press Start / Pause button, loading door symbol will flash on the display until the loading door is opened and will disappear when the loading door is opened.

880C	88:88
1888

If the water level in the machine is not suitable when you press Start / Pause button, the loading door symbol remain lit on the display.

880C	88:88
1888

Switching the machine to pause mode:

Press the Start / Pause button to switch the machine to pause mode. Pause symbol will flash on the display.

880C	88:88
1888

Changing the programme selection after programme has started:

The programme change is not allowed when the current programme is running.

You can select the new programme after switching the current programme to pause mode.

C The selected program starts anew.

Changing the auxiliary function, speed and temperature

Depending on the step the programme has reached, you can cancel or activate the auxiliary functions. See, "Auxiliary function selection".

You can also change the speed and temperature settings. See, "Spin speed selection" and "Temperature selection".

C The loading door will not open if the water temperature in the machine is high or the water level is above the door opening.

22 / EN

Washing Machine / User’s Manual

4.3.13 Child Lock

Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme.

C You can switch on and off the machine with On / Off button when the Child Lock is active. When you switch on the machine again, programme will resume from where it has stopped.

When the child lock is enabled, an audio warning will be given if the buttons are pressed. Audio warning will be canceled if the buttons are pressed 5 times consecutively.

To activate the Child Lock:

Press and hold Auxiliary Function button 2 for 3 seconds. After the countdown as “CL 3-2-1" on the display is over, "Child Lock Enabled" appears on the display. Release 2nd Auxiliary Function button when this warning is displayed.

To deactivate the childproof lock:

Press and hold Auxiliary Function button 2 for 3 seconds. After the countdown as “CL 3-2-1” on the display is over, "Child Lock Enabled" disappears from the display.

4.3.14 Cancelling the programme

The programme is cancelled when the machine is turned off and on again. Press and hold On / Off button for 3 seconds. After the countdown as "3-2-1" on the display is over, the machine turns off.

C If you press On / Off button when the Child Lock is enabled, the programme will not be cancelled. You should cancel the Child Lock first.

If you want to open the loading door after you have cancelled the programme but it is not possible to open the loading door since the water level in the machine is above the loading door opening, then turn the Programme Selection knob to Pump+Spin programme and discharge the water in the machine.

4.3.15 End of programme

End symbol appears on the display when the programme is completed.

If you do not press any button for 10 minutes, the machine will switch to OFF mode. Display and all indicators are turned off.

Completed programme steps will be displayed if you press On / Off button.

4.3.16 Adjusting the VOLUME level

Low volume and high volume

Press and hold Auxiliary Function button 3 for 3 seconds to adjust the volume level. After the countdown as "3-2-1" on the display is over, the volume level symbol will appear and the new volume level will be displayed.

4.3.17 Memory programme setting

You can create a Memory programme by saving frequently used programme and other settings. Use this function when you want to select quickly the same settings you use for the laundry that you wash regularly.

Memory programme will remain at the factory set programme until you make a new Memory programme setting.

To store a new Memory programme:

1 Select the desired programme, temperature, spin speed, soiling degree and auxiliary function. 2 Press and hold the Memory button for 3 seconds.

3 Countdown as "3-2-1" appears on the display.

to select a Memory programme:

1 Press Memory button. The “Memory ” selection field will be activated on the display. 2 The programme saved as Memory and other settings will be displayed.

3 Press the Start / Pause button to start the Memory programme.

Washing Machine / User’s Manual

23 / EN

Use an anti-limescale suitable for the washing machines.

Repeat Drum Cleaning process in every 2 months.

4.4 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

4.4.1 Cleaning the detergent drawer

Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.

Lift the rear part of the siphon to remove it as illustrated.

If more than normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned.

1 Press the dotted point on the siphon in the softener compartment and pull towards you until the compartment is removed from the machine.

2. Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin. In order to prevent the residues to contact your skin, clean it with an appropriate brush by wearing a pair of gloves.

3 Insert the drawer back into its place after cleaning and make sure that it is seated well.

4.4.2 Cleaning the loading door and the drum

Residues of softener, detergent and dirt may accumulate in your machine in time and may cause unpleasant odours and washing complaints. To avoid this, use the Drum Cleaning programme. If your machine is not featured with Drum Cleaning programme, use Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Run the programme without any laundry in the machine. Before starting the programme, put max. 100 g of powder anti-limescale into the main wash detergent compartment (compartment nr. "2"). If the anti-limescale is in tablet form, put only one tablet into compartment nr. 2. Dry the inside of the bellow with a clean piece of cloth afterCthe programme has come to an end.

After every washing make sure that no foreign substance is left in the drum. If the holes on the bellow shown in the figure is blocked, open the holes using a toothpick.

Foreign metal substances will cause rust stains in the drum. Clean the stains on the drum surface by using cleaning agents for stainless steel.

Never use steel wool or wire wool. These will damage the painted, chromated and plastic surfaces.

4.4.3 Cleaning the body and control panel

Wipe the body of the machine with soapy water or non-corrosive mild gel detergents as necessary, and dry with a soft cloth.

Use only a soft and damp cloth to clean the control panel.

24 / EN

Washing Machine / User’s Manual

4.4.4 Cleaning the water intake filters

There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign

substances and dirt in the water to enter the washing machine. Filters should be cleaned as they do

get dirty.	Close the taps.
1.
2.	Remove the nuts of the water intake hoses to access
	the filters on the water intake valves. Clean them
	with an appropriate brush. If the filters are too dirty,
	remove them from their places with a pliers and clean
3.	in this way.
	Take out the filters on the flat ends of the water
	intake hoses together with the gaskets and clean
4.	thoroughly under running water.
	Replace the seals and filters carefully and tighten
	their nuts by hand.

4.4.5 Draining remaining water and cleaning the pump filter

The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.

If the machine fails to drain water, the pump filter is clogged. Filter must be cleaned whenever it is clogged or in every 3 months. Water must be drained off first to clean the pump filter.

In addition, prior to transporting the machine (e.g., when moving to another house) and in case of freezing of the water, water may have to be drained completely.

A CAUTION: Foreign substances left in the pump filter may damage your machine or may cause noise problem.

CAUTION: If the product is not being used, shut the tap shut, remove mains pipe and drain the water inside the machine against any likely freezing.

CAUTION: After each use, turn off the water tap to which the mains hose is connected.

In order to clean the dirty filter and discharge the water:

1 Unplug the machine to cut off the supply power.

A CAUTION: Temperature of the water inside the machine may rise up to 90 ºC. To avoid the burning risk, clean the filter after the water inside the machine is cooled down.

2. Open the filter cover.

Washing Machine / User’s Manual

25 / EN

3 Follow the below procedures in order to drain water.

If the product has an emergency water draining hose, in order to drain the water:

a Pull the emergency draining hose out from its seat

b Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose. When the container is full, block the inlet of the hose by replacing the plug. After the container is emptied, repeat the above procedure to drain the water in the machine completely.

c When draining of water is finished, close the end by the plug again and fix the hose in its place.

d Turn and remove the pump filter.

If the product does not have an emergency water drain hose, in order to drain the water:

a.In order to collect the water to flow out of the filter, place a large vessel in front of the filter.

b.Turn and loosen the pump filter until water starts to flow (counterclockwise). Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy to absorb any spilled water. When the water inside the machine is finished,

take out the filter completely by turning it.c

4 Clean any residues inside the filter as well as fibers, if any, around the pump impeller region. 5. Replace the filter.

6. If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into their places first, and then press the upper part to close.

26 / EN

Washing Machine / User’s Manual

5	Troubleshooting
	Problem	Reason	Solution
Programme cannot be started or		Washing machine has switched to self protection	To cancel the programme, turn the
selected.		mode due to a supply problem (line voltage, water	Programme Selection knob to select another
		pressure, etc.).	programme. Previous programme will be
			cancelled. (See “Canceling the programme”)
Water in the machine.		Some water might have remained in the product	This is not a failure; water is not harmful to
		due to the quality control processes in the	the machine.
		production.
Machine does not fill with water.		Tap is turned off.	Turn on the taps.
		Water inlet hose is bent.	Flatten the hose.
		Water inlet filter is clogged.	Clean the filter.
		Loading door may be open.	Close the door.
Machine does not drain water.		Water drain hose might be clogged or twisted.	Clean or flatten the hose.
		Pump filter is clogged.	Clean the pump filter.
Machine vibrates or makes noise.		Machine might be standing unbalanced.	Adjust the feet to level the machine.
		A hard substance might have entered into the	Clean the pump filter.
		pump filter.
		Transportation safety bolts are not removed.	Remove the transportation safety bolts.
		Laundry quantity in the machine might be too	Add more laundry to the machine.
		little.
		Machine might be overloaded with laundry.	Take out some of the laundry from the
			machine or distribute the load by hand to
			balance it homogenously in the machine.
		Machine might be leaning on a rigid item.	Make sure that the machine is not leaning
			on anything.
There is water leaking from the		Water drain hose might be clogged or twisted.	Clean or flatten the hose.
bottom of the washing machine.
		Pump filter is clogged.	Clean the pump filter.
Machine stopped shortly after		Machine might have stopped temporarily due to	It will resume running when the voltage
the programme started.		low voltage.	restores to the normal level.
Machine directly discharges the		Draining hose might not be at adequate height.	Connect the water draining hose as
water it takes in.			described in the operation manual.
No water can be seen in the		The water level is not visible from outside of the	This is not a failure.
machine during washing.		washing machine.
Loading door cannot be opened.		Door lock is activated because of the water level	Drain the water by running the Pump or Spin
		in the machine.	programme.
		Machine is heating up the water or it is at the	Wait until the programme completes.
		spinning cycle.
		Child lock is engaged. Door lock will be deactivated	Wait for a couple of minutes for deactivation
		a couple of minutes after the programme has	of the door lock.
		come to an end.
Washing takes longer time than		Water pressure is low.	Machine waits until taking in adequate
specified in the manual.(*)			amount of water to prevent poor washing
			quality due to the decreased amount of
			water. Therefore, the washing time extends.
		Voltage might be low.	Washing time is prolonged to avoid poor
			washing results when the supply voltage
			is low.
		Input temperature of water might be low.	Required time to heat up the water extends
			in cold seasons. Also, washing time can be
			lengthened to avoid poor washing results.
		Number of rinses and/or amount of rinse water	Machine increases the amount of rinse water
		might have increased.	when good rinsing is needed and adds an
			extra rinsing step if necessary.
		Excessive foam might have occurred and	Use recommended amount of detergent.
		automatic foam absorption system might have
		been activated due to too much detergent usage.

Washing Machine / User’s Manual

27 / EN
