14.1 Overview

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG5615’s LAN as a DHCP server or disable it. When configured as a server, the NBG5615 provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have another DHCP server on your LAN, or else the computer must be manually configured.

14.1.1 What You Can Do

•Use the General screen to enable the DHCP server (Section 14.2 on page 133).

•Use the Advanced screen to assign IP addresses on the LAN to specific individual computers

based on their MAC Addresses (Section 14.3 on page 134).

•Use the Client List screen to view the current DHCP client information (Section 14.4 on page

136).

CHAPTER 14

DHCP Server

14.1.2 What You Need To Know

The following terms and concepts may help as you read through this chapter.

MAC Addresses

Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. Find out the MAC addresses of your network devices if you intend to add them to the DHCP Client List screen.

14.2 DHCP Server General Screen

Use this screen to enable the DHCP server. Click Netw o rk > DHCP Server. The following screen displays.

NBG5615 User’s Guide 133

Chapter 14 DHCP Server

Figure 78 Network > DHCP Server > General

The following table describes the labels in this screen.

Table 52 Network > DHCP Server > General

LABEL DESCRIPTION

DHCP Server Select Enable to activate DHCP for LAN.

IP Pool Starting Address

Pool Size This field specifies the size, or count of the IP address pool for LAN. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients (computers) to obtain TCP/IP configuration at startup from a server. Enable the DHCP server unless your ISP instructs you to do otherwise. Select Disable to stop the NBG5615 acting as a DHCP server. When configured as a server, the NBG5615 provides TCP/IP configuration for the clients. If not, DHCP service is disabled and you must have another DHCP server on your LAN, or else the computers must be manually configured. When set as a server, fill in the following four fields.

This field specifies the first of the contiguous addresses in the IP address pool for LAN.

14.3 DHCP Server Advanced Screen

This screen allows you to assign IP addresses on the LAN to specific individual computers based on their MAC addresses. You can also use this screen to configure the DNS server information that the NBG5615 sends to the DHCP clients.

To change your NBG5615’s static DHCP settings, click Netw ork > DHCP Server > Advanced. The following screen displays.

134

NBG5615 User’s Guide

Figure 79 Network > DHCP Server > Advanced

Chapter 14 DHCP Server

The following table describes the labels in this screen.

Table 53 Network > DHCP Server > Advanced

LABEL DESCRIPTION

Static DHCP Table # This is the index number of the static IP table entry (row). MAC Address Type the MAC address (with colons) of a computer on your LAN. IP Address Type the LAN IP address of a computer on your LAN. DNS Server DNS Servers

Assigned by DHCP Server

The NBG5615 passes a DNS (Domain Name System) server IP address (in the order you specify here) to the DHCP clients. The NBG5615 only passes this information to the LAN DHCP clients when you enable DHCP Server. When you disable DHCP Server, DHCP service is disabled and you must have another DHCP sever on your LAN, or else the computers must have their DNS server addresses manually configured.

NBG5615 User’s Guide

135

Chapter 14 DHCP Server

Table 53 Network > DHCP Server > Advanced (continued)

LABEL DESCRIPTION

First DNS Server

Second DNS Server

Third DNS Server

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

Select Obtained From I SP if your ISP dynamically assigns DNS server information (and the NBG5615's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns.

Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User- Defined changes to None after you click Apply.

Select DNS Relay to have the NBG5615 act as a DNS proxy. The NBG5615's LAN IP address displays in the field to the right (read-only). The NBG5615 tells the DHCP clients on the LAN that the NBG5615 itself is the DNS server. When a computer on the LAN sends a DNS query to the NBG5615, the NBG5615 forwards the query to the NBG5615's system DNS server (configured in the WAN > I nternet Co nnection screen) and relays the response back to the computer. You can only select DNS Relay for one of the three servers; if you select DNS Relay for a second or third DNS server, that choice changes to None after you click Apply.

Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.

14.4 DHCP Client List Screen

The DHCP table shows current DHCP client information (including IP Address, Host Name and MAC Address) of network clients using the NBG5615’s DHCP servers.

Configure this screen to always assign an IP address to a MAC address (and host name). Click Netw ork > DHCP Server > Client List.

Note: You can also view a read-only client list by clicking Monitor > DHCP Server.

Figure 80 Network > DHCP Server > Client List

The following table describes the labels in this screen.

Table 54 Network > DHCP Server > Client List

LABEL DESCRIPTION

# This is the index number of the host computer. Status This field displays whether the connection to the host computer is up (a yellow bulb) or

down (a gray bulb).

136

NBG5615 User’s Guide

Chapter 14 DHCP Server

Table 54 Network > DHCP Server > Client List (continued)

LABEL DESCRIPTION

Host Name This field displays the computer host name. IP Address This field displays the IP address relative to the # field listed above. MAC Address This field shows the MAC address of the computer with the name in the Host Nam e field.

Every Ethernet device has a unique MAC (Media Access Control) address which uniquely identifies a device. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02.

Reserve Select this if you want to reserve the IP address for this specific MAC address. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to reload the previous configuration for this screen.

NBG5615 User’s Guide

137

Chapter 14 DHCP Server

138

NBG5615 User’s Guide

15.1 Overview

A: 192.168.1.33

B: 192.168.1.34

C: 192.168.1.35

IP address

192.168.1.1

WANLAN

assigned by ISP

FTP, Telnet, SNMP

Port 80

Ports 21 to 25

NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. For example, the source address of an outgoing packet, used within one network is changed to a different IP address known within another network.

The figure below is a simple illustration of a NAT network. You want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example), port 80 to another (B in the example) and assign a default server IP address of 192.168.1.35 to a third (C in the example).

You assign the LAN IP addresses to the devices (A to D) connected to your NBG5615. The ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet. All traffic coming from A to D going out to the Internet use the IP address of the NBG5615, which is

192.168.1.1.

CHAPTER 15

NAT

Figure 81 NAT Example

This chapter discusses how to configure NAT on the NBG5615.

Note: You must create a firewall rule in addition to setting up NAT, to allow traffic from

the WAN to be forwarded through the NBG5615.

15.1.1 What You Can Do

NBG5615 User’s Guide 139

•Use the General screen to enable NAT (

Section 15.2 on page 141).

Chapter 15 NAT

•Use the Port Forw arding screen to set a default server and change your NBG5615’s port

forwarding settings to forward incoming service requests to the server(s) on your local network (

Section 15.3 on page 142).

•Use the Port Trigger screen to change your NBG5615’s trigger port settings (

page 147

15.1.2 What You Need To Know

The following terms and concepts may help as you read through this chapter.

Inside/Outside

This denotes where a host is located relative to the NBG5615, for example, the computers of your subscribers are the inside hosts, while the web servers on the Internet are the outside hosts.

Global/Local

This denotes the IP address of a host in a packet as the packet traverses a router, for example, the local address refers to the IP address of a host when the packet is in the local network, while the global address refers to the IP address of the host when the same packet is traveling in the WAN side.

Section 15.5.3 on

Note: Inside/outside refers to the location of a host, while global/local refers to the IP

address of a host used in a packet.

An inside local address (ILA) is the IP address of an inside host in a packet when the packet is still in the local network, while an inside global address (IGA) is the IP address of the same inside host when the packet is on the WAN side. The following table summarizes this information.

Table 55 NAT Definitions

ITEM DESCRIPTION

Inside This refers to the host on the LAN. Outside This refers to the host on the WAN. Local This refers to the packet address (source or destination) as the packet travels on the LAN. Global This refers to the packet address (source or destination) as the packet travels on the WAN.

Note: NAT never changes the IP address (either local or global) of an outside host.

What NAT Does

In the simplest form, NAT changes the source IP address in a packet received from a subscriber (the inside local address) to another (the inside global address) before forwarding the packet to the WAN side. When the response comes back, NAT translates the destination address (the inside global address) back to the inside local address before forwarding it to the original inside host. Note that the IP address (either local or global) of an outside host is never changed.

140

The global IP addresses for the inside hosts can be either static or dynamically assigned by the ISP. In addition, you can designate servers, for example, a web server and a telnet server, on your local

NBG5615 User’s Guide

Chapter 15 NAT

network and make them accessible to the outside world. If you do not define any servers , NAT offers the additional benefit of firewall protection. With no servers defined, your NBG5615 filters out all incoming inquiries, thus preventing intruders from probing your network. For more information on IP address translation, refer to RFC 1631, The IP Network Address Translator (NAT).

How NAT Works

Each packet has two addresses – a source address and a destination address. For outgoing packets, the ILA (Inside Local Address) is the source address on the LAN, and the IGA (Inside Global Address) is the source address on the WAN. For incoming packets, the ILA is the destination address on the LAN, and the IGA is the destination address on the WAN. NAT maps private (local) IP addresses to globally unique ones required for communication with hosts on other networks. It replaces the original IP source address in each packet and then forwards it to the Internet. The NBG5615 keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored. The following figure illustrates this.

Figure 82 How NAT Works

15.2 General

Use this screen to enable NAT and set a default server. Click Netw ork > NAT to open the General screen.

Figure 83 Network > NAT > General

NBG5615 User’s Guide

141

Chapter 15 NAT

The following table describes the labels in this screen.

Table 56 Network > NAT > General

LABEL DESCRIPTION

Network Address Tra n s la tion (NAT)

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).

Select Enable to activate NAT. Select Disable to turn it off.

15.3 Port Forwarding Screen

Use this screen to forward incoming service requests to the server(s) on your local network and set a default server. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers.

In addition to the servers for specified services, NAT supports a default server. A service request that does not have a server explicitly designated for it is forwarded to the default server. If the default is not defined, the service request is simply discarded.

Note: Many residential broadband ISP accounts do not allow you to run any server

processes (such as a Web or FTP server) from your location. Your ISP may periodically check for servers and may suspend your account if it discovers any active services at your location. If you are unsure, refer to your ISP.

Port forwarding allows you to define the local servers to which the incoming services will be forwarded. To change your NBG5615’s port forwarding settings, click Netw ork > NAT > Port Forwarding. The screen appears as shown.

Note: If you do not assign a Default Server, the NBG5615 discards all packets received

for ports that are not specified in this screen or remote management.

Refer to

Appendix C on page 249 for port numbers commonly used for particular services.

142

NBG5615 User’s Guide

Figure 84 Network > NAT > Port Forwarding

The following table describes the labels in this screen.

Chapter 15 NAT

Table 57 Network > NAT > Port Forwarding

LABEL DESCRIPTION

Default Server Setup Default Server In addition to the servers for specified services, NAT supports a default server. A default

server receives packets from ports that are not specified in the Port Forw arding screen. You can decide whether you want to use the default server or specify a server manually.

Select this to use the default server. Change to Server Select this and manually enter the server’s IP address. Service Name Select a pre-defined service from the drop-down list box. The pre-defined service port

Service Protocol Select the transport layer protocol supported by this virtual server. Choices are TCP,

Server IP Address Enter the inside IP address of the virtual server here and click Add to add it in the port

# This is the number of an individual port forwarding server entry. Status This icon is turned on when the rule is enabled. Name This field displays a name to identify this rule. Protocol This is the transport layer protocol used for the service. Port This field displays the port number(s). Server IP Address This field displays the inside IP address of the server. Modify Click the Edit icon to open the edit screen where you can modify an existing rule.

number(s) and protocol will be displayed in the port forwarding summary table.

Otherwise, select User define to manually enter the port number(s) and select the IP

protocol.

UDP, or TCP_ UDP.

If you have chosen a pre-defined service in the Service Nam e field, the protocol will be

configured automatically.

forwarding summary table.

Click the Delete icon to remove a rule.

NBG5615 User’s Guide

143

Chapter 15 NAT

Table 57 Network > NAT > Port Forwarding (continued)

LABEL DESCRIPTION

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

15.3.1 Port Forwarding Edit Screen

This screen lets you edit a port forwarding rule. Click a rule’s Edit icon in the Port Forwarding screen to open the following screen.

Figure 85 Network > NAT > Port Forwarding Edit

The following table describes the labels in this screen.

Table 58 Network > NAT > Port Forwarding Edit

LABEL DESCRIPTION

Port Forwarding Select Enable to turn on this rule and the requested service can be forwarded to the host

with a specified internal IP address. Select Disable to disallow forwarding of these ports to an inside server without having to

delete the entry.

Service Name Type a name (of up to 31 printable characters) to identify this rule in the first field next to

Protocol Select the transport layer protocol supported by this virtual server. Choices are TCP, UDP,

Port Type a port number(s) to define the service to be forwarded to the specified server.

Server IP Address

Back Click Back to return to the previous screen. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

Service Name. Otherwise, select a predefined service in the second field next to Service Nam e. The predefined service name and port number(s) will display in the Service Name

and Port fields.

or T CP_ UDP. If you have chosen a pre-defined service in the Service Nam e field, the protocol will be

configured automatically.

To specify a range of ports, enter a hyphen (-) between the first port and the last port, such as 10-.

Type the IP address of the server on your LAN that receives packets from the port(s) specified in the Port field.

144

NBG5615 User’s Guide

15.4 Port Trigger Screen

To change your NBG5615’s trigger port settings, click Netw ork > NAT > Port Trigger. The screen appears as shown.

Note: Only one LAN computer can use a trigger port (range) at a time.

Figure 86 Network > NAT > Port Trigger

Chapter 15 NAT

The following table describes the labels in this screen.

Table 59 Network > NAT > Port Trigger

LABEL DESCRIPTION

# This is the rule index number (read-only). Name Type a unique name (up to 15 characters) for identification purposes. All characters are

Incoming Incoming is a port (or a range of ports) that a server on the WAN uses when it sends out

Port Type a port number or the starting port number in a range of port numbers. End Port Type a port number or the ending port number in a range of port numbers.

Trigger The trigger port is a port (or a range of ports) that causes (or triggers) the NBG5615 to

Port Type a port number or the starting port number in a range of port numbers. End Port Type a port number or the ending port number in a range of port numbers.

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

NBG5615 User’s Guide

permitted - including spaces.

a particular service. The NBG5615 forwards the traffic with this port (or range of ports) to the client computer on the LAN that requested the service.

record the IP address of the LAN computer that sent the traffic to a server on the WAN.

145

Chapter 15 NAT

15.5 Technical Reference

The following section contains additional technical information about the NBG5615 features described in this chapter.

15.5.1 NATPort Forwarding: Services and Port Numbers

A port forwarding set is a list of inside (behind NAT on the LAN) servers, for example, web or FTP, that you can make accessible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.

Use the Port Forw arding screen to forward incoming service requests to the server(s) on your local network. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers.

Note: Many residential broadband ISP accounts do not allow you to run any server

15.5.2 NAT Port Forwarding Example

Let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example), port 80 to another (B in the example) and assign a default server IP address of 192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet.

Figure 87 Multiple Servers Behind NAT Example

146

NBG5615 User’s Guide

15.5.3 Trigger Port Forwarding

Jane’s com puter

Real Audio Server Port 7 0 7 0

Some services use a dedicated range of ports on the client side and a dedicated range of ports on the server side. With regular port forwarding you set a forwarding port in NAT to forward a service (coming in from the server on the WAN) to the IP address of a computer on the client side (LAN). The problem is that port forwarding only forwards a service to a single LAN IP address. In order to use the same service on a different LAN computer, you have to manually replace the LAN computer's IP address in the forwarding port with another LAN computer's IP address.

Trigger port forwarding solves this problem by allowing computers on the LAN to dynamically take turns using the service. The NBG5615 records the IP address of a LAN computer that sends traffic to the WAN to request a service with a specific port number and protocol (a "trigger" port). When the NBG5615's WAN port receives a response with a specific port number and protocol ("incoming" port), the NBG5615 forwards the traffic to the LAN IP address of the computer that sent the request. After that computer’s connection for that service closes, another computer on the LAN can use the service in the same manner. This way you do not need to configure a new IP address each time you want a different LAN computer to use the application.

15.5.4 Trigger Port Forwarding Example

The following is an example of trigger port forwarding.

Chapter 15 NAT

Figure 88 Trigger Port Forwarding Process: Example

1 Jane requests a file from the Real Audio server (port 7070).

2 Port 7070 is a “trigger” port and causes the NBG5615 to record Jane’s computer IP address. The

NBG5615 associates Jane's computer IP address with the "incoming" port range of 6970-7170.

3 The Real Audio server responds using a port number ranging between 6970-7170.

4 The NBG5615 forwards the traffic to Jane’s computer IP address.

5 Only Jane can connect to the Real Audio server until the connection is closed or times out. The

NBG5615 times out in three minutes with UDP (User Datagram Protocol), or two hours with TCP/IP (Transfer Control Protocol/Internet Protocol).

NBG5615 User’s Guide

147

Chapter 15 NAT

15.5.5 Two Points To Remember About Trigger Ports

1 Trigger events only happen on data that is coming from inside the NBG5615 and going to the

outside.

2 If an application needs a continuous data stream, that port (range) will be tied up so that another

computer on the LAN can’t trigger it.

148

NBG5615 User’s Guide

16.1 Overview

DDNS services let you use a domain name with a dynamic IP address.

16.1.1 What You Need To Know

The following terms and concepts may help as you read through this chapter.

What is DDNS?

Dynamic Domain Name Service (DDNS) services let you use a fixed domain name with a dynamic IP address. Users can always use the same domain name instead of a different dynamic IP address that changes each time to connect to the NBG5615 or a server in your network.

CHAPTER 16

DDNS

Note: The NBG5615 must have a public global IP address and you should have your

registered DDNS account information on hand.

16.2 General

To change your NBG5615’s DDNS, click Netw ork > DDNS. The screen appears as shown.

Figure 89 Dynamic DNS

NBG5615 User’s Guide 149

Chapter 16 DDNS

The following table describes the labels in this screen.

Table 60 Dynamic DNS

LABEL DESCRIPTION

Dynamic DNS Select Enabl e to use dynamic DNS. Select Disable to turn this feature off. Service Provider Select the name of your Dynamic DNS service provider. Host Name Enter a host names in the field provided. You can specify up to two host names in the

Usename Enter your user name. Password Enter the password assigned to you. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

field separated by a comma (",").

150

NBG5615 User’s Guide

17.1 Overview

WAN

LAN

This chapter shows you how to configure static routes for your NBG5615.

The NBG5615 usually uses the default gateway to route outbound traffic from computers on the LAN to the Internet. To have the NBG5615 send data to devices not reachable through the default gateway, use static routes.

For example, the next figure shows a computer (A) connected to the NBG5615’s LAN interface. The NBG5615 routes most traffic from A to the Internet through the NBG5615’s default gateway (R1). You create one static route to connect to services offered by your ISP behind router R2 . You create another static route to communicate with a separate network behind a router R3 connected to the LAN.

Figure 90 Example of Static Routing Topology

CHAPTER 17

Static Route

17.2 IP Static Route Screen

Click Netw ork > Static Route to open the Static Route screen.

NBG5615 User’s Guide 151

Chapter 17 Static Route

Figure 91 Network > Static Route

The following table describes the labels in this screen.

Table 61 Network > Static Route

LABEL DESCRIPTION

Add Static Route Click this to create a new rule. # This is the number of an individual static route. Status This field indicates whether the rule is active (yellow bulb) or not (gray bulb). Name This field displays a name to identify this rule. Destination This parameter specifies the IP network address of the final destination. Routing is always

Gateway This is the IP address of the gateway. The gateway is a router or switch on the same

Subent Mask This parameter specifies the IP network subnet mask of the final destination. Modify Click the Edit icon to open a screen where you can modify an existing rule.

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

based on network number.

network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.

Click the Delete icon to remove a rule from the NBG5615.

17.2.1 Add/Edit Static Route

Click the Add Static Route button or a rule’s Edit icon in the Static Route screen. Use this screen to configure the required information for a static route.

Figure 92 Network > Static Route: Add/Edit

152

NBG5615 User’s Guide

Chapter 17 Static Route

The following table describes the labels in this screen.

Table 62 Network > Static Route: Add/Edit

LABEL DESCRIPTION

Static Route Select to enable or disable this rule. Route Name Type a name to identify this rule. You can use up to printable English keyboard

Destination IP Address

IP Subnet Mask Enter the IP subnet mask here. Gateway IP

Address

Back Click Back to return to the previous screen without saving. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to set every field in this screen to its last-saved value.

characters, including spaces. This parameter specifies the IP network address of the final destination. Routing is

always based on network number. If you need to specify a route to a single host, use a subnet mask of 255.255.255.255 in the subnet mask field to force the network number to be identical to the host ID.

Enter the IP address of the next-hop gateway. The gateway is a router or switch on the same segment as your NBG5615's interface(s). The gateway helps forward packets to their destinations.

NBG5615 User’s Guide

153

Chapter 17 Static Route

154

NBG5615 User’s Guide

18.1 Overview

WAN

LAN

3 4

1 2

Use these screens to enable and configure the firewall that protects your NBG5615 and your LAN from unwanted or malicious traffic.

Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and control access between the LAN and WAN. By default the firewall:

• allows traffic that originates from your LAN computers to go to all of the networks.

• blocks traffic that originates on the other networks from going to the LAN.

The following figure illustrates the default firewall action. User A can initiate an IM (Instant Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2). However other traffic initiated from the WAN is blocked (3 and 4).

CHAPTER 18

Firewall

Figure 93 Default Firewall Action

18.1.1 What You Can Do

•Use the General screen to enable or disable the NBG5615’s firewall (

18.1.2 What You Need To Know

•Use the Services screen enable service blocking, enter/delete/modify the services you want to

block and the date/time you want to block them (Section 18.3 on page 157).

Section 18.2 on page 157).

The following terms and concepts may help as you read through this chapter.

NBG5615 User’s Guide 155

Chapter 18 Firewall

What is a Firewall?

Originally, the term “firewall” referred to a construction technique designed to prevent the spread of fire from one room to another. The networking term "firewall" is a system or group of systems that enforces an access-control policy between two networks. It may also be defined as a mechanism used to protect a trusted network from a network that is not trusted. Of course, firewalls cannot solve every security problem. A firewall is one of the mechanisms used to establish a network security perimeter in support of a network security policy. It should never be the only mechanism or method employed. For a firewall to guard effectively, you must design and deploy it appropriately. This requires integrating the firewall into a broad information-security policy. In addition, specific policies must be implemented within the firewall itself.

Stateful Inspection Firewall

Stateful inspection firewalls restrict access by screening data packets against defined access rules. They make access control decisions based on IP address and protocol. They also "inspect" the session data to assure the integrity of the connection and to adapt to dynamic protocols. These firewalls generally provide the best speed and transparency; however, they may lack the granular application level access control or caching that some proxies support. Firewalls, of one type or another, have become an integral part of standard security solutions for enterprises.

About the NBG5615 Firewall

The NBG5615’s firewall feature physically separates the LAN and the WAN and acts as a secure gateway for all data passing between the networks.

It is a stateful inspection firewall and is designed to protect against Denial of Service attacks when activated (click the General tab under Firew all and then click the Enable Firew all check box). The NBG5615's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The NBG5615 can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.

The NBG5615 is installed between the LAN and a broadband modem connecting to the Internet. This allows it to act as a secure gateway for all data passing between the Internet and the LAN.

The NBG5615 has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically separate the network into two areas.The WAN (Wide Area Network) port attaches to the broadband (cable or DSL) modem to the Internet.

The LAN (Local Area Network) port attaches to a network of computers, which needs security from the outside world. These computers will have access to Internet services such as e-mail, FTP and the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host is authorized to use a specific service.

Guidelines For Enhancing Security With Your Firewall

1 Change the default password via Web Configurator.

2 Think about access control before you connect to the network in any way, including attaching a

modem to the port.

3 Limit who can access your router.

156

NBG5615 User’s Guide

4 Don't enable any local service (such as NTP) that you don't use. Any enabled service could present

a potential security risk. A determined hacker might be able to find creative ways to misuse the enabled services to access the firewall or the network.

5 For local services that are enabled, protect against misuse. Protect by configuring the services to

communicate only with specific peers, and protect by configuring rules to block packets for the services at specific interfaces.

6 Protect against IP spoofing by making sure the firewall is active.

7 Keep the firewall in a secured (locked) room.

18.2 General Screen

Use this screen to enable or disable the NBG5615’s firewall, and set up firewall logs. Click Security > Firew all to open the General screen.

Figure 94 Security > Firewall > General l

Chapter 18 Firewall

The following table describes the labels in this screen.

Table 63 Security > Firewall > General

LABEL DESCRIPTION

Enable Firewall Select this check box to activate the firewall. The NBG5615 performs access control and

protects against Denial of Service (DoS) attacks when the firewall is activated.

Apply Click Apply to save the settings. Cancel Click Cancel to start configuring this screen again.

18.3 Services Screen

If an outside user attempts to probe an unsupported port on your NBG5615, an ICMP response packet is automatically returned. This allows the outside user to know the NBG5615 exists. Use this screen to prevent the ICMP response packet from being sent. This keeps outsiders from discovering your NBG5615 when unsupported ports are probed.

You can also use this screen to enable service blocking, enter/delete/modify the services you want to block and the date/time you want to block them.

Click Security > Firew all > Services. The screen appears as shown next.

NBG5615 User’s Guide

157

Chapter 18 Firewall

Figure 95 Security > Firewall > Services l

The following table describes the labels in this screen.

Table 64 Security > Firewall > Services

LABEL DESCRIPTION LABEL DESCRIPTION

ICMP Internet Control Message Protocol is a message control and error-reporting protocol

Respond to Ping onThe NBG5615 will not respond to any incoming Ping requests when Disable is selected.

Apply Click Apply to save the settings. Enable Firewall Rule Enable Firewall

Rule Apply Click Apply to save the settings. Add Firewall Rule Service Name Enter a name that identifies or describes the firewall rule. MAC Address Enter the MAC address of the computer for which the firewall rule applies. Dest IP Address Enter the IP address of the computer to which traffic for the application or service is

between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP) datagrams, but the messages are processed by the TCP/IP software and directly apparent to the application user.

Select LAN to reply to incoming LAN Ping requests. Select W AN to reply to incoming WAN Ping requests. Otherwise select LAN &W AN to reply to all incoming LAN and WAN Ping requests.

Select this check box to activate the firewall rules that you define (see Add Firew all Rule below).

entering.

The NBG5615 applies the firewall rule to traffic initiating from this computer.

158

NBG5615 User’s Guide

Chapter 18 Firewall

Table 64 Security > Firewall > Services (continued)

LABEL DESCRIPTION

Source IP Address Enter the IP address of the computer that initializes traffic for the application or service.

The NBG5615 applies the firewall rule to traffic initiating from this computer.

Protocol Select the protocol (TCP, UDP or I CMP) used to transport the packets for which you want

Dest Port Range Enter the port number/range of the destination that define the traffic type, for example

Source Port Range

Add Rule Click Add to save the firewall rule. Firewall Rule # This is your firewall rule number. The ordering of your rules is important as rules are

Service Name This is a name that identifies or describes the firewall rule. MAC address This is the MAC address of the computer for which the firewall rule applies. Dest IP This is the IP address of the computer to which traffic for the application or service is

Source IP This is the IP address of the computer from which traffic for the application or service is

Protocol This is the protocol (TCP, UDP or I CMP) used to transport the packets for which you want

Dest Port Range This is the port number/range of the destination that define the traffic type, for example

Source Port Range

Action DROP - Traffic matching the conditions of the firewall rule are stopped. Delete Click Delete to remove the firewall rule. Cancel Click Cancel to start configuring this screen again.

to apply the firewall rule.

TCP port 80 defines web traffic. Enter the port number/range of the source that define the traffic type, for example TCP

port 80 defines web traffic.

applied in turn.

entering.

initialized.

to apply the firewall rule.

TCP port 80 defines web traffic. This is the port number/range of the source that define the traffic type, for example TCP

port 80 defines web traffic.

See

Appendix C on page 249 for commonly used services and port numbers.

NBG5615 User’s Guide

159

Chapter 18 Firewall

160

NBG5615 User’s Guide

19.1 Overview

This chapter provides a brief overview of content filtering using the embedded web GUI.

Internet content filtering allows you to create and enforce Internet access policies tailored to your needs. Content filtering is the ability to block certain web features or specific URL keywords.

19.1.1 What You Need To Know

The following terms and concepts may help as you read through this chapter.

Content Filtering Profiles

CHAPTER 19

Content Filtering

Content filtering allows you to block certain web features, such as cookies, and/or block access to specific web sites. For example, you can configure one policy that blocks John Doe’s access to arts and entertainment web pages.

A content filtering profile conveniently stores your custom settings for the following features.

Keyword Blocking URL Checking

The NBG5615 checks the URL’s domain name (or IP address) and file path separately when performing keyword blocking.

The URL’s domain name or IP address is the characters that come before the first slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php

www.zyxel.com.tw

The file path is the characters that come after the first slash in the URL. For example, with the URL

www.zyxel.com.tw/news/pressroom.php

Since the NBG5615 checks the URL’s domain name (or IP address) and file path separately, it will not find items that go across the two. For example, with the URL

pressroom.php, the NBG5615 would find “tw” in the domain name (www.zyxel.com.tw). It would

also find “news” in the file path (

, the file path is news/pressroom.php.

news/pressroom.php

) but it would not find “tw/news”.

, the domain name is

www.zyxel.com.tw/news/

19.2 Content Filter

Use this screen to restrict web features, add keywords for blocking and designate a trusted computer. Click Security > Content Filter to open the Content Filter screen.

NBG5615 User’s Guide 161

Chapter 19 Content Filtering

Figure 96 Security > Content Filter

The following table describes the labels in this screen.

Table 65 Security > Content Filter

LABEL DESCRIPTION

Trusted IP Setup To enable this feature, type an IP address of any one of the computers in your network

Restrict Web Features

ActiveX A tool for building dynamic and active Web pages and distributed object applications.

Java A programming language and development environment for building downloadable Web

Cookies Used by Web servers to track usage and provide service based on ID. Web Proxy A server that acts as an intermediary between a user and the Internet to provide

Enable URL Keyword Blocking

that you want to have as a trusted computer. This allows the trusted computer to have full access to all features that are configured to be blocked by content filtering.

Leave this field blank to have no trusted computers. Select the box(es) to restrict a feature. When you download a page containing a

restricted feature, that part of the web page will appear blank or grayed out.

When you visit an ActiveX Web site, ActiveX controls are downloaded to your browser, where they remain in case you visit the site again.

components or Internet and intranet business applications of all kinds.

security, administrative control, and caching service. When a proxy server is located on the WAN it is possible for LAN users to circumvent content filtering by pointing to this proxy server.

The NBG5615 can block Web sites with URLs that contain certain keywords in the domain name or IP address. For example, if the keyword "bad" was enabled, all sites containing this keyword in the domain name or IP address will be blocked, e.g., URL http:// www.website.com/bad.html would be blocked.

162

Select this check box to enable this feature.

Keyword Type a keyword in this field. You may use any character (up to 64 characters). Wildcards

are not allowed. You can also enter a numerical IP address.

Add Click Add after you have typed a keyword.

Repeat this procedure to add other keywords. Up to 64 keywords are allowed.

When you try to access a web page containing a keyword, you will get a message telling you that the content filter is blocking this request.

NBG5615 User’s Guide

Table 65 Security > Content Filter (continued)

LABEL DESCRIPTION

Keyword List This list displays the keywords already added. Delete Highlight a keyword in the lower box and click Delete to remove it. The keyword

disappears from the text box after you click Apply.

Clear All Click this button to remove all of the listed keywords. Apply Click Apply to save your changes. Cancel Click Cancel to begin configuring this screen afresh

19.3 Technical Reference

The following section contains additional technical information about the NBG5615 features described in this chapter.

19.3.1 Customizing Keyword Blocking URL Checking

You can use commands to set how much of a website’s URL the content filter is to check for keyword blocking. See the appendices for information on how to access and use the command interpreter.

Chapter 19 Content Filtering

Domain Name or IP Address URL Checking

By default, the NBG5615 checks the URL’s domain name or IP address when performing keyword blocking.

This means that the NBG5615 checks the characters that come before the first slash in the URL.

For example, with the URL for keywords within

www.zyxel.com.tw/news/pressroom.php

www.zyxel.com.tw

, content filtering only searches

Full Path URL Checking

Full path URL checking has the NBG5615 check the characters that come before the last slash in the URL.

For example, with the URL searches for keywords within

Use the ip urlfilter customize actionFlags 6 [disable | enable] command to extend (or not extend) the keyword blocking search to include the URL's full path.

www.zyxel.com.tw/news/pressroom.php

www.zyxel.com.tw/news/

, full path URL checking

File Name URL Checking

Filename URL checking has the NBG5615 check all of the characters in the URL.

For example, filename URL checking searches for keywords within the URL www.zyxel.com.tw/

news/pressroom.php.

NBG5615 User’s Guide

163

Chapter 19 Content Filtering

Use the ip urlfilter customize actionFlags 8 [disable | enable] command to extend (or not extend) the keyword blocking search to include the URL's complete filename.

164

NBG5615 User’s Guide

20.1 Overview

-> VOIP

-> FTP

-> HTTP

-> Chat, Email

This chapter contains information about configuring bandwidth management and editing rules.

ZyXEL’s Bandwidth Management allows you to specify bandwidth management rules based on an application.

In the figure below, uplink traffic goes from the LAN device (A) to the WAN device (B). Bandwidth management is applied before sending the packets out to the WAN. Downlink traffic comes back from the WAN device (B) to the LAN device (A). Bandwidth management is applied before sending the traffic out to LAN.

Figure 97 Bandwidth Management Example

CHAPTER 20

Bandwidth Management

You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to individual applications (like VoIP, Web, FTP, and E-mail for example).

20.2 What You Can Do

•Use the General screen to enable bandwidth management and assign bandwidth values (

20.4 on page 166

•Use the Advanced screen to configure bandwidth managements rule for the pre-defined services

and applications (Section 20.5 on page 166).

NBG5615 User’s Guide 165

Section

Chapter 20 Bandwidth Management

20.3 What You Need To Know

The sum of the bandwidth allotments that apply to the WAN interface (LAN to WAN, WLAN to WAN) must be less than or equal to the Upstream Bandw idth that you configure in the Bandw idth Management Advanced screen (

The sum of the bandwidth allotments that apply to the LAN interface (WAN to LAN, WAN to WLAN) must be less than or equal to the Dow nstream Bandw idth that you configure in the Bandw idth Management Advanced screen

Section 20.5 on page 166).

Section 20.5 on page 166.

20.4 General Screen

Use this screen to have the NBG5615 apply bandwidth management.

Click Management > Bandw idth MGMT to open the bandwidth management General screen.

Figure 98 Management > Bandwidth Management > General

The following table describes the labels in this screen.

Table 66 Management > Bandwidth Management > General

LABEL DESCRIPTION

Enable Bandwidth Management

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

This field allows you to have NBG5615 apply bandwidth management.

Enable bandwidth management to give traffic that matches a bandwidth rule priority

over traffic that does not match a bandwidth rule.

Enabling bandwidth management also allows you to control the maximum or minimum

amounts of bandwidth that can be used by traffic that matches a bandwidth rule.

20.5 Advanced Screen

Use this screen to configure bandwidth management rules for the pre-defined services or applications.

You can also use this screen to configure bandwidth management rule for other services or applications that are not on the pre-defined list of NBG5615. Additionally, you can define the source and destination IP addresses and port for a service or application.

166

NBG5615 User’s Guide

Chapter 20 Bandwidth Management

Note: The two tables shown in this screen can be configured and applied at the same

time.

Click Management > Bandw idth MGMT > Advanc ed to open the bandwidth management

Advanced screen.

Figure 99 Management > Bandwidth Management > Advanced

NBG5615 User’s Guide

167

Chapter 20 Bandwidth Management

The following table describes the labels in this screen.

Table 67 Management > Bandwidth Management > Advanced

LABEL DESCRIPTION

Management Bandwidth Upstream

Bandwidth

Downstream Bandwidth

Application List Use this table to allocate specific amounts of bandwidth based on a pre-defined service. # This is the number of an individual bandwidth management rule. Priority Select a priority from the drop down list box. Choose High, Mid or Low.

Category This is the category where a service belongs. Service This is the name of the service.

Select the total amount of bandwidth from a drop-down list box that you want to dedicate to uplink traffic. Otherwise, select User Defined and manually specify the amount of bandwidth in kilobits per second.

This is traffic from LAN/WLAN to WAN. Select the total amount of bandwidth from a drop-down list box that you want to dedicate

to uplink traffic. Otherwise, select User Defined and manually specify the amount of bandwidth in kilobits per second.

This is traffic from WAN to LAN/WLAN.

• High - Select this for voice traffic or video that is especially sensitive to jitter (jitter is

the variations in delay).

• Mid - Select this for "excellent effort" or better than best effort and would include

important business traffic that can tolerate some delay.

• Low - Select this for non-critical "background" traffic such as bulk transfers that are

allowed but that should not affect other applications and users.

Select the check box to have the NBG5615 apply this bandwidth management rule.

Click the Edit icon to open the Rule Configurat i on screen where you can modify the

User-defined Service

# This is the number of an individual bandwidth management rule. Enable Select this check box to have the NBG5615 apply this bandwidth management rule. Direction Select To LAN&WLAN to apply bandwidth management to traffic from WAN to LAN and

Service Name Enter a descriptive name for the bandwidth management rule. Category This is the category where a service belongs. Modify Click the Edit icon to open the Rule Configuration screen. Modify an existing rule or

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

rule. Use this table to allocate specific amounts of bandwidth to specific applications or services

you specify.

WLAN. Select To W AN to apply bandwidth management to traffic from LAN/WLAN to WAN.

create a new rule in the Rule Configuration screen. See Section 20.5.2 on page 169 for more information.

Click the Rem ove icon to delete a rule.

20.5.1 Rule Configuration: Application Rule Configuration

168

If you want to edit a bandwidth management rule for a pre-defined service or application, click the Edit icon in the Application Li st table of the Advanced screen. The following screen displays.

NBG5615 User’s Guide

Chapter 20 Bandwidth Management

Figure 100 Bandwidth Management Rule Configuration: Application List

The following table describes the labels in this screen.

Table 68 Bandwidth Management Rule Configuration: Application List

LABEL DESCRIPTION

# This is the number of an individual bandwidth management rule. Enable Select an interface’s check box to enable bandwidth management on that interface. Direction These read-only labels represent the physical interfaces. Bandwidth management applies

to all traffic flowing out of the router through the interface, regardless of the traffic’s source.

Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the NBG5615 and be managed by bandwidth management.

Bandwidth Select Maxim um Bandw idth or Minimum Bandw idth and specify the maximum or

minimum bandwidth allowed for the rule in kilobits per second.

Destination Port This is the port number of the destination that define the traffic type, for example TCP

Source Port This is the port number of the source that define the traffic type, for example TCP port 80

Protocol This is the protocol (TCP, UDP or user-defined) used for the service. Apply Click Apply to save your customized settings. Cancel Click Cancel to exit this screen without saving.

port 80 defines web traffic.

Appendix C on page 249 for some common services and port numbers.

See

defines web traffic.

Appendix C on page 249 for some common services and port numbers.

See

20.5.2 Rule Configuration: User Defined Service Rule Configuration

If you want to edit a bandwidth management rule for other applications or services, click the Edit icon in the User-defined Service table of the Advanced screen. The following screen displays.

NBG5615 User’s Guide

169

Chapter 20 Bandwidth Management

Figure 101 Bandwidth Management Rule Configuration: User-defined Service

The following table describes the labels in this screen.

Table 69 Bandwidth Management Rule Configuration: User-defined Service

LABEL DESCRIPTION

BW Budget Select Maximum Bandw idth or Minimum Bandw idth and specify the maximum

Destination Address Start

Destination Address End Enter the ending IP address of the destination computer.

or minimum bandwidth allowed for the rule in kilobits per second. Enter the starting IP address of the destination computer.

The NBG5615 applies bandwidth management to the service or application that is entering this computer.

Destination Port This is the port number of the destination that define the traffic type, for example

TCP port 80 defines web traffic.

Source Address Start Enter the starting IP address of the computer that initializes traffic for the

application or service.

The NBG5615 applies bandwidth management to traffic initiating from this computer.

Source Address End Enter the ending IP address of the computer that initializes traffic for the

Source Port This is the port number of the source that define the traffic type, for example TCP

Protocol Select the protocol (TCP, UDP, BOTH) for which the bandwidth management rule

Apply Click Apply to save your customized settings. Cancel Click Cancel to exit this screen without saving.

application or service.

The NBG5615 applies bandwidth management to traffic initiating from this computer.

port 80 defines web traffic.

applies. If you select BOTH, enter the protocol for which the bandwidth management rule

applies. For example, ICMP for ping traffic.

See Appendix C on page 249 for commonly used services and port numbers.

170

NBG5615 User’s Guide

20.5.3 Predefined Bandwidth Management Services

The following is a description of some services that you can select and to which you can apply media bandwidth management in the Management > Bandw idth MGMT > Advanced screen.

Table 70 Media Bandwidth Management Setup: Services

SERVICE DESCRIPTION

FTP File Transfer Program enables fast transfer of files, including large files that may not be

possible by e-mail.

WWW The World Wide Web (WWW) is an Internet system to distribute graphical, hyper-linked

information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one service on the Internet. Other services on the Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser.

E-Mail Electronic mail consists of messages sent through a computer network to specific groups

or individuals. Here are some default ports for e-mail:

VoIP (SIP) Sending voice signals over the Internet is called Voice over IP or VoIP. Session Initiated

Protocol (SIP) is an internationally recognized standard for implementing VoIP. SIP is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet.

SIP is transported primarily over UDP but can also be transported over TCP.

BitTorrent BitTorrent is a free P2P (peer-to-peer) sharing tool allowing you to distribute large

software and media files. BitTorrent requires you to search for a file with a searching engine yourself. It distributes files by corporation and trading, that is, the client downloads the file in small pieces and share the pieces with other peers to get other half of the file.

Gaming Online gaming services lets you play multiplayer games on the Internet via broadband

technology. As of this writing, your NBG5615 supports Xbox, Playstation, Battlenet and MSN Game Zone.

Chapter 20 Bandwidth Management

NBG5615 User’s Guide

171

Chapter 20 Bandwidth Management

172

NBG5615 User’s Guide

21.1 Overview

This chapter provides information on the Remote Management screens.

Remote Management allows you to manage your NBG5615 from a remote location through the following interfaces:

•LAN and WAN

•LAN only

•WAN only

Note: The NBG5615 is managed using the Web Configurator.

CHAPTER 21

Remote Management

21.2 What You Can Do in this Chapter

•Use the W W W screen to define the interface/s from which the NBG5615 can be managed

remotely using the web and specify a secure client that can manage the NBG5615 (Section 21.4

on page 174

•Use the Telnet screen to define the interface/s from which the NBG5615 can be managed

remotely using Telnet service and specify a secure client that can manage the NBG5615 (Section

21.5 on page 175

•Use the W ake On LAN screen to enable Wake on LAN and remotely turn on a device on the local

network (Section 21.6 on page 175).

21.3 What You Need to Know

Remote management over LAN or WAN will not work when:

1 The IP address in the Secured Client I P Address field (

the client IP address. If it does not match, the NBG5615 will disconnect the session immediately.

2 There is already another remote management session. You may only have one remote

management session running at one time.

3 There is a firewall rule that blocks it.

Section 21.4 on page 174) does not match

NBG5615 User’s Guide 173

Chapter 21 Remote Management

21.3.1 Remote Management and NAT

When NAT is enabled:

• Use the NBG5615’s WAN IP address when configuring from the WAN.

• Use the NBG5615’s LAN IP address when configuring from the LAN.

21.3.2 System Timeout

There is a default system management idle timeout of five minutes (three hundred seconds). The NBG5615 automatically logs you out if the management session remains idle for longer than this timeout period. The management session does not time out when a statistics screen is polling. You can change the timeout period in the Maintenance > General screen

21.4 WWW Screen

To change your NBG5615’s remote management settings, click Managem ent > Remote MGMT > WW W.

Figure 102 Management > Remote Management > WWW

The following table describes the labels in this screen.

Table 71 Management > Remote Management > WWW

LABEL DESCRIPTION

Port You may change the server port number for a service if needed, however you must

Access Status Select the interface(s) through which a computer may access the NBG5615 using

Secured Client IP Address

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

use the same port number in order to use that service for remote management.

this service. Select All to allow all computes to access the NBG5615.

Otherwise, check Selected and specify the IP address of the computer that can access the NBG5615.

174

NBG5615 User’s Guide

21.5 Telnet Screen

To change your NBG5615’s remote management settings, click Managem ent > Remote MGMT > Telnet to open the Telnet screen.

Figure 103 Management > Remote MGMT > Telnet

The following table describes the labels in this screen.

Table 72 Management > Remote MGMT > Telnet

LABEL DESCRIPTION

Port You may change the server port number for a service if needed, however you must

Access Status Select the interface(s) through which a computer may access the NBG5615 using

Secured Client IP Address

Apply Click Apply to save your customized settings. Cancel Click Cancel to begin configuring this screen afresh.

use the same port number in order to use that service for remote management.

this service. Select All to allow all computes to access the NBG5615.

Otherwise, check Selected and specify the IP address of the computer that can access the NBG5615.

Chapter 21 Remote Management

21.6 Wake On LAN Screen

Wake On LAN (WoL) allows you to remotely turn on a device on the network, such as a computer, storage device or media server. To use this feature the remote hardware (for example the network adapter on a computer) must support Wake On LAN using the “Magic Packet” method.

You need to know the MAC address of the remote device. It may be on a label on the device.

NBG5615 User’s Guide

175

Chapter 21 Remote Management

Use this screen to remotely turn on a device on the network. Click the Managem ent > Remote MGMT > W ake On LAN to open the following screen.

Figure 104 Management > Remote MGMT > Wake On LAN

The following table describes the labels in this screen.

Table 73 Management > Remote MGMT > Wake On LAN

LABEL DESCRIPTION

Wake On LAN over WAN Settings

Enable WOL over WAN Select this option to have the NBG5615 forward a WoL “Magic Packet” to all

devices on the LAN if the packet comes from the WAN or remote network and uses the port number specified in the Port field. A LAN device whose hardware

supports Wake on LAN then will be powered on if it is turned off previously. Port Type a port number from which a WoL packet is forwarded to the LAN. Wake On LAN Wake MAC Address Enter the MAC Address of the device on the network that will be turned on.

A MAC address consists of six hexadecimal character pairs. Start Click this to have the NBG5615 generate a WoL packet and forward it to turn

the specified device on.

A screen pops up displaying MAC address error if you input the MAC address

incorrectly. Apply Click Apply to save the setting to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

176

NBG5615 User’s Guide

Universal Plug-and-Play (UPnP)

22.1 Overview

This chapter introduces the UPnP feature in the web configurator.

Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.

22.2 What You Need to Know

UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device.

CHAPTER 22

22.2.1 NAT Traversal

UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. NAT traversal allows the following:

• Dynamic port mapping

• Learning public IP addresses

• Assigning lease times to mappings

Windows Messenger is an example of an application that supports NAT traversal and UPnP.

See the NAT chapter for more information on NAT.

22.2.2 Cautions with UPnP

The automated nature of NAT traversal applications in establishing their own services and opening firewall ports may present network security issues. Network information and configuration may also be obtained and modified by users in some network environments.

When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the NBG5615 allows multicast messages on the LAN only.

NBG5615 User’s Guide 177

Chapter 22 Universal Plug-and-Play (UPnP)

All UPnP-enabled devices may communicate freely with each other without additional configuration. Disable UPnP if this is not your intention.

22.3 UPnP Screen

Use this screen to enable UPnP on your NBG5615.

Click Managem ent > UPnP to display the screen shown next.

Figure 105 Management > UPnP

The following table describes the fields in this screen.

Table 74 Management > UPnP

LABEL DESCRIPTION

UPnP Select Enable to activate UPnP. Be aware that anyone could use a UPnP application to

open the web configurator's login screen without entering the NBG5615's IP address (although you must still enter the password to access the web configurator).

Apply Click Apply to save the setting to the NBG5615. Cancel Click Cancel to return to the previously saved settings.

22.4 Technical Reference

The sections show examples of using UPnP.

22.4.1 Using UPnP in Windows XP Example

This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the NBG5615.

Make sure the computer is connected to a LAN port of the NBG5615. Turn on your computer and the NBG5615.

22.4.1.1 Auto-discover Your UPnP-enabled Network Device

1 Click start and Control Panel. Double-click Netw ork Connections. An icon displays under

Internet Gateway.

2 Right-click the icon and select Pro perties.

178

NBG5615 User’s Guide

Chapter 22 Universal Plug-and-Play (UPnP)

Figure 106 Network Connections

3 In the I nternet Connection P roperties window, click Settings to see the port mappings there

were automatically created.

Figure 107 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.

Figure 108 Internet Connection Properties: Advanced Settings

NBG5615 User’s Guide

179

Chapter 22 Universal Plug-and-Play (UPnP)

Figure 109 Internet Connection Properties: Advanced Settings: Add

Note: When the UPnP-enabled device is disconnected from your computer, all port

mappings will be deleted automatically.

5 Select Show icon in notification area w hen connected option and click OK. An icon displays in

the system tray.

Figure 110 System Tray Icon

6 Double-click on the icon to display your current Internet connection status.

Figure 111 Internet Connection Status

22.4.2 Web Configurator Easy Access

With UPnP, you can access the web-based configurator on the NBG5615 without finding out the IP address of the NBG5615 first. This comes helpful if you do not know the IP address of the NBG5615.

Follow the steps below to access the web configurator.

1 Click Start and then Control Panel.

2 Double-click Netw ork Connections.

180

NBG5615 User’s Guide

3 Select My Netw ork Places under Other Places.

Figure 112 Network Connections

Chapter 22 Universal Plug-and-Play (UPnP)

4 An icon with the description for each UPnP-enabled device displays under Local Netw ork.

5 Right-click on the icon for your NBG5615 and select I nvoke. The web configurator login screen

displays.

Figure 113 Network Connections: My Network Places

6 Right-click on the icon for your NBG5615 and select Properties. A properties window displays with

basic information about the NBG5615.

NBG5615 User’s Guide

181

Chapter 22 Universal Plug-and-Play (UPnP)

Figure 114 Network Connections: My Network Places: Properties: Example

182

NBG5615 User’s Guide

23.1 Overview

This chapter describes how to configure the media sharing settings on the NBG5615.

Note: The read and write performance may be affected by amount of file-sharing traffic

on your network, type of connected USB device and your USB version (1.1 or 2.0).

Media Server

You can set up your NBG5615 to act as a media server to provide media (like video) to DLNAcompliant players, such as Windows Media Player, ZyXEL DMAs (Digital Media Adapters), Xboxes or PS3s. The media server and clients must have IP addresses in the same subnet.

The NBG5615 media server enables you to:

CHAPTER 23

USB Media Sharing

• Publish all folders for everyone to play media files in the USB storage device connected to the NBG5615.

• Use hardware-based media clients like the DMA-2500 to play the files.

Note: Anyone on your network can play the media files in the published folders. No user

name and password nor other form of security is required.

The following figure is an overview of the NBG5615’s media server feature. DLNA devices A and B can access and play files on a USB device (C) which is connected to the NBG5615 (D ).

Figure 115 Media Server Overview

NBG5615 User’s Guide 183

Chapter 23 USB Media Sharing

File-Sharing Server

You can also share files on a USB memory stick or hard drive connected to your NBG5615 with users on your network.

The following figure is an overview of the NBG5615’s file-sharing server feature. Computers A and

B can access files on a USB device (C) which is connected to the NBG5615 (D).

Figure 116 File Sharing Overview

23.2 What You Can Do

•Use the DLNA screen to use the NBG5615 as a media server and allow DLNA-compliant devices to play media files stored in the attached USB device (

•Use the SAMBA screen to enable file-sharing via the NBG5615 using Windows Explorer or the workgroup name. This screen also allow you to configure the workgroup name and create user accounts (

•Use the FTP screen to allow file sharing via the NBG5615 using FTP and create user accounts (Section 23.7 on page 188).

Section 23.6 on page 186).

23.3 What You Need To Know

DLNA

The Digital Living Network Alliance (DLNA) is a group of personal computer and electronics companies that works to make products compatible in a home network. DLNA clients play files stored on DLNA servers. The NBG5615 can function as a DLNA-compliant media server and stream files to DLNA-compliant media clients without any configuration.

Section 23.5 on page 186).

184

NBG5615 User’s Guide

Chapter 23 USB Media Sharing

Workgroup name

This is the name given to a set of computers that are connected on a network and share resources such as a printer or files. Windows automatically assigns the workgroup name when you set up a network.

File Systems

A file system is a way of storing and organizing files on your hard drive and storage device. Often different operating systems such as Windows or Linux have different file systems. The file-sharing feature on your NBG5615 supports New Technology File System (NTFS), File Allocation Table (FAT) and FAT32 file systems.

Windows/CIFS

Common Internet File System (CIFS) is a standard protocol supported by most operating systems in order to share files across the network.

CIFS runs over TCP/IP but uses the SMB (Server Message Block) protocol found in Microsoft Windows for file and printer access; therefore, CIFS will allow all applications, not just Web browsers, to open and share files across the Internet.

The NBG5615 uses Common Internet File System (CIFS) protocol for its file sharing functions. CIFS compatible computers can access the USB file storage devices connected to the NBG5615. CIFS protocol is supported on Microsoft Windows, Linux Samba and other operating systems (refer to your systems specifications for CIFS compatibility).

Samba

SMB is a client-server protocol used by Microsoft Windows systems for sharing files, printers, and so on.

Samba is a free SMB server that runs on most Unix and Unix-like systems. It provides an implementation of an SMB client and server for use with non-Microsoft operating systems.

File Transfer Protocol

This is a method of transferring data from one computer to another over a network such as the Internet.

23.4 Before You Begin

Make sure the NBG5615 is connected to your network and turned on.

1 Connect the USB device to one of the NBG5615’s USB ports.

2 The NBG5615 detects the USB device and makes its contents available for browsing. If you are

connecting a USB hard drive that comes with an external power supply, make sure it is connected to an appropriate power source that is on.

NBG5615 User’s Guide

185

Chapter 23 USB Media Sharing

Note: If your USB device cannot be detected by the NBG5615, see the troubleshooting

for suggestions.

23.5 DLNA Screen

Use this screen to have the NBG5615 act as a DLNA-compliant media server that lets DLNAcompliant media clients on your network play video, music, and photos from the NBG5615 (without having to copy them to another computer). Click Managem ent > USB Media Sharing > DLNA.

Figure 117 Management > USB Media Sharing > DLNA

The following table describes the labels in this screen.

Table 75 Management > USB Media Sharing > DLNA

LABEL DESCRIPTION

Enable DLNA Select this to have the NBG5615 function as a DLNA-compliant media server. USB1/2 Select the media type that you want to share on the USB device connected to the

NBG5615’s USB port.

Rescan Click this button to have the NBG5615 scan the media files on the connected USB device

and do indexing of the file list again so that DLNA clients can find the new files if any.

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

23.6 SAMBA Screen

Use this screen to set up file-sharing via the NBG5615 using Windows Explorer or the workgroup name. You can also configure the workgroup name and create file-sharing user accounts. Click

Management > USB Media Sharing > SAMBA.

186

NBG5615 User’s Guide

Figure 118 Management > USB Media Sharing > SAMBA

Chapter 23 USB Media Sharing

The following table describes the labels in this screen.

Table 76 Management > USB Media Sharing > SAMBA

LABEL DESCRIPTION

Enable SAMBA Select this to enable file sharing through the NBG5615 using Windows Explorer or by

browsing to your work group. Name Specify the name to identify the NBG5615 in a work group. Work Group You can add the NBG5615 to an existing or a new workgroup on your network. Enter the

name of the workgroup which your NBG5615 automatically joins. You can set the

NBG5615’s workgroup name to be exactly the same as the workgroup name to which

your computer belongs to.

Note: The NBG5615 will not be able to join the workgroup if your local area network has

restrictions set up that do not allow devices to join a workgroup. In this case, contact your network administrator.

Decription Enter the description of the NBG5615 in a work group. USB1/2 Specify the user’s access rights to the USB storage device which is connected to the

User Accounts Before you can share files you need a user account. Configure the following fields to set

# This is the index number of the user account.

NBG5615’s USB port.

Read & Write - The user has read and write rights, meaning that the user can create

and edit the files on the connected USB device.

Read - The user has read rights only and can not create or edit the files on the

connected USB device.

up a file-sharing account.

NBG5615 User’s Guide

187

Chapter 23 USB Media Sharing

Table 76 Management > USB Media Sharing > SAMBA (continued)

LABEL DESCRIPTION

Enable This field displays whether a user account is activated or not. Select the check box to

User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20

Password Enter the password used to access the shared files. You can enter up to 20 characters.

USB1/2 Select the USB port(s) of the NBG5615. The configured user can access the files on the

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

23.7 FTP Screen

Use this screen to set up file sharing via the NBG5615 using FTP and create user accounts. Click Management > USB Media Sharing > FTP.

enable the account. Clear the check box to disable the account.

characters. Only letters and numbers allowed.

Only letters and numbers are allowed. The password is case sensitive.

USB device(s) connected to the selected USB port(s) only.

Figure 119 Management > USB Media Sharing > FTP

The following table describes the labels in this screen.

Table 77 Management > USB Media Sharing > FTP

LABEL DESCRIPTION

Enable FTP Select this to enable the FTP server on the NBG5615 for file sharing using FTP. Port You may change the server port number for FTP if needed, however you must use the

same port number in order to use that service for file sharing. User Accounts Before you can share files you need a user account. Configure the following fields to set

up a file-sharing account. # This is the index number of the user account.

188

NBG5615 User’s Guide

Chapter 23 USB Media Sharing

Table 77 Management > USB Media Sharing > FTP (continued)

LABEL DESCRIPTION

Enable This field displays whether a user account is activated or not. Select the check box to

enable the account. Clear the check box to disable the account. User Name Enter a user name that will be allowed to access the shared files. You can enter up to 20

characters. Only letters and numbers allowed. Password Enter the password used to access the shared files. You can enter up to 20 characters.

USB1/2 Specify the user’s access rights to the USB storage device which is connected to the

Upstream Bandwidth

Downstream Bandwidth

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

Only letters and numbers are allowed. The password is case sensitive.

NBG5615’s USB port.

Read & Write - The user has read and write rights, meaning that the user can create

and edit the files on the connected USB device.

Read - The user has read rights only and can not create or edit the files on the

connected USB device.

None - The user cannot access the files on the USB device(s) connected to the USB

port.

Enter the maximum bandwidth (in Kbps) allowed for incoming FTP traffic.

Enter the maximum bandwidth (in Kbps) allowed for outgoing FTP traffic.

23.8 Example of Accessing Your Shared Files From a Computer

You can use Windows Explorer or FTP to access the USB storage devices connected to the NBG5615.

This example shows you how to use Microsoft’s Windows XP to browse your shared files. Refer to your operating system’s documentation for how to browse your file structure.

23.8.1 Use Windows Explorer to Share Files

You should have enabled file sharing and create a user account (Bob/1234 for example) with read and write access to USB 1 in the U SB Media Sharing > SAMBA screen.

Open Windows Explorer to access the connected USB device using either Windows Explorer browser or by browsing to your workgroup.

NBG5615 User’s Guide

189

Chapter 23 USB Media Sharing

1 In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP address of the

NBG5615 (the default IP address of the NBG5615 in router mode is 192.168.1.1) and press [ENTER]. A screen asking for password authentication appears. Type the user name and password (Bob and 1234 in this example) and click OK.

190

Note: Once you log into the shared folder via your NBG5615, you do not have to relogin

unless you restart your computer.

NBG5615 User’s Guide

Chapter 23 USB Media Sharing

2 You can also use the workgroup name to access files by browsing to the workgroup folder using the

folder tree on the left side of the screen. It is located under My Netw ork Places. In this example the workgroup name is the default “Workgroup”.

23.8.2 Use FTP to Share Files

You can use FTP to access the USB storage devices connected to the NBG5615. In this example, we use the web browser to share files via FTP from the LAN. The way or screen you log into the FTP server (on the NBG5615) varies depending on your FTP client. See your FTP client documentation for more information.

You should have enabled file sharing and create a user account (Bob/1234 for example) with read and write access to USB 1 in the U SB Media Sharing > FTP screen.

1 In your web browser’s address or URL bar type “ftp://” followed by the IP address of the NBG5615

(the default LAN IP address of the NBG5615 in router mode is 192.168.1.1) and click Go or press [ENTER].

NBG5615 User’s Guide

191

Chapter 23 USB Media Sharing

2 A screen asking for password authentication appears. Enter the user name and password (you

configured in the USB Media Sharing > FTP screen) and click Log On.

3 The screen changes and shows you the folder for the USB storage device connected to your

NBG5615. Double-click the folder to display the contents in it.

192

NBG5615 User’s Guide

24.1 Overview

This chapter provides information on the Maint enance screens.

24.2 What You Can Do

CHAPTER 24

Maintenance

•Use the General screen to set the timeout period of the management session (

page 193

•Use the Passw ord screen to change your NBG5615’s system password (

194

•Use the Tim e screen to change your NBG5615’s time and date (

•Use the Firmw are Upgrade screen to upload firmware to your NBG5615 (

196

•Use the Backup/ Restore screen to view information related to factory defaults, backup

configuration, and restoring configuration (Section 24.8 on page 199).

•Use the Restart screen to reboot the NBG5615 without turning the power off (

page 199

•Use the Language screen to change the language for the Web Configurator (

page 199

•Use the Sys OP Mode screen to select how you want to use your NBG5615 (

page 201

) .

24.3 General Screen

Use this screen to set the management session timeout period. Click Maintenance > General. The following screen displays.

Section 24.3 on

Section 24.4 on page

Section 24.5 on page 195).

Section 24.6 on page

Section 24.8 on

Section 24.9 on

Section 24.11 on

Figure 120 Maintenance > General

NBG5615 User’s Guide 193

Chapter 24 Maintenance

The following table describes the labels in this screen.

Table 78 Maintenance > General

LABEL DESCRIPTION

System Name System Name is a unique name to identify the NBG5615 in an Ethernet network. Domain Name Enter the domain name you want to give to the NBG5615. Administrator

Inactivity Timer

Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

Type how many minutes a management session can be left idle before the session times out. The default is 5 minutes. After it times out you have to log in with your password again. Very long idle timeouts may have security risks. A value of "0" means a management session never times out, no matter how long it has been left idle (not recommended).

24.4 Password Screen

It is strongly recommended that you change your NBG5615's password.

If you forget your NBG5615's password (or IP address), you will need to reset the device. See

Section 24.8 on page 199 for details.

Click Maintenance > Passw ord. The screen appears as shown.

Figure 121 Maintenance > Password

The following table describes the labels in this screen.

Table 79 Maintenance > Password

LABEL DESCRIPTION

Password Setup Change your NBG5615’s password (recommended) using the fields as shown. Old Password Type the default password or the existing password you use to access the system in

this field.

New Password Type your new system password (up to 30 characters). Note that as you type a

Retype to Confirm Type the new password again in this field. Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

password, the screen displays an asterisk (*) for each character you type.

194

NBG5615 User’s Guide

24.5 Time Setting Screen

Use this screen to configure the NBG5615’s time based on your local time zone. To change your NBG5615’s time and date, click Maintenance > Tim e. The screen appears as shown.

Figure 122 Maintenance > Time

Chapter 24 Maintenance

The following table describes the labels in this screen.

Table 80 Maintenance > Time

LABEL DESCRIPTION

Current Time and Date Current Time This field displays the time of your NBG5615.

Each time you reload this page, the NBG5615 synchronizes the time with the time server.

Current Date This field displays the date of your NBG5615.

Each time you reload this page, the NBG5615 synchronizes the date with the time

server. Current Time and Date Manual Select this radio button to enter the time and date manually. If you configure a new

time and date, Time Zone and Daylight Saving at the same time, the new time and date

you entered has priority and the Time Zone and Daylight Saving settings do not affect

it. New Time

(hh:mm:ss)

This field displays the last updated time from the time server or the last time

configured manually.

When you select Manual, enter the new time in this field and then click Apply.

NBG5615 User’s Guide

195

Chapter 24 Maintenance

Table 80 Maintenance > Time (continued)

LABEL DESCRIPTION

New Date

(yyyy/mm/dd)

Get from Time Server

User Defined Time Server Address

Time Zone Setup Time Zone Choose the time zone of your location. This will set the time difference between your

Daylight Savings Daylight saving is a period from late spring to early fall when many countries set their

Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight

End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight

This field displays the last updated date from the time server or the last date configured

manually.

When you select Manual, enter the new date in this field and then click Apply.

Select this radio button to have the NBG5615 get the time and date from the time

server you specified below.

Select User Defined Tim e Server Address and enter the IP address or URL (up to 20

extended ASCII characters in length) of your time server. Check with your ISP/network

administrator if you are unsure of this information.

time zone and Greenwich Mean Time (GMT).

clocks ahead of normal local time by one hour to give more daytime light in the

evening.

Select this option if you use Daylight Saving Time.

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time starts in most parts of the United States on the second Sunday of

March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.

local time. So in the United States you would select Second, Sunday, March and

select 2 in the at field.

Daylight Saving Time starts in the European Union on the last Sunday of March. All of

the time zones in the European Union start using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, March. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1).

Savings. The at field uses the 24 hour format. Here are a couple of examples:

Daylight Saving Time ends in the United States on the first Sunday of November. Each

time zone in the United States stops using Daylight Saving Time at 2 A.M. local time.

So in the United States you would select First, Sunday, November and select 2 in the

at field.

Daylight Saving Time ends in the European Union on the last Sunday of October. All of

the time zones in the European Union stop using Daylight Saving Time at the same

moment (1 A.M. GMT or UTC). So in the European Union you would select Last,

Sunday, October. The time you select in the at field depends on your time zone. In

Germany for instance, you would select 2 because Germany's time zone is one hour

ahead of GMT or UTC (GMT+1). Apply Click Apply to save your changes back to the NBG5615. Cancel Click Cancel to begin configuring this screen afresh.

24.6 Firmware Upgrade Screen

Find firmware at “*.bin” extension, e.g., “V1.00(AAGI.0).bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

196

www.zyxel.com in a file that uses the version number and project code with a

NBG5615 User’s Guide

Chapter 24 Maintenance

Click Maintenance > Firmw are Upgrade. Follow the instructions in this screen to upload firmware to your NBG5615.

Figure 123 Maintenance > Firmware Upgrade

The following table describes the labels in this screen.

Table 81 Maintenance > Firmware Upgrade

LABEL DESCRIPTION

File Path Type in the location of the file you want to upload in this field or click B ro w se... to find it. Browse... Click Brow se... to find the .bin file you want to upload. Remember that you must

decompress compressed (.zip) files before you can upload them.

Upload Click Upload to begin the upload process. This process may take up to two minutes. Check for Latest

Firmware Now

Click this to check for the latest updated firmware.

Note: Do not turn off the NBG5615 while firmware upload is in progress!

After you see the Firm w are Upload I n Process screen, wait two minutes before logging into the NBG5615 again.

The NBG5615 automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 124 Network Temporarily Disconnected

After two minutes, log in again and check your new firmware version in the Status screen.

If the upload was not successful, an error message appears. Click Return to go back to the Firm w are Upgrade screen.

NBG5615 User’s Guide

197

Chapter 24 Maintenance

24.7 Configuration Backup/Restore Screen

Backup configuration allows you to back up (save) the NBG5615’s current configuration to a file on your computer. Once your NBG5615 is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.

Restore configuration allows you to upload a new or previously saved configuration file from your computer to your NBG5615.

Click Maintenance > Backup/ Restore. Information related to factory defaults, backup configuration, and restoring configuration appears as shown next.

Figure 125 Maintenance > Backup/Restore

198

The following table describes the labels in this screen.

Table 82 Maintenance > Backup/Restore

LABEL DESCRIPTION

Backup Click Back up to save the NBG5615’s current configuration to your computer. File Path Type in the location of the file you want to upload in this field or click B ro w se... to find it. Browse... Click Brow se... to find the file you want to upload. Remember that you must decompress

compressed (.ZIP) files before you can upload them.

NBG5615 User’s Guide

Chapter 24 Maintenance

Table 82 Maintenance > Backup/Restore (continued)

LABEL DESCRIPTION

Upload Click Upload to begin the upload process.

Note: Do not turn off the NBG5615 while configuration file upload is in progress.

After you see a “configuration upload successful” screen, you must then wait one minute before logging into the NBG5615 again. The NBG5615 automatically restarts in this time causing a temporary network disconnect.

If you see an error screen, click Back to return to the Backup/Restore screen.

Reset Pressing the Reset button in this section clears all user-entered configuration information

and returns the NBG5615 to its factory defaults. You can also press the RESET button on the rear panel to reset the factory defaults of your

NBG5615. Refer to the chapter about introducing the Web Configurator for more information on the RESET button.

Note: If you uploaded the default configuration file you may need to change the IP

address of your computer to be in the same subnet as that of the default NBG5615 IP address (192.168.1.1). See

Appendix B on page 221 for details on how to set up

your computer’s IP address.

24.8 Restart Screen

System restart allows you to reboot the NBG5615 without turning the power off.

Click Maintenance > Restart to open the following screen.

Figure 126 Maintenance > Restart

Click Restart to have the NBG5615 reboot. This does not affect the NBG5615's configuration.

24.9 Language Screen

Use this screen to change the language for the Web Configurator.

Select the language you prefer and click Apply. The Web Configurator language changes after a while without restarting the NBG5615.

NBG5615 User’s Guide

199

Chapter 24 Maintenance

Figure 127 Maintenance > Language

24.10 System Operation Mode Overview

The Sys OP Mode (System Operation Mode) function lets you configure your NBG5615 as a router or access point. You can choose between Router Mode, and Access Point Mode depending on your network topology and the features you require from your device.

The following describes the device modes available in your NBG5615.

Router

A router connects your local network with another network, such as the Internet. The router has two IP addresses, the LAN IP address and the WAN IP address.

Figure 128 LAN and WAN IP Addresses in Router Mode

Access Point

An access point enabled all ethernet ports to be bridged together and be in the same subnet. To connect to the Internet, another device, such as a router, is required.

200

NBG5615 User’s Guide

Figure 129 Access Point Mode

24.11 Sys OP Mode Screen

Chapter 24 Maintenance

Use this screen to select how you want to use your NBG5615.

Figure 130 Maintenance > Sys OP Mode

The following table describes the labels in the General screen.

Table 83 Maintenance > Sys OP Mode

LABEL DESCRIPTION

Configuration Mode Router Mode Select Rout er Mode if your device routes traffic between a local network and

another network such as the Internet. This mode offers services such as a firewall or bandwidth management.

NBG5615 User’s Guide

You can configure the IP address settings on your WAN port. Contact your ISP or system administrator for more information on appropriate settings.

201

Chapter 24 Maintenance

Table 83 Maintenance > Sys OP Mode (continued)

LABEL DESCRIPTION

Access Point Mode Select Access Point M ode if your device bridges traffic between clients on the

Apply Click Apply to save your settings. Cancel Click Cancel to return your settings to the default (Router).

Note: If you select the incorrect system operation Mode you may not be able to connect

to the Internet.

same network.

•In Access Point Mode, all Ethernet ports have the same IP address.

• All ports on the rear panel of the device are LAN ports, including the port labeled WAN. There is no WAN port.

• The DHCP server on your device is disabled.

• Router functions (such as NAT, bandwidth management, remote management, firewall and so on) are not available when the NBG5615 is in Access Point Mode.

• The IP address of the device on the local network is set to 192.168.1.2.

202

NBG5615 User’s Guide

25.1 Overview

This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories.

•

Power, Hardware Connections, and LEDs

• NBG5615 Access and Login

• Internet Access

• Resetting the NBG5615 to Its Factory Defaults

• Wireless Connections

• USB Device Problems

• ZyXEL Share Center Utility Problems

CHAPTER 25

Troubleshooting

25.2 Power, Hardware Connections, and LEDs

The NBG5615 does not turn on. None of the LEDs turn on.

1 Make sure you are using the power adaptor or cord included with the NBG5615.

2 Make sure the power adaptor or cord is connected to the NBG5615 and plugged in to an appropriate

power source. Make sure the power source is turned on.

3 Disconnect and re-connect the power adaptor or cord to the NBG5615.

4 If the problem continues, contact the vendor.

One of the LEDs does not behave as expected.

1 Make sure you understand the normal behavior of the LED. See Section 1.7 on page 18.

2 Check the hardware connections. See the Quick Start Guide.

3 Inspect your cables for damage. Contact the vendor to replace any damaged cables.

NBG5615 User’s Guide 203

Chapter 25 Troubleshooting

4 Disconnect and re-connect the power adaptor to the NBG5615.

5 If the problem continues, contact the vendor.

25.3 NBG5615 Access and Login

I don’t know the IP address of my NBG5615.

1 The default IP address of the NBG5615 in Router Mode is 192.168.1.1. The default IP address of

the NBG5615 in Access Point Mode is 192.168.1.2 .

2 If you changed the IP address and have forgotten it, you might get the IP address of the NBG5615

in Router Mode by looking up the IP address of the default gateway for your computer. To do this in most Windows computers, click Start > Run, enter cm d, and then enter ipconfig. The IP address of the Default Gatew ay might be the IP address of the NBG5615 (it depends on the network), so enter this IP address in your Internet browser.

3 If your NBG5615 in Access Point Mode is a DHCP client, you can find your IP address from the

DHCP server. This information is only available from the DHCP server which allocates IP addresses on your network. Find this information directly from the DHCP server or contact your system administrator for more information.

4 Reset your NBG5615 to change all settings back to their default. This means your current settings

are lost. See NBG5615.

Section 25.5 on page 207 in the Troubleshooting for information on resetting your

I forgot the password.

1 The default password is 1234.

2 If this does not work, you have to reset the device to its factory defaults. See Section 25.5 on page

207

I cannot see or access the Logi n screen in the Web Configurator.

1 Make sure you are using the correct IP address.

• The default IP address of the NBG5615 in Router Mode is 192.168.1.1. The default IP address of the NBG5615 in Access Point Mode is 192.168.1.2.

• If you changed the IP address (

• If you changed the IP address and have forgotten it, see the troubleshooting suggestions for

don’t know the IP address of my NBG5615.

204

Section 13.4 on page 130), use the new IP address.

NBG5615 User’s Guide

Chapter 25 Troubleshooting

2 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

3 Make sure your Internet browser does not block pop-up windows and has JavaScript and Java

enabled. See

4 Make sure your computer is in the same subnet as the NBG5615. (If you know that there are

routers between your computer and the NBG5615, skip this step.)

• If there is a DHCP server on your network, make sure your computer is using a dynamic IP address. See

• If there is no DHCP server on your network, make sure your computer’s IP address is in the same subnet as the NBG5615. See Section 13.4 on page 130.

5 Reset the device to its factory defaults, and try to access the NBG5615 with the default IP address.

See Section 1.5 on page 16.

6 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestions

• Try to access the NBG5615 using another service, such as Telnet. If you can access the NBG5615, check the remote management settings and firewall rules to find out why the NBG5615 does not respond to HTTP.

• If your computer is connected to the WAN port or is connected wirelessly, use a computer that is connected to a LAN /ETHERNET port.

Appendix A on page 211.

Section 13.4 on page 130.

I can see the Login screen, but I cannot log in to the NBG5615.

1 Make sure you have entered the password correctly. The default password is 123 4 . This field is

case-sensitive, so make sure [Caps Lock] is not on.

2 This can happen when you fail to log out properly from your last session. Try logging in again after

5 minutes.

3 Disconnect and re-connect the power adaptor or cord to the NBG5615.

4 If this does not work, you have to reset the device to its factory defaults. See Section 25.5 on page

207

25.4 Internet Access

I cannot access the Internet.

NBG5615 User’s Guide

205

Chapter 25 Troubleshooting

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide.

2 Go to Maintenance > Sys OP Mode. Check your System Operation Mode setting.

• If the NBG5615 is in Router Mode, make sure the WAN port is connected to a broadband

modem or router with Internet access. Your computer and the NBG5615 should be in the same subnet.

• If the NBG5615 is in Access Point Mode, make sure the WAN port is connected to a

broadband modem or router with Internet access and your computer is set to obtain an dynamic IP address.

3 If the NBG5615 is in Router Mode, make sure you entered your ISP account information correctly

in the wizard or the WAN screen. These fields are case-sensitive, so make sure [Caps Lock] is not on.

4 If you are trying to access the Internet wirelessly, make sure the wireless settings in the wireless

client are the same as the settings in the AP.

5 Disconnect all the cables from your device, and follow the directions in the Quick Start Guide again.

6 If the problem continues, contact your ISP.

I cannot access the Internet anymore. I had access to the Internet (with the NBG5615), but my Internet connection is not available anymore.

1 Check the hardware connections, and make sure the LEDs are behaving as expected. See the Quick

Start Guide and

2 Reboot the NBG5615.

3 If the problem continues, contact your ISP.

Section 1.7 on page 18.

The Internet connection is slow or intermittent.

1 There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7 on page 18.

If the NBG5615 is sending or receiving a lot of information, try closing some programs that use the Internet, especially peer-to-peer applications.

2 Check the signal strength. If the signal strength is low, try moving the NBG5615 closer to the AP if

possible, and look around to see if there are any devices that might be interfering with the wireless network (for example, microwaves, other wireless networks, and so on).

3 Reboot the NBG5615.

4 If the problem continues, contact the network administrator or vendor, or try one of the advanced

suggestions.

Advanced Suggestion

206

NBG5615 User’s Guide

Chapter 25 Troubleshooting

• Check the settings for QoS. If it is disabled, you might consider activating it.

25.5 Resetting the NBG5615 to Its Factory Defaults

If you reset the NBG5615, you lose all of the changes you have made. The NBG5615 re-loads its default settings, and the password resets to 12 3 4 . You have to make all of your changes again.

You will lose all of your changes when you push the RESET button.

To reset the NBG5615:

1 Make sure the power LED is on.

2 Press the RESET button for one to four seconds to restart/reboot the NBG5615.

3 Press the RESET button for longer than five seconds to set the NBG5615 back to its factory-default

configurations.

If the NBG5615 restarts automatically, wait for the NBG5615 to finish restarting, and log in to the Web Configurator. The password is “1234”.

If the NBG5615 does not restart automatically, disconnect and reconnect the NBG5615’s power. Then, follow the directions above again.

25.6 Wireless Connections

I cannot access the NBG5615 or ping any computer from the WLAN.

1 Make sure the wireless LAN is enabled on the NBG5615.

2 Make sure the wireless adapter on your computer is working properly.

3 Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible and supports

the same wireless standard as the NBG5615.

4 Make sure your computer (with a wireless adapter installed) is within the transmission range of the

NBG5615.

5 Check that both the NBG5615 and the wireless adapter on your computer are using the same

wireless and wireless security settings.

6 Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG5615.

NBG5615 User’s Guide

207

Chapter 25 Troubleshooting

7 Make sure you allow the NBG5615 to be remotely accessed through the WLAN interface. Check

your remote management settings.

• See the chapter on

Wireless LAN in the User’s Guide for more information.

I set up URL keyword blocking, but I can still access a website that should be blocked.

Make sure that you select the Enable URL Keyw ord Blocking check box in the Content Filtering screen. Make sure that the keywords that you type are listed in the Keyw ord List.

If a keyword that is listed in the Keyw ord List is not blocked when it is found in a URL, customize the keyword blocking using commands. See the Customizing Keyword Blocking URL Checking section in the

Content Filtering chapter.

I cannot access the Web Configurator after I switched to AP mode.

When you change from router mode to AP mode, your computer must have an IP address in the range between “192.168.1.3” and “192.168.1.254”.

Refer to

Appendix B on page 221 for instructions on how to change your computer’s IP address.

What factors may cause intermittent or unstabled wireless connection? How can I solve this problem?

The following factors may cause interference:

• Obstacles: walls, ceilings, furniture, and so on.

• Building Materials: metal doors, aluminum studs.

• Electrical devices: microwaves, monitors, electric motors, cordless phones, and other wireless devices.

To optimize the speed and quality of your wireless connection, you can:

• Move your wireless device closer to the AP if the signal strength is low.

• Reduce wireless interference that may be caused by other wireless networks or surrounding wireless electronics such as cordless phones.

• Place the AP where there are minimum obstacles (such as walls and ceilings) between the AP and the wireless client.

• Reduce the number of wireless clients connecting to the same AP simultaneously, or add additional APs if necessary.

• Try closing some programs that use the Internet, especially peer-to-peer applications. If the wireless client is sending or receiving a lot of information, it may have too many programs open that use the Internet.

208

NBG5615 User’s Guide

• Position the antennas for best reception. If the AP is placed on a table or floor, point the antennas upwards. If the AP is placed at a high position, point the antennas downwards. Try pointing the antennas in different directions and check which provides the strongest signal to the wireless clients.

25.7 USB Device Problems

I cannot access or see a USB device that is connected to the NBG5615.

1 Be sure to install the ZyXEL NetUSB Share Center Utility (for NetUSB functionality) first from the

included disc, or download the latest version from the zyxel.com website.

2 Disconnect the problematic USB device, then reconnect it to the NBG5615.

3 Ensure that the USB device has power.

Chapter 25 Troubleshooting

4 Check your cable connections.

5 Restart the NBG5615 by disconnecting the power and then reconnecting it.

6 If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG5615 and try to connect to it again with your computer.

7 If the problem persists, contact your vendor.

What kind of USB devices do the NBG5615 support?

1 It is strongly recommended to use version 2.0 or lower USB storage devices (such as memory

sticks, USB hard drives) and/or USB devices (such as USB printers). Other USB products are not guaranteed to function properly with the NBG5615.

25.8 ZyXEL Share Center Utility Problems

I cannot access or see a USB device that is connected to the NBG5615.

1 Disconnect the problematic USB device, then reconnect it to the NBG5615.

2 Ensure that the USB device in question has power.

NBG5615 User’s Guide

209

Chapter 25 Troubleshooting

3 Check your cable connections.

4 Restart the NBG5615 by disconnecting the power and then reconnecting it.

5 If the USB device requires a special driver, install the driver from the installation disc that came

with the device. After driver installation, reconnect the USB device to the NBG5615 and try to connect to it again with your computer.

6 If the problem persists, contact your vendor.

I cannot install the ZyXEL Share Center Utility.

1 Make sure that the set up program is one required for your operating system.

2 Install the latest patches and updates for your operating system.

3 Check the zyxel.com download site for a newer version of the utility.

210

NBG5615 User’s Guide

Pop-up Windows, JavaScript and Java

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.

• JavaScript (enabled by default).

• Java permissions (enabled by default).

Note: The screens used below belong to Internet Explorer version 6, 7 and 8. Screens for

other Internet Explorer versions may vary.

Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device.

APPENDIX A

Permissions

Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow pop-up blocking and create an exception for your device’s IP address.

Disable Pop-up Blockers

1 In Internet Explorer, select Tools, Pop- up Blocker and then select Turn Off Pop- up Blocker.

Figure 131 Pop-up Blocker

You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab.

1 In Internet Explorer, select Tools, I nternet Options, Privacy.

2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any

web pop-up blockers you may have enabled.

NBG5615 User’s Guide 211

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 132 Internet Options: Privacy

3 Click Apply to save this setting.

Enable Pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps.

1 In Internet Explorer, select Tools, I nternet Options and then the Privacy tab.

2 Select Settings…to open the Pop- up Blocker Settings screen.

212

NBG5615 User’s Guide

Figure 133 Internet Options: Privacy

Appendix A Pop-up Windows, JavaScript and Java Permissions

3 Type the IP address of your device (the web page that you do not want to have blocked) with the

prefix “http://”. For example, http://192.168.167.1.

4 Click Add to move the IP address to the list of Allow ed sites.

Figure 134 Pop-up Blocker Settings

NBG5615 User’s Guide

213

Appendix A Pop-up Windows, JavaScript and Java Permissions

5 Click Close to return to the Privacy screen.

6 Click Apply to save this setting.

JavaScript

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript are allowed.

1 In Internet Explorer, click Tools, I nternet Options and then the Security tab.

Figure 135 Internet Options: Security

2 Click the Cus tom Level... button.

3 Scroll down to Scripting.

4 Under Active scripting make sure that Enable is selected (the default).

5 Under Script ing of Java applets make sure that Enable is selected (the default).

6 Click OK to close the window.

214

NBG5615 User’s Guide

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 136 Security Settings - Java Scripting

Java Permissions

1 From Internet Explorer, click Tools, I nternet Options and then the Security tab.

2 Click the Cus tom Level... button.

3 Scroll down to Microsoft VM.

4 Under Java permissions make sure that a safety level is selected.

5 Click OK to close the window.

NBG5615 User’s Guide

215

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 137 Security Settings - Java

JAVA (Sun)

1 From Internet Explorer, click Tools, I nternet Options and then the A dvanced tab.

2 Make sure that Use Java 2 for < applet> under Java ( Sun) is selected.

3 Click OK to close the window.

Figure 138 Java (Sun)

216

NBG5615 User’s Guide

Mozilla Firefox

Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps below apply to Mozilla Firefox 3.0 as well.

You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the screen that appears.

Figure 139 Mozilla Firefox: TOOLS > Options

Appendix A Pop-up Windows, JavaScript and Java Permissions

Click Content to show the screen below. Select the check boxes as shown in the following screen.

Figure 140 Mozilla Firefox Content Security

NBG5615 User’s Guide

217

Appendix A Pop-up Windows, JavaScript and Java Permissions

Opera

Opera 10 screens are used here. Screens for other versions may vary slightly.

Allowing Pop-Ups

From Opera, click Tools, then Preferences. In the General tab, go to Choose how you prefer to handle pop-ups and select Open all pop- ups.

Figure 141 Opera: Allowing Pop-Ups

Enabling Java

From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the left- side menu. Select the check boxes as shown in the following screen.

218

NBG5615 User’s Guide

Appendix A Pop-up Windows, JavaScript and Java Permissions

Figure 142 Opera: Enabling Java

To customize JavaScript behavior in the Opera browser, click JavaScript Options .

Figure 143 Opera: JavaScript Options

Select the items you want Opera’s JavaScript to apply.

NBG5615 User’s Guide

219

Appendix A Pop-up Windows, JavaScript and Java Permissions

220

NBG5615 User’s Guide

APPENDIX B

Setting Up Your Computer’s IP Address

Note: Your specific NBG5615 may not support all of the operating systems described in

this appendix. See the product specifications for more information about which operating systems are supported.

This appendix shows you how to configure the IP settings on your computer in order for it to be able to communicate with the other devices on your network. Windows Vista/XP/2000, Mac OS 9/ OS X, and all versions of UNIX/LINUX include the software components you need to use TCP/IP on your computer.

If you manually assign IP information instead of using a dynamic IP, make sure that your network’s computers have IP addresses that place them in the same subnet.

In this appendix, you can set up an IP address for:

Windows XP/NT/2000 on page 221

•

• Windows Vista on page 225

• Windows 7 on page 229

• Mac OS X: 10.3 and 10.4 on page 233

• Mac OS X: 10.5 and 10.6 on page 236

• Linux: Ubuntu 8 (GNOME) on page 239

• Linux: openSUSE 10.3 (KDE) on page 243

Windows XP/NT/2000

The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT.

1 Click Start > Control Panel.

NBG5615 User’s Guide 221

Appendix B Setting Up Your Computer’s IP Address

2 In the Control Panel, click the Netw ork Connections icon.

3 Right-click Local Area Connection and then select Properties.

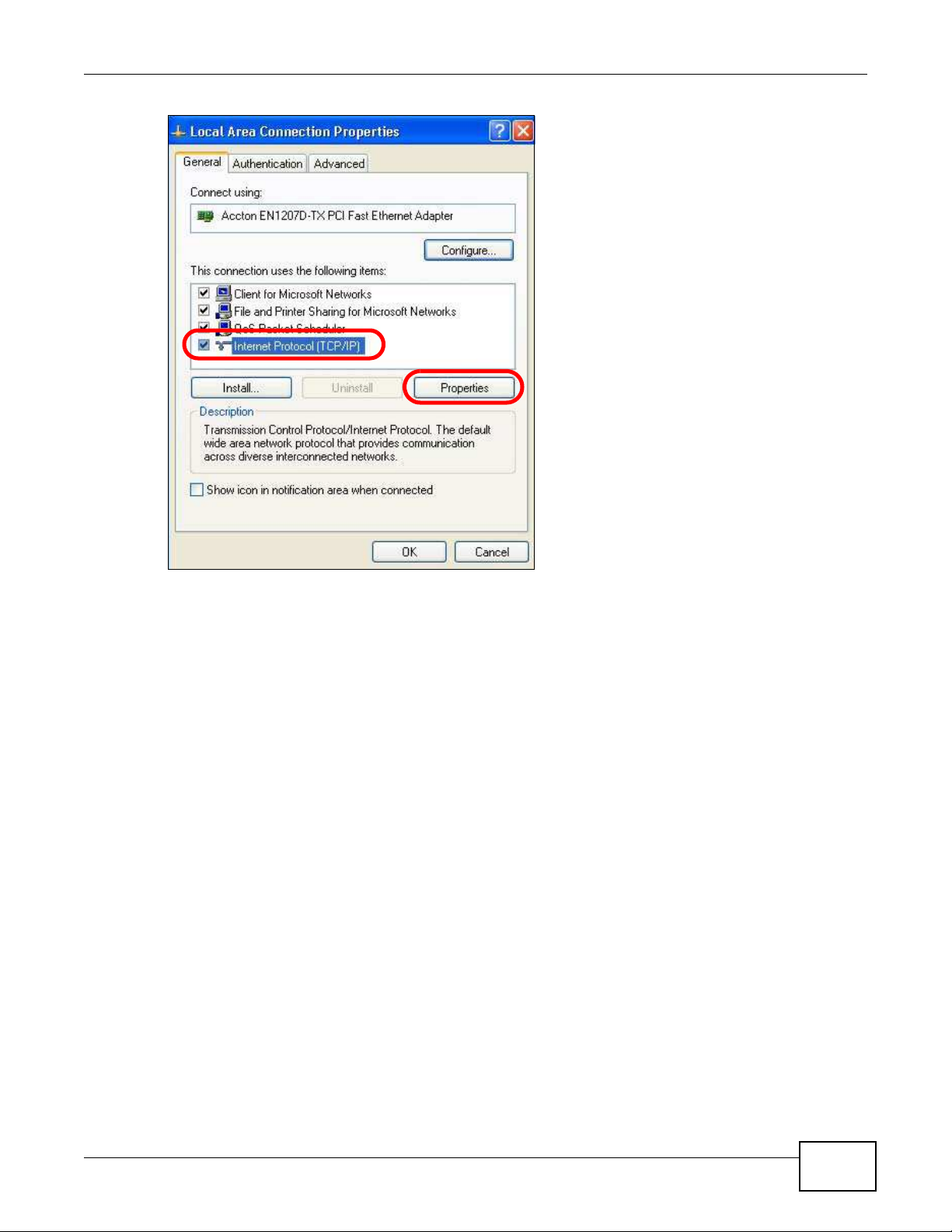

4 On the General tab, select I nternet Protocol ( TCP/ I P) and then click Properties.

222

NBG5615 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

5 The I nternet Protocol TCP/ I P Properties window opens.

NBG5615 User’s Guide

223

Appendix B Setting Up Your Computer’s IP Address

6 Select Obtain an I P address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the follow ing I P Address and fill in the I P address, Subnet m ask, and Default

gatew ay fields if you have a static IP address that was assigned to you by your network administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS

server, if that information was provided.

7 Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.

8 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Ac cessories > Com m and Prom pt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Netw ork Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

224

NBG5615 User’s Guide

Windows Vista

This section shows screens from Windows Vista Professional.

1 Click Start > Control Panel.

2 In the Control Panel, click the Netw ork and I nternet icon.

Appendix B Setting Up Your Computer’s IP Address

3 Click the Netw ork and Sharing Center icon.

4 Click Manage netw ork connections.

NBG5615 User’s Guide

225

Appendix B Setting Up Your Computer’s IP Address

5 Right-click Local Area Connection and then select Properties.

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

6 Select I nternet Protocol Version 4 ( TCP/ I Pv4 ) and then select Properties.

226

NBG5615 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

7 The I nternet Protocol Version 4 ( TCP/ I Pv4) Properties window opens.

NBG5615 User’s Guide

227

Appendix B Setting Up Your Computer’s IP Address

8 Select Obtain an I P address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the follow ing I P Address and fill in the I P address, Subnet m ask, and Default

gatew ay fields if you have a static IP address that was assigned to you by your network administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS

server, if that information was provided.Click Advanced.

9 Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.

10 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Ac cessories > Com m and Prom pt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

You can also go to Start > Control Panel > Netw ork Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information.

228

NBG5615 User’s Guide

Windows 7

This section shows screens from Windows 7 Enterprise.

1 Click Start > Control Panel.

2 In the Control Panel, click View netw ork status and tasks under the Netw ork and I nternet

category.

Appendix B Setting Up Your Computer’s IP Address

3 Click Change adapter settings.

4 Double click Local Area Connection and then select Properties.

NBG5615 User’s Guide

229

Appendix B Setting Up Your Computer’s IP Address

Note: During this procedure, click Continue whenever Windows displays a screen saying

that it needs your permission to continue.

5 Select I nternet Protocol Version 4 ( TCP/ I Pv4 ) and then select Properties.

230

NBG5615 User’s Guide

Appendix B Setting Up Your Computer’s IP Address

6 The I nternet Protocol Version 4 ( TCP/ I Pv4) Properties window opens.

NBG5615 User’s Guide

231

Appendix B Setting Up Your Computer’s IP Address

7 Select Obtain an I P address automatically if your network administrator or ISP assigns your IP

address dynamically. Select Use the follow ing I P Address and fill in the I P address, Subnet m ask, and Default

gatew ay fields if you have a static IP address that was assigned to you by your network administrator or ISP. You may also have to enter a Preferred DNS server and an Alternate DNS server, if that information was provided. Click Advanced if you want to configure advanced settings for IP, DNS and WINS.

8 Click OK to close the I nternet Protocol ( TCP/ I P) Properties window.

9 Click OK to close the Local Area Connection Properties window.

Verifying Settings

1 Click Start > All Programs > Ac cessories > Com m and Prom pt.

2 In the Command Prompt window, type "ipconfig" and then press [ENTER].

3 The IP settings are displayed as follows.

232

NBG5615 User’s Guide

ZyXEL NBG5615 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

14.1 Overview

14.1.1 What You Can Do

DHCP Server

14.1.2 What You Need To Know

14.2 DHCP Server General Screen

14.3 DHCP Server Advanced Screen

14.4 DHCP Client List Screen

15.1 Overview

15.1.1 What You Can Do

15.1.2 What You Need To Know

15.2 General

15.3 Port Forwarding Screen

15.3.1 Port Forwarding Edit Screen

15.4 Port Trigger Screen

15.5 Technical Reference

15.5.1 NATPort Forwarding: Services and Port Numbers

15.5.2 NAT Port Forwarding Example

15.5.3 Trigger Port Forwarding

15.5.4 Trigger Port Forwarding Example

15.5.5 Two Points To Remember About Trigger Ports

16.1 Overview

16.1.1 What You Need To Know

DDNS

16.2 General

17.1 Overview

Static Route

17.2 IP Static Route Screen

17.2.1 Add/Edit Static Route

18.1 Overview

Firewall

18.1.1 What You Can Do

18.1.2 What You Need To Know

18.2 General Screen

18.3 Services Screen

19.1 Overview

19.1.1 What You Need To Know

Content Filtering

19.2 Content Filter

19.3 Technical Reference

19.3.1 Customizing Keyword Blocking URL Checking

20.1 Overview

Bandwidth Management

20.2 What You Can Do

20.3 What You Need To Know

20.4 General Screen

20.5 Advanced Screen

20.5.1 Rule Configuration: Application Rule Configuration

20.5.2 Rule Configuration: User Defined Service Rule Configuration

20.5.3 Predefined Bandwidth Management Services

21.1 Overview

Remote Management

21.2 What You Can Do in this Chapter

21.3 What You Need to Know

21.3.1 Remote Management and NAT

21.3.2 System Timeout

21.4 WWW Screen

21.5 Telnet Screen

21.6 Wake On LAN Screen

Universal Plug-and-Play (UPnP)

22.1 Overview

22.2 What You Need to Know

22.2.1 NAT Traversal

22.2.2 Cautions with UPnP

22.3 UPnP Screen

22.4 Technical Reference

22.4.1 Using UPnP in Windows XP Example

22.4.2 Web Configurator Easy Access

23.1 Overview

USB Media Sharing

23.2 What You Can Do

23.3 What You Need To Know

23.4 Before You Begin

23.5 DLNA Screen

23.6 SAMBA Screen

23.7 FTP Screen

23.8 Example of Accessing Your Shared Files From a Computer
