YAMAHA GENERATOR
EF2300A
EF2600A
EF2600A
(7UU3) (230V/50Hz) EUROPE
(7UU3) (220V/60Hz) BRAZIL
(7UU3) (220V/50Hz) ARGENTINA,CHILE
117UU−300E1
EF2300A/EF2600A
PARTS CATALOGUE E2001 by Yamaha Motor Co., Ltd.
1st Edition, Dec. 2001 All rights reserved.
Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in Japan
A3
A4
FOREWORD
This Parts Catalogue is related to the parts for the model(s) in the below frame. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.
1.Modifications or additions which have been made after issue of the Parts Catalogue will be announced in the Yamaha Parts News.
It is advisable that you make necessary corrections to the Parts Catalogue according to the Yamaha Parts News.
2.Abbreviations
The following abbreviations are used in this Parts Catalogue.
“UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts
“LM” Local Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.)
3.Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the part name as shown below.
EXAMPLE CARBURETOR ASSY
.JET, PILOT
.NOZZLE, MAIN
4.Number of component for assembly
The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.
EXAMPLE
PART NO. |
DESCRIPTION |
Q’TY REMARKS |
|
|
|
2F5−83310−60 |
FRONT FLASHER LIGHT ASSY |
2 |
115−83311−60 |
.BULB (6V−18W) |
1 |
5. Applicable Starting Serial No. and Color Code
MODEL NAME |
MODEL TYPE |
DESTINATION |
FRAME NO. |
|
|
|
|
EF2300A |
7UU3 |
EUROPE(FRANCE) |
7UU−310101 |
|
|
|
|
EF2300A |
7UU3 |
EUROPE |
7UU−300101 |
|
|
(EXCEPT FRANCE) |
|
|
|
|
|
EF2600A |
7UU3 |
BRAZIL |
7UU−320101 |
|
|
|
|
EF2600A |
7UU3 |
ARGENTINA,CHILE |
7UU−340101 |
|
|
|
|
Engine Serial No.
Color |
Color Name |
Abbrevi- |
MODEL |
Country |
|
Code |
ation |
(destination) |
|||
|
|
||||
|
|
|
|
|
|
00NJ |
FARAWAY BLUE |
FWB |
7UU3 |
EUROPE |
|
|
|
|
|
BRAZIL |
|
|
|
|
|
ARGENTINA |
|
|
|
|
|
CHILE |
|
|
|
|
|
|
6.Note that the illustrations for reference in finding parts numbers, not to be used for assembling. When assembling, please use the applicable service manual.
7.The asterisk (*) before a reference number indicates modification items after the first edition.
A5
CONTENTS
CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B2
CRANKSHAFT. PISTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B3
GOVERNOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B4
CAMSHAFT. VALVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B5
AIR SHROUD. STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B6
INTAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B7

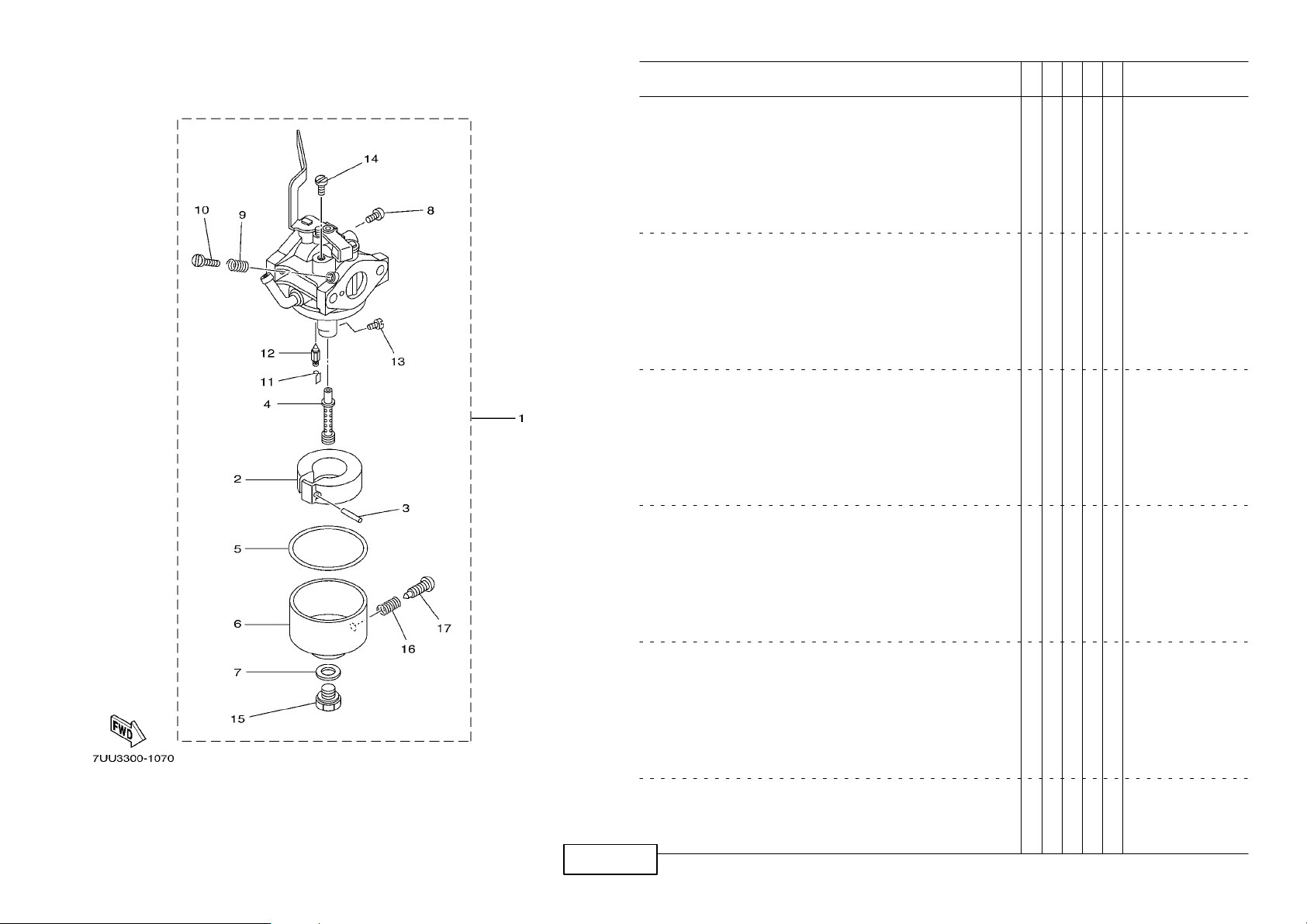

CARBURETOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B8
EXHAUST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B9
CRANKCASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B10
FRAME. FUEL TANK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B11
MAGNETO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B12
GENERATOR (FOR EUR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . B13
GENERATOR 1 (FOR BRA,ARG,CHL) . . . . . . . . . . . . . . . . . B15
CONTROL BOX (230V−50/60Hz:FOR EUR) . . . . . . . . . . . . . C3
CONTROL BOX 2 (220V−50/60Hz:FOR BRA,ARG,CHL) . . C4
EMBLEM. LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C5
INDEX
NUMERICAL INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M1
FIG. 1 CYLINDER
REF. |
PART NO. |
DESCRIPTION |
|
NO. |
|
||
|
|
|
|
1 |
7WC−11111−00 |
HEAD, CYLINDER 1 |
|
2 |
95607−06615 |
BOLT, STUD |
|
3 |
90116−06493 |
BOLT, STUD |
|
4 |
7WC−11181−00 |
GASKET, CYLINDER HEAD 1 |
|
5 |
95827−08065 |
BOLT, FLANGE |
|
6 |
95827−08045 |
BOLT, FLANGE |
|
7 |
99530−10114 |
PIN, DOWEL |
|
8 |
94701−00331 |
PLUG, SPARK (BPR4ES) |
|
9 |
7NJ−11191−00 |
COVER, CYLINDER HEAD 1 |
|
10 |
7NJ−11160−00 |
BREATHER ASSY |
|
11 |
90445−131J5 |
HOSE (L106) |
|
12 |
7NJ−11169−00 |
GASKET, BREATHER COVER |
|
13 |
7NJ−11193−00 |
GASKET, HEAD COVER 1 |
|
14 |
95827−06012 |
BOLT, FLANGE |
|
B2
2300 |
2600 |
11
22
2 2
11
22
2 |
2 |
2 |
2 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
4 |
4 |
REMARKS
FIG. 2 CRANKSHAFT. PISTON
REF. |
PART NO. |
DESCRIPTION |
|
NO. |
|
||
|
|
|
|
1 |
7NJ−11400−01 |
CRANKSHAFT ASSY |
|
2 |
7NJ−11650−00 |
CONNECTING ROD ASSY |
|
3 |
JA9−11654−01 |
.BOLT, CONNECTING ROD |
|
4 |
7NJ−11631−00−98 |
PISTON (STD) |
|
|
7NJ−11635−00 |
PISTON (0.25MM O/S) |
|
|
7NJ−11636−00 |
PISTON (0.50MM O/S) |
|
5 |
7WC−11610−00 |
PISTON RING SET (STD) |
|
|
7WC−11604−00 |
PISTON RING SET (0.25MM O/S) |
|
|
7WC−11605−00 |
PISTON RING SET (0.50MM O/S) |
|
6 |
4H7−11633−00 |
PIN, PISTON |
|
7 |
93450−17025 |
CIRCLIP |
|
B3
2300 |
2600 |
1 |
1 |
11
22
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
11
22
REMARKS
AP
AP
AP
AP
FIG. 3 GOVERNOR
REF. |
PART NO. |
DESCRIPTION |
|
NO. |
|
||
|
|
|
|
1 |
7NJ−11970−00 |
FLYWEIGHT SHAFT ASSY. |
|
2 |
7NJ−11913−00 |
.WEIGHT |
|
3 |
7FK−11914−00 |
.SHAFT, WEIGHT |
|
4 |
90201−065K7 |
WASHER, PLATE |
|
5 |
93440−06107 |
CIRCLIP |
|
6 |
90201−065K7 |
WASHER, PLATE |
|
7 |
JA9−11917−00 |
COLLAR |
|
8 |
7NJ−11922−00 |
FORK, GOVERNOR |
|
9 |
92907−06200 |
WASHER |
|
10 |
90468−18008 |
CLIP |
|
11 |
7NN−11924−00 |
ARM, GOVERNOR |
|
12 |
97027−06030 |
BOLT |
|
13 |
92907−06600 |
WASHER, PLATE |
|
14 |
90173−06017 |
NUT, SQUARE |
|
15 |
7LV−11928−10 |
ROD, LINK |
|
16 |
90506−04495 |
SPRING, TENSION |
|
17 |
7NN−11950−00 |
ADJUST PLATE COMP. |
|
18 |
98507−06035 |
.SCREW, PAN HEAD |
|
19 |
90501−10264 |
.SPRING, COMPRESSION |
|
20 |
7NN−11925−10 |
SPRING, GOVERNOR |
|
B4
2300 |
2600 |
11
22
2 |
2 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
REMARKS
