Xpres T3000 User Manual

Epson SureColor T3000 - PowerDriver-E

PowerDriver Print Setup Guide: CorelDRAW X5/X6

IMPORTANT: Before proceeding, ensure the correct Epson printer driver and SubliJet-E PowerDriver
have been installed. For assistance with PowerDriver installation, refer to the Installation Guide.

NOTE: Your screens and menus may differ depending on the version of software and operating system
being used. However, the settings will be identical.

CorelDRAW Workspace Setup

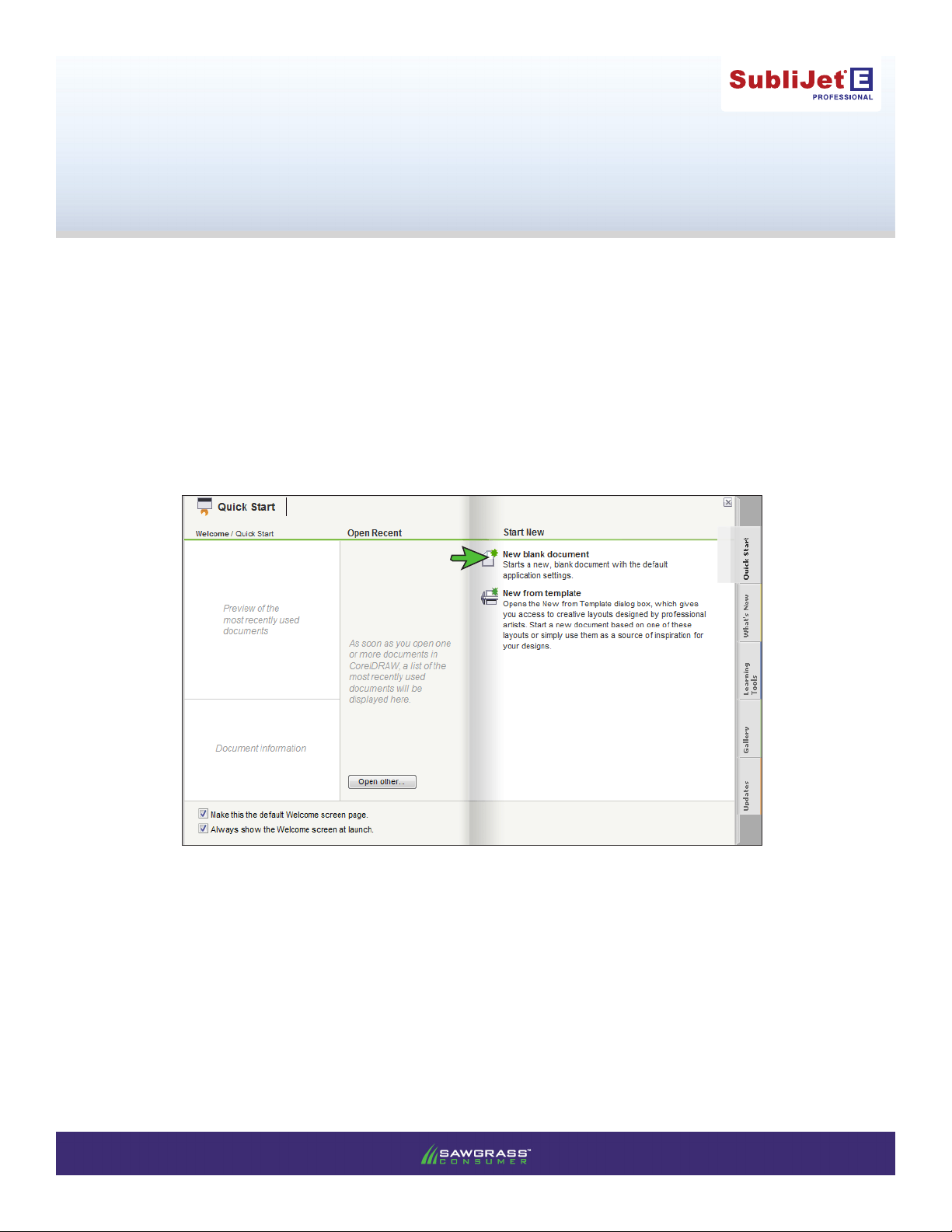

1) Open a New Document in CorelDRAW (see FIGURE 1).

FIGURE 1

PAGE 1 of 6 >>

v201310 02

SubliJet-E: Epson SC T3000

PowerDriver Print Setup Guide: CorelDRAW X5/X6

2) Congure a New Document Workspace with the settings shown below (see FIGURE 2).

Custom

I

A

B

C

D

E

F

G

H

J

FIGURE 2

A. Primary color mode: RGB F. CMYK pr ole: U.S. Web Coated (SWOP) v2

B. Rendering resolution: 300 G. Grayscale prole: Dot Gain 20%

C. Preview mode: Enhanced H. Rendering intent: Perceptual

D. Click the down arrow to view Color Settings I. Add Preset: Name your new preset

E. RGB prole: sRGB IEC61966-2.1 J. Click OK to continue

PAGE 2 of 6 >>
