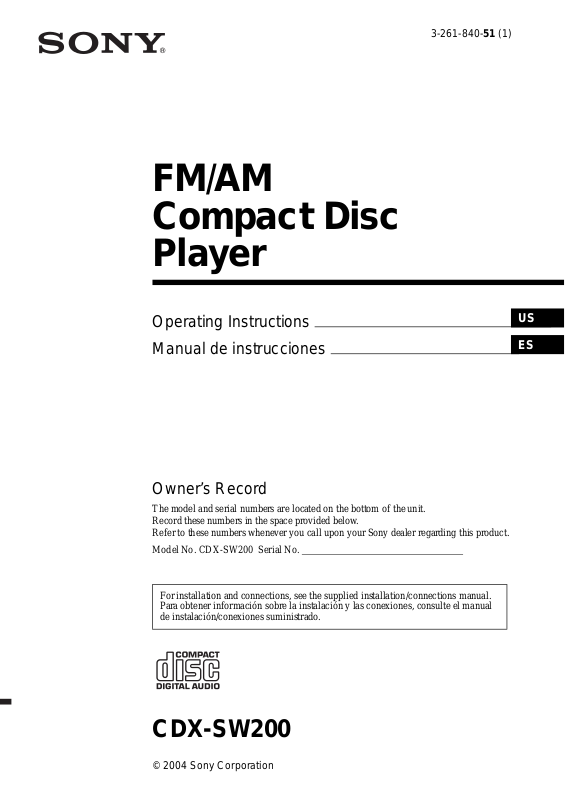

3-261-840-51 (1)
FM/AM
Compact Disc
Player
Operating Instructions
Manual de instrucciones
Owner’s Record
US
ES
The model and serial numbers are located on the bottom of the unit. Record these numbers in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. CDX-SW200 Serial No.
For installation and connections, see the supplied installation/connections manual. Para obtener información sobre la instalación y las conexiones, consulte el manual de instalación/conexiones suministrado.
CDX-SW200
© 2004 Sony Corporation
Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
CAUTION
The use of optical instruments with this product will increase eye hazard.
Welcome !
Thank you for purchasing this Sony Compact Disc Player. You can enjoy its various features even more with:
Optional controller accessory
Card remote commander RM-X114
2
Table of Contents
Location of controls . . . . . . . . . . . . . . . . . . . 4 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Notes on discs . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started
Resetting the unit . . . . . . . . . . . . . . . . . . . . . . 7 Detaching the front panel . . . . . . . . . . . . . . . 7 Setting the clock . . . . . . . . . . . . . . . . . . . . . . 8
CD Player
Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . 9 Display items . . . . . . . . . . . . . . . . . . . . . . . . . 9 Playing tracks repeatedly
— Repeat Play . . . . . . . . . . . . . . . . . . . . 10 Playing tracks in random order
— Shuffle Play . . . . . . . . . . . . . . . . . . . . 10
Radio
Storing stations automatically
— Best Tuning Memory (BTM). . . . . . . 10 Receiving the stored stations . . . . . . . . . . . . 11 Storing only the desired stations . . . . . . . . . 11
Other Functions
Adjusting the balance and fader . . . . . . . . . 12 Quickly attenuating the sound . . . . . . . . . . 12 Changing the sound and display
settings . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Setting the equalizer (EQ3). . . . . . . . . . . . . 13
Additional Information
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 14 Removing the unit. . . . . . . . . . . . . . . . . . . . 15 Specifications . . . . . . . . . . . . . . . . . . . . . . . 16 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 17 Error displays/Message. . . . . . . . . . . . . . . . 18
3
Location of controls
Refer to the pages listed for details.
SEL
SEEK
MODE |
|
|
|
|
|
|
OFF |
SOURCE |
|
|
REP |
SHUF |
|
|
EQ3 |
ATT SENS |
1 |
2 |
3 |
4 |
5 |
6 |
BTM DSPL |
|
|
|
|
|
CDX-SW200 |
|
|
|
a Volume +/– button |
m BTM (Best Tuning Memory) button 10 |
|
||
|
b SEL (select) button |
n DSPL (display mode change) button |
|
Selecting items. |
8, 9 |
|
c MODE button |
o EQ3 button 13 |
|
Changing the operation. |
p Receptor for the card remote |
|
d Display window |
commander |
|
e OFF (Stop/Power off) button* 7, 9 |
q SEEK +/– button |
|
f Z (eject) button 9 |
Radio: |
|
g (front panel release) button 7 |
Tuning in stations automatically/finding a |
|
h SOURCE (Power on/Radio/CD) button |
station manually. |
|
Selecting the source. |
CD: |
|
i ATT (attenuate) button 12 |
Skipping tracks/fast-forwarding, reversing a |
|
j SENS button 11 |
track. |
|
k RESET button (located on the front side of |
|
|
the unit, behind the front panel) 7 |
* Warning when installing in a car without |
|
l Number buttons 12 |
an ACC (accessory) position on the |
|
Radio: |
ignition switch |
|
Storing the desired station on each number |
After turning off the ignition, be sure to press |
|
button. |
and hold (OFF) on the unit until the display |
|
CD: |
disappears. |
|
(3): REP 10 |
Otherwise, the display does not turn off and this |
|
(4): SHUF 10 |
causes battery drain. |
4
Card remote commander RM-X114 (optional)
DSPL |
|
MODE |
|
PRESET + |
|
MENU |
DISC + |
LIST |
SEEK– |
SOURCE |
SEEK+ |
|
||
SOUND |
DISC – |
ENTER |
|
PRESET – |
|
OFF |
+ |
ATT |
|
VOL |
|
|
– |
|
The corresponding buttons of the card remote commander control the same functions as those on this unit.
a DSPL button b MENU button* c SOURCE button
d SEEK (–/+) buttons e SOUND button
f OFF button
g VOL (+/–) buttons h MODE button
i LIST button*
j DISC*/PRESET (+/–) button k ENTER button*
l ATT button
* Not available for this unit
Note
If the display disappears by pressing (OFF), it cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed, or a disc is inserted to activate the unit first.
Tip
Refer to “Replacing the lithium battery” for details on how to replace the battery (page 14).
Precautions
•If your car has been parked in direct sunlight, allow the unit to cool off before operating it.
•Power antenna will extend automatically while the unit is operating.
If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.
Moisture condensation
On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.
To maintain high sound quality
Be careful not to splash juice or other soft drinks onto the unit or discs.
5
Notes on discs
•To keep a disc clean, do not touch its surface. Handle the disc by its edge.
•Keep your discs in their cases or disc magazines when not in use.
•Do not subject discs to heat/high temperature. Avoid leaving them in a parked car or on a dashboard/rear tray.
•Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.
•Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.
Notes on CD-R/CD-RW discs
•You can play CD-Rs (recordable CDs)/CDRWs (rewritable CDs) designed for audio use on this unit.
Look for these marks to distinguish CD-Rs/ CD-RWs for audio use.
These marks denote that a disc is not for audio use.
•Do not use any discs with labels or stickers attached.
The following malfunctions may result from using such discs:
–Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
–Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.
•Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
•You cannot play 8 cm (3 in) CDs.
•Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.
•You cannot play a CD-R/a CD-RW that is not finalized*.
*A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player.
6
Getting Started
Resetting the unit
Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.
Remove the front panel and press the RESET button with a pointed object, such as a ball-point pen.
RESET button
Note
Pressing the RESET button will erase the clock setting and some stored contents.
Detaching the front panel
You can detach the front panel of this unit to protect the unit from being stolen.
Caution alarm
If you turn the ignition switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds.
If you connect an optional amplifier and do not use the built-in amplifier, the beep sound will be deactivated.
1 Press (OFF)*.
CD playback or radio reception stops (the key illumination and display remain on).
*If your car has no ACC (accessory) position on the ignition switch, be sure to turn the unit off by pressing (OFF) until the display disappears to avoid car battery drain.
2 Press
, then pull it off towards you.
(OFF)
Notes
•If you detach the panel while the unit is still turned on, the power will turn off automatically to prevent the speakers from being damaged.
•Do not drop or put excessive pressure on the front panel and its display window.
•Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.
Tip
When carrying the front panel with you, use the supplied front panel case.
continue to next page t
7
Attaching the front panel
Attach part A of the front panel to part B of the unit as illustrated and push the left side into position until it clicks.
A
B
Note
Do not put anything on the inner surface of the front panel.
Setting the clock
The clock uses a 12-hour digital indication.
Example: To set the clock to 10:08
1 Press (DSPL) for 2 seconds.
The hour indication flashes.
1Press the volume +/– button to set the hour.
2Press (SEL).
The minute indication flashes.
3Press the volume +/– button to set the minute.
2 Press (DSPL).
The clock starts. After the clock setting is completed, the display returns to normal play mode.
8
CD Player
Playing a disc
Insert the disc (labeled side up).
Playback starts automatically.
If a disc is already inserted, press (SOURCE) repeatedly until “CD” appears to start playback.
To |
Press |
Stop playback |
Z or (OFF) |
|
|
Eject the disc |
Z |
|
|
Skip tracks |
(SEEK) (–/+) |
– Automatic |
(./>) |
Music Sensor |
[once for each track] |
|
|
Fast-forward/ |
(SEEK) (–/+) |
reverse |
(m/M) |
– Manual Search |
[hold to desired point] |
|
|
Notes
•While the first/last track on the disc is playing, if (SEEK) (–) or (SEEK) (+) is pressed, playback skips to the last/first track of the disc.
•When the last track on the disc is over, playback restarts from the first track of the disc.
Display items
The following items can be displayed.
Source
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Track number |
Displayable items |
|
|||||||||
|
|
|
|
|
|
• Elapsed playing |
|
|||||
|
|
|
|
|
|
time |
|
|||||
|
|
|
|
|
|
• Clock |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To |
|
|
|
Press |
||||||||
Switch display item (DSPL)
9
Playing tracks repeatedly
— Repeat Play
The current track will repeat itself when it reaches the end.
During playback, press (3) (REP) until
“REP” indicator appears in the display.
“REP” indicator is displayed.
Radio
The unit can store up to 6 stations per band (FM1, FM2, FM3, AM1, and AM2).
Caution
When tuning in stations while driving, use Best Tuning Memory to prevent accidents.
Repeat Play starts.
To return to normal play mode, press (3) (REP) again.
Playing tracks in random order
— Shuffle Play
You can select to play the tracks in the current disc in random order.
During playback, press (4) (SHUF) until “SHUF” indicator appears in the display.
“SHUF” indicator is displayed.
Shuffle Play starts.
To return to normal play mode, press (4) (SHUF) again.
Storing stations automatically
— Best Tuning Memory (BTM)
The unit selects the stations with the strongest signals within the selected band, and stores them in the order of their frequency.
1 Press (SOURCE) repeatedly to select the radio.
2 Press (MODE) repeatedly to select the band.
3 Press (BTM) for 2 seconds.
The unit stores stations in the order of their frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
•If only a few stations can be received due to weak signals, some number buttons will retain their former settings.
•When a number is indicated in the display, the unit starts storing stations from the one currently displayed.
10
Receiving the stored stations
1 Press (SOURCE) repeatedly to select the radio.
2 Press (MODE) repeatedly to select the band.
3 Press the number button ((1) to (6)) on which the desired station is stored.
If preset tuning does not work
— Automatic tuning/Local Seek Mode
Automatic tuning:
Press (SEEK) (+) or (SEEK) (–) to search for the station.
Scanning stops when the unit receives a station. Repeat the operation until the desired station is received.
Local Seek Mode:
If the automatic tuning stops too frequently, press (SENS) repeatedly until “LCL” indicator appears in the display.
“LCL” indicator is displayed.
Only the stations with relatively strong signals will be tuned in.
To cancel the local seek mode, press (SENS) twice when receiving FM.
Note
When receiving AM, to cancel the local seek mode, press (SENS) (“LCL” indicator turns off).
Tip
If you know the frequency of the station you want to listen to, press and hold (SEEK) (+) or (SEEK) (–) to locate the approximate frequency, then press (SEEK) (+) or (SEEK) (–) repeatedly to fine adjust to the desired frequency (manual tuning).
If FM stereo reception is poor
— Monaural Mode
During radio reception, press (SENS) repeatedly until “MONO” indicator appears in the display.
“MONO” indicator is displayed.
The sound improves, but becomes monaural (“ST” disappears).
To return to normal radio reception mode, press (SENS) again (“MONO” indicator turns off).
Storing only the desired stations
You can manually preset the desired stations on any chosen number button.
1 Press (SOURCE) repeatedly to select the radio.
2 Press (MODE) repeatedly to select the band.
3 Press (SEEK) (+) or (SEEK) (–) to tune in the station that you want to store.
4 Press the desired number button ((1) to (6)) for 2 seconds until “MEM” appears.
The number button indication appears in the display.
Note
If you try to store another station on the same number button, the previously stored station will be erased.
11
Other Functions
Adjusting the balance and fader
You can adjust the balance and fader.
1 Press (SEL) repeatedly until “BAL” or
“FAD” appears.
Each time you press (SEL), the item changes as follows:
LOW* t MID* t HI* t
BAL (left-right) t FAD (front-rear)
* When EQ3 is activated (page 13).
2 Press the volume +/– button to adjust the selected item.
Note
Adjust within 3 seconds after selecting the item.
Quickly attenuating the sound
Press (ATT).
“ATT” appears in the display.
To restore the previous volume level, press (ATT) again.
Changing the sound and display settings
The following items can be set:
•DEMO* — to turn the demonstration display on or off.
–Select “ON” to activate the demonstration display (The demonstration starts about 10 seconds after the unit is turned off).
–Select “OFF” to deactivate the demonstration display.
•BEEP — to turn the beeps on or off.
Selecting the desired item
Press (SEL) and the desired preset number button simultaneously.
(SEL) + (4): DEMO*
(SEL) + (6): BEEP
* When the unit is turned off.
To cancel the item, press (SEL) and the preset number button simultaneously again.
12
Loading...
