This product is compliant with the |
|
applicable CE requirements. |
ASSEMBLY MANUAL / OWNER’S MANUAL |
TABLE OF CONTENTS
Important Safety Instructions |
3 |
Operations |
27 |
Safety Warning Labels / Serial Number |
4 |
Adjustments |
27 |
Specifications |
5 |
Power Up / Idle Mode |
27 |
Before Assembly |
5 |

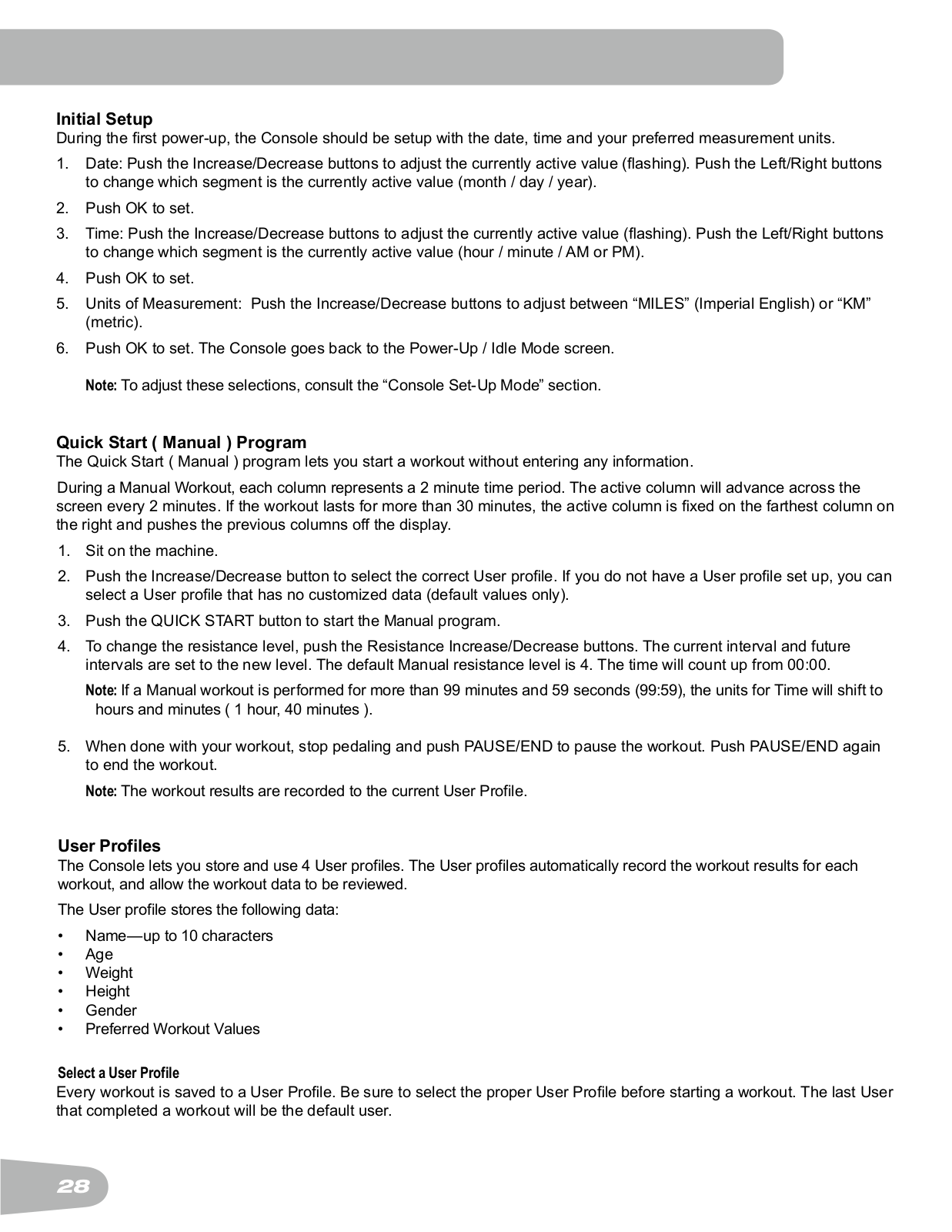

Initial Setup |
28 |
Parts |
6 |
Quick Start Program |
28 |
Hardware |
7 |
User Profiles |
28 |
Tools |
7 |
Profile Programs |
30 |
Assembly |
8 |
Pausing or Stopping |
33 |

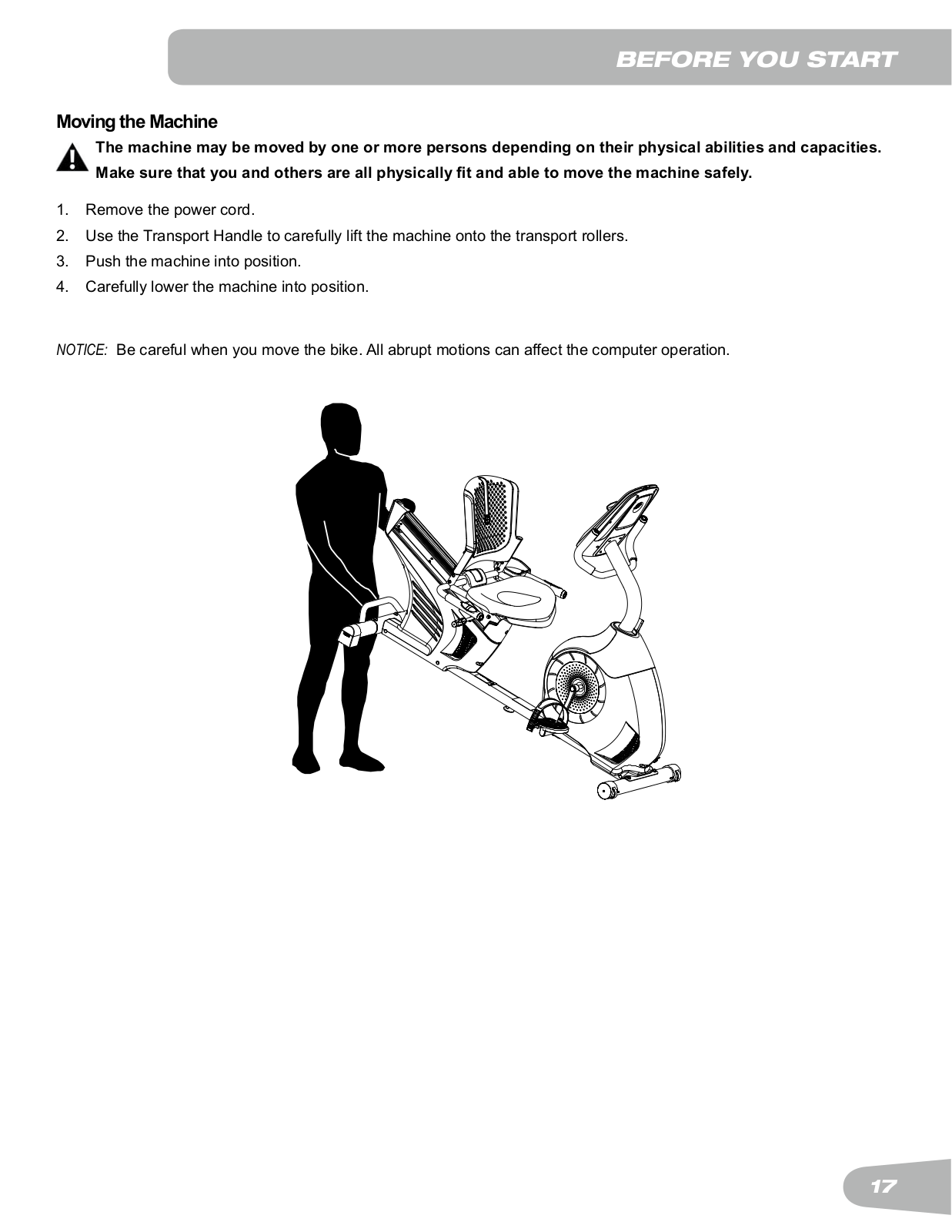

Moving the Machine |
17 |
Results / Cool Down Mode |
34 |
Leveling the Machine |
18 |
GOAL TRACK Statistics |
34 |
Features |
19 |
Console Setup Mode |
36 |
Console Features |
20 |
Maintenance |
37 |

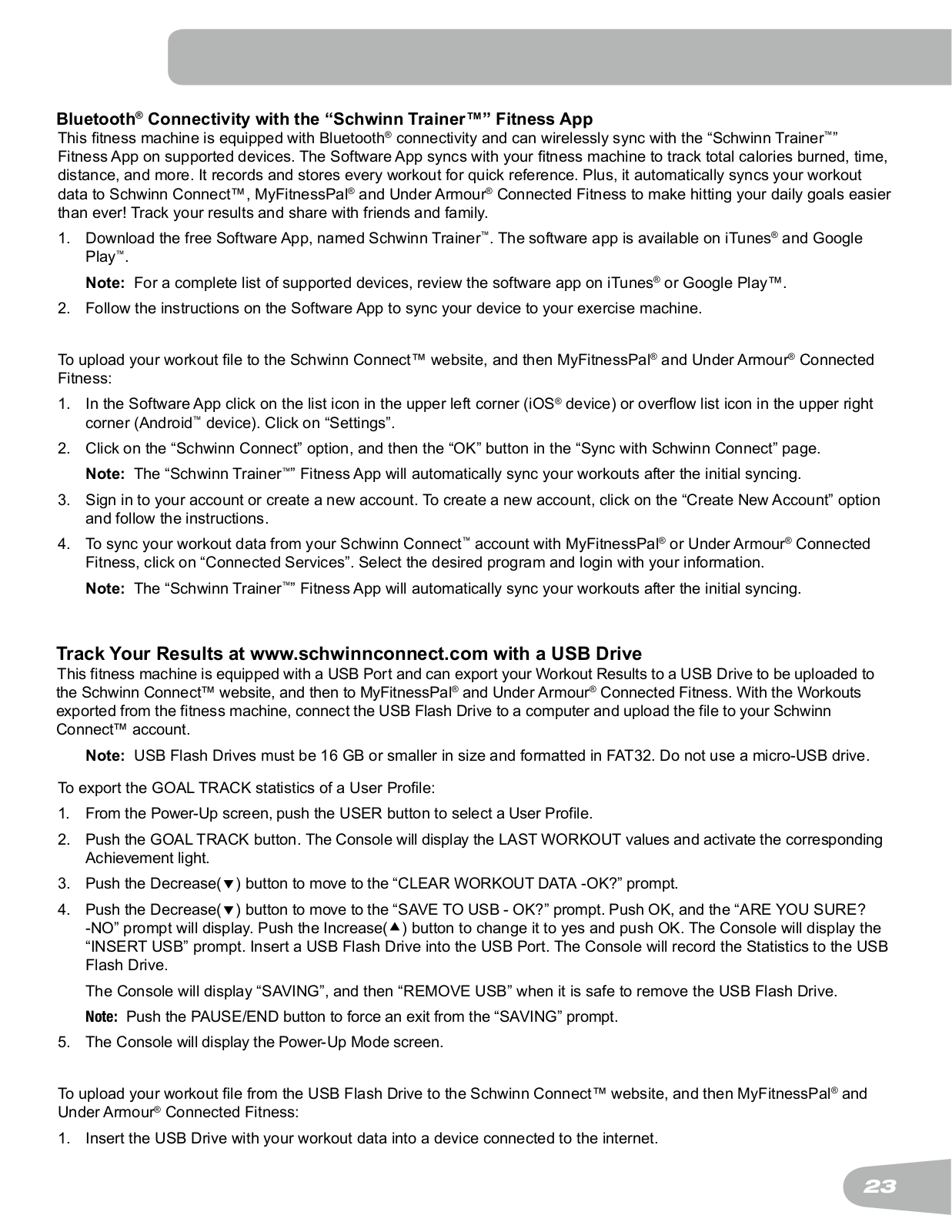

Bluetooth® Connectivity |
23 |
Maintenance Parts |
38 |
Virtual Reality Experience on |
|

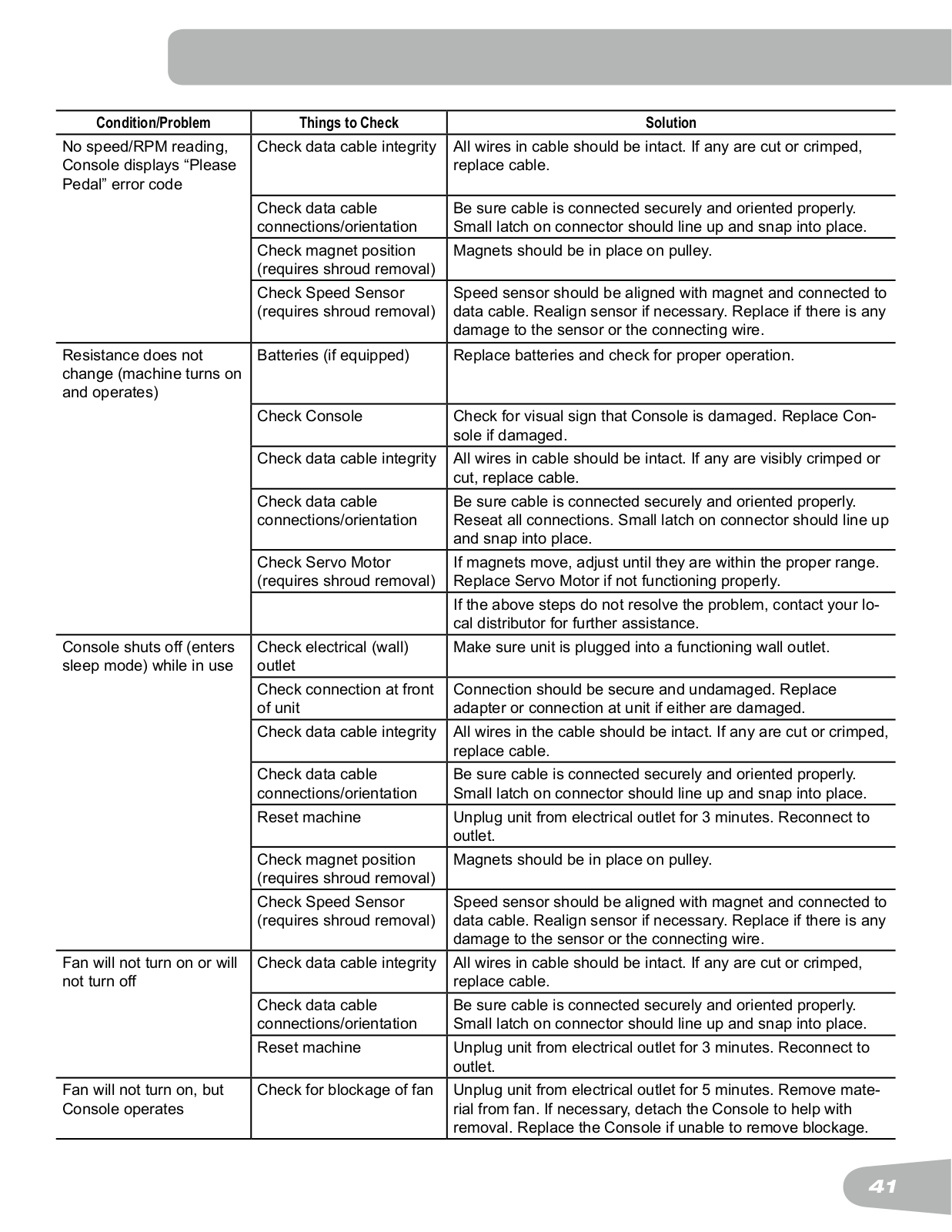

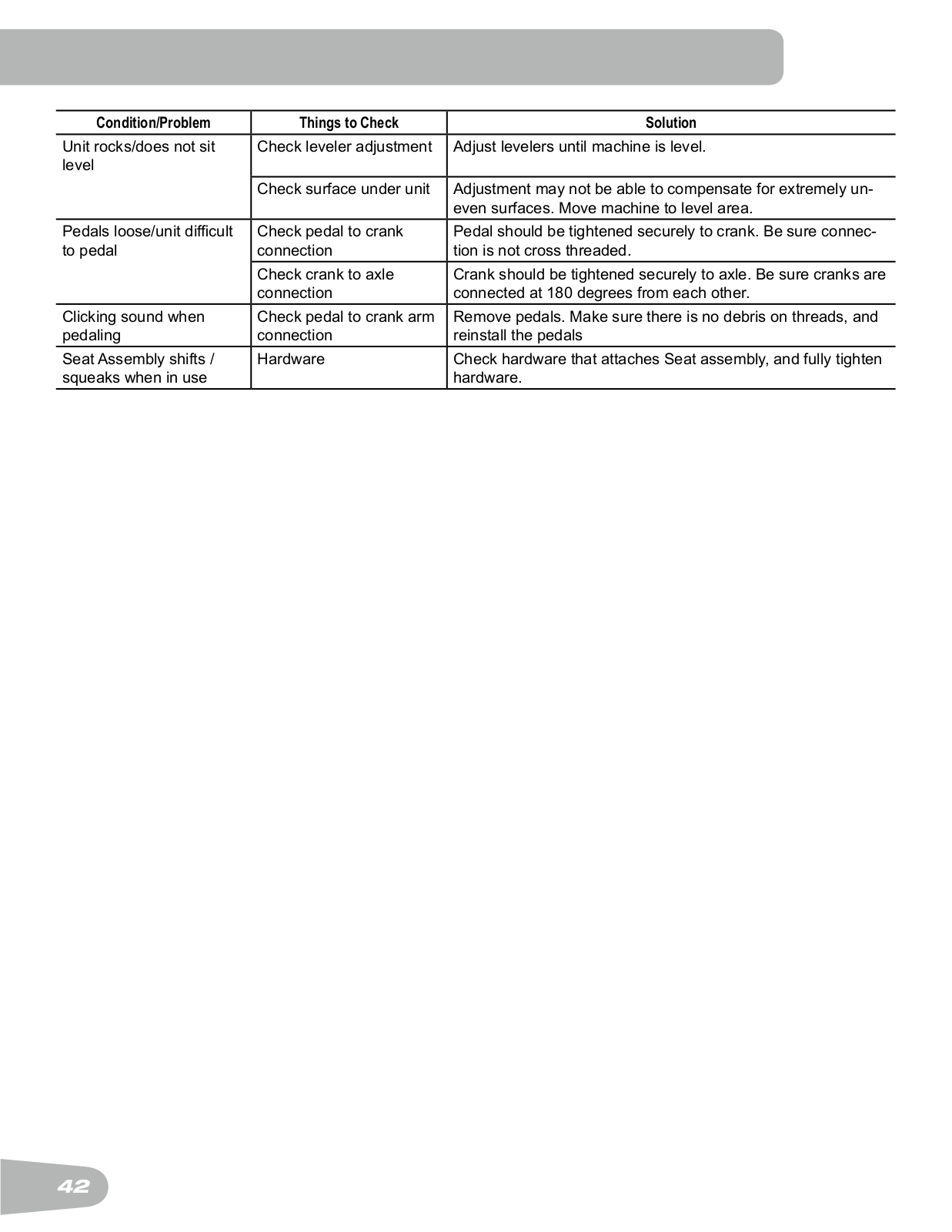

Troubleshooting |
40 |
Your Fitness Machine |
24 |
|
|
Remote Heart Rate Monitor |
25 |
|
|
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty, contact your local distributor.
If you have questions or problems with your product, please contact your local Schwinn® distributor.
To find your local distributor, go to: www.nautilusinternational.com
Nautilus, Inc., www.nautilusinternational.com | Nautilus, Inc., 18225 NE Riverside Parkway, Portland, OR 97230 USA | © 2016 Nautilus, Inc. | ® indicates trademarks registered in the United States. These marks may be registered in other nations or otherwise protected by common law. Schwinn, the Schwinn Quality logo, Schwinn 570R, Schwinn Connect, Bowflex, Nautilus, and Universal are trademarks owned by or licensed to Nautilus, Inc. Polar®, OwnCode®, iTunes®, Google Play™, Under Armour®, MyFitnessPal®, iOS® and Android™ are trademarks of their respective owners. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license.
ORIGINAL MANUAL - ENGLISH VERSION ONLY
2
IMPORTANT SAFETY INSTRUCTIONS
!This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine. Carefully read and understand the Assembly instructions.
•Keep bystanders and children away from the product you are assembling at all times.
•Do not connect power supply to the machine until instructed to do so.
•Do not assemble this machine outdoors or in a wet or moist location.
•Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.
•Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
•Set up this machine on a solid, level, horizontal surface.
•Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and will void the warranty.
•If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
•Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Manual.
•Read and understand the complete Manual supplied with this machine before first use. Keep the Manual for future reference.
•Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
•This product contains magnets. Magnetic fields can interfere with the normal use of certain medical devices at a close range. Users may come into proximity of the magnets in the assembly, maintenance, and/or use of the
product. Given the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number” section to determine the location of the magnets on this product.
Before using this equipment, obey the following warnings:
!Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning labels become loose, unreadable or dislodged, contact your local distributor for replacement labels.
•Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.
•Not intended for use by anyone under 13 years of age.
•Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine’s computer for reference purposes only.
•Before each use, examine this machine for loose parts or signs of wear. Do not use if found in this condition. Monitor the Seat, Pedals, and Crank Arms closely. Contact your local distributor for repair information.
•Maximum user weight limit: 136 kg (300 lbs.). Do not use if you are over this weight.
•This machine is for home use only.
•Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put fingers or other objects into moving parts of the exercise equipment.
3
SAFETY WARNING LABELS AND SERIAL NUMBER
•Set up and operate this machine on a solid, level, horizontal surface.
•Make the Pedals stable before you step on them. Use caution when you step on and off the machine.
•Disconnect all power before servicing this machine.
•Do not operate this machine outdoors or in moist or wet locations. Keep the foot pedals clean and dry.
•Keep at least 0.6 m (24”) on each side of the machine clear. This is the recommended safe distance for access and passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in use.
•Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
•Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do not hit the user.
•Exercise on this machine requires coordination and balance. Be sure to anticipate that changes in speed and resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Safety Warning Labels and Serial Number
Serial Number
Product specification
4
SPECIFICATIONS
Maximum User Weight: |
136 kg (300 lbs.) |
|
|
Total Surface Area (footprint) of equipment: 11,424 cm2 |
|
||
Machine Weight: |
39.3 kg (86.6 lbs.) |
126.8 cm |
|
Power Requirements: |
|
||
|
(49.9”) |
||
Input Voltage: |
100 - 240V AC, 50/60Hz, 0.4A |
||
|
|||
Output Voltage: |
9VDC, 1.5A |
|
|
Complies with: |
|
162.5 cm |
|
|
|
(64”) |
|
|
ISO 20957 compliant. |
70.3 cm |
|
|
(27.7”) |
||
Connectivity:
DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product, please follow the prescribed methods at an approved waste center.
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a workout area of a minimum 1.9 m x 2.81 m (74.6” x 110.5”).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
•Read and understand the “Important Safety Instructions” before assembly.
•Collect all the pieces necessary for each assembly step.
• Using the recommended wrenches, |
|
2.81m ( 110.5” ) |
|
turn the bolts and nuts to the right |
|
||
|
|
||
(clockwise) to tighten, and the left |
|
|
|
(counterclockwise) to loosen, un- |
|
0.6m |
|
less instructed otherwise. |
|
||
|
( 24” ) |
||
• When attaching 2 pieces, lightly |
|
|
|
lift and look through the bolt holes |
|
|
|
to help insert the bolt through the |
|
0.6m |
|
holes. |
|
( 24” ) |
|
• The assembly can require 2 |
1.9m |
0.6m |
|
people. |
( 74.6” ) |
||
( 24” ) |
|||
|
|
0.6m ( 24” )
5
PARTS
17
|
1 |
|
|
|
3 |
16 |
4 |
2 |
|
||
|
|
|
|
6 |
|
|
|
5 |
15 14
7
13
8
9 |
10 |
|
12
11
Item |
Qty |
Description |
Item |
Qty |
Description |
1 |
1 |
Console |
10 |
1 |
AC Adapter |
2 |
1 |
Water Bottle Holder |
11 |
1 |
Left Pedal |
3 |
1 |
Seat Back |
12 |
1 |
Front Stabilizer |
4 |
1 |
Seat Cover |
13 |
1 |
Right Pedal |
5 |
1 |
Seat Frame Assembly |
14 |
1 |
Upper Shroud |
6 |
1 |
Seat Bottom |
15 |
1 |
Shroud Cap |
7 |
1 |
Seat Adjustment Handle |
16 |
1 |
Console Mast |
|
|
|
|
|
|
8 |
1 |
Rear Stabilizer |
17 |
1 |
Media Cable |
9 |
1 |
Frame |
|
|
|
|
|
|
|
|
|
6
HARDWARE / TOOLS
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
Item |
Qty |
Description |
|
|
Item |
Qty |
Description |
|
|
|
A |
8 |
Button Head Hex Screw, M8x20 |
F |
2 |
Phillips Head Screw, M5x12 |
|
||||
B |
10 |
Button Head Hex Screw, M6x12 |
G |
14 |
Lock Washer, M6 |
|
|
|||
C |
4 |
Flat Washer, M8 |
|
|
H |
4 |
Curved Washer, M6 |
|
|
|
D |
8 |
Lock Washer, M8 |
|
|
I |
4 |
Phillips Head Screw, M6x25 |
|
||
E |
10 |
Flat Washer, M6 |
|
|
J |
4 |
Curved Washer, M8 |
|
|
|
Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remaining Hardware after the proper assembly of your machine.
Tools
Included
4 mm
6 mm
7
ASSEMBLY
1. Attach Stabilizers to Frame
Note: Hardware is pre-installed and not on the Hardware Card. *
6mm
X2
*
*
*
9
12
6mm
X2
*
*
*
8
8
2. Attach the Seat Frame Assembly to the Seat Rail
NOTICE: Do not crimp the Heart Rate Cable. Once all hardware has been inserted, be sure to fully tighten it.
6mm |
X4 |
|
A
D
C
5
X2
B
G E
4mm
9
3. Attach Seat Pads to Seat Frame Assembly
3
6
X8
E
G
B
4mm
X4
H
G
I
#2
10
4. Attach Cover to Frame Assembly
4
5. Attach Seat Adjustment Handle to Frame Assembly
7
11
6. Connect the Cables and Attach the Console Mast to Frame Assembly
NOTICE: Do not crimp Console Cables.
16
14
X4
J
D
A
6mm
12
7. Remove Hardware from Console
NOTICE: Do not crimp the cable. |
|
Note: Hardware is pre-installed and not on the Hardware Card. * |
1 |
X4
*
#2
8. Connect Cables and Attach Console to Frame Assembly
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not crimp cables.
1
X4
*
13
9. Attach Pedals to Frame Assembly
NOTICE: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
13 (R)
11 (L)
14
