Manual en Español Latino Americano: http://www.schwinnfitness.com

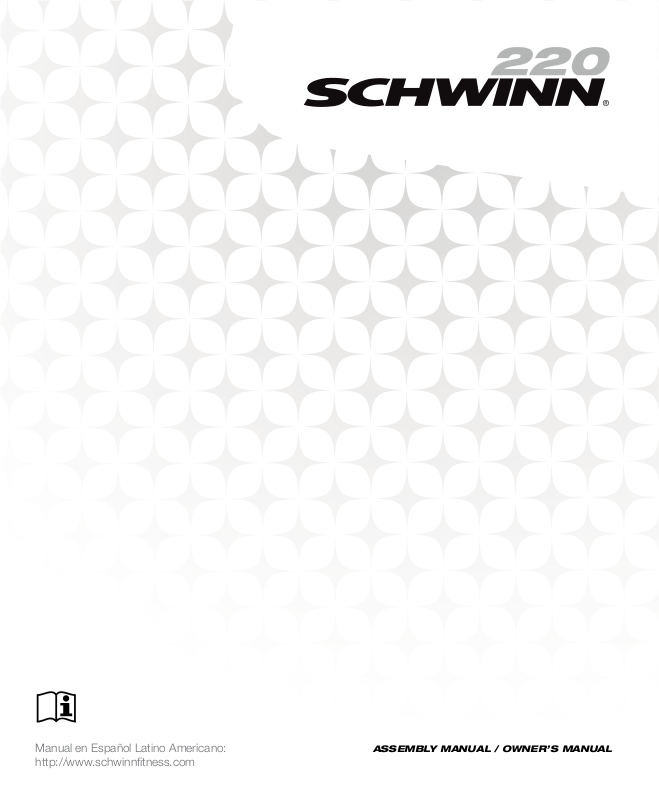

ASSEMBLY MANUAL / OWNER’S MANUAL
TABLE OF CONTENTS
Important Safety Instructions - Assembly |
3 |
Important Safety Instructions - Owner’s |
19 |
Safety Warning Labels / Serial Number |
4 |
Features |
20 |
Specifications |
5 |
Console Features |
21 |
Before Assembly |
5 |
Contact Heart Rate (CHR) |
23 |
Parts |
6 |
Operations |
25 |
Hardware |
7 |
Adjustments |
25 |
Tools |
7 |
Initial Setup |
26 |
Assembly |
8 |
Quick Start / Manual Program |
26 |
Leveling the Bike |
18 |
Workout Program Selection |
26 |
Moving the Bike |
18 |
User Setup Mode |
26 |
|
|
Custom Workout |
29 |
|
|
Profile Programs |
29 |
|
|
Fitness Test |
30 |
|
|
Results/Cool Down Mode |
31 |
|
|
Pausing or Stopping |
31 |
|
|
User Statistics |
31 |
|
|
Console Setup |
33 |
|
|
Maintenance |
34 |
|
|
Troubleshooting |
36 |
To validate warranty support, keep the original proof of purchase and record the following information: Serial Number __________________________
Date of Purchase ____________________
To register your product warranty, go to: www.SchwinnFitness.com/register Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369, csnls@nautilus.com | outside U.S. +01-360-859-5180, technics-APLA@nautilus.com | Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN® and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners.
2
Important Safety Instructions
— ASSEMBLY
!This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine. Carefully read and understand the Assembly instructions.
•Keep bystanders and children away from the product you are assembling at all times.
•Do not connect power supply to the machine until instructed to do so.
•Do not assemble this machine outdoors or in a wet or moist location.
•Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.
•Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
•Set up this machine on a solid, level, horizontal surface.
•Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and will void the warranty.
•If replacement parts are necessary, use only genuine Nautilus® replacement parts and hardware.
Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
•Do not use or put the machine into service until the machine has been fully assembled and inspected for correct performance in accordance with the Manual.
•Read and understand the complete Manual supplied with this machine before first use. Keep the
Manual for future reference.
•Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
3
SAFETY WARNING LABELS AND
SERIAL NUMBER
•
•
•
•
•
•
•
•
•
•
300lbs. (136kg).
•
•
FCC Compliance
Changes or modifications to this unit not expressly approved by the party responsible for
!compliance could void the user’s authority to operate the equipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
4
SPECIFICATIONS
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
51.5 ”
(130.8 cm)
Maximum User Weight: 300 lbs. (136 kg)
Power Requirements:
Operational Voltage: Operational Voltage 9VDC
Operating Current: 1500 mA
Regulatory Approvals:
AC Power Adapter: UL listed, CSA certified (or equivalent), Rated 120V 60Hz
Input, 9VDC, 1500mA Output. Class 2 or LPS.
55” (139.8 cm)
25” (63.5 cm)
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a workout area of a minimum 95” x 61” (2.4m x
1.5m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1.Read and understand the “Important Safety Instructions” before assembly.
2.Collect all the pieces necessary for each assembly step.
3.Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclockwise) to loosen, unless instructed otherwise.
4.When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
5. The assembly requires 2 people. |
5 |
PARTS
|
1 |
|
4 |
|
2 |
|
|
|
|
|
|
|
|
3 |
|
|
|
15 |
5 |
|
|
|
|
14 |
|
6 |
7 |
|
|
||
|
|
16 |
|
13 |
|
17 |
|
|
|
|
|
|
|
|
8 |
|
|
|
9 |
12 |
|
10 |
|
11 |
|
|
Item |
Qty |
Description |
Item |
Qty |
Description |
1 |
1 |
Main Frame |
10 |
1 |
AC Adapter |
2 |
1 |
Seat Rail |
11 |
1 |
Left Pedal |
|
|
|
|
|
|
3 |
1 |
Rear Frame |
12 |
1 |
Right Pedal |
|
|
|
|
|
|
4 |
1 |
Seat Back |
13 |
1 |
Front Stabilizer |
|
|
|
|
|
|
5 |
1 |
Seat Bottom |
14 |
1 |
Rear Stabilizer |
|
|
|
|
|
|
6 |
1 |
Seat Frame |
15 |
1 |
Seat Rail Bracket |
|
|
|
|
|
|
7 |
1 |
Handlebar, Side |
16 |
1 |
Water Bottle Holder |
|
|
|
|
|
|
8 |
1 |
Console Mast |
17 |
1 |
Media Support |
|
|
|
|
|
|
9 |
1 |
Console |
|
|
|
|
|
|
|
|
|
6
HARDWARE / TOOLS
A |
B |
C |
D |
E |
|
F |
G |
Item |
Qty |
Description |
|
|
Item |
Qty |
Description |
A |
4 |
Flat Head Hex Screw M8 x 16 |
|
E |
4 |
Curved Washer M8 |
|
B |
13 |
Button Head Hex Screw M8 x 16 |
F |
8 |
Button Head Hex Screw M8 x 45 |
||
C |
4 |
Button Head Hex Screw M8 x 20 |
G |
4 |
Cap |
||
D |
21 |
Flat Washer M8 |
|
|
|
|
|
Tools
Included |
Not Included |
6 mm |
(recommended) |
7
ASSEMBLY
1. Attach Stabilizers to Frame
Note: Make sure the Schwinn® decal on the Rear Stabilizer faces outward from the machine.
X4 |
6 mm |
A
3 |
14 |
1
13
8
2. Connect Rear Frame to Main Frame
Note: Hardware is pre-installed and not on the Hardware Card. NOTICE: Do not crimp Console Cable.
X5
6 mm
9
3. Attach Handlebar to Seat Frame
6
X4
7
4. Attach Seat Back and Bottom to Seat Assembly
5
D
B
6 mm
4
X8
D
F
6 mm
10
5. Slide the Seat Assembly onto the Seat Rail
Note: Lock the Adjustment Knob into one of the Seat Rail locking holes.
NOTICE: Do not crimp Heart Rate Cable.
2
6. Connect Heart Rate Cable to Seat Assembly
11
7. Attach Seat Rail Bracket to Seat Rail
X2
15
B
6 mm
8. Install Seat Rail Assembly to Frame Assembly
NOTICE: Do not crimp Heart Rate Cables.
|
X3 |
|
|
|
|
|
X4 |
|
D |
|
D |
|
|
|
|
|
|
B |
C |
|
|
|
|
12 |
|
|
6 mm |
|
|
6 mm |
|
|
|
|
