Pro-form PFTL60913.1 User Manual

www.proform.com

Model No. PFTL60913.1

Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

ACTIVATE YOUR

WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER’S MANUAL

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . .	. .	. . . .	. . . .	. . . .	. . . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . .	.	. . . .	. . . .	. . .	. . . .	. .		3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . .	. .	. . . . .	. . .	. . . .	. . . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . .	. . .	. . . .	. . .	. . . . .	. . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. . .	. . . .	. . .	. . . . .	. . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE TREADMILL . . . . . . .	.	. .	. .	. .	. .	. .	. .	. . . . . . . . . . . .16
HOW TO FOLD AND MOVE THE TREADMILL . .	.	. .	. .	. .	. .	. .	. .	. . . . . . . . . . . 22
MAINTENANCE AND TROUBLESHOOTING . . . .	. .	. . . .	. . .	. . . .	. . .	. . .	. . .	23
EXERCISE GUIDELINES. . . . . . . . . .	.	. .	. .	. .	. .	. .	. .	. . . . . . . . . . . .25
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. . .	. . . .	. . .	. . . . .	. . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . .27
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . .	. . .	. . . .	. . .	. . . . .	. . .	. . . .	. . . .	. . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS. . . . . . . . . . .	. .	. . . .	. . . .	. . . .	. . . .	. . .	. . . .	. . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . .	. . .	. . . .	. . .	. . . . .	. . .	. . . .	. . . .	. . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1.It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2.Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3.Use the treadmill only as described in this manual.

4.The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.

5.Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6.Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

7.Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

8.Keep children under age 12 and pets away from the treadmill at all times.

9.The treadmill should be used only by persons weighing 325 lbs. (147 kg) or less.

10.Never allow more than one person on the treadmill at a time.

11.Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

12.Plug the power cord into a surge suppressor (not included), and plug the surge suppressor into an appropriate outlet (see page

16). To avoid overloading the circuit, do not plug other electrical devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit.

13.Use only a surge suppressor that meets all of the specifications described on page 16. To purchase a surge suppressor, see your local PROFORM dealer, call the telephone number on the front cover of this manual, or see your local electronics store.

14.Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

15.Keep the power cord and the surge suppressor away from heated surfaces.

16.Never move the walking belt while the power is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 23 if the treadmill is not working properly.)

17.Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 18). Always wear the clip while using the treadmill.

18.Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

19.When a person is walking on the treadmill, the noise level of the treadmill will increase.

3

20.Keep fingers, hair, and clothing away from the moving walking belt.

21.The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

22.The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

23.Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 6 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

24.Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 8 and HOW TO FOLD AND MOVE THE TREADMILL on page 22.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.

25.When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

26.Do not change the incline of the treadmill by placing objects under the treadmill.

27.Never insert any object into any opening on the treadmill.

28.Inspect and properly tighten all parts of the treadmill regularly.

29.DANGER: Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

30.Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

4

STANDARD SERVICE PLANS

all

5

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM® 505 CST treadmill. The 505 CST treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Length:	6 ft. 1 in. (185 cm)	Console
Width:	3 ft. (91 cm)
Handrail		Heart Rate Monitor
Storage Latch		Key/Clip
		Motor Hood
Walking Belt		Power Switch
Foot Rail
		Power Cord
		Wheel
		Platform Cushions
Idler Roller
Adjustment Screws
		6

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is preattached. Extra parts may be included.

	1/4" Star		5/16" Star		3/8" Star
Washer (26)–10		Washer (11)–4		Washer (13)–6
#8 x 1/2" Silver	#8 x 1/2" Screw		#8 x 3/4" Screw		#10 x 3/4" Screw
Screw (10)–1	(1)–8		(4)–8		(9)–4

5/16" x 2 1/4" Screw (28)–4

3/8" x 4" Screw (7)–6

1/4" x 4 1/2" Screw (6)–2

7

ASSEMBLY

•To hire a service technician to assemble this product in your home, call 1-800-445-2480.

•Assembly requires two persons.

•Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you finish all assembly steps.

•After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

•Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

•To identify small parts, see page 7.

•Assembly requires the following tools:

the included hex keys

one Phillips screwdriver

To avoid damaging parts, do not use power tools.

1. Go to www.proformservice.com/
		1
registration on your computer and register
your product.

•activates your warranty

•saves you time if you ever need to contact Customer Care

•allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call Customer Care (see the front cover of this manual) and register your product.

8

2. Make sure that the power cord is unplugged.	2		81
		Wire
Press a Base Cap (74) into each side of the
Base (85).		Tie			81
Identify the Right Upright (90). Have a second
person hold the Right Upright near the Base (85).
See the inset drawing. Tie the wire tie in the				90
Right Upright (90) securely around the end of the
Upright Wire (81). Then, insert the Upright Wire				Wire
into the lower end of the Right Upright as you			74
				Tie
pull the other end of the wire tie out of the Right
Upright.
				74	90
				85
3. Lay the Right Upright (90) near the Base (85).	3
Press the Grommet (77) into the square hole in
the Right Upright. Make sure not to pinch the
ground wire.
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Silver Screw (10).
				85	10
					90
				Ground	77
					Square
				Wire
					Hole
	9

	4. Hold the Right Upright (90) against the Base	4
	(85). Be careful not to pinch the wires.
	Partially tighten three 3/8" x 4" Screws (7) with
	three 3/8" Star Washers (13) into the Right	90
	Upright and the Base; do not fully tighten the
	Screws yet.
	Attach the Left Upright (not shown) in the
	same way. Note: There are no wires on the left
	side.
		13
		7
		Wires
		85

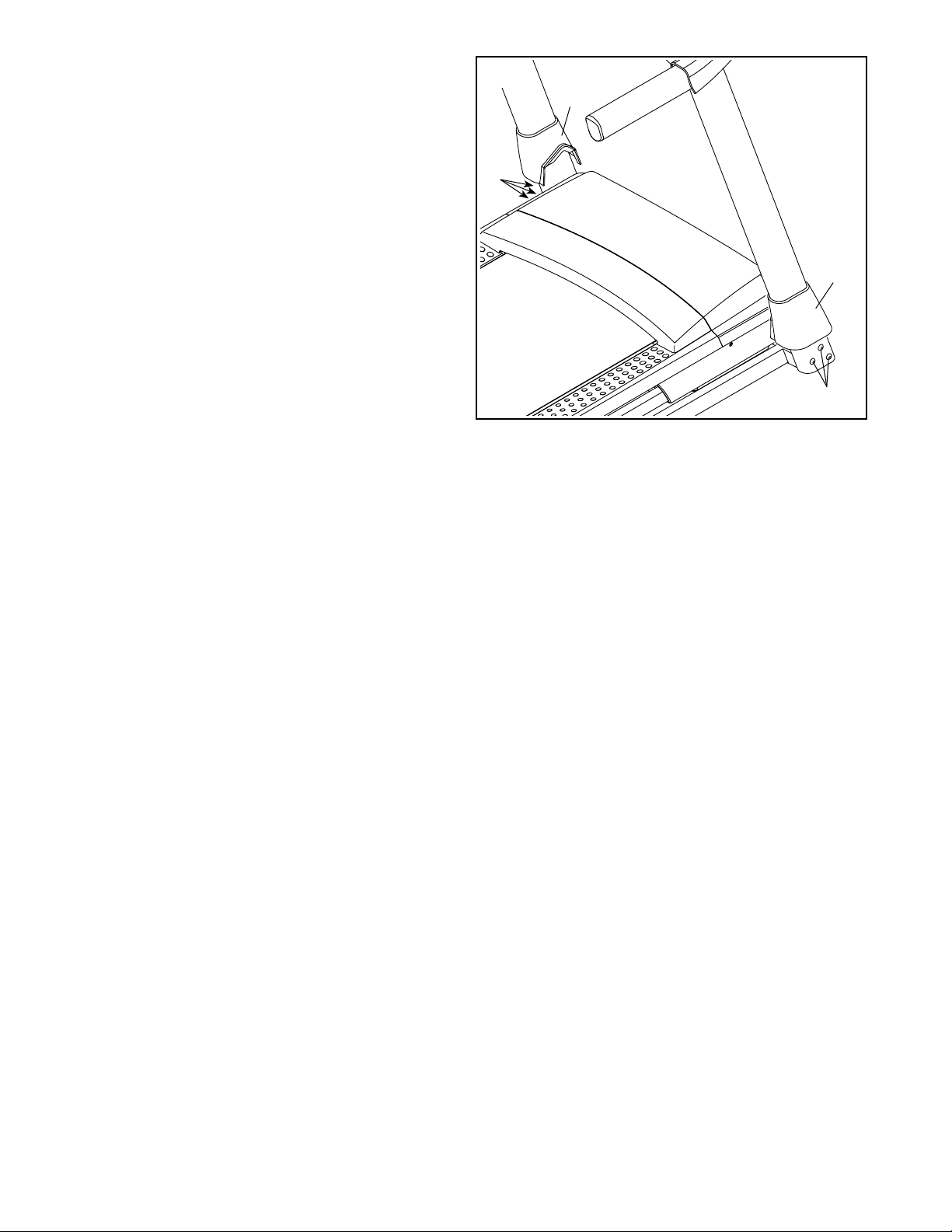

	5. Identify the Left and Right Base Covers (82, 83).	5
	Slide the Left and Right Base Covers onto the
	Left and Right Uprights (89, 90) as shown.

89

82

90

83

10
