Pioneer AVIC-X930BT, AVIC-X9310BT User Manual

Operation Manual

MULTIMEDIA AV NAVIGATION RECEIVER

AVIC-Z130BT AVIC-X930BT AVIC-X9310BT

Notice to all users:

This software requires that the navigation system is properly connected to your vehicle’s parking brake and depending on your vehicle, additional installation may be required. For more information, please contact your Authorized Pioneer Electronics retailer or call us at (800) 421-1404.

Be sure to read Important Information for the User first! Important Information for the User includes the important information that you must understand before using this navigation system.

English

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man-

ual in a safe place for future reference.

– Inserting an SD memory card (for AVIC-

Important

The screens shown in the examples may differ from actual screens. Actual screens may be changed without notice for performance and function improvements.

Introduction Manual overview 9

– How to use this manual 9 – Conventions used in this manual 9 – Terms used in this manual 9

Notice regarding video viewing 10 Notice regarding DVD-Video viewing 10 Notice regarding MP3 file usage 10 iPod compatibility 10 Map coverage 11 Protecting the LCD panel and screen 11 Notes on internal memory 11

– Before removing the vehicle

battery 11

– Data subject to erasure 11

Basic operation Checking part names and functions 12

– Protecting your product from theft 14 Adjusting the LCD panel angle 15 Inserting and ejecting a disc 15

– Inserting a disc (for AVIC-Z130BT) 15

– Ejecting a disc (for AVIC-Z130BT) 16

– Inserting a disc (for AVIC-X930BT and

AVIC-X9310BT) 16

– Ejecting a disc (for AVIC-X930BT and

AVIC-X9310BT) 16

Inserting and ejecting an SD memory

card 16

– Inserting an SD memory card (for AVIC-

Z130BT) 16

– Ejecting an SD memory card (for AVIC-

Z130BT) 17

X930BT and AVIC-X9310BT) 18

– Ejecting an SD memory card (for AVIC-

X930BT and AVIC-X9310BT) 18

Plugging and unplugging a USB storage

device 19

– Plugging in a USB storage device 19 – Unplugging a USB storage device 19

Connecting and disconnecting an iPod 19

– Connecting your iPod 20 – Disconnecting your iPod 20

Startup and termination 20 On first-time startup 20 Regular startup 21

How to use the navigation menu screens

Screen switching overview 22 What you can do on each menu 23 Shortcut Menu 23

– Selecting the shortcut 23 – Removing a shortcut 24

Operating list screens (e.g. POI list) 24 Operating the on-screen keyboard 24

How to use the map How to read the map screen 25

– Enlarged map of the intersection 26 – Display during freeway driving 27

Types of the road stored in the map

database 27

Operating the map screen 27

– Changing the scale of the map 27 – Switching the map orientation 28 – Scrolling the map to the position you

want to see 28

– Viewing information about a specified

location 28

– Using shortcut menus on the map 29

Switching the view mode 30

Eco-friendly driving functions

Checking the eco-friendly driving status 32 Displaying Eco Drive Level guidance 33

Contents

Sudden start alert 33

Searching for and selecting a location

The basic flow of creating your route 34 Searching for a location by address 35

– Searching for a city name first 35 – Finding the location by specifying the

house number 36 Setting up a route to your home 37 Searching for Points of Interest (POI) 37

– Searching for POIs by preset

categories 37

– Searching for a POI directly from the

name of the facilities 37

– Searching for a nearby POI 38 – Searching for POIs around the

destination 38

– Searching for POIs around the city 38 Selecting destination from “Favorites” 39 Searching for POIs by using the data on the

SD memory card 40

Selecting a location you searched for

recently 40

Searching for a location by coordinates 40

After the location is decided Setting a route to your destination 42

– Displaying multiple routes 42

Checking and modifying the current route

Displaying the route overview 43 Modifying the route calculation

conditions 43

– Items that users can operate 43 Checking the current itinerary 44 Editing waypoints 45

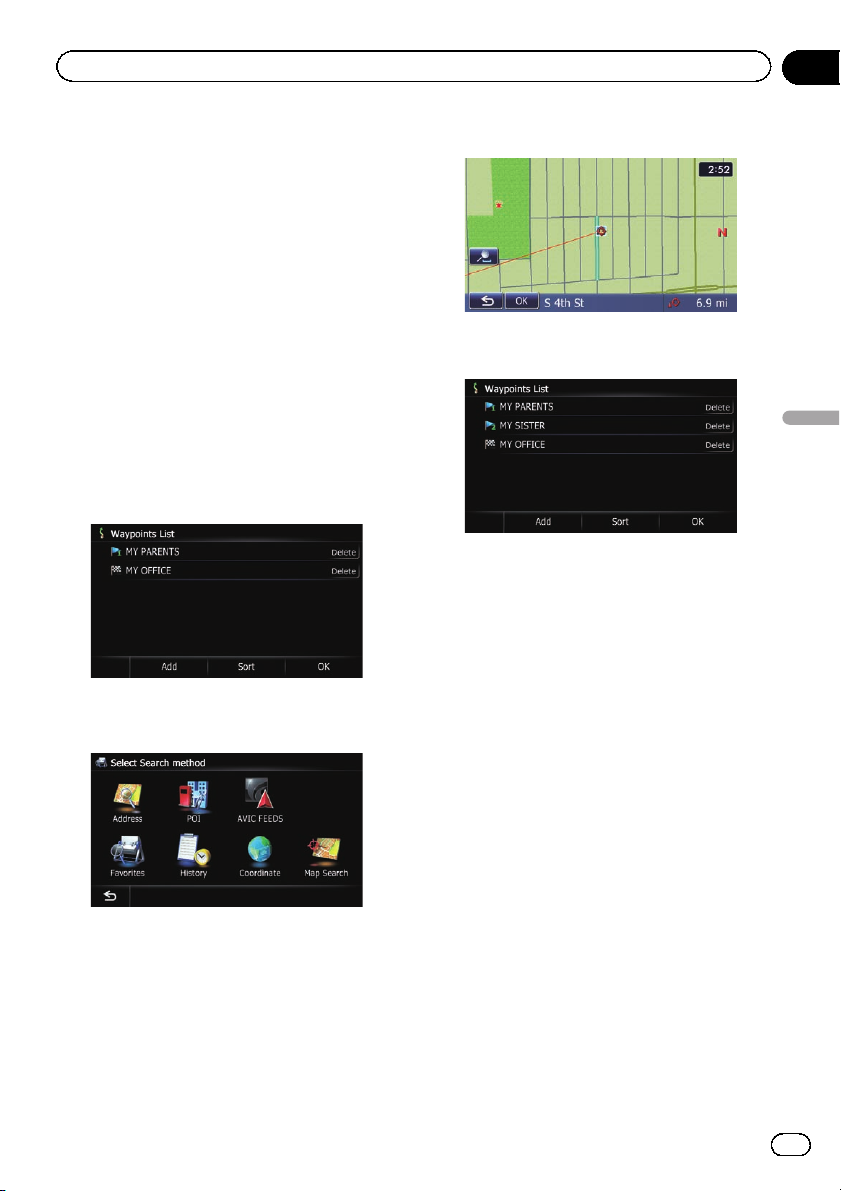

– Adding a waypoint 45

– Deleting a waypoint 45

– Sorting waypoints 46

Canceling the route guidance 46

Registering and editing locations Storing favorite locations 47

– Registering a location by

“Favorites” 47

– Registering a location by scroll

mode 47

Editing registered locations 47

– Editing the favorite location in the

list 47

– Editing your home 48 – Sorting the favorite locations in the

list 48

– Deleting a favorite location from the

list 49

Exporting and importing favorite

locations 49

– Exporting favorite locations 49 – Importing favorite locations 49

Deleting the destination history from the

list 50

Using traffic information

Checking all traffic information 51 Checking traffic information on the

route 52

How to read traffic information on the

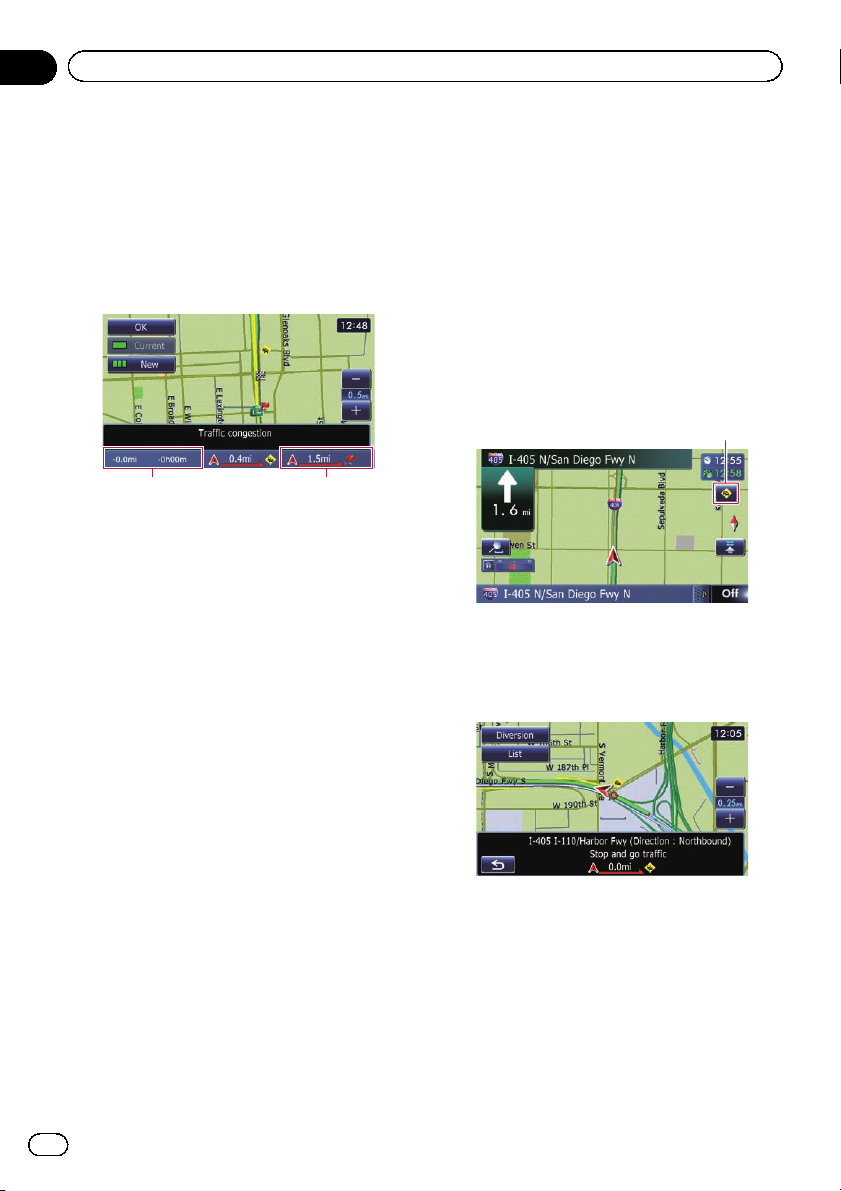

map 52 Viewing the traffic flow 52 Setting an alternative route to avoid traffic

congestion 53

– Checking for traffic congestion

automatically 54

– Checking traffic information

manually 54 Selecting traffic information to display 55 Selecting preferred RDS-TMC service

provider manually 55

Registering and connecting a Bluetooth device

Preparing communication devices 56 Registering your Bluetooth devices 56

– Searching for nearby Bluetooth

devices 56

Contents

– Pairing from your Bluetooth

devices 57

– Searching for a specified Bluetooth

device 58

– Deleting a registered device 59

Connecting a registered Bluetooth device

manually 59

– Setting for priority connecting 60

Using hands-free phoning

Displaying the phone menu 61 Making a phone call 61

– Direct dialing 61 – Making a call home easily 62 – Calling a number in the phone

book 62

– Dialing from the history 63 – Dialing a favorite location 63 – Dialing a facility’s phone number 63 – Dialing from the map 64

Receiving a phone call 64

– Answering an incoming call 64

Transferring the phone book 65

– Deleting registered contacts 66

Changing the phone settings 66

– Editing the device name 66 – Editing the password 66 – Stopping Bluetooth wave

transmission 67

– Echo canceling and noise

reduction 67

– Answering a call automatically 67 – Setting the automatic rejection

function 67

– Clearing memory 68 – Updating the Bluetooth wireless

technology software 68

Notes for hands-free phoning 69

Basic operations of the AV source Displaying the AV operation screen 70

– Selecting a source 70

Operating list screens (e.g. iPod list

screen) 70

– Switching between the AV operation

screen and the list screen 70

– Selecting an item 71 – Returning to the previous display 71

Using the radio (FM)

Starting procedure 72 Reading the screen 72 Using the touch panel keys 73

– Storing and recalling broadcast

frequencies 73 Operating by hardware buttons 74 Using advanced functions 74

– Storing the strongest broadcast

frequencies 74

– Tuning in strong signals 74

Using the radio (AM)

Starting procedure 76 Reading the screen 76 Using the touch panel keys 77

– Storing and recalling broadcast

frequencies 77 Operating by hardware buttons 78 Using advanced functions 78

– Storing the strongest broadcast

frequencies 78

– Tuning in strong signals 78

HD Radio™ reception

HD Radio broadcasting 80 Starting procedure 80 Reading the screen 81 Using the touch panel keys 82

– Storing and recalling broadcast

frequencies 83 Operating by hardware buttons 83 Switching the display 83

– Scrolling the detailed information 84

Storing song information to an iPod (iTunes

Tagging) 84

Contents

Using advanced functions 84

– Storing the strongest broadcast

frequencies 85

– Switching the seek mode 85 – Tuning in strong signals 85 – Switching the reception mode 85

Playing audio CDs

Starting procedure 87 Reading the screen 87 Using the touch panel keys 88 Operating by hardware buttons 89 Using advanced functions 89

Playing music files on ROM

Starting procedure 90 Reading the screen 90 Using the touch panel keys 92 Operating by hardware buttons 93 Using advanced functions 93

Playing a DVD-Video

Starting procedure 95 Reading the screen 95 Using the touch panel keys 96

– Resuming playback (Bookmark) 97 – Searching for a specific scene and

starting playback from a specified time 98

– Direct number search 98 – Operating the DVD menu 98 – Using DVD menu by touch panel

keys 98

– Frame-by-frame playback 99 – Slow motion playback 99

Operating by hardware buttons 99 Using advanced functions 99

Playing a DivX video

Starting procedure 101 Reading the screen 101 Using the touch panel keys 102

– Frame-by-frame playback 103 – Slow motion playback 103

– Starting playback from a specified

time 104 Operating by hardware buttons 104 Using advanced functions 104

DVD-Video or DivX setup

Displaying DVD/DivX® Setup menu 105 Setting the top-priority languages 105 Setting the angle icon display 105 Setting the aspect ratio 106 Setting the parental lock 106

– Setting the code number and

level 106 Setting the auto play 107 Setting the subtitle file for DivX 107 Language code chart for DVDs 108

Playing music files (from USB or SD)

Starting procedure 109 Reading the screen 109 Using the touch panel keys (Music) 111 Operating by hardware buttons 112 Using advanced functions 112

Playing video files (from USB or SD)

Starting procedure 113 Reading the screen 113 Using the touch panel keys (Video) 114

– Searching for a specific scene and

starting playback from a specified

time 115 Operating by hardware buttons 115 Using advanced functions 115

Using an iPod (iPod)

Starting procedure 116 Reading the screen 116 Using the touch panel keys 118 Operating by hardware buttons 120 Starting the video playback 120 Narrowing down a song or video with the

list 120 Operating the functions from your iPod 121 Playing MusicSphere 122

Contents

– Starting procedure 122 – Reading the screen 122 – Using the touch panel keys 122

Using advanced functions 122

Using Pandora®

Starting procedure 124 Reading the screen 124 Using the touch panel keys 126 Operating by hardware buttons 126

Using Aha Radio

Starting procedure 127 Reading the screen 128 Using the touch panel keys 129 Functions coupled with Aha Radio and the

navigation system 130

– Displaying POIs obtained with Aha

Radio 130

Using the Bluetooth audio player

Starting procedure 131 Reading the screen 131 Using the touch panel keys 133 Operating by hardware buttons 133 Using advanced functions 134

Using the XM tuner

Starting procedure 135 Reading the screen 135 Using the touch panel keys 137

– Selecting an XM channel directly 138 – Displaying the Radio ID 138 – Storing and recalling broadcast

stations 139

– Selecting a channel from the list 139 – Using “MyMix” function 139

Operating by hardware buttons 140 Using advanced functions 140

– Setting the memorized songs 140

Using the SIRIUS tuner

Starting procedure 141 Reading the screen 141

Using the touch panel keys 142

– Selecting a SIRIUS channel

directly 143

– Display the Radio ID 143 – Storing and recalling broadcast

stations 143

– Using the song alert function 144 – Using the “Instant Replay”

function 144 Operating by hardware buttons 145 Using advanced functions 145

– Setting the memorized songs 145 – Using the Game Alert function 145 – Displaying Game Information 146

Using AV input

Reading the screen 147 Using AV1 147 Using AV2 147 Using the touch panel keys 147

Using the external unit (EXT1, EXT2)

Starting procedure 148 Reading the screen 148 Using the touch panel keys 149

Customizing preferences

Displaying the screen for navigation

settings 150 Checking the connections of leads 150 Checking sensor learning status and driving

status 151

– Clearing status 151

Using the fuel consumption function 152

– Inputting the fuel consumption

information for calculating the fuel cost 152

– Calculating the fuel consumption 152 – Exporting the data of fuel cost

information 153 Recording your travel history 154 Using the demonstration guidance 154 Registering your home 154

Contents

Correcting the current location 155 Changing the eco-function setting 155 Displaying the screen for map settings 156 Setting the auto-zoom display 156 Setting the detailed city map 156 Setting the barrier graphic for city map 157 Displaying the traffic notification icon 157 Displaying the Bluetooth connection

icon 158 Setting the current street name display 158 Setting the display of icons of favorite

locations 158 Displaying the 3D landmarks 158 Displaying maneuvers 159 Displaying the fuel consumption

information 159 Displaying POI on the map 159

– Displaying preinstalled POIs on the

map 159

– Displaying the customized POIs 160 Changing the view mode 161 Setting the map color change between day

and night 161 Changing the road color 161 Changing the setting of navigation

interruption screen 161 Selecting the “Quick Access” menu 162 Displaying the screen for system

settings 162

– Customizing the regional settings 163 – Setting the Volume for Guidance and

Phone 165

– Changing the preinstalled splash

screen 165

– Changing to the splash screen stored

in the SD memory card 165

– Setting for rear view camera 166 – Adjusting the response positions of the

touch panel (touch panel calibration) 167

– Setting the illumination color 167 – Checking the version information 168

Selecting the video for rear display 168 Adjusting the picture 169 Displaying the screen for AV system

settings 170

– Setting video input 1 (AV1) 170 – Setting video input 2 (AV2) 171 – Changing the wide screen mode 171 – Setting the rear output 171 – Switching the muting/attenuation

timing 172

– Switching the muting/attenuation

level 172

– Acquiring/Cataloging iPod music

information 173

– Displaying your DivX VOD registration

code 174

– Displaying your DivX VOD

deregistration code 174

Displaying the screen for AV sound

settings 174

– Using balance adjustment 175 – Using the equalizer 175 – Adjusting the equalizer curve

automatically (Auto EQ) 177

– Using sonic center control 179 – Adjusting loudness 180 – Using subwoofer output 180 – Using the high pass filter 180 – Adjusting source levels 180 – Enhancing bass (Bass Booster) 181

Replicating the settings 181 Turning off the screen 181

Operating your navigation system with voice

To Ensure Safe Driving 182 Basics of the voice operation 182

– Flow of the voice operation 182 – Starting the voice operation 182 – How to use the voice operation 183

Available basic voice commands 185

– Basic commands 185

Contents

– Voice operation for the iPod 185 – Voice operation for AV source (other

than iPod) 186

– Voice commands related to hands-free

phoning 187

Tips for the voice operation 188

Other functions Setting the anti-theft function 189

– Setting the password 189 – Entering the password 189 – Deleting the password 189 – Forgotten password 189

Returning the navigation system to the

default or factory settings 190

– Restoring the default setting 190 – Returning the navigation system to the

initial state 190

– Setting items to be deleted 191

Appendix

Troubleshooting 193 Messages and how to react to them 198 Messages for audio functions 200 Positioning technology 202

– Positioning by GPS 202 – Positioning by dead reckoning 202 – How do GPS and dead reckoning work

together? 202

Handling large errors 203

– When positioning by GPS is

impossible 203

– Conditions likely to cause noticeable

positioning errors 204

Route setting information 206

– Route search specifications 206

Handling and care of discs 206

– Built-in drive and care 207 – Ambient conditions for playing a

disc 207

Playable discs 207

– DVD-Video and CD 207 – AVCHD recorded discs 208

– Playing DualDisc 208 – Dolby Digital 208

Detailed information for playable media 208

– Compatibility 208 – Media compatibility chart 211

Bluetooth 215 About the SAT RADIO READY Logo 215 HD Radio™ Technology 216 SD and SDHC logo 216 WMA/WMV 216 DivX 216 AAC 217 Detailed information regarding connected

iPod devices 217

– iPod and iPhone 217 – iTunes 217

Using App-based Connected Contents 217

– Pandora 218 – Aha Radio 218

Using the LCD screen correctly 218

– Handling the LCD screen 218 – Liquid crystal display (LCD)

screen 218

– Maintaining the LCD screen 218 – LED (light-emitting diode)

backlight 219

Display information 220

– Destination Menu 220 – Phone Menu 220 – Settings Menu 221 – Navi Settings menu 221 – System Settings menu 222 – Map Settings menu 222 – Bluetooth Settings menu 223 – AV System Settings menu 223 – AV Sound Settings menu 224

Glossary 225 Specifications 228

Introduction

Chapter

Manual overview

Before using this product, be sure to read Important Information for the User (a separate

manual) which contains warnings, cautions, and other important information that you should note.

The screen examples shown in this manual are the ones for AVIC-Z130BT. If you use a different model, the screens that appear may differ from the examples in the manual.

How to use this manual

Finding the operation procedure for what you want to do

When you have decided what you want to do, you can find the page you need from the Con- tents.

Finding the operation procedure from a menu name

If you want to check the meaning of an item displayed on the screen, you will find the necessary page from the Display information at the end of the manual.

Glossary

Use the glossary to find the meanings of terms.

Conventions used in this manual

Before moving on, take a few minutes to read the following information about the conventions used in this manual. Familiarity with these conventions will help you greatly as you learn how to use your new equipment. ! Buttons on your navigation system are de-

scribed in ALL CAPITAL, BOLD lettering: e.g.) HOME button, MODE button.

! Menu items, screen titles, and functional

components are described in bold with double quotation marks “”:

e.g.)

“Destination Menu” screen or “AV Source” screen

! Touch panel keys that are available on the

screen are described in bold in brackets [ ]: e.g.) [Destination], [Settings].

! Extra information, alternatives and other

notes are presented in the following format: e.g.) p If the home location has not been stored

yet, set the location first.

! Functions of other keys on the same screen

are indicated with # at the beginning of the description: e.g.)

# If you touch [OK], the entry is deleted.

! References are indicated like this:

e.g.) = For details of the operations, refer to

Screen switching overview on page 22.

Terms used in this manual

“Front display” and “Rear display”

In this manual, the screen that is attached to the body of this navigation unit will be referred to as the “Front display”. Any additional screen that is commercially available and can be connected to this navigation unit will be referred to as the “Rear display”.

“Video image”

“Video image” in this manual indicates moving images of DVD-Video, DivX equipment that is connected to this system with an RCA cable, such as general-purpose AV equipment.

, iPod, and any

Introduction

Chapter

Introduction

“External storage device (USB, SD)”

The SD memory card, SDHC memory card, microSD card, microSDHC card and USB memory device are collectively referred to as the “external storage device (USB, SD)”. If it indicates the USB memory only, it is referred to as the “USB storage device”.

“SD memory card”

The SD memory card, SDHC memory card, microSD card and microSDHC card are collectively referred to as the “SD memory card”.

Notice regarding video viewing

Remember that use of this system for commercial or public viewing purposes may constitute an infringement on the author’s rights as protected by the Copyright Law.

Notice regarding DVDVideo viewing

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Notice regarding MP3 file usage

Supply of this navigation system conveys only a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generating), real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such

as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

iPod compatibility

This product supports only the following iPod models and iPod software versions. Others may not work correctly.

! iPod touch fourth generation: Ver. 4.1 ! iPod touch third generation: Ver. 4.1 ! iPod touch second generation: Ver. 4.1 ! iPod touch first generation: Ver. 3.1.3 ! iPod classic 120GB: Ver. 2.0.1 ! iPod classic 160GB (2009): Ver. 2.0.4 ! iPod classic 80GB: Ver. 1.1.2 ! iPod classic 160GB (2007): Ver. 1.1.2 ! iPod with video: Ver. 1.3 ! iPod nano sixth generation: Ver. 1.0 ! iPod nano fifth generation: Ver. 1.0.2 ! iPod nano fourth generation: Ver. 1.0.4 ! iPod nano third generation: Ver. 1.1.3 ! iPod nano second generation: Ver. 1.1.3 ! iPod nano first generation: Ver. 1.3.1 ! iPhone 4: Ver. 4.1 ! iPhone 3GS: Ver. 4.1 ! iPhone 3G: Ver. 4.1 ! iPhone: Ver. 3.1.3

p In this manual, iPod and iPhone will be re-

ferred to as iPod.

p When you use this navigation system with

a Pioneer USB interface cable for iPod (CDIU51V) (sold separately), you can control an iPod compatible with this navigation system.

p Operation methods may vary depending on

the iPod models and the software version of iPod.

p Depending on the software version of the

iPod, it may not be compatible with this equipment. For details about iPod compatibility with this navigation system, refer to the information on our website.

Introduction

Chapter

Map coverage

For details about the map coverage of this navigation system, refer to the information on our website.

Protecting the LCD panel and screen

p Do not allow direct sunlight to fall on the

LCD screen when this product is not being used. Extended exposure to direct sunlight can result in LCD screen malfunction due to the resulting high temperatures.

p When using a cellular phone, keep the an-

tenna of the cellular phone away from the LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.

p To protect the LCD screen from damage, be

sure to touch the touch panel keys with your finger only and gently touch the screen.

Notes on internal memory

Before removing the vehicle battery

If the battery is disconnected or discharged, the memory will be erased and must be reprogrammed.

p Some data remains. Be sure to read Setting

items to be deleted first. = For details, refer to Setting items to be

deleted on page 191.

Introduction

Data subject to erasure

The information is erased by disconnecting the yellow lead from the battery (or removing the battery itself).

p Some data remains. Be sure to read Setting

items to be deleted first. = For details, refer to Setting items to be

deleted on page 191.

Chapter

Basic operation

Checking part names and functions

This chapter gives information about the names of the parts and the main features using the buttons.

7654321

AVIC-Z130BT

(with the LCD panel closed)

AVIC-Z130BT (with the LCD panel open)

Basic operation

Chapter

6 8

AVIC-X930BT, AVIC-X9310BT

1 button

! Press the

button to activate voice op-

erations.

= For details, refer to Chapter 33.

! Press and hold the

button to switch the AV source to mute. To cancel the muting, press and hold it again.

2 VOL (+/–) button

Press to adjust the AV (Audio and Video) source volume.

3 HOME button

! Press the HOME button to display the

“Top Menu” screen.

! Press to switch between the Classic

Menu and the Shortcut Menu while the “Top Menu” is displayed.

= For details, refer to What you can do

on each menu on page 23.

! Press and hold to turn off the screen dis-

play.

4 MODE button

! Press to switch between the map screen

and the AV operation screen.

Basic operation

! Press to display the map screen while

the navigation function screen is displayed.

! Press and hold to display the “Picture

Adjustment” screen.

= For details, refer to Adjusting the pic-

ture on page 169.

5 TRK button

Press to perform manual seek tuning, fast forward, reverse and track search controls. = For details, refer to the descriptions from

Chapter 14 to Chapter 31.

6 h button

7 LCD screen

8 Disc-loading slot

Insert a disc to play.

= For details, refer to Inserting and ejecting

a disc on page 15.

9 SD card slot

= For details, refer to Inserting and ejecting

an SD memory card on page 16.

Chapter

Basic operation

a Multi-control (Volume knob/ /MUTE)

! Rotate to adjust the AV (Audio and

Video) source volume.

! Press the center of Multi-control to hear

the route guidance.

! Press and hold the center of Multi-con-

trol to mute the AV (Audio and Video) source. To cancel the muting, press and hold it again.

b Front panel

c Detach button

Press to remove the front panel from the navigation system.

= For details, refer to Removing the front

panel on this page.

Protecting your product from theft

p This function is available for AVIC-X930BT

and AVIC-X9310BT. The front panel can be detached from the navigation system to discourage theft, as described below.

CAUTION

! Do not expose the front panel to excessive

shock or disassemble it. ! Never grip the buttons tightly or use force

when removing or attaching. ! Keep the front panel out of reach of small chil-

dren to prevent them from putting it in their

mouths. ! After removing the front panel, keep it in a

safe place so it is not scratched or damaged. ! Keep the front panel out of direct sunlight and

high temperatures. ! When removing or attaching the front panel,

do so after turning the ignition switch off

(ACC OFF).

Removing the front panel

p The navigation system cannot be operated

while the front panel is removed from the

navigation system.

1 Press and hold the Detach button, and slide it down.

When you release your finger, the bottom of the front panel separates slightly from the navigation system.

2 Gently grip the bottom of the front panel and slowly pull it outward.

Front panel

Attaching the front panel

1 Slide the front panel all the way into the navigation system.

Make sure the front panel is securely connected to the mounting hooks of the navigation system.

2 Push the lower part of the front panel until you hear a click.

If you fail to successfully attach the front panel to the navigation system, try again but be careful not to force it as the panel could be damaged.

Basic operation

Chapter

Adjusting the LCD panel angle

p This function is available for AVIC-Z130BT

only.

WARNING

When opening, closing and adjusting the angle of the LCD panel, be careful not to get your fingers caught.

CAUTION

Do not open or close the LCD panel by force. This may cause malfunction.

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch

3 Touch .

p The adjusted angle of the LCD panel will be

memorized and the LCD panel will automatically return to that angle the next time the LCD panel is opened or closed.

or to adjust the angle.

CAUTION

! Do not open or close the LCD panel by force.

This may cause malfunction.

! Do not operate this navigation system until

the LCD panel completely opens or closes. If this navigation system is operated while the LCD panel is opening or closing, the LCD panel may stop at that angle for safety.

! Do not place a glass or a can on the open

LCD panel. Doing so may break this navigation system.

! Do not insert anything other than a disc into

the disc-loading slot.

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch [Open].

The LCD panel opens, and the disc-loading slot appears.

3 Insert a disc into the disc-loading slot.

Basic operation

Inserting and ejecting a disc

Inserting a disc (for AVIC-Z130BT)

WARNING

! When opening, closing and adjusting the

angle of the LCD panel, be careful not to get your fingers caught.

! Do not use with the LCD panel left open. If

LCD panel is left open, it may result in injury in the event of an accident.

The disc is loaded, and the LCD panel closes.

Chapter

Basic operation

Ejecting a disc (for AVIC-Z130BT)

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch [Disc Eject].

The LCD panel opens, and the disc is ejected.

3 Remove the disc, and press the h button.

The LCD panel closes.

Inserting a disc (for AVICX930BT and AVIC-X9310BT)

% Insert a disc into the disc-loading slot.

2 Touch [Disc Eject].

The disc is ejected.

Inserting and ejecting an SD memory card

CAUTION

! Ejecting an SD memory card during data

transfer can damage the SD memory card. Be sure to eject the SD memory card by the procedure described in this manual.

! If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption.

! Do not insert anything other than SD memory

cards.

p Do not insert anything other than a disc

into the disc-loading slot.

Ejecting a disc (for AVIC-X930BT and AVIC-X9310BT)

1 Press the h button.

The touch panel keys for ejecting the media appear.

p This system is not compatible with Multi

Media Card (MMC).

p Compatibility with all SD memory cards is

not guaranteed.

p This unit may not achieve optimum perfor-

mance with some SD memory cards.

Inserting an SD memory card (for AVIC-Z130BT)

CAUTION

! Do not press the h button when an SD mem-

ory card is not fully inserted. Doing so may damage the card.

! Do not press the h button before an SD mem-

ory card has been completely removed. Doing so may damage the card.

Basic operation

Chapter

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch [SD Insert].

The LCD panel opens, and the SD card slot appears.

3 Insert an SD memory card into the SD card slot.

Insert it with the label surface facing to the upside and press the card until it clicks and completely locks.

2 Touch [Eject SD].

Basic operation

The LCD panel opens.

3 Press the middle of the SD memory card gently until it clicks.

4 Pull the SD memory card out straight.

4 Press the h button.

The LCD panel closes.

p If data related to map data, such as custo-

mized POI data, is stored on the SD memory card, the navigation system restarts.

Ejecting an SD memory card (for AVIC-Z130BT)

1 Press the h button. The “Monitor Setup” screen appears.

5 Press the h button.

The LCD panel closes.

p When you eject the SD memory card by

touching [Eject SD], the model information that you are using will be automatically stored into the SD memory card. The utility program AVIC FEEDS will use this information to recognize the model that you use.

When the data related to map data is stored

p This description is for AVIC-Z130BT.

Chapter

Basic operation

If data related to map data, such as customized POI data, is stored on the SD memory card, operating procedures are slightly different.

1 Press the h button and then touch [Eject SD].

2 Touch [Yes].

The navigation system restarts, and then the LCD panel opens.

3 Eject the SD memory card.

4 Press the h button.

The LCD panel closes.

Inserting an SD memory card (for AVIC-X930BT and AVIC-X9310BT)

% Insert an SD memory card into the SD card slot.

Insert the SD memory card with the terminal contacts facing down, and press the card until it clicks and locks completely.

Ejecting an SD memory card (for AVIC-X930BT and AVIC-X9310BT)

1 Press the h button.

The touch panel keys for ejecting the media appear.

2 Touch [Eject SD].

A message prompting you to remove the SD memory card appears.

3 Press the middle of the SD memory card gently until it clicks.

p If data related to map data, such as custo-

mized POI data, is stored on the SD memory card, the navigation system restarts.

4 Pull the SD memory card out straight.

When the data related to map data is stored

p This description is for AVIC-X930BT and

AVIC-X9310BT.

Basic operation

Chapter

If data related to map data, such as customized POI data, is stored on the SD memory card, operating procedures are slightly different.

1 Press the h button and then touch [Eject SD].

2 Touch [Yes].

The navigation system restarts, and a message prompting you to remove the SD memory card appears.

3 Eject the SD memory card while the message is displayed.

Eject the SD memory card before touching [OK].

4 Touch [OK].

The navigation system restarts.

possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption.

Plugging in a USB storage device

% Plug a USB storage device into the USB and mini-jack connector.

USB and mini-jack connector

USB storage device

p Compatibility with all USB storage devices

is not guaranteed. This navigation system may not achieve optimum performance with some USB storage devices.

p Connection via a USB hub is not possible.

Unplugging a USB storage device

% Pull out the USB storage device after checking that no data is being accessed.

Connecting and disconnecting an iPod

Basic operation

Plugging and unplugging a USB storage device

CAUTION

! To prevent data loss and damage to the sto-

rage device, never remove it from this navigation system while data is being transferred.

! If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not

CAUTION

! To prevent data loss and damage to the sto-

rage device, never remove it from this navigation system while data is being transferred.

! If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption.

Chapter

Basic operation

Connecting your iPod

Using the USB interface cable for iPod enables you to connect your iPod to the navigation system. p A USB interface cable for iPod (CD-IU51V)

(sold separately) is required for connection. p For details about iPod compatibility with

this navigation system, refer to the informa-

tion on our website. p Connection via a USB hub is not possible.

1 Check that no USB storage device is connected.

2 Connect your iPod.

Startup and termination

1 Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

p To protect the LCD screen from damage, be

sure to touch the touch panel keys with your finger only and gently touch the screen.

2 Turn off the vehicle engine to terminate the system.

The navigation system is also turned off.

On first-time startup

When you use the navigation system for the first time, select the language that you want to use.

1 Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

2 Touch the language that you want to use on the screen.

USB and mini-jack connector

USB interface cable for

Disconnecting your iPod

% Pull out the USB interface cable for iPod after checking that no data is being accessed.

iPod

3 Touch the language that you want to use for the voice guidance.

The navigation system will now restart.

Basic operation

4 Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions.

The map screen appears.

Chapter

Basic operation

Regular startup

% Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

p The screen shown will differ depending on

the previous conditions.

p When there is no route, the disclaimer ap-

pears after the navigation system reboots. Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions.

p If the anti-theft function is activated, you

must enter your password. Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions.

Chapter

How to use the navigation menu screens

Screen switching overview

How to use the navigation menu screens

Chapter

What you can do on each menu

1 Top Menu

Press the HOME button to display the “Top Menu” screen.

This is the starting menu to access the desired screens and operate the various functions. There are two types of the “Top Menu” screen.

Classic Menu

Shortcut Menu

p In this manual, Classic Menu will be re-

ferred to as “Top Menu”.

2 Destination Menu

You can search for your destination on this menu. You can also check or cancel your set route from this menu.

3 Phone Menu

You can access the screen that is related to hands-free phoning.

4 AV operation screen

This is the screen that normally appears when you play the AV source.

5 Settings Menu

You can access the screen to customize settings.

6 Map screen

You can use this screen to check the current vehicle position information and route to the destination.

Shortcut Menu

Registering your favorite menu items in shortcuts allows you to quickly jump to the registered menu screen by a simple touch on the Shortcut Menu screen.

Selecting the shortcut

p Up to 15 menu items can be registered in

shortcuts.

1 Press the HOME button repeatedly to display the Shortcut Menu screen.

p When you use the navigation system for the

first time or no items are set on shortcut, a message will appear. Touch [Yes] to proceed to next step.

2 Touch [Shortcut].

The Shortcut selection screen appears.

3 Touch the tab on the right edge or scroll the bar to display the icon that you want to set to shortcut.

Scroll bar

4 Touch and hold the icon that you want to add to shortcut.

How to use the navigation menu screens

Chapter

How to use the navigation menu screens

5 Move the icon to the left side of the screen, and then release it.

The selected item is added to shortcut.

Removing a shortcut

1 Touch and hold the icon of the shortcut you want to remove.

2 Move the icon to the right side of the screen, and then release it.

Operating list screens (e.g. POI list)

1 Screen title 2

Touching or on the scroll bar scrolls

through the list and allows you to view the re-

maining items.

The previous screen returns.

4 Listed items

Touching an item on the list allows you to nar-

row down the options and proceed to the next

operation.

5 Number of possible choices

p If there are 10 000 or more possible

choices, “****” is displayed.

If all of the characters cannot be displayed within the displayed area, touching the key to the right of the item allows you to see remaining characters.

Operating the on-screen keyboard

1 2

5 76

1 Screen title

The screen title appears.

2 Text box

Displays the characters that are entered. If there is no text in the box, an informative guide with text appears.

3 Keyboard

Touch the keys to enter the characters.

The previous screen returns.

5 Keys

Switches the on-screen keyboard layout.

6 Sym., Others, 0-9

You can enter other characters of alphabet. You can also enter text with marks such as [&] or [+] or numbers. Touch to toggle the selection.

p Even if you use any of “A”, “Ä”, “Å”, “Æ”,

the displayed result is the same.

7 OK

Confirms the entry and allows you to proceed to the next step.

Deletes the input text one letter at a time, beginning at the end of the text. Continuing to touch the button deletes all of the text.

How to use the map

Most of the information provided by your navigation system can be seen on the map. You need to become familiar with how information appears on the map.

How to read the map screen

This example shows an example of a 2D map screen.

Chapter

How to use the map

5 6

p Information with an asterisk (*) appears

only when the route is set.

p Depending on the conditions and settings,

some items may not be displayed.

1 Name of the street to be used (or next gui-

dance point)*

2 Next direction of travel*

As you get closer to the guidance point, the color of the item changes to green.

p Touching this item enables you to hear

the next guidance again.

p You can select between display and

non-display.

= For details, refer to Displaying man-

euvers on page 159.

3 Distance to the guidance point*

Shows the distance to the next guidance point.

p Touching this item enables you to hear

the next guidance again.

4 Second Maneuver Arrow*

9 a

Shows the turning direction after next guidance point and the distance to there.

= For details, refer to Displaying maneu-

vers on page 159.

5 Map control

Touching changing the map scale and the map orientation.

6 Current position

Indicates the current location of your vehicle. The apex of the triangular mark indicates your orientation and the display moves automatically as you drive.

displays touch panel keys for

p The apex of the triangular mark is the

proper current position of the vehicle.

7 Eco-Meter

Displays a graph comparing the past average fuel mileage and the average fuel mileage since the navigation system was last started.

= For details, refer to Displaying the fuel

consumption information on page 159.

e d

Chapter

How to use the map

8 Street name (or city name) that your vehi-

cle is traveling along

= For details, refer to Setting the current

street name display on page 158.

9 Extension tab for the AV information bar

Touching this tab opens the AV information

bar and enables you to briefly view the current

status on the AV source. Touching it again re-

tracts the bar.

a Shortcut to the AV operation screen

The AV source currently selected is shown.

Touching the indicator displays the AV opera-

tion screen of the current source directly.

p Depending on the source currently cho-

sen, an image is displayed.

b Quick Access icon

Displays the “Quick Access” menu.

= For details, refer to Using shortcut

menus on the map on page 29.

c Map orientation indicator

! When “North up” is selected, is dis-

played.

! When “Heading up” is selected,

is displayed. p The red arrow indicates north.

= For details, refer to Switching the map or-

ientation on page 28.

d Current route*

The route currently set is highlighted in color on the map. If a waypoint is set on the route, the route after the next waypoint is highlighted in another color.

e Direction line*

The direction towards your destination (next waypoint, or the position of a cursor) is indicated with a straight line.

f Multi-Info window

Each touch of Multi-Info window changes the display information as follows.

! Distance to the destination (or dis-

tance to waypoint)*

! Estimated time of arrival at your des-

tination or waypoint*

The estimated time of arrival is an ideal value calculated based on the value set for “Average Speed” and the actual driving speed. The estimated time of ar-

rival is only a reference value, and does not guarantee arrival at that time.

! Travel time to your destination or

waypoint*

g Current time

Meaning of guidance flags

Destination

The checkered flag indicates your destination.

Waypoint

The blue flags indicate your waypoints.

Guidance point

The next guidance point (next turning point, etc.) is shown by a yellow flag.

Enlarged map of the intersection

When “Close Up View” in the “Map Settings” screen is “On”, an enlarged map of the intersection appears.

= For details, refer to Setting the auto-zoom

display on page 156.

How to use the map

Chapter

Display during freeway driving

In certain locations of the freeway, lane information is available. The map indicates the recommended lane to be in to easily maneuver the next guidance.

While driving on the freeway, freeway exit numbers and freeway signs may be displayed in the vicinity of interchanges and exits.

2 3

1 Lane information 2 Freeway exit information

Displays the freeway exit.

3 Freeway signs

These show the road number and give directional information.

p If the data for these items is not contained

in the built-in memory, the information is not available even if there are the signs on the actual road.

route guidance, including turn-by-turn voice directions and arrow icons.

Roads without turn-by-turn instructions

Routable roads (the route displayed and highlighted in violet) have only basic data and can only be used to plot a navigable route. Pioneer Navigation will only display a navigable route on the map (only the arrival guidance for the destination or a waypoint is available). Please review and obey all local traffic rules along the highlighted route for your safety. No turn-by-turn directions will be displayed on these roads.

Non routable roads (pink color road)

Map display is possible, but it cannot be used for route calculation. Please review and obey all local traffic rules along this route. (For your safety.)

Operating the map screen

Changing the scale of the map

You can change the map scale between 25 yards and 1 000 miles (25 meters and 2 000 kilometers).

1 Display the map screen.

2 Touch

and with the map scale appear.

on the map screen.

How to use the map

Types of the road stored in the map database

Roads included in the route guidance

Turn by Turn Routable Roads contain full attribute data and can be used for full Route Guidance. Pioneer Navigation will display full

Chapter

How to use the map

3 Touch or to change the map scale.

p If you do not operate the function for a few

seconds, the touch panel keys for map display control disappear.

# If you touch the direct scale key, the map is changed to the selected scale directly.

Switching the map orientation

You can switch how the map shows your vehicle’s direction between “Heading up” and “North up”. ! Heading up:

The map display always shows the vehicle’s direction as proceeding toward the top of the screen.

! North up:

The map display always has north at the top of the screen.

p The map orientation is fixed at “North up”

when the map scale is 25 miles (50 kilometers) or more.

p The map orientation is fixed at “Heading

up” when the 3D map screen is displayed.

1 Display the map screen.

2 Touch

or appears.

on the map screen.

Scrolling the map to the position you want to see

1 Display the map screen.

2 Touch and drag the map in the desired direction to scroll.

1 Cursor 2 Distance from the current position

Positioning the cursor to the desired location results displaying in a brief informational overview about the location at the bottom of screen, with the street name and other information for this location. (The information shown varies depending on the position.)

p The scrolling increment depends on your

dragging length.

# If you touch rent position.

p Pressing MODE button returns the map to

the current position.

, the map returns to the cur-

3 Touch or to switch the vehicle’s direction.

Each time you touch the key changes the setting.

p If you do not operate the function for a few

seconds, the touch panel keys for map display control disappear.

Viewing information about a specified location

An icon appears at registered places (home location, specific places, Favorites entries) and places where there is a POI icon or traffic information icon. Place the scroll cursor over the icon to view detailed information.

1 Scroll the map and move the scroll cursor to the icon you want to view.

How to use the map

Chapter

2 Touch .

The “Information List” screen appears.

3 Touch the item that you want to check the detailed information.

Information for a specified location appears.

The information shown varies according to the location. (There may be no information for that location.)

= For details, refer to Setting the display of

icons of favorite locations on page 158.

= For details, refer to Displaying POI on the

map on page 159.

= For details, refer to How to read traffic infor-

mation on the map on page 52.

p Touching [Call] enables you to call the posi-

tion if a telephone number is available. (Pairing with cellular phone featuring Bluetooth wireless technology is required.) = For details, refer to Dialing from the map

on page 64.

Using shortcut menus on the map

“Quick Access” menu allows you to perform various tasks, such as route calculation for the location indicated by the cursor or registering a location in “Favorites”, faster than using the navigation menu.

You can customize “Quick Access” displayed on screen. The “Quick Access” described here are prepared as the default setting.

= For details, refer to Selecting the “Quick Ac-

cess” menu on page 162.

p Items marked with an asterisk (*) cannot

be removed from the “Quick Access” menu.

% When the map is displayed, touch

Quick Access menu

: Route Options*

Displayed when the map is not scrolled. This item can be selected only during route guidance. You can modify the conditions for route calculation and recalculate the current route.

= For details, refer to Modifying the route cal-

culation conditions on page 43.

: Destination*

Displayed when the map is scrolled. Set the route to the place specified with the cursor.

: Registration

= For details, refer to Registering a location by

scroll mode on page 47.

: Vicinity Search

Find POIs (Points Of Interest) in the vicinity of the cursor.

= For details, refer to Searching for a nearby

POI on page 38.

: Overlay POI

Displays icons for surrounding facilities (POI) on the map.

= For details, refer to Displaying POI on the

map on page 159.

: Volume

How to use the map

Chapter

How to use the map

Displays the “Volume Settings” screen.

= For details, refer to Setting the Volume for

Guidance and Phone on page 165.

: Contacts

Displays the “Contacts List” screen.

= For details, refer to Calling a number in the

phone book on page 62.

Close Hides the “Quick Access” menu.

Switching the view mode

Various types of screen displays can be selected for navigation guidance.

1 Display the “Map Settings” screen.

= For details, refer to Displaying the screen for

map settings on page 156.

2 Touch [View Mode]. The “View Mode” screen appears.

3 Touch the type that you want to set.

You can select the following types:

! 2D View (default):

Displays a normal map (2D map).

! Street View:

Information on the next four guidance points closest to the current location appear in order from top to bottom on the left side of the screen. The following information is displayed.

— Name of the next route to be taken by

the vehicle

— Arrow indicating the direction of the ve-

hicle — Distance to the guidance points p This mode is available when the route is

set.

! Rear View:

Displays the rear view image on the left side of the screen and the map on the right side of the screen.

! 3D View:

Displays a map with an antenna view (3D map).

p This mode is available when the rear

view camera setting is set to “On”.

= For details, refer to Setting for rear view

camera on page 166.

! Eco Graph:

Displays a graph for eco-driving on the left side of the screen and the map on the right side of the screen.

How to use the map

= For details, refer to Checking the eco-

friendly driving status on the next

page.

Chapter

How to use the map

Chapter

Eco-friendly driving functions

This navigation system is equipped with ecofriendly driving functions that can be used to estimate whether you are driving in an environmentally friendly way. This chapter describes these functions.

! The fuel mileage calculated is based on a

theoretical value determined from vehicle speed and position information from the navigation system. The fuel mileage displayed is only a reference value, and does not guarantee the mileage displayed can be obtained.

! The eco-friendly driving functions are an es-

timate of the real time fuel consumption to average fuel consumption ratio and is not an actual value.

! The eco-friendly driving functions and cal-

culations take into consideration the location of the GPS position and speed of the vehicle in determining a value.

Checking the eco-friendly driving status

This function estimates approximate fuel mileage based on your driving, compares that with your average fuel mileage in the past, and displays the results in a graph. The graph appears when the map display is set to “Eco Graph”.

1 Display the “Map Settings” screen.

= For details, refer to Displaying the screen for

map settings on page 156.

2 Touch [View Mode]. The “View Mode” screen appears.

3 Touch [Eco Graph]. The “Eco Graph” screen appears.

1 2

1 Eco Score

The result of the comparison of your past average fuel mileage and current average fuel mileage appears as a value from

0.0 Pts (points) to 10.0 Pts. The higher the value, the better the fuel mileage when compared to past route guidance. The green gauge indicates the current score, and the gray gauge indicates the best score to date. The “Eco Score” is updated every 5 minutes. p This is not displayed when “Eco Score”

is set to “Off” or when no route is set.

2 Best Score

Displays the best score to date. p This is not displayed when “Eco Score”

is set to “Off” or when no route is set.

3 Average fuel mileage comparison graph

Displays a comparison of the average fuel mileage up to the point the navigation system was last stopped (past average fuel mileage) and the current average fuel mileage. The display is updated every 3 seconds. The more the value moves in the direction of +, the better the fuel mileage. There are three different graph bars.

! Total

A comparison of the past average fuel

mileage and the average fuel mileage of

the current drive.

: Ordinary Road

A comparison of the past average fuel

mileage and the average fuel mileage

for 90 seconds in the past, while the ve-

hicle is driving on an ordinary road.

: Freeway

Eco-friendly driving functions

Chapter

A comparison of the past average fuel mileage and the average fuel mileage for 90 seconds in the past, while the vehicle is driving on a freeway.

4 Animal icons

The number of displayed animal icons increases or decreases according to the value of “Eco Score”. p This is not displayed when “Eco Score”

is set to “Off” or when no route is set.

p Even if you use the “Eco Graph” function

immediately after you start using the navigation system for the first time, displayed and the function may not be available.

= For details, refer to Troubleshooting on page

193.

p The display settings can be changed.

= For details, refer to Changing the eco-func-

tion setting on page 155.

may be

Displaying Eco Drive Level guidance

This navigation system is equipped with the “Eco Drive Level” function that estimates how well you have driven in an environmentally friendly way. The points of “Eco Drive Level” change according to “Eco Score” when the vehicle reaches the destination. When a certain number of points is reached, the level increases and a message appears.

Tree icon

p This is not displayed when “Eco Drive

Level” is set to “Off”.

= For details of the operation, refer to Chan-

ging the eco-function setting on page

155.

Sudden start alert

If the speed of the vehicle exceeds 25.5 mph (41 km/h) within 5 seconds from the time it is started, a message appears and a warning sound beeps.

= For details of the operation, refer to Chan-

ging the eco-function setting on page

155.

Eco-friendly driving functions

As the level increases, a tree icon changes from a young tree to a big tree.

Chapter

Searching for and selecting a location

CAUTION

For safety reasons, these route-setting functions are not available while your vehicle is in motion. To enable these functions, you must stop in a safe place and put on the parking brake before setting your route.

p Some information regarding traffic regula-

tions depends on the time when the route calculation is performed. Thus, the information may not correspond with a certain traffic regulation when your vehicle actually passes through the location in question. Also, the information on the traffic regulations provided will be for a passenger vehicle, and not for a truck or other delivery vehicles. Always follow the actual traffic regulations when driving.

The basic flow of creating your route

1 Park your vehicle in a safe place and apply

the parking brake.

2 Display the “Destination Menu” screen.

= For details of the operations, refer to

Screen switching overview on page 22.

3 Select the method of searching for your

destination.

4 Enter the information about your destina-

tion to calculate route.

5 Confirm the location on the map.

= For details, refer to Setting a route to

your destination on page 42.

6 The navigation system calculates the route

to your destination, and then shows the route on the map.

7 Check and decide the route.

= For details, refer to Setting a route to

your destination on page 42.

8 Your navigation system sets the route to

your destination, and the map of your surroundings appears.

9 Release the parking brake, drive in accor-

dance with navigation guidance.

Searching for and selecting a location

Chapter

Searching for a location by address

The most frequently used function is “Ad- dress”, in which the address is specified and

the destination is searched. You can select the method of searching for a location by address.

! Searching for a city name first ! Finding the location by specifying the

house number

Searching for a city name first

p Depending on the search results, some

steps may be skipped.

p When you enter characters, the system will

automatically search the database for all possible options. Only the characters you enter are active.

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Address].

4 Touch the key next to “State” and touch the desired state, province, or territory on the list.

If the location that you want to search for is in another state, province, or territory, this changes the area setting.

p Once the state, province, or territory has

been selected, you only have to change states, provinces, or territories when your destination is outside of the state, province, or territory you selected.

5 Touch [City].

6 Enter the city name and then touch [OK].

Searching for and selecting a location

3 Touch the key next to “Country” to select the country.

If the destination is in another country, change the country setting.

p Once the country has been selected, you

only have to change countries when your destination is outside of the country you selected.

The “Select City” screen appears.

7 Touch the desired city name. The “Street Name” screen appears.

# If you touch , the geographic center of the city appears on the map screen.

Chapter

Searching for and selecting a location

8 Enter the street name and then touch [OK].

The “Street Selection” screen appears.

9 Touch the street you want.

10 Enter the house number and then touch [OK].

The “House Number Selection” screen appears.

11 Touch the desired house number range.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page 42.

Finding the location by specifying the house number

p Depending on the search results, some

steps may be skipped.

p When you enter characters, the system will

automatically search the database for all possible options. Only the characters you enter are active.

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Address Search” screen.

2 Touch [House#]. The “Enter House Number” screen appears.

3 Enter the house number and then touch [OK].

The “Enter Street Name” screen appears.

4 Enter the street name and then touch [OK].

The “Street Selection” screen appears.

5 Touch the street you want. The “Enter City Name” screen appears.

6 Enter the city name and then touch [OK].

The “Select City” screen appears.

7 Touch the desired city name.

The “House Number Selection” screen appears.

Searching for and selecting a location

Chapter

If the house number you have entered is not found, a message appears. In that case, all house number ranges are listed after touching [Yes].

# If you touch , the geographic center of the city appears on the map screen.

8 Touch the desired house number range.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page

42.

Setting up a route to your home

If your home location is stored, the route to your home can be calculated by touching a single key.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Return Home].

p If you have not registered your home loca-

tion, a message appears. Touch [Register] to start registration.

= For details, refer to Registering your

home on page 154.

Searching for Points of Interest (POI)

Information about various facilities (Points Of Interest – POI), such as gas stations, parking lots or restaurants, is available. You can search for a POI by selecting the category (or entering the POI Name).

Searching for POIs by preset categories

You can search for POIs with a single touch from the preset category.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [POI].

3 Touch the desired category.

Preset categories

The “POI List” screen appears.

4 Touch the POI you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page 42.

Searching for a POI directly from the name of the facilities

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [POI]. The “POI Search” screen appears.

Searching for and selecting a location

3 Touch [Spell Name].

Chapter

Searching for and selecting a location

4 Enter the POI name and then touch [OK]. The “POI List” screen appears.

# If you change the region to search, touch the state code key and display the “State List” screen to change the setting.

State code key

If the destination is in another country, touch [Country] to change the country setting when the “State List” screen is displayed.

p Once the region has been selected, you

only have to change it when your destination is outside of the region you selected.

5 Touch the POI you want.

The searched location appears on the map screen.

# If you touch [Sort], the order of POI can be sorted.

p Current order is indicated on the upper

right of the screen.

Sorts the items in the list in order by distance from the vehicle position.

Sorts the items in the list alphabetically.

= For the subsequent operations, refer to Set-

ting a route to your destination on page 42.

Searching for a nearby POI

You can search for POIs in your surroundings.

3 Touch [Near Me].

POIs are divided into several categories.

4 Touch the category you want. The “POI List” screen appears.

p If there are more detailed categories within

the selected category, repeat this step as many times as necessary.

5 Touch the POI you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page 42.

Searching for POIs around the destination

p This function is available when the route is

set.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [POI]. The “POI Search” screen appears.

3 Touch [Near Destination].

POIs are divided into several categories.

4 Touch the category you want. The “POI List” screen appears.

p If there are more detailed categories within

the selected category, repeat this step as many times as necessary.

5 Touch the POI you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page 42.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [POI]. The “POI Search” screen appears.

Searching for POIs around the city

You can search for POIs around a specified city.

Searching for and selecting a location

Chapter

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [POI]. The “POI Search” screen appears.

3 Touch [Around City].

4 Enter the city name and then touch [OK]. The “Select City” screen appears.

# If you change the region to search, touch the state code key and display the “State List” screen to change the setting.

State code key

= For the subsequent operations, refer to Set-

ting a route to your destination on page

42.

Selecting destination from

“Favorites”

Storing locations you visit frequently saves time and effort. Selecting an item from the list provides an easy way to specify the position. p This function is not available if no locations

have been registered in “Favorites”.

= For details, refer to Storing favorite locations

on page 47.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites].

3 Touch the entry you want.

Searching for and selecting a location

If the destination is in another country, touch [Country] to change the country setting when the “State List” screen is displayed.

p Once the region has been selected, you

only have to change it when your destination is outside of the region you selected.

5 Touch the desired city name. The “POI List” screen appears.

# If you touch , the geographic center of the city appears on the map screen.

6 Touch the category you want.

POIs are divided into several categories.

7 Touch the POI you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page

42.

Chapter

Searching for and selecting a location

Searching for POIs by using the data on the SD memory card

Creating a customized POI is possible by using the utility program AVIC FEEDS which is available separately, on your PC. (AVIC FEEDS will be available on our website.) Storing the customized POI properly and inserting the SD memory card enables the system to use the data for searches.

1 Store the item into the SD memory card by using the AVIC FEEDS.

2 Insert an SD memory card into the SD card slot.

= For details of the operation, refer to Insert-

ing and ejecting an SD memory card on

page 16.

3 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

4 Touch [AVIC FEEDS]. The “Select POI” screen appears.

5 Touch the item you want.

6 Touch the POI you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page

42.

p “History” can store up to 100 locations. If

the entries reach the maximum, the new entry over writes the oldest one.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [History].

3 Touch the entry you want.

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on page

42.

Searching for a location by coordinates

Entering a latitude and longitude pinpoints the location.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Coordinates].

Selecting a location you searched for recently

The places that you have set as destination or waypoint in the past are automatically stored in “History”. p If no location is stored in Destination His-

tory, you cannot select [History]. (If you perform a route calculation, you can select [History].)

Searching for and selecting a location

3 Touch [East] or [West], and then enter the longitude.

Chapter

To enter W 50°1’2.5” for example, touch [West], [0], [5], [0], [0], [1], [0], [2], and [5].

4 Touch [North] or [South], and then enter the latitude.

To enter N 5°1’2.5” for example, touch [North], [0], [5], [0], [1], [0], [2], and [5].

5 Touch [OK].

The searched location appears on the map screen.

= For the subsequent operations, refer to Set-

ting a route to your destination on the next

page.

Searching for and selecting a location

Chapter

After the location is decided

Setting a route to your destination

1 Search for a location.

= For details, refer to Chapter 6.

After searching for the destination, the Location confirmation screen appears.

2 Touch [OK].

Location confirmation screen

The destination is set, and then route calculation starts. When the route calculation is completed, Route confirmation screen appears.

# If you press the MODE button during route calculation, the calculation is canceled and the map screen appears. # If you touch [Scroll], the map display is chan- ged to the scroll mode. In the scroll mode, you can display the location more precisely to register it, or make settings. # If you touch [Waypoint], the location is added to the “Waypoints List” screen.

p If a destination is not set, [Waypoint] is not

available.

3 Touch [OK].

Route confirmation screen

1 23 4

Sets the displayed route as your route, and starts the route guidance.

1 Travel time to your destination

2 Distance to the destination 3 Estimated fuel cost to your destination

= For details, refer to Inputting the fuel

consumption information for calculating

the fuel cost on page 152.

4 Route calculation condition

# If you touch whether to cancel the calculated route appears. If you touch [Yes], the calculated route is canceled and the map screen appears.

1 2

3 4

1 Multiple Route

= For details, refer to Displaying multiple

routes on this page.

2 Options

= For details, refer to Modifying the route

calculation conditions on the next page.

3 Profile

= For details, refer to Checking the current

itinerary on page 44.

4 Waypoints

= For details, refer to Editing waypoints on

page 45.

, the message confirming

Displaying multiple routes

You can select a desired route from multiple route options. Calculated routes are shown in different colors. p If you set waypoints, you cannot display

multiple routes.

1 Touch [Multiple Route] on the Route confirmation screen.

Multiple route options appear.

2 Touch

Another route is displayed.

3 Touch [OK].

Route confirmation screen appears.

to .

Checking and modifying the current route

Chapter

Displaying the route overview

1 Press the HOME button to display the “Top Menu” screen.

2 Touch [Destination]. The “Destination Menu” screen appears.

3 Touch [Route Overview].

1 2 3

1 Options

= For details, refer to Modifying the route

calculation conditions on this page.

2 Profile

= For details, refer to Checking the current

itinerary on the next page.

3 Waypoints

= For details, refer to Editing waypoints on

page 45.

p “Route Overview” is active only when the

route is set.

4 Touch [OK].

1 Display the “Route Overview” screen.

= For details, refer to Displaying the route

overview on this page.

2 Touch [Options].

3 Touch the desired items to change the route calculation conditions and then touch [OK].

Checking and modifying the current route

The route is recalculated, and the Route confirmation screen appears.

Items that users can operate

Settings marked with an asterisk (*) show that these are default or factory settings.

Route Condition

This setting controls how the route should be calculated by taking into account the time, distance or main road. Determines which condition takes priority for route calculation.

Fast*:

Calculates a route with the shortest travel time to your destination as a priority.

Short:

Calculates a route with the shortest distance to your destination as a priority.

Main Road:

Calculates a route that passes major arterial roads as a priority.

Modifying the route calculation conditions

You can modify the conditions for route calculation and recalculate the current route.

Avoid Toll Road

This setting controls whether toll roads (including toll areas) should be taken into account.

Off*:

Chapter

Checking and modifying the current route

Calculates a route that may include toll roads (including toll areas).

On:

Calculates a route that avoids toll roads (including toll areas). p The system may calculate a route that in-

cludes toll roads even if “On” is selected.

Avoid Ferry

This setting controls whether ferry crossings should be taken into account.

Off*:

Calculates a route that may include ferries.

On:

Calculates a route that avoids ferries. p The system may calculate a route that in-

cludes ferries even if “On” is selected.

Avoid Freeway

This setting controls whether freeways may be included in the route calculation.

Off*:

Calculates a route that may include freeways.

On:

Calculates a route that avoids freeways. p The system may calculate a route that in-

cludes freeways even if “On” is selected.

Time restrictions

This setting controls whether streets or bridges that have traffic restrictions during a certain time should be taken into account. p If you want to set your route to avoid raised

draw bridges, select “On”.

On*:

Calculates a route while avoiding streets or bridges with traffic restrictions during a certain time.

Off:

Calculates a route while ignoring traffic restrictions. p The system may calculate a route that in-

cludes streets or bridges that are subject to traffic restrictions during a certain time even if “On” is selected.

CAUTION

If the time difference is not set correctly, the navigation system cannot consider traffic regulations correctly. Set the time difference correctly. = For details, refer to Setting the time difference

on page 163.

Learning Route

The system learns the travel history of your vehicle for each road. This setting controls whether or not the travel history should be taken into account.

On*:

Calculates a route with the travel history taken into account.

Off:

Calculates a route without the travel history taken into account.

Clear:

Clears the current travel history.

Checking the current itinerary

You can check the route details.

1 Display the “Route Overview” screen.

= For details, refer to Displaying the route

overview on the previous page.

2 Touch [Profile]. The “Route Profile” screen appears.

Checking and modifying the current route

Chapter

Editing waypoints

You can edit waypoints (locations you want to visit on the way to your destination) and recalculate the route so that it passes through these locations.

Adding a waypoint

Up to 5 waypoints can be set, and waypoints and final destination can be sorted automatically or manually.

1 Display the “Route Overview” screen.

= For details, refer to Displaying the route

overview on page 43.

2 Touch [Waypoints]. The “Waypoints List” screen appears.

3 Touch [Add].

The “Select Search method” screen appears. 4 Search for a location.

= For details, refer to Chapter 6.

5 Touch [OK].

6 Touch [OK] on the “Waypoints List” screen.

Checking and modifying the current route

The route is recalculated, and the Route confirmation screen appears.

p If you set waypoints, you cannot display

multiple routes.

Deleting a waypoint

You can delete waypoints from the route and then recalculate the route. (You can delete successive waypoints.)

1 Display the “Route Overview” screen.

= For details, refer to Displaying the route

overview on page 43.

2 Touch [Waypoints]. The “Waypoints List” screen appears.

3 Touch [Delete] next to the waypoint that you want to delete.

The touched waypoint will be deleted from the list.

4 Touch [OK] on the “Waypoints List” screen.

The route is recalculated, and the Route confirmation screen appears.

5 Touch [OK].

The map of the current position appears.

Chapter

Checking and modifying the current route

Sorting waypoints

You can sort waypoints and recalculate the route. p You cannot sort waypoints that you have al-

ready passed.

1 Display the “Route Overview” screen.

= For details, refer to Displaying the route

overview on page 43.

2 Touch [Waypoints]. The “Waypoints List” screen appears.

3 Touch [Sort]. The “Sort Waypoints” screen appears.

4 Touch the waypoint or destination.

Put them in the desired order.

# If you touch [Automatic], the destination and waypoints are sorted in the order of a nearest waypoint from the current location in the direct antenna path.

# If you touch [Clear], waypoint sort is canceled.

5 Touch [OK]. The “Waypoints List” screen appears.

6 Touch [OK] on the “Waypoints List” screen.

The route is recalculated, and the Route confirmation screen appears.

7 Touch [OK].

The map of the current position appears.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Cancel Route].

A message confirming the cancellation of the current route appears.

3 Touch [Yes].

The current route is deleted, and a map of your surroundings reappears.

# If you touch [Skip], the next waypoint is skipped and a new route is calculated. All other waypoints remain. When the route calculation is completed, Route confirmation screen appears.

p [Skip] is available only when a waypoint is

set.

# If you touch [No], the previous screen returns without deleting the route.

Canceling the route guidance

If you no longer need to travel to your destination, follow the steps below to cancel the route guidance.

Registering and editing locations

Chapter

Storing favorite locations

Storing your favorite locations as “Favorites” provides you with the opportunity to save the time and effort of re-entering this information. Stored items can be made available on “Fa- vorites” later.

Registering a location by

“Favorites”

“Favorites” can store up to 400 locations. Home location is counted as one of the items in “Favorites”.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites]. The “Favorites” screen appears.

3 Touch [Add]. The “Select Search method” screen appears.

4 Search for a location.

= For details about the search methods, refer

to Chapter 6.

5 When the map of the location you want to register is displayed, touch [OK]. The location is registered, and then the “Edit Favorite” screen appears.

= For details, refer to Editing the favorite loca-

tion in the list on this page.

6 Touch [OK].

The registration is complete.

Registering a location by scroll mode

p This function is available when “ Registra-

tion” is set in the “Quick Access” menu. = For details, refer to Selecting the “Quick

Access” menu on page 162.

1 Touch and drag the screen to scroll the map to the position that you want to register.

2 Touch to display the “Quick Access” menu.

3 Touch The location is registered, and then the “Edit Favorite” screen appears.

= For details, refer to Editing the favorite loca-

tion in the list on this page.

4 Touch [OK].

The registration is complete.

Editing registered locations

Editing the favorite location in the list

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites]. The “Favorites” screen appears.

3 Touch want to edit. The “Edit Favorite” screen appears.

4 Touch the item that you want to change the setting.

1 2 3

next to the location that you

Registering and editing locations

Chapter

Registering and editing locations

1 Name

You can enter the desired name. p Up to 17 characters can be input for the

name.

2 Phone#

You can edit the registered phone number. To dial the number, touch [Call]. The maximum digits you can enter for the phone number is 15.

3 Icon

You can change the symbol displayed on the map and “Favorites”.

4 Modify Location

You can change the registered location by scrolling the map.

5 Touch [OK].

The registration is complete.

Editing your home

When you have already registered your home, you can edit the information of your home.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites].

p Home location is displayed on the top of

the list.

3 Touch next to the home location.

The “Edit Favorite” screen appears.

4 Touch the item that you want to change the setting.

1 Phone#

To dial the number, touch [Call].

2 Modify Location

You can change the registered location by scrolling the map.

p For home information, [Name] and [Icon]

are not editable.

5 Touch [OK].

The registration is complete.

Sorting the favorite locations in the list

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites]. The “Favorites” screen appears.

3 Touch [Sort].

Each time you touch [Sort] changes the sort order.

p Current order is indicated on the upper

right of the screen.

: Sorts the items in the list in order by distance from the vehicle position.

: Sorts the items in the list in order of the recently used items.

: Sorts the items in the list alphabetically.

Registering and editing locations

Chapter

Deleting a favorite location from the list

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites]. The “Favorites” screen appears.

3 Touch [Delete]. 4 Select the location you want to delete.

A check mark appears next to the selected location.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

5 Touch [Delete].

Exporting and importing favorite locations

Exporting favorite locations

You can export the “Favorites” data to an SD memory card for editing by using the utility program AVIC FEEDS which is available separately, on your PC. p If there is previous data in the SD memory

card, the data is overwritten with new data.

1 Insert an SD memory card into the SD card slot.

= For details of the operation, refer to Insert-

ing and ejecting an SD memory card on

page 16.

2 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

3 Touch [Favorites]. The “Favorites” screen appears.

4 Touch

Data export starts. After the data is exported, the completion message appears.

Registering and editing locations

A message will appear asking you to confirm the deletion.

6 Touch [Yes].

The data you selected is deleted.

# If you touch [No], the deletion is canceled.

5 Touch [OK]. The “Favorites” screen appears.

Importing favorite locations

You can import the locations that you have edited on the utility program AVIC FEEDS to “Fa- vorites”. p When a location that is already registered

in “Favorites” is imported, the location is overwritten.

1 Store the item into the SD memory card by using the AVIC FEEDS.

Chapter

Registering and editing locations

2 Insert an SD memory card into the SD card slot.

= For details of the operation, refer to Insert-

ing and ejecting an SD memory card on

page 16.

3 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

4 Touch [Favorites]. The “Favorites” screen appears.

5 Touch

The message confirming whether to replace the stored items appears.

6 Touch [Yes].

Data import starts. After importing the data is finished, the “Fa-

vorites” screen appears.

Deleting the destination history from the list

Items in “History” can be deleted. All entries in “History” can be deleted at once.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [History].

The “Destination History List” screen appears.

3 Touch [Delete]. The “Delete from History” screen appears.

4 Select the location you want to delete.

A check mark appears next to the selected location.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

5 Touch [Delete].

A message will appear asking you to confirm the deletion.

6 Touch [Yes].

The data you selected is deleted.

# If you touch [No], the deletion is canceled.

Using traffic information

Chapter

p Please note that use of the traffic informa-

tion function on AVIC-X930BT or AVICX9310BT will require that a separately sold

Traffic tuner (ND-TMC10) be connected. You can check real-time traffic information transmitted by the Traffic Management Channel (TMC) of the receive data services (RDS) on the screen. Such traffic information is updated periodically. When the navigation system receives updated traffic information, the navigation system will overlay the traffic information on your map and also display detailed text information when available. When you are traveling along a route and there is traffic information on your current route, the system will detect it and ask you if you would like to be rerouted, or suggest another route automatically. p When used in North America, this product

receives traffic information provided by

Clear Channel Broadcasting, Inc.

up to 100 miles in radius from the vehicle

position. (If there is a lot of traffic informa-

tion around your vehicle, the radius will be

shorter than 100 miles.) p The navigation system provides the follow-

ing functions by using the information

from RDS-TMC service:

! Displaying a list of traffic information

! Displaying traffic information on a map

! Suggesting a route to avoid traffic con-

gestion by using traffic information

p The term “traffic congestion” in this section

indicates the following types of traffic infor-

mation: stop and go, stopped traffic,

closed/blocked roads. This information is

always taken into consideration when

checking your route, and the information

related with these events cannot be turned

off. If you select other traffic information in

[Traffic Settings], the information can be

displayed in a list or on a map.

= For details, refer to Selecting traffic infor-

mation to display on page 55.

Checking all traffic information

Traffic information except traffic flow information is listed on screen.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Traffic]. The “Traffic Menu” screen appears.

3 Touch [Traffic Events].

The “Traffic Event List” screen appears. The list with received traffic information is shown.

4 Select an incident you want to view in detail.

The details of the selected incident are displayed.

p Touching an incident you want to see allows

you to view the detailed information of the incident. If the information cannot be displayed on one screen, touch the remaining information.

p Touching

tion on a map. (Traffic information without positional information cannot be checked on a map.)

# If you touch [Sort], the traffic information can be sorted. Each time you touch the key changes the setting.

: You can sort the traffic information by distance from your current position. When you touch [Traffic Events], the list displayed will be sorted according to the linear distance from the vehicle position to the traffic information.

allows you to check the loca-

or to view

Using traffic information

Chapter

Using traffic information

When you touch [Traffic on Route], the list displayed will be sorted according to the distance from the vehicle position to the traffic information.

: You can sort the traffic information in alphabetical order.

Current order is indicated on the upper right of the screen. # If you touch [Refresh] while new traffic infor- mation is received, current information is changed and old information is removed. The traffic information list is updated to reflect the new situation.

5 Touch .

The previous screen returns.

: You can sort the traffic information according to the incident. The list will be sorted in the order of closed/ blocked roads, traffic congestion, accidents, road works and others.

Checking traffic information on the route

All traffic information on the current route is displayed on screen in a list.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Traffic]. The “Traffic Menu” screen appears.

3 Touch [Traffic on Route].

The “Traffic on Route” screen appears. The method for checking the content displayed on the screen is the same as “Traffic Event List” screen.

= For details, refer to Checking all traffic infor-

mation on the previous page.

How to read traffic information on the map

The traffic event information displayed on the map is as follows.

p A line is displayed only when the map scale

is 2.5 miles (5 km) or lower.

p Icon appears only when the scale on the

map is 10 miles (20 km) or lower. If the scale is changed, the icons are resized according to the selected scale.

Traffic event icon

! with yellow line:

Stop-and-go traffic

with red line:

Stopped traffic

with black line:

Closed/blocked roads

etc.:

Accidents, constructions, etc.

p For meanings of other icons, check them

the “Traffic Type Settings” screen.

= For details of the operations, refer to Select-

ing traffic information to display on page

55.

Viewing the traffic flow

All traffic flow information is displayed on screen in a list.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Traffic]. The “Traffic Menu” screen appears.

3 Touch [Traffic Flow].

A list with traffic flow information that has been received is shown. The list is sorted by distance from your current position. Places (street names) where incidents have occurred are displayed on the list.

Using traffic information

Chapter

4 Select an incident you want to view in detail.

The details of the selected incident are displayed.

p Touching an incident you want to see allows

you to view the detailed information of the incident. If the information cannot be displayed on one screen, touch the remaining information.

p Touching

tion on a map. (Traffic information without positional information cannot be checked on a map.)

# If you touch [Sort], the traffic information can be sorted. Each time you touch the key changes the setting.

You can sort the traffic information by the linear distance from your current position.

You can sort the traffic information in alphabetical order.

You can sort the traffic information by the average speed. The list will be sorted in the order of closed/ blocked roads, traffic congestion, acci-

dents, road works and others. Current order is indicated on the upper right of the screen. # If you touch [Refresh] while new traffic infor- mation is received, current information is changed and old information is removed. The traffic information list is updated to reflect the new situation. # Touch The traffic event information displayed on the map is as follows.

allows you to check the loca-

or to view

! Yellow: average speed in this area is be-

tween 15 mph to 45 mph (24 km/h to 72 km/ h)

! Green: average speed in this area is faster

than 45 mph (72km/h) (An icon without a line will be displayed)

Setting an alternative route to avoid traffic congestion

The navigation system checks at regular intervals whether or not there is the traffic information on your route. If the navigation system detects any traffic congestion on your current route, the system tries to find a better route in the background. p The following types of traffic incidents on

the route will be checked: stop and go, stopped traffic and closed/blocked roads except for closed freeway exits/entrances.

Using traffic information

Traffic flow icon and line

! Red: average speed in this area is slower

than 15 mph (24km/h)

Chapter

Using traffic information

Checking for traffic congestion automatically

If there is information about traffic congestion on your current route and if an alternative route can be found, the navigation system will recommend a new alternative route automatically. In such a case, the following screen will appear.

1 Difference in distance and travel time between

the existing route and new route.

2 Distance from the current position of your ve-

hicle to the point of entry into the new route.

p There is no action if the system cannot find

any traffic congestion information on your route or the system cannot find an alternative.

1 Touch [New].

The recommended route is displayed on the screen.

# If you touch [Current] while the recom- mended route is displayed, the screen switches to the current route display.

2 Touch [OK].

The displayed route is set.

p When no selection is made, the screen re-

turns to the previous screen.

Checking traffic information manually

Touching the notification icon on the map screen allows you to check traffic information on your route while the icon is displayed. The notification icon is only displayed on the navi-

gation map screen if there is any traffic information on your route. p The notification icon is not available if your

vehicle deviates from the route.

1 Set [Show Traffic Incident] to “View”.

= For details, refer to Displaying the traffic no-

tification icon on page 157.

2 Display the map screen.

The icon appears when the system acquires traffic information on the current route.

3 Touch the icon while the icon is displayed.

Notification icon

Traffic information on the current route is displayed on the map screen.

4 Touch [Diversion] to search for an alternative route.

After touching [Diversion], the route is recalculated taking all traffic congestion on your current route into account.

p [Diversion] will be available only when the

system can find traffic congestion.

Using traffic information

Chapter

p Notification icon shows the nearest traffic

information on the route. However, if you

touch [Diversion], the route is recalculated

by taking into account not only this infor-

mation, but also all traffic congestion infor-

mation on the route.

= For details, refer to Checking for traffic con-

gestion automatically on the previous page.

# If you touch [List], the “Traffic on Route” screen appears. # If you touch the map screen returns.

, the message disappears and

Selecting traffic information to display

There are different types of traffic information that can be received via the RDS-TMC service, and you can select which types will be incorporated and displayed on your navigation system.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Traffic]. The “Traffic Menu” screen appears.

3 Touch [Traffic Settings]. The “Traffic Settings” screen appears.

4 Touch [Displayed Traffic Info].

The “Traffic Type Settings” screen appears.

5 Touch the traffic information item to display.

A check mark appears next to the selected traffic information.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

6 Touch [OK].

The selected traffic information icon is added to the screen.

7 Touch [OK].

Selecting preferred RDS-TMC service provider manually

A default preferred TMC service provider for each country has been set. The navigation system tunes to the radio station with good reception among the preferred RDS-TMC service providers. If you want to set another preferred RDS-TMC service provider, you can manually select one from available RDS-TMC service providers.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Traffic]. The “Traffic Menu” screen appears.

3 Touch [TMC Provider Selection].

4 Touch the desired service provider on the list.

After touching a service provider, the system starts tuning to the selected RDS-TMC service provider. When the tuning is successful, the system returns to the map display.

Using traffic information

Chapter

Registering and connecting a Bluetooth device

If your devices feature Bluetooth®technology, this navigation system can be connected to your devices wirelessly. This section describes how to set up a Bluetooth connection.

For details about the connectivity with the devices featuring Bluetooth wireless technology, refer to the information on our website.

Preparing communication devices

This navigation system has a built-in function to use devices featuring Bluetooth wireless technology.

= For details, refer to Notes for hands-free

phoning on page 69.

You can register and use devices that feature the following profiles with this navigation system.

! HFP (Hands Free Profile) ! A2DP (Advanced Audio Distribution Pro-

file)

p If the registered device features both HFP

and A2DP, the hands-free connection is made and then the Bluetooth audio connection is made. If the registered device features either profile, the corresponding connection is made.

p When the navigation system is turned off,

the Bluetooth connection is also disconnected. When the system restarts, the system automatically attempts to reconnect the previously-connected device. Even when the connection is severed for some reason, the system automatically reconnects the specified device (except when the connection is severed due to device operation).

nect it for the first time. A total of 5 devices can be registered. Three registration methods are available:

! Searching for nearby Bluetooth devices ! Pairing from your Bluetooth devices ! Searching for a specified Bluetooth device

p If you try to register more than 5 devices,

the system will ask you to select one of the registered devices to delete.

= For details, refer to Deleting a registered

device on page 59.

Searching for nearby Bluetooth devices

The system searches for available Bluetooth devices near the navigation system, displays them in a list, and registers them for connection.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration].

The “Nearby Device List” screen appears. The system searches for Bluetooth devices waiting for the connection and displays them in the list if a device is found.

p Up to 30 devices will be listed in the order

that the devices are found.

Registering your Bluetooth devices

You need to register your devices featuring Bluetooth wireless technology when you con-

Registering and connecting a Bluetooth device

Chapter

5 Wait until your Bluetooth device appears in the list.

p If you cannot find the Bluetooth device that

you want to connect, check that the device

is waiting for the Bluetooth wireless tech-

nology connection.

6 Touch the Bluetooth device name you want to register.

# If you touch [Search Again], the system starts searching for Bluetooth devices waiting for connection, and displays them in the list format when any devices are detected.

7 Enter the password (the default password is “1111”) using the Bluetooth device. Enter the password while the message “Please follow the instructions on your mobile phone.” appears.

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

Pairing from your Bluetooth devices

You can register the Bluetooth device by setting the navigation system to standby mode and requesting connection from the Bluetooth device.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration]. The “Nearby Device List” screen appears.

5 Touch [Register from mobile phone].

The navigation system waits for a Bluetooth wireless technology connection.

Registering and connecting a Bluetooth device

Chapter

Registering and connecting a Bluetooth device

6 Register the navigation system on your Bluetooth device.

If your device asks you to enter a password, enter the password of the navigation system. When the device is successfully registered, the connection settings are made from the device.

p If registration fails, repeat the procedure

from the beginning.

Searching for a specified Bluetooth device

If you cannot connect your Bluetooth device using the nearby device search and if your Bluetooth device is found in the list, try the following method.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration]. The “Nearby Device List” screen appears.

5 Touch [Select specific devices]. The “Select specific devices” screen appears.

6 Touch the Bluetooth device name to be connected.

The system searches for Bluetooth devices waiting for the connection and displays them in the list if a device is found.

p If you cannot find the desired device name

on the list, touch [Other phones] to search the devices available nearby.

7 Wait until your Bluetooth device appears in the list.

p If you cannot find the Bluetooth device that

you want to connect, check that the device is waiting for the Bluetooth wireless technology connection.

Registering and connecting a Bluetooth device

Chapter

8 Touch the Bluetooth device name you want to register.

# If you touch [Search Again], the system starts searching for Bluetooth devices waiting for connection, and displays them in the list format when any devices are detected.

9 Enter the password (the default password is “1111”) using the Bluetooth device. Enter the password while the message “Please follow the instructions on your mobile phone.” appears.

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

Deleting a registered device

When you have already registered 5 Bluetooth devices and you want to add another one, you must first delete one of the registered devices. p If a registered phone is deleted, all the

phone book entries and call history lists that correspond to the phone will be also cleared.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Registration].

A message prompting you to delete a registered device appears.

4 Touch [OK].

The “Delete from Connection List” screen appears.

5 Touch the Bluetooth device name that you want to delete.

The device is deleted.

Connecting a registered Bluetooth device manually

The navigation system automatically connects the Bluetooth device selected as the target of connection. However, connect the Bluetooth device manually in the following cases: ! Two or more Bluetooth devices are regis-

tered, and you want to manually select the device to be used.

! You want to reconnect a disconnected

Bluetooth device.

Registering and connecting a Bluetooth device

Chapter

Registering and connecting a Bluetooth device

! Connection cannot be established automa-

tically for some reason. If you start connection manually, carry out the following procedure. You can also connect the Bluetooth device by having the navigation system detect it automatically.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Connection]. The “Connection List” screen appears.

5 Touch the name of the device that you want to connect.

The “Select Profile” screen appears.

6 Touch the profile that you want to connect.

Connects the device as the hands-free phone and the Bluetooth audio player.

! Audio:

Connects the device as Bluetooth audio player.

! Handsfree:

Connects the device as the hands-free phone.

Connection starts. When a connection is successfully established, a connection complete message appears and the map screen returns by touching [OK].

p To cancel the connection to your device,

touch [Cancel].

p If connection fails, check whether your de-

vice is waiting for a connection and then retry.

Setting for priority connecting

The selected device is set for priority connecting. And one of the following icons is indicated next to the device name.

: Appears when the device is registered so that it will be preferentially paired with both the hands-free and Bluetooth audio connection.

: Appears when the device is registered so that it can be preferentially paired with the hands-free connection.

: Appears when the device is registered so that it will be preferentially paired with the Bluetooth audio connection.

You can select the following profiles:

! Handsfree and Audio:

Using hands-free phoning

Chapter

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

If your cellular phone features Bluetooth technology, this navigation system can be connected to your cellular phone wirelessly. Using this hands-free function, you can operate the navigation system to make or receive phone calls. You can also transfer the phone book data stored in your cellular phone to the navigation system. This section describes how to set up a Bluetooth connection and how to operate a cellular phone featuring Bluetooth technology on the navigation system.

For details about the connectivity with the devices featuring Bluetooth wireless technology, refer to the information on our website.

Displaying the phone menu

Use the “Phone Menu” if you connect the cellular phone to the navigation system for utilization. = For details, refer to Chapter 11.

1 Press the HOME button to display the “Top Menu” screen.

2 Touch [Phone]. The “Phone Menu” screen appears.

21 3 45

1 Name of connected cellular phone 2 Network name of the cellular phone com-

pany

3 Strength of the Bluetooth connection be-

tween the navigation system and the device

4 Reception status of the cellular phone 5 Battery status of the cellular phone

Making a phone call

You can make a phone call in many different ways.

Direct dialing

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on this page.

2 Touch [Dial Pad]. The “Dial Input” screen appears.

3 Touch the number keys to enter the phone number.

The phone number that was input is displayed. When the input is complete, [OK] becomes active.

# If you touch , the entered number is deleted one digit at a time from the end of the number. Press and hold to delete all digits. # If you touch

4 Touch [OK] to make a call.

p To cancel the call after the system starts

dialing, touch

5 Touch to end the call.

, the previous screen returns.

Using hands-free phoning

Chapter

Using hands-free phoning

Making a call home easily

You can call home without taking the time to enter the phone number if the phone number has been registered.

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on the previous page.

2 Touch [Call Home].

Dialing home starts.

p If you have not registered your home num-

ber, a message appears. Touch [Register] to start registration.

= For details, refer to Registering your

home on page 154.

Calling a number in the phone book

You can select and call a contact from the phone book entries transferred to the navigation system. p Before using this function, you need to

transfer the phone book entries stored in your cellular phone to the navigation system.

= For details, refer to Transferring the phone

book on page 65.

Searching for a contact to call on the alphabet tabs

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on the previous page.

2 Touch [Contacts]. The “Contacts List” screen appears.

3 Touch alphabet tabs.

The screen jumps to the top of the page displaying the entries that start with the selected letter or number.

p Touching [#ABCDE] displays all entries that

start with symbols or numbers.

p Touching [Others] displays the page includ-

ing entries that are not assigned to any of

the other tabs.

4 Touch the desired name on the list.

The “Contacts Type Selection” screen appears.

5 Touch the desired entry on the list to make a call.

6 Touch

to end the call.

Calling a number by searching by name

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on the previous page.

2 Touch [Contacts]. The “Contacts List” screen appears.

3 Touch [Search].

The “Contacts Name Search” screen appears. You can search by the names registered in the “Contacts List” screen.

Using hands-free phoning

Chapter

4 Enter the desired name and then touch [OK].

The “Contacts Name Search Results” screen appears.

5 Touch the desired name on the list.

The “Contacts Type Selection” screen appears.

6 Touch the desired entry on the list to make a call.

7 Touch

to end the call.

Dialing from the history

The most recent calls made (dialed), received and missed are stored in the call history list. You can browse the call history list and call numbers from it. p Each call history saves 30 calls per regis-

tered cellular phone. If the number of calls exceeds 30, the oldest entry will be deleted.

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on page 61.

2 Touch [Received Calls], [Dialed Calls] or [Missed Calls].

The selected call history list appears.

3 Touch an entry on the list.

Dialing starts.

p To cancel the call after the system starts

dialing, touch

# If you touch [Detail], the “Detailed Informa- tion” screen appears.

You can check the details of the party before making a phone call.

4 Touch to end the call.

Dialing a favorite location

You can make a call to an entry stored in the

“Favorites” list.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Favorites]. The “Favorites” screen appears.

3 Touch want to make a call. The “Edit Favorite” screen appears.

4 Touch [Call] to make a call.

p To cancel the call after the system starts

dialing, touch

5 Touch to end the call.

next to the location that you

Dialing a facility’s phone number

You can make a call to facilities with phone number data. p You cannot make a call to locations or POIs

that have no phone number data.

1 Display the “Destination Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

Using hands-free phoning

Chapter

Using hands-free phoning

2 Touch [POI]. The “POI Search” screen appears.

3 Search for the POI. The “POI List” screen appears.

= For details of the operation, refer to Search-

ing for Points of Interest (POI) on page 37.

4 Touch next to the POI that you want to call. The “POI Information” screen appears.

5 Touch [Call] to make a call.

p To cancel the call after the system starts

dialing, touch

6 Touch to end the call.

Dialing from the map

You can make a call by selecting the icon of a registered location or a POI icon from the map screen. p You cannot make a call to locations or POIs

that have no phone number data.

1 Scroll the map, and place the cursor on an icon on the map.

2 Touch The “Information List” screen appears.

3 Touch the POI you want. The “POI Information” screen appears.

4 Touch [Call] to make a call.

p To cancel the call after the system starts

dialing, touch

5 Touch to end the call.

Receiving a phone call

You can perform hands-free answering by using the navigation system.

Answering an incoming call

The system informs you that it is receiving a call by displaying a message and producing a ring sound.

p You can set the system to automatically an-

swer incoming calls. If not set to automatically answer incoming calls, you will have to answer the calls manually.

= For details, refer to Answering a call

automatically on page 67.

p If the voice on the other end of the call is

too quiet to hear, you can adjust the volume of the received voice.

= For details, refer to Setting the Volume

for Guidance and Phone on page 165.

p The registered name appears if the phone

number of the received call is already registered in “Contacts”.

p Depending on the caller ID service, the

phone number of the received call may not be displayed. “Unknown” appears instead.

1 To answer an incoming call, touch

The operation menu during a call appears.

# If you touch [Vol –]or[Vol +], you can adjust the ring tone volume. # If you touch jected. The rejected call is recorded in the missed call history list.

= For details, refer to Dialing from the history

on the previous page.

, an incoming call is re-

Using hands-free phoning

Chapter

2 Touch to end the call.

The call ends.

p You may hear a noise when you hang up

the phone.

# If you touch [Vol –]or[Vol +], you can adjust the volume when talking. # If you touch [Close Menu], the operation menu during call is minimized. To display the menu again, touch

p A maximum of 1 000 entries can be trans-

ferred per cellular phone. If the entries exceed 1 000, the extra entries will not be transferred. If more than one number is registered for one person, such as work place and home, each number may be counted separately.

p Each entry can hold up to 5 phone num-

bers.

p Depending on the cellular phone that is

connected to this navigation system via Bluetooth technology, this navigation system may not be able to display the phone book correctly. (Some characters may be garbled.)

p If the phone book in the cellular phone con-

tains image data, the phone book may not be correctly transferred.

p The transferred data cannot be edited on

the navigation system.

1 Connect the cellular phone that has the phone book to transfer.

= For details, refer to Connecting a registered

Bluetooth device manually on page 59.

2 Touch [Contacts Transfer] on the “Phone Menu” screen.

Using hands-free phoning

Transferring the phone book

You can transfer the phone book entries from your cellular phone to the phone book of the navigation system. p Depending on the cellular phone, phone

book may be called Contacts, Business Card or something else.

p With some cellular phones, it may not be

possible to transfer the entire phone book at once. In this case, transfer addresses one at a time from your phone book using your cellular phone.

p If you connect the cellular phone featuring

auto-synchronization function, phone book transfer or synchronization will be automatically performed.

3 Check that the following screen is displayed, and operate your cellular phone to transfer the phone book entries.

When data transfer is finished, a message asking whether you want to transfer more data appears. Touch [Yes] to continue the transfer.

Chapter

Using hands-free phoning

4 Touch [No].

The transferred data is imported to the navigation system. When the data is successfully imported, an import complete message is displayed and the “Contacts List” screen appears.

p It may take time depending on how many

entries will be transferred.

Deleting registered contacts

1 Display the “Phone Menu” screen.

= For details, refer to Displaying the phone

menu on page 61.

2 Touch [Contacts]. The “Contacts List” screen appears.

3 Touch [Delete]. The “Delete from Contacts” screen appears.

4 Touch the entry you want to delete.

A check mark appears next to the entry.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

5 Touch [Delete].

The message confirming whether to delete the entry appears.

6 Touch [Yes].

The entry is deleted.

# If you touch [No], the deletion is canceled.

Changing the phone settings

Editing the device name

You can change the device name to be displayed on your cellular phone. (Default is

“PIONEER NAVI”.) 1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Device Name].

The keyboard to enter the name appears.

4 Touch and enter the new name by using the keyboard.

p Up to 16 characters can be entered for a de-

vice name.

5 Touch [OK].

The name is changed.

Editing the password

You can change the password to be used for authentication on your cellular phone. (Default is “1111”.) p Four to eight characters can be entered for

a password.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Password]. The “Set Password” screen appears.

to delete the current name,

Using hands-free phoning

Chapter

4 Touch to delete the current password, and enter the new password by using the keyboard.

5 Touch [OK].

The password is changed.

Stopping Bluetooth wave transmission

You can stop transmission of electric waves by turning off the Bluetooth function. If you do not use the Bluetooth wireless technology, we recommend selecting “Off”.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Bluetooth On/Off].

Each touch of [Bluetooth On/Off] changes the settings as follows:

! On (default):

Turns on Bluetooth function.

! Off:

Turns off Bluetooth function.

Echo canceling and noise reduction

When you are operating hands-free phoning in the vehicle, you may hear an undesirable echo. This function reduces the echo and noise while you are using hands-free phoning, and maintains a certain sound quality.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Echo Cancel].

Each touch of [Echo Cancel] changes the settings as follows:

! On (default):

Activates echo canceling and noise reduction.

! Off:

Deactivates echo canceling and noise reduction.

Answering a call automatically

The navigation system automatically answers incoming calls to the cellular phone, so you can answer a call while driving without taking your hands off the steering wheel.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Auto Answer Preference].

The “Auto Answer Preference” screen appears.

4 Touch the desired option.

Using hands-free phoning

On this screen, you can select the following items:

! Off (default):

No automatic response. Respond manually.

! Immediately:

Answers immediately.

! After 3 seconds:

Answers after three seconds.

! After 6 seconds:

Answers after six seconds.

! After 10 seconds:

Answers after ten seconds.

Setting the automatic rejection function

If this function is on, the navigation system automatically rejects all incoming calls.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

Chapter

Using hands-free phoning

3 Touch [Refuse All Calls].

Each touch of [Refuse All Calls] changes the settings as follows:

! Off (default):

Accepts all incoming calls.

! On:

Rejects all incoming calls.

p If both “Refuse All Calls” and “Auto An-

swer Preference” are activated, “Refuse All Calls” takes priority and all incoming

calls are automatically rejected.

p If “Refuse All Calls” is set to “On”, rejected

incoming calls will not be stored in the missed call list.

Clearing memory

You can clear the memory of each item that corresponds to the connected cellular phone: phone book, dialed/received/missed call history list and preset dials.

1 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Clear Memory]. The “Clear Memory” screen appears.

4 Touch the desired option.

# If you touch [Clear All], all the data is cleared that correspond to the connected cellular phone.

5 Touch [Yes].

Data on the selected item is cleared from this navigation system’s memory.

# If you do not want to clear the memory that you have selected, touch [No].

Updating the Bluetooth wireless technology software

Update files will be available for download in the future. You will be able to download the latest update from an appropriate website to your PC. p Before you download the files and install

the update, read through the instructions on the website. Follow the instructions on the website for steps until [Firmware up-

date] becomes active.

1 Store the updated files into the SD memory card.

2 Insert an SD memory card into the SD card slot.

= For details of the operation, refer to Insert-

ing and ejecting an SD memory card on

page 16.

3 Display the “Settings Menu” screen.

= For details of the operations, refer to Screen

switching overview on page 22.

4 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

5 Touch [Firmware update].

The current version is displayed.

On this screen, you can select the following items:

! Contacts:

Clears the registered phone book.

! Received Calls List:

Clears the received call history list.

! Dialed Calls List:

Clears the dialed call history list.

! Missed Calls List:

Clears the missed call history list.

6 Touch [Firmware update].

The message confirming whether or not to start the update will appear.

Using hands-free phoning

Chapter

7 Touch [Yes].

Update starts.

8 Wait until the upgrade process is complete.

A message will appear after the update is complete.

9 Touch [OK].

The message disappears, and the map screen returns.

10 Eject the SD memory card.

Notes for hands-free phoning

General notes

! Connection to all cellular phones featuring

Bluetooth wireless technology is not guaranteed.

! The line-of-sight distance between this na-

vigation system and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology. However, the actual transmission distance may be shorter than the estimated distance, depending on the usage environment.

! With some cellular phones, the ring sound

may not be output from the speakers.

! If private mode is selected on the cellular

phone, hands-free phoning may be disabled.

Registration and connection

! Cellular phone operations vary depending

on the type of cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.

! With cellular phones, phone book transfer

may not work even though your phone is paired with the navigation system. In that case, disconnect your phone, perform pairing again from your phone to the navigation system, and then perform the phone book transfer.

Making and receiving calls

! You may hear a noise in the following situa-

tions: — When you answer the phone by using

the button on the phone.

— When the person on the other end of

line hangs up the phone.

! If the person on the other end of the phone

call cannot hear the conversation due to an echo, decrease the volume level for handsfree phoning. This may reduce the echo.

! With some cellular phones, even if you

press the accept button on the cellular phone when a call comes in, hands-free phoning may not be performed.

! The registered name appears if the phone

number of the received call is already registered in the phone book. When one phone number is registered under different names, the name that comes first in the phone book is displayed.

! If the phone number of the received call is

not registered in the phone book, the phone number of the received call appears.

The received call history and the dialed number history

! Calls made or editing performed only on

your cellular phone will not be reflected to the dialed number history or phone book in the navigation system.

! You cannot make a call to the entry of an

unknown user (no phone number) in the received call history.

! If calls are made by operating your cellular

phone, no history data will be recorded in the navigation system.

Phone book transfers

! If there are more than 1 000 phone book en-

tries on your cellular phone, all entries may not be downloaded completely.

! With some cellular phones, it may not be

possible to transfer all items in the phone book at one time. In this case, transfer items one by one from your cellular phone.

! Depending on the cellular phone, this navi-

gation system may not display the phone book correctly. (Some characters may be garbled, or first and last names may be reversed.)

! If the phone book in the cellular phone con-

tains image data, the phone book may not be transferred correctly. (Image data cannot be transferred from the cellular phone.)

! Depending on the cellular phone, phone

book transfer may not be available.

Using hands-free phoning

Chapter

Basic operations of the AV source

This chapter describes the basic operations of the AV source.

You can play or use the following sources with your Pioneer navigation system.

! Tuner (HD Radio tuner) (*1) ! FM (*2) ! AM (*2) ! CD ! ROM (in MP3, AAC, WMA) ! DVD-Video ! DivX ! USB ! SD

The following sources can be played back or used by connecting an auxiliary device.

! HD Radio (HD Radio tuner) (*2) ! iPod ! Pandora ! Aha Radio ! Bluetooth audio ! XM Tuner ! SIRIUS Tuner ! AV input 1 (AV1) ! AV input 2 (AV2) ! External unit 1 (EXT1) ! External unit 2 (EXT2)

p (*1) A source available only on AVIC-

Z130BT.

p (*2) Sources available on AVIC-X930BT or

AVIC-X9310BT.

Displaying the AV operation screen

% Press the MODE button when the map screen is displayed.

p The AV operation screen can also be dis-

played by touching [AV Source & Con- tents] on the “Top Menu”.

Selecting a source

Source icons

1 Touch, then drag any source icons up or down to display additional source icons.

The AV source icons will scroll, and previously hidden icons will appear.

2 Tap the icon of the source you want to select.

The operation screen of the selected source appears.

p The currently selected source icon is high-

lighted.

Operating list screens (e.g. iPod list screen)

This describes the operations when a list screen is displayed. p For information on how to display the list

screen, refer to the descriptions within the desired source portion of this manual.

Switching between the AV operation screen and the list screen

The following example describes how to switch between the AV operation screen and the artist list screen of iPod.

Basic operations of the AV source

Chapter

1 Touch the appropriate key to display the list that you want.

2 Touch the key on the right edge of the screen.

The AV operation screen returns.

Selecting an item

1 Scroll the list by dragging items up or down to display the item you want to select.

Basic operations of the AV source

p Flicking a list item enables you to quickly

scroll through the list. To stop scrolling, gently touch the list.

2 Tap the item.

p The item currently selected is highlighted.

Returning to the previous display

% Touch to return to the previous screen.

Chapter

Using the radio (FM)

p This function is available for AVIC-X930BT

and AVIC-X9310BT. You can listen to the radio by using the navigation system. This section describes operations for radio (FM).

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Tap [FM] on the left edge of the screen to display the “FM” screen.

When the tuner has been tuned in to an HD Radio broadcasting, [FM] cannot be selected.

3 Use the touch panel keys on the screen to control the radio.

= For details, refer to Using the touch panel

keys on the next page.

Reading the screen

23 6

54 7

8 9

8 Program service name or frequency indi-

cator

Shows the frequency of the preset item. If the program service name can be obtained, the program service name is shown instead of the frequency.

9 Preset number indicator

Shows what preset item has been selected.

1 Source icon

Shows which source has been selected.

2 Band indicator

Shows which band the radio is tuned to: FM1

to FM3.

3 Program service name indicator

Shows the program service name (station

name) of the current station.

4 Signal level indicator 5 Frequency indicator 6 STEREO indicator

Shows that the frequency selected is being

broadcast in stereo.

7 Current time

Using the radio (FM)

Using the touch panel keys

Chapter

Using the radio (FM)

1 Performs manual tuning

To tune manually, touch [o]or[p] briefly. The frequencies move up or down one step at a time.

Performs seek tuning

To perform seek tuning, touch and hold [o] or [p] for about one second and then release. The tuner will scan frequencies until a broadcast strong enough for good reception is found.

p You can cancel seek tuning by touching

either [o]or[p] briefly.

p If you keep holding [o]or[p], you

can skip broadcasting frequencies. Seek tuning will start at the time you release the keys.

2 Selects a preset channel

The keys can be used to switch preset channels. Scroll by dragging the keys up or down to display the preset channel you want to select, and tap the channel.

p The lower keys and the upper keys ap-

pear only when the preset channel is selected.

3 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

4 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on the next page.

5 Switches between the AV operation

screen and the preset list display

You can switch the screen display according to your preference.

= For details of the operation, refer to

Switching between the AV operation screen and the list screen on page 70.

6 Selects an FM band

Tapping the key repeatedly switches between the following FM bands: FM1, FM2,orFM3.

p This function is convenient for preparing

different preset lists for each band.

Storing and recalling broadcast frequencies

With a tap of any of the preset tuning keys (“P1” to “P6”), you can easily store up to six broadcast frequencies for later recall (also with the tap of a key).

Chapter

Using the radio (FM)

1 Select a frequency that you want to store in memory.

2 Display the preset channel list.

= For details, refer to Switches between the

AV operation screen and the preset list display on the previous page.

3 Keep touching a preset tuning key [P1] to [P6].

Preset list display

Preset tuning keys

= For details of the list operations, refer to Op-

erating list screens (e.g. iPod list screen) on

page 70.

The selected radio station has been stored in memory. The next time you tap the same preset tuning key “P1” to “P6”, the radio station frequencies are recalled from memory.

p Up to 18 FM stations, six for each of the

three FM bands can be stored in memory.

Operating by hardware buttons

Pressing the TRK button

You can move preset channels up or down.

Pressing and holding the TRK button

You can perform seek tuning.

Using advanced functions

% Touch on the “FM” screen.

The “Function” menu appears.

1 2

1 Stores the strongest broadcast frequen-

cies

2 Tunes in strong signals

= For details of each function, refer to sec-

tions below with the relative titles.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies under the preset tuning keys “P1” to “P6” and, once stored there, you can tune into them with the touch of a key. p Storing broadcast frequencies with BSM

may replace broadcast frequencies you have already saved.

1 Touch The “Function” menu appears.

2 Touch [BSM].

3 Touch [Start] to begin a search.

“BSM” begins to flash. While “BSM” is flashing, the six strongest broadcast frequencies will be stored under the preset tuning keys “P1” to “P6” in order of their signal strength. When this is complete, “BSM” stops flashing.

# If you touch [Stop], the storage process is canceled.

on the “FM” screen.

Tuning in strong signals

Local seek tuning allows you to tune in only those radio stations with sufficiently strong signals for good reception.

Using the radio (FM)

1 Touch on the “FM” screen. The “Function” menu appears.

2 Touch [Local].

3 Touch [On] to turn local seek tuning on.

# If you touch [Off], local seek tuning is turned off.

4 Touch [cPrev] or [Nextd] to set the sensitivity.

There are four levels of sensitivity for FM. Level: 1 — 2 — 3 — 4

p The level “4” setting allows reception of only

the strongest stations, while lower settings let you receive weaker stations.

Chapter

Using the radio (FM)

Chapter

Using the radio (AM)

p This function is available for AVIC-X930BT

and AVIC-X9310BT. You can listen to the radio using this navigation system. This section describes operations for radio (AM).

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Tap [AM] on the left edge of the screen to display the “AM” screen.

When the tuner has been tuned in to an HD Radio broadcasting, [AM] cannot be selected.

3 Use the touch panel keys on the screen to control the radio.

= For details, refer to Using the touch panel

keys on the next page.

Reading the screen

1 Source icon

Shows which source has been selected.

2 Signal level indicator 3 Frequency indicator 4 Current time 5 Frequency indicator

Shows the frequency of the preset item.

6 Preset number indicator

Shows what preset item has been selected.

5 6

Using the radio (AM)

Using the touch panel keys

Chapter

Using the radio (AM)

1 Performs manual tuning

To tune manually, touch [o]or[p] briefly. The frequencies move up or down one step at a time.

Performs seek tuning

To perform seek tuning, touch and hold [o] or [p] for about one second and then release. The tuner will scan frequencies until a broadcast strong enough for good reception is found.

p You can cancel seek tuning by touching

either [o]or[p] briefly.

p If you keep holding [o]or[p], you

can skip broadcasting frequencies. Seek tuning will start at the time you release the keys.

2 Selects a preset channel

The keys can be used to switch preset channels. Scroll by dragging the keys up or down to display the preset channel you want to select, and tap the channel.

p The lower keys and the upper keys ap-

pear only when the preset channel is selected.

3 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

4 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on the next page.

5 Switches between the AV operation

screen and the preset list display

You can switch the screen display according to your preference.

= For details of the operation, refer to

Switching between the AV operation screen and the list screen on page 70.

Storing and recalling broadcast frequencies

With a tap of any of the preset tuning keys (“P1” to “P6”), you can easily store up to six broadcast frequencies for later recall (also with the tap of a key).

1 Select a frequency that you want to store in memory.

Chapter

Using the radio (AM)

2 Display the preset channel list.

= For details, refer to Switches between the

AV operation screen and the preset list display on the previous page.

3 Keep touching a preset tuning key [P1] to [P6].

Preset list display

Preset tuning keys

= For details of the list operations, refer to Op-

erating list screens (e.g. iPod list screen) on

page 70.

The selected radio station has been stored in memory. The next time you tap the same preset tuning key “P1” to “P6”, the radio station frequencies are recalled from memory.

Operating by hardware buttons

Pressing the TRK button

You can move preset channels up or down.

Pressing and holding the TRK button

You can perform seek tuning.

Using advanced functions

% Touch on the “AM” screen.

The “Function” menu appears.

1 2

1 Stores the strongest broadcast frequen-

cies

2 Tunes in strong signals

= For details of each function, refer to sec-

tions below with the relative titles.

Storing the strongest broadcast frequencies

may replace broadcast frequencies you have already saved.

1 Touch The “Function” menu appears.

2 Touch [BSM].

3 Touch [Start] to begin a search.

# If you touch [Stop], the storage process is canceled.

on the “AM” screen.

Tuning in strong signals

Local seek tuning allows you to tune in only those radio stations with sufficiently strong signals for good reception.

Using the radio (AM)

1 Touch on the “AM” screen. The “Function” menu appears.

2 Touch [Local].

3 Touch [On] to turn local seek tuning on.

# If you touch [Off], local seek tuning is turned off.

4 Touch [cPrev] or [Nextd] to set the sensitivity.

There are two levels of sensitivity for AM. Level: 1 — 2

p The level “2” setting allows reception of only

the strongest stations, while lower settings let you receive weaker stations.

Chapter

Using the radio (AM)

Chapter

HD Radio™reception

You can listen to the radio by using the navigation system. This section describes operations for HD Radio reception.

For AVIC-X930BTand AVIC-X9310BT users

This HD Radio Ready system) is ready to receive HD Radio broadcasts when connected to the GEX-P20HD, GEX-P10HD, sold separately. p For details concerning operation, refer to

the HD Radio tuner’s operation manual.

™

receiver (this navigation

p AVIC-Z130BT shows “Tuner” and AVIC-

X930BT or AVIC-X9310BT shows “HD

Radio” as the source icon.

This chapter describes operation proce-

dures for AVIC-Z130BT.

HD Radio broadcasting

HD Radio broadcasting is high quality audio and data services. HD Radio broadcasting is brought to you by your local FM or AM stations. HD Radio broadcasting features the following:

! High quality audio ! FM multicasting ! Data services

AM band

Analog AM

Analog AM Digital AM

FM band

Analog FM

Analog FM Digital FM

Analog FM Digital FM-1ch

Digital FM-2ch

Digital FM-3ch

: Main channel : Sub channel

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Tap [Tuner] on the left edge of the screen to display the “Tuner” screen.

3 Use the touch panel keys on the screen to control the radio.

= For details, refer to Using the touch panel

keys on page 82.

HD Radio™reception

Chapter

Reading the screen

12 6

1 Band indicator

Shows which band the radio is tuned to: FM1, FM2, FM3 or AM.

2 Detailed information

= For details, refer to Switching the display

on page 83.

3 Signal level indicator 4 Frequency indicator 5 Signal type indicator

Shows the type of signal currently being received. If a digital broadcasting is received, “D” appears. Otherwise, “A” appears.

6 Blending mode indicator

= For details, refer to Switching the recep-

tion mode on page 85.

7 Song info reception indicator*

Shows the reception status of song information.

54 783 9

Indicator Meaning

The number of song information items stored in the navigation system is displayed. The icon is displayed on all operation screens of AV sources.

Appears when song information is transferred to iPod. The icon is displayed on all operation screens of AV sources.

9 Current time a Preset number indicator

Shows what preset item has been selected.

b Seek type indicator

= For details, refer to Switching the seek

mode on page 85.

c Multicasting indicator

Shows the number of multicast channels in the current frequency.

d Source icon

Shows which source has been selected.

p Items marked with asterisk (*) appear only

on AVIC-Z130BT.

HD Radio

™

reception

Indicator Meaning

Appears when the navigation system receives song information and can store it. The icon is displayed on the operation screen of the HD Radio receiver.

Appears when the navigation system is storing song information. The icon is displayed on all operation screens of AV sources.

8 Song info status indicator*

Shows the status of the song information stored in the navigation system.

Chapter

HD Radio™reception

Using the touch panel keys

4 3

1 Performs manual tuning

To tune manually, touch [o]or[p] briefly.

The frequencies move up or down one step at

a time.

Performs seek tuning

To perform seek tuning, touch and hold [o]

or [p] for about one second and then re-

lease. The tuner will scan frequencies until a

broadcast strong enough for good reception

is found.

p You can cancel seek tuning by touching

either [o]or[p] briefly.

p When an analog station is received, tun-

ing up or down is conducted within analog broadcasts.

If a digital broadcast is not yet received, tuning up or down tunes into the next or previous analog station.

Analog FM

Analog FM Digital FM-1ch

Digital FM-2ch

Digital FM-3ch

Analog FM

2 Selects a preset channel

The keys can be used to switch preset channels. Scroll by dragging the keys up or down to display the preset channel you want to select, and tap the channel.

p The lower keys and the upper keys ap-

pear only when the preset channel is selected.

3 Stores song information to an iPod*

HD Radio™reception

Chapter

Touch this key when receiving the song information of the song on air, and you can store the song information on your iPod.

= For details, refer to Storing song informa-

tion to an iPod (iTunes Tagging) on the

next page.

4 Switches the display

= For details, refer to Switching the display

on this page.

5 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

6 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on the next page.

7 Switches between the AV operation

screen and the preset list display

You can switch the screen display according to your preference.

= For details of the operation, refer to

Switching between the AV operation screen and the list screen on page 70.

8 Selects a band

Tap the key repeatedly until the desired band is displayed: FM1, FM2, FM3,orAM.

p This function is convenient for preparing

different preset lists for each band.

p Items marked with asterisk (*) appear only

on AVIC-Z130BT.

3 Keep touching a preset tuning key [Preset 1] to [Preset 6].

Preset list display

Preset tuning keys

= For details, refer to Operating list screens (e.

g. iPod list screen) on page 70.

The selected radio station has been stored in memory. The next time you tap the same preset tuning key “Preset 1” to “Preset 6”, the radio station frequencies are recalled from memory.

p Up to 18 FM stations, six for each of the

three FM bands, as well as six AM stations, can be stored in memory.

Operating by hardware buttons

Pressing the TRK button

You can move preset channels up or down.

HD Radio

™

reception

Storing and recalling broadcast frequencies

With a tap of any of the preset tuning keys (“Preset 1” to “Preset 6”), you can easily store up to six broadcast frequencies for later recall (also with the tap of a key).

1 Select a frequency that you want to store in memory.

2 Display the preset channel list.

= For details, refer to Switches between the

AV operation screen and the preset list display on this page.

Pressing and holding the TRK button

You can perform seek tuning.

Switching the display

Desired information can be displayed.

% Touch [Disp].

AVIC-Z130BT

Touching [Disp] repeatedly switches between the following settings: Channel name — Artist name — Song title — Program type AVIC-X930BT, AVIC-X9310BT The contents and order of the setting display depend on the HD Radio tuner.

Chapter

HD Radio™reception

p Only when the tuner has been tuned in to

an HD Radio station, can the display be changed.

p When the tuner has been tuned in to an HD

Radio station, default display is changed into station name instead of frequency.

Scrolling the detailed information

You can turn the detailed information scroll mode on and off.

% Touch and hold [Disp].

Storing song information to an iPod (iTunes Tagging)

p This function is available for AVIC-Z130BT

only. You can store the song information to the iPod, when the navigation system has received the song information. The songs will show up in a playlist called “Tagged playlist” in iTunes next time you sync your iPod. You can directly buy the songs via the navigation system. Depending on when the song information is stored, information on the songs before and after the song on air may also be stored. Be sure to confirm the song before you purchase. p The iTunes Tagging function is available

during reception of digital broadcasts. p This function can be operated with the fol-

lowing iPod models:

! iPod touch 4th generation

! iPod touch 3rd generation

! iPod touch 2nd generation

! iPod touch 1st generation

! iPod classic

! iPod nano 6th generation

! iPod nano 5th generation

! iPod nano 4th generation

! iPod nano 3rd generation

! iPhone 4

! iPhone 3GS

! iPhone 3G

! iPhone

p The version of iTunes must be 7.4 or higher.

1 Tune into the digital broadcast station.

When song information is received, displayed while the desired song is being broadcast, and [Ta g ] becomes active.

= For details, refer to Song info reception in-

dicator* on page 81.

2 Touch [Tag].

The information on the song on air is stored in the navigation system. When completed, displayed.

p The song information for up to 50 songs

can be stored on this navigation system. Depending on when the song information is stored, information for the previous song or song after the current song may also be stored.

3 Connect your iPod.

The song information stored in the navigation system is transferred to your iPod.

p If the iPod is already connected, every time

you touch [Tag], the song information will be transferred to your iPod. When the song information is stored on your iPod,

p When transfer of song information is com-

pleted, the information stored in the navigation system will be automatically cleared.

p If you turn off the navigation system or dis-

connect the iPod while transferring song information to it, the transfer may not complete.

p While the song information is stored in the

navigation system, transfer to iPod is not possible.

turns off and is

disappears.

Using advanced functions

% Touch on the “Tuner” screen.

The “Function” menu appears.

HD Radio™reception

Chapter

1 2 3 4

1 Stores the strongest broadcast frequen-

cies

2 Switches the seek mode 3 Tunes in strong signals 4 Switches the reception mode

= For details of each function, refer to sec-

tions below with the relative titles.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies under the preset tuning keys “Preset 1” to “Preset 6” and, once stored there, you can tune in to these frequencies with the touch of a key.

1 Touch

on the “Tuner” screen.

2 Touch [BSM].

3 Touch [Start] to begin a search.

“BSM” begins to flash. While “BSM” is flashing, the six strongest broadcast frequencies will be stored under the preset tuning keys “Preset 1” to “Preset 6” in order of their signal strength. When this is complete, “BSM” stops flashing.

p To cancel the storage process, touch

[Stop].

p Storing broadcast frequencies with BSM

may replace broadcast frequencies you have already saved.

Switching the seek mode

You can select the method of seek tuning.

1 Touch

on the “Tuner” screen.

2 Touch [Seek] to select the desired setting.

! All:

Seeks stations from both analog and digital broadcasting.

! HD:

Seeks from digital broadcasting only.

p If you select “HD” on this setting while

[Blending] is set to “Analog”, the setting on [Blending] turns to “D/A Auto” automatically.

Tuning in strong signals

Local seek tuning allows you to tune in only those radio stations with sufficiently strong signals for good reception.

1 Touch

on the “Tuner” screen.

2 Touch [Local].

3 Touch [On] to turn local seek tuning on. To turn local seek tuning off, touch [Off].

4 Touch [cPrev] or [Nextd] to set the sensitivity.

There are four levels of sensitivity for FM and two levels for AM: FM: 1 — 2 — 3 — 4 AM: 1 — 2

p The FM “4” (AM “2”) setting allows recep-

tion of only the strongest stations, while lower settings let you receive weaker stations.

Switching the reception mode

If a digital broadcast reception condition gets poor, the tuner automatically switches to the analog broadcast of the same frequency level by default. If you want to prevent a frequent automatic switching, switch this setting to [Analog].

1 Touch

on the “Tuner” screen.

HD Radio

™

reception

Chapter

HD Radio™reception

2 Touch [Blending] to switch the reception mode.

! Analog:

Receives analog broadcasting only.

! D/A Auto:

Automatically switches to the analog broadcast of the same frequency level as the digital broadcast.

p If you select “Analog” on this setting while

[Seek] is set to “HD”, the setting on [Seek] turns to “All” automatically.

Playing audio CDs

Chapter

You can play a normal music CD using the built-in drive of the navigation system. This section describes how.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Insert the disc you want to play into disc-loading slot.

Playback starts from the first track of the CD.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, tap [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 70.

3 Use the touch panel keys on the screen to control the disc.

= For details, refer to Using the touch panel

keys on the next page.

Reading the screen

1 Source icon

Shows which source has been selected.

2 Playback condition indicator

Indicates the current playback condition.

Scanning tracks of a CD

Indicator Meaning

Cancels the scan play.

Plays the beginning of each track in the current repeat play range for about 10 seconds.

Playing tracks in random order

Indicator Meaning

Does not play tracks in random order.

Plays all tracks in the current disc in random order.

Setting a repeat play range

Indicator Meaning

Repeats the current disc.

Repeats just the current track.

3 Current track information

! : Artist name

Shows the artist name of the track currently playing (when available).

: Album title Shows the title of the album of the current track (when available).

: Track title Shows the title of the track currently playing (when available).

! Play time

Shows the elapsed playing time within the current track.

p “-------” is displayed if there is no corre-

sponding information.

4 Current time 5 Track information

! Track number indicator

Shows the track number and the total number of tracks in the current repeat range.

! Track title indicator

Playing audio CDs

Chapter

Playing audio CDs

Using the touch panel keys

123

1 Scans tracks of a CD

Scan play is performed by touching only one key.

= For details of the operation, refer to

Scans tracks of a CD on the next page.

2 Plays tracks in random order

All of the tracks in the disc can be played at random by touching only one key.

= For details of the operation, refer to

Plays tracks in random order on the next page.

3 Sets a repeat play range

The repeat play range can be changed by touching only one key.

= For details, refer to Changes the repeat

range on the next page.

4 Selects a track to play

Scrolling the keys up or down displays tracks, and tapping a track starts playback. Tapping the lower key during random playback skips to the next track. Tapping the upper key jumps to the start of the current track.

5 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

6 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on the next page.

7 Playback and Pause

Touching [f] switches between playback and pause.

8 Selects a track from the list

Touching the key displays the list which lets you see the list of track titles on a disc. You can play a track on the list by tapping it.

p “-------” is displayed if there is no corre-

sponding information.

= For details, refer to Operating list screens

(e.g. iPod list screen) on page 70.

9 Switches the media file type played

= For details, refer to Switches the

media file type played on page 93.

Playing audio CDs

Chapter

Operating by hardware buttons

Pressing the TRK button

You can skip tracks forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Using advanced functions

% Touch on the “CD” screen.

The “Function” menu appears.

1 2 3 4

1 Changes the repeat range

Each touch of [Repeat] changes the setting as follows:

! Disc: Repeats the current disc. ! Track: Repeats just the current track.

p If you perform track search or fast for-

ward or reverse, track repeat playback is automatically canceled.

2 Plays tracks in random order

Each touch of [Random] turns it on or off. p If you turn the random play on when the

repeat play range is set to “Track”, the repeat play range changes to “Disc” automatically.

3 Scans tracks of a CD

Each touch of [Scan] turns it on or off. Scan play lets you hear the first 10 seconds of each track on the CD. When you find the track you want, touch [Scan] to turn scan play off. p After scanning is finished, normal play-

back of the tracks will begin again.

p If you turn the scan play on when the re-

peat play range is set to “Track”, the re-

peat play range changes to “Disc”

automatically.

4 Uses “Sound Retriever” function

“Sound Retriever” function automatically enhances compressed audio and restores rich sound. Each touch of [Sound Retriever] changes the setting as follows: ! MODE 1: Activates “Sound Retriever”

function.

! MODE 2: Activates “Sound Retriever”

function.

! Off: Deactivates “Sound Retriever”

function.

p “MODE 2” has a stronger effect than

“MODE 1” and is more effective when

playing back highly compressed audio

data.

Playing audio CDs

Chapter

Playing music files on ROM

You can play a disc that contains compressed audio files using the built-in drive of the navigation system. This section describes these operations. p In the following description, the MP3,

WMA, AAC files are collectively referred to as “Compressed audio file”.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Insert the disc you want to play into disc-loading slot.

Playback starts from the first file of the ROM.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, tap [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 70.

3 Use the touch panel keys on the screen to control the disc.

= For details concerning operations, refer to

Using the touch panel keys on page 92.

Reading the screen

1 Source icon

Shows which source has been selected.

2 Playback condition indicator

Indicates the current playback condition.

Scanning folders and files

Indicator Meaning

Cancels the scan play.

Plays the first audio files of each folder for about 10 seconds when the repeat range is set to “Disc”. Plays the beginning of each audio file in the current folder for about 10 seconds when the repeat range is set to “Folder”.

Playing files in random order

Indicator Meaning

Does not play files in random order.

Plays all audio files in the current repeat play range in random order.

Setting a repeat play range

Indicator Meaning

Repeats all compressed audio files.

Repeats just the current file.

Repeats the current folder.

3 Current file information

! : Folder name

Shows the folder name currently playing.

: Artist name Shows the artist name currently playing (when available).

: Album title Shows the title of the album of the current file (when available).

: Track title Shows the title of the track currently playing (when available). p If the title of a track is not available,

the file name appears.

! Play time

Shows the elapsed playing time within the current file.

Playing music files on ROM

p “-------” is displayed if there is no corre-

sponding information.

4 Current time 5 File information

! File number indicator ! File name indicator ! File type indicator

Shows the type of audio files.

Chapter

Playing music files on ROM

Chapter

Playing music files on ROM

Using the touch panel keys

123

1 Scans folders and files

Scan play is performed by touching only one key.

= For details of the operation, refer to

Scans folders and files on the next page.

2 Plays files in random order

The files in the current repeat play range can be played at random by touching only one key.

p If the disc contains a mixture of various

media file types, all tracks or files within the current part (“ CD” or “ROM”) are played randomly.

= For details, refer to Plays files in ran-

dom order on the next page.

3 Sets a repeat play range

The repeat play range can be changed by touching only one key.

= For details, refer to Changes the repeat

range on the next page.

4 Selects a file to play

Scrolling the keys up or down displays files, and tapping a file starts playback. Tapping the lower key during random playback skips to the next file. Tapping the upper key jumps to the start of the current file.

5 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

6 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on the next page.

7 Playback and Pause

Touching [f] switches between playback and pause.

8 Selects a file from the list

Touching the key displays the list which lets you see the list of track titles or folder names on a disc.

p If the title of a track is not available, the

file name appears.

Tapping a folder on the list shows its content. You can play a file on the list by tapping it.

Playing music files on ROM

Chapter

= For details, refer to Operating list screens

(e.g. iPod list screen) on page 70.

Touching displays the content of the upper folder (parent folder). If the uppermost folder is listed,

9 Switches the media file type played

When playing a disc containing a mixture of various media file types, you can switch between media file types to play. Tap the key repeatedly to switch between the following media file types: CD (audio data (CD-DA)) — ROM (compressed audio file) — DivX (DivX video files)

cannot be used.

Operating by hardware buttons

Pressing the TRK button

You can skip files forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Using advanced functions

% Touch on the “ROM” screen.

The “Function” menu appears.

1 2 3 4

1 Changes the repeat range

Each touch of [Repeat] changes the setting as follows: ! Disc: Repeats all compressed audio

files.

! Track: Repeats just the current file.

! Folder: Repeats the current folder.

p If you select another folder during repeat

play, the repeat play range changes to “Disc”.

p If you perform fast reverse or fast for-

ward during “Track”, the repeat play range changes to “Folder”.

p When “Folder” is selected, it is not pos-

sible to playback a subfolder of that folder.

p When playing discs with compressed

audio files and audio data (CD-DA), repeat play is performed within the currently playing data session even if “Disc” is selected.

2 Plays files in random order

Each touch of [Random] turns it on or off. When the random play is turned on, the files in the current repeat play range are randomly played. p If you turn the random play on when the

repeat play range is set to “Track”, the repeat play range changes to “Folder” automatically.

3 Scans folders and files

Scan play lets you hear the first 10 seconds of each file. Scan play is performed in the current repeat play range. Each touch of [Scan] turns it on or off. When you find the file you want, touch [Scan] to turn the scan play off. p After completion of file or folder scan-

ning, normal playback of the files will begin again.

p If you turn the scan play on when the re-

peat play range is set to “Track”, the repeat play range changes to “Folder” automatically.

p If you turn the scan play on while the re-

peat play range is set to “Disc”, scan play is performed for only the first file of each folder.

4 Uses “Sound Retriever” function

“Sound Retriever” function automatically enhances compressed audio and restores rich sound.

Playing music files on ROM

Chapter

Playing music files on ROM

Each touch of [Sound Retriever] changes the setting as follows: ! MODE 1: Activates “Sound Retriever”

function.

! MODE 2: Activates “Sound Retriever”

function.

! Off: Deactivates “Sound Retriever”

function.

p “MODE 2” has a stronger effect than

“MODE 1” and is more effective when

playing back highly compressed audio data.

Playing a DVD-Video

Chapter

You can play a DVD-Video using the built-in drive of the navigation system. This section describes operations for playing a DVD-Video.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 70.

2 Insert the disc you want to play into disc-loading slot.

The source changes and then playback will start.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, tap [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 70.

3 Use the touch panel keys on the screen to control the disc.

= For details, refer to Using the touch panel

keys on the next page.

Reading the screen

1 5 6 72 34

4 Audio channel indicator

Shows the current audio channel type, such as “Mch” (Multi-channel).

5 Subtitle number indicator

Shows the subtitle number currently selected.

6 Subtitle language indicator

Shows the subtitle language currently selected.

7 Viewing angle indicator

Shows what viewing angle has been selected.

8 Current time 9 Digital sound format indicator

Shows which digital sound format (surround sound format) has been selected.

a Play time indicator

Shows the elapsed playing time within the current title.

b Source icon

Shows which source has been selected.

Playing a DVD-Video

1 Title number indicator

Shows the title number currently playing.

2 Audio track indicator

Shows the audio track number and audio language currently selected.

3 Chapter number indicator

Shows the chapter number currently playing.

Chapter

Playing a DVD-Video

Using the touch panel keys

Playback screen (page 1)

Playback screen (page 2) Playback screen (page 3)

g f e

p With some discs, the icon 9 may be dis-

played, meaning that the operation is invalid.

1 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on page 99.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 175.

3 Switches the display

Touching [Disp] changes the indication on the information plate as follows: Disc information display — Repeat range and L/R select display

4 Switches to the next page of touch panel

keys

5 Displays the DVD menu keypad

= For details, refer to Using DVD menu by

touch panel keys on page 98.

6 Playback and Pause

Touching [f] switches between playback and pause.

7 Hides the touch panel keys and informa-

tion of the current video

Touching [Hide] shows only the current video.

p If you want to display the touch panel

keys and information of the current video again, touch anywhere on the LCD screen.

654321

jih

Playing a DVD-Video

Chapter

8 Skips forward or backward

Touching [p] skips to the start of the next chapter. Touching [o] once skips to the start of the current chapter. Touching it twice quickly will skip to the previous chapter.

9 Stops playback a Displays the DVD menu

You can display the menu by touching [Menu] or [Top Menu] while a disc is playing. Touch- ing either of these keys again lets you start playback from the location selected from the menu. For details, refer to the instructions provided with the disc.

b Resumes playback (Bookmark)

= For details, refer to Resuming playback

(Bookmark) on this page.

c Frame-by-frame playback (or slow-motion

playback)

= For details, refer to Frame-by-frame play-

back on page 99.

= For details, refer to Slow motion playback

on page 99.

d Fast reverse or forward

Touch and hold [m]or[n] to perform fast reverse or forward. If you keep touching [m]or[n] for five seconds, fast reverse/fast forward continues even if you release either of these keys. To resume playback at a desired point, touch [f] or opposite key of [m]or[n] which you touched.

e Skips the title forward or backward

Touching [d] skips to the start of the next title. Touching [c] skips to the start of the previous title.

f Performs an operation (such as resuming)

that is stored on the disc

When using a DVD that has a point recorded that indicates where to return to, the DVD returns to the specified point and begins playback from that point.

g Searches for a desired scene and starts

playback from a specified time

= For details, refer to Searching for a speci-

fic scene and starting playback from a specified time on the next page.

h Changes the audio track (Multi-audio)

Each touch of [Audio] switches between audio tracks recorded in the disc.

p DTS audio format cannot be output, so

select an audio track other than DTS audio format.

p Display indications such as MPEG-A

and Mch describe the audio track recorded on the DVD. This indication may not be the same as the actual sound currently output from the navigation system.

i Changes the subtitle (Multi-subtitle)

Each touch of [S.Title] switches between the subtitle languages recorded on the disc.

j Changes the viewing angle (Multi-angle)

Each touch of [Angle] switches between viewing angles.

p During playback of a scene shot from

multiple angles, the angle icon

displayed. Turn the angle icon display on or off using the “DVD/DivX® Setup” menu.

= For details, refer to Setting the angle icon

display on page 105.

Resuming playback (Bookmark)

The Bookmark function lets you resume playback from a selected scene the next time the disc is loaded.

% Touch [BookM.].

You can bookmark one point for each of up to five discs. If you try to memorize another point for the same disc, the older bookmark will be overwritten by the newer one.

p To clear the bookmark on a disc, touch and

hold [BookM.].

Playing a DVD-Video

Chapter

Playing a DVD-Video

Searching for a specific scene and starting playback from a specified time

You can search for the scene you want by specifying a title or a chapter, and the time. p Chapter search and time search are not

available when disc playback has been stopped.

1 Touch [Search] and then touch [Title] (title), [Chapter] (chapter), [Time] (time).

2 Touch the keys to input the target number or time and then touch [Enter].

For titles, chapters

! To select 3, touch [3] and [Enter] in order. ! To select 10, touch [1] and [0] and [Enter]in

order.

For time (time search)

! To select 5 minutes 3 seconds, touch [5],

[min], [3], [sec] and [Enter] in order.

! To select 71 minutes 00 seconds, touch [7],

[1], [min] and [Enter] in order.

! To select 100 minutes 05 seconds, touch

[1], [0], [0], [5], [sec] and [Enter] in order.

p To cancel an input number, touch [Clear].

To cancel the input numbers, touch and hold [Clear].

Direct number search

You can use this function when you need to enter a numerical command during DVD playback.

3 Touch [0] to [9] to input the desired number.

4 While the input number is displayed, touch [Enter].

Operating the DVD menu

You can operate the DVD menu by touching the menu item on the screen directly. p This function can be used when the

key is displayed on the lower right corner of the LCD screen.

p This function may not work properly with

some DVD disc content. In that case, use touch panel keys to operate the DVD menu.

p If you touch the screen while

played, the touch panel keys will not be displayed.

1 Touch the screen to display the touch panel keys.

2 Touch [Top Menu] or [Menu] to display touch panel keys to operate the DVD menu.

3 Touch the desired menu item.

# If you touch , the touch panel keys for selecting the menu item are displayed.

is dis-

Using DVD menu by touch panel keys

If items on the DVD menu appear, the touch panel keys may overlay them. If so, select an item using those touch panel keys.

1 Touch [a], [b], [c]or[d] to select the desired menu item.

1 Touch [Search].

2 Touch [10Key].

Playing a DVD-Video

Chapter

p If the touch panel keys for DVD menu selec-

tion disappear, touching anywhere on the screen, then touch keys are displayed again.

. The touch panel

2 Touch [Enter].

Playback starts from the selected menu item. The way to display the menu differs depending on the disc.

# If you touch [Position], the display position of touch panel keys is changed each time you touch it. # If you touch [Hide], the touch panel keys dis- appear and the select a menu item by touching it.

icon is displayed. You can

Frame-by-frame playback

This lets you move ahead one frame at a time during pause.

% Touch [r] during pause.

Each time you touch [r], you move ahead one frame.

p To return to normal playback, touch [f]. p With some discs, images may be unclear

during frame-by-frame playback.

p Reversed slow motion playback is not possi-

ble.

Operating by hardware buttons

Pressing the TRK button

You can skip chapters forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Using advanced functions

% Touch on the “DVD-V” screen.

The “Function” menu appears.

1 2 3

Playing a DVD-Video

Slow motion playback

This lets you slow down playback speed.

1 Touch and hold [r] until played during playback.

The icon

is displayed, and forward slow

motion playback begins.

p To return to normal playback, touch [f].

2 Touch [q]or[r] to adjust playback speed during slow motion playback.

Each time you touch [q]or[r] it changes the speed in four steps in the following order:

1/16 f 1/8 f 1/4 f 1/2

p There is no sound during slow motion play-

back.

p With some discs, images may be unclear

during slow motion playback.

is dis-

1 Changes the repeat range

Each touch of [Repeat] changes the setting as follows:

! Disc: Plays throughout the current disc. ! Chapter: Repeats just the current chap-

ter.

! Title: Repeats just the current title. p If you perform chapter (title) search, fast

forward, fast reverse or slow motion playback, the repeat play range changes to “Disc”.

p This function is not available when disc

playback has been stopped.

2 Selects audio output

When playing DVDs recorded with LPCM audio, you can switch the audio output. Touch [L/R Select] repeatedly until the desired audio output appears on the display.

Chapter

Playing a DVD-Video

Each touch of [L/R Select] changes the settings as follows:

! L+R: Left and right ! L: Left ! R: Right ! Mix: Mixing left and right

p This function is not available when disc

playback has been stopped.

3 DVD setup adjustments

= For details, refer to Displaying DVD/

DivX® Setup menu on page 105.

100

Pioneer AVIC-X930BT, AVIC-X9310BT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
