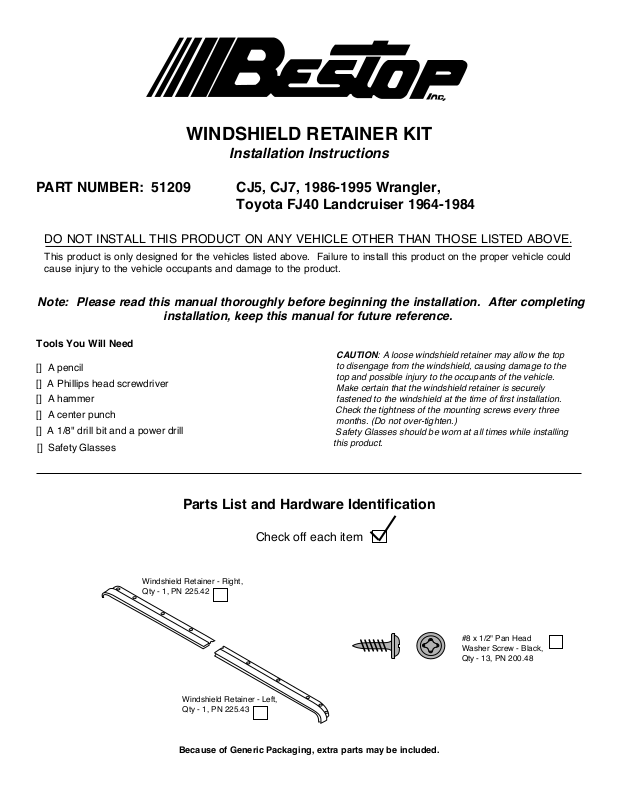

Pavement Ends 51209 User Manual
WINDSHIELD RETAINER KIT
Installation Instructions
PART NUMBER: 51209
CJ5, CJ7, 1986-1995 Wrangler,
Toyota FJ40 Landcruiser 1964-1984
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper vehicle could
cause injury to the vehicle occupants and damage to the product.
Note: Please read this manual thoroughly before beginning the installation. After completing
installation, keep this manual for future reference.
Tools You Will Need
CAUTION: A loose windshield retainer may allow the top
[] A pencil
[] A Phillips head screwdriver
[] A hammer
[] A center punch
[] A 1/8" drill bit and a power drill
[] Safety Glasses
to disengage from the windshield, causing damage to the
top and possible injury to the occupants of the vehicle.
Make certain that the windshield retainer is securely
fastened to the windshield at the time of first installation.
Check the tightness of the mounting screws every three
months. (Do not over-tighten.)
Safety Glasses should be worn at all times while installing
this product.
Parts List and Hardware Identification
Windshield Retainer - Right,
Qty - 1, PN 225.42
Windshield Retainer - Left,
Qty - 1, PN 225.43
Because of Generic Packaging, extra parts may be included.
Check off each item
#8 x 1/2" Pan Head
Washer Screw - Black,
Qty - 13, PN 200.48
51209 1
Windshield Retainer
Step One
Center the Windshield Retainers on top of the windshield frame and butt
the retainers up against the top lip of the windshield frame. Use the
retainers as a template to mark, center punch and drill eleven 1/8
inch holes (Note: drill one 1/8 inch hole between the two halves of
the retainer.) Use eleven #8 x 1/2 Pan Head Washer Screws (see
Figure 1).
Figure 10
Eleven Holes required to
mount Windshield
Retainer.
Windshield Channel
Opening toward
front of vehicle
Front
Windshield Channel
Opening toward
front of vehicle
